Unextendible Entangled Bases With a Fixed Schmidt Number Based on Generalized Weighing Matrices

We systematically study the constructions of unextendible entangled bases with a fixed Schmidt number k (UEBk) in a bipartite system ${\mathbb{C}}^d\otimes {\mathbb{C}}^{d^{\prime }}$. Motivated by the methods of [J. Phys. A 52 : 375,303, 2019], we construct (dd’ − v)-member UEBks in ${\mathbb{C}}^d\otimes {\mathbb{C}}^{d^{\prime }}$ by using generalized weighing matrices and thus generalize the results of [arXiv: 1909.10043, 2020]. We also present the corresponding expressions of our constructions and graphically illustrate UEB3s in ${\mathbb{C}}^5\otimes {\mathbb{C}}^6$ and ${\mathbb{C}}^6\otimes {\mathbb{C}}^6$.

1 Introduction

Entanglement is an essential resource of quantum information processing, and it presents the nature of quantum mechanics [1, 2]. It is also related to some fundamental problems in quantum mechanics such as reality and non-locality [3, 4]. Quantum entanglement has significant applications in many fields such as quantum teleportation [5], quantum dense coding [6], quantum tomography [7], and the mean kings problem [8].

In order to characterize quantum entanglement, the analysis of various bases in the state space has attracted extensive attention in recent years. The notion of unextendible product basis (UPB) in multipartite quantum systems has been deeply studied. The member of a UPB is not perfectly distinguishable by local positive-operator-valued measurements and classical communication, which shows the non-locality without entanglement [9]. As the generalization of UPB, the notion of unextendible maximally entangled basis (UMEB) has been proposed [10]. Since then, many results of UMEBs in arbitrary bipartite spaces are established: no UMEB in ${\mathbb{C}}^2\otimes {\mathbb{C}}^2$, 6-member UMEB in ${\mathbb{C}}^3\otimes {\mathbb{C}}^3$, 12-member UMEB in ${\mathbb{C}}^4\otimes {\mathbb{C}}^4$ [10], 30-member UMEB in ${\mathbb{C}}^6\otimes {\mathbb{C}}^6$ [11], d²-member UMEB in ${\mathbb{C}}^d\otimes {\mathbb{C}}^{d^{\prime }}(d^{\prime }/2<d<d^{\prime })$, and qd²-member UMEB in ${\mathbb{C}}^d\otimes {\mathbb{C}}^{d^{\prime }}(d^{\prime }=qd+r,0<r<d)$ [12–14] and different members of UMEBs in ${\mathbb{C}}^{pd}\otimes {\mathbb{C}}^{q{d}^{\prime }}(p\le q)$ [15–18].

In [19], Guo first proposed the unextendible entangled basis with a fixed Schmidt number k (UEBk) in ${\mathbb{C}}^d\otimes {\mathbb{C}}^{d^{\prime }}(2\le k<d<d^{\prime })$; thereafter, the concepts and constructions of entangled basis with Schmidt number k (EBk) and special entangled basis with Schmidt number k (SEBk) have been presented successively [20]. Later, Guo also generalized the construction of UEBk from bipartite systems to multipartite quantum systems [21].

Li et al [22] first constructed the SEBks in ${\mathbb{C}}^d\otimes {\mathbb{C}}^{d^{\prime }}$ via some generalized weighing matrices, which is a breakthrough structure for dd’ is not the multiple of k. Furthermore, Wang [23] combines the decomposition of the whole matrix space and generalized weighing matrices to consrtuct the SUEBks, which provides a useful way to construct different members of UEBks in ${\mathbb{C}}^d\otimes {\mathbb{C}}^{d^{\prime }}$, but it still has some imperfections and unmentioned issues, such as the bounds of the space dimension, the order, and the concrete mathematical expression of the UEBks.

In this paper, we mainly focus on the construction of UEBks in bipartite systems. Motivatied by the method of [22, 23], using generalized weighing matrices, we provide flexible and diverse constructions of different members of UEBks. We first introduce some related notions and terminologies; then, we propose three different ways to construct (dd’ − v)-member UEBks in ${\mathbb{C}}^d\otimes {\mathbb{C}}^{d^{\prime }}$ and present the corresponding mathematical expressions. We also give some examples of UEB3 in ${\mathbb{C}}^5\otimes {\mathbb{C}}^6$ and ${\mathbb{C}}^6\otimes {\mathbb{C}}^6$.

2 Preliminaries

In order to better comprehend the notion of UEBk in ${\mathbb{C}}^d\otimes {\mathbb{C}}^{d^{\prime }}$, we first introduce the concept of EBk and SEBk in ${\mathbb{C}}^d\otimes {\mathbb{C}}^{d^{\prime }}$. In the sequel, we always assume that d ≤ d′.

The Schmidt number of a bipartite pure state $|\varphi \rangle \in {\mathbb{C}}^d\otimes {\mathbb{C}}^{d^{\prime }}$, denoted by Sr (|ϕ⟩), is defined as the length of its Schmidt decomposition: if its Schmidt decomposition is $|\varphi \rangle ={\sum }_{n=0}^{k-1}{\lambda }_n|e_n\rangle |e_n^{\prime }\rangle$, then its Schmidt number is k, that is, Sr (|ϕ⟩) = k. It is clear that Sr (|ϕ⟩) = rank (ρ₁) = rank (ρ₂), where ρ_i denotes the reduced state of the ith part of ρ = |ϕ⟩⟨ϕ|. If an orthonormal basis is constructed by such |ϕ_i⟩s, then it is called an entangled basis with Schmidt number k (EBk) [20]. Particularly, if it is an EBk and all the Schmidt coefficients of {|ϕ_i⟩}s equal to $\frac{1}{\sqrt{k}}$, then it is called a special entangled basis with Schmidt number k (SEBk). It is obvious that SEBk becomes a product basis (PB) when k = 1 and a maximally entangled basis (MEB) when k = d.

A set of states $\{|{\varphi }_i\rangle \in {\mathbb{C}}^d\otimes {\mathbb{C}}^{d^{\prime }}:i=\mathrm{1,2},\dots ,m,m<d{d}^{\prime }\}$ is called an m-number unextendible entangled bases with Schmidt number k (UEBk) [19] if and only if

(i) Sr (|ϕ_i⟩) = k and |ϕ_i⟩, i = 1, 2, … , m are all entangled states;

(ii) ⟨ϕ_i|ϕ_j⟩ = δ_ij;

(iii) if ⟨ϕ_i|ψ⟩ = 0 for all i = 1, 2, … , m, then Sr (|ϕ_i⟩) ≠ k.

Actually, there is a similar concept in matrix spaces [20]. Let {|k⟩} and {|ℓ′⟩} be the standard computational bases of ${\mathbb{C}}^d$ and ${\mathbb{C}}^{d^{\prime }}$, respectively, and ${\{|{\varphi }_i\rangle \}}_{i=1}^{d{d}^{\prime }}$ be an orthonormal basis of ${\mathbb{C}}^d\otimes {\mathbb{C}}^{d^{\prime }}$. Let M_d×d′ be the Hilbert space of all d × d′ complex matrices equipped with the inner product defined by ⟨A|B⟩ = Tr (A^†B) for any A, B ∈ M_d×d′. If ${\{A_i\}}_{i=1}^{d{d}^{\prime }}$ constitutes a Hilbert–Schmidt basis of M_d×d′, where ⟨A_i|A_j⟩ = dδ_ij, then there is a one-to-one correspondence between {|ϕ_i⟩} and {A_i} as follows [20]:

$|{\varphi }_i\rangle =\sum _{k,\ell }{a}_{kl}^{\left(i\right)}|k\rangle |{\ell }^{\prime }\rangle \in {\mathbb{C}}^d\otimes {\mathbb{C}}^{d^{\prime }}\iff A_i=\left[\sqrt{d}{a}_{k\ell }^{\left(i\right)}\right]\in {\mathcal{M}}_{d\times d^{\prime }},$

$Sr\left(|{\varphi }_i\rangle \right)=rank\left(A_i\right),\langle {\varphi }_i|{\varphi }_j\rangle =\frac{1}{d}\mathrm{Tr}\left(A_i^{†}{A}_j\right),(1)$

A set of d × d′ complex matrices {A_i: i = 1, 2, … , n, n ≤ dd′} is called an unextendible rank-k Hilbert–Schmidt basis of M_d×d′ [24] if and only if

(i) rank (A_i) = k for any i;

$(ii)\mathrm{Tr}(A_i^{†}{A}_j)={\delta }_{i,j}$;

(iii) if $\mathrm{Tr}(A_i^{†}B)=0$, i = 1, 2, … , n, then rank(B) ≠ k.

It turns out that {A_i: rank (A_i) = k} is an unextendible Hilbert–Schmidt basis of M_d×d′ if and only if {ϕ_i} is a UEBk of ${\mathbb{C}}^d\otimes {\mathbb{C}}^{d^{\prime }}$. Therefore, the UEBk problem is equivalent to the unextendible rank-k Hilbert–Schmidt basis of the associated matrix space.

We next introduce the definition and properties of a generalized weighing matrix, which has been effectively used to construct SEBks in ${\mathbb{C}}^d\otimes {\mathbb{C}}^{d^{\prime }}$ [22]. As a continuation, we will use it to construct UEBks in ${\mathbb{C}}^d\otimes {\mathbb{C}}^{d^{\prime }}$ in this paper.

Definition 1:. [22] A generalized weighing matrix is a square a × a matrix A all of whose non-zero entries are nth roots of unity such that AA^† = kI_a. It follows that $1/\sqrt{k}A$ is a unitary matrix so that AA^† = kI_a and every row and column of A has exactly k non-zero entries. k is called the weight, and n is called the order of A. Denoting the set of all such generalized weighing matrices by W(n, k, a).It is worth noting that the generalized weight matrix does not always exist; for the existence and detailed discussion of the generalized weight matrix, we can refer to Ref. [22].

Lemma 1:. [22] Let a, b be two positive integers with a great common divisor being g. For any integers d, d′ ≥ max{a, b}, if g|dd’, then dd’ can be written as dd’ = sa + pb, where $s,p\in \mathbb{N}$.

3 Three Kinds of (dd’ − v)-Member UEBks

Let M_d×d′ be the Hilbert space of all d × d′ complex matrices, V be a subspace of M_d×d′ such that each matrix in V is a d × d′ matrix ignoring v elements, depending on the position occupied by the ignored v elements: 1) all the ignored elements occupy N columns, 2) all the ignored elements occupy N rows, and 3) all the ignored elements occupy rows and columns; we construct three kinds of (dd’ − v)-member UEBks.

3.1 All the Ignored Elements Occupy N Columns

In this section, we first construct the (dd’ − v)-member UEBk in ${\mathbb{C}}^d\otimes {\mathbb{C}}^{d^{\prime }}$, in which all the v ignored elements occupied N columns in the matrix, and then present some examples of UEB3s in ${\mathbb{C}}^5\otimes {\mathbb{C}}^6$.

Theorem 1:. Let k be a positive integer, $b,n\in \mathbb{N}$ such that W(n, k, b) is non-empty, and gcd(k, b) = 1 (the greatest common divisor of k and b). Let V be a subspace of M_d×d′ such that each matrix in V is a d × d′ matrix ignoring v elements which occupied N rows with N = 1, … , k − 1 and d − N ≥ b and dd’ − v = s ⋅ k + p ⋅ b with 1 ≤ v ≤ d′N. If min{d, d′}≥ max{k, b}, then there exists dd’ − v member UEBk in ${\mathbb{C}}^d\otimes {\mathbb{C}}^{d^{\prime }}$.Proof. First, for different values of p and s, we construct different pure states as follows: when p ≥ 1 and s ≥ 1, set

$|{\varphi }_{m.l}\rangle =\left\{\begin{array}{c}\frac{1}{\sqrt{k}}{\sum }_{u=0}^{k-1}{\xi }_k^{mu}|r_{lk+u}\rangle ,0⩽l⩽s-1,\hfill \\ \frac{1}{\sqrt{k}}{\sum }_{u=1}^b{x}_{ij}^{\left(t\right)}|r_{sk-1+\left(l-s\right)b+u}\rangle ,s⩽l⩽s+p-1,\hfill \end{array}\right.(2)$

when s = 0, p ≥ 1, set

$|{\varphi }_{m.l}\rangle =\frac{1}{\sqrt{k}}\sum _{u=1}^b{x}_{ij}^{\left(t\right)}|r_{sk-1+\left(l-s\right)b+u}\rangle ,0⩽l⩽p-1,(3)$

when p = 0, s ≥ 1, set

$|{\varphi }_{m.l}\rangle =\frac{1}{\sqrt{k}}\sum _{u=0}^{k-1}{\xi }_k^{mu}|r_{lk+u}\rangle ,0⩽l⩽s-1,(4)$

where ${\xi }_k=e^{\frac{2\pi \sqrt{-1}}{k}},m=\mathrm{0,1},\dots ,k-1$; $x_{i,j}^{(t)}$ means the t (0 ≤ t ≤ b − 1) row of the generalized weights matrix W (n, k, b), and sk − 1 + (l − s)b + u = c ⋅ (d − N + 1) + e = f ⋅ d′ + g; l ⋅ k + u = c ⋅ (d − N + 1) + e = f ⋅ d′ + g with 0 ≤ e < d, 0 ≤ g < d′. Also,

$|r_{lk+u}\rangle =|e{\oplus }_{\left(d-N+1\right)}\sum _{i=0}^{\alpha }{C}_i{\oplus }_{\left(d-N+1\right)}C\left(e{\oplus }_{\left(d-N+1\right)}\sum _{i=0}^{\alpha }{C}_i,g\right)\rangle |g^{\prime }\rangle ,0\le \alpha \le v,(5)$

with

$C\left(e{\oplus }_{\left(d-N+1\right)}\sum _{i=0}^{\alpha }{C}_i,g\right)=\left\{\begin{array}{c}1,C\left(e{\oplus }_{\left(d-N+1\right)}{\sum }_{i=0}^{\alpha }{C}_i,g\right)=C_{\alpha },\hfill \\ 0,otherwise,\hfill \end{array}\right.(6)$

where C₀ = 0, C_α = 1 denotes the ignored elements.We next prove that all the above {|ϕ_m.l⟩} constitute a dd’ − v (1 ≤ v ≤ d′N)-member UEBk in ${\mathbb{C}}^d\otimes {\mathbb{C}}^{d^{\prime }}$:

(i) It is clear that Sr (|ϕ_l⟩) = k for any l, m, t.

(ii) Orthogonality.

According to the construction given by the above expression, the elements of each state lie in different rows and columns, so the proof of the orthogonality is as follows:

$\begin{array}{ll}\hfill \langle {\varphi }_{\widetilde{m,l}}|{\varphi }_{m,l}\rangle & =\frac{1}{k}\sum _{\tilde{u}=0}^{k-1}\sum _{u=0}^{k-1}{\xi }_k^{ml}{\xi }_k^{\widetilde{-m}\tilde{l}}\langle r_{\tilde{l}k+u}|r_{lk+u}\rangle =\frac{1}{k}\sum _{u=0}^{k-1}{\xi }_k^{ml-\tilde{m}\tilde{l}}{\delta }_{l\tilde{l}}={\delta }_{m\tilde{m}}{\delta }_{l\tilde{l}},\hfill \\ \hfill \langle {\varphi }_{\widetilde{t,l}}|{\varphi }_{t,l}\rangle & =\frac{1}{k}\sum _{\tilde{u}=0}^{p-1}\sum _{u=0}^{p-1}{x}_{ij}^{\left(\tilde{t}\right)}{x}_{ij}^{\left(t\right)}\langle r_{sk-1+\left(\tilde{l}-s\right)b+u}|r_{sk-1+\left(l-s\right)b+u}\rangle =\frac{1}{k}\sum _{u=0}^{p-1}{\delta }_{t\tilde{t}}{\delta }_{l\tilde{l}}={\delta }_{t\tilde{t}}{\delta }_{l\tilde{l}},\hfill \\ \hfill \langle {\varphi }_{\widetilde{m,l}}|{\varphi }_{t,l}\rangle & =\frac{1}{k}\sum _{\tilde{u}=0}^{k-1}\sum _{u=0}^{p-1}{\xi }_k^{\widetilde{-m}\tilde{l}}{x}_{ij}^{\left(t\right)}\langle r_{\tilde{l}k+u}|r_{sk-1+\left(l-s\right)b+u}\rangle =\frac{1}{k}\sum _{\tilde{u}=0}^{k-1}\sum _{u=0}^{p-1}{\delta }_{\xi ,x}{\delta }_{l\tilde{l}}={\delta }_{\xi ,x}{\delta }_{l\tilde{l}}.\hfill \end{array}$

(iii) Unextendibility.

It is obvious that there are no UEBk in V^⊥ since N < k.In order to understand the above structure more intuitively, we give the following examples to illustrate it.

Example 1:. Constructing 26-member UEB3 in ${\mathbb{C}}^5\otimes {\mathbb{C}}^6$.As d = 5, d′ = 6, k = 3, n = 2, b = v = 4, and 5 × 6–4 = 26 = 6 × 3 + 2 × 4, s = 6, p = 2, 0 ≤ l ≤ 7 and

$W\left(\mathrm{2,3,4}\right)=\left(\begin{array}{cccc}\hfill 0\hfill & \hfill 1\hfill & \hfill 1\hfill & \hfill 1\hfill \\ \hfill 1\hfill & \hfill 0\hfill & \hfill -1\hfill & \hfill 1\hfill \\ \hfill 1\hfill & \hfill 1\hfill & \hfill 0\hfill & \hfill -1\hfill \\ \hfill 1\hfill & \hfill -1\hfill & \hfill 1\hfill & \hfill 0\hfill \end{array}\right)(7)$

According to the proof of Theorem 1, we have the following pure states:$\mid {\varphi }_{m,0}\rangle =\frac{1}{\sqrt{3}}({\xi }_3^0|r_0\rangle +{\xi }_3^m|r_1\rangle +{\xi }_3^{2m}|r_2\rangle )$;⋮$\mid {\varphi }_{m,5}\rangle =\frac{1}{\sqrt{3}}({\xi }_3^0|r_{15}\rangle +{\xi }_3^m|r_{16}\rangle +{\xi }_3^{2m}|r_{17}\rangle )$;$\mid {\varphi }_{t,6}\rangle =\frac{1}{\sqrt{3}}(x_{t,0}^{(t)}|r_{18}\rangle +x_{t,1}^{(t)}|r_{19}\rangle +x_{t,2}^{(t)}|r_{20}\rangle )+x_{t,3}^{(t)}|r_{21}\rangle \left.\right)$;$\mid {\varphi }_{t,7}\rangle =\frac{1}{\sqrt{3}}(x_{t,0}^{(t)}|r_{22}\rangle +x_{t,1}^{(t)}|r_{23}\rangle +x_{t,2}^{(t)}|r_{24}\rangle )+x_{t,3}^{(t)}|r_{25}\rangle \left.\right)$;where m = 0, 1, 2, t = 0, 1, 2, 3.As C₀ = 0, C₁ = C (4, 4) = 1, C₂ = C (4, 2) = 1, C₃ = C (4, 4) = 1, C₄ = C (4, 3) = 1,α = 0, |r_i⟩ = |e ⊕ ₅C (e, g)|g′⟩;α = 1, |r_i⟩ = |e ⊕ ₅C₁ ⊕ ₅C (e ⊕ ₅C₁, g)|g′⟩;α = 2, |r_i⟩ = |e ⊕ ₅(C₁ + C₂) ⊕ ₅C (e ⊕ ₅(C₁ + C₂), g)|g′⟩;α = 3, |r_i⟩ = |e ⊕ ₅(C₁ + C₂ + C₃) ⊕ ₅C (e ⊕ ₅(C₁ + C₂ + C₃), g)|g′⟩;α = 4, |r_i⟩ = |e ⊕ ₅(C₁ + C₂ + C₃ + C₄) ⊕ ₅C (e ⊕ ₅(C₁ + C₂ + C₃ + C₃), g)|g′⟩;Taking specific values into the above formula, the 26-member UEB3 in ${\mathbb{C}}^5\otimes {\mathbb{C}}^6$ can be expressed as follows:

$\left\{\begin{array}{cc}\hfill & |{\varphi }_{\mathrm{0,1,2}}\rangle =\frac{1}{\sqrt{3}}\left(|00^{\prime }\rangle +\alpha |11^{\prime }\rangle +{\alpha }^2|22^{\prime }\rangle \right),\hfill \\ \hfill & |{\varphi }_{\mathrm{3,4,5}}\rangle =\frac{1}{\sqrt{3}}\left(|33^{\prime }\rangle +\alpha |04^{\prime }\rangle +{\alpha }^2|15^{\prime }\rangle \right),\hfill \\ \hfill & |{\varphi }_{\mathrm{6,7,8}}\rangle =\frac{1}{\sqrt{3}}\left(|20^{\prime }\rangle +\alpha |31^{\prime }\rangle +{\alpha }^2|02^{\prime }\rangle \right),\hfill \\ \hfill & |{\varphi }_{\mathrm{9,10,11}}\rangle =\frac{1}{\sqrt{3}}\left(|13^{\prime }\rangle +\alpha |24^{\prime }\rangle +{\alpha }^2|35^{\prime }\rangle \right),\hfill \\ \hfill & |{\varphi }_{\mathrm{12,13,14}}\rangle =\frac{1}{\sqrt{3}}\left(|40^{\prime }\rangle +\alpha |01^{\prime }\rangle +{\alpha }^2|12^{\prime }\rangle \right),\hfill \\ \hfill & |{\varphi }_{\mathrm{15,16,17}}\rangle =\frac{1}{\sqrt{3}}\left(|23^{\prime }\rangle +\alpha |34^{\prime }\rangle +{\alpha }^2|05^{\prime }\rangle \right),\hfill \end{array}\right.\left\{\begin{array}{cc}\hfill & |{\varphi }_{18}\rangle =\frac{1}{\sqrt{3}}\left(|21^{\prime }\rangle +|32^{\prime }\rangle +|03^{\prime }\rangle \right),\hfill \\ \hfill & |{\varphi }_{19}\rangle =\frac{1}{\sqrt{3}}\left(|10^{\prime }\rangle -|32^{\prime }\rangle +|03\rangle \right),\hfill \\ \hfill & |{\varphi }_{20}\rangle =\frac{1}{\sqrt{3}}\left(|10^{\prime }\rangle +|21^{\prime }\rangle -|03^{\prime }\rangle \right),\hfill \\ \hfill & |{\varphi }_{21}\rangle =\frac{1}{\sqrt{3}}\left(|10^{\prime }\rangle -|21^{\prime }\rangle +|32^{\prime }\rangle \right),\hfill \\ \hfill & |{\varphi }_{22}\rangle =\frac{1}{\sqrt{3}}\left(|25^{\prime }\rangle +|30^{\prime }\rangle +|41^{\prime }\rangle \right),\hfill \\ \hfill & |{\varphi }_{23}\rangle =\frac{1}{\sqrt{3}}\left(|14^{\prime }\rangle -|30^{\prime }\rangle +|41^{\prime }\rangle \right),\hfill \\ \hfill & |{\varphi }_{24}\rangle =\frac{1}{\sqrt{3}}\left(|14^{\prime }\rangle +|25^{\prime }\rangle -|41^{\prime }\rangle \right),\hfill \\ \hfill & |{\varphi }_{25}\rangle =\frac{1}{\sqrt{3}}\left(|14^{\prime }\rangle -|25^{\prime }\rangle +|30\rangle \right),\hfill \end{array}\right.(8)$

where α = 1, ω, ω² and $w=e^{\frac{2\pi \sqrt{-1}}{3}}$.The following chart is indeed the space decomposition of the space of the coefficient matrices, whose first column and first row represent the bases of the previous space and latter space, respectively. The stars represent the ignored elements, and the same number or alphabet in Table 1 together constitutes a state in UEB3.

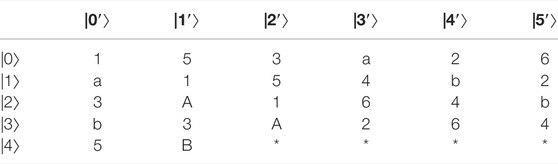

TABLE 1

TABLE 1. 6×3+2×4=30,−,4=26-member UEB3.

Example 2:. Constructing 29,28,25,24-member UEB3s in ${\mathbb{C}}^5\otimes {\mathbb{C}}^6$.Similar to the analysis in Example 1, we only present the chart of corresponding matrix to represent the structure of UEB3s.Considering the following matrices,

$V_1=\left(\begin{array}{cccccc}\hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill \star \hfill \end{array}\right).V_2=\left(\begin{array}{cccccc}\hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill \star \hfill & \hfill \star \hfill \end{array}\right).(9)$

$V_3=\left(\begin{array}{cccccc}\hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill \\ \hfill 0\hfill & \hfill \star \hfill & \hfill \star \hfill & \hfill \star \hfill & \hfill \star \hfill & \hfill \star \hfill \end{array}\right).V_4=\left(\begin{array}{cccccc}\hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill \\ \hfill \star \hfill & \hfill \star \hfill & \hfill \star \hfill & \hfill \star \hfill & \hfill \star \hfill & \hfill \star \hfill \end{array}\right).(\mathrm{10a})$

the specific UEB3s of V₁, V₂, V₃, V₄ are shown in Table 2‐5 respectively.

TABLE 2

TABLE 2. 7×3+2×4=29-member.

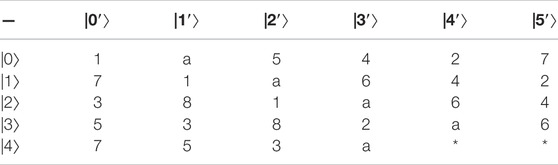

TABLE 3

TABLE 3. 8×3+1×4=28-member.

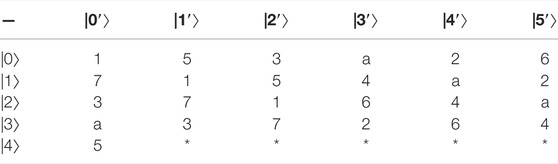

TABLE 4

TABLE 4. 7×3+1×4=25-member.

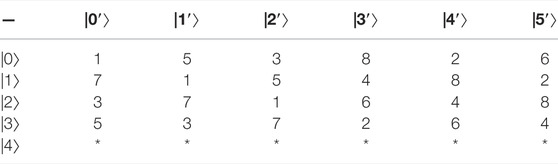

TABLE 5

TABLE 5. 8×3+0,×,4=24-member.

3.2 All the Ignored Elements Occupy N Rows

In this section, we first construct the (dd’ − v)-member UEBk in ${\mathbb{C}}^d\otimes {\mathbb{C}}^{d^{\prime }}$, in which all the v ignored elements occupied N rows in the matrix, and then present some examples of UEB3s also in ${\mathbb{C}}^5\otimes {\mathbb{C}}^6$.

Theorem 2:. Let k be a positive integer, $b,n\in \mathbb{N}$ such that W(n, k, b) is non-empty, and gcd(k, b) = 1. Let V be a subspace of M_d×d′ such that each matrix in V is a d × d′ matrix ignoring v elements which occupied N rows with N = 1, … , k − 1, d′ − N ≥ b and dd’ − v = s ⋅ k + p ⋅ b with 1 ≤ v ≤ dN. If min{d, d′}≥ max{k, b}, then there exists dd’ − v (1 ≤ v ≤ dN)-member UEBk in ${\mathbb{C}}^d\otimes {\mathbb{C}}^{d^{\prime }}$.Proof. First, for different values of p and s, we construct different pure states as follows: if p ≥ 1 and s ≥ 1, let

$|{\varphi }_{m.l}\rangle =\left\{\begin{array}{c}\frac{1}{\sqrt{k}}{\sum }_{u=0}^{k-1}{\xi }_k^{mu}|r_{lk+u}\rangle ,0⩽l⩽s-1,\hfill \\ \frac{1}{\sqrt{k}}{\sum }_{u=1}^b{x}_{ij}^{\left(t\right)}|r_{sk-1+\left(l-s\right)b+u}\rangle ,s⩽l⩽s+p-1.\hfill \end{array}\right.(\mathrm{10b})$

if s = 0, p ≥ 1, let

$|{\varphi }_{m.l}\rangle =\frac{1}{\sqrt{k}}\sum _{u=1}^b{x}_{ij}^{\left(t\right)}|r_{sk-1+\left(l-s\right)b+u}\rangle ,0⩽l⩽p-1,(11)$

if p = 0, s ≥ 1, let

$|{\varphi }_{m.l}\rangle =\frac{1}{\sqrt{k}}\sum _{u=0}^{k-1}{\xi }_k^{mu}|r_{lk+u}\rangle ,0⩽l⩽s-1.(12)$

where ${\xi }_k=e^{\frac{2\pi \sqrt{-1}}{k}};m=\mathrm{0,1},\dots ,k-1$; $x_{i,j}^{(t)}$ means the t (0 ≤ t ≤ b − 1) row in the generalized weights matrix W (n, k, b), and sk − 1 + (l − s)b + u = c ⋅ d + e; l ⋅ k + u = c ⋅ d + e with 0 ≤ e < d,

$|r_{lk+u}\rangle =|e\rangle |{\left(c{\oplus }_{\left(d^{\prime }-N+1\right)}e{\oplus }_{\left(d^{\prime }-N+1\right)}C\left(e,c{\oplus }_{\left(d^{\prime }-N+1\right)}e\right)+\beta \right)}^{\prime }\rangle ,(13)$

with

$C\left(e,c{\oplus }_{\left(d^{\prime }-N+1\right)}e\right)=\left\{\begin{array}{c}1,C\left(\right.e,c{\oplus }_{\left(d^{\prime }-N+1\right)}e=C_{\alpha },\hfill \\ 0,otherwise,\hfill \end{array}\right.(14)$

where C₀ = 0, C_α = 1 denotes the ignored elements. It is worthy of note that β in formula (13) is a regulating term, β = 0 in the common cases, β = 1 if |e⟩|c ⊕_(d′−N+1)e⟩ coincides with the previous answer of formula (13).Similiar to Theorem 1, we can prove that {|ϕ_m.l⟩} constitute dd’ − v (1 ≤ v ≤ dN)-member UEBks in ${\mathbb{C}}^d\otimes {\mathbb{C}}^{d^{\prime }}$.

Example 3:. Constructing 29,26,25,23-member UEB3 in ${\mathbb{C}}^5\otimes {\mathbb{C}}^6$.Considering the following matrices,

$V_1=\left(\begin{array}{cccccc}\hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill \star \hfill \end{array}\right),V_2=\left(\begin{array}{cccccc}\hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill \star \hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill \star \hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill \star \hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill \star \hfill \end{array}\right),(15)$

$V_3=\left(\begin{array}{cccccc}\hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill \star \hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill \star \hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill \star \hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill \star \hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill \star \hfill \end{array}\right),V_4=\left(\begin{array}{cccccc}\hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill \star \hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill \star \hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill \star \hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill \star \hfill & \hfill \star \hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill \star \hfill & \hfill \star \hfill \end{array}\right).(\mathrm{16a})$

the specific UEB3s of V₁, V₂, V₃, V₄ are shown in Table 6‐9 respectively.

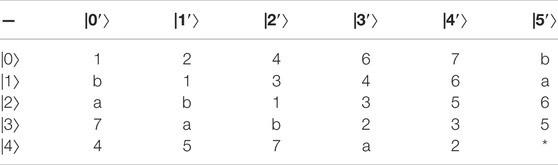

TABLE 6

TABLE 6. 7×3+2×4=29-member.

TABLE 7

TABLE 7. 6×3+2×4=26-member.

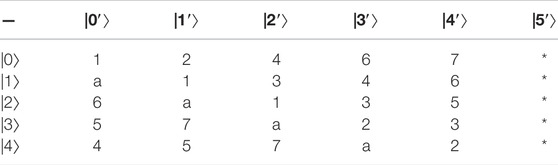

TABLE 8

TABLE 8. 7×3+1×4=25-member.

TABLE 9

TABLE 9. 5×3+2×4=23-member.

3.3 All the Ignored Elements Occupy Both x Rows and y Columns

In this section, we will construct (dd’ − v)-member UEBk in a bipartite system ${\mathbb{C}}^d\otimes {\mathbb{C}}^{d^{\prime }}$ with all the v ignored elements occupying both x rows and y columns in the matrix, and we will also present some different examples of UEB3s in ${\mathbb{C}}^5\otimes {\mathbb{C}}^6$.

Theorem 3:. Let k be a positive integer, $b,n\in \mathbb{N}$ such that W(n, k, b) is non-empty, and gcd(k, b) = 1 (the greatest common divisor of k and b). Let V be a subspace of M_d×d′ such that each matrix in V is a d × d′ matrix ignoring v elements which occupied x rows and y columns with x + y < k, d − x ≥ b and d′ − y ≥ b; dd’ − v = s ⋅ k + p ⋅ b with 1 ≤ v ≤ d′x + dy. If min{d, d′}≥ max{k, b}, then there exists (dd’ − v), (1 ≤ v ≤ d′x + dy)-member UEBk in ${\mathbb{C}}^d\otimes {\mathbb{C}}^{d^{\prime }}$.Proof. First, for different values of p and s, we construct different pure states as follows: if p ≥ 1 and s ≥ 1, set

$|{\varphi }_{m.l}\rangle =\left\{\begin{array}{c}\frac{1}{\sqrt{k}}{\sum }_{u=0}^{k-1}{\xi }_k^{mu}|r_{lk+u}\rangle ,0⩽l⩽s-1,\hfill \\ \frac{1}{\sqrt{k}}{\sum }_{u=1}^b{x}_{ij}^{\left(t\right)}|r_{sk-1+\left(l-s\right)b+u}\rangle ,s⩽l⩽s+p-1.\hfill \end{array}\right.(\mathrm{16b})$

if s = 0, p ≥ 1, set

$|{\varphi }_{m.l}\rangle =\frac{1}{\sqrt{k}}\sum _{u=1}^b{x}_{ij}^{\left(t\right)}|r_{sk-1+\left(l-s\right)b+u}\rangle ,0⩽l⩽p-1,(17)$

if p = 0, s ≥ 1, set

$|{\varphi }_{m.l}\rangle =\frac{1}{\sqrt{k}}\sum _{u=0}^{k-1}{\xi }_k^{mu}|r_{lk+u}\rangle ,0⩽l⩽s-1.(18)$

where ${\xi }_k=e^{\frac{2\pi \sqrt{-1}}{k}},m=\mathrm{0,1},\dots ,k-1$; $x_{i,j}^{(t)}$ means the t (0 ≤ t ≤ b − 1) row in the generalized weights matrix W (n, k, b), and sk − 1 + (l − s)b + u = f ⋅ (d′ − N + 1) + g; l ⋅ k + u = c ⋅ (d − N + 1) + e = f ⋅ (d′ − N + 1) + g with 0 ≤ e < d, 0 ≤ g < d′. Denoting $A=e{\oplus }_d{\sum }_{i=0}^{\alpha }{C}_i$, $B=g{\oplus }_{d^{\prime }}{\sum }_{i=0}^{\alpha }{C}_i$, then

$|r_{lk+u}\rangle =|A{\oplus }_{d}C\left(A,B\right)\rangle |B{\oplus }_{d^{\prime }}C{\left(A,B\right)}^{\prime }\rangle ,(19)$

with

$C\left(A,B\right)=\left\{\begin{array}{c}1,C\left(A,B\right)=C_{\alpha },\hfill \\ 0,otherwise,\hfill \end{array}\right.(20)$

where C₀ = 0, C_α = 1 denotes the ignored elements.Similar to Theorem 1, we can prove that {|ϕ_m.l⟩} constitute dd’ − v (1 ≤ v ≤ d′x + dy)-member UEBks in ${\mathbb{C}}^d\otimes {\mathbb{C}}^{d^{\prime }}$.

Example 4:. Constructing 26,25,24,23-member UEB3 in ${\mathbb{C}}^5\otimes {\mathbb{C}}^6$.Considering the following matrices,

$V_1=\left(\begin{array}{cccccc}\hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill \star \hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill \star \hfill & \hfill \star \hfill & \hfill \star \hfill \end{array}\right),V_2=\left(\begin{array}{cccccc}\hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill \star \hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill \star \hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill \star \hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill \star \hfill & \hfill \star \hfill \end{array}\right),(21)$

$V_3=\left(\begin{array}{cccccc}\hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill \star \hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill \star \hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill \star \hfill & \hfill \star \hfill & \hfill \star \hfill & \hfill \star \hfill \end{array}\right),V_4=\left(\begin{array}{cccccc}\hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill \star \hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill \star \hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill \star \hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill \star \hfill & \hfill \star \hfill & \hfill \star \hfill & \hfill \star \hfill \end{array}\right).(\mathrm{22a})$

the specific UEB3s of V₁, V₂, V₃, V₄ are shown in Table 10‐13, respectively.Comparing Tables 4, 8, 11, we can find that they are all 25-member UEB3s in ${\mathbb{C}}^5\otimes {\mathbb{C}}^6$, but they are different since the ignored elements occupy different positions. The above structure has given the location of the elements in each state, but the expressions are not always applicable when d = d′. For the case of d = d′, Ref. [23] provided a good method to construct the UEBk; now, we give some concrete examples to illustrate it.

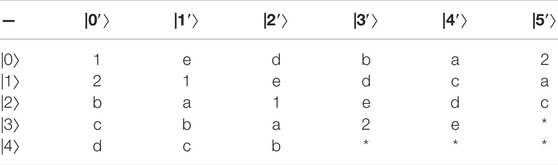

TABLE 10

TABLE 10. 2×3+5×4=26-member.

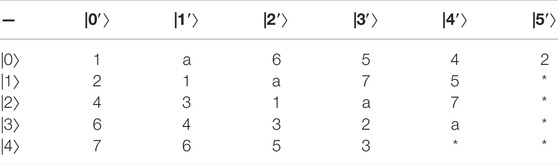

TABLE 11

TABLE 11. 7×3+1×4=25-member.

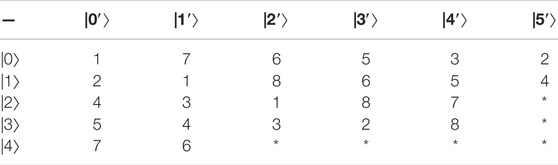

TABLE 12

TABLE 12. 8×3+0,×,4=24-member.

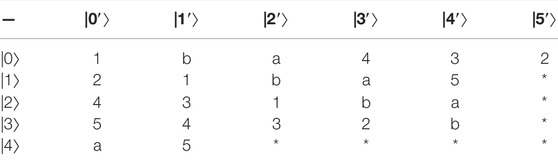

TABLE 13

TABLE 13. 5×3+2×4=23-member.

Example 5:. Constructing 26,25,24,23-member UEB3 in ${\mathbb{C}}^6\otimes {\mathbb{C}}^6$.Considering the following matrices,

$V_1=\left(\begin{array}{cccccc}\hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill \star \hfill \end{array}\right),V_2=\left(\begin{array}{cccccc}\hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill \star \hfill & \hfill \star \hfill & \hfill \star \hfill & \hfill \star \hfill \end{array}\right),(\mathrm{22b})$

$V_3=\left(\begin{array}{cccccc}\hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill \star \hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill \star \hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill \star \hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill \star \hfill \end{array}\right),V_4=\left(\begin{array}{cccccc}\hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill \star \hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill \star \hfill \\ \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill 0\hfill & \hfill \star \hfill & \hfill \star \hfill \end{array}\right).(23)$

the specific UEB3s of V₁, V₂, V₃, V₄ are shown in Table 14‐17, respectively.

TABLE 14

TABLE 14. 9,×,3+2×4=35-member.

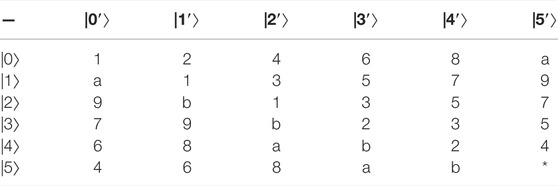

TABLE 15

TABLE 15. 8×3+2×4=32-member.

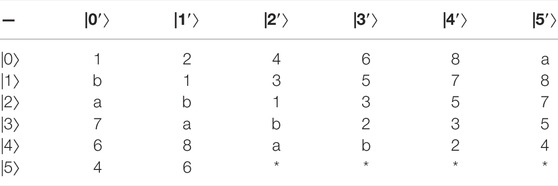

TABLE 16

TABLE 16. 8×3+2×4=32-member.

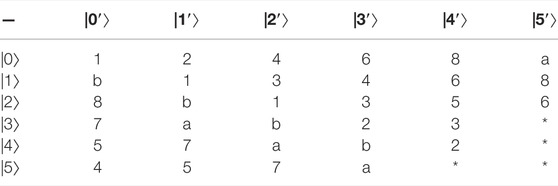

TABLE 17

TABLE 17. 8×3+2×4=23-member.

Remark 1:. We systematically show three methods (or orders) to construct the UEBks in different cases and present the corresponding mathematical expressions, which is better than that in [23] since it only provide one limited order. For example, we can construct 23-member SUEB3 in ${\mathbb{C}}^5\otimes {\mathbb{C}}^7$ when a = 3, b = 4, which cannot be constructed by the order in [23], see Table 18, 19.

TABLE 18

TABLE 18. construction in [23].

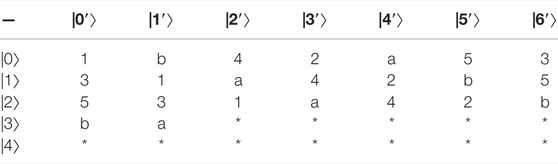

TABLE 19

TABLE 19. Our construction.

Remark 2:. Our results cover wider spaces than that of Ref. [23]. The smallest space we can discuss is ${\mathbb{C}}^4\otimes {\mathbb{C}}^5$ when a = 3, b = 4, while the smallest space [23] can discuss is ${\mathbb{C}}^5\otimes {\mathbb{C}}^7$ when a = 3, b = 4, k = 3. Futhermore, even in ${\mathbb{C}}^5\otimes {\mathbb{C}}^6$, we also present different members of UEB3s.

4 Conclusion

We have proposed three ways to construct different members of UEBks in ${\mathbb{C}}^d\otimes {\mathbb{C}}^{d^{\prime }}$ and have shown their concrete expressions. As an example of each method, we have presented different members of UEB3s in ${\mathbb{C}}^5\otimes {\mathbb{C}}^6$ and ${\mathbb{C}}^6\otimes {\mathbb{C}}^6$. It is noteworthy that our result is based on the existence of generalized weighing matrices, so it is also of significance for us to find more generalized weighing matrices, such as skew Hadamard matrices.

By using our constructions, one can get at most (dd’ − v) members of UEBk in ${\mathbb{C}}^d\otimes {\mathbb{C}}^{d^{\prime }}$, which has not specifically mentioned in the previous literature studies.
