A systemic survey of the Omniverse platform and its applications in data generation, simulation and metaverse

Naveed Ahmed
Naveed Ahmed1*Imad AfyouniImad Afyouni1Hamzah Dabool,Hamzah Dabool1,2Zaher Al AghbariZaher Al Aghbari1
  • 1Department of Computer Science, University of Sharjah, Sharjah, United Arab Emirates
  • 2Big Data Analytics Center, United Arab Emirates University, Al Ain, United Arab Emirates

Nvidia’s Omniverse platform represents a paradigm shift in the realm of virtual environments and simulation technologies. This paper presents a comprehensive examination of the Omniverse platform, a transformative force in virtual environments and simulation technologies. We offer a detailed systematic survey of the Omniverse’s impact across various scientific fields, underscoring its role in fostering innovation and sculpting the technological future. Our focus includes the Omniverse Replicator for generating synthetic data to address data insufficiency, and the utilization of Isaac Sim with its Issac Gym and software development kit (SDK) for robotic simulations, alongside Drive Sim for autonomous vehicle emulation. We further investigate the Extended Reality (XR) suite for augmented and virtual realities, as well as the Audio2Face application, which translates audio inputs into animated facial expressions. A critical analysis of Omniverse’s technical architecture, user-accessible applications, and extensions are provided. We contrast existing surveys on the Omniverse with those on the metaverse, delineating their focus, applications, features, and constraints. The paper identifies potential domains where the Omniverse excels and explores its real-world application capabilities by discussing how existing research papers utilize the Omniverse platform. Finally, we discuss the challenges and hurdles facing the Omniverse’s broader adoption and implementation, mitigating the lack of surveys solely focusing on the Omniverse.

1 Introduction

Modern technology has brought us to a time where our imagination and the real world come together. In today’s digital age, the mix of 3D simulations, data, and artificial intelligence has turned things we used to only see in science fiction into real and useful ideas. Nvidia Omniverse (henceforth only referred to as the Omniverse) is a big part of this change. It’s a platform that can change how we use graphics, simulations, and data in a big way.

In the past few years, many researchers have gotten interested in the idea of the metaverse. It has become a big topic of study and discussion, showing that more and more researchers are curious about what the metaverse could mean for how we interact with digital worlds. This growing interest is pushing scientists and tech experts to explore and understand the different aspects of the metaverse. Nvidia is a significant player in the AI and HPC domains, renowned for its potent Graphics Processing Units (GPUs), capable of multitasking and particularly effective for deep learning and various AI applications. Their contributions have been instrumental in advancing AI and revolutionizing scientific research. The CUDA platform, a pivotal component, facilitates collaboration among GPUs and holds substantial importance across diverse research areas. However, Nvidia’s impact extends beyond hardware. They offer a comprehensive range of software solutions, including the CUDA Toolkit, which supports AI and HPC applications. Moreover, their software tools like cuDNN and TensorRT are highly optimized for deep learning, empowering researchers and developers to excel in AI-related endeavors (Huynh-The et al., 2023).

The Omniverse is a computer system that helps people and teams work together to make 3D projects using the Universal Scene Description standard. It breaks down the barriers between different 3D data collections, helping big teams work together better and making new 3D projects and simulations. This is a big step for the future of 3D work and simulations (Nvidia, 2021). In the Omniverse, developers can create custom add-ons, tools, and small programs. This helps them work better with 3D projects, generate synthetic data and build metaverse apps for industries. Also, the Omniverse makes it easy for different creative apps to work together with the USD framework. This allows the user to visualize and manipulate their three-dimensional scene data in real-time with interconnected applications that utilize the Omniverse platform.

This paper takes a close look at the Omniverse platform and its important parts like Nvidia Replicator, Nvidia Create, Nvidia Audio2Face, Nvidia Create XR, Nvidia Nucleus, Nvidia Drive Sim, and Isaac Sim. It also has two helpful libraries, Nvidia Orbit and SKRL. Each part of the Omniverse is a big step forward in its field, but it also has its own challenges and limitations. In addition, this paper also discusses the opportunities that each component brings. We explore the application of the Omniverse in diverse areas such as synthetic data generation, education, military, business, manufacturing, medicine, culture, and smart cities. This helps us to envision the future evolution of the Omniverse and how it will improve in terms of its graphical, simulations, and AI capabilities.

As we contemplate the opportunities and limitations within each component of the Omniverse platform, we imagine a future where these limitations are carefully fixed and where the Omniverse platform can work even better with other technologies. This could create a more complete and realistic simulation world. The Omniverse platform aims to change how we use graphics, simulations, and making data. This could lead to important advancements in artificial intelligence, autonomous vehicles, and robotics. This survey aims to provide a detailed and dive deep study into the platform, while also clearly differentiating itself from the related reviews in the area as our survey primarily emphasizes the Omniverse as a sophisticated metaverse ecosystem rather than discussing the metaverse concept from a general perspective.

To the best of our knowledge this is the first comprehensive survey that analyzes all the major components in detail. In addition, no survey has analyzed the application of the Omniverse in such a wide range of application domains compared to our work.

The main contributions of this paper: (1) A novel deep analysis of Nvidia Omniverse, which is currently state-of-the-art in metaverse ecosystems. (2) We provide a comparison of existing surveys on the Omniverse and metaverse from multiple viewpoints: available apps and functionality, and potential domains for implementing the metaverse concept, which identifies the novelty of our work. (3) We conduct a quantitative analysis of the Omniverse based on recent systematic research papers. (4) Conduct a comparative analysis between the Omniverse and other metaverse platforms. (5) The survey suggests possible implementations of the Omniverse and details how this implementation can utilize its capabilities.

The structure of this paper is organized as Section 2 outlines the motivation behind our focus on the Omniverse ecosystem, highlighting its relevance and potential impact. In Section 3, we dive deeper into the Omniverse, discussing its technical architecture and the applications it supports. Section 4 provides a comprehensive summary of related surveys and presents quantitative results of the Omniverse, along with a comparative analysis between the Omniverse and other leading metaverse systems. In Section 5, we detail our methodology, including the research questions and the criteria used for selecting relevant papers. Section 6 explores the various domains and applications of the Omniverse, supported by real-world implementations across different fields. In Section 7, we synthesize our findings, addressing the limitations, challenges, security concerns, and proposing future research directions. Finally, Section 8 concludes the paper.

2 Motivation

In this section, we will explore why the Omniverse is a system of choice when it comes to designing and implementing AI metaverse applications. We will also discuss the main functionalities offered by the Omniverse, including synthetic data generation, 3D environment for real-time robotics simulations, and XR integration.

2.1 Omniverse ecosystem

The Omniverse’s importance is motivated by a combination of key factors that showcase the platform’s potential to be a game-changer in the evolving metaverse landscape. Leveraging Nvidia’s renowned industry expertise in graphics and AI technologies, the Omniverse holds the promise of delivering exceptionally high-quality graphics, simulations, and AI capabilities within the metaverse, making it an attractive choice for those who prioritize immersive and realistic experiences. Its commitment to interoperability, creating an open platform that seamlessly connects various 3D design and simulation tools, positions it as a valuable resource for professionals in architecture, gaming, and entertainment, streamlining complex 3D workflows. Additionally, the emphasis on advanced collaboration tools makes the Omniverse an appealing option for teams and organizations seeking to engage in collaborative design, simulations, and content creation within a shared virtual environment. Furthermore, the platform’s potential to foster a diverse and vibrant metaverse ecosystem through strategic partnerships and developer engagement adds to its allure. For those already invested in Nvidia hardware, the Omniverse offers the advantage of seamless integration and optimized performance. Lastly, the tailored features for specific industries and applications make the Omniverse adaptable to a wide array of use cases, aligning with the unique needs and objectives of potential users (Huynh-The et al., 2023).

2.2 Lack of comprehensive examination of the Omniverse platform

The prevailing trend among existing surveys is to discuss the metaverse in a generalized manner, rather than concentrating on specific platforms. Notably, none of the observed surveys focus solely on the Omniverse; they either cursorily mention it or compare it with other platforms without a detailed exploration of its functionalities and applications. Despite the Omniverse’s widely acclaimed status as the preeminent metaverse platform, there remains an evident absence of research dedicated to unraveling its details. Given the Omniverse’s status as a sophisticated ecosystem replete with innovative features, it holds considerable allure for researchers. Therefore, our survey assumes the responsibility of meticulously examining the Omniverse, elucidating its complete spectrum of applications, capabilities, and potential real-world implementations.

2.3 Synthetic data generation

Synthetic data generation (SDG) constitutes a fundamental technique within the realm of data science and machine learning. It involves the creation of artificial datasets designed to emulate real-world data. The primary objective of synthetic data generation is to fulfill several pivotal purposes (Geyer, 2023). Foremost among these purposes is the facilitation of the production of extensive datasets that may otherwise prove challenging or prohibitively expensive to acquire. Such augmented datasets are instrumental in bolstering the efficacy of model training and validation processes, thereby enhancing the robustness of machine learning algorithms. Another key objective is the preservation of data privacy and security. Synthetic data empowers researchers to develop and assess algorithms without exposing sensitive or confidential information. This is particularly crucial in domains where privacy regulations are stringent. Furthermore, synthetic data generation addresses the issue of data scarcity, which often poses a substantial impediment to the progress of emerging technologies such as deep learning. In these contexts, the availability of large, diverse datasets is paramount for the accurate and reliable performance of machine learning models. The Omniverse accomplishes these objectives via its advanced synthetic data generation tool known as the Replicator, offering a highly refined data generation pipeline that can be easily customized and tailored to meet the user’s specific preferences (Conde et al., 2021). Ultimately, the overarching goal of synthetic data generation is to propel advancements in artificial intelligence applications. It accomplishes this by fostering improved model generalization, reducing data-related constraints, and facilitating innovation across a wide spectrum of domains (Geyer, 2023).

2.4 3D environment simulations for autonomous multi-agent learning

Robotics and autonomous vehicle (AV) simulation is a critical technology in the development and testing of robotics and self-driving vehicles. It involves creating virtual environments where robots or autonomous vehicles can operate, allowing engineers and researchers to assess their performance under various scenarios and conditions. This simulation enables the refinement of algorithms, testing of safety mechanisms, and validation of control systems without the need for costly physical prototypes or risking real-world accidents. It is an indispensable tool that accelerates the advancement of autonomous systems, making them safer, more efficient, and better equipped to navigate the complexities of the real world. In the context of robotics and autonomous vehicles simulation, synthetic data facilitates the development and testing of algorithms and control systems in a safe, virtual environment. This technology plays a pivotal role in autonomous vehicle training, offering a cost-effective means to simulate various driving scenarios and improve vehicle safety. In robotics, it accelerates the advancement of robot capabilities, enabling realistic testing and refining of navigation, perception, and control algorithms, fostering innovation in industries from manufacturing to healthcare and beyond (Khatib et al., 2002). The Omniverse, employing Isaac Sim and Drive Sim, offers a convenient solution for generating environments capable of emulating real-life locations. Furthermore, these applications provide an extensive range of tools for managing and overseeing the learning process, accompanied by detailed feedback mechanisms (Makoviychuk et al., 2021).

2.5 Extended reality integration in 3D metaverse environments

Augmented Reality (AR), Virtual Reality (VR), and Mixed Reality (MR) represent cutting-edge technologies that blend the digital and physical worlds, each with their unique characteristics and applications. XR, which is an umbrella continuum for VR, AR, and MR has proven to be one of the most promising areas for technological innovation. AR overlays digital information onto the real world through devices like smartphones or AR glasses, providing contextually enriched experiences. VR immerses users in entirely virtual environments, typically through headsets, offering an unparalleled level of immersion. XR encompasses both AR and VR, as well as MR experiences, where the virtual and physical worlds interact seamlessly (Zhan et al., 2020). These technologies hold immense importance and fascination due to their transformative potential. AR, for instance, enhances productivity in fields like manufacturing and healthcare by providing real-time data visualization and assistance. It also fuels engaging consumer experiences, such as interactive marketing campaigns and location-based gaming. VR transports users to virtual realms, revolutionizing industries like gaming, education, and therapy by offering immersive, realistic simulations. XR extends these possibilities, allowing for applications like remote collaboration in MR environments or augmented training experiences for professionals. The Omniverse provides the create XR application which provides a pipeline for integrating XR technologies providing a seamless integration with all other Omniverse applications (Shapira, 2022).

3 Methodology

This section provides a comprehensive overview of the scholarly contributions within the domain of the Omniverse, its functionalities, architectural components, and its applications, elucidating contemporary research themes and conducting a systematic assessment of the latest empirical discoveries.

3.1 Research questions

This study looked into answering the following research questions (RQ):

1. What is NVIDIA Omniverse and what are its capabilities?

2. What other surveys have covered so far with respect to the Omniverse?

3. How does Nvidia Omniverse compare to other metaverse platforms?

4. How are research papers utilizing the Omniverse platform?

5. What are possible domains and applications of the Omniverse platform?

6. What gaps does the Omniverse fill?

7. What are the limitations and challenges of the platform?

8. What are the future plans of the platform?

3.2 Search strategy

This Systematic Literature Review (SLR) employed Google Scholar as the primary scientific search engine to collect relevant surveys and articles. The search parameters were carefully defined, focusing on publications from the years 2018 to 2024. Additionally, the search terms were configured to be identified anywhere within the text of the papers. The searching terms are:

1. “Nvidia Omniverse survey”

2. “Omniverse Survey”

3. “Metaverse” AND “Omniverse”

4. “Omniverse Replicator”

5. “Synthetic Data Generation” And (“Nvidia Omniverse” Or “Omniverse”)

6. “Robotics Simulation” And (“Nvidia Omniverse” Or “Omniverse”)

7. “Nvidia Drive sim”

8. “Isaac sim” AND (Isaac gym)

The initial search phase resulted in a total of 456 papers. We then conducted a thorough review of the full text of each paper to assess their relevance to our research questions, ultimately narrowing the selection down to 70 papers based on specific inclusion and exclusion criteria.

Inclusion Criteria

• Studies published within the specific time frame of 2018 to 2024.

• Studies published in English only.

• Seminal or highly cited papers outside the time frame may also be included for relevance.

• Quantitative, qualitative, or mixed-method studies that fit the scope of the SLR.

• Experimental, observational, or simulation-based studies.

• Published reviews, meta-analyses, or survey papers relevant to the topic.

• Theses or dissertations (if they contribute valuable insights).

Exclusion Criteria

• Studies published in languages other than English unless an official translation is available.

• Studies published outside the defined time frame, unless highly relevant.

• Presentations, posters, or abstracts without full papers.

• Preliminary studies or incomplete research (e.g., pilot studies without full results).

Figure 1 quantifying the volume and percentage distribution of selected papers and articles retrieved based on the specified search criteria, delineated annually from 2018 through 2024, whereas Figure 2 shows the SLR search strings.

Figure 1
www.frontiersin.org

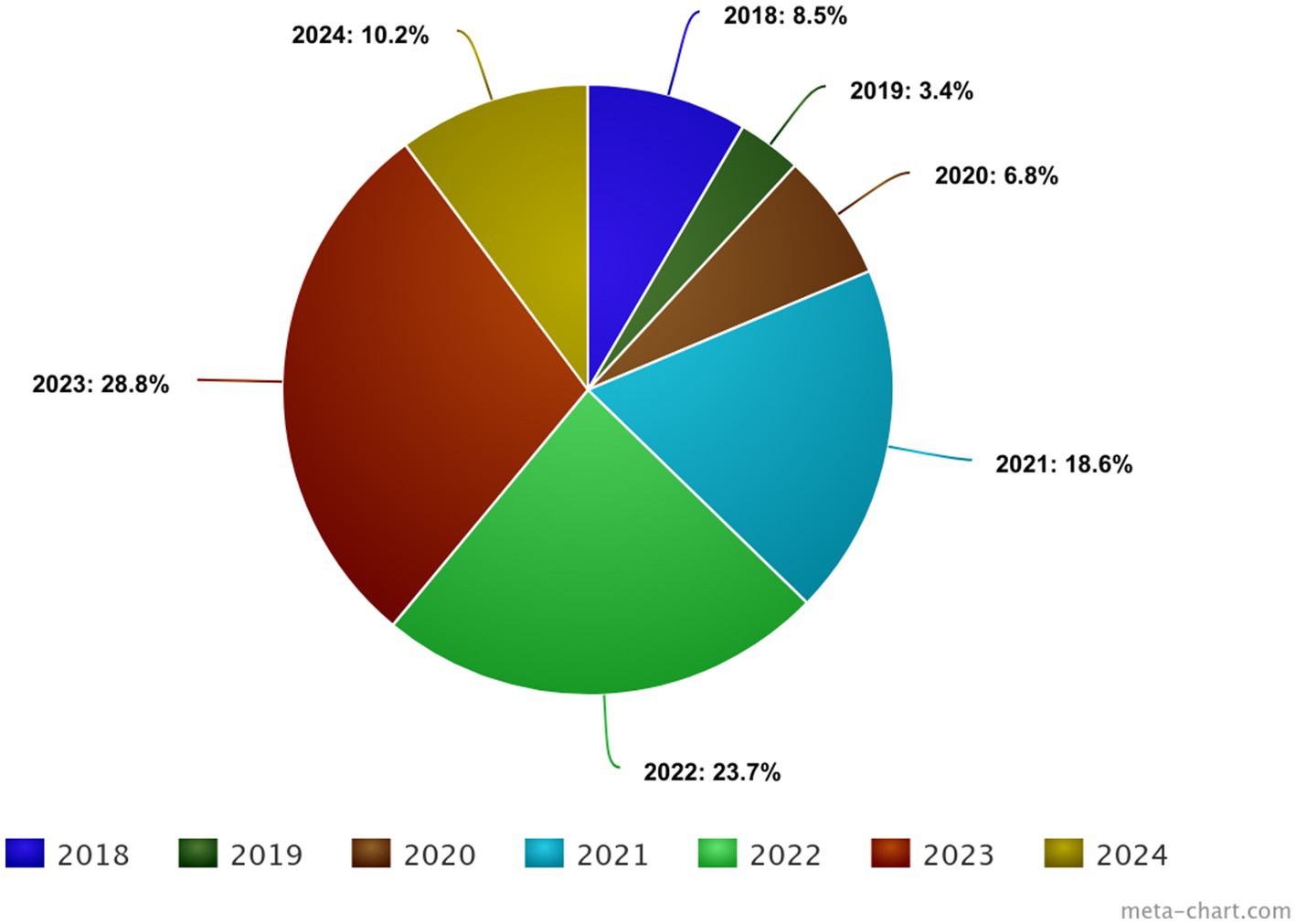

Figure 1. A yearly distribution of the 70 papers selected for this review.

Figure 2
www.frontiersin.org

Figure 2. A diagram of the SLR search strings.

4 Omniverse architecture background

In this section, we will explore the architectural components of the Omniverse ecosystem and discuss their structure in detail. We will also address our first research question (RQ1), focusing on the core elements and how they interact within the Omniverse architecture.

4.1 Omniverse framework

The Omniverse stands as a cutting-edge metaverse technology platform founded upon the USD format (OpenUSD). This platform enables users to develop and oversee metaverse applications, eradicating 3D data silos, fostering collaboration within expansive teams, and enhancing 3D and simulation workflows. Users have the capability to fashion personalized extensions, tools, and microservices tailored for industrial 3D workflows, produce synthetic data, and seamlessly synchronize with creative applications for streamlined 3D data manipulation. Additionally, the Omniverse offers a range of built-in applications and extensions for users’ convenience. Please see Figure 3 for an overview of the Omniverse built in available applications and extensions.

Figure 3
www.frontiersin.org

Figure 3. The Omniverse apps and extensions.

4.2 Nvidia replicator

The Replicator is the Omniverse’s synthetic data gathering and generation tool. It leverages the power of NVIDIA’s RTX GPUs to create highly photorealistic environments and scenarios using a wide range of assets from both NVIDIA’s repository and external sources. These assets can be customized and scaled according to the needs of various AI applications, offering users an intuitive and user-friendly interface that simplifies the entire data generation process, making it accessible even to those with limited experience in 3D modeling or simulation (Kokko and Kuhno, 2024).

Within the Omniverse ecosystem, Replicator functions similarly to a highly advanced digital camera embedded within the scene or environment of any Omniverse application. Much like cameras used in CGI creation, Replicator captures scenes with the added power of NVIDIA’s ray tracing technology, specifically path tracing. This technology enables the rendering of scenes onto a 2D plane with exceptional accuracy and realism, producing detailed 2D views of environments by leveraging cutting-edge rendering techniques. The ease of integration with various Omniverse applications further enhances its usability, allowing seamless workflow transitions between tools (Abu Alhaija et al., 2023).

Figure 4 shows the Replicator pipeline workflow from importing 3D assets until generating synthetic data.

Figure 4
www.frontiersin.org

Figure 4. Nvidia replicator workflow.

The Replicator features a wide range of tunable parameters that can be adjusted to meet specific user needs, allowing for highly customized synthetic data generation. Users can set the batch size to control the number of images or samples generated per iteration, while applying various augmentations such as scaling, rotation, flipping, or noise addition to increase data diversity. The distribution and frequency of objects appearing in the generated data can also be finely tuned, alongside the addition or modification of noise in lighting, textures, or object positions. Specific parameters like bounding box generation, including padding and format (2D or 3D), and the control over segmentation masks and depth maps are also available, allowing for detailed customization of these critical annotations. Key points can be specified, including the number and precise locations for each object, enhancing the accuracy of the generated data. Users can configure multi-view rendering to generate data from different angles and set the frame rate for temporal consistency, which is essential for applications like video analysis. The Replicator also offers control over render layers, enabling the inclusion of specific data such as RGB, depth, and normals. For further customization, users can define an augmentation pipeline, applying transformations such as color jittering or blur during data generation. Domain randomization extends flexibility by allowing random changes in textures, lighting, and object placements, which is particularly useful for creating robust training datasets. Additionally, parameters like camera path, field of view variation, and depth of field adjustments can be modified to simulate various scenarios, such as automated driving or robotics. Finally, the output format of the generated dataset can be specified, including the file type and structure, while annotation frequency and data labels can be customized to ensure compatibility with specific machine learning pipelines. This ease of use is complemented by the portability of the generated datasets, which can be easily transferred and utilized across different platforms and applications, making it an invaluable tool for diverse AI projects (Richard et al., 2024).

Replicator also integrates seamlessly with the Omniverse’s advanced visual features, such as accurate physics via the PhysX engine, realistic lighting, and materials using MDL. It excels in simulating diverse scenarios, producing high-quality datasets, and automating labeling. By employing advanced algorithms for object detection and semantic segmentation, it enhances the robustness and accuracy of AI models, while speeding up data annotation by up to 100 times and reducing costs proportionately. Its standout feature, domain randomization, alters digital scenes to create varied datasets from one set of assets, ensuring models can handle real-world scenarios by changing parameters like lighting, textures, and object positions, making digital landscapes look different each time. This flexibility, combined with the tool’s intuitive interface, makes it highly accessible and adaptable for various use cases (Abou Akar et al., 2022).

The Replicator interacts synergistically with other applications such as Isaac Sim, Nucleus, Audio2Face, DriveSim, Create XR, and USD Composer. For instance, Isaac Sim, used for simulating robots, benefits from the realistic environments generated by Replicator to enhance the training of robotic AI systems. Audio2Face utilizes the harvested synthetic data for creating life-like facial animations driven by audio inputs, which can be used in virtual characters and avatars. DriveSim employs the synthetic scenarios generated by Replicator to train and validate autonomous driving systems in a variety of conditions. Create XR and USD Composer facilitate the creation and manipulation of extended reality environments and complex 3D scenes, respectively, both benefiting from the high-quality data produced by Replicator. These applications benefit from Replicator’s portability, as the synthetic datasets can be easily shared via Nucleus, allowing for efficient collaboration and deployment across different platforms (Conde et al., 2021).

4.3 Nvidia drive sim

NVIDIA DRIVE Sim an end-to-end AV simulation platform designed from the ground up to facilitate large-scale, physically based multi-sensor simulations. This open, scalable, and modular platform supports AV development and validation from concept to deployment by creating highly realistic virtual environments for testing and training (Apostolos, 2024). The platform supports Hardware-in-the-Loop (HiL) testing by connecting with physical hardware, handling both single and multi-vehicle scenarios for research and commercial applications. It helps AI training for real-world unpredictability, speeds up development, and ensures regulatory compliance (Bjornstad, 2021). Using Nvidia AutoDrive’s advanced data, DRIVE Sim improves decision-making and employs a neural reconstruction engine to create interactive 3D test environments (Ghodsi et al., 2021). Its architecture includes highly accurate sensor models that simulate cameras, LiDAR, and radar, mirroring real-world conditions. It creates dynamic traffic scenarios with multiple vehicles, pedestrians, and environmental factors, adding complexity to simulations. Advanced techniques are used for detailed environmental rendering to precisely replicate real-world driving conditions. Its standout feature is the Neural Reconstruction Engine, a deep learning tool that translates real roads scanned by specific cameras into interactive 3D test environments, enhancing both the realism and variability of simulations. Additionally, it uses data gathered from various sensors to replicate real-world vehicles, creating assets that can be utilized in different scenes (Autonomous Vehicle International, 2023) as depicted in Figure 5 the left image shows a yellow truck scanned from a real-life scenario, which is then used as an asset in a different environment, as seen in the right image.

Figure 5
www.frontiersin.org

Figure 5. Asset harvesting using the Neural Reconstruction Engine Autonomous Vehicle International (2023).

DRIVE Sim is connected to the Nucleus so it can share environments with Isaac Sim, which utilizes these realistic settings for robotic simulations. The Replicator generates diverse and realistic datasets that DRIVE Sim uses for training and validating autonomous driving systems.

4.4 Nvidia Isaac sim and Isaac gym

Isaac Sim is the Omniverse application for robotics training and simulation, renowned for its high-fidelity 3D simulations and integration with deep reinforcement learning through Isaac Gym. This enables seamless GPU integration and extensive customization for robotic control research (Makoviychuk et al., 2021). Isaac Sim also offers a user-friendly interface for controlling movement and automating robotic actions such as movement and rotation. For advanced users, it includes a built-in Python IDE, allowing for manual control, modification of robots, and scripting of scenarios. Isaac Sim supports importing custom robots not only in USD but also in MJCF and URDF formats, offering flexibility for various design needs also features pre-built robotics models such as Jetbot, Jackal, and various control arms seen in Figure 6, each equipped with a different suite of sensors including Perception-Based Sensors and Physics-Based Sensors like Contact Sensors, IMU Sensors, Effort Sensors, Force Sensors, Proximity Sensors, and Lightbeam Sensors.

Figure 6
www.frontiersin.org

Figure 6. Available built in robots in Isaac SIm.

Within the Isaac Sim and Gym ecosystem, two supporting libraries stand out: SKRL and Isaac Orbit. SKRL is an open-source Python library for Reinforcement Learning, celebrated for its modularity and compatibility with environments like OpenAI Gym, Farama Gymnasium, DeepMind, and Nvidia Isaac Gym. It provides a comprehensive suite of RL agents, trainers, learning rate schedulers, and basic rendering capabilities using PYGAME (Serrano-Munoz et al., 2023). Isaac Orbit, another open-source framework, delivers realistic simulations for a variety of tasks such as reaching, lifting, cabinet manipulation, cloth manipulation, rope reshaping, and more (Mittal et al., 2023). Figure 7 illustrates the diverse range of robot types and manipulable objects available through Isaac Orbit.

Figure 7
www.frontiersin.org

Figure 7. Available robots and manipulatable objects in Nvidia Isaac orbit (Mittal et al., 2023).

Isaac Sim works in conjunction with the Omniverse USD Composer, allowing users to create detailed environments and scenarios that can be easily imported into Isaac Sim for simulation and testing. This makes it simple to build and test realistic simulation settings. For immersive experiences, Isaac Sim integrates with the Omniverse XR allowing users to interact with and test their robotics simulations in a VR environment, making the design and validation process more intuitive and hands-on. These features are supported by Isaac Sim’s integration with the Omniverse Nucleus. Nucleus lets users store, version, and collaborate on 3D assets, ensuring smooth workflow integration across different applications. Users can share robot models, simulation environments, and datasets with team members or other Omniverse applications, making collaboration and asset management easy.

4.5 Nvidia Create XR

Nvidia’s Create XR is the Omniverse tool for immersive world-building and interactive scene assembly for navigation in VR and AR (Ortiz et al., 2022), providing developers the capability to create immersive, ray-traced XR experiences through the use of specialized SDKs and RTX GPUs rendering complex scenes in real-time (Shapira, 2022). It enhances the immersion with features like realistic illumination, soft shadows and authentic reflections also its compatibility with Oculus and HTC Vive controllers enhances the user experience (Chamusca et al., 2023). Create XR integrates with Nucleus, enabling the import of assets and scenes made with other applications in the Omniverse ecosystem, like Nvidia USD Composer. Additionally, scenes created in Create XR can be easily shared and used in other Omniverse applications, ensuring seamless workflow and collaboration (Vatanen, 2024).

4.6 Nvidia Audio-2-Face

Audio2Face is the Omniverse application to create facial expressions such as amazement, anger, joy and many more, it uses generative AI to create expressive lifelike animations for 3D characters in real-time from audio inputs, a solution for animators and developers (Omn, 2022a). Audio2Face supports multiple languages and the ability to animate multiple characters simultaneously, each synchronized to different or the same audio source streamlining the creation of dynamic and interactive characters in a variety of settings, from video games to virtual assistants and cinematic productions. Users can also customize emotional responses by manually tuning the controlling parameters of facial masks, smoothing of upper and lower face as well as the strength of the overall motion, it also offers the ability of manually control the strength of each emotion manually providing versatility and ease of use also (Nvidia, 2024). Its integration with Nvidia’s Nucleus for collaboration with other Omniverse applications allows sharing assets at a press of a button.

Figure 8 shows the level of each emotion during every frame of the animated output. Values between 0 and 0.5 are automatically set by the application, while values above 0.5 indicate that the strength of that particular emotion was manually adjusted.

Figure 8
www.frontiersin.org

Figure 8. Audio2Face Emotions Visualizer (NVIDIA, 2024).

Its architecture is based on the Generative Adversarial Network (GAN) along with Recurrent Neural Networks (RNNs) and Convolutional Neural Networks (CNNs). GANs are used to generate realistic facial expressions from audio inputs. They consist of two neural networks, a generator and a discriminator, that work in tandem (Goodfellow et al., 2014). The generator creates facial animations, while the discriminator evaluates their realism, providing feedback to improve the generator’s performance. RNNs (Wu, 2023), particularly Long Short-Term Memory (LSTM) networks, are used to handle the temporal aspects of the audio signal. They analyze the sequence of audio frames to capture the dynamics and emotional content over time, synchronizing the animations. CNNs are used for feature extraction from the audio signal to identify relevant features that correspond to specific facial movements and expressions (Choi et al., 2017). The audio input gets converted into a spectrogram which is then fed into CNN to extract relevant audio features to be processed by the RNN (LSTM) to capture temporal dependencies and emotional details. The spectrogram is then fed into the CNN to extract relevant audio features. The extracted features are processed by the RNN (LSTM) to capture temporal dependencies and emotional then its outputs are used to guide the GAN facial animations. The generator creates facial expressions, which are continuously refined by the discriminator for realism (Liu et al., 2024).

Figure 9 shows the Audio2Face pipeline workflow from inputting the audio data until the final facial animation rendering.

Figure 9
www.frontiersin.org

Figure 9. Nvidia Audio2Face pipeline stages and workflow.

4.7 Nvidia USD composer

Nvidia USD Composer (formerly Create) is an Omniverse application for large-scale 3D world construction workflows (Sim et al., 2024). It integrates design, content creation, CAD, and simulation tools into a single platform, using a unified format of USD. The Composer also provides complex simulations, including fluid dynamics and soft body physics, through Nvidia’s PhysX simulation technologies, bringing realistic physics to scenes and creating immersive 3D content (Omn, 2022b).

For models’ creation The Composer supports USD meshes and subdivision surfaces, as well as USD Geom Points, which are specialized geometric primitives for rendering small particles like rain, dust, and sparks. It also allows for the rendering and authoring of basis curves in USD, providing enhanced workflow flexibility for artists, developers, and engineers, including applications from hair to camera tracks (Figure 10). Additionally, the Composer supports OpenVDB volumes as textures, offering advanced texturing capabilities (NVIDIA Corporation, 2024). It also supports Nvidia Index to interactively visualize and explore entire volumetric data sets in a collaborative setting (Schneider et al., 2021).

Figure 10
www.frontiersin.org

Figure 10. An astronaut model created in USD Composer demonstrates impressive visual quality (NVIDIA Corporation, 2024).

For rendering it uses built-in RTX Renderer for enhanced visual quality, and its direct interface options with Hydra renderers and Pixar form add considerable flexibility. It offers post-processing features such as tone mapping, color correction, chromatic aberration, and more, alongside core technologies like MDL (Zhao et al., 2022). To light up scenes, it supports various light sources, including Distant Light (resembling sunlight or moonlight), Sphere Light, Rect Light, Disc Light, Cylinder Light, Dome Light, and HDRI Skysphere (Background) lighting (Figure 11). All these can be enhanced using NVIDIA GPU hardware acceleration like DLSS (Deep Learning Super Sampling), which significantly boosts rendering performance while preserving image quality.

Figure 11
www.frontiersin.org

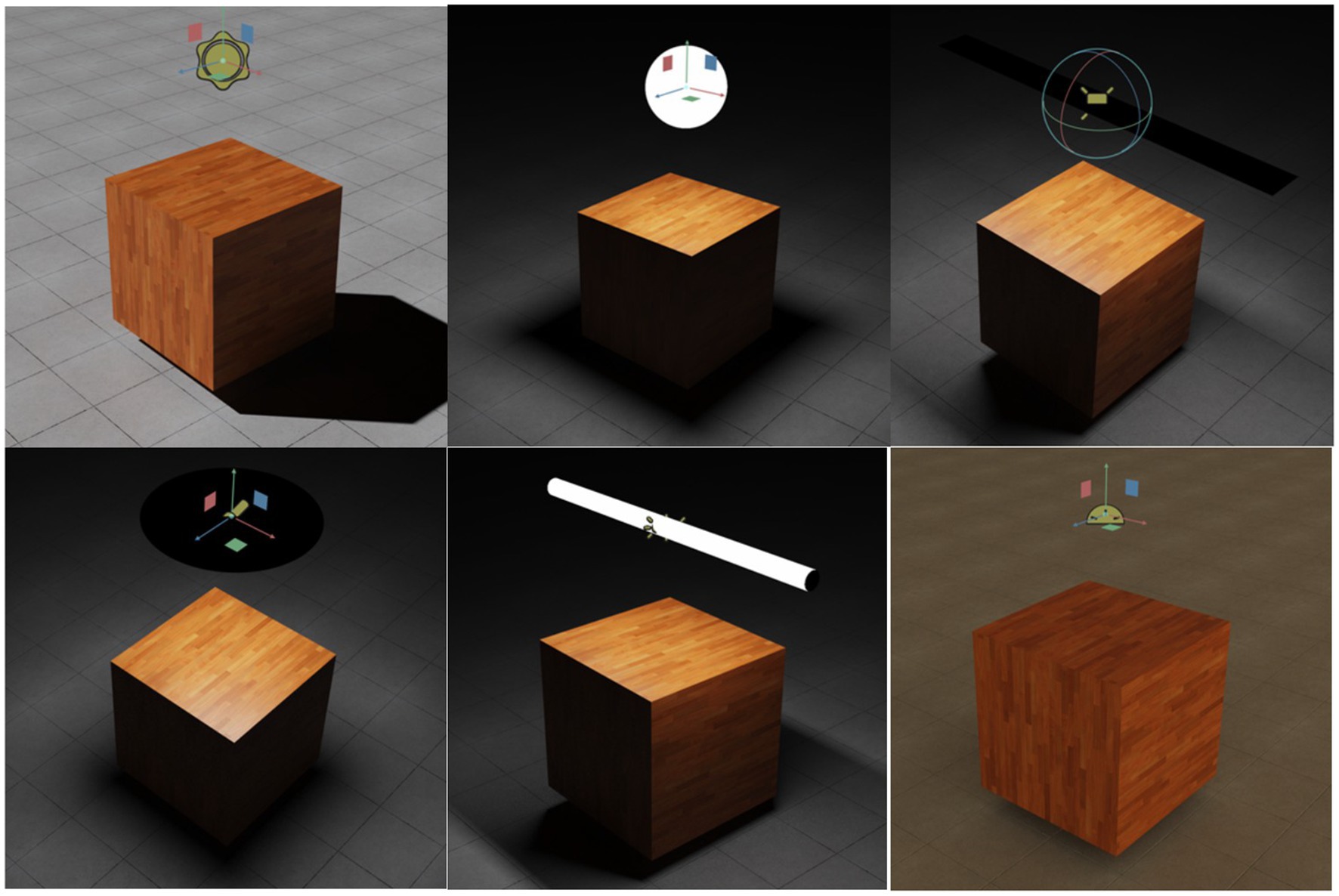

Figure 11. Different types of lights available in the USD Composer (NVIDIA, 2024).

USD Composer offers portability and user-friendliness, running seamlessly on both Windows and Linux. This cross-platform support is particularly advantageous for teams operating in diverse environments. The tool comes with an extensive library of built-in assets that can be easily utilized through a simple drag-and-drop interface, and it also connects to an external asset store for even more options. For monitoring performance, USD Composer includes built-in tools that track CPU, GPU, and RAM usage, ensuring efficient resource management. Additionally, it features an asset processing extension that not only enables the import of assets from external sources but also converts non-compatible assets into compatible formats, such as USD. Users can choose from three viewing modes—Draft, Preview, and Photo—where Draft utilizes the Omniverse RTX Renderer’s Real-Time mode, and Preview and Photo modes leverage RTX’s Interactive Path Tracing (IPT) to balance quality and performance, making it suitable for various needs, including the replicator tool. It is directly connected to the Omniverse Nucleus API so that all assets and virtual worlds created in Composer are easily accessible and usable by other applications like Isaac Sim and the XR application (Vatanen, 2024).

4.8 Nvidia nucleus and connectors

The Omniverse Connectors facilitate smooth communication between the Omniverse and other software, allowing 3D assets and data exchange in the USD format, enhancing the Omniverse’s versatility and portability across various platforms and workflows (Li et al., 2022). These connectors ensure that assets are easily transferable between different software environments without loss of fidelity or functionality.

The Nucleus is the backbone of the Omniverse ecosystem, connecting all applications like the Omniverse Create, Isaac Sim, and Drive Sim. It acts as the central hub for data and assets exchange, including version control, live collaboration, and real-time updates, allowing multiple users to work on the same assets simultaneously without conflicts. This provides efficient and synchronized collaboration and updates across the entire ecosystem. Operating under a publishing/subscription model, Nucleus enables clients to publish changes to digital assets and subscribe to updates while offering flexible deployment options to meet various operational needs. Technically, Nucleus is built on a scalable architecture that supports high-performance data storage and retrieval, using advanced caching known as Content Addressable Storage (CAS) (Kaigom, 2024), by assigning a unique identifier, known as a content address, to each piece of data based on its content rather than its location. This approach allows CAS to store only one version of the data, even if it is used across multiple projects, thereby minimizing redundancy and optimizing storage usage. When data needs to be retrieved, the system uses the content address to quickly locate and access the information, significantly reducing latency. CAS also supports deduplication and versioning, ensuring that identical files are stored only once, which is vital for maintaining version control and facilitating real-time collaboration. This mechanism is particularly advantageous in large-scale environments where data may be frequently accessed or modified, as it reduces the overhead associated with data management. Overall, CAS is a critical component of Nucleus, enabling it to efficiently support the demands of real-time, collaborative 3D workflows (Lin et al., 2023).

The Nucleus operates through interconnected services that users can interact with via built- in APIs and interfaces, providing ease of use with no additional programming (see Figure 12). Nucleus’s design emphasizes portability, enabling it to be deployed in various configurations to meet different operational needs, from local servers to cloud-based solutions. This flexibility ensures that Nucleus can be adapted to different organizational infrastructures, providing a tailored fit for diverse project requirements. This interconnectedness ensures instant reflection of changes across all connected applications, enabling a truly collaborative workflow (Omn, 2022d).

Figure 12
www.frontiersin.org

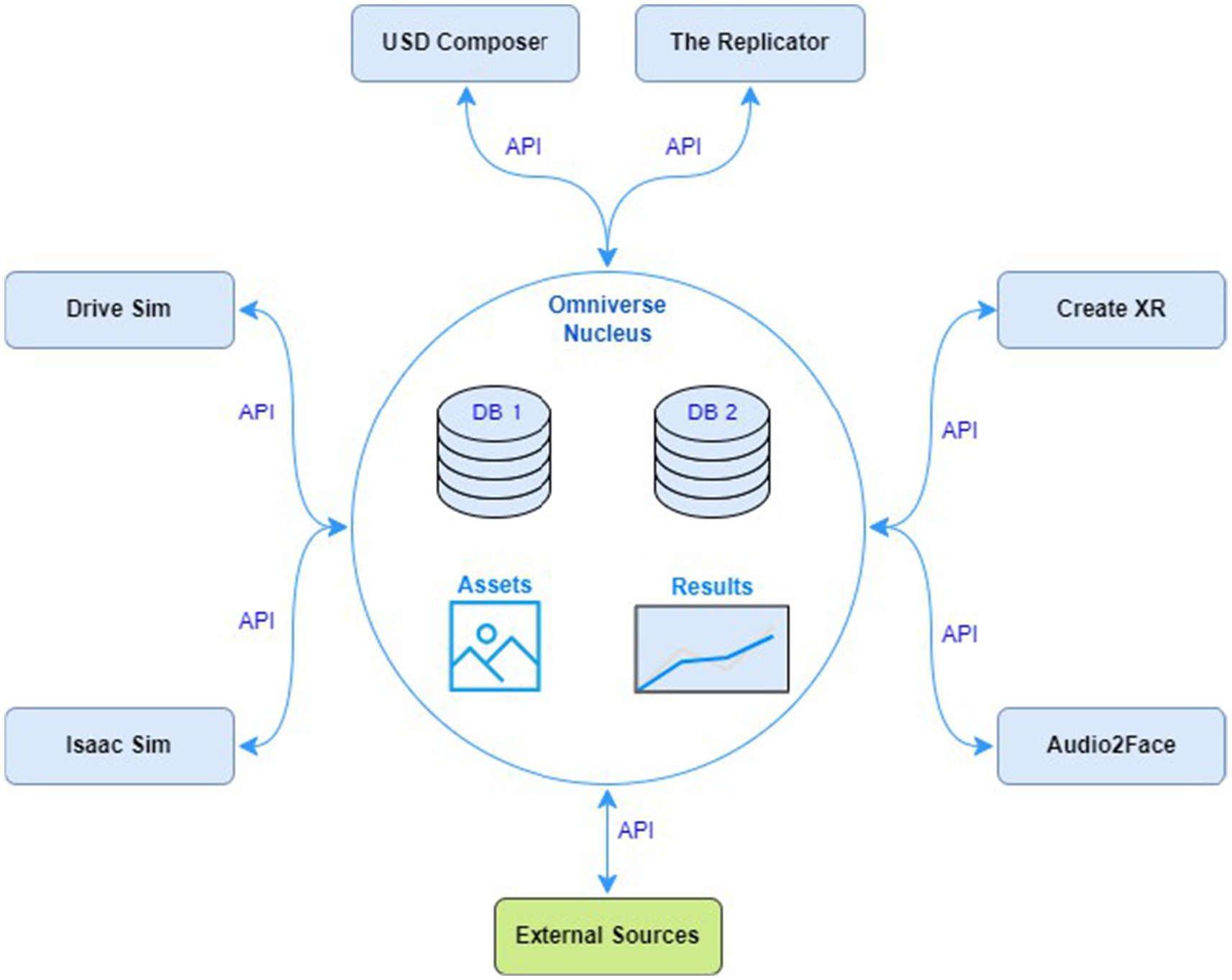

Figure 12. Omniverse Nucleus interconnections.

5 Literature discussion

In recent years, there has been a significant increase in literature studies exploring new technologies related to the concept of the metaverse. However, the Omniverse has received relatively little attention in these research papers.

Our paper addresses this gap by specifically targeting the Omniverse, narrowing the focus from the broader concept of the metaverse. This work is pioneering in providing a comprehensive technical analysis of the Omniverse as an independent ecosystem, thoroughly exploring its capabilities and limitations. To address the second research question (RQ2), we have summarized, presented, and discussed recent surveys and systematic papers related to this topic.

5.1 Related work

Xu et al. (2022) conducted a detailed study on the metaverse, suggesting it could be the next big thing after smartphones and the internet. They recognized that people have not yet tapped into everything the metaverse can do but highlighted the importance of new technologies, like edge computing, which could help the metaverse reach its full potential. Their study looked closely at the complicated technology needed for the metaverse and discussed problems with building it, including issues with computing power, network connections, and device communication. They suggested some possible solutions, especially using blockchain technology, which could help overcome these problems. They also paid more attention to the Omniverse compared to other studies, laying the groundwork for more research into Nvidia’s specific metaverse technology.

Chow et al. (2022) conducted a detailed study comparing different metaverse systems, including the Omniverse. Their research covered a broad range of issues, especially security problems, emphasizing the need to protect these online spaces. They also highlighted important features of metaverse environments and proposed future directions, showing the evolving nature of the metaverse.

Huynh-The et al. (2023) reviewed the metaverse, focusing on its integration with artificial intelligence and various applications. Their study maintained a broad perspective without concentrating on any specific metaverse platform. However, they did not fully address the challenges and limitations of the metaverse, indicating a need for further investigation. Similarly, Agarwal et al. (2022) explained the basics and potential benefits of metaverse technology. While they touched on some challenges, their discussion lacked depth, primarily highlighting the negatives. This suggests a gap in understanding the complex issues critical to the development of metaverse technology. Wang et al. (2022) focused on the security aspects of the metaverse. They examined various security problems, such as access control, identity verification, network vulnerabilities, and financial risks. They also looked closely at data handling. The paper discussed important features that define the metaverse, like realism, spatial and temporal consistency, persistence, interoperability, and scalability. The research also explored many uses of the metaverse, including highly immersive games.

Ning et al. (2023) provided a thorough look at the metaverse, going beyond a specific version. They examined the rules and policies related to the metaverse that different countries, companies, and organizations have put in place. The study looked at the current development of the metaverse and its many potential uses, like gaming, virtual socializing, shopping, online collaboration, and content creation. They also explored how technologies like digital twins and blockchain could be used in the metaverse and how they work together. The research concluded by discussing unanswered questions and future directions, especially regarding security, showing the importance of continued investigation as the metaverse grows. Zhang et al. (2022) investigated robot control software, focusing on the Robot Operating System (ROS) and its newer version, ROS 2. Their work helps understand new ways to design and build technology that connects robots and enables them to work in various areas. They studied how well these designs work with ROS and provided detailed examples from other studies. Their work highlighted the flexibility of these technologies and their potential applications in many industries. Although they mentioned well-known systems like AWS RoboMaker and the Omniverse, they did not discuss much detail, maintaining a broad view to cover the growing field. Mann et al. (2023) wrote an in-depth paper about XR, encompassing AR, mixed reality. They aimed to clarify these different terms and their relationships. To make it easier to understand, they introduced a new name, XV (eXtended meta-uni-omni-Verse), which they believe could be key in the XR world. They categorized different types of reality to help people grasp the subject better. Their paper also discussed the Omniverse as a platform that could unify these technologies, although they did not go into too much technical detail. They addressed challenges related to XR, such as privacy, data ownership, and the impact of XV on jobs and social interactions, showing the complexity of XR. As can be seen in the extensive analysis of the related surveys, none of the existing works present a comprehensive analysis of the Omniverse and its applications. Table 1 reveals that existing surveys lack emphasis on extensions and components related to the Omniverse. Specifically, Huynh-The et al. (2023), Agarwal et al. (2022), Chow et al. (2022), Xu et al. (2022), Ning et al. (2023), and Wang et al. (2022) make no mention of Omniverse applications or extensions. In contrast, Zhang et al. (2022) dives into the replicator tool and the Isaac Sim simulation environment, while Mann et al. (2023) briefly touches on possible implementations of Create XR. In our survey, we have deliberately concentrated on thoroughly exploring all aspects, components, and extensions of the Omniverse platform.

Table 1
www.frontiersin.org

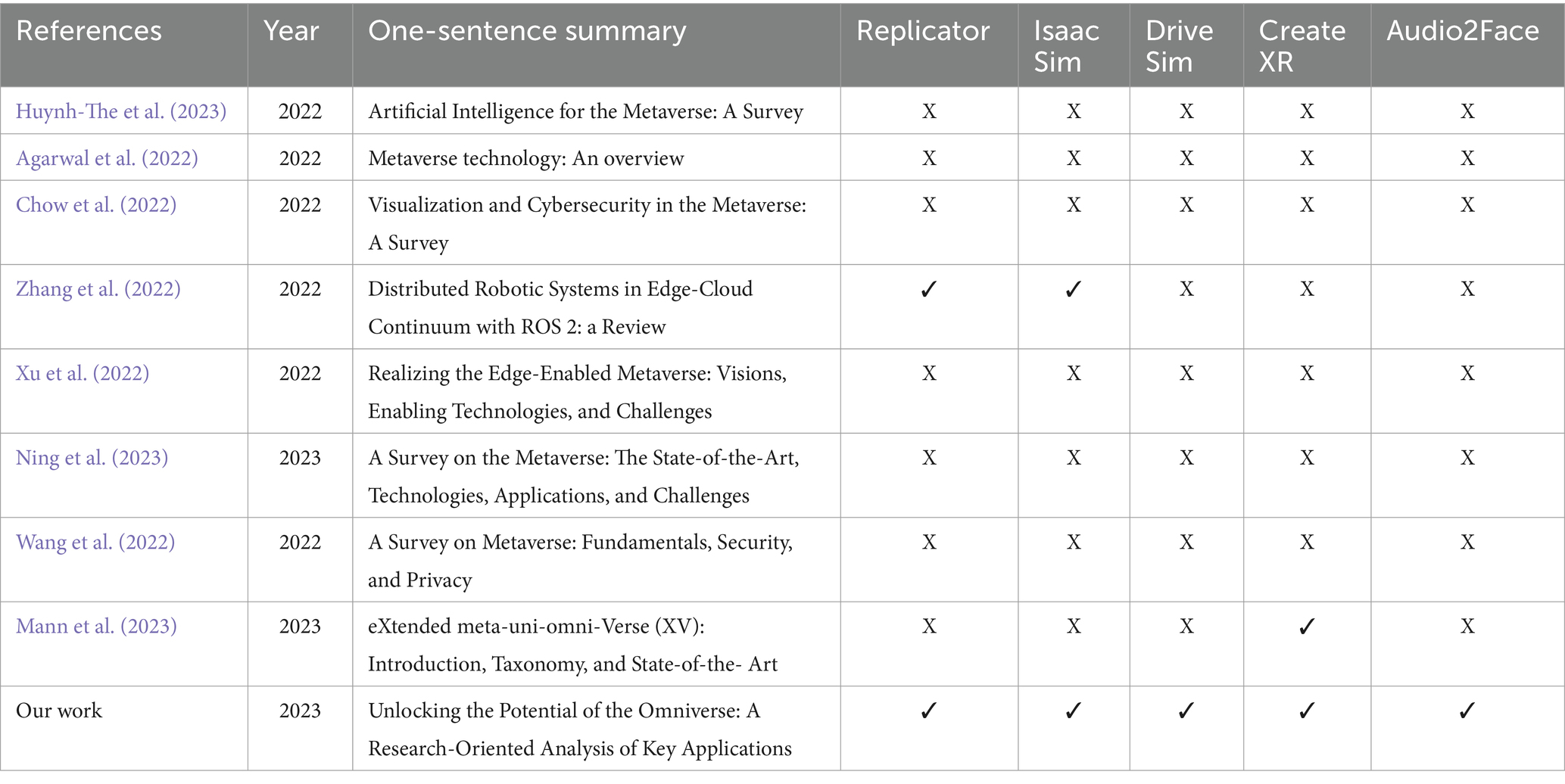

Table 1. Comparison of existing surveys on Omniverse in terms of focus and applications.

Our survey also goes into a much greater detail when it comes to the application of the Omniverse. From Table 2 it is clear that the synthetic data generation aspect of the Omniverse is only mentioned by Zhang et al. (2022). In the realm of teaching and education, possible metaverse implementations are acknowledged by Huynh-The et al. (2023), Xu et al. (2022), Ning et al. (2023), and Wang et al. (2022). Interestingly, no survey to date has explored the military potential in the Omniverse. The business sector stands out as the most frequently discussed domain for metaverse applications. Huynh-The et al. (2023), Agarwal et al. (2022), Xu et al. (2022), Ning et al. (2023), Wang et al. (2022), and Mann et al. (2023) all go into possible metaverse implementations in the field of business and trade. Concerning industry and manufacturing benefits from the metaverse, only two surveys, Xu et al. (2022) and Wang et al. (2022), have addressed this aspect. In the medical field, Agarwal et al. (2022), Xu et al. (2022), and Ning et al. (2023) have explored the potential applications of the metaverse. For culture and tourism, Huynh-The et al. (2023), Xu et al. (2022), Ning et al. (2023), and Wang et al. (2022) have contributed discussions, while the topic of smart cities is touched upon solely by Ning et al. (2023).

Table 2
www.frontiersin.org

Table 2. Comparison of existing surveys on the Omniverse in possible domains and implementations.

5.2 Quantitative study

The replicator was used by authors in Kokko and Kuhno (2024) for the development and utilization of a synthetic data generator. The goal was to create a reference generator that could produce high-quality training data for computer vision tasks, specifically semantic segmentation. Replicator was chosen for its high integration capability, use of the USD format, and connectivity to various third-party applications, which facilitated the import of diverse 3D assets and tools into the platform. The study found that the Omniverse’s rendering quality, combined with Replicators domain randomization and domain gap bridging techniques, significantly improved the visual realism and diversity of the synthetic data. Domain randomization, in particular, enhanced data distribution, improving the model’s ability to generalize to real-world scenarios, demonstrated by a DeepLabV3+ model trained solely on the generated synthetic data achieved a mean Intersection over Union (mIoU) accuracy of 94.05% on a small hand-labeled evaluation dataset. The study also indicates a substantial decrease in annotation costs through the use of the Replicator as manually annotating an image could cost around $6, whereas generating a synthetic image costs about $0.06 achieving a reduction of 100 times.

In Zhou et al. (2024) the authors present a benchmark for robotics manipulation using Isaac Sim. The authors propose this benchmark to establish a reliable development platform for the design and performance assessment of AI-enabled robotics systems surveying industrial and academic practitioners to compare Isaac Sim with other physical simulators. The benchmark consisted of eight robotics manipulation tasks Point Reaching (PR), Cube Stacking (CS), Peg-in-Hole (PH), Ball Balancing (BB), Ball Catching (BC), Ball Pushing (BP), Door Opening (DO), and Cloth Placing (CP) each designed to test different aspects of a robot’s manipulation capabilities. The study employs various DRL algorithms such as Trust Region Policy Optimization (TRPO), and Proximal Policy Optimization (PPO) Evaluations using metrics like Success Rate (SR), Dangerous Behavior Rate (DBR), Task Completion Time (TCT), and Training Time (TT) were conducted under conditions with and without action noise.

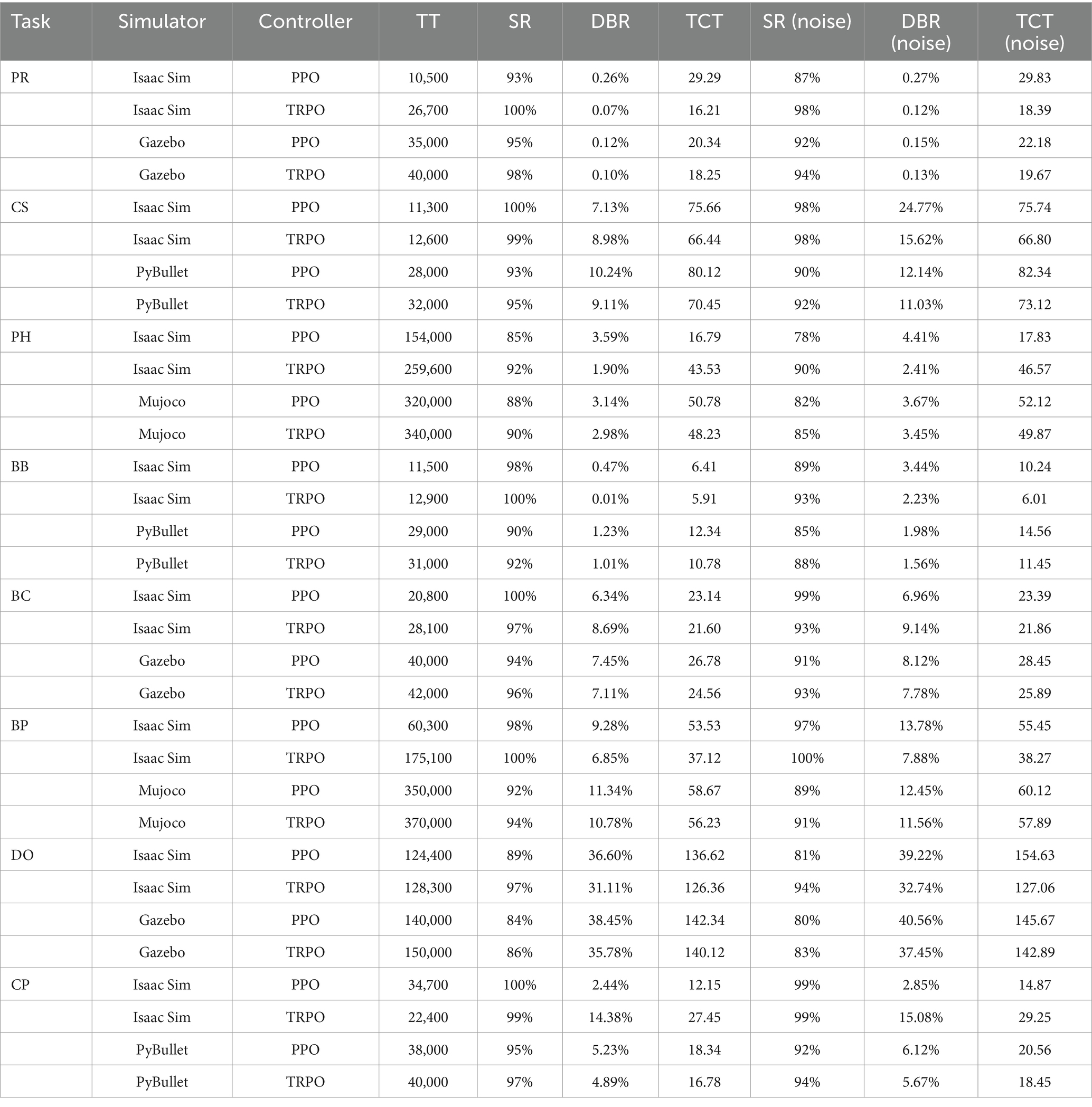

Table 3 summarizes the performance of AI controllers (PPO and TRPO) on various robotics manipulation tasks using different simulators, including Isaac Sim, Gazebo, PyBullet, and Mujoco. Tasks were evaluated with and without action noise. Isaac Sim paired with TRPO generally outperforms the others, achieving high success rates (up to 100%) and low error rates. In contrast, PyBullet and Mujoco show higher error rates and longer task times, especially under noise. Notably, tasks like ‘PR’ and ‘BB’ excel with Isaac Sim and TRPO, while complex tasks like ‘DO’ and ‘BP’ see performance drops across all simulators.

Table 3
www.frontiersin.org

Table 3. Performance comparison of simulators and controllers.

BEHAVIOR-1K dataset and the OMNIGIBSON simulation environment, which are developed using the Nvidia’s Omniverse technologies were introduced by Li et al. (2023). OMNIGIBSON exploits the capabilities of the Omniverse and PhysX 5 to deliver high- fidelity physics simulations and rendering, including rigid bodies, deformable bodies, and fluids. This environment is designed to support 1,000 diverse activities with realistic simulation features, including temperature variations, soaked levels, and dirtiness states, enabling the simulation of complex activities such as cooking and cleaning. The paper also presents a quantitative comparison between OMNIGIBSON and its competitor, AI2-THOR which is based on UNITY engine, highlighting OMNIGIBSON’s superior performance across various metrics. In a survey assessing visual realism, OMNIGIBSON achieved a score of 3.20 ± 1.23, significantly higher than AI2-THOR’s 1.73 ± 1.37. Furthermore, OMNIGIBSON offers a broader range of activities and scene types, featuring 1,265 object categories and 5,215 object models, compared to AI2-THOR’s 118 object categories and 118 object models (Figure 13).

Figure 13
www.frontiersin.org

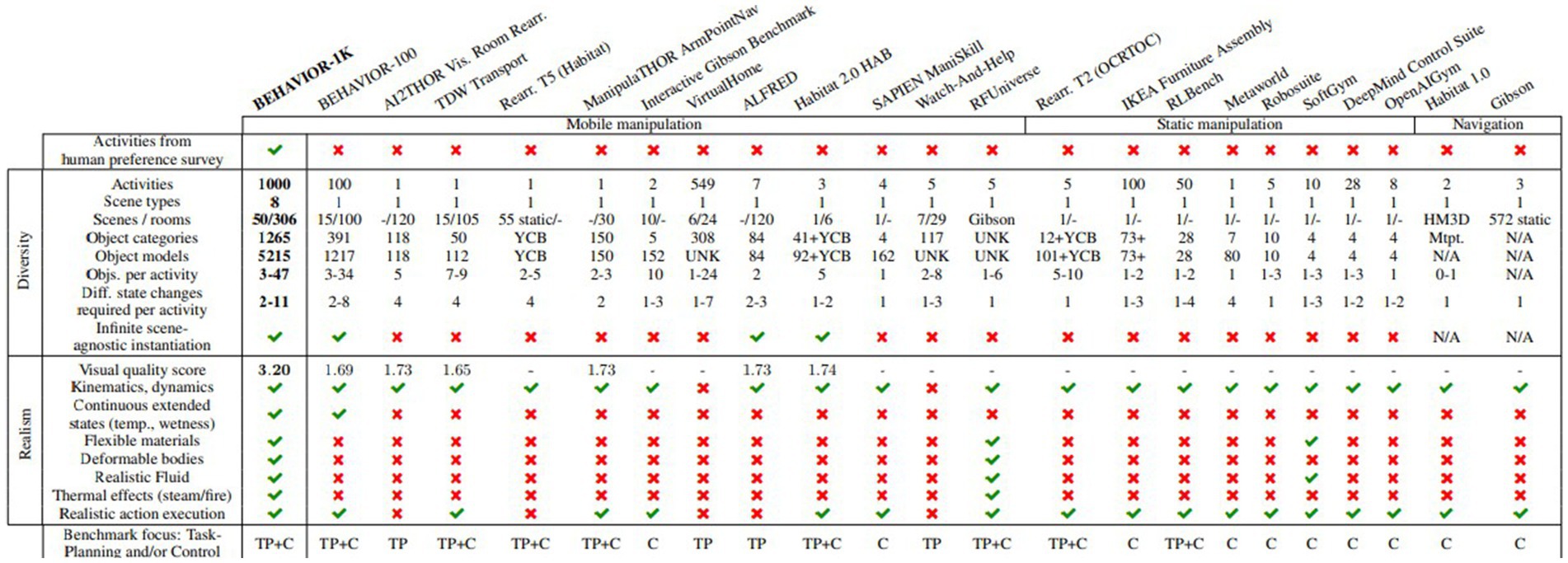

Figure 13. Comparison of Embodied AI Benchmarks: BEHAVIOR-1K contains 1,000 diverse activities that are grounded by human needs. It achieves a new level of diversity in scenes, objects, and state changes involved (Srivastava et al., 2022), table extended by Li et al. (2023).

5.3 Comparative analysis of Omniverse and other metaverse platforms

The Omniverse stands out among various metaverse platforms due to its advanced capabilities in real-time simulation, AI integration, and seamless collaboration, making it ideal for professional and industrial applications (Lee et al., 2021). Unlike Decentraland, Facebook’s Horizon, and Roblox, which focus on social interaction, user-generated content, and entertainment, the Omniverse emphasizes high-fidelity simulation and content creation. Decentraland leverages blockchain for a decentralized economy, Horizon focuses on social networking, and Roblox prioritizes user creativity and gaming. The Omniverse’s precision, interoperability, and industrial applicability set it apart from these socially and creatively oriented platforms (Wang et al., 2022). The Omniverse also distinguishes itself from platforms like Second Life and VRChat, which focus on social interaction and user-generated content. The Omniverse’s robust integration capabilities and real-time collaborative environment make it a comprehensive tool for developers to build sophisticated virtual worlds with photorealistic graphics and precise physics. Its interoperability with various software applications and support for Universal Scene Description (USD) enable seamless collaboration across different domains, contrasting with the more isolated ecosystems of other metaverse platforms (Lee et al., 2021). Compared to Unity, which caters to 2D and 3D game development with broad cross-platform compatibility and an extensive asset store, the Omniverse leverages Nvidia’s AI and rendering technologies, supports Python and C++ for customization, and is based on the OpenUSD platform, making it suitable for large-scale projects and enterprises. Unity, supporting multiple scripting languages, is more geared toward indie developers and mobile projects (Aircada, 2024a). When compared to Unreal Engine 5, the Omniverse is optimized for industrial applications with its USD-based platform and tools for interconnected workflows, suitable for enterprise-level virtual world creation and simulation. Unreal Engine 5, ideal for game development, supports various platforms and offers a financially feasible royalty-based model for developers. Both platforms have unique strengths, catering to different user bases and needs (Aircada, 2024b).

Table 4 answers (RQ3) by highlighting the strengths and weaknesses of various metaverse platforms across different aspects. Each aspect is rated as Excellent, Good, Moderate, Low, or No, representing the platform’s capability in that area.” Excellent” indicates the highest level of performance or support,” Good” signifies a strong but not top-tier capability,” Moderate” reflects an average level of functionality,” Low” indicates below-average performance, and” No” means the feature or capability is absent.

Table 4
www.frontiersin.org

Table 4. Comparison of various platforms on different aspects.

6 Domains and applications

In this section we provide an overview and synthesis of potential domains and applications within the Omniverse, answering (RQ4) and (RQ5) with specific emphasis on ten primary fields outlined in Figure 14.

Figure 14
www.frontiersin.org

Figure 14. Applications of the Nvidia Omniverse.

6.1 Synthetic data generation

The Omniverse offers capabilities for the generation of synthetic data through the creation of a simulated environment incorporating all essential assets to construct a comprehensive scene. Subsequently, the Omniverse Replicator can be harnessed to apply domain randomization techniques, thus allowing for the randomization of one or multiple attributes within the USD framework (see Figure 15). This process yields a diverse array of synthetic data, which can further be subjected to automated annotation procedures, facilitating the training and development of artificial intelligence models (Geyer, 2023).

Figure 15
www.frontiersin.org

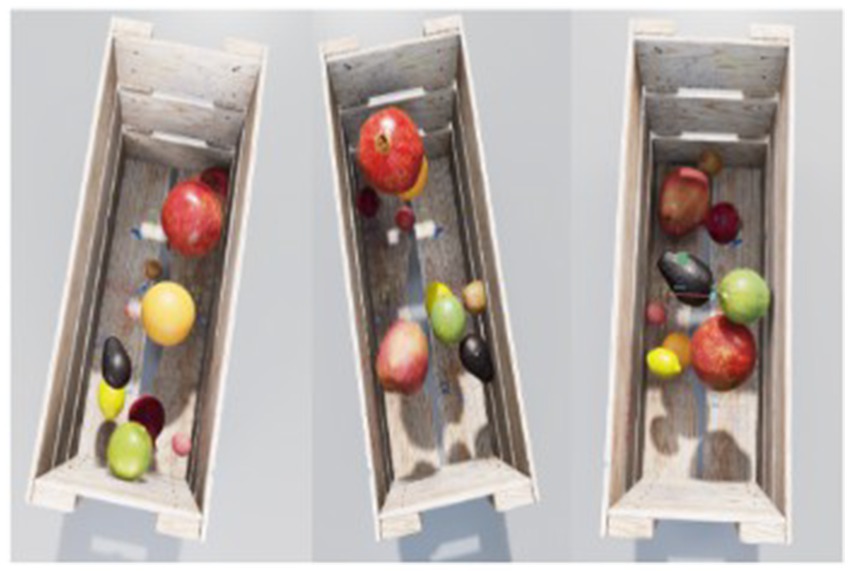

Figure 15. Domain randomization using Nvidia replicator generating three different scenes using the same assets [The Omniverse replicator Huynh-The et al. (2023)].

In a study Omn (2022c) researchers used the Omniverse system to make Synthetic data and build an AI that can find problems in car parts, specifically for the SIERRA RX3 model. The main goal was to create a big and varied set of data from just one computer model of a SIERRA car part without any defects. This was to help make a strong AI that can detect when parts have defects. They used several tools, including the Nvidia Omniverse Replicator, a custom extension toolset for making Synthetic defects, and RoboFlow, which helps label images and train AI models. They made fake Synthetic scratches on the car part that could be adjusted in shape, size, and where they were placed (Figure 16), which shows the car part before and after projecting synthetic scratches on its surface. Then, using the Omniverse Replicator and randomization techniques, they made a lot of images that showed these Synthetic defects in different ways.

Figure 16
www.frontiersin.org

Figure 16. Left image shows the Sierra RX3 defect-free part (CAD), while right images Show Decals projecting synthetic scratches on the defect-free car part (Nvidia defect detection Omn (2022c)].

This case study efficiently produces a strong defect detection model for a particular car part, attaining a precision rate of 97.7% and a recall rate of 73% through the exclusive use of a single computer-aided generated file. This achievement effectively tackles the issue of restricted data availability and reduces the related temporal and financial expenses that would be involved in creating a similar dataset using authentic defect detection models.

In another study (Metzler et al., 2023) proposed to use the Omniverse to overcome the challenge of training object detection models using synthetic data. By using the Omniverse capabilities to automate the generation of synthetic images for robust object detection tasks, particularly in scenarios where capturing diverse real-world images is impractical due to time, cost, and environmental constraints. The methodology revolves around creating 3D models of objects, applying domain randomization, and rendering synthetic images within the Omniverse. The authors applied their method to a chess piece recognition task, where the Omniverse Replicator was utilized for its advanced capabilities of photorealistic rendering, domain randomization, and efficient GPU-based batch processing to overcoming the sim- to-real gap by providing realistic textures, lighting conditions, and randomized object placements (Figure 17). The paper reports an impressive accuracy of 98.8% in object detection using the YOLOv5 model with the generated synthetic dataset. Furthermore, the study compares different sizes of training datasets and YOLOv5 variants.

Figure 17
www.frontiersin.org

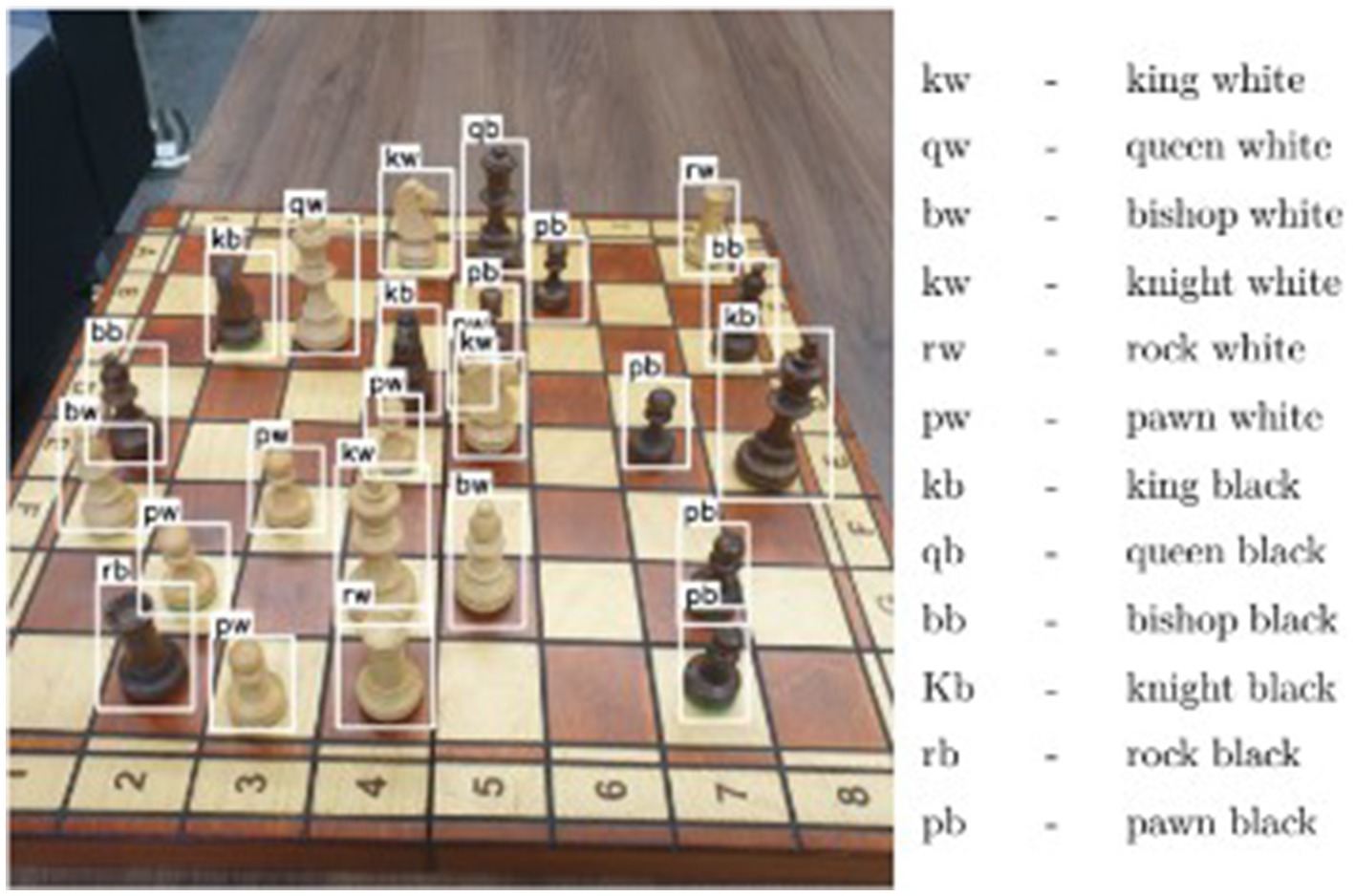

Figure 17. Example of a picture from the validation dataset with labels (Metzler et al., 2023).

Table 5 summarizes the performance across different dataset sizes and YOLO5 model variants from Nano to Extra Large. The results from Table 5 show that even with a small dataset size of just 100 images, the model was able to achieve impressive accuracy scores across different YOLOv5 variants. Notably, the YOLOv5 Extra-Large variant reached an accuracy of 95.2%, while the YOLOv5 Nano variant achieved 79.0%. These high accuracy levels, despite the limited dataset size, demonstrate the exceptional quality of synthetic data gener7ated using the Omniverse and the Replicator tool.

Table 5
www.frontiersin.org

Table 5. Performance of YOLOv5 variants across different dataset sizes (Metzler et al., 2023).

6.2 Education

In April 2020, UNICEF said that because of COVID-19, most students worldwide could not go to regular schools (Miks and McIlwaine, 2020). Almost all the schools, colleges and universities moved to online learning. They used the internet to teach, but there were some problems, like students getting distracted and not feeling like they were in a real classroom. Now, thanks to better technology and powerful computers, we can create engaging online classrooms. XR functionality of the Omniverse lets students and teachers feel like they are in a real classroom, using digital characters. This means students can learn from anywhere, and it’s almost like being in a real classroom (Spitzer et al., 2022). But it is not just about copying regular classes. Now, students can do experiments and practical lessons online, even ones that might be dangerous in real life. This is safer and cheaper, and students can do the experiments as many times as they need. Also, virtual tools make sure everything is safe and follows the rules. The Omniverse can also help people with special needs. For example, it can use digital characters to teach sign language, making learning fun for students who cannot hear. This way, they can overcome challenges and learn better (Novaliendry et al., 2023).

At Astana IT University, the Omniverse is used to help students learn by working on projects together. The students learned about 3D modeling and design, even though they were far away from each other. They had to make a virtual model of the university that looked just like the real one. This way, teachers could see how well the students were doing and help them fix mistakes quickly. They also used data to learn more about how students worked together (Alimzhanov et al., 2021). This project is about sharing how they organized this kind of learning during quarantine using the Omniverse platform. They used the Omniverse View to see the 3D model in real time. They also used a system named Omniverse Connectors to connect everything to the Omniverse Nucleus. All of this worked on a computer with a powerful Nvidia Quadro RTX 4000 graphics card. They used software like Autodesk 3ds Max and Blender to create objects and things in the virtual building. The rooms were made very carefully based on architectural plans in Autodesk 3ds Max and then put into the Unreal Engine using a special tool. With the help of connectors, students connected to a server where the 3D building model was kept, and they could add things to the virtual space easily (Alimzhanov et al., 2021).

6.3 In situ visualization

Hummel and van Kooten (2019) proposes using the Omniverse as a ‘Rosetta Stone’ for in situ visualization geometry, enabling the direct integration of scientific visualization data with creative tools, assets, and engines.

To achieve this, they have developed the Omniverse bridge, an adapter that connects in situ visualization tools with Omniverse. Distilled geometry, textures, and color maps are converted on-the-fly to USD and pushed to the Omniverse as they become available (Figure 18). If the visualization geometry includes time step information, these are represented as time samples in USD. The current implementation is integrated with ParaView, where the Omniverse bridge functions as a specialized render view. Any geometry flagged for rendering through the Omniverse bridge is automatically converted to USD and transferred into the Omniverse. In a Catalyst script, this view can be registered with the coprocessor in the same way as a regular render view would be used to render and save images.

Figure 18
www.frontiersin.org

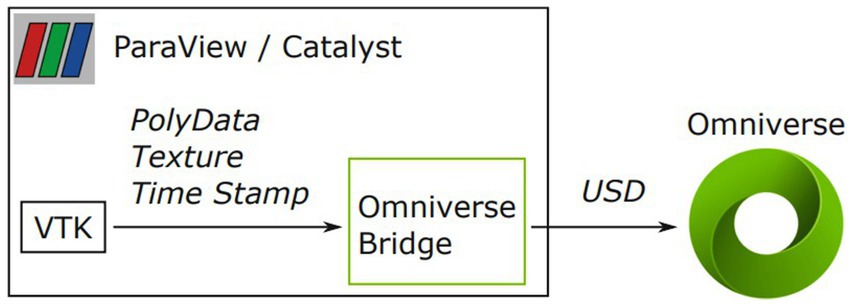

Figure 18. The Omniverse bridge converts visualization geometry from the in situ visualization framework into USD format and then integrates the results into the Omniverse (Hummel and van Kooten, 2019).

Airliner Flow Simulation: In this example, an OpenFOAM (Jasak et al., 2007) simulation models the airflow around an A320 jet aircraft (Weller et al., 1998). ParaView Catalyst was used to compute an isosurface of the pressure field in situ, which was then transferred to the Omniverse using the Omniverse bridge, along with the aircraft’s boundary mesh. In the Omniverse Kit, the visualization geometries were combined with planes as a contextual background. The aircraft mesh was given a polished aluminum material using MDL. Any modifications to the visualization geometry, such as changing the isovalue, are automatically updated in the Omniverse Kit. Advanced rendering techniques like ray-traced reflections, ambient occlusion, and shadows deliver high-quality visuals in real-time (Figure 19).

Figure 19
www.frontiersin.org

Figure 19. An isosurface of the pressure volume and the airliner boundary mesh, both pushed into the Omniverse by the Omniverse bridge, are visualized using the Omniverse Kit application. Materials and background geometry were added in the Omniverse Kit; the underlying visualization geometry is updated when it changes in ParaView/Catalyst (Hummel and van Kooten, 2019).

Earthquake: The Earthquake sample is not derived from an actual simulation. Instead, it uses a programmable filter within ParaView to create a time-varying, wave-like distortion on a planar surface, which is then transmitted to the Omniverse (see Figure 20). As the filter generates time-based samples of the surface, the Omniverse bridge updates the USD representation, and differential updates are sent to the Omniverse server. A client, such as the Omniverse Kit, can then play back all the available time samples of the surface, incorporating any new samples into the ongoing animation as they arrive.

Figure 20
www.frontiersin.org

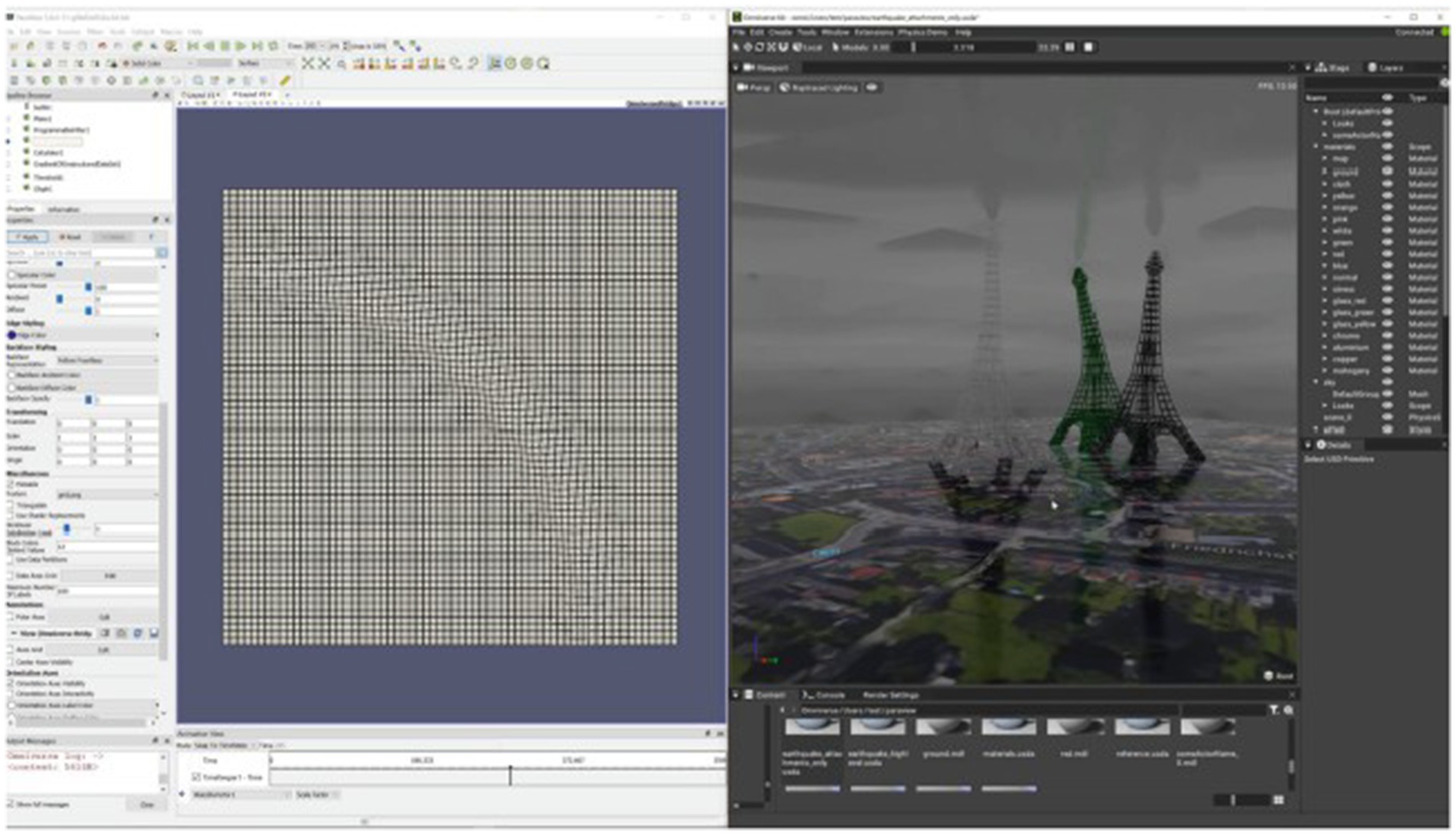

Figure 20. A programmable filter is used in ParaView to generate a time-varying, wave- shaped distortion on a planar surface (left). The resulting, time-varying mesh is pushed into the Omniverse using the Omniverse bridge. The mesh is used as an animated ground model in Omniverse Kit (right), where a number of physics-enabled building models are attached to it (Map Data: Google, GeoBasis-DE/BKG). As the animation is played back, the wave passes underneath the buildings and causes them to sway (Hummel and van Kooten, 2019).

6.4 Simulation

The research conducted in Bahrpeyma et al. (2023) utilizes the Omniverse Isaac Sim environment to simulate multi-step robotic inspection tasks, focusing specifically on the UR10 robotic arm (Supplementary Figure 1). The core objective is to optimize the robot’s positioning across multiple inspection points in a dynamic manufacturing setting using Reinforcement Learning algorithms. In this study, the Omniverse Isaac Sim’s ability to accurately replicate real-world physics and support complex robotic systems are particularly beneficial. The platform allows for the creation of a detailed simulation environment that closely mirrors the dynamic conditions of actual manufacturing processes. This capability is essential for testing the robot’s performance under conditions that would be encountered in real-world scenarios, such as varying inspection points and the associated time constraints.

The simulation setup within the Omniverse involves the UR10 robotic arm performing a series of movements to reach predefined inspection points accurately. The RL algorithms employed—Deep Deterministic Policy Gradient (DDPG), Twin Delayed DDPG (TD3), Trust Region Policy Optimization (TRPO), and Proximal Policy Optimization (PPO)—are tested within this environment to optimize the robot’s trajectory planning and joint control.

The realistic simulation environment provided by the Omniverse was critical in these evaluations, allowing the researchers to observe how each RL algorithm performed under various constraints, such as time limits and dynamic target positions. This high-fidelity simulation not only helped in developing a robust RL-based solution but also provided insights into potential deployment scenarios in actual manufacturing settings. The results underscore the Omniverse’s value as a simulation platform, particularly in applications requiring precise and reliable robotic positioning in dynamic environments, such as those found in mass customization and modern production lines.

6.5 Military

6.5.1 Training and simulation

The notion of immersive training within the Metaverse represents an intriguing proposition within the realm of military applications. Leveraging the Omniverse technology, which integrates AR into synthetic training environments within virtual domains, holds the promise of providing a practical and highly efficient training experience. These environments faithfully replicate a wide spectrum of real-world combat scenarios, granting military personnel the means to accomplish training objectives while maintaining a paramount concern for safety. Furthermore, the real-time capture and analysis of data streams empower soldiers to engage in targeted training exercises that scrutinize enemy performance, which implies training efficiency. Additionally, the recorded data can serve the purpose of real-time evaluation of each soldier’s progress and performance (Zhai et al., 2023).

6.5.2 Pilots training

The integration of the Omniverse for fighter pilot training constitutes a paradigm- shifting approach that equips them with the necessary skills to meet the formidable challenges they may encounter. This innovative methodology leverages digital twin models in conjunction with AR and XR to establish an immersive and hyper-realistic training environment that faithfully emulates the rigors of authentic aerial combat scenarios. Within this virtual domain, trainees can assume control of virtual cockpit interfaces and engage in a multifaceted array of missions, encompassing aerial duels, reconnaissance expeditions, and precision target engagement, all meticulously crafted to replicate diverse weather conditions and terrains. Moreover, the Omniverse fosters collaborative interactions among trainees and virtual ground personnel, fostering teamwork and enhancing the realism of combat coordination. A salient advantage of this metaverse-enabled training is its ability to simulate scenarios that would be excessively perilous or financially prohibitive to recreate in actuality, providing a safe yet dynamic arena where pilots can refine their skills, emphasizing rapid decision-making and precise execution, while mitigating real-world risks to both human lives and valuable equipment. In summary, the application of the metaverse in fighter pilot training offers a transformative platform, delivering a secure, dynamic, and ultra-realistic context in which the next generation of aviators can hone their abilities, ultimately preparing them to safeguard our skies effectively (Zhai et al., 2023).

6.5.3 Military communications

An additional prospective utility of the Omniverse platform lies in the domain of communication and collaboration. The platform’s capacity to facilitate user interactions within a collectively shared virtual environment offers the potential to enhance communication channels, particularly in contexts involving military personnel. Such a technology could effectively serve as a means of communication between soldiers in the field and their commanding officers, as well as fostering inter-branch and inter-service communication within the military infrastructure. The consequence of this is the prospect of informed and high-quality decision-making under high-pressure and intricate circumstances, ultimately contributing to the optimization of operational efficiency and effectiveness (Fawkes and Cheshire, 2023).

6.5.4 Electronic warfare (ECM)

Electronic Warfare (EW) involves the strategic use of electromagnetic energy to disrupt an adversary’s operation of electronic equipment, including communication systems and radar. Creating lifelike simulations of electromagnetic environments for EW training can be challenging in practical settings, but in metaverse-based EW training, users can engage with simulated electromagnetic scenarios, including various forms of electromagnetic interference. They are taught how to employ Electronic Counter Measures (ECM) and Electronic Counter Counter Measures (ECCM) technologies to detect and mitigate these disruptions. One significant advantage of an Omniverse-based approach is the ability to generate intricate Electro-Magnetic (EM) environments, allowing users to customize training exercises by selecting from diverse simulated settings, devices, and scenarios, catering to their specific needs. This approach ensures preparedness for wartime scenarios and provides the opportunity to explore electronic spoofing techniques, even during peacetime. Additionally, the Materials Defining Language (MDL) proves invaluable in these simulations by enabling the accurate replication of real-world materials, enhancing authenticity and precision in training scenarios (Fawkes and Cheshire, 2023).

6.5.5 Missile defense systems

The missile defense system is an integral element of national security for countries worldwide. Ensuring the readiness and competence of air defense systems stands as a top priority for any sovereign nation. Effectively preparing for missile defense systems requires the establishment of a simulation environment that provides a high level of authenticity and immersion, replicating the complex nature of real-world missile threats. In the age of hypersonic technologies, embracing an Omniverse-based approach to missile defense training offers a multitude of potential benefits when compared to traditional training methods. This shift in approach enables the creation of highly adaptable training scenarios, granting users the ability to simulate a wide range of missile threats and the corresponding defensive tactics. Moreover, an Omniverse-based approach can lead to more cost-effective and safer training exercises, thereby reducing potential risks. However, the successful implementation of this approach demands a substantial infusion of technical expertise and resources, requiring precise modeling of missile flight paths, physics, and sensor systems to achieve a practical and effective augmented training environment (Zhai et al., 2023).

6.6 Business and trade

6.6.1 Marketing

The utilization of the metaverse for marketing has transcended the realm of futuristic speculation and has emerged as a prominent focus within the Omniverse platform. The heightened interest in employing metaverse technology for marketing is primarily attributable to the advantages of accessibility and versatility it offers. Current marketing methods have some problems, but the Omniverse platform offers a way for businesses to create and promote digital versions of real products. It is like using the metaverse for advertising. Also, the Omniverse’s XR tech lets potential customers interact with these products using AR, no matter where they are. This means it solves issues with distance and strict advertising schedules. In the metaverse, businesses can collect a lot of customer data in real time. This data is helpful for creating and improving smart computer programs for suggesting products. It also helps businesses understand how customers behave and what they like. This new way of marketing helps companies make better plans and spend less money on advertising (Jeong et al., 2022).

6.6.2 Retail

The retail industry can benefit a lot from using the Omniverse for shopping. It makes online shopping more like a real store. This new way combines two technologies: digital twins and real-time shopping, which is better than regular online shopping. In this Omniverse retail concept, customers can use virtual avatars to shop in a virtual store. It is almost like shopping in a real store because customers can not only see products but also check them out virtually. Unlike normal online shopping, the Omniverse retail concept lets customers not only look at products but also examine them and even try them virtually. Also, by using the Omniverse’s AR applications, customers can explore products in a 3D replica format, making it easier to judge the quality and design. The Omniverse also uses Material Definition Language (MDL) technology to make things like cloth and metal look and feel real, making the shopping experience more realistic. All of these technologies change the old” Click-To-Buy” idea into a more advanced” Experience-To-Buy” concept (Jeong et al., 2022).

6.6.3 Real estate

Real estate companies can use the Omniverse to make 3D models of real properties. These models let potential clients explore properties online, so they can see if they like them before spending a lot of money. They do this by using the Omniverse’s digital twin features and the Omniverse’s XR tech to create these realistic experiences (Azmi et al., 2023). This idea solves the problems of physically going to property sites. It is a good alternative that might reduce the need for many real estate agents and lower property costs. Overall, it helps customers make better choices before buying properties.

6.7 Manufacturing and industries

6.7.1 Products design and innovation

A key feature of the Omniverse is creating a shared virtual space where design engineers and product experts can work together (Kritzinger et al., 2018). The XR powered by the Omniverse simplifies this process. It makes designing new products easier and cheaper. The Omniverse gives accurate real-time data, which makes the design process simpler. Third-party manufacturers can also join the engineers and designers in real time. This makes it easier to get feedback and make changes without spending a lot of time and money. All of this helps reduce the overall cost of a product and improves its quality and efficiency (Zhang et al., 2020).

6.7.2 Quality control and production optimization

The Metaverse uses data from different sources to show real-time visuals of how things are made. This helps leaders see how their business is doing in a new way. Engineers can use it to watch how things work and fix problems, especially in tough places like mines and oil fields. They can also help field technicians from far away (Lee and Banerjee, 2011). At the same time, Metaverse lets manufacturers test different ways of making things. They can see what might happen when they make more or less stuff. These tests also show how they can use machines to make things better. Manufacturers use XR tech to quickly find problems with equipment, which makes quality control and maintenance better. This way, they can have fewer bad products and spend less on maintenance (Siyaev and Jo, 2021). The BMW Group is adopting this novel approach in manufacturing. They use a digital-first approach, which means they use virtual tools to plan how to make things before they start for real. They use the Omniverse to do this in their factories all over the world, like the electric vehicle plant in Hungary that opens in 2025 (Geyer, 2023). The virtual version of the Hungarian plant is a great example of how they can use smart computer programs to run factories, which is a big change in how things are made.

6.8 Medicine

6.8.1 Medical imaging

The Omniverse can make traditional 2D medical images, like X-rays and CT scans, much better in two ways. First, it can turn them into 3D images by creating digital models of organs right in the Omniverse platform. Alternatively, one can use other software like MEDIP PRO to change medical images into the special file format of USD and then bring them into the Omniverse. This novel technology lets doctors and researchers see and study medical data, including images, in 3D.

The Omniverse is a big step forward in making 3D medical images look very real, thanks to its fast rendering and advanced techniques. For example, MEDIP PRO was used to analyze a CT SCAN image of a 6-day-old baby with a heart problem called coarctation of the aorta. They turned the important parts of the image into the special USD file format. Then, they put it in the Omniverse, where they used its powerful rendering capabilities with the raytracing technique as shown in Supplementary Figure 2 to generate highly accurate organ digital twin (Yoon and Goo, 2023).

6.8.2 Medical education

In medical education and training, using VR technology has made learning much better, especially in radiology. It helps medical students and professionals communicate and plan radiology procedures. This way of learning is more interactive and useful than traditional methods because it lets people interact with 3D models of body parts, diseases, and medical tools, helping them understand complex medical ideas (Almarzouqi et al., 2022). In the bigger picture, using digital twin technology in the Omniverse can change how medical training works. It means we can create lots of different virtual patients, so we do not need expensive training dummies. Surgeons can practice surgery many times without hurting real patients, which makes them better at what they do. This new way of training could also solve the problem of not having enough spots for training in hospitals, because virtual training can include as many doctors as needed, helping more people become doctors (Omn, 2022b).

6.8.3 Telemedicine health care

The Omniverse is a very important tool in telemedicine, which is when doctors and patients interact from far away. The combination of the Metaverse concept and the rise of the Medical Internet of Things (MIoT) in 2021 has changed how healthcare works (Yang et al., 2022). The Omniverse is great for this because it supports AR and VR in the XR framework. It is also good at making digital models and virtual worlds, which makes it perfect for this new way of doing things. The Omniverse looks very real and gives accurate data, which is important for telemedicine. By using third-party software like MEDIP PRO, which creates 3D copies of human organs and puts them in the Omniverse, healthcare workers can talk about these organs in real time, using real CT scans and medical images. This makes diagnoses and treatment more accurate and could reduce mistakes, making healthcare better (Werner et al., 2022).

6.9 Culture and entertainment

6.9.1 Tourism and museum

Using VR technology with the Omniverse platform makes tourism more interesting and useful. Unlike regular tourism, the Omniverse is great at making virtual copies of real places and famous landmarks (Pencarelli, 2020). As digital twins of real-world places are identical in appearance, combined with the Omniverse’s XR features, tourists can not only visit the digital replicas of famous but also interact with the environment. This kind of tourism is not limited by time or location, so you can have a fun and interactive experience without worrying about things like traffic, weather, or transportation, all from your home. This kind of virtual tourism is especially useful during things like pandemics, e.g., COVID-19, because it gives people a way to have fun and travel even when they cannot go out. It can also change quickly to match what people are interested in. Additionally, it helps make 1:1 scale model of museums and historic places, even very old sites. It not only helps in preserving the historical sites and landmarks, but also changes how people experience these places (Akhtar et al., 2021).

6.9.2 Concerts and TV shows

The Omniverse platform is a great tool for making digital copies of real concert stadiums and creating virtual places for music shows, plays, and TV productions. These digital copies are also used in TV shows where avatars are used to host programs, and the Omniverse’s XR features allow for big virtual audiences. When it comes to music, the Omniverse can host virtual concerts that people from all over the world can enjoy without going anywhere. It also makes making TV series and animations easier by using Nvidia Audio2face and motion capture technology to create character animations that match what people say, without needing lots of manual work in the Omniverse (Akhtar et al., 2021).

6.10 Smart cities

In the Omniverse, we use advanced technologies like Digital Twin (DT), Machine Learning (ML), and Internet of Things (IoT) to collect real-time traffic data. We put this data into a traffic model to create a digital version of the traffic system. This helps us analyze big data, use artificial intelligence, and simulate traffic to make better plans and strategies. The Omniverse’s transportation system is like a digital twin, and it covers traffic management, oversight, planning, design, and transportation services (Dayarathna et al., 2018).

By managing traffic in the Omniverse, we can understand the real world better, make more accurate predictions and use artificial intelligence for traffic control. For example, in building transportation systems, we use big data to design smart transportation systems that make cities work better. Smart traffic systems help watch traffic and adjust traffic lights to reduce congestion. They also give drivers and passengers real-time information to make roads safer and prevent accidents. In an IoT-based smart transportation system, we use proper data handling, real-time analysis, and communication to make traffic smoother and reduce accidents (Jan et al., 2019).

As cities have more and more cars, smart parking solutions become crucial, there has been a great interest in developing new approaches to managing parking by employing IoT devices. This lets drivers find parking easily and pay digitally. Smart parking signs also share information about weather and distance. The Omniverse allows new ways to teach traffic safety and skills, traffic safety games also help kids learn about safe travel in different traffic situations Doreen Sebastian et al., 2024.

7 Discussion

In this section, we will explore the strengths and gaps addressed by the Omniverse (RQ6), highlighting how the platform effectively fills existing voids in various domains. Additionally, we will examine the challenges and limitations of the Omniverse (RQ7), providing a critical analysis of areas where the platform could improve. Furthermore, we will discuss future plans and potential enhancements for the Omniverse (RQ8), considering both near-term developments and long-term possibilities that could shape the platform’s evolution.

7.1 Addressing the gaps

Upon revisiting Table 4, it becomes clear that the Omniverse effectively meets the demand for high-fidelity graphics combined with real-time collaboration capabilities. While many platforms require a compromise between visual quality and collaborative efficiency, the Omniverse manages to deliver on both fronts. Its graphics are on par with, or even exceed, industry standards like Unreal Engine, while its seamless real- time collaboration is comparable to leading platforms such as Unity. This powerful combination allows teams to work together on complex projects without sacrificing visual quality, ensuring the final product meets the highest standards. Beyond its graphical and collaborative strengths, the Omniverse also addresses the challenge of cross-platform capabilities. Many existing platforms struggle with ensuring smooth interoperability across different systems, often limiting the potential for diverse teams to collaborate effectively. In contrast, the Omniverse provides robust cross-platform support, enabling users across various environments—whether on a PC, a VR headset, or another device—to collaborate seamlessly, reducing workflow friction.

Another critical strength of the Omniverse is its ability to generate high-quality synthetic data, which is increasingly important in fields such as AI training, robotics, and simulation. The Omniverse’s advanced tools allow users to create highly realistic synthetic environments and datasets that can be used for training machine learning models, testing algorithms, or simulating real-world scenarios. This capability not only accelerates development but also enhances the accuracy and reliability of AI models, making it a valuable resource for teams working on cutting-edge projects.

Integration with other tools is another critical area where the Omniverse shines. In many virtual environments, incorporating different software or assets into projects can be difficult due to compatibility issues. However, the Omniverse’s broad integration capabilities with a wide array of industry-standard tools and platforms allow users to bring in their preferred software and assets with ease. This flexibility ensures that creators can work with the best tools available without being confined to a specific ecosystem.

Additionally, the Omniverse nurtures a robust developer community, which is essential for sustained innovation and support. While platforms like Roblox and Unity have established communities, the Omniverse goes further by fostering a thriving network that offers strong support, resources, and collaboration opportunities. This community-driven approach ensures that users have access to a network of peers and experts, enriching their development experience and providing valuable insights as they build their projects. Scalability is another area where the Omniverse excels. As projects grow in size and complexity, many platforms struggle to maintain performance and efficiency. The Omniverse, however, is designed to scale effectively, handling increased demands without sacrificing speed or quality. This makes it an ideal solution for both small teams and large enterprises working on ambitious projects.

Finally, the Omniverse’s commitment to simulation excellence sets it apart in a market where many platforms offer only basic simulation capabilities. By providing a robust simulation environment, the Omniverse enables users to create and test their projects in highly realistic settings, ensuring that the final product performs as expected in the real world. This dedication to realism and performance further solidifies the Omniverse as a leading platform in the industry.

7.2 Challenges and limitations

7.2.1 Hardware and instruments

The development of Metaverse, which is a essentially a new digital world, depends a lot on high-performance computers (Al-Ghaili et al., 2022). The Metaverse combines different technologies like AI, input–output systems, and blockchain, blending the virtual and physical worlds. This puts a lot of pressure on information and communication tech and its infrastructure. Building the Metaverse requires a powerful and fast strong networking infrastructure (Rawat et al., 2024). Challenges in making the Metaverse include not just tech and computing issues but also concerns about the magnitude of required energy for its deployment and maintenance. The Metaverse needs a lot of computing power to handle big data and that means using a lot of electricity. This shows how important it is to think about energy. Also, it is important to know that the high cost of Nvidia RTX GPUs which are a must own (RTX 3070 minimum) makes things harder (NVIDIA Corporation, 2024). In the world of touch and XR tech, interactive equipment is expensive. AR uses lightweight devices for short-term use, while VR needs heavy, costly gear for long-term use (Freina and Ott, 2015).

7.2.2 Data

The biggest problem in creating the Metaverse is dealing with a huge amount of data. This data could be 100 or even 1,000 times more than what we have now, and it is hard to predict because of new technologies (Chen et al., 2022). For example, things like mobile internet and self-driving cars create a lot of data. To handle all this data, we need to think about how to store it, access it, and keep it safe, both for people and systems. We also need to make sure people’s data rights are protected and prevent any misuse. It is also important to process data quickly so that the Metaverse feels real. Technologies like edge computing, distributed data systems, and blockchain, which helped with past challenges, will be very important in making data storage, access, data rights, and openness work well in building the Metaverse (Ooi et al., 2022).

7.2.3 Compatibility and operating systems

The Omniverse platform faces some challenges when trying to make the SKRL library work smoothly. Among the options available, the Orbit framework is a top choice, even though it has some limits and only works on Linux in preview mode. To use Drive Sim, you need official approval from Nvidia, and Isaac Gym, which is another tool based on Linux, is still in preview mode and is the main way to learn about reinforcement learning in Isaac Sim. The problem is that digital twins aren’t available everywhere, especially since Isaac Gym only works on some platforms. Right now, the options for reinforcement learning in the Omniverse are somewhat limited, as most of the usual ways have already been tried or Nvidia offers them as sample solutions. It is also important to know that some of the Omniverse applications only work on Linux, which makes it hard to have a unified way of developing things using just one operating system.

7.2.4 Internet and connectivity

For a smooth collaboration on the platform, it is important to have a fast internet connection with low latency and high bandwidth. However, it is essential to know that people living in remote or rural areas often struggle to get such strong internet connections. This geographical limit can make it hard for them to work together effectively on the platform. This is not just about access; it is about bridging the digital divide where some places do not have the needed internet infrastructure, putting some users at a disadvantage. So, when we plan collaborative projects, we must think about this digital gap. We need to make sure everyone can join in, no matter where they are or what kind of internet they have. To do this, we might need to find creative solutions like making content work with slower internet or finding different ways to connect, so that collaborative learning can be accessible to more people (Abilkaiyrkyzy et al., 2023).

7.3 Security concerns

7.3.1 Authentication and access control

In the Omniverse, securing your account depends on traditional methods like a username and password. If these details are compromised in the metaverse, it risks exposure and loss of avatars, digital items, social ties, and digital aspects tied to your account. The use of virtual keyboards is prone to keystroke inference attacks, where hackers can interpret typed information using methods like wireless signal-based, video-based, and malware-based attacks. For example, Al Arafat et al. (2021) created VR-Spy, using WiFi signals to detect virtual keystrokes in VR headsets. In other research, scholars showed how hand gestures could reveal keystrokes when users use air-tapping on virtual keyboards (Meteriz-Yıldıran et al., 2022).

7.3.2 Embedded python code

The Omniverse applications allow executable Python code to be embedded in USD files to customize all aspects of a scene. If a user opens a USD file that contains embedded Python code in one of these applications, the embedded Python code automatically runs with the privileges of the user who opened the file. As a result, an unprivileged remote attacker could craft a USD file containing malicious Python code and persuade a local user to open the file, which may lead to information disclosure, data tampering, and denial of service (NVIDIA Corporation, 2023).

7.3.3 Immersive attacks

Controlling a VR system lets attackers physically harm users by inducing seizures or hearing impairment. Odeleye et al. (2021) showed that manipulating GPU frame rate and exploiting network vulnerabilities can lead to cybersickness. In GPU attacks, malicious software overwhelms GPU resources, disrupting the rendering frame rate. In network attacks, a script causes issues in collaborative VR environments, leading to scene-tearing and frame rate drops. These disruptions increase image latency, negatively impacting the user experience and potentially causing cybersickness. Another study by Tseng et al. (2022) categorizes these tricks into puppetry attacks, controlling physical actions, and mismatching attacks, causing harm through misalignment. Different scenarios demonstrate the practical application of these attacks.

7.3.4 Privacy concerns

Numerous XR Head-Mounted Displays (HMDs) currently include front-facing cameras primarily utilized for monitoring motion or recording real-world footage, particularly in AR applications (Kudriavtseva, 2020). In AR, virtual elements are superimposed onto actual video footage before presentation to the user. Nevertheless, malicious entities can manipulate this by broadcasting the video feed, allowing them to observe the individual’s environment. This creates a privacy concern, unveiling personal information such as the individual’s whereabouts, companions, and private items within their vicinity (Pearlman, 2020).

7.3.5 DDoS and Sybil attacks

In the Omniverse, there are lots of tiny wearable gadgets. Bad actors might take control of these devices and use them together in a group called a botnet (Bertino and Islam, 2018). This group could then cause problems by overloading the main server with a huge amount of traffic in a short time, leading to network issues and services not working. Also, some tricky individuals (Sybil adversaries) use many fake or stolen identities to have a big impact on services like reputation and voting. This can mess up the whole system, e.g., they might create lots of fake identities to outvote real users, stopping them from doing certain things on the metaverse’s blockchain network (Bertino and Islam, 2018).

7.3.6 Digital footprints

In the Omniverse, avatars’ behavior, preferences, and habits can reflect their real-life counterparts, allowing attackers to collect digital footprints for accurate user profiling and potential illegal activities (Ning et al., 2023). The wider viewing angle in the metaverse’s third-person view may infringe on players’ behavior privacy (Soliman et al., 2023). For instance, virtual stalking attacks in the metaverse might involve avatars recording digital footprints, such as purchasing behaviors, for social engineering attacks (Parlar, 2023).

7.3.7 Data leakage

In the Omniverse, big amounts of data from people and their surroundings are needed to make avatars and virtual places. But doing this can expose users’ private info (Damjanovic-Behrendt, 2018). For example, gathering private data from different users to a central storage for creating personalized avatars might break privacy rules like GDPR (Grieves and Vickers, 2018). Bad actors could also learn about users’ private stuff (like what they like) by studying the results (like made-up avatars) in different virtual spaces.

7.4 Opportunities and future directions

7.4.1 Hardware and technology advancement

Ongoing improvements in VR, AR, and MR tech will be super important for making the Omniverse. Better hardware, like stronger VR headsets, advanced GPUs with special technology (like the powerful RTX hardware), touch-sensitive devices, haptic feedback, and improved motion tracking, will make the Omniverse more immersive.

7.4.2 Interoperability

The Omniverse idea is about linking different make-believe worlds and places together. Making sure they can work together, like different video games or online spaces, is super important for a smooth and connected metaverse by using the Omniverse connectors and extensions.

7.4.3 Price and mass production

As the Omniverse keeps gaining popularity, more and more people are getting interested in it. This means there are a lot more users, and that’s making the hardware needed for the Omniverse, like the important RTX GPU, possibly become more affordable because of increased mass production.

7.4.4 Unified operating environment

The Omniverse apps and extensions will be accessible on all operating systems. Users and developers can tap into the full power of the Omniverse within their preferred environment. If certain operating systems cannot run the current Omniverse apps, alternatives might be provided for them.

7.4.5 Digital ownership rights

Blockchain and decentralized tech could help people own digital assets, IDs, and money in the metaverse. Things like NFTs (special digital tokens) and platforms using blockchain are already becoming important in this area.

7.4.6 Content creation and user-generated content

Letting people make their own content in the Omniverse could turn it into a new social media platform. Content creators would have the freedom to create, making it a big focus of the platform.

7.4.7 Collaboration and social interaction

Improving social connections in the Omniverse will be a priority. This goes beyond just gaming and science; it also involves virtual meetings, events, education, and business. Tools for collaboration and virtual events will keep getting better.

7.4.8 Patient medical education

Immersive experiences can be employed to provide patients with education about their medical conditions and available treatment choices. This approach can enhance patients’ comprehension of their diagnoses, surgical procedures, and post-operative care, empowering them to make more informed decisions and, potentially, experience improved treatment outcomes.

7.4.9 City planning

Traditional city planning needs people to visit places and use a lot of resources to collect data and make plans. But with Digital Twin (DT) and XR technologies, the Omniverse can create a” city mirror” using the Internet of Things (IoT) to show what’s happening in a city in real time. It uses data to calculate and simulate different situations. This new way can change how we plan and run cities, making designs better and helping with planning and governance. The Omniverse is fast and can give urban planners a detailed simulator, so they can see real-time data about every building in a virtual city. They use smart computer programs to come up with good plans for the city, making decision-making faster and better.

8 Conclusion

In this comprehensive survey, we have provided an in-depth analysis of the Omniverse platform, highlighting its significance as a transformative force in virtual environments and simulation technologies. We present the motivation behind focusing on the Omniverse, emphasizing its unique capabilities in synthetic data generation, real-time simulation, and extended reality integration, which collectively address critical needs in the current metaverse landscape.

Our study began by outlining the motivation for focusing on the Omniverse, highlighting its unique capabilities such as high-fidelity graphics, real-time collaboration, and seamless integration with various tools, which position it as a leading platform in the metaverse ecosystem. We explored the Omniverse framework, diving into its technical architecture and the applications it supports, including the Replicator for synthetic data generation, Isaac Sim and Isaac Gym for robotic simulations, Drive Sim for autonomous vehicle emulation, the XR suite for augmented and virtual realities, the Audio2Face application for realistic facial animation, and its central storage the Nucleus.

To assess the current state of research, we conducted a thorough literature review, identifying that prior surveys lacked a detailed exploration of the Omniverse, thus reinforcing the necessity of our work. We then performed a quantitative analysis of the Omniverse’s performance in various applications. For instance, our study demonstrated the effectiveness of using the Omniverse Replicator for synthetic data generation in computer vision tasks, achieving high accuracy rates while significantly reducing annotation costs. In robotics, we evaluated the performance of reinforcement learning algorithms within Isaac Sim, showcasing its capability to simulate complex tasks with high fidelity and efficiency. These quantitative findings highlight the Omniverse’s potential to accelerate development processes and enhance the accuracy of AI models across different domains. Furthermore, we conducted a comparative analysis between the Omniverse and other leading metaverse platforms. By examining aspects such as graphics quality, real-time collaboration, cross- platform capabilities, and integration with other tools, we demonstrated that the Omniverse surpasses many existing platforms, particularly in professional and industrial applications. This comparative study highlighted the Omniverse’s strengths in delivering high-fidelity simulations and facilitating advanced collaborative workflows, setting it apart in the rapidly evolving metaverse landscape.

In discussing the challenges and limitations of the Omniverse, we identified key areas such as hardware and technological requirements, data management, compatibility issues, internet connectivity, and security concerns. We emphasized the importance of addressing these challenges to facilitate broader adoption and implementation of the platform. Looking ahead, we outlined opportunities and future directions for the Omniverse, such as advancements in hardware and technology, increased interoperability, potential price reductions due to mass production, development of a unified operating environment, establishment of digital ownership rights, promotion of content creation and user-generated content, and enhancement of collaboration and social interaction features.

Our survey acts as a foundational work that not only provides a comprehensive understanding of the Omniverse platform but also sets the stage for future research and development in this rapidly evolving field. By thoroughly examining the Omniverse’s architecture, applications, strengths, and challenges, we hope to inspire further exploration and innovation that will advance the capabilities of virtual environments and contribute to the realization of the metaverse’s full potential.

Author contributions

NA: Conceptualization, Data curation, Investigation, Methodology, Supervision, Writing – original draft, Writing – review & editing. IA: Conceptualization, Investigation, Writing – original draft, Writing – review & editing. HD: Methodology, Visualization, Writing – original draft, Writing – review & editing. ZA: Conceptualization, Investigation, Writing – original draft, Writing – review & editing.

Funding

The author(s) declare that no financial support was received for the research, authorship, and/or publication of this article.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fcomp.2024.1423129/full#supplementary-material

SUPPLEMENTARY FIGURE 1 | The methodology and workflow of UR10 Robot testing (Bahrpeyma et al., 2023).

SUPPLEMENTARY FIGURE 2 | Ray-tracing 3D images of a 6-day-old male newborn’s coarctated aorta and surrounding structures were created using the Omniverse’s material presets (Yoon and Goo, 2023).

References

Abilkaiyrkyzy, A., Elhagry, A., Laamarti, F., and Saddik, A. E. (2023). Metaverse key requirements and platforms survey. IEEE Access 11, 117765–117787. doi: 10.1109/ACCESS.2023.3325844

Crossref Full Text | Google Scholar

Abou Akar, C., Tekli, J., Jess, D., Khoury, M., Kamradt, M., and Guthe, M. (2022). Synthetic object recognition dataset for industries. In 2022 35th SIBGRAPI conference on graphics, patterns and images (SIBGRAPI) (IEEE), vol. 1, 150–155.

Google Scholar

Abu Alhaija, H., Lucas, J., Zook, A., Babcock, M., Tyner, D., Rao, R., et al. (2023). “Interactive ai material generation and editing in nvidia omniverse” in ACM SIGGRAPH 2023 real-time live!

Google Scholar

Agarwal, U., Tandon, D., Sharma, V. K., and Mishra, P. K. (2022). Metaverse technology: an overview. IRJMETS.

Google Scholar

Aircada (2024a). Nvidia omniverse vs. unity: which is better for industrial applications?. Aircada.

Google Scholar

Aircada (2024b). Nvidia omniverse vs. unreal engine 5: which is better for industrial applications? Aircada.

Google Scholar

Akhtar, N., Khan, N., Mahroof Khan, M., Ashraf, S., Hashmi, M. S., Khan, M. M., et al. (2021). Post-covid 19 tourism: will digital tourism replace mass tourism? Sustain. For. 13:5352. doi: 10.3390/su13105352

Crossref Full Text | Google Scholar

Al Arafat, A., Guo, Z., and Awad, A. (2021). Vr-spy: a side-channel attack on virtual key-logging in vr headsets. In 2021 IEEE Virtual Reality and 3D User Interfaces (VR) (IEEE), 564–572.

Google Scholar

Al-Ghaili, A. M., Kasim, H., Al-Hada, N. M., Hassan, Z. B., Othman, M., Tharik, J. H., et al. (2022). A review of metaverse’s definitions, architecture, applications, challenges, issues, solutions, and future trends. Ieee Access 10, 125835–125866. doi: 10.1109/ACCESS.2022.3225638

Crossref Full Text | Google Scholar

Alimzhanov, Y., Absadyk, A., and Turar, O. (2021). “Leveraging real-time simulation and collaboration platform for project-based learning: case study of Astana it university” in In 2021 IEEE international conference on engineering, Technology & Education (TALE) (IEEE), 1130–1134.

Google Scholar

Almarzouqi, A., Aburayya, A., and Salloum, S. A. (2022). Prediction of user’s intention to use metaverse system in medical education: a hybrid sem-ml learning approach. IEEE Access 10, 43421–43434. doi: 10.1109/ACCESS.2022.3169285

Crossref Full Text | Google Scholar

Apostolos, N. (2024). Study of simulation and modelling tools for autonomous vehicle driving based on stereoscopy. University of West Attica.

Google Scholar

Autonomous Vehicle International (2023). Neural reconstruction engine for nvidia drive sim simulation. NVIDIA.

Google Scholar

Azmi, A., Ibrahim, R., Ghafar, M. A., and Rashidi, A. (2023). Metaverse for real estate marketing: The impact of virtual reality on satisfaction, perceived enjoyment and purchase intention. Research Square.

Google Scholar

Bahrpeyma, F., Sunilkumar, A., and Reichelt, D. (2023). “Application of reinforcement learning to ur10 positioning for prioritized multi-step inspection in nvidia omniverse” in 2023 IEEE symposium on Industrial Electronics & Applications (ISIEA) (IEEE), 1–6.

Google Scholar

Bertino, E., and Islam, N. (2018). Botnets and internet of things security. Computer 50, 76–79. doi: 10.1109/MC.2017.62

Crossref Full Text | Google Scholar

Bjornstad, I. G. (2021). Deep reinforcement learning for autonomous vehicles in simulated environments. Master’s thesis: Trondheim, Norway: NTNU.

Google Scholar

Chamusca, I., Winkler, I., Ferreira, C., Murari, T., and Apolinario, A. (2023). Evaluating design guidelines for intuitive virtual reality authoring tools: a nvidia omniverse’s experiment. NVIDIA.

Google Scholar

Chen, B., Song, C., Lin, B., Xu, X., Tang, R., Lin, Y., et al. (2022). A cross-platform metaverse data management system. In 2022 IEEE International conference on metrology for extended reality, artificial intelligence and neural engineering (MetroXRAINE) (IEEE), 145–150.

Google Scholar

Choi, K., Fazekas, G., Sandler, M., and Cho, K. (2017). “Convolutional recurrent neural networks for music classification” in 2017 IEEE international conference on acoustics, speech and signal processing (ICASSP) (IEEE), 2392–2396.

Google Scholar

Chow, Y.-W., Susilo, W., Li, Y., Li, N., and Nguyen, C. (2022). Visualization and cybersecurity in the metaverse: a survey. J. Imaging 9:11. doi: 10.3390/jimaging9010011

PubMed Abstract | Crossref Full Text | Google Scholar

Conde, D., Martınez, J., Balado, J., Arias, P., and GeoTECH, C. (2021). Generation of road zone synthetic data for training mot models with the nvidia omniverse platform. NVIDIA.

Google Scholar

Damjanovic-Behrendt, V. (2018). “A digital twin-based privacy enhancement mechanism for the automotive industry” in In 2018 international conference on intelligent systems (IS) (IEEE), 272–279.

Google Scholar

Dayarathna, M., Fremantle, P., Perera, S., and Suhothayan, S. (2018). Role of real-time big data processing in the internet of things, 239–259.

Google Scholar

Doreen Sebastian, S., Yujia, L., Jianguo, D., Yunchuan, S., and Huansheng, N. (2024). Metaverse for Intelligent Transportation Systems (ITS): A Comprehensive Review of Technologies, Applications, Implications, Challenges and Future Directions. IEEE Transactions on Intelligent Transportation Systems.

Google Scholar

Fawkes, A., and Cheshire, N. (2023). Military metaverse conops. STO.

Google Scholar

Freina, L., and Ott, M. (2015). “A literature review on immersive virtual reality in education: state of the art and perspectives” in The international scientific conference elearning and software for education, vol. 1, 10–1007. Carol I.

Google Scholar

Geyer, M. (2023). Bmw group starts global rollout of nvidia omniverse. NVIDIA.

Google Scholar

Ghodsi, Z., Hari, S. K. S., Frosio, I., Tsai, T., Troccoli, A., Keckler, S. W., et al. (2021). “Generating and characterizing scenarios for safety testing of autonomous vehicles” in 2021 IEEE Intelligent Vehicles Symposium (IV) (IEEE), 157–164.

Google Scholar

Goodfellow, I., Pouget-Abadie, J., Mirza, M., Xu, B., Warde-Farley, D., Ozair, S., et al. (2014). Generative adversarial nets. Adv. Neural Inf. Proces. Syst. 27:2672–2680. doi: 10.1145/3422622

Crossref Full Text | Google Scholar

Grieves, M., and Vickers, J. (2018). Digital twin: mitigating unpredictable, undesirable emergent behavior in complex systems. Trans. Perspect. Complex Syst. Approaches 85–113. doi: 10.1007/978-3-319-38756-74

Crossref Full Text | Google Scholar

Hummel, M., and van Kooten, K. (2019). “Leveraging nvidia omniverse for in situ visualization” in High performance computing: ISC high performance 2019 international workshops (Frankfurt, Germany: Springer).

Google Scholar

Huynh-The, T., Pham, Q.-V., Pham, X.-Q., Nguyen, T. T., Han, Z., and Kim, D.-S. (2023). Artificial intelligence for the metaverse: a survey. Eng. Appl. Artif. Intell. 117:105581. doi: 10.1016/j.engappai.2022.105581

Crossref Full Text | Google Scholar

Jan, B., Farman, H., Khan, M., Talha, M., and Din, I. U. (2019). Designing a smart transportation system: an internet of things and big data approach. IEEE Wirel. Commun. 26, 73–79. doi: 10.1109/MWC.2019.1800512

Crossref Full Text | Google Scholar

Jasak, H., Jemcov, A., and Tukovic, Z.. (2007). “Openfoam: a c++ library for complex physics simulations” in International workshop on coupled methods in numerical dynamics (Dubrovnik, Croatia: Inter-University Centre Dubrovnik), vol. 1000, 1–20.

Google Scholar

Jeong, H., Yi, Y., and Kim, D. (2022). An innovative e-commerce platform incorporating metaverse to live commerce. Int. J. Innov. Comput. Inform. Control 18, 221–229. doi: 10.24507/ijicic.18.01.221

Crossref Full Text | Google Scholar

Kaigom, E. G. (2024). Potentials of the metaverse for robotized applications in industry 4.0 and industry 5.0. Proc. Comput. Sci. 232, 1829–1838. doi: 10.1016/j.procs.2024.02.005

Crossref Full Text | Google Scholar

Khatib, O., Brock, O., Chang, K.-S., Conti, F., Ruspini, D., and Sentis, L. (2002). Robotics and interactive simulation. Commun. ACM 45, 46–51. doi: 10.1145/504729.504753

Crossref Full Text | Google Scholar

Kokko, A., and Kuhno, J. (2024). Building a scene-specific synthetic data generator with Omniverse replicator. Master’s thesis. University of Jyvaskyla.

Google Scholar

Kritzinger, W., Karner, M., Traar, G., Henjes, J., and Sihn, W. (2018). Digital twin in manufacturing: a categorical literature review and classification. Ifac PapersOnline 51, 1016–1022. doi: 10.1016/j.ifacol.2018.08.474

Crossref Full Text | Google Scholar

Kudriavtseva, V. (2020). Development of a network of virtual reality headsets with a shared environment for an industrial application utilizing Unity platform.

Google Scholar

Lee, H., and Banerjee, A. (2011). A self-configurable large-scale virtual manufacturing environment for collaborative designers. Virtual Reality 15, 21–40. doi: 10.1007/s10055-009-0151-0

Crossref Full Text | Google Scholar

Lee, L.-H., Braud, T., Zhou, P., Wang, L., Xu, D., Lin, Z., et al. (2021). All one needs to know about metaverse: a complete survey on technological singularity, virtual ecosystem, and research agenda. arXiv [Preprint]. doi: 10.48550/arXiv.2110.05352

Crossref Full Text | Google Scholar

Li, X., Yalcin, B. C., Christidi-Loumpasefski, O.-O., Martinez Luna, C., Hubert Delisle, M., Rodriguez, G., et al. (2022). Exploring nvidia omniverse for future space resources missions. ORBIlu.

Google Scholar

Li, C., Zhang, R., Wong, J., Gokmen, C., Srivastava, S., Martın-Martın, R., et al. (2023). Behavior-1k: a benchmark for embodied ai with 1,000 everyday activities and realistic simulation. Conf. Robot Learn. 80–93. doi: 10.1145/3639477.3639740

Crossref Full Text | Google Scholar

Lin, Z., Cao, L., Ahmed, F., Lu, H., and Sharma, P. (2023). When caching systems meet emerging storage devices: a case study. In Proceedings of the 15th ACM Workshop on Hot Topics in Storage and File Systems. 37–43. ACM.

Google Scholar

Liu, C., Lin, Q., Zeng, Z., and Pan, Y. (2024). “Emoface: audio-driven emotional 3d face animation” in 2024 IEEE conference virtual reality and 3D user interfaces (VR) (IEEE), 387–397.

Google Scholar

Makoviychuk, V., Wawrzyniak, L., Guo, Y., Lu, M., Storey, K., Macklin, M., et al. (2021). Isaac gym: high performance gpu-based physics simulation for robot learning. arXiv [Preprint]. doi: 10.48550/arXiv.2108.10470

Crossref Full Text | Google Scholar

Mann, S., Yuan, Y., Lamberti, F., El Saddik, A., Thawonmas, R., and Prattico, F. G. (2023). Extended meta-uni-omni-verse (xv): introduction, taxonomy, and state-of-the-art. IEEE Cons. Electr. Mag. 13, 27–35. doi: 10.1109/MCE.2023.3283728

Crossref Full Text | Google Scholar

Meteriz-Yıldıran, Ü, Yıldıran, N. F., Awad, A., and Mohaisen, D. (2022). A keylogging inference attack on air-tapping keyboards in virtual environments. In 2022 IEEE Conference on Virtual Reality and 3D User Interfaces (VR) (IEEE), 765–774.

Google Scholar

Metzler, J., Bahrpeyma, F., and Reichelt, D. (2023). “An end to end workflow for synthetic data generation for robust object detection” in In 2023 IEEE 21st international conference on industrial informatics (INDIN) (IEEE), 1–7.

Google Scholar

Miks, J., and McIlwaine, J. (2020). Keeping the world’s children learning through COVID-19. Acesso em 6.

Google Scholar

Mittal, M., Yu, C., Yu, Q., Liu, J., Rudin, N., Hoeller, D., et al. (2023). Orbit: a unified simulation framework for interactive robot learning environments. IEEE Robot. Automation Lett. 8, 3740–3747. doi: 10.1109/LRA.2023.3270034

Crossref Full Text | Google Scholar

Ning, H., Wang, H., Lin, Y., Wang, W., Dhelim, S., Farha, F., et al. (2023). A survey on the metaverse: the state-of-the-art, technologies, applications, and challenges. IEEE Internet Things J. 10, 14671–14688. doi: 10.1109/JIOT.2023.3278329

Crossref Full Text | Google Scholar

Novaliendry, D., Budayawan, K., Auvi, R., Fajri, B. R., and Huda, Y. (2023). Design of sign language learning media based on virtual reality. Int. J. Online Biomed. Eng. 19, 111–126. doi: 10.3991/ijoe.v19i16.44671

Crossref Full Text | Google Scholar

Nvidia (2021). Nvidiaomniversemainpage. NVIDIA.

Google Scholar

Nvidia (2024). Audio2face. Available at: https://build.nvidia.com/nvidia/audio2face (Accessed 2024-08-05)

Google Scholar

NVIDIA (2024). Lighting in materials and rendering. Available at: https://docs.omniverse.nvidia.com/materials-and-rendering/latest/lighting.html (Accessed August 19, 2024).

Google Scholar

NVIDIA Corporation (2023). National vulnerability database. NVIDIA: Geometry.

Google Scholar

NVIDIA Corporation (2024). Technical requirements - materials and rendering. Available at: https://docs.omniverse.nvidia.com/materials-and-rendering/latest/common/technical-requirements.html (Accessed 2024-08-29)

Google Scholar

Odeleye, B., Loukas, G., Heartfield, R., and Spyridonis, F. (2021). Detecting framerate- oriented cyber attacks on user experience in virtual reality. Available at: http://bura.brunel.ac.uk/handle/2438/23880

Google Scholar

Omn (2022a). Omniverse audio2face. NVIDIA.

Google Scholar

Omn (2022b). Omniverse create. NVIDIA.

Google Scholar

Omn (2022c). Omniverse defect detection. NVIDIA.

Google Scholar

Omn (2022d). Omniverse nucleus. NVIDIA.

Google Scholar

Ooi, B. C., Chen, G., Shou, M. Z., Tan, K.-L., Tung, A., Xiao, X., et al. (2022). The metaverse data deluge: what can we do about it? arXiv [Preprint]. doi: 10.1109/ICDE55515.2023.00296

Crossref Full Text | Google Scholar

Ortiz, J. A., Insley, J. A., Knowles, J., Mateevitsi, V. A., Papka, M. E., and Rizzi, S. (2022). “Massive data visualization techniques for use in virtual reality devices” in 2022 IEEE 12th symposium on large data analysis and visualization (LDAV) (IEEE), 1–2.

Google Scholar

Parlar, T. (2023). “Data privacy and security in the metaverse” in Metaverse: technologies, opportunities and threats (Singapore: Springer), 123–133.

Google Scholar

Pearlman, K. (2020). Virtual reality brings real risks: are we ready?. Usenix.

Google Scholar

Pencarelli, T. (2020). The digital revolution in the travel and tourism industry. Inf. Technol. Tour. 22, 455–476. doi: 10.1007/s40558-019-00160-3

Crossref Full Text | Google Scholar

Rawat, D. B., and Hagos, D. H.. (2024). Metaverse survey & tutorial: exploring key requirements, technologies, standards, applications, challenges, and perspectives. arXiv [Preprint]. doi: 10.48550/arXiv.2405.04718

Crossref Full Text | Google Scholar

Richard, A., Kamohara, J., Uno, K., Santra, S., van der Meer, D., Olivares-Mendez, M., et al. (2024). “Omnilrs: a photorealistic simulator for lunar robotics” in In 2024 IEEE international conference on robotics and automation (ICRA) (IEEE), 16901–16907.

Google Scholar

Schneider, E., Robertson, B., Kuhn, A., Lux, C., and Nienhaus, M. (2021). Nvidia index accelerated computing for visualizing cholla’s galactic winds. Parallel Comput. 107:102809. doi: 10.1016/j.parco.2021.102809

Crossref Full Text | Google Scholar

Serrano-Munoz, A., Chrysostomou, D., Bøgh, S., and Arana-Arexolaleiba, N. (2023). Skrl: modular and flexible library for reinforcement learning. J. Mach. Learn. Res. 24, 1–9. doi: 10.48550/arXiv.2202.03825

Crossref Full Text | Google Scholar

Shapira, O. (2022). Build 3d virtual worlds at human scale with the nvidia omniverse xr app. NVIDIA.

Google Scholar

Sim, J. K., Xu, K. W., Jin, Y., Lee, Z. Y., Teo, Y. J., Mohan, P., et al. (2024). Designing an educational metaverse: a case study of ntuniverse. Appl. Sci. 14:2559. doi: 10.3390/app14062559

Crossref Full Text | Google Scholar

Siyaev, A., and Jo, G.-S. (2021). Neuro-symbolic speech understanding in aircraft maintenance metaverse. IEEE Access 9, 154484–154499. doi: 10.1109/ACCESS.2021.3128616

Crossref Full Text | Google Scholar

Soliman, M. M., Darwish, A., and Hassanien, A. E. (2023). “The threat of the digital human in the metaverse: security and privacy” in The future of metaverse in the virtual era and physical world, vol. 123 (Cham, Switzerland: Springer).

Google Scholar

Spitzer, B. O., Ma, J. H., Erdogmus, E., Kreimer, B., Ryherd, E., and Diefes-Dux, H. (2022). Framework for the use of extended reality modalities in aec education. Buildings 12:2169. doi: 10.3390/buildings12122169

Crossref Full Text | Google Scholar

Srivastava, S., Li, C., Lingelbach, M., Martın-Martın, R., Xia, F., Vainio, K. E., et al. (2022). Behavior: benchmark for everyday household activities in virtual, interactive, and ecological environments. Conf. Robot Learn. 164.

Google Scholar

Tseng, W.-J., Bonnail, E., Mcgill, M., Khamis, M., Lecolinet, E., Huron, S., et al. (2022). “The dark side of perceptual manipulations in virtual reality” in Proceedings of the 2022 CHI conference on human factors in computing systems, 1–15. ACM.

Google Scholar

Vatanen, J. (2024). Exploring nvidia omniverse ecosystem. Oulu University of Applied Sciences.

Google Scholar

Wang, Y., Su, Z., Zhang, N., Xing, R., Liu, D., Luan, T. H., et al. (2022). A survey on metaverse: fundamentals, security, and privacy. IEEE Commun. Surv. Tutor. 25, 319–352. doi: 10.1109/COMST.2022.3202047

Crossref Full Text | Google Scholar

Weller, H. G., Tabor, G., Jasak, H., and Fureby, C. (1998). A tensorial approach to computational continuum mechanics using object-oriented techniques. Comput. Phys. 12, 620–631. doi: 10.1063/1.168744

Crossref Full Text | Google Scholar

Werner, H., Ribeiro, G., Arcoverde, V., Lopes, J., and Velho, L. (2022). The use of metaverse in fetal medicine and gynecology. Eur. J. Radiol. 150:110241. doi: 10.1016/j.ejrad.2022.110241

PubMed Abstract | Crossref Full Text | Google Scholar

Wu, C.-Y. (2023). Effects of visual representation and recommendation bias in conversational recommender system. Ph.D. thesis. Santa Barbara: UC.

Google Scholar

Xu, M., Ng, W. C., Lim, W. Y. B., Kang, J., Xiong, Z., Niyato, D., et al. (2022). A full dive into realizing the edge-enabled metaverse: visions, enabling technologies, and challenges. IEEE Commun Surv Tutor 25, 656–700. doi: 10.1109/COMST.2022.3221119

Crossref Full Text | Google Scholar

Yang, D., Zhou, J., Chen, R., Song, Y., Song, Z., Zhang, X., et al. (2022). Expert consensus on the metaverse in medicine. Clin. eHealth 5, 1–9. doi: 10.1016/j.ceh.2022.02.001

Crossref Full Text | Google Scholar

Yoon, S. H., and Goo, H. W. (2023). Real-time ray tracing for cardiothoracic imaging. Radiol. Cardiothoracic Imaging 5:e220304. doi: 10.1148/ryct.220304

Crossref Full Text | Google Scholar

Zhai, C., Dong, B., Xu, H., Yuan, X., Zhou, L., and Song, W. (2023). “Research on the application of metaverse technology in the us army” in In 2023 14th international conference on mechanical and intelligent manufacturing technologies (ICMIMT) (IEEE), 52–58.

Google Scholar

Zhan, T., Yin, K., Xiong, J., He, Z., and Wu, S.-T. (2020). Augmented reality and virtual reality displays: perspectives and challenges. Iscience 23:101397. doi: 10.1016/j.isci.2020.101397

PubMed Abstract | Crossref Full Text | Google Scholar

Zhang, J., Keramat, F., Yu, X., Hernández, D. M., Queralta, J. P., and Westerlund, T. (2022). “Distributed robotic systems in the edge-cloud continuum with ros 2: a review on novel architectures and technology readiness” in In 2022 seventh international conference on fog and mobile edge computing (FMEC) (IEEE), 1–8.

Google Scholar

Zhang, C., Zhou, G., Li, H., and Cao, Y. (2020). Manufacturing blockchain of things for the configuration of a data-and knowledge-driven digital twin manufacturing cell. IEEE Internet Things J. 7, 11884–11894. doi: 10.1109/JIOT.2020.3005729

Crossref Full Text | Google Scholar

Zhao, Y., Gong, S., Gao, X., Ai, W., and Zhu, S.-C. (2022). Vrkitchen2. 0- indoorkit: a tutorial for augmented indoor scene building in omniverse. arXiv [Preprint]. doi: 10.48550/arXiv.2206.11887

Crossref Full Text | Google Scholar

Zhou, Z., Song, J., Xie, X., Shu, Z., Ma, L., Liu, D., et al. (2024). “Towards building ai-cps with nvidia isaac sim: an industrial benchmark and case study for robotics manipulation” in Proceedings of the 46th international conference on software engineering: software engineering in practice, 263–274. ACM.

Google Scholar

Keywords: metaverse, Omniverse, real time simulation, collaboration, synthetic data creation

Citation: Ahmed N, Afyouni I, Dabool H and Al Aghbari Z (2024) A systemic survey of the Omniverse platform and its applications in data generation, simulation and metaverse. Front. Comput. Sci. 6:1423129. doi: 10.3389/fcomp.2024.1423129

Received: 25 April 2024; Accepted: 18 October 2024;
Published: 19 November 2024.

Edited by:

Carla M. D. S. Freitas, Federal University of Rio Grande do Sul, Brazil

Reviewed by:

Maha Khemaja, University of Sousse, Tunisia
Irene Gironacci, Agilent Technologies, Germany

Copyright © 2024 Ahmed, Afyouni, Dabool and Al Aghbari. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.

*Correspondence: Naveed Ahmed, bmFobWVkQHNoYXJqYWguYWMuYWU=

Disclaimer: All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
