Sajad Sofi1*†
Dawn Coverley1,2*- 1Department of Biology, University of York, York, United Kingdom
- 2York Biomedical Research Institute, University of York, York, United Kingdom
There is growing evidence that X-chromosome inactivation is driven by phase-separated supramolecular assemblies. However, among the many proteins recruited to the inactive X chromosome by Xist long non-coding RNA, so far only a minority (CIZ1, CELF1, SPEN, TDP-43, MATR3, PTBP1, PCGF5) have been shown to form Xist-seeded protein assemblies, and of these most have not been analyzed in detail. With focus on CIZ1, here we describe 1) the contribution of intrinsically disordered regions in RNA-dependent protein assembly formation at the inactive X chromosome, and 2) enrichment, distribution, and function of proteins within Xist-seeded assemblies.
Introduction
Transcriptional silencing of one copy of the X chromosome (X chromosome inactivation, XCI) occurs during early embryogenesis in female mammals (Lyon, 1961), and is the most extensively studied model of stably repressed chromatin formation. The initiating molecule is the 17-kb long noncoding RNA (lncRNA) X-inactive specific transcript (Xist) (Brockdorff et al., 1992; Brown et al., 1992), whose expression is restricted to one of the X chromosomes in female cells by the cis-acting activity of the antisense Tsix lncRNA (Lee et al., 1999), which suppresses Xist. The X chromosome that continues to express Xist generates approximately 100 molecules per cell, which initiate recruitment of chromatin modifying proteins across the inactive X chromosome (Xi), through interactions mediated by a series of repeat elements. Since its discovery more than 30 years ago, detailed analysis has revealed important insights into how this drives silencing of most of the genes on the Xi (Markaki et al., 2021; Rodermund et al., 2021), and has been reviewed extensively elsewhere including (Sahakyan et al., 2018; Brockdorff, 2019; Monfort and Wutz, 2020; Strehle and Guttman, 2020; Loda et al., 2022).
Recent studies have highlighted phase separation as part of the process underpinning Xi chromatin condensation and gene silencing (Cerase review), though its putative influence is far from established (Collombet et al., 2023). Phase separation is a process in which molecules spontaneously separate into a molecule-rich phase, which coexists in a cell with molecule-lean phase. The physical properties of size, shape, composition and behaviour of Xist nuclear foci is similar to other phase separated molecular condensates. Some Xist binding proteins (CELF1, SPEN, MATR3, TDP-43, PTBP1, PCGF5, and also CIZ1) have been shown to form Xist-seeded protein assemblies (Ridings-Figueroa et al., 2017; Pandya-Jones et al., 2020; Markaki et al., 2021; Rodermund et al., 2021; Jachowicz et al., 2022; Sofi et al., 2022), but the molecular mechanisms by which they arise remain largely unknown. In this review we discuss the role of intrinsically disordered prion-like domains (PLDs) in building RNA-protein assemblies at the Xi (Table 1), with focus on CIZ1 and its relationship with the repeat E element of Xist.

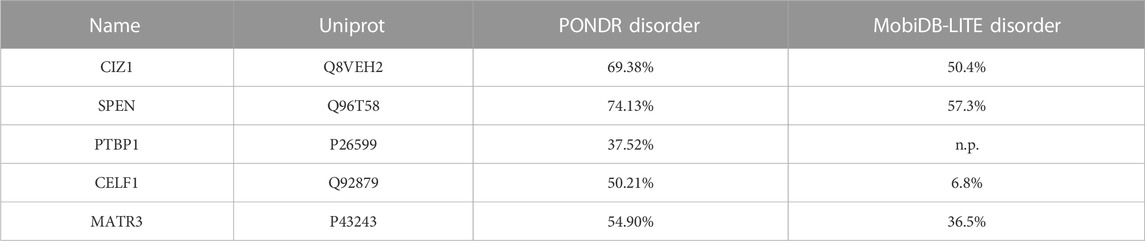

TABLE 1. Repeat E proteins known to form assemblies. Protein disorder predicted by PONDR (Mészáros et al., 2019) and MobDB-lite (Romero et al., 1997). n.p. means disorder for this protein is not predicted. PONDR score is indicative of the degree of disorder among residues or regions in a protein, not in an entire protein. PONDR scores greater than 0.5 suggest disorder. We express PONDR output as overall percent disorder in proteins. MobiDB lite does not give any score but generates overall percent disorder.
Intrinsically disordered domains of CIZ1
CIZ1 is a ubiquitous nuclear protein that was identified through a yeast two-hybrid screen as an interaction partner of the cell cycle regulator p21/Cip1/CDKN1A, and later as a functional interactor of cyclin A-CDK2 (Mitsui et al., 1999; Coverley et al., 2005). It is linked with initiation of DNA replication (Copeland et al., 2010; Copeland et al., 2015), and because it remains in the nucleus after removal of chromatin is classified as a nuclear matrix protein (Ainscough et al., 2007). Its interaction with Xist emerged more recently, and has been shown to require the repeat E region of Xist (Chu et al., 2015; Ridings-Figueroa et al., 2017; Sunwoo et al., 2017; Dixon-McDougall and Brown, 2022). The biological significance of CIZ1’s function is apparent in a CIZ1 null murine model which develops female specific lymphoproliferative disorder (Brockdorff, 2019), and in the many human cancers of both sexes in which CIZ1 is dysregulated.
Though not required to establish XCI in the embryo, or to maintain global Xi silencing once established, in somatic cells (fibroblasts, B and T lymphocytes) CIZ1 is required to trap Xist transcripts at their source (Ridings-Figueroa et al., 2017). It is possible that it plays a similar role at other less visible loci because CIZ1 loss leads to failure to maintain tight control over genes under the regulation of the polycomb complex across the nucleus (Stewart et al., 2019). At the Xi, CIZ1 normally forms strongly enriched RNA-protein assemblies in a manner dependent on its two intrinsically disordered prion-like domains (PLD1 and PLD2) (Sofi et al., 2022). Both are alternatively-spliced, and excluded from some forms of CIZ1 in developmental and disease states (Warder and Keherly, 2003; Coverley et al., 2005; Dahmcke et al., 2008). Intrinsically disordered regions (IDRs) are amino-acid sequences with low sequence complexity and no fixed conformation (Alberti, 2017). CIZ1’s PLD1 is made up of nine blocks of 2-6 residue long polar uncharged glutamine repeats, interspersed with non-polar leucine or isoleucine residues. While PLD2 harbors no such repeats, it is made up of 15 (38.4%) glutamine residues interspersed with other polar amino acids. Approximately 5% of PLD2 residues are acidic, compared to 13% of non-PLD CIZ1, rendering it less negatively charged. Together, PLD1 and PLD2 support formation of concentration- and time-dependent CIZ1 assemblies possibly through multivalent weak interactions (electrostatic, cation-π, π-π stacking interactions), including dipole-dipole interaction of glutamine residues with aromatic groups. Collectively these interactions may favor CIZ1 self-assembly, as has been proposed for other poly Q proteins (Brangwynne et al., 2015; Protter et al., 2018).
Purified PLD-containing CIZ1 fragments can alone form assemblies in vitro, but these are much larger (6 μm) in size than those observed inside the cell nucleus and resemble branched filaments rather than globular condensates. Moreover the same fragments are not sufficient to form assemblies at Xi in cultured cells, which requires additional functional domains (Sofi et al., 2022). Similar behavior has been observed for Whi3 RNA binding protein (Zhang et al., 2015), though the cellular mechanisms that control its assembly size and shape also remain poorly understood. For both proteins extrapolation from in vitro protein characterization to a cellular context is complicated by the buffering capacity of RNA (and other cellular factors), and the potential of specific RNA molecules to bridge protein interactions. In the case of CIZ1, this may influence both the extent of its self-interaction and also determine where in the nucleus assemblies are supported. Despite these uncertainties, analysis in vitro showed convincingly the contributions of the IDRs PLD1 and PLD2 to the formation of self-assemblies (Figure 1).

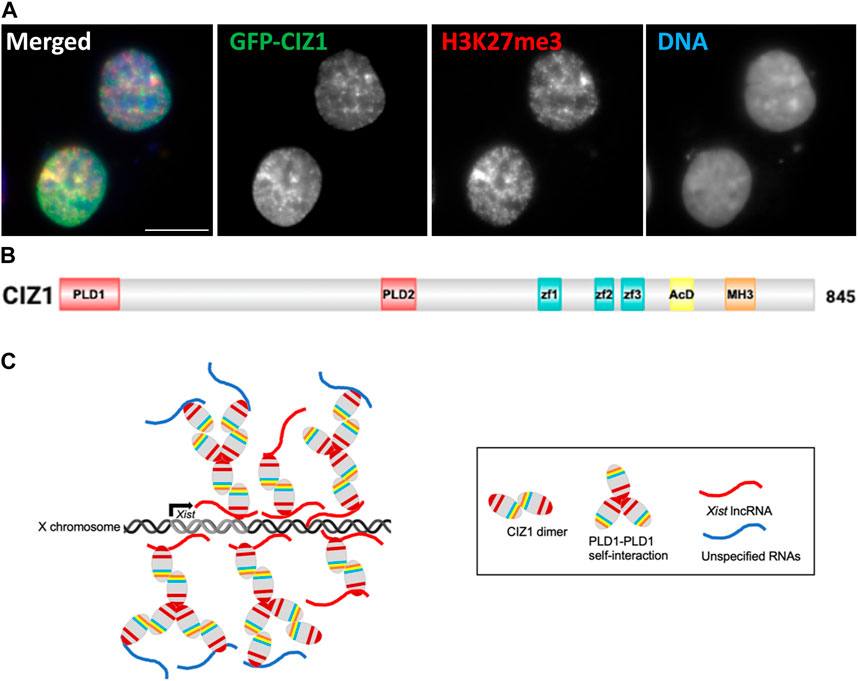

FIGURE 1. Formation of CIZ1 assemblies drive acquisition of modifications in CIZ1-null cells. (A) Image showing ectopic GFP-CIZ1 which drives acquisition of repressive histone post-translational modifications in CIZ1-null primary embryonic fibroblast cells (Sofi et al., 2022). Scale bar is 10 μm. (B) Summary of CIZ1 protein domains. PLD1 and PLD2 are red, Zf1-3 (zinc finger domains 1, 2 and 3 are blue; acidic domain (AcD) is yellow; and Matrin 3 domain (MH3) is orange. (C) Model summarising the emerging interpretation of information on CIZ1 in Xist seeded assemblies at Xi.
The majority (63%) of proteins contain IDRs (Tsang et al., 2020), which participate in nearly half of the total RNA-protein interactions in cells (Castello et al., 2016), and in some cases IDRs have been shown to modulate chromatin repression and gene silencing (Jachowicz et al., 2022). IDRs can bind RNA, DNA, proteins, and as purified proteins also phase separate in vitro (Protter et al., 2018, Brodsky et al., 2020). While IDRs in some DNA-binding proteins bind specific sequences in vivo (Brodsky et al., 2020; Wang et al., 2023), the IDRs of RNA binding proteins, including CIZ1, appear to bind RNAs promiscuously, in some cases without any apparent sequence specificity (Protter et al., 2018; Sofi et al., 2022; Cubuk et al., 2023). The lack of RNA sequence specificity is attributed to their conformational flexibility (Varadi et al., 2015; Ottoz and Berchowitz, 2020) and overall charge, with positively charged IDRs binding to negatively charged RNAs (Protter et al., 2018). An unresolved question is whether IDRs contribute to functional RNA specificity inside cells. Some studies have suggested that repeat regions within some IDRs fold into secondary structures (α-helix, loops or random coil), which specifically interact with folded RNAs driving structural specificity (Protter et al., 2018; Zeke et al., 2022), possibly regulated by post-translational modifications (Ottoz and Berchowitz, 2020). Other studies propose that some structurally malleable RNAs have chaperone activity which could impose order upon IDRs, potentially augmenting the specificity of proteins towards RNA (Ottoz and Berchowitz, 2020; Luo et al., 2023). In the case of CIZ1’s IDRs no biophysical information on their relationship with RNA has yet been uncovered, but their contribution to stable interaction with RNA has been assessed (Sofi et al., 2022).
Relationship between CIZ1 and Xist molecules
Xist lncRNA interacts with numerous proteins, some of which become enriched at Xi (Chu et al., 2015; McHugh et al., 2015; Moindrot et al., 2015; Monfort et al., 2015), and much effort is concentrated on understanding the molecular basis of their enrichment. Xist contains six differently sized repeat regions (A-F) implicated in recruitment of different Xist binding proteins (McHugh et al., 2015; Brockdorff, 2018; Brockdorff et al., 2020; Monfort and Wutz, 2020; Boeren and Gribnau, 2021; Raposo et al., 2021). Repeat E is comprised of two sets of tandem repeats (35 copies of a 16–27 bp C/U/G-rich element at the 5′ end, and 25 copies of a 6–19 bp C/U-rich element at the 3’ end) (Pandya-Jones et al., 2020; Brockdorff et al., 2020). It is largely unstructured and thought to act as a protein binding platform in cells (Smola et al., 2016). Its deletion from Xist blocks recruitment of CIZ1 to Xi in somatic cells, and CIZ1 binds directly to Xist repeat E in vitro, with a degree of sequence preference imparted by its PLDs (Ridings-Figueroa et al., 2017; Sunwoo et al., 2017; Sofi et al., 2022). In vitro experiments that compare affinity for repeat E over repeat A, absence of PLD1 dampened the former more than the latter, while absence of PLD2 relieved apparent suppression of interaction with repeat A, rendering the affinity for both RNA elements similar (Sofi et al., 2022). This highlights a complex relationship with respect to specificity, and implies that PLD2 may enhance the affinity of PLD1 for repeat E by dampening affinity for other (unknown) RNAs. Moreover, removal of either of the IDRs (PLD1/PLD2) from CIZ1 causes failure to concentrate Xist transcripts at Xi in differentiated fibroblasts (Sofi et al., 2022), which further suggests that the interplay between them is important to specify interaction with Xist and thus the location at which CIZ1 assemblies form in vivo. In contrast, Xist dispersal is not observed upon deletion of the IDR in SPEN (Jachowicz et al., 2022). A structural examination of the relationship between PLD1 and PLD2, in complex with structurally flexible Xist, is now needed in order to understand how they cooperate to drive CIZ1 assembly formation at Xi.
There is consensus now that approximately 100 Xist RNA molecules are present in female cells, and are confined to ∼50 Xist foci, each containing a pair of Xist molecules (Markaki et al., 2021; Rodermund et al., 2021). Surprisingly, the number of Xist foci increased in differentiating embryonic stem cells (ESCs) when repeat E was deleted, which implicates repeat E in the integrity or stability of Xist pairs (Pandya-Jones et al., 2020). In experiments where CIZ1 is depleted, Xist pairs remain largely intact arguing against a role for CIZ1 (Rodermund et al., 2021), even though it is itself a homodimeric entity (Turvey et al., 2023). In fact, the bridging entity remains enigmatic and could depend on RNA-RNA interactions (Van Treeck et al., 2018) as on its own, repeat E forms micrometer sized droplets (Pandya-Jones et al., 2020; Ma et al., 2021).
Recently expression of Halo-tagged transgenes in XistMS2−GFP cells followed by imaging with 3D-SIM, revealed 1:1 binding stoichiometry between CIZ1 and Xist, and similar stoichiometry for other repeat E binding proteins (CELF1, PTBP1, MATR3, TDP-43) (Pandya-Jones et al., 2020; Markaki et al., 2021). However, unlike these other factors the strong enrichment of endogenous CIZ1 around the Xi, detected by immunofluorecence microscopy, appears to be inconsistent with 1:1 stoichiometry across the whole assembly. As mixed RNA can drive enlargement of CIZ1 networks in vitro and CIZ1 also has a propensity for self-interaction (Sofi et al., 2022) we hypothesise that, while Xist might specify where CIZ1 assemblies form in the nucleus, their enlargement in somatic cells is amplified independently of Xist. This idea is supported by a recent study which shows that SPEN, which directly binds Xist repeat A, amplifies its abundance by forming assemblies with other SPEN molecules driven by multivalent interactions between their IDRs (Jachowicz et al., 2022).
Spatial distribution of CIZ1 within Xist-nucleated assemblies
Although CIZ1 is normally recruited during the initiation phase of XCI it is not required at this critical point in development, and CIZ1-null mice develop normally (Ridings-Figueroa et al., 2017). A reliance on CIZ1 for Xist retention becomes evident in the later maintenance phase of XCI (Stewart et al., 2019), which is consistent with a delayed requirement for the repeat E element (Pandya-Jones et al., 2020). Despite this, focus has fallen on the precise order in which CIZ1 and other repeat E binding proteins are recruited to the pre-Xi during the initiation phase (Pandya-Jones et al., 2020; Markaki et al., 2021). It has been postulated that CIZ1 forms a stable ‘core’ of the supramolecular protein complexes (SMACs) that are nucleated by Xist, because its dwell time at Xi, determined by fluorescence recovery after photobleaching (FRAP) is by far the highest among the known Xist repeat E proteins (Table 2) (Markaki et al., 2021). In the same study CIZ1 concentration in Xist-SMACs did not fluctuate and remained constant, unlike SPEN and CELF1 whose concentration gradually increased (Pandya-Jones et al., 2020; Markaki et al., 2021). However, questions remain about the nature and purpose of a putative ‘core’ structure. CIZ1’s repeat E-driven recruitment does not appear to increase the local concentration of other repeat E-dependent protein factors, as no CIZ1-dependent enrichment was found in ES cells, even though it interacts with MATR3 and PTBP1 in co-immunoprecipitation experiments (Strehle and Guttman, 2020). Similarly in our unpublished observations CIZ1 does not enrich SAF-A, PTBP1 or MATR3 in female fibroblasts, rather we noticed an under representation of these proteins at sites of de novo CIZ1 assemblies. Furthermore, CELF1, PTBP1, TDP-43 and MATR3 interact with each other to form a heteromeric protein assembly on repeat E and this assembly does not contain CIZ1 (Pandya-Jones et al., 2020), which suggests that distinct protein assemblies could form on repeat E, possibly in dynamic equilibrium with each other. Therefore, from the available data it is not clear that CIZ1 forms a core, at least not one with a positive influence on other factors. Conversely, limited data suggest that CIZ1 may form a protective ‘shell’ or molecular shield (Mészáros et al., 2019) around the Xi that excludes or includes soluble factors. When CIZ1-Xi assemblies are destabilized by the over-expression of interfering fragments (Turvey et al., 2023), or absent as in CIZ1-null cells (Stewart et al., 2019), underlying chromatin becomes depleted of PRC1-dependent ubiquitination of H2AK119. This might be driven by inappropriate exposure of chromatin to deubiquitylating enzymes (DUBs) is suggested because DUB inhibition abrogates the loss of H2AK119ub in both experimental contexts (Turvey et al., 2023). These data are beginning to argue that the CIZ1 in Xist-nucleated assemblies becomes essential only in the later stages of XCI because its primary role is to protect the status of chromatin that was established earlier.

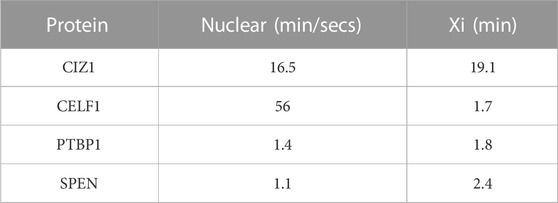

TABLE 2. Dwell time of repeat E proteins at the Xi and in the nucleoplasm (Markaki et al., 2021).
Author contributions
SS: Writing–original draft, Conceptualization. DC: Writing–original draft, Conceptualization.
Funding
The author(s) declare that financial support was received for the research, authorship, and/or publication of this article. This work was supported in part by the UK Medical Research Council grants MR/R008981/1 and MR/V029088/1.
Acknowledgments
We would like to thank Justin Ainscough for critical reading of this review.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
References
Ainscough, J.F.-X., Rahman, F. A., Sercombe, H., Sedo, A., Gerlach, B., and Coverley, D. (2007). C-terminal domains deliver the DNA replication factor Ciz1 to the nuclear matrix. J. Cell Sci. 120, 115–124. doi:10.1242/jcs.03327
Alberti, S. (2017). Phase separation in biology. Curr. Biol. 27, R1097-R1102–R1102. doi:10.1016/j.cub.2017.08.069
Boeren, J., and Gribnau, J. (2021). Xist-mediated chromatin changes that establish silencing of an entire X chromosome in mammals. Curr. Opin. Cell Biol. 70, 44–50. doi:10.1016/j.ceb.2020.11.004
Brangwynne, C. P., Tompa, P., and Pappu, R. V. (2015). Polymer physics of intracellular phase transitions. Nat. Phys. 11, 899–904. doi:10.1038/nphys3532
Brockdorff, N. (2018). Local tandem repeat expansion in xist RNA as a model for the functionalisation of ncRNA. ncRNA 4, 28. doi:10.3390/ncrna4040028
Brockdorff, N. (2019). Localized accumulation of Xist RNA in X chromosome inactivation. Open Biol. 9, 190213. doi:10.1098/rsob.190213
Brockdorff, N., Ashworth, A., Kay, G. F., McCabe, V. M., Norris, D. P., Cooper, P. J., et al. (1992). The product of the mouse Xist gene is a 15 kb inactive X-specific transcript containing no conserved ORF and located in the nucleus. Cell 71, 515–526. doi:10.1016/0092-8674(92)90519-i
Brockdorff, N., Bowness, J. S., and Wei, G. (2020). Progress toward understanding chromosome silencing by Xist RNA. Genes Dev. 34, 733–744. doi:10.1101/gad.337196.120
Brodsky, S., Jana, T., Mittelman, K., Chapal, M., Kumar, D. K., Carmi, M., et al. (2020). Intrinsically disordered regions direct transcription factor in vivo binding specificity. Mol. Cell 79, 459–471. doi:10.1016/j.molcel.2020.05.032
Brown, C. J., Hendrich, B. D., Rupert, J. L., Lafrenière, R. G., Xing, Y., Lawrence, J., et al. (1992). The human XIST gene: analysis of a 17 kb inactive X-specific RNA that contains conserved repeats and is highly localized within the nucleus. Cell 71, 527–542. doi:10.1016/0092-8674(92)90520-m
Castello, A., Fischer, B., Frese, C. K., Horos, R., Alleaume, A.-M., Foehr, S., et al. (2016). Comprehensive identification of RNA-binding domains in human cells. Mol. Cell 63, 696–710. doi:10.1016/j.molcel.2016.06.029
Chu, C., Zhang, Q. C., da Rocha, S. T., Flynn, R. A., Bharadwaj, M., Calabrese, J. M., et al. (2015). Systematic discovery of Xist RNA binding proteins. Cell 161, 404–416. doi:10.1016/j.cell.2015.03.025
Collombet, S., Rall, I., Dugast-Darzacq, C., Heckert, A., Halavatyi, A., Le Saux, A., et al. (2023). RNA polymerase II depletion from the inactive X chromosome territory is not mediated by physical compartmentalization. Nat. Struct. Mol. Biol. 30, 1216–1223. doi:10.1038/s41594-023-01008-5
Copeland, N. A., Sercombe, H. E., Ainscough, J. F. X., and Coverley, D. (2010). Ciz1 cooperates with cyclin-A-CDK2 to activate mammalian DNA replication in vitro. J. Cell Sci. 123, 1108–1115. doi:10.1242/jcs.059345
Copeland, N. A., Sercombe, H. E., Wilson, R. H. C., and Coverley, D. (2015). Cyclin-A-CDK2-mediated phosphorylation of CIZ1 blocks replisome formation and initiation of mammalian DNA replication. J. Cell Sci. 128, 1518–1527. doi:10.1242/jcs.161919
Coverley, D., Marr, J., and Ainscough, J. (2005). Ciz1 promotes mammalian DNA replication. J. Cell Sci. 118, 101–112. doi:10.1242/jcs.01599
Cubuk, J., Alston, J. J., Incicco, J. J., Holehouse, A. S., Hall, K. B., Stuchell-Brereton, M. D., et al. (2023). The disordered N-terminal tail of SARS CoV-2 Nucleocapsid protein forms a dynamic complex with RNA. https://www.biorxiv.org/content/10.1101/2023.02.10.527914v1.
Dahmcke, C. M., Büchmann-Møller, S., Jensen, N. A., and Mitchelmore, C. (2008). Altered splicing in exon 8 of the DNA replication factor CIZ1 affects subnuclear distribution and is associated with Alzheimer’s disease. Mol. Cell. Neurosci. 38, 589–594. doi:10.1016/j.mcn.2008.05.007
Dixon-McDougall, T., and Brown, C. J. (2022). Multiple distinct domains of human XIST are required to coordinate gene silencing and subsequent heterochromatin formation. Epigenetics Chromatin 15, 6. doi:10.1186/s13072-022-00438-7
Jachowicz, J. W., Strehle, M., Banerjee, A. K., Blanco, M. R., Thai, J., and Guttman, M. (2022). Xist spatially amplifies SHARP/SPEN recruitment to balance chromosome-wide silencing and specificity to the X chromosome. Nat. Struct. Mol. Biol. 29, 239–249. doi:10.1038/s41594-022-00739-1
Lee, J., Davidow, L. S., and Warshawsky, D. (1999). Tsix, a gene antisense to Xist at the X-inactivation centre. Nat. Genet. 21, 400–404. doi:10.1038/7734
Loda, A., Collombet, S., and Heard, E. (2022). Gene regulation in time and space during X-chromosome inactivation. Nat. Rev. Mol. Cell Biol. 23, 231–249. doi:10.1038/s41580-021-00438-7
Luo, Y., Pratihar, S., Horste, E. H., Mitschka, S., Mey, A. S. J. S., Al-Hashimi, H. M., et al. (2023). mRNA interactions with disordered regions control protein activity. Mol. Biol., 2023.02.18.529068. doi:10.1101/2023.02.18.529068
Lyon, M. F. (1961). Gene action in the X-chromosome of the mouse (Mus musculus L.). Nature 190, 372–373. doi:10.1038/190372a0
Ma, W., Zhen, G., Xie, W., and Mayr, C. (2021). In vivo reconstitution finds multivalent RNA-RNA interactions as drivers of mesh-like condensates. Elife 10, e64252. doi:10.7554/eLife.64252
Markaki, Y., Gan Chong, J., Wang, Y., Jacobson, E. C., Luong, C., Tan, S. Y. X., et al. (2021). Xist nucleates local protein gradients to propagate silencing across the X chromosome. Cell 184, 6174–6192.e32. doi:10.1016/j.cell.2021.10.022
McHugh, C. A., Chen, C.-K., Chow, A., Surka, C. F., Tran, C., McDonel, P., et al. (2015). The Xist lncRNA interacts directly with SHARP to silence transcription through HDAC3. Nature 521, 232–236. doi:10.1038/nature14443
Mészáros, B., Erdős, G., Szabó, B., Schád, É., Tantos, Á., Abukhairan, R., et al. (2019). PhaSePro: the database of proteins driving liquid–liquid phase separation. Nucleic Acids Res., doi:10.1093/nar/gkz848
Mitsui, K., Matsumoto, A., Ohtsuka, S., Ohtsubo, M., and Yoshimura, A. (1999). Cloning and characterization of a novel p21(Cip1/Waf1)-interacting zinc finger protein, ciz1. Biochem. Biophys. Res. Commun. 264, 457–464. doi:10.1006/bbrc.1999.1516
Moindrot, B., Cerase, A., Coker, H., Masui, O., Grijzenhout, A., Pintacuda, G., et al. (2015). A pooled shRNA screen identifies Rbm15, spen, and wtap as factors required for xist RNA-mediated silencing. Cell Rep. 12, 562–572. doi:10.1016/j.celrep.2015.06.053
Monfort, A., Di Minin, G., Postlmayr, A., Freimann, R., Arieti, F., Thore, S., et al. (2015). Identification of spen as a crucial factor for xist function through forward genetic screening in haploid embryonic stem cells. Cell Rep. 12, 554–561. doi:10.1016/j.celrep.2015.06.067
Monfort, A., and Wutz, A. (2020). The B-side of xist. F1000Res 9, F1000 Faculty Rev-55. doi:10.12688/f1000research.21362.1
Ottoz, D. S. M., and Berchowitz, L. E. (2020). The role of disorder in RNA binding affinity and specificity. Open Biol. 10, 200328. doi:10.1098/rsob.200328
Pandya-Jones, A., Markaki, Y., Serizay, J., Chitiashvili, T., Mancia Leon, W. R., Damianov, A., et al. (2020). A protein assembly mediates Xist localization and gene silencing. Nature 587, 145–151. doi:10.1038/s41586-020-2703-0
Piovesan, D., Necci, M., Escobedo, N., Monzon, A. M., Hatos, A., Mičetić, I., et al. (2021). MobiDB: intrinsically disordered proteins in 2021. Nucleic Acids Res. 49, D361–D367. doi:10.1093/nar/gkaa1058
Protter, D. S. W., Rao, B. S., Van Treeck, B., Lin, Y., Mizoue, L., Rosen, M. K., et al. (2018). Intrinsically disordered regions can contribute promiscuous interactions to RNP granule assembly. Cell Rep. 22, 1401–1412. doi:10.1016/j.celrep.2018.01.036
Raposo, A. C., Casanova, M., Gendrel, A.-V., and Da Rocha, S. T. (2021). The tandem repeat modules of Xist lncRNA: a swiss army knife for the control of X-chromosome inactivation. Biochem. Soc. Trans. 49, 2549–2560. doi:10.1042/BST20210253
Ridings-Figueroa, R., Stewart, E. R., Nesterova, T. B., Coker, H., Pintacuda, G., Godwin, J., et al. (2017). The nuclear matrix protein CIZ1 facilitates localization of Xist RNA to the inactive X-chromosome territory. Genes Dev. 31, 876–888. doi:10.1101/gad.295907.117
Rodermund, L., Coker, H., Oldenkamp, R., Wei, G., Bowness, J., Rajkumar, B., et al. (2021). Time-resolved structured illumination microscopy reveals key principles of Xist RNA spreading. Science 372, eabe7500. doi:10.1126/science.abe7500
Romero, P., Obradovic, Z., Kissinger, C., Villafranca, J. E., and Dunker, A. K. (1997). “Identifying disordered regions in proteins from amino acid sequence,” in Proceedings of International Conference on Neural Networks (ICNN’97), Houston, TX, USA, June, 1997, 90–95. doi:10.1109/ICNN.1997.611643
Sahakyan, A., Yang, Y., and Plath, K. (2018). The role of xist in X-chromosome dosage compensation. Trends Cell Biol. 28, 999–1013. doi:10.1016/j.tcb.2018.05.005
Smola, M. J., Christy, T. W., Inoue, K., Nicholson, C. O., Friedersdorf, M., Keene, J. D., et al. (2016). SHAPE reveals transcript-wide interactions, complex structural domains, and protein interactions across the Xist lncRNA in living cells. Proc. Natl. Acad. Sci. U. S. A. 113, 10322–10327. doi:10.1073/pnas.1600008113
Sofi, S., Williamson, L., Turvey, G. L., Scoynes, C., Hirst, C., Godwin, J., et al. (2022). Prion-like domains drive CIZ1 assembly formation at the inactive X chromosome. J. Cell Biol. 221, e202103185. doi:10.1083/jcb.202103185
Stewart, E. R., Turner, R. M. L., Newling, K., Ridings-Figueroa, R., Scott, V., Ashton, P. D., et al. (2019). Maintenance of epigenetic landscape requires CIZ1 and is corrupted in differentiated fibroblasts in long-term culture. Nat. Commun. 10, 460. doi:10.1038/s41467-018-08072-2
Strehle, M., and Guttman, M. (2020). Xist drives spatial compartmentalization of DNA and protein to orchestrate initiation and maintenance of X inactivation. Curr. Opin. Cell Biol. 64, 139–147. doi:10.1016/j.ceb.2020.04.009
Sunwoo, H., Colognori, D., Froberg, J. E., Jeon, Y., and Lee, J. T. (2017). Repeat E anchors Xist RNA to the inactive X chromosomal compartment through CDKN1A-interacting protein (CIZ1). Proc. Natl. Acad. Sci. U. S. A. 114, 10654–10659. doi:10.1073/pnas.1711206114
Tsang, B., Pritišanac, I., Scherer, S. W., Moses, A. M., and Forman-Kay, J. D. (2020). Phase separation as a missing mechanism for interpretation of disease mutations. Cell 183, 1742–1756. doi:10.1016/j.cell.2020.11.050
Turvey, G. L., De Alba, E. L., Stewart, E., Byrom, L., Cook, H., Sofi, S., et al. (2023). Dominant CIZ1 fragments drive epigenetic instability and are expressed in early stage cancers. Cell Biol., doi:10.1101/2023.09.22.558821
Van Treeck, B., Protter, D. S. W., Matheny, T., Khong, A., Link, C. D., and Parker, R. (2018). RNA self-assembly contributes to stress granule formation and defining the stress granule transcriptome. Proc. Natl. Acad. Sci. U. S. A. 115, 2734–2739. doi:10.1073/pnas.1800038115
Varadi, M., Zsolyomi, F., Guharoy, M., and Tompa, P. (2015). Functional advantages of conserved intrinsic disorder in RNA-binding proteins. PLoS ONE 10, e0139731. doi:10.1371/journal.pone.0139731
Wang, X., Bigman, L. S., Greenblatt, H. M., Yu, B., Levy, Y., and Iwahara, J. (2023). Negatively charged, intrinsically disordered regions can accelerate target search by DNA-binding proteins. Nucleic Acids Res. gkad045. 51, 4701–4712. doi:10.1093/nar/gkad045
Warder, D. E., and Keherly, M. J. (2003). Ciz1, Cip1 interacting zinc finger protein 1 binds the consensus DNA sequence ARYSR(0–2)YYAC. J. Biomed. Sci. 10, 406–417. doi:10.1007/BF02256432
Zeke, A., Schád, É., Horváth, T., Abukhairan, R., Szabó, B., and Tantos, A. (2022). Deep structural insights into RNA-binding disordered protein regions. WIREs RNA 13, e1714. doi:10.1002/wrna.1714
Keywords: X inactivation, Xist (X-inactive specific transcript), CIZ1, phase separation, nuclear matrix
Citation: Sofi S and Coverley D (2023) CIZ1 in Xist seeded assemblies at the inactive X chromosome. Front. Cell Dev. Biol. 11:1296600. doi: 10.3389/fcell.2023.1296600
Received: 18 September 2023; Accepted: 04 December 2023;
Published: 13 December 2023.
Edited by:
Andrew Keniry, The University of Melbourne, AustraliaReviewed by:
Andrea Cerase, Queen Mary University of London, United KingdomSimão Teixeira da Rocha, University of Lisbon, Portugal
Dimitrios Papadopoulos, University of Crete, Greece
Copyright © 2023 Sofi and Coverley. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Sajad Sofi, sajad.sofi122@gmail.com; Dawn Coverley, dawn.coverley@york.ac.uk
†Present address: Sajad Sofi, RNA Biology and Innovation, Aarhus University, Aarhus, Denmark
