Wael Yakti
Christopher Shaw2,3†
Werner Kloas
Christian Ulrichs- 1Urban Plant Ecophysiology Division, Faculty of Life Sciences, Thaer-Institute of Agricultural and Horticultural Sciences, Humboldt-Universität zu Berlin, Berlin, Germany
- 2Department of Fish Biology, Fisheries, and Aquaculture, Leibniz Institute of Freshwater Ecology and Inland Fisheries, Berlin, Germany
- 3Faculty of Life Sciences, Albrecht Daniel Thaer Institute of Agricultural and Horticultural Sciences, Humboldt University Berlin, Berlin, Germany
- 4Faculty of Life Sciences, Institute of Biology, Humboldt University Berlin, Berlin, Germany
Introduction: The circular bioeconomy concept revolves around biological production cycles that reintroduce products or waste from one production system to another, aiming to maximize resource utilization while minimising environmental impact. The purpose of this study was to evaluate and compare the element flow when integrating black soldier fly larvae (BSF) production with Nile tilapia production using varying experimental fish feed.
Methods: Tilapia (42.5 ± 11.2 g) were reared in recirculating aquaculture systems (RAS) at 25.5°C for 10 weeks and fed equal daily rations of four experimental diets containing fishmeal (FM), poultry blood meal (PBM), black soldier fly meal (BSF) and poultry by-product meal (PM) as the single main protein source, respectively. Faeces was collected daily from settling columns installed in the RAS and subsequently fed to BSF larvae.
Results and discussion: The fish exhibited the highest biomass gain when fed with FM (1,001 g) or PM (901 g). The growth was lowest for those fed with PBM (406 g). The fish fed with PBM also produced the highest amount of faeces (234 g). When the fish faeces were utilized as a substrate for rearing black soldier fly (BSF) larvae and although the biomass gain did not differ significantly, the feed conversion ratio (FCR) varied among larvae fed with different fish faeces, ranging from 8.36 to 25.04. Furthermore, the concentration of analysed elements (Al, B, Ca, Co, Cu, Fe, K, Mg, Mn, Mo, Na, P, S, and Zn) varied based on the type of fish faeces provided. Results illustrate that a modulation of BSFL elemental composition is possible through manipulating the feed provided to the fish and emphasize the importance of fish feed composition for fish performance as well as the compositional quality of the larvae reared on the resulting fish faeces. Hence, if BSF larvae production is to be harnessed for the recycling of aquaculture sludge, ingredient choice and subsequent elemental composition of fish feeds are pivotal to larvae composition.
1 Introduction
The circular bioeconomy concept embraces maximal utilization of biological resources, thereby addressing sustainability challenges and fulfilling societal demands. This approach considers biological production cycles that reintroduce products or wastes from a production system to the other in order to achieve maximal use of resources and minimal environmental impact (Zaman et al., 2023). Over the past years, the European Union has been actively promoting the responsible management and, when possible, the utilization of biowastes (Fava et al., 2015). This includes the appropriate processing of raw materials and biological resources, as well as the protection and conservation of environmental media such as water and soil (Schepelmann et al., 2006; Vehlow et al., 2007; Fava et al., 2015). These developments gave rise to “waste to value” business models that integrate different biorefinery techniques and biowaste processing methods to create value from wastes (Zaman et al., 2023).
The mass-rearing of insects has gained worldwide attention in recent years as a sustainable and efficient means of waste treatment and protein production (Gasco et al., 2020; Raksasat et al., 2020). This process offers several advantages over traditional waste treatment methods, including reduced environmental impact, resource recovery, and the production of valuable by-products (Salomone et al., 2017; Ojha et al., 2020; Sangiorgio et al., 2022).
The black soldier fly (Hermetia illucens) is one of the most commonly mass-reared insect species (Tomberlin and Van Huis, 2020). The larvae have a voracious appetite and can consume and thrive on different organic waste streams (Raksasat et al., 2020), including fruit and vegetable wastes (Borel et al., 2021), catering wastes (Candian et al., 2023), agricultural wastes (Beyers et al., 2023; Yakti et al., 2023), and human and animal manure (Sheppard et al., 1994; Diener et al., 2011; Lalander et al., 2013). The larvae efficiently convert organic substrates into a protein-rich larval biomass, which can be harvested and used as a sustainable feed component (Gasco et al., 2020). The bioconversion process also generates valuable by-products such as the rest substrate, also known as frass, which can be used a plant fertiliser (Beesigamukama et al., 2020).
In aquaculture, the black soldier fly larvae (BSFL) meal has been shown to enhance the nutrition and health of aquatic organisms. The incorporation of BSFL in the feed of Nile tilapia, for example, has led to improved growth, enhanced feed efficiency, and better development of liver and intestinal organs (Abdel-Tawwab et al., 2020; Limbu et al., 2022). Positive effects were also observed in other fish species such as rainbow trout (Oncorhynchus mykiss) (Elia et al., 2018), Atlantic salmon (Salmo salar) (Belghit et al., 2018), and Jian carp (Cyprinus carpio) (Li et al., 2017).
Generally, aquaculture produces wastes that can be categorized as solid or dissolved wastes. Solid wastes primarily consist of fecal droppings, unconsumed feed, and occasionally, fish carcasses when mortalities occur (Akinwole et al., 2016). The presence of solid wastes in the aquaculture system causes issues such as boosting aerobic bacterial activity leading to the depletion of oxygen and the reduction of biofilm formation (Michaud et al., 2006), ultimately reducing the biofilter efficiency and leading to the accumulation of fish-toxic ammonia. The adverse effects of elevated ammonia levels include decreased feed intake, reduced growth rates, vulnerability to diseases, and disruption of various physiological processes (Levit, 2010). In well-managed farms, approximately 30 percent of the feed given is expected to remain in the system as solid wastes, although this percentage may vary based on the system operation (Miller and Semmens, 2002). The use of recirculating aquaculture systems (RAS), for example, is gaining interest as they enable better solid waste removal compared to conventional flow-through systems (d’Orbcastel et al., 2009).
In theory, if black soldier fly larvae (BSFL) can consume waste materials obtained from aquaculture tanks, (i.e., fish faeces and feed leftovers), it would be possible to establish a feedback loop by incorporating BSFL into aquafeed. This feedback loop would confer an extra environmental advantage by reducing the pollution caused by aquaculture systems and generating value from waste.
However, currently the utilization of fish wastes as a substrate for black soldier fly larvae (BSFL) is prohibited in the European Union (EU) due to the associated risks related to the use of animal manure as a rearing substrate. Given that insects are farmed animals, their rearing should comply with legal frameworks like those established by the European Union (Commission Regulation (EU) 2017/893), and their feeding substrate should meet specific requirements. Aside from the legal issues with using fish faeces as a rearing substrate, the maximum allowed levels of heavy metals and other contaminants must not be exceeded in insects used for feed production.
Few studies have assessed the potential of utilising aquaculture sludge as feeding substrates for BSFL (Schmitt et al., 2019; Liland et al., 2023; Zhang et al., 2023). However, the properties and composition of fish faeces collected from aquaculture farms can hypothetically vary based on many factors such as the fish species and the feed provided leading to a variance in the composition of produced BSFL not considered in the above studies. We hypothesize that the composition of the fish feed, as the starting point of the nutrient flow, will influence the growth and elemental composition of the resulting BSFL. Furthermore, we anticipate that the accumulation of elements in the BSFL will correlate with the initial composition of the BSFL substrate, i.e., the fish faeces. To test these hypotheses, we coupled BSFL rearing to Nile tilapia production in RAS systems. The fish received four experimental feeds differing in their protein sources, i.e., fish meal (FM), black soldier fly larvae meal (BSFM), poultry blood meal (PBM), and poultry by-product meal (PM). The various types of fish faeces obtained were used as feeding substrates for BSFL, and their performance and composition were compared.
2 Materials and methods
2.1 Fish feeding trial
2.1.1 Experimental diets
Four experimental diets were formulated to be isonitrogenous (~40% crude protein) and isolipidic (~12% crude fat). The diets were formulated with fish meal (FM), black soldier fly larvae meal (BSFM), poultry blood meal (PBM), and poultry by-product meal (PM) as the single main protein source. BSFM, PBM, and PM have been used to replace FM in fish diets (Galkanda-Arachchige et al., 2020; Alfiko et al., 2022; Shaw et al., 2022a) and are commercially available as fish feed components. Diets were extruded at SPAROS I&D, Olhão, Portugal, (SPAROS) and stored at −20°C until use. Diet formulations and proximate composition are given in Table 1, and the mineral composition is given in Table 2.
Table 1. Fish diet formulation and proximate composition.
Table 2. Elemental composition of fish feed used in the fish feeding trial (dry matter basis).
2.1.2 Experimental system
The experimental system included four recirculating aquaculture systems (RAS) with a total water volume of 460 L, respectively. Each RAS featured a circular rearing tank with a conically shaped bottom (180 L), a settling column for faeces collection with a bottom outlet (10 L) and a biofilter (270 L). The biofilter was partitioned into three equally sized sections, with the first section comprising filter sponge (PPI 10, Schaumstoff-Meister, Straelen, Germany), the aerated centre section holding 30 L of biocarriers (Hel-X HXF12KLL, Christian Stöhr, Marktrodach, Germany) and the last section being a clear water chamber including a circulation pump (Universal 300, EHEIM, Deizisau, Germany). Water flow could be adjusted manually via a valve placed after the circulation pump. Water temperature was controlled by a titanium heater (600 W titanium tube heater, SCHEGO Schemel & Goetz, Offenbach, Germany) and a temperature controller (SCHEGO Schemel & Goetz, Offenbach, Germany). Apart from the aeration in the biofilter, further oxygenation of each RAS was achieved by an air stone placed in the rearing tanks and lighting was provided by overhead LED lamps. The biofilters of all RAS were matured and synchronized for 6 weeks before the start of the trial by stocking the systems with Nile tilapia and running the RAS in series, i.e., pumping from one RAS to the next and eventually back to the first. One day before introducing the experimental fish, the RAS were emptied, cleaned and refilled with tap water. From this point onward, they were again run separately from each other.
2.1.3 Experimental procedure
Mixed-sex Nile tilapia (Oreochromis niloticus) originating from the Leibniz-Institute of Freshwater Ecology and Inland Fisheries (IGB) in Berlin, Germany, were used in the trial. Prior to the trial, fish were reared in a RAS system at 25°C and fed a commercial tilapia diet (Aller Aqua Performa, 2 mm, 45% CP, 20% CF). At the start of the trial, a total number of 342 fish, of which 80 fish were individually weighed and measured (individual body weight: 42.5 ± 11.2 g; individual total length: 132.4 ± 11.5 mm; n = 80), were randomly stocked into the four RAS (82–88 individuals per RAS) such that a starting biomass of 3,500 g per RAS system was achieved, which equated to a rearing density of 20 kg/m3. The fish were hand-fed 80 g of the experimental diets in two equal portions daily for 14 days, except for the first day on which they received half the portion. After this period, the biomass was determined and the RAS were emptied, cleaned, and refilled with tap water again. The fish number in the batch of each dietary treatment was reduced by randomly removing individuals to reach a starting biomass of 3,500 g and batches were again randomly assigned to one of the RAS to be reared for the next 14 days. This procedure was replicated 5 times. Finally, 20 fish per dietary treatment were again weighed and measured individually.
During the trial, a daily water exchange of 7% of the RAS volume (32.2 L) was performed by removing water from the biofilter according to volumetrically defined markings and replenishing it with fresh tap water. Water recirculation in the RAS was set to 180 L/h, which was controlled and if necessary adjusted weekly. Before daily water exchange and feeding, oxygen, pH, temperature (HQ40d, Hach Lange, Berlin, Germany), and electrical conductivity (EC) (pH/Cond 740i, WTW, Weilheim in Oberbayern, Germany) were measured in each rearing tank. During each of the 14-day periods, the faeces were removed from the settling columns daily and the removed sludge water mix was filtered through 90 μm nylon mesh to separate the faeces from the water. The faeces were subsequently collected from the top of the mesh surface and pooled per dietary replicate for each 14-day period and stored at −80°C. This approach ensures the full collection of faeces from the system. Before passing the faeces on to the black soldier fly larvae trial, they were homogenized with a blender and freeze-dried until constant weight was achieved.
2.2 Black soldier fly larvae feeding trial
The black soldier fly (BSF) strain used in this study was obtained from the Leibniz-Institute of Freshwater Ecology and Inland Fisheries (IGB) in Berlin, Germany. The population was fed chicken feed (K (11 4) o.K., Agravis Raiffeisen AG, Velten, Germany) and was reared following the method described by Yakti et al. (2022). Prior to the experiment, eggs were manually collected from rearing cages and were allowed to hatch for 24 h on a substrate consisting of 30% dry chicken feed and 70% water. The neonates were let to grow for 6 days and then were separated from the substrate to be used in the BSF larvae feeding trial.
A feeding trial was conducted to assess the growth and mineral composition of black soldier fly larvae (BSFL) provided with the different faeces variants collected from the fish feeding trial. The trial had 5 treatments: The faeces of fish fed with fishmeal (FM), poultry blood meal (PBM), black soldier fly meal (BSFM), poultry by-product meal (PM), and a control. The control treatment consisted of 8% straw, 16% chicken feed (K (11 4) o.K., Agravis Raiffeisen AG, Velten, Germany) and 77% water, and was prepared as the other substrates. The substrates were prepared by adding water to each of the fish faeces variants to obtain a substrate with 23% dry matter content. The faeces collected from each fish replicate was handled separately without mixing it with other faeces batches obtained from the replicates of the same fish treatment. The substrates were mixed with water using a kitchen spatula and were let to soak in room temperature for 6 h, and then were homogenised and put in polyethylene boxes (area of 12 × 17 cm). Each box contained 325 g of the wet mixture and 325 BSFL (6 days old with an average weight of 2.5 mg) were added on the top of the substrate. The composition of the control feed is shown in Table 3. Each treatment had 5 replicates and the larvae were grown in a chamber with 27°C and 50% relative humidity.

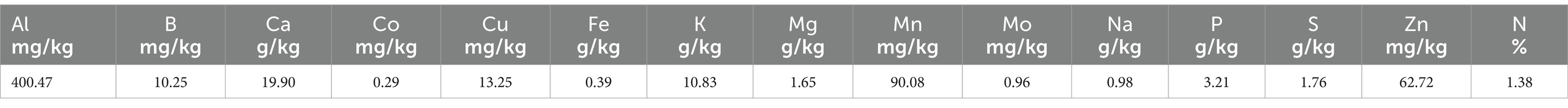

Table 3. The elemental composition of the control substrate (chicken feed and straw) used in the BSFL feeding trial (dry matter basis).
The single-larva weight was monitored daily by collecting and weighing 30–50 larvae per box, and the larvae were thereafter returned to the box. The harvest took place on the 10th day of the experiment. The PM treatment was harvested on day 7 due a loss of weight between day 6 and 7. In order to avoid the differential drying of substrates before full consumption, which is a known issue in using fish wastes as a BSFL substrate (Liland et al., 2023), the boxes were weighed daily, and water (27°C) was added to the boxes from day 4 to maintain a total weight of 150 g per box and ensure sufficient moisture (~ 50%) in the substrate.
The larvae were harvested and counted manually to calculate the mortality rate and dried at 60°C until no further weight reduction was recorded. The feed conversion ratio (FCR) was calculated on a dry basis by dividing the dry substrate reduction by the dry BSFL weight gain.
2.3 Chemical analyses
The feed provided to the fish in the fish trial, the faeces collected (n = 5), and the larval biomass produced (n = 5) were analysed for aluminium (Al), boron (B), calcium (Ca), cobalt (Co), copper (Cu), iron (Fe), potassium (K), magnesium (Mg), manganese (Mn), molybdenum (Mo), sodium (Na), phosphorus (P), sulphur (S), zinc (Zn), and nitrogen (N). All analyses were done as mentioned in Yakti et al. (2022) in two technical replicates. Briefly, for the elements other than N, a microwave digestion (MARS Xpress, CEM, Matthews, North Carolina) was conducted following LUFA methods Vol. III, 10.8.1.2. followed by multi-element analysis using ICP-OES (DIN EN ISO 11885) with an ICP emission spectrometer (iCAP 6,300 Duo MFC, Thermo, Waltham, MA, United States). N concentration was assessed using an elemental analyser (Vario MAX, Elementar Analysensysteme GmbH, Hanau, Germany), following LUFA Bd. III, 4.1.2. The crude protein in the produced BSFL biomass was calculated from the N content using a factor of 4.43 (Smets et al., 2021).
2.4 Statistical analyses
The data was analysed using SPSS (IBM Corp, Armonk, NY, USA). The parameters were analysed using one-way ANOVA (p = 0.05) followed by the consequent Tukey’s HSD after confirming data normality and homogeneity of variance. Kruskal-Wallis test was used when the data did not meet the assumption of the parametric test also after applying common data transformations. Spearman’s rank correlation was used to evaluate the linear relation between the elements’ concentration in the BSFL and the fish faeces (BSFL substrate).
3 Results
3.1 Fish feeding trial
Rearing condition during the RAS trial were within acceptable limits for tilapia regarding mean oxygen levels (6.7–6.9 mg/L), temperature (25.5°C), water pH (6.9–7.8), and electrical conductivity (937–1,026 μS/cm) in all treatments and results are compiled in Table S1. The fish biomass gain differed based on the feed provided (ANOVA followed by Tukey’s test on the log10 transformed data, p < 0.001, F = 51.56), and the values ranged from 415 g in the fish that received poultry blood meal (PBM) to 1 kg for the fish that were provided with fish meal (FM) (Table 4). No differences were observed between the growth of fish that received poultry meal (PM) and FM, but the growth decreased significantly in the black soldier fly meal (BSFM)-fed fish, and PBM-fed fish. Results for initial and final biomass, body weight and condition factor as well as specific growth rate can be found in Table S2.
Table 4. Fish growth performance and faeces collection.
The feed conversion ratio (FCR) of the fish was calculated and significantly differed among the treatments (ANOVA followed by Tukey’s test on the log10 transformed data, p < 0.001, F = 51.54). Besides having the lowest biomass gain and producing the highest amount of faeces, the fish provided with the PBM had the highest FCR followed by the BSFM-fed fish. The best growing fish-treatments (FM and PM) had the lowest FCR values.
The amount of faeces collected also differed among the treatments (ANOVA followed by Tukey’s test on the log10 transformed data, p < 0.001, F = 121). The PBM-fed fish produced the highest amount of faeces (234 g dry faeces), while the rest of treatments did not differ among each other and produced approximately 100 g dry faeces (Table 4).
In addition to the amounts of fish faeces, the chemical composition of the faeces varied significantly based on the feed provided (Table 5). The faeces collected from the FM-fed fish had the highest concentration of Al, B, Ca, Co, Mg, Mo, Na, and P. The faeces collected from the BSF-fed fish contained the highest concentration of Cu, Mn, and Zn. High Zn was also observed in the PM and FM faeces. The faeces collected from the PBM-fed fish contained the lowest concentration of Al, B, Ca, Co, Cu, K, Mn, Mo, Na, P, and Zn, but was the richest in Fe, S and N.
Table 5. The elemental composition of the faeces collected from the fish provided with different feed.
3.2 Black soldier fly larvae feeding trial
The performance of black soldier fly larvae (BSFL) was compared when cultivated on the different fish faeces and the control substrate. The peak weight of the BSFL was reached on day 6 for the PM treatment so the larvae had to be harvested on the seventh. The other treatments, including the control, were harvested on day 10. The single-larva weight at the end of the experiment was the highest in the larvae provided with the control diet and 0.088 g (SD = 0.003) (p < 0.001, F = 272,). No differences in the single-larva weight were found between the different faeces’ variants, and they reached a weight from 0.0228 to 0.0219 with SD values ranging from 0.0024 to 0.0059. The total biomass gains of BSFL did not differ among the faeces treatments, and the highest growth was observed in the control treatment (Figure 1).

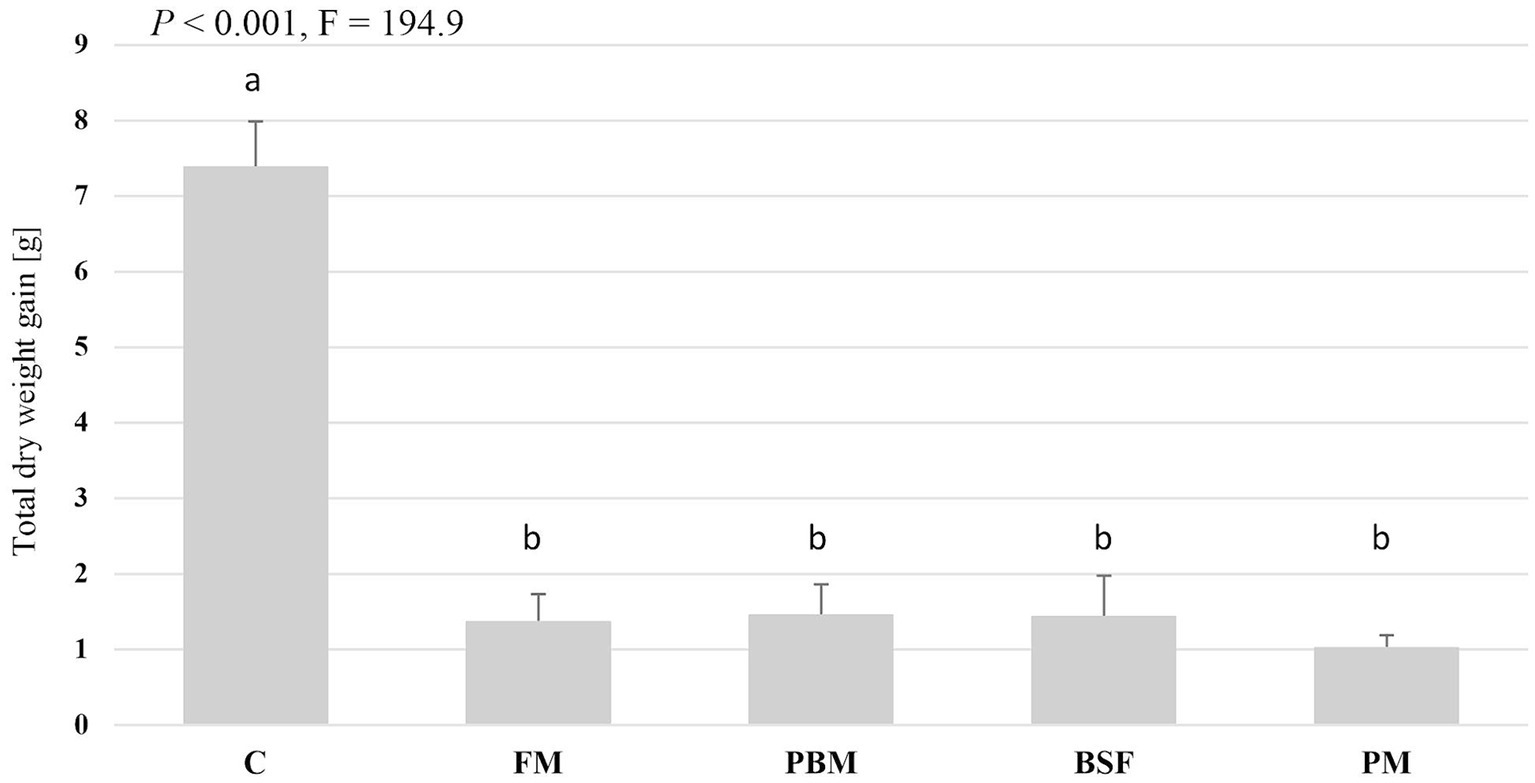

Figure 1. The dry biomass gain of black soldier fly larvae (BSFL) fed with different fish faeces. BSFL were grown on faeces collected from fish that received fishmeal (FM), blood meal (PBM), black soldier fly meal (BSF), poultry by-product meal (PBM), or a control substrate (chicken feed and straw), and the dry biomass gain was calculated. The analysis of variance ANOVA (n = 5, p < 0.05) revealed only a significant difference between the control treatment and the faeces treatments.
The harvested BSFL were manually counted to calculate the mortality rate and no differences were found (Figure 2).

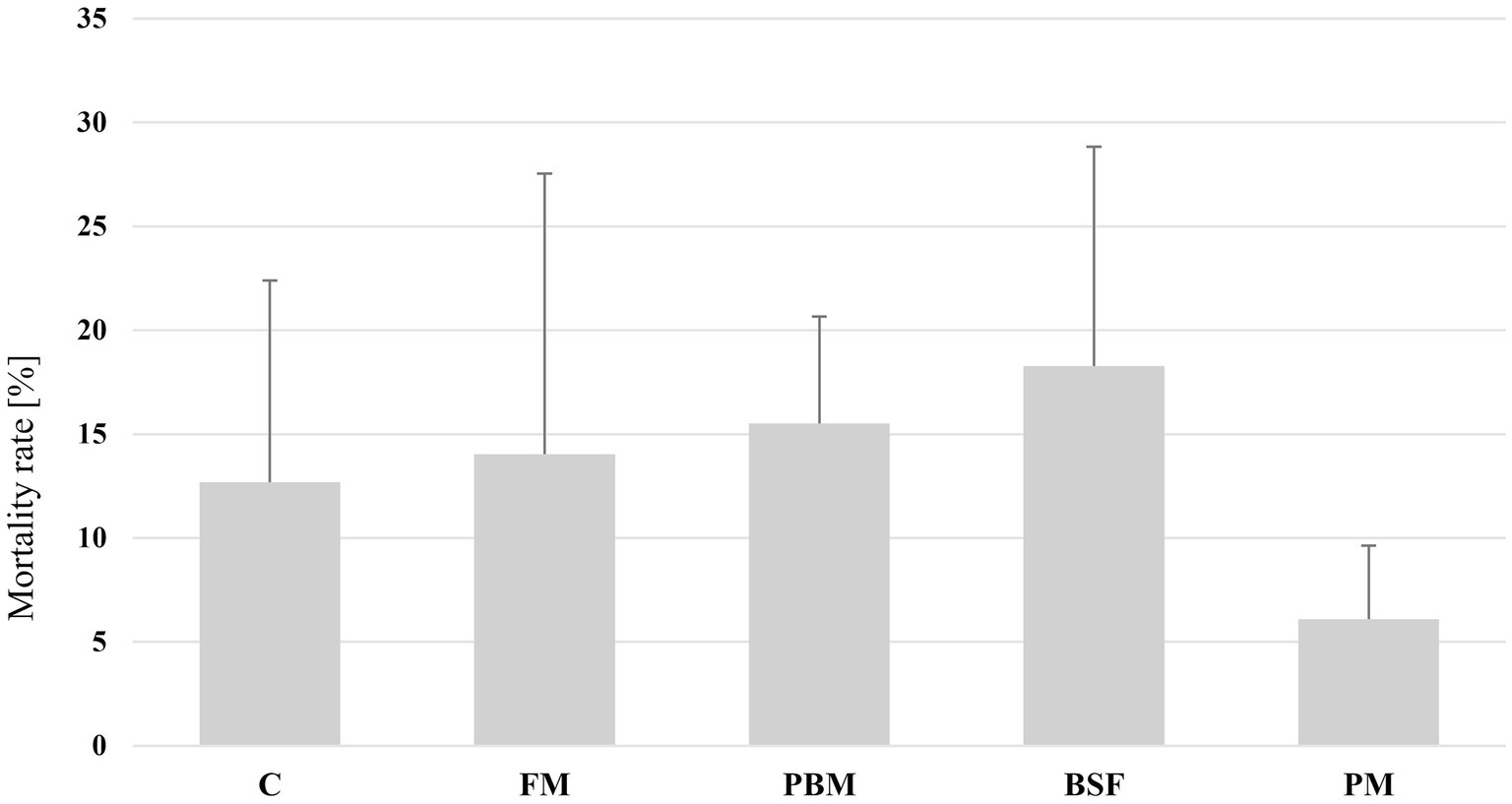

Figure 2. The mortality rate of black soldier fly larvae (BSFL) grown on different fish faeces. BSFL were grown on faeces collected from fish that received fishmeal (FM), blood meal (PBM), black soldier fly meal (BSF), poultry by-product meal (PBM), or a control substrate (chicken feed and straw). The larvae were harvested, and the survival was assessed. The analysis of variance ANOVA (n = 5, p < 0.05) revealed no difference between the treatments.
The feed conversion ratio (FCR) was calculated and differed among the treatments. The control BSFL had the lowest FCR, and the values did not significantly differ from the BSFL that received the PBM faeces. Among the fish faeces treatments, differences were only observed between the PBM and the PM BSFL. (Figure 3).

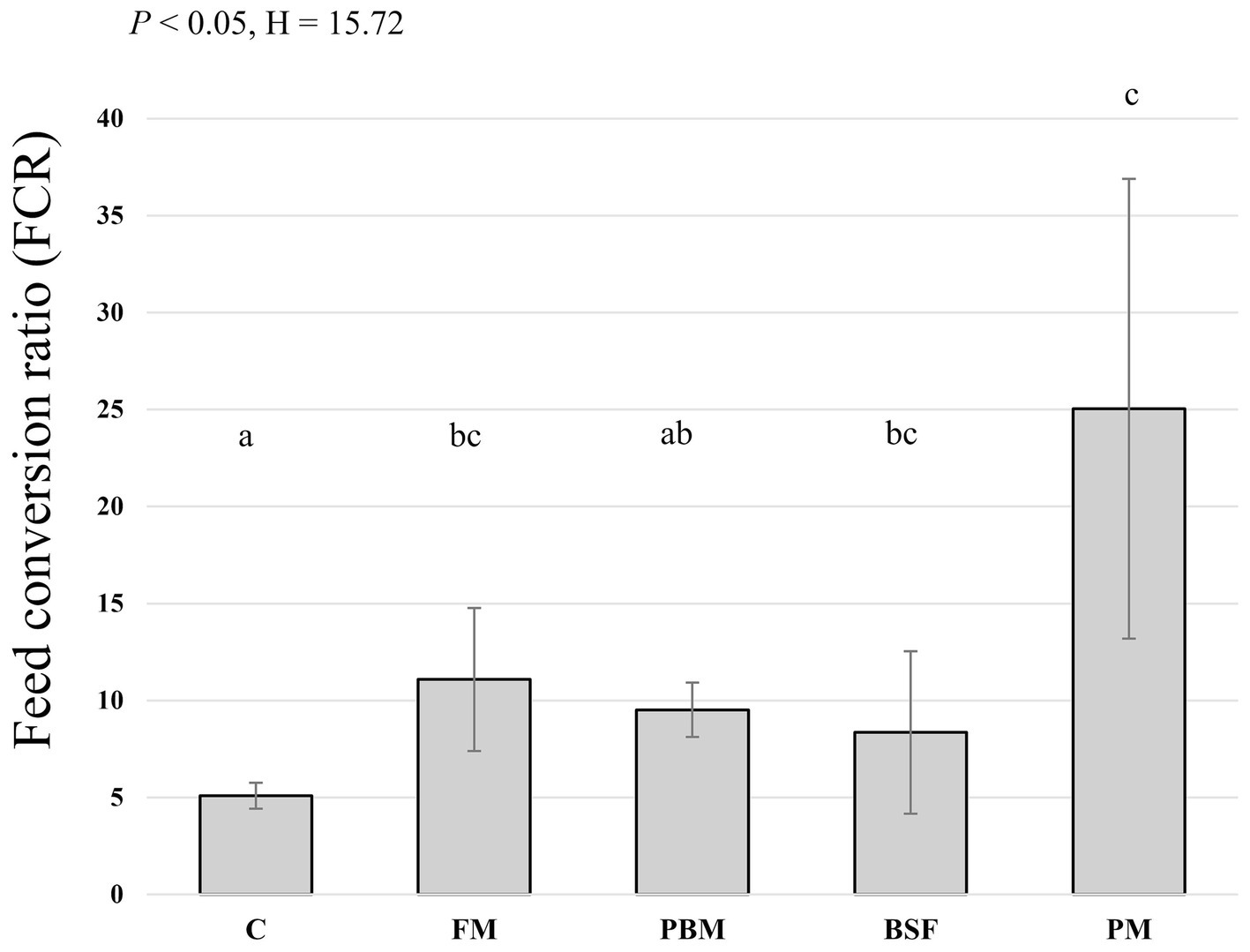

Figure 3. The feed conversion ratio (FCR) of black soldier fly larvae (BSFL) grown on different fish faeces. BSFL were grown on faeces collected from fish that received fishmeal (FM), blood meal (PBM), black soldier fly meal (BSF), poultry by-product meal (PBM), or a control substrate (chicken feed and straw), and the feed conversion ratio (FCR) was calculated. Kruskal-Wallis test (n = 5, p < 0.05) revealed significant differences between the treatments and are represented by the different letters above the columns.
The elemental composition of the BSFL differed significantly based on the fish faeces received (Table 6). Generally, the larvae that consumed fish faeces had lower Al, B, and Co concentration than the faeces (initial substrate). Higher concentrations of Ca, K, Mg, Mn, Na, S, and Zn were observed. The values of Cu, Fe, Mo, P were higher or lower based on the treatment (Table 6). Providing the BSFL with the control substrate led to higher Al and B, and lower Zn, Cu, and P in some fish faeces variants. The concentration of all analysed elements, namely Al, B, Ca, Co, Cu, Fe, K, Mg, Mn, Mo, Na, P, S, and Zn differed based on the fish faeces provided. Providing the BSFL with FM faeces led to the highest values of Al, B, Ca, Co, Cu, Mo, and P while the values of other elements were closer to other treatments. The BSF-meal derived fish faeces led to the highest Mn and Zn values in the larvae. The BSFL given the PBM faeces accumulated the highest amounts of S and had the highest crude protein values.
Table 6. The elemental composition BSFL provided with different fish faeces or a control (C).
A very strong significant correlation was found between the concentrations of Al, P, S, Zn, and N in the BSFL and their concentrations in the fish faeces they fed on (Spearman’s ρ > 0.75, p < 0.001). Significant correlations (Spearman’s ρ > 0.5, p < 0.01) were also found in the case of B, Ca, Cu, Fe, Mg, and Mo. No significant correlations were found in K, Mn, and Na (Figure 4).
Figure 4. The relation between the concentration of elements in the insects rearing substrate (Fish faeces) and the concentration of the elements in the produced BSFL biomass. Shown are the plotted values, the spearman’s correlation coefficient, and the p-values.
4 Discussion
The rapid expansion of aquaculture is raising sustainability concerns due to two primary factors: the dependence on marine fish meal obtained from wild fish stocks for the production of fish feed (Stankus, 2021), and the environmental repercussions primarily associated with the generation of waste (Dauda et al., 2019). The high dependence on marine FM has led to mounting pressure on wild fish populations, resulting in the rapid depletion of wild fish stocks (Stankus, 2021). Research has been carried out to explore alternative protein sources that offer comparable nutritional value to marine fish meal (Daniel, 2018). These protein sources, among others, include poultry by-product meal (Galkanda-Arachchige et al., 2020), insect meal (Oteri et al., 2021), and poultry blood meal (Luthada-Raswiswi et al., 2021). Such protein sources do not only serve as alternatives to FM but also adhere to the principles of the circular bioeconomy (Stegmann et al., 2020) in that they represent wastes streams or potential biowaste converting biomass (in case of insect meal) that can be upcycled into higher value protein sources for human consumption via aquaculture. Also, they are not subject to food-feed conflict as other feed raw materials such as FM from capture fisheries or many plant protein sources (Colombo and Turchini, 2021; Colombo et al., 2022). Accordingly, they can play an important role in achieving greater circularity in aquafeed production.
4.1 The fish feeding trial
The use of black soldier fly meal (BSFM) as a fish feed component has been widely investigated in different fish species (Alfiko et al., 2022). In the case of Nile tilapia, some studies have suggested that growth and feed intake do not differ between fish fed on commercial fish meal (FM) or black soldier fly meal (BSFM) (Tippayadara et al., 2021). Limbu et al. (2022) have demonstrated that replacing 75% of the FM with BSFM in an initial diet with 42% FM lead to an improved fish biomass gain and growth rate in Nile tilapia fry, and pointed to improved economic returns in the production system. In our study, replacing FM with BSFM led to an almost 50% reduction in biomass gain (Table 4). Both feeds, despite having minimal differences in nitrogen content, could have significantly differed in actual protein content since BSFM can contain certain amounts of mineral N or N integrated into the chitin skeleton, leading to a lower N-to-protein transformation factor compared to other protein sources (Smets et al., 2021). This may have contributed to the reduced fish growth. A meta-analysis on the inclusion level of insect meals in aquafeeds suggests maximum inclusion levels of 25–30% for unimpaired growth performance (Liland et al., 2021), and another meta-analysis suggests a maximum 29% BSFM inclusion in aquafeeds (Hua, 2021). In line with the results of the present study, other authors also found reduced growth performance above certain levels of FM replacement with BSFM for tilapia (Taufek et al., 2021). Considering that the BSFM was the sole dietary protein source in the BSF diet of the present study and BSFM inclusion level (61.6%) was higher than in the above studies (8–30%), it appears reasonable to assume that excessively high dietary BSFM inclusion, particularly if not complemented by other protein ingredients, is not conducive to maximum growth performance in tilapia. One reason for this could be chitin impairing protein digestibility, especially at high BSFM inclusion levels, as suggested by some authors (Shiau and Yu, 1999; Kroeckel et al., 2012; Rana et al., 2015).
The second FM alternative used in the experiment was poultry by-product meal (PM), which is generally known to be a valuable protein source and alternative to fish meal in aquafeeds. PM is made from the processed rendered parts of poultry carcasses, which include feet, heads and parts not typically consumed by humen. In a meta-analysis, Galkanda-Arachchige et al. (2020) showed that many freshwater fish species readily accept above 50% FM replacement with PM and 100% replacement can be possible without adverse effects. Although some studies have shown that PM can lead to lower protein use efficiency and digestibility in Nile tilapia (El-Sayed, 1998; Palupi et al., 2020). Hernández et al. (2010), and Yones and Metwalli (2015) observed similar growth performance and feed utilisation even at 100% FM replacement with PM, which is consistent with the results of this study as the biomass gain and feed conversion ratio (FCR) were not compensated when FM was substituted with PM (Table 4). FCR is a critical parameter in evaluating livestock performance as it measures the efficiency with which animals convert feed into body mass. The partial or full replacement of fishmeal with a more sustainable or lower cost component without influencing the FCR can boost the profitability and sustainability in aquaculture systems.
PBM as the third protein source, although resulting in a diet which compared mostly favorably in terms of its essential amino acid profile to the other diets (Shaw et al., 2022a) led to the lowest biomass gain and the highest faeces production, and consequently the highest FCR (Table 4). PBM has been shown to negatively affect Nile tilapia growth when replacing FM (Otubusin, 1987; El-Sayed, 1998; Kirimi et al., 2016) and in the case of the present study, the comparably low Ca and P content of the PBM diet, which were both slightly below the requirements for Nile tilapia (Mjoun et al., 2010), supposedly played a role in suppressing the growth performance of the fish. Subsequently, mineral Ca and P supplementation or complementing PBM with other P-/Ca-rich protein sources, i.e., terrestrial animal by-products such as PM, would likely improve the suitability of PBM at high inclusion levels in diets for Nile tilapia. Despite the reduced growth and feed conversion performance achieved with the BSF and the PBM diet in this and prior studies (Shaw et al., 2022b; a), the nutritional value of BSFM and PBM should not be discounted, since in combination with complementary raw materials such as PM or catfish by-product meal they have the potential to rival the growth performance achievable with commercially available feed (Shaw et al., 2023). To this effect, modern feed formulation in aquaculture should not be a search for FM or fish oil substitutes but rather have the goal of identifying combinations of complementary raw materials which together fulfil the nutritional requirements of the species in question as well as achieving further relevant objectives (waste reduction, low contaminant levels, cost, etc.).
Besides the above-described differences in fish growth, the experimental feeds resulted in differences in the elemental composition of the respective faeces (Table 5). Since fish excrete excess nutrients in dissolved forms via brachial and urinary excretion and in solid form via faeces, it is to be expected that dietary differences in elemental composition are at least partly reflected in the elemental composition of the respective faeces. This was apparent in the case of, e.g., Fe in this study, which showed the highest level in the PBM feed and subsequently in the PBM-derived faeces. Similar relations between elemental content in the fish feed and the resulting content in the faeces were for the most part found for Ca, K, Mg, Na, P, Zn, but not for S. In the case of N, the highest content as well as total amount was found in the PBM-derived faeces, while the opposite was observed in the faeces generated from the FM treatment. Considering that the PBM diet enabled the least favorable growth performance, this could indicate that the N in the PBM diet was not efficiently utilized by the fish. It can be assumed that growth inhibition was due to other limiting factors such as the low Ca and P content or lower digestibility of protein in the PBM compared to the other protein sources.
Overall, the results of the present fish rearing trial corroborate findings of a previous study in which the same diets were fed to Nile tilapia in a different experimental RAS setup (Shaw et al., 2022b), with similar differences found between the dietary treatments regarding fish growth and feed conversion performance, as well as faeces amounts and respective elemental compositions.
4.2 Black soldier fly larvae feeding trial
With the growing focus on circularity in food production systems, the recognition of fish faeces as a waste resource is increasing, necessitating strategic management practices. Generally, the assessment of aquaculture sludge as a substrate for insect production is limited and has been rarely discussed in literature (Schmitt et al., 2019; Liland et al., 2023). This could be due to the legal restrictions of using fish wastes as a substrate in production, the relatively poor growth of BSFL on fish faeces in comparison to many other organic waste streams, or the associated risks of contaminants. The accumulation of heavy metals in BSFL is considered to be a major issue when growing BSFL on waste streams and manure (Diener et al., 2015; Proc et al., 2020), and fish faeces, in particular, can feature high amounts of heavy metals (Lalander et al., 2013; Schmitt et al., 2019) and other unwanted elements which originate from the fish feed and are unabsorbed by the fish. The modulation of fish faeces composition by strategically choosing raw materials low in these contaminants and manipulating fish feed formulations accordingly, without compensating fish growth, can be a strategy to generate fish faeces that may be more suitable to be recycled by BSFL with reduced associated risks. To the best of our knowledge, the assessment of BSFL performance and composition on faeces stemming from fish fed different diets has not been done in published literature.
As anticipated, the growth of BSFL on all faeces types was lower compared to the control treatment (a mixture of chicken feed and straw) (Figure 1), which was also reflected in the FCR values (Figure 3). Nevertheless, the fish faeces treatments did differ among each other in terms of insect biomass gain. The growth of the BSFL in this study, however, was considerably lower than that obtained by Liland et al. (2023) and Schmitt et al. (2019) who grew BSFL on aquaculture sludge obtained from commercial RAS facilities. In contrast to small and highly controlled experimental systems such as used in the present study, aquaculture sludge from commercial RAS can contain noteworthy amounts of unconsumed fish feed (Madariaga and Marín, 2017; Campanati et al., 2022) and perhaps even parts of fish carcasses, which may be factors explaining the difference in growth observed between the above mentioned studies and the presented trial which relied on pure faeces from an experimental RAS. In this sense, also the faeces collection method (e.g., sedimentation units as used in this trial vs. drum filters commonly used in commercial RAS) and residence time of sludge in the system water may influence not only the quantity but also the nutritional quality of the collected sludge. The FCR values observed for the fish faeces-fed BSFL (5.3 to 25.4) were comparable to the values obtained for pig manure (Newton et al., 2005), chicken manure (Sheppard et al., 1994) and are lower than those obtained from municipal organic wastes (Diener et al., 2011). The PBM-derived faeces contained the highest N value but, despite not differing from the control treatment in the FCR value (Figure 3), did not yield in a higher BSFL growth. This is likely due to a limiting nutrient other than protein, or the lower digestibility of proteins in PBM. However, the use of PBM-derived faeces in combination with high-carbohydrate low-protein components could potentially allow better utilisation of the N from the PBM-derived faeces.
The survival of BSFL did not differ among the treatments. It can be assumed that variance in the mineral composition and heavy metal content of the substrates (in the ranges observed) have no influence on mortality. BSFL are known to tolerate and survive on substrates with high concentrations of heavy metals (Cai et al., 2018; Hu et al., 2023; Siddiqui et al., 2023), but this can lead to the accumulation of certain heavy metals as shown for Cd, Pb and Zn from chicken feed and contaminated substrates (Diener et al., 2015; Van der Fels-Klerx et al., 2016). Generally, BSFL can accumulate higher concentrations of S, Ca, Mg, Mn, Zn, Fe and K than present in the rearing substrate when provided with a balanced diet such as chicken feed (Yakti et al., 2022). Such enrichment improves the nutritional value of larvae intended for the use as raw material for animal feeds (Shumo et al., 2019). In a study in which BSFL were given a substrate supplemented with very high concentrations of As, Cd, Cr, Hg, Ni, Pb, a reduction of growth was observed but only Cd and Pb accumulated (Purschke et al., 2017). Cai et al. (2018) have pointed at a link between the concentration of Zn and Cu in a municipal sewage sludge substrate and larval mortality. The concentrations were, however, higher than those found in the sampled faeces in this study.
In the present study, the concentration of analysed elements in the BSFL differed among treatments (Table 6) and the relation was assessed with a correlation analysis (Figure 4). Significant correlations in the case of Al, B, Fe, Cu, Ca, Co, Mg, Mo, P, S, Zn, and N were detected. Relations between initial concentration of elements in the feeding substrates and the produced BSFL biomass have been already observed in published studies that included gradients of wastes into BSFL substrate. Liland et al. (2017), for example, cultivated BSFL on seaweed-enriched substrates and found an accumulation of Cd, Pb, Hg, and As in the BSFL. The concentrations of these elements in the larvae increased proportionally with increasing levels of seaweed inclusion in the substrate. In a similar approach, Liland et al. (2023) mixed chicken feed with different ratios of aquaculture sludge and showed that the content of individual minerals and metals was higher in the sludge-fed BSFL compared to those fed with chicken feed. Elements such as Fe, Zn, and Se, which were found in higher amounts in the aquaculture wastes, increased in the BSFL due the increased incorporation of fish faeces in the BSFL substrate.
5 Outlook
Circular production systems are gaining interest as they promote resource efficiency, waste reduction, economic benefits, and resilience in supply chains. The ability of insects to process different biowaste streams into higher value insect biomass means they could play a key role in closing nutrient cycles and linking food and agricultural production systems. Given that insects are farmed animals, their rearing should comply with legal frameworks like those established by the European Union (Commission Regulation (EU) 2017/893), and their feeding substrate should meet specific requirements. Aside from the legal issues with using aquaculture sludge as a rearing substrate, the maximum allowed levels of heavy metals and other contaminant must not be exceeded in insects destined for feed production. This study shows that ingredient choice in fish feed formulation cannot only significantly influence fish growth performance but also the elemental composition of the, respectively, produced solid waste streams, i.e., the fish faeces, and these differences in turn can be reflected in the elemental composition of the produced larvae. Along the lines of formulating more sustainable and circular aquaculture feeds and potentially upcycling the solid wastes excreted by the fish via insect larvae production, future research should focus on identifying combinations of complementary raw materials generated within the circular bioeconomy which enable good fish growth and health as well as result in solid wastes low in contaminants such as heavy metals. Considering the low growth performance of larvae reared on the fish faeces in this study, future research could identify complementary biowaste streams that can be complemented by the different elemental compositions and quantity of the collected faeces. Additionally, further studies should focus on altering the accumulation of contaminants such as Cd, Pb, Hg, and As which were not investigated in the current study.
Data availability statement
The original contributions presented in the study are included in the article/Supplementary material, further inquiries can be directed to the corresponding authors.
Ethics statement
The animal study was approved by the Landesamt für Gesundheit und Soziales- Berlin, Germany. The study was conducted in accordance with the local legislation and institutional requirements.
Author contributions
WY: Conceptualization, Data curation, Formal analysis, Investigation, Methodology, Software, Visualization, Writing – original draft, Writing – review & editing. CS: Conceptualization, Data curation, Investigation, Methodology, Validation, Writing – review & editing, Formal analysis. MM: Data curation, Methodology, Writing – review & editing. IM: Funding acquisition, Project administration, Resources, Writing – review & editing. WK: Funding acquisition, Resources, Supervision, Writing – review & editing. CU: Conceptualization, Funding acquisition, Project administration, Resources, Supervision, Validation, Writing – review & editing.
Funding
The author(s) declare financial support was received for the research, authorship, and/or publication of this article. This research was funded by the German Ministry for Education and Research (BMBF) in the frame of the CUBES project, grant numbers 031B0733A and 031B0733E. The article processing charge is funded by the Deutsche Forschungsgemeinschaft (DFG, German Research Foundation)—491192747 and the Open Access Publication Fund of Humboldt-Universität zu Berlin.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary material
The Supplementary material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fsufs.2024.1298885/full#supplementary-material
References
Abdel-Tawwab, M., Khalil, R. H., Metwally, A. A., Shakweer, M. S., Khallaf, M. A., and Abdel-Latif, H. M. (2020). Effects of black soldier fly (Hermetia illucens L.) larvae meal on growth performance, organs-somatic indices, body composition, and hemato-biochemical variables of European sea bass, Dicentrarchus labrax. Aquaculture 522:735136. doi: 10.1016/j.aquaculture.2020.735136
Akinwole, A., Dauda, A., and Ololade, A. (2016). Haematological response of Clarias gariepinus juveniles reared in treated wastewater after waste solids removal using alum or Moringa oleifera seed powder. Int. J. Aquacul. 6, 1–8. doi: 10.5376/ija.2016.06.0011
Alfiko, Y., Xie, D., Astuti, R. T., Wong, J., and Wang, L. (2022). Insects as a feed ingredient for fish culture: status and trends. Aquacul. Fisher. 7, 166–178. doi: 10.1016/j.aaf.2021.10.004
Beesigamukama, D., Mochoge, B., Korir, N. K., Fiaboe, K. K., Nakimbugwe, D., Khamis, F. M., et al. (2020). Exploring black soldier fly frass as novel fertilizer for improved growth, yield, and nitrogen use efficiency of maize under field conditions. Frontiers. Plant Sci. 11:592. doi: 10.3389/fpls.2020.574592
Belghit, I., Liland, N. S., Waagbø, R., Biancarosa, I., Pelusio, N., Li, Y., et al. (2018). Potential of insect-based diets for Atlantic salmon (Salmo salar). Aquaculture 491, 72–81. doi: 10.1016/j.aquaculture.2018.03.016
Beyers, M., Coudron, C., Ravi, R., Meers, E., and Bruun, S. (2023). Black soldier fly larvae as an alternative feed source and agro-waste disposal route–a life cycle perspective. Resour. Conserv. Recycl. 192:106917. doi: 10.1016/j.resconrec.2023.106917
Borel, P., Hammaz, F., Morand-Laffargue, L., Creton, B., Halimi, C., Sabatier, D., et al. (2021). Using black soldier fly larvae reared on fruits and vegetables waste as a sustainable dietary source of provitamin a carotenoids. Food Chem. 359:129911. doi: 10.1016/j.foodchem.2021.129911
Cai, M., Hu, R., Zhang, K., Ma, S., Zheng, L., Yu, Z., et al. (2018). Resistance of black soldier fly (Diptera: Stratiomyidae) larvae to combined heavy metals and potential application in municipal sewage sludge treatment. Environ. Sci. Pollut. Res. 25, 1559–1567. doi: 10.1007/s11356-017-0541-x
Campanati, C., Willer, D., Schubert, J., and Aldridge, D. C. (2022). Sustainable intensification of aquaculture through nutrient recycling and circular economies: more fish, less waste, blue growth. Rev. Fisher. Sci. Aquacul. 30, 143–169. doi: 10.1080/23308249.2021.1897520
Candian, V., Meneguz, M., and Tedeschi, R. (2023). Immune responses of the black soldier Fly Hermetia illucens (L.)(Diptera: Stratiomyidae) reared on catering waste. Life 13:213. doi: 10.3390/life13010213
Colombo, S. M., Roy, K., Mraz, J., Wan, A. H., Davies, S. J., Tibbetts, S. M., et al. (2022). Towards achieving circularity and sustainability in feeds for farmed blue foods. Rev. Aquac. 15, 1115–1141. doi: 10.1111/raq.12766
Colombo, S. M., and Turchini, G. M. (2021). ‘Aquafeed 3.0’: creating a more resilient aquaculture industry with a circular bioeconomy framework. Rev. Aquac. 13, 1156–1158. doi: 10.1111/raq.12567
d’Orbcastel, E. R., Blancheton, J.-P., and Aubin, J. (2009). Towards environmentally sustainable aquaculture: comparison between two trout farming systems using life cycle assessment. Aquac. Eng. 40, 113–119. doi: 10.1016/j.aquaeng.2008.12.002
Daniel, N. (2018). A review on replacing fish meal in aqua feeds using plant protein sources. Int. J. Fisher. Aquatic Stud. 6, 164–179.
Dauda, A. B., Ajadi, A., Tola-Fabunmi, A. S., and Akinwole, A. O. (2019). Waste production in aquaculture: sources, components and managements in different culture systems. Aquacul. Fisher. 4, 81–88. doi: 10.1016/j.aaf.2018.10.002
Diener, S., Solano, N. M. S., Gutiérrez, F. R., Zurbrügg, C., and Tockner, K. (2011). Biological treatment of municipal organic waste using black soldier fly larvae. Waste Biomass Valoriz. 2, 357–363. doi: 10.1007/s12649-011-9079-1
Diener, S., Zurbrügg, C., and Tockner, K. (2015). Bioaccumulation of heavy metals in the black soldier fly, Hermetia illucens and effects on its life cycle. J. Insects Food Feed 1, 261–270. doi: 10.3920/JIFF2015.0030
Elia, A. C., Capucchio, M. T., Caldaroni, B., Magara, G., Dörr, A. J. M., Biasato, I., et al. (2018). Influence of Hermetia illucens meal dietary inclusion on the histological traits, gut mucin composition and the oxidative stress biomarkers in rainbow trout (Oncorhynchus mykiss). Aquaculture 496, 50–57. doi: 10.1016/j.aquaculture.2018.07.009
El-Sayed, A. F. (1998). Total replacement of fish meal with animal protein sources in Nile tilapia, Oreochromis niloticus (L.), feeds. Aquac. Res. 29, 275–280. doi: 10.1046/j.1365-2109.1998.00199.x
Fava, F., Totaro, G., Diels, L., Reis, M., Duarte, J., Carioca, O. B., et al. (2015). Biowaste biorefinery in Europe: opportunities and research & development needs. New Biotechnol. 32, 100–108. doi: 10.1016/j.nbt.2013.11.003
Galkanda-Arachchige, H. S., Wilson, A. E., and Davis, D. A. (2020). Success of fishmeal replacement through poultry by-product meal in aquaculture feed formulations: a meta-analysis. Rev. Aquac. 12, 1624–1636. doi: 10.1111/raq.12401
Gasco, L., Biancarosa, I., and Liland, N. S. (2020). From waste to feed: a review of recent knowledge on insects as producers of protein and fat for animal feeds. Curr. Opin. Green Sustain. Chem. 23, 67–79. doi: 10.1016/j.cogsc.2020.03.003
Hernández, C., Olvera-Novoa, M., Hardy, R., Hermosillo, A., Reyes, C., and González, B. (2010). Complete replacement of fish meal by porcine and poultry by-product meals in practical diets for fingerling Nile tilapia Oreochromis niloticus: digestibility and growth performance. Aquac. Nutr. 16, 44–53. doi: 10.1111/j.1365-2095.2008.00639.x
Hu, C., Yang, L., Wang, H., Xiao, X., Wang, Z., Gong, X., et al. (2023). Analysis of heavy metals in the conversion of lake sediment and restaurant waste by black soldier fly (Hermetia illucens). Front. Bioeng. Biotechnol. 11:1163057. doi: 10.3389/fbioe.2023.1163057
Hua, K. (2021). A meta-analysis of the effects of replacing fish meals with insect meals on growth performance of fish. Aquaculture 530:735732. doi: 10.1016/j.aquaculture.2020.735732
Kirimi, J. G., Musalia, L. M., Magana, A., and Munguti, J. M. (2016). Performance of Nile tilapia (Oreochromis niloticus) fed diets containing blood meal as a replacement of fish meal. J Agric Sci. 8, 79–87. doi: 10.5539/jas.v8n8p79
Kleiber, M. (1961). The fire of life. An introduction to animal energetics. New York, USA: Krieger Publishing (1975). p. 478.
Kroeckel, S., Harjes, A.-G., Roth, I., Katz, H., Wuertz, S., Susenbeth, A., et al. (2012). When a turbot catches a Fly: evaluation of a pre-pupae meal of the black soldier fly (Hermetia illucens) as fish meal substitute—growth performance and chitin degradation in juvenile turbot (Psetta maxima). Aquaculture 364-365, 345–352. doi: 10.1016/j.aquaculture.2012.08.041
Lalander, C., Diener, S., Magri, M. E., Zurbrügg, C., Lindström, A., and Vinnerås, B. (2013). Faecal sludge management with the larvae of the black soldier fly (Hermetia illucens)—from a hygiene aspect. Sci. Total Environ. 458-460, 312–318. doi: 10.1016/j.scitotenv.2013.04.033
Levit, S. M. (2010). A literature review of effects of ammonia on fish. Center for Science in Public Participation, Bozeman. Montana. Available at: https://www.rosemonteis.us/sites/default/files/references/045281.pdf (Accessed December 15, 2022).
Li, S., Ji, H., Zhang, B., Zhou, J., and Yu, H. (2017). Defatted black soldier fly (Hermetia illucens) larvae meal in diets for juvenile Jian carp (Cyprinus carpio var. Jian): growth performance, antioxidant enzyme activities, digestive enzyme activities, intestine and hepatopancreas histological structure. Aquaculture 477, 62–70. doi: 10.1016/j.aquaculture.2017.04.015
Liland, N. S., Araujo, P., Xu, X., Lock, E.-J., Radhakrishnan, G., Prabhu, A., et al. (2021). A meta-analysis on the nutritional value of insects in aquafeeds. J. Insects Food Feed 7, 743–759. doi: 10.3920/JIFF2020.0147
Liland, N. S., Biancarosa, I., Araujo, P., Biemans, D., Bruckner, C. G., Waagbø, R., et al. (2017). Modulation of nutrient composition of black soldier fly (Hermetia illucens) larvae by feeding seaweed-enriched media. PLoS One 12:e0183188. doi: 10.1371/journal.pone.0183188
Liland, N., Sørensen, M., Belghit, I., Willora, F. P., Torrissen, A., and Torrissen, O. (2023). Closing the gap–producing black soldier fly larvae on aquaculture side streams. J. Insects Food Feed, 9, 885–892. doi: 10.3920/JIFF2022.0154
Limbu, S. M., Shoko, A. P., Ulotu, E. E., Luvanga, S. A., Munyi, F. M., John, J. O., et al. (2022). Black soldier fly (Hermetia illucens, L.) larvae meal improves growth performance, feed efficiency and economic returns of Nile tilapia (Oreochromis niloticus, L.) fry. Aquaculture. Fish Fish. 2, 167–178. doi: 10.1002/aff2.48
Luthada-Raswiswi, R., Mukaratirwa, S., and O’Brien, G. (2021). Animal protein sources as a substitute for fishmeal in aquaculture diets: a systematic review and meta-analysis. Appl. Sci. 11:3854. doi: 10.3390/app11093854
Madariaga, S. T., and Marín, S. L. (2017). Sanitary and environmental conditions of aquaculture sludge. Aquac. Res. 48, 1744–1750. doi: 10.1111/are.13011
Michaud, L., Blancheton, J.-P., Bruni, V., and Piedrahita, R. (2006). Effect of particulate organic carbon on heterotrophic bacterial populations and nitrification efficiency in biological filters. Aquac. Eng. 34, 224–233. doi: 10.1016/j.aquaeng.2005.07.005
Miller, D., and Semmens, K. (2002). Waste management in aquaculture. West Virginia University Extension Service Publication No. AQ02-1. USA 8. Morgantown, WV: West Virginia University.
Mjoun, K., Rosentrater, K., and Brown, M.L. (2010). TILAPIA: environmental biology and nutritional requirements. Fact Sheets. Paper 164. Available at: https://openprairie.sdstate.edu/extension_fact/164/ (Accessed March 22, 2023).
Newton, L., Sheppard, C., Watson, D. W., Burtle, G., and Dove, R. (2005). Using the black soldier fly, Hermetia illucens, as a value-added tool for the management of swine manure. Raleigh, NC: Animal and Poultry Waste Management Center, North Carolina State University, 17.
Ojha, S., Bußler, S., and Schlüter, O. K. (2020). Food waste valorisation and circular economy concepts in insect production and processing. Waste Manag. 118, 600–609. doi: 10.1016/j.wasman.2020.09.010
Oteri, M., Di Rosa, A. R., Lo Presti, V., Giarratana, F., Toscano, G., and Chiofalo, B. (2021). Black soldier fly larvae meal as alternative to fish meal for aquaculture feed. Sustain. For. 13:5447. doi: 10.3390/su13105447
Otubusin, S. O. (1987). Effects of different levels of blood meal in pelleted feeds on tilapia, Oreochromis niloticus, production in floating bamboo net-cages. Aquaculture 65, 263–266. doi: 10.1016/0044-8486(87)90239-0
Palupi, E. T., Setiawati, M., Lumlertdacha, S., and Suprayudi, M. A. (2020). Growth performance, digestibility, and blood biochemical parameters of Nile tilapia (Oreochromis niloticus) reared in floating cages and fed poultry by-product meal. J. Appl. Aquac. 32, 16–33. doi: 10.1080/10454438.2019.1605324
Proc, K., Bulak, P., Wiącek, D., and Bieganowski, A. (2020). Hermetia illucens exhibits bioaccumulative potential for 15 different elements–implications for feed and food production. Sci. Total Environ. 723:138125. doi: 10.1016/j.scitotenv.2020.138125
Purschke, B., Scheibelberger, R., Axmann, S., Adler, A., and Jäger, H. (2017). Impact of substrate contamination with mycotoxins, heavy metals and pesticides on the growth performance and composition of black soldier fly larvae (Hermetia illucens) for use in the feed and food value chain. Food Addit. Contamin. 34, 1410–1420. doi: 10.1080/19440049.2017.1299946
Raksasat, R., Lim, J. W., Kiatkittipong, W., Kiatkittipong, K., Ho, Y. C., Lam, M. K., et al. (2020). A review of organic waste enrichment for inducing palatability of black soldier fly larvae: wastes to valuable resources. Environ. Pollut. 267:115488. doi: 10.1016/j.envpol.2020.115488
Rana, K., Salam, M., Hashem, S., and Islam, M. A. (2015). Development of black soldier fly larvae production technique as an alternate fish feed. Int. J. Res. Fish. Aquacul. 5, 41–47.
Salomone, R., Saija, G., Mondello, G., Giannetto, A., Fasulo, S., and Savastano, D. (2017). Environmental impact of food waste bioconversion by insects: application of life cycle assessment to process using Hermetia illucens. J. Clean. Prod. 140, 890–905. doi: 10.1016/j.jclepro.2016.06.154
Sangiorgio, P., Verardi, A., Dimatteo, S., Spagnoletta, A., Moliterni, S., and Errico, S. (2022). Valorisation of Agri-food waste and mealworms rearing residues for improving the sustainability of Tenebrio molitor industrial production. J. Insects Food Feed 8, 509–524. doi: 10.3920/JIFF2021.0101
Schepelmann, P., Schütz, H., and Bringezu, S. (2006). Assessment of the EU thematic strategy on the sustainable use of natural resources. EPRS: European Parliamentary Research Service. Belgium. Available at: https://policycommons.net/artifacts/1339111/assessment-of-the-eu-thematic-strategy-on-the-sustainable-use-of-natural-resources/1948470/ (Accessed April 30, 2023).
Schmitt, E., Belghit, I., Johansen, J., Leushuis, R., Lock, E.-J., Melsen, D., et al. (2019). Growth and safety assessment of feed streams for black soldier fly larvae: a case study with aquaculture sludge. Animals 9:189. doi: 10.3390/ani9040189
Shaw, C., Knopf, K., Klatt, L., Marin Arellano, G., and Kloas, W. (2023). Closing nutrient cycles through the use of system-internal resource streams: implications for circular multitrophic food production systems and Aquaponic feed development. Sustain. For. 15:7374. doi: 10.3390/su15097374
Shaw, C., Knopf, K., and Kloas, W. (2022a). Fish feeds in aquaponics and beyond: a novel concept to evaluate protein sources in diets for circular multitrophic food production systems. Sustain. For. 14:4064. doi: 10.3390/su14074064
Shaw, C., Knopf, K., and Kloas, W. (2022b). Toward feeds for circular multitrophic food production systems: holistically evaluating growth performance and nutrient excretion of African catfish fed fish meal-free diets in comparison to Nile tilapia. Sustain. For. 14:14252. doi: 10.3390/su142114252
Sheppard, D. C., Newton, G. L., Thompson, S. A., and Savage, S. (1994). A value added manure management system using the black soldier fly. Bioresour. Technol. 50, 275–279. doi: 10.1016/0960-8524(94)90102-3
Shiau, S.-Y., and Yu, Y.-P. (1999). Dietary supplementation of chitin and chitosan depresses growth in tilapia, Oreochromis niloticus× O. aureus. Aquaculture 179, 439–446. doi: 10.1016/S0044-8486(99)00177-5
Shumo, M., Osuga, I. M., Khamis, F. M., Tanga, C. M., Fiaboe, K. K., Subramanian, S., et al. (2019). The nutritive value of black soldier fly larvae reared on common organic waste streams in Kenya. Sci. Rep. 9, 1–13. doi: 10.1038/s41598-019-46603-z
Siddiqui, S. A., Fernando, I., Nisa’, K., Shah, M. A., Rahayu, T., Rasool, A., et al. (2023). Effects of undesired substances and their bioaccumulation on the black soldier fly larvae, Hermetia illucens (Diptera: Stratiomyidae)–a literature review. Environ. Monit. Assess. 195:823. doi: 10.1007/s10661-023-11186-w
Smets, R., Claes, J., and Van Der Borght, M. (2021). On the nitrogen content and a robust nitrogen-to-protein conversion factor of black soldier fly larvae (Hermetia illucens). Anal. Bioanal. Chem. 413, 6365–6377. doi: 10.1007/s00216-021-03595-y
Stankus, A. (2021). State of world aquaculture 2020 and regional reviews: FAO webinar series. FAO Aquacul. Newsletter 63, 17–18.
Stegmann, P., Londo, M., and Junginger, M. (2020). The circular bioeconomy: its elements and role in European bioeconomy clusters. Res. Conservat. Recycling 6:100029. doi: 10.1016/j.rcrx.2019.100029
Taufek, N., Lim, J., and Bakar, N. A. (2021). Comparative evaluation of Hermetia illucens larvae reared on different substrates for red tilapia diet: effect on growth and body composition. J. Insects Food Feed 7, 79–88. doi: 10.3920/JIFF2019.0058
Tippayadara, N., Dawood, M. A., Krutmuang, P., Hoseinifar, S. H., Doan, H. V., and Paolucci, M. (2021). Replacement of fish meal by black soldier fly (Hermetia illucens) larvae meal: effects on growth, haematology, and skin mucus immunity of Nile Tilapia. Oreochromis niloticus. Animals 11:193. doi: 10.3390/ani11010193
Tomberlin, J., and Van Huis, A. (2020). Black soldier fly from pest to ‘crown jewel’of the insects as feed industry: An historical perspective. J. Insects Food Feed. 6, 1–4. doi: 10.3920/jiff2020.0003
Van der Fels-Klerx, H., Camenzuli, L., Van Der Lee, M., and Oonincx, D. (2016). Uptake of cadmium, lead and arsenic by Tenebrio molitor and Hermetia illucens from contaminated substrates. PLoS One 11:e0166186. doi: 10.1371/journal.pone.0166186
Vehlow, J., Bergfeldt, B., Visser, R., and Wilén, C. (2007). European Union waste management strategy and the importance of biogenic waste. J. Mat. Cycles Waste Manag. 9, 130–139. doi: 10.1007/s10163-007-0178-9
Yakti, W., Förster, N., Müller, M., Mewis, I., and Ulrichs, C. (2023). Hemp waste as a substrate for Hermetia illucens (L.)(Diptera: Stratiomyidae) and Tenebrio molitor L.(Coleoptera: Tenebrionidae). Rearing. Insects 14:183. doi: 10.3390/insects14020183
Yakti, W., Schulz, S., Marten, V., Mewis, I., Padmanabha, M., Hempel, A.-J., et al. (2022). The effect of rearing scale and density on the growth and nutrient composition of Hermetia illucens (L.)(Diptera: Stratiomyidae) larvae. Sustain. For. 14:1772. doi: 10.3390/su14031772
Yones, A., and Metwalli, A. (2015). Effects of fish meal substitution with poultry by-product meal on growth performance, nutrients utilization and blood contents of juvenile Nile Tilapia (Oreochromis niloticus). J. Aquacul. Res. Dev. 7:1000389.
Zaman, N., Safi, S. Z., Ali, S., Mustafa, G., Mahmood, R. T., Ahmad, D., et al. (2023). “Circular bioeconomy of animal wastes” in Climate changes mitigation and sustainable bioenergy harvest through animal waste: Sustainable environmental implications of animal waste. ed. M. Arshad (Cham: Springer Nature Switzerland), 285–299.
