Patient-Specific 3D-Printed Nasopharyngeal Stents in Dogs: A Cadaveric Pilot Study

Provisionally accepted
Craig Sutter Craig Sutter 1*Brian Hardy Brian Hardy 2Steven Lucero Steven Lucero 3Lynelle Johnson Lynelle Johnson 4William Culp William Culp 4
  • 1 Pacific Northwest Pet ER and Specialty Center, Vancouver, United States
  • 2 Lois Bates Acheson Veterinary Teaching Hospital, Corvallis, United States
  • 3 Department of Biomedical Engineering, College of Engineering, University of California, Davis, Davis, United States
  • 4 William R. Pritchard Veterinary Medical Teaching Hospital, School of Veterinary Medicine, University of California, Davis, Davis, United States

The final, formatted version of the article will be published soon.

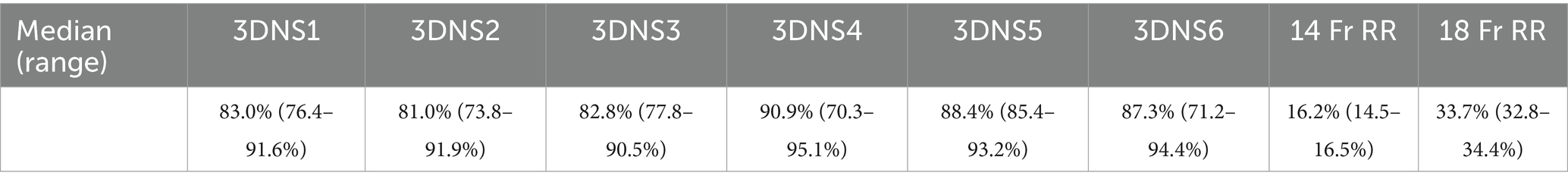

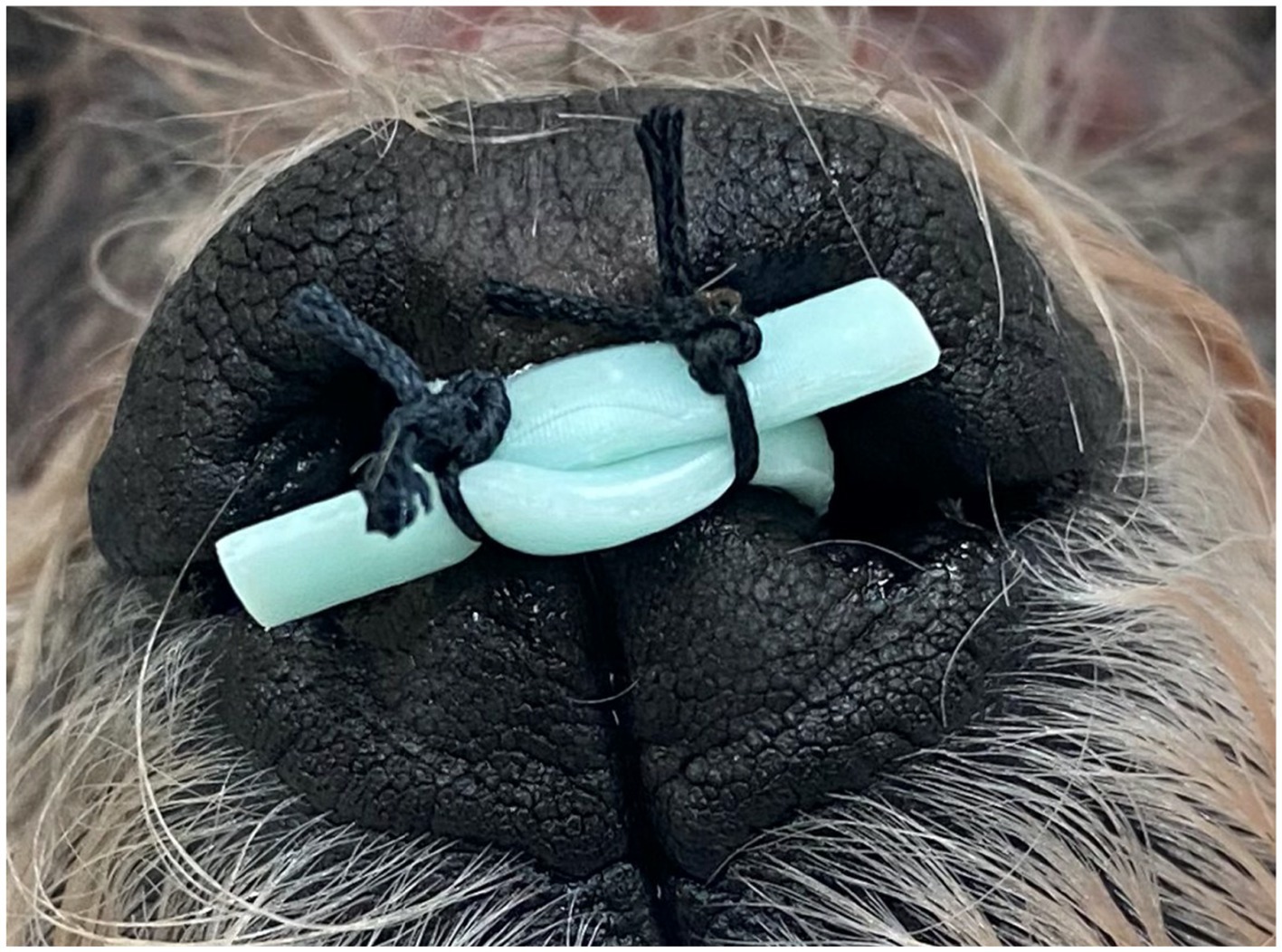

    Background: Currently available treatment options for nasopharyngeal stenosis and imperforate nasopharynx in dogs and cats are fraught with complications and failures. Objective: To develop patient-specific nasopharyngeal stents using 3D-printed molds and to assess placement and fit of stents within the nasopharynx. Animals: Six canine cadavers Methods: Patient-specific nasopharyngeal silicone stents were generated using 3D-printed molds based on CT scans. A placement protocol was developed. Post-placement, goodness of fit within the nasopharynx was evaluated and compared to currently used methods. Mechanical properties of silicone stents were compared to catheter-based and nitinol stents. Results: Development and placement of stents was successful in all six cadavers. Silicone stents offered stiffness (force required for compression, N) and post-load deformation comparable to nitinol stents (1.8-6.2 vs. 1.2-3.3 N and 0.02-0.08 vs. 0.01-0.14 mm, respectively). Patientspecific stents offered superior goodness of fit in the nasopharynx (81-90%) compared to bilateral red rubber catheters (16.2-33.8%) Conclusions: Development and placement of patient-specific stents using 3D printed molds was successful in all six cadavers. The novel stents exhibited similar mechanical properties and superior goodness of fit compared to commercially available stents, potentially offering a better Formatted: Right: 0.25" alternative to commercially available stents. Further investigation is needed in animals with nasopharyngeal stenosis to determine efficacy and to assess utility in live patients.

    Keywords: 3D-printed stents, Nasopharynx, nasopharyngeal stenosis, mechanical testing, imperforate nasopharynx Right: 0.25"
