Dyspnea and the Varying Pathophysiologic Manifestations of Chronic Obstructive Pulmonary Disease Evaluated by Cardiopulmonary Exercise Testing With Arterial Blood Analysis

Background: Patients with chronic obstructive pulmonary disease (COPD) show varying mechanisms of exertional dyspnea with different exercise capacities.

Methods: To investigate the pathophysiologic conditions related to exertional dyspnea, 294 COPD patients were evaluated using cardiopulmonary exercise testing (CPET) with arterial blood analyses, with the patients classified into two groups according to their exercise limitation: the leg fatigue group (n = 58) and the dyspnea group (n = 215). The dyspnea group was further subdivided into four groups based on peak oxygen uptake (V°O2 in mL/min/kg): group A (< 11), group B (11 to < 15), group C (15 to < 21), and group D (≥21).

Results: In the dyspnea group, group A (n = 28) showed the following findings: (i) the forced expiratory volume in 1 s was not correlated with the peak V°O2 (p = 0.288), (ii) the arterial oxygen tension (PaO₂) slope (peak minus resting PaO₂/ΔV°O2) was the steepest (p < 0.0001) among all subgroups, (iii) reduced tidal volume (V_T) was negatively correlated with respiratory frequency at peak exercise (p < 0.0001), and (iv) a break point in exertional V_T curve was determined in 17 (61%) patients in group A. In these patients, there was a significant negative correlation between bicarbonate ion (HCO3-) levels at peak exercise and V_T level when the V_T-break point occurred (p = 0.032). In group D (n = 46), HCO3- levels were negatively correlated with plasma lactate levels (p < 0.0001). In all subgroups, the HCO3- level was negatively correlated with minute ventilation. The dyspnea subgroups showed no significant differences in the overall mean pH [7.363 (SD 0.039)] and Borg scale scores [7.4 (SD, 2.3)] at peak exercise.

Conclusions: During exercise, ventilation is stimulated to avoid arterial blood acidosis and hypoxemia, but ventilatory stimulation is restricted in the setting of reduced respiratory system ability. These conditions provoke the exertional dyspnea in COPD. Although symptom levels were similar, the exertional pathophysiologic conditions differed according to residual exercise performance; moreover, COPD patients showed great inter-individual variability. An adequate understanding of individual pathophysiologic conditions using CPET is essential for proper management of COPD patients.

Introduction

Exertional dyspnea is a major symptom that limits exercise ability in patients with chronic obstructive pulmonary disease (COPD), especially in the advanced stages of the disease (O'Donnell et al., 2009; Parshall et al., 2012). The factors causing exertional dyspnea include single or combined ventilatory disorders secondary to reduced ventilatory capacity, increased ventilatory requirement, and gas exchange abnormalities, including functional skeletal muscle disorder and cardiac dysfunction (Palange et al., 2007). Consequently, exertional dyspnea due to COPD might influence the entire body and make daily living laborious (Laveneziana and Palange, 2012). Therefore, an adequate understanding of an individual patient's condition via evaluation of exercise intolerance and cardiopulmonary function is vital for development of a personalized treatment strategy based on pathophysiology. Using cardiopulmonary exercise testing (CPET), previous studies have reported that (i) COPD patients with severely reduced exercise tolerance develop exercise-induced hypoxemia, sympathetic overactivity, and progressive exertional acidosis at low-intensity exercise (Maekura et al., 2014); (ii) such life-threatening factors are predictors of mortality (Yoshimura et al., 2014); and (iii) screening and avoiding such factors and a pulmonary rehabilitation program with exercise training and occupational therapy can improve the prognosis of patients with severe COPD (Maekura et al., 2015).

Although the disease severity of COPD is based on the degree of airflow limitation, as defined by forced expiratory volume in 1 s (FEV₁), a few interesting studies have attempted evaluation of COPD severity on the basis of exercise tolerance (Oga et al., 2005; Maekura et al., 2014). Therefore, after grouping patients according to the exercise tolerance determined using CPET and combining those with a similar degree of airflow limitation (FEV₁), we investigated the pathophysiologic conditions related to exertional dyspnea in a broader spectrum of COPD patients. First, we compared the pathologic conditions between two groups classified according to the reason for exercise limitation during CPET: the dyspnea group and the leg fatigue group. Second, focusing on the dyspnea group, we aimed to investigate (i) whether exercise intolerance was correlated with the degree of air flow limitation and breathing pattern during exercise; (ii) how exercise-induced hypoxemia was influenced by other pathophysiologic variables during exercise; and (iii) the underlying mechanism of exercise-induced acidosis, which often occurs at the end stage of CPET. Considering these aspects, we performed a detailed re-evaluation of the variability of pathophysiological conditions in patients with COPD. We addressed the necessity and usefulness of CPET with arterial blood analysis for evaluation of pathophysiological conditions and management in patients with COPD.

Materials and Methods

Patients

CPET with arterial blood analyses was consecutively performed in 2,831 patients with exertional dyspnea, based on a modified Medical Research Council score (American Thoracic Society, 1995a; Pauwels et al., 2001; Global Initiative for Chronic Obstructive Lung Disease. GOLD, 2017) of 1 or higher, during clinical practice at our institution between May 1999 and January 2011. We excluded patients who had absolute contraindications to clinical exercise testing (Clinical exercise testing with reference to lung diseases: indications, standardization and interpretation strategies, 1997), who showed COPD exacerbation (respiratory infection) within the past 2 months, and who were participating in a pulmonary rehabilitation program. We selected potential study participants who had been prescribed an appropriate medication for 2 months and underwent CPET for assessment of their pathophysiological conditions before introduction of the pulmonary rehabilitation program. The diagnosis of COPD was confirmed on the basis of the Global Initiative for Chronic Obstructive Lung Disease definition and classification (American Thoracic Society, 1995a; Pauwels et al., 2001). We excluded patients with comorbidities (e.g., severe cardiovascular disease, active tuberculosis, definite sequelae of tuberculosis, asthma, pulmonary fibrosis, or neuromuscular disease) that could contribute to dyspnea and exercise limitation. Thus, we included 294 patients with stable COPD in the study. Although CPET is covered by the Japanese healthcare insurance system, the protocols were fully explained to the participating patients by the attending physicians. All patients provided written informed consent to undergo the protocols before CPET. The protocol of the retrospective study was approved by the institutional review board of the National Hospital Organization Toneyama National Hospital (approval number: 2007-0711) and was in accordance with the Declaration of Helsinki for experiments involving human subjects.

Cardiopulmonary Exercise Testing

CPET was performed on a treadmill (Marquette CASE series T 2001; GE Healthcare, Tokyo, Japan). Symptom-limited exercise tests were conducted using the Sheffield protocol or one of the two modified Sheffield protocols after Allen's test, as described previously (Maekura et al., 2014). The exercise protocol was selected on the basis of the patient's daily activities and pulmonary function test results. Progressive incremental exercise testing was discontinued when the subject experienced breathlessness and/or leg fatigue, reached the predicted maximum heart rate (HR), or showed notable electrocardiographic changes, such as an ST segment depression of >2 mm or a short run of premature ventricular contractions. To obtain reliable data, CPET was performed without encouragement, especially during exercise. Pre-exercise resting measurements were obtained during the steady-state period after at least 3 min of breathing through a mask. Data for the expired gas were measured using the Aero monitor AE310S (Minato Medical Science Co., Ltd, Osaka, Japan). Ventilatory values were measured on a breath-by-breath basis and were presented as 30-s averages at rest, at 1- and 3-min intervals during exercise, and at the end of exercise. Dyspnea was measured with the Borg scale (Borg, 1982). Before testing, the Borg scale was explained to the patients and its endpoints were ranked from 0 for “no difficulty in breathing” to 10 for “the most severe difficulty in breathing,” based on the subject's previous experience or perception. The subjects rated their dyspnea at rest, every minute during exercise, and at peak exercise. Immediately after exercise cessation and completion of mechanical measurements, the subjects were asked for their reason(s) for exercise termination (i.e., dyspnea, leg fatigue, both, or others). Arterial blood samples for blood gas analyses and plasma lactate and plasma norepinephrine assessments were collected at rest, during the last 15 s of each exercise stage, and at the end of exercise, as previously described (Maekura et al., 2014). Blood gas analyses were performed using ABL800 FLEX (Radiometer, Copenhagen, Denmark). Indirect maximum voluntary ventilation (MVV) was calculated as FEV₁ × 35 (Johnson et al., 1999). The dyspnea index was calculated as peak minute ventilation (${\stackrel{°}{\text{V}}}_{\text{E}}$)/indirect MVV (Hallstrand et al., 2000). Breathing reserve was calculated as indirect MVV–${\stackrel{°}{\text{V}}}_{\text{E}}$ at peak exercise (Wasserman et al., 2005). Predicted maximum HR was calculated as 220–age in years (Wasserman et al., 2005). The percentage of HR reserve was calculated as HR at peak exercise/predicted maximum HR. The change in arterial carbon dioxide tension (ΔPaCO₂) was calculated as peak PaCO₂-resting PaCO₂. The change in oxygen uptake (Δ${\stackrel{°}{\text{V}}}_{\text{O}2}$) was calculated as peak ${\stackrel{°}{\text{V}}}_{\text{O}2}$-resting ${\stackrel{°}{\text{V}}}_{\text{O}2.}$ As a measure of the severity of exercise-induced hypoxemia, arterial oxygen tension (PaO₂)-slope was calculated as (peak PaO₂-resting PaO₂)/Δ${\stackrel{°}{\text{V}}}_{\text{O}2}$ (Hiraga et al., 2003). The break points in V_T, dyspnea (Borg scale), and plasma lactate level during exercise were determined for each subject using the intersection of two lines on individual plots of each parameter's curve (Miki et al., 2009).

Pulmonary Function Testing

Post-bronchodilator spirometry (CHESTAC 8800; CHEST M.I. Inc., Tokyo, Japan) was performed. The highest measurements were used for subsequent analyses, as previously described (American Thoracic Society, 1995b; Borrill et al., 2005).

Data Analysis

To confirm the distribution of FEV₁ at different exercise tolerance levels, all patients were grouped into seven groups according to peak ${\stackrel{°}{\text{V}}}_{\text{O}2}$ increments of 2 mL·min⁻¹·kg⁻¹ and into four groups according to similarities in the mean FEV₁ level (Figure 1). Next, all patients (n = 294) were divided into three groups: the dyspnea group (n = 215) consisted of patients whose exercise limitation during CPET was primarily due to exertional dyspnea, which was defined as breathing discomfort alone or in conjunction with leg fatigue; the leg fatigue group (n = 58) consisted of patients whose exercise limitation was primarily due to leg fatigue; and the other exercise limitations (EL) group (n = 21) consisted of patients whose exercise limitation was due to electrocardiogram (ECG) changes, achievement of the predicted maximum HR, chest pain, and thirst (Figure 2).

FIGURE 1

Figure 1. Distribution of FEV₁ based on exercise tolerance. Patients were divided into seven groups according to increments of 2 mL·min⁻¹·kg⁻¹ in peak ${\stackrel{°}{\text{V}}}_{\text{O}2}$ to confirm the distribution of FEV₁ at different levels of exercise tolerance. The second subdivision of the patients was into four subgroups: group A (< 11 ml·min⁻¹·kg⁻¹); group B (11 to < 15 mL·min⁻¹·kg⁻¹); group C (15 to < 21 mL·min⁻¹·kg⁻¹), and group D (≥21 mL·min⁻¹·kg⁻¹). FEV₁: forced expiratory volume in one second; ${\stackrel{°}{\text{V}}}_{\text{O}2}$: oxygen uptake; *p < 0.05, **p < 0.01 ***p < 0.0001 using Tukey–Kramer honestly significant test.

FIGURE 2

Figure 2. Patient selection flowchart COPD, chronic obstructive pulmonary disease; CPET, cardiopulmonary exercise testing; ECG, electrocardiogram; EL, exercise limitation.

Statistical analyses were performed using the JMP 11 (SAS Institute Inc., Cary, NY, USA). The reported values were consistently expressed as mean ± standard deviation. Differences between the dyspnea and leg fatigue groups were analyzed using the Student's t-test and chi-squared test. A parametric one-way analysis of variance for normally distributed variables was used, and a non-parametric Kruskal–Wallis test for non-normally distributed variables was used to determine the differences in physiologic parameters among the four subgroups in the dyspnea group. Differences between pairs of groups among the dyspnea groups were analyzed using the Tukey–Kramer honestly significant difference test. The relationships between the values obtained by the pulmonary function test and CPET were assessed using the Pearson's correlation coefficient and linear regression analysis. Differences between the groups were considered statistically significant when p values were less than 0.05.

Results

This study included a total of 294 patients (273 men) with stable COPD; the other characteristics are shown in Table 1.

TABLE 1

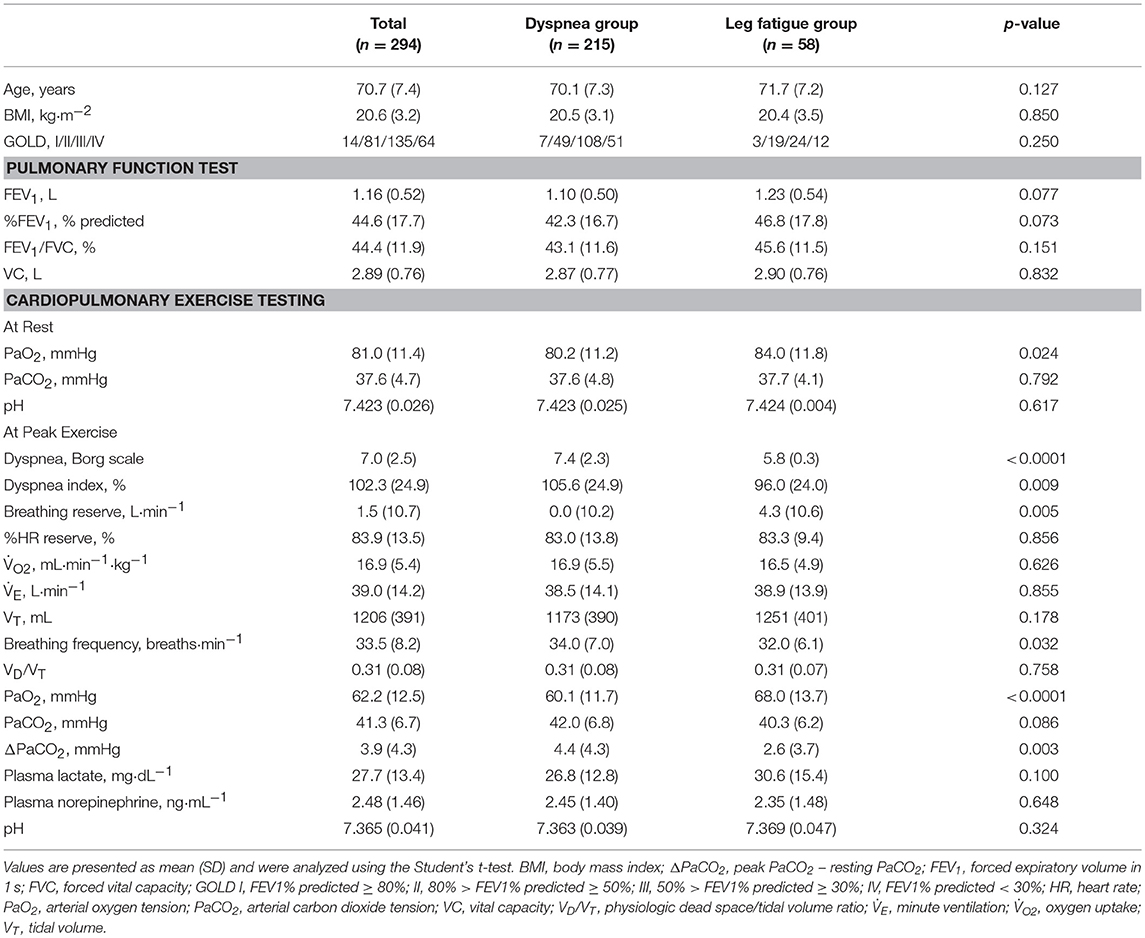

Table 1. Baseline characteristics of the study population.

Comparison Between the Dyspnea and Leg Fatigue Groups

In comparison with the dyspnea group, the leg fatigue group showed a significantly lower severity of dyspnea (Borg scale) and breathing frequency at peak exercise and ΔPaCO₂; significantly higher values of PaO₂ at peak exercise and breathing reserve; and no significant differences in % predicted FEV₁, body mass index, V_D/V_T, and ${\stackrel{°}{\text{V}}}_{\text{O}2}$ at peak exercise (Table 1). Three patients with histories of ischemic heart disease or hypertrophic cardiomyopathy stopped CPET due to leg fatigue.

In the Dyspnea Group

Relationships Among Exercise Intolerance, Airflow Limitation, and Breathing Pattern

The overall peak ${\stackrel{°}{\text{V}}}_{\text{O}2}$ correlated with the FEV₁ (r² = 0.33, p < 0.0001), but the correlation between peak ${\stackrel{°}{\text{V}}}_{\text{O}2}$ and FEV₁ in each subgroup was almost negligible (A: r² = 0.04, p = 0.288; B: r² = 0.03, p = 0.200; C: r² = 0.00, p = 0.802; D: r² = 0.09, p = 0.049).

Overall, in the dyspnea subgroups, the FEV₁ showed good correlations with the ${\stackrel{°}{\text{V}}}_{\text{E}}$ (r² = 0.63, p < 0.0001) and V_T (r² = 0.62, p < 0.0001) at peak exercise. Likewise, the FEV₁ was strongly correlated with the ${\stackrel{°}{\text{V}}}_{\text{E}}$ and V_T at peak exercise in each subgroup, except with the V_T in group A (r² = 0.08) (Figures 3i,ii). Although the breathing reserve was similar among the groups (Table 2), the proportion of patients with ventilatory reserve (more than 10 L/min of breathing reserve) slightly differed among the groups: 2/28 (7%) in group A, 5/64 (8%) in group B, 9/77 (12%) in group C, and 9/46 (20%) in group D. Compared with group D, group A showed significantly lower ${\stackrel{°}{\text{V}}}_{\text{E}}$, V_T, PaO₂, and plasma lactate level, and significantly higher dead space/tidal volume (V_D/V_T) ratio, ${\stackrel{°}{\text{V}}}_{\text{E}}$/${\stackrel{°}{\text{V}}}_{\text{cO}2}$, PaCO₂, and bicarbonate ion (${\text{HCO}}_3^{-}$) level at peak exercise (Table 2). Among all groups, group A showed the lowest ${\stackrel{°}{\text{V}}}_{\text{E}}$ and V_T and the highest V_D/V_T ratio at peak exercise. Compared with the results in the other subgroups, the V_T at peak exercise in group A was less correlated with the Δ${\stackrel{°}{\text{V}}}_{\text{O}2}$ (the peak minus resting ${\stackrel{°}{\text{V}}}_{\text{O}2}$) (Figure 3iii) and the ${\stackrel{°}{\text{V}}}_{\text{E}}$ (Figure 3iv), was negatively correlated with the respiratory frequency (Figure 3v), and was not correlated with the V_D/V_T ratio (Figure 3vi).

FIGURE 3

Figure 3. The relationships of the FEV₁ and the V_T at peak exercise during cardiopulmonary exercise testing. (i) relationship of ${\stackrel{°}{\text{V}}}_{\text{E}}$ to FEV₁, (ii) relationship of V_T to FEV₁, (iii) relationship of obtained ${\stackrel{°}{\text{V}}}_{O2}$ to V_T, (iv) relationship of ${\stackrel{°}{\text{V}}}_{\text{E}}$ to V_T, (v) relationship of respiratory frequency to V_T, and (vi) relationship of V_D/V_T to V_T. Group A (< 11 mL·min⁻¹·kg⁻¹); group B (11 to < 15 mL·min⁻¹·kg⁻¹); group C (15 to < 21 mL·min⁻¹·kg⁻¹); and group D (≥21 mL·min⁻¹·kg⁻¹). The dotted lines represent indirect MVV, which was calculated as FEV₁ × 35. EX., exercise; FEV₁, forced expiratory volume in 1 s; MVV, maximum voluntary ventilation; V_D/V_T, physiologic dead space/tidal volume ratio; ${\stackrel{°}{\text{V}}}_{\text{E}}$, minute ventilation; ${\stackrel{°}{\text{V}}}_{\text{O}2}$, oxygen uptake; V_T, tidal volume.

TABLE 2

Table 2. Baseline characteristics and physiologic findings in the dyspnea group (N = 215).

Exercise-Induced Hypoxemia and Sympathetic Activity Level

A considerable number of patients showed exercise-induced hypoxemia (i.e., decrease in PaO₂ to less than 60 mmHg during exercise) in all the groups: 21/28 (75%) in group A, 37/64 (58%) in group B, 40/77 (52%) in group C, and 21/46 (46%) in group D. In group A, PaO₂ decreased in almost all patients, although some patients did not show progression to hypoxemia, and the PaO₂-slope was the steepest among the PaO₂-slopes in all the groups (A, −7.2 ± 3.6 mmHg·min·100 mL−1; B, −3.8 ± 2.5 mmHg·min·100 mL−1; C, −3.2 ± 1.7 mmHg·min·100 mL−1; D, −2.2 ± 1.9 mmHg·min·100 mL−1; p < 0.0001). In group A, the PaO₂ at peak exercise did not correlate with the PaO₂-slope (Figure 4), but it negatively correlated with the HCO₃– level; this correlation was the strongest among all subgroups (Figure 5i). Compared with group D, each subgroup had significantly higher plasma norepinephrine levels at rest (Table 2). In group A, the increases in plasma norepinephrine concentrations during light workload exercise were similar to those in group D during heavy workload exercise.

FIGURE 4

Figure 4. The relationships between the PaO₂-slope and the PaO₂ at peak exercise during cardiopulmonary exercise testing. Group A (< 11 mL·min⁻¹·kg⁻¹); group B (11 to < 15 mL·min⁻¹·kg⁻¹); group C (15 to < 21 mL·min⁻¹·kg⁻¹); and group D (≥21 mL·min⁻¹·kg⁻¹). The horizontal lines represent the standard deviation. The dots between the horizontal lines represent the mean. PaO₂, arterial oxygen tension.

FIGURE 5

Figure 5. The relationships of the ${\text{HCO}}_3^{-}$ levels at peak exercise during cardiopulmonary exercise testin. (i) relationship between PaO₂ and ${\text{HCO}}_3^{-}$, (ii) relationship between PaCO₂ and ${\text{HCO}}_3^{-}$, (iii) relationship between lactate and ${\text{HCO}}_3^{-}$, and (iv) relationship between ${\stackrel{°}{\text{V}}}_{\text{E}}$ and ${\text{HCO}}_3^{-}$. Group A (< 11 mL·min⁻¹·kg⁻¹); group B (11 to < 15 mL·min⁻¹·kg⁻¹); group C (15 to < 21 mL·min⁻¹·kg⁻¹); and group D (≥21 mL·min⁻¹·kg⁻¹). ${\text{HCO}}_3^{-}$, bicarbonate ion; PaCO₂, arterial carbon dioxide tension; PaO₂, arterial oxygen tension; ${\stackrel{°}{\text{V}}}_{\text{E}}$, minute ventilation.

Mechanism of Exercise-Induced Acidosis

The relationships of ${\text{HCO}}_3^{-}$ levels with PaCO₂, plasma lactate levels, and ${\stackrel{°}{\text{V}}}_{\text{E}}$ at peak exercise are shown in Figure 5. At peak exercise, the ${\text{HCO}}_3^{-}$ level was significantly correlated with the PaCO₂ and ${\stackrel{°}{\text{V}}}_{\text{E}}$ in all groups, but it did not correlate with the plasma lactate level in groups A and B (Figures 5ii–iv). The V_T-break points were determined in 17 of the 28 (61%) patients in group A. In the patients with V_T-break points in group A, there was a significant negative correlation between the ${\text{HCO}}_3^{-}$ level at peak exercise and the V_T level corresponding to the V_T-break point (r = −0.52, p = 0.032). This suggested that when there was severe hyperinflation, respiratory acidosis, rather than lactic acidosis, primarily occurred. The proportion of patients who maintained an ${\text{HCO}}_3^{-}$ level of more than 24 mEq·L⁻¹ at peak exercise was highest in group A (19/28, 68%), in comparison with group B (38/64, 59%), group C (24/77, 31%), and group D (12/46, 26%). However, there were no significant differences in the pH levels and Borg scales at peak exercise among the subgroups (Table 2, Figure 6). Although the plasma lactate level and ${\stackrel{°}{\text{V}}}_{\text{E}}$ at peak exercise showed lower values in the group with decreased exercise tolerance (Table 2, Figure 6), the PaO₂ and PaCO₂ values at peak exercise varied widely among the individual patients in all groups.

FIGURE 6

Figure 6. The relationships of the plasma lactate levels and dyspnea borg scales during exercise. Values are presented as mean (SD) and were analyzed using the Tukey-Kramer honestly significant difference test. Circular symbols show exertional variables at rest, during exercise, and at peak exercise. Square symbols show plasma lactate and dyspnea borg scale break points. Plasma lactate borg scale break points were determined in 15/28 in group A, 43/64 in group B, 55/77 in group C, and 42/46 group D. Dyspnea borg scale break points were determined in 14/28 in group A, 46/64 in group B, 62/77 in group C, and 40/46 group D. A vs. B; ^†p < 0.05, ^††p < 0.01, A vs. D: ^‡p < 0.05, ^‡‡‡‡p < 0.0001; B vs. C: ^§§p < 0.01, B vs. D: ^¶p < 0.05, ^¶¶¶¶p < 0.0001; C vs. D: ^####p < 0.0001.

In the Other EL Group

Ten (3.6%) of 280 COPD patients who had no comorbidities stopped exercise due to ECG changes (Figure 2).

Discussion

This study evaluated the pathophysiologic conditions related to exertional dyspnea among COPD patients using CPET with arterial blood analysis in clinical practice. The exertional conditions during exercise differed according to the residual exercise performance. Moreover, the COPD patients also showed great inter-individual variability. The appropriate expansion of ventilation caused by an increased ventilatory drive due to the arterial blood acidosis (metabolic and/or respiratory acidosis) and hypoxemia is constricted in the setting of reduced respiratory system ability (reduced ventilatory capacity). These conditions provoke exertional dyspnea.

Pathophysiologic Conditions in the Leg Fatigue Group

Compared with the dyspnea group, the leg fatigue group demonstrated a lower severity of dyspnea and PaCO₂ retention and a higher PaO₂ level at peak exercise with similar peak ${\stackrel{°}{\text{V}}}_{\text{O}2}$. The breathing reserve has been considered to influence breathing discomfort and alveolar gas exchange. Given that the present study showed that the cardinal symptoms for exercise intolerance were dyspnea and/or fatigue, which may result from one or a combination of limitations, such as ventilatory constraints, pulmonary gas exchange abnormalities, peripheral muscle dysfunction, and cardiac dysfunction, evaluation of the exercise-limiting factor in each case is fundamental for developing treatment strategies for COPD (Laveneziana et al., 2007; Cote et al., 2008; Watz et al., 2014). In the present study, 20% (n = 58) of the patients who stopped CPET due to leg fatigue showed better functional ventilatory capacity than the dyspnea group. One recent report suggested that COPD patients who developed leg fatigue during exercise training had greater functional exercise tolerance than those who do not (Burtin et al., 2012). These results implied that pulmonary rehabilitation (exercise training) should be indicated for COPD patients whose exercise intolerance is related to leg fatigue.

Relationship of Exercise Intolerance With Airflow Limitation and Breathing Pattern

Exercise tolerance, which can be measured by the peak ${\stackrel{°}{\text{V}}}_{\text{O}2}$, depends on the intensity and duration of exercise (Neder et al., 2000; Oga et al., 2005). Similar to other reports (Cahalin et al., 1995; Bauerle et al., 1998; Foglio et al., 2000; Agusti et al., 2010), the present study showed that prediction of exercise tolerance using the peak ${\stackrel{°}{\text{V}}}_{\text{O}2}$ level based on the FEV₁ was a challenge in all groups, except in group D of the dyspnea group, which showed the highest exercise tolerance, although the FEV₁ has been indispensable for COPD diagnosis and might be a parameter useful for assessment of the effects of inhaled medications. In other words, increasing the FEV₁ alone might not help increase exercise tolerance in COPD patients. Oga et al. (2005) reported that evaluation of the peak ${\stackrel{°}{\text{V}}}_{\text{O}2}$, rather than the FEV₁, over time was more helpful in understanding the changes in a patient's condition. Macklem (2010) reported that tachypnea in a COPD patient decreases dynamic lung compliance and that rapid shallow breathing is generally considered to cause difficulty in breathing. In group A, based on the negligible correlation of the Δ${\stackrel{°}{\text{V}}}_{\text{O}2}$ with a reduced V_T, which has a negative correlation with respiratory frequency at peak exercise (Figures 3iii,v), and the absence of correlation between V_T and the V_D/V_T ratio, there were basically two breathing patterns during exercise, i.e., a relatively stable increase of V_T with low respiratory frequency (slow exhalation breathing) and a reduced increase of V_T with high respiratory frequency (rapid shallow breathing). Of note, regardless of the two breathing patterns, group A showed a low exercise tolerance due to wasted ventilation. These imply that care for patients with low exercise tolerance should be especially individualized.

Relationship Between Exercise-Induced Hypoxemia and Sympathetic Activity Level

In COPD, evaluation of the degree of exercise-induced hypoxemia (PaO₂-slope) along with assessment of exercise tolerance is important for predicting survival and understanding the varying pathophysiologic conditions among individual patients (Hiraga et al., 2003; Maekura et al., 2014, 2015; Yoshimura et al., 2014). Recently, the members of the Long-Term Oxygen Treatment Trial Research Group reported that long-term supplemental oxygen therapy had no significant effect on mortality among stable COPD patients with either resting or exercise-induced moderate hypoxemia, as measured by pulse oximetry, during a 6-min walk distance test (Albert et al., 2016). However, in that study, the oxygen saturation (SpO₂) measurements were obtained in individuals with different workloads. The severity of pulmonary gas exchange abnormalities should be evaluated by a decrease in PaO₂ over a fixed workload or by an increase in oxygen uptake (PaO₂-slope). Moreover, the use of SpO₂ during a 6-min walk test to evaluate the severity of exercise-induced hypoxemia will produce inaccurate results. In the present study, the findings clearly showed that PaO₂ decreased to less than 60 mmHg in half of the patients, even in group C and D patients with exercise tolerance. Furthermore, 25% of the patients in group A did not show hypoxemia at peak exercise. However, the PaO₂ slope became steep with decreasing exercise tolerance, especially in group A, in which the PaO₂-slope did not correlate with the PaO₂ at peak exercise; that is, the PaO₂-slope had a greater impact on exercise intolerance (reduced Δ${\stackrel{°}{\text{V}}}_{\text{O}2}$) in group A than in the other subgroups (Figure 4). In addition, at peak exercise, the PaO₂ most negatively correlated with the ${\text{HCO}}_3^{-}$ level in group A (Figure 5i); that is, a severe degree of exercise-induced hypoxemia occurred with reduced exercise tolerance to reach respiratory acidosis. This might explain the elevated sympathetic activity, which manifested as a 2-fold increase in the plasma norepinephrine level in group A already from the resting condition (Maekura et al., 2014; Yoshimura et al., 2014). Their findings might affect the heterogeneity of the pathophysiologic conditions underlying COPD during exercise. A prolonged increase in sympathetic activity can cause weight loss, anxiety, and other stress-related body changes, including hypoxemia and exertional acidosis. For example, reduced digestive activity results from a generally inhibitory effect of norepinephrine on the enteric nervous system by decreasing gastrointestinal motility, blood flow, and secretion of digestive substances (Konturek et al., 2004). Furthermore, the PaO₂-slope, rather than the PaO₂ or SpO₂ value at the end of exercise, was the factor that affected the prognosis of COPD (Hiraga et al., 2003; Maekura et al., 2014; Yoshimura et al., 2014). Therefore, the focus should be on the PaO₂-slope for individualized patient care, in order to improve or avoid severe and life-threatening exercise-induced hypoxemia (Maekura et al., 2015).

Mechanism of Exercise-Induced Acidosis

The varying ventilation to compensate for exercise-induced acidosis in COPD might be related with dynamic hyperinflation (O'Donnell et al., 2009; Wasserman et al., 2014), which is considered a key contributor to dyspnea. In group A, the main cause of exercise intolerance might be the wasted ventilation from varying breathing patterns, including slow exhalation breathing and rapid shallow breathing, as shown in Figure 3v. In the present study, exertional acidosis was caused by both metabolic and respiratory factors to stop exercise in each group (Figure 5). Furthermore, in subgroup A of the dyspnea group, in which dynamic hyperinflation was especially confirmed using V_T-break points, exercise was stopped primarily because of respiratory acidosis, that is, these patients did not develop ventilatory compensation in response to respiratory acidosis; therefore, the ${\text{HCO}}_3^{-}$ level was high at peak exercise (Table 2). Evaluating ${\text{HCO}}_3^{-}$ could further the understanding of the pathophysiologic conditions, by elucidating the state of acidosis conditions when inadequate ventilatory compensation including hyperinflation occurs during exercise. On the other hand, compared with group A patients, group D patients in the dyspnea group had a lower V_D/V_T ratio and were able to maintain ventilation capacity; moreover, in that group, there was a negative correlation of the ${\text{HCO}}_3^{-}$ level with ventilatory capacity and plasma lactate levels (Table 2, Figure 5). In addition, the proportion of patients who maintained an ${\text{HCO}}_3^{-}$ level greater than 24 mEq · L⁻¹ at peak exercise was lower in group D (26%) than in group A (68%). Taken together, the group D patients with higher ventilatory capacity stopped exercise primarily because of lactic acidosis (Figure 6). It is interesting to note that in this study, we assumed that cessation of exercise in these patients was due to their inability to compensate for the exertional acidosis and that there were no significant differences in the pH levels and Borg scales at peak exercise in all subgroups in the dyspnea group (Table 2, Figure 6). Based on our previous CPET evaluations using two kinds of inhaled oxygen concentrations in patients with COPD and even idiopathic pulmonary fibrosis, exercise limitation often depended on limitations in ventilatory compensation for exertional acidosis, rather than hypoxemia during exercise (Miki et al., 2012, 2013). These findings suggest that although the degree of exertional hypoxemia and the breathing pattern vary in COPD patients, pH homeostasis during exercise might be regulated by ventilation, which might be related to dynamic hyperinflation.

This study had some limitations. First, all patients in this study were grouped according to peak ${\stackrel{°}{\text{V}}}_{\text{O}2}$ increments obtained by CPET and combined with those showing a similar degree of FEV₁. The relationship between FEV1 and peak ${\stackrel{°}{\text{V}}}_{\text{O}2}$ might vary among the studies, given that the severity of airflow limitation differs with respect to each study population. Although COPD is characterized by airflow limitation due to airway and/or alveolar abnormality, the chief complaint is exercise intolerance due to breathlessness. The peak ${\stackrel{°}{\text{V}}}_{\text{O}2}$ in incremental exercise is also the gold standard of exercise capacity.

Second, the patients were asked to make their maximal efforts before the CPET, which was performed until patient exhaustion. Certainly, the level of exhaustion to stop exercise might have varied among patients and affected the results. However, arterial blood parameters, including the PaO₂-slope, are completely objective valuables. Moreover, the applicability of our results to the entire spectrum of COPD patients remains to be investigated.

Conclusion

Our findings demonstrated the heterogeneity of the pathophysiologic conditions underlying COPD during exercise, even when the dyspnea level was similar. Ventilation is stimulated to avoid exertional acidosis and hypoxemia; however, the responses are limited by the ventilatory impairment in COPD patients. This ventilatory decompensation might be one of the common mechanisms contributing exertional dyspnea. The resting variables (FEV₁) could not accurately predict exercise tolerance and pathophysiology during exercise in COPD patients. Therefore, CPET should be implemented before initiating interventions such as pulmonary rehabilitation in these patients. Understanding the individual exercise limitations of COPD patients could provide helpful information on a suitable management strategy for the patients.

Data Availability Statement

This study does not include any clinical dataset to be shared. The datasets used and/or analyzed during the current study are available from the corresponding author on reasonable request.

Author Contributions

All authors contributed to the conceptualization and design of the study. HK, KM, and RM contributed to data abstraction and analysis. HK drafted the initial manuscript. All authors contributed to manuscript writing and approved the submission of the final manuscript. KM and RM are the guarantors of this work.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

The authors received no specific funding for this study. The authors would like to thank Ms. S. Ito and Ms. S. Sakaguchi for their help with the CPET measurements.

Abbreviations

COPD, chronic obstructive pulmonary disease; CPET, cardiopulmonary exercise testing; ECG, electrocardiogram; EL, exercise limitations; FEV₁, forced expiratory volume in one second; ${\text{HCO}}_3^{-}$, bicarbonate ion; HR, heart rate; NE, plasma norepinephrine level; PaCO₂, arterial carbon dioxide tension; PaO₂, arterial oxygen tension; ${\stackrel{°}{\text{V}}}_{\text{CO}2}$, carbon dioxide output; V_D/V_T, physiologic dead space/tidal volume ratio; ${\stackrel{°}{\text{V}}}_{\text{E}}$, minute ventilation; ${\stackrel{°}{\text{V}}}_{\text{O}2}$, oxygen uptake; V_T, tidal volume.
