A first-principles study on the effect of Cr, Mn, and Co substitution on Fe-based normal- and inverse-Heusler compounds: Fe3−xYxZ (x=0, 1, 2, 3; Y= Cr, Mn, Co; Z=Al, Ga, Si)

First-principles calculation has become one of the most reliable approaches in predicting structural, electronic, and magnetic properties for material applications. Alloys in Heusler structures have also attracted much attention recently since they can be easily synthesized and provide interesting properties for future spintronic applications. In this work, we investigate a series of Fe-based Heusler compounds Fe_3−xY_xZ (x = 0, 1, 2, 3; Y= Cr, Mn, Co; Z= Al, Ga, Si) with L2₁- and XA-type structures using first-principles calculations based on density functional theory. According to formation energy calculations and mechanical property analysis, most of the studied Heusler compounds are thermodynamically stable and could be synthesized experimentally. The Co substitution leads Fe_3−xCo_xZ to a ferromagnetic ground state like Fe₃Z with a strong magnetization ranging from 4 to 6 μ_B/f. u. While replacing Fe with Cr or Mn, the exchange coupling between Cr (Mn) and its neighboring atoms generally tend to be anti-parallel. Among the antiferromagnetic compounds, Mn₃Al and Mn₃Ga are antiferromagnetic half metal while Mn₃Si is ferrimagnetic half metal. These rarely found type of half metals with low magnetic moment and high spin polarization at the Fermi level are important for low energy consumption spintronic applications. The estimated Curie temperatures for Mn₃Al, and Mn₃Si and Co2FeSi (XA) are in good agreement with previously theoretical values, while for Fe₃Al and Fe₃Si, they are in good agreement with previous experimental results. The good consistency in Curie temperature demonstrates high reliability of our predictions based on first-principles calculations. As for the topological property aspect, we predict Fe₂CrAl and Fe₂MnAl as the 3-dimensional Weyl semimetal. Furthermore, Fe₂CrSi is predicted to be the magnetic nodal-line semimetal. Interestingly, our mechanical property analysis demonstrates that Co₃Si and Fe₂CoSi (L2₁) exhibit ultraelastic metal behavior, which is of high potential in advanced mechanical industry. This work suggests that Heusler compounds are excellent candidates for future spintronics as well as for high-performance ultraelastic metals.

1 Introduction

It is well known that Heusler compounds are intermetallic materials with rich magnetic properties [1–7]. Since the first discovery of the Cu₂MnAl Heusler alloys in 1903, it is found that although the compositions of alloy were non-magnetic (NM), the alloy exhibits an adjustable magnetic properties through the treatment of heat and chemical compositions [8]. To date, thousands of members of Heusler compounds have been discovered with a wide range of physical properties, such as half-metallics, ferrimagnets [9–11], ferromagnets [12–14], shape memory alloys [15, 16], and even tunable topological insulators [17, 18]. Also, most Heusler alloys have high Curie temperatures, large saturated magnetization [19, 20], and crystallize in cubic high-symmetry structure. These properties are of high potential for spintronics, energy technologies, and magneto-caloric applications. For spintronic applications, Heusler compounds with full spin polarizability (100%) and high Curie temperatures can be considered as ideal semiconductor spin electron injection sources [21]. In terms of magnetocaloric applications, magnetic materials inherently have magnetocaloric effects due to the interdependence of thermal and magnetic properties. Since the discovery of Ni-Mn-based Heusler compounds with giant magnetocaloric effects, magnetic Heusler compounds have been regarded as candidates in magnetocaloric materials [22]. Finally, for energy applications, most thermoelectric materials are semiconductors with small energy gap. A. Berche et al. has suggested that Fe₂VAl Heusler compound exhibits a small energy gap and a decent figure of merit, thus can be regarded as a material for thermoelectric applications [23]. The crystal structure of the traditional Heusler alloy (Figure 1) consists of four interpenetrating face-centered cubic (FCC) lattices with Wyckoff coordinates of A (0, 0, 0), B (1/4, 1/4, 1/4), C (1/2, 1/2, 1/2), and D (3/4, 3/4, 3/4). In general, the traditional Heusler alloys are composed of three kinds of element (ternary Heusler alloy), which can be divided into half Heusler alloys XYZ (No. 216, $F\bar{4}3m$) and full Heusler alloys X₂YZ (No. 225,$Fm\bar{3}m$), where X and Y are different transition metal elements or lanthanides (rare-earth metals), and Z is an sp/main-group (group III, IV, or V) element [3, 25]. By interchanging the positions of elements, there are two possible structures within the full ternary Heusler alloy named by L2₁-X₂YZ and XA-X₂YZ. L2₁-X₂YZ (XA-X₂YZ) is crystallized in the cubic L2₁ (XA) structure with space group $Fm\bar{3}m$ $(F\bar{4}3m)$, which Wyckoff coordinates ABCD are sequentially occupied by compositions in the order of ZXYX (ZYXX). Although many of these alloys have been theoretically predicted to be HM alloys, some of them do not reached 100% spin polarization experimentally. This could be caused by the atomic disorder, such as B2 (partial order) and A2 (full disorder) structure. To reduce atomic disorder, the binary Heusler alloy has drawn a lot of attention recently. Various binary Heusler alloys have been reported in the last years, for instance, X₃Y [26], XZ₃ [27], X₃Z [28–30], and Z₃Z’ [31–34], where X and Y are transition metals, Z and Z’ are main group elements. These binary Heusler alloys in DO₃-type structure [35] share the same space group with the ternary Heusler alloys in L2₁ structure. It is also proposed that binary Heulser alloys have reduced the energetic dissipation due to the smaller magnetic moment [33]. Therefore, enormous attention has been devoted to searching for new spintronic materials through binary, ternary, or quarternary Heusler alloys [36–41].

FIGURE 1

FIGURE 1. Crystal structure of full Heusler alloy. The lattice consists of four fcc sublattices (A–D) with respect to the Wyckoff coordinates of (0, 0, 0) (0.25, 0.25, 0.25, 0.25), (0.5, 0.5, 0.5), and (0.75, 0.75, 0.75), respectively.

Inspired by this, we study the substitution effects in binary and ternary Heusler alloys for a series of Fe-based Heusler compounds Fe₄Z (Z= Al, Ga, and Si) by replacing Fe with different 3d elements X = Cr, Mn, and Co, namely, Fe_3−xX_xZ (x = 0, 1, 2, 3; X= Cr, Mn, Co; Z= Al, Ga, Si) with L2₁- and XA-type structures using first-principles calculations based on density functional theory. We present in this paper a systematic theoretical investigation including the structural, electronic, magnetic, and mechanical properties of binary and ternary full-Heusler alloys.

2 Computational method

The ideal X₂YZ (X, Y= Cr, Mn, Fe, and Co; Z= Al, Ga, and Si) Heusler alloys are in the cubic closely packed structure as shown in Figure 1. Following the previous study by Wang et. al. [42], we assume that one of X atoms sits at A-site, and the other X atom sits at B- or C-site. Therefore, there are two possible structures for the ternary Heusler alloys, i.e. full and inverse Heusler structure with X atom occupied C- and B-site, respectively. For the binary Heusler alloys X₃Z (X= Cr, Mn, Fe, and Co; Z= Al, Ga, and Si), it belongs to DO₃-type structure with space group $Fm\bar{3}m$ (No. 225), where X atoms locate at A, B, and C sites.

The structural, electronic, and magnetic properties of X₂YZ Heusler alloys are calculated by using the density functional theory as implemented in the Vienna ab initio simulation package (VASP) [43, 44]. The Perdew-Burke-Ernzerhof (PBE) generalized gradient approximation (GGA) was chosen for the exchange and correlation effects [45, 46]. The Γ-centered Monkhorst-Pack scheme with a k-mesh of 12 × 12×12 is used for the Brillouin zone integration. The self-consistent total energy convergence criterion is set as 1.0× 10^–7 eV. In all cases, a plane wave basis set with cut-off energy of 350 eV was used. All the three types of structures are geometrically optimized with the convergence criterion of 1.0 × 10^–6 eV. To calculate the ground state total energy of the isolated atom, we use a very large supercell with 20 Å of separation in all x, y, and z directions which should be wide enough to decouple the nearest atom. The calculated ground state spin magnetizations of Cr, Mn, Fe, Co, Al, Ga, and Si isolated atoms are 6.00 μ_B, 5.00 μ_B, 4.00 μ_B, 3.00 μ_B, 1.00 μ_B, 1.00 μ_B, and 2.00 μ_B, respectively. These calculated ground-state spin magnetic moments of isolated atoms are consistent with those reported by S. Shehada et al. [24], which magnitude can be explained by Hund’s rules.

3 Results and discussion

3.1 Electronic, magnetic, and topological poperties

Listed in Supplementary Table A1 are the calculated lattice constants (Å), cohesive energy (eV/f.u.), and formation energy (eV/f.u.) of the considered Heusler compounds. In order to prevent the flow of paper from being interrupted, all tables are arranged in APPENDIX. The cohesive energy is calculated as the difference between the sum of the ground state total energies (E) of isolated atoms and the total energy of the encountered Heusler compounds, i.e., ∑E_atom − E_bulk. The cohesive energy is the energy required to break alloys into isolated atoms. Consequently, high cohesive energy alloys are relatively stable compared to those with low cohesive energies. The formation energies (E_f) of X₂YZ are also calculated using

$E_f=E_{\mathit{tot}}-\left(2\times E_X^{\mathit{bulk}}+E_Y^{\mathit{bulk}}+E_Z^{\mathit{bulk}}\right),$

where E_tot, $E_X^{\mathit{bulk}}$, $E_Y^{\mathit{bulk}}$, and $E_Z^{\mathit{bulk}}$ are the total energy per atom of the Heusler compound, total energy per atom of pure X, Y, and Z in their individual bulk structures, respectively. The individual bulk structures are body-centered cubic for Cr and Fe, face-centered cubic for Mn and Al, hexagonal close-packed for Co, diamond for Ga and Si, respectively.

In general, a negative value of the formation energy indicates that the total energy of the compound is lower than that of its individual components, implying that the compound can be synthesized experimentally under ambient conditions, whereas a positive formation energy means that the synthesis of the material is dependent on extra factors such as pressure, temperature, and/or electromagnetic waves. Practically, the formation energies of certain existing compounds can be positive, such as diamond (0.13 eV/f. u.) [47]. Even with this positive formation energy, diamond can be formed under high pressure and high temperature, while it remains stable under ambient conditions. Therefore, it is still possible to synthesize these Heusler compounds experimentally under certain conditions even if the calculated formation energy is positive.

We first summarize few general remarks regarding lattice constants here. As shown in Supplementary Table A1, we find that the equilibrium lattice constant of X₂YAl (X, Y= Cr, Mn, Fe, Co) is larger than those of X₂YSi. This is because that the Wigner-Seitz radius of aluminum is larger than that of silicon. Similarly, when substituting the sp element from Al to Ga, in general, except for Cr₂FeZ and XA-Fe₂MnZ, the equilibrium lattice constant is enlarged due to the slightly larger atomic size of heavier element Ga.

Then we used transition metal atoms Cr, Mn, and Co to replace the Fe atoms in Fe₃Z. There are two different types of iron atoms in the unit cell of Fe₃Z (Figure 1): the first type Fe atoms (Fe(A) and Fe(C)) in the tetrahedral coordination are surrounded by four Fe and four Z atoms; the second type Fe atom (Fe(B)) in the octahedral coordination is surrounded by eight Fe atoms. Therefore, as one Fe atom of the first type is replaced by Y, XA ternary Heusler alloy is formed and labelled by XA-Fe₂YZ (inverse structure). When the second type Fe atom is replaced by Y, L2₁ ternary Heusler alloy is formed and labelled by L2₁-Fe₂YZ (normal structure).

As a benchmark result, the calculated lattice constants of the binary alloy Fe₃Al, Fe₃Ga and Fe₃Si are 5.736, 5.750 and 5.601 Å, which are in agreement with the value of 5.74, 5.76 and 5.61 Å reported by Gao et. al [30]. As shown in the table, there seems no general trend for the lattice constants among all the above mentioned Cr, Mn, Co substituted Heusler alloys. Interestingly, for all Fe₂YZ alloys except Fe₂CoAl and Fe₂CoGa, the lattice constant of the inverse structure is significantly larger than that of the normal structure. In contrast, for the X₂FeZ alloys except Mn₂FeAl and Co₂FeGa, the lattice constant of the normal structure is larger than that of the inverse structure. This is presumably due to the Coulomb interaction between the nearest atoms. Taking Fe₂CrAl as an example, since Cr has fewer d electrons than Fe, the length of Fe-Cr bond will be shorter than that of Fe-Fe bond, which results in that the length of Fe(A)-Cr(B)-Fe(C) will be shorter than that of Fe(A)-Fe(B)-Cr(C).

As for the cohesive energies of the X₂YZ Heusler alloys listed in Supplementary Table A1, in general, X₂YSi is more stable than X₂YAl and X₂YGa for all types of ternary and binary Heusler alloys. In order to clearly demonstrate the stability trends of different compounds, we graphically represent the evolutions of the cohesive and formation energy of Fe₂XZ, X₂FeZ, and X₃Z with X, as shown in Figure 2. In terms of transition metal substitution for Fe₃Z, the L2₁-Co₂FeZ is the stablest case for all Z in Al, Ga, and Si. Supplementary Table A1 also shows the calculated formation energy, which serves as the indication of the structural stability. Except for Mn₂FeSi, the formation energies of all Heusler alloys are negative, indicating that these Heusler alloys are thermodynamically stable and can be synthesized experimentally. In addition, comparing the formation energy of L2₁ and XA structure, it can be found that Fe2CrZ, Fe₂MnZ, and Co₂FeZ exhibit lower E_f in L2₁ than in XA structure. It is known that in Heusler alloys X₂YZ, when element Y with fewer 3d electrons than element X, Y prefer to occupy B site, forming L2₁ structure. Conversely, when Y has more 3d electrons than X, Y tends to occupy A or C site, leading to XA structure [52].

FIGURE 2

FIGURE 2. Cohesive energies (A–C) and formation energies (D–F) with respect to different Heusler compounds.

Supplementary Table A2 lists the calculated magnetic ground state, total spin moment (m_t) (in μ_B/f. u.), atomic spin magnetic moments, magnetization energy, spin polarization, Curie temperature, as well as the total magnetization derived by Slater-Pauling rule (SP-rule):

$M_t=N_v-24,$

where N_v is the total number of valence electrons in the unit cell of all the considered Heusler alloys. For L2₁-X₂YZ, magnetic X₁, X₂, Y, and nonmagnetic Z positioned at A-, C-, B-, and D-site, respectively. In XA-X₂YZ, magnetic X₁, X₂, Y, and nonmagnetic Z positioned at A-, B-, C-, and D-site, respectively. We consider the ferromagnetic (FM) and three ferrimagnetic configurations: Fi1, Fi2, and Fi3, in which Fi1(2,3) means that the magnetic direction at A-(B-,C-) site is antiparallel to the other 2 magnetic atoms. Then magnetic ground states can be determined by comparing the total energies of these magnetic states. Also, the magnetization energy defined as the total energy difference between magnetic ground state and nonmagnetic state can be obtained.

As can be seen in Supplementary Table A2, many candidates of half metals as indicated by HM are found in this work. Starting with binary Heusler compounds, all the three Mn₃Z exhibit half metallic (HM) ground state. Both Mn₃Al and Mn₃Ga are fully compensated HM antiferromagnets (HM-AFMs), while Mn₃Si is HM ferrimagnets. HM-AFMs show not only 100% spin polarization but also zero net magnetization, which is very useful in spintronic applications due to the lower energy consumption. On the other hand, all Fe₃Z and Co₃Z are metallic ferromagnets, and Cr₃Z are metallic ferrimagnets. It is worth noting that the total and atomic magnetizations and the equilibrium lattice constants of Cr₃Z, Mn₃Z, and Fe₃Z obtained in this work are in consistent with previous theoretical results [30]. Moreover, for Fe₃Al, Fe₃Si, and Mn₃Si, our results are also in agreement with previous experimental data [49].

Then we discuss the magnetic properties of the ternary Heusler compounds in Supplementary Table A2. Considering the Fe₂YZ series, the magnetic configuration can be mainly divided into ferromagnetic states for Y= Fe and Co, and ferrimagnetic states for Y= Cr and Mn, except for L2₁-Fe₂CrSi and L2₁-Fe₂MnSi (both are FM states). For Y= Cr and Mn, the ferrimagnetic states can be specifically described as Fi2 and Fi3 states for L2₁-Fe₂YZ and XA-Fe₂YZ, respectively. There exists a tendency for the spin directions of Cr and Mn to align antiparallel to neighboring atoms. This trend is in agreement with the previous magnetic research [58, 59]. Most X₂YZ and Y₂XZ have similar magnetic configuration. For example, Co₂FeZ and Fe₂CoZ are both in the FM ground states, while Cr₂FeZ and Fe₂CrZ show the FiM ground states, except for L2₁-Cr₂FeGa, L2₁-Fe₂CrSi and XA-Cr₂FeSi. For Mn₂FeZ compounds, L2₁-Mn₂FeAl, XA-Mn₂FeAl, L2₁-Mn₂FeGa, and XA-Mn₂FeGa are FiM states, while the others are FM states.

The Fe₂YSi alloys series have been studied theoretically and experimentally by Luo et al. [60]. Our results in total magnetic moment and lattice structure agree well with those reported in Ref. [60], except for L2₁-Fe₂MnSi that the magnetic moment is 1 μ_B smaller than the experimental value. This mainly comes from the antisite disorder relation between Fe and Mn atoms [60]. Luo et al. also show that the magnetic states of Fe₂YSi are Fi2, Fi2, FM, and FM with respect to Y = Cr, Mn, Fe, and Co. Among them, the FiM magnetic states of L2₁-Fe₂CrSi and L2₁-Fe₂MnSi are different from our FM states. This discrepancy may results from the difference in lattice constants. To demonstrate that the variation of lattice constant can affect the DOS in Heusler alloys, we show in Figure 3 the DOS of Cr₃Z (Z = Al, Ga, and Si) with the lattice constants differing by $\sim 5\%$. Our results reveal a transition from normal metal to a spin gapless semiconductor, gapless half metal and half metal for Cr₃Al, Cr₃Ga, and Cr₃Si, respectively [30]. Like half metal, both spin gapless semiconductor and gapless half metal have completely spin polarization at the Fermi level. Figures 4A,B illustrates the electronic structures of Mn₃Al and Fe₂MnSi in AFM and FM half-metallic states, respectively. There is a band around E_F in the majority spin channel with an energy gap opened in the minority spin channel for both Mn₃Al and Fe₂MnSi. The energy gaps are 0.45 and 0.5 eV for Mn₃Si and Fe₂MnSi, respectively. For half metal, the energy width from the highest occupied states of minority spin to the Fermi level is important, too. This is named as half metal gap (HM gap), which is the minimum energy to flip minority spin electron from the highest valence band to the Fermi level. The HM gap is 0.088 (0.071) eV for Mn₃Al (L2₁-Fe₂MnSi). Since both compounds have L2₁ structures, Mn(B) has a similar local environment as in a bcc sublattice. Therefore, the PDOS of Mn(B) in these two compounds is very similar. From PDOS of Mn(B), it is clear to see that valence electrons are almost occupied spin-up states, results in large spin moment (2.8 μ_B). On the contrary, PDOS of Mn (A, C) shows that its valence electrons mainly occupy the spin-down states, leading to a smaller antiparallel spin moment (-1.4 μ_B) than that of Mn(B). This PDOS analysis shows Mn₃Al is AFM half-metal. For L2₁-Fe₂MnSi, since Fe has one more electron than Mn, this leads to an increase in the number of electrons occupying the spin-up states at the (A, C) site. Also, Si has one more electron than Al, which shifts the Fermi level upward slightly. Therefore, L2₁-Fe₂MnSi forms FM-HM.

FIGURE 3

FIGURE 3. The spin-resolved total density of states for (a) Cr₃Al, (b) Cr₃Ga, (c) Cr₃Si at different lattice constants. Blue one (solid line) means the equilibrium lattice constant, and red is one to enlarge +5%.

FIGURE 4

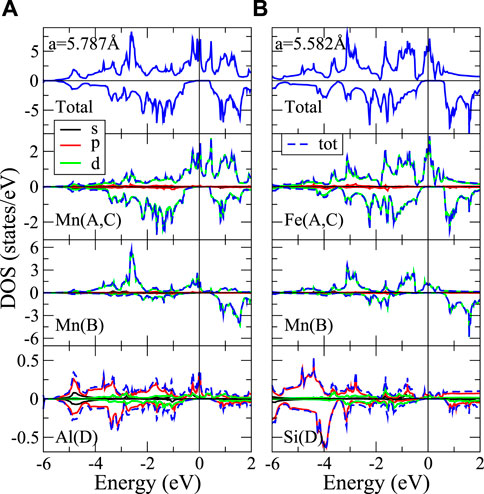

FIGURE 4. Total and atom-orbital-decomposed DOS for (A) AFM-HM Mn₃Al, and (B) FM-HM L2₁-Fe₂CrSi.

To illustrate the substitution effect on magnetism, we take Fe₂YGa as an example for discussion below. Figure 5 shows total DOS and atom-decomposed partial DOS of these compounds. Starting with Fe₃Ga, the Fe-3d spin up bands span from the Fermi level down to ∼ − 4 eV with the spin up band energies about 2 eV higher spanning from ∼ − 2 eV to $\sim 2$ eV. The energy shift between the spin up and down channels is about 2 eV due to the strong exchange interaction in magnetic Fe ions. The Ga-p bands exhibit a much wider bandwidth ranging from the Fermi level down to ∼ − 6 eV because of the covalent bonding character. The local environment of Fe(B) is very different from that of Fe (A, C) with the former comprising eight magnetic Fe (A, C) atoms and the latter consisting of 4 magnetic Fe(B) and 4 nonmagnetic Ga(D) atoms. Consequently, the exchange coupling in Fe(B) is stronger than that in Fe (A, C) (Figure 5), leading to the enhanced magnetic moment of 2.42 μ_B and suppressed moment of 1.89 μ_B, respectively, as listed in Supplementary Table A2. Similar behavior has also been reported previously [52].

FIGURE 5

FIGURE 5. Total and atom-decomposed partial DOS of (A) L2₁-Fe₂CrGa, (B) L2₁-Fe₂MnGa, (C) L2₁-Fe₃Ga, and (D) XA-Fe₂CoGa.

When we substitute one Fe in Fe₃Ga with Cr or Mn, they prefer the B-site to form the normal structure. As shown in Supplementary Table A1, the total energies of Fe₂CrGa and Fe₂MnGa in normal structure are indeed lower than that in inverse structure. Since Cr and Mn have respectively 2 and 1 fewer valence electrons than Fe, the majority spin band is no longer completely filled. On the other hand, the minority spin band shifts slightly toward lower energy due to the relatively weaker exchange interaction. This effect is stronger in Fe (A, C) and results in much smaller magnetic moments of Fe (A, C) in L2₁-Fe₂CrGa and L2₁-Fe₂MnGa. As shown in Figures 5A,B, the main contributions of DOS at the Fermi level (E_F) come from Fe (A, C) and Cr or Mn in the majority spin channel, while the minority spin DOS(E_F) are almost vanished, leading to nearly half metals with high spin polarization at E_F for L2₁-Fe₂CrGa and L2₁-Fe₂MnGa (99 and 75%, respectively). Similar behavior can be found when Ga is replaced by Al. Further, when Ga is replaced by Si, its spin polarization reaches 100%.

When Fe substitutes for Co, Co atom prefers to occupy the (A, C) sites and forms the inverse structure. Take Co residing in C site as an example (Figure 5D), the total and partial DOS of XA-Fe₂CoGa are quite similar to Fe₃Ga due to the similar local environment. However, the extra electron from Co occupies the minority spin bands, leading to slightly smaller total magnetic moment in XA-Fe₂CoGa (5.13 μ_B) than Fe₃Ga (6.05 μ_B).

Topological materials are of high research interest in the past decade due to novel phenomena and promising technological applications. We have also studied the topological aspect of obtained band structures for all the Heusler compounds investigated in this work. Interestingly we found few Heusler alloys with topological band structure such as 3-dimensional (3D) Dirac and nodal-line bands shown in Figure 6 and discussed below. Figure 6A shows the band structure of the Fe₂CrAl inverse Heusler structure. Among the spin down bands (red-dashed), there exist two parabolic bands around the high symmetric point X about 0.3 eV above E_F with one concave up and one concave down. They come across each other along high symmetric lines XΓ and XW, leading to Dirac cone-like linear bands with a crossing node (i.e., the Dirac point) and a small gap, respectively. This is the typical band dispersion of the 3D Dirac semimetal such as Cd₃As₂ [53] and Na₃Bi [54]. Note that the Dirac bands in Cd₃As₂ and Na₃Bi are doubly degenerate non-spin polarized bands. In contrast, the Dirac-like bands of Fe₂CrAl here are indeed spin polarized (spin down) single bands as can be seen in Figure 6A. Therefore, Fe₂CrAl should belong to the 3D Weyl semimetal category. Owing to the high tunability, Heusler candidate of 3D Weyl semimetal might provide a helpful platform to understanding the relationship between the topology and various physical properties [55, 56].

FIGURE 6

FIGURE 6. Band structure for (A) XA-Fe₂CrAl, (B) XA-Fe₂MnAl, (C) XA-Fe₂CrSi. Blue solid curves denote the spin-up bands, while red-dashed curves indicate spin-down bands. Blue shaded region indicates the continuous gap in the spin up channel.

After replacing Cr with Mn (Figure 6B), the band structure of Fe₂MnAl remains similar with the Fermi level shifted upward due to the extra electron of Mn. Consequently, the Weyl point shifts to a lower energy closer to the Fermi level. Further, with Si replacing Al (Figure 6C), the two parabolic bands of Fe₂CrSi cross each other linearly through two Weyl-point-like nodes almost at E_F. Actually, these two Weyl-point-like nodes would form a nodal ring circulating the high symmetry point X, which is similar to the nodal-line semimetal [56]. Recently, magnetic Weyl nodal-line materials have attracted increasing attention. For example, Ti₃C₂ has been theoretically predicted as a 2D magnetic Weyl nodal-line material with an extraordinary high Curie temperature above 800 K [57]. In our work, the Curie temperatures of XA-Fe₂CrAl, XA-Fe₂MnAl, and XA-Fe₂CrSi are estimated to be 1,152, 1,026, and 919 K, respectively. Based on our calculations and literature survey [48], the overestimation of T_c by the mean field approximation is less than 50%. Although our calculations may quantitatively overestimate the Curie temperatures, it can be qualitatively declared that these three compounds are ferromagnetic Weyl nodal-line compounds with extraordinary high T_c. According to our research survey, three-dimensional Weyl nodal-line compounds with high Curie temperatures have not yet been reported. Therefore, Fe₂CrSi discovered in this work serves as a good platform to study the magnetic Weyl nodal lines.

Further, the above mentioned topology-related bands are all located within the continuous gap with the energies of these crossing points very close to E_F (all within 0.3 eV around E_F). Such well-behaved topological bands will make experimental measurements on the evolution from 3D Weyl semimetal toward magnetic nodal-line semimetal via ion substitution highly feasible. Thus our work can facilitate the design and prediction of the magnetic topological properties in Heusler alloys.

The Curie temperature T_c of ferromagnets is the temperature that the magnetization of the magnetic material would disappear. High T_c material is also a key ingredient for the spintronic applications. The T_c can be calculated within the mean field approximation (MFA). In the classical Heisenberg model, the Hamiltonian (H) of a spin system can be written by

$H=-\sum _{i,j}{J}_{ij}{S}_i\cdot S_j,(1)$

where J_ij is the pair exchange coupling parameter and S_i, and S_j represent unit vectors of the magnetization of the spin. Within MFA, the Curie temperature of single lattice can be written as follow

$\frac{3}{2}{k}_B{T}_C^{\mathit{MFA}}=J_0\sum _j{J}_{0j},(2)$

where k_B, J₀, and J_0j denote Boltzman’s constant, average exchange coupling parameter, and pair exchange coupling parameter, respectively.

Theoretically, the exchange parameters J_0j can be obtained from the total energy differences of ab initio calculations with different magnetic configurations. For the ferromagnetic materials, the first (nearest) exchange parameters is usually the largest one. Simple evaluation of T_c leads to $\frac{3}{2}{k}_B{T}_c^{\mathit{MFA}}=J_{max}$. Here, J_max is the first exchange parameter. The J_max is calculated from the energy differences between ferromagnetic and nonmagnetic states. In this study, the J_max = − E_M/6 is used for the X₂YZ Heusler alloys in both L2₁ and XA structure. The number 6 indicates that there are six nearest magnetic atoms. The J_max = − E_M/12 is used for the X₃Z alloys. The calculated Curie temperature is also listed in Supplementary Table A2.

In order to establish a level of confidence for our estimated Curie temperatures, below we compared our results with those reported in previous experimental and theoretical works. In 2006, Kubler [48] has calculated the Curie temperature of L2₁ Mn₃Al, Mn₃Ga and Co₂FeSi, and their values are 342, 482, and 1267 K, respectively. Our obtained T_c for these three compounds are respectively 309, 458, and 1629 K. The deviation from the Kubler’s calculated Curie temperature are 10.7%, 5.2%, and 22%, respectively. In terms of experiments, we also found a fairly early literature [49] documenting that the Curie temperatures of Fe₃Al and Fe₃Si are 713 and 840 K, respectively. They are also in good agreement with our estimations of 710 and 709 K, respectively. Different from previous experience that mean field approximations usually overestimate the value of T_c, the good agreement obtained in this work is probably due to the highly accurate lattice constants and magnetic moments in comparison with the experimental values. On the other hand, our calculated T_c are higher than the experimental values of 830K and 1261K for XA-Fe₂CoAl and L2₁-Co₂FeAl, respectively, as measured by Ahmad [50]. Yet the order of magnitudes remain similar, and the calculated T_c can still be an important indicator for spintronics.

3.2 Mechanical properties

To understand the mechanical properties and stability of a solid, we have calculated the elastic constants and related physical quantities of the Heusler compounds X₂YZ as discussed below. Since the Heusler compounds studied in this work all belong to the cubic symmetry, we need only to consider three independent elastic constants, i.e., C₁₁, C₁₂, and C₄₄. These independent elastic constants are determined from the strain-stress relations by introducing finite distortions into the cubic symmetric lattice. Once the elastic constants are obtained, we can determine the bulk modulus B, shear modulus G, Voigt shear modulus G_V [61], Reuss shear modulus G_R [62], Young’s modulus E, anisotropy factor A, Poisson’s ratio ν, and Pugh’s ratio B/G from the following equations [63]

$B=\frac{C_{11}+2C_{12}}{3},(3)$

$G=\frac{G_R+G_V}{2},(4)$

$G_V=\frac{C_{11}-C_{12}+3C_{44}}{5},(5)$

$G_R=\frac{5\left(C_{11}-C_{12}\right)C_{44}}{4C_{44}+3\left(C_{11}-C_{12}\right)},(6)$

$E=\frac{9GB}{3B+G},(7)$

$A=\frac{2C_{44}}{C_{11}-C_{12}},(8)$

$\nu =\frac{E}{2G}-1,(9)$

where G_V and G_R are derived from different approaches. The G_V is based on the assumption of uniform local strain, while the G_R is based on the assumption of uniform local stress. These two different approaches have been shown [64] that the Voigt and Reuss shear modulus yield the strict upper and lower bound, respectively. Therefore, the average value of the G_V and G_R is usually used to characterize the shear modulus.

The mechanical stability criteria for the cubic structure [65] are as follows:

$C_{44}>0,(10)$

$C_{12}<B<C_{11},(11)$

$B>0.(12)$

As shown in Supplementary Table A3, all the calculated C₄₄ and B coefficients are positive. Consequently, the mechanical stability will be determined by Eq. 11. If C₁₁ < C₁₂, both A and G_R are negative, which indicates the structure is mechanically unstable. Accordingly, most of the studied cases listed in the table are mechanically stable except that Mn₃Z, Fe₂CoZ (Z = Al, Ga), and Fe₂CrSi in L2₁ structure, and Co₂FeZ (Z= Al, Ga) in XA structures are mechanically unstable. For L2₁-Fe₂CrSi, the unstable features can also be found in the Hill shear modulus (G) and Young’s modulus (E). In principle, C₁₁ − C₁₂ can be understood as the elastic constant under the orthogonal distortion of the conserving volume.

Bulk modulus B is also called incompressibility of a material. Supplementary Table A3 shows that most alloys in our study have the B values larger than 160 GPa of steel, indicating stronger incompressibility than steel. Alternatively, higher bulk modulus also means higher hardness. Interestingly, the bulk modulus of Fe_3−xY_xSi is obviously larger than that of Fe_3−xY_xAl and Fe_3−xY_xGa. Further, most of the B values of Fe₂CrZ, Fe₂MnZ, and Co₂FeZ (Z= Al, Ga, Si) in L2₁ structure are larger than those in XA structure. On the contrary, most of the B values of Cr₂FeZ, Mn₂FeZ, and Fe₂CoZ (Z= Al, Ga, Si) in L2₁ are smaller than those in XA. Combining these results with those in Supplementary Table A1, we can conclude that Heusler alloys with smaller lattice constants exhibit higher incompressibility.

In material science, shear modulus G is also known as modulus of rigidity. It is used to measure the ability of a material to resist the changes in chemical bonding angle by external force. This modulus is more related to the hardness of a material. In our calculation, the smallest values of shear modulus are 37.6 and 40.2 GPa for L2₁-Fe₂CoSi and Co₃Si, respectively. These values are very closed to the shear modulus of Phosphor Bronze (38 GPa) and Brass (40 GPa). The largest value of G is 128 GPa for L2₁-Fe₂MnAl, which is very close to the shear modulus of chromium.

Combining the shear modulus and bulk modulus, the well known Pugh’s ratio [63] of B/G can be used to estimate the failure behavior of compounds. A material is classified to be a ductile matter if B/G > 1.75, otherwise it belongs to a brittle matter. Therefore, L2₁-Fe₂CoSi and Co₃Si with the largest B/G values (5.5, 5.2) indicate the most ductile among all compounds in our study. According to this empirical criterion, most of the compounds studied are ductile except for Cr₃Al, Cr₃Ga, L2₁-Fe₂MnAl, XA-Fe₂MnAl, and L2₁-MnGa with more brittle properties. Interestingly, materials with very huge B/G values are too ductile to be stable. This behavior is consistent with the trend of stiffness that the more stiffness the material, the less ductility it is.

Generally, Young’s modulus E can present the stiffness of the material: a higher value of E indicates the material is stiffer. We found that L2₁-Fe₂CoSi has the smallest Young’s modulus of 106.4 GPa among all the mechanically stable Heusler compounds studied. This ultra low Young’s modulus value is very close to 106±10 GPa of the ultraelastic high-entropy alloys recently reported in Nature [66]. In addition to L2₁-Fe2CoSi, Co₃Si also has a very low Young’s modulus of 113.5 GPa, while remains mechanically stable. As such, these two Heusler alloys are excellent candidates for ultraelastic metals with high potential in advanced mechanical industry.

The Poisson’s ratio provides useful information to understand the characteristics of the bonding forces in a material [67]. It has been proved that ν = 0.25 is the lower limit of the central force solid, and ν = 0.5 is the upper limit of the infinite elastic anisotropy [68]. It has also been suggested to judge the brittleness and ductility as ν < 1/3 and ν > 1/3, respectively [69]. According to the above conditions, apart from the mechanical unstable materials which exhibit negative modulus/anisotropy factor, we found that 3 binary Heuslers Fe₃Ga, Co₃Ga, Co₃Si, 5-L2₁ Heuslers Cr₂FeSi, Fe₂MnSi, Mn₂FeSi, Fe₂CoSi, Co₂FeSi, and 4-XA Heuslers Mn₂FeGa, Cr₂FeSi, Mn₂FeSi, Co₂FeSi are ductile, and the others are brittle. The anisotropy factor A, as shown in Supplementary Table A3, of a solid can be used to predict whether the considered compounds are mechanical isotropy or anisotropy. A, also called the shear anisotropy factor, is defined as the ratio of the shear modulus between [001] and [1–10] directional stress on the shear plane (110). For the orthorhombic crystal, the shear modulus for a shear system (hkl)[uvw] is given by [70, 71].

$\begin{array}{ll}\hfill \frac{1}{G}& =4s_{11}\left(l_{11}^2{l}_{21}^2+l_{12}^2{l}_{22}^2+l_{13}^2{l}_{23}^2\right)+8s_{12}\left(l_{11}{l}_{21}{l}_{12}{l}_{22}+2l_{11}{l}_{22}{l}_{13}{l}_{23}+2l_{11}{l}_{21}{l}_{13}{l}_{23}\right)+s_{44}\left[{\left(l_{12}{l}_{23}+l_{22}{l}_{13}\right)}^2+{\left(l_{11}{l}_{23}+l_{21}{l}_{13}\right)}^2\right.\left.+{\left(l_{11}{l}_{22}+l_{21}{l}_{12}\right)}^2\right],\hfill \end{array}(13)$

where (l₁₁, l₁₂, l₁₃) is the direction of the shear stress, (l₂₁, l₂₂, l₂₃) is the normal vector of the shear plane (hkl), and s_ij is the elastic compliance constants $(s=C_{ij}^{-1})$. Also, the Young’s modulus depends on the stress direction (l₁, l₂, l₃). The relation between them is [70, 71].

$\frac{1}{E}=s_{11}{l}_1^4+s_{22}{l}_2^4+s_{33}{l}_3^4+\left(2s_{12}+s_{66}\right)l_1^2{l}_2^2+\left(2s_{23}+s_4\right)l_2^2{l}_3^2+\left(2s_{13}+s_{55}\right)l_1^2{l}_3^2.(14)$

Therefore, the elastic anisotropy factor can be defined not only by the shear modulus but also by bulk and Young’s modulus. Moreover, there are other definitions of elastic anisotropy factors such as percentage anisotropy incompressibility and shear [72] anisotropy. The shear anisotropic factors provide a measure of the degree of anisotropy in the bonding between atoms in different planes. As shown in Supplementary Table A3, the value of A for all the studied compounds is not equal to 1, which indicates that they are all elastic anisotropic. The difference of A from 1 (either larger or smaller than 1) provides an indication to estimate the level of elastic anisotropy acquired by the crystals.

To clarify the elastic anisotropy, we also present the orientation dependence of shear modulus and Young’s modulus as shown in Figure 8 and Figure 7, respectively. For the shear modulus, we present all directional values on (110) shear plane. The anisotropy factor A equals to the ratio between the x-intercept and y-intercept of the shear modulus contour. It is clear that L2₁-Fe₂CoAl and Mn₃Al (Figures 7B,D, respectively) exhibit very strong anisotropy pattern for the Young’s modulus, which means these materials are not stable. L2₁-Fe₂CrSi (Figure 8B) also exhibit strong anisotropy for the shear modulus.

FIGURE 7

FIGURE 7. The directional Young’s modulus (E, in GPa) with tensile axis rotated from [100] to [010]. The Young’s modulus of binary compound (A) Fe₃Al, (D) X₃Al. (B) and (C) are the Young’s modulus of Fe₂XAl in L21- and XA-structure, respectively. (E) and (F) are the Young’s modulus of X₂FeAl in L21- and XA-structure, respectively.

FIGURE 8

FIGURE 8. Contours of the shear modulus (G, in GPa) for shear stress along [001] to [1–10] on the (110) shear plane. The shear modulus of binary compound (A) Fe₃Al, (D) X₃Al. (B) and (C) are the shear modulus of Fe₂XAl in L21- and XA-structure, respectively. (E) and (F) are the shear modulus of X₂FeAl in L21- and XA-structure, respectively.

Supplementary Table A4 lists calculated thermodynamics related results such as the density ρ, longitudinal v_l, transverse v_t, average v_m sound velocity, Debye temperature Θ_D, melting temperature T_m, and minimum thermal conductivity κ_min. According to the Debye theory, the Debye temperature Θ_D of a material correlates to the elastic properties and the thermodynamic properties. Therefore it is of importance to calculate the Debye temperature in this study. The Debye model assumes that the solid is elastic continuum in which all sound waves travel at the same velocity independent of their wavelength. The Debye temperature is the temperature of a crystal’s highest normal mode of vibration. The lattice vibrations also determine the thermodynamic properties such as thermal expansion and melting temperature T_m of a solid. It also corresponds to the structural stability and the strength of bonds. The phase velocity of a solid can be determined from the transverse and longitudinal modes by using elastic constants. In this study, transverse v_t and longitudinal v_l as well as average v_m sound velocity are calculated from Navier’s equation [73] as:

$v_l=\sqrt{\frac{3B+4G}{3\rho }},v_t=\sqrt{\frac{G}{\rho }}(15)$

and

$\frac{1}{v_m}=\sqrt[3]{\frac{1}{3}\left(\frac{1}{v_l^3}+\frac{2}{v_t^3}\right)}.(16)$

The Debye temperature can be estimated from the average elastic wave velocity v_m:

${\mathrm{\Theta }}_D=\frac{h}{k_B}\sqrt[3]{\frac{3n}{4\pi V}}{v}_m(17)$

where h is the Planck constant, k_B is the Boltzmann constant, n is the number of atoms per formula, V is the atomic volume, and v_m is the average sound velocity. It is clear that the sound velocity is related to the elastic moduli (B and G).

As shown in Supplementary Table A4, the average sound velocity v_m ranges from 1721 to 3,089 m/s². We can find that G has more influence than B in the magnitude of sound velocity. For instance, among all Fe_3−xY_xZ, L2₁-Fe₂MnAl has the largest sound velocity and shear modulus, but does not show the largest bulk modulus. Due to the smallest shear modulus, the Debye temperature Θ_D of Fe₃Ga, Co₃Ga, Co₃Si, XA-Mn₂FeGa, XA-Co₂FeSi, XA-Fe₂CoGa, and L2 − 1-Fe₂CoSi ranging from 249 to 294 K are lower than room temperature. In contrary, the Θ_D of L2₁-Fe₂CrAl, Cr₃Al, L2₁-Fe₂MnAl, and XA-Fe₂MnSi larger than 400 K also come from their largest G, which means that the larger Θ_D reflects the higher hardness. Actually, the Debye temperature estimated in this way is usually overestimated than the actual value because the contribution of the optical phonon is ignored here. However, it is still a useful reference in spintronic material design. Further, the melting temperature is a fundamental parameter for the materials being used in heating systems. Materials with high melting temperature are favorable to remain stable against large range of temperature. Fine et al. [74] have studied many cubic metals and compounds and obtained an approximate empirical formula for T_m:

$T_m=\left[533+5.91C_{11}\right]\pm 300.(18)$

In our calculations, the melting points of 16 alloys are higher than 2000 K, and overall they are higher than 1500 K. Particularly, most of Fe_3−xY_xZ family show higher melting temperature than stainless steel (1̃700 K). We also find that the melting temperature is highly related to the Debye temperature, i.e., higher Θ_D usually correspond to the higher melting temperature.

Beyond Debye and melting temperature, the thermal conductivity is the property of a material that describes its ability to conduct heat. To know if a material is a potential candidate for thermal application, the thermal conductivity needs to be investigated. Thermal conductivity is contributed from electron and phonon (lattice). In this study, we focus on the lattice thermal conductivity for possible thermal-related devices based on Heusler materials. Following the Debye model, Clarke [75] suggested that the theoretical minimum thermal conductivity at high temperatures is in proportional to the mean phonon velocity and the phonon mean free path. The mean phonon velocity is written in terms of the Young’s modulus and its density and the minimum phonon mean free path is the cube root of the volume of a molecule. Therefore, the minimum thermal conductivity κ_min can be evaluated as:

${\kappa }_{min}=0.87k_B{N}_A^{2/3}\frac{n^{2/3}{\rho }^{1/6}{E}^{1/2}}{M^{2/3}},(19)$

where N_A is the Avogardo’s number, n is the number of atoms per molecule, ρ is the density, and M is the molecular mass. The calculated minimum thermal conductivity is summarized in Supplementary Table A4. All the κ_min values are below 3 W/mK, indicating that these Heusler compounds serve as low lattice thermal conductivity materials. The low thermal conductive material is essential to improve the performance of thermoelectric conversion materials. Furthermore, we also find that L2₁ structure generally leads to higher thermal conductivity than that given from XA structure, except for Cr₂FeAl, Cr₂FeSi, Fe₂MnSi, and Fe₂CoSi. This is because that L2₁ is more symmetric than XA as suggested by Miyazaki et al [76]. In Eq. 19, k_B, N_A, and n are constants and density ρ can be in terms of M and equilibrium lattice constant l₀. Therefore, κ_min is directly proportional to $\sqrt{l_{0}E/M}$. That means smaller lattice constant, larger molecular mass, and larger Young’s modulus are helpful to guide the design of low thermal conductive material. In our case, Young’s modulus has more significant effect than l₀ for thermal conductivity.

4 Conclusion

We have investigated a series of Fe-based Heusler compounds Fe_3−xY_xZ (x = 0, 1, 2, 3; Y= Cr, Mn, Co; Z= Al, Ga, Si) with L2₁ and XA structure. Based on the calculated formation energies and mechanical property analysis, most of the studied Heusler compounds are thermodynamically stable and could be synthesized experimentally. For the substitution effect, we found that replacing Fe in Fe₃Z with Cr, Mn, or Co shows very different trends in magnetic property and spin polarization. For Co substitution, Fe_3−xCo_xZ remains a ferromagnetic state like Fe₃Z with higher total magnetization ranging from 4 to 6 μ_B/f. u. Whereas replacing Fe with Cr or Mn, the spin moments between Cr(Mn) and its neighboring atoms tend to align antiparallel in most cases with high spin polarization at E_F. Furthermore, we predict that Mn₃Al and Mn₃Ga are antiferromagnetic half metals, while Mn₃Si is ferrimagnetic half metal. These rarely found low-moment magnetic materials with high spin polarization at E_F are important for spintronics applications due to the lower energy consumption. In addition, an ideal semiconductor spin electron injection source should not only possess a high spin polarizability, but also a high Curie temperature. We found that among all materials in this study, L2₁-Fe₂CrSi and XA-Mn₂FeGa satisfy both high spin polarizability ($>$95%) and high Curie temperature ($>$800 K), and is expected to be an ideal semiconductor spin electron injection source. As for the topological aspect, we also found that several Heusler alloys may possess topological properties. Specifically, we predict XA-Fe₂CrAl and XA-Fe₂MnAl as the 3D Weyl semimetal. Furthermore, XA-Fe₂CrSi is predicted to be the magnetic nodal-line semimetal. The calculated Curie temperatures of Mn₃Al, and Mn₃Si and XA-Co2FeSi are in good agreement with previously theoretical values, while the calculated T_c of Fe₃Al and Fe₃Si are in good agreement with previous experimental values, implying that our calculations provide a reasonably good starting point for material application. Based on the mechanical property analysis including bulk, shear, Young’s modulus, as well as Debye and melting temperature, we demonstrate that L2₁-Fe₂CoSi and Co₃Si are high-potential candidates of ultraelastic metals for advanced mechanical industry. Our work provides useful guides in Heusler compounds for applications in future spintronics and development of high-performance ultraelastic metals.

Data availability statement

The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding authors.

Author contributions

H-LH and J-CT perform the calculations. H-TJ supervise the project. All the three draft the manuscript.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Acknowledgments

This work was supported by the Ministry of Science and Technology, Taiwan. H.-T.J. also thanks support from NCHC, CINC-NTU, AS-iMATE-109-13, and CQT-NTHU-MOE, Taiwan.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fphy.2022.975780/full#supplementary-material
