Atomic Insight Into Phase Transition Lowering in Shock Compressed Copper

  • Department of Physics, National University of Defense Technology, Changsha, China

High pressure structural transformation of copper (Cu) is a rather complex physical process. One of the intriguing questions that are rarely discussed is the comparison between quasi-isentropic response and adiabatic response for copper lattice transition. The ambient face-centered-cubic structure of Cu is predicted to persist over 100 TPa from ab inito calculations and experimentally demonstrated to persist until 1.15 TPa in ramp compression and 150 GPa in static compression. However, a novel body-centered-cubic (BCC) order is observed merely at 180 GPa once shock compression is applied. The mechanism of body-centered-cubic phase transition occurred at low pressure under shock compression remains elusive so far and much attention is required on the dynamics in such a phase transition. In this work, we utilize the molecular dynamics method to simulate the shock compression on a copper lattice to uncover the structural transition in the atomic scale. We report the FCC–BCC phase transition occurred at 156 GPa, and lots of disordered structures are discovered in the BCC phase after impact, revealed by a series of structure analysis tools and free energy calculations. The plethora of transient disordered structures reduces the global Gibbs free energies, thus leading to the downgrade of the transition pressure in contrast to the ramp and static compression, which provides a new perspective for structural transformation under extreme conditions.

1 Introduction

The advances in high-pressure techniques [15] have largely progressed the investigation of condensed matter physics in an extreme condition, which significance has expanded in other associated subjects such as geophysics[6], planetary astrophysics[7,8], and inertial confinement fusion[9,10]. Two of the prevailing approaches are favored for achieving high pressure: diamond anvil cell (DAC) method and dynamic shock wave method, the former belongs to static compression and the latter is dynamic. Albeit a similar pressure environment can be generated by both strategies, the physical process by each method is largely different [1116]. The static compression can be applied for significant long time in most material systems since a nearly isotropic strain is induced and the shear strain is negligible that is normally omitted. In contrast, the shock compression generates uniaxial strain with ultra-high rates that results in a rapid increment in temperature in candidate materials [17]. The experimental identification of phase transitions in such a drastic process is rather difficult. Although ultrafast probes such as in-situ time-resolved X-ray diffraction technique is readily available for identifying the transient dynamics in structural transformation, limited results are reported in comparing the structural transformation path between dynamic and static compressions, neither experimentally nor theoretically.

A standard single crystal in the field of high-pressure is copper (Cu), which is a typical close-packed face-centered-cubic (FCC) structure at ambient environment. The mechanical properties and equation of states for Cu have been extensively investigated in last few decades [1824]. The stability of the FCC phase in Cu is believed to be so strong that can endure very high pressure before melting [25]. The previous studies of structural transformation in compression experiments by either the hydrostatic or shock impact approach have never reported the existence of the BCC phase [26]. Both strategies imply that only the FCC phase is identified: static compression reports that the FCC phase persists at 150 GPa by experiment [27] and even higher pressure to 100 TPa is predicted by first-principles calculations[28], while the ramp compression experiment finds that the FCC is preserved up to 1.15 TPa[29]. Recently, an anomalous FCC–BCC phase transition in Cu is revealed by in situ XRD experiment under shock compression[30], which motivates the retrospect for the remaining question of phase transitions in Cu.

In this work, we utilize molecular dynamics (MD) simulations to investigate the shock-induced phase transition of Cu. An explicit FCC–BCC phase transition is observed at 156 GPa, resembling the experimental value. Locally disordered structures induced by shock wave are resolved as opposed to a perfect crystal, which are favored in this drastic phase transition dynamics implied by free energy calculations. The structures are characterized as short-range disordered structures, which are identical with BCC structures in the long-time statistical average. This work sheds light on the understanding of microscopic picture in shock compression process in a traditional robust crystal.

2 Computational Methods

The embedded-atom-method (EAM) potential of copper presented by Mishin et al. [31] has been applied for MD simulations implemented under LAMMPS framework[32]. The popular non-equilibrium molecular dynamics (NEMD) approach is applied to generate a unidirectional planar shock wave. The shock wave is simulated by a piston applied to the sample. The method of Multi-Scale Shock Technique (MSST) [33] is a simulation technique based on the Navier-Stokes equations for compressible flow. All atoms in the system update positions and velocities following the modified Lagrangian, so as to restrain the systems to the Hugoniot-based thermodynamic conditions (see the Supplementary Material for details).

For NEMD simulations, the initial samples are first equilibrated by applying isothermal-isobaric at 300 K and 1 bar for 500 ps with a timestep of 1 fs Then, the propagation of shock waves is along the z-direction with a timestep of 0.1 fs. Period boundary conditions are performed in the x- and y-direction, a reflection boundary is performed in the z-direction. For MSST simulations, the initial configurations of the single FCC crystal have been equilibrated by applying the isothermal-isobaric, NPT ensemble integration scheme (for 500 ps with a timestep size of 1 fs) along with the Nose–Hoover thermostat algorithm at 300 K and 1 bar. Periodic boundary conditions are maintained in all three directions. After equilibrium, the applied shock speed ranged from 5.0 to 8.4 km/s with an interval of 0.2 km/s by MSST simulations for a duration of 500 ps. The masslike parameter Q was set to 3600, the artificial viscosity mu was set to 0.0903, and the converting factor tscale was set to 0.01. The data collection was performed after 100 ps when all physical quantities are stable. In all the MD simulations, the shock wave is applied to the single crystal FCC copper along (100) orientation.

Different analysis methods have been used to diagnose the structure. By using a simulated radiation of wavelength (0.5266 Å), X-ray diffraction intensities are calculated on a mesh of reciprocal lattice nodes (method described in Ref. [34]); the simulated XRD profiles of intensity versus scattering angle (2Θ) are fitted by a Gaussian function. The adaptive common neighbor analysis (a-CNA) method is to reveal the finite number of local arrangements with the FCC, BCC, or HCP crystal structure [35]; [36]. The a-CNA method (see the Supplementary Material for details), performed by the OVITO software [36], is a short-range diagnosis based on the coordination number of atoms. The effective coordination number (ECN) method [37] is utilized to distinguish the atoms unrecognized by a-CNA, and it is able to detect the symmetry structure in which a particular atom is surrounded by atoms at different distances (see the Supplementary Material for details). Ten snapshots were collected from MD simulation trajectories to obtain time-averaged information.

The nonequilibrium thermodynamic integration (neTI) method [38] is proposed for calculating the free energy. The commonly used thermodynamic integration technique [39] to evaluate free energy is performed by constructing a sequence of equilibrium states on a path between two thermodynamic states of interest. Compared with standard equilibrium free-energy calculations, the neTI method allows the calculations to be assessed along explicitly time-dependent processes. The shock-induced BCC structures are generated by MSST simulations in the shock velocity of 7.4 km/s, corresponding to a compression pressure of 156 GPa. The Gibbs free energy differences between FCC and shock-induced BCC are calculated at different temperature and pressure based on shock conditions (details in the Supplementary Material).

3 Results and Discussion

Different configurations have been used to check the convergence of NEMD simulations (Supplementary Table S1), and the initial configuration with 2160000 atoms is shown in Supplementary Figure S1 Based on the EAM potential of Cu developed by Mishin et al., the equation of states in this work matched well with previous results as shown in Supplementary Figure S2A. Variable sizes have been performed for MSST method testing (Supplementary Figure S2B). The peak longitudinal stress (P)–volume (V) states for high pressure Cu is shown in Figure 1A. The results determined from the present simulations coincide with the previously Hugoniot curve and recently shock wave experiment[30]. Based on the XRD measurement, the presence of the BCC structure has been found in lower pressure, as shown in Figure 1B. In the shock experiments, the measured XRD line profiles with (hkl) peaks indexed are used to identify the nature of the copper foils. At ambient condition, the MD simulation result is in good agreement with the experimental result. The line profiles of the shock experiment show that Cu remains in the FCC phase up to 156.8 GPa, only the first peak matches the MD result at 119 GPa. The peak indexed as the (110) BCC peak partially overlaps with the (111) FCC peak at 181.5 GPa indicates the mixed FCC–BCC phase. The observed overlapped peaks in MD simulation results are much similar to experiments, but the BCC peak is found at 155.9 GPa. With increased shock pressure, the FCC peaks completely vanish in both experiment and MD simulation at 211.5 and 196 GPa, respectively. The static compression and the ramp compression data [28, 29] (the FCC structure is preserved up to terapascal range) also have been plotted in Figure 1A. As shown in Figure 1, there is no observation of the BCC phase with static and ramp compression up to terapascal regime, while only shock loaded Cu generates the BCC structure in the range of gigapascal.

FIGURE 1
www.frontiersin.org

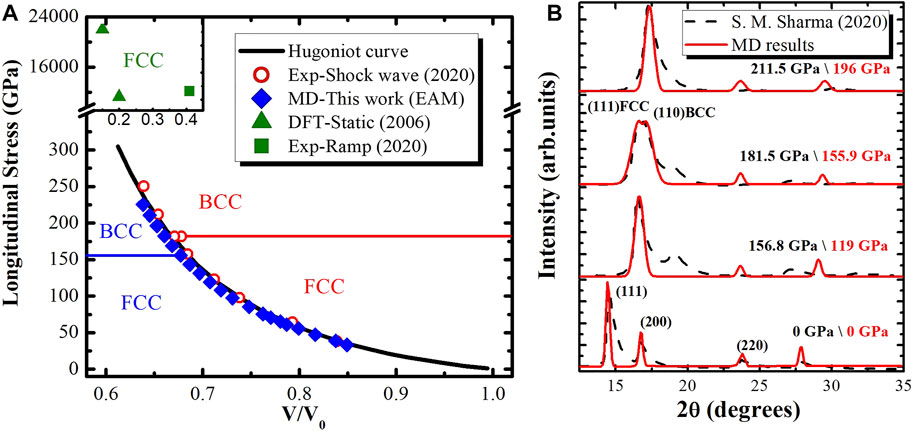

FIGURE 1. (A) Longitudinal stress vs. volume compressions for compressed copper. (B) The XRD profiles for shock compressed copper. The red solid curves denote MD simulations under different shock pressure. The black dash curves denote experimental results.

The structures of Cu at representative pressure by MSST simulations are exhibited in Supplementary Figure S3. Before the transition to the BCC phase, different types of stacking faults occur containing FCC and HCP. The fraction of atom types under different shock intensities by a-CNA is shown in Figure 2A. It can be observed that the FCC structure comprises the main part for low-intensity shock compression (below 38.8 GPa). The proportion of the HCP structure arises as shock intensities rise to 85.5 GPa. Prior to the occurrence of the BCC structure, both FCC and HCP structures contribute to the generation of stacking faults, which has not been reported by existed experiments. At 98 GPa, the fraction of FCC and HCP nearly dropped to zero, while the content of BCC atoms suddenly increased. It is shown that the onset pressure of phase transition is 98 GPa rather than 156 GPa through the XRD method. The difference between a-CNA and XRD methods results from short or long range diagnosis characteristics. The a-CNA is applied in a confined local crystal structure when analyzing an instantaneous neighbor environment. Hence, the termed “OTHER” in Figure 2A represents those particles not defined by a-CNA. The ECN of Cu on three typical shock compression is shown in Figure 2B. The probability distribution of ECN about four types of atoms classified by a-CNA. The coordination number (CN) of BCC atoms is different from FCC and HCP atoms. It is observed that “OTHER” type atoms are almost identical with BCC atoms based on the same peak position and wave broadening. The shape of probability distribution, both FCC and HCP types, is not smooth as the pressure is increased. Meanwhile, the shape of ECN distributions has a trend of broadening owing to increasing shock intensities accompanied with the temperature increase. These observations are also found under other shock pressures (Supplementary Figure S4). It can be concluded that “OTHER” type atoms are charactered as the BCC structure in the long-time statistical average. The radial distribution functions (RDFs) of the initio FCC structure, BCC structure (rebuilt perfect BCC crystal under 156 GPa static pressure), shock-induced BCC structure (156 GPa shock pressure), and liquid copper (156 GPa static pressure) have been compared (Supplementary Figure S5). The RDF suggests that short-ordered or medium-ordered structural features emerge after shock compression. Thus, “OTHER”-type atoms should be regrouped into either long-time statistical averaged BCC structures or short-range disordered structures. Compared with static compression, shock compression will cause instantaneous disordered structures due to strong uniaxial strain and temperature increase rapidly.

FIGURE 2
www.frontiersin.org

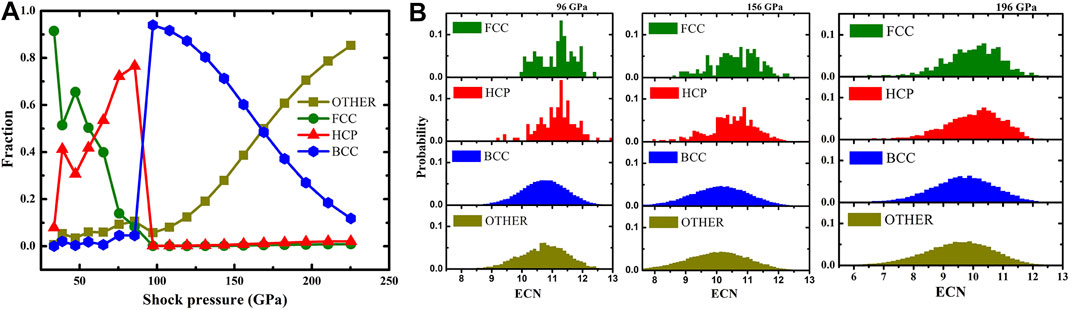

FIGURE 2. (A) The fraction of atoms with four structural types under different shock pressure are analyzed by a-CNA. (B) The ECN distribution of atoms with corresponding structures under three typical pressure.

In particular, the phase diagram of Cu has been known only to a pressure range below 500 GPa and mostly about solid–liquid transition[12,43]. The phase diagram of Cu is shown in Figure 3. The non-equilibrium processes based on the thermodynamic integration (ne-TI) method have been performed for the free energy calculations. The shock-induced BCC structures are generated by MSST simulations in the shock velocity of 7.4 km/s, corresponding to 156 GPa, 3400 K. The phase boundary of FCC–BCC along principal Hugoniot is located around 150 GPa (Supplementary Figure S6), which supported the results of XRD diagnosis. Based on the above discussion, the shock-induced BCC structure can be redefined as perfect BCC with disorders. This special structure found in simulation is characterized to be short-range disordered and meanwhile in long-time statistical averaged order. It is worthy to emphasize that the short-range disordered structures play a significant role in lowering the phase transition energy barrier in the FCC–BCC transition.

FIGURE 3
www.frontiersin.org

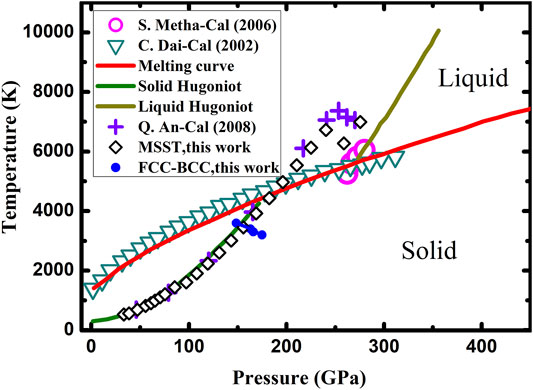

FIGURE 3. Phase diagram of compressed copper. The blue dots denote thermodynamic equilibrium states, which indicate that the Gibbs free energy difference equals to zero. The phase boundary of FCC–BCC (blue line) is obtained by square polynomial fitting on the blue dots (simulation data) [40]; [42]. Other results obtained from Ref [[12,4345]].

4 Conclusion

In summary, the present investigation using molecular dynamics simulations to examine copper shock compressed to a wide range of P–T conditions provides detailed microscopic information about the structural transformation process that cannot be observed by experiments. The present finding regarding the FCC–BCC transition is in agreement with the recent in situ XRD results for shock-compressed Cu. In contrast to static and ramp compression, shock wave compression results in rapid pressure load and concomitant temperature increase. Shock compression of Cu generates the instantaneous disordered structure based on the a-CNA and ECN method; the particular structure is long-range ordered through XRD diagnosis. As discussed above, there is a clear link between the occurrence of the FCC–BCC phase transformation and the presence of shock-induced disordered structures. Therefore, the generation of disordered structures in shock-compressed Cu would reduce the Gibbs free energies of the BCC crystal. Such investigations would elucidate possible fundamental differences between shock compression and static compression in the microscopic nature.
