Numerical Analysis of Effective Permeability of Concrete-Like Material With a Random Three-Phase Mesostructure

Interfacial transition zone (ITZ) is an important component of a concrete-like material. Accurately simulating the ITZ's characteristics of the concrete-like materials is a difficult process in numerical simulation. This article proposed a random three-phase mesostructural modeling method using the incorporation of random aggregate generation, Minkowski sum theory, and polygon union techniques. It was found that this method can better simulate the mesostructure and ITZ characteristics of concrete-like materials. By using this method, a random three-phase mesostructural model had been built for conducting a finite element analysis to investigate the effective permeability parameters of concrete. A good agreement between numerical and experimental results indicates the feasibility of this method in the concrete-like material analysis.

Introduction

Concrete is regarded as a composite material composed of aggregates, cement mortar, and an interfacial transition zone (ITZ) between it. The concept that an ITZ exists around sand and coarse aggregate particles in concrete has been one of the accepted tenets of concrete technology for many years [1]. Due to low strength, low elastic modulus, and high permeability, the ITZ is considered to be the weakest area of concrete. To some extent, the ITZ is the main factor which determines the mechanical properties of concrete.

How to accurately describe the characteristics of the ITZ is significant in the study of concrete mechanical behavior. Compared with the simple analytical investigation, numerical simulation technology can be considered to be competent for the mechanical description of complex morphological ITZ characteristics of concrete-like materials [2]. By establishing a random aggregate mesoscale model which can reflect the aggregate gradation, content, and morphology, the performance index of each phase of concrete can be obtained with a numerical simulation. The application of numerical simulation has gradually deepened the understanding of the meso-mechanical behavior of concrete-like materials [3].

At present, there are four main ways to model an ITZ of concrete. The first method is to treat the concrete aggregates as a polygon and to extend around the polygon [4,5]. However, when the particles have sharp corners, this method overestimates the range of the ITZ. The second method is using the same cubic elements and setting the boundary element of aggregates as that of the ITZ [6]. This solution is easy to use but the geometry of the ITZ cannot be described accurately. The third approach is to treat the ITZ as a thickness-free interface element and set a weak parameter for the ITZ [7–9]. However, two problems exist in this method. The parameters of the thickness-free interface element are difficult to determine, and the time step will be very small due to large stiffness of the cohesive element. The fourth method is realized by the Minkowski sum theory, which can reasonably determine the ITZ [10–12]. This method can describe the geometry of the ITZ accurately and can set different thicknesses easily. However, most of the particles used in the current research are convex, and there are only a few studies that use concave particles.

This research proposed a three-phase random mesostructure model generation method consisting of an aggregate, a matrix, and an ITZ. A Minkowski sum algorithm for the concave aggregate is employed to calculate the ITZ. Based on the random mesostructural model established using this method, a finite analysis had been conducted to study the effect of the ITZ on the effective permeability coefficient of concrete.

Methods

Aggregate Generation

There are many methods to generate aggregates, like point extension [13], Fourier transform [14], and spherical harmonics [15]. In this article, a simple random perturbation, which was proposed by the previous study, is employed [16,17]. The procedure of the rock aggregate generation is described as follows:

1) Generate a set of random length sequences $\left\{r_1,r_2,r_3,\dots ,r_n\right\}$:

$r_i=r_0+\left(2\varsigma -1\right)\Delta r(1)$

$\varsigma =rand\left(\mathrm{0,1}\right),\Delta r=rand\left(0,r_0\right).(2)$

2) Generate a set of random angle increments $\left\{\Delta {\theta }_1,\Delta {\theta }_2,\Delta {\theta }_3,\mathrm{...},\Delta {\theta }_n\right\}$, where the range of Δθ_i is from −2π/n to 2π/n:

$\Delta {\theta }_i=\frac{2\pi }{n}+\left(2\varsigma -1\right)\eta \frac{2\pi }{n},(3)$

where η is a coefficient between 0 and 1.

3) Memorize all Δθ_i which are equal to 360°, the Δθ_i are processed following Eq. 3 and then updated to the sequence as follows:

$\Delta {\overline{\theta }}_i=\Delta {\theta }_i\frac{2\pi }{{\displaystyle \sum \Delta {\theta }_i}}.(4)$

4) Convert the polar coordinate system into the Cartesian coordinate system; the following coordinates are obtained:

$x_i=r_i\cos \left({\displaystyle \sum _{j=1}^i\Delta {\overline{\theta }}_j}\right)y_i=r_i\sin \left({\displaystyle \sum _{j=1}^i\Delta {\overline{\theta }}_j}\right),(5)$

In the above five equations, the subscript “$i$” means the corresponding variables at the $i$-th point for generating a polygon.

Minkowski Sum-Based ITZ

Minkowski sum is named after the great German mathematician Hermann Minkowski. It is used as the sum of two convex point sets. The Minkowski sum of point set A and B is defined as follows:

$A\oplus B=\left\{a+b|a\in A,b\in B\right\}.(6)$

It is noted that the original Minkowski sum is only suitable for the convex polygon. For two concave polygons, a set of convex sub-polygons is obtained using the convex decomposition method.

We then calculate the pairwise sums using a simple procedure for the Minkowski sum and finally compute the union to get the final shape. As for the generation of the ITZ of concrete, we can add the concave aggregate with a small disk as shown in Figure 1.

FIGURE 1

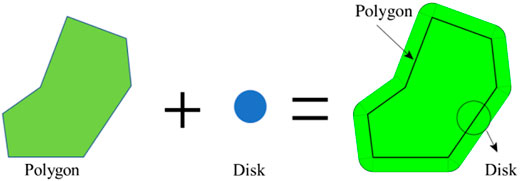

FIGURE 1. Concrete ITZ generation using the Minkowski sum.

Three-Phase Mesostructure Model

Random Aggregate Placement

Random aggregate placement includes particle generation, trial placement, judging intersections, adjusting positions, and determining the placement. The detailed process is given as follows:

1) Randomly select a particle size in the range of the particle gradation sizes. If the aggregates tend to arrange, rotate the particles to the specified inclination angle.

2) Transfer the block randomly into a box and judge whether it intersects with the placed block; polygon contact analysis is a well-studied problem in computational geometry.

3) If they do not intersect, the placement of this block is determined. If the result of the block intersection is obtained in step (2), re-determine the placement position of the block and repeat step (2) until the placement is confirmed.

ITZ Union

After the ITZ of concrete is generated, a new problem arises. The rock aggregate is non-overlapping as shown in Figure 2A. After the Minkowski sum of a disk is calculated, the ITZ geometry will be connected (Figure 2B). In this study, we simply use a union algorithm in Matlab to put together the connected areas into one area, as shown in Figure 2C.

FIGURE 2

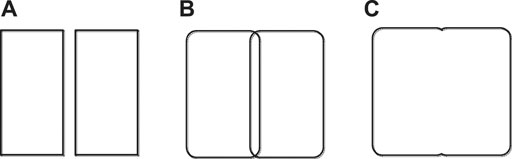

FIGURE 2. Union of the ITZ geometry: (A) Two aggregates, (B) ITZ boundary, and (C) Union of ITZ.

Concrete Model Generation

The random generation of concrete is based on a procedure which is commonly called the “take-and-place method” [18]. Based on the analysis mentioned above, there are mainly five steps proposed for the model generation, stated as follows:

1) The size segment and size distribution of aggregates are determined based on the proposed method.

2) Generate a random aggregate initially and reshape it according to properties such as elongation, direction, and smoothness.

3) Place the aggregates in the domain while considering the border effect. If there is no overlap with the previously generated rock blocks, new rock aggregates will be generated one-by-one in this way.

4) Implement the Minkowski sum with a small disk with a radius of the ITZ 's length for all the rock aggregates.

5) Merge the ITZ geometry and write the information of the ITZ and rock aggregates in the geometry software. In this study, the “dxf” file format was adopted in AutoCAD.

Results

To validate the feasibility of this method, we refer to a laboratory test by [19] to analyze the effective permeability of concrete. A cubic concrete sample (Ls = 100 mm) having 88 aggregates in a volume fraction of 40% is randomly generated, as shown in Figure 3A. After adding a disk with a radius of 0.5 mm using the Minkowski sum and union operation, the three-phase concrete model is built as shown in Figure 3B.

FIGURE 3

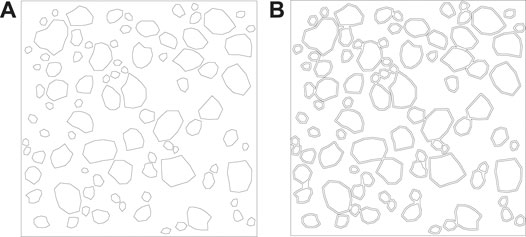

FIGURE 3. Generation of the three-phase concrete: (A) rock aggregate model and (B) three-phase model.

In this study, GeoStudio is employed to calculate the permeability of the three-phase concrete. Considering this model to be a multiply-connected region, the three-phase model cannot be imported directly into GeoStudio. We first collect the centroids of all particles and plot the ray line. In this way, the whole model can be cut into a lot of slices. In this way, the multiply-connected region is divided into a simply connected region that can be imported into GeoStudio in the format of a closed polyline. Afterward, we re-assign the group for each area that can generate the final model.

The permeability parameter is referred from previous studies. The coefficient of the permeability of mortar is readily obtained from the laboratory experiment as $k_m=1.95\times {10}^{-2}mm/s$, and the aggregates are assumed to be impermeable (e.g., $k_a=1.95\times {10}^{-9}mm/s$). The permeability coefficient of the ITZ is defined as $k_{itz}=\lambda k_m$, and the coefficient is set as 10.

After the permeability parameter for each material is assigned, a seed density of 0.5 mm is used to mesh the model. To compute the effective coefficient of concrete, a numerical constant water head with a height of 1 m is employed as shown in Figure 4A.

FIGURE 4

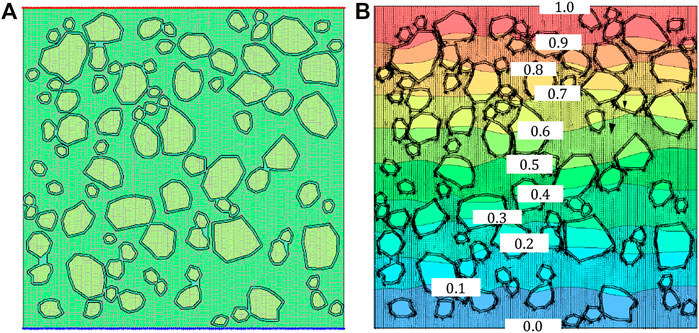

FIGURE 4. FEM simulation of the three-phase concrete: (A) mesh model and (B) FEM simulation result.

Based on the numerical simulation results of the seepage field (Figure 4B), the effective permeability of concrete is estimated with a value of $6.73\times {10}^{-3}mm/s$. The value of the laboratory test result is $6.21\times {10}^{-3}mm/s$. The error between the numerical and laboratory test values is 8.37%. The result indicates that the proposed numerical model can give a good estimation of the permeability of concrete.

Conclusion

This work proposed a three-phase model generation method for concrete-like materials using the Minkowski sum theory. This method can give an accurate description of the ITZ geometry. The numerical simulation result of FEM shows a good agreement with the experimental parameters. This study indicated that the ITZ is a very important factor which affects the property of the concrete-like material.

Besides, this method provides a numerical tool for the analysis of percolation. With the variation in the ITZ's thickness and parameters, a more interesting result will be obtained. As a common technique, this study has a broad application prospect in the future.
