Comparison of Deep Inspiration Breath Hold Versus Free Breathing in Radiotherapy for Left Sided Breast Cancer

Objectives: Modern breast cancer techniques, such as the deep inspiration breath-hold (DIBH) technique has been applied for left-sided breast cancer. Whether the DIBH regimen is the optimal solution for left-sided breast cancer remains unclear. This meta-analysis aims to elucidate the differences of DIBH and free-breathing (FB) for patients receiving radiotherapy for left-sided breast cancer and provide a practical reference for clinical practice.

Methods: Relevant research available on PubMed, Embase, Cochrane Library, and the Web of Science published before November 30, 2021 was independently and systematically examined by two investigators. Data were extracted from eligible studies for assessing their qualities and calculating the standardized mean difference (SMD) and 95% confidence intervals (CIs) using Review Manager software 5.4 (RevMan 5.4).

Results: Forty-one studies with a total of 3599 left-sided breast cancer patients were included in the meta-analysis. Compared with FB, DIBH reduced heart dose (D_mean, D_max, V30, V10, V5), left anterior descending branch (LAD) dose (D_mean, D_max), ipsilateral lung dose (D_mean, V20, V10, V5), and heart volume significantly. Lung volume increased greatly, and a statistically significant difference. For contralateral breast mean dose, DIBH has no obvious advantage over FB. The funnel plot suggested this study has no significant publication bias.

Conclusions: Although DIBH has no obvious advantage over FB in contralateral breast mean dose, it can significantly reduce heart dose, LAD dose, ipsilateral lung dose, and heart volume. Conversely, it can remarkably increase the ipsilateral lung volume. This study suggests that soon DIBH could be more widely utilized in clinical practice because of its excellent dosimetric performance.

Introduction

Breast cancer is a significant global public health problem and the leading cause of cancer mortality in women (1). Adjuvant radiation therapy has a major role managing this disease, reducing the risk of local recurrence and breast cancer-specific mortality (2). It is certain that radiotherapy is an effective way to treat breast cancer, and significantly prolongs the survival time. However, breast cancer radiation therapy is also associated with higher cardiac and pulmonary toxicity [e.g., radiation-related heart disease (RRHD) (3) and radiation pneumonia (RP) (4)] with an increased risk of secondary cancer (3, 5–9). Darby et al. showed the risk of major coronary events induced by radiation increased linearly with the mean heart dose (MHD) by 7.4% per gray, with no threshold dose (3). Clarke et al. compared a group of irradiated patients with non-irradiated patients and found a significant increase in mortality rate, mainly for heart disease and lung cancer with a rate ratio of 1.27 and 1.78, respectively (2).

Therefore, with patients receiving radiotherapy for breast cancer substantial efforts have been made to develop techniques that reduce heart and lung dose, such as Deep inspiration breath-hold (DIBH). This simple technique reduces cardiac exposure by lung expansion which physically displaces the heart out of the treatment field. There are several approaches for performing DIBH, in particular active breath control, external infrared box marker, and optical surface monitor (10). Studies have demonstrated that DIBH, for left-sided breast cancer patients, can reduce the cardiac dose compared with free-breathing (FB) (5, 9, 11–13). It is noteworthy that the technique has high repeatability and stability in the whole treatment process (14).

Although many studies show DIBH technology is correlated to heart dose, LAD dose, ipsilateral lung dose, contralateral breast dose, heart volume, and ipsilateral lung volume, we have reached an understanding that DIBH is critical and superior to free-breathing (FB) in radiotherapy for left-sided breast cancer. However, there are many small sample studies, which gives a lack confidence. Therefore, we searched all of the controlled studies of DIBH and FB in radiotherapy of the left breast and conducted this meta-analysis. It is noteworthy that the research groups with different radiotherapy techniques (3D-CRT, IMRT, or VMAT), postures (supine or prone position), and prescribed dose schemes (CF or HF) in the same study were included in this meta-analysis.

Methods

Search Strategy

Using a combination of medical subject heading (MeSH) terms and/or free text words such as, “breast cancer”, “radiotherapy” and “deep inspiration breath-hold or DIBH”, we thoroughly searched four medical databases including PubMed, Embase, Cochrane library, and Web of Science for relevant studies published before November 30, 2021. There was no limitation on the language of published studies. Furthermore, references of selected studies were manually reviewed, and literature searching and screening were independently performed by two investigators. Disagreement was resolved through discussion with a third investigator.

Inclusion Criteria

All studies included were following the principles of PICOS (Participants, Intervention, Comparison and Outcomes, Study design). Inclusion criteria were as follows: (1) Participants [P]: Patients were pathologically diagnosed with left-sided breast cancer without distant metastasis. (2) Intervention [I]: Patients in the experimental group received a DIBH regimen. (3) Comparison [C]: Free-breathing (FB) regimen was the intervention in the control group. (4) Outcomes [O]: The outcomes included dosimetric indicators of heart, left anterior descending artery, ipsilateral lung, and contralateral breast: the mean dose (D_mean), the maximum dose (D_max), and the percentage of the organ volume receiving at least 5 Gy (V5), 10 Gy (V10), 20 Gy (V20), 25 Gy (V25) and 30 Gy (V30). (5) Study design [S]: randomized controlled trials (RCTs) and observational studies, including cohort and case-control studies. It should be noted that trials with different fractionation regimens and prescribed doses were included in this study.

Exclusion Criteria

Articles satisfying any of the following items were excluded: (1) Reviews, case reports, letters, and abstracts; (2) Low research quality or having a high risk of bias; (3) Lacking available data that could be pooled.

Data Extraction

The following information was independently extracted from the included studies by two researchers (Mr. Yang and Mr. Teng): First author, year of publication, country, study design, age, DIBH type, clinical tumor stage, sample size, detailed treatment plan, and outcomes of the various subgroups. Dispute regarding data extraction was arbitrated by a third investigator (Mr. Tang).

Quality Assessment

To assess the risk of bias in nonrandomized studies Newcastle-Ottawa Scale (NOS) (15) was introduced, involving three perspectives: Selection, comparability, and outcome of the studies. Using a 0-9 scale, 4 points were graded for selection, 2 for comparability, and 3 for outcomes. Studies with 6 points or higher were considered high quality (16).

Statistical Analysis

The pooled statistics were performed using RevMan software version 5.4 (Cochrane Collaboration, Oxford, UK). Standardized mean difference (SMD) and 95% CI were selected as the effect indicator to analyze measurement data. Heterogeneity was evaluated between trials through the Cochrane Q test and the I² statistic, which quantified the proportion of total variation caused by heterogeneity instead of chance (17). If the P-value of the Q test was >0.10 and I²< 50%, a fixed-effects model was used for data with non-significant heterogeneity. Otherwise, a random-effects model was used for data with significant heterogeneity (18, 19). Furthermore, the sensitivity analysis was also applied to examine the potential influence of an individual study on the overall assessment, which involved removing one study each time and pooling the remaining trials. A funnel plot was used to understand the bias of the literature publication. If the points in the funnel plot are symmetrically distributed on both sides of the middle dashed line and concentrate in the center, the possibility of publication bias is low. If not, the possibility of publication bias could be high.

Results

Study Selection

Initially, after excluding 236 duplicates, 232 articles were retrieved through preliminary searches in PubMed, Embase, the Cochrane Library, and Web of Science. Then, 62 unqualified articles were eliminated through reviewing titles and abstracts. After a full-text reading, 41 qualified articles were assessed for design and quality (5, 7, 20, 13, 21–57). The detailed process of the study selection is shown in Figure 1.

FIGURE 1

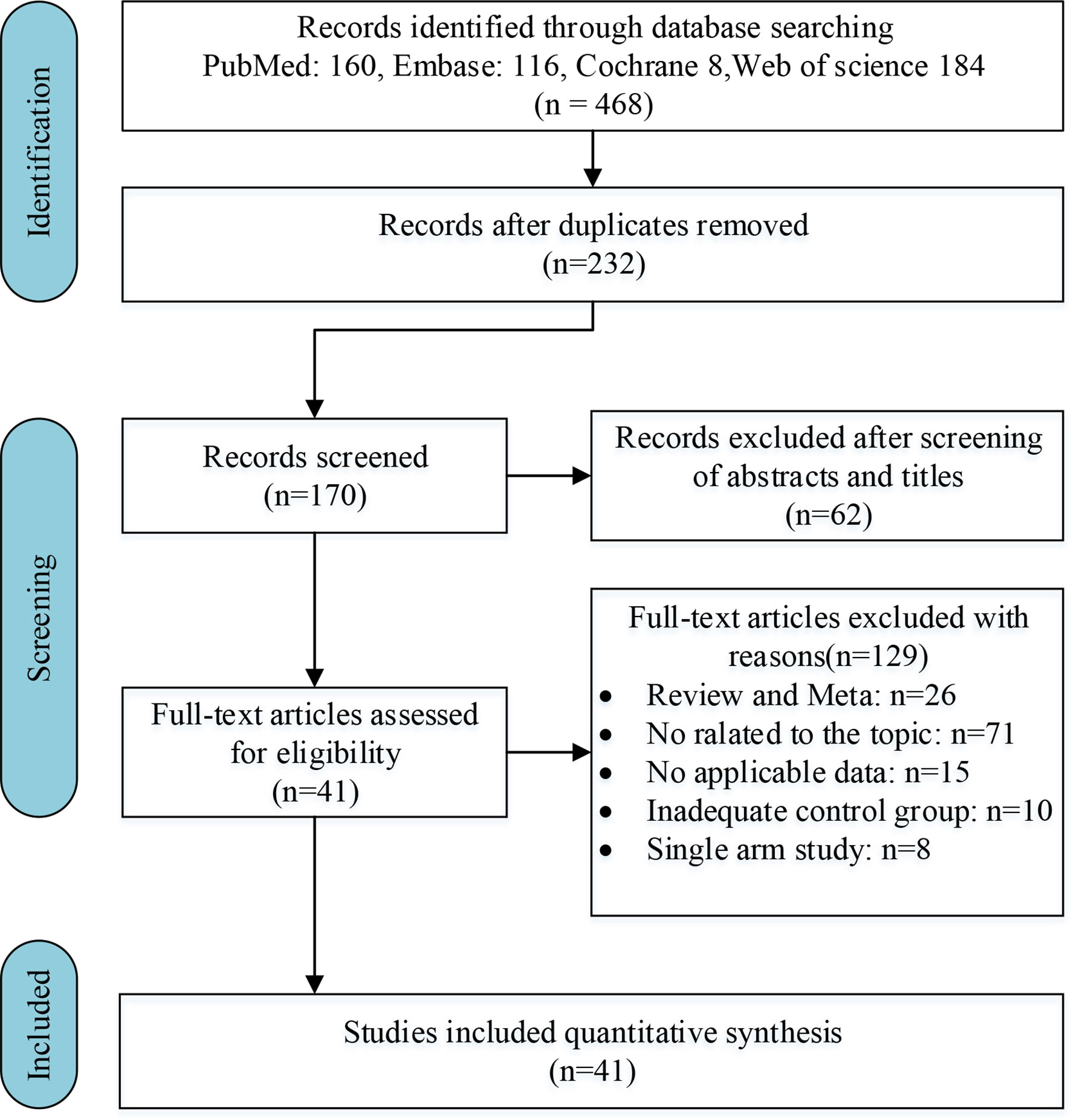

Figure 1 Flow chart of the search process for the meta-analysis.

Study Characteristics

Finally, 41 studies (5, 7, 13, 20–57) totaling 3599 left-sided breast cancer patients were included in our meta-analysis. All articles included were retrospective studies and identified as high quality by the Newcastle–Ottawa Scale (15). Table 1 summarizes the baselines information of the 41 included studies. Each group of data shall be counted independently when multiple groups of data are in the same study.

TABLE 1

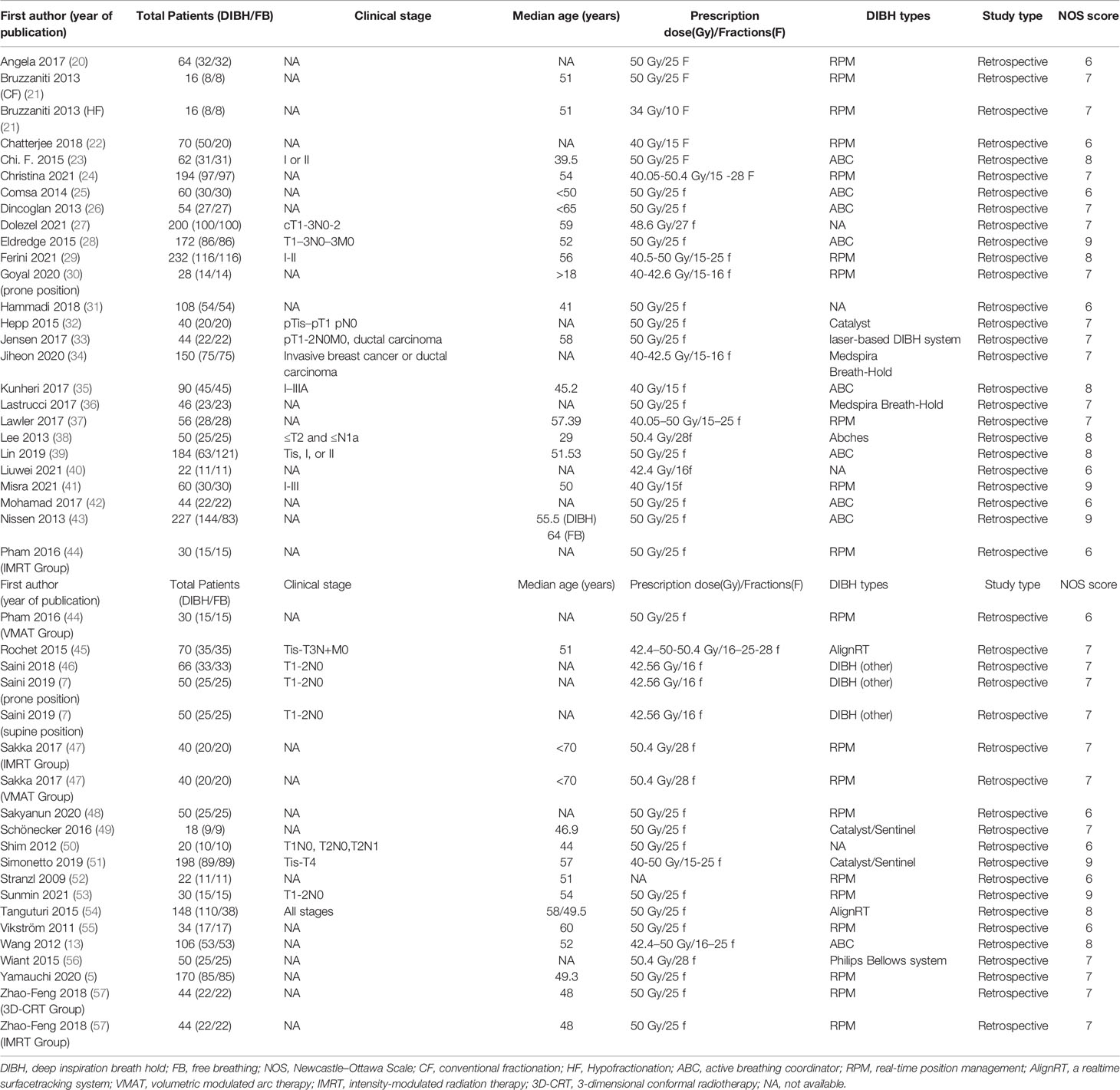

Table 1 Characteristics of the studies included in the meta-analysis.

Heart Dose

Heart dose data (D_mean, D_max, V30, V10, and V5) were extracted from 38 articles which studied 3507 patients. The random-effects model was applied due to the significant between-study heterogeneity (I²≥50%, P ≤ 0.10). The pooled results showed there was a difference between the DIBH group and FB group. By combining the results with clinical information from the included studies, it was indicated that DIBH technology can decrease heart doses more effectively than the FB group. The results are presented in Figures 2 and 3, D_mean (SMD = -1.28, 95% CI: -1.42 - 1.13, P<0.01), D_max (SMD = -1.86, 95% CI: -2.26 ~ -1.46, P<0.01), V30 (SMD = -1.23, 95% CI: -1.49 ~ 0.97 P<0.01), V10 (SMD = - 1.40, 95% CI: -1.65 ~ -1.15, P<0.01), V5 (SMD = -1.58, 95% CI: -2.05 ~ -1.12, P<0.01).

FIGURE 2

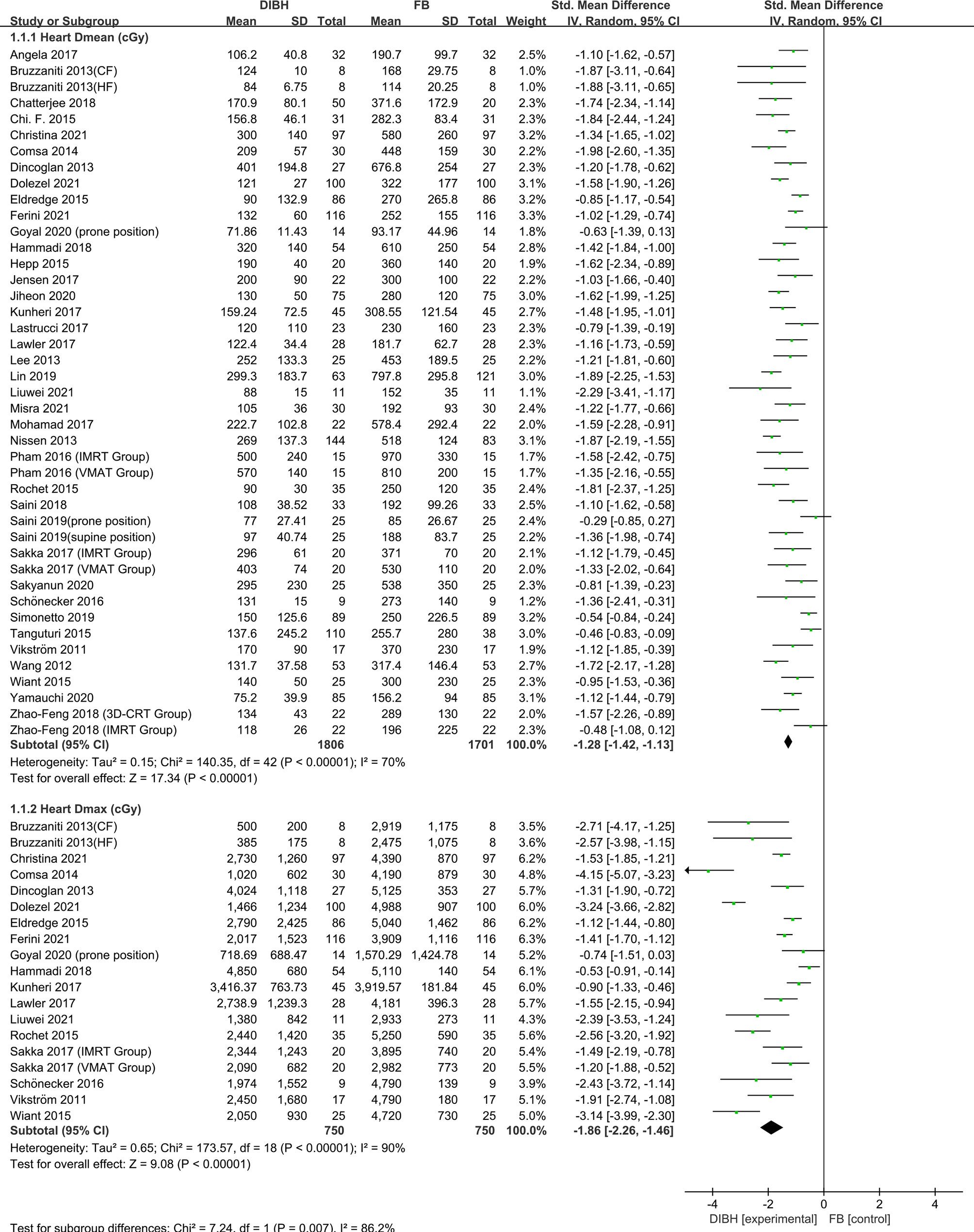

Figure 2 Forest plot of heart dose (D_mean and Dmax) between the DIBH group and FB group.

FIGURE 3

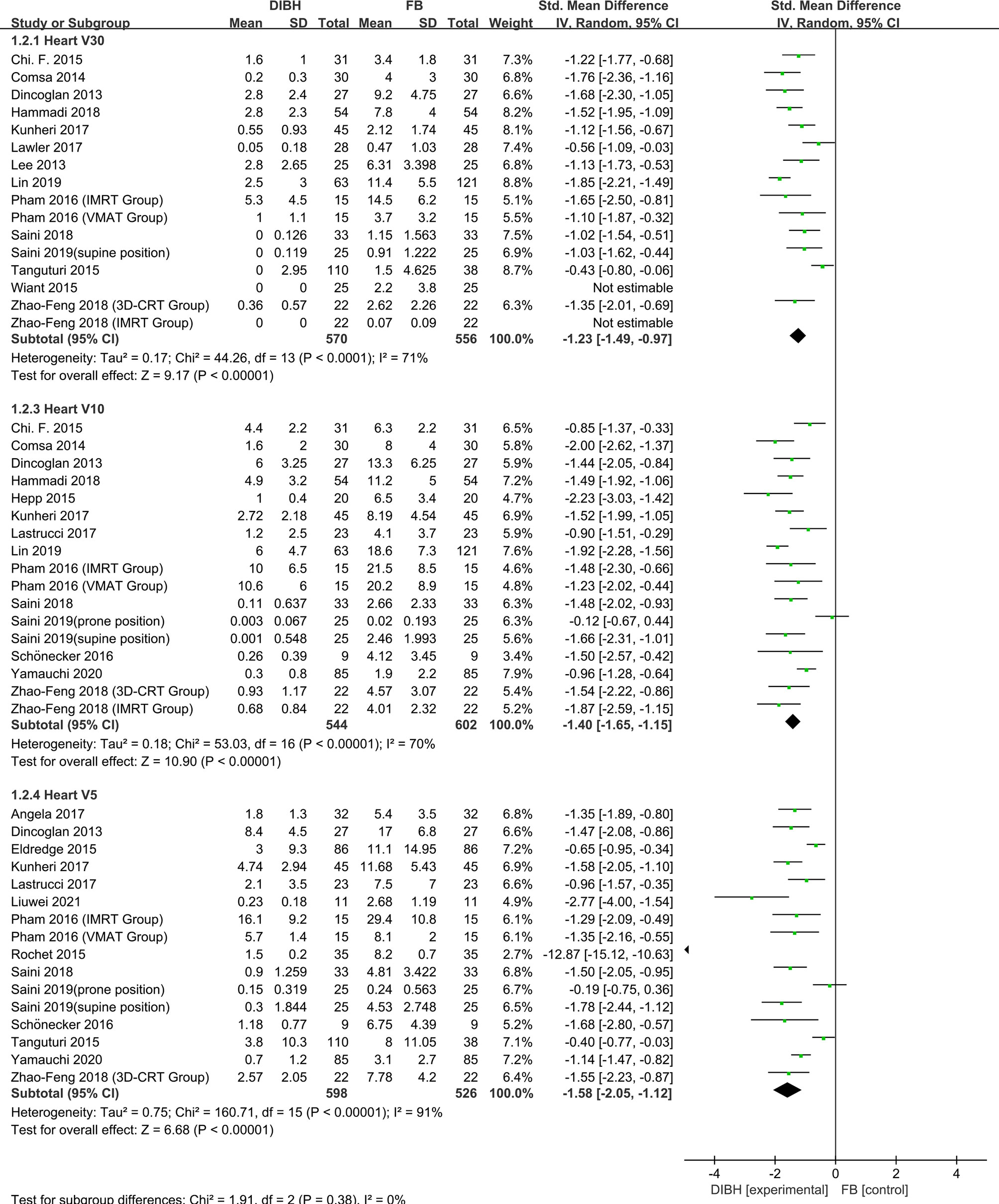

Figure 3 Forest plot of heart dose (V30, V10 and V5) between the DIBH group and FB group.

LAD Dose

Twenty-seven studies involving 2146 patients were eligible for analyzing the LAD dose (D_mean and D_max). Significant heterogeneity was identified (I²≥50%, P ≤ 0.10) and as a result, a random-effects model was employed to calculate the pooled data. The data demonstrated that the LAD dose (D_mean and D_max) of the DIBH group was significantly lower than that of the FB group (D_mean: SMD = -1.35, 95% CI: -1.57 ~ -1.13, P<0.01; D_max: SMD = -1.26, 95% CI: -1.61 ~ -0.90, P<0.01) (Figure 4).

FIGURE 4

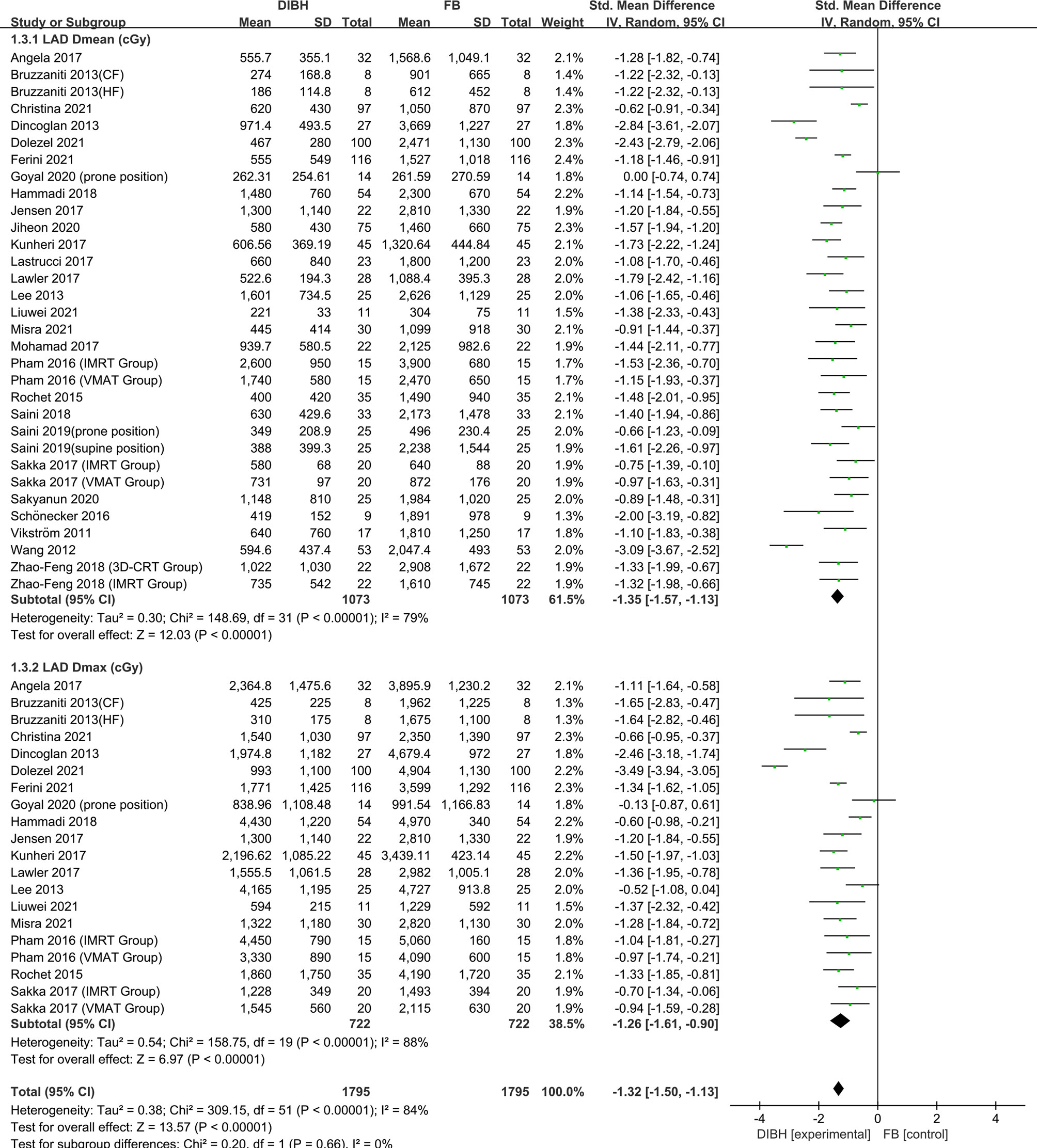

Figure 4 Forest plot of LAD dose (D_mean and Dmax) between the DIBH group and FB group.

Ipsilateral Lung Dose

Ipsilateral lung dosimetric indicators (D_mean, V20, V10, and V5) were extracted from 33 studies with 2768 patients. The heterogeneity test showed statistically significant differences among the studies (I² ≥ 50%, P ≤ 0.10), and therefore, a random-effects model was introduced. Compared to the FB group, left-sided breast cancer patients could benefit more from DIBH technology. The results are presented in Figures 5 and 6, D_mean (SMD = - 0.55, 95% CI: -0.73 ~ -0.37, P<0.01), V20 (SMD = -2.62, 95% CI: -3.37 ~ -1.87 P<0.01), V10 (SMD = -2.71, 95% CI: -3.71 ~ -1.72, P<0.01), V5 (SMD = - 2.08, 95% CI: -3.11 ~ -1.04, P<0.01).

FIGURE 5

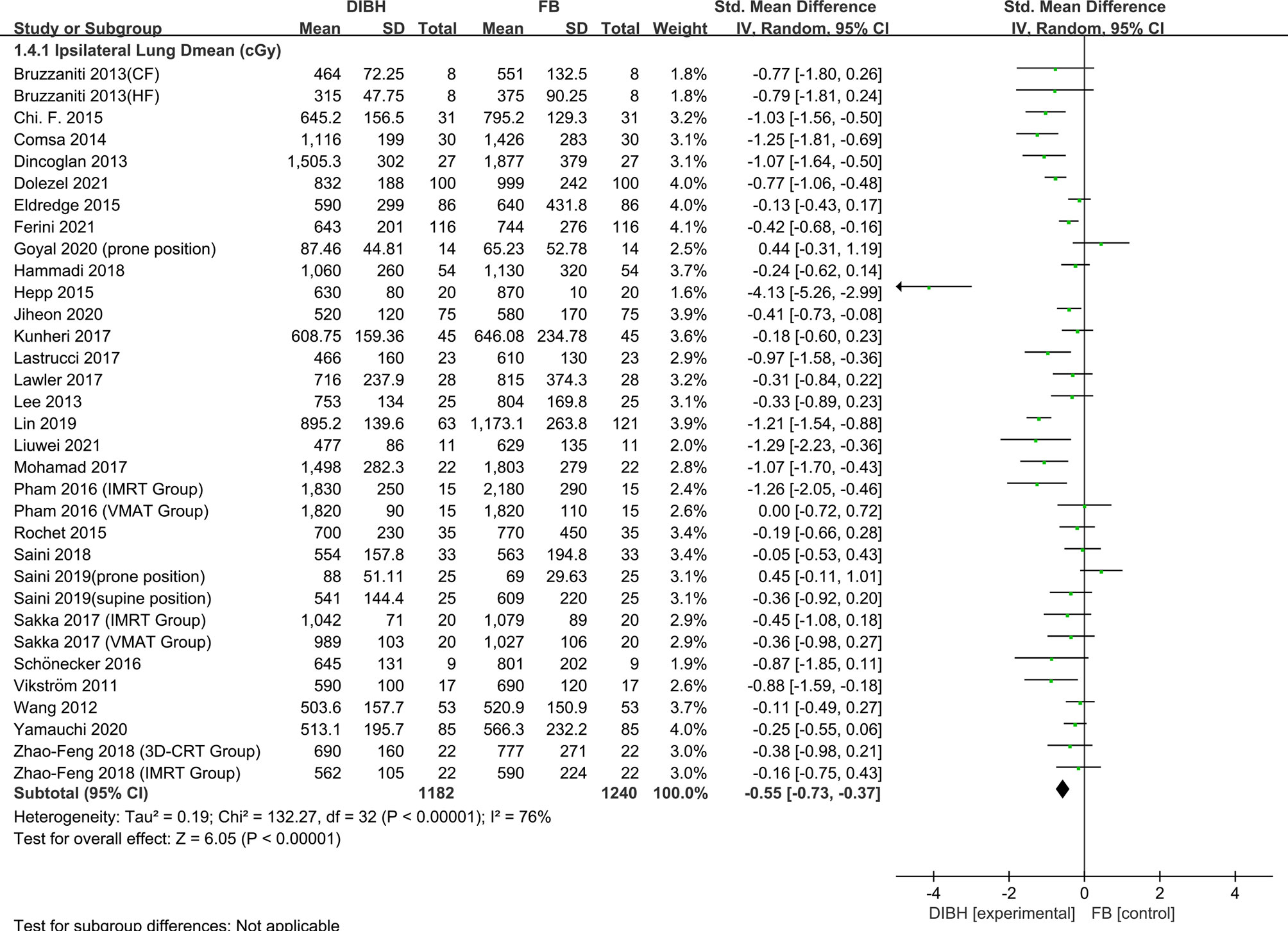

Figure 5 Forest plot of ipsilateral lung dose (D_mean) between the DIBH group and FB group.

FIGURE 6

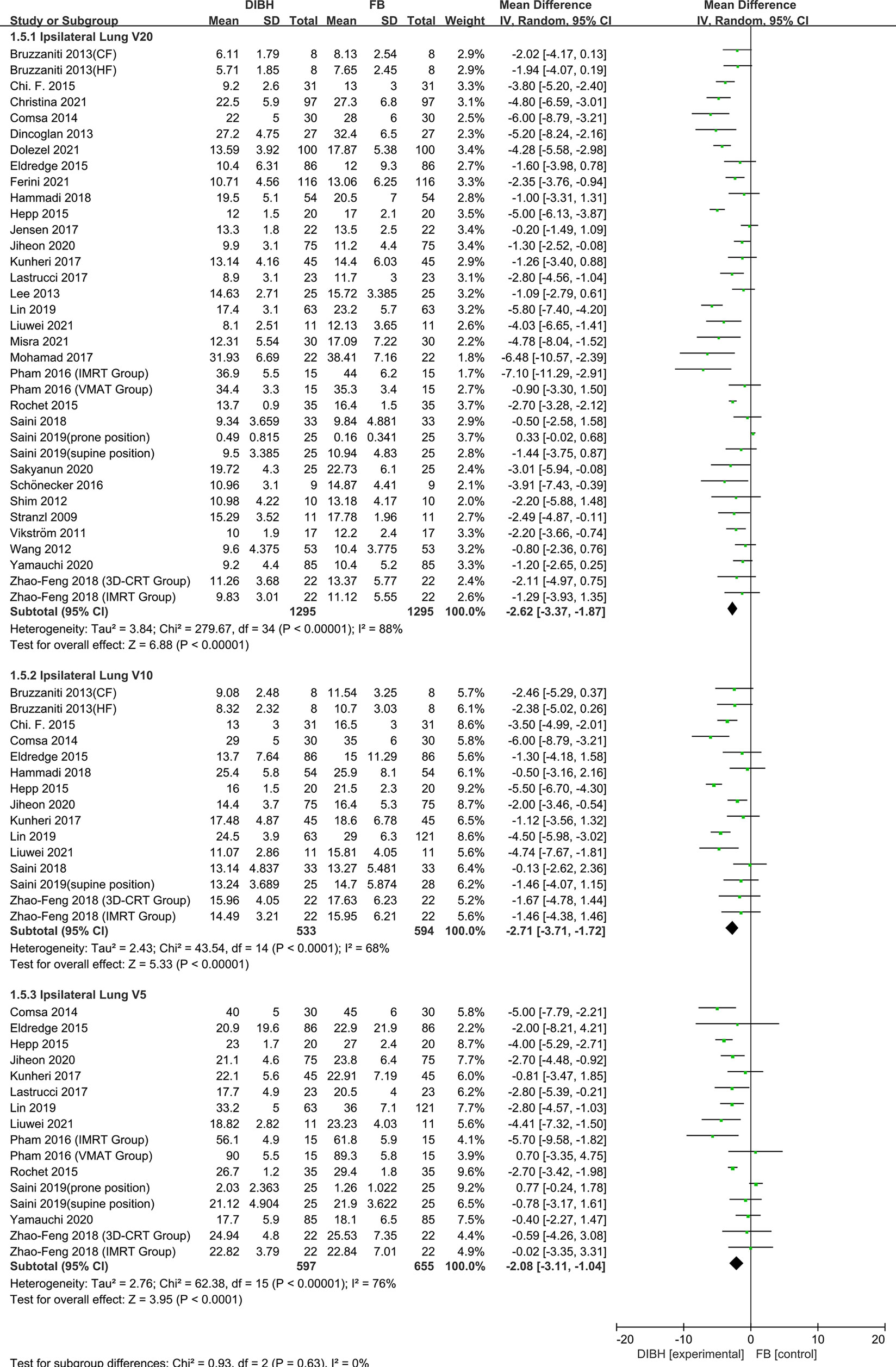

Figure 6 Forest plot of ipsilateral lung dose (V20, V10 and V5) between the DIBH group and FB group.

Contralateral Breast Mean Dose

Eight studies, with 578 left-sided breast cancer patients in total, were included in this analysis. During the analysis, we found no significant between-study heterogeneity (I² = 0%; p = 0.53), and a fixed-effects model was used. The combined analysis showed that there was no significant difference in contralateral breast mean dose between the two groups and there was no statistical significance (SMD = -0.19, 95% CI: -0.36 ~ -0.03, P=0.02) (Figure 7).

FIGURE 7

Figure 7 Forest plot of contralateral breast mean dose between the DIBH group and FB group.

Heart Volume

Heart volume was reported in eleven studies with a total of 832 patients. The fixed-effects model was applied due to no significant between-study heterogeneity (I² = 32%; p = 0.14). In comparison with the FB group, the application of DIBH technology makes cardiac volume compression in patients with left-sided breast cancer. (SMD = -0.32, 95% CI: -0.46 ~ -0.18, P<0.01) (Figure 8).

FIGURE 8

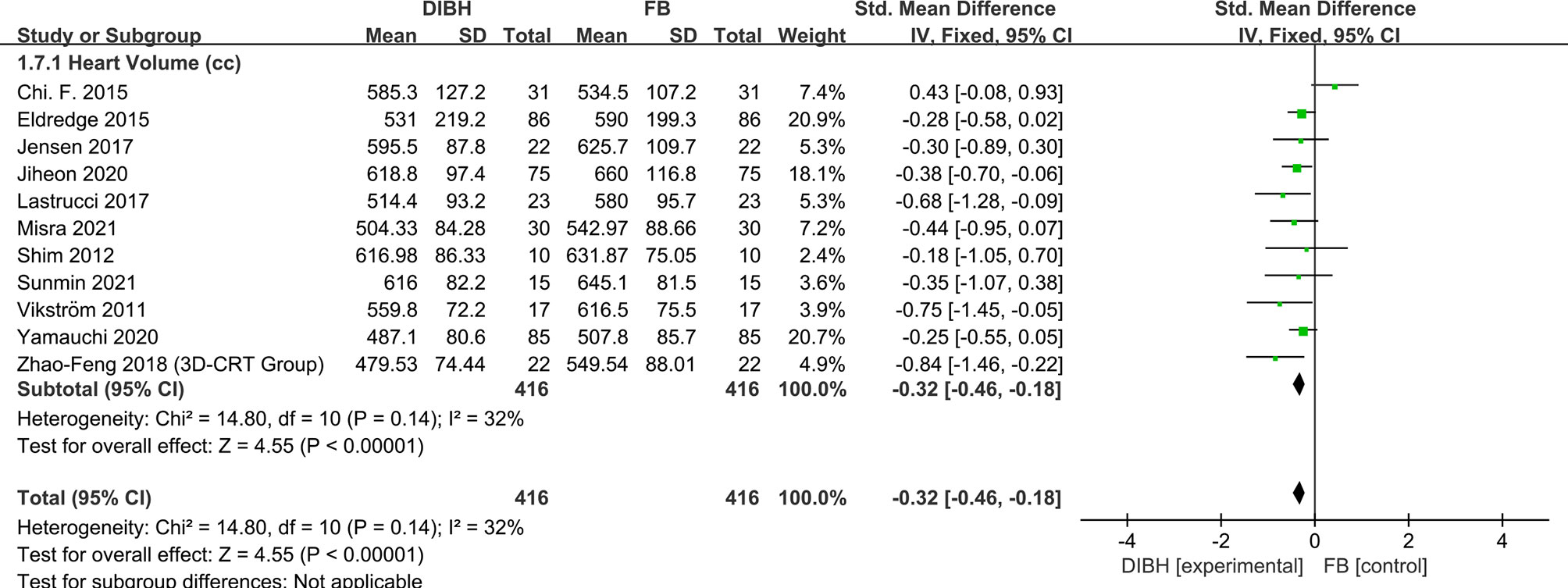

Figure 8 Forest plot of heart volume between the DIBH group and FB group.

Ipsilateral Lung Volume

Fifteen studies involving 1599 left-sided breast cancer patients were eligible for analysis. The fixed-effects model was conducted for no significant between-study heterogeneity (I² = 0%; p = 0.55). Meta-analysis showed that DIBH technology significantly increased the ipsilateral lung volume (SMD = 2.35, 95% CI: 2.22 ~ -2.48, P<0.01) (Figure 9).

FIGURE 9

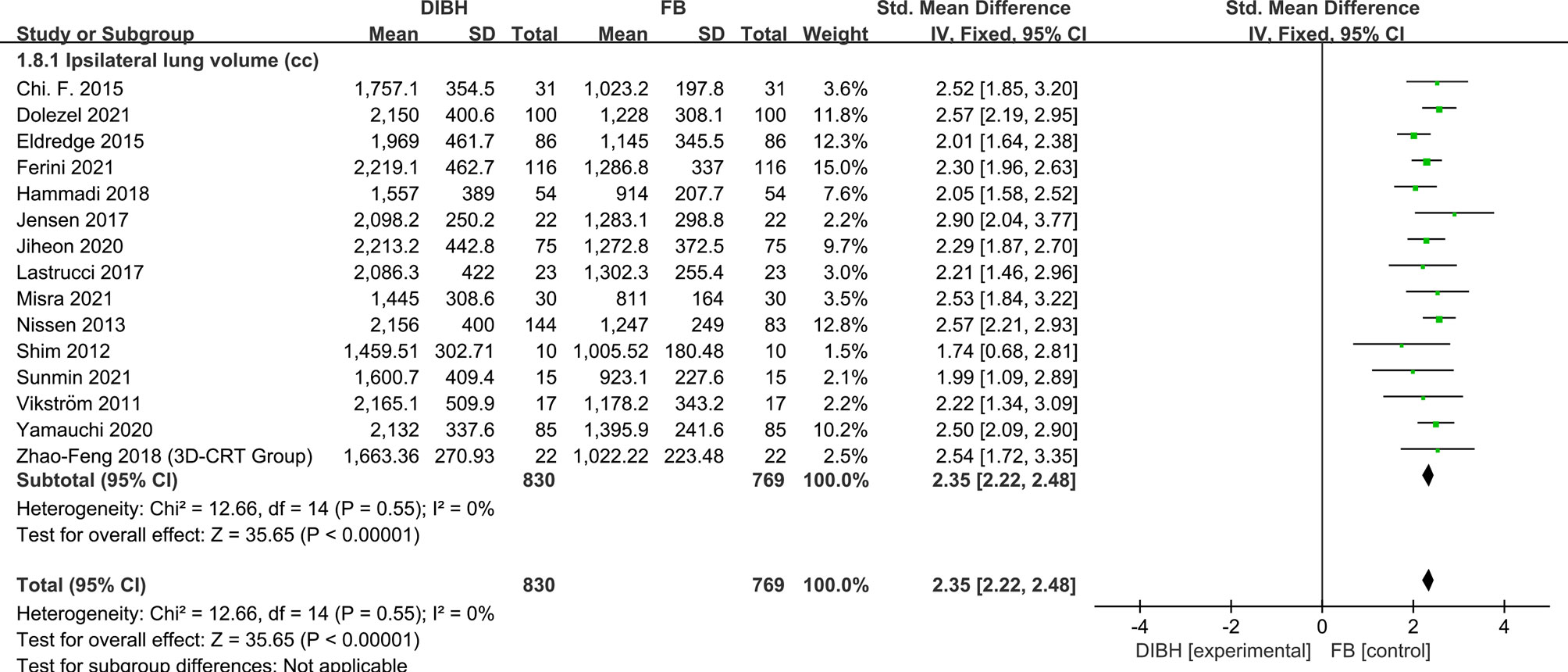

Figure 9 Forest plot of ipsilateral lung volume between the DIBH group and FB group.

Publication Bias

A funnel plot was applied for the assessment of publication bias in the literature, tests for the funnel plot asymmetry were applied if there were at least 10 studies included in the meta-analysis. From the funnel plot of different indicators (Figure 10), it is evident that the point estimates are symmetrically distributed on both sides, centralized in the middle, therefore showing no evidence of publication bias.

FIGURE 10

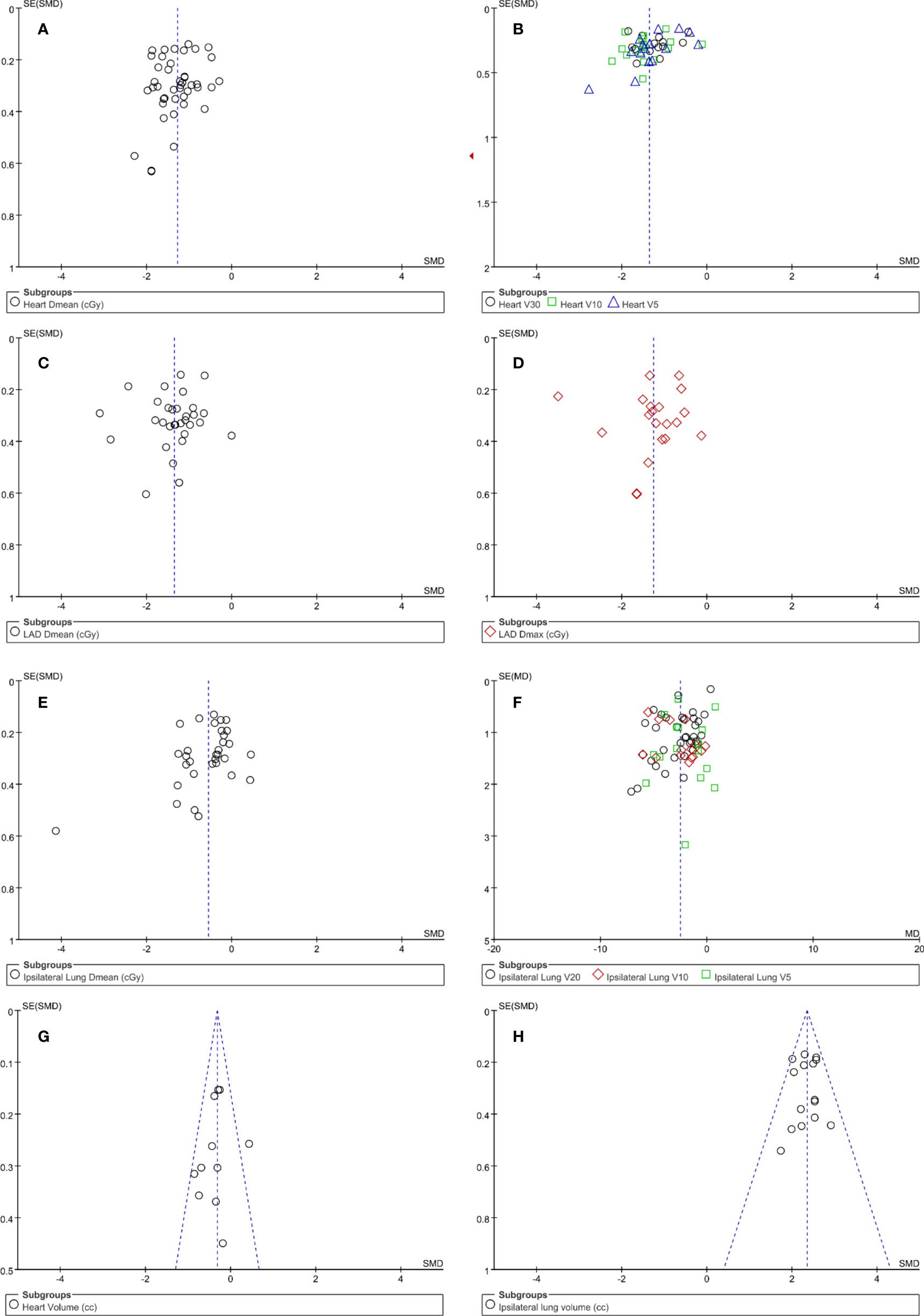

Figure 10 Funnel plots for potential publication bias. Funnel plot analysis of heart dose (A, B), LAD dose (C, D), ipsilateral lung dose (E, F), heart volume (G) and ipsilateral lung volume (H).

Discussion

There are many studies on the incidence of RRHD caused by radiotherapy for breast cancer. The research of Darby et al. (3) in 2013 showed that exposure of the heart to ionizing radiation during radiotherapy for breast cancer increases the subsequent rate of ischemic heart disease. The increase is proportional to the mean dose to the heart, beginning within a few years after exposure, and continues for at least 20 years. Women with preexisting cardiac risk factors have greater absolute increases in risk from radiotherapy than other women. Additionally, further studies indicate that LAD coronary artery doses may be particularly relevant to RRHD risks, since this artery is a common site of atherosclerosis inducing myocardial infarction. It is the site of high doses in many left-breast cancer radiotherapy regimens, and may well contribute to radiation-induced heart disease (58). Some recent research has focused on the relationship between the average cardiac dose and the incidence of adverse events. One such research conducted by Van den Bogaard et al. concluded that the cumulative incidence of acute coronary events increased by 16.5% per Gy (59). A study by Dutch et al. showed that the risk of myocardial infarction increased linearly as the mean of the whole heart dose increased, with an excess risk ratio of 6.4% per Gy (60).. In another Ebbe Laugaard Lorenzen et al. study, it was demonstrated that for female patients receiving tangential field irradiation, the linear increase in the excess odds ratio of major coronary events per gray of mean heart dose was 19% (61). Therefore, to reduce the incidence of RRHD, the deposition dose of heart and LAD should be low enough. In this paper, we respectively studied the dosimetric indexes of heart and LAD. The results implied that the dose of the heart and LAD in the DIBH group was significantly lower than that in the FB group. The meta-analysis results of all subgroups of cardiac dose (D_mean, D_max, V30, V10, and V5) and LAD dose subgroup (D_mean, D_max) support this conclusion unanimously (Figures 2–4). We have reason to believe that DIBH may reduce RRHD more effectively by reducing the dose to the heart and LAD, such as ischemic heart disease, acute coronary event and myocardial infarction. Moreover, the results of this study infer that different radiotherapy techniques (3D-CRT, IMRT or VMAT), postural design (supine or prone position) and prescribed dose schemes (CF or HF) did not affect the dose reduction advantages of DIBH compared with FB in the heart and LAD.

In 1998, Kwa et al. (62) conducted a large multicenter study of 530 people on the relationship between the incidence of radiation pneumonitis and dose distribution in the lungs. Their results showed that increasing pneumonitis rate was observed with increasing mean lung dose in all centers. Especially in the low dose range of 4 to 16 Gy, the incidence rate of pneumonia in the breast group was 1.4%. Therefore, the mean lung dose can be used as a useful predictor of the risk of radiation pneumonia. Additionally, research conducted by Gokula et al. and Kasmann et al. implied that Locoregional radiotherapy increased the mean lung dose, and ipsilateral lung volume receiving 20 Gy (V20) >30% have been identified as risk factors for RP (63, 64). In this study, ipsilateral lung dosimetric indicators (D_mean, V20, V10, and V5) were extracted from 33 studies totaling 2768 patients. Compared to the FB group, left-sided breast cancer patients could benefit more from DIBH technology. The subgroup analysis results are presented in Figures 5 and 6, D_mean (SMD = -0.55, 95%, CI: -0.73 ~ -0.37, P<0.01), V20 (SMD = -2.62, 95% CI: -3.37 ~ -1.87 P < 0.01), V10 (SMD = -2.71, 95% CI: -3.71 ~ -1.72, P <0.01), V5 (SMD = -2.08, 95% CI: -3.11 ~ -1.04, P<0.01). We can conclude that DIBH technology may reduce the incidence of RP by reducing the mean lung dose, V20, V10, and V5. However, there are a few exceptions. It can be seen from the forest plot (Figures 5 and 6) that DIBH did not perform better than FB in all prone position groups. Therefore, large sample size experiments are needed to focus on the difference between DIBH technology and FB in dissimilar postures. In addition, the results of this study infer that different radiotherapy techniques (3D-CRT, IMRT or VMAT) and prescribed dose schemes (CF or HF) did not affect the dose reduction advantages of DIBH compared with FB in the ipsilateral lung.

Further, we counted and analyzed the mean dose of contralateral breast, heart volume, and ipsilateral lung volume. The combined analysis showed between the two groups there was no significant difference in contralateral breast mean dose and there was no statistical significance (SMD = - 0.19, 95% CI: -0.36 ~ -0.03, P=0.02). Meanwhile, results indicated that the ipsilateral lung volume increased significantly in the DIBH group (SMD = 2.35, 95% CI: 2.22 ~ 2.48, P<0.01), while the heart volume was compressed (SMD = -0.32, 95% CI: -0.46 ~ -0.18, P<0.01). This phenomenon is not difficult to understand, because DIBH is a simple technique used to reduce cardiac exposure by lung expansion which physically displaces the heart out of the radiation field. Objectively speaking, the use of DIBH technology expands the lung volume, which in turn makes the contralateral breast farther away from the radiation field, and finally the contralateral breast should have a lower mean dose. However, in the FB group, the contralateral breast was also almost outside the field, which made the DIBH group have no significant advantage in reducing the mean breast dose compared with the FB group.

Potential limitations exist in this study, and the meta-analysis without the distinction of surgical operation is an obvious one. In left-sided breast cancer patients with modified radical mastectomy (MRM), the target (i.e., chest wall) lies near the heart and LAD, as compared to those patients undergoing breast conservation surgery (BCS). Recently, a small sample study by Misra et al. showed that DIBH provided a similar percentage reduction in cardiopulmonary doses for both MRM and BCS. Significant reductions in mean heart dose were seen in both groups. Although lung and LAD doses were significantly reduced in MRM, lung dosimetric constraints were less frequently achieved in the subgroup with nodal radiation. Given that, we appeal to researchers to conduct more studies about the relationship between surgical methods and the benefits of DIBH technology, enabling more left-sided breast cancer patients to benefit from the development of precision medicine.

Apart from the distinction of surgical operation mode, other potential limitations are still prevalent in this study: (1) The data from the included studies were from the published articles instead of the original information of the individual patient; (2) all included articles are the retrospective studies, and the evidence level is lower than that of prospective randomized clinical trials; (3) the number of included studies is relatively small, especially for contralateral breast mean dose, which may cause bias results; (4) the heterogeneity of aggregated results were significant, and the random-effects model was applied to most indicators.

Conclusions

In summary, this study provides a large-scale and comprehensive meta-analysis between the dosimetric parameters of DIBH and FB for left-sided breast cancer. Although DIBH has no obvious advantage over FB in contralateral breast mean dose, it can significantly reduce the heart dose, LAD dose, ipsilateral lung dose, heart volume, and substantially increase the ipsilateral lung volume. This study suggests that DIBH may be more widely used in clinical practice soon because of its excellent dosimetric performance.

Data Availability Statement

The original contributions presented in the study are included in the article/supplementary material. Further inquiries can be directed to the corresponding author.

Author Contributions

YKL, DY, and XZ: conceptualization. YL, WY, YZ, FT: data curation and original draft writing. YKL, YT, RH: statistical analysis. YL, JP, BH, RC: manuscript review and editing. All authors contributed to the article and approved the submitted version.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Acknowledgments

This is a short text to acknowledge the contributions of specific colleagues, institutions, or agencies that aided the efforts of the authors.
