Characterization of volatile organic compounds with anti-atherosclerosis effects in Allium macrostemon Bge. and Allium chinense G. Don by head space solid phase microextraction coupled with gas chromatography tandem mass spectrometry

Introduction: Allium macrostemon Bge. (AMB) and Allium chinense G. Don (ACGD) are both edible Allium vegetables and named officinal Xiebai (or Allii Macrostemonis Bulbus) in East Asia. Their medicinal qualities involve in lipid lowering and anti-atherosclerosis effects. And steroidal saponins, nitrogenous compounds and sulfur compounds are like the beneficial components responsible for medicinal functions. Sulfur compounds are the recognized main components both in the volatile oils of AMB and ACGD. Besides, few researches were reported about their holistic chemical profiles of volatile organic compounds (VOCs) and pharmacodynamic effects.

Methods: In this study, we first investigated the lipid-lowering and anti-atherosclerotic effects of volatile oils derived from AMB and ACGD in ApoE^–/– mice with high fat and high cholesterol diets.

Results: The results showed the volatile oils of AMB and ACGD both could markedly reduce serum levels of TG, TC, and LDL-C (p < 0.05), and had no alterations of HDL-C, ALT, and AST levels (p > 0.05). Pathological results displayed they both could obviously improve the morphology of cardiomyocytes and the degree of myocardial fibrosis in model mice. Meanwhile, oil red O staining results also proved they could apparently decrease the lesion areas of plaques in the aortic intima (p < 0.05). Furthermore, head space solid phase microextraction coupled with gas chromatography tandem mass spectrometry combined with metabolomics analysis was performed to characterize the VOCs profiles of AMB and ACGD, and screen their differential VOCs. A total of 121 and 115 VOCs were identified or tentatively characterized in the volatile oils of AMB and ACGD, respectively. Relative-quantification results also confirmed sulfur compounds, aldehydes, and heterocyclic compounds accounted for about 85.6% in AMB bulbs, while approximately 86.6% in ACGD bulbs were attributed to sulfur compounds, ketones, and heterocyclic compounds. Multivariate statistical analysis showed 62 differentially expressed VOCs were observed between AMB and ACGD, of which 17 sulfur compounds were found to be closely associated with the garlic flavor and efficacy.

Discussion: Taken together, this study was the first analysis of holistic chemical profiles and anti-atherosclerosis effects of AMB and ACGD volatile oils, and would benefit the understanding of effective components in AMB and ACGD.

GRAPHICAL ABSTRACT

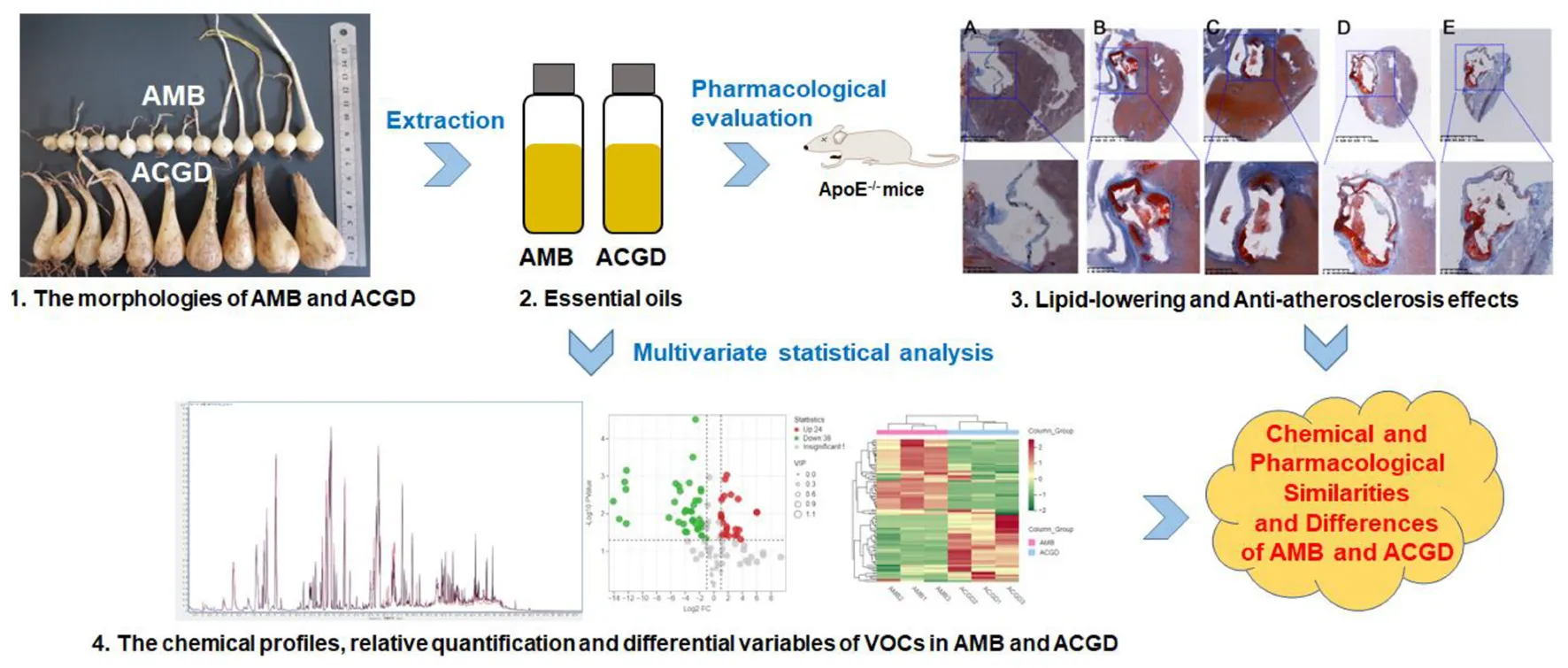

Graphical Abstract. Analytical flow chart of chemical and pharmacological similarities and differences of AMB and ACGD.

Introduction

Allii Macrostemonis Bulbus, also called officinal Xiebai in East Asia, exhibits various beneficial health properties including lipid lowering, anti-atherosclerosis, myocardial protection, anti-depressant, anti-bacterial effects (1–4). Xiebai is an edible and medicinal herb, which was first recorded in Divine Farmer’s Classic of Materia Medica (aka Shennong Bencao Jing), and it has two sources of medicinal herbs, Allium macrostemon Bge. (AMB) and Allium chinense G. Don (ACGD) (1). In clinical application, the dried bulbs of AMB or ACGD are traditionally used as the monarch drug and antithrombosis agents to treat coronary heart disease in combination with other medicinal herbs (Trichosanthis fructus, Pinelliae rhizome, etc.) for over two thousands of years in East Asia (5). In addition, Xiebai is also listed in the catalog that are suggested to be used as food and medicine by National Health Commission (6). AMB and ACGD both as edible Allium vegetables, are often cooked with other ingredients or pickled as a pleasing seasoning. And they are widely distributed in East Asia, and also naturalized in other parts of Asia as well as Europe and North America (7, 8). The remarkable medicinal values and health functions attracted increasing attentions on the effective components of AMB and ACGD.

Steroidal saponins, sulfur compounds, nitrogenous compounds, flavonoids, polysaccharides in AMB and ACGD are like the main contributors to the pharmacological effects (1, 9–11). Recently, network pharmacology analysis showed these components act on multiple signal pathways through synergistic effects (12). So far, the chemical similarities and differences of the dried bulbs of AMB and ACGD have been successfully deciphered including chemical profiles, content levels and metabolic pathways (1, 10, 13–15). For the fresh bulbs of AMB and ACGD, sulfur-containing compounds are their main volatile organic compounds (VOCs), especially dimethyl trisulfide, methyl propyl disulfide, methyl allyl trisulfide, dimethyl disulfide (16–18). These sulfur VOCs are same or similar with those in garlic oils (Allium sativum L.), a famous lipid lowering agent (19). And among over 600 Allium species, AMB, ACGD, and garlic are all as food and herbs, and this is also a rare phenomenon for alliaceous species (1, 19). However, except for individual sulfur compounds, fewer researches were reported on the holistic chemical profiles of VOCs in AMB and ACGD fresh bulbs.

Another interesting phenomenon is that the fresh bulbs of AMB are commonly processed and used as the medicinal herbs of Xiebai in China, while the fresh bulbs of ACGD are usually processed into food products in Asia countries and North America (7, 19, 20). At present, about 5,000 tons of fresh AMB bulbs are consumed per year for medicinal purposes, whereas approximately 300,000 tons of fresh ACGD bulbs per year are pickled and canned as vegetables, and exported to Japan, Korea, Southeast Asia, and North America (21, 22). So far, several researches had reported that the volatile oils of ACGD showed protecting histopathological liver alteration and insecticidal activity (16, 23), while the volatile oils of AMB exhibited vasodilation effect and larvicidal activity (17, 24). However, other pharmacological effects related to their traditional efficacy of AMB and ACGD volatile oils including lipid lowering and anti-atherosclerosis were rarely reported so far. These also aroused our concerns about their similarities and differences on prevention and treatment of atherosclerosis, as well as their chemical and content consistency of holistic VOCs in AMB and ACGD.

For these goals, we first investigated the lipid lowering and anti-atherosclerosis activities of volatile oils derived from AMB and ACGD in ApoE^–/– mice with high fat and high cholesterol diets. Further, the holistic VOCs were identified and tentatively characterized in AMB and ACGD bulbs based on retention times, retention index (RI) and match factor (MF) by GC-MS combined with NIST20 and MWGC database. In addition, multivariate statistical analysis including principal component analysis (PCA), hierarchical cluster analysis (HCA), and orthogonal partial least squares discriminant analysis (OPLS-DA) were performed to identify the significantly regulated VOCs between AMB and ACGD oils. Moreover, relative-quantification of these VOCs were carried out based on internal standard methods, followed remarkable visual content differences of several differential VOCs in these two herbs. Taken together, this study would increase our understanding about the holistic VOCs profile and anti-atherosclerosis effects of AMB and ACGD.

Materials and methods

Chemicals and materials

Alanine aminotransferase (ALT) assay kit, aspartate aminotransferase (AST) assay kit, total cholesterol (TC) assay kit, triglyceride (TG) assay kit, low-density lipoprotein cholesterol (LDL-C) assay kit, high-density lipoprotein cholesterol (HDL-C) assay kit were all purchased from Nanjing Jiancheng Bioengineering Institute (Nanjing, China). Rosuvastatin calcium tablets (RSV) were obtained from Chia-Tai Tianqing Pharmaceutical Group Co., Ltd (Nanjing, China). Purified atherosclerotic model diets with 1.25% cholesterol (XT108C) and control diets without cholesterol (XT102C) were purchased from Jiangsu Synergetic Pharmaceutical Bioengineering Co., Ltd (Nanjing, China). Other chemicals and reagents were of analytical grade or better.

The fresh bulbs of Allium macrostemon Bge. (AMB) and Allium chinense G. Don (ACGD) were collected from Shenyang in Liaoning province and Xinjian in Jiangxi province of China, respectively. The morphologies of these two vegetables are obviously different (Figure 1A). The fresh bulbs of AMB are irregularly circular or ovoid (0.5–2.0 cm high and 0.3–1.5 cm in diameter) and externally yellowish-white or pale, yellowish-brown while the fresh bulbs of ACGD are lightly compressed long-ovate (2.0–5.0 cm high and 0.5–3.0 cm in diameter) and externally pale yellowish-brown or brown (Figure 1B). The developing flower buds in ACGD are significantly more than those in AMB (Figure 1C). The bulbs were taxonomically identified by Professor Xinsheng Yao who works in the College of Pharmacy, Jinan University, China. And their surface was disinfected with 75% alcohol, and immediately frozen in liquid nitrogen, and stored at −80^°C before use.

FIGURE 1

Figure 1. The overall morphology (A), locally enlarged phenotype (B), and cross section and longitudinal section (C) of fresh bulbs of Allium macrostemon Bge. (AMB) and Allium chinense G. Don (ACGD).

Animal experiments

Male C57BL/6 mice (n = 8) and ApoE^–/– mice (n = 32) (both 8–10 weeks, 20 ± 2 g weight) were obtained from Zhengzhou Chuangsheng Biological Engineering Co., Ltd (Zhengzhou, China), and fed in the Experimental Animals Center of Zhengzhou University. The animal protocols were approved and conducted based on the guidelines of Laboratory Animal Ethics Committee of Zhengzhou University. All procedures were in accordance with the Guide for the Care and Use of Laboratory Animals (National Institute of Health). The mice were kept in an animal room at (23 ± 2)^°C and (60 ± 5)% relative humidity under a 12 h dark/light cycle. They had free access to water and food for a week before experiments.

The wild-type C57BL/6 mice (n = 8) was set as control group and fed with control diets. And Apo^–/– mice were all fed with model diets and divided into four groups as follows, model group (n = 8), RSV group (rosuvastatin, n = 8), AMB group (volatile oils of AMB, n = 8) and ACGD group (volatile oils of ACGD, n = 8). The intragastric dosage for RSV group was 2.0 mg/kg/day, while the dosages for AMB group and ACGD group were 100.0 mg/kg/day (25–27). During high fat and high cholesterol modeling for 12 weeks, ApoE^–/– mice were simultaneously treated with RSV, volatile oils of AMB and volatile oils of ACGD at the same time, respectively. Before experiments, all mice were fasted overnight. Blood samples were received through the extraction of eyeball method, and serum samples were prepared for the analysis of biochemical indicators. In addition, aortic tissues were obtained and fixed in 4% paraformaldehyde in phosphate buffered saline (PBS). And they were further embedded in paraffin for histopathological analysis including hematoxylin-eosin (HE) staining, Masson staining and Oil Red O staining.

Sample preparation

The volatile oil of AMB and ACGD were prepared and obtained by steam distillation. The fresh bulbs of AMB or ACGD (200 g) were crushed and placed in round bottom flask. And the samples were soaked by 1,000 mL water for overnight. The mixture was heated and refluxed for 8 h. Collected petroleum ether fractions were distillated, and volatile oils were obtained and weighted. The extraction rates of AMB and ACGD were 0.93 and 0.81%, respectively. These obtained volatile oils were used for animal experiments.

Allium macrostemon Bge. and ACGD samples were ground to a powder in liquid nitrogen. The powder (1.0 g) was immediately transferred to a 20 mL head-space vial (Agilent, Palo Alto, CA, USA). NaCl saturated solution (2 mL) and 10 μL of internal solution ([2H8]-acetophenone, 50 μg/mL) were added in head-space vial. NaCl solution was used to inhibit any enzyme reaction. The vials were sealed by crimp-top caps with TFE-silicone headspace septa. At the time of SPME analysis, each vial was placed in 100^°C for 5 min. And 120 μm divinylbenzene (DVB)/carboxen (CAR)/polydimethylsiloxane (PDMS) extraction fiber was exposed to the headspace of the sample for 15 min at 100^°C. After sampling, desorption of volatiles from the fiber coating was performed in the injection port of 7890B-7000D apparatus (Agilent, Palo Alto, CA, USA) at 250^°C for 5 min in the splitless mode.

GC-MS conditions

The separation of volatile organic compounds (VOCs) was carried out on a DB-5MS (5% phenyl polymethylsiloxane) capillary column (30 m × 0.25 mm × 1.0 μm) by a 7890B GC and 7000D mass spectrometer (Agilent, CA, USA). Helium (purity not less than 99.999%) was used as the carrier gas at a linear velocity of 1.2 mL/min. The injector temperature was at 250^°C and the samples were injected in the spitless mode with 3.5 min delay of the solvents. The gradient elution program for temperature was as follows: keeping 40^°C for 3.5 min, increasing at 10^°C/min to 100^°C, at 7^°C/min to 180^°C, at 25^°C/min to 280^°C, holding 280^°C for 5 min.

Mass spectra was collected in electron impact (EI) ionization mode. The detailed parameters were as follows. The ion source, quadrupole mass detector and transfer line temperatures were at 230, 150, and 280^°C, respectively. The electron energy was set at 70^°eV. The full scanning mass ranges were at m/z 50–400 amu at 1 s intervals. All data were collected and processed using MassHunter software (Agilent, CA, USA).

Qualitative and quantitative analysis

The obtained offline original data were browsed and processed by qualitative and quantitative analysis workflows under the manipulation system of MassHunter (Agilent, CA, USA). Identification and quantification of VOCs were achieved based on retention time behaviors, mass spectra and linear retention index of volatile compounds in the NIST20 database and MWGC data library (Wuhan Metware Biotechnology Co. Ltd., Wuhan, China). The match factors were calculated and obtained after the mass spectrum fingerprint of VOCs was matched with the reference fingerprint by mirror comparison (28, 29). The match factor over 70.0 suggested more accurate identification of VOCs in volatile oils, while the characterization of VOCs was for reference when the match factor was less than 70.0.

For quantitative analysis of VOCs, the mass concentrations could be calculated with reference to the internal standard method using Equation (1) as follow (30). C_voc and C_is are the mass concentrations of identified VOCs and the internal standard ([2H8]-acetophenone, 50 μg/mL), respectively. Similarly, A_voc and A_is are the chromatographic peak areas of identified VOCs and internal standard, respectively.

${\text{C}}_{\text{voc}}=\left({\text{C}}_{\text{is}}\times {\text{A}}_{\text{voc}}\right)/{\text{A}}_{\text{is}}(1)$

Multivariate statistical analysis

Unsupervised principal component analysis (PCA) was performed after the original data was unit variance scaled (31). The hierarchical cluster analysis (HCA) results of samples and VOCs were presented as heatmaps with dendrograms, and normalized signal intensities of VOCs (unit variance scaling) are visualized as a color spectrum. Variable influence on projection (VIP) were obtained from orthogonal partial least squares discriminant analysis (OPLS-DA) results, which also contained score plots and permutation plots (31). Before OPLS-DA, the obtained data were log transformed (log₂) and mean centered. And a further permutation test (200 permutations) was carried out to avoid overfitting. The significantly regulated VOCs between AMB and ACGD groups were selected based on the principles of VIP ≥ 1, p-value < 0.05, and absolute Log₂FC (fold change) ≥ 1. Multivariate statistical analysis was performed using the Metware Cloud, a free online platform for data analysis¹.

Statistical analysis

Three biological replicates (n = 3) were used for GC-MS analysis. And the error bars represented the standards deviations of six determinations (n = 8) for animal experiments. The differences between two groups were statistically analyzed using Student’s t-test (p < 0.05) with GraphPad Prism 5 software (SanDiego, CA). The levels of difference were set at p < 0.05 (*), p < 0.01 (^**), and p < 0.001 (^***).

Results

Anti-atherosclerosis effects of volatile oils of AMB and ACGD

Compared with control groups, high fat and high cholesterol diets brought marked increase of body weight, TG, TC, and LDL-C levels, and reduction of HDL-C levels in model mice serum (Figure 2). Meanwhile, pretreatment with RSV, the volatile oils of AMB and ACGD all could obviously attenuate the elevation of body, weight, TG, TC, and LDL-C levels, suggesting their significant lipid lowering effects. However, almost no changes of HDL-C levels were observed after treatment the model mice with the volatile oils of AMB or ACGD. In addition, the results involving in ALT and AST levels indicated that the volatile oils of AMB and ACGD were without hepatotoxicity (Figures 2B, C), which kept in line with previous study (25).

FIGURE 2

Figure 2. Effects of the volatile oils from Allium macrostemon Bge. (AMB) and Allium chinense G. Don (ACGD) on the body weight and serum levels of biochemical indexes in mice. (A) the level of body weight; the levels of serum alanine aminotransferase (ALT) (B), aspartate aminotransferase (AST) (C), triglyceride (TG) (D), total cholesterol (TC) (E), high-density lipoprotein cholesterol (HDL-C) (F), and low-density lipoprotein cholesterol (LDL-C) (G). Data were expressed as mean ± SD (n = 8). (*p < 0.05, **p < 0.01, ***p < 0.001).

During the course of atherosclerosis, pathological changes would appear in heart tissue when the myocardium was damaged. As shown in Figure 3A, the mice myocardium in control group was uniformly stained and the cardiomyocytes were neatly arranged. In addition, their morphology and structure were complete, and no cell swelling or necrosis was found. In contrast, the arrangement of myocardial cells was loose and the gap between muscle fibers was large in model mice (Figure 3B). Meanwhile, some nuclei were blurred or even disappeared, and obvious defects and blank areas are visible (Figure 3B). After the mice were treated with RSV, AMB, or ACGD, the morphology and arrangement of cardiomyocytes had significantly improved as shown in Figures 3C–E, respectively.

FIGURE 3

Figure 3. The hematoxylin-eosin (HE) staining results of heart tissues in mice from control group (A), model group (B), rosuvastatin calcium tablets (RSV) group (C), Allium macrostemon Bge. (AMB) group (D), and Allium chinense G. Don (ACGD) group (E).

Further, Masson staining results were used to investigate the injury of myocardial fibrosis. Compared with the normal mice (Figure 4A), the myocardial fibrosis in model mice was obviously aggravated (Figure 4B). And this fibrosis was significantly relieved after intragastric administration of RSV (Figure 4C), AMB (Figure 4D), and ACGD (Figure 4E), respectively. Moreover, the results of oil red O staining for aortic valve showed that significant atherosclerotic plaque was deposited in the aortic intima in model mice (Figure 5A), and almost no plaques were found in normal mice (Figure 5B). Meanwhile, several fibrous caps were also observed. The lesion areas of plaques in RSV group (Figure 5C), AMB group (Figure 5D), and ACGD group (Figure 5E) were all significantly reduced (Figure 5F), and the treatment groups significantly prevented the formation of fiber caps, indicating their therapeutic effects of anti-atherosclerotic plaque formation. Taken together, these findings suggested that the volatile oils derived from AMB and ACGD both exhibited remarkable anti-atherosclerotic effects.

FIGURE 4

Figure 4. The Masson staining results of mice heart tissues in control group (A), model group (B), rosuvastatin calcium tablets (RSV) group (C), Allium macrostemon Bge. (AMB) group (D), and Allium chinense G. Don (ACGD) group (E).

FIGURE 5

Figure 5. The Oil red O staining results of aortic valves in mice from control group (A), model group (B), rosuvastatin calcium tablets (RSV) group (C), Allium macrostemon Bge. (AMB) group (D), and Allium chinense G. Don (ACGD) group (E). And the comparison of atherosclerotic plaque (F). Data were presented as mean ± SD (n = 8). (*p < 0.05, ***p < 0.001).

Identification and characterization of VOCs in AMB and ACGD bulbs

A total of 121 and 115 volatile organic compounds were identified and characterized in the volatile oils of AMB and ACGD bulbs by HS-SPME-GC/MS, respectively (Supplementary Table 1). The overlay analysis of total ion chromatograms (TIC) for QC samples demonstrated the high stability of the instrument (Supplementary Figure 1A). Coefficients of variation derived from empirical cumulative distribution function illustrated the obtained data have a good stability (Supplementary Figure 1B). Furthermore, the TIC analysis of VOCs in AMB and ACGD show the recorded data have several similarities in chemical profiles and significant differences in content levels (Supplementary Figures 2A, B). And the VOCs were classified to sulfur compounds, heterocyclic compounds, esters, aldehydes, phenols, alcohols, ketones, aromatics, hydrocarbons, acids, amines, and terpenoids (Supplementary Figures 2C, D). Obviously, sulfur compounds contributed the most numbers, followed by heterocyclic compounds and esters, which accounted for over 70 VOCs both in AMB and ACGD. As described previously, the abundant sulfur compounds could well explain the garlic flavor of AMB and ACGD bulbs (26, 32). Meanwhile, this study systematically reported the holistic VOCs except sulfur compounds in AMB and ACGD for the first time.

Relative-quantification of VOCs in AMB and ACGD bulbs

The relative-contents of VOCs in AMB and ACGD were obtained based on the internal standard method as described previously (Supplementary Table 2). Obviously, total contents of sulfur compounds, aldehydes, phenols, alcohols, aromatics, hydrocarbons, and amines in ACGD were significantly lower than those in AMB (Figure 6A). In contrast, the contents of ketones were more abundant in ACGD (Figure 6A). Similarly, the total contents of VOCs in AMB were significantly higher than those in ACGD (Figure 6B). Further proportion analysis displayed that sulfur compounds, aldehydes, and heterocyclic compounds were the richest components and accounted for about 85.6% in AMB bulbs (Figure 6C). In addition, approximately 86.6% in ACGD bulbs were attributed to sulfur compounds, ketones, and heterocyclic compounds (Figure 6D). In these two vegetables, sulfur compounds were the main VOCs in AMB (56.9%) and ACGD (41.6%), and like to the therapeutic VOCs responsible for the lipid-lowering and anti-atherosclerotic effects.

FIGURE 6

Figure 6. The comparison of content levels of holistic volatile organic compounds (VOCs) in Allium macrostemon Bge. (AMB) and Allium chinense G. Don (ACGD). Content comparison of multiple types of VOCs (A). The total content comparison of holistic VOCs (B). The content proportion of multiple types of VOCs in AMB (C) and ACGD (D). Error bars represented the standards deviations of three determinations (n = 3) (*p < 0.05, **p < 0.01, ***p < 0.001).

Identification of differential VOCs between AMB and ACGD samples

Principal component analysis (PCA) was a well-accepted method to investigate the differences between groups or variation within the group (31). The PCA results displayed the first principal component (PC1) and second principal component (PC2) could explain 71.77 and 13.15% of the total variances (Figure 7A). The PC1 scores plot showed that the instrument status was stable due to the PC1 values of experimental and QC samples within ± 2 × standard deviation (Supplementary Figure 3A). The significant separated samples indicated that there were several marked differences between the accumulation of VOCs in AMB and ACGD.

FIGURE 7

Figure 7. The principal component analysis (PCA) between Allium macrostemon Bge. (AMB) and Allium chinense G. Don (ACGD) samples by HS-SPME-GC/MS (A); volatile organic compounds (VOCs) accumulation pattern of AMB and ACGD (B); volcano plots of differentially VOCs between AMB and ACGD (C); the green dots represent down-accumulated compounds, and the red dots represent up-accumulated volatiles between these two vegetables.

Hierarchal clustering analysis (HCA) of the VOCs in AMB and ACGD was carried out, and the results are shown in the heatmap (Figure 7B). Two main clusters were detected in the pattern of the VOCs accumulation. Over half of the VOCs significantly decreased in ACGD bulbs, while the remaining VOCs accumulated significantly in ACGD bulbs. In addition, as shown in Supplementary Figure 3B, the higher the correlation coefficient of intra-group samples relative to inter-group samples, the more reliable the differential VOCs obtained. These findings suggested that differentially accumulated VOCs are very important for elucidating the effective components of anti-atherosclerosis in AMB and ACGD.

Orthogonal partial least squares discriminant analysis (OPLS-DA) with T score of 76.00% and orthogonal T score of 6.23% (Supplementary Figure 4A) was used to screen the variances through deleting unrelated variances. The R²X (0.823) and Q² (0.982) derived from OPLS-DA were both over 0.8, indicating OPLS-DA model did not overfit and had a high separating capacity (Supplementary Figure 4B). Further, the VOC variances significantly varied in AMB and ACGD bulbs based on obtained variable influence on projection (VIP) plot (Supplementary Figure 4C). According to the following principles: VIP ≥ 1, p-value < 0.05, fold change ≥ 2, or fold change ≤ 0.5, the differential VOCs in AMB and ACGD bulbs were determined. Compared with AMB, 38 VOCs were significantly decreased and 24 VOCs were up-regulated in ACGD group (Figure 7C and Table 1). These differentially expressed VOCs could be key factors for anti-atherosclerosis effects. Therefore, we further focused on the quantitative analysis of these significantly upregulated or down-regulated VOCs.

TABLE 1

Table 1. The details of 62 differential volatile organic compounds (VOCs) between the volatile oils derived from the fresh bulbs of Allium macrostemon Bge. (AMB) and Allium chinense G. Don (ACGD).

To better understand the main VOCs changes between AMB and ACGD bulbs, a visual heat-map including 62 differentially expressed VOCs were displayed in Figure 8A. Among them, sulfur compounds (17) were identified as the main differential VOCs, followed by heterocyclic compounds (13), aldehydes (10), and esters (6). Sulfur compounds were responsible for garlic flavor, whereas aldehydes, esters, ketones, and terpenoids contributed more to a wide spectrum of aromas. Furthermore, quantitative results showed that six sulfur compounds obviously were up-regulated in ACGD bulbs, especially the main VOCs including dimethyl disulfide (KMW0045), 2-allyl methyl disulfide (NMW0777), allyl methyl trisulfide (D384), dimethyl tetrasulfane (KMW0401) (Figure 8B). Similarly, 3,4-dimethylthiophene (XMW3428), dipropyl trisulfane (WMW0071) and (E)-propenyl propyl trisulfide (GMW0100) were more abundant in AMB than ACGD bulbs (Figure 8B).

FIGURE 8

Figure 8. The accumulation pattern of 62 differential volatile organic compounds (VOCs) between Allium macrostemon Bge. (AMB) and Allium chinense G. Don (ACGD) (A), red color and green color represent up-accumulated and down-accumulated compounds, respectively; comparison of relative amounts of 62 differential VOCs including 17 sulfur compounds (B), 13 heterocyclic compounds (C), 6 esters (D), 10 aldehydes (E), 3 phenols (F), 4 alcohols (G), 3 ketones (H), 1 aromatic (I), 2 hydrocarbon (J), 1 acid (K), 1 amine (L), and 1 terpenoid (M) in AMB and ACGD samples.

However, few studies revealed the differences of VOCs except sulfur compounds in these two edible vegetables. In the present study, we have confirmed that the relative contents of 3,4-methylpropylsuccinimide (XMW1685) and 2-hexylfuran (XMW0163) were higher in ACGD, whereas 2,4-dimethylfuran (XMW0435), isopropyl methoxy pyrazine (KMW0286), (2,3-dihydro-5-benzofuryl)-(4-morpholyl)-methanone (XMW1703) and benzimidazole [2,1-a]isoquinoline (XMW0205) were more abundant in AMB (Figure 8C). Likewise, esters including butyl 2-butenoate (XMW1085) and d-proline-N-methoxycarbonyl-methyl ester (XMW1848) (Figure 8D), aldehydes including hexanal (KMW0066) and 2-methyl-2-pentenal (XMW1375) (Figure 8E), ketone containing 2,5-dihydroxy-6-propan-2-ylcyclohepta-2,4,6-trien-1-one (XMW0508) (Figure 8H), hydrocarbon including tricosane (ZMW0001) (Figure 8J) and amine including 3-aminophenylacetylene (XMW0124) (Figure 8L) were also identified as the major contributors to the differences between AMB and ACGD samples. Except these main VOCs (over 10 μg/g), several minor differentially VOCs with less than 10 μg/g were also presented in Figures 8B–M. These findings indicated that the abundant VOCs differed during the development and ripening of AMB and ACGD bulbs.

Discussion

A major finding in this study was that the volatile oils derived from AMB and ACGD both showed similar and close lipid lowering effect (Figure 2) and anti-atherosclerosis activity (Figures 3–5), which provided strong evidences for their traditional efficacy for the prevention and treatment of chest stuffiness and pains. The lipid lowering effects of AMB and ACGD toward TC and LDL-C levels were significantly weaker than those of rosuvastatin, especially HDL-C levels (Figure 2). Traditionally, because statins have similar chemical structure with HMG-CoA and their affinity binding to HMG-CoA reductase is thousands of times higher than HMG-CoA, these statins including rosuvastatin could competitively inhibit HMG-CoA reductase, further block the metabolic pathway of mevalonate and reduce the synthesis of cholesterol in cells (33, 34). They demonstrated the strongest effect on lowering LDL-C, followed by TC, with little effect on lowering TG, and HDL-C slightly increased (33, 34). These obvious effects on regulating blood lipid and treating cardiovascular diseases have been widely recognized for over 40 years (33, 34). With the advanced researches, the protective effects of statins were additionally attributed to their anti-inflammatory, immunomodulatory functions, antioxidative and anti-thrombotic activities rather than lipid-lowering abilities alone (34).

In this study, the potential benefits for cardiovascular diseases of AMB and ACGD volatile oils could be compared with the efficacy and functions of garlic oil (a commercial product) due to several common sulfur compounds including diallyl disulfide, propenyl propyl disulfide, 2-allyl methyl disulfide, etc. (35, 36). Numerous clinical trials have proved garlic oil could result in a reduction in total cholesterol. Other important benefits had been observed in garlic’s ability to reduce the ability of platelets to aggregate, inhibit enzymes involved in lipid synthesis, and inhibit angiotensin-converting enzyme (27, 35). For example, garlic oil could also inhibit human HMG-CoA reductase and squalene monooxygenase just like statins (37, 38). In addition, the garlic’s constituents are likely to work via the inhibition of calcium mobilization or modulating the cyclooxygenase activity to exert platelet aggregation (39, 40). Further, these volatile oils also showed blood coagulation, fibrinolysis and circulatory effects, and effects on endogenous antioxidant defenses (35). An obvious limitation was that we did not investigate the regulatory effects of the volatile oil from AMB and ACGD toward the key enzymes mentioned above. This also led to the lack of direct evidence to compare the VOC profiles and pharmacological effects of these two herbs with garlic oil.

The sulfur-containing compounds in AMB and ACGD volatile oils were like the main contributors to lipid lowering and anti-atherosclerosis effects. This was because several naturally occurring sulfur-containing compounds (Allium family) including diallyl disulfide (GMW0113), diallyl trisulfide (GMW0108) and methyl propyl trisulfide (GMW0115) could improve the cardiac damages and ameliorate cardiac dysfunction through the roles of AMPK-mediated AKT/GSK-3β/HIF-1α activation, PI3K/Akt-SREBP2 pathway, and eNOS-Nrf2-Tfam pathway (25, 27, 41–44). And diallyl disulfide and its mono-S-oxide (allicin) were thought to be the most active sulfur-containing components to influence plasma cholesterol and atherosclerosis (45, 46). The safety of volatile oils derived from herbs or foods is worthy of attention (47). Our results indicated that no significant adverse effects (ALT and AST levels in Figures 2B, C) were observed which kept in line with previous reports (25, 27, 41). However, garlic oils in large quantities actually have significant side effects like anemia or allergic manifestations (48). Except individual sulfur-containing compounds, other main VOCs like 5-methyl-2-octylfuran-3-one (XMW3286), 2-methyl-2-pentenal (XMW1375) were reported with anti-microbial, anti-oxidant and anti-inflammatory activity (49, 50). For most VOCs in AMB and ACGD, there were a lack of researches on their pharmacological effects, especially anti-atherosclerosis activity. This also made it impossible to judge the contribution of some VOCs to the holistic effects. Therefore, much more work is needed to further investigate the chemical profiles and pharmacology of sulfur-containing VOCs in these plants.

In addition, sulfur-containing compounds also contributed more to strong odors of AMB and ACGD samples. Traditionally, when the bulb tissues were chopped or homogenated, several thiosulfinates and propanethial-S-oxide were the initial chemical compounds in Allium species (32, 51). After heating, these thiosulfinates decomposed immediately to additional sulfur compounds including diallyl, methyl allyl, and diethyl mono-, di-, tri-, tetra-sulfides, which were emitted as the major aroma compounds (26, 32). In this study, several thiophene compounds including 2-propylbenzo[b]thiophene (XMW2525), 2-hexylthiophene (XMW1061) and 2-thienylamide (XMW3292) were detected in volatile oils of AMB and ACGD (Supplementary Table 1), of which 3,4-dimethylthiophene (XMW3428) and 1-(2,5-dimethyl-3-thienyl)ethanone (D33) were considered as the thermal decomposition products from dialkyl disulfides (26, 52). However, individual sulfur-containing compounds including dimethyl trisulfide and methyl propyl disulfide were not detected in AMB or ACGD oils (16, 17). This may be attributed to their different producing areas, different harvest time and enzymolysis degree of extraction process. Obviously, it is necessary to perform a comparative qualitative and quantitative analysis of VOCs in AMB and ACGD from multiple producing areas and different growth stages.

Furthermore, identified or annotated VOCs in AMB and ACGD whose moieties included CH, CHO, CHON, or CHN atoms were categorized as heterocyclic compounds, esters, aldehydes, phenols, alcohols, or ketones (Supplementary Figures 2C, D). This was the first time to characterize the holistic VOCs in AMB and ACGD except sulfur-containing compounds (Supplementary Table 1). Several VOCs including alkanes, alcohols, aldehydes and esters were also detected in garlic oil or other Allium plants (53, 54). These esters, aldehydes, alcohols, and ketones probably contributed to the aromas of AMB and ACGD oils (29). This was because the precursors of many esters were fatty acids and amino acids, while aldehydes were derived from fatty acid oxidation or amino acid metabolism (55). Obviously, the content levels of these VOCs including 2,4-dimethylfuran (XMW0435), butyl 2-butenoate (XMW1085), 2-methyl-2-pentenal (XMW1375), 2,5-dihydroxy-6-propan-2-ylcyclohepta-2,4,6-trien-1-one (XMW0508), tricosane (ZMW0001), and 3-aminophenylacetylene (XMW0124) were significantly different between the volatile oils of AMB and ACGD (Figure 8). Their functions and biosynthetic pathways remained largely limited. And in-depth researches of these VOCs need to be carried out in future.

Moreover, Allium vegetables could produce the most abundant sulfur compounds, and other various structural types of VOCs (53, 56). This also put forward higher requirements for the selection of internal standard (IS) due to the utmost importance of IS for non-targeted metabolite profiling (57). Traditionally, due to the variety species of VOCs, one IS cannot well reflect all categorization of VOCs and is vulnerable to interference from the matrix (58). Several common volatile isotope ISs which could be commercially obtained are purchased and prepared to mixed solutions for further analysis. The most stable isotope IS in tested samples is selected as the appropriate IS for analysis (58). In the present study, a total of 16 isotope ISs including ester, aldehyde, phenol, alcohol, ketone, aromatics, hydrocarbons, and heterocyclic compounds with different physicochemical properties including retention times, retention index (RI), match factor was performed for the holistic VOCs analysis in AMB, ACGD, and QC samples (Supplementary Figure 5). The obtained results with coefficient of variation (CV) values were used to evaluate whether the VOCs participated in the cross contribution and whether the RI values of each IS was reproducible (58). Finally, [2H8]-acetophenone was selected as the appropriate IS with CV values of 11% in AMB, 12% in ACGD, and 18% in QC samples (Supplementary Table 3). In addition, according to the value of partition coefficient and the solubility of [2H8]-acetophenone, methanol was used as the solvent.

Conclusion

The volatile oils of AMB and ACGD were first proved to have remarkable lipid-lowering (TG, TC, LDL-C) and anti-atherosclerosis effects (atherosclerotic plaque and fiber cap). Furthermore, a total of 121 VOCs were annotated or tentatively identified in the holistic profile of AMB and ACGD volatile oils based on retention time, retention index and match factor by HS-SPME-GC/MS. In addition, internal standards-mediated quantitative method was used to perform their relative content levels. Moreover, 62 differential expressed VOCs were screened between AMB and ACGD bulbs based on PCA and OPLS-DA approaches. Taken together, this study provided some scientific information about the lipid-lowering and anti-atherosclerosis functions of AMB and ACGD volatile oils as well as their holistic VOCs.

Data availability statement

The original contributions presented in this study are included in this article/Supplementary material, further inquiries can be directed to the corresponding author.

Ethics statement

The animal study was reviewed and approved by Laboratory Animal Ethics Committee of Zhengzhou University.

Author contributions

ZQ and JY: conceptualization, methodology, investigation, data curation, formal analysis, and writing – original draft. SD, YL, XL, and HX: methodology, investigation, formal analysis, and data curation. ZY, XZ, and XY: conceptualization, supervision, and writing – review and editing. HX, ZQ, and JY: funding acquisition, project administration, and writing – review and editing. All authors have read and agreed with the manuscript.

Funding

This study was financially supported by the National Key R&D Program of China (2020YFC2008300 and 2020YFC2008304), Young Elite Scientists Sponsorship Program by Henan Association for Science and Technology (2022HYTP045), and Foundation of He’nan Educational Committee (21A350014).

Acknowledgments

The authors thank Wuhan Metware Biotechnology Co., Ltd., for the use of their self-building database of VOCs in this study.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fnut.2023.996675/full#supplementary-material
