Uptake of Pu(IV) by hardened cement paste in the presence of gluconate at high and low ionic strengths

The uptake of Pu(IV) by hardened cement paste (HCP) at degradation state I was investigated in the absence and presence of gluconate (GLU). Furthermore, the influence of the ionic strength was examined in different background electrolytes. Artificial cement pore water (ACW, pH = 13) was used for low ionic strength (I = 0.3 M), and cement pore water based on the diluted caprock solution (ACW-VGL, pH = 12.5) was used for high ionic strength (I = 2.5 M). Sorption experiments were performed under an Ar atmosphere using HCP in the HCP/GLU binary system ([GLU]₀ = 1 × 10⁻¹–1 × 10⁻⁸ M) and the HCP/Pu(IV)/GLU ternary system ([²³⁹Pu(IV)]₀ = 1 × 10⁻⁸ M, [GLU]₀ = 1 × 10⁻² M) with solid-to-liquid (S/L) ratios of 0.5–50 g L^–1 within a contact time of 72 h. GLU sorbs strongly on HCP; a saturation of the sorption sites of HCP with GLU was observed at [GLU] ≥ 1 × 10⁻⁴ M at S/L = 5 g L^–1. The effects of the order of addition of the components Pu(IV) and GLU on the sorption of Pu(IV) on HCP were investigated. In the absence of GLU, a quantitative uptake (S% ≥ 99%) of Pu(IV) by HCP was observed, independent of the ionic strength of the background electrolytes. In the presence of 1 × 10⁻² M GLU, the sorption of Pu(IV) on HCP was significantly lower. For X-ray absorption fine structure (XAFS) measurements, powder samples with Pu ([²³⁹Pu(III)]₀ = 5 × 10⁻⁶ M) sorbed on HCP (S/L = 2.5 g L^–1) were prepared at pH ≈ 13 in ACW and ACW-VGL, respectively. One additional sample was prepared in the presence of GLU ([GLU]₀ = 1 × 10⁻² M) with ACW-VGL as the electrolyte for comparison. Pu L_III-edge X-ray absorption near-edge structure (XANES) spectra show that Pu is in the tetravalent oxidation state after being taken up by the HCP. The structural parameters obtained from extended X-ray absorption fine structure (EXAFS) analysis and comparison with literature indicate incorporation of Pu(IV) into the calcium-silicate-hydrate (C-S-H) phases of HCP. The different ionic strengths and the presence of GLU had no influence on the near-neighbor environment of Pu in HCP.

1 Introduction

The assessment of environmental issues regarding the long-term disposal of radioactive waste is essential in nuclear waste management. In a deep geological nuclear waste repository, cement-based materials will be used not only as a building material but also as a part of the engineered barrier, including waste containers and surrounding backfill materials (Duro et al., 2020; Tyupina et al., 2023). Hydrated cement is the main component of concrete used in the repository. In this context, hydrated cement phases buffer the pH value, and thus three main states of cement degradation are described by the interaction with inflowing groundwater or pore water from the host rock of the repository. In the first state, the cement pore water evolves from a solution dominated by NaOH and KOH ([Na] ≈ 0.1 M, [K] ≈ 0.2 M, pH ≈ 13.3) to a solution saturated with portlandite (Ca(OH)₂) with a pH of 12.5 (state II). After leaching of the portlandite, cement degradation achieves a third state characterized by the noncongruent dissolution of the calcium-silicate-hydrate (C-S-H) phases and a decrease of pH in the cement pore water to ≈10 (Ochs et al., 2016). Changes in cement chemistry, such as pH shifts or dissolution of cement phases, can affect radionuclide mobility and interactions and must, therefore, be included in risk assessments.

This investigation deals with degradation state I, where the cement is largely fresh (pH > 12.5). The composition of incoming groundwater varies in terms of ionic strength, depending on the specific location of the repository. For instance, in the clay formations of Northern Germany, a high ionic strength (I = 2.5 M) is expected due to the significant salt content, as described by the “Standortmodell NORD” (Lommerzheim and Jobmann, 2015; Jobmann et al., 2017). On the other hand, pore water in clay formations in Southern Germany typically exhibits a lower ionic strength (I = 0.3 M) (Jobmann and Lommerzheim, 2015). If the cement comes into contact with the pore water of the clay formation, degradation of cementitious materials can occur, potentially leading to significant changes in the geochemical environment in the near field of the repository (Duquette et al., 2009; Guo et al., 2020).

The present investigation on the influence of ionic strength on actinide retention is intended to provide information on the extent to which the findings obtained for low ionic strength also apply to the description of actinide retention at higher ionic strength. Furthermore, to be able to make statements about the safety of such a repository, it is necessary to investigate processes such as sorption of the actinides on cementitious materials. The radioactive waste will contain long-lived actinides, such as plutonium (t_½(²³⁹Pu) = 2.41 × 10⁴ a). The isotope ²³⁹Pu is present as a component of spent nuclear fuel and highly relevant in the long-term safety assessment of a deep geological radioactive waste repository. Strongly reducing conditions are expected in the repository in the case of anaerobic iron corrosion (e.g., steel containers) and hydrogen formation. Therefore, the actinides will be predominantly in oxidation states +III and +IV (Duro et al., 2014). In aqueous solutions, plutonium can be present in different oxidation states simultaneously. Under the reducing and hyperalkaline environment as a result of cement degradation, Pu(IV) is expected as the dominant species (Stietz et al., 2023). Only a few studies have examined the uptake of Pu(III/IV) on hardened cement paste (HCP), including Wieland (2014) and Ochs et al. (2016). Distribution ratios, R_d, up to 1 × 10⁴ L kg^–1 were reported for cement by Ochs et al. (2016). Wieland et al. (2014) reported an R_d value of 10⁵ L kg^–1 for An(IV) in the degradation states I–III. Tasi et al. (2021) reported an R_d value of 2 × 10⁶ L kg^–1 for Pu(IV) uptake by HCP at degradation state II (pH = 12.6). Experiments by Häußler et al. (2018) with Pu(III) and C-S-H phases (S/L = 5 g L^–1; calcium-to-silicon ratio (Ca/Si) = 0.7–1.8) have shown an R_d value of 2 × 10⁵ L kg^–1 but also showed that Pu(III) was oxidized to Pu(IV) during the uptake by C-S-H.

In addition, due to cement degradation, organic ligands present in the form of cement additives or degradation products of cellulose and other organic waste materials could affect the migration behavior of actinides in a cement-based repository (Altmaier et al., 2021). Some studies have examined the complexation of actinides with such organic ligands like EDTA, isosaccharinic acid (ISA), and gluconate (GLU) and their effect on the sorption of actinides on cementitious phases as well as changes of the structure and chemical composition of the C-S-H phases (Taylor, 1997; Tits et al., 2005; Dario et al., 2006; Glaus et al., 2006; Gaona et al., 2008; Altmaier et al., 2021; Ochs et al., 2022).

GLU is used as an organic additive in concrete formulations, and its interaction with cementitious phases was investigated, for example, by Androniuk et al. (2017). In the concentration range of 1 × 10⁻⁹–1 × 10⁻² M GLU, an R_d value of 285 L kg^–1 was determined for the sorption of GLU on the C-S-H phase with Ca/Si = 1.4. This study also showed that GLU sorption is a fast process. The equilibrium was reached after only 1 day, which is also in agreement with results of Glaus et al. (2006). Furthermore, GLU forms stable complexes with Ca(II) occurring in cementitious systems (Kutus et al., 2020) and with a variety of radionuclides, due to its carboxyl group and hydroxyl groups, which can participate in complexation processes (Tits et al., 2005; Gaona et al., 2008; Colàs et al., 2013; Adam et al., 2021). The formation of aqueous ternary complexes with GLU and Ca(II) is reported for tri- and tetravalent actinides (Colàs et al., 2013; Böszörményi et al., 2020; Rojo et al., 2021).

In the HCP/Pu(IV)/GLU ternary system, Gaona et al. (2008) described a possible formation of a Pu(IV)(OH)₄(GLU)⁻ complex as the predominant species observed under alkaline to hyperalkaline conditions in solution. Tits et al. (2005) determined an R_d value of 3 × 10⁴ L kg^–1 for the sorption of Th(IV) on calcite in the presence of GLU. Tasi et al. (2021) investigated the interaction of Pu with cement at degradation state II in the presence of ISA as another representative of polyhydroxy carboxylic acids likely to be present in cementitious repositories. In the presence of ISA ([ISA]_tot ≥ 10^−4.5 M) low uptake of Pu(IV) on cement was observed, which decreased with increasing ISA concentration.

To the best of our knowledge, no previous literature has been reported on sorption experiments and spectroscopic investigations specifically examining the Pu-GLU system in relation to cementitious materials. Consequently, the primary objective of this study was to explore the sorption behavior of Pu on HCP, in both the absence and presence of GLU. In addition, the influence of ionic strength was assessed by using two different electrolytes: artificial cement pore water (ACW, I = 0.3 M) and a diluted caprock solution based on artificial cement pore water (VGL, German acronym for Verdünnte Gipshutlösung, ACW-VGL; I = 2.5 M). The third aim was to determine the oxidation state of Pu sorbed on HCP and to obtain molecular-level information about the effects of GLU and ionic strength on the Pu sorption using X-ray absorption fine structure (XAFS) spectroscopy.

2 Materials and methods

All experiments were performed under anaerobic conditions in a glove box under an Ar atmosphere (Ar ≥ 99.99%, O₂ < 0.1 ppm) to exclude oxidation processes by O₂ and to eliminate carbonate complexation by dissolved CO₂. Solutions were prepared using Milli-Q water (18.2 MΩ cm, Synergy™ Millipore water system, Millipore GmbH, Germany) previously degassed with Ar. All chemicals used for the solutions were p. a. (pro analysis) quality grade or better. Furthermore, the production of HCP powder (particle size of Ø < 63 μm) from ordinary Portland cement (Dyckerhoff, Germany) with a water-to-cement ratio (w/c) of 0.5 was based on DIN EN 196–3 (DIN, 2009), which has been slightly modified as described in Stietz et al. (2023).

2.1 Stock solutions

2.1.1 Gluconate

For the experiments in the HCP/GLU binary system, a stock solution of 3.7 MBq mL^{–1 14}C-GLU (Hartmann Analytic, Germany) was diluted to the desired concentration in Milli-Q water. Furthermore, an inactive GLU stock solution ([GLU] = 0.3 M) was prepared from sodium gluconate (Sigma-Aldrich, United States) in Milli-Q water.

2.1.2 Plutonium

After purification from its decay products and ²⁴¹Am using anion exchange chromatography, ²³⁹Pu(VI) stock solution was obtained by fuming it several times with 1 M HClO₄ (Riedel-de Haën, Germany) (not to complete dryness) (Amayri et al., 2016). The tri- and tetravalent oxidation states of Pu were obtained from the purified Pu(VI) stock solution by potentiostatic electrolysis using a potentiostat (Wenking POS 2, Bank Elektronik-Intelligent Controls GmbH, Germany) in 1 M HClO₄ using a three-electrode cell consisting of a Pt-mesh as a working electrode, a Pt counter-electrode separated from the cell by a Vycor frit, and an Ag/AgCl reference electrode following the methods described by Cohen (1961). The oxidation state was verified by UV-vis spectroscopy: (Tidas 100, J & M Analytik AG, Germany) using the characteristic absorption bands at 601 nm for Pu(III), 470 nm for Pu(IV), 569 nm for Pu(V), and 830 nm for Pu(VI) (Cohen, 1961). The concentration of the ²³⁹Pu stock solutions was determined by liquid scintillation counting (LSC; Hidex 300 SL, Hidex, Finland) and α-spectroscopy (Si surface barrier detector, CR-SNA-450–100, AMETEK, USA). An aliquot of the ²³⁹Pu stock solution was diluted in 1 M HClO₄ to achieve initial concentrations of 1 × 10⁻⁸ M Pu(IV) for batch experiments and 5 × 10⁻⁶ M Pu(III) for XAFS investigations, respectively.

2.2 Background electrolytes

2.2.1 Artificial cement pore water

Sorption batch experiments at low ionic strength were carried out using ACW with a composition of 0.18 M KOH (Merck, Germany) and 0.114 M NaOH (Merck, Germany), yielding a pH value of 13.3. This composition corresponds to the experimental results obtained according to Wieland et al. (2006). An ICP-MS SemiQuant analysis: (7900 Series ICP-MS, Agilent Technologies, United States) was performed to determine the chemical composition of ACW after a 72 h contact time with HCP (S/L = 5 g L^–1). The results of the measurement are summarized in Table 1. For more information, please refer to Supplementary Material S1.

TABLE 1

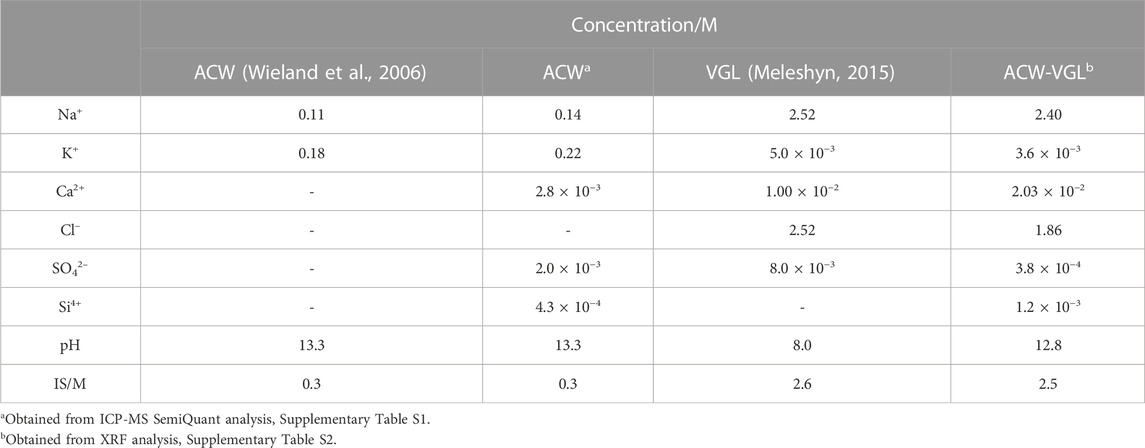

TABLE 1. Composition of the background electrolyte ACW (Wieland et al., 2006) and the result of the semiquantitative analysis mode in ICP-MS of ACW after 72 h contact time with HCP (S/L = 5 g L^-1). For the preparation of the background electrolyte with high ionic strength, the composition of VGL (Meleshyn, 2015) and the results from the XRF analysis of ACW-VGL after 10 days of contact time with HCP (S/L = 10 g L^-1) are summarized.

2.2.2 Cement pore water based on diluted caprock solution

The diluted caprock solution (VGL) was chosen as a reference solution for the high ionic strength to simulate the prevailing conditions at the interface between neighboring claystone and salt formations in Northern Germany. ACW based on VGL (Meleshyn, 2015) was prepared via leaching of HCP powder in a VGL solution under an Ar atmosphere. For this, HCP powder (grain size < 63 μm, w/c = 0.5) was suspended in VGL (S/L = 10 g L^–1) and shaken for at least 1 week in an overhead shaker (Reax 20, Heidolph Instruments GmbH & Co. KG, Germany) at 16 rpm. To separate the solid and liquid phases, the wide-mouth bottles (Beckman Coulter, United States) were first centrifuged for 15 min at 7,000 rpm (7,519 g) with an Avanti J-30I (Beckman Coulter, United States). Subsequently, the supernatant was filtrated using a 50-mL syringe with a disposable syringe filter (CHROMAFIL^® Xtra PVDF-20/25, pore size: 0.2 μm, filter-ϕ: 25 mm, Macherey-Nagel GmbH & Co. KG, Germany). The pH value of the ACW-VGL solution was 12.8. The individual constituents of VGL (Meleshyn, 2015) and ACW-VGL (determined with XRF) are listed in Table 1. The XRF measurement is given in Supplementary Material S2.

2.3 Batch experiments

The HCP powder was mixed with the related ACW or ACW-VGL background electrolyte to achieve suspensions with S/L ratios between 0.5 and 50.0 g L^–1. The samples were turned in an end-over-end rotator (Stuart Rotator SB3, United Kingdom) for a preconditioning period of 72 h. The individual experiments are described in more detail in Section 2.3.2. For phase separation, the samples were precentrifuged at 3,770 g (SIGMA 3K30, SIGMA Laborzentrifugen GmbH, Germany) for 15 min and ultracentrifuged at 108,800 g (Avanti J-30I, Beckman Coulter; United States) for 1 h. The pH value was measured in all samples immediately after centrifugation. The pH values in both electrolytes remained constant after a contact time of 72 h.

2.3.1 pH and Eh measurements

A pH meter (WTW inoLab. pH Level 1, WTW GmbH, Germany) equipped with a pH electrode (BlueLine 16 pH, Schott Instruments GmbH, Germany) was used for the measurement of the pH of the supernatant solutions. The electrode was calibrated regularly using certificated buffer solutions of pH 4.01, 6.87, and 9.18 (Schott Instruments GmbH, Germany). Samples at pH values in the high alkaline range were controlled with certificated buffer solutions of pH 13.00 (Hanna Instruments, Inc., United States). The measured pH value for this buffer was 12.89, giving an uncertainty of ΔpH = 0.11 when using this calibration. It is necessary to correct the measured pH values obtained at higher ionic strengths because of the discrepancies between the activities of the ions in the electrolyte solution of the electrode and the sample solution (Fanghänel et al., 1996). An empirically derived correction parameter (A = 0.41) was used to accurately account for these differences according to the following equation (Fanghänel et al., 1996):

$\mathit{p}\mathit{H}={\mathit{p}\mathit{H}}_{\mathit{exp}}+\mathit{A}.(1)$

The redox potentials were determined using a pH meter connected with a redox electrode (BlueLine 31 RX, reference system: Ag/AgCl, Schott Instruments GmbH, Germany). To ensure the accuracy and reliability of the setup, the functionality was verified using standard solutions of known potentials (+220 mV, +470 mV, and +640 mV; Schott Instruments GmbH, Germany). All values were converted to the standard hydrogen electrode (SHE) by adding 210 mV to the measured values.

2.3.2 Sorption experiments

2.3.2.1 HCP/GLU

The uptake of GLU by HCP was investigated in two different series of batch experiments after a contact time of 72 h. The contact time of 72 h was considered sufficient because a rapid uptake process of GLU was shown in the literature, where the equilibrium was reached after only 1 day (Glaus et al., 2006; Androniuk et al., 2017). One batch experiment was performed as a function of the S/L ratio ([GLU]₀ = 1 × 10⁻² M; S/L = 0.5–50 g L^–1) and the other as sorption isotherm of GLU (S/L = 5 g L^–1; [GLU]₀ = 1 × 10⁻⁹–1 × 10⁻¹ M). In both experiments, ¹⁴C-labelled GLU (2.5–200 Bq ¹⁴C-GLU) was used as a tracer and analyzed by LSC. A 1–2 mL sample was added to 10 mL LSC cocktail Ultima Gold™ XR (PerkinElmer LAS GmbH, Germany) without acidifying. Samples were measured until a 2σ error of 2% was achieved. The resulting limit of detection (LOD) for ¹⁴C-GLU was 1 × 10⁻⁹ M.

2.3.2.2 HCP/Pu(IV)

Sorption batch experiments in the HCP/Pu(IV) binary system after a contact time of 72 h aimed to provide a basis for interpreting the Pu uptake in the presence of GLU at high and low ionic strengths using different approaches. Each sample was prepared in duplicate. In the first batch experiment, the sorption of Pu(IV) ([²³⁹Pu(IV)]₀ = 1 × 10⁻⁸ M) on HCP was determined with ICP-MS analysis (7900 Series ICP-MS, Agilent Technologies, United States). After phase separation, the supernatant was diluted in 2% HNO₃. ¹⁹³Ir ([Ir] = 100 ppt) in 2% HNO₃ was added as an internal standard. The LOD for ICP-MS measurements of ²³⁹Pu was 2 × 10⁻¹⁰ M.

The measured concentration [Pu]_eq [M] of the analyte in the supernatant and its initial concentration [Pu]₀ [M], respectively, were used to calculate the sorption:

$\mathit{S}\mathit{o}\mathit{r}\mathit{p}\mathit{t}\mathit{i}\mathit{o}\mathit{n}\%=\left(\mathbf{1}-\frac{{\left[\mathit{P}\mathit{u}\right]}_{\mathit{e}\mathit{q}}}{{\left[\mathit{P}\mathit{u}\right]}_{\mathbf{0}}}\right)\bullet \mathbf{100}\%.(2)$

The distribution ratio R_d [L kg^–1] between the solid and the liquid phases was calculated using Eq. (3), with the sample volume V [L] and the total mass of the solids m [kg]:

${\mathit{R}}_{\mathit{d}}=\frac{\mathit{V}}{\mathit{m}}\bullet \left(\frac{{\left[\mathit{P}\mathit{u}\right]}_{\mathbf{0}}-{\left[\mathit{P}\mathit{u}\right]}_{\mathit{e}\mathit{q}}}{{\left[\mathit{P}\mathit{u}\right]}_{\mathit{e}\mathit{q}}}\right).(3)$

2.3.2.3 HCP/Pu(IV)/GLU

In order to study the influence of GLU as an organic additive on the sorption behavior, experiments in the HCP/Pu(IV)/GLU ternary system were performed. The order of addition of Pu(IV) ([Pu]₀ = 1 × 10⁻⁸ M) and GLU ([GLU]₀ = 1 × 10⁻² M) on HCP (S/L = 5 g L^–1) was varied in three combinations: (i) (HCP + Pu(IV)) + GLU, Pu(IV) was equilibrated with HCP for 72 h, followed by the addition of GLU, also with a contact time of 72 h. In variation (ii), described as (HCP + GLU) + Pu(IV), GLU was equilibrated with HCP for 72 h before the addition of Pu(IV) and subsequently equilibrated for 72 h. In variation (iii), (HCP + Pu(IV) + GLU), GLU and Pu(IV) were added simultaneously and equilibrated for 72 h. Each sample was prepared in duplicate.

2.3.3 XAFS measurements of ²³⁹Pu

To examine the sorbed Pu species after the uptake by HCP at different ionic strengths, samples were prepared in the background electrolytes ACW and ACW-VGL with an initial concentration of 5 × 10⁻⁶ M ²³⁹Pu(III) as described in Section 2.3.2.2 (HCP/Pu(IV)). The influence of 1 × 10⁻² M GLU was investigated by preparing one additional sample in ACW-VGL, where aliquots of Pu(III) and GLU stock solutions were added simultaneously to the pre-equilibrated HCP suspension. To increase the uptake of Pu by HCP for the spectroscopic measurements, the S/L ratio during sample preparation was reduced to 2.5 g L^–1. A description of the samples can be found in Table 2. The samples were prepared using Pu(III) because its hydrolysis is less and its solubility is higher than Pu(IV) (Grenthe et al., 2020). Therefore, the initial concentration could be increased, which was necessary to perform these spectroscopic investigations. In addition, the use of Pu(III) prevented the formation of Pu(IV) colloids and solid phases (PuO_2(hyd,aged)) at the high pH. After centrifugation of the samples, the solid phase was dried under an Ar atmosphere at room temperature, homogenized, and transferred into double-confinement oblong plastic holders transparent to X-rays. The samples were transported under a liquid nitrogen atmosphere to the European Synchrotron Radiation Facility (ESRF), Grenoble, France. Synchrotron radiation XAFS measurements of the batch samples were performed in 7/8 bunch mode at the BM20 Rossendorf Beamline (ROBL) (Matz et al., 1999; Scheinost et al., 2021) using the Si(111) double-crystal monochromator. Higher harmonic radiation was rejected by Rh-coated mirrors positioned in front of and behind the monochromator. During the measurements, the samples were cooled to 15 K with a closed-cycle He cryostat (CryoVac, Germany). A 13-element Ge-detector (Canberra, United States) was used to record multiple scans of the Pu L_III-edge XAFS spectrum in fluorescence mode. During each scan, the Zr K-edge spectrum of a Zr foil was measured simultaneously in transmission mode. The corresponding ionization chambers were filled with a gas mixture of 82% N₂ and 18% Ar. The X-ray absorption near-edge structure (XANES) spectra of the Zr K-edge (17,998 eV) and the Pu L_III-edge (18,057 eV) were recorded with a step size of 0.5 eV. The extended X-ray absorption fine structure (EXAFS) part of the Pu spectrum was recorded in k-space with a step size of 0.05 Å^–1 and a gradually increasing counting time from 2 s to 20 s per data point. The programs EXAFSPAK (George and Pickering, 2000) and FEFF9 (version 9.6) (Rehr et al., 2010) were used to analyze the EXAFS spectra. A structural model based on density functional calculations of the sorption modes of U(IV) at the C-S-H phase (Chiorescu et al., 2022), where the U in the CaO layer of C-S-H was replaced by Pu, was used for the calculation of the FEFF scattering amplitudes and phases.

TABLE 2

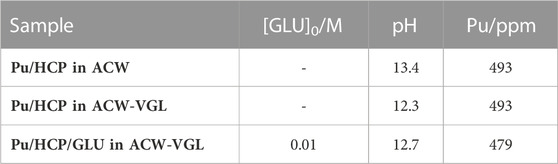

TABLE 2. Samples of the Pu/HCP binary and the Pu/HCP/GLU ternary systems prepared for Pu L_III-edge XAFS measurements with S/L = 2.5 g L^–1 and an initial concentration of 5 × 10^–6 M Pu(III).

The recorded XANES spectra were analyzed using the software package Demeter, Athena, v. 0.9.025 (Ravel and Newville, 2005). After energy calibration using the Zr K-edge energy at 17,998 eV, the spectra were averaged and modeled using least-squares fitting and the reference spectra of Pu(III) aquo ion (Schmeide et al., 2006) and PuO₂ (Martin et al., 2007). In addition, the energy of the Pu L_III edge in the XANES spectra of the HCP samples was determined based on the first inflection point, which is defined as the zero-crossing of the second derivative of the XANES.

3 Results and discussion

3.1 Sorption experiments

3.1.1 HCP/GLU

As described in Section 2.3.2.1, the uptake of GLU by HCP at degradation state I was investigated with ¹⁴C-labelled GLU as the sorption isotherm (Figure 1A) and as a function of the S/L ratio (Figure 1B). In Figure 1A, the values flatten at [GLU]₀ ≥ 1 × 10⁻⁴ M, indicating saturation of the HCP sorption sites. Below this concentration, that is, the range relevant for the waste repository, the sorption isotherm is linear and has a slope of 1. The R_d value equals (4.9 ± 0.4) × 10³ L kg^–1. All data of the GLU/HCP system were modeled using the two-site Langmuir isotherm given in Eq. (4):

${\left[\mathit{G}\mathit{L}\mathit{U}\right]}_{\mathit{s}\mathit{o}\mathit{r}\mathit{b}\mathit{e}\mathit{d}}=\frac{{\mathit{K}}_{\mathbf{1}}{\mathit{q}}_{\mathbf{1}}{\left[\mathit{G}\mathit{L}\mathit{U}\right]}_{\mathit{e}\mathit{q}}}{\mathbf{1}+{\mathit{K}}_{\mathbf{1}}{\left[\mathit{G}\mathit{L}\mathit{U}\right]}_{\mathit{e}\mathit{q}}}+\frac{{\mathit{K}}_{\mathbf{2}}{\mathit{q}}_{\mathbf{2}}{\left[\mathit{G}\mathit{L}\mathit{U}\right]}_{\mathit{e}\mathit{q}}}{\mathbf{1}+{\mathit{K}}_{\mathbf{2}}{\left[\mathit{G}\mathit{L}\mathit{U}\right]}_{\mathit{e}\mathit{q}}},(4)$

where K_1,2 [L mol^–1] is the adsorption affinity constant, q_1,2 [mol kg^–1] is the sorption capacity of HCP for GLU for two distinct sorption sites, and [GLU]_eq is the equilibrium concentration. The Langmuir isotherm parameters for both background electrolytes are summarized in Table 3. These parameters were used to calculate the equilibrium concentration [GLU]_eq as a function of S/L for [GLU]₀ = 1 × 10⁻² M using Eq. (5). The calculated concentrations [GLU]_eq agree well with the experimental data as shown in Figure 1B.

${\left[\mathit{G}\mathit{L}\mathit{U}\right]}_{\mathit{s}\mathit{o}\mathit{r}\mathit{b}\mathit{e}\mathit{d}}=({\left[\mathit{G}\mathit{L}\mathit{U}\right]}_{\mathbf{0}}-{\left[\mathit{G}\mathit{L}\mathit{U}\right]}_{\mathit{e}\mathit{q}})\times \frac{\mathit{V}}{\mathit{m}}.(5)$

FIGURE 1

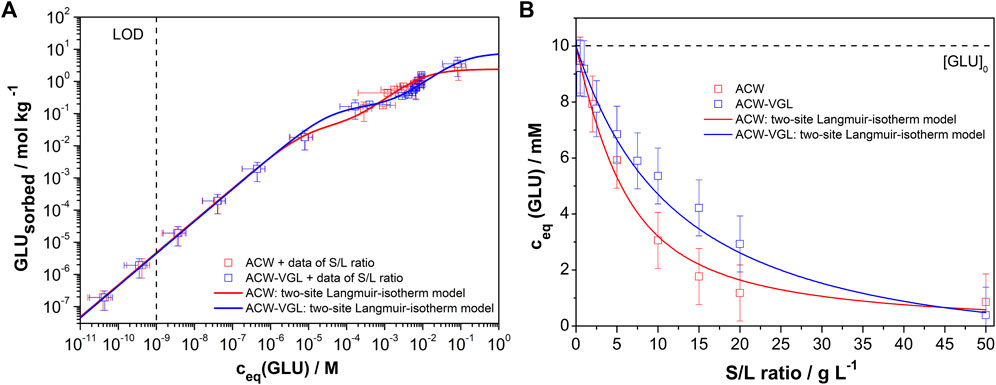

FIGURE 1. Batch sorption experiments of GLU at HCP with ACW (red, pH = 13.3) and ACW-VGL (blue, pH = 12.8) and a contact time of 72 h: (A) sorption isotherm with initial GLU concentrations from 1 × 10⁻⁹ M to 1 × 10⁻¹ M at S/L = 5 g L⁻¹. The dashed black line shows the limit of detection (LOD); (B) at constant GLU concentration ([GLU]₀ = 1 × 10⁻² M) and varying S/L ratio (S/L = 0.5–50 g L⁻¹). The dashed black line marks the initial concentration of 1 × 10⁻² M GLU. The solid red and blue lines in (A) represent the best fit using two-site Langmuir sorption isotherms. The colored lines in B are the equilibrium concentrations of GLU calculated using Eq. 5 with the parameters in Table 3.

TABLE 3

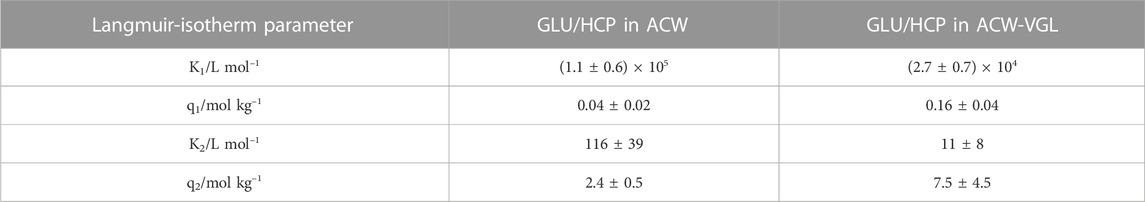

TABLE 3. Sorption affinity constants K₁ and K₂ and sorption capacities q₁ and q₂ for two distinct sorption sites determined by fitting the GLU sorption data using a two-site Langmuir sorption isotherm.

In general, as the amount of HCP in solution increased to 50 g L^–1, the equilibrium concentration of GLU in solution decreased for both electrolytes. Particularly in the range between 5 and 20 g L^–1, the equilibrium concentration differs regarding the ionic strength of the background electrolytes. The exact distribution of the ligand on the sorption sites cannot be deduced. One possibility would be the uptake of GLU into the interlayer of the C-S-H phase. Due to the high affinity of GLU to Ca²⁺ and its H-bonding ability, a strong interaction of GLU with the cement surface is expected (Pallagi et al., 2014; Kutus et al., 2020). According to the calculated speciation (see Supplementary Material S3, Supplementary Figure S1), Ca–GLU complexes are formed under the experimental conditions. Due to a higher Ca²⁺ concentration in ACW-VGL (Table 1), proportionally more [Ca(OH)(GLU)]_aq is formed, which may not sorb onto the HCP surface. This could lead to a lower uptake of GLU by HCP in ACW-VGL and a higher GLU concentration in solution, as seen in Figure 1B, respectively. At low S/L ratios (S/L ≤ 2 g L^–1), the amount of GLU is probably so high that the influence of the background electrolyte is not significant. At an S/L ratio of 50 g L^–1, the concentration values converge again. The high uptake of GLU in both experiments is in good agreement with Androniuk et al. (2017) for C-S-H phases at a Ca/Si ratio of 1.4, which is representative of the Ca/Si ratio of C-S-H phases in unaltered HCP. Based on these results compared with the results from the literature (Androniuk et al., 2017), a blocking of sorption sites by GLU on HCP can be assumed.

3.1.2 HCP/Pu(IV)

First, the sorption of 1 × 10⁻⁸ M Pu(IV) on HCP (S/L = 5 g L^–1) was studied in both background electrolytes. For the experiments, values of R_d,min = 30 L kg^–1, R_d,max = 8.5 × 10⁴ L kg^–1 (ACW), and R_d,max = 2.4 × 10⁵ L kg^–1 (ACW-VGL) were determined as described in Tits et al. (2002). The results of the batch experiments show a high uptake of Pu by HCP independent of the ionic strength (see Table 4; R_d (ACW) = 1.3 × 10⁷ L kg^–1 (S/L = 1 g L^–1) and 2.2 × 10⁶ L kg^–1 (S/L = 5 g L^–1); R_d (ACW-VGL) = 2.6 × 10⁶ L kg^–1 (S/L = 5 g L^–1)), which is in good agreement with the literature (R_d > 10⁴ L kg^–1 (Ochs et al., 2016) and 2.0 (+7.9/-0.5) × 10⁶ L kg^–1 (Tasi et al., 2021)). Furthermore, the speciation calculations for Pu indicate the species of Pu(OH)₄ to be present over a wide pH range. Figure 2A shows the predominance diagram of Pu calculated for an equilibrium concentration of [Pu]_eq = 5 × 10⁻⁸ M for both background electrolytes using the “Thermodynamic database ThermoChimie 9b0, 2015” (used complex formation constants are in SM-4). The measured Eh and pH values of the batch sorption samples, including those for the XAFS experiments, show that the samples are in the stability range of Pu(IV) (see Figure 2). Therefore, we assume that Pu(IV) is the species sorbed on the cement.

TABLE 4

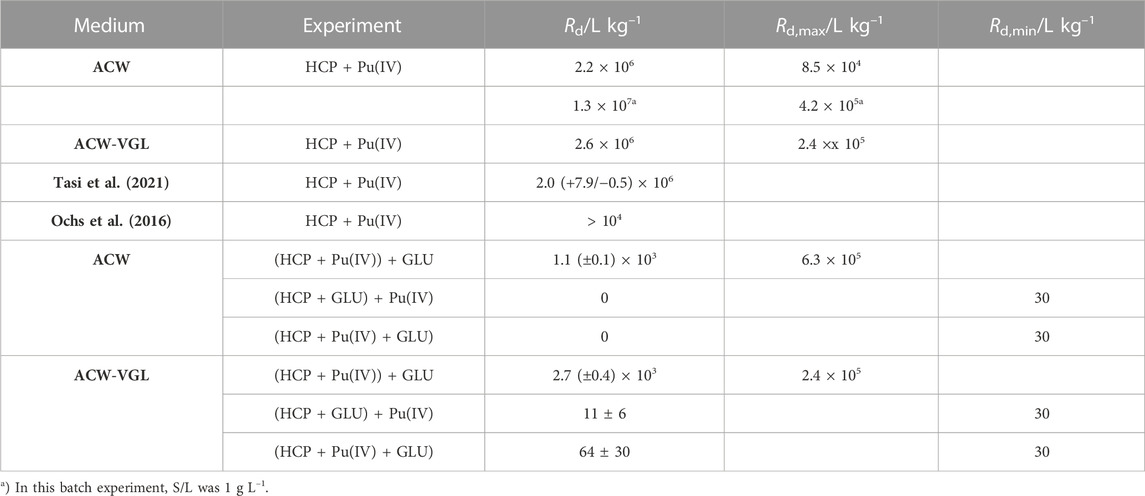

TABLE 4. Values for R_d, R_d,max, and R_d,min in the experiments of the Pu(IV)/HCP binary system and the Pu(IV)/HCP/GLU ternary system under alkaline conditions (pH = 12.5–13) at high and low ionic strengths. Other parameters were S/L = 5 g L^–1, [Pu(IV)]₀ = 1 × 10⁻⁸ M, [GLU]₀ = 1 × 10⁻² M, and 72 h contact time.

FIGURE 2

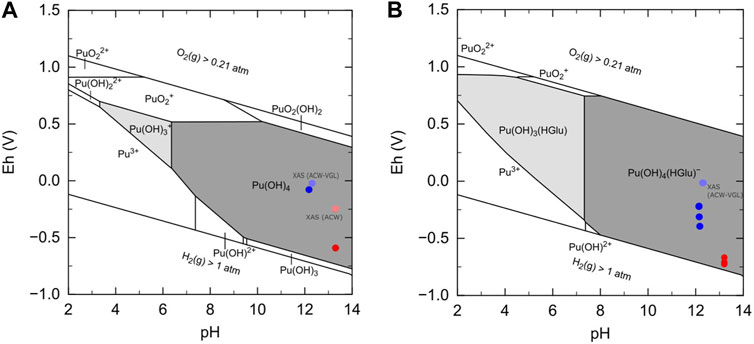

FIGURE 2. Speciation calculation for 5 × 10⁻⁸ M Pu in the absence (A) and the presence (B) of 1 × 10⁻² M GLU. The dots mark the measured Eh (SHE) and pH values of the samples of the ACW-VGL (blue) and ACW (red) experiments. (Graphic generated by PhreePlot (version 1.0 (Parkhurst and Appelo, 2016)) using PHREEQC and the ThermoChimie database 9b0, 2015 (Giffaut et al., 2014).

3.1.3 HCP/Pu(IV)/GLU

To our knowledge, no data are available for the uptake of Pu(IV) by HCP in the HCP/Pu(IV)/GLU ternary system. Table 4 summarizes the R_d values obtained from batch experiments where the order of addition was varied. These values are up to five orders of magnitude lower than those observed for the HCP/Pu(IV) binary system. The order of addition of Pu(IV) and GLU has a significant influence on the Pu uptake. When Pu(IV) was added first ((HCP + Pu(IV)) + GLU), the corresponding distribution ratios are R_d (ACW) = 1.1 (±0.1) × 10³ L kg^–1 and R_d (ACW-VGL) = 2.7 (±0.4) × 10³ L kg^–1). In this case, GLU was added to the HCP suspension 72 h after the addition of Pu(IV). We assume that part of the Pu initially sorbed on HCP (compared with the binary system) was desorbed due to a mobilizing effect of GLU. The desorption of Pu by GLU may be due to GLU being strongly taken up by HCP or to the complexation of Pu(IV) with dissolved GLU, as can be seen in the predominance diagram in Figure 2B. The measured Eh and pH values of all samples are in the predominance region of Pu(OH)₄(GLU)^- complex formation. Furthermore, no Pu uptake (R_d,min = 30 L kg^–1) was observed when GLU was added first or simultaneously with Pu(IV) at low ionic strength (ACW). Also, small R_d values were determined (Table 4) at high ionic strength (ACW-VGL). In the second variant ((HCP + GLU)+Pu(IV)), GLU, which could be taken up at the HCP, was added first, so relevant sorption sites could be occupied, and Pu(IV) is not taken up at the HCP. Both components were added simultaneously in the third variant (HCP + Pu(IV)+GLU). Two effects could be important: first, the strong sorption of GLU on the HCP surface, and second, the formation of the Pu(OH)₄(GLU)^– complex that could remain in solution. The higher proportion of Ca²⁺ in ACW-VGL may be the reason for a slightly higher Pu uptake in ACW-VGL (R_d = 64 ± 30 L kg^–1) compared to the uptake in ACW (Table 4). Moreover, the comparison of the results for variant (i) with the other two variants indicates: (1) the sorption of Pu(IV) on HCP (variant (i)) may be partially irreversible. (2) The kinetics of Pu desorption from HCP by GLU are slower than its contact time of 72 h.

3.2 XAFS measurements (XANES and EXAFS)

EXAFS measurements provide element-specific, short-range structural and chemical information on the Pu coordination environment, including identities and coordination numbers of the neighboring atoms and bond distances. We used this technique to obtain the local coordination environment of 5 × 10⁻⁶ M Pu after being taken up by HCP (S% = 99%, S/L = 2.5 g L^–1) in the investigated samples at high pH and in different electrolytes. The higher uptake of Pu in the presence of GLU (S% = 97%; [GLU]₀ = 1 × 10⁻² M) in this experiment can probably be attributed to the higher initial Pu concentration used. All samples were measured at approximately 15 K to reduce thermal vibrations and to enhance the corresponding contribution of these atoms to the EXAFS amplitude. Furthermore, the oxidation state of Pu retained on the HCP was investigated with Pu L_III-edge XANES spectroscopy. The energies of the absorption edges for the measured samples and of Pu(III)_(aq) and Pu(IV)_(aq) reference spectra (Conradson et al., 2004) are listed in Table 5. Additionally, a linear combination fit was performed using a subroutine in the program Athena (Ravel and Newville, 2005) to determine the fractions of different Pu oxidation states. This determination was achieved by fitting the measured XANES spectrum with reference spectra of Pu(III) aquo ion (Schmeide et al., 2006) and PuO₂ (Martin et al., 2007) in the energy range between 18,012 and 18,212 eV. The Pu L_III-edge XANES spectra (Figure 3) demonstrate that Pu(IV) exclusively dominates as the oxidation state (100%) in the absence and presence of GLU. The relative uncertainty of the XANES fits with Pu(III) and Pu(IV) was less than 3%. The initial Pu(III) was oxidized to Pu(IV) after being taken up by the HCP. This solid phase characterization result confirms the conclusion derived from the measured Eh and pH values of the supernatant solutions and the calculated predominance diagrams (Figure 2).

TABLE 5

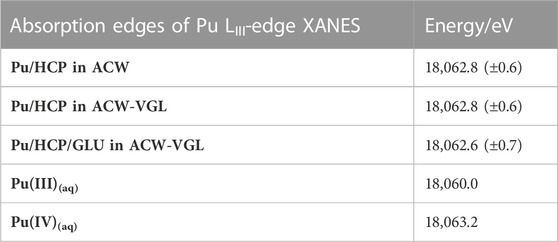

TABLE 5. The Pu L_III-edge energies were determined by analyzing the inflection points of the XANES spectra of the samples studied. A comparison was made with the Pu(III)_(aq) and Pu(IV)_(aq) aquo ions (Conradson et al., 2004).

FIGURE 3

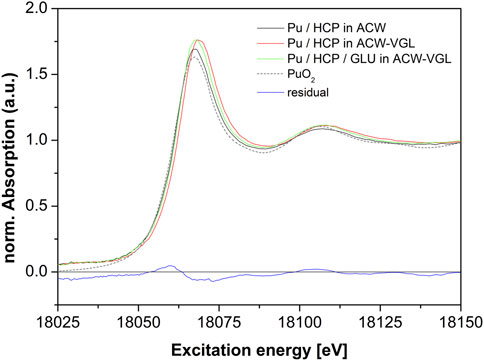

FIGURE 3. Pu L_III-edge XANES spectra of the samples at low and high ionic strengths and in the presence and absence of GLU. The largest residual of all fits is shown as a blue line. The raw data for the reference spectrum of PuO₂ were provided by Martin et al. (2007).

Figure 4 shows the raw Pu L_III-edge k³-weighted EXAFS spectra together with the best model to the data and the corresponding Fourier transform magnitudes for the samples Pu/HCP in the different background electrolytes and in the presence of GLU. The EXAFS spectra of the samples show similar oscillations, indicating similar Pu near-neighbor surroundings. Unfortunately, a monochromator-induced glitch between 18,284.6 eV and 18,299.9 eV (five measurement points) led to a distortion at k ∼ 7.8 Å^–1 in the EXAFS spectra. An attempt to remove this glitch and to model the modified data can be found in Supplementary Material SM-7. The raw EXAFS data (Figure 4) were analyzed in k-space (2.1–10.9 Å^–1) without a window function and could be best modeled with three coordination shells. The total number of independent fit parameters was 10. The EXAFS structural parameters are summarized in Table 6. In the samples, Pu is surrounded by 6.0–6.7 (±0.4) oxygen atoms with Pu-O distances between 2.25 and 2.28 (±0.02) Å. These average Pu-O bond lengths agree with literature data for tetravalent Pu (Reich et al., 2007) and support the conclusion derived from the XANES measurements mentioned before. The second Pu coordination shell was modeled with Si. The average Pu-Si distance is between 3.15 and 3.16 (±0.02) Å, with Si coordination numbers between 1.1 and 1.8 (±0.6). The third coordination shell could be modeled as a Pu-Ca interaction with an average distance of 4.16–4.19 (±0.02) Å. For this coordination shell, a strong correlation between coordination number N and the Debye–Waller factor σ² was observed. For the samples Pu/HCP in ACW and Pu/HCP/GLU in ACW-VGL, the Ca coordination numbers are 5.2 ± 1.4 and 6.0 ± 2.3, respectively. For the Pu/HCP in the ACW-VGL sample, the Ca coordination number is lower, that is, 2.9 ± 0.9. Note that the corresponding σ² = 0.003 ± 0.002 is very small for such a distant shell. It should further be noted that similar EXAFS structural parameters were obtained using the deglitched, k³-weighted EXAFS spectra (see Supplementary Table S4), with only one exception for sample Pu/HCP/GLU in ACW-VGL. Here, both N and σ² are strongly correlated and increased to 11.7 ± 5 atoms and 0.027 ± 0.006 Ų, respectively. In addition, no Pu–Pu interaction could be modeled, indicating the absence of Pu clusters or precipitates at the HCP surface. Because both the atomic distances between Pu and its neighboring O, Si, and Ca atoms and the corresponding coordination numbers are almost identical for the three samples, one can conclude that neither ionic strength nor GLU affects the Pu uptake mechanism. No formation of ternary Pu(IV) complexes on HCP involving GLU was observed.

FIGURE 4

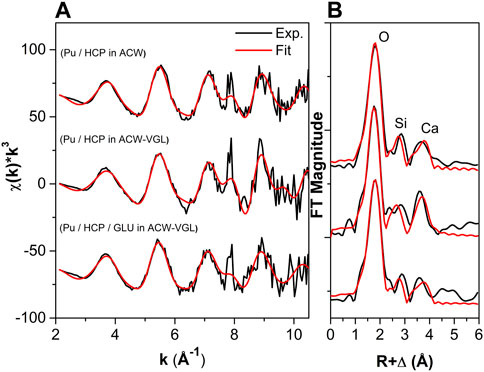

FIGURE 4. Raw Pu L_III-edge k³-weighted EXAFS spectra of Pu loaded on HCP (A) and the corresponding Fourier transform magnitude of the k³-weighted EXAFS spectrum (B). Black line: experimental; red line: best model in k-space to the data. Note the monochromator-induced glitch at k ∼ 7.8 Å^–1. The corresponding deglitched data and fits can be found in the Supplementary Material.

TABLE 6

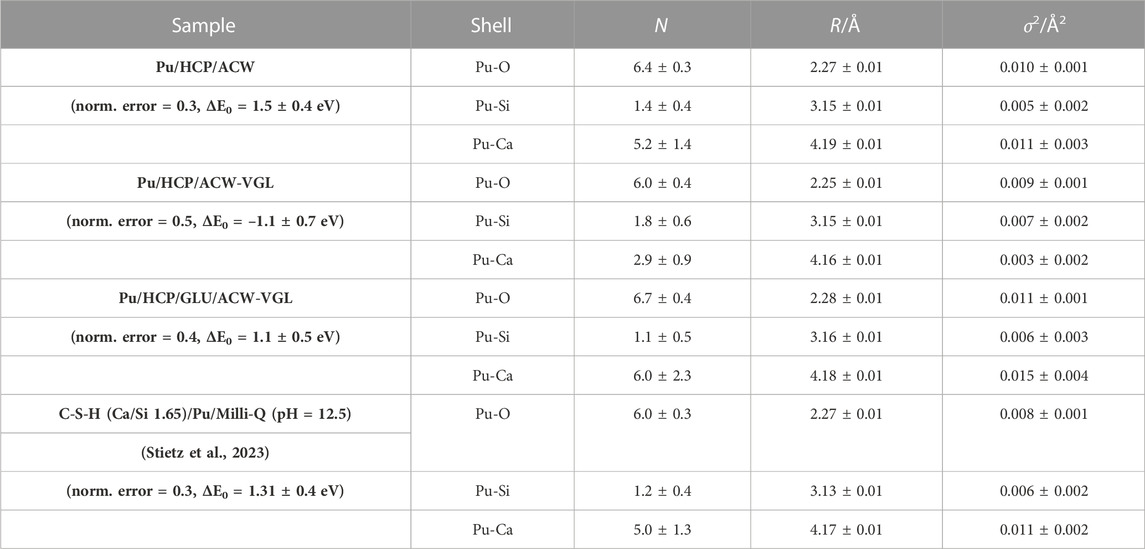

TABLE 6. Structural parameters of the Pu samples determined by Pu L_III-edge EXAFS spectroscopy with N - coordination number, R - distance, and σ² - Debye–Waller factor (S₀² = 0.9) and data from the literature for comparison.

The obtained EXAFS structural parameters can be compared with previous EXAFS studies of Pu(IV) interaction with C-S-H (Ca/Si = 1.65, pH 12.5) (Stietz et al., 2023) and of Np(IV) interaction with HCP in ACW at pH 13.3 and with C-S-H (Ca/Si = 1.65, pH 12.5) (Gaona et al., 2011). For Pu/C-S-H, the following interatomic distances with coordination numbers in parentheses were reported: Pu-O 2.27 Å (6), Pu-Si 3.13 Å (1), and Pu-Ca 4.17 Å (5) (see Table 6). These EXAFS structural parameters are very similar to those of the HCP samples of this study, indicating that C-S-H is the main phase responsible for the uptake of Pu(IV) by HCP.

Gaona et al. (2011) obtained the following interatomic distances with coordination numbers in parentheses for Np/C-S-H: Np-O 2.31 Å (8.3), Np-Si 3.60 Å (2.9), and Np-Ca 4.18 Å (12.7). These results show some agreement and some differences compared to our Pu/HCP samples, that is, a longer Np-Si distance and a higher Ca coordination number. Based on a detailed discussion of the results, Gaona et al. concluded that “Np(IV) is incorporated in the interlayer of the C-S-H structure”.

The uptake of U(IV) by 14 Å tobermorite (Ca/Si = 1.0) was investigated in a recent density functional calculation (Chiorescu et al., 2022). The quantum mechanical calculations of geometry parameters and relative energies included U(IV) adsorption on the (001) surface, absorption in the interlayer, and incorporation into the CaO layer of tobermorite that served as a structural model for C-S-H. The results show that the structural parameters of the U-O coordination shell are insensitive to the different sorption mechanisms. Furthermore, the wide scatter of calculated U-Si distances between 3.0 and 4.2 Å for all sorption modes makes it difficult to distinguish between them. The most promising parameter is the number of Ca atoms below 5.0 Å. N is in the range of 2–4 for the thermodynamically most stable U(IV) complexes at the (001) surface and in the interlayer. For U(IV) incorporation into the CaO layer, the calculations yielded six Ca atoms between 3.7–4.2 Å. Based on the close match between this DFT result and previous EXAFS measurements for Pu(IV)/C-S-H (Ca:Si = 0.8), it was concluded that incorporation of Pu(IV) into the CaO layer of C-S-H is the most probable uptake mechanism (Chiorescu et al., 2022; Dettmann et al., 2023). Compared to these quantum mechanical and spectroscopic results and taking into account the large uncertainty of coordination numbers determined by EXAFS, the uptake into the CaO layer of HCP might be the dominant but not the only uptake mechanism.

4 Conclusion

The results provide an improved basis for predicting the behavior of Pu in radioactive waste repositories under reducing conditions, independent of the ionic strength of the groundwater. The sorption experiments in the binary system show a quantitative uptake of Pu(IV) by HCP that is in good agreement with the sorption data available in the literature. The uptake of GLU by HCP could lead to saturation of the sorption sites and is also consistent with the sorption data available in the literature for C-S-H phases (Ca/Si = 1.4) (Androniuk et al., 2017).

The XANES measurements show that Pu(IV) is the predominant species after being taken up by HCP. The evaluation of the EXAFS measurements suggests that Pu is incorporated into the C-S-H phases, which are the main sorption phase of the HCP. Furthermore, the influence of the ionic strength was investigated, and neither it nor the presence of GLU showed an effect on the uptake of Pu by HCP.

The results show a significant influence of high GLU concentration ([GLU]₀ = 1 × 10⁻² M) on the uptake of Pu(IV), independent of the ionic strength of the groundwater. The impact of the order of addition of Pu and GLU to HCP was investigated. The uptake of Pu by HCP in the presence of GLU decreases. Significant differences in the uptake are found in the experiments of (ii) (HCP + GLU) + Pu(IV) and (iii) (HCP + Pu(IV) + GLU), where (almost) no sorption occurred. This might be a competitive reaction of Pu(IV) and GLU, where GLU may have a desorbing effect or a complex of Pu(OH)₄(GLU)^– might be formed. In addition, the amount of Ca²⁺ in the background electrolyte is crucial for the results of the experiments with GLU and, consequently, in the uptake of Pu by HCP. However, a significantly lower GLU concentration ([GLU]₀ = 1 × 10⁻⁸ M) is to be expected in a repository. A speciation calculation (see SM-5, Supplementary Figure S2) for this concentration shows that Pu(OH)_4(aq) is the dominant species in the alkaline-to-hyperalkaline pH range. Further studies with lower GLU concentrations are needed to gain a better understanding of the processes controlling the effect of the order of addition in cement radionuclide-organic systems. Experiments over a significantly longer period of time are planned to increase the relevance of these assessments for use in repository planning. In addition, experiments should be performed in the other degradation stages of HCP to understand the impact of GLU on the long-term safety of a radioactive waste repository.
