Advances in gadolinium-based composite materials for neutron and gamma-ray shielding

With the significant advancements in nuclear technology, countries have invested considerable research into radiation shielding and protection materials. Neutrons and gamma photons have strong penetrating abilities, which can directly jeopardize human health or lead to the failure of electronic components. Therefore, developing high-performance materials for neutron and gamma photon radiation shielding has become a critical priority. Gadolinium (Gd), a rare earth element with the largest neutron absorption cross-section among natural elements, performs excellently as a neutron absorber. Gd-containing radiation composite shielding materials are typically classified into four main categories based on their matrix: metal-based, glass-based, ceramic-based, and polymer-based. This paper reviews the current research status of these four types of radiation shielding materials. It provides a comprehensive summary and evaluation of each material’s preparation processes, microstructures, mechanical properties, and shielding performance. Additionally, the paper discusses the role of Gd in each type of matrix material and addresses the current challenges in the field.

1 Introduction

Nuclear technology, with its significant advantages, is now widely implemented across various sectors, including industry, healthcare, environmental conservation, and agriculture. Its applications range from clean nuclear energy production and neutron capture for cancer therapy to neutron irradiation for material modification and radiation detection (Hu et al., 2020; Rehm, 2022; Shruti and Gurmeet, 2022; Rehm, 2023). However, despite the benefits of nuclear energy, it also poses risks, including damage to electronic components and threats to human life and health. The primary concern stems from the formidable penetrating power of neutrons and gamma rays, which can easily pass through clothing and the outer layers of human skin, causing severe damage to cells, tissues, and even genetic material (Glass, 1957). Studies show that high levels of gamma radiation raise the risk of cancer and leukemia (Do et al., 2019; Boice et al., 2022). Additionally, prolonged radiation exposure can cause irreparable damage to electronic equipment and instruments. Therefore, the development of effective radiation shielding materials to mitigate the hazards of nuclear radiation has become a crucial and urgent task.

In 1954, the Soviet Union established the world’s first commercial nuclear power plant at the Institute of Physics and Power Engineering (IPPE) in Obninsk, catalyzing the development of large-scale nuclear power and technology (Rachkov et al., 2014). As nuclear technology continues to expand, traditional shielding materials are increasingly inadequate for the growing range of applications. For example, lead, one of the earliest protective materials, has high density, good ductility, and effective attenuation of X-rays and gamma rays (Jayakumar et al., 2023). However, its toxicity limits its use. Concrete, commonly used as structural shielding material, is cost-effective and has a larger mass but lacks mobility, making it suitable only for large-scale load-bearing equipment (Onaizi et al., 2024). Boron has a relatively large neutron absorption cross-section, with good neutron absorption, but its high brittleness is expensive and unfavorable for processing. Other protective materials, such as water, graphite, iron, etc., only in a single radiation scenario with a certain degree of protection, can only be in environmentally restricted conditions to play a specific role. As a result, research is focused on developing lightweight, high-strength radiation protection materials. Consequently, significant financial and scientific resources have been allocated to this area.

Rare earth elements (REEs) constitute a series of 17 metal element families (La-Lu) consisting of group III (Sc, Y) and lanthanides (Hu et al., 2006; Schelter, 2019). Rare earth elements possess distinctive 4f valence electron orbitals. The combination of domain fixation and incomplete filling of the 4f electrons, coupled with their high valence, large radius, and strong polarization force, makes rare earth elements an invaluable resource in the preparation of magnetic materials, luminescent materials, catalysts, radiation shielding, and other applications (Anishur Rahman et al., 2010; Al-Buriahi et al., 2019; Schelter, 2019; Alharshan et al., 2022; An et al., 2023; Peng et al., 2023). Among the entire range of rare earth materials, gadolinium (Gd) is distinguished by the fact that its outer electrons are only partially filled, making it the atom with the greatest number of unpaired electrons in the entire group. Its electronic configuration (4f⁷5d¹6s²) contributes to an enlarged atomic radius and facilitates the formation of vacancy defects in its crystalline lattice (Dorenbos, 2013). These structural characteristics enhance inelastic scattering interactions with neutrons, which serve to moderate neutron energy and increase the probability of subsequent neutron-nucleus interactions. Furthermore, Gd demonstrates the highest neutron absorption cross-section within the rare earth family (Wang et al., 2023). Natural Gd is typically found in the form of Gd₂O₃. A number of its nuclides, including ¹⁵⁷Gd, exhibit the largest neutron absorption cross-section of 255,000 b, while ¹⁵⁵Gd displays a thermal neutron absorption cross-section of 62,540 barns, outperforming conventional boron-based absorbers by several orders of magnitude (other isotopes such as ¹⁵⁸Gd contribute relatively little to neutron capture) (Hidaka et al., 2000). Furthermore, its n and γ reaction cross-sections for thermal neutrons are observed to be tens of times higher than those observed for boron. The total content is as high as 30 wt% (Kregl et al., 2017; Wang et al., 2022). With an atomic number (Z = 64) second only to high-Z elements such as lead, Gd achieves superior gamma-ray attenuation through multiple mechanisms, including photoelectric absorption and Compton scattering.

Compared to hydrogen-rich materials, Gd-based systems uniquely enable simultaneous attenuation of both primary neutrons and secondary gamma rays generated during neutron capture events. When contrasted with boron-containing materials, Gd offers enhanced shielding efficiency across broader energy spectra while circumventing performance degradation caused by hydration issues inherent to boric acid-based compounds. Therefore, Gd represents one of the most significant components employed as a shielding and fluxing device in the field of nuclear power (Yousefi et al., 2015), exhibiting exceptional neutron absorption capabilities.

With the rapid advancement of nuclear technology, there has been an increasing interest in the research and development of shielding and protection materials. However, the research progress with Gd as a shielding material has been relatively underdeveloped. This paper aims to highlight the advantages of Gd as an effective neutron shielding material. It will examine the interaction mechanisms between neutrons, gamma rays, and Gd, and review the current state of research on Gd in various substrate materials. Finally, we evaluate the prospective applications of Gd-based neutron shielding materials in the context of existing challenges, including dynamic radiation environments and multifunctional performance requirements.

1.1 Neutron interactions with the rare earth element Gd

Neutrons are generally electrically neutral, and their interaction with electrons in matter is minimal. It can be observed that the energy loss of these particles is not primarily due to ionization and excitation of atoms. Instead, their energy is lost predominantly through collisions with atomic nuclei (Soltan, 1938). Neutrons can be classified into three principal categories according to their energies: fast neutrons (E > 0.1 MeV), medium-energy neutrons (1 keV < E < 100 keV), and slow neutrons (E < 1 keV). Additionally, neutrons with an energy of 0.0253 eV are commonly designated as “thermal neutrons.”

Neutron interactions with matter can generally be categorized into two types: scattering and absorption. The former encompasses both elastic and inelastic scattering. The lowest excitation energy level of medium and heavy nuclei is low, and their first excitation energy level is generally around 0.1∼1 MeV. Fast neutrons have a higher energy level than the lowest excitation energy level of the target nucleus. Accordingly, high-energy fast neutrons will initially undergo inelastic collisions with medium and heavy nuclei, thereby decreasing their kinetic energy following the interaction with target nuclei and reducing them to fast neutrons. Afterward, following the law of conservation of kinetic energy, fast neutrons will undergo elastic collisions with light nuclear elements, resulting in a rapid reduction in neutron energy. Ultimately, these neutrons will have a high neutron capture cross-section in the material capture reaction, which can be absorbed by γ light. This process can also be observed in heavy nuclear elements.

As shown in Table 1, the thermal neutron absorption cross-sections for several common elements are illustrated, with Gd being the rare earth element possessing the largest neutron absorption cross-section. For neutrons, Gd with natural isotopic abundance (containing 15.7% ¹⁵⁷Gd and 14.8% ¹⁵⁵Gd) exhibits an exceptionally high macroscopic absorption cross-section (Σ_a ≈ 1.42 cm^-1) at thermal neutron energies (0.025 eV) (Ho et al., 2022). Furthermore, its key isotopes, ¹⁵⁵Gd and ¹⁵⁷Gd, demonstrate strong resonance absorption in the epithermal neutron range (G. Leinweber et al., 2006). However, the neutron absorption efficiency of Gd significantly declines for fast neutrons (>1 MeV, Σ_a < 0.5 cm⁻¹), necessitating the use of moderating materials (e.g., polyethylene, water) to enhance shielding performance (Li X. et al., 2024). Gd can combine with light elements, utilizing elastic and inelastic scattering to slow down high-energy neutrons. Ultimately, it absorbs lower-energy neutrons and the resulting secondary gamma photons, achieving optimal shielding.

Table 1

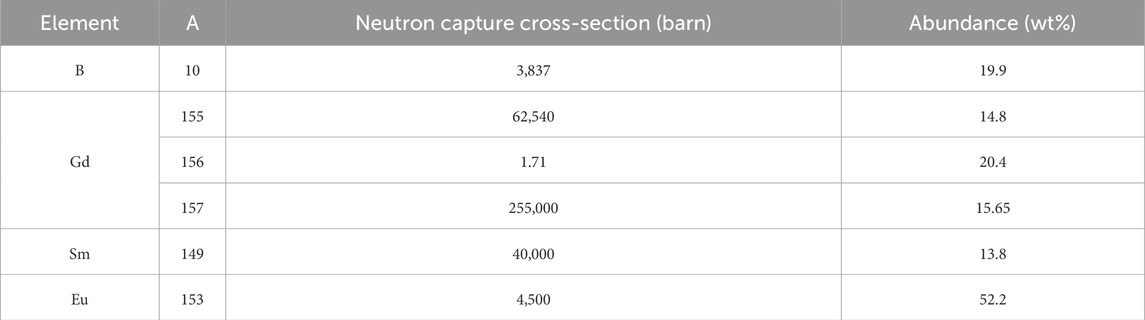

Table 1. Thermal neutron absorption cross-sections of several elements.

1.2 Interaction of gamma photons with the rare earth element Gd

Gamma rays (γ-rays) were first discovered by the French scientist Villars in 1900 (Gerward, 1999). γ-rays are high-energy photons that are massless and uncharged, which allows them to easily penetrate materials. They can be generated naturally through the radioactive decay of radionuclides (e.g., 238U and 232Th series) or artificially in nuclear reactors (Eman et al., 2021). γ-rays interact with matter primarily through three mechanisms: photoelectric effect, Compton scattering effect, and electron pair effect.

The photoelectric effect occurs when an incident photon interacts with an atom, transferring all its energy to an electron. This energy causes the electron to overcome the binding forces of the atom and be ejected from the atom. The ejected electron is called a photoelectron, and the photon ceases to exist. As the atom returns to its ground state through de-excitation, it may emit an Auger electron or an X-ray, as shown in Figure 1a. The likelihood of the photoelectric effect occurring is quantified by the photoelectric cross-section (σph), which is positively correlated with the fifth power of the atomic number (Z) and negatively correlated with the photon energy (hυ). Therefore, high-Z materials are more efficient at absorbing low-energy photons through this mechanism.

Figure 1

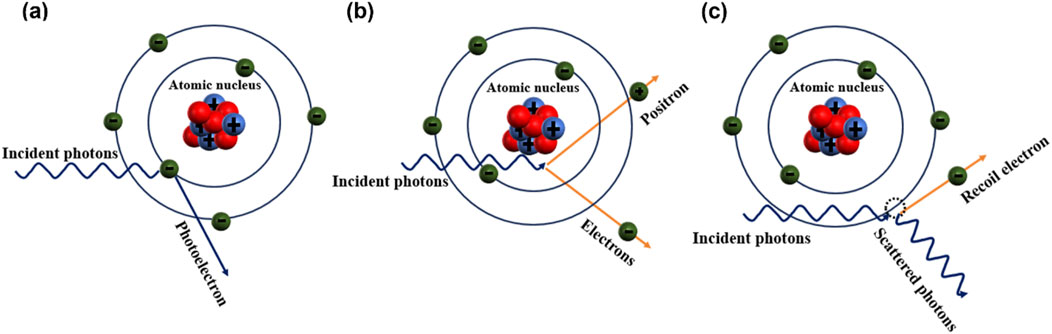

Figure 1. Three types of interactions between Gamma rays and matter: (a) Photoelectric effect, (b) Compton scattering, and (c) Electron pair effect.

As shown in Figure 1b, Compton scattering involves an inelastic collision between an incident photon and an outer electron, resulting in the transfer of some energy to the electron, which causes it to be ejected from the atom as a recoil electron. The photon, now with reduced energy, is scattered at a different angle. Compton scattering is the dominant mechanism through which matter interacts with neutral energy. Similar to the photoelectric effect, the probability of Compton scattering is described by the Compton scattering cross-section (σC), which is proportional to the atomic number (Z).

The electron pair effect, as illustrated in Figure 1c, occurs when an incident photon passes near the nucleus of an atom and is converted into a positron and an electron due to the Coulomb field of the nucleus. The positron and electron subsequently interact with nearby atoms, losing energy and slowing down due to Coulomb forces. Eventually, the positron annihilates with an electron in the material, producing two gamma photons, each with an energy of 0.511 MeV. The electron pair cross-section (σp) is proportional to the square of the atomic number (Z²). High-energy photons interacting with elements or compounds of high atomic number are more likely to result in pair production, leading to enhanced radiative attenuation (Zhang Q.-P. et al., 2020). Figure 2 illustrates the correlation between these three effects, photon energy, and atomic number. It is evident that elements with higher atomic numbers demonstrate superior γ-ray shielding capabilities.

Figure 2

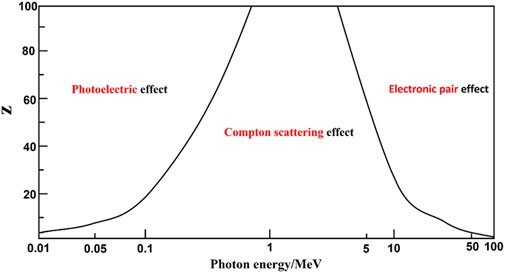

Figure 2. The relationship between the three interaction mechanisms, photon energy, and atomic number.

There are various mechanisms by which photons interact with matter, mainly dominated by the photoelectric effect, the Compton scattering effect, and the electron pair effect (Kaur et al., 2016). σ_t denotes the cross-section of the ray-matter interaction, then

${\sigma }_t={\sigma }_{ph}+{\sigma }_c+{\sigma }_p$

Figure 2 represents the relationship between the three effects and the atomic number of the photon energy. When the material has a large atomic number, the photoelectric effect dominates when the incident photon energy is low, and the electron pair effect dominates when the incident electron energy is high. When the atomic number of the material is low, Compton scattering dominates.

2 Research progress of Gd-based composite shielding materials

In recent years, rare earth elements have exhibited good radiation protection properties and have become a research hotspot in radiation composite shielding materials. Gd-based composite shielding materials can be classified by substrate (Figure 3). metal-based composite shielding materials, glass-based composite shielding materials, ceramic-based composite shielding materials, and polymer-based composite shielding materials.

Figure 3

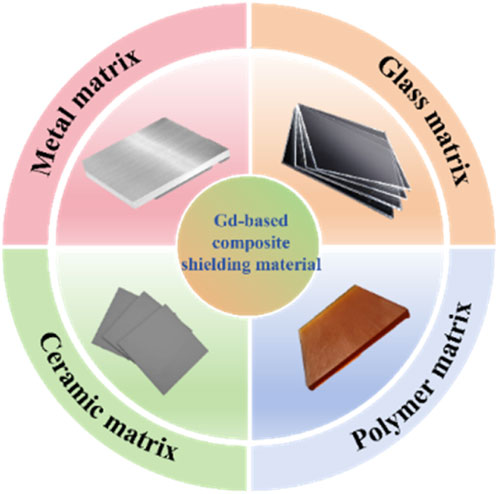

Figure 3. Classification of Gd-containing composite radiation shielding materials.

2.1 Gd-containing metal matrix composite shielding materials

For stationary power reactors such as nuclear power plants, shielding materials must balance three key parameters: shielding performance, total weight, and volume, to comply with design specifications. Cost-effectiveness is also a crucial consideration. Metal-based composite shielding materials offer superior mechanical properties, corrosion resistance, and workability, though their higher production costs can be advantageous in space-constrained nuclear installations. However, their cost-effectiveness remains relatively low, which presents challenges in certain nuclear facilities with limited space (Gupta, 2020; Gan et al., 2021). Currently, metal-based composite shielding materials can be classified into iron-based, aluminum-based, stainless steel-based, and other metal-based composites. Among these, Gd-containing metal-based composites are primarily aluminum-based and stainless steel-based, as shown in Table 2.

Table 2

Table 2. Some Gd-containing metal matrix composite shielding materials and their performance parameters.

Aluminum, due to its low density, ease of processing, and relatively low cost, is an excellent choice as a matrix material for mass-produced metal-based shielding. The high thermal neutron absorption cross-section of ¹⁰B enables the effective absorption of thermal neutrons via the ¹⁰B (n, α) ⁷Li transmutation reaction (Zhang et al., 2008; Xu et al., 2016a). Moreover, the use of ¹⁰B as a reinforcing filler, such as in boron steel or boron carbide (B₄C)/Al metal composites, has been widely applied for the storage and transportation of spent nuclear fuel. However, the shielding capacity of boron steel for thermal neutrons is negligible when the concentration of ¹⁰B is low, and excessive concentration can lead to a deterioration in the mechanical properties of the composites. Increasing the content of boron carbide (B₄C) raises the hardness of the material, which in turn limits its processability and moldability (Oh et al., 2023; Sun et al., 2023). Studies have shown that ¹⁵⁷Gd possesses a thermal neutron absorption capacity four times greater than that of ¹⁰B, while also offering a cost advantage of approximately one-twelfth to one-fifth of that of ¹⁰B (Xu et al., 2016b). Additionally, Gd can effectively reduce the formation of helium bubbles during the neutron absorption process, thereby extending the lifetime of neutron-absorbing and shielding materials (Cong et al., 2020; Jung et al., 2020). Thus, replacing B with Gd offers a solution to the content-performance dilemma.

Through the strategic partial substitution of Gd for B₄C in B₄C/Al composites, Xu et al. (2016a) successfully alleviated the constraints induced by tensile brittleness, which hindered the development of shielding composites. This modification resulted in an improvement in the plasticity of the composites. As shown in Figure 4, the (15%B₄C + 1%Gd)/Al composites prepared by hot-pressing were compared with the conventional 30%B₄C/Al composites. The (15%B₄C + 1%Gd)/Al composite exhibited slightly better neutron shielding performance than the 30%B₄C/Al composite, with the elongation at break increasing from 4% to 9%. This research highlights an optimal combination of high neutron absorption and good ductility, making it a promising candidate for future neutron shielding applications. Kursun et al. (2024) employed a powder processing mechanical milling method to synthesize metal nanocomposites. Mechanical ball milling resulted in reduced grain size and refinement, facilitating the uniform fusion of aluminum, Gd, and oxygen elements. Similarly, it was found that lower concentrations of Gd₂O₃ were sufficient to produce thermal neutron attenuation efficiencies comparable to those of standard Al/B₄C composites. To address a wider range of application scenarios for shielding materials and meet more diverse protection requirements, researchers have focused on developing non-homogeneous structures, including layered and shell-core structures. Gaylan and Avar (2024) investigated the structure, mechanical properties, and neutron shielding characteristics of Al-20%B₄C-x%Gd₂O₃ (x = 1, 3, 5) composites through high-energy ball milling. The MCNP6.2 simulation results indicated that the Al-20%B₄C-5%Gd₂O₃ composite exhibited the highest fast neutron absorption rate, while the Al-20%B₄C-5%Gd composite demonstrated the highest thermal neutron absorption rate. Zhang P. et al. (2020) prepared a Gd₂O₃@W/Al composite by coating a layer of tungsten on the surface of Gd₂O₃ particles. When Gd absorbs neutrons, it excites secondary gamma rays, which are blocked by the tungsten shell, achieving simultaneous shielding against neutrons and secondary gamma rays. This approach is particularly promising for applications such as spent fuel storage and transportation, or for mobile nuclear reactors.

Figure 4

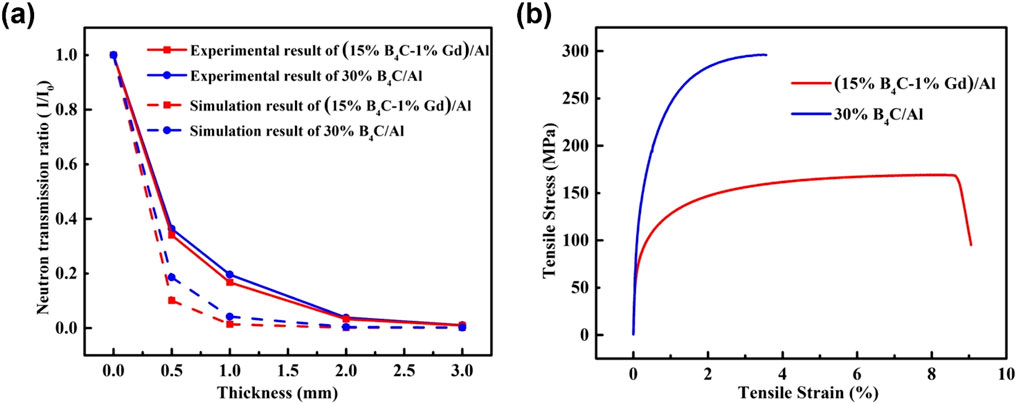

Figure 4. (15%B₄C-1%Gd)/Al and 30%B₄C/Al Composite Materials: (a) Neutron Transmission Rate and (b) Tensile Curve (Xu et al., 2016b).

Spent nuclear fuel (SNF) generated from nuclear reactors has an inherent spontaneous fission capability that releases intense neutrons and gamma rays, which are extremely hazardous to the environment and human beings and require careful and appropriate disposal (Wang et al., 2018; Fu et al., 2021; Qi et al., 2022). Boron-aluminum alloys have low melting points and mechanical strengths, making it difficult to meet the requirements of spent fuel storage racks and spent fuel transportation. Iron-based composite shielding materials are mainly based on stainless steel, which has excellent durability, corrosion resistance, and high strength. Combining it with boron can develop composite materials with neutron-shielding properties. However, boron has a very low solubility in stainless steel, making it extremely difficult to produce alloys with high shielding efficiency (Choi et al., 2013). Among the various types of stainless steels, duplex stainless steels with austenitic and ferrite phases have higher strength and better corrosion resistance than single-phase austenitic stainless steels at a lower cost (Yang et al., 2020; Qi et al., 2023; Silva et al., 2023). Choi et al. (2013) devised and manufactured a duplex stainless steel sheet with a Gd content of 1 wt% through a process involving melting, casting hot rolling, and solution treatment. The alloy consists of 31% ferrite phase and 69% austenite phase, and the main elements are chromium (Cr), nickel (Ni), and Gd. Gd-rich precipitates can be found inside the grains and at grain boundaries under microscopic conditions. Its ultimate tensile strength was 700.2 MPa, yield strength was 552.3 MPa, and elongation was 38.08%. Subsequently, this research team investigated the neutron-absorbing element Gd on the organization development characteristics and mechanical and corrosion behavior of duplex stainless steel in 2015 (Choi et al., 2016).

Oh et al. (2023) prepared alloys by adding 2 wt% of Gd to austenitic stainless steels 304 and 316 and duplex stainless steel 5A. The chemical composition of the alloys used in the experiments is presented in Table 3. It was determined that Gd was distributed uniformly in the alloy as an intermetallic compound, exhibiting no segregation or clustering. The mechanical properties were then compared with those of boronized stainless steel according to the ASTM A887 standard. The addition of Gd can increase the ultimate tensile and yield strength of the alloy by 11%. Despite a 48% reduction in elongation, the alloy exhibited significantly higher impact properties than boron-containing stainless steels. Kinetic potential polarization tests were carried out on the alloy, and the corrosion resistance of the alloy decreased with the addition of Gd, but its neutron absorption showed excellent performance. Baoting Ji et al. (2024) designed and prepared a new Gd-doped iron-based amorphous metal coating (Gd-AMC) using thermal spraying. The thermal neutron absorption cross-section of the coating containing 4.8 wt% Gd was observed to be 14.7 times higher than that of the borated stainless steel (BSS) substrate. Moreover, the authors propose a novel “dissolution passivation” process to rapidly form a protective passivation film on the amorphous substrate, resulting in localized corrosion resistance of the Gd-AMCs significantly better than that of the BSS substrate.

Table 3

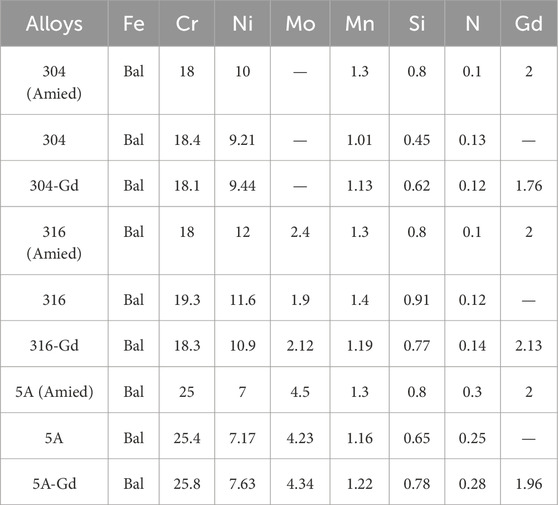

Table 3. Chemical composition (wt%) of alloys used in the experiment (Oh et al., 2023).

2.2 Gd-containing glass-based composite shielding materials

Glass is a distinctive material system, characterized by its inherent transparency (Kurtulus, 2024). This quality is particularly advantageous in contexts where optical clarity is paramount, such as control room windows, glass doors, protective panels for inspection systems, and radiation shielding sites, including those used for material testing and radiotherapy (Sayyed et al., 2019; Kawa and Kaky, 2024). Glass materials doped with rare-earth particles are extremely useful for the improvement of optical devices such as lasers, light propagators, optical fibers, amplifiers (Alalawi et al., 2022). Currently, glass systems used for radiation shielding are mainly classified as borates (Al-Buriahi et al., 2022), silicates (Albarzan et al., 2021), germinates (Sayyed et al., 2019), phosphates (Saudi et al., 2020), and tellurates (Kurtulus, 2024).

Borate-based glasses are the most extensively studied glass systems, known for their excellent metal oxide solvent properties. This is due to the ability of their glass network to form tetrahedral units of BO₄ and triangular units of BO₃, which affords them the advantage of requiring a low processing temperature (Abou Hussein and Madbouly, 2024; Biradar et al., 2024). Yorulmaz et al. (2024) investigated the effect of different ratios of Gd₂O₃ on the structural, optical, radiation shielding, and mechanical properties of B₂O₃-Al₂O₃-Na₂O-Gd₂O₃ glasses. The radiation shielding parameters were determined at energies of 1,173 keV and 1,333 keV, respectively. The results demonstrated that the shielding was more effective at 1,173 keV than at 1,333 keV. Young’s modulus of 104.211 GPa, fracture toughness of 1.215 MPa m^1/2, band gap energy of 2.89 eV, and LAC value of 0.1488 ± 0.0074 cm⁻¹ were found to have optimum radiative and mechanical properties when the contribution of Gd₂O₃ was 3%. The disadvantage of B₂O₃ glass is the high phonon energy, which can be reduced by increasing the density of the glass. The density can be increased by adding heavy WO₂ and Gd₂O₃ components to the glass network. In 2021, Kaewnuam et al. (2022) prepared WO₃-Gd₂O₃-B₂O₃ glass by melt quenching. The high-density material has tremendous photon interaction and high radiation resistance, and the WGB glass increases with the concentration of Gd₂O₃. As shown in Figure 5, WGB glass appears a pale-yellow color that can be seen by humans and can be used as a radiation-shielding window. At 662 keV photon energy, the HVL of WGB glass is compared with that of commercial window glass and some standard shielding materials, and the HVL of the prepared WGB glass is in the range of 1.331 ∼ 1.412 cm, and its Radiation shielding performance is superior to that of standard materials, among which the Gd17.5 glass has the best radiation shielding performance, and it is a promising shielding material of γ-rays at room temperature and high temperature. It is a promising shielding material for room temperature and high-temperature γ-rays. Alamosa et al. (Almousa et al., 2024) explored the role of mixtures of silicon (Si) and Gd rare earths in oxide glass matrices, which led to a new field of B₂O₃-SiO₂-Gd₂O₃ glass composites. The radiation shielding parameters were evaluated using the MCNPX code and the Phy-X software. The PSD tool revealed that the GL-3 sample was the most effective gamma photon attenuator, with half-value layer (HVL) values ranging from 0.002 to 3.706 cm. In addition, the Makishima and Mackenzie modeling was used to evaluate the mechanical and acoustic properties of these glasses, and the results of this study showed that the GL-3 glass samples exhibit excellent performance in terms of gamma photon attenuation, mechanical robustness, and acoustic properties.

Figure 5

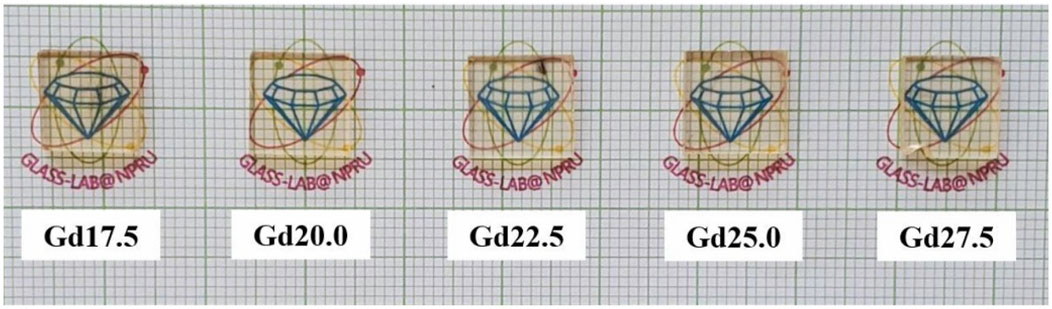

Figure 5. Photographic image of WGB glass sample (Kaewnuam et al., 2022).

Silicate glass is commonly used in commercial eyewear due to its ease of fabrication and good visibility (Albarzan et al., 2021). However, its processing temperature is high, and relatively few studies have been conducted on Gd-containing silicate glass-based radiation protection materials. A promising approach involves combining boron oxide (B₂O₃) and silicon dioxide (SiO₂), with B-O and Si-O bonds forming a stable non-uniform network, making the borosilicate glass system superior to both borate and soda-lime glasses. Mhareb (2023) synthesized four borosilicate glass samples using the melt-cooling method, transforming them into glass ceramics under heat treatment. The radiation shielding properties of these samples were evaluated, and it was found that replacing B₂O₃ with Gd₂O₃ improved both the neutron and radiation shielding properties. For instance, the FNRCS (Fast Neutron Removal Cross-Section) of BSTSGd0.5, BSTSGd1, BSTSGd1.5, BSTSGd1.5, and BSTSGd2 were 0.103, 0.105, 0.105, and 0.105 cm⁻¹, respectively. However, the addition of Gd₂O₃ was found to reduce the shielding performance for charged particles, indicating that the contribution of heavy elements to charged particle shielding is limited. Bawazeer and Sadeq (2023) doped the borosilicate glass system with Gd oxide (Gd₂O₃), sodium oxide (Na₂O), and iron oxide (Fe₂O₃). The study showed that the glass system’s transparency increased with the addition of Gd₂O₃, and the final morphology is shown in Figure 6a. As illustrated in Figures 6b, c, with the increasing addition of Gd₂O₃, the density and optical bandgap of the glass sample increased. This resulted in a decrease in both the linear and nonlinear refractive indices, improved transparency, and a significant enhancement in radiation shielding performance. Consequently, this glass sample is a suitable candidate for high-transparency radiation shielding applications.

Figure 6

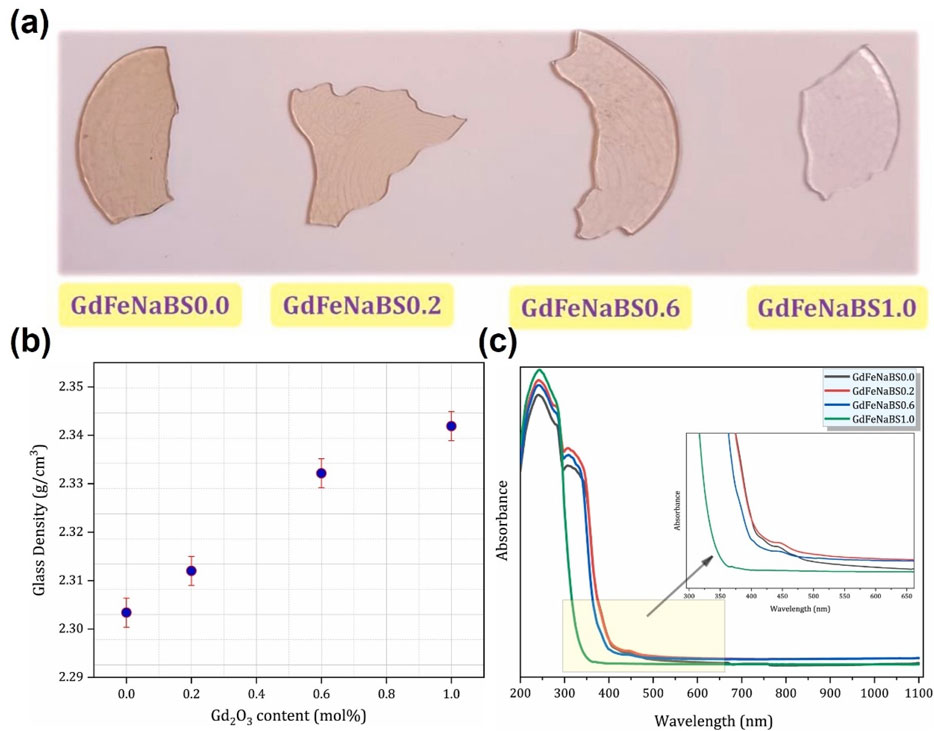

Figure 6. (a) Photographic image of the prepared GdFeNaBS glass sample, (b) dependence of GdFeNaBS glass sample on Gd₂O₃ Content (at room temperature), (c) absorbance of the prepared glass sample in the 200–1,100 nm UV-Visible-NIR range as a function of wavelength (Bawazeer and Sadeq, 2023).

Compared to the extensive research on borate and silicate glass systems, there are relatively few studies on radiation shielding materials based on rare earth element Gd-doped phosphate, tellurite, and germanate glass systems. Phosphates, as conventional glasses, typically exhibit relatively poor chemical durability and require improvements through the addition of different oxides to enhance their service life (Saudi et al., 2020; Alalawi et al., 2022). In 2018, Tao Yu (2018) prepared a series of x Gd₂O₃-(50-x)BaO-50P₂O₅ (0 ≤ x ≤ 7 mol%) glass samples using the melt quenching method and irradiated them with a⁶⁰Co irradiation source. The results revealed the formation of brown phosphorus-oxygen hole centers (class I color centers) under γ-ray irradiation. The number of color centers decreased with increasing Gd₂O₃ content in the glass, indicating that Gd₂O₃ enhances the resistance to γ-irradiation in barium phosphate glass without introducing new structural units into the microscopic network.

The tellurite glass system has a lower processing temperature than silicates. However, the high dispersion coefficient and weak mechanical properties of tellurites limit their development in the optical field. Furthermore, tellurium is toxic, posing long-term health hazards to humans (Floressy Juhim et al., 2022; Mhareb et al., 2024). Al-Hadeethi and Agar (2020) employed software to assess the photon attenuation of the TeO₂-ZnO-Nb₂O₅-Gd₂O₃ glass system. The addition of ZnO as a network modifier improved the medium’s opacity, fusion properties, chemical durability, and nonlinear refractive index. Incorporating niobate (Nb₂O₅) into the glass matrix stabilizes the network and may enhance the dual properties of the glass, serving both as a modifier and a network-forming agent. Gd₂O₃-doped glass matrices are highly efficient scintillator materials due to the efficient energy transfer from Gd³⁺ ions to activators. This makes them suitable for radiation detection and high-energy particle applications. The results showed that the attenuation capacity of ionized photons increased with the sample’s density, indicating that high-density samples are needed for superior attenuation. As shown in Figure 7, the mass attenuation coefficient and effective atomic number of the tellurite glass were higher than those of the other samples when the Gd₂O₃ content was 2.5 mol%. Germanate glass offers good thermal stability, transparency, and a low melting point. However, germanium is a rare metal with limited availability, making germanate glass expensive to produce. As a result, it is generally used for specific optical components and lasers (Sayyed et al., 2019). Kawa and Kaky (2024) investigated photon energies ranging from 0.015 to 10 MeV in the B₂O₃-GeO₂-Eu₂O₃-R₂O₃ (where R = Y, La, and Gd) germanate glass system for its shielding capabilities. The results showed that the addition of elements with high atomic numbers (Z) effectively enhanced the photon attenuation of germanate glass.

Figure 7

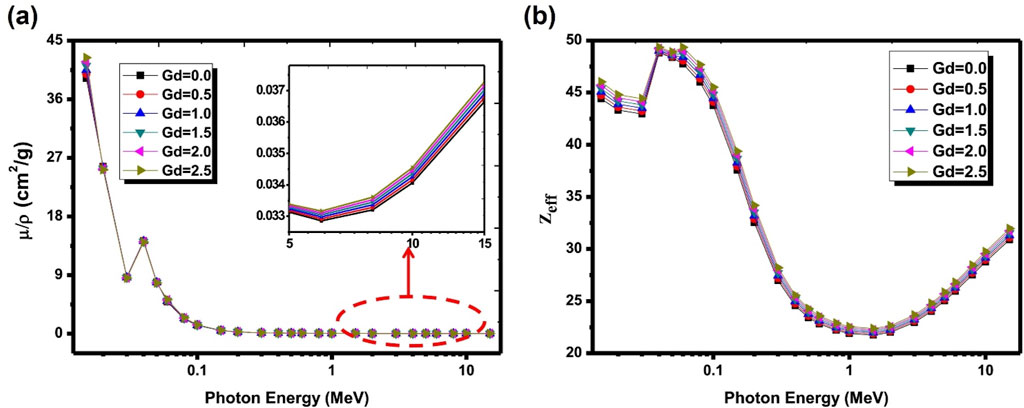

Figure 7. (a) Mass attenuation coefficient of TeO₂-ZnO-Nb₂O₅-Gd₂O₃ glass in the energy range of 0.015–10 MeV, (b) Effective atomic number of TeO₂-ZnO-Nb₂O₅-Gd₂O₃ glass (Al-Hadeethi and Agar, 2020).

2.3 Gd-containing ceramic-based composite shielding materials

Ceramic materials are a class of non-metallic inorganic compounds, typically prepared through high-temperature sintering or melting processes. These materials are known for their exceptional thermal stability and low conductivity, making them promising candidates for thermal insulation applications in reactors (Lo et al., 2015; Zhang and Bai, 2019; Zhang, 2021). The development of ceramic-based materials with neutron-shielding properties has become a significant area of research. Over recent decades, scholars specializing in nuclear materials have increasingly focused on ceramic-based systems due to their advantages, including high-temperature resistance, mechanical robustness, and tunable compositions (Oto et al., 2019).

Aluminum oxide ceramics (Al₂O₃) are widely used as carriers for electronic components because of their high hardness, high-temperature resistance, and high electrical insulation (Ghasemi-Kahrizsangi et al., 2017; Wu et al., 2024). However, its high sintering temperature and poor thermal conductivity limit the development of his application (Wu and Yu, 1988). Many researchers have reduced the sintering temperature by adding additives such as MgO and SiO₂ to Al₂O₃ ceramics to induce liquid-phase sintering (Wu and Yu, 1988; Lee et al., 2015; Zeng et al., 2022). Gradually, it has been found that the addition of rare earth elements can effectively reduce the sintering temperature and improve the mechanical properties of ceramic materials while preventing radiation damage to components (Ge et al., 2016). Ge et al. (2016) prepared Gd₂O₃/Al₂O₃ ceramic composites with different Gd₂O₃ contents by pressureless sintering methods using MgO and SiO₂ as additives. It was found that the addition of a small amount of Gd₂O₃ could promote the generation of spinel and olivine from MgO, SiO₂, and Al₂O₃, which greatly improved the properties of the ceramics, and the flexural strength and thermal conductivity of Gd₂O₃/Al₂O₃ ceramic composites added with 5 wt% Gd₂O₃ increased by 38.03 MPa and 8.95 W/(m⋅K). Tests using a highly active Co-60 source with a dose rate of 1.5 kGy/h revealed that the shielding rate of the composites against Co-60 γ-ray radiation increased with the addition of Gd₂O₃, and they also exhibited good mechanical stability under continuous γ-ray irradiation.

Boron-based ceramics can be synthesized at relatively low temperatures and are well-suited for radiation shielding applications due to the neutron absorption capacity of B. Dong et al. (2021) reported the development of GdBO₃ ceramics, which exhibit effective neutron shielding properties and low thermal conductivity, making them ideal multifunctional insulating materials. These bulk GdBO₃ ceramics were prepared for the first time via a simple solid-phase method. As the sintering temperature and boric acid content increased, the apparent porosity decreased, while the average pore size increased. The thermal conductivity of the ceramics ranged from 0.12 to 0.68 W/(m·K). The addition of boric acid improved the mechanical properties of the samples over various temperature ranges. The neutron shielding permeability of the samples with varying thicknesses was also evaluated, revealing that the neutron transmittance decreased with increased sample thickness. The macroscopic cross-section of the material was found to be at least 0.641 cm^-1, which is promising for use in nuclear reactors. Aluminum borate (Al₁₈B₄O₃₃) is a binary compound that exhibits optimal refractory properties within the Al₂O₃-B₂O₃ phase diagram. It is considered a promising reinforcing agent and high-temperature structural material, particularly for its exceptional neutron shielding properties (Yu et al., 2016; Hernández et al., 2023). Li et al. (2021) synthesized Gd₂BO₃-Al₁₈B₄O₃₃ (GACCs) composite ceramics using 2Al₂O₃⋅B₂O₃ and α-Al₂O₃ as raw materials and Gd₂O₃ as a neutron shielding agent via pressureless sintering. To further explore the effects of the in-situ formation of GdBO₃ on the microstructure and mechanical properties of GACCs, the authors conducted experiments, including crystal morphology observation and thermal shock testing. As shown in the SEM images in Figure 8, the samples without added Gd₂O₃ showed no distinct areas, indicating that the etching treatment effectively removed the sintering agent Bi₂O₃. At higher magnification, numerous rod-like particles with a three-dimensional interlocking network structure were observed. As the Gd₂O₃ content increased, the distribution area of the bright regions expanded, and the directionality of the interlocking network became more pronounced. The formation of excess GdBO₃ led to intergranular microcracks, which could negatively impact the structural stability of the GACC. However, the thermal shock test revealed that a moderate amount of Gd₂O₃ did not adversely affect the structural stability of the composite, enhancing its mechanical and thermal properties. The lowest porosity observed for the composite was 1.8%, and the highest neutron shielding efficiency of 82.8% was achieved for the G12 probe sample.

Figure 8

Figure 8. Crystal morphology of GACCs treated for 3 hours at 1,400°C (Li et al., 2021).

In 2015, the efficacy of entropy stabilization in oxide mixtures was demonstrated (Oses et al., 2020b). Inspired by high-entropy alloys, high-entropy disordered ceramics emerged, with ongoing research stimulating the incorporation of additional components to achieve a diverse range of physical and chemical properties. These materials are now used in various applications, including thermal barrier coatings, thermoelectrics, catalysts, batteries, and wear- and corrosion-resistant coatings (Oses et al., 2020a; Toher et al., 2022; Li Y. et al., 2024; Ward et al., 2024). To develop a material capable of absorbing both neutrons and gamma rays, Zhang et al. (2021) prepared a novel single-phase (La_0.2Ce_0.2Gd_0.2Er_0.2Tm_0.2)₂(WO₄)₃ ceramic. The synthesis of this phase-pure rare-earth tungstate-based high-entropy ceramic (HEC) powder, based on tungstates known for their enhanced neutron absorption capacity, and its phase stability enhanced by the high-entropy effect, renders the powder less susceptible to failure under radiation. The ceramic powder was then uniformly mixed with epoxy resin (EP). In terms of thermal neutron shielding, the composite with the highest HEC content (EP/W₃) exhibited a shielding efficiency of nearly 100%, compared to approximately 50% for pure EP. For γ-ray shielding, the composite demonstrated a lead equivalent value at 65 keV that exceeded that of EP, indicating its effectiveness in shielding γ-rays in both low- and medium-energy regions.

Despite the rapid development of ceramic matrix composites for nuclear radiation shielding, the fabrication of ceramic materials presents challenges, including the need for high-temperature sintering, which complicates their production. Additionally, the brittleness of ceramics imposes limitations on the design of micro-mechanisms and compositions for practical applications. As the range of potential applications for shielding materials continues to grow, the fabrication requirements are becoming increasingly complex. The advent of 3D printing (3DP) technology provides new possibilities for the customized fabrication of intricate structures. As shown in Figure 9, Wang et al. (2022) employed DLP 3D printing to prepare Gd₂O₃ ceramics. The phase transition of Gd₂O₃ from cubic to monoclinic enhances the densification of sintered specimens, improving their mechanical properties. The authors fabricated lattices comprising numerous lattice elements and sintered them at various temperatures. The bending stress and bending elastic modulus of the sintered specimens at 1,600°C were found to be as high as 40 MPa and 20.219 GPa, respectively. These findings support the practical application of the material for neutron absorption and shielding, addressing the issue of constrained ceramic structures in confined environments. This research provides a foundation for future studies in this practical area.

Figure 9

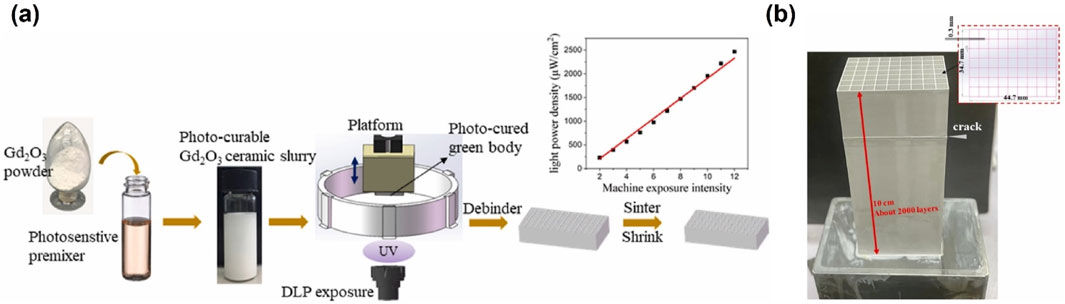

Figure 9. (a) schematic diagram of the Gd₂O₃ ceramic DLP-3DP process, (b) preparation of a 10 cm long lattice body and its cross-sectional image (Wang et al., 2022).

2.4 Gd-containing polymer-based composite shielding materials

Metal matrix composites are characterized by high density, high cost, and processing challenges. Additionally, they are prone to corrosion under high-intensity irradiation, which can lead to the formation of cracks, cavities, and other defects, making them unsuitable for use in protective devices or miniaturized nuclear power plant applications. Glass-based composite materials, known for their high light transmission, are mainly utilized for visualizing operating equipment. Ceramic-based composite shielding materials, while offering high performance, exhibit brittleness and are difficult to process, significantly limiting their applicability under specific dynamic loading conditions.

Polymer-based radiation shielding materials are composed of polymers with high hydrogen content as the base material and substances with high and medium absorption cross-sections as additives. These additives, such as B and Gd, are particularly effective at absorbing thermal neutrons. Effective neutron shielding is achieved through three primary mechanisms: slowing down high-energy neutrons by hydrogen, scattering, and absorption by specific elements. Polymer-based materials offer excellent thermal stability, electrical insulation, and mechanical properties, along with advantages such as light weight and ease of processing. These characteristics make them ideal for use in confined or motorized environments and allow for a wide range of potential applications across multiple fields (Kim, 2023; Zhang et al., 2023; Alkarrani et al., 2024).

Polyethylene (PE) is known for its good chemical resistance, stability, lightweight nature, small size, and low processing cost. Additionally, PE contains many hydrogen atoms, which can effectively slow down neutrons and reduce their energy during collisions. However, its shielding effect on high-energy neutrons (fast neutrons) is relatively weak. To improve the shielding and mechanical properties of polyethylene, inorganic functional fillers with a high neutron-absorbing cross-section, such as Gd, are added to the polyethylene matrix. İrim et al. (2018) first used a fusion composite method to prepare new multifunctional neutron shielding materials based on high-density polyethylene (HDPE), incorporating nano-h-BN and nano-Gd₂O₃ as hybridized particles. The neutron and γ-ray transmittance of h-BN/Gd₂O₃/HDPE nanocomposites were compared with varying nanoparticle content. The results showed that Gd, a heavy element, exhibits a dual shielding effect on both gamma rays and neutrons. The neutron and γ-ray transmittance decreased with increasing h-BN and Gd₂O₃ concentrations, and some samples achieved shielding rates of around 80%–90% at low thicknesses. However, inorganic fillers tend to agglomerate and have poor interfacial compatibility in the polymer matrix, which can reduce the mechanical properties and impact the overall shielding performance of the composites (Hsieh et al., 2016; Shah et al., 2016). Surface modification of the fillers is an effective strategy to improve the compatibility of inorganic-organic interfaces (Wang et al., 2015; Zhong et al., 2020). Huo et al. (2021) used 3-(trimethoxysilyl)propyl methacrylate as a coupling agent to modify the surface of micro- and nano-Gd₂O₃, and prepared four lead-free composites using the hot pressing method: micro-Gd₂O₃/B₄C/HDPE, M-micro-Gd₂O₃/B₄C/HDPE, nano-Gd₂O₃/B₄C/HDPE, and M-nano-Gd₂O₃/B₄C/HDPE. The results showed that the composite containing 10 wt% M-nano-Gd₂O₃/20 wt% B₄C/70 wt% HDPE exhibited a higher initial decomposition temperature (T5%) of 463.5°C and a peak heat absorption temperature (TP) of 137.2°C. The tensile strength (19.6 MPa) was also significantly higher than that of pure HDPE (15.8 MPa). These findings demonstrate that the composite has excellent thermal stability and mechanical properties. The surface modification of the filler significantly enhanced the interfacial compatibility and dispersion of the filler within the polyethylene matrix, reducing stress concentration and improving the mechanical properties of the composites. Experimental measurements and Monte Carlo simulations were conducted to investigate the neutron and γ-ray shielding mechanisms of the composites. As shown in Figure 10, the composite containing 10 wt% M-nano-Gd₂O₃/20 wt% B₄C/70 wt% HDPE achieved 90% neutron shielding at 9.1 cm in a Cf-252 environment and 70% gamma shielding at 13.7 cm in a Cs-137 environment, making it a promising material for neutron-gamma mixed-field radiation shielding.

Figure 10

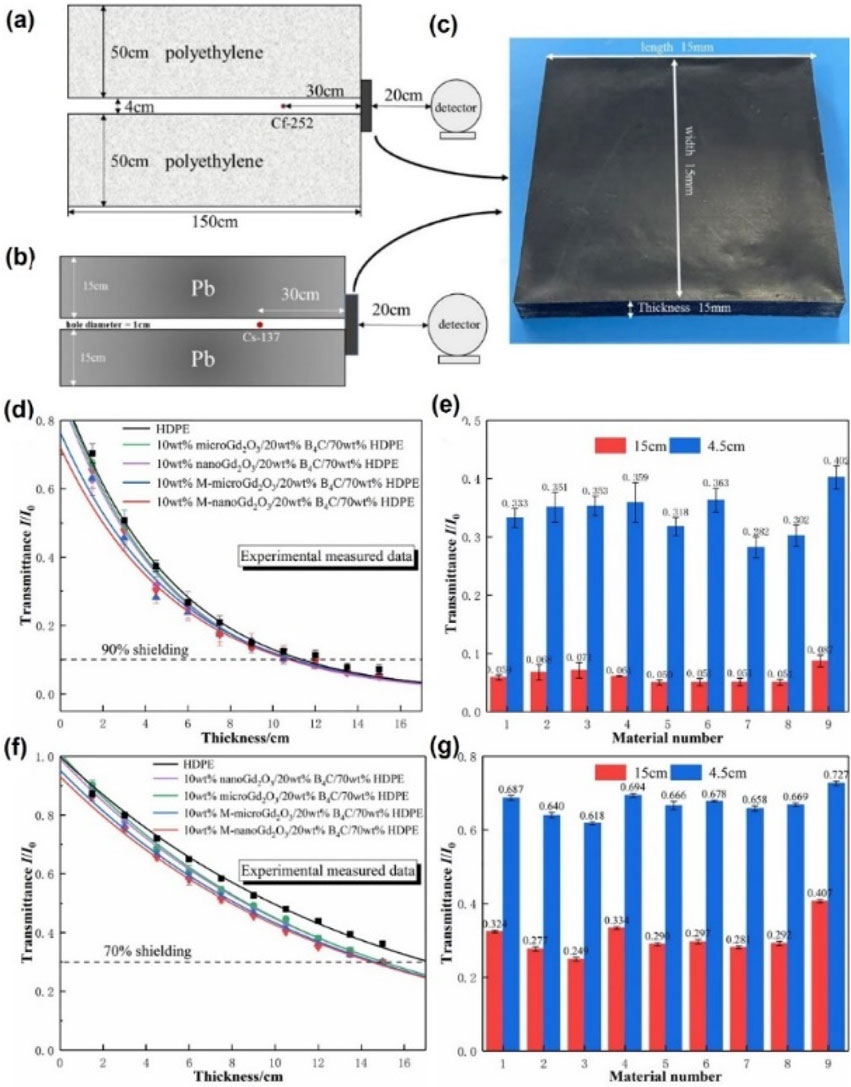

Figure 10. (a) Schematic diagram of the neutron radiation shielding experiment setup, (b) Schematic diagram of the gamma radiation shielding experiment setup, (c) Photograph of the composite materials, (d) Neutron flux attenuation of different composites composed of M-nanoGd₂O₃, M-microGd₂O₃, nanoGd₂O₃, and microGd₂O₃, (e) Comparison of neutron transmittance for different composites with thicknesses of 4.5 cm and 15 cm; (f) Gamma flux attenuation of different composites composed of M-nanoGd₂O₃, M-microGd₂O₃, nanoGd₂O₃, and microGd₂O₃,(g) Comparison of gamma photon transmittance for different composites with thicknesses of 4.5 cm and 15 cm (Huo et al., 2021).

Polyimide (PI) is less effective than polyethylene in neutron deceleration, but it boasts excellent thermal stability, chemical resistance, and radiation resistance, making it widely used in aerospace, precision electronic equipment, and high-temperature applications (Hu Xu et al., 2022; Xu et al., 2022; Li L. et al., 2024). Metal-organic frameworks (MOFs) are a class of porous materials consisting of metal ions or metal clusters linked to organic ligands by coordination bonds, and they have attracted significant attention due to their highly tunable pore structures and excellent chemical properties (García-Sánchez et al., 2017). Therefore, the combination of MOFs and polyimide (PI) holds great promise for developing new MOF/PI composites with enhanced mechanical properties and improved neutron shielding capabilities. Hu et al. (Hu et al., 2021) synthesized a rare-earth metal Gd-based metal-organic framework (Gd-MOF) from GdCl₃ and o-phenylene dimethyl dianhydride (PDMA) in N,N-dimethylformamide (DMF), as shown in the preparation process in Figure 11. The porous structure of Gd-MOFs provides a compatible interface with the PI substrate, facilitating effective interfacial load transfer. Scanning electron microscope (SEM) images revealed that the Gd-MOF/PI film containing 3 wt% filler had a smooth and flat surface without any noticeable matrix defects, indicating strong interfacial interactions between the filler and the PI matrix, resulting in excellent mechanical strength. The authors also performed shielding efficiency simulations using SuperMC. The results indicated that increasing the Gd-MOF content from 0 wt% to 20 wt% enhanced thermal neutron shielding ability but slightly reduced shielding effectiveness for fast neutrons. This trend is because hydrogen atoms slow down fast neutrons, and the reduction in hydrogen content diminishes the neutron-hydrogen atom interaction. Tan et al. (Tan et al., 2024) successfully synthesized Gd₂O(CO₃)₂@bismuth-based metal-organic frameworks (Bi-MOFs)/graphene nanoplates (GBG) composite fillers using a two-step hydrothermal method. These fillers were incorporated into a PMMA matrix at different mass percentages via a melt-blending and hot-pressing process. The study revealed that the addition of Gd significantly improved the gamma-ray shielding capacity of the GBG/PMMA composites, particularly for low-energy 59.5 keV gamma rays. The mass attenuation coefficient (MAC) of the GBG/PMMA-50 composite reached 2.70 cm²/g, nearly 16 times higher than that of pure PMMA, greatly outperforming state-of-the-art materials in this category.

Figure 11

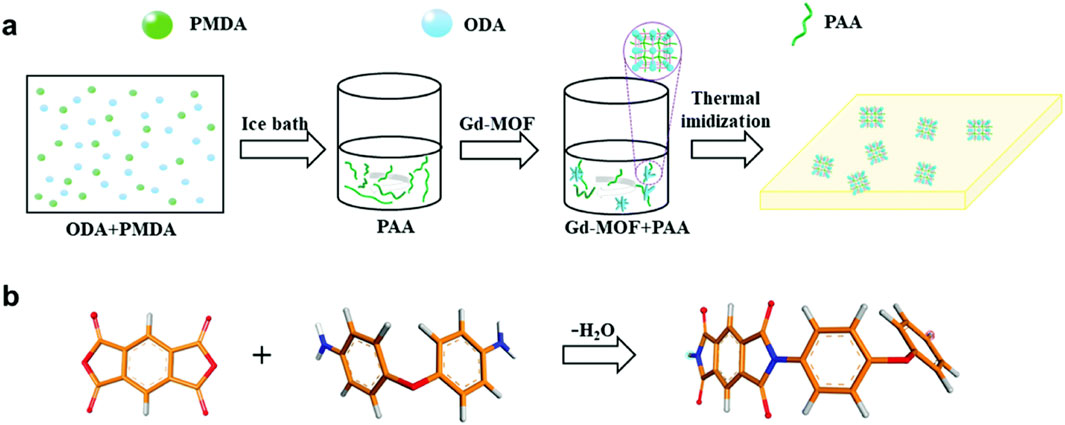

Figure 11. (a) Scheme of the process for the preparation of Gd-MOF/PI films, (b) Scheme of PI monomer. Color representation of different elements: o (red), c (orange), h (grey), n (blue) (Hu et al., 2021).

Simple physical blending does not allow for the formation of a dense shielding barrier in the polymer matrix, leading to the potential escape of neutrons through gaps between nanoparticles. Furthermore, some single shielding materials are ineffective across the entire range of neutron or gamma photon energies. To effectively shield both neutrons and gamma rays, researchers have designed structures to create dense barriers or achieve broad absorption. The overlapping of two-dimensional nanosheets has inspired many researchers. MXene, a new type of two-dimensional transition metal carbide or nitride with abundant polyhydroxy and negatively charged surfaces, presents itself as a promising substrate for grafting other materials (Li, 2023; Malaki and Varma, 2023). Zhu et al. (2022) successfully synthesized Gd@MXene nanosheets via a hydrothermal reaction and then prepared Gd@MXene/poly (vinyl alcohol) (PVA) thin films using a spin-coating process. The Gd@MXene nanosheets were randomly aligned to form-oriented, two-dimensional, fish-scale-like barrier walls in the films. These 2D fish-scale-like Gd@MXene barrier walls scatter neutron rays multiple times between the nanosheets, enhancing the neutron absorption efficiency of Gd atoms. This novel design, incorporating zero-dimensional Gd nanoparticles (NPs), not only improves neutron shielding performance but also provides valuable insights for the synthesis of advanced neutron shielding materials.

Bismuth oxide (Bi₂O₃) has been extensively studied as a functional filler due to its excellent γ-ray shielding properties (Tiamduangtawan et al., 2020a). However, it has weak shielding capabilities in the 36.4–90.5 keV energy range, limiting its effectiveness against low-energy gamma rays (Wei et al., 2023). In 2023, Wei et al. (2023) addressed this limitation by constructing heterostructures of Gd₂O₃ and Bi₂O₃. Using a simple two-step hydrothermal method, they synthesized heterostructured Bi₂O₃-Gd₂O(CO₃)₂∙H₂O microscopic flowers, which were then incorporated into epoxy resin to form Bi₂O₃-Gd₂O(CO₃)₂∙H₂O/epoxy (EP) composites capable of shielding gamma rays across a broad energy range. The linear attenuation coefficients (LAC) of the heterostructured Bi₂O₃-Gd₂O(CO₃)₂∙H₂O/EP-30 composites at 59.5 keV, 661 keV, and 1.25 MeV were superior to those of the directly mixed Bi₂O₃-Gd₂O(CO₃)₂∙H₂O/EP-30 composites. The interaction of dielectric (661 keV) and high-energy (1.25 MeV) gamma rays with the materials primarily occurs through Compton scattering. In contrast to simple co-mingling, new Bi-O bonds are formed at the heterogeneous interfaces, leading to electronic rearrangements, an increase in local electron density, and overlapping of the electron clouds (Figure 12). This overlap increases the probability of gamma rays colliding with outermost electrons, greatly enhancing Compton scattering. The construction of heterogeneous structures could become an effective method for designing radiation shielding materials. However, the impact of inhomogeneous interfaces on radiation shielding performance remains underexplored and requires further investigation.

Figure 12

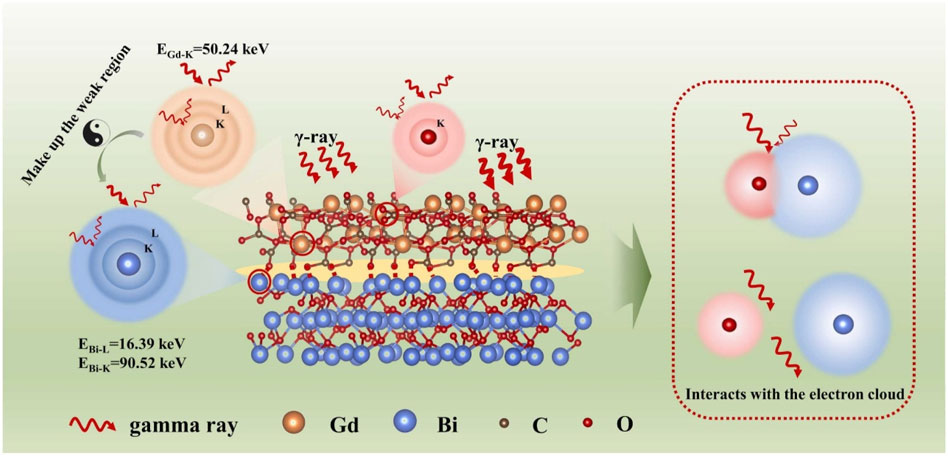

Figure 12. Mechanism of interaction of γ-rays with Bi₂O₃-Gd₂O (CO₃)₂∙H₂O non-homogeneous materials (Wei et al., 2023).

As application scenarios evolve, composite components made from traditional matrices are often inflexible, brittle, and prone to fracture. As a result, researchers have focused on developing polymer-based composite shielding materials that meet more stringent requirements, such as high toughness, high strength, and the ability to effectively attenuate neutrons. These materials must also be capable of self-repair to extend their service life and reduce manufacturing costs. Polyvinyl alcohol (PVA) stands out due to its high mechanical strength, abrasion resistance, oxygen barrier properties, solvent/oil/grease resistance, non-toxicity (biocompatibility), and high hydrogen content, which aids in neutron modulation and attenuation (Rashad et al., 2020; Bai et al., 2022; Bijanu et al., 2024). Tiamduangtawan et al. (Tiamduangtawan et al., 2020b) incorporated fillers (Sm₂O₃ or Gd₂O₃) at concentrations of 0%–3.5%, 7.0%, and 10.5% into PVA hydrogels. Their study found that the neutron shielding efficiency of Gd2O3/PVA hydrogels was slightly higher than that of Sm₂O₃/PVA hydrogels at the same filler content and thickness. Furthermore, the overall tensile properties of Gd₂O₃/PVA hydrogels were superior to those of Sm₂O₃/PVA hydrogels. Additionally, both Sm₂O₃/PVA and Gd₂O₃/PVA hydrogels exhibited self-healing properties at fractured surfaces (Figure 13). The recoverable strength of the hydrogels increased over time, making them suitable for use as substitutes for paraffin wax in transportation drums or as shielding biomaterials in medical diagnosis and radiotherapy. Poltabtim et al. (Poltabtim et al., 2022) developed Gd₂O₃/natural rubber (NR) composites by incorporating reversible ions into the NR network. These composites demonstrated effective shielding properties against neutrons and X-rays, as well as self-healing capabilities. The addition of Gd₂O₃ resulted in a decrease in I/I₀, half-value layer (HVL), and ten-value layer (TVL), while increasing the linear attenuation coefficient (µ), mass attenuation coefficient (µm), and lead equivalent (Pbeq) of the NR composites. These findings indicate that Gd₂O₃ is an effective filler for neutron and X-ray protection. After 60 min of self-repair, the recoverable strength and recovery values of the NR composites ranged from 0.30 to 0.4 MPa and 3.7%–9.4%, respectively. This self-repairing composite material can be used as a new type of radiation shielding material, which effectively attenuates neutrons and X-rays, prolonging the service life of protective materials and enhancing user safety. It also lays the foundation for the future development of “smart” shielding materials.

Figure 13

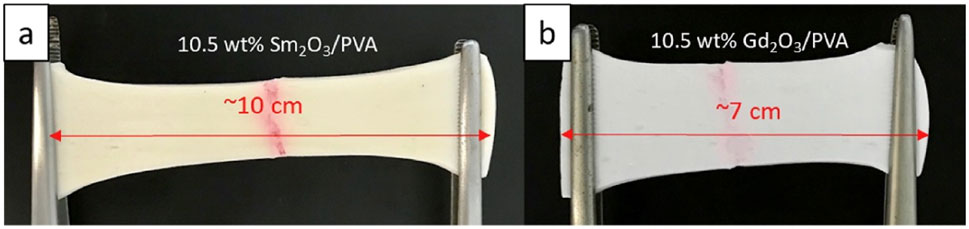

Figure 13. Self-healing images of (a) Sm₂O₃/PVA and (b) Gd₂O₃/PVA hydrogels stretched (original length of ∼3.5 cm, healing time of 3 h). The red vertical deformation in the middle of the two samples indicates that the samples were cut and contacted for self-healing (Tiamduangtawan et al., 2020b).

The Gd-containing polymer-based radiation shielding materials discussed above are summarized in Table 4. Currently, polymer-based composite shielding materials combine a variety of basic polymers (e.g., polyethylene, polyurethane, epoxy resin, polyvinyl alcohol, rubber) with different fillers (e.g., metal powders, hydrogen source materials) to achieve various shielding effects. Several innovative preparation methods, such as 3D printing and injection molding, have been explored, along with filler modification techniques. Moving forward, the development of polymer-based composite shielding materials will likely focus on multifunctionality, ecological sustainability, intelligence, and the application of nanotechnology to meet the increasingly complex demands of future applications.

Table 4

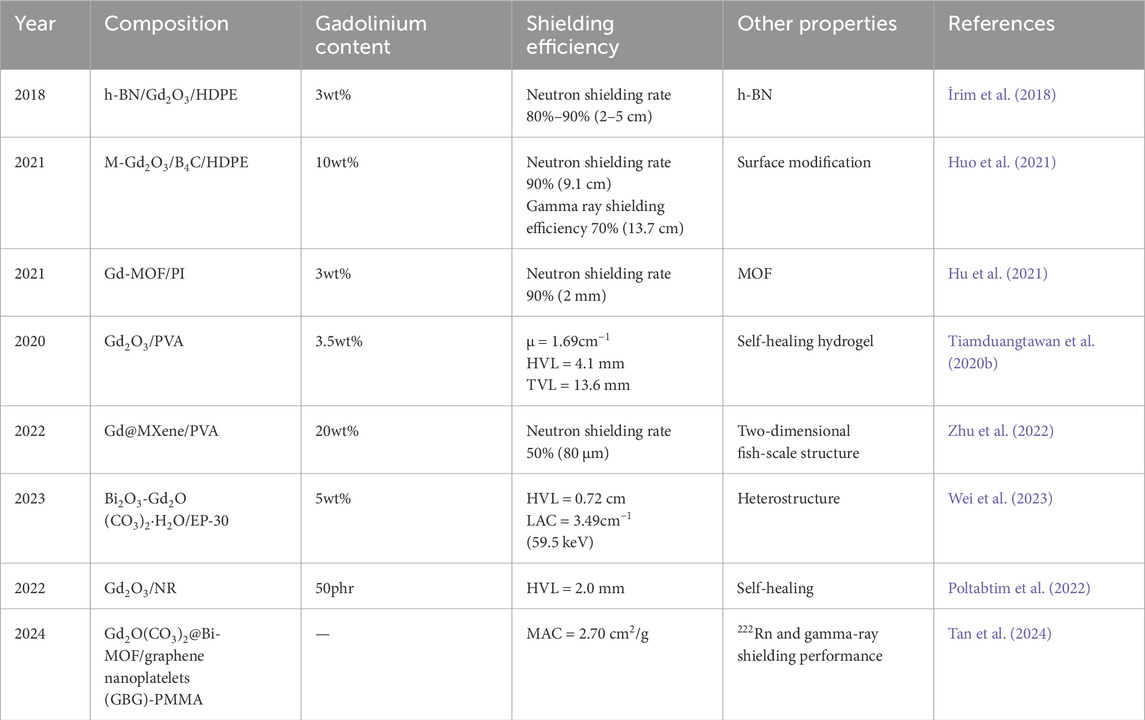

Table 4. Gd-containing polymer matrix radiation shielding materials and their properties are discussed above.

3 Conclusion and outlook

Existing research programs have successfully achieved effective radiation shielding across different radiation sources and doses. Shielding materials have evolved from traditional options such as heavy metals, concrete, water, lead, and graphite, and have gradually transitioned to composite materials known for their lightweight, high efficiency, and overall excellent performance. While these traditional materials are still commonly used in fields like reactor radiation protection due to their low cost and ease of large-scale production, they come with significant disadvantages, including high weight, toxicity, and poor stability. As a result, researchers have focused on improving the shielding performance of these materials while aiming to reduce their weight and cost. Composite materials offer notable advantages in neutron shielding, including their lightweight nature, ease of molding, variety, and tunable performance. Through thoughtful component design, composites can effectively absorb and scatter neutrons, reducing the structural burden compared to traditional heavy metals. Additionally, composites are flexible and customizable, allowing for designs tailored to specific needs. Some of these materials are made from environmentally friendly raw materials, helping to minimize their environmental impact. These characteristics have made composites increasingly attractive for applications in nuclear energy, medicine, and industry.

The rare earth element gadolinium (Gd) stands out due to its high atomic number, large neutron absorption cross-section, and low intensity of neutron radiation. Gd effectively compensates for the weak absorption of low-energy rays by heavy metals like lead, thus reducing the biological toxicity associated with lead. As a result, Gd composites with other materials exhibit excellent performance in radiation shielding. This paper focuses on Gd-containing composite shielding materials, which include metal-based, glass-based, ceramic-based, and polymer-based composites. Each material type is employed in different fields based on its unique advantages. Metal matrix composites are known for their high strength and excellent thermal conductivity, making them ideal for radiation shielding in high-intensity and high-temperature environments. Glass matrix composites are lightweight, highly transparent, and corrosion-resistant, making them suitable for use in visualization equipment. Ceramic matrix composites, with their superior radiation, high temperature, and wear resistance, are well-suited for harsh environments. Polymer matrix composites are valued for being lightweight, flexible, and cost-effective, making them ideal for electronic equipment protection, aerospace, medical devices, and other applications. However, as nuclear energy use continues to grow and application opportunities diversify, radiation-shielding composite materials still face several challenges that need to be addressed:

(1) Lack of universal solutions for filler dispersion in polymer-based composites. In polymer-based composite shielding materials, inorganic fillers are prone to agglomeration within the matrix. Excessive doping can impede the material’s shielding, thermal, mechanical, and other properties. When the filler is dispersed uniformly within the matrix, the probability of composite material collisions with radiation or particles increases significantly, enhancing shielding performance. Furthermore, filler agglomeration can also result in stress concentration, decreased interfacial adhesion with the matrix, and a reduction in the mechanical strength and toughness of the composite material. Future studies should prioritize scalable, matrix-agnostic dispersion techniques (e.g., adaptive interfacial design, stimuli-responsive nanoparticle alignment) while maintaining shielding efficiency and mechanical stability.

(2) Incomplete mitigation of secondary radiation risks. Gd has significant advantages in neutron shielding, especially its isotope Gd-157, which has an extremely high neutron trapping capacity, enabling it to effectively reduce neutron radiation. After absorbing neutrons, these elements may be transformed into other unstable isotopes. These unstable isotopes undergo secondary radioactive decay to produce gamma rays or beta particles, which is known as secondary radiation. Therefore, Gd-containing composite shielding materials must be prepared in conjunction with other elements that can absorb gamma rays, or appropriate protection and measures must be taken to ensure safety and effectiveness.

(3) Limited innovation in cost-effective Gd utilization. Gd is a rare metal with relatively limited resources, and the costs associated with mining and processing Gd, and its alloys are relatively high, which has thus far precluded large-scale use. The key challenges currently facing the development of Gd-containing composite shielding materials are improvements to the production process, increased processing efficiency and utilization rate of Gd, and reductions in production costs.

(4) Incomplete mitigation of secondary radiation risks. Currently, composite shielding materials can only provide effective shielding under a single application scenario. As the complexity of shielding materials continues to increase, the comprehensive performance requirements of these materials are also becoming more demanding. Consequently, materials must be capable of achieving a variety of functionalities to meet the evolving needs of their applications.

The unique physicochemical properties of gadolinium (Gd) as an effective radiation absorber provide it with a significant advantage in shielding applications. With continued advancements in science and technology, Gd-containing composites are expected to evolve into more sophisticated products. This will be accomplished by integrating sensing technology with adaptive properties through the application of nanotechnology and advanced composite fabrication techniques. Additionally, the development of lightweight, temperature-resistant, mechanically robust, and environmentally friendly composites will promote their widespread use in areas such as medical imaging, nuclear energy safety, and aerospace, effectively addressing the increasingly complex demands for radiation protection.

Author contributions

JC: Conceptualization, Methodology, Writing–original draft. XZ: Conceptualization, Investigation, Methodology, Writing–original draft. WX: Formal Analysis, Writing–original draft. DP: Conceptualization, Methodology, Writing–review and editing. WW: Funding acquisition, Investigation, Methodology, Writing–review and editing.

Funding

The author(s) declare that financial support was received for the research and/or publication of this article. The authors thank the financial support from Research and Development Project on New Multifunctional Lightweight Neutron and Gamma-Ray Composite Shielding Materials for Yangjiang Nuclear Power Plant.

Conflict of interest

Authors JC, XZ, and WX were employed by Yangjiang Nuclear Power Co. Ltd.

The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Generative AI statement

The author(s) declare that no Generative AI was used in the creation of this manuscript.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
