Raed Alharthi- Department of Computer Science and Engineering, University of Hafr Al-Batin, Hafar Al Batin, Saudi Arabia
The emergence of small-drone technology has revolutionized the way we use drones. Small drones leverage the Internet of Things (IoT) to deliver location-based navigation services, making them versatile tools for various applications. Unmanned aerial vehicle (UAV) communication networks and smart grid communication protocols share several similarities, particularly in terms of their architecture, the nature of the data they handle, and the security challenges they face. To ensure the safe, secure, and reliable operation of both, it is imperative to establish a secure and dependable network infrastructure and to develop and implement robust security and privacy mechanisms tailored to the specific needs of this domain. The research evaluates the performance of deep learning models, including convolutional neural networks (CNN), long short-term memory (LSTM), CNN-LSTM, and convolutional long short-term memory (ConvLSTM), in detecting intrusions within UAV communication networks. The study utilizes five diverse and realistic datasets, namely, KDD Cup-99, NSL-KDD, WSN-DS, CICIDS 2017, and Drone, to simulate real-world intrusion scenarios. Notably, the ConvLSTM model consistently achieves an accuracy of 99.99%, showcasing its potential in securing UAVs from cyber threats. By demonstrating its superior performance, this work highlights the importance of tailored security mechanisms in safeguarding UAV technology against evolving cyber threats. Ultimately, this research contributes to the growing body of knowledge on UAV security, emphasizing the necessity of high-quality datasets and advanced models in ensuring the safe, secure, and reliable operation of UAV systems across various industries.
1 Introduction
Flying ad hoc wireless devices (FAWD), or UAVs, are increasingly being deployed and gaining much awareness. This rising interest is attributed to their LoS connection to the ground users, their mobility, and the modularity that makes them affordable to deploy. Indeed, in places where the fixed network has been affected by natural disasters and the physical wiring infrastructure has been brought down, the UAVs can usefully establish cellular network coverage. UAVs can act as flying base stations in mobile wireless networks and offer telecommunication utilities to locations where it is realistically impossible to erect fixed cellular sites due to client limitations or cost (Majeed et al., 2022). Furthermore, UAVs play an important role in emergency response operations, weather monitoring, industrial infrastructure surveillance, logistical assistance, fast disaster management in impacted regions, and surveillance at homes (Khan et al., 2022). The Federal Aviation Administration (FAA) of the United States predicts that demand for commercial UAV installation will quadruple by 2023 (Administration, 2019). Due to the enormous potential of UAVs, several countries are devoting significant financial resources to their broad commercial deployment. UAV-assisted networks continue to face several difficulties despite the growing potential and many uses of UAVs. These difficulties include concerns with the planning of routes, privacy concerns, hurdle handling, energy efficiency, and optimizing for minimal delays (Ateya et al., 2019). These problems must be dealt with adequately if we are to harness the potential offered by UAVs.
UAVs or drones have impacted several sectors and have become almost indispensable in daily operations in the commercial world. They are employed in capturing images from the sky and acquiring information that will be relayed to base stations to aid in decision making, especially in areas of surveillance and monitoring (Rogers, 2018). The overall advancement in the use and application of drones, especially in day-to-day activities, has, however, come with several impacts. This has raised concerns over the safety and security of the public, hence calling for definite legislation over the matter establishing accountability for the privacy of individuals and the public at large (Robakowska et al., 2019). Despite the present challenges, small-sized drones are increasingly being adopted in various industries, such as agriculture, shipping, and manufacturing industries, among others. However, problems associated with privacy and security have arisen because of the high level of application of drones coupled with the need for quick response (Nassi et al., 2021). Scientists state the problems of mounting small sensors on drones that would expand their performance and opportunities. Drones can be made to perform better in other concrete applications that require much more challenging tasks through the installation of transmitters, sensors, and cameras. Drone technology has many applications in the civil and defense industries. However, drone design and architecture aggravate their exposure to privacy or safety threats, as mentioned below in more detail. The IoT and the Internet of Drones (IoD) have new possibilities but are also connected with security and privacy threats. Thus, modification and innovation must occur at the most basic levels of structuring and designing of drones.
Security of smart grid communication has become a critical aspect of the successful functioning of the contemporary power system. The integration of information and communication technology (ICT) in the grid focuses on several threats of cyberattack, including data interception, denial of service, and man-in-the-middle attacks, as noted by Yan et al. (2012). Security measures refer to the methods used to safeguard the information exchanged in the grid and ensure that the data are as they were when they were transmitted. The use of cryptographic techniques to secure the system data, together with strong authentication measures and intrusion detection systems, are some of the measures that should be taken to fight these threats (Metke and Ekl, 2010). In addition, the use of decentralized and highly resilient structures enhances the possibility of countering cyber threats to maintain grid operation despite unfavorable circumstances (Hu et al., 2014). In the ever-changing grid system made up of renewables such as solar and IoT devices, security options must adapt and be scalable (Danev et al., 2012). Recent advancements in deep learning (DL) have demonstrated exceptional capabilities in extracting meaningful patterns from complex datasets, making them a compelling choice for intrusion detection systems (IDSs) (Alsubai et al., 2024; Umer et al., 2022).
Cyberphysical systems (CPSs) represent a class of systems that integrate computational and physical functionalities, enabling interactions with individuals through a range of managed processes. UAVs are an appropriate CPS component due to three basic parts of CPS: a strong compute unit, ad hoc wireless networks, and adaptive control capabilities. The primary advantages of integrating UAVs into applications of CPS originate from their distinct characteristics, which include mobility, frictionless deployment, changeable height, customized control, and the ability to give exact real-world evaluations at any place and at any time (Shakeri et al., 2019). UAV-based CPS, despite having great potential as an ideal CPS component, is vulnerable because of its unpredictably changing environment, wireless channels, 3D positioning, and absence of established standards for security. In any CPS, the security of a network is important, mandating a high-priority strategy to address security concerns while also ensuring the system’s stability and safety for commercial implementation (Rani et al., 2022). At this point, researchers are actively looking toward practical and effective security measures to safeguard these systems, emphasizing the security issues related to UAV-assisted CPS (Consul et al., 2022). In this study, we discuss the potential security risks and vulnerabilities of UAV-based systems. Furthermore, the investigation also highlights the emerging security vulnerabilities present at multiple UAV layers. Additionally, we propose a novel approach that integrates layer-specific adaptive security measures with AI assistance to significantly enhance UAV security.
1.1 Major contributions
The proposed approach promotes the merging of drone and Internet of Things (IoT) technology to produce intelligent drones with decision-making skills. Drones are prone to security flaws and unauthorized access, much like other IoT devices. Threat actors could breach data security and privacy by exploiting drone system flaws. Additionally, drones’ extensive data transmission and collection pose questions regarding data security and possible exploitation. The evolution of the Internet of Drone Things (IoDT) can only be maximized with the help of a security architecture to be implemented.
1.2 Paper organization
Section 2 of this paper examines the body of knowledge about detecting flaws and vulnerabilities in drones and IoT devices. A few studies have suggested that adding authentication techniques can improve the security of these drone systems. A thorough description of the drone architecture and a layered framework for preserving the integrity of drone systems are given in Section 3. In Section 5, the concepts of access control and authentication in relation to drones are presented. Section 6 summarizes the results and discussion. Section 7 summarizes the findings from the study and makes suggestions for further research.
2 Related work
UAV networks are increasingly employed to transmit sensitive information in critical missions and applications. However, due to their limited computing and communication resources, anomalies and attacks pose a risk to the infrastructure of UAVs. Intrusion detection systems in UAVs are developed to detect a wide range of abnormalities and threats, such as viruses and malware, message and route forging or manipulation, routing attacks, and UAV hijacking or spoofing (Abro et al., 2022). In the recent past, machine learning-based methods have been used to develop cybersecurity measures meant to protect communication inside the IoT and CPS from various cyberattacks and intrusions. However, the research on the utilization of deep learning approaches for intrusion detection is limited (Gao et al., 2019; Shone et al., 2018; Ahmad et al., 2021. Ahmad et al. (2021) published a comprehensive evaluation focused on machine learning and deep learning models meant to address a variety of UAV difficulties, including but not limited to channel modeling, resource management, navigation, and security. Bithas et al. (2019) investigated numerous attacks and defense tactics across many network levels, beginning with the physical and application layers.
Abu Al-Haija and Zein-Sabatto (2020) investigated an unsupervised learning-driven approach to detect active eavesdropping within UAV networks. This system uses the uplink phase to authenticate users. The authors used one-class support vector machines (OC-SVMs) and K-means clustering to detect possible attacks during authentication. The authors also introduced two new methods: one for creating test data from wireless signals and one for generating artificial training data based on channel state information. Their analysis showed that the one-class SVM outperformed K-means clustering when the eavesdropper’s transmitted power was moderate or low, but K-means clustering performed better when the eavesdropper’s transmitted power was high.
Several issues must be addressed in order to achieve reliable wireless connectivity for UAVs and ensure security. The difficulties include signal interference, limited bandwidth, signal attenuation, and security problems. The authors discussed several issues related to achieving cellular-connected UAV transport systems by using ANN (Challita et al., 2019). Guerber et al. (2021) discussed a novel machine learning-based strategy built on the flow generation events for the equal fight against insider attacks utilizing the random forest classifier algorithm. They introduce two new components that are specific to the nature of network activity and help in budding common network attacks that include brute force, denial of services, and port scanning. These functionalities are, however, easily accessible by the controller. The researchers improved the secrecy rates of the networks by using physical layer security and creating secure communication (Aboueleneen et al., 2023). They also cut the net energy consumption of the IoD network by improving drone transmission and jamming features, as well as through the utilization of energy scavenging mechanisms for wireless charging of drones. As an optimization problem, it was cast into the form of a Markov decision process and solved using a deep reinforcement learning technique.
The researchers applied a supervised learning approach through the deep neural networks (DNNs) to detect GPS spoofing. Using feature engineering, the authors decided that only the signal-to-noise ratio and the Doppler shift are appropriate for the investigation because they can greatly influence the prediction results. They explored network topologies, using one or two-layer hidden neural networks along with large numbers of neurons utilized in creating the model. The authors employed five available features to generate several model runs with some variations in the features offered. The best overall results achieved by them depicted an accuracy percentage near about 98% with the help of one hidden layer containing only ten neurons. Wang and Ghaleb (2023) developed an attention-based CNN model for intrusion detection, improving feature usage and computational efficiency. Donkol et al. (2023) proposed a hybrid IDS combining LPPSO and LSTM-RNN, yielding high detection accuracy and reducing the false alarm rate. Wang et al. (2022) introduced an unsupervised IDS using autoencoders and isolation forest but faced challenges in detecting certain attacks. Mbow et al. (2021) addressed the class imbalance in intrusion detection using a hybrid sampling technique and deep learning, achieving better detection but with room to reduce the false alarm rate.
Some reinforcement learning techniques have been considered to address this problem. The paper by Xiao et al. (2018) presents the development of an anti-jamming system for UAVs employing a game-theoretic method together with reinforcement learning that is different from other existing approaches, namely, policy hill climbing (PHC). In their devised system, UAVs are intermediary because they relay information from the roadside units (RSUs) to VANET on-board units (OBUs). The main objective is to find those RSUs that are very much interfered with by jammers and shift the OBU signal to RSUs that experience little or no jamming at all. Their simulation findings demonstrated that their technique could indeed reduce the BER of OBU messages compared to the QL-based system.
The KDD Cup 99 dataset or some of its modifications was used to recommend and evaluate different IDS options. Hybrid techniques, namely, necessary snapshot ensemble learning and group convolution networks, have been employed by Wang et al. (2021) to improve IDS generality. The authors attained 85.82% accuracy using six predicting attributes and several compared machine learning frameworks: naive Bayes, decision tree, support vector machine, random forest, and XGBoost. Devan and Khare (2020) integrated an XGBoost model with the deep learning model. For XGBoost, feature engineering and reduction of dimensions are the main tasks accomplished, whereas the deep learning model constructs the classifier. Their research strategy was tested and compared with NB, SVM, and LR using the NSL-KDD dataset.
Machine learning, when incorporated into UAV systems, provides a plethora of opportunities and introduces state-of-the-art approaches in various domains. Kurunathan et al. (2023) explained the application of machine learning techniques in UAV services and operations. They elaborated that machine learning plays a very crucial role in the regeneration of features, feature extraction, planning, operation, and control. CNNs based on deep learning frameworks have enabled a far better detection rate than previously used machine learning approaches; the abovementioned approaches are challenging, where the development of new abnormalities is especially challenging. The article also describes how the CNN technique can successfully separate UAV drones from various other objects in the air, including birds and airplanes, which is one of the major benefits of using CNN for UAV detection (Ivanov et al., 2020). Wang et al. (2019) applied long short-term memory (LSTM) in an intrusion detection system (IDS) on UAV network construction. In this study, the goal of anomaly identification was defined as a time-series analysis problem with a focus on point anomaly. The authors measured the system’s performance using real UAV transmission data and also conducted simulations using assault scenarios. The current study uses an architecture that is influenced by both CNN and LSTM. A preliminary study indicates that integrating CNN with LSTM has a greater potential in identifying two-fold difficult patterns and sequences in network traffic data, which will further improve the efficiency and reliability of detecting security threats and abnormalities.
Prior studies discussed in this paper highlight the need for an integrated solution to reduce cybersecurity risks and protect drone data. Although several works have documented the troubles and concerns associated with the drone security threat, many have a lack of recommendations on how to counter these threats (Bera et al., 2020). Previous studies have shown that machine learning models are capable of mitigating attacks in different network contexts; however, little has been done in the context of drones. In addition, some of the authentication mechanisms stated earlier in this paper may not be applicable to IoT-based drone networks. Therefore, it is pivotal to close the research gap to ensure that drones meet the standards of the industry and are suitable for commercial purposes while at the same time being safe and non-intrusive in terms of privacy. Tables 1, 2 lists the related studies that have adopted deep learning techniques.

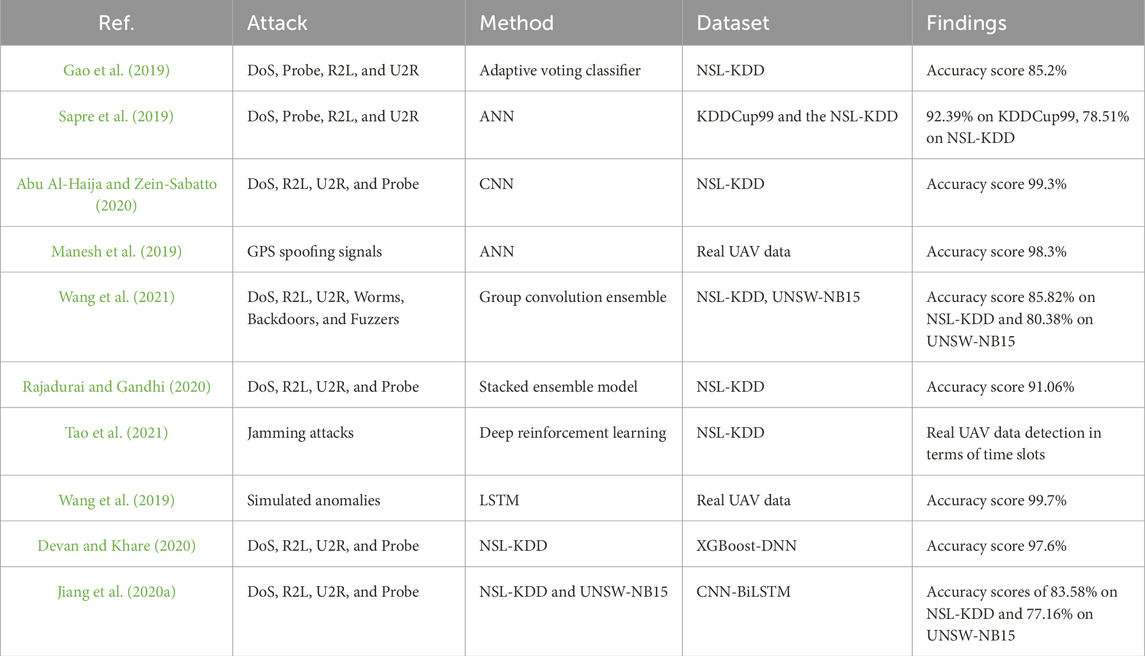

Table 1. Deep learning-based intrusion detection system for networked UAVs.

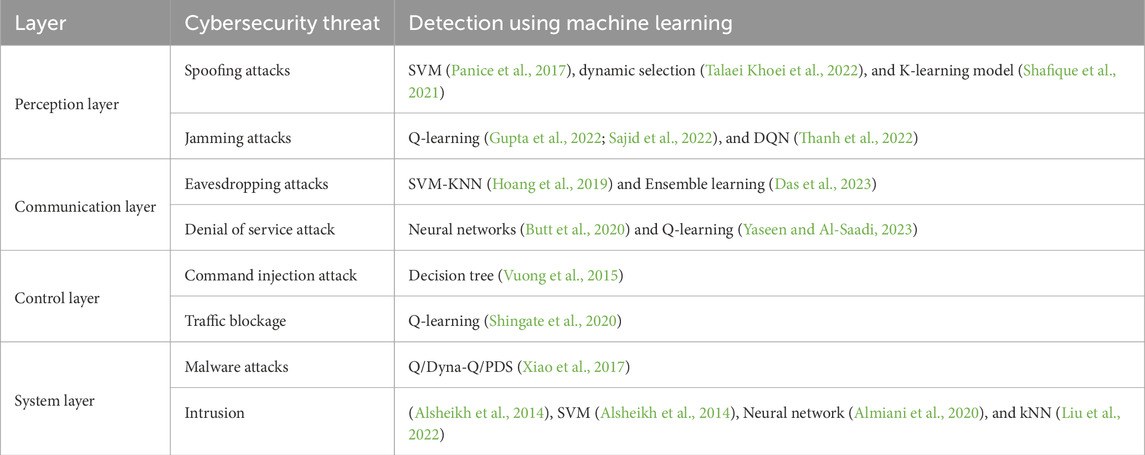

Table 2. Layer-wise cybersecurity threats to smart drones.
2.1 Comparative analysis with relevant literature
Some gaps identified in the literature are that current models used to solve cybersecurity threats facing UAV networks employ a limited number of deep learning methods and have difficulty detecting intrusions due to the many types of attacks. Although current studies have focused on machine learning-based methods, their practical use in UAV cybersecurity is still limited (Gao et al., 2019; Shone et al., 2018; Ahmad et al., 2021). Some have dealt with some particular issues like the detection of active eavesdropping (Abu Al-Haija and Zein-Sabatto, 2020), and others have dealt with issues such as network security and energy efficiency (Challita et al., 2019; Guerber et al., 2021; Aboueleneen et al., 2023). The techniques to identify threats, such as GPS spoofing, include reinforcement learning and supervised learning with deep neural networks (Manesh et al., 2019; Xiao et al., 2018). Furthermore, the use of hybrid machine-learning frameworks has been proven to enhance the effectiveness of intrusion detection (Wang et al., 2021; Devan and Khare, 2020). The implementation of machine learning in UAV systems has potential in nearly every field because it makes real-time monitoring and prediction possible and improves the functioning of systems (Kurunathan et al., 2023; Bader et al., 2023). Nonetheless, there are calls for more flexible and large-scale solution approaches to tackle more cybersecurity threats in the UAV networks, which ConvLSTM models may help to overcome because these models can process sequence data and capture temporal and spatial dependencies. ConvLSTM models are one of the most suitable solutions for the cybersecurity issues of drones and their intrusion identification. They satisfactorily process sequential data streams from drones, providing timely identification and prevention of cyber threats. Further comparisons of the models are presented in the “Related Work” section of the manuscript.
3 UAVs and smart grid communication framework
This study is primarily concerned with improving the cybersecurity of IoT-enabled UAV devices and the Smart Grid, with a particular emphasis on tiny drones, by improving their underlying architecture. The study’s goals include reducing privacy dangers, addressing cybersecurity difficulties, minimizing interception pandemonium, and establishing strong security measures. A tiered strategy is used to accomplish these objectives by methodically reviewing the analysis methodologies and security problems inside each layer, therefore strengthening data security in traditional drone activities/operations. The layered structure also makes future improvements easier to integrate. Machine intelligence, as applied through machine learning classifiers, is critical in enhancing drone data security. Figure 1 depicts the suggested framework.

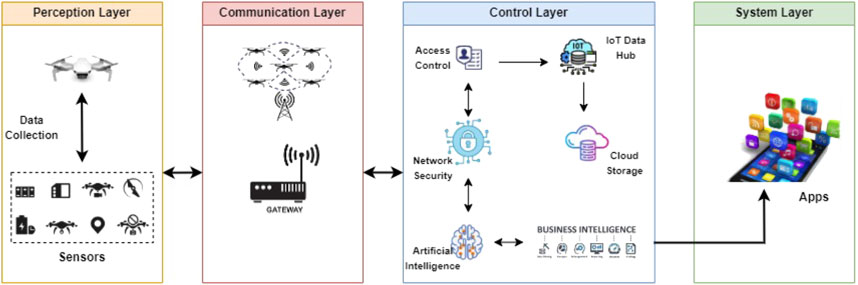

Figure 1. Layer-wise architecture for drone security.
As has been observed, UAV communication networks and smart grid communication protocols have several similarities in terms of architecture, types of data exchanged, and the security concerns they encounter. Below is a detailed discussion of these parallels:
1. Decentralized and distributed architecture: It is noteworthy, therefore, that no such principle is for sale and that the civil service, the putative repository of these principles, has been moving in the opposite direction.
2. Real-time data transmission:
3. High-reliability requirements:
4. Security and privacy challenges:
5. Scalability:
6. Integration with IoT:
The advent of compact UAVs has unlocked fresh opportunities in multiple civilian applications. Nevertheless, due to the absence of sophisticated infrastructure and planning, these state-of-the-art devices face vulnerabilities related to security and privacy. Although progress in the realm of the IoDs and the IoT offers promising opportunities, it simultaneously gives rise to fresh security and privacy concerns. The current circumstances do not sufficiently guarantee data privacy and security, diminishing the IoDT’s reliability.
3.1 Structured framework for ensuring the security of intelligent drones
A layered architecture for drone security within cyberphysical systems (CPS) is systematically divided into several essential layers:
4 Potential cybersecurity risks in smart grid cyberphysical systems
In this section, specific key challenges in terms of cybersecurity and focus on the concerns and risks with regard to smart grid structures are identified. In general, there are two main risks associated with a smart grid: the dependency of the grid’s complex systems on AI-automated communications and the propensity for intelligent cyber warfare activities (Haider et al., 2022).
4.1 Unauthorized access to control systems
Probably one of the gravest threats of smart grid systems is when the attackers gain access to the control stations of the grid because this lets them control the flow of energy, alter the supply distribution system, or even cause blackouts. This threat is particularly pervasive in smart grids because of the cascading relationship that exists between their cyber and the physical layers. As is the case with many UAV control systems, smart grid infrastructures need strict access control to protect critical processes.
4.2 GPS spoofing and data injection attacks
In smart grids, GPS signals are crucial for synchronizing energy distribution across large areas. Like UAVs, smart grids are susceptible to GPS spoofing, where false signals can mislead the system into incorrect actions, leading to power instability. Attackers can inject false data into the grid’s sensor networks, potentially manipulating energy flow or causing misalignment in grid synchronization.
4.3 DoS (denial of service) attacks
DoS attacks in smart grid systems target communication channels, overwhelming them with excessive data and disrupting normal grid functions. Like UAV systems, these attacks can prevent real-time monitoring and control of energy distribution, leading to power blackouts or failures in critical infrastructure. Implementing real-time monitoring and anomaly detection powered by AI can mitigate the risk of DoS attacks.
4.4 Malware and command injection attacks
Smart grid control systems are at risk of malware infiltration, which may affect control centers, sensors, or automated units. Like UAVs, introducing malicious software into these systems can result in unauthorized commands, data breaches, or even damage to vital infrastructure. To defend against such threats, secure communication protocols, prompt system updates, and effective intrusion detection mechanisms are necessary.
4.5 Traffic blockage and eavesdropping
Disruptions in smart grid communication channels, like traffic blockages, can prevent critical information from reaching its destination, leading to system failures or poor energy distribution. Eavesdropping threatens the privacy of grid operations. Employing strong encryption, frequency-hopping, and secure communication protocols is essential to mitigate these vulnerabilities, as they are crucial in UAV systems.
4.6 AI and malware defense
As AI’s role in smart grids grows, the threat of malware on AI controls increases. Malicious actors can manipulate AI algorithms to produce false outputs, causing poor energy management decisions. Securing AI systems with strong cybersecurity measures like secure boots, digital signatures, and advanced threat detection is vital to protect smart grid functions.
5 Securing drones
A proper system for drone security is needed to prevent attacks and examine attack data to execute protective measures that maintain drone safety. In analyzing the requirements of constructing a dependable and lawful system in the domain of IoD, the following pivotal characteristics have been identified: security, dependability, and consistency. Although some studies have developed deep learning models to improve the cybersecurity of sensors for wireless networks and mobile nets, the case of drones’ security domain has not been examined. Therefore, to enhance the security of drones, this study examines a deep learning-based approach for optimizing authentication and gaining access control mechanisms. This research work has primarily addressed cyberphysical systems and UAV threats rather than smart grid cyberattacks for multiple reasons, including the unavailability of benchmark datasets and technical and infrastructure constraints (setting up experiments for smart grid systems often requires specialized infrastructure, such as access to real energy grids, smart meters, and control systems), which may not be feasible in a typical research setting.
This research has utilized the KDD dataset, which shares characteristics of both cyberphysical and smart grids. Originally intended for detecting network intrusions in traditional computing environments, the KDD Cup 99 dataset exhibits several features applicable to smart grid cybersecurity. Both smart grids and traditional computer networks depend significantly on communication protocols and the exchange of data between interconnected systems. The WSN-DS dataset is tailored to detect intrusions in wireless sensor networks, which are crucial in both UAV communications and smart grid networks. These systems extensively use sensors: UAVs for monitoring their surroundings and smart grids for overseeing energy distribution. The CICIDS2017 dataset is a contemporary intrusion detection dataset designed to capture intricate attack patterns like distributed denial of service (DDoS), botnets, and advanced persistent threats (APT). These cyberthreats increasingly challenge both UAVs and smart grids. In the context of smart grids, a DDoS attack can saturate communication links, obstructing energy distribution, like the potential for disruption in UAV networks through interference in communications. The dataset’s emphasis on complex, multi-layered attacks aligns with the intricate vulnerabilities of smart grids, where attacks can target both digital and physical systems to cause service interruptions.
5.1 Datasets for intrusion detection
An IDS is crucial for improving the state of cybersecurity because it identifies and prevents unauthorized access and cyberattacks on the networks. The fundamental data sources for an IDS are a variety of datasets that help it detect an intrusion successfully and efficiently. Such datasets equip the system with the required and relevant knowledge as well as background knowledge to evaluate a scenario and make a decision.1,2,3,4
The experiments used data collected on a real-time basis through the drones and included essential GPS information such as longitude, latitude, and altitude. The dataset by Alturki et al. (2023), which comprises drone on-board diagnostics (OBD) data, was also integrated. Such a large set of records allows for assessing the model's performance and its ability to address diverse, realistic, and constantly changing conditions.
The KDD Cup 99 dataset is constituted of data used in the KDD Cup, an annual competition for data mining and machine learning organized by the KDD conference. The data for this set have been compiled from different sources with the intention of examining the real environment. It includes all the details of the network traffic, including connections, size of packets, and types of protocol, thus mirroring real-life network conditions. Additionally, it encompasses data regarding security breaches, DoS attacks, and various forms of network intrusions. The dataset is bifurcated into two segments: a training set for model development and training purposes and a test set for assessing model performance. Widely adopted in research, the KDD Cup 99 dataset has been featured in many academic articles.
It is important that two connection records, or 136,489 and 136,497, were excluded from use in the testing procedure. This curation of data by NSL-KDD ensures that the machine learning algorithm does not bend the results by inclining toward a particular conclusion. The abuse identification is especially suitable for the KDD Cup 99 dataset because it has some shortcomings manifested in the ability to capture real-time characteristics of the network throughput. The statistics relevant to the KDD Cup 99, Drone dataset, and NSL-KDD are discussed in detail in the Table 3. Realized for IDSs in wireless sensor networks, the WSN-DS dataset was developed by Singh et al. (2020) and Khan et al. (2024). It includes four different kinds of DoS attacks: blackhole, grayhole, flooding, and scheduling. Specific protocols employed in the experiment include hierarchical low-energy adaptive clustering (LEACH) protocol data gathered by using the network simulator-2 (NS-2). After that, data preprocessing was conducted, which led to the identification of 23 characteristics. For this purpose, a real-world WSN-DS dataset is used.

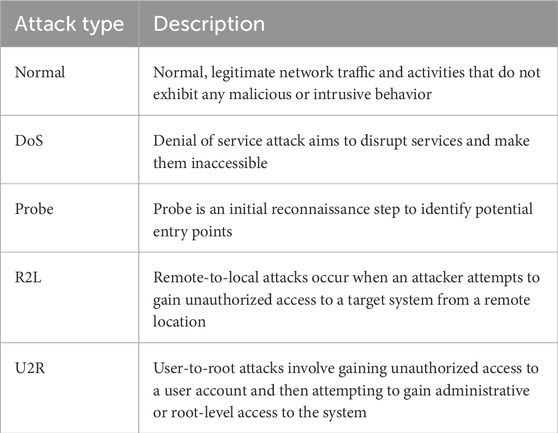

Table 3. Details of KDD Cup 99, Drone, and NSL-KDD datasets.
One of the real-world network traffic datasets is the CICIDS2017 dataset (Stiawan et al., 2020), which focuses on the current network activities, both normal and anomalous. More emphasis was placed on the practical recording of the background traffic data using the B-profile technology during the development. This non-malicious traffic collection is for 25 users, and the protocols include HTTP, HTTPS, FTP, SSH, and email. Original network traffic data were captured systematically for five consecutive days, with 1 day for normal traffic and the following 4 days with incorporated attack. The injection attacks in the dataset are brute force FTP, brute force SSH, DoS, heartbleed, web assaults, infiltration, botnet activities, and DDoS. It is worth mentioning that the dataset’s producers believe that their collection meets 11 key criteria specified in previous research. Please see Table 4 for more information on the CICIDS2017 dataset, which includes extensive statistics and details.

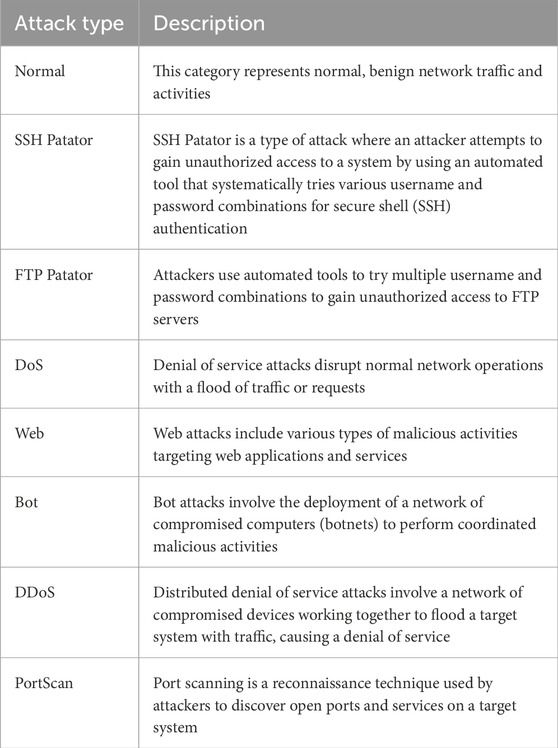

Table 4. Details of the CICIDS2017 dataset.
5.2 Deep learning models
Convolutional neural networks (CNNs) have exceptional feature extraction capabilities, making them useful for a broad range of applications such as image classification, recognition, and a variety of other fields (Bhatt et al., 2021). Although CNNs are most typically linked with computer vision tasks (Terkawi et al., 2018), their applications extend to areas such as forgery analysis (Diallo et al., 2020) and intrusion detection (Chen et al., 2020). Through convolution and pooling layers, CNNs excel at effectively extracting critical characteristics from raw data. CNNs, as opposed to traditional multi-layered neural networks, are a feed-forward deep learning model with distinct characteristics such as parameter sharing and sparse interaction. These characteristics distinguish them from the completely connected networks where each of the input neurons is connected with all the output neurons.
LSTM is a type of RNN model with a feedback connection (Yu et al., 2019; Abu-zanona et al., 2022). The important feature of LSTM is that it considers the whole data sequence, not data points, as RNN does, and, therefore, is ideal for jobs that require time-series data processing and classification. Usually, long data sequences pose difficulties to the computation of gradients for RNNs, which gives rise to LSTM. One of the key aspects of LSTM network design is the cell memory unit, which has the capability of both forgetting the old knowledge and storing new inputs. The LSTM model is made up of four major components: the input gate, the forget gate, the output gate, and the cell state, which are depicted as four LSTM gates.
The network layer parameters of CNN-LSTM architecture can be adjusted to suit one’s preference (Lu et al., 2020). A pooling layer and a dense layer are frequently used in a sequence convolutional LSTM layer. In each layer, filter size, kernel size, and stride can be adjusted to alter the model’s performance and learning rate. This allows the number of parameters to be changed, directly influencing the model’s performance. Dependent inputs are first accepted by the convolutional layer, and the result from this layer is then passed into the pooling layer to reach the LSTM layer. The CNN-LSTM architecture has been used in many tasks, such as human activity recognition (Mutegeki and Han, 2020; Albalas et al., 2019) and forecasting gold prices (Livieris et al., 2020).
5.3 Proposed approach
The proposed neural network model combines the features of both CNN and LSTM layers. CNNs have excellent feature extraction capabilities, making them useful in a variety of applications. Through convolution and pooling layers, CNN efficiently extracts meaningful features from raw data. CNN is a kind of feed-forward deep learning model that offers parameter sharing and sparse interaction characteristics while differing from a multi-layered deep neural network that is fully connected (each input neuron being interconnected with each output neuron). In other words, under CNN, feature extraction is enhanced while the connection’s complexity is reduced. An LSTM is an extension of a recurrent neural network that has feedback connections. Although other types of RNNs, like RNN, work point by point in the datasets, LSTM works end to end and hence can easily handle and solve time-series data algorithms and classification.
ConvLSTM is an advanced version of LSTM that includes convolutional operations inside the LSTM cell. It represents a particular kind of RNN that proves to be efficacious for modeling long-term dependencies in a specific manner. Unlike the standard LSTM structures, in ConvLSTM, matrix operations in each of the gates of the cell are replaced with convolution operations. This modification is useful for extracting spatial features in multi-dimensional data, making the ConvLSTM model superior to the basic CNN-LSTM model. Because of its flexibility and applicability in various fields, ConvLSTM has been used in travel demand prediction, slip direction identification, and agriculture forecasting. ConvLSTM is a powerful tool in the field of deep learning domains; the best part of the ConvLSTM architecture is that it smoothly incorporates both spatial and temporal features, which in turn helps to provide better and more accurate predictions from multi-dimensional data. The proposed model's complete working algorithm is shared in Algorithm 1.
Algorithm 1.Evaluation of ConvLSTM Model Using KDD Cup-99, NSL-KDD, WSN-DS, CICIDS 2017, and Drone datasets.
1: Input: ConvLSTM model and Datasets {KDD Cup-99, NSL-KDD, WSN-DS, CICIDS 2017, Drone}
2: Output: Evaluation metrics (Accuracy, Precision, Recall, F1-score)
3: Step 1: Data Preprocessing
4: For each dataset:
5: Load the dataset
6: Normalize and standardize feature values
7: Split the dataset into training and testing sets
8: Step 2: ConvLSTM Model Training
9: Initialize the ConvLSTM model architecture
10: For each dataset:
11: Train the ConvLSTM model on the training set
12: Use cross-validation for hyperparameter tuning
13: Step 3: Model Evaluation
14: For each dataset:
15: Test the trained ConvLSTM model on the testing set
16: Calculate evaluation metrics:
17: Accuracy =
18: Precision =
19: Recall =
20: F1-score =
21: Step 4: Comparison of Results
22: Compare the evaluation metrics across all five datasets
23: Highlight performance differences of the ConvLSTM model
24: Step 5: Conclusion
25: Analyze the ConvLSTM model’s strengths and weaknesses across datasets
26: Provide recommendations for future work based on performance results
6 Results and discussion
This section presents the outcomes of the experiments following the discussion of suggested models in the preceding section. The results demonstrate the effectiveness of drones in enhancing security, as discerned through a deep learning-based approach. Four assessment criteria were employed to evaluate and contrast the prototype performances, with the confusion matrix being a pivotal tool in these evaluations. The confusion matrix comprises key elements, including true positive (TP), false positive (FP), true negative (TN), and false negative (FN).
6.1 Experimental results
The results of the experiments are provided in this section. The proposed model’s performance is evaluated on five datasets. The results are also compared to other cutting-edge approaches from the existing literature. The datasets were divided into 70:30 training and testing sets. The tests are carried out on a Dell PowerEdge T430 GPU with an 8 GB graphics card, as well as twin Intel Xeon eight-core CPUs running at 2.8 GHz and 32 GB of DDR4 RAM. The studies were done in the Jupyter Notebook environment, with Python and Anaconda as programming languages. Additional information is provided in Table 5.

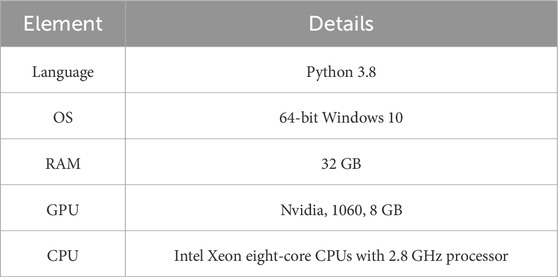

Table 5. Experimental setup for the proposed system.
In this research, the CNN, LSTM, CNN-LSTM, and ConvLSTM deep learning models were employed. These models underwent a comprehensive comparative analysis using five publicly available datasets: KDD Cup 99, NSL-KDD, Drone, WSN-DS, and CICIDS 2017. The primary objective of this analysis was to evaluate the effectiveness of these deep learning models in the context of intrusion detection within UAVs or drones. The results of deep learning models on KDD Cup-99 presented in Table 6 and Figure 2 provide a comprehensive overview of their performance. CNN achieved an accuracy of 89.10%, indicating the percentage of correctly classified instances. Its precision, recall, and F1-score are 87.23%, 85.43%, and 86.31%, respectively. The LSTM model demonstrated higher accuracy, reaching 92.25%. The hybrid model (CNN-LSTM) performed exceptionally well, with an accuracy of 95.11%. It also exhibited a high precision of 95.31% and a recall of 98.21%, leading to an F1-score of 96.16%. However, the ConvLSTM model outperformed all others, achieving an astonishing accuracy of 99.99%. It also achieved exceptional precision, recall, and F1-score, all 99.99%.

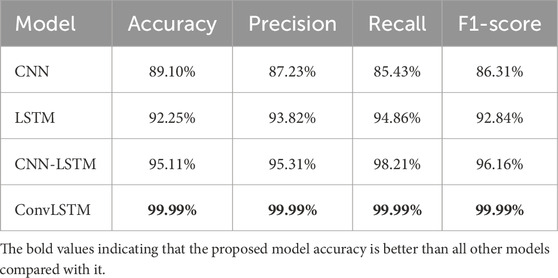

Table 6. Results of deep learning models on KDD Cup 99.

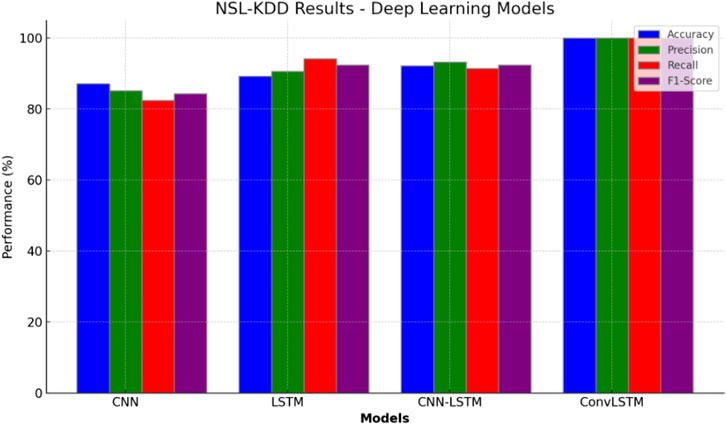

Figure 2. Results of deep learning models on NSL-KDD.
Table 7 and Figure 3 summarize the performance of various deep learning models on the NSL-KDD dataset for intrusion detection. CNN achieved an accuracy of 87.10%, with corresponding precision, recall, and F1-score values of 85.13%, 82.42%, and 84.35%, respectively. LSTM showed an accuracy of 89.25% and performed well with 90.62% precision, 94.16% recall, and 92.34% F1-score. CNN-LSTM achieved an accuracy of 92.21%, and ConvLSTM demonstrated exceptional results, with accuracy, precision, recall, and an F1-score of 99.99%.
Table 7. Results of deep learning models on NSL-KDD.
Figure 3. Results of deep learning models on WSN-DS.
Table 8 and Figure 4 display the performance results of various deep learning models for intrusion detection on the WSN-DS dataset. The CNN achieved 90.10% accuracy, 87.23% precision, 89.83% recall, and 88.71% F1-score. LSTM demonstrated an accuracy of 94.25%, and CNN-LSTM exhibited an accuracy of 97.31%. ConvLSTM outperformed the other models with remarkable results, showing an accuracy of 99.99%.
Table 8. Results of deep learning models on WSN-DS.

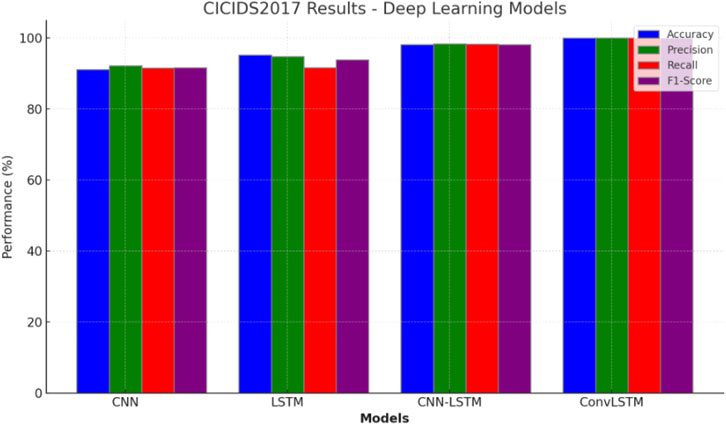

Figure 4. Results of deep learning models on CICIDS 2017.
Table 9 presents the performance results of various deep learning models on the CICIDS2017 dataset, which is used for intrusion detection. CNN achieved an accuracy of 91.10% and demonstrated good performance in precision, recall, and F1-score. LSTM showed an accuracy of 95.25% and performed well in precision, although it had a slightly lower recall and F1-score. CNN-LSTM exhibited high accuracy, scoring 98.11%, and also delivered excellent results in precision, recall, and F1-score. ConvLSTM outperformed the other models with outstanding results, achieving an accuracy, precision, recall, and F1-score of 99.99%.
Table 9. Results of deep learning models on CICIDS 2017.

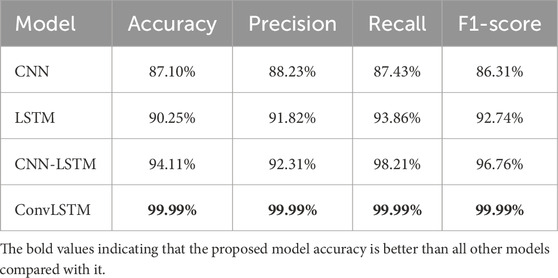

Table 10 presents the results of deep learning models on the Drone dataset. CNN achieved an accuracy of 87.10% and showed good performance in precision (88.23%), recall (87.43%), and F1-Score (86.31%). LSTM demonstrated an accuracy of 90.25%, and CNN-LSTM exhibited an accuracy of 94.11%. ConvLSTM outperformed the other models with outstanding results, achieving accuracy, precision, recall, and F1-score of 99.99%. This suggests that ConvLSTM is highly effective in making accurate predictions on the Drone dataset.
Table 10. Results of deep learning models on the Drone dataset.
The ConvLSTM model is highly effective in identifying intrusions in UAV and smart grid communication systems, thanks to its capability to concurrently capture spatial and temporal characteristics. The convolutional layers within the model efficiently learn local patterns from spatial information, while the LSTM units manage temporal relationships, making the model ideally designed for complex time-series data such as intrusion detection (Wu et al., 2020). Furthermore, the hybrid structure of ConvLSTM overcame the limitations seen in standalone CNN and LSTM models, resulting in improved generalization and heightened accuracy for processing sequential network data (Altunay and Albayrak, 2023). Research indicates that ConvLSTM models surpass traditional machine learning techniques in detecting advanced cyberattacks, especially in UAV networks where the data involve temporal dependencies and spatial correlations (Dubey et al., 2024). The model’s exceptional performance is further supported by leveraging large, varied datasets, which boost its robustness and adaptability to various network conditions (Sharafaldin et al., 2018). This flexibility is vital in environments like smart grids and UAVs, where threats are dynamic and constantly evolving.
6.2 Statistical analysis
This subsection presents the results of a statistical t-test analysis between the two best-performing models on all datasets. The t-test results for comparing CNN-LSTM and ConvLSTM models across different datasets are as follows:
In all cases, the p-values are below the significance level (0.05), indicating that the performance differences between CNN-LSTM and ConvLSTM are statistically significant, with ConvLSTM outperforming CNN-LSTM.
6.3 Sensitivity analysis
The sensitivity analysis demonstrates that while the ConvLSTM model maintains high performance metrics across various hyperparameters, slight adjustments can affect specific performance measures such as accuracy, precision, recall, and F1 score. The results indicate a strong robustness in the model, reinforcing its suitability for intrusion detection in UAV communication networks. This analysis highlights the importance of hyperparameter tuning in optimizing model performance for various operational conditions. The results of the sensitivity analysis on the Drone dataset are shared in Table 11.

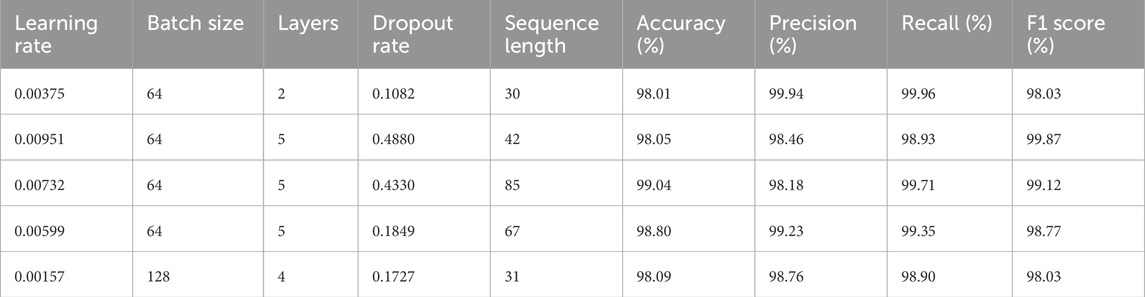

Table 11. Sensitivity analysis results for the ConvLSTM model on the Drone dataset.
6.4 Comparing the performance of the proposed ConvLSTM method to existing approaches
Table 12 presents the performance comparison of the proposed approach alongside state-of-the-art models on different datasets. The comparison table includes the dataset name, the method used, and the corresponding accuracy achieved by each method. The proposed ConvLSTM method outperforms other models, achieving an accuracy of 99.99%. Comparatively, the deep neural model (Andresini et al., 2020) achieved an accuracy of 92.49%, and the DNN model (Vinayakumar et al., 2019) achieved 93% accuracy on the KDDCup-99 dataset. In contrast, the SVM-ANN model (Hussain et al., 2016) achieved an accuracy of 91.48%, the deep hierarchical model (Jiang et al., 2020b) achieved 83.58% accuracy, and the DNN model (Vinayakumar et al., 2019) attained 80% accuracy on NSL-KDD dataset. The DNN model (Vinayakumar et al., 2019) obtained an accuracy of 99.2% on the WSN-DS dataset and 96.3% on the CICIDS-2017 dataset. The RegressionNet model (Alturki et al., 2023) reached an accuracy of 99.89%. Overall, the proposed ConvLSTM method consistently demonstrates superior performance across all datasets compared to the referenced state-of-the-art models, highlighting its effectiveness in intrusion detection.

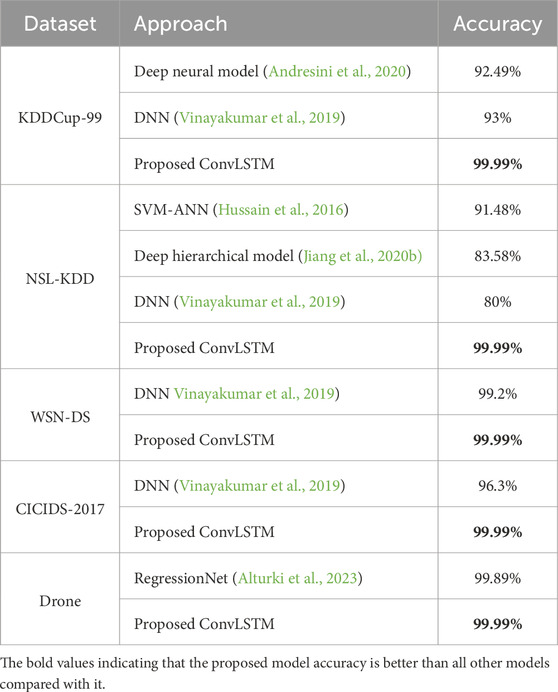

Table 12. Comparative analysis of the proposed methodology and state-of-the-art model performance.
6.5 Discussion
Table 12 shows the performance of four deep learning models: CNN, LSTM, CNN-LSTM, and ConvLSTM. The performance of each model is assessed, and the corresponding values are shown in the table. ConvLSTM performs better than the others, with the highest accuracy, precision, recall, and F1-score of 99.99%. The findings derived from the study involving experiments on those various datasets for intrusion detection in UAVs or drones help evaluate deeper models’ efficiency. The figures clearly show that the proposed ConvLSTM model performs exceptionally well in all the datasets used in the experiments, with an accuracy of 99.99% PDR on all the datasets, implying the model’s excellent performance on intrusion detection in UAV’s communication network. Such accuracy is important for strongly securing UAV operations, unauthorized access, or cyberthreats that could lead to critical consequences. This outcome supports the understanding that more complex neural network architectures are needed for fully modeling both spatial and temporal structures of traffic data obtained from drone networks.
The datasets used in those experiments were selected in a manner that matches realistic business environments. They include various types of network traffic and intrusions that may exist in a mission field using UAVs. The datasets give a range of intrusions such as DoS, unauthorized access, probing, etc. This diversity ensures that intrusion detection models are exposed to a wide range of challenges, increasing their immunity to new challenges. These datasets, therefore, act as the gold standard against which the performance of intrusion detection models can be measured.
Last but not least, findings from such experiments demonstrate that ConvLSTM outperforms other models and, at the same time, stresses the necessity to leverage high-quality datasets for training and testing IDS solutions in the UAV setting. Both datasets are fundamental as they contribute to the formulation of effective security measures for drones, thus bringing safety to countless uses.
7 Conclusion
This work has explored the fundamental domain of cybersecurity for unmanned aerial vehicles (UAVs), which are increasingly integrated into various sectors, including agriculture, surveillance, and logistics. As UAV technology continues to advance, the need for robust IDS to protect these communication networks from cyber threats has become critical.
7.1 Findings
In this study, we investigated four deep learning models—CNN, LSTM, CNN-LSTM, and ConvLSTM—within the context of intrusion detection in UAV communication networks. Among these models, the ConvLSTM model demonstrated superior performance, achieving an accuracy of 99.99% across multiple datasets. This high level of accuracy suggests that complex neural network structures like ConvLSTM can be effectively leveraged to enhance cybersecurity for UAVs, offering a promising solution to counter evolving cyber threats.
7.2 Limitations
Despite the high accuracy of the ConvLSTM model, some limitations exist in this research. First, the datasets used, while diverse, may not cover all potential cyberattack scenarios that UAVs could encounter in real-world applications. Additionally, the computational complexity of ConvLSTM could pose a challenge for real-time deployment on resource-constrained UAV systems, limiting its practicality in some cases. Lastly, this study focused on intrusion detection by ignoring other factors of UAV cybersecurity, such as real-time anomaly detection or attack mitigation techniques.
7.3 Recommendations
Future research should address these limitations by exploring lighter, more efficient models that can be deployed in real-time on UAV systems with limited computational power. Furthermore, it would be beneficial to incorporate more diverse and representative datasets that simulate a wider range of cyberattacks in realistic environments. Expanding the scope to include real-time anomaly detection and response mechanisms could further enhance the robustness of UAV cybersecurity frameworks. Additionally, collaboration between cybersecurity experts and UAV manufacturers is recommended to develop standardized security protocols that can be integrated directly into the design of UAV communication networks.
7.4 Conclusion
The findings of this study highlight the potential of ConvLSTM models to improve the safety, security, and reliability of UAV operations across various industries. As UAVs become more prevalent in daily activities, enhancing intrusion detection techniques will be crucial in minimizing cyber threats and ensuring the safe deployment of these systems.
Data availability statement
The original contributions presented in the study are included in the article/supplementary material; further inquiries can be directed to the corresponding author.
Author contributions
RA: conceptualization, data curation, formal analysis, funding acquisition, investigation, methodology, project administration, resources, software, supervision, validation, visualization, writing–original draft, and writing–review and editing.
Funding
The author(s) declare that financial support was received for the research, authorship, and/or publication of this article. The authors extend their appreciation to the Deanship of Scientific Research, University of Hafer Al Batin for funding this work through the research group project No. (0025-1443-S).
Conflict of interest
The author declares that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors, and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Abbreviations
CNN, convolutional neural network; CPU, central processing unit; DL, drone layer; DNN, deep neural network; DoS, denial of services; FTP, file transfer protocol; HTTP, hypertext transfer protocol; IoD, Internet of drones; IoT, Internet of Things; LSTM, long short-term memory; OS, operating system; PL, privacy layer; RAM, random access memory; SL, security layer; SSH, secure shell; SSL, secure sockets layer.; TL, transfer learning; UAV, unmanned aerial vehicle.
Footnotes
1https://www.kaggle.com/datasets/hassan06/nslkdd
2https://www.kaggle.com/datasets/bassamkasasbeh1/wsnds
3https://www.kaggle.com/datasets/chethuhn/network-intrusion-dataset
4https://github.com/MUmerSabir/MDPIElectronics
