Frequency-hopping mechanism and control method for nonlinear parity-time-symmetric wireless power transfer systems

Nonlinear parity-time-symmetric wireless power transfer (NPTS-WPT) is a novel wireless power transfer technology. NPTS-WPT systems exhibit the resonant frequency bifurcation phenomenon in the strong coupling region. However, working frequency selection mechanisms and control methods for use in the bifurcation region remain unclear. In this study, the description function method was used to model and analyze the dynamics of NPTS-WPT systems. The frequency stability, evolution and convergence characteristics of resonant frequency bifurcation were studied for varying distances between the receiver (Rx) and transmitter circuits varies. In addition, the loop detuning characteristics and the mechanism by which the amplification factor of the operational amplifier influences the system’s frequency-hopping behavior were determined. The detuning rate must be greater than the detuning tolerance to cause resonant frequency-hopping. Moreover, we propose a method to induce changes in the natural frequency of the Rx circuit by adding a detuning control circuit at the Rx, thereby allowing the resonant frequency to be selected and controlled. Finally, the conclusions from the theoretical analysis and the feasibility of the proposed frequency control methods were validated using an experimental system. The proposed resonant frequency control methods offer a viable method for directional frequency selection and artificial frequency control in NPTS-WPT systems operating in the strong coupling region.

1 Introduction

As a novel wireless power transfer (WPT) technology, the nonlinear parity-time-symmetric (NPTS) WPT (NPTS-WPT) system was first reported in 2017 in Nature (Assawaworrarit et al., 2017). The study reported that the transfer efficiency between coils with diameters of 58 cm can be maintained at approximately 100% when the distance between the coils is 20–70 cm after a nonlinear gain saturation mechanism is introduced into the parity-time (PT)-symmetric circuit containing the two coupled coils.

Compared with the electromagnetic induction method and the traditional magnetic resonance method, the distinctive characteristic of an NPTS-WPT system is that without the use of additional control circuit modules or software algorithms and by relying solely on the principal characteristics of the circuit, the output frequency of the drive circuit at the transmitter (Tx) is adjusted automatically when the distance between the receiver (Rx) and Tx coils changes or other parameters fluctuate. The Tx and Rx loops thus remain in a resonant state at all times, thereby maintaining stable and highly efficient power transfer efficiency within the specified range and exhibiting strong robustness.

NPTS-WPT has received increased research interest in recent years. In 2018 Younes Ra’di, in cooperation with Fu Liu et al., used electric field coupling between metal plates instead of the magnetic field coupling coils used in a previous study (Assawaworrarit et al., 2017), thereby expanding the power transfer coupling mode at the Rx and Tx circuits (Ra’di et al., 2018). In 2019, Fu Liu further optimized and improved the circuit topology and the principle prototype (Liu F. et al., 2019), and used pulse oscillation instead of single harmonic oscillation. This approach can maintain a transfer efficiency of more than 90% over a wide load fluctuation range. Based on the principle of the Duffing resonator, Abdelatty proposed a position-insensitive WPT system containing nonlinear capacitors (Abdelatty et al., 2019). This system provides a constant transfer efficiency of approximately 80% when the axial distance between the Tx and Rx coils is 15 ± 10 cm, the coil diameter’s lateral misalignment is ±50%, and the angular misalignment is ±75°. Zhang from South China University of Technology performed an innovative exploration of the NPTS topology for use in fields such as single-line electric field coupling power transfer (Shu and Zhang, 2018), constant-efficiency wireless charging for unmanned aerial vehicles based on magnetic field coupling (Zhou et al., 2019), and electric-magnetic field dual coupling WPT (Liu and Zhang, 2018). Compared with the traditional design (Assawaworrarit et al., 2017), the principal difference is that a half-bridge inverter is used instead of an operational amplifier (OP amp) as the Tx circuit driver, and the current signal extracted from this Tx circuit is taken as the feedback signal and used to control the operation of the half-bridge inverter switching tube, thereby yielding a nonlinear saturation gain and improved overall power transfer efficiency. In 2020, a Massachusetts Institute of Technology (MIT) team achieved stable and highly efficient WPT by using a class-E amplifier with current-sensing feedback in the PT-symmetric circuit (Assawaworrarit and Fan, 2020a). In their improved circuit, the PT symmetry ensures a constant effective load impedance for the switch amplifier. The amplifier continues to operate efficiently, even if the transmission distance changes. In a previous study (Zhou et al., 2020), NPTS-WPT technology was employed to read the circuit design of passive wireless sensors. The read-out distance was approximately four times as long as that obtained when using conventional WPT methods while maintaining the same sensitivity. Another study (Ishida et al., 2021) presented the design of a low-frequency NPTS-WPT system operating at frequencies below 20 kHz. A high transmission power of 7.6 W was achieved when the Rx and Tx coils were wound on a Mn-Zn ferrite core, and the Tx circuit used a high voltage OP amp. First, they created a transmission system circuit model by using the symmetric and asymmetric parameters of the Rx and Tx circuits. This model was based on the mutual inductance coupling theory, which is used in this paper. Next, they analyzed the effects of these parameters on the power transmission characteristics (Dong et al., 2019a; Li et al., 2020) and proposed a novel current-type NPTS circuit topology (Dong et al., 2019b).

The NPTS-WPT system drives the coupling coils by using the self-excited oscillation of an OP amp working in the nonlinear saturation region. Compared with switching inverters that are commonly used in electromagnetic induction and conventional magnetic resonance methods, NPTS-WPT provides low energy conversion efficiency and limited transmission power and is thus not suitable for use in high-power wireless transfer applications that require high overall transmission efficiency, such as electric vehicle wireless charging. However, because of outstanding advantages such as strong robustness, long transmission distance, and simple circuit topology, NPTS-WPT has broad application prospects in the field of low-power wireless charging, where distance variations and parameter fluctuations occur, such as information cross-linking between ammunition and weapons systems and where the provision of an external wireless power supply for implantable medical diagnostic equipment. As novel concept, the related research is still in its infancy.

Several studies have verified that in the strong coupling region, NPTS-WPT systems exhibit resonant frequency bifurcation (Assawaworrarit et al., 2017; Liu and Zhang, 2018; Shu and Zhang, 2018; Dong et al., 2019a; Dong et al., 2019b; Zhou et al., 2019; Assawaworrarit and Fan, 2020a; Li et al., 2020; Zhang, 2020; Zhou et al., 2020; Ishida et al., 2021; Yatsugi et al., 2021), which is similar to traditional magnetic resonance frequency characteristics (Nguyen and Agbinya, 2015; Liu M. et al., 2019; Song et al., 2021). Different resonant frequency points have an important impact on the system’s transmission efficiency and transmission distance. Most scholars consider that the frequency bifurcation phenomenon is not conducive to the operation of the system. The main research direction has been to adjust the circuit parameters to eliminate this phenomenon (Truong, 2021). However, the real-world WPT systems are not in a completely symmetrical state (Li et al., 2020), and the transmission power and efficiency at the two bifurcation frequencies are different. Thus, the transmission performance of the system can be improved by controlling and selecting the working frequency. Furthermore, this method can be used for simultaneous wireless power and information transfer (SWPIT) systems where the high and low frequencies represent information ‘1′and ‘0′respectively.

Although studies on magnetic resonance, they have discovered and explained the occurrence of the frequency bifurcation phenomenon, they have not offered an in-depth discussion on the evolution of change in the frequency or propose a method for selection and control of the resonant frequency. Because the NPTS-WPT system has two resonant frequency branches in the strong coupling region, which resonant frequency branch will be selected during practical operation, and whether there are any technical means to enable the system to hop from one resonant frequency branch to the other. We have created a dynamic model for an NPTS-WPT system by using the description function method (DFM) and used the model to study the resonant frequency bifurcation and frequency-hopping mechanisms. On this basis, we 0discussed the methods for the selection and control of the resonant frequency in the strong coupling region. Finally, we experimentally verified the correctness of the conclusion derived from the theoretical analysis and the feasibility of the proposed technical methods.

2 Dynamic model of the NPTS-WPT system

2.1 Circuit model simplification

The typical circuit principle of an NPTS-WPT system is illustrated in Figure 1A. Resistor R₁ and the OP amp form a negative resistance, which is used to convert part of the direct current (DC) into an alternating current (AC) to feed the WPT system. R_F and R_G are, respectively, the feedback and gain resistances of the OP amp. Through the appropriate design of the values of R_F and R_G, the required voltage amplification factor in the linear region of the OP amp is achieved. R₂ is the load resistance of the Tx circuit. L₁ and L₂ are, respectively, the inductances of the Tx and Rx coils, and M is the mutual inductance of the two coils. R₀₁ and R₀₂ represent the internal resistances of the Tx and Rx coils, respectively. C₁ and C₂ are the matching capacitors for the Tx and Rx loops, respectively, and are used to set the natural frequencies of the Tx and Rx loops. V₁ and V₂ are the voltages across the Tx and Rx coils, respectively, and I₁ and I₂ are the currents that flow through the Tx and Rx coils, respectively.

FIGURE 1

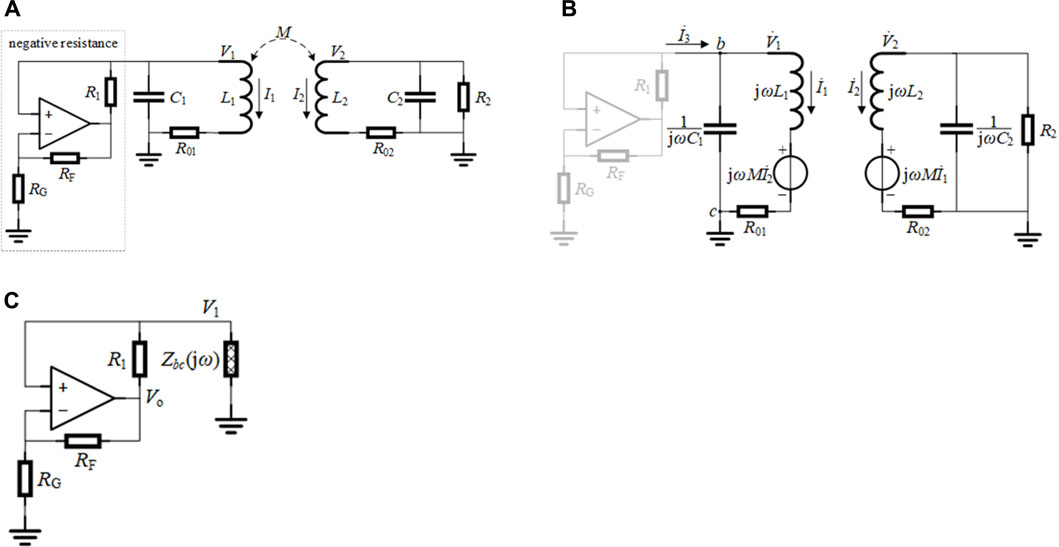

FIGURE 1. (A)Circuit diagram of an NPTS-WPT system. (B) Phasor model of the NPTS-WPT system. (C) Simplified circuit diagram of the NPTS-WPT system.

Refs (Assawaworrarit et al., 2017; Dong et al., 2019a) show that the steady-state voltage and current in this circuit are both sinusoidal signals; therefore, this circuit above can be simplified using the phasor method. The phasor model (without consideration of the negative resistance) is shown in Figure 1B.

According to Kirchhoff’s law,

$\left\{\begin{array}{l}\left(j\omega L_1+R_{01}\right){\dot{I}}_1+j\omega M{\dot{I}}_2={\dot{V}}_1\\ j\omega M{\dot{I}}_1+\left(j\omega L_2+R_{02}+\frac{R_2}{1+j\omega R_2{C}_2}\right){\dot{I}}_2=0\\ \frac{1}{j\omega C_1}\left({\dot{I}}_3-{\dot{I}}_1\right)={\dot{V}}_1\end{array}\right.(1)$

The equivalent impedance between b and c can be obtained from Eq. 1 (while excluding the negative resistance) as follows:

$Z_{bc}\left(j\omega \right)\equiv \frac{{\dot{V}}_1}{{\dot{I}}_3}=\frac{Z_{31}\left(Z_{11}{Z}_{22}-Z_{12}^2\right)}{Z_{31}{Z}_{22}+Z_{11}{Z}_{22}-Z_{12}^2}(2)$

where.

$Z_{11}=j\omega L_1+R_{01}$, $Z_{12}=j\omega \kappa \sqrt{L_1{L}_2}$, ${\mathrm{Z}}_{31}=1/\left(j\omega C_1\right)$, $\kappa =M/\sqrt{L_1{L}_2}$, $Z_{22}=j\omega L_2+R_{02}+R_2/\left(1+j\omega R_2{C}_2\right)$, and κ is the coupling coefficient between the two coils.

Therefore, the NPTS-WPT system can be simplified further, as illustrated in Figure 1C, where V_o is the output voltage of the OP amp.

2.2 Dynamics modeling by using the DFM

The DFM is a common analytical method used for nonlinear systems, and can analyze aspects such as the stability and limit cycle of high-order nonlinear systems (Engelberg, 2002). The DFM is generally used to model power converters in power systems (Sinha et al., 2018). To use the DFM, the system must be analyzed in the s-domain. When the self-excited oscillation of the system and the independence of its characteristics from the initial state are considered, jω in Eq. 2 can be replaced with s, Accordingly, we obtain

${\mathrm{Z}}_{bc}\left(s\right)=Z_{bc}\left(j\omega \right)(3)$

When the functions of the OP amp are considered based on its virtual-short and virtual-break characteristics, Eqs. 4, 5 hold true:

$V_1\left(s\right)=\frac{Z_{bc}\left(s\right)}{Z_{bc}\left(s\right)+R_1}{V}_o\left(s\right)(4)$

$V_1\left(s\right)=\frac{R_G}{R_G+R_F}{V}_o\left(s\right)(5)$

The transfer function G(s) is defined using Eq. 4 as follows:

$G\left(s\right)\equiv \frac{V_1\left(s\right)}{V_o\left(s\right)}=\frac{Z_{bc}\left(s\right)}{Z_{bc}\left(s\right)+R_1}(6)$

Additionally, the voltage amplification factor of an OP amp in the linear region, which is denoted as k_OP, can be defined using Eq. 5 as follows:

$k_{\text{OP}}\equiv \frac{V_o\left(s\right)}{V_1\left(s\right)}=\frac{R_{\mathrm{G}}+R_{\mathrm{F}}}{R_{\mathrm{G}}}(7)$

The linear feedback block diagram of the system can be obtained using equations. (6) and (7), as shown in Figure 2A, where V_o is the input to G(s) and the output from k_OP, and V1 is the output from G(s) and the input to k_OP. This is similar to the aforementioned circuit diagram, where k_OP is taken as the negative input to the OP amp. The block diagram of the nonlinear feedback considering the saturation nonlinearity of the OP amp shown in Figure 2B.

FIGURE 2

FIGURE 2. (A) Linear feedback block diagram of system. (B) Nonlinear feedback block diagram of the system.

Here, the description function for the saturation nonlinearity can be expressed as follows:

$N\left(A\right)=\frac{2k_{OP}}{\pi }\left[\arcsin \left(\frac{a}{A}\right)+\frac{a}{A}\sqrt{1-{\left(\frac{a}{A}\right)}^2}\right](8)$

In Equation 8, where A is the signal amplitude [−a, a] represents the linear region of the OP amp, and a represents the saturation, which is illustrated in Figure 3A. The saturation of an OP amp depends on its supply voltage. For subsequent analysis, the saturations at various supply voltages were measured for the LM7171 OP amp, as shown in Figure 3B, where APS = (V+ − V−)/2, and V+ and V− are, respectively, the positive and negative supply voltages of the OP amp.

FIGURE 3

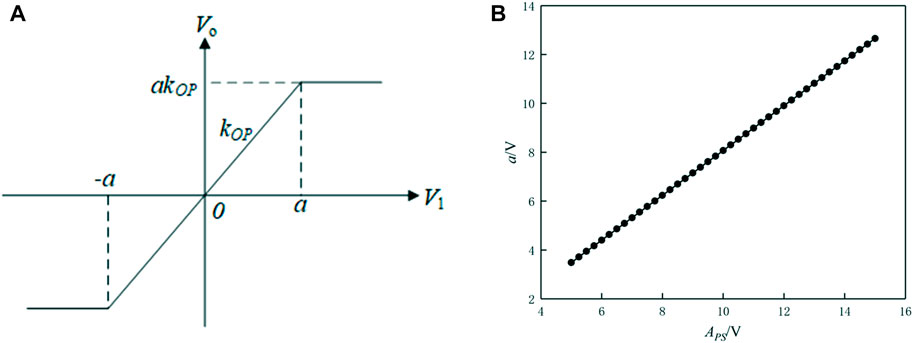

FIGURE 3. (A) Saturated nonlinear parametric diagram. (B) Relationship between a and supply voltage.

The characteristic equation of the nonlinear feedback system shown in Figure 2B is

$1-N\left(A\right)G\left(s\right)k_{\text{OP}}=0(9)$

Eq. 9 can be converted into the following:

$-k_{\text{OP}}G\left(s\right)=-1/N\left(A\right)(10)$

where −1/N(A) is referred to as the negative reversal characteristic of the description function.

The transfer function for the linear portion of the system can be defined as follows:

$H\left(s\right)\equiv -k_{\text{OP}}G\left(s\right)(11)$

According to Eqs. 1–(11),

$H\left(s\right)=-k_{\text{OP}}\frac{b_3{s}_3+b_2{s}_2+b_{1}s+b_0}{a_4{s}_4+a_3{s}_3+a_2{s}_2+a_{1}s+a_0}(12)$

where

$\left\{\begin{array}{l}{a}_0=R_1{R}_2+R_1{R}_{02}+R_2{R}_{01}+R_{01}{R}_{02}\\ a_1=\left(R_2+R_{02}\right)\left(L_1+C_1{R}_1{R}_{01}\right)+\left(R_1+R_{01}\right)\left(L_2+C_2{R}_2{R}_{02}\right)\\ a_2=\left(1-k^2\right)L_1{L}_2+\left(L_1{C}_1+L_2{C}_2\right)R_1{R}_2\\ +\left(L_1{R}_{02}+L_2{R}_{01}\right)\left(C_1{R}_1+C_2{R}_2\right)+C_1{C}_2{R}_1{R}_2{R}_{01}{R}_{02}\\ a_3=\left(1-k^2\right)L_1{L}_2\left(C_1{R}_1+C_2{R}_2\right)+C_1{C}_2{R}_1{R}_2\left(L_1{R}_{02}+L_2{R}_{01}\right)\\ a_4=\left(1-k^2\right)L_1{L}_2{C}_1{C}_2{R}_1{R}_2\\ b_0=R_{01}\left(R_2+R_{02}\right)\\ b_1=L_1{R}_2+L_1{R}_{02}+L_2{R}_{01}+C_2{R}_2{R}_{01}{R}_{02}\\ b_2=\left(1-k^2\right)L_1{L}_2+C_2{R}_2\left(L_1{R}_{02}+L_2{R}_{01}\right)\\ b_3=\left(1-k^2\right)L_1{L}_2{C}_2{R}_2\end{array}\right.(13)$

3 Resonant frequency-hopping and selection method

The NPTS-WPT system has two resonant frequency points when operating in the strong coupling region. However, this system cannot simultaneously be operated at two frequency points—it must operate at one point or the other. This raises the questions of whether or not this choice is random and whether a system running at a specific frequency point can then hop to another frequency point for operation through artificial and technical means. These problems are in this section.

3.1 Frequency bifurcation phenomenon in the strong coupling region

In this study, for an NPTS-WPT system with the parameters listed in Table 1, we determined the evolution process of the system’s resonant frequencies with changes in the distance between the Tx and Rx coils by using the DFM presented in Section II and then used the resonant frequency control method in the strong coupling region. The measured curve for the relationship between the coupling coefficient and the distance is shown in Figure 4. All calculational and experimental parameters used in this study are presented in Table 1 unless otherwise specified. The Rx and Tx coils are spiral coils with the same diameter of 90 mm. These coils were wound using enameled copper wires with a diameter of 1 mm. The number of turns for both coils is 7 and the power supply voltage is ±12 V.

TABLE 1

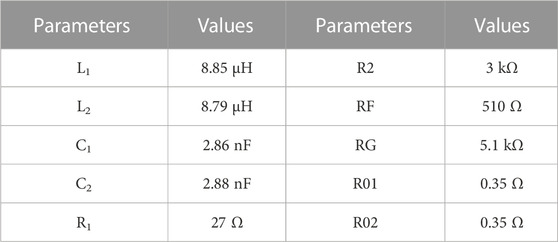

TABLE 1. Computational and experimental parameters.

FIGURE 4

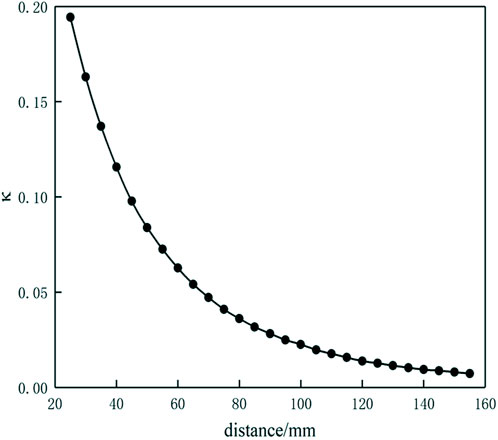

FIGURE 4. Curve of κ value versus distance between the coils.

The Nyquist diagram of H(s) and the image of −1/N(A) were drawn on the complex plane, with results as shown in Figure 5. The image of −1/N(A) on the complex plane was a ray on the negative real axis that started at (−1/k_OP,0) and moved toward (−∞,0) with increasing A. The directions of the arrows shown in the figure were consistent with the growth direction of A. The Nyquist diagram of H(s) can only show the nonnegative angular frequency portion. The directions of the arrows on the curves indicate the direction in which ω is increasing. The value of ω at the intersection of H(s) and −1/N(A) is the solution to Eq. 11, i.e., the system resonance frequency. For example, in Figure 5B, the values of ω at the intersections are defined as ω₁, ω₂ and ω₃, where ω₃ ≥ ω₂ ≥ ω₁ > 0. These intersections can be either stable or unstable. Specifically, in the direction of the H(s) curve where it is increasing along ω, if the direction in which −1/N(A) is increasing with increasing A is from the right side of the H(s) curve toward the left side, then the intersection is stable; in contrast, if the direction in which −1/N(A) is increasing with increasing A is from the left side of the H(s) curve toward the right side, then the intersection is unstable.

FIGURE 5

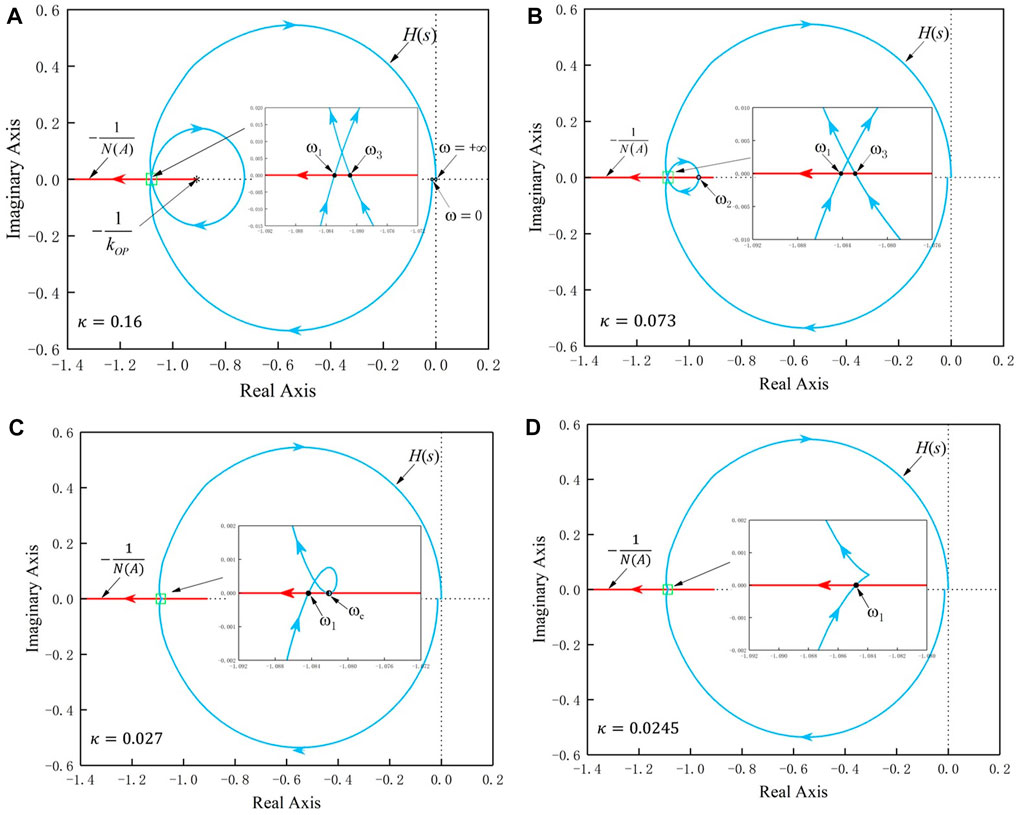

FIGURE 5. Images of H(s) and −1/N(A) on the complex plane: (A) κ = 0.16, (B) κ = 0.073 (C) κ = 0.27, and (D) κ = 0.0245. The stretched-out views are shown in the images at the intersections.

When the κ value was high (i.e., κ = 0.16, as shown in Figure 5A), H(s) and −1/N(A) intersected twice (corresponding to ω₁ and ω₃). According to the intersection stability judgment method described above, ω₁ and ω₃ were both stable and are thus represented by solid dots in the figure. In Figure 5B, κ = 0.073, and when compared with Figure 5A, the inner circle formed by H(s) is smaller because of the reduction in the value of κ. H(s) intersected with −1/N(A) thrice. ω₁ and ω₃ were stable in this case, while ω₂ was unstable and was thus represented by a hollow dot in the figure. As κ decreased further, the inner circle formed by H(s) continued to shrink. When this shrinking circle was exactly tangential to the negative real axis, a critical state was reached, as illustrated in Figure 5C (where κ = 0.027). In addition, ω₂ and ω₃ converged into a point, represented by ω_c in this case. Here, ω_c represents the convergence of the original stable point ω₃ and the unstable point ω₂ is called the critical stable angular frequency and is represented by a half-solid dot in the figure. The corresponding coupling coefficient is denoted as κ_c and is called the critical coupling coefficient. When κ continued to decrease further, H(s) and −1/N(A) had only one intersection at ω₁ and this frequency point was stable.

The resonant frequency curves for varying distances between the Tx and Rx coils are shown in Figure 6. The area in which κ > κ_c is called the strong coupling region. Here, the system had two stable, resonant frequency branches (i.e., f₁ and f₃), which are called the low-frequency branch and the high-frequency branch, respectively. In addition, there was an unstable intermediate frequency branch (i.e., f₂) when the distance between the Tx and Rx coils was within a certain range of values. The intermediate frequency branch f₂ cannot be observed experimentally because it is merely a theoretical solution derived from the theoretical analysis. As κ continued to decrease (and the distance between the Tx and Rx coils increased), the three resonant angular frequencies continued to approach each other and evolved into stable and critical stable, resonant angular frequencies at the critical distance. The area in which κ < κ_c is called the weak coupling region. In this case, the system exhibited only one stable resonant frequency branch. In the strong coupling region, when the distance between the two coils decreased, the difference between the high-frequency and low-frequency branches increased in tandem. However, in the weak coupling region, the resonant frequency of the system basically remained unchanged.

FIGURE 6

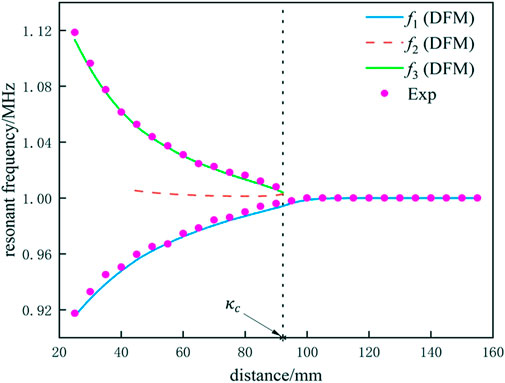

FIGURE 6. Curves of resonant frequency versus distance between coils.

3.2 Effects of detuning on the frequency

Preliminary studies have found that artificial detuning between the Rx and Tx circuits can affect the system’s resonant frequency (Li and Huang, 2022; Liu et al., 2022; Wang et al., 2023). When the detuning rate is sufficiently high, the resonant frequency-hopping phenomenon occurs. For the WPT system shown in Figure 1A, changes in the inductance L₂ or the resonance matching capacitance C₂ will lead to a natural frequency offset at the Rx circuit. This may cause system detuning. Here, γ is defined as the natural frequency offset rate and can be expressed as follows:

$\gamma =\left(L_2{C}_2-L_2^{*}{C}_2^{*}\right)/L_2^{*}{C}_2^{*}(14)$

where $L_2^{*}$ and $C_2^{*}$ are substitute parameters for $L_2^{*}{C}_2^{*}=L_1{C}_1$, i.e., $L_2^{*}$ and $C_2^{*}$ respectively represent the inductance and capacitance values at the Rx circuit when the natural frequency of the Rx and Tx circuits is consistent; in other words, γ = 0 at this time.

Figure 7 shows the Nyquist curve for H(s) and the image of −1/N(A) at various values of γ. In the calculation example, γ was adjusted by changing the value of C₂; κ = 0.073, $L_2=L_2^{*}=8.79\mathrm{\mu }\mathrm{H}$ and $C_2^{*}=2.88\text{nF}$; and the remaining parameters are as shown in Table 1 and Figure 7A shows the graph obtained when γ = 0.06. When compared with Figure 7B, the inner circle formed by the curves shifted downward. According to the frequency stability analysis method, ω₁ and ω₃ were both stable resonant angular frequencies, but ω₂ was an unstable resonant angular frequency. When γ increased continuously, ω₁ and ω₂ gradually approach each other and ultimately converged when γ = 0.104; the angular frequency at this convergence is denoted as ω_c and is represented by a half-solid circle, as illustrated in Figure 7B. This frequency point cannot maintain the self-excited oscillation of the system because it is a critical stable point. When the value of γ increased further, there was only one intersection between H(s) and −1/N(A), as shown in Figure 7C. In this case, there was only the high-frequency branch ω₃ in the system, and this frequency point was stable.

FIGURE 7

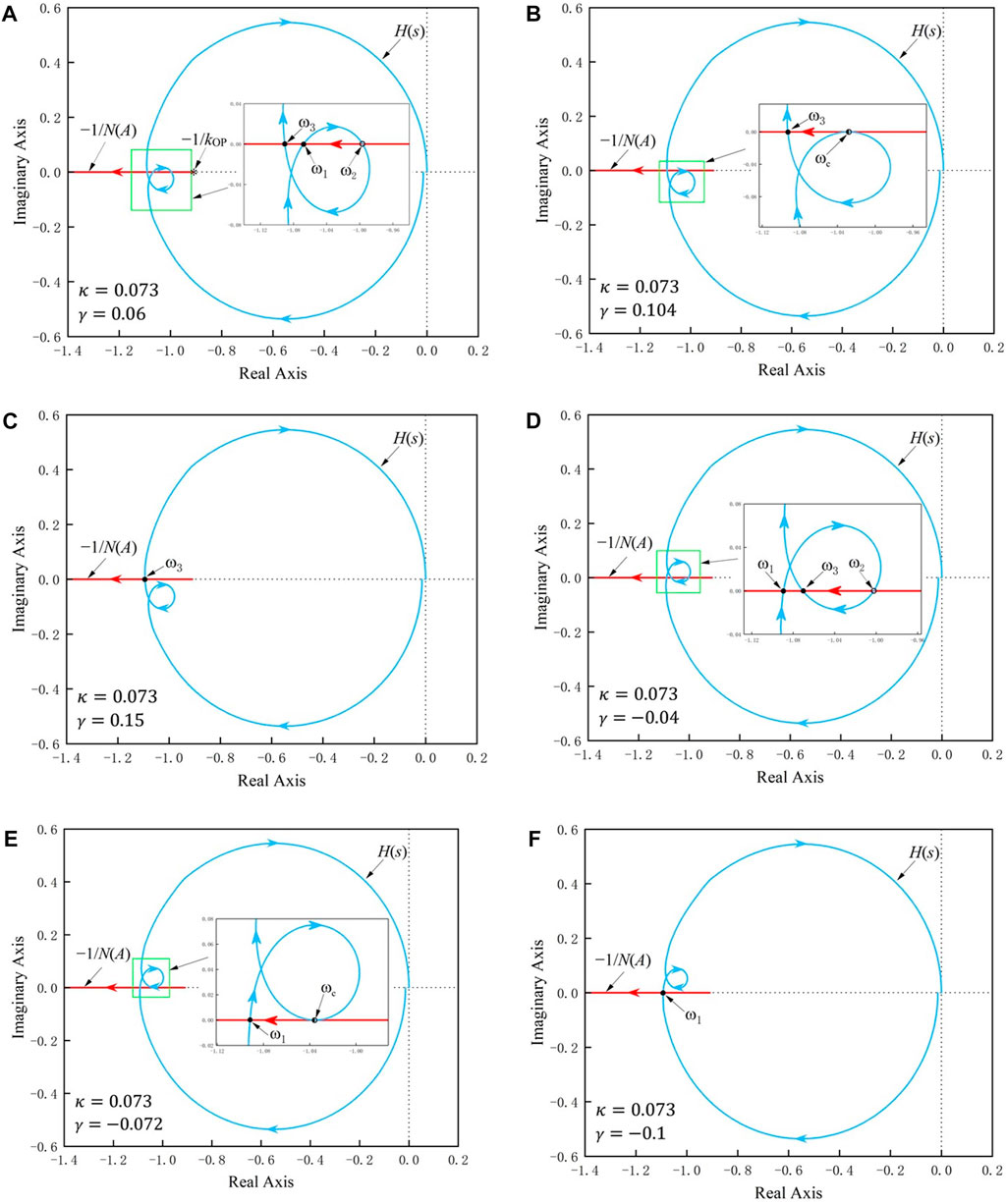

FIGURE 7. Graphics of H(s) and −1/N(A) on the complex plane during detuning when κ = 0.073: (A) γ = 0.06; (B) γ = 0.104; (C) γ = 0.15; (D) γ = - 0.04; (E) γ = - 0.072; (F) γ = - 0.1.

The case in which γ < 0 was analyzed next. The image where γ = −0.04 is shown in Figure 7D. Compared with Figure 5B, the inner circle formed by H(s) in this case shifted upward. According to the frequency stability analysis method, ω₁ and ω₃ were both stable resonant angular frequencies, while ω₂ was again an unstable resonant angular frequency. When γ decreased continuously, ω₃ and ω₂ gradually approached each other and ultimately converged when γ = −0.072; this frequency point is also denoted by ω_c, as shown in Figure 7E. When γ decreased further, there was only one intersection between H(s) and −1/N(A), as illustrated in Figure 7F. In this case, there was only the low-frequency branch ω1 in the system, and this frequency point was stable.

In summary, when γ > 0 and the value of γ increased continuously, the low frequency ω1 and the unstable point ω₂ gradually moved closer to each other and ultimately converged into a critical stable frequency point before departing from the negative real axis. As a result, there was only the high-frequency resonance branch ω₃ within the system. When γ < 0 and γ decreased continuously, the high frequency ω₃ and the unstable point ω₂ gradually moved closer to each other and ultimately converged into a critical stable frequency point before departing from the negative real axis. As a result, there was only the low-frequency resonance branch ω1 in the system.

3.3 Occurrence of frequency-hopping

Figure 8 shows the curves of variations in the resonant frequency with γ at various κ values. Using the curve plotted with κ = 0.073 as an example, on the high-frequency branch, when γ decreased continuously, the resonant frequency of the system climbed continually along the high-frequency branch; the resonant frequency then hopped from the high-frequency branch to the low-frequency branch when γ reached γ₁. At this point, the system’s resonant frequency continued to move left along the low-frequency branch when γ was decreased further. On the low-frequency branch, when γ increased continuously, the system’s resonant frequency moved continually along the low-frequency branch; the resonant frequency then hopped from the low-frequency branch to the high-frequency branch when γ reached γ₂. When γ continued to increase, then the resonant frequency of the system continued to move right along the high-frequency branch (Cao et al., 2022; Tang et al., 2022). Arrows mark the points γ₁ and γ₂ to indicate that this frequency-hopping behavior is uniaxial. This means that the resonant frequency of the system can only hop from the high-frequency branch to the low-frequency branch at point γ₁, and the system cannot hop from the low-frequency branch to the high-frequency branch. Similarly, at point γ₂, the resonant frequency of the system can only hop from the low-frequency branch to the high-frequency branch, and the system cannot hop from the high-frequency branch to the low-frequency branch.

FIGURE 8

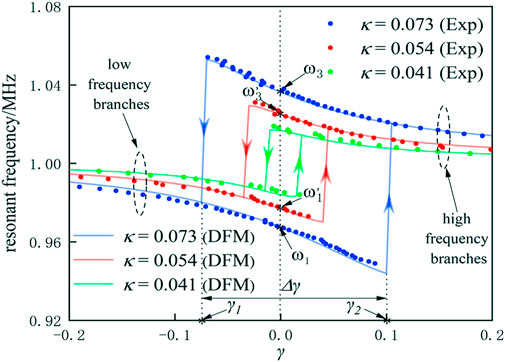

FIGURE 8. Frequency-hopping curves under incomplete symmetry condition.

However, the change in the resonant frequency is bidirectional and reversible before γ reaches either γ₁ or γ₂, regardless of whether the system runs on the high-frequency or low-frequency branch. In other words, if the system is operating on the high-frequency branch, the resonant frequency of the system will increase toward the left as γ decreases continuously. If γ then begins to increase before it reaches γ₁, the resonant frequency of the system will return along the same route via the high-frequency branch and move downward to the right without hopping to the low-frequency branch (Assawaworrarit and Fan, 2020b; Hu et al., 2022; Hua et al., 2022). Similarly, if the system is running on the low-frequency branch, the resonant frequency will move down toward the right as γ increases continuously. If γ then begins to decrease before it reaches γ₂, the resonant frequency of the system will return along the same route via the low-frequency branch and climb toward the left without hopping to the high-frequency branch.

The parameter Δγ (Δγ = γ₂ − γ₁) is defined as the detuning tolerance, which represents the maximum offset at which the system can maintain the original resonant frequency branch without hopping. As shown in Figure 8, the comparison of the three curves (for κ = 0.073, 0.054 and 0.041) shows that a larger value of κ corresponds to a larger Δγ. There was clearly only one resonant frequency within the system in this case, and the frequency-hopping behavior disappeared when the coupling coefficient was smaller than the critical coupling coefficient.

The variation and hopping mechanisms for the resonant frequency can be interpreted from the perspective of system stability. Parameter changes or external disturbances (e.g., changes in the equivalent values of the capacitance and inductance, κ values, and other parameters) that occur during system operation may cause changes in the resonant frequency. If there are still two stable resonant frequency points after the change to the new parameters, the system will opt to run at the stable point closest to the operating point identified before the parameter change, rather than at stable points far away from that operating point. “Close” and “far” here refer to the differences between the two resonant frequencies. The frequency points are clearly closer to each other when located on the same resonant frequency branch than when they are on different branches. However, if there is no longer a stable frequency point on the original operating frequency branch following the change in operating parameters, frequency-hopping becomes inevitable (Yang et al., 2022). Therefore, when the distance between the Tx and Rx coils gradually increases or decreases in the strong coupling region, the system operating frequency changes along the original resonant frequency branch, but not sharply. The operating frequency does not hop to another resonant frequency branch and thus causes an abrupt change unless the original frequency branch no longer exists. These resonant frequency selections and hopping processes make it clear that the system operation involves specific inertance and inertia properties.

According to the analysis presented above, the process of disappearance of a stable frequency branch involves three stages: stability, critical stability and disappearance. Critical stable points result from the convergence of the stable resonant frequency with the unstable resonant frequency, as illustrated in Figures 7B,E. However, in some cases, there may be no critical stable state, as in the example shown in Figure 9. Before their convergence, ω₂ and ω₃ no longer represent the roots of Eq. 12 or the intersections of H(s) and −1/N(A). The parameter difference between Figures 9, 7A is that the initial point of −1/N(A) shifted to the left in Figure 9 because the amplification factor k_OP decreased from 1.1 to 1.01 within the linear region of the OP amp. In addition, the frequency-hopping event occurs prematurely because ω₁, which was supposed to be a stable frequency point, becomes an unstable point. Clearly, k_OP plays an important role in the frequency-hopping behavior.

FIGURE 9

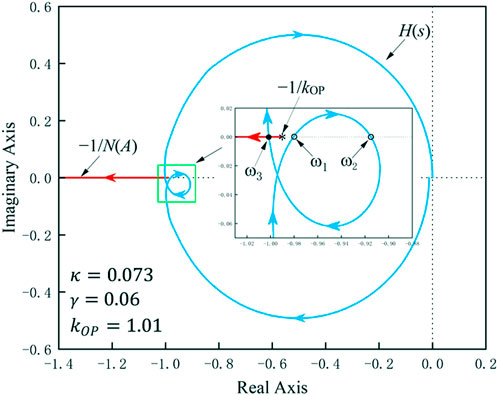

FIGURE 9. Hopping before frequency convergence.

Figure 10 shows the system frequency-hopping diagram for several different values of k_OP, with the values of the rest of the parameters remaining unchanged. The value of k_OP can be adjusted by varying the RG value. As the figure shows, the detuning tolerance Δγ decreased continually when k_OP decreased. A larger value of Δγ means that it is more difficult for frequency-hopping to occur in the system. Therefore, the system is more capable of avoiding abrupt frequency changes in case of detuning. This ability stems from negative resistance, which is dependent on both a and k_OP (Dong et al., 2019a). Because a only affects the steady-state amplitude of the system and not its resonant frequency, the frequency-hopping is independent of a. However, k_OP affects the frequency-hopping because as it decreases, the ability of the negative resistance to provide power decreases, thus impairing the system’s ability to maintain its original state without abrupt changes.

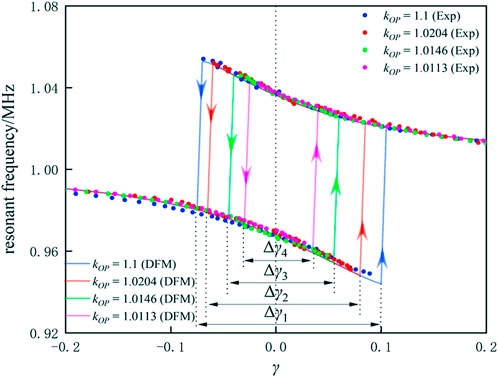

FIGURE 10

FIGURE 10. Effects of k_OP on frequency hopping.

3.4 Resonant frequency control method

When frequency bifurcation occurs in the strong coupling region of a system, the two resonant frequency branches are equivalent. Therefore, when the system begins to oscillate, the selected operating frequency is determined by the asymmetry of the initial conditions. This situation is known as symmetry-breaking solution. The asymmetry of the initial conditions in an NPTS-WPT system refers to the random noise, glitches and numerous external disturbances that occur in the circuits at the moment that the system is powered on. These factors play important roles in the frequency selection process when the system oscillation begins. The initial operating frequency is normally random and uncontrollable. However, as can be observed from the analysis in Sections 3.2 and 3.3 indicates that, the system can be controlled to hop from the original resonant frequency point to another such point through the artificial detuning adjustment of the Rx circuit performed when the system runs steadily. Furthermore, the system can return to its original resonant frequency point through external rational induction. Therefore, the resonant frequency branch in a strong coupling region is selectable and controllable.

We illustrate the resonant frequency selection and control method is illustrated by using the example of the frequency-hopping curve (κ = 0.073) shown in Figure 11. When the system started, then either ω₁₀ or ω₃₀ was selected randomly as the operating frequency. Without loss of generality, we assumed the system to be running at the low frequency ω₁₀. By using the external control circuit, γ was increased sharply while γ > γ₂. For example, if we let γ = γ₄ and then reset γ to zero, the system ran at the frequency ω₃₀ because when γ > γ₂, only the high-frequency branch remained in the system; i.e., this is the only choice. Subsequently, the value of γ decreased, and because of the inertia of the frequency variation, the system reached ω₃₀ along the high-frequency branch. Similar behavior was observed when the system started in the case where it was assumed to be running at the high frequency ω₃₀. By using the external control circuit, γ was reduced sharply and the inequality γ < γ₁ was ensured. When γ = γ₃ and γ was reset to zero, the system ran at the low frequency ω₁₀. When the system originally operated at the low frequency ω₁₀ during the aforementioned adjustment, γ decreased at a specific time, and regardless of how much γ decreased, the system operated at the low frequency ω₁₀ after γ returned to zero. Similarly, when the system originally operated at the high frequency ω₃₀ and γ was increased at a specific moment, the system will then run at the high frequency ω₃₀ after γ returns to zero, regardless of how much γ increased. In summary, regardless of whether the system runs at the low or high resonant frequency under the initial conditions, it will run at the high-frequency resonant frequency point provided that γ is sufficiently large, is increased sharply at a specific moment and its value later returns to zero. Similarly, the system will run at the low-frequency resonant frequency point provided that γ is sufficiently small, is reduced sharply at a specific moment and its value later returns to zero.

FIGURE 11

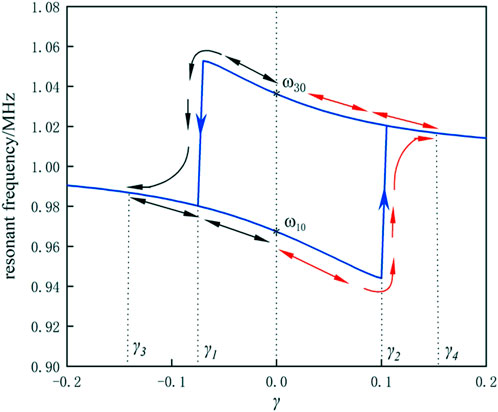

FIGURE 11. Frequency control principle.

4 Resonant frequency control experiment

To verify the correctness of the proposed control method, we designed a detuning control circuit for operation at the Rx to enable the system to select the designated resonant frequency branch to verify.

The operating parameters of the transfer system were consistent with those listed in Table 1. The distance between the Rx and Tx coils was set as 55 mm (i.e., κ=0.073) during the experiment. In this position, the system exhibited two resonant frequencies with theoretical values of 1.036 and 0.968 Mhz. Under the initial conditions, L₂ = 8.79 μH, C₂ = 2.88 nF and γ = 0. As shown in Figure 11, to ensure reliable frequency-hopping, we set cross point γ₂ = 0.944 when γ was increasing and cross point γ₁ = − 0.075 when γ was decreasing. Therefore, the adjustment of the equivalent inductance and capacitance values at the Rx circuit can be designed as shown in Figure 12. Regardless of whether the system was running on a low- or high-frequency resonance branch, when system oscillation began, it ran on the low-frequency branch according to Figure 11 when L2 switched from 8.79μH to 1.21 μH (i.e., when γ = − 0.20) and then switches back to 8.79 μH after 5 μs. The system will then run on the high-frequency branch when C₂ switched from 2.88 nF to 11.03 nF (i.e., when γ = − 0.20) and then returned to 2.88 nF after 5 μs.

FIGURE 12

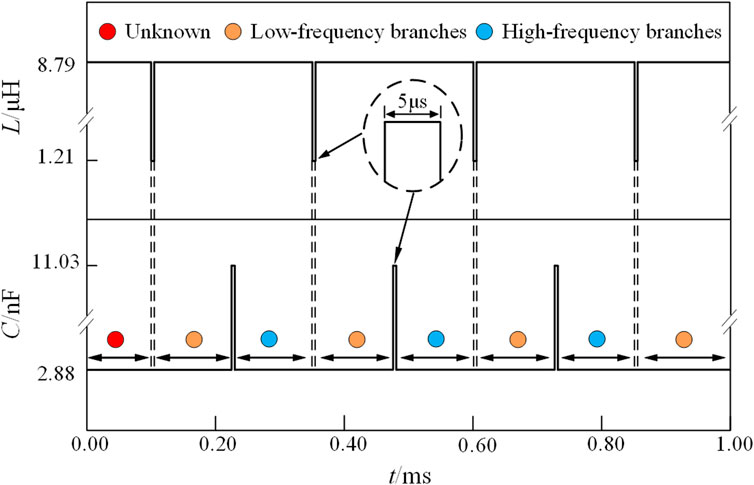

FIGURE 12. Variation in inductance and capacitance in the Rx circuit over time.

The above adjustment of the inductance and capacitance values of the Rx circuit was achieved using the circuit shown in Figure 13A. L₂ and C₂ enabled the natural frequency of the Rx loop to be consistent with that of the Tx loop. Switches S₁ and S₂ were disconnected from the circuit under normal operating conditions but were connected briefly when frequency-hopping was required. To switch between the equivalent inductance and capacitance values in the Rx circuit shown in Figure 12, the detuning control circuit parameters were configured as follows: L₂₁ = 1.40 μH and C₂₁ = 8.15 nF. Two pulses with a period of 250 μs and a peak pulse width of 5 μs are generated using the control module during the experiment to control the connection and disconnection of switches S₁ and S₂. The time interval between the two pulses was 120 μs. Figure 13B shows the experimental facility.

FIGURE 13

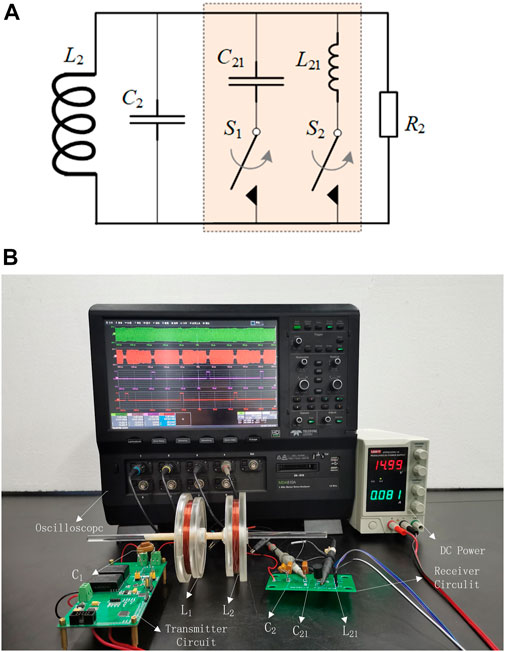

FIGURE 13. Resonant frequency control experiment: (A) Diagram of the detuning control circuit. (B) Experimental facilities.

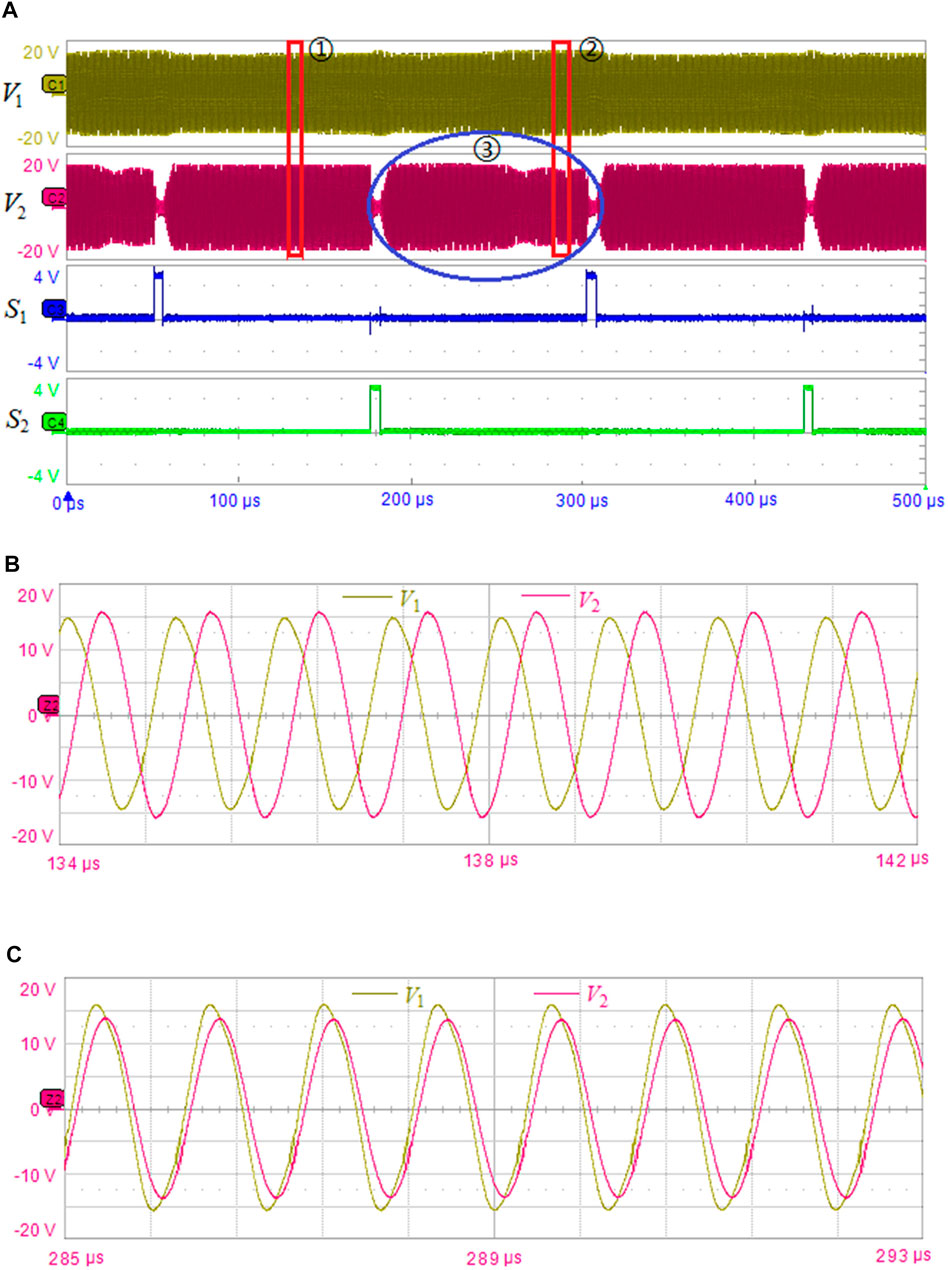

Figure 14 presents the waveforms measured during the experiment. Switches S₁ and S₂ were connected for a short time and were disconnected later in the detuning control circuit to control the changes in the system operating frequency. When S₁ was connected and then disconnected, the system ran on a high-frequency resonant branch; however, when switch S₂ was connected and then disconnected, the system then ran on a low-frequency resonant branch. The operating frequencies of switches S₁ and S₂ were stabilized at 0.998 and 0.942 Mhz, respectively. The results for resonant frequency-hopping and selection were consistent with those from the theoretical analysis. When the detuning switches S₁ and S₂ were each connected for 5 μs, resonant frequency-hopping was induced successfully, thus indicating that the time required to induce the detuning is short. When S₁ and S₂ were connected, the Rx circuit received little power because of loop detuning, but the amplitude fluctuation at the Tx circuit is insignificant. After the system ran steadily at each of the two resonant frequency points, a considerable difference was observed in the voltage amplitude in the Rx circuit. When the Rx circuit ran at the high resonant frequency in the present system, the voltage amplitude at the coil end is higher. Therefore, the system could be controlled to run on the designated resonant frequency branch to obtain the optimal transfer performance by using the proposed resonant frequency control technology. Therefore, the experimental results verified the correctness of the frequency-hopping theory and the effectiveness of the proposed control method.

FIGURE 14

FIGURE 14. (A) Frequency-hopping test waveforms. The system is controlled to run on the high-frequency branch (B) or the low-frequency branch (C).

In the frequency control experiment shown in Figure 14, the stabilized system ran on the designated resonant frequency branch after the operation of the detuning switches S₁ and S₂. However, the frequency-hopping behavior was not synchronized with the detuning switch operation. A delay in hopping was observed, particularly when hopping from a high-to a low-frequency branch. As can be seen from the waveforms for case ③ in Figure 14A, the amplitudes of the front and rear waveforms differed considerably. After S₂ was connected and then disconnected from the circuit, the system continued to run on the high-frequency resonant branch for a while before hopping to the low-frequency resonant branch. The transient waveforms before and after frequency-hopping were analyzed further, and Figure 15 shows the stretched-out waveform views before and after the actions of switches S₁ and S₂. Under these transmission conditions, S₁ was connected and then disconnected from the circuit. It took approximately 7 μs for the Rx and Tx circuits to make the required adjustment before the system transit from the low-to the high-frequency resonance. After S₂ was connected and then disconnected from the circuit, the Tx and Rx circuits exhibited delays of approximately 68 and 73 μs, respectively, to transit from the high-to the low-frequency resonance. The test results obtained for the distance between the Rx and Tx ends as 30, 40, 50 and 55 mm are presented in Table 2. From the data in the table, it can be seen that there was a delay in frequency-hopping at different distances. The low-frequency to high-frequency hopping delay was generally smaller than the high-frequency to low-frequency delay, and the hopping delay at the Tx end was slightly smaller than the hopping delay at the Rx end. The frequency jump process began with the closure of the detuning switch, causing the Rx end to become detuned, thereby inducing a change in the operating state of the Tx end. After oscillation adjustment, the Tx end completed the frequency jump, and the Rx end was coupled through electromagnetic induction before adjusting to a new resonant frequency branch for operation. Therefore, the delay time at the sending end was smaller than the delay time at the Rx end. In addition, we attempted to change the closing time of detuning switches S₁ and S₂ from 5 to 3 μs, observed that the system achieved frequency-hopping control, indicating that a shorter detuning time can induce frequency-hopping. However, the reason for the longer delay of high-frequency to low-frequency jumps requires further theoretical analysis in the future.

FIGURE 15

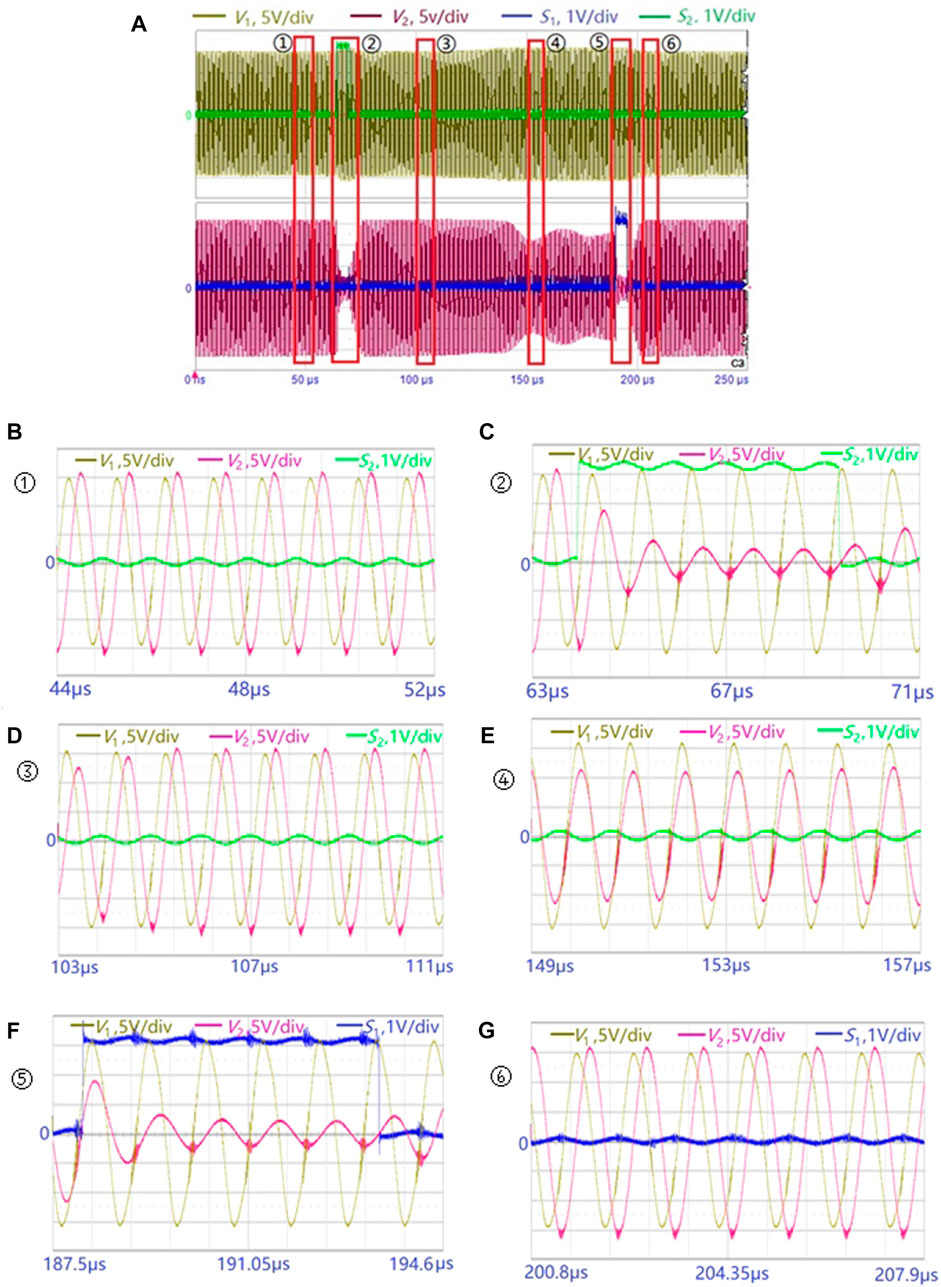

FIGURE 15. Image (A) is the frequency hopping waveforms. Images (B–G) are the transient waveforms of ①-⑥. Images (B) (D) and (G) show the system operates at high frequency, and Image (E) shows the system operates at low frequency. Switches S1 (F) and S2 (C) are connected for 5 μs and are disconnected later, respectively. The existence of ③ illustrates the Tx and Rx circuits require delays hopping between frequencies.

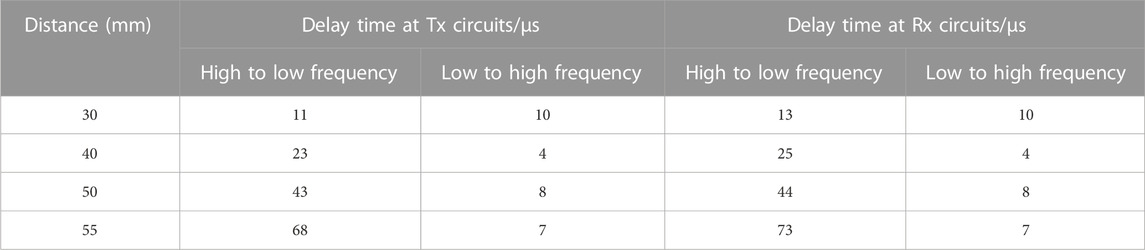

TABLE 2

TABLE 2. Delay times of frequency-hopping.

5 Conclusion

In this study, the DFM was used to model and analyze the dynamics of NPTS-WPT systems. Resonant frequency-hopping was analyzed, and it was found that resonant frequency-hopping can be induced through system detuning occurring as a result of a change in the natural frequency of the Rx loop. Larger values of the coupling coefficient and the amplification factor of the OP amp produce a higher detuning tolerance and enable the system to maintain the original operating frequency branch without hopping stronger. Based on the evolution and hopping law of the resonant frequency, we proposed a frequency selection and control method. The system operating frequency can be induced to hop from one resonant frequency to another by adding a detuning control circuit to the Rx loop, which adjusts the equivalent inductance or capacitance as required at the Rx circuit. Finally, the experimental NPTS-WPT frequency-hopping device was designed. The experimental results demonstrated that a short detuning time successfully induces frequency-hopping and also show that there is a delay in the frequency-hopping process when compared with the control process. This also verifies the correctness of the frequency-hopping theory and the feasibility of the proposed control method. Therefore, the proposed frequency control method realizes the improvement of the operating frequency point from random selection previous studies to artificial directional selection and control under the condition of resonant frequency bifurcation.

Data availability statement

The original contributions presented in the study are included in the article/Supplementary Material; further inquiries can be directed to the corresponding author.

Author contributions

CL is responsible for model establishment and analysis, and WD is responsible for conceptualization and visualization, HM is responsible for data curation, CZ is responsible for writing - original draft. All authors contributed to the article and approved the submitted version.

Funding

This work was supported in part by the National Natural Science Foundation of China under Grant 61403201.

Conflict of interest

Author WD was employed by Jiangsu Genture Electronic Information Co, Ltd.

The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

The Reviewer ZX declared a shared affiliation with the author CL, WD, HM, CZ at the time of the review.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
