ORIGINAL RESEARCH article

Front. Educ., 25 February 2021
Sec. Assessment, Testing and Applied Measurement
This article is part of the Research Topic Advances in Mixture Modeling View all 8 articles

Exploring Class Enumeration in Bayesian Growth Mixture Modeling Based on Conditional Medians

  • 1Department of Psychology, University of Virginia, Charlottesville, VA, United States
  • 2Department of Psychology, Sun Yat-Sen University, Guangzhou, China

Growth mixture modeling is a popular analytic tool for longitudinal data analysis. It detects latent groups based on the shapes of growth trajectories. Traditional growth mixture modeling assumes that outcome variables are normally distributed within each class. When data violate this normality assumption, however, it is well documented that the traditional growth mixture modeling mislead researchers in determining the number of latent classes as well as in estimating parameters. To address nonnormal data in growth mixture modeling, robust methods based on various nonnormal distributions have been developed. As a new robust approach, growth mixture modeling based on conditional medians has been proposed. In this article, we present the results of two simulation studies that evaluate the performance of the median-based growth mixture modeling in identifying the correct number of latent classes when data follow the normality assumption or have outliers. We also compared the performance of the median-based growth mixture modeling to the performance of traditional growth mixture modeling as well as robust growth mixture modeling based on t distributions. For identifying the number of latent classes in growth mixture modeling, the following three Bayesian model comparison criteria were considered: deviance information criterion, Watanabe-Akaike information criterion, and leave-one-out cross validation. For the median-based growth mixture modeling and t-based growth mixture modeling, our results showed that they maintained quite high model selection accuracy across all conditions in this study (ranged from 87 to 100%). In the traditional growth mixture modeling, however, the model selection accuracy was greatly influenced by the proportion of outliers. When sample size was 500 and the proportion of outliers was 0.05, the correct model was preferred in about 90% of the replications, but the percentage dropped to about 40% as the proportion of outliers increased to 0.15.

1 Introduction

Growth mixture modeling has been widely used for longitudinal data analyses in social and behavioral research. It is a combination of growth curve modeling (Meredith and Tisak, 1990; Bollen and Curran, 2006) and finite mixture modeling (McLachlan and Peel, 2000). Growth curve modeling is a modeling method for analyzing longitudinal data. It describes the mean growth trajectory and the variability of the individual trajectories around the mean trajectory. The finite mixture modeling is a statistical method to provide accurate statistical inferences when the target population consists of several heterogeneous groups. Mathematically, this is accomplished by modeling an unknown distribution (the target population) using a mixture of known distributions (heterogeneous groups/subpopulations). As a combination of the two methods, growth mixture modeling can handle longitudinal data with several unobserved heterogeneous subpopulations, each of which is characterized by a distinct growth trajectory. Since those groups cannot be directly observed, the groups are called latent groups (or latent classes). A growth curve model can be seen as a growth mixture model with one latent class.

As growth mixture modeling has continued to receive attention, a number of approaches to growth mixture modeling have been developed. Traditional growth mixture modeling is built upon the assumption that latent growth factors and measurement errors are normally distributed. Namely, outcome variables are normally distributed within each class. When data violate this within-class normality assumption, using a traditional growth mixture model may mislead researchers in deciding the number of latent classes or in estimating parameters (Bauer and Curran, 2003; Bauer, 2007; Zhang et al., 2013; Depaoli et al., 2019). In social and behavioral sciences, data often have distributions that are not normal (Micceri, 1989; Cain et al., 2017). Robust methods based on various nonnormal distributions have been developed to address nonnormal data. For instance, Zhang et al. (2013) and Zhang (2016) introduced different types of Bayesian growth curve models by varying the distribution of measurement errors, including t, skewed-normal, and exponential power distributions to address nonnormal data. In Zhang et al. (2013), growth curve models using t distributions outperformed traditional growth curve models in parameter estimation when data had heavy tails or outliers. Lu and Zhang (2014) introduced growth mixture models based on t distributions for those situations in which data have outliers and non-ignorable missingness. Muthén and Asparouhov (2015) used a skewed-t distribution on latent factors to address intrinsically skewed data and showed that the skewed-t growth mixture model prefer a more parsimonious solution than traditional growth mixture modeling for skewed data.

Recently, Tong et al., 2020 and Kim, Tong, Zhou, and Boichuk (under review) proposed a new Bayesian approach for growth modeling using conditional medians. The median is a well-known measure of central tendency that is robust against nonnormality, such as skewed data or data with outliers. Bayesian methods have been widely used in latent variable modeling, including growth mixture modeling (e.g., Lee, 2007; Lu et al., 2011; Zhang et al., 2013; Tong et al., 2020). Bayesian methods allow researchers to incorporate prior information into model estimation and to conduct inferences of complex models through advanced sampling algorithms. Tong et al. (2020) considered conditional medians in Bayesian growth curve modeling and showed that the conditional median approach provided less biased estimates than traditional growth curve modeling when data were not normally distributed. Kim et al. (under review) introduced the conditional median approach in Bayesian growth mixture modeling and showed that the median based approach provided less biased parameter estimates with better convergence rates than traditional growth mixture modeling.

Deciding the number of latent classes is one of the important tasks in growth mixture modeling. There has been a number of studies on selecting the number of latent classes in growth mixture modeling. For example, Bauer and Curran (2003) showed that traditional growth mixture modeling tended to over-extract latent classes when data were non-normally distributed. Nylund et al. (2007), Tofighi and Enders (2008), and Peugh and Fan (2012) evaluated the performance of information-based fit indices such as AIC and BIC and likelihood-based tests in identifying the correct number of latent classes. The performance of the model comparison criteria varied, but they appeared to be influenced by a number of factors, especially the complexity of trajectory shapes and the magnitude of separations of latent classes. Depaoli et al. (2019) and Guerra-Peña et al. (2020) used Student’s t, skewed-t, and skewed-normal distributions on latent factors and explored class enumeration when data satisfied or violated the normality assumption. In Depaoli et al. (2019), the class enumeration was greatly influenced by the degree of latent class separation when the underlying population consisted of heterogenous subgroups. In Guerra-Peña et al. (2020), the growth mixture modeling with skewed-t successfully maintained the Type 1 error rate when the underlying population was homogeneous but had a skewed or kurtic distribution.

The median-based growth mixture modeling approach in longitudinal data analysis is relatively new, and its performance has not been systematically investigated. In particular, little is known about the performance of the median-based growth mixture modeling in deciding the number of latent classes. To fill this gap, in this study, we explore this topic within a Bayesian framework. Two simulation studies were conducted to answer the following research questions: 1) how well do Bayesian model comparison criteria used in a growth mixture model analysis correctly identify the number of latent classes when the population is heterogeneous and the normality assumption holds? and 2) how well does the median-based growth mixture modeling perform in identifying the correct number of latent classes when the population is heterogeneous and contains outliers? We examined the class enumeration performance of the median-based growth mixture modeling and compared it to that for the traditional growth mixture modeling and growth mixture modeling based on t-distributed measurement errors, which is also known to be robust to nonnormal data in growth mixture modeling (Zhang et al., 2013; Lu and Zhang, 2014). For model selection, we used three Bayesian model comparison criteria: deviance information criterion (DIC; Spiegelhalter et al., 2002), Watanabe-Akaike information criterion (WAIC; Watanabe, 2010), and leave-one-out cross-validation (LOO-CV; Gelman et al., 2013; Vehtari et al., 2017). DIC is a widely used model comparison criterion in Bayesian analyses. WAIC and LOO-CV are relatively new criteria but have been increasingly used in Bayesian model comparison.

The rest of this paper is organized as follows. We first briefly describe three different growth mixture modeling approaches considered in this study: traditional growth mixture modeling, growth mixture modeling based on t distributions, and growth mixture modeling based on conditional medians. In the subsequent section, we present results of the two simulation studies. The first simulation study presents the performance of DIC, WAIC, and LOO-CV used in the three types of growth mixture models when data are normally distributed within each class. The first simulation study was particularly designed to investigate whether the DIC, WAIC, and LOO-CV are reliable criteria before we consider nonnormal data. Then, the second simulation study evaluates the performance of the three types of growth mixture models when data contain outliers. We mainly examined the impact of outliers on class enumeration and parameter estimates. We end this article with a discussion and concluding remarks.

2 Growth Mixture Models (GMMs)

2.1 Traditional Approach (Traditional GMM)

Growth mixture models (GMMs) are designed to detect subpopulations that have distinct patterns of growth trajectory. Suppose that a population consisted of G subgroups (or latent classes) that have distinct patterns of change. Let yi=(yi1,,yiT)' is a vector of T repeated observations for individual i (i{1,,N}) that belongs to class g. Then, a general form of growth mixture models can be specified as

yi|(zi=g)=Λbig+ϵi,

where Λ is a T×q matrix of factor loadings that determines the shape of the growth trajectories, big is a q×1 vector of latent factors for class g, ϵi=(ϵi1,,ϵiT)' is a T×1 vector of measurement errors, and zi represents a class indicator with P(zi=g)=πg. The latent factors are usually assumed as bigNq(βg,Ψg), where βg is a mean of big and Ψg is a variance-covariance matrix of big. The measurement errors are typically assumed to follow a normal distribution, ϵiNT(0,Σg). This assumption leads the conditional mean of yi given big to be E(yi|big)=Λbig. It is common to further assume that the measurement errors have equal variances across time and are independent of each other. That is, Σg=σg2I, where σg2 is a scale parameter for class g. We assumed this measurement error structure for the rest of this study.

2.2 t-Based Approach (t-Based GMM)

The traditional GMM is built based upon the assumption that data within each class is normally distributed. However, when data do not satisfy this assumption, the traditional approach may lead to inappropriate conclusions such as biased parameter estimates or over-extraction of latent classes. As a robust approach to the traditional growth mixture modeling, t distributions have been used in growth mixture modeling, as they downweight extreme values in the model estimation process (Zhang et al., 2013; Lu and Zhang, 2014). In this growth mixture modeling approach, a multivariate t distribution can be assumed on the latent factors or measurement errors (Tong and Zhang, 2012; Lu and Zhang, 2014). In this study, for the t-based growth mixture modeling approach, we assumed that the measurement errors follow a multivariate t distribution,

ϵiMTT(0,Σg,νg),

where νg is the degrees of freedom, 0 is the mean of ϵi, and Σg is a T×T scale matrix. Then, the distribution of yi conditioning on big can be written as yi|bigMTT(Λbig,Σg,νg).

2.3 Median-Based Approach (Median-Based GMM)

In growth mixture modeling based on conditional medians, it considers medians instead of means so that the growth mixture model can be more tolerant of non-normally distributed data (Kim et al., under review). A general form of median-based growth mixture models is specified as follows:

yit|(zi=g)=Λtbig(0.5)+ϵit,Q0.5(yit|big(0.5))=Λtbig(0.5),

where Q0.5() represents the median, Λt is the t-th row of Λ, big(0.5) is a vector of latent factors for the median-based model. This median based approach is established based on a Laplace distribution. That is, ϵit follows a Laplace distribution, as the sample median can be viewed as the maximum likelihood estimate of a Laplace distribution (Yu and Moyeed, 2001; Geraci and Bottai, 2007; Yi and He, 2009). A Laplace distribution has two parameters: a location parameter (μ) and a scale parameter (δ). In this model, ϵit follows a Laplace distribution with a location value of 0 and an unknown scale δg (ϵitLD(0,δg)). Then, the distribution of yit conditioning on big(0.5) can be written as yit|big(0.5)LD(Λtbig(0.5),δg).

3 Bayesian Estimation

To estimate parameters of the three types of growth mixture models, we used Bayesian methods. In this study, we used JAGS to estimate model parameters. JAGS is a program for Bayesian analysis using Markov chain Monte Carlo (MCMC) algorithms. We used the rjags package (Plummer, 2017) to run JAGS in R (R Core Team, 2019).

For the traditional GMM, the joint distribution of yi,bi, and zi is

f(yi,bi,zi|β1:G,Ψ1:G,σ1:G2,π)=f(yi|bi,zi,σ1:G2)f(bi|β1:G,Ψ1:G,zi)p(zi|π).

The complete likelihood (Celeux et al., 2006) for the traditional GMM is

Lc=i=1Nf(yi,bi,zi|β1:G,Ψ1:G,σ1:G2,π).

The following priors were used to estimate the traditional growth mixture model: βgNq(β0,Σ0), ΨgInvWishart(ν0,S0), σg2InvGamma(c0,d0) for g=1,,G, and πDirichlet(ζ).

For the t-based GMM, we used a normal distribution and gamma distribution to construct a multivariate t distribution to simplify the posterior distribution (Kotz and Nadarajah, 2004; Zhang et al., 2013). If yi|bigMTT(Λbig,σg2I,νg), then it can be represented as yi|big,ωiMNT(Λbig,σg2ωiI), where ωiGamma(νg/2,νg/2). In this approach, the joint distribution of yi,bi,zi, and ωi is

f(yi,bi,zi,ωi|β1:G,Ψ1:G,σ1:G2,ν1:G,π)=f(yi|bi,zi,ωi,σ1:G2)f(bi|β1:G,Ψ1:G,zi)f(ωi|ν1:G)p(zi|π).

The complete likelihood for the t-based GMM is

Lc=i=1Nf(yi,bi,zi,ωi|β1:G,Ψ1:G,σ1:G2,ν1:G,π).

The following prior was additionally used to estimate the t-based GMM: νgExp(k0), where Exp denotes the exponential distribution.

For the median-based GMM, the joint distribution of yi, bi, and zi is

f(yi,bi,zi|β1:G,Ψ1:G,δ1:G,π)=f(yi|bi,zi,δ1:G)f(bi|β1:G,Ψ1:G,zi)p(zi|π).

The complete likelihood for the median-based GMM is

Lc=i=1Nf(yi,bi,zi|β1:G,Ψ1:G,δ1:G,π).

The following prior was additionally used to estimate the median-based GMM: δgInvGamma(c0,d0).

4 Model Selection

We used DIC (Spiegelhalter et al., 2002), WAIC (Watanabe, 2010), and LOO-CV (Gelman et al., 2013; Vehtari et al., 2017) to select the number of latent classes for the traditional, t-based, and median-based GMMs. In the following, we briefly introduce the three model comparison criteria.

DIC has been widely used in Bayesian model selection. It was first introduced by Spiegelhalter et al. (2002). DIC is defined based on the concept of deviance and the effective number of model parameters. The deviance is defined as

D(Θ)=2l(Θ)+2log(h(x)),

where Θ is a set of model parameters, l(Θ) is a log-likelihood, l(Θ)=log(f(y|Θ)), and h(x) is a constant that is canceled out when comparing models. The effective number of parameters (pD) is defined as

pD=D(Θ)¯D(Θ¯),

where D(Θ¯) is the deviance calculated at the posterior mean of Θ, and D(Θ)¯ is the posterior mean of D(Θ). Combining these two, DIC becomes

DIC=D(Θ¯)+2pD.

Models with smaller DICs are preferred.

WAIC is a relatively recently developed Bayesian model comparison criterion. We used the following definition of WAIC (Gelman et al., 2013).

WAIC=2×i=1Nlog(1Ss=1Sf(yi|Θ(s)))+2×i=1NVars=1Sl(Θ(s)),

where S is the number of MCMC iterations, and Θ(s) is a draw from the posterior distribution at the sth iteration. Models with smaller WAICs are preferred.

LOO-CV evaluates the model fit based on an estimate of the log predictive density of the hold-out data. Each data point is taken out at a time to cross-validate the model that is fitted based on the remaining data. WAIC has been shown to be asymptotically equal to LOO-CV (Watanabe, 2010). Vehtari et al. (2017) introduced a method to approximate LOO-CV using Pareto-smoothed importance sampling, and this is implemented in the loo package (Vehtari et al., 2019) in R.

We computed the three model comparison criteria based on marginal likelihoods as recommended in Merkle et al. (2019). The traditional GMM has a closed form of the marginal likelihood:

LN(Θ)=i=1Nf(yi|β1:G,Ψ1:G,σ1:G2,π)=i=1Nzif(yi,zi|β1:G,Ψ1:G,σ1:G2,π)=i=1Ng=1Gπgf(yi|βg,Ψg,σg2),

where f(yi|βg,Ψg,σg2)=Φ(yi|Λβg,ΛΨgΛ'+σg2I), in which Φ(|μ,Σ) represents a multivariate normal density function with mean μ and variance-covariance matrix Σ.

The marginal likelihoods of the t-based and median-based GMMs, however, do not have closed forms. For the t-based GMM, the marginal likelihood is

LT(Θ)=i=1Nf(yi|β1:G,Ψ1:G,σ1:G2,ν1:G,π)=i=1Nzif(yi,ωi,zi|β1:G,Ψ1:G,σ1:G2,ν1:G,π)dωi=i=1Ng=1Gπgf(yi|βg,Ψg,ωi,σg)f(ωi|νg)dωi.

For the median-based GMM, the marginal likelihood is

LM(Θ)=i=1Nf(yi|β1:G,Ψ1:G,δ1:G,π)=i=1Nzif(yi,bi,zi|β1:G,Ψ1:G,δ1:G,π)dbi=i=1Ng=1Gπgf(yi|bi,δg)f(bi|βg,Ψg)dbi.

Since f(yi|βg,Ψg,ωi,σg)f(ωi|νg)dωi and f(yi|bi,δg)f(bi|βg,Ψg)dbi do not have closed forms, we used the integrate function and hcubature function in the cubature package in R (Narasimhan et al., 2020) to numerically evaluate the one-dimensional and multidimensional integrals, respectively. Both functions provide an estimate with a relative error of the integration. In this study, the error was required to be less than 0.0001.

5 Simulation Studies

In this section, we evaluated the performance of the three Bayesian model comparison criteria and the performance of the three types of growth mixture models in identifying the correct number of latent classes. Two simulation studies are presented. In the first study, we examined the performance of DIC, WAIC, and LOO-CV used in the traditional GMM, median-based GMM, and t-based GMM when data followed the within-class normality assumption. In the second study, we explored the impact of outliers on identifying the number of latent classes for each of the growth mixture models to evaluate the performance of the median-based GMM and compare it to the performance of the traditional GMM and t-based GMM. For both simulation studies, we also obtained parameter estimation bias to examine how well each of the growth mixture models recover parameters when the number of latent classes was correctly specified.

5.1 Study 1: Examining the Performance of Bayesian Model Comparison Criteria

5.1.1 Simulation Design

In the first simulation study, we report the accuracy of selecting a correct model using DIC, WAIC, and LOO-CV. Data were generated using a traditional two-class linear growth mixture model with four equally spaced time points. Mean trajectories from the two classes were set to have different intercepts and slopes. Parameter values for data generating model were set to be similar to those used for the simulation study in Nylund et al. (2007). In Nylund et al., the bootstrap likelihood ratio test (BLRT; McLachlan, 1987) and Bayesian information criterion (BIC; Schwarz, 1978) identified the correct number of latent classes with high accuracy rates. The first class was characterized as having increasing scores over time (β1=(2,0.5)'), and the second class was characterized as a flat line (β2=(1,0)'). The variance-covariance matrix and residual variance were set to be Σ=(0.25000.04) and σ2=0.2, and they were assumed to be the same across the two latent classes. The two groups of growth trajectories in this setting have a Mahalanobis distance1 (MD) value of 3.2, which indicates that the two groups are well-separated (Lubke and Neale, 2006). We also considered a condition with a lower degree of class separation by manipulating the intercept of the first class, β1=(1.5,0.5)', which had MD=2.7. Mixing proportions were set to be unbalanced: 75% from the first class and 25% from the second class. Two different sample sizes were considered (N = 300, 500). Figure 1 depicts some examples of simulated individual growth trajectories when MD=2.7 (left panel) and MD=3.2 (right panel). For each of the conditions, we replicated 200 datasets.

FIGURE 1
www.frontiersin.org

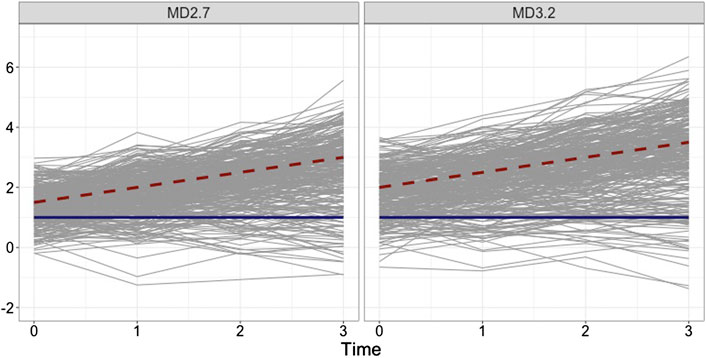

FIGURE 1. Examples of simulated 300 individual growth trajectories from two groups that are relatively close to each other (MD=2.7, left panel) and two groups that are relatively far away from each other (MD=3.2, right panel). For each panel, the red dashed line indicates the growth trajectory for the first class and the blue solid line indicates the growth trajectory for the second class.

5.1.2 Estimation

In order to evaluate the three model comparison criteria in identifying the correct number of latent classes, we fitted a series of growth mixture models that differed in the number of latent classes (one, two, and three classes). For the purpose of comparison, three different growth mixture modeling approaches were considered: traditional GMM, median-based GMM, and t-based GMM. The following priors were used for model inferences: p(βg)=MN(0,103×I) for g{1,2,3}, p(Ψ)=InvWishart(2,I2), p(σ2)=InvGamma(.01,.01), p(ν)=Exp(0.1), and p(π)Dirichlet(10jG), where G is the number of latent classes, and jG is a G×1 vector that has one for all components for G>1. These priors were set to have little information about the parameters. The total number of iterations was 10,000, and the first half of the iterations were discarded for burn-in. The convergence of Markov chains was evaluated by the Geweke’s convergence test (Geweke, 1991). Our simulation results were summarized based on replications in which all the three models (one-, two-, and three-class models) were converged for each modeling method. The convergence of chains can be influenced by starting values. The 10,000 iterations appeared to be enough, but we allowed each model to be fitted with 10 different starting values at most to obtain converged results. Additionally, the parameter space for the mean intercept was constrained in order to avoid label switching problems.

5.1.3 Results

The proportion of datasets that converged for each condition is shown in Table 1. All models showed adequate convergence rates in all conditions with rates ranging from 0.97 to 1.00 for the traditional GMM, 0.93 to 1.00 for the median-based GMM, and 0.95 to 1.00 for the t-based GMM.

TABLE 1
www.frontiersin.org

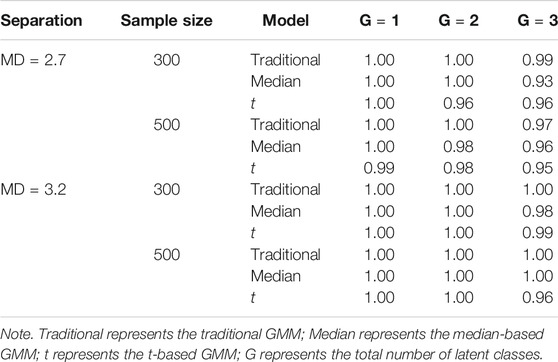

TABLE 1. Proportion of converged datasets.

For each condition, model comparison was examined using DIC, WAIC, and LOO-CV for the traditional, median-based, and t-based GMMs. We compared values across one-, two-, and three-class models and selected the most preferred model using each of the criteria. For DIC, a model with a smaller DIC was preferred over the other competing parsimonious models if the difference in their DIC values were larger than 10 (Lunn et al., 2012). For WAIC and LOO-CV, the loo package provides a function for comparing competing models. When comparing two models, the function estimates the difference in their expected predictive accuracy and the standard error of the difference, which provides the degree of uncertainty in the difference. We selected models based on the differences that are significantly different from 0.

The model selection results are shown in Table 2. In general, the performance of DIC, WAIC, and LOO-CV were influenced by the degree of class separation and sample size. All three criteria had quite high proportions of correct model selection when the degree of class separation was high (i.e., MD=3.2) or sample size was large (i.e., N = 500). Under the conditions with MD=3.2, the three criteria performed well in correctly discovering the two-class model across the three types of growth mixture models. The three criteria chose the correct model over 98% of the time for the traditional GMM, over 94% of the time for the median-based GMM, and over 97% of the time for the t-based GMM. Under the conditions with MD=2.7, DIC had higher selection accuracy than WAIC and LOO-CV across the three different growth mixture models. For example, when sample size was 300, DIC preferred the data generating two-class model about 40% of the time, and WAIC and LOO-CV preferred the two-class model less than 30% of the time.

TABLE 2
www.frontiersin.org

TABLE 2. Proportion for selecting 1-class, 2-class, and 3-class models using DIC, WAIC, and LOO-CV.

Figure 2 presents the magnitude of absolute bias in the intercept and slope parameter estimates for each of the growth mixture models when the number of latent classes was the same as the data generating model. We calculated absolute bias for each model parameter, and Figure 2 shows the absolute bias that averaged over fixed parameters to compare the parameter estimates for the three types of growth mixture models. When data followed the within-class normality assumption, the three types of growth mixture models had similar bias values. All three models tended to have smaller bias when there was a higher degree of latent class separation (i.e., MD=3.2) or a larger sample size (i.e., N = 500). Note that the performance of variance-covariance components also had similar patterns of absolute bias.

FIGURE 2
www.frontiersin.org

FIGURE 2. Average absolute bias for the traditional, the median-based, and the t-based GMM in conditions with varied degrees of latent class separation and sample sizes.

5.2 Study 2: Examining the Impact of Outliers on Class Enumeration

5.2.1 Simulation Design

In the first simulation study, we presented the performance of the three Bayesian model comparison criteria when data were generated from a normal distribution within each class. The results showed that the performance of the criteria depended on the degree of latent class separation and sample size. When latent classes were well separated (i.e., conditions with MD=3.2), the three criteria selected the true model with high proportions. In Study 2, we designed our simulation study based on the conditions with MD=3.2, so that we can clearly examine how outliers influence class enumeration. In this simulation study, we manipulated sample size (N = 300, 500) and percentage of outliers (5, 10, and 15%). The other aspects of the simulation design (population model, parameter values, and mixing proportions) were the same as those in Study 1. Subjects in the first latent class were set to have outliers for simplicity. In order to generate data with outliers, r% (r{5,10,15}) of subjects in the first latent class were randomly selected to have outliers at arbitrarily selected measurement occasions. The outliers were set to be higher than the majority of observations by generating measurement errors from N(Cσ,σ2), where C was randomly selected from {3,5,10} with probabilities 0.4, 0.4, and 0.2, respectively. We considered 200 replications for each condition.

For each dataset, we fitted a series of growth mixture models that differed in the number of latent classes (one-, two-, and three-latent classes) using the traditional GMM, median-based GMM, and t-based GMM. The prior specification and model estimation for this study were in the same way as those described in Study 1.

5.2.2 Results

The proportion of datasets that converged for each condition is shown in Table 3. The three types of growth mixture models showed adequate convergence rates when the number of latent classes was 1 or 2. For the three-class growth mixture model, the traditional GMM had lower convergence rates when the percentage of outliers increased. The t-based and median-based GMM had convergence rates over 0.97 across all conditions.

TABLE 3
www.frontiersin.org

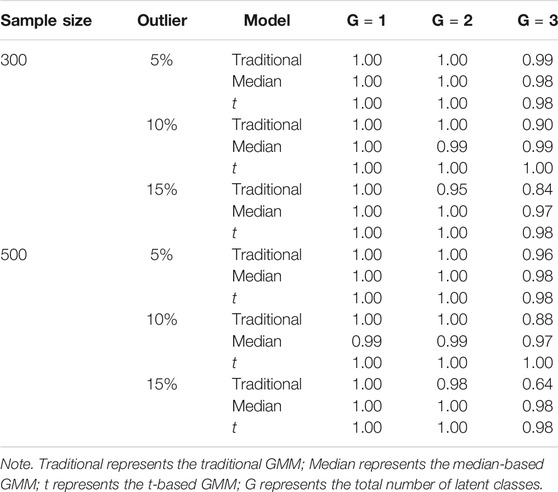

TABLE 3. Proportion of converged datasets.

Tables 4, 5 show the impact of outliers on class enumeration for the three types of growth mixture models. The proportions of selecting 1-class, 2-class, and 3-class models using DIC, WAIC, and LOO-CV are reported for the traditional GMM, median-based GMM, and t-based GMM across all conditions. In the traditional GMM, the model selection accuracy was the lowest among the three models. Different from the other growth mixture models, WAIC and LOO-CV performed better than DIC in model selection (except for the condition with N = 300 and 5% of outliers). When the percentage of outliers increased, the accuracy dropped noticeably. When the percentage of outliers was 15, WAIC and LOO-CV preferred the two-class model only in about 40% of the time for the traditional GMM. When N = 500, in particular, the traditional GMM tended to select the more complicated 3-class model, treating outliers as from an additional class. In the median-based GMM, the accuracy slightly decreased as the percentage of outliers increased, and the accuracy increased as the sample size increased. DIC had higher accuracy than WAIC and LOO-CV. DIC preferred the two-class model in at least 87% of the time when sample size was 300 and at least 94% of the time when sample size was 500. The t-based GMM had similar patterns of accuracy to those for the median-based GMM, but the t-based GMM had higher values. Similar to the median-based GMM, DIC outperformed WAIC and LOO-CV, and DIC preferred the two-class model in at least 96% of the time when sample size was 300 and in almost all replications when sample size was 500.

TABLE 4
www.frontiersin.org

TABLE 4. Proportion for selecting 1-class, 2-class, and 3-class models using DIC, WAIC, and LOO-CV when N = 300.

TABLE 5
www.frontiersin.org

TABLE 5. Proportion for selecting 1-class, 2-class, and 3-class models using DIC, WAIC, and LOO-CV when N = 500.

Figure 3 presents the magnitude of absolute bias in the intercept and slope parameter estimates for all conditions when the number of latent classes was the same as the data generating model. The absolute bias values in Figure 3 were obtained in the way described in Study 1. The results for the conditions without outliers (i.e., r0) were included in this figure as a benchmark. As the percentage of outliers increased, the absolute bias for the traditional GMM clearly increased. The median-based and t-based GMMs also had the increasing trend as the percentage of outliers increased, but the magnitude was minor compared to the traditional GMM. The t-based GMM appeared to have a slightly higher bias than the median-based GMM when data contained outliers. The estimation results for the variance-covariance components had similar patterns.

FIGURE 3
www.frontiersin.org

FIGURE 3. Average absolute bias for the traditional, the median-based, and the t-based GMM in conditions with varied proportions of outliers and sample sizes.

6 Conclusion and Discussion

Identifying the correct number of latent classes is one of the important tasks in growth mixture modeling analysis. It is well known that traditional growth mixture models do not perform well when data do not follow a normal distribution within each class. It may provide biased parameter estimates and detect spurious latent classes that do not have any substantive meanings. In this article, we evaluated the performance of median-based GMM in identifying the correct number of latent classes and compared it to the performance of traditional GMM and t-based GMM. The median-based GMM is known to be robust to nonnormal data, but there had been little known about how it determined the number of latent classes. We focused on situations in which data were contaminated by outliers and compared the performance of the three types of growth mixture models in identifying the number of latent classes. We used Bayesian methods for this study, and the number of latent classes was determined by DIC, WAIC, and LOO-CV. When data satisfied the normality assumption, the three growth mixture models had similar performance. Model selection accuracy was influenced by the magnitude of class separation and sample size. DIC appeared to have slightly higher accuracy than WAIC and LOO-CV, especially under the lower level of class separation. When data had outliers, class enumeration in the traditional GMM was greatly affected, and the model selection accuracy dropped as the proportion of outliers increased. In this particular situation, WAIC and LOO-CV tended to have higher accuracy than DIC. In the median-based GMM, DIC had higher accuracy than WAIC and LOO-CV. The median-based GMM also had accuracy that slightly decreased as the proportion of outliers increased or sample size decreased, but the accuracy was still high (e.g., above 0.87 by DIC across all conditions). The t-based GMM had slightly higher accuracy than the median-based GMM as the proportion of outliers increased, but the difference in accuracy decreased as sample size increased.

Finite mixture modeling is mainly used for two purposes: one is to identify latent groups of individuals that have qualitatively distinct features, and the other is to approximate a complicated distribution (Titterington et al., 1985; Bauer and Curran, 2003; Gelman et al., 2013). In our simulation study with outlying observations, it may be reasonable that the model comparison criteria used in the traditional GMM preferred the three-class model over the two-class model (the data generating model) to accommodate extreme values, especially when there were a large sample size (i.e., N = 500) and a high percentage of outliers (i.e., 15%). This behavior of traditional GMM is well documented in other studies (e.g., Bauer and Curran, 2003; Muthén and Asparouhov, 2015; Guerra-Peña and Steinley, 2016). In practice, however, researchers often conduct a growth mixture modeling analysis to discover meaningful latent classes, rather than discovering latent classes just to approximate data. In such case, using a traditional GMM may confuse researchers in determining the number of latent classes and interpretation of results. Additionally, if a relatively large number of observations (e.g., 15% when sample size is 500) were generated from a distribution that is different from the rest of the data, this portion of data would be fair to form a separate class. Outliers in our simulation study, however, were randomly generated from three different distributions rather than just one distribution. In reality, outliers may be purely random numbers independently generated from different distributions, and it would not be able to treat them as a separate class.

Both the median-based GMM and t-based GMM had high model selection accuracy when outliers exist in data. The t-based GMM had slightly higher accuracy than the median-based GMM, but the average absolute bias of intercept and slope parameter estimates for the t-based GMM was also slightly higher than the median-based GMM. This study focused on situations in which nonnormality was caused by outliers in measurement errors. Although robust methods based on Student’s t distributions may break down for skewed data, they typically perform well for data with outliers (Zhang et al., 2013). Median-based GMM is expected to perform well for other types of nonnormal data. We additionally investigated the relationship between class membership recovery and the proportion of outliers using the data generating model to examine whether the proportion of outliers influenced the class membership recovery and, consequently, parameter estimation. Given the well-separated latent classes in Study 2, the class recovery rates for the three types of GMMs were quite high. The recovery rate for the traditional GMM appeared to be influenced by the proportion of outliers (ranged from 88.1 to 93.9%). The median-based and t-based GMMs had similar class recovery rates (approximately 0.94) across all conditions. These results suggest that the bias is more likely to be associated with how each model handles outlying observations. It is worth evaluating both t- and median-based GMMs under various types of nonnormal data and providing general guidelines for robust growth mixture modeling analysis.

This study used marginal likelihoods to calculate DIC, WAIC, and LOO-CV. In a Bayesian latent variable modeling analysis, the conditional likelihood is relatively easier to obtain than the marginal likelihood because it does not require integration and is readily available in many Bayesian software programs, such as JAGS, OpenBUGS, and Stan. However, in recent studies (e.g., Merkle et al., 2019; Zhang et al., 2019), it is reported that employing the conditional likelihood in model selection can be misleading. Merkle et al. (2019) recommended use of marginal likelihood based information criteria in Bayesian latent variable analysis. In our pilot study with conditional likelihoods, DIC, WAIC, and LOO-CV performed poorly in model selection compared to their marginal likelihood counterparts. There are no systematic evaluations about the performance of conditional likelihood based information criteria and marginal likelihood based information criteria in Bayesian growth mixture modeling. This topic will be further investigated in our future research.

This article shows that median-based GMM has many advantages over traditional GMM not only in model estimation, but also in model selection. This study also compared the performance of the median-based GMM with t-based GMM, which is also known to be a robust approach to growth mixture modeling. Although the t-based GMM had higher model selection accuracy when data had outliers, the median-based GMM also achieved satisfying accuracy, especially when the model selection was evaluated by DIC. Additionally, the median-based GMM appeared to be slightly better in parameter estimation. In conclusion, we recommend the median-based GMM for growth mixture modeling analysis as it provides stable class enumeration, robust parameter estimates, and straightforward interpretation.

Data Availability Statement

The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.

Author Contributions

All authors contributed to the article.

Funding

This paper is based upon work supported by the National Science Foundation under grant no. SES-1951038.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Footnotes

1Mahalanobis distance was calculated as MD=(μ1μ2)TΣ1(μ1μ2), where μ1and μ2 represents the mean of the first and second latent classes, respectively, and Σ is the common variance-covariance matrix of latent factors.
