Multi-station volcano tectonic earthquake monitoring based on transfer learning

Introduction: Developing reliable seismic catalogs for volcanoes is essential for investigating underlying volcanic structures. However, owing to the complexity and heterogeneity of volcanic environments, seismic signals are strongly affected by seismic attenuation, which modifies the seismic waveforms and their spectral content observed at different seismic stations. As a consequence, the ability to properly discriminate incoming information is compromised. To address this issue, multi-station operational frameworks that allow unequivocal real-time management of large volumes of volcano seismic data are needed.

Methods: In this study, we developed a multi-station volcano tectonic earthquake monitoring approach based on transfer learning techniques. We applied two machine learning systems—a recurrent neural network based on long short-term memory cells (RNN–LSTM) and a temporal convolutional network (TCN)—both trained with a master dataset and catalogue belonging to Deception Island volcano (Antarctica), as blind-recognizers to a new volcanic environment (Mount Bezymianny, Kamchatka; 6 months of data collected from June to December 2017, including periods of quiescence and eruption).

Results and discussion: When the systems were re-trained under a multi correlation-based approach (i.e., only seismic traces detected at the same time at different seismic stations were selected), the performances of the systems improved substantially. We found that the RNN-based system offered the most reliable recognition by excluding low confidence detections for seismic traces (i.e., those that were only partially similar to those of the baseline). In contrast, the TCN-based network was capable of detecting a greater number of events; however, many of those events were only partially similar to the master events of the baseline. Together, these two approaches offer complementary tools for volcano monitoring. Moreover, we found that our approach had a number of advantages over the classical short time average over long time-average (STA/LTA) algorithm. In particular, the systems automatically detect VTs in a seismic trace without searching for optimal parameter settings, which makes it a portable, scalable, and economical tool with relatively low computational cost. Moreover, besides obtaining a preliminary seismic catalog, it offers information on the confidence of the detected events. Finally, our approach provides a useful tentative label for subsequent analysis carried out by a human operator. Ultimately, this study contributes a new framework for rapid and easy volcano monitoring based on temporal changes in monitored seismic signals.

1 Introduction

Active volcanoes are often monitored by different ground and space-based instruments, which provide essential data for understanding the volcanic system, quantifying impacts, mitigating risk, and contributing to the preparedness of governments and society as a whole (Barsotti et al., 2020; Barsotti et al., 2023). However, identifying transitions in volcanic state is complex and involves the study of various physics processes. Given the large volumes of data now available from permanent monitoring seismic networks, volcanic seismology plays a critical role in volcano monitoring.

Volcanic dynamics generate an exchange of energy with the surrounding medium that propagates in the form of elastic or seismic waves. Owing to the complexity of volcanic processes, these seismic waves can have varying characteristics in both the time and frequency domains (Ibáñez et al., 2000). Identifying and characterizing these signals with the aim of associating them with internal dynamic processes is a key scientific challenge. Accurate recognition (identification and classification) is the basis for developing eruption forecasting based on precursors (Sparks et al., 2012; McNutt et al., 2015; Machacca et al., 2023), and is critical for improving knowledge of volcanic dynamics. Signals are generally classified based on the source model built to explain them. Low frequency signals (LF), such as so-called long period (LP) events and some types of volcanic tremor (TR), are associated with fluid dynamics. However, the most common type of seismic signal recorded in many volcanic environments is volcano tectonic (VT) earthquakes (Chouet, 2003). VT earthquakes are the consequence of stress-induced fluid dynamics inside the volcano (Roman and Cashman, 2006). In general, the source mechanisms of VT events can be described using classical approaches in seismology (Aki and Richards, 2002). However, as indicated by (Chouet and Matoza, 2013), owing to the involvement of fluids, this task is very complex in many volcanic environments. VTs are commonly considered to be potential precursors (McNutt and Roman, 2015), and so new methodologies and advances, including the use of artificial intelligence (AI), are increasingly being used to improve their recognition.

A key aspect of VT seismicity is that it contains much more information than that presented in each waveform. Recent studies have performed source modeling analysis (Sigmundsson et al., 2018; Sigmundsson et al., 2022; Cubuk-Sabuncu et al., 2021), focal mechanisms analysis, and 4D tomography showing the temporal evolution of volcanic structures in (Abacha et al., 2023). (Díaz-Moreno et al., 2015) used spatial and temporal analyses of VT foci evolution; for example, in their study, VTs generated during magma injection were assumed to reflect the effect of hydraulic fracturing, highlighting areas of the crust where stress was propagating as a consequence of magma migration. Seismic tomography allows us to reconstruct the internal structure of a volcano and infer the physical and dynamic characteristics of the volcanic system by studying the travel times of the first arrivals of VT waves (i.e., tomography of velocity (D’Auria et al., 2022), or by studying their loss of energy (i.e., attenuation tomography (Prudencio et al., 2013; Castro-Melgar et al., 2021) showed that volcanic structures are highly attenuating, which causes the waveform of the recorded signals to undergo strong changes, including loss of a large part of their spectral component, especially in the high frequency range. Similarly, (Titos et al., 2018), showed that VT earthquakes can be confused as LP-type events at a certain distance, which has consequences for the interpretation of internal dynamics of the volcanic system. However, these approaches all require data from large numbers of reliable earthquakes. Therefore, developing effective approaches that allow real-time management of large volumes of seismic data has become an important challenge.

Recent advances in machine learning (ML) have encouraged the development of advanced automatic data processing and analysis pipelines. Typically, new automatic approaches are built by learning from large seismic catalogues. These data-driven systems have proven to be very efficient tools in an ever-changing and streaming data environment; however, they have remarkably poor learning and adaptability outcomes owing to the incompleteness of many seismic catalogues. Nonetheless, building complete and reliable catalogues is technically challenging owing to the high cost of data-labelling. This issue has grown in importance in light of recent work, since catalogue-based learning can introduce bias when constructing predictive monitoring tools.

In this study, we developed a new automatic multi-station system for exclusively recognizing and labelling VT earthquakes. As discussed, owing to attenuation, many LP events annotated in seismic catalogues could actually be highly attenuated VT earthquakes. Therefore, we employed a multi-station process to improve the identification of VTs. To control for bias derived from seismic catalogue incompleteness, we employed transfer learning techniques (Weiss et al., 2016), which are helpful in domain-adaption problems, where the objective is to develop a monitoring system focused on available domain-specific data (Anantrasirichai et al., 2018; Titos et al., 2018; Bueno et al., 2019; Titos et al., 2019; Lapins et al., 2021; Jozinović et al., 2022). In contrast, our new monitoring system does not require prior domain-specific knowledge. Assuming a scenario in which there is no previous information related to the seismic dynamics of the volcano, instead of building a system from scratch (which would require an expensive data-labelling process), we used a recurrent neural network based on long short-term memory cells (RNN–LSTM) and a temporal convolutional network (TCN) (Titos et al., 2018; Titos et al., 2022) trained with a master catalogue belonging to Deception Island volcano (Antarctica) as a baseline. These models were then used as blind-recognizers for a different volcanic environment, that of Mount Bezymianny (Kamchatka). When these systems were re-trained under a multi correlation-based approach, where only reliable seismic traces identified at the same time at different seismic stations were selected and manually labeled, the performance of the systems improved substantially, resulting in a remarkable capability of confidently recognizing seismic traces. In summary, our approach provides a rapid and easy-to-use framework for real-time monitoring of temporal changes in seismic signals at any volcano.

2 Experimental framework and methodology

2.1 Methodology and experimental settings

In this study, we developed a new real-time multi-station seismic monitoring system for volcanoes without any prior knowledge within a transfer learning framework. Although some classical ML techniques such as Markov models have been used in sequence modeling tasks, neural networks (NN), including both RNN and TCN architectures (LeCun et al., 2015; Lea et al., 2016), have optimal temporal modeling capabilities. By generating a spatio-temporal sequence of hierarchical features, both architectures have been applied in complex and emerging geosciences research fields, including seismo-volcanic monitoring (Titos et al., 2018; Bueno et al., 2021), climate change (Yan et al., 2020), remote sensing (Račič et al., 2020), and human activities recognition (Nair et al., 2018). Accordingly, in this work, an RNN based on long short-term memory cells (RNN–LSTM) and a TCN (Titos et al., 2018; Titos et al., 2022) trained with a master catalogue belonging to Deception Island volcano (Antarctica) were proposed as a baseline. These were then used as a blind-recognizer for the data from a different volcanic environment, Mount Bezymianny (Kamchatka). The master database belonging to Deception Island volcano is unbalanced; however, it has been thoroughly reviewed by experts on the volcano. According to (Titos et al., 2018), the Deception Island dataset is composed of five seismic categories: background noise (BGN), tremor (TR), hybrid (HYB), VTs, and LPs; Table 1 summarizes the performances of the two approaches (RNN–LSTM and TCN) using the master catalog, based on the percentage of events correctly recognized.

TABLE 1

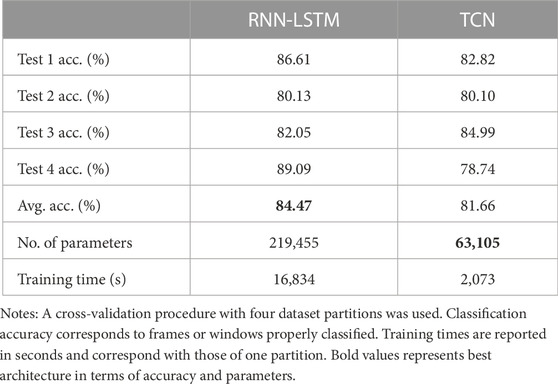

TABLE 1. Classification accuracy (acc. %), number of parameters tuned, and training times for optimal configurations of the recurrent neural network based on long short-term memory cells (RNN–LSTM) and temporal convolutional network (TCN) architectures using the master catalogue (Deception Island volcano, Antarctica).

Then, assuming a scenario in which the monitoring agency does not have any previous information related to the seismic dynamics of a volcano, a new monitoring tool was obtained as follow (see Figure 1):

1. Data parameterization: Raw streaming data belonging to each seismic station within the new volcanic environment were parameterized following the parameterization scheme of (Titos et al., 2018) to obtain the baseline systems.

2. Preliminary seismic catalog: By utilizing parameterized streaming traces as inputs, the pre-trained system generates a preliminary seismic catalog that consists of identified events along with their respective timing and probabilities assigned to each event class. It is important to note that when applying transfer learning without any domain-adaptation process, the seismic categories detected in a new volcanic environment will correspond to the seismic categories used in the master catalogue. Therefore, since the parameterization scheme adopted here was based on the spectral content of the seismic traces, events completely different from those described in the master catalog were categorized into these classes, based on their spectral similarity.

3. Probabilistic event detection: Using the preliminary seismic catalog, a probabilistic event selection process was used to obtain a new dataset from which to re-train or adapt the pre-trained system (RNN-LSTM or TCN) for the new volcanic environment. This process involved five steps:

• The seismic station detecting the largest number of events was selected as the reference station (RS).

•For each detected event at the RS, the confidence of the detection was analysed using a probabilistic event detection matrix with per-class probabilities output by the softmax layer (this layer is useful in multiclass classification problems as it converts the output values of the neural network into probabilities to each possible class). We assumed that low per-class probabilities reflect a change in the description of the analysed information. Therefore, only reliable events (those whose per-class probabilities were greater than a given threshold) were selected.

•For each previously selected event, a multi correlation-based approach was applied to identify if they could be detected at the same time at different seismic stations. If the same event was reliably detected (per-class probabilities greater than a given threshold) at the same time at least two seismic stations, it was included as a training instance.

•Once the new training set was created, all instances were manually analyzed and newly labeled by experts in order to refine the bounding of the events.

•Finally, the pre-trained systems were re-trained using the new dataset and labels.

4. The final stage comprised further iterations of the probabilistic event detection (see point 3 above) in order to reach an optimal level of performance.

FIGURE 1

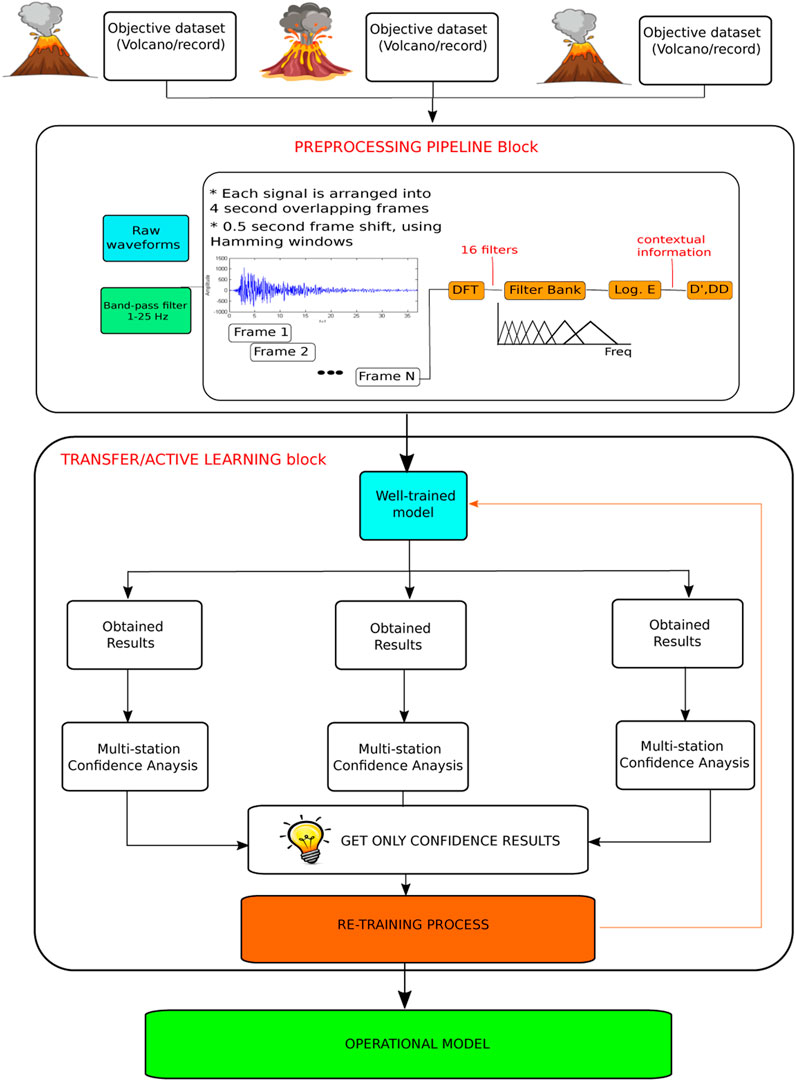

FIGURE 1. Transfer learning methodology used to develop the new volcano seismic monitoring system.

The pipeline used for this study is suitable for application to other baseline systems and parameterization schemes.

2.2 Geological framework: Bezymianny volcano

Bezymianny volcano (55.6°N, 160.3°E) is an explosive basaltic–andesitic stratovolcano belonging to the Klyuchevskaya (KVG) volcanic group on the Kamchatka Peninsula, Russia. It is located in the central depression of Kamchatka (CKD), which covers $>$ 4,000 km² between the Sredinny and Eastern ridges. This region marks the northeastern corner of the Pacific subduction plate, which is formed by the Kuril–Kamchatka and Aleutian trenches (Figure 2A). According to its eruptive history, the volcano was considered inactive for more than 1,000 years (Braitseva and Kiryanov, 1982), until the lateral eruption in 1956. Bezymianny has experienced an active period since 2000, with more than 15 eruptive episodes (Van Manen et al., 2010). Among its recent eruptive episodes, that of 20 December 2017 (Girina et al., 2018) produced an eruption column that exceeded 15 km in height, representing a potential hazard to air traffic (Neal et al., 2009; McGimsey et al., 2014). The seismic database associated with this eruption is reliable and complete; therefore, it was selected for testing the approach developed in this study.

FIGURE 2

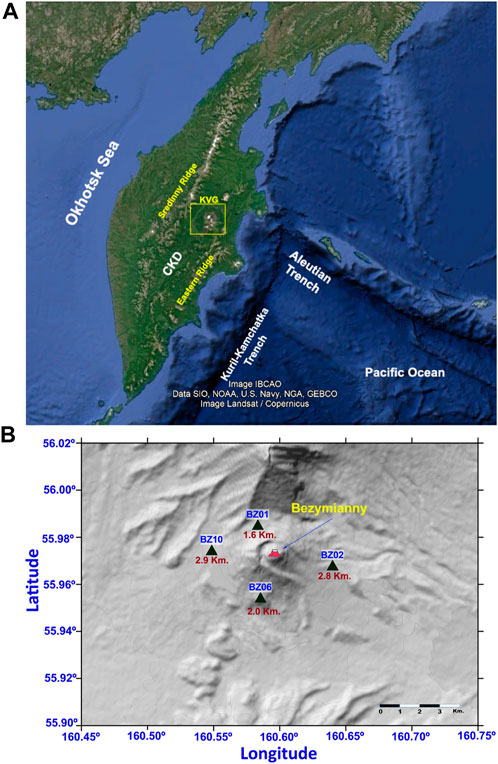

FIGURE 2. (A) Geological framework of Bezymianny volcano and (B) seismic station locations used in this study. Figure obtained and modifies from Google Earth resources.

The seismic data used in this study were collected by a temporary network composed of 10 seismic stations, installed during the 2017–2018 period (Koulakov et al., 2021). However, only data corresponding to four stations (Figure 2B) were selected. Criteria for selecting the seismic stations were motivated by both the availability and quality (signal-to-noise ratio) of the data. In addition, to further determine the reliability of the monitoring system proposed, two additional eruptive phases (a pre-eruptive stage characterized by little activity and a syn-eruptive stage with tens of thousands of events) containing 6 months of seismic data from June to December 2017 were also selected.

3 Results

In this study, we analyzed results for four seismic stations over a 6 month period. However, to facilitate discussion of the results, here, we focus on VTs detected during 3 months of data, —August, October, and December 2017—which correspond to quiescent, pre-eruptive, and syn-eruptive phases, respectively.

3.1 RNN-LSTM outcomes

Figure 3A summarizes the VTs detected by the pre-trained RNN–LSTM system before and after re-training using the new (Bezymianny volcano) dataset. Contrary to expectations, the number of VTs detected at some stations using the RNN–LSTM remained constant or decreased after being re-trained. Figures 4, 5 show comparisons of the monthly per-station cumulative distribution function (CDF) before and after the re-training process, representing the probabilities and normalized cumulative sums of events predicted as VTs. Before re-training, while a high number of events were detected, the confidence of such detections was low. More specifically, in August 2017 (Figure 4A), almost 70% of the events detected had probabilities of between 35% and 55%; in October and December 2017 (Figures 4B, C), except at station BZ06 (where 50% of the events detected had probabilities of $<$ 55%), no recognized event exceeded 55%. After re-training, there was a clear change in the trend, with fewer recognized VT earthquakes depending on the station (Figure 3) but much higher confidences of the detections (Figure 5).

FIGURE 3

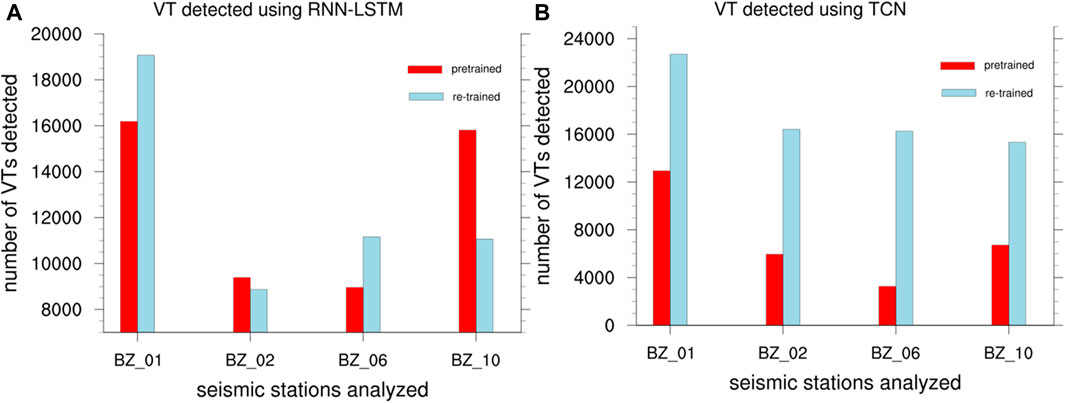

FIGURE 3. Total number of volcano tectonic (VT) earthquakes detected by (A) a recurrent neural network based on long short-term memory cells (RNN–LSTM) and (B) a temporal convolutional network (TCN) before and after the re-training process.

FIGURE 4

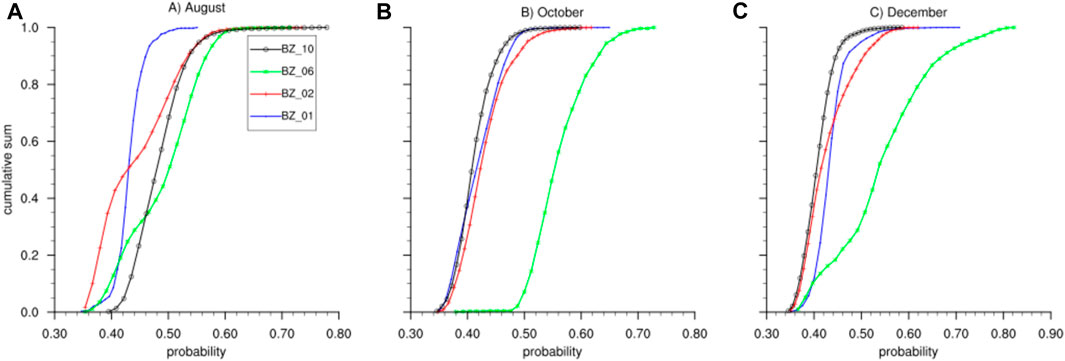

FIGURE 4. Monthly per-station cumulative distribution function (CDF) for the recurrent neural network based on long short-term memory cells (RNN–LSTM) before re-training. The x-axis represents the probabilities assigned by the models to those events detected as volcano tectonic (VT) earthquakes; the y-axis represents the normalized cumulative sum of events predicted within that class. (A) August 2017. (B) October 2017. (C) December 2017.

FIGURE 5

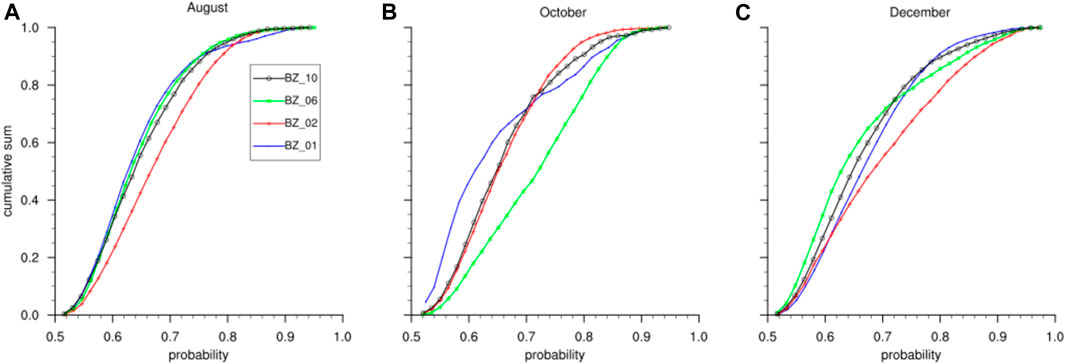

FIGURE 5. Monthly per-station cumulative distribution function (CDF) for the recurrent neural network based on long short-term memory cells (RNN–LSTM) after re-training. The x-axis represents the probabilities assigned by the models to those events detected as volcano tectonic (VT) earthquakes; the y-axis represents the normalized cumulative sum of events predicted within that class. (A) August 2017. (B) October 2017. (C) December 2017.

3.2 TCN outcomes

Figure 3B summarizes the VTs detected by the pre-trained TCN system before and after re-training using the new (Bezymianny volcano) dataset. Figures 6, 7 show comparisons of the monthly per-station CDF before and after the re-training process. In contrast to the RNN–LSTM, the TCN architecture saw an increase in the total number of earthquakes detected after being re-trained but a significant decrease in the confidence of the recognitions. Before re-training, 90% of events were detected with probabilities of $>$ 80%; after re-training, depending on the station, only 40%–60% of recognized events had probabilities of $>$ 80%.

FIGURE 6

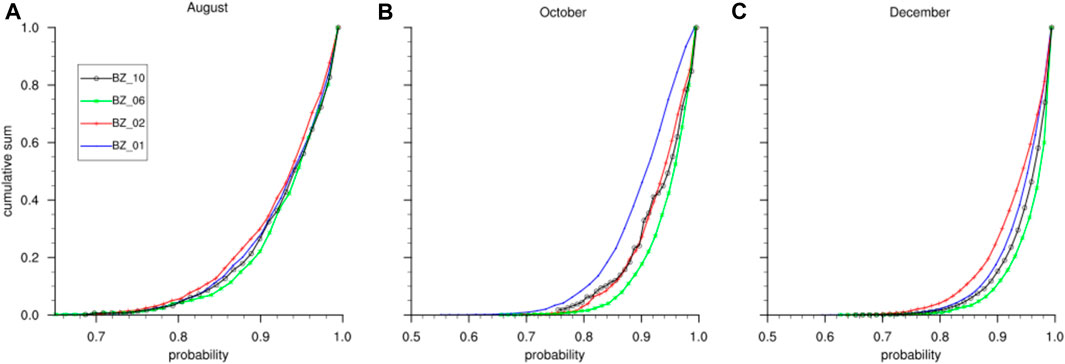

FIGURE 6. Monthly per-station cumulative distribution function (CDF) for the temporal convolutional network (TCN) before re-training. The x-axis represents the probabilities assigned by the models to those events detected as volcano tectonic (VT) earthquakes; the y-axis represents the normalized cumulative sum of events predicted within that class. (A) August 2017. (B) October 2017. (C) December 2017.

FIGURE 7

FIGURE 7. Monthly per-station cumulative distribution function (CDF) for the temporal convolutional network (TCN) after pre-training. The x-axis represents the probabilities assigned by the models to those events detected as volcano tectonic (VT) earthquakes; the y-axis represents the normalized cumulative sum of events predicted within that class. (A) August 2017. (B) October 2017. (C) December 2017.

3.3 STA/LTA comparison

To determine the robustness of our system, we compared our results before and after re-training to those of a classical approach, the short time average over long time-average (STA/LTA) trigger algorithm (Trnkoczy, 2009). We selected a single day on which several hundred earthquakes occurred and analyzed the results on an hourly timescale. Given that the TCN always detected a greater number of events than the RNN–LSTM, we assumed that the VTs detected by the RNN–LSTM were a subset of those detected by the TCN and selected only those events for analysis. On the chosen day, the RNN–LSTM did not recognize any VTs before it was re-trained; after re-training, all of the VTs recognized had previously been categorized as TR events.

Figure 8 presents an overview of the STA/LTA triggering thresholds. For proper operation of the STA/LTA algorithm, four parameters should be tuned: the short window length (STA), long window length (LTA), activation threshold level, and deactivation threshold level. The STA/LTA trigger parameter settings are always a tradeoff among sensitivity and specificity. While sensitivity may also include a tolerable number of false triggers, specificity correctly detects only particular instances, therefore decreasing the number of detections. Considering that the algorithm computes the average absolute amplitude of a seismic signal in two consecutive moving-time windows, only events exceeding pre-set values describing the triggering thresholds of both STA and LTA were identified. Figure 9 compares the number of VTs detected hourly during 14 August 2017, by the STA/LTA trigger algorithm and re-trained RNN-LSTM architecture; overall, the results show that the RNN–LSTM recognized a higher number of VTs than the STA/LTA algorithm (782 vs. 648).

FIGURE 8

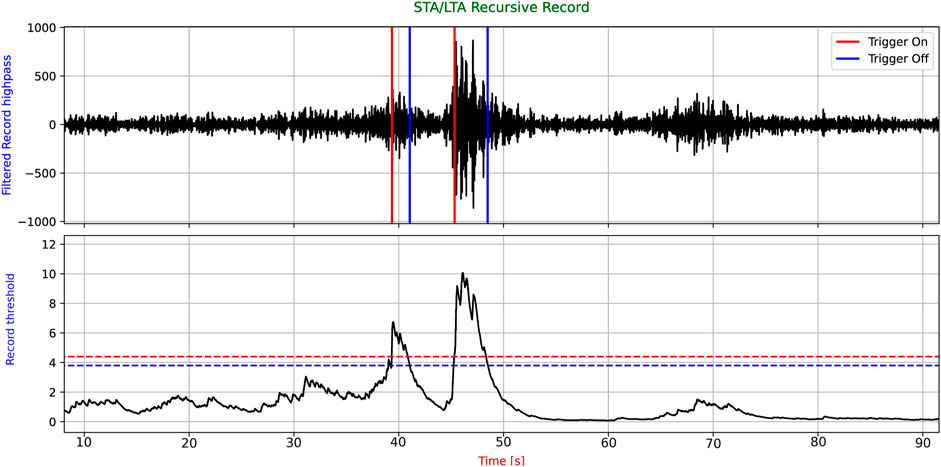

FIGURE 8. Overview of short time average over long time-average (STA/LTA) triggering thresholds in this work.

FIGURE 9

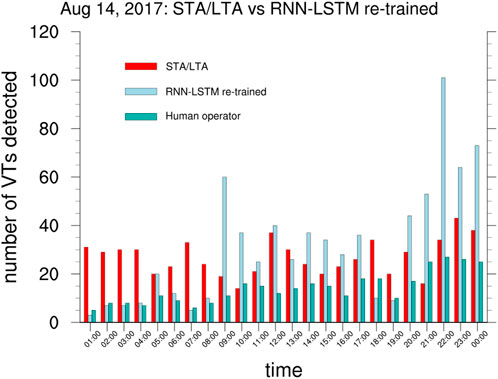

FIGURE 9. Number of volcano tectonic (VT) earthquakes detected hourly on 14 August 2017 using the short time average over long time-average (STA/LTA) trigger algorithm and the re-trained recurrent neural network based on long short-term memory cells (RNN–LSTM). Results obtained by both architectures have been compared with human operator criteria

4 Discussion

4.1 RNN-LSTM considerations

The noticeable difference in the performance of the system after re-training can be explained from a geophysical perspective. First, owing to the noisy content registered in the new volcanic environment, it is possible that many of the events detected before the re-training were low probability VTs (or mis-recognized VT) corresponding to seismic traces characterized by high frequencies and variable length. Since the system fitting approach is a density estimation problem and such seismic traces partially match observed VT features in the master catalog (Deception Island), the estimated probability density function and its parameters cannot explain the underlying distribution of the new input data; as such, it assigns a low probability. Figure 10A provides a clear overview of this issue, in which a seismic trace partially matches with source earthquakes with a low probability (52%).

FIGURE 10

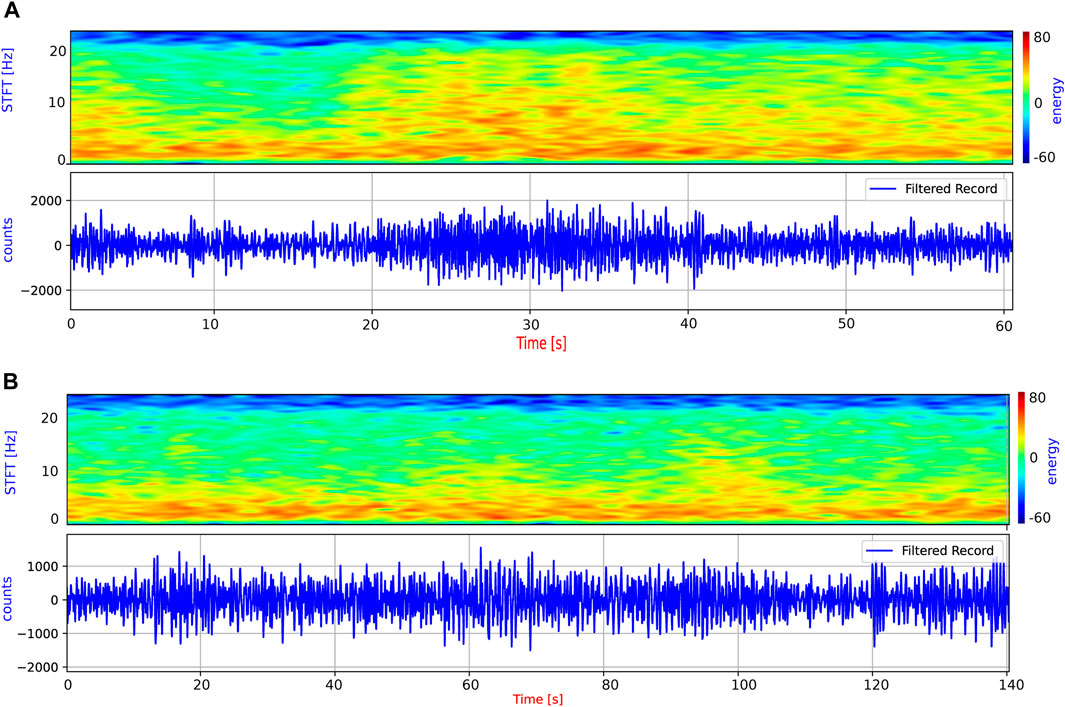

FIGURE 10. Recognition analysis before and after re-training of the recurrent neural network based on long short-term memory cells (RNN–LSTM). Before re-training, the system labeled seismic traces partially matching with volcano tectonic (VT) earthquakes as VTs with low probability. After re-training, only high confidence VTs were detected and labeled; low probability events were categorized as undefined events. (A) Example of a low probability (52%) VT earthquake detected before re-training. (B) Example of a low probability VT earthquake (60%) labeled as ‘undefined’ after re-training. With the purpose of enhancing visualization, the raw seismic signals were subjected to a filtering process, limiting the frequency range between 1 and 20 Hz.

Second, many of the VTs detected after re-training were originally recognized as TR, which can be explained by the differences between the learned representation at source and target underlying distributions. Figure 11 shows the spectrograms and power spectral densities (PSD) of VTs from Bezymianny volcano and Deception Island, and a TR from Deception Island. The figure shows very similar spectral energy distributions. The beginning of the Deception Island TR (Figure 11B) has a short and overlapped package of high frequency waves (up to 20 Hz). These high frequency signals are associated with the explosive step of pressure in the source region when LP events are generated near the seismic station (no visible exponential decay in frequency is observed) and with small earthquakes. At Bezymianny volcano, many VTs have a higher energy component at low frequencies (Figure 11C); therefore, as our parameterization scheme performs energy analysis by frequency bands that are more sensitive in lower frequencies, the pre-trained system failed to recognizing these energetic low frequency VT events. After re-training, the global number of recognized VTs was similar, but confidence of the detections was much higher.

FIGURE 11

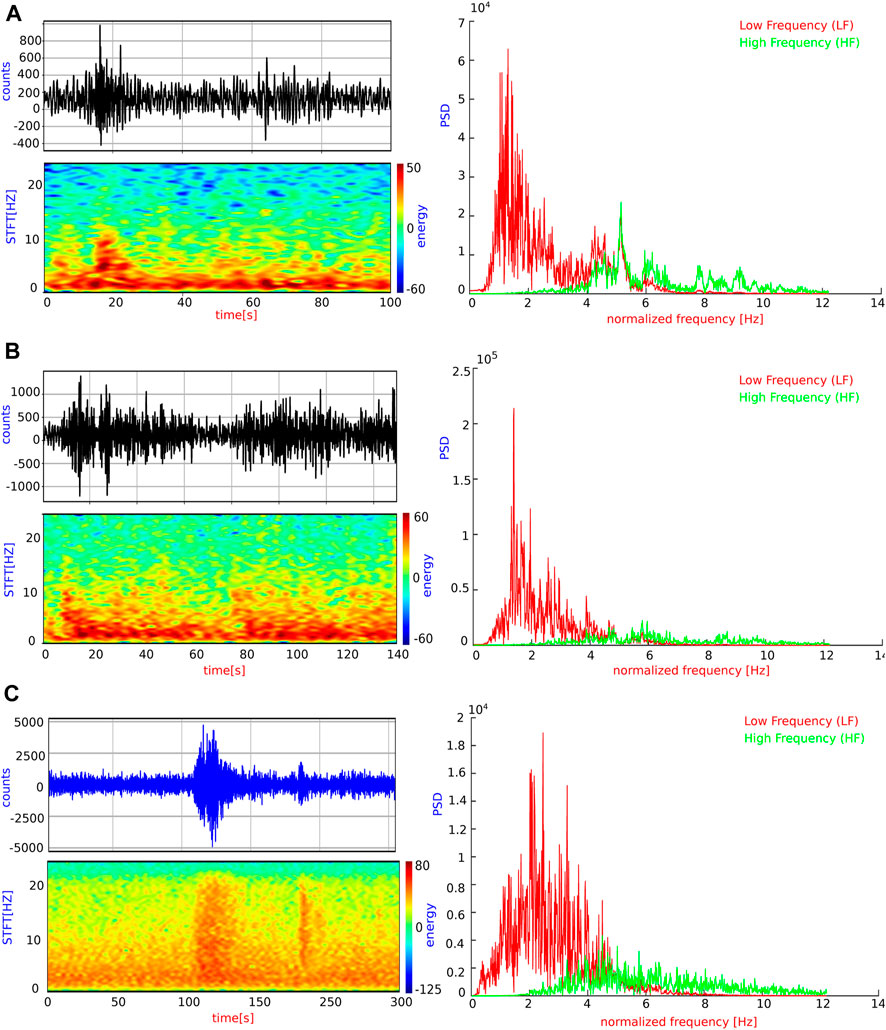

FIGURE 11. Spectrograms and power spectral densities (PSD) of different events belonging to Bezymianny volcano and Deception Island. (A) Volcano tectonic (VT) earthquake from Deception Island. (B) Volcanic tremor (TR) event from Deception Island. (C) VT from Bezymianny volcano.

In summary, the system (i.e., the probability distribution and associated parameters) is fixed to maximize a likelihood function that best explains the joint probability distribution of the new volcanic dynamics (in this case, Bezymianny volcano). As a result, following re-training, only confident VTs were detected and labeled. Those previously mis-recognized as TR were now confidently detected, while those events with low probabilities ($<$ 65%) were labeled as undefined events (e.g., Figure 10B). Such events require careful review by experts. As conclusion, before re-training, only VTs with probabilities of $>$ 80% could be included in the new catalog; after re-training, all VTs detected with probabilities of $>$ 65% could be easily identified.

4.2 TCN considerations

The noticeable difference in the performance of the system after re-training can be explained by the greater specialization ability of TCN compared with RNN–LSTM owing to the multi-resolution dilated skip connections between layers and deeper hierarchical features. The new Bezymianny volcanic dynamics often exhibit consecutive seismic events that bear partial resemblance to earthquakes occurring closely together in a short timeframe. Before retraining, the system could avoid recognizing such new volcanic dynamics based on high frequencies and short length as isolated events. Therefore, when such concatenated events were detected, focusing only on those volcanic dynamics that were similar to the master catalog, the system considered them all as a whole, not as isolated events (Figure 12A).

FIGURE 12

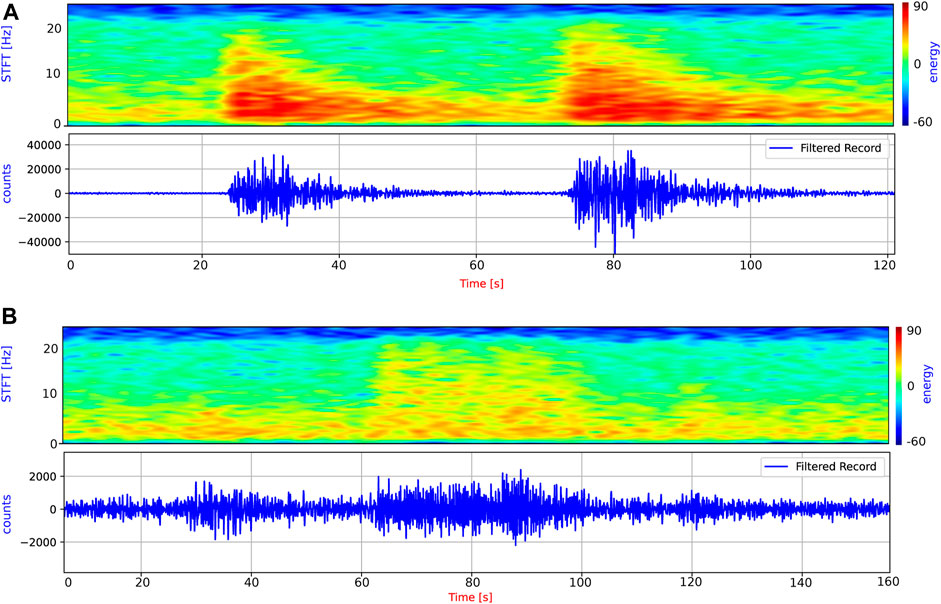

FIGURE 12. Recognition analysis before and after re-training of the temporal convolutional network (TCN). Before re-training, the system labeled seismic traces partially matching with volcano tectonic (VT) earthquakes as VTs with high probability; low probability events were marked as ‘undefined’. After re-training, all seismic traces having high frequencies and variable length were detected as VTs; however, only clear VT earthquakes were detected with high probability. (A) Example of a high probability VT earthquake (99%) detected before retraining, in which several earthquakes occurring closely together in a short timeframe have been classified as a single event following the volcanic dynamics to the master catalog. Since the system does not detect background noise windows between the two earthquakes due to the multi-resolution dilated skip connections between layers, it labels the two earthquakes as one. (B) Example of a low probability (70%) VT earthquake detected after re-training. With the purpose of enhancing visualization, the raw seismic signals were subjected to a filtering process, limiting the frequency range between 1 and 20 Hz.

In summary, before re-training, the system labeled seismic traces partially matching with earthquakes as high probability VTs, while low probability events were labeled as ‘undefined’. After re-training, all seismic traces with high frequencies and variable length were detected as VTs, decreasing the number of undefined events. However, only clear VTs were detected with high probability. Figure 12B shows an example of a detected low probability (70%) VT. Before re-training, this seismic trace was labeled as ‘undefined’ with a high probability of assignment to VT ($>$ 90%). After re-training, the system decreased the probability of assignment to VT. In this way, before re-training, many VTs were mis-recognized; after re-training, all VTs detected with probabilities higher than of $>$ 85% could be included in the new catalog.

4.3 STA/LTA considerations

However, in some time slots, STA/LTA detected a greater number of events. These results may be explained by the nature of the STA/LTA algorithm, its trigger parameter settings, and the grammar imposed on the proposed models, which was responsible for improving the interpretability of the models based on geophysical knowledge of the volcano (Titos et al., 2018).

Since there was no previous information related to the seismic catalog, the STA/LTA triggering thresholds were fixed so that the system was more sensitive than specific. The goal was to obtain as much information as possible, and all energy changes, even small ones, were detected. This scenario resulted in a tolerable number of false triggers. In contrast, the RNN–LSTM (and TCN) system imposed the use of grammar (a set of rules) based on geophysical knowledge of Deception Island volcano to improve interpretability. The average duration of seismic events belonging to the master dataset (Deception Island) in combination with the per-class probabilities output by the models in the new volcanic environment allowed us to check that the predictions were consistent with the expected lengths of events. Since no information was provided on the average duration of the seismic-volcanic events of the new volcanic environment, the grammar only recognized those events that, on average, had durations that were greater than or similar to those described in the master dataset. Events whose durations were less than the average duration of events in the master database, even if recognized with high per-class probabilities, were labeled as background noise or unknown events.

For the time slots in which STA/LTA detected a greater number of VT events compared with RNN–LSTM, many of the events recognized by the STA/LTA model corresponded to short duration energy changes (Figure 13). In contrast, the RNN–LSTM model discarded these events (i.e., labeled them as background noise when the output VT per-class probabilities were low and as unknown events when the output per-class probabilities were high) since the durations were shorter than the average duration of VT earthquakes at Deception Island.

FIGURE 13

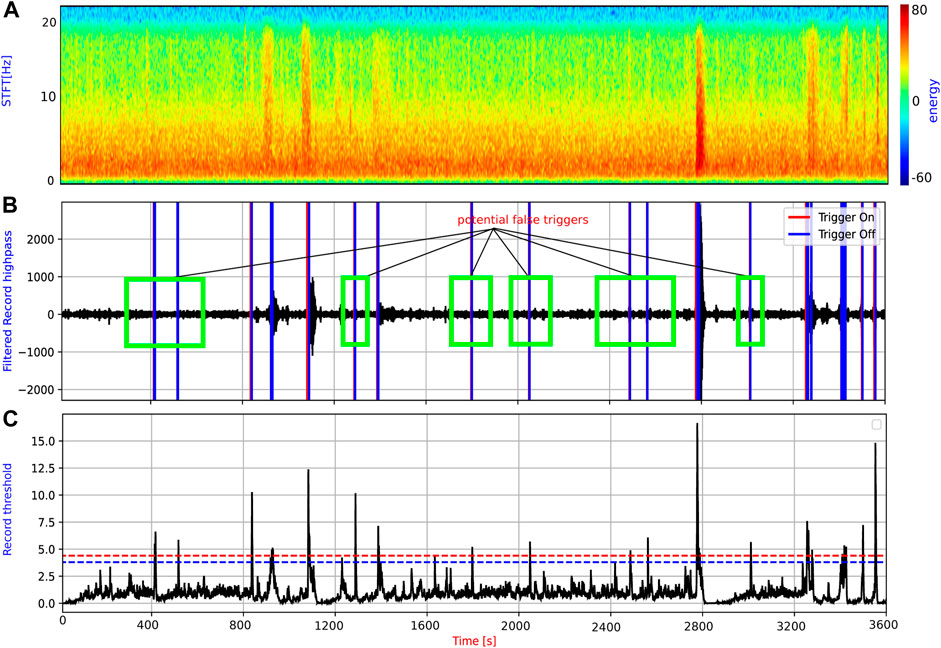

FIGURE 13. Potential false triggers corresponding to short duration energy changes recognized by the short time average over long time-average (STA/LTA) model. (A) Spectrogram of the seismic signal selected. (B) High pass filtered seismogram. (C) short time average over long time-average (STA/LTA) triggering results. Owing to lack of prior knowledge, the recurrent neural network based on long short-term memory cells (RNN–LSTM) model discounted these events as volcano tectonic (VT) earthquakes, since the duration was shorter than the average duration of VT earthquakes in the Deception Island catalog. With the purpose of enhancing visualization, the raw seismic signals were subjected to a filtering process, limiting the frequency range between 1 and 20 Hz.

For the time slots in which STA/LTA detected a lower number of VT events compared with the re-trained RNN–LSTM, a possible explanation is the behavior of the STA/LTA algorithm in a seismic swarm state. Seismic swarms, which are a common volcanic phenomenon, involve a sequence of seismic events that occur within a relatively short period of time within a very local area. Given that the STA/LTA algorithm computes an average absolute amplitude of the seismic signal in two consecutive moving-time windows, when a low energy event occurs immediately after a high energy event, the averaging process masks the occurrence of the least energetic one, decreasing the number of recognized events (Figure 14). In contrast, as the RNN–LSTM analyzes signals based on spectral features, it has the ability to analyze a concatenated occurrence of events, such as that observed during a seismic swarm.

FIGURE 14

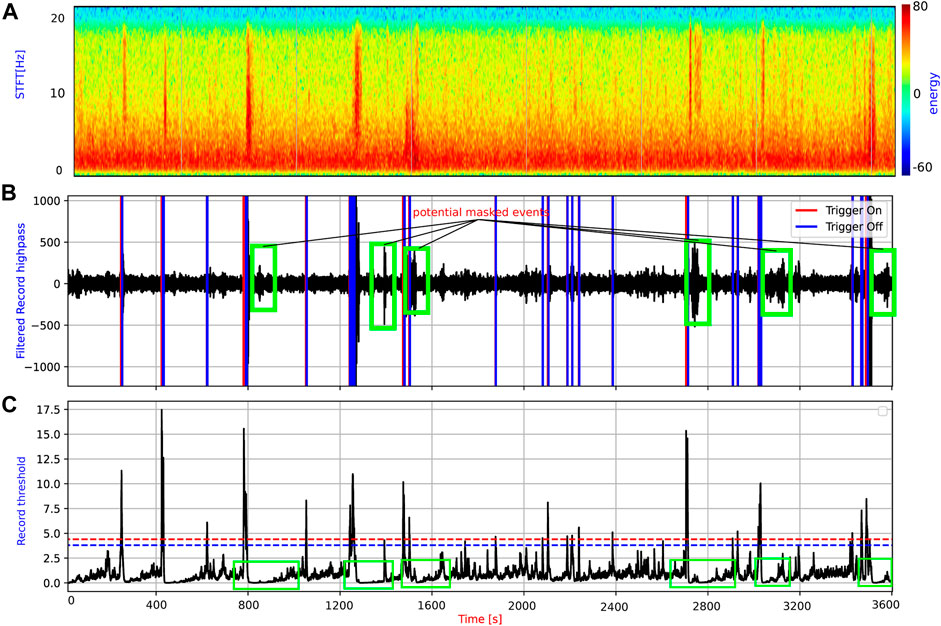

FIGURE 14. Potential masked events, for which the short time average over long time-average (STA/LTA) algorithm computed the average absolute amplitude of a seismic signal from two consecutive moving-time windows containing a low energy event immediately following a very high energy event. The average energy masks the occurrence of the low energy event, decreasing the number of recognized events. (A) Spectrogram of the seismic signal selected. (B) High pass filtered seismogram. (C) short time average over long time-average (STA/LTA) triggering results. With the purpose of enhancing visualization, the raw seismic signals were subjected to a filtering process, limiting the frequency range between 1 and 20 Hz.

Based on our results, once it has been re-trained and the average duration of the seismic-volcanic events has been fixed, our RNN–LSTM has a number of advantages over STA/LTA. In particular, the system will automatically detect VTs present in the seismic trace without searching for optimal parameter settings, which makes it a portable, scalable, and economical tool with relatively low computational cost. Another important advantage is that, besides obtaining a preliminary seismic catalog (composed of several types of events), it offers information on the confidence of the recognition. Importantly, for multi-station seismic networks, these probabilities will serve to obtain more reliable seismic catalogs. The recognition of an event characterized by high frequencies at one station provides an indisputable condition to obtain a reliable label at another station where the event has been attenuated or is virtually unrecognizable. An example of this scenario is shown in Figure 15, in which one earthquake is included in the new seismic catalog by both techniques (STA/LTA and RNN-LSTM), while an attenuated one, in addition to presenting difficulty during detection using classical techniques owing to threshold adjustment, could only be considered as an earthquake using our multi-station analysis. Finally, our approach provides a very useful tentative label for subsequent analysis carried out by a human operator.

FIGURE 15

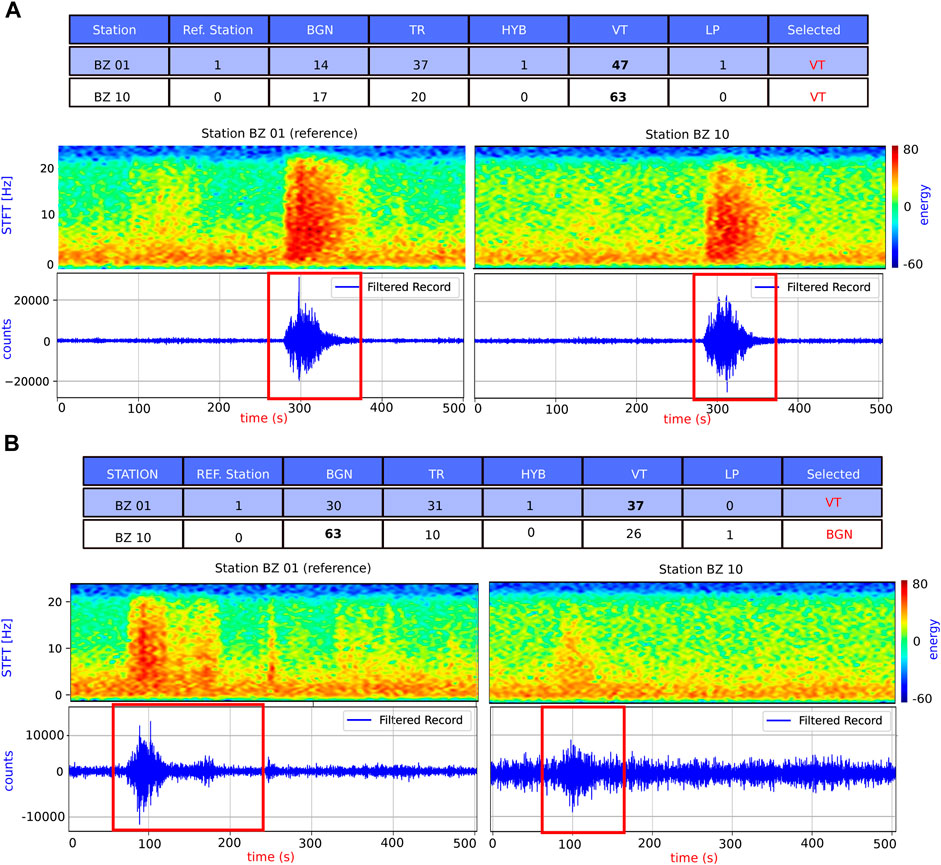

FIGURE 15. Robustness of the obtained seismic catalogs based on per-class probabilities output by the models. (A) Example of an earthquake recognized as a volcano tectonic (VT) earthquake with relatively high probability from at least two different seismic stations. (B) Example of an attenuated earthquake recognized as a VT, noise, or undefined event depending on the seismic station. With the purpose of enhancing visualization, the raw seismic signals were subjected to a filtering process, limiting the frequency range between 1 and 20 Hz.

5 Conclusion

This study provides a comprehensive analysis of how to build a multi-station seismo-volcanic monitoring system based on transfer learning techniques. We evaluated the ability of several operational systems trained using a master seismic catalogue (from Deception Island volcano) to adapt to a new volcanic environment (Bezymianny volcano), without prior domain-specific knowledge.

Our results are significant in at least two major respects. First, transfer learning is shown to offer a robust, effective, and rapid alternative when developing volcano-seismic event monitoring systems in volcanic environments without any previous knowledge or seismic catalogue. Second, depending on the architecture used as a baseline, the final behavior of the system (and consequently the results obtained) can be different. We found that RNN-based systems offer the most reliable recognition by excluding low confidence detections for seismic traces that are only partially similar to those of the baseline. In contrast, TCN-based networks are capable of detecting a greater number of events; however, many of those events are only partially similar to the master events of the baseline (i.e., the confidence of detections is low). Considering these findings and drawing upon our experience as a guiding factor, we can firmly conclude that among the overall count of events identified as earthquakes, those exhibiting a membership probability surpassing 80% after retraining, can be considered accurately classified. Together, these two approaches offer complementary tools for volcano monitoring, and volcanological observatories should choose the approach that best meets their needs; that is, RNN–LSTM for fine-grained seismic catalogs and TCN for coarse-grained seismic catalogs.

Finally, our study provides a basis for more sophisticated weakly supervised models that could be useful in developing universal monitoring tools able to work accurately across different volcanic systems, even when faced with scenarios without prior domain-specific knowledge.
