Providing cyber-resilient IoE systems has become the need of modern times. In particular, IoT drones are prone to several cyber attacks while navigating in the air. Deliberate transmission of deceptive GPS signals targeted at commercial applications can misdirect global positioning system (GPS)-guided drones, causing them to deviate from their intended paths. Thus, efficient anti-spoofing technology is required to guarantee the safety measures of drone operations. Many techniques for identifying GPS spoofing are available, but most of them need extra hardware, which may not be feasible for tiny or resource-constrained drones. In this regard, this study introduces a specialized method to identify GPS signal spoofing in these drones, called MobileNet. The MobileNet is a convolutional neural network-based transfer learning model that is adopted in this study for drone security along with Chi-square-selected features. The initial phase involves a series of steps to acquire and prepare the GPS signal dataset. Afterward, the dataset is prepared for modeling through preprocessing, data cleaning, and feature extraction. Extensive comparison analysis is performed to evaluate deep learning and transfer learning models. The experimental findings demonstrate the remarkable accuracy of 98.49% by the MobileNet model using Chi-square feature selection. This demonstrates the suitability and capability of the model to perform well in preventing GPS signal spoofing in the context of tiny drone operations.
1 Introduction
In today's world, technology is progressing at a fast pace, particularly with the Internet of Everything (IoE) paradigm, where everything is being connected. Due to a large number of connected devices, threats to cyber security have increased exponentially. In particular, drones have become targets of malignant users due to lesser security protocols against cyber attacks. Drones commonly incorporate a variety of sensors, with global positioning system (GPS) receivers being more crucial and sensitive. By receiving signals from satellites, these devices play a crucial role in accurately tracking the drone's position, including its latitude and longitude, as well as its height above the ground. This enhances the drone's navigation accuracy and mission execution efficacy. Despite its crucial role, the inherent susceptibility of GPS signals to manipulation presents a significant threat across various critical domains, encompassing public safety, military operations, air travel, and navigation. Numerous studies have documented GPS signal spoofing-related security flaws (Liu et al., 2018; Liang et al., 2019).
Initially conceived for military purposes, the drones have been adopted into a multitude of civilian and commercial applications. One such instance is Germany DHL's logistics, which uses drones to deliver medicines to Juist island (Benarbia and Kyamakya, 2021). Additionally, the United States (US) Federal Aviation Administration has given Alphabet, and Google's parent firm, permission to use drones to carry meals (Moshref-Javadi and Winkenbach, 2021). Drones are used in different domains other than logistics, such as agriculture and natural resource management, emergency rescue, medicine, wildlife control, and photography (Mohsan et al., 2023). Drones and Internet of Things (IoT) sensors may be integrated to provide a variety of benefits, such as crop and land surveys, energy companies monitoring power infrastructure, and insurance companies inspecting assets and property (Motlagh et al., 2016).
The GPS tracking device industry is expanding rapidly and by 2025 it is expected to have a worth of around 3.38 billion (Jiang et al., 2022). GPS signals are essential for autonomous car safety since the navigation system uses them to calculate the current latitude, longitude, acceleration, and orientation. Malicious GPS assaults are becoming more likely despite their significance due to the proliferation of GPS-enabled gadgets and the reduced expenses of spoofing equipment. Malicious actors can interfere with legitimate GPS signals by using programmable radio devices such as HackRF or USRP. This might cause problems for the targeted vehicles' navigation systems. Using programs like HackRF, researchers have shown that they can change the routes taken by self-driving cars (Souli et al., 2021). Apart from navigation, numerous services and applications based on GPS data improve their efficacy and interaction styles (Kim et al., 2021).
Multiple research works have been conducted for GPS spoofing detection. In Kwon and Shim (2020), the authors utilized acceleration error analysis techniques received from inertial measurement units (IMUs) and GPS receivers. In another research work (Feng et al., 2020), the authors utilized both GPS data and IMU data for accurate detection of GPS spoofing of attacks. Furthermore, Manesh et al. (2019) utilized artificial intelligence (AI) methods to analyze GPS signal features like distance errors, signal strength, and frequency shifts for promising results of GPS spoofing detection. This research highlights the importance of using AI techniques in this domain.
The study Qiao et al. (2017) further utilized techniques like motion detectors and cameras to check if someone physically tampered with the drone architecture. Researchers utilized both GPS data and sensor data for accurate detection. In research (Varshosaz et al., 2019), authors rely solely on the drone's camera to detect spoofing. This research utilizes motion camera sensor data with GPS coordinates to check the attack's exact location. Both these research works are focused on the detection of physical tampering with drone architecture. Similar ideas are explored in other recent studies (Arafat et al., 2023; Prasanna Srinivasan and Sathyadevan, 2023). These research works keep the dataset simple avoid mixing GPS data with sensor data and analyze both types of datasets separately.
Some previous studies (Mehdi et al., 2022) witness that small drones are more likely to become GPS spoofing attacks. To tackle this problem, researchers developed some methods like cooperative navigation, multiple positioning system integration, redundant antennas, and signal verification (Balador et al., 2018). Regardless of the development of multiple ways to deal with the spoofing problem, each technique comes with certain limitations like the requirement of complex hardware systems, environmental hazards, clock synchronization, etc. Another way of GPS spoofing attack detection and classification is done utilizing machine learning (ML) models (Feng et al., 2020).
This study also follows an ML-based approach for spoofing detection. The objective of this research work is to make use of transfer learning and deep learning models for GPS spoofing attack detection in small drones. The datasets used for training and testing these models consist of 13 characteristics extracted from real-time experiments involving GPS signals. Notable contributions of this study are the following:
• The study introduces a transfer learning technique, leveraging multiple types of data to enhance the accuracy and efficiency of detecting GPS signal spoofing in small drones.
• The study creates a systematic methodology for acquiring, preparing, and conducting controlled simulation tests on datasets, ensuring the reliability and validity of experimental data and strengthening the robustness of findings in GPS signal spoofing detection analysis.
• The study enhances GPS signal spoofing detection in small drones by employing the Chi-Square feature selection technique during data preprocessing, identifying important features and significantly improving the efficiency and overall performance of the detection process.
Section 2 presents a summary of current literature and notable advancements in IoT-driven methods. Section 4.1 outlines the dataset and methodologies employed in the carried-out experiments, whereas Section 3 provides details on the utilized feature selection technique and models. Section 4 delivers a thorough understanding of the experimental results, paired with a comprehensive analysis, and Section 5 is a conclusion Section, summarizing the paper.
2 Related work
This segment presents the latest developments, methods, and breakthroughs from diverse research works focused on unraveling the complexities associated with detecting and combating the manipulation of GPS signals. This section establishes the groundwork for the distinctive contributions discussed in the current research work by reviewing various methods, methodologies, and results documented in previous literature. Multiple research studies have been carried out to detect spoofed signals and other types of signals that can cause GPS spoofing. Intrusion detection in sensor networks has been a critical research area due to the increasing deployment of wireless sensor networks (WSNs) in security-sensitive applications. Various studies have proposed methods to safeguard these networks from malicious attacks (Ashraf and Ahmed, 2020). Traditional approaches rely on statistical anomaly detection or signature-based methods, which can fail in dynamic environments or against new attack patterns. Recent advancements in ML have introduced adaptive and intelligent intrusion detection systems (IDS) that leverage supervised and unsupervised learning techniques to identify anomalous behavior in real time (Saleem et al., 2020). Multiple studies highlight innovative cybersecurity-enhancing approaches. In Shala et al. (2017), optimized trust-based security in P2P M2M applications, while in Tanimu et al. (2024) authors utilized blockchain for collaborative intrusion detection. In Kolokotronis et al. (2022), advanced IoMT threat mitigation, complementing (Peratikou et al., 2021) work on federated cyber range networks and Gurung et al. (2022) feature elimination techniques for phishing detection.
2.1 Machine learning-based categorization of spoofing attacks
In research work (Meng et al., 2021), researchers developed a computer-based system to estimate and predict drone movement without extra hardware. This greatly helps in the detection of GPS-spoofed signals. Similarly, Schmidt et al. (2020) employed multiple learning models to classify real and spoofed signals, improving detection accuracy and reducing false positive rates.
An ensemble learning approach is utilized in Shafique et al. (2021) where a voting classifier is used to classify spoofed GPS signals and shows robustness across different techniques. Meanwhile, Yoon et al. (2019) presents a simple ML-based approach for small drone attack detection. Researchers in Zhu et al. (2021) make use of support vector machines (SVM) for spoofed signal detection while in Dang et al. (2020), the authors focused on signal strength to enhance location accuracy while giving less importance to classifying real and spoofed signals. Furthermore, Khoei et al. (2022) compared multiple ML models for drone paths, affirming the efficacy of ML in detecting spoofed signals across various circumstances.
2.2 Detection of GPS spoofing using deep learning techniques
The implementation of deep learning (DL) techniques makes it easy to analyze the pattern of GPS spoofing. The DL technique is not only suitable for judging large-scale patterns and making decisions but it is also utilized for small drone attacks by Agyapong et al. (2021). By training the DL model to analyze the drone's movement and comparing it to expected patterns, researchers were able to detect inconsistencies. In Dang et al. (2022), the authors used DL models for signal strength detection and based on that accurately determined the drone's precise location and successfully classified real and spoofed signals. Moreover, DL models are being utilized for security applications other than drones. Researchers are investigating their use in protecting phasor measurement units (PMUs) from spoofing attacks (Almutairy et al., 2023), which shows the wide-ranging potential of deep neural networks (DNNs) in detecting and preventing anomalies across various applications.
Detection of fake GPS signals has become a top priority, particularly for drones. Researchers are investigating various techniques using multilayer perceptron (MLP). In Shafiee et al. (2017), researchers use the MLP model to check the timing and strength of the signal, for accurate identification of suspicious activity in drone security. In Jullian et al. (2022), researchers compared multiple learning models and found that the MLP attained better performance than all other models for accurately detecting spoofed signals in drones with over 80% accuracy. Furthermore, the usage of MLP models is not limited to drone signal spoofing detection but has also been used for cellular network tower signals (Dang et al., 2022). ML and DL models are further explored to combat fake GPS signals. For example, Sung et al. (2022) found that the ResNet model outperformed SVM in identifying fake signals. Another study Wu et al. (2023) developed a real-time cyberattack detection method using a combination of convolutional neural networks (CNN) and bidirectional long short-term memory (BiLSTM) models, achieving over 99% accuracy in simulations.
2.3 Combining models for detecting GPS spoofing
Despite several research efforts, there is still room for improvements in GPS detection and now the researchers are striving to design a framework that is not only accurate but also robust and less computationally complex for spoofing attack detection in small drones. Ensemble learning approaches are investigated that allow systems to learn from multiple models for enhanced adaptability as utilized in research works (Goudos and Athanasiadou, 2019; Rajadurai and Gandhi, 2020) for better-identifying attacks in wireless networks. This shows the importance of ensemble learning approaches in addressing complex spoofed GPS threats, as demonstrated by a framework that utilizes multiple models to detect spoofing in small drones (Sun et al., 2023).
Researchers are exploring a variety of ML and DL algorithms combined with a learning technique to find fake GPS signals in drones. These approaches show good results but have limitations and may not fully address all the different and complex ways, the intruders attack. Table 1 summarizes these studies and their limitations by following the pattern given in Ashraf et al. (2020). Table 1 describes the limitations of the existing work along with summarized details like the dataset, proposed model, and results.

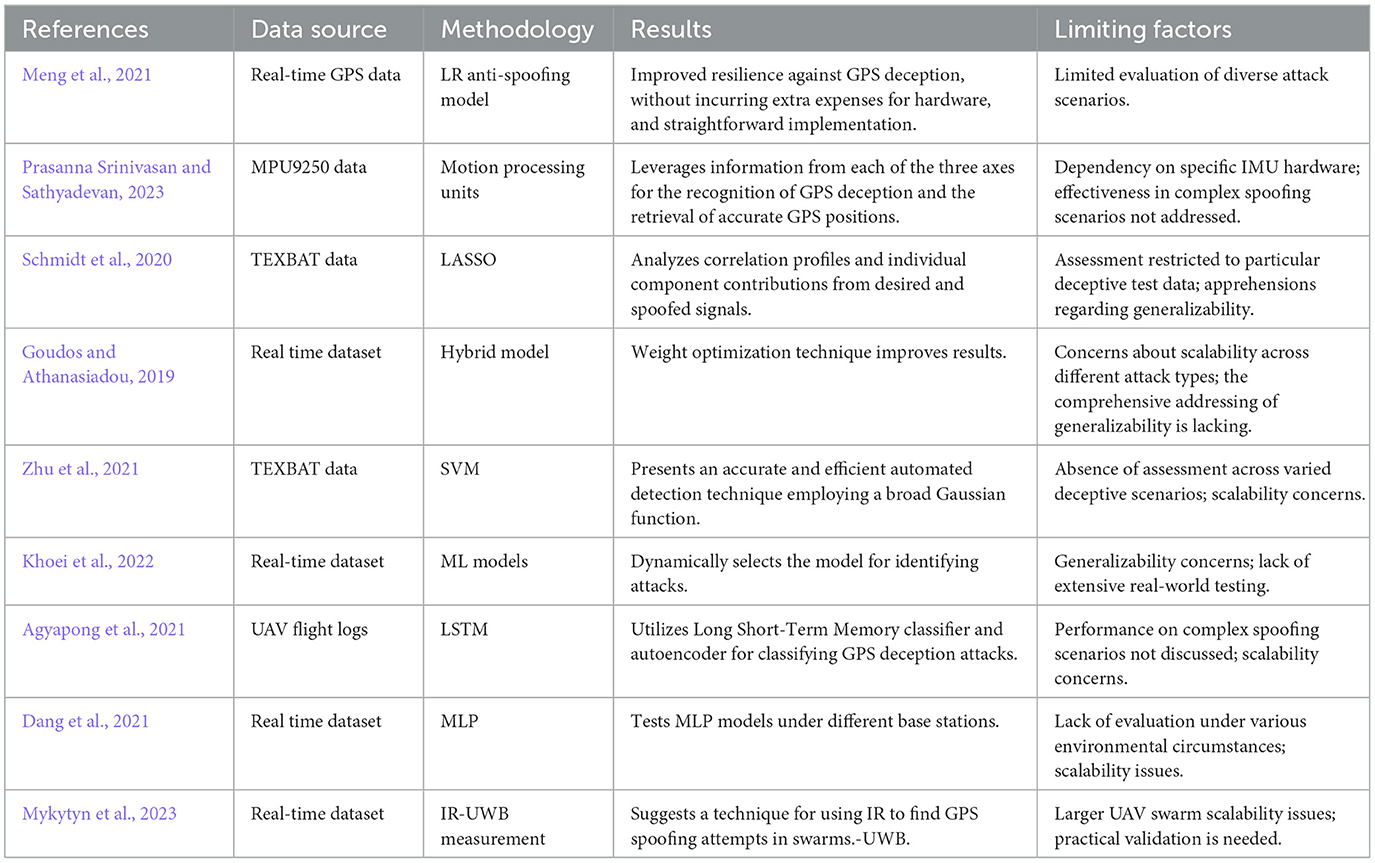

Table 1
Table 1. Overview of previous research on detecting GPS spoofing.
3 Materials and methods
This section provides a detailed explanation of the methodology employed in detecting GPS spoofing. The experiments incorporate DL and transfer learning models.
3.1 Chi-square feature selection
In chi-square feature selection, observed and expected values are key components used to determine the significance of the relationship between predicting features and the target variable in a dataset (Narra et al., 2022). Its application aids in discerning the most relevant features for predicting the target variable. The output of chi-square feature selection in our case is the selection of the best features among 13 features. The best results are obtained when we select the 8 features which are “DO, PRN, PD, CN0, PIP, RX, TOW, and LC.” The overview of the feature selection is provided here.
Observed values (O): Observed values are the actual frequencies or counts of occurrences observed in the data. When dealing with a feature and a target variable, the observed values represent the number of times a particular combination of feature value and target value occurs in the dataset.
Expected values (E): Expected values are the theoretical frequencies that would be expected if there were no association between the feature and the target variable. These values are calculated based on the assumption that the feature and the target variable are independent.
Calculating expected values: The expected value for a specific cell in a contingency table (which cross-tabulates the feature and target values) can be calculated using the formula:
Where
• Eij is the expected frequency for the cell in the ith row and jth column.
• Ri is the total number of observations in the ith row.
• Cj is the total number of observations in the jth column.
• N is the total number of observations in the dataset.
The critical value for evaluating correlation hypotheses in the chi-square contingency table is determined by the chi-square distribution and depends on two key factors:
Degrees of freedom (df): This is calculated based on the dimensions of the contingency table. For a contingency table with r rows and c columns, the degrees of freedom are given by:
Significance level (α): This is the probability threshold below which the null hypothesis (that there is no association between the variables) is rejected. Commonly used significance levels are 0.05 (5%) and 0.01 (1%).
Basis for setting the critical value
To set the critical value, you follow these steps:
i Determine the degrees of freedom: Calculate the degrees of freedom for the contingency table. For example, if you have a 3 × 2 table, the degrees of freedom would be:
ii Choose a significance level: Decide on the significance level you want to use. The most commonly used level is 0.05. This means you are accepting a 5% chance of rejecting the null hypothesis when it is actually true (Type I error).
iii Find the critical value from the chi-square distribution table: Using the degrees of freedom and the chosen significance level, you can look up the critical value in the chi-square distribution table.
3.2 Supervised learning models used for GPS spoofing attack detection
Advanced ML has shown substantial potential across diverse medical sectors, encompassing the prognosis and diagnosis of various health conditions. In the context of predicting GPS spoofing attacks, sophisticated algorithms facilitate the thorough analysis of extensive data related to system behavior, contributing to the early and precise identification of potential threats. The effectiveness of these models heavily depends on the quality and quantity of the training data used to develop them. The availability of varied and representative datasets proves crucial in constructing reliable predictive models for GPS spoofing attack detection. This research employs a variety of advanced machine learning architectures, including CNN, MLP, ResNET, long short-term memory (LSTM), Inception, EfficientNetB4, MobileNet, and Xception.
3.2.1 Multilayer perceptron
An advanced form of the feed-forward neural network model that has more than one layer of neurons is called MLP (Juna et al., 2022). After passing through the input layers and hidden layers that introduce different degrees of abstraction, information is finally combined into predictions at the output layer. Three main layers are usually included in an MLP model: input, hidden, and output. In this instance, 64 neurons make up the hidden layer and 32 neurons are integrated with rectified linear unit (ReLU) activation in the input layer. The output layer uses a dropout layer (rate: 0.2) in conjunction with a single neuron that has a sigmoid activation function. Throughout 100 epochs, the Adam optimizer and a binary cross-entropy loss function are used for training.
3.2.2 Convolutional neural network
CNNs are recognized as resilient deep neural networks, adept at handling data preprocessing and computational complexities (Alturki et al., 2023). Essential elements encompass convolutional, pooling, flattening, activation, and dropout layers. Convolutional layers extract distinctive features from input images, and pooling layers diminish feature sizes to prevent overfitting. The activation function, ReLU, introduces non-linearity, while dropout layers help counteract overfitting. The model integrates max-pooling and dropout with rates of 0.2 and 0.5, respectively, for enhanced efficiency.
3.2.3 Long short-term memory
LSTMs demonstrate proficiency in capturing prolonged temporal dependencies, a crucial aspect in tackling various learning challenges linked with sequential data (Cascone et al., 2023). The gate mechanisms embedded within LSTM cells effectively regulate information flow, enabling efficient utilization of context. Despite concerns regarding the complexity of its architecture, LSTM's effectiveness in analyzing sequential data is widely acknowledged.
3.3 Transfer learning models
Aligned with the techniques outlined above, the principles of transfer learning and few-shot learning highlight the significance of transferring prior knowledge from a source task to a few-shot task. Two predominant transfer learning approaches encompass fine-tuning solely the classifier layers while maintaining the fixed weights of other model layers, and fine-tuning all layers to permit comprehensive weight adjustments.
3.3.1 ResNET
ResNet introduces residual connections, which maintain layer weights during the backpropagation process (Wang et al., 2019). ResNet variations, such as ResNet101, ResNet152, and ResNet50, are differentiated by their layer count, prioritizing depth over width to achieve parameter efficiency.
3.3.2 EfficientNetB4
EfficientNet utilizes compound scaling to harmonize network width, depth, and resolution, thereby improving both accuracy and efficiency (Zulfiqar et al., 2023). Variants such as B0, B3, and B4 incorporate Softmax activation and Adam optimization, utilizing convolutional layer weights derived from ImageNet.
3.3.3 Inception-V3
An improved version of Inception-V1, Inception-V3 has a large architecture and maximizes network depth (Mujahid et al., 2022). The last layer is modified to make task-specific modifications while the earlier layers are preserved in transfer learning.
3.3.4 Xception
Xception uses depthwise and pointwise separable convolutions, taking inspiration from InceptionV3 (Salim et al., 2023). Xception is a computationally efficient model with a depth of 71 layers and a parameter count of 22.9 million, but it requires large datasets for efficient training.
3.3.5 MobileNet
A CNN architecture called MobileNet was created to operate effectively on mobile devices. It makes use of an inverted residual structure with bottleneck layer residual connections. MobileNetV2 tackles information degradation in deep networks by utilizing inverted residual bottleneck layers (Srinivasu et al., 2021). Its specifications include 32 initial filters, 19 bottleneck layers, dropout, batch normalization, and a kernel size of 3 × 3. Segmentable by Depth Convolution efficiently reduces processing and model size by splitting the convolution process into depthwise and pointwise convolutions. By adjusting the number of channels, the Width Multiplier option is intended to further reduce computing costs. The resolution multiplier affects both computing cost and model size simultaneously by giving control over picture resolution. Together, these methods help to maximize the convolutional neural network architecture's effectiveness and resource use.
3.4 The proposed approach
This research work proposes an innovative approach for GPS spoofed signals detection utilizing chi-square significant features and a MobileNet transfer learning model. The dataset is based on 13 features of signals that are gathered in a controlled simulated environment. The experiments are conducted using two scenarios with and without chi-square significant features. Results reveal that utilization of feature extraction technique as pre-processing gives notably better results with all learning models especially MobileNet for securing small drones. The proposed approach of this research is presented in Figure 1.

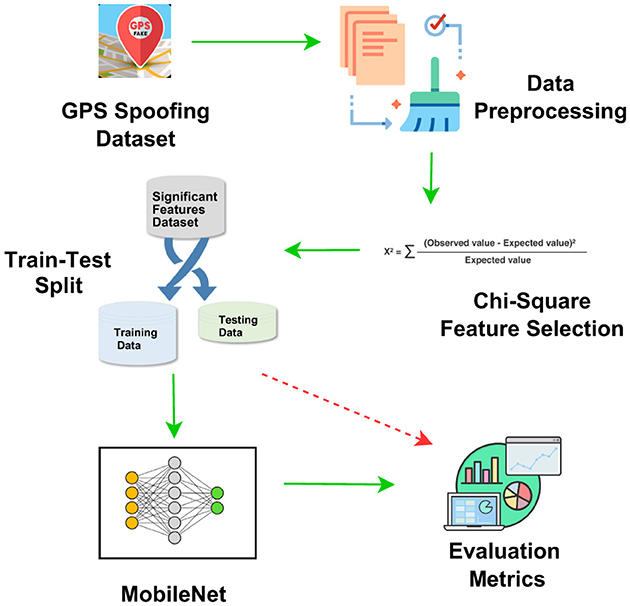

Figure 1
Figure 1. Schematic representation of the proposed methodology.
The proposed methodology begins with the utilization of a GPS spoofing dataset, which includes data on both spoofed and legitimate signals under various conditions, such as urban and rural environments and different weather scenarios. This dataset is then subjected to a data preprocessing stage, where noise and irrelevant entries are removed, missing values are handled, and the data is normalized to ensure consistency and uniformity. The cleaned dataset is then processed using the Chi-square feature selection technique to identify the most statistically significant features relevant to distinguishing spoofed signals from legitimate ones. This step reduces computational complexity while enhancing the model's focus on the critical aspects of the data.
Following feature selection, the dataset is split into training and testing subsets with a 70%–30% split. The training data is used to train the MobileNet model, leveraging transfer learning techniques to adapt pre-trained weights for the task of GPS spoofing detection. Once trained, the model is evaluated using the reserved testing dataset to assess its performance on unseen data. Key performance metrics, such as accuracy, precision, recall, and F1 score are computed to quantify the model's effectiveness.
4 Experiments and results
This section performs a thorough examination of the performance demonstrated by the MobileNet model on a dataset related to GPS spoofing. This study applies a variety of DL and transfer learning models for identifying GPS spoofing attacks. In order to train the predictive models, 70% of the dataset is used as training data while 30% is used for testing the trained models. Model performance evaluation utilizes a variety of metrics. All experiments are conducted within a Python environment, leveraging various libraries. A comprehensive assessment is conducted, involving various metrics together. These metrics function as evaluation criteria to determine the effectiveness of the model compared to established methodologies as presented under:
where TP, TN, FP, and FN denote true positive, true negative, false positive, and false negative, respectively.
4.1 Dataset
This research work used a collection of genuine and spoofed GPS signals (dataset) (Aissou et al., 2022). Genuine signals are gathered from different places involving both stationary and moving vehicles. While collecting the data, 13 different features are obtained from 8 different parts of the device at different stages (like tracking, figuring out location, and finding the signal). They also created fake signals in three different ways: simple, medium, and hard. In total, they collected 158,170 records of data, with an equal mix of real and fake signals including all three difficulty levels of fake signals. Table 2 describes each of the 13 features of the dataset.
Table 2
Table 2. Dataset description.
4.2 Data preprocessing
Effective preprocessing of the data improves the accuracy of features and model performance. The chi-square approach is used in the analysis, cleaning, and feature selection phases of data preparation. To begin, the .shape() function is used to inspect the size and general details of the GPS spoofing dataset like the number of rows and columns. The use of the .info() function yields data types and the number of missing values for variables. After that, the distributions of variables are explored. After that, the dataset is examined for missing values, and Chi-square feature selection is used to maximize pertinent features.
4.3 Results using all features
A thorough examination contrasts the performance of transfer learning and DL classifiers utilizing the entire feature set of the GPS spoofing detection dataset. While certain classifiers exhibit suboptimal performance, others surpass expectations. This study employs transfer learning and DL models for GPS spoofing detection. Assessment of these models' performance using all 13 features is shown in Table 3.

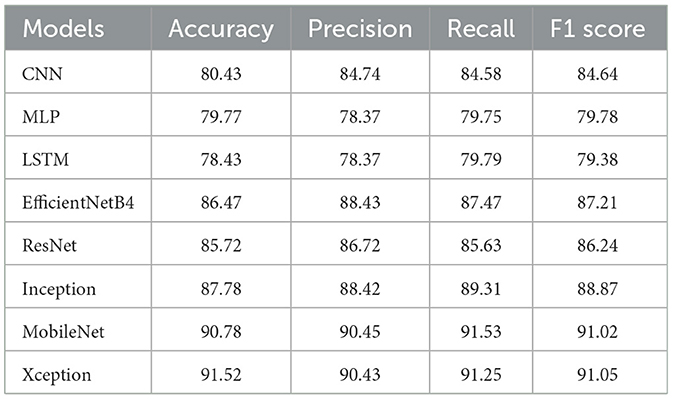

Table 3
Table 3. All learning models results using complete feature set.
As per the findings, Xception surpasses others when utilizing all features, attaining an accuracy of 91.88%, along with 91.25% recall, 90.43% precision, and a 91.05% F1 score. MobileNet achieves an accuracy of 90.78% and an F-Score of 91.02%. The Inception classifier records an accuracy of 87.78%, with recall at 89.31%, precision at 88.42%, and an F-Score of 88.87%. The CNN achieves an accuracy score of 80.43%. However, LSTM demonstrates the lowest performance for GPS spoofing prediction, with an accuracy of 78.43%, recall of 79.79%, a precision of 78.37%, and an F-Score of 79.38%.
4.4 Results utilizing selective features
This research also illustrates the significance of features by utilizing selective features through Chi-square for feature selection. The best results are obtained when we select the 8 best features which are “DO, PRN, PD, CN0, PIP, RX, TOW, and LC.” The outcomes of DL and transfer learning models are presented in Table 4. The MLP model outperformed CNN and LSTM, achieving an accuracy of 89.49%, precision of 83.78%, recall of 82.74%, and an F1 score of 82.35%. Similarly, the other models have their corresponding performance metrics listed in the table. The Inception classifier secures a 95.07% recall, a 94.85% F1-Score, 94.38% precision, and 92.67% accuracy. The deep learning model CNN records an accuracy score of 86.36%. However, LSTM exhibits the lowest performance for GPS spoofing prediction, with an accuracy of 82.45%, recall of 81.96%, precision of 84.68%, and an F-Score of 82.48%. MobileNet demonstrated superior performance, surpassing all other models with an accuracy of 98.49%, precision of 99.13%, recall of 99.27%, and an impressive F1 score of 99.20% on features selected through Chi-square.
Table 4
Table 4. Results of DL models with chi-square significant features.
4.5 Five-fold cross-validation results
Measures are implemented to validate the reliability of the model through the utilization of K-fold cross-validation. The outcomes of 5-fold cross-validation are presented in Table 5, revealing the superior performance of the suggested framework compared to other models in terms of recall, accuracy, precision, and F1 score. The minimal standard deviation indicates a stable and consistent performance of the proposed model. These outcomes support the robustness, dependability, and reliability of the suggested strategy by confirming its consistently good performance across several folds.
Table 5
Table 5. 5-fold cross-validation results of the proposed framework.
Figure 2 compares the performance of models evaluated on all 13 features vs. Chi-square-based selective features. It can be observed that utilizing selective features which are statistically more significant, produces better accuracy. Chi-squares-based features proved to be more effective in training DL and transfer learning models and showed better performance.
Figure 2
Figure 2. Comparative analysis of classifier accuracy.
4.6 Discussion
In the analysis of results utilizing all features, the transfer learning model Xception emerged as the top-performing classifier, achieving an accuracy of 90.88%. This outcome suggests that leveraging transfer learning with Xception can significantly enhance GPS spoofing detection when considering the complete feature set. Notably, MobileNet also demonstrated competitive performance with an accuracy of 89.67%, indicating its effectiveness in this context. However, conventional deep learning models, such as CNN, exhibited comparatively lower accuracy, emphasizing the advantage of transfer learning approaches. When examining results utilizing selective features through Chi-square, the performance dynamics shifted. The MLP model outperformed CNN and LSTM, achieving an accuracy of 88.38%. This notable increase in the accuracy of spoofed signal detection shows the importance of chi-square significant features. In this scenario of utilizing chi-square features, InceptionNet and MobileNet both transfer learning models show great improvement in terms of accuracy, f1-score, recall, and precision. These early and accurate results with significant features show that this framework works well in the real-world environment. Figure 2 provides a visual depiction of the performance differences, aiding in a thorough grasp of the classifiers' effectiveness in diverse scenarios.
4.7 Limitations of the current study
The proposed method, while effective for small drones, may face scalability challenges when applied to large-scale drone networks with varying hardware capabilities and operational complexities. Furthermore, the dataset used in this study, though diverse, may not fully encompass all real-world scenarios, such as extreme weather conditions or complex urban environments with high GPS interference.
5 Conclusion
In this study, an innovative approach is proposed for global positioning system (GPS) spoofing signal detection. The dataset analyzed in this research work for GPS spoofed signals detection is gathered in a controlled simulation environment. The uniqueness of this research work lies in the usage of significant chi-square features for accurate and early detection of spoofed signals. Subsequently, a transfer learning model was developed to identify spoofed GPS signals. Confusion matrices are a reliable assessment tool that was essential in determining the computational efficiency of the model. Experimental results highlight the exceptional performance of the proposed model, achieving an impressive accuracy rate of 98.49%. Notably, actual GPS spoofing signal data were employed, preserving crucial data features essential for GPS signal manipulation, thereby enhancing reliability compared to simulation-based datasets. The proposed MobileNet demonstrated significant efficacy in identifying spoofing actions in drones. Future work will explore and implement adversarial training techniques to enhance the model's robustness against sophisticated spoofing attacks.
Data availability statement
The original contributions presented in the study are included in the article/supplementary material, further inquiries can be directed to the corresponding author.
Author contributions
AH: Conceptualization, Data curation, Writing – original draft. MS: Data curation, Formal analysis, Writing – original draft. RA: Methodology, Software, Writing – original draft. AA: Investigation, Visualization, Writing – original draft. IA: Supervision, Validation, Writing – review & editing.
Funding
The author(s) declare that no financial support was received for the research, authorship, and/or publication of this article.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Generative AI statement
The author(s) declare that no Generative AI was used in the creation of this manuscript.
Publisher's note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
