Preserving conceptual model semantics in the forward engineering of relational schemas

Forward engineering relational schemas based on conceptual models (in languages such as UML and ER) is an established practice, with several automated transformation approaches discussed in the literature and implemented in production tools. These transformations must bridge the gap between the primitives offered by conceptual modeling languages on the one hand and the relational model on the other. As a result, it is often the case that some of the semantics of the source conceptual model is lost in the transformation process. In this paper, we address this problem by forward engineering additional constraints along with the transformed schema (ultimately implemented as triggers). We formulate our approach in terms of the operations of “flattening” and “lifting” of classes to make our approach largely independent of the particular transformation strategy (one table per hierarchy, one table per class, one table per concrete class, one table per leaf class, etc.). An automated transformation tool is provided that traces the cumulative consequences of the operations as they are applied throughout the transformation process. We report on tests of this tool using models published in an open model repository.

1. Introduction

Forward engineering relational schemas based on conceptual models such as (E)ER or UML class diagrams is an established practice, with a number of transformation strategies discussed in the literature (Torres et al., 2017; Guidoni et al., 2020) and commercial tools available and widely used in production settings. The approaches employed establish correspondences between the patterns in the source models and in the target relational schemas, as is typically the case in model-driven approaches. For example, in the one table per class approach (Keller, 1997; Fowler, 2002), a table is produced for each class in the source model; in the one table per leaf class approach (Philippi, 2005), a table is produced for each leaf class in the specialization hierarchy, with properties of superclasses accommodated at the tables corresponding to their leaf subclasses; in the one table per hierarchy approach (Torres et al., 2017), discriminator columns are introduced in the table corresponding to the superclass to identify which subclasses are instantiated by the entity represented in a row. An important benefit of all these approaches is the automation of an otherwise manual and error-prone schema design process. Automated transformations capture tried-and-tested design decisions, improving productivity, and the quality of the resulting schemas.

Despite the various benefits of automated transformation, there is often a mismatch between primitives of the conceptual modeling language and those of the target technical space; in this case, the relational model. Because of this, some of the information that was embodied in the conceptual model may be lost in the transformation process. In the case of the transformation of specialization hierarchies, depending on the class-to-table transformation strategy, invariants that are expressed directly in the conceptual model through cardinality constraints and association end typing may be weakened. For example, consider a hierarchy with a class Person at the top and a single subclass Student with a mandatory attribute enrollmentNumber. In the one table per hierarchy approach, mandatory attributes of subclasses (in this case enrollmentNumber) are implemented as nullable columns of the table representing the whole hierarchy (in this case of the table representing all persons). This is required in this approach, because not all persons have enrollment numbers—albeit all students do. This kind of cardinality constraint present in the source model is no longer enforced by the target relational schema, which admits a non-student person to be assigned an enrollmentNumber and a student to have a null enrollmentNumber. Foreign keys in other tables that should identify only students (for example concerning the borrower of a book in the university library) now identify persons indistinctly.

The first contribution of this paper is to identify the constraints that are lost in the transformation of structural conceptual models to relational schemas, independently of the class-to-table transformation strategy applied. Our approach is based on the primitive refactoring operations of flattening and lifting of classes that can account for the transformation of a specialization hierarchy into tables according to various class-to-table transformation strategies in the literature (Guidoni et al., 2020). Secondly, we show how to incorporate the generation of the required constraints along a transformation of a conceptual model into a relational schema. As the transformation advances, at each application of an operation, we maintain a set of traces from source to target model, ultimately producing not only the relational schema, but also invariants that are applicable to the resulting schema using the set of traces. These invariants are implemented as triggers, detecting when data that violates the conceptual model is introduced in the database. A fully automated implementation of the transformation is provided.

This paper is further structured as follows: Section 2 discusses extant approaches to the transformation of a structural conceptual model into a target relational schema, presenting the primitive operations of flattening and lifting that can account for the various transformation strategies (Guidoni et al., 2020); it further provides an example conceptual model transformed with two strategies for illustration. Section 3 discusses flattening and lifting in further detail, presenting the aspects of the semantics that are lost in the application of each of these operations, identifying thus the constraints that should be added in order to preserve the source model semantics. (Formal specifications of the operations subjected to automated proof are provided in Supplementary material). Section 4 shows how we instrument the transformation process by maintaining a set of traces that are updated in each flattening and lifting application; these traces are ultimately used to generate triggers in the database that reflect the constraints that are required by each step in the transformation process; the automatically-generated triggers accumulate all the required constraints. Section 5 reports on the implementation of the tool and on the tests that were performed to validate the approach, using models made available in an open model repository (Barcelos et al., 2022). Section 6 discusses related work, and, finally, Section 7 presents concluding remarks.

2. Background

2.1. Extant approaches

The relational model does not directly support constructs corresponding to class generalization and specialization, and, hence, realization strategies are required to cope with the use of these notions in source conceptual models. Such strategies are described by several authors (Keller, 1997; Fowler, 2002; Ambler, 2003; Shah and Slaughter, 2003; Philippi, 2005; Torres et al., 2017; Guidoni et al., 2020) under various names. We include here some of these strategies for the purpose of exemplification.

One common approach is the one table per class strategy, in which each class gives rise to a separate table, with columns corresponding to the class's features. Specialization between classes in the conceptual model is emulated and gives rise to a foreign key in the table that corresponds to the subclass. This foreign key references the primary key of the table corresponding to the superclass. This strategy is also called “class-table” (Fowler, 2002), “vertical inheritance” (Torres et al., 2017), or “one class one table” (Keller, 1997), and is also very common in the EER transformation literature (Teorey et al., 1986; Markowitz and Shoshani, 1992). In order to manipulate a single instance of a class, e.g., to read all its attributes or to insert a new instance with its attributes, one needs to traverse a number of tables corresponding to the depth of the whole specialization hierarchy.

A common variant of this approach is the one table per concrete class strategy (Philippi, 2005). In this case, an operation of “flattening” is applied for the abstract superclasses. In a nutshell, “flattening” removes a class from the hierarchy by transferring its attributes and relations to its subclasses. This reduces the number of tables required to read or to insert all attributes of an instance, but introduces the need for unions in polymorphic queries involving the flattened abstract classes.

The extreme application of “flattening” to remove all non-leaf classes of a taxonomy yields a strategy called one table per leaf class. In this strategy, also termed “horizontal inheritance” (Torres et al., 2017), each of the leaf classes in the hierarchy gives rise to a corresponding table. Features of all (non-leaf) superclasses of a leaf class are realized as columns in the leaf class table. No foreign keys emulating inheritance are employed in this approach.

A radically different approach is the one table per hierarchy strategy, also called “single-table” (Fowler, 2002) or “one inheritance tree one table” (Keller, 1997). It can be understood as the opposite of one table per leaf class, applying a “lifting” operation to subclasses instead of the “flattening” of superclasses. Attributes of each subclass become optional columns in the superclass table. This strategy usually requires the creation of an additional column to distinguish which subclass is (or which subclasses are) instantiated by the entity represented in the row (a so-called “discriminator” column). The “lifting” operation is reiterated until the top-level class of each hierarchy is reached.

In our previous work (Guidoni et al., 2020), we have proposed a novel approach based on the combined and selective use of both “lifting” and “flattening.” This approach leverages the specialized semantics of the OntoUML (Guizzardi, 2005) conceptual modeling language to precisely determine which classes should be flattened and which should be lifted—given a particular set of conceptualization choices made about the domain. This is possible because OntoUML explicitly represents in a system of stereotypes a number of finer-grained ontological distinctions among types of classes. These stereotypes enable the explicit representation of these choices.

Among these distinctions, a special attention is given to kinds, i.e., special sorts of static classes that represent the essential types of things in that domain. They tessellate the space of existing entities at any given point in time, i.e., the kinds in an OntoUML model are both mutually disjoint and together exhaust the set of instances of that model. In other words, every instance of an OntoUML model belongs to exactly one kind and always to that same kind. Thus, kinds constitute a static backbone of the conceptual model, which is then both refined into subclasses and abstracted into superclasses. On one hand, they are typically specialized by dynamic classes characterized by contingent properties that their instances can bear in some situations but not in others (e.g., a person can contingently be a teenager or a student). When these dynamic classes are characterized by intrinsic properties, they are called phases (e.g., teenager, living person); when by relational properties, they are called roles (e.g., student, father, husband). On the other hand, multiple kinds are refactored into abstract classes that represent properties that are shared by their instances. These abstract classes can also be either static (called categories) or dynamic (called role mixins). Since every instance of a domain must instantiate a kind, the use of these refactoring classes in a model can lead to multiple classification schemes (e.g., an entity can be both of the kind car but also instantiate the category physical object). In other words, entities can instantiate several classes but one unique kind and, hence, classes can specialize multiple superclasses but at most one kind.

The approach discussed in Guidoni et al. (2020) leverages these distinctions to automatically and in a reiterated way: (a) “flatten” all the properties in the abstract classes until they are projected into the specializing concrete classes; (b) in sequence, “lift” all the properties of these concrete classes up to their generalizing kinds. As result, the model concentrates all the original information around kinds, which are then mapped into relational tables. We call this strategy one table per kind.

Finally, we highlight that the operations of “flattening” and “lifting” are the same in all these different transformation strategies. What varies across strategies are the different classes that these operations target as focal points, and the different orders in which they are iterated. All these strategies can be conceived as complex procedures combining the very same primitive operations of “flattening” and “lifting.”

2.2. Example transformations

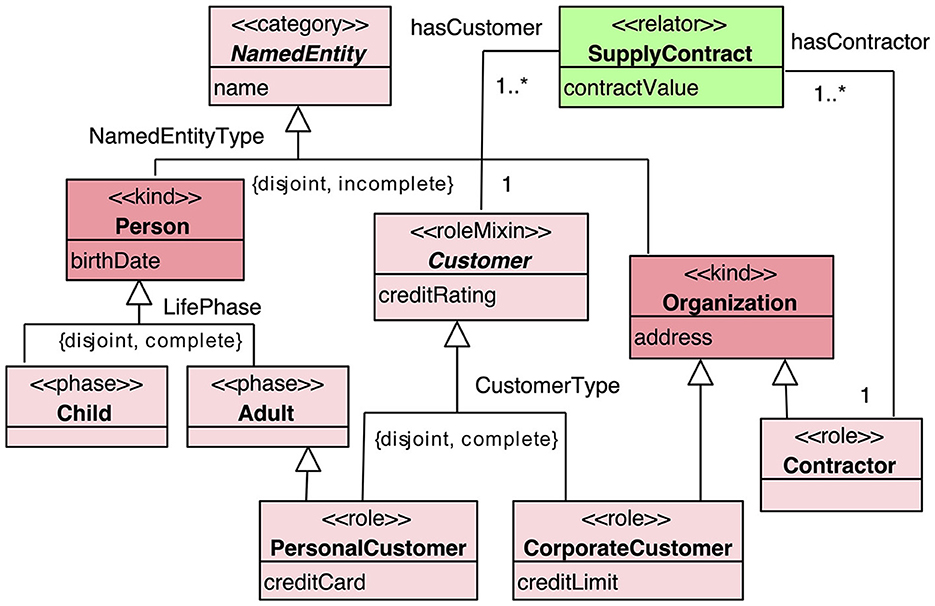

In order to illustrate the consequences of the transformation strategy selected on the resulting relational schema, we apply here two different transformations to the (Onto)UML class diagram shown in Figure 1. In this model, the abstract class NamedEntity is specialized into concrete classes Person and Organization. The abstract class Customer is specialized into concrete classes PersonalCustomer and CorporateCustomer. Persons are classified dynamically according to life phase, and must be either in the Child or the Adult phase. In the Adult phase, a Person can enter into a SupplyContract (a relator kind) playing the role of PersonalCustomer and thus hiring an Organization as a Contractor. Organizations can also assume the role of CorporateCustomer in a SupplyContract. The transformation approaches selected for illustration are one table per concrete class and one table per kind, and are used throughout the paper. As discussed in the previous sub-section, the former relies on the flattening of abstract classes (as they appear in standard UML models). The latter makes use of OntoUML stereotypes (Guizzardi et al., 2018) to determine when to apply flattening and lifting.

FIGURE 1

Figure 1. Example source conceptual model.

Figure 2 presents the resulting schema in the one table per concrete class strategy. The abstract classes NamedEntity and Customer have been flattened out, and a table is included for each concrete class. Foreign keys are used to emulate inheritance (e.g., the table ADULT corresponding to the concrete class Adult has as its primary key a foreign key person_id which identifies an entry in the table PERSON). Joins are required to access all attributes of an instance of a subclass in tandem (e.g., to obtain the name and credit_rating of an instance of PersonalCustomer represented in the database).

FIGURE 2

Figure 2. Target schema with the one table per concrete class strategy.

Figure 3 presents the result of applying the one table per kind strategy. Again, NamedEntity and Customer (abstract classes) are flattened out. In addition, all concrete classes are lifted until only one concrete class (the kind) remains. There is no emulation of inheritance with foreign keys; discriminators are used instead to identify the subclasses that are instantiated by an entity. No joins are required to access jointly attributes of an entity. A number of nullable columns are introduced as the result of “lifting” (namely credit_rating, credit_card, credit_limit due to the migration of attributes in lifting; and person_id and organization_customer_id due to the migration of association ends opposite of SupplyContract in flattening and lifting).

FIGURE 3

Figure 3. Target schema with the one table per kind strategy.

3. Bridging the semantic gap

We have observed during our investigations into the various transformation strategies in the literature that they could all be understood as complex procedures that could be formulated in terms of lifting and flattening. Here, we present these operations in detail, including their consequences to the existing attributes and associations in the model.

Using the terminology of Lúcio et al. (2016) and Lano et al. (2018), both operations can be understood conceptually as endogenous model refactorings. An endogenous transformation is one whose target and source models are represented in the same language (here they are both class diagrams); a refactoring is a transformation that performs update-in-place making local changes to a part of the model. These are usually motivated with the model editing intent (Lúcio et al., 2016), although here, they have been motivated by progressing toward a model that can be more easily translated in an ultimate exogenous model transformation (one that produces a relational schema from a class diagram). Because of that, in some cases, our operations have the opposite intent of some refactoring operations in the literature. For example, flattening is the opposite of “extract class” of Fowler et al. (2012). The operations are similar to those defined by Guizzardi et al. (2019), but are used there solely for the purpose of model abstraction (and hence, the authors of that work were not concerned with the loss of constraints in the application of their operations). [“Flattening” as used here should not be mistaken with the homonymous model transformation pattern of Iacob et al. (2008), which refers to the elimination of hierarchical containment structures in the abstract syntax.] The operations are applied automatically once the classes to be flattened or lifted in a step are identified.

We assume here that the source conceptual model consists of (abstract and concrete) classes, attributes with multiplicity constraints, binary associations also with multiplicity constraints at both association ends, generalizations between classes, and generalization sets with varying isCovering and isDisjoint metaproperties following the UML metamodel¹. Multiplicities are represented for simplicity with lower bound cardinalities corresponding to either 0 or 1, and upper bound cardinalities corresponding to 1 or *. The approach we propose is not specific to OntoUML. In fact, the proposed operations of lifting and flattening are general to all kinds of structural conceptual models.

3.1. Flattening

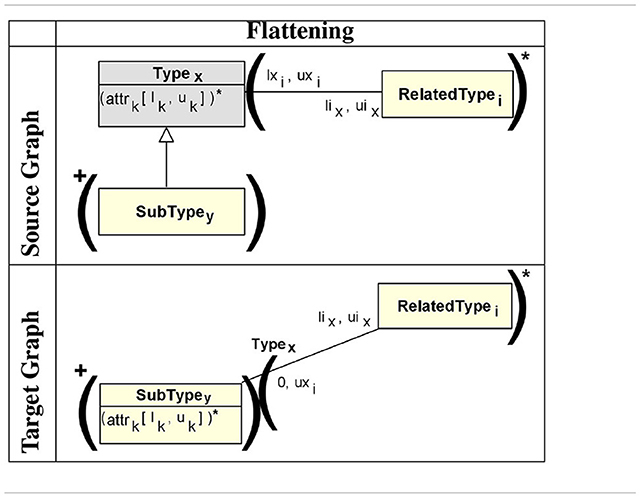

In the flattening operation, shown schematically in Table 1, every attribute of a class that is to be removed from the model (Type_x in gray) is migrated to each of its direct subclasses (SubType_y). Association ends attached to the flattened superclass are also migrated to the subclasses (creating new associations in the process, one for each subclass). The lower bound cardinality of the migrated association end (lx_i) is relaxed to 0, as the original lower bound is not necessarily satisfied for each of the subclasses. The cardinalities of attributes (attr_k) as well as association ends attached to classes other than the flattened class (RelatedType_i) are maintained, as these are invariants that apply to all subclasses in virtue of the semantics of specialization. (For simplicity, the diagram represents only one association between Type_x and a RelatedType_i, but in fact, there can be many such associations).

TABLE 1

Table 1. The flattening operation.

Preconditions to the application of flattening are that the class is at the top of the present hierarchy (i.e., it has no superclass) and that is either abstract or all its subclasses are complete specializations of it. (In the particular case of a single subclass of an abstract class, flattening is trivialized; in any case, the situation indicates a clear model smell).

Figure 4 shows the result of the application of the flattening operation on the abstract classes in the example in Figure 1, with changes highlighted in red boxes. The Person and Organization classes now have a name attribute, due to the flattening of NamedEntity. As a consequence of the flattening of Customer, PersonalCustomer, and the CorporateCustomer now have an attribute creditRating. Further, the SupplyContract class is now related directly to the PersonalCustomer and the CorporateCustomer classes. A minimum cardinality of 0 is used in the association ends connected to PersonalCustomer and CorporateCustomer.

FIGURE 4

Figure 4. Result of flattening NamedEntity and Customer.

3.1.1. Missing constraints due to association end migration in flattening and relaxed lower bounds

The following constraints are missing from the resulting model after the operation: (MC1), in the presence of an association in the source model with an association end attached to the flattened superclass and lower bound lx_i = 1, we must ensure that at least one instance of the target subclasses is related to an instance of the RelatedType_i through the associations that were introduced in the flattening operation, in order to enforce the original lower bound cardinality. In this case, for a particular SupplyContract, there is a related PersonalCustomer or a CorporateCustomer; and (MC2), in the presence of an association in the source model with an association end attached to the flattened superclass and upper bound ux_i = 1, we must ensure that an instance of the superclass is related through the associations that were introduced in the flattening operation to at most one instance of the union of all subclasses. In this case, considering both conditions, an instance of SupplyContract is related to exactly one instance in the union of PersonalCustomer and CorporateCustomer. A proof that these required (missing) constraints MC1 and MC2 indeed follow from the semantics of the original model and the definition of flattening is available in the Supplementary material. We employed automated theorem provers in the TPTP system. See flattening.p, in the scope of the flattening of Customer for the formalization in first-order logics in the TPTP syntax (and corresponding formalization in CLIF). Proof reports are available (Vampire 4.6.1 Automated Theorem Prover).

3.2. Lifting

In the lifting operation, shown in Table 2, every attribute of the class that is lifted (SubType_y in gray) is migrated to each direct superclass, with lower bound cardinality (l_k) relaxed to 0 (i.e., mandatory attributes become optional). Upper bound cardinality (u_k) is maintained. Association ends attached to the lifted class are migrated to each direct superclass. The lower bound cardinality constraints of the association ends attached to classes other than the lifted class (RelatedType_i) (if any) are relaxed to 0 in the same vein of the attributes of the lifted subclass. When no generalization set is present a Boolean attribute is added to each superclass, to indicate whether the instance of the superclass instantiates the lifted class (isSubType_y).

TABLE 2

Table 2. The lifting operation.

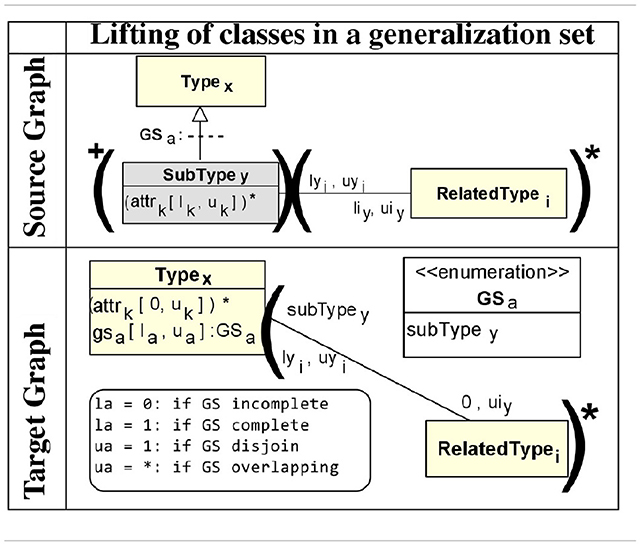

If a generalization set is used, a discriminator enumeration is created (GS_a) with labels corresponding to each SubType_y of the generalization set (see Table 3). An attribute with that discriminator type is added to each superclass (gs_a). Its cardinality follows the generalization set: it is optional for incomplete generalization sets (and mandatory otherwise); and multivalued for overlapping generalization sets (and monovalued otherwise).

TABLE 3

Table 3. The lifting operation with a generalization set.

A precondition to the application of lifting is that the class is a leaf of the present hierarchy (i.e., it has no subclass), and, if it is a subclass in a generalization set, its siblings in the generalization set must also be leaves of the present hierarchy. Approaches that rely on lifting (such as one table per hierarchy) usually rule out multiple inheritance, since in the presence of multiple inheritance, the preservation of the cardinalities (ly_i and uy_i becomes problematic) in the lifting step. Here, we operate under the assumption that multiple inheritance is admissible, but that further lifting steps will end up consolidating the various associations introduced due to lifting to various subclasses into a single one; in other words, we assume that lifted classes are ultimately indirect specializations of a single class. In the one table per hierarchy approach, this means that hierarchies are disjoint (i.e., there is no class that specializes more than one top-level class); in the one table per kind approach, this means that kinds are disjoint (i.e., there is no class that specializes more than a class).

The result of the lifting of CorporateCustomer, PersonalCustomer, Child, Adult, and Contractor is shown in Figure 5. The lifting of Contractor to Organization adds a discriminator isContractor to that superclass and leads to a relaxed minimum cardinality of 0 in the association end of hasContractor attached to SupplyContract. This is because not all organizations are involved in a SupplyContract. The lifting of CorporateCustomer adds a discriminator isCorporateCustomer to Organization along with the (now optional) attributes creditRating and creditLimit. The figure shows the accumulated results of lifting of PersonalCustomer to Adult and the lifting of Adult to Person. The lifting of the LifePhase generalization set leads to the introduction of a lifePhase attribute typed with a corresponding enumeration. The multiplicity of the discriminator lifePhase is 1 given the original generalization set is {disjoint, complete} (we assume the cardinality [1..1] is the default multiplicity, and hence omit it from mandatory monovalued attributes in all diagrams).

FIGURE 5

Figure 5. Result of the lifting of Child, Adult, PersonalCustomer, CorporateCustomer, and Contractor.

3.2.1. Missing constraints due to lifted attributes

The lifting of attributes has the following consequences: (MC3) mandatory attributes are now optional, a situation which, although necessary—since not all instances of the superclass are instances of the lifted subclass—is inadmissible for instances of the lifted subclass according to the original model. The example model after lifting in Figure 5 admits the possibility that a personal customer represented as an instance of Person is assigned no value for creditRating. Further, (MC4) instances of the superclass (even those that do not represent instances of a lifted subclass) may indiscriminately be given values to the lifted attributes. In the example model, it is possible for a child represented as an instance of Person to be assigned a value for creditCard, even though this was inadmissible in the original model. The creation of a discriminator attribute in the lifting process provides us the means to formulate missing constraints to enforce the semantics of the original model: assignment of a value to a lifted attribute must be admitted conditionally on the value of the discriminator. In the model shown in Figure 5, due to the lifting of CorporateCustomer to Organization, we need to condition the assignment of creditRating and creditLimit to those instances of Organization for which isCorporateCustomer=true. Since we have two applications of lifting of PersonalCustomer to Adult and then from Adult to Person, we have the condition that persons may be assigned a creditRating and a creditCard only when isPersonalCustomer=true (i) and that is only admissible when lifePhase=ADULT (ii). Note that discriminator attributes may also be subject to lifting in further applications of the operation, and will also result in additional occurrences of MC4 in those cases.

3.2.2. Missing constraints due to migration of association ends to superclasses

The lifting operation results in the migration of association ends from the lifted subclasses to their superclasses. As a consequence, analogously to mandatory attributes, the association ends opposite to the superclass must have their lower bound cardinality (li_y) relaxed. Again, the discriminator attribute (isSubType_y or gs_a) gives us the means to enforce the semantics of the association is in the source model: (MC5), in case li_y = 1, we need to introduce a constraint that, for each instance of the superclass, if isSubType_y = true (or gs_a is equal to or includes subType_y), then that instance of the superclass must be associated to one instance of the related class (RelatedType_i). (MC6), only those instances with isSubType_y = true (or gs_a is equal to or includes subType_y) may be associated to an instance of the related class (RelatedType_i), to ensure the association end typing is respected. In the model shown in Figure 5, due to the lifting of CorporateCustomer to Organization, we need to condition the association of an organization to a supply contract through hasCorporateCustomer to those instances of Organization for which isCorporateCustomer=true. Likewise, due to the lifting of Contractor to Organization, we need to condition the association of an organization to a supply contract through hasContractor to those instances of Organization for which isContractor=true. Since we have two applications of lifting of PersonalCustomer to Adult and then from Adult to Person, we have the condition that persons must be associated with one SupplyContract when isPersonalCustomer=true (i) and that is only admissible when lifePhase=ADULT (ii). A demonstration that these required (missing) constraints (MC3–MC6) indeed follow from the semantics of the original model and the definition of lifting is available in the Supplementary material (see lifting.p, in the scope of the lifting of CorporateCustomer).

3.3. Translating generalizations into schemas

The literature on EER to relational schema mapping—such as the seminal work of Teorey et al. (1986)—has early on identified missing integrity constraints when translating EER diagrams with generalization and subset hierarchies into relational schemas. They have concentrated their efforts in the one table per entity strategy, which does not apply any operations such as flattening and lifting. In any case, the missing constraints they have identified must be taken into account in any transformation that still preserves generalizations in the last translation step (e.g., one table per class, one table per concrete class).

In these transformations, there is an emulation of generalization in the relational schema. A table corresponding to a subclass has as primary key a foreign key that refers to entries in the table corresponding to the topmost superclass. (In the case of multiple inheritance of classes in the top of the hierarchy, this becomes a composite key). Let us consider for instance the model in Figure 4, which is the result of the flattening of abstract classes, and hence is the class model to be translated into a relational schema in the one table per concrete class approach. In the translation of this model (depicted earlier in Figure 2), the table ADULT corresponding to the concrete class Adult has a foreign key person_id which is the primary key of PERSON, and likewise for CUSTOMER and PERSONAL_CUSTOMER. A similar solution applies to the other subclasses in the model.

3.3.1. MC7 missing constraint due to emulation of a generalization

The emulation of generalization provides some guarantees of referential integrity through the use of keys: an entry representing a subclass instance will always be properly related to its superclasses. However, the following missing integrity constraint is identified by Teorey et al. (1986) (Section 3.1.4, with terminology adjusted here): when a generalization set is disjoint, it must be inadmissible for two tables corresponding to disjoint subclasses to have entries that refer to the same “superclass key.” This is required to preserve the semantics of disjointness and applies in our example, to the tables CHILD and ADULT in the one table per concrete class approach. Note that this constraint is not required in approaches that remove all generalizations by progressively applying flattening and lifting (e.g., one table per leaf class, one table per hierarchy, and one table per kind).

4. The instrumented transformation

As we have observed in the previous section, the operations produce cumulative effects throughout the transformation process. We discuss here how this process is operationalized in our implementation by maintaining a set of traces, which are updated when each of the two operations are applied. We also show the last step of the overall conceptual model to relational schema transformation, which entails the production of triggers to enforce the accumulated constraints from the final set of traces and the refactored model.

4.1. Transformation process

Three class-to-table approaches have been implemented in a plugin to Visual Paradigm²: one table per class, one table per concrete class, and one table per kind. There are no manual steps in our approach, and the implementation applies the three transformation strategies fully automatically. The three approaches are accommodated by applying flattening and lifting operations in different orders and under different conditions. In the one table per kind and in one table per concrete class, first, all abstract classes are flattened, from the top of the hierarchy until concrete classes are reached. In the one table per kind, leaf concrete classes are lifted until all only kinds remain. In all strategies, the resulting refactored class model is then translated into a relational schema. (In the case of the one table per class approach, no operations of flattening and lifting are performed, and hence translation happens in the original model).

4.2. Traces

We have employed a trace table following the model shown in Figure 6. A TraceTable is produced in each application of the transformation and consists of a collection of TraceSets for each source class in the model. Each TraceSet identifies the set of Traces to target classes. The transformation begins by initializing the TraceTable with one TraceSet for each source class in the model each of which containing a single Trace to the same class. As the transformation progresses, traces in a trace set are updated. Required Filters are added in case of lifting, as will be detailed in the sequel.

FIGURE 6

Figure 6. Trace table structure.

Figure 7 shows the trace sets contained in the initial TraceTable as an object diagram. For brevity, the traces for Person, Organization, and SupplyContract classes will be omitted as they remain unchanged throughout the process to apply the one table per kind approach, which we adopt in this example, as it applies both flattening (with an intermediate result that reflects one table per concrete class) and lifting.

FIGURE 7

Figure 7. Initial trace table.

In our running example, NamedEntity will be flattened to the Person and Organization classes. This means that NamedEntity will be identified by the union of all instances of Person and Organization (rule presented in Section 3.1). Thereby, is necessary to replace the traces that currently refer to the flattened class with those referring to the subclasses in the flattening operation. The same is true for the Customer class and its subclasses. The result of this updates are shown in gray in Figure 8. (If we are following the one table per concrete class approach, this would be the final state of the trace table).

FIGURE 8

Figure 8. Trace table after the flattening of NamedEntity and Customer.

When lifting is performed on a subclass (to carry out one table per kind strategy at this point in the transformation), the traces currently referring to the lifted subclass are updated with traces to the superclasses. Filters are added according to the discriminators required as discussed in Section 3. The set of mandatory properties that were lifted are added to the filter. For example, the lifting of thePersonalCustomer class indicates that it becomes identified in the Adult class when the isPersonalCustomer attribute is equal to true, requiring the filling of the creditRating and creditCard attributes. As the PersonalCustomer class no longer exists in the resulting model, every reference to it in the trace table is updated to the target class of the lifting process (in this case, Adult). Thereby, the PersonalCustomer and Customer source classes that traced PersonalCustomer now trace Adult (including filters). Figure 9 shows the result of the lifting of PersonalCustomer, CorporateCustomer, and Contractor, whose lifting preconditions are established. The trace for source class CorporateCustomer is updated to Organization. The traces of source class Customer is also updated, as it targeted the lifted classes. It now includes a trace to Adult and a trace to Organization, since the previously traced PersonalCustomer and CorporateCustomer have been lifted to those classes. The trace for Contractor is updated to Organization. In all cases filters are added to identify the subclass in the superclass.

FIGURE 9

Figure 9. Trace table after the lifting of PersonalCustomer, CorporateCustomer and Contractor.

Finally, Figure 10 shows the lifting of Child and Adult. Note that since Adult already had a filter (in the trace set of PersonalCustomer), this filter is preserved, and the new one is added (lifePhase=ADULT). This is because the final conditions that must be imposed on the target class are the conjunction of these filters. At this point, no further operations are applicable in the one table per kind approach and we have the final state of the trace table for translation to the relational schema. Each class in the set of target classes referred to in the trace table corresponds to a table in the resulting relational schema.

FIGURE 10

Figure 10. Trace table after the lifting operation on the generalization set with Child and Adult.

4.3. Generation of triggers

We focus here on the generation of triggers to detect violations of the missing constraints that were identified in Section 3. The trigger code is generated by using the final state of the trace table and the source model.

4.3.1. Consequences of lifting

The process goes through the trace table to identify the target classes that have filters that were the result of the lifting of mandatory attributes; for example, isPersonalCustomer for the target class Person and isCorporateCustomer for Organization. A trigger specification must then detect violations: if (i) the discriminator attribute in the filter matches the filter value and at the same time any of the columns corresponding to mandatory attributes are not filled in (line 6 in Listing 1 for the PERSON table and the filter on isPersonCustomer), addressing the missing constraint MC3; or, if (ii) the discriminator attribute in the filter does not match the filter value and any of the columns corresponding to mandatory attributes are filled in (line 8 in Listing 1), addressing the missing constraint MC4. (While the trigger shown in the listing applies to inserts on PERSON, a trigger with the same body is included for any subsequent updates. The listing of that trigger is omitted here for brevity).

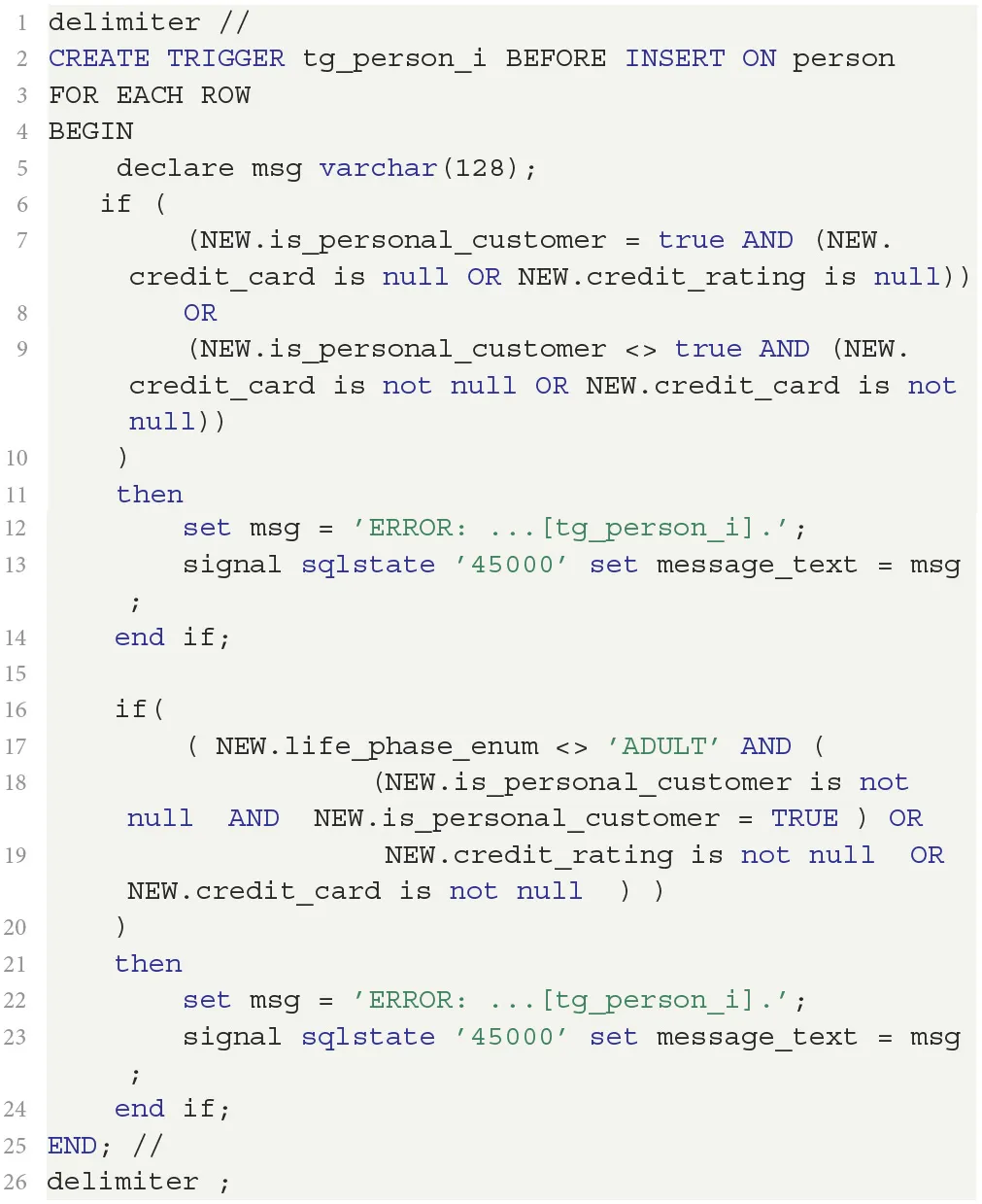

Listing 1. Trigger for the PERSON table.

The process also identifies, for each target class (here SupplyContract, Person, and Organization), whether they were originally associated with other classes in the source model. When the associated source classes have filters in their respective trace sets (here Contractor and Customer for SupplyContract), this means the associated source classes were subject to lifting, and possible violations of the original semantics need to be detected according to the missing constraints identified in Section 3.2.2. The following violations must be detected in the trigger: (i) if an entry in the table corresponding to the target class (such as SUPPLY_CONTRACT) is associated to a lifted source class (such as Contractor), but the required filters associated to that source class are not satisfied (lines 7–19 of Listing 2 for SUPPLY_CONTRACT in its original association with a Contractor; lines 21–33 for the original association with a Customer concerning its trace to Organization, and lines 35–48 for the original association with a Customer concerning its trace to Person). This addresses MC6.

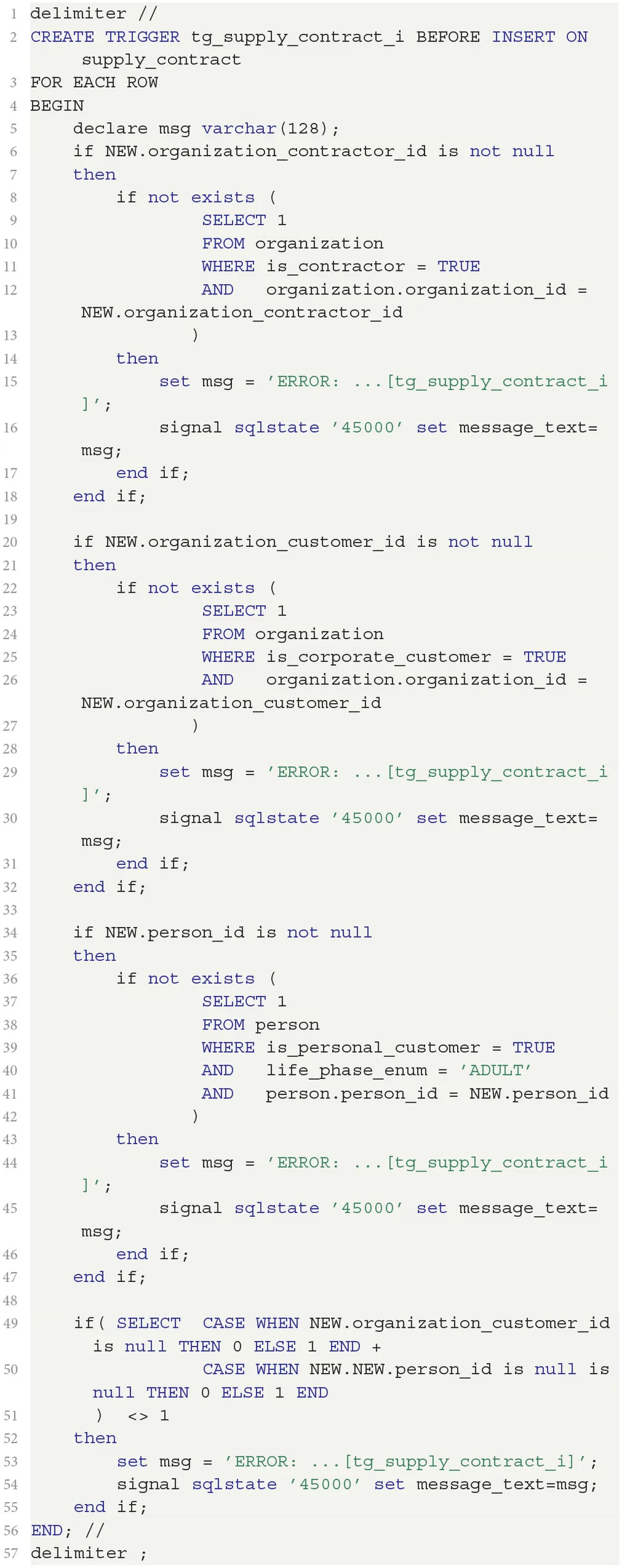

Listing 2. Trigger for the SUPPLY_CONTRACT table.

4.3.2. Consequences of flattening

The process also goes through the trace table to identify those trace sets of originally associated classes with more than one trace, which is a consequence of flattening. In our example, this occurs for the association between SupplyContract and Customer. As discussed in Section 3.1 (under “Missing constraints”), we must ensure that a supply contract is associated with exactly one instance in the union of PersonalCustomer and CorporateCustomer in lines 50–56 of Listing 2. This addresses the missing constraints MC1 and MC2.

A listing for the trigger of the ORGANIZATION table is provided in the Supplementary material.

4.4. Implementation restrictions

Whenever associations have lower bound cardinality 1 in both association ends, there is a mutual dependency between the instances of the associated classes. This is the case in the example of the associations between SupplyContract and Customer and between SupplyContract and Contractor. In this case, enforcing both MC5 and MC6 after each insert becomes problematic, e.g., inserting a row in the SUPPLY_CONTRACT table would require an insertion in the CUSTOMER table and vice-versa. Unfortunately, this would require related inserts to be part of a single transaction, and a database implementation with transaction-level triggers, which is not the case here. Hence, we have opted not to enforce MC5 and MC6 in tandem in the implemented trigger generation. Violations of the missing constraint (MC5 in this case) could be detected by a regular query that can easily be generated from the trace table following the same procedure to obtain the expressions concerning the triggering of MC6.

We have not yet implemented support for detecting violations of MC7, which applies to the emulation of specialization with keys in disjoint hierarchies. As discussed in Section 3.3, the constraint is not required in one table per kind, which has been the focus of our efforts. To support this constraint in general, further instrumentation of the transformation process is required, in particular due to flattening involving disjoint generalization sets. This is not necessary for the particular case of OntoUML models, since the required conditions for the relational schema can be derived directly from the source model by inspecting the classes stereotyped ≪kind≫ and ≪relator≫ along with generalization set constraints.

5. Implementation and tests

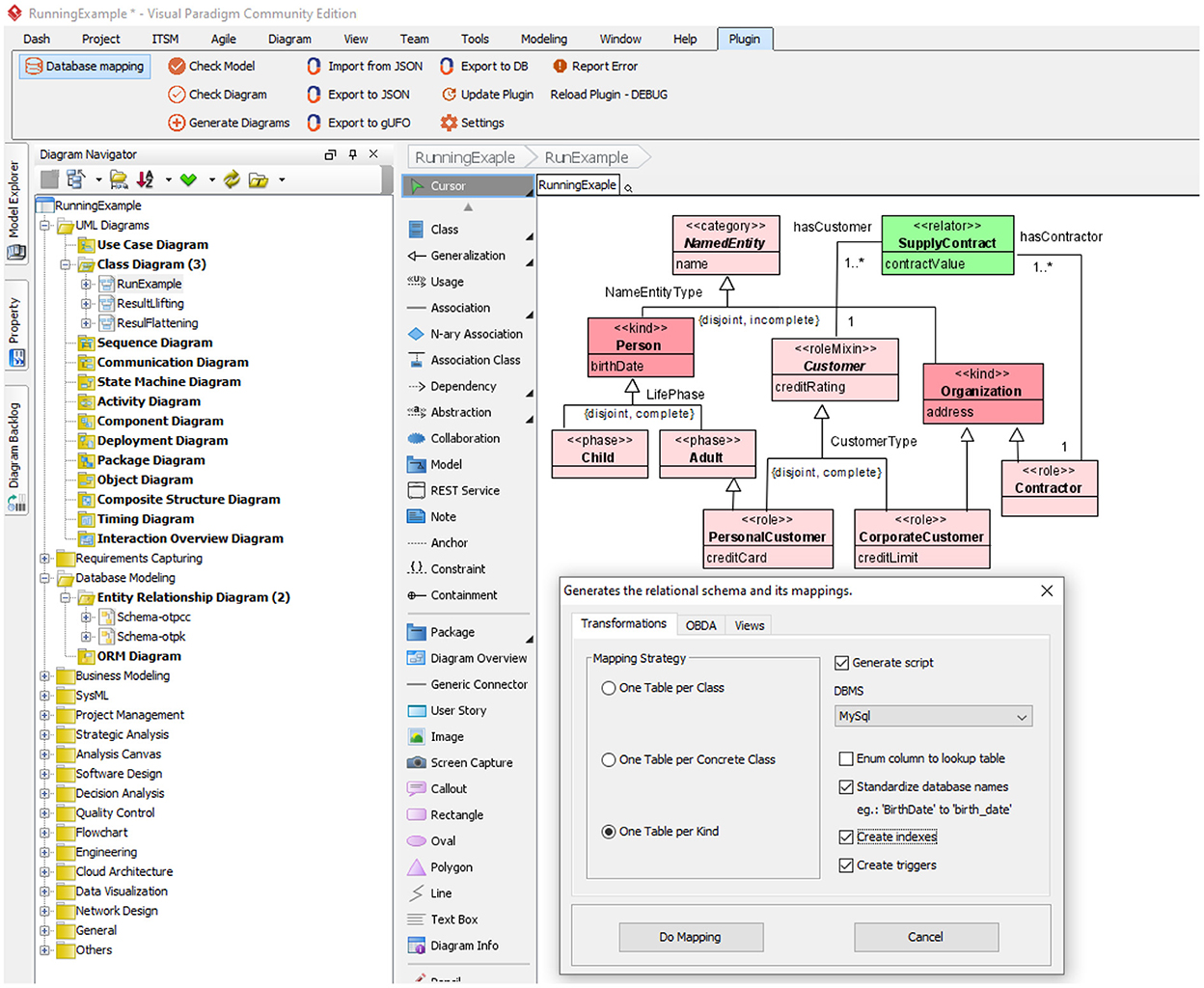

Figure 11 contains a screenshot of the implemented object-relational plugin for Visual Paradigm. The menu at the top includes the “Database mapping” button to access the functionalities of the plugin. (The other buttons displayed are part of the OntoUML plugin.³) The implementation supports three transformation approaches (one table per class, one table per concrete class, and one table per kind); different target DBMSs for the generated scripts (MySql, Postgres, and standard SQL 1999); and some optimization and customization parameters.

FIGURE 11

Figure 11. A screenshot of the object-relational plugin interface.

In addition to the formal specification and automated proofs for the flattening and lifting operations, we have performed a number of tests on the implemented transformation. We employed in the tests the first 30 projects published in the OntoUML repository (Barcelos et al., 2022), which are produced by third parties (with a few exceptions in which some of the authors of this paper were involved). We used the one table per kind approach, as it exercises both lifting and flattening. MySQL was selected as DBMS for the tests. All generated scripts and triggers are provided in the Supplementary material.

Table 4 provides a quantitative overview of the results, reporting the number of generated tables (excluding those used to represent N:N associations and multivalued attributes, which are created regardless of the chosen object-relational approach) as well as the number of constraints enforced by the resulting artifacts. Constraints MC1 and MC2 are reported together because the same generated command validates both cases (see, e.g., lines 50–56 of Listing 2). The same occurs for MC3 and MC4. We excluded from the tests 8 of the first 30 projects due to (i) syntactic errors in the source models, (ii) presence of reserved keywords in labels, or (iii) complex handling of datatypes (addressing complex datatype support and treating reserved keywords is not yet implemented in the prototype).

TABLE 4

Table 4. Transformation process results.

As expected, the transformation of some projects did not generate flattening-related MC1 and MC2 constraints because they do not have associations involving abstract classes. These constraints are quite numerous however in projects that include classes defined at a high level of generality (typical of “core ontologies”) such as “aguiar2019oco,” “aires2022valuenetworks-geo,” “amaral2019rot,” and “amaral2020rome.” Further, some of the projects do not include MC3 and MC4 because they have no attributes in lifted classes or have no concrete class hierarchies of depth greater than two (in which discriminators from a previous lifting round are themselves lifted). MC6 occurrences are the most common as they relate to the typing of associations in lifted classes (and thus are required for every association involving lifted classes independently of the cardinalities). The only projects with no occurrences of MC6 are “barros2020programming” (as it is a pure taxonomy with no associations) and “chartered-service” (that has associations, but does not employ specialization).

We have selected one project for exhaustive inspection, namely “aguiar2019ooco”, which has the largest number of classes in the sample and for which all types of constraints were generated. We have manually inspected the source model to derive test cases. The test cases (reported in the Supplementary material) cover all of the constraints required to preserve the semantics of the source model in the present of lifting and flattening. Sixty test cases consist in attempting to insert or update data that would offend the original model semantics, and hence a pass in these test cases is an insert or update error raised by the generated triggers (the number of test cases does not correspond to the total number of missing constraints because some test cases check inserts only, some other test cases check updates only, and a number of those concern more than one missing constraint). The test cases jointly cover 100% of the conditions (IFs) in the generated triggers for the model. Another 36 test cases were added to insert or update data that does not offend the original model semantics, to make sure that they would not result in unintended insert or update errors.

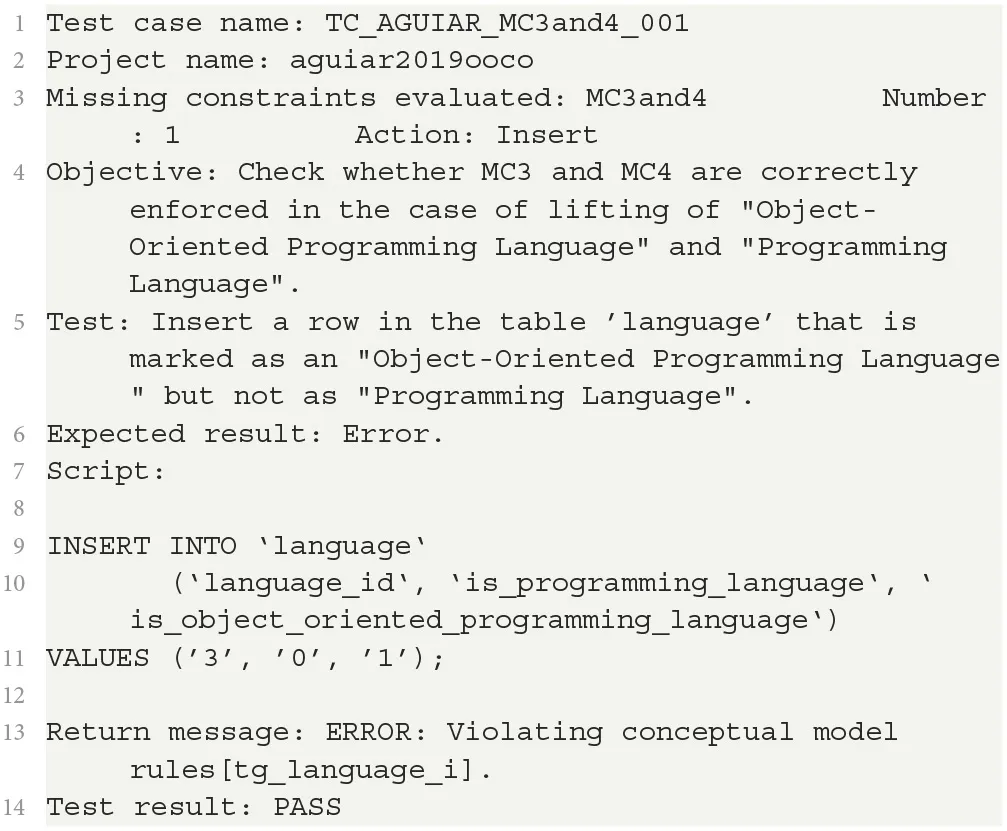

An example of test case (TC_AGUIAR_MC3and4_001) is shown in Listing 3, that exercises the database corresponding to the fragment shown in Figure 12 (from “aguiar2019ooco”). As a result of the lifting process, two discriminator columns are introduced in the table corresponding to the Language kind. The is_object_oriented_programming_language discriminator column is introduced as a result of the first application of lifting, and the is_programming_language is introduced in the second application of lifting. As a consequence, the column is_object_oriented_programming_language can only be given a value when is_programming_language = “1” (i.e., corresponds to true). The test case attempts to insert a new language, with identifier 3 (language_id = 3), marked as an object-oriented programming language (is_object_oriented_programming_language = “1”), but not marking it as a programming language (is_programming_language = “0”). This should result in a violation of the insert trigger for the language table.

Listing 3. Example test case TC_AGUIAR_MC3and4_001.

FIGURE 12

Figure 12. Fragment of the “aguiar2019ooco” project that results in iterated lifting.

We have performed some simple tests to assess the performance overhead imposed with the introduction of the validation triggers. We selected the table from our test set that is accompanied by the largest number of constraints in triggers, namely the METHOD_MEMBER_FUNCTION table in “aguiar2019ooco.” This table's triggers enforce seven constraints that resulted from lifting and flattening. We have contrasted the performance of 10 individual record inserts in the table with and without the triggers. We have found the following results: 10 ms on average for an insert in the table when the triggers are enabled; and 9 ms on average for an insert when the triggers are disabled. This indicates the overhead is not prohibitive. Further performance analysis in actual applications is straightforward, since triggers can be disabled and regular operation (that does not violate constraints) assessed directly.

Finally, in order to assess the performance of the transformation itself (design time performance), we have measured the time required to generate all relational schemas and triggers in the largest models in our test set. The results are presented in Table 5, showing the response times in seconds for the generation of the schema and of the scripts for the three largest projects in the test set. Measurements were obtained in a Windows 10 notebook with an i3 1.8 GHz processor (third generation), 250 GB SSD and 8 GB RAM.

TABLE 5

Table 5. Transformation design time performance.

6. Related work

Banerjee et al. (1987) propose well-defined rules that cover many aspects of object-oriented database schema manipulations, including “dropping an existing class.” Differently from our work, their overall objective is to perform evolutionary manipulations of object-oriented schemas, so there is no concern for preservation of all aspects of the original model. The same can be said of several other works, like those of Penney and Stein (1987) and Lerner and Habermann (1990). They also rely on the solution space of object-oriented database systems.

Some work on refactoring strategies on UML class diagrams aim to preserve the syntactic correctness and/or semantics of the original model. For example, Markovic and Baar (2005) detail some refactoring rules along with their impacts on OCL constraints. Baar and Markovic (2006) focus on the preservation of semantics in the face of a “MoveAttribute” operation. As discussed in Section 3 concerning the refactoring presented by Fowler et al. (2012), the intent here is also model editing, and so the supported operations do not match those we require for relational schema realization.

There are also different approaches that aim to obtain SQL implementations of explicitly formulated OCL constraints. Some of these approaches, e.g., OCL2SQL (Demuth and Hußmann, 1999; Demuth et al., 2001), Incremental OCL constraints checking (Oriol and Teniente, 2014) and OCL_FO (Franconi et al., 2014) are focused on mapping OCL Boolean expressions only, while others such as SQL-PL4OCL (Egea and Dania, 2017) and MySQL4OCL (Egea et al., 2010) consider OCL expressions in general. One other approach, namely, GeoUML (Pelagatti et al., 2009) considers the SQL implementation of special-purpose OCL constraints for expressing geo-spatial relations.

Some ontology-based approaches focus on: (i) the relational realization of computational OWL ontologies, or (ii) on the access of data in relational databases using computational ontologies. In the former group, we have approaches such as those of Vyšniauskas et al. (2011) and Afzal et al. (2016), which implement the one table per class strategy, thus, mapping each OWL class to a relational table. In the latter group, we have Ontology-Based Data Access (OBDA) techniques (Poggi et al., 2008) that work with the translation of high-level queries into SQL queries. Users of an OBDA solution are required to write a mapping specification that establishes how entities represented in the relational database should be mapped to instances of classes in a computational (RDF- or OWL-based) ontology. The OBDA solution then enables the expression of queries in terms of the ontology, e.g., using SPARQL. Each query is rewritten by the OBDA solution following the manually-written mappings into SQL queries that are executed at the database. Results of the query are then mapped back to triples and consumed by the user using the vocabulary established at the ontology. See Guidoni et al. (2021) for an integration of ODBA techniques with the forward engineering of relational schemas as described in this paper. In that work, we provide an approach to automatically generate the otherwise manually-rewritten mappings. These mappings are used by the ODBA solution to automatically rewrite queries expressed in terms of the source conceptual model. This includes the automatic rewriting of polymorphic queries expressed in terms of superclasses that are flattened out.

There is a variety of studies focusing on mapping structural conceptual models, such as EER diagrams or UML class diagrams, into relational schemas, such as those performed by Shah and Slaughter (2003), Hull and King (1987), Teorey et al. (1986), and Pergl et al. (2013). Shah and Slaughter (2003) discuss the various class-to-table strategies but do not provide detailed model transformation rules for realizing these strategies, and do not consider the consequences of the strategies in terms of preservation of semantics. The seminal study presented by Teorey et al. (1986) proposes transformation rules to bridge the constructs of EER diagrams with those of relational schemas, identifying missing constraints for disjoint generalizations as we discussed in Section 3.3. More recently, Pergl et al. (2013) have discussed how to transform OntoUML models into relational schemas. In his Ph.D. thesis, Rybola (2017) proposes the transformation process, presenting quite sophisticated ways of preserving integrity constraints. Validation triggers were proposed to preserve the semantics of the original constructs from the source OntoUML model (modal aspects of the stereotypes which we do not address here). A common trait of these approaches is that they consider solely the one table per class strategy for transforming generalization hierarchies. While this yields a straightforward relation between the conceptual model and the relational schema, using the resulting relational schema may be cumbersome depending on the source conceptual model, in particular in the presence of generalization hierarchies, which are emulated as we discussed in Section 3.3. For example, retrieving all the attributes of an instance of a leaf class requires joins involving a number tables equal to the depth of the whole specialization hierarchy. Because of this, these tools are usually employed by providing a UML class diagram that is in fact a visual representation of the relational schema: the model is produced manually at a lower level of abstraction, with automation restricted to straightforward translation. In some cases, stereotypes for primary and foreign keys are introduced in the notation (Shah and Slaughter, 2003).

Alloy is commonly used in the literature to validate semantic changes in UML class models. For example, the work of Cunha et al. (2015) proposes to identify semantic losses through bidirectional transformations using Alloy. Their job consists of performing transformations for Alloy through the UML and OCL specifications, and to translate them back to UML and OCL, thus allowing to verify and validate the results of a transformation in Alloy. Gheyi et al. (2007) present a catalog of primitive transformations to predict whether a change in the source model will cause semantic loss. To do so, the authors formalize a static semantics for Alloy to match the source model semantics. With this, it is possible to predict whether any change in the source model will cause semantic losses. These approaches provide useful general frameworks which could be employed to formalize the operations we have discussed here.

Finally, there are a number of model transformation specification languages in the literature, including most prominently ATL (Jouault and Kurtev, 2005), the Epsilon Transformation Language (ETL) (Kolovos et al., 2008) and those solutions implementing the MOF QVT specification (Kurtev, 2007). These languages focus on the specification of a model transformation in terms of the constructs present in source and target metamodels. Model transformation specifications written in these languages are usually interpreted with a corresponding transformation engine to execute the transformation of a specific source model. Model transformation languages operate at the abstract syntax level and are neutral with respect to the semantics of the source and target languages. We focus here instead on the content of the transformation, i.e., we are concerned with the design decisions that can be generalized into a specific model transformation and with the semantics of the source model and its correspondence with the resulting relational schema. In principle, any of these transformation languages could have been used for the implementation of the transformation we present here.

7. Conclusions

We have focused here on the consequences of various class-to-table transformation strategies, such that the relational schema can be complemented with integrity constraints that reflect the source conceptual model constraints. We have formulated the approach in terms of the consequences of flattening and lifting thus account for various transformation strategies in the literature, including one table per concrete class, one table per leaf class, one table per kind, one table per hierarchy.

A common characteristic of many approaches in the literature (Teorey et al., 1986; Hull and King, 1987; Shah and Slaughter, 2003; Pergl et al., 2013) is that they consider solely the one table per class strategy for transforming generalization hierarchies, which is also the approach adopted in the various commercial tools to perform this kind of transformation. A result is that the conceptual model is in fact produced manually by the modeler at a lower level of abstraction, with automation restricted to straightforward translation. That is detrimental to the objectives of model-driven development, including abstraction and platform-independence. In this light, our work contributes to a fuller application of model-driven transformation of conceptual models, by effectively decoupling conceptual models from their implementation.

We have elaborated a formalization (see Supplementary material) based on a simple translational semantics to demonstrate that the application of the operations of flattening and lifting does not introduce elements that contradict the original source model (axioms added due to flattening and lifting do not lead to an unsatisfiable theory). Further, the formalization we have provided demonstrates that the missing constraints are indeed required to preserve constraints implied by the model before the application of each operation. Despite that, more general formalization would be desirable. In particular, we have yet to demonstrate formally that the set of missing constraints we have identified is complete with respect to the original model.

Approaches that use flattening require polymorphic queries to be written with unions of the (base) tables corresponding to the subclasses of the flattened class. For example, queries involving instances of Customer in our running example must be written in terms of the union of PERSONAL_CUSTOMER and CORPORATE_CUSTOMER in the one table per concrete class approach. We have already worked out an approach to be reported soon based on the generation of database views that produce the unions that are required for polymorphic queries involving classes that are flattened. This simplifies polymorphic query rewriting, and reflects flattened classes at the level of the relational schema. This approach also leverages the trace sets we have discussed in this paper. See Guidoni et al. (2021) for a solution for automatic polymorphic query rewriting based on OBDA techniques integrated with the approach described in this paper.

Approaches based on lifting further require the user to perform queries involving instances of lifted subclasses to be written with filters based on the generated discriminators. This is also addressed in our view generation approach, and is supported by the OBDA-based approach in Guidoni et al. (2021).

An important limitation of the approach we discuss here is that we do not deal with existing (OCL) constraints that need to be rewritten in the transformation process due to lifting and flattening. (For example, consider the constraint that a contractor should not be a customer of itself in the scope of a supply contract). We expect we can profit from query rewriting strategies in the literature—such as those used in Ontology-Based Data Access (Calvanese et al., 2017)—to address this in the future. We also aim to investigate to what extent we can leverage the aforementioned views such that OCL invariants can be directly enforced at the database level with references to those views instead of rewriting. We also do not address behavioral and dynamic aspects, and provide no special treatment for whole-part relations.

Data availability statement

The original contributions presented in the study are included in the article/Supplementary material, further inquiries can be directed to the corresponding author/s.

Author contributions

GLG implemented the transformation and performed the tests. JPAA contributed with the formalization. All authors contributed to the conception of the approach, manuscript revision, read, and approved the submitted version.

Funding

This research was partly funded by Brazilian funding agencies CNPq (grants numbers 313687/2020-0 and 407235/2017-5) and CAPES (grant number 23038.028816/2016-41).

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher's note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fcomp.2022.1020168/full#supplementary-material
