Terpenoids from Kiwi endophytic fungus Bipolaris sp. and their antibacterial activity against Pseudomonas syringae pv. actinidiae

A chemical investigation on the kiwi endophytic fungus Bipolaris sp. Resulted in the isolation of eight new terpenoids (1–8) and five known analogues (9–13). Compounds 1–5 are novel sativene sesquiterpenoids containing three additional skeletal carbons, while compounds 4 and 5 are rare dimers. Compounds 6–8 and 13 are sesterterpenoids that have been identified from this species for the first time. Compounds 4 and 5 showed antibacterial activity against kiwifruit canker pathogen Pseudomonas syringae pv. Actinidiae (Psa) with MIC values of 32 and 64 μg/ml, respectively.

1 Introduction

Kiwifruit is an important global food source produced at a scale of 4 million tons per year (Richardson et al., 2018; Dolly et al., 2021). However, the kiwi plant (Actinidia chinensis Planch.) is severely attacked by canker caused by the pathogenic bacterium Pseudomonas syringae pv. Actinidiae (Psa) (Renzi et al., 2012; Scortichini et al., 2012). As one of the major countries in the kiwifruit industry, China’s kiwifruit has also suffered extensive damage from canker disease, causing huge economic losses (Serizawa et al., 1989; McCann et al., 2017; Vanneste, 2017). Traditional Psa inhibitors such as copper-based preparations and streptomycin are not friendly to the environment and even cause drug resistance (Bardas et al., 2010; Colombi et al., 2017; Scortichini, 2018; Wicaksono et al., 2018). Therefore, the development of new antibacterial agents is highly desireable.

Endophytes and hosts have formed a close interrelationship in the long-term evolution process, making endophytes an excellent resource for the production of natural antibacterial ingredients (Kusari et al., 2012; Gouda et al., 2016; Gupta et al., 2020). Our strategy intends to explore the active substances against Psa from the metabolites of the endophytic bacteria of the kiwifruit itself. Some progress has been made in our previous research. For example, 3-decalinoyltetramic acids and cytochalasins from the kiwifruit endophytic fungus Zopfiella sp. Showed anti-Psa activity (Yi et al., 2021; Zhang et al., 2021), while imidazole alkaloids from Fusarium tricinctum were characterized as anti-Psa agents (Ma et al., 2022). Bipolaris sp. Is also an endophytic fungus that was characterized from health kiwi plant. Our previous chemical investigation on this fungus yielded a series sesquiterpenoids (bipolarisorokins A–I) and xanthones with anti-Psa properties from the liquid fermented extract (Yu et al., 2022). In order to search for more anti-Psa agents from this fungus, we further investigated the fermentation products from the culture grown on rice medium. As a result, eight new terpenoids including five sesquiterpenoids (1–5) and three new sesterterpenoids (6–8), as well as five known analogues (9–13), have been obtained (Figure 1). Their structures have been identified by extensive spectroscopic methods, as well as quantum chemical calculations. All compounds were evaluated for their anti-Psa activity. Herein, the isolation, structure elucidation and anti-Psa activity of these isolates are reported.

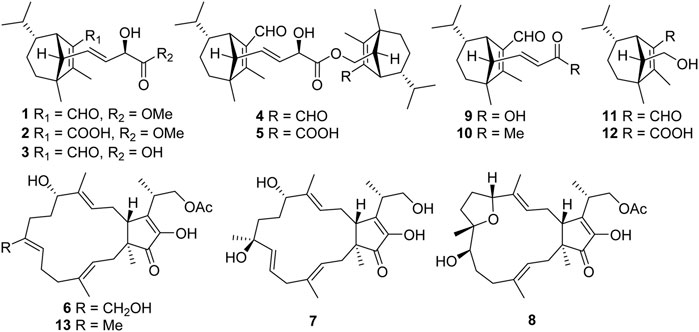

FIGURE 1

FIGURE 1. Structures of compounds 1–13.

2 Experimental section

2.1 General experimental procedures

Optical rotations were measured with an Autopol IV polarimeter (Rudolph, Hackettstown, NJ, United States ). UV spectra were obtained using a double beam spectrophotometer UH5300 (Hitachi High-Technologies, Tokyo, Japan). 1D and 2D NMR spectra were run on a Bruker Avance III 600 MHz spectrometer with TMS as an internal standard. Chemical shifts (δ) were expressed in ppm with references to the solvent signals. High resolution electrospray ionization mass spectra (HR-ESIMS) were recorded on a LC-MS system consisting of a Q Exactive™ Orbitrap mass spectrometer with an HRESI ion source (ThermoFisher Scientific, Bremen, Germany) used in ultra-high-resolution mode (140,000 at m/z 200) and a UPLC system (Dionex UltiMate 3000 RSLC, ThermoFisher Scientific, Bremen, Germany). Column chromatography (CC) was performed on silica gel (200–300 mesh, Qingdao Marine Chemical Ltd., Qingdao, China), RP-18 gel (20–45 μm, Fuji Silysia Chemical Ltd., Kasugai, Japan), and Sephadex LH-20 (Pharmacia Fine Chemical Co., Ltd., Sweden). Medium-pressure liquid chromatography (MPLC) was performed on a Büchi Sepacore System equipped with a pump manager C-615, pump modules C-605, and a fraction collector C-660 (Büchi Labortechnik AG, Flawil, Switzerland). Preparative high-performance liquid chromatography (prep-HPLC) was performed on an Agilent 1,260 liquid chromatography system equipped with Zorbax SB-C18 columns (5 μm, 9.4 mm × 150 mm, or 21.2 mm × 150 mm) and a DAD detector. Fractions were monitored by TLC (GF 254, Qingdao Haiyang Chemical Co., Ltd., Qingdao, China), and spots were visualized by heating silica gel plates sprayed with 10% H₂SO₄ in EtOH.

2.2 Fungal material

The fungus Bipolaris sp. Was isolated from fresh and healthy stems of kiwifruit plants (Actinidia chinensis Planch, Actinidiaceae), which were collected from the Cangxi county of the Sichuan Province (GPS: N 31°12′, E 105°76′) in July 2018. Each fungus was obtained simultaneously from at least three different healthy tissues. The strain was identified as one species of the genus Bipolaris by observing the morphological characteristics and analysis of the internal transcribed spacer (ITS) regions. A living culture (internal number HFG-20180727-HJ32) has been deposited at the School of Pharmaceutical Sciences, South-Central Minzu University, China.

2.3 Fermentation, extraction, and isolation

The fungus Bipolaris sp. Was cultured on potato dextrose agar (PDA) medium for 7 days, which was used as “seed” to incubate in rice medium. The 500 ml Erlenmeyer flasks containing 100 g rice and 80 ml distilled water in each were sterilized at 120°C for 15 min. Then the pieces of Bipolaris sp. PDA medium was inoculated into Erlenmeyer flasks. A total of a hundred 500 ml Erlenmeyer flasks were incubated statically in dark place at 25°C for 28 days.

The cultures of Bipolaris sp. Were extracted with 5 L methanol four times, and the total residue was obtained by reduced pressure evaporation. Then, the remaining aqueous phase was further extracted four times by EtOAc to afford a crude extract (45.0 g). The latter was subjected to silica gel CC (200–300 mesh) eluted with a gradient of CHCl₃-MeOH (from 1:0 to 0:1, v/v) to obtain five fractions, A–E. Fraction B was separated by CC over silica gel with a gradient elution of the CHCl₃-MeOH system (from 15:1 to 0:1, v/v) to give five fractions (Fr. B1–B5). Fraction B2 was applied to Sephadex LH-20 eluting with CHCl₃-MeOH (1:1, v/v) and was separated by HPLC with MeCN-H₂O (21:79, v/v, 4.0 ml/min) to obtain 6 (4.3 mg, retention time (t_R) = 26.3 min), and 13 (5.2 mg, t_R = 29.4 min). Fraction B3 was subjected to Sephadex LH-20 (MeOH) and then further repeatedly purified by semipreparative HPLC with MeCN-H₂O (32:68, v/v, 3.0 ml/min) to afford 11 (86.2 mg, retention time (t_R) = 24.2 min) and 12 (94.3 mg, t_R = 27.2 min). Fraction B4 was purified using semipreparative HPLC with MeCN-H₂O (20:80, v/v, 4.0 ml/min) to afford 10 (7.8 mg, t_R = 16.8 min) and 9 (9.6 mg, t_R = 20.6 min). Fraction C was purified by semipreparative HPLC with MeCN-H₂O (26:74, v/v, 4.0 ml/min) to afford 7 (4.8 mg, t_R = 24.6 min) and 8 (7.3 mg, t_R = 27.5 min). Fraction D was separated by CC over silica gel with a gradient elution of PE-acetone (from 50:1 to 0:1, v/v), and then was purified by semipreparative HPLC with MeCN-H₂O (18:82, v/v, 4.0 ml/min) to obtain 1 (6.4 mg, t_R = 29.6 min), 2 (3.8 mg, t_R = 24.3 min), and 3 (7.6 mg, t_R = 18.5 min). Fraction E was purified over Sephadex LH-20 eluted with MeOH, and was further separated using semipreparative HPLC with MeOH-H₂O (78:22, v/v, 3.0 ml/min) to afford 4 (8.7 mg, t_R = 38.2 min) and 5 (12.8 mg, t_R = 34.3 min).

Bipolarisorokin J (1): colorless oil; ${\mathrm{[\alpha ]}}_{\mathrm{D}}^{20}$– 99.8 (c 0.05, MeOH); UV (MeOH) λ_max (log ε) 260 (3.86); ¹H NMR (600 MHz, CDCl₃) and ¹³C NMR (150 MHz, CDCl₃) data, see Table 1; positive ion HR-ESI-MS m/z 343.18790, [M + Na]⁺, (calculated for C₁₉H₂₈NaO₄⁺, 343.18798).

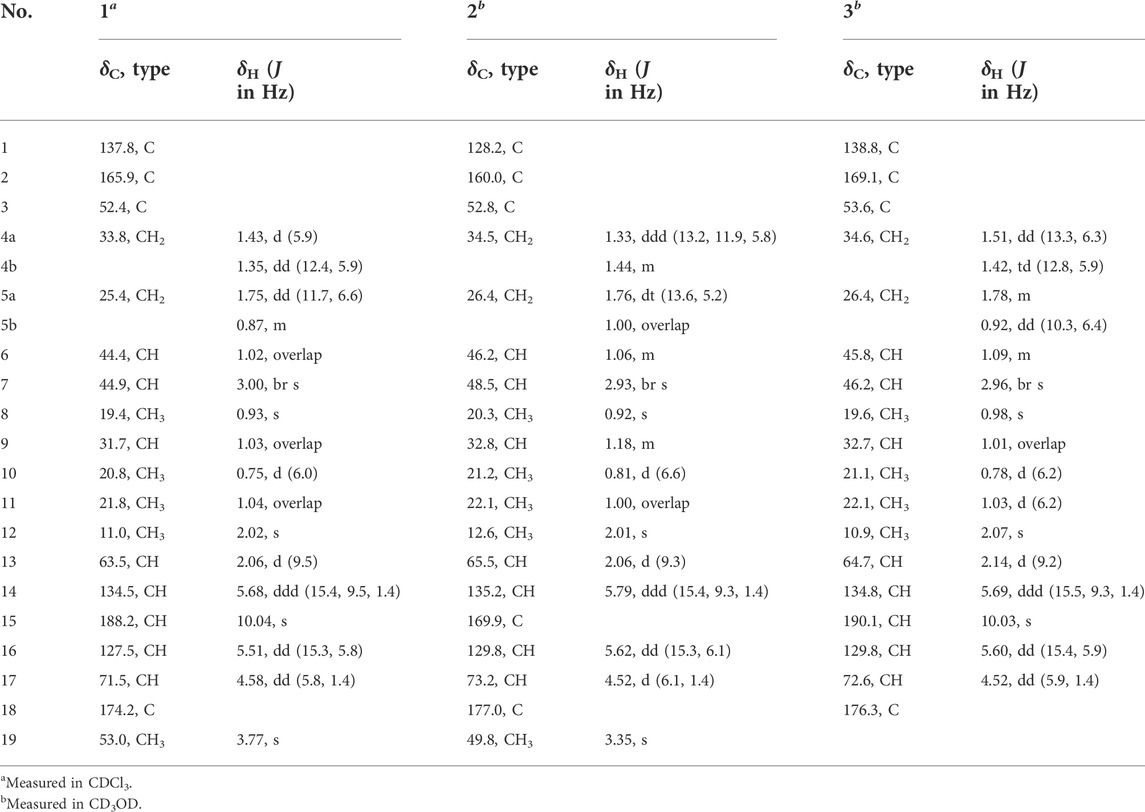

TABLE 1

TABLE 1. ¹H and ¹³C NMR data for 1–3.

Bipolarisorokin K (2): colorless oil; ${\mathrm{[\alpha ]}}_{\mathrm{D}}^{20}$ – 58.9 (c 0.05, MeOH); UV (MeOH) λ_max (log ε) 245 (3.82); ¹H NMR (600 MHz, CD₃OD) and ¹³C NMR (150 MHz, CD₃OD) data, see Table 1; positive ion HR-ESI-MS m/z 359.18268, [M + Na]⁺, (calculated for C₁₉H₂₈NaO₅⁺, 359.18290).

Bipolarisorokin L (3): colorless oil; ${\mathrm{[\alpha ]}}_{\mathrm{D}}^{17}$ – 83.3 (c 0.05, MeOH); UV (MeOH) λ_max (log ε) 265 (3.78); ¹H NMR (600 MHz, CD₃OD) and ¹³C NMR (150 MHz, CD₃OD) data, see Table 1; positive ion HR-ESI-MS m/z 307.19046, [M + H]⁺, (calculated for C₁₈H₂₇O₄⁺, 307.19039).

Bipolarisorokin M (4): colorless oil; ${\mathrm{[\alpha ]}}_{\mathrm{D}}^{17}$ – 48.9 (c 0.05, MeOH); UV (MeOH) λ_max (log ε) 265 (4.15); ¹H NMR (600 MHz, CDCl₃) and ¹³C NMR (150 MHz, CDCl₃) data, see Table 2; positive ion HR-ESI-MS m/z 525.35706, [M + H]⁺, (calculated for C₃₃H₄₉O₅⁺, 525.35745).

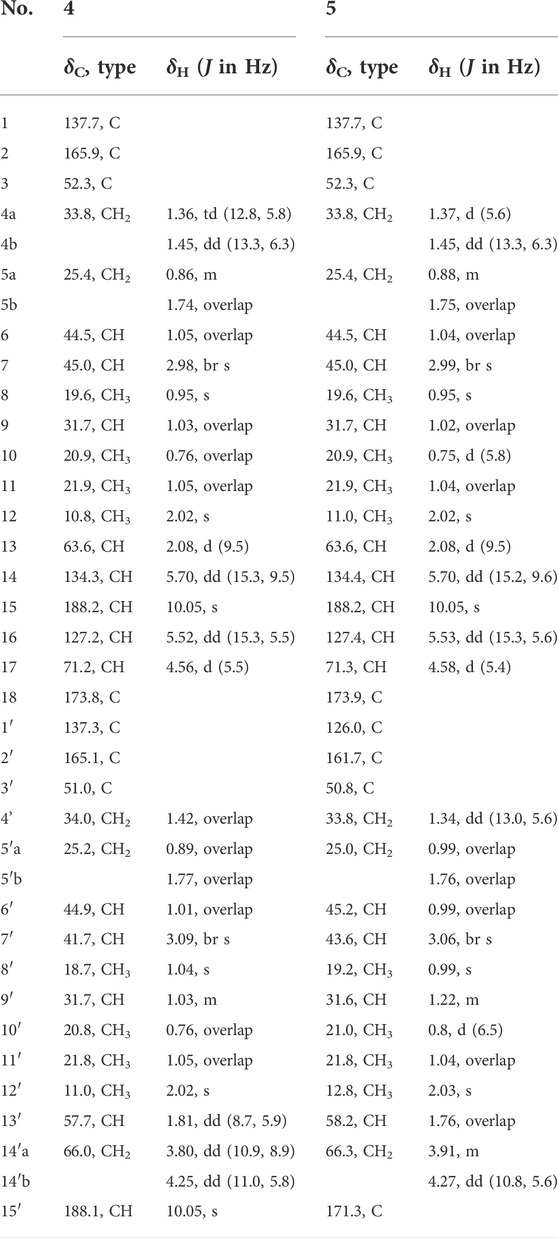

TABLE 2

TABLE 2. ¹H and ¹³C NMR data for 4 and 5 in CDCl₃.

Bipolarisorokin N (5): colorless oil; ${\mathrm{[\alpha ]}}_{\mathrm{D}}^{17}$ – 45.6 (c 0.05, MeOH); UV (MeOH) λ_max (log ε) 255 (4.07); ¹H NMR (600 MHz, CDCl₃) and ¹³C NMR (150 MHz, CDCl₃) data, see Table 2; positive ion HR-ESI-MS m/z 541.35254, [M + H]⁺, (calculated for C₃₃H₄₉O₆⁺, 541.35237).

Bipolariterpene A (6): colorless oil; ${\mathrm{[\alpha ]}}_{\mathrm{D}}^{20}$ ‒ 25.3 (c 0.05, MeOH); UV (MeOH) λ_max (log ε) 260 (3.96); ¹H NMR (600 MHz, CD₃OD) and ¹³C NMR (150 MHz, CD₃OD) data, see Table 3; positive ion HR-ESI-MS m/z 483.27176, [M + Na]⁺, (calculated for C₂₇H₄₀NaO₆⁺, 483.27171).

TABLE 3

TABLE 3. ¹H and ¹³C NMR data for 6–8 (δ in ppm).

Bipolariterpene B (7): colorless oil; ${\mathrm{[\alpha ]}}_{\mathrm{D}}^{20}$ ‒ 28.9 (c 0.04, MeOH); UV (MeOH) λ_max (log ε) 265 (3.92); ¹H NMR (600 MHz, CD₃OD) and ¹³C NMR (150 MHz, CD₃OD) data, see Table 3; positive ion HR-ESI-MS m/z 441.26044, [M + Na]⁺, (calculated for C₂₅H₃₈NaO₅⁺, 441.26115).

Bipolariterpene C (8): colorless oil; ${\mathrm{[\alpha ]}}_{\mathrm{D}}^{20}$ + 26.3 (c 0.035, MeOH); UV (MeOH) λ_max (log ε) 205 (4.05); ¹H NMR (600 MHz, CDCl₃) and ¹³C NMR (150 MHz, CDCl₃) data, see Table 3; positive ion HR-ESI-MS m/z 461.28955, [M + H]⁺, (calculated for C₂₇H₄₁O₆⁺, 461.28977).

2.4 Preparation of (S)-MTPA and (R)-MTPA esters of 1

The samples of 1 (1.5 mg each) were dissolved in pyridine (500 μl), and added with DMAP (2 mg) and (R)- or (S)-MTPA-Cl (10 μl) to the solution. The reaction was stirred at room temperature for 12 h. The productions were individually purified by semipreparative HPLC and eluted with MeCN-H₂O (78:22, v/v, 4.0 ml/min) to obtain the (S)-MTPA ester 1a (1.0 mg, t_R = 14.0 min) and (R)-MTPA ester 1b (0.8 mg, t_R = 14.0 min), respectively.

(S)-MTPA ester (1a). ¹H NMR (600 MHz, CDCl₃): 1.44 (1H, d, J = 6.9 Hz, H-4a), 1.35 (1H, m, H-4b), 1.75 (1H, dd, J = 12.0, 6.7 Hz, H-5a), 0.88 (1H, m, H-5b), 1.06 (1H, overlap, H-6), 3.00 (1H, br s, H-7), 0.92 (3H, s, H-8), 1.03 (1H, overlap, H-9), 0.76 (3H, d, J = 5.8 Hz, H-10), 1.05 (3H, overlap, H-11), 2.01 (3H, s, H-12), 2.09 (1H, d, J = 9.4 Hz, H-13), 5.79 (1H, dd, J = 15.3, 9.4 Hz, H-14), 10.05 (1H, s, H-15), 5.62 (1H, dd, J = 15.3, 7.4 Hz, H-16), 5.55 (1H, d, J = 7.5 Hz, H-17), 3.74 (3H, s, H-19); positive ion HR-ESI-MS m/z 537.24640, [M + H]⁺, (calculated for C₂₉H₃₆F₃O₆⁺, 537.24585).

(R)-MTPA ester (1b). ¹H NMR (600 MHz, CDCl₃): 1.43 (1H, m, H-4a), 1.34 (1H, m, H-4b), 1.74 (1H, m, H-5a), 0.83 (1H, m, H-5b), 1.01 (1H, overlap, H-6), 2.93 (1H, br s, H-7), 0.86 (3H, s, H-8), 1.00 (1H, overlap, H-9), 0.75 (3H, d, J = 5.3 Hz, H-10), 1.02 (3H, overlap, H-11), 1.98 (3H, s, H-12), 2.04 (1H, d, J = 9.4 Hz, H-13), 5.67 (1H, m, H-14), 10.02 (1H, s, H-15), 5.56 (1H, overlap, H-16), 5.57 (1H, overlap, H-17), 3.77 (3H, s, H-19); positive ion HR-ESI-MS m/z 559.22748, [M + Na]⁺, (calculated for C₂₉H₃₅F₃NaO₆⁺, 559.22779).

2.5 NMR calculations

The NMR calculations were carried out using the Gaussian 16 software package (Frisch et al., 2010). Systematic conformational analyses were performed via SYBYL-X 2.1 using the MMFF94 molecular mechanics force field calculation with 10 kcal/mol of cutoff energy (Hehre, 2003; Shao et al., 2006). The optimization and frequency of conformers were calculated on the B3LYP/6-31G(d) level in the Gaussian 16 program package. All the optimized conformers in an energy window of 5 kcal/mol (with no imaginary frequency) were subjected to gauge-independent atomic orbital (GIAO) calculations of their ¹³C NMR chemical shifts, using density functional theory (DFT) at the mPW1PW91/6-311 + G (d,p) level with the PCM model. The calculated NMR data of these conformers were averaged according to the Boltzmann distribution theory and their relative Gibbs free energy. The ¹³C NMR chemical shifts for TMS were also calculated by the same procedures and used as the reference. After the calculation, the experimental and calculated data were evaluated by the improved probability DP4⁺ method (Grimblat et al., 2015).

2.6 Antibacterial activity assay

All compounds were evaluated for their antibacterial activity against Pseudomonas syringae pv. Actinidae. The antibacterial assay was conducted by the previously described method (Yu et al., 2022). The sample to be tested was added into a 96-well culture plate, and the final compound concentration range from 4 to 256 μg/ml. Bacteria liquid was added to each well until the final concentration is 5 × 10⁵ CFU/ml. It was then incubated at 27°C for 24 h, and the minimum inhibitory concentration (MIC, with an inhibition rate of ≥90%) was determined by the microplate reader at OD₆₀₀ nm. The medium blank control was used in the experiment. Streptomycin was used as the positive control.

3 Results and Discussion

3.1 Structure characterizations

Bipolarisorokin J 1) was isolated as a colorless oil. The molecular formula was determined as C₁₉H₂₈O₄ with six degrees of unsaturation based on the HRESIMS data (measured at m/z 343.18790 [M + Na]⁺, calcd for C₁₉H₂₈NaO₄⁺ 343.18798). The ¹³C NMR data of 1 displayed 19 carbon signals, which were assigned as five methyls, two methylenes, eight methines, and four quaternary carbons in association with the HSQC data (Table 1). The ¹H NMR data of 1 showed five methyl signals at δ_H 0.93 (3H, s, H-8), 0.75 (3H, d, J = 6.0 Hz, H-10), 1.04 (3H, overlap, H-11), 2.02 (3H, s, H-12), and 3.77 (3H, s, H-19), two olefinic protons at δ_H 5.68 (1H, ddd, J = 15.4, 9.5, 1.4 Hz, H-14) and 5.51 (1H, dd, J = 15.3, 5.8 Hz, H-16), and an aldehyde proton at δ_H 10.04 (H, s, H-15) (Table 1). The characteristic signals of 1D NMR, together with the data of analogues from the same origin, suggested that 1 was most likely a seco-sativene type sesquiterpenoid derivative. According to ¹H−¹H COSY spectrum, two structural fragments were deduced as shown with bold lines in Figure 2. Based on this, the HMBC correlations from δ_H 2.02 (3H, s, Me-12) to δ_C 165.9 (s, C-2), 52.4 (s, C-3) and δ_C 137.8 (s, C-1), from δ_H 0.93 (3H, s, Me-8) to C-2, C-3, 33.8 (t, C-4) and 63.5 (d, C-13), from δ_H 3.00 (1H, br s, H-7) to C-1, C-13, and δ_C 134.5 (d, C-14) established a seco-sativene type sesquiterpene backbone. In addition, one aldehyde group was connected to C-1, which was deduced from HMBC correlations from δ_H 10.04 (H, s, H-15) to δ_C 44.9 (d, C-7) and C-1. Furthermore, the HMBC correlations from δ_H 3.77 (3H, s, Me-19) and 4.58 (1H, dd, J = 5.8, 1.4 Hz, H-17) to δ_C 174.2 (s, C-18) suggested that the connections among C-17, C-18 and C-19. The planar structure of 1 was thus deduced as shown in Figure 2, resembling bipolarisorokin G (10) (Yu et al., 2022). The ROESY correlations (Figure 3) of H-13/H-8, H-13/H-6 and H-12/H-14 revealed that H-3, H-6, H-7 and H-8, were co-facial and assigned to be β-oriented. Correlations between H-13 and H-16, as well as large coupling constants (J = 15.4 Hz), confirmed the double bonds (C-14 and C-16) to be E-geometry. However, the geometry of H-17 cannot be determined by using the NOESY correlation. Regarding the same origin of 1 and 10, the absolute configuration of 1 thus was suggested to be the same as that of 10, except for C-17. However, the stereo-chemistry at C-17 was determined using a modifie Mosher’s method (Hoye et al., 2007). The observed differences of chemical shifts (Δδ = δ_S − δ_R) (Figure 4) indicated that the C-17 absolute configuration is R. Consequently, the absolute configuration of 1 was assigned as 3R, 6R, 7S, 13S, 17R.

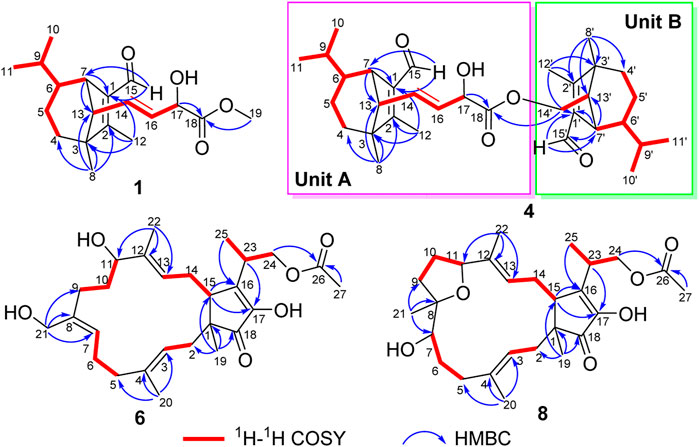

FIGURE 2

FIGURE 2. Key ¹H−¹H COSY and HMBC correlations for 1, 4, 6, and 8.

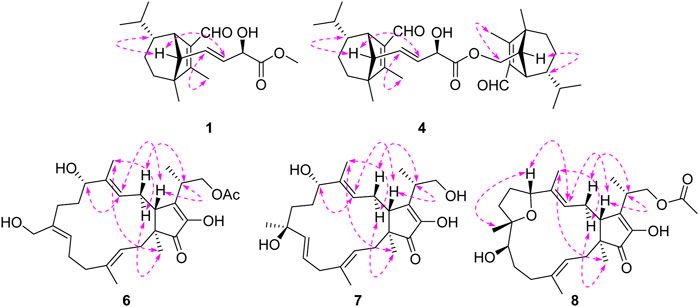

FIGURE 3

FIGURE 3. Key ROESY correlations for 1, 4, 6, 7, and 8.

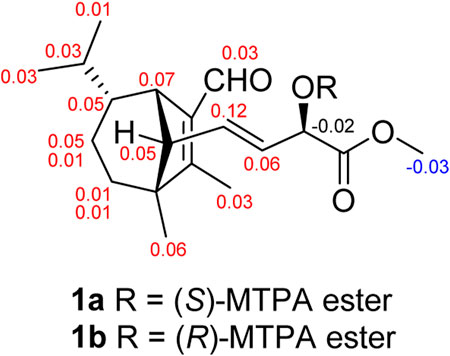

FIGURE 4

FIGURE 4. Δδ = δ_S − δ_R values in ppm obtained from the MTPA esters of 1.

Bipolarisorokin K (2), a colorless oil, was assigned the molecular formula of C₁₉H₂₈O₅ with six degrees of unsaturation based on HRESIMS data (measured at m/z 359.18268 [M + Na]⁺, calcd for C₁₉H₂₈NaO₄⁺ 359.18290). The ¹H and ¹³C NMR data of 2 (Table 1) are closely similar to those of 1. The significant difference was the presence of a carboxyl group at C-15 (δ_C 169.9, s) in 2, instead of the aldehyde group in 1. This deduction was identified by the HMBC corrections from δ_H 2.93 (1H, br s, H-7) to δ_C 128.2 (s, C-1), δ_C 160.0 (s, C-2) and C-15, together with its HRESIMS data. Moreover, the absolute configuration of 2 was suggested to be the same with that of 1 based on the nearly identical NMR data, the biosynthetic pathway, and the consistent experimental ECD data of these two compounds (Figure 5).

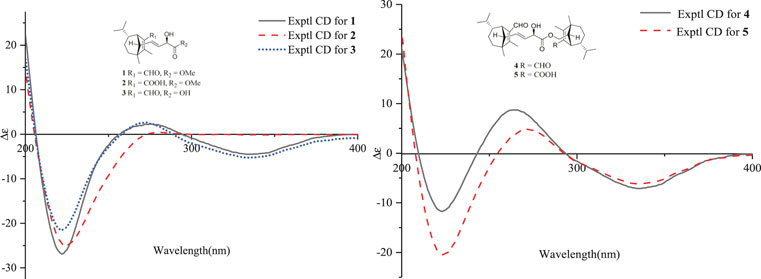

FIGURE 5

FIGURE 5. ECD spectra of compounds 1–5 in methanol.

Bipolarisorokin L 3) was obtained as a colorless oil. Its molecular formula was determined to be C₁₈H₂₆O₄ based on HRESIMS data (measured at m/z 307.19046 [M + H]⁺, calcd for C₁₈H₂₇O₄⁺ 307.19039). Comparing its 1D and 2D NMR data with those of 1 indicated that they shared almost the same chemical construction. However, the major difference was that the methyl ester group in 1 was replaced by a carboxyl group at C-18 in 3. The loss of a methoxy signal in the ¹³C NMR spectrum, the HMBC correlation from δ_H 4.52 (1H, dd, J = 5.9 Hz, 1.4 Hz, H-17) to δ_C 176.3 (s, C-18), and the mass data analysis confirmed the above deduction. The relative configurations of in 3 should be in agreement with the configuration of 1 based on the nearly identical NMR data. Finally, the experimental ECD curve of 3 matched well with that of 1 (Figure 5), suggesting that the absolute configuration of 3 was identical to that of 1.

Bipolarisorokin M 4) was obtained as a colorless oil. Its molecular formula of C₃₃H₄₈O₅, together with ten degrees of unsaturation, were established by its HRESIMS data (measured at m/z 525.35706 [M + H]⁺, calcd for C₃₃H₄₉O₅⁺ 525.35745). The ¹H NMR data of 4 displayed signals for two olefinic protons, eight methyl groups, and two protons of aldehyde group (Table 2). The ¹³C NMR and DEPT data of 4 exhibited 33 carbon resonances, including eight methyls, five methenes (one oxygenated), twelve methines (one oxygenated, two olefinic and two aldehyde carbons), seven nonprotonated carbons (four olefinic and one ester carbonyl) (Table 2). After literature investigations, the aforementioned NMR data indicated that compound 4 should comprise of two different seco-sativene sesquiterpenoid units. Interpretation of the ¹H−¹H COSY spectrum of 4 revealed the presence of four discrete proton−proton spin systems as shown with bold lines in Figure 2. Further analysis of its HMBC spectra demonstrated the existence of two building blocks of units A and B, which were highly similar to 3 and 11, respectively. The above deduction was confirmed by the HMBC correlations as shown in Figure 2, together with comparison of the ¹H and ¹³C NMR spectroscopic data. Meanwhile, the key HMBC correlation from δ_H 3.80 (1H, dd, J = 10.9 Hz, 8.9 Hz, H-14′a) and 4.25 (1H, dd, J = 11.0 Hz, 5.8 Hz, H-14′b) to δ_C 173.8 (s, C-18), along with analysis of the HRESIMS data, suggested the connection by an ester bond between units A and B. Therefore, considering similar NMR data and coupling constants, as well as their concurrent biogenetic relationship, the absolute configurations of 4 should agree with those of 3 and 11, respectively. Finally, the structure of 4 was established as depicted in Figure 1.

Bipolarisorokin N 5) was also isolated as a colorless oil. Its molecular formula was established as C₃₃H₄₈O₆ based on the HRESIMS ion peak at m/z 541.35254 [M + H]⁺ (calcd for C₃₃H₄₉O₆⁺, 541.35237), corresponding to ten degrees of unsaturation. The 1D NMR data of 5 closely resembled those of 4 (Table 2), except for the obviously shifted signal of C-15′ (−16.8 ppm) and the absence of aldehyde hydrogen proton signal at H-15′. The HMBC correlations from δ_H 3.06 (1H, br s, H-7′) to δ_C 126.0 (s, C-1′) and 171.3 (s, C-15′), as well as the HRESIMS data analysis, led to the location of a carboxyl group (C-15′) at C-1′. Furthermore, the similar ROESY data and experimental ECD curves of 4–5 (Figure 5) suggested that they shared the same absolute configuration. Therefore, the structure of 5 was finally established as shown in Figure 1.

Bipolariterpene A 6) was assigned a molecular formula of C₂₇H₄₀O₆ with eight degrees of unsaturation based on its HRESIMS data (measured at m/z 483.27176 [M + Na]⁺, calcd for C₂₇H₄₀NaO₆⁺ 483.27171). The ¹H and ¹³C NMR data (Table 3) showed 27 carbon resonances comprising five methyls (δ_C 16.8, 15.5, 10.5, 14.7, and 20.8); eight methylenes including six aliphatic ones (δ_C 40.5, 41.3, 24.3, 31.4, 31.0, and 30.2) and two oxygenated ones at δ_C 59.5 and 67.6; six methines including two aliphatic ones at δ_C 50.7 and 35.2, three olefinic ones (δ_C 123.3, δ_C 128.7 and δ_C130.0), and a oxygenated one at δ_C 77.1; eight non-protonated carbons with a aliphatic one at δ_C 50.2, five olefinic ones (δ_C 138.6, δ_C 137.6 × 2, δ_C 149.9, δ_C 149.5), a carbonyl one at δ_C 209.9, and a ester carbonyl one at δ_C 172.7. The general features of its NMR data closely resembled those of the co-isolated known bicyclic sesterterpene fusaproliferin 13) (Nihashi et al., 2002; Gao et al., 2020). The major difference was that an additional hydroxy group was substituted at C-21 in 6, which could be fully established through the HMBC corrections from δ_H 4.20 (1H, d, J = 12.0 Hz, H-21a) and 4.08 (1H, d, J = 12.0 Hz, H-21b) to δ_C 128.7 (d, C-7), 137.6 (s, C-8) and 31.4 (t, C-9). The ROESY correlations between Me-20/H-2b, H-3/H-5b, H-21a/H-6a, H-7/H-9a, H-11/H-13, Me-22/H-14b indicated that the configurations of C-3/C-4, C-7/C-8, and C-12/C-13 double bonds were assigned as E, Z, and E, respectively. Furthermore, as indicated by its ROESY spectrum, the cross-peaks of H-11/H-13, H-13/H-15, H-15/H-23 suggested that H-11, H-15 and H-23 is β-oriented. Meanwhile, the key interaction of H-14b/Me-19, Me-22/Me-19 and H-14b/Me-22, along with the lack of H-15/Me-19, implied that Me-19 was α-oriented. Thus, compound 6 was determined to share the same stereochemistry with that of 13 for which the absolute configuration had been earlier confirmed by X-ray crystallographic analysis (Santini et al., 1996) and total enantioselective synthesis (Myers et al., 2002). By comparing the specific rotation of 6 (${\mathrm{[\alpha ]}}_{\mathrm{D}}^{20}$ ‒25.3) with 13 (${\mathrm{[\alpha ]}}_{\mathrm{D}}^{25}$ ‒35) (Santini et al., 1996), as well as the close biogenetic relationship, the absolute configuration of 6 was further identified to be the same as that of 13, as depicted in Figure 1.

Bipolariterpene B 7) was obtained as a colorless oil. The molecular formula of 7 was assigned as C₂₅H₃₈O₅ based on its HRESIMS spectrum (measured at m/z 441.26044 [M + Na]⁺, calcd for C₂₅H₃₈NaO₅⁺ 441.26115), which showed two fewer carbon atoms than fusaproliferin (13) (Nihashi et al., 2002). Additionally, the ¹H and ¹³C NMR data of 7 were similar to those of 13 (Table 3). The significant difference between 7 and 13 was the absence of an acetyl group in 7, which was confirmed by the HMBC correlations from δ_H 3.82 (1H, m, H-24a) and 3.68 (1H, dd, J = 10.4, 6.5 Hz, H-24b) to δ_C 14.6 (q, C-25), 38.8 (d, C-23) and 152.2 (s, C-16), together with its HRESIMS data. Moreover, the HMBC correlations from δ_H 1.26 (3H, s, H-21) to δ_C 138.0 (d, C-7), 74.3 (s, C-8) and 39.0 (t, C-9), as well as chemical shift of C-8, indicated that an additional hydroxy group was located at C-8. Furthermore, the HMBC correlations from δ_H 5.75 (1H, m, H-6) and 5.48 (1H, d, J = 15.5 Hz, H-7) to δ_C 42.9 (t, C-5) and C-8, along with the observed ¹H−¹H COSY cross-peak of δ_H 2.78 (2H, m, H-5)/H-6/H-7, confirmed that one double bond between C-7 and C-8 in 13 migrated to C-6 and C-7 in 7. Based on the biogenetic and NOESY data consideration, the absolute configuration of 7 was proposed to be consistent with the known compound 13, except for C-8. To determine its absolute configuration, the NMR calculations with DP4+ analysis for two possible isomers (1S, 8R, 11S, 15R, 23S)-7A and (1, 8, 11S, 15R, 23S)-7B were carried out using the GIAO method at the mPW1PW91/6-311+G (d,p) level with the PCM model. As a result, the calculated chemical shifts of 7B matched well with the experimental ones (Figure 6), showing a better correlation coefficient (R² = 0.9977) and a low root-mean-square deviation value (RMSD = 2.65), together with a high DP4+ probability of 100% (all data) probability (Supplementary Tables S3 in the Supporting Information). Hence, compound 7 was identified as shown in Figure 1 and named as bipolariterpene B.

FIGURE 6

FIGURE 6. ¹³C NMR calculation results of two possible isomers of 7 (A): Linear correlation plots of predicted versus experimental ¹³C NMR chemical shift. (B) Relative errors between the predicted δ_C of two potential structures and recorded δ_C.).

Bipolariterpene C 8) was also isolated as a colorless oil. Its molecular formula was established as C₂₇H₄₀O₆ based on the HRESIMS ion peak at m/z 461.28955 [M + H]⁺ (calcd for C₂₇H₄₁O₆⁺, 461.28977), suggesting eight degrees of unsaturation. Analyses of NMR spectra (Table 3) indicated that the structure of 8 was explicitly similar to that of fusaprolifin A (Liu et al., 2013). However, the signals for two olefinic methines were replaced by signals of a methylene δ_C 30.1 (t, C-6) and an oxygenated methine δ_C 75.7 (d, C-7). These observations indicated the hydration of the double bond in fusaprolifin A, leading to the location of a hydroxy group at C-7 in 8. It was supported by HMBC correlations from δ_H 3.38 (1H, dd, J = 8.1, 3.7 Hz, H-7) to δ_C 35.3 (t, C-5), 30.1 (t, C-6), 74.8 (s, C-8), 35.3 (t, C-9) and 24.6 (q, C-21), along with the ¹H–¹H COSY cross peaks of H-5/H-6/H-7. Furthermore, the chiral centers in 8, except for C-7, were found to be identical to that of fusaprolifin A based on their highly similar coupling constant and ROESY data. In order to confirm the assigned chemical architecture of 8 and its the stereochemistry, the ¹³C NMR calculations and DP4+ analysis of (1S, 7R, 8S, 11R, 15R, 23S)-8A and (1, 7, 8S, 11R, 15R, 23S)-8B were carried out at the mPW1PW91/6-311+G (d,p) level. The results showed that 8A was the most likely structure based on a better correlation coefficient (R² = 0.9970) and a low root-mean-square deviation value (RMSD = 3.05), as well as a high DP4 + probability of 100% (all data) probability (Supplementary Figure S6 and Supplementary Table S6 in the Supporting Information). Finally, the absolute configuration of 8 was defined.

In addition, the structures of five known compounds were identified as bipolarisorokin H (9), bipolarisorokin G (10), helminthosporol (11), helminthosporic acid (12) and fusaproliferin (13), by comparing the spectral data with those reported in the literature (Osterhage et al., 2002; Abdel-Lateff et al., 2013; Liu et al., 2013; Yu et al., 2022). In this study, compounds 1 and 2 were isolated as methyl esters, which could be derived from the separation process since methanol was used as the solvent. To verify whether these compounds are of natural origin, we analyzed the ethanol extract of the fermentation broth of the fungus by HPLC (see Supporting Information). As a results, all compounds could be confirmed their natural attributes.

Structurally, compound 9 possessed two additional skeletal carbons, while compounds 1–5 and 10 possessed three additional skeletal carbons, which might be derived from acetyl-CoA or acetoacetyl-CoA. Compounds 11 and 12 were isolated as major components, which were most probably employed as the original precursor to assemble the above compounds. The hydroxyl group at C-14 in 11 was oxidized to produce an aldehyde product, which then underwent aldol condensation with the acetyl-CoA to give 9. Similarly, the aldehyde product combined an acetoacetyl-CoA to give compounds 1–3 and 10. Finally, additional esterification happened between 3 and 11 or 12 led to the formation of 4 or 5, respectively Scheme 1.

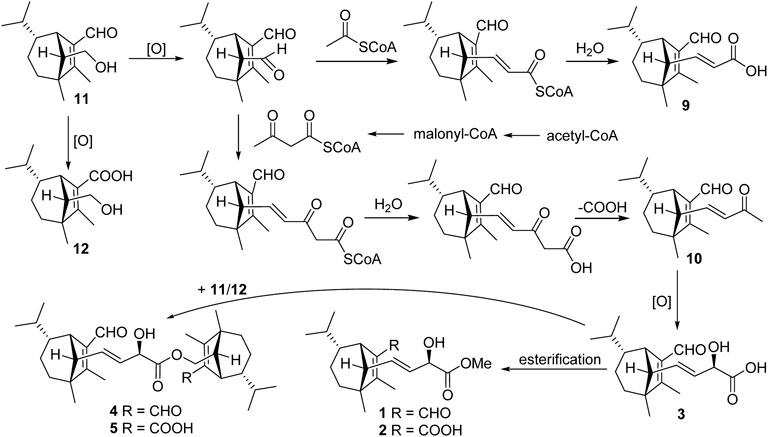

SCHEME 1

SCHEME 1. Plausible biogenetic pathway for seco-sativene sesquiterpenoids of Bipolaris sp.

3.2 Anti-Psa activity

All compounds (1–13) were evaluated for their anti-Psa activity by using the method as described previously (Yu et al., 2022). Streptomycin was used as the positive control. As a result, compounds 4 and 5 showed certain inhibitory activity, with MICs of 32 and 64 μg/ml, respectively. Additionally, compounds 1–3, and 10 showed weak activity, with MICs of 128 μg/ml (Table 4). The results demonstrated that the additional skeletal carbons of seco-sativene sesquiterpenoids may be vital for Psa inhibitory activity.

TABLE 4

TABLE 4. Inhibitory effects of the isolates against Psa (MIC, μg/mL).

4 Conclusion

In conclusion, eight new terpenoids (1–8), along with five known analogues (9–13) was identified from the culture medium of an endophyte Bipolaris sp, a fungus isolated from fresh and healthy stems of kiwifruit plants. Compounds 1–3, together with the known compound 10, represented novel structures of seco-sativene sesquiterpenoids possessing three additional skeletal carbons, which were only found in this fungus. In addition, compounds 4 and 5 were rare seco-sativene/seco-sativene adducts. In anti-Psa activity assay, compounds 4 and 5 displayed certain inhibitory activity against Psa. This study, together with our previous work (Yu et al., 2022), further supported that it is an effective approach to search for anti-Psa agents from endophytic fungi of kiwi plant itself. The endophyte Bipolaris sp. Could be a potential antibacterial strain, while its sativene sesquiterpene products could be potential anti-Psa agents.

Data availability statement

The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding authors.

Author contributions

J-JY: methodology, data curation, writing—original draft preparation. W-KW: methodology, data curation. YZ: data curation, methodology. RC: writing—review and editing. JH: conceptualization, funding acquisition. J-KL: funding acquisition. TF: conceptualization, project administration, funding acquisition, writing—review and editing.

Funding

This work was financially supported by the National Natural Science Foundation of China (22177139, 21961142008) and the Fundamental Research Funds for the Central Universities, South-Central Minzu University (CZP21001).

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fchem.2022.990734/full#supplementary-material
