Guaianolide Sesquiterpenes With Significant Antiproliferative Activities From the Leaves of Artemisia argyi

Four new guaiane-type sesquiterpenes, argyin H–K (1–4), and two known analogues (5 and 6) were isolated from the leaves of Artemisia argyi Lévl et Vant. The new compounds were characterized by the basic analysis of the spectroscopic data obtained (¹H NMR, ¹³C NMR, HMBC, and NOESY experiments), and their absolute configurations were determined by empirical approaches, combined with the exciton chirality method and electronic circular dichroism calculations. To further understand the antitumor effects of A. argyi, the antiproliferative activities of these compounds against A549, MCF-7, and HepG2 cell lines were tested in vitro using CCK-8 assays. The results showed that these compounds had significant antiproliferative effects on MCF-7, with IC₅₀ values of 15.13–18.63 μM, which were superior to that of oxaliplatin (i.e., IC₅₀ 22.20 μM).

Introduction

Artemisia argyi Levl. et Vant, an important species in the genus of Compositae, is distributed in China, Japan, Korea, Far East of Russia, etc. (Doh et al., 2016; Ozek et al., 2014). A. argyi often appears in people's life in various forms. As a common medicinal resource for curing eczema, diarrhea, hemostasis, and irregular menstruation in Chinese history, it has advantages of low price, easy access, wide application, and low toxicity (Li et al., 2018; Li et al., 2018; Wang et al., 2013). Pharmacological studies have shown that A. argyi is rich in terpenoids, flavonoids, and tannins (Zan et al., 2012; Tan and Jia, 1992; Dahae et al., 2018). In vitro experiments indicated that terpenoids exhibited various promising biological activities, including antibacterial, antivirus, and antitumor activities (Merfort, 2011; Zhang et al., 2005). In an effort to explore the structural diversity and biological activities of sesquiterpenes in A. argyi, a comprehensive phytochemical investigation was carried out, and all the compounds isolated were evaluated for their antiproliferative activities in A549, MCF-7, and HepG2 cell lines.

Results and Discussion

Chemistry

Compound 1 gave a molecular formula of C₂₀H₂₈O₇ (HR-ESI-MS m/z 403.1728 [M + Na]⁺, calcd for 403.1733), which suggested seven unsaturation degrees. The ¹H NMR signals at δ 6.04 (1H, d, J = 3.3 Hz) and 5.68 (1H, d, J = 3.3 Hz) indicated an exocyclic methylene group. In the ¹³C NMR spectrum, apart from five characteristic carbon signals for a 3-methylbutyryl group, 15 carbon resonances were observed and indicated a sesquiterpene structure.

In the HMBC spectrum (Figure 1A), the cross-peak among H-6/C-8; H-5/C-4, C-7, and C-15; H₂-2/C-3, C-4, and C-5; and H₂-14/C-1, C-9, and C-10 established a guaiane-type sesquiterpene skeleton with a ∆10,14 double bond. The hydroxyl substitutions at C₁ (δ 5.13, 1H, s), C₃ (δ 4.80, 1H, d, J = 4.6 Hz), and C₄ (δ 4.31, 1H, s) were confirmed by the correlations of 1-OH/C-2, C-5, and C-10; 3-OH/C-2; 4-OH/C-3 and C-5, respectively. The position of 3-methylbutyryl was secured by the key HMBC correlation of H-8 (δ_H 4.85)/C-1′ (δ_C 172.1). Thus, the planar framework of one was established (Figure 2; Table 1).

FIGURE 1

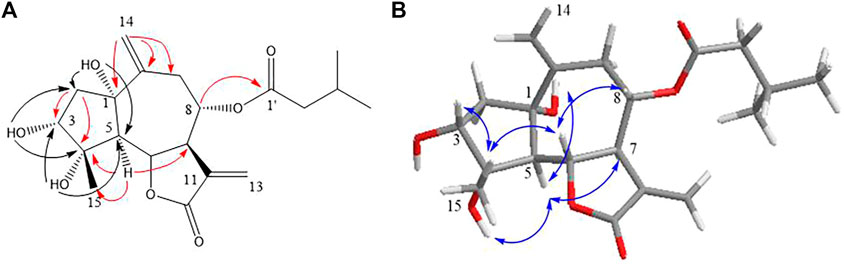

FIGURE 1. Key HMBC (A) and NOESY (B) correlations of compound 1.

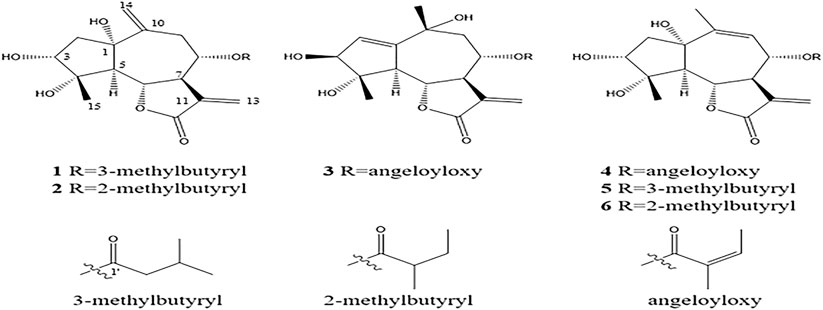

FIGURE 2

FIGURE 2. Structures of compounds one to six isolated from A. argyi.

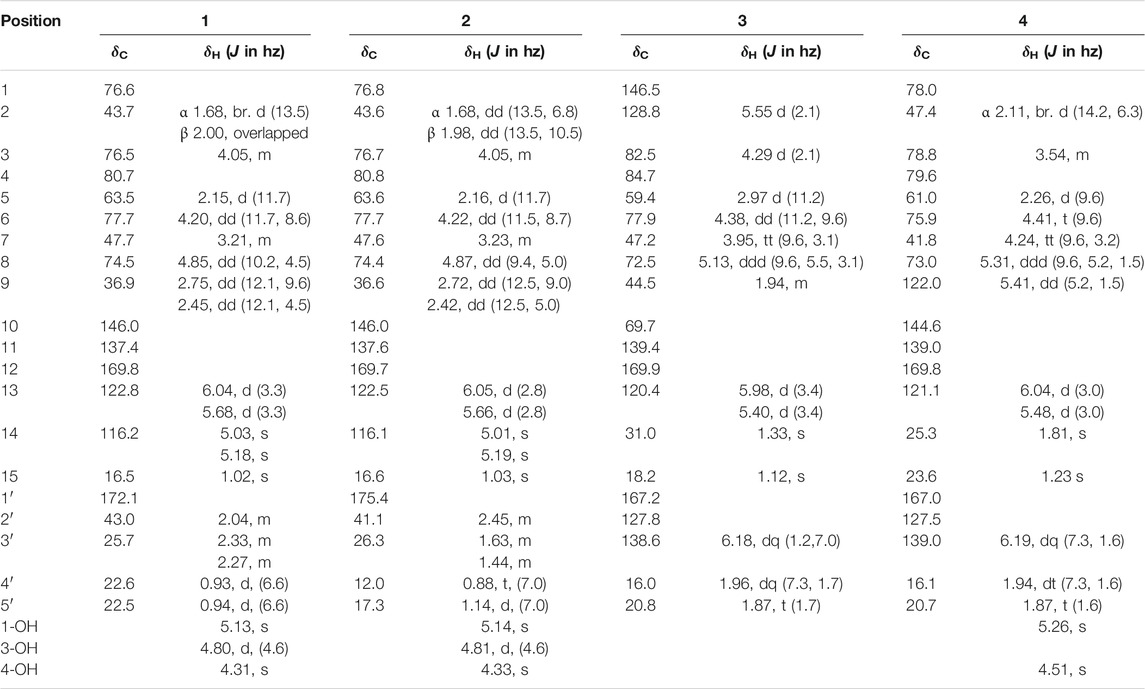

TABLE 1

TABLE 1. ¹H NMR (DMSO-d₆, 600 MHz) and ¹³C NMR (DMSO-d₆, 150 MHz) spectroscopic data for compounds one to four.

The trans disposition of H-5 and H-6 was deduced from the large vicinal coupling constants (J_5,6 = 11.6 Hz) (Wang et al., 2014). The strong NOE correlation between H-6/H₃-15 and H-8, H₃-15/H-3 revealed their cis relationship; H-5/H-7, C₁-OH, and C₄-OH indicated that they have co-facial orientations and assigned as α-oriented (Figure 1B). The overall pattern of the experimentally CD of one well matched the calculated ECD curve, which elucidated the absolute configuration of one was 1S, 3R, 4S, 5R, 6S, 7R, 8S, and named argyin H (Figure 3A).

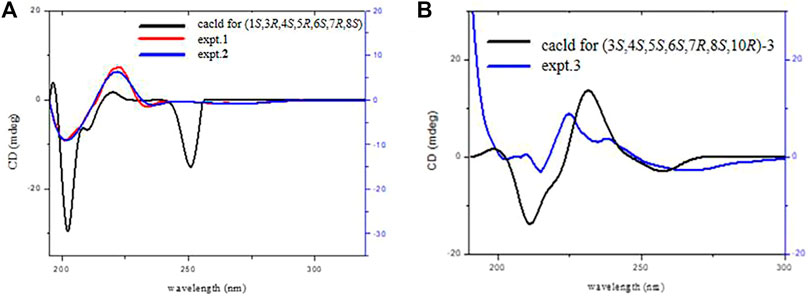

FIGURE 3

FIGURE 3. ECD spectra of compounds 1, 2 (A), and 3 (B) (data calculated using the TDDFT method at the B3LYP/6–31 + g(d,p) level.).

The exciton chirality method in CD spectra is a very useful method to determine the absolute configuration of organic molecules. It can be used to determine not only the spatial relationship between two identical chromophores but also their absolute configuration according to the interaction of two different conjugated systems (Ying et al., 1988; Luo et al., 2011). Due to the existences of two conjugate systems in the isolated compounds, the absolute configurations could be further studied by the exciton chirality method. The ECD spectrum of one showed negative exciton chirality around the UV maximum of 234 nm; the anticlockwise array of two coupling chromophores in space (Figure 4A) and absolute configurations of two bridgehead stereogenic centers (6S, 8S) were thus determined. This result was confirmed by the unambiguous match of its experimental and calculated ECD curves.

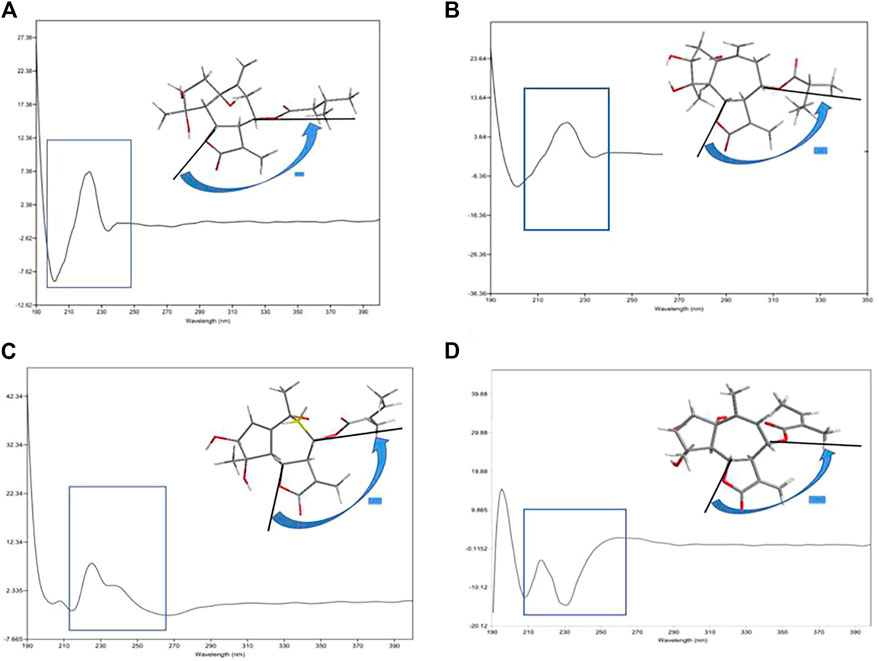

FIGURE 4

FIGURE 4. ECD exciton chirality of compounds 1 (A), 2 (B), 3 (C), and 4 (D).

Compound 2 gave a molecular formula of C₂₀H₂₈O₇ (HR-ESI-MS m/z 403.1730 [M + Na]⁺, calcd for 403.1733), which also suggested seven unsaturation degrees. Apart from the resonances attributed to 2-methylbutyryloxy (δ_C 175.4, 41.1, 26.3, 12.0, and 17.3) instead of 3-methylbutyryloxy group, ¹H NMR, ¹³C NMR, and HMBC spectra were almost similar to those of 1, and the planar framework of two was also established by 1D NMR along with HMBC data (Figures 2, 5; Table 1).

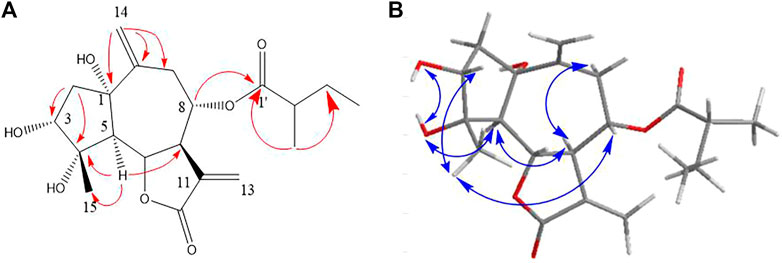

FIGURE 5

FIGURE 5. Key HMBC (A) and NOESY (B) correlations of compound 2.

The large vicinal coupling constants of H-5/6 (J_5,6 = 11.5 Hz) indicated they were trans disposition (Wang et al., 2014). The strong NOE correlation between H-7/H-5 and H-9α, H-5/4-OH, and 1-OH revealed their cis α-orientation. In addition, the correlations of H₃-15/H-3, H-6, and H-8/H-9β indicated the β-oriented of H₃-15, H-3, and H-8 (Figure 5B). The experimental ECD curve of two resembled that of 1 and led to the assignment of the absolute configuration 1S, 3R, 4S, 5R, 6S, 7R, and 8S (Figure 3A). The negative exciton chirality around the UV maximum of 236 nm (Figure 4B) also illustrated the absolute configurations of 6S, 8S, and two was finally named argyin I.

Compound 3 gave a molecular formula of C₂₀H₂₆O₇ with an HR-ESI-MS ion at m/z 401.1553 [M + Na]⁺ (calcd for 401.1576), which suggested eight unsaturation degrees. The ¹H NMR signals at δ 5.98 (1H, d, J = 3.4 Hz) and 5.40 (1H, d, J = 3.4 Hz) indicated an exocyclic methylene group. The 1D NMR and HMBC data were similar to 3α,4α,10β-trihydroxy-8α-acetoxyguai-1,11 (13)-dien-6α,12-olide (Ahmed et al., 2004). The difference was the angeloyloxy substitution at C-8 instead of acetoxyl in the known compound (Figure 2; Table 1).

In the HMBC spectrum (Figure 6A), the cross-peak between H-5/C-1, C-2; H₃-14/C-1 determined the location of 1,2-double bond. The HMBC correlation of H-8 (δ_H 5.13)/C-1′ (δ_C 167.2) confirmed the substituent group at C-8. J_5,6 = 11.2 Hz and J_6,7 = 9.6 Hz indicated that H-5, H-6, and H-7 were reciprocal trans oriented (Ahmed et al., 2004). The NOESY correlations (Figure 6B) between H-3/H-5 suggested that they were α-oriented. Additionally, H-6/H₃-14 and H₃-15, H₃-14/H-8 correlations and the lack of NOE cross-peak between H-5/H₃-15 indicated that H-6, H-8, H₃-14, and H₃-15 were on the same side. The negative exciton chirality of its ECD spectrum (Figure 4C) combined with the experimental and calculated ECD curves (Figure 3B) led to the assignment of the absolute configuration 3,4,5,6S,7R,8S,10R of 3, which was named as argyin J.

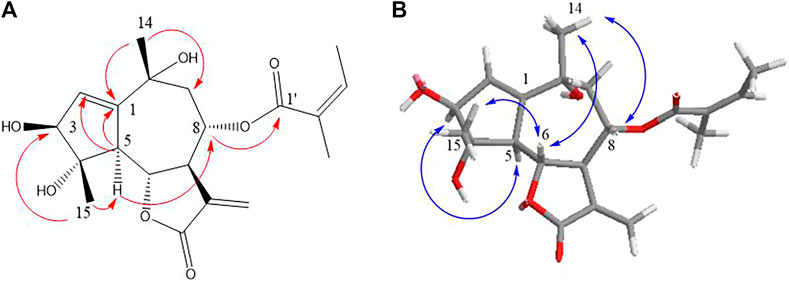

FIGURE 6

FIGURE 6. Key HMBC (A) and NOESY (B) correlations of compound 3.

Compound 4 had a molecular formula of C₂₀H₂₆O₇ (HR-ESI-MS m/z 401.1571 [M + Na]⁺, calcd for 401.1576), which suggested eight unsaturation degrees. ¹H NMR signals at δ 6.04 and 5.48 (each 1H, d, J = 3.0 Hz) indicated the presence of an exocyclic methylene group. In ¹³C NMR, apart from five characteristic carbon signals (angeloyloxy group) at C₈, other 15 carbon resonances were found to be similar to those of the previously published compound (Reinhardt et al., 2019), argyinolide N (5) and argyinolide M (6), indicating their similar structures (Figure 2; Table 1).

The HMBC cross-peak among H-6/C-4, C-5, and C-8; H₃-15/C-3 and C-5; and H₃-14/C-1, C-9, and C-10 confirmed the above planar structure deduction. H-8 (δ_H 5.31)/C-1′ (δ_C 167.0) revealed the presence of the angeloyloxy group at C-8 (Figure 7A).

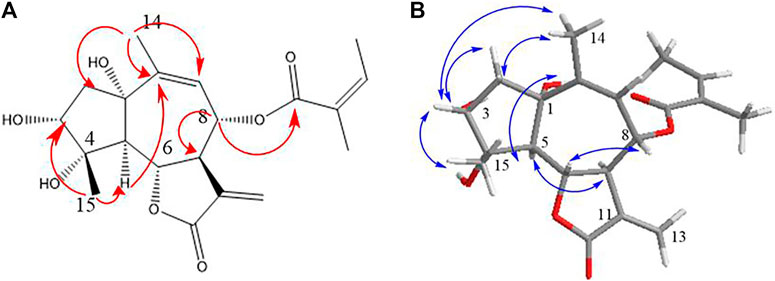

FIGURE 7

FIGURE 7. Key HMBC (A) and NOESY (B) correlations of compound 4.

The relative configuration of H-5 and H-6 was assigned to be α-, β-oriented based on their coupling constants of J_5,6 = 9.6 Hz (Reinhardt et al., 2019). H-7 and OH-1 were α-oriented owing to the NOESY correlations of OH-1/H-5 and H-5/H-7, while H-6/H-8 correlation indicated the α-orientation for the 8-angeloyloxy group. Besides, H₃-14/H-2β and H-3, H-3/H₃-15 suggested H-3 and H₃-15 were β-oriented (Figure 7B). In addition, the consistency of the experimental CD curve of 4 at 196 nm (+), 209 nm (−), 218 (+), and 232 nm (−) with those of argyinolide M and argyinolide N were reported previously (Reinhardt et al., 2019). Around the UV maximum of 232 nm, the ECD spectrum of 4 showed negative exciton chirality, the two carbon atoms (6, 8) were anticlockwise array, and the absolute configurations of these two carbon atoms (6S, 8S) were thus determined (Figure 7D). This result was confirmed by the match of its experimental and calculated ECD curves. Thus, 4 was established as (1S,3R,4S,5R,6S,7R,8S)-8-angeloyloxy-1,3,4-trihydroxy-guai-9 (10)-en-6,12-olide and named as argyin K.

Cytotoxic Activity

In order to test the cytotoxic activities of compounds 1–6 isolated from A. argyi, CCK-8 assay was used to evaluate the inhibitory effects against HepG2, A549, and MCF-7 cell lines (Table 2). These six guaianolide sesquiterpenes showed strong inhibitory effect in a dose-dependent manner against three cell lines, and the most sensitive cell line is MCF-7, in which the IC₅₀ of 1–6 (15.13–21.62 μM) was lower than that of the positive control, oxaliplatin (22.20 μM). It can be seen that the angeloyloxy substitution could strengthen the inhibitory effects compared with others.

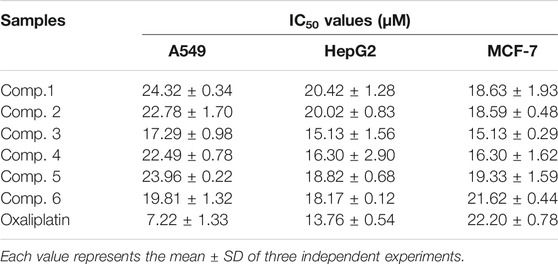

TABLE 2

TABLE 2. Antiproliferative activities of compounds one to six against A549, HepG2, and MCF-7 cell lines.

Conclusion

In our continuing investigation on A. argyi, four undescribed guaiane-type sesquiterpenes were isolated from the Artemisia argyi Lévl. et Van. The antiproliferative activities of these compounds against A549, MCF-7, and HepG2 cell lines were tested in vitro using CCK-8 assays. Notably, these compounds could induce more cell death than positive control (oxaliplatin). Among them, compounds 3 and 4 with angeloyloxy substitution displayed the most potent antiproliferative effects, which could offer a promising lead structure with anticancer activity.

Experimental

General

HPLC separation was performed on SHIMADZU LC-20AR pump and a SHIMADZU SPD-20A detector (Tokyo, Japan), using the COSMOSIL C₁₈ preparative column (250 × 20 mm) and YMC-pack Prep-ODS column (250 × 20 mm). HR-ESI-MS spectra (Agilent 6200 series Q-TOF spectrometer, United States) were in the m/z mode. Column chromatography: silica gel (SiO₂, 200–300 meshes), Sephadex LH-20 (Qingdao, China), and reversed-phase ODS (Kyoto, Japan). The 1D- and 2D-NMR were texted on a Bruker ARX-600 spectrometer (Bremen, Germany) in DMSO-d₆ (Sigma-Aldrich Company).

Plant Material

Artemisia argyi (the name Artemisia argyi Levl. et Vant. was recorded in Chinese Pharmacopoeia for 2015) was collected in Qizhou, Hubei Province in May (spring) 2014. Prof. Jincai Lu identified this plant as Artemisia argyi Lévl et Vant. A voucher specimen (No. AY-1405) was deposited in the herbarium of Shenyang Pharmaceutical University.

Extraction and Isolation

A. argyi (10 kg) were extracted under the heat with 70% ethanol (3*25 L). The extraction of crude extract was as mentioned before (Sun et al., 2019). Briefly, the ethanol extracts were partitioned successively with petroleum ether (PE, 4.0 g), dichloromethane (CH₂Cl₂, 125.0 g), ethyl acetate (EtOAc, 60.0 g), and n-butyl alcohol (n-BuOH, 8.0 g).

The CH₂Cl₂ extract was chromatographed on silica gel, eluting with CH₂Cl₂-CH₃OH to obtain Fr. A₁–Fr. A₆ (100:2 to 1:1). Combinations (Fr. A₂ and Fr. A₃) were then applied on reversed-phase ODS washing with aqueous MeOH (25–100%). The subfraction Fr. A_2,3 was further separated by Sephadex LH-20 to obtain Fr. A_3-1 to Fr. A_3-5. Fr. A_3-2 was isolated by HPLC (27% CH₃CN/H₂O) to afford compound 1 (4.2 mg) and 2 (2.2 mg). Fr.C_3-5 was further fractionated by HPLC (32% CH₃CN/H₂O) to give compound 3 (2.6 mg). Fr. A₄ was isolated by HPLC with MeOH/H₂O (58: 42) as an eluent to afford 4 (1.8 mg), 5 (3.2 mg), and 6 (5.0 mg).

Compound 1: white powder; UV (MeOH) λ max (log ε) 206 (0.883) nm, ECD (MeOH) λ max (Δε): 201 (Δε −9.07), 223 (Δε +7.31), 234 (Δε −1.54); ¹H NMR and ¹³C NMR (DMSO-d₆, 600/150 MHz) data, see Table 1; HR-ES-IMS m/z 403.1728 [M + Na]⁺, calcd for 403.1733.

Compound 2: white powder; UV (MeOH) λ max (log ε) 211 (2.695) nm, ECD (MeOH) λ max (Δε): 202 (Δε −9.07), 222 (Δε +6.29), 236 (Δε −1.20); ¹H NMR and ¹³C NMR (DMSO-d₆, 600/150 MHz) data, see Table 1; HR-ES-IMS m/z 403.1730 [M + Na]⁺, calcd for 403.1733.

Compound 3: white powder; UV (MeOH) λ max (log ε) 208 (1.879) nm, ECD (MeOH) λ max (Δε): 215 (Δε −3.00), 225 (Δε +8.86), 266 (Δε −2.71); ¹H NMR and ¹³C NMR (DMSO-d₆, 600/150 MHz) data, see Table 1; HR-ES-IMS m/z 401.1553 [M + Na]⁺, calcd for 401.1576.

Compound 4: white powder; UV (MeOH) λ max (log ε) 211 (2.647) nm, ECD (MeOH) λ max (Δε): 209 (Δε −13.74), 232 (Δε −15.78); 261 (Δε +1.87); ¹H NMR and ¹³C NMR (DMSO-d₆, 600/150 MHz) data, see Table 1; HR-ES-IMS m/z 401.1571 [M + Na]⁺, calcd for 401.1576.

Cell Proliferation Assays

The cell proliferation assays were measured using the CCK-8 method (Du et al., 2020). HepG2 (liver hepatocellular cells), MCF-7 (breast cancer cells), and A549 (lung adenocarcinoma cells) were cultured at 37°C with 5% CO₂. HepG2 and A549 cell lines were cultured in RPMI-1640 medium (10% fetal bovine); MCF-7 were cultured in DMEM medium (10% fetal bovine). The tumor cells (10⁶ cells/ml, 96-well plate) were treated in various concentrations (6.25, 12.5, 25, 50, and 100 μM) for 24 h and measured in a microplate reader (540 nm) after adding 10 μl CCK-8 (Dalian Meilun Biotechnology Co., Ltd.). Besides, oxaliplatin was used as a positive control reagent for HepG2, MCF-7, and A549 cells.

Data Availability Statement

The original contributions presented in the study are included in the article/Supplementary Material; further inquiries can be directed to the corresponding author.

Author Contributions

WM, YZ, and YS contributed to conception and design of the study. GB and JS organized the database. YZ and ZS performed the statistical analysis. WM and YS wrote the first draft of the manuscript. WM, DM, YZ, and GB wrote sections of the manuscript. All authors contributed to manuscript revision, read, and approved the submitted version.

Funding

This work was supported by the National Natural Science Foundation of China (Grant No. 81573694), and the National Drug Standard Improvement Project in 2021 (General Technology) (Grant No. 2021Z01). The project was also sponsored by “Liaoning BaiQianWan Talents Program in 2018.”

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fchem.2021.698700/full#supplementary-material
