Clinical applications of artificial intelligence and machine learning in neurocardiology: a comprehensive review

Neurocardiology is an evolving field focusing on the interplay between the nervous system and cardiovascular system that can be used to describe and understand many pathologies. Acute ischemic stroke can be understood through this framework of an interconnected, reciprocal relationship such that ischemic stroke occurs secondary to cardiac pathology (the Heart-Brain axis), and cardiac injury secondary to various neurological disease processes (the Brain-Heart axis). The timely assessment, diagnosis, and subsequent management of cerebrovascular and cardiac diseases is an essential part of bettering patient outcomes and the progression of medicine. Artificial intelligence (AI) and machine learning (ML) are robust areas of research that can aid diagnostic accuracy and clinical decision making to better understand and manage the disease of neurocardiology. In this review, we identify some of the widely utilized and upcoming AI/ML algorithms for some of the most common cardiac sources of stroke, strokes of undetermined etiology, and cardiac disease secondary to stroke. We found numerous highly accurate and efficient AI/ML products that, when integrated, provided improved efficacy for disease prediction, identification, prognosis, and management within the sphere of stroke and neurocardiology. In the focus of cryptogenic strokes, there is promising research elucidating likely underlying cardiac causes and thus, improved treatment options and secondary stroke prevention. While many algorithms still require a larger knowledge base or manual algorithmic training, AI/ML in neurocardiology has the potential to provide more comprehensive healthcare treatment, increase access to equitable healthcare, and improve patient outcomes. Our review shows an evident interest and exciting new frontier for neurocardiology with artificial intelligence and machine learning.

1 Introduction

1.1 Neurocardiology

Neurocardiology is an evolving field with particular focus on the interplay between the nervous and cardiovascular systems (Figure 1). Most frequent clinical scenarios include hemorrhagic and ischemic stroke secondary to cardiac pathology (the Heart-Brain axis), and cardiac injury secondary to various neurological disease processes (the Brain-Heart axis) (1–4). This framework suggests an interconnected, reciprocal relationship between the two systems, whereby cardiac dysfunction can result in various scenarios of ischemic or hemorrhagic stroke, and conversely, intracranial disorders can impact cardiac function and physiology (5–10). Various biological mechanisms have been implicated in this reciprocal relationship of pathophysiology, ranging from autonomic dysregulation to systemic inflammation affecting both systems (5–7, 11).

Figure 1

Figure 1. Basics of neurocardiology.

1.2 The heart-brain axis: cerebrovascular disease secondary to cardiac pathology

The heart-brain axis is of significant relevance to the ischemic stroke population (12–14). Up to 25% of adults will suffer from at least one stroke in their lifetime and it represents the second-leading cause of death worldwide and the third-leading cause of disability (15–19). These numbers have consistently increased over the past 20 years, with stroke recurrence rates reportedly as high as 54% in Acute Ischemic Stroke (AIS) outcomes (16, 20–24). Functional outcomes, stroke recurrence, and secondary stroke prevention vary widely depending on stroke etiology (15, 25). Based on the recommendations of the 2021 American Heart Association/American Stroke Association Guidelines, the Trial of ORG 10172 in Acute Stroke Treatment (TOAST) classification is widely used to classify the etiology of AIS (Table 1) (26, 27).

Table 1

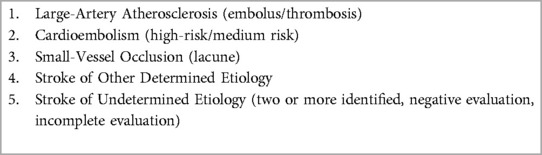

Table 1. The trial of Org 10172 in acute stroke treatment (TOAST) classifications.

Within the TOAST classification system, stroke secondary to emboli of cardiac origin (cardioembolism) represent the largest subgroup of stroke patients at 30%, with embolic strokes of undetermined source (ESUS) at 25% (26, 28). Moreover, various reports suggest that ESUS, traditionally categorized as cryptogenic strokes, can be often diagnosed as cardiac in origin with comprehensive cardiac workups (21, 28–36).

Cryptogenic stroke represents a category of stroke not attributable to any of the other four major TOAST subtypes (Table 1), accounting for approximately 20%–30% of all ischemic strokes. Recent studies have introduced the concept of ESUS as a specific subtype within cryptogenic strokes, aimed at identifying patients who may benefit from enhanced imaging studies or treatment such as anticoagulation even in the absence of documented atrial fibrillation (AF) (37, 38). Rarely, hemorrhagic stroke can also be caused cardiac dysfunction, such as in infective endocarditis and myocardial infarction (39–42).

1.3 The brain-heart axis: cardiac disease secondary to cerebrovascular pathology

The bidirectional nature and interconnected pathophysiology of the nervous and cardiovascular systems are also evident by the high prevalence of cardiac abnormalities following different types of ischemic stroke, giving credence to the notion of a “brain-heart axis” (2–5, 7, 9, 12–14, 43, 44). The pathologies of the brain-heart axis most notably include neurogenic stress cardiomyopathy (including Takotsubo cardiomyopathy), arrhythmias, and acute myocardial injury, and can be seen as early as 24 h following stroke (5, 7, 14, 45). Moreover, post-stroke cardiac injury is associated with higher mortality rates, more adverse long-term outcomes, and increased rates of stroke recurrence (14, 20, 26, 43, 46–49).

The mechanisms behind cardiac dysfunction after central nervous system (CNS) injury may be rooted in a maladaptive stress response causing acute injury and prolonged structural changes (Figure 2). Autonomic dysfunction is among the most significant disease processes underlying the heart-brain axis. Heart rate variability can be used to assess both general autonomic regulation and cardiac autonomic stability (7, 13, 50, 51). Heart rate, heart rate variability, and ratio of high frequency to low frequency bands can indicate the levels of sympathetic vs. parasympathetic activity and may therefore be used as a predictor for outcomes and mortality (7, 52–56).

Figure 2

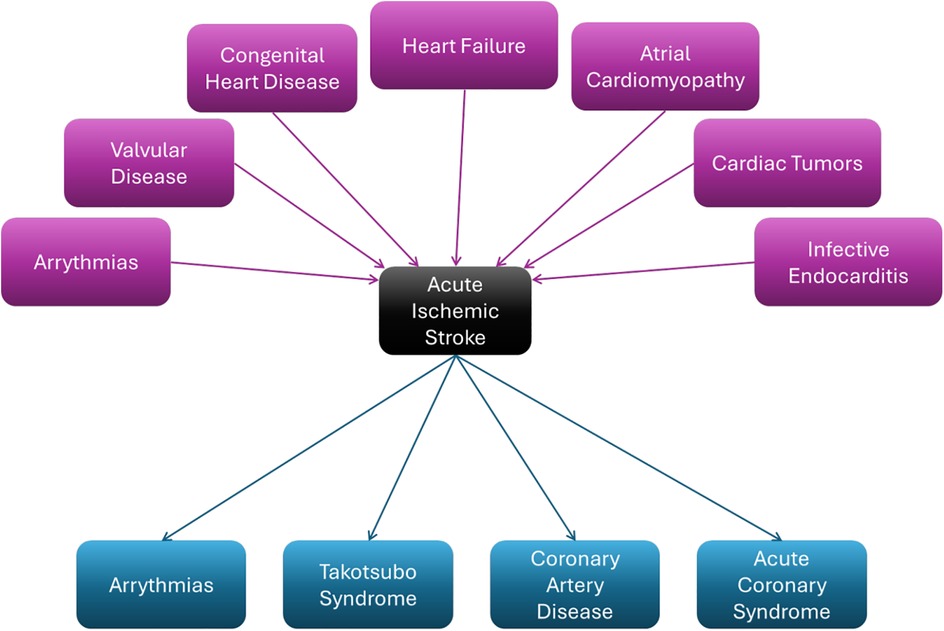

Figure 2. Heart-brain and brain-heart axis of acute ischemic stroke.

Within the central nervous system, the deleterious effects of an infarct on specific brain structures can alter the interpretation of cardiac response/stress. For instance, the insular cortex, supplied by the middle cerebral artery (MCA) and commonly injured in AIS, is associated with cardiorespiratory interoception and autonomic responses (12, 57, 58). Furthermore, its connection to structures such as the amygdala also demonstrates its role in the response to emotional stress and to a patient's interpretation of cardiac changes such as heartbeat variability (12, 58, 59). Emotional stress is also implicated in “mental stress-induced myocardial infarctions” with alterations in catecholamine release also contributing to cardiac alterations and microinfarcts (60–62).

In addition to pathological changes within the brain, these changes in structure and response to stress also manifest downstream in the heart, through direct electrical cardiac alterations, endothelial disruptions, and cardiac remodeling. One such example is Takotsubo syndrome, which manifests in part due to emotional stress, but also commonly occurs in patients with co-existing neurological disorders, with a prevalence ranging from 6% to 17% (63–65). Takutsubo syndrome has conferred worse functional outcomes and increased in-hospital and long-term mortality rates for patients with neurological disease (64, 65). Similarly, the suspected disease processes in this syndrome consist of an aberrant autonomic stress response secondary to injury to brain structures associated with regulating autonomic function, including the amygdala, hippocampi, the right putamen, and the left superior temporal pole. This leads to perturbations in connectivity among these structures, a dysregulated sympathetic response, and increased catecholamine release leading to myocardial insult and cardiac dysfunction (63, 64, 66–69).

1.4 The role of artificial intelligence in clinical applications of neurocardiology

The need for timely assessment, diagnosis, and subsequent intervention in this patient population is essential to optimize patient outcomes. The evolution of artificial intelligence (AI) and machine learning (ML) has provided a potentially groundbreaking avenue to develop useful clinical tools to optimize the detection, prognosis, and treatment of cerebrovascular diseases (70–72).

In brief, AI entails the use of a machine to simulate human intelligence to solve tasks (73). Within AI is machine learning (ML), which encompasses the iterative training of machines using large volumes of data to detect patterns and generate problem-solving models which can be applied to future data sets (73). Deep learning (DL) is a subclassification of ML which entails the use of interconnected neural networks to simulate the process of learning in humans (73).

Utilizing trained algorithms, AI often has high accuracy for diagnosis, prognosis of disease progression, and treatment suggestions, while also integrating historical data and personalized patient information (74). Several AI programs have been approved by the Food and Drug Administration (FDA) and have been implemented in many hospital systems worldwide for the detection of cerebrovascular accidents (CVAs), utilizing imaging modalities such as MRI, CT scans, computed tomography angiography (CTA) and computed tomography perfusion (CTP) scans, and to assess the cerebral vasculature and blood flow (70, 75, 76).

We have previously reviewed the growing applicability and implementation of AI/ML algorithms in the diagnosis, management, and prognostication of cerebrovascular diseases (70). Most pertinent to neurocardiology is ischemic stroke, for which these algorithms have shown a high degree of diagnostic efficacy, utilizing CTAs to detect large vessel occlusions (LVOs) and in using CTP scans to estimate perfusion mismatch and core infarct volumes (70). Moreover, AI/ML algorithms have also proven to be highly effective.

The prognostication for stroke patients can be performed using grading systems such as the Alberta Stroke Program Computed Tomography Score (ASPECTS). This score is used to predict stroke severity and clinical outcomes based on the anatomical distribution of stroke and the division of the MCA affected in cases of LVO (70). For what ordinarily is a cumbersome process of tabulation for humans, AI/ML provides an expedited means of tabulating these scores, which is crucial in the acute setting of ischemic stroke in which time is of the essence (70). These algorithms have either outperformed or matched the accuracy of human radiologists, are now increasingly implemented into routine clinical practice for ischemic stroke. Commercial platforms such as RapidAI and Brainomix are now regularly used as a supplementary tool for clinical decision-making for stroke teams (70).

The use of AI/ML applications in stroke assessment has therefore already shown clinical significance due to their ability to rapidly combine and analyze large volumes of patient input information when compared to manual computation or assessment (77–81). While this technology yields its highest accuracy in the diagnosis of cardioembolic strokes, its accuracy for the diagnosis of ESUS is also improving with further iterations of AI/ML algorithms (80). AI/ML has also been used as a predictive tool for cerebrovascular and cardiovascular disease. This is of particular importance from the perspective of neurocardiology, in which modifiable, preventable comorbidities such as atherosclerosis are heavily interconnected and implicated in the pathophysiology of both systems.

In addition to their utility for clinical decision making, AI algorithms are also efficient analytical tools, can reduce human error, and can identify trends otherwise missed by the human eye or standard calculations (75, 80, 82). This is particularly essential in acute disease processes such as stroke, where accuracy and speed can drastically affect patient outcomes. The implementation of automation can also reduce physician fatigue when used correctly for personalized care and decision making (83, 84). AI may also be able to help patients receive more equitable stroke management by providing accessible and personalized care options to reduce geographical, socioeconomic, and ethnic health disparities (82, 85, 86). However, the literature consistently notes that the benefits of AI applications are inherently limited by the ability to standardize its implementation and train clinicians to effectively use it (82).

Therefore, it is imperative for clinicians to be familiar with current and future stroke evaluation modalities in a rapidly evolving, technological landscape. In this review, we will evaluate the role of AI and ML in the heart-brain relationship in stroke, focusing both on the most common cardiac causes of stroke and the most common post-stroke cardiac complications.

2 The heart-brain axis: AI/ML applications in cardiac sources of stroke

2.1 Atrial fibrillation

According to the American Heart Association (AHA)/American Stroke Association's 2021 Guideline for the Prevention of Stroke in Patients with Stroke and Transient Ischemic Attack, atrial fibrillation (AF) is the most common arrhythmia in adults, and the leading cause of acute ischemic stroke (75). Initially diagnosed by electrocardiogram (EKG), AF confers an increased risk of future stroke, with the need for anticoagulation to mitigate this stroke risk determined by the CHA₂DS₂-VASc risk score (87). Despite up to 40% of AF patients being asymptomatic, these patients are at a higher risk of mortality than even symptomatic patients (87). This is likely due to treatment nonadherence and insidious disease progression while asymptomatic. One AF subtype, paroxysmal AF, has an intermittent and unpredictable presentation, requiring longer diagnostic monitoring, and is often missed during hospital admissions during stroke. Certain risk models, such as the CHARGE-AF score, is often implemented to identify high risk patients based on clinical factors without the need for EKG data (88). While AF is the most common cause of the cardioembolic TOAST subcategory, it may also represent up to 15% of all cryptogenic strokes (26, 32, 79).

2.1.1 Diagnostic electrocardiography

AF diagnosis with EKG is one of the most widely studied implementations of AI in AIS/neurocardiology diagnosis and identification to stroke risk stratification and treatment options (Figure 3). This includes several FDA-approved programs such as Cardiomatics and AccurKardia (89, 90). Certain AI/ML models have been shown to outperform validated tools such as CHA₂DS₂-VASc in stroke prediction (91, 92).

Figure 3

Figure 3. Implementation of AI for in-hospital EKG evaluation and diagnosis of atrial fibrillation.

While normal sinus rhythm on initial EKG may point clinicians away from a diagnosis of AF, Attia et al. recently used over 20 years of EKG data from the Mayo Clinic to assess the ability of AI to identify AF from a normal sinus rhythm on EKG (93). This study demonstrated area under the curve (AUC) of 0.87 for correctly diagnosing AF among patients who had previously recorded AF rhythms. However, this AUC increased to 0.90 when predicting AF in undiagnosed patients, notably if EKG was obtained up to 31 days prior to the first EKG-recorded AF episode (93). This AI apparatus was then compared to the validated CHARGE-AF score for AF risk prediction and performed with a similar degree of accuracy (94). These measures have also been used in the assessment and diagnosis of AF in the setting of cryptogenic stroke (95). Additionally, Weil et al. investigated the predictive value of an AI-generated EKG score of AF risk, noting that a higher AI-EKG-AF score correlated with the subsequent development of cerebral infarcts on MRI, therefore demonstrating the value of such AI-algorithms in predicting cerebrovascular disease even with EKG data alone (96).

Based on these findings, Raghunath et al. subsequently developed their own deep neural network (DNN), while also including a 1-year predictive factor for future-onset AF for a sample of 430,000 patients over 30 years. This DNN demonstrated a final AUC of 0.85 and a sensitivity of 69% in a simulated deployment scenario (97). The authors analyzed their study cohort and noted that 62% of patients with predicted AF subsequently suffered from stroke within 5 years of the study, a greater accuracy than currently approved protocols (97). Kim et al. also followed a similar 12-lead EKG model mainly using ResNet blocks, but also incorporated an attention analysis for the model using Grad-CAM with convoluted neural network (CNN) feature map gradients (98). The authors noted that sinus rhythm EKGs with prolonged QRS compared to a specific point between the T and P waves correlated with an AI-diagnosis of AF (98).

Most of these studies also found that monitoring close to an AF event provided better results and eliminated the indication for long-term monitoring in this population (97, 98). New models are continually being created to improve diagnostic efficacy and risk prediction (99, 100).

2.1.1.1 Mobile electrocardiography

Mobile EKGs (mEKGs) are an increasingly popular mode of cardiac evaluation through commonly worn devices with FDA approval, such as Apple Watch single-lead EKGs, and approved monitoring tools such as the KardiaMobile with 6-lead EKGs (101–106). These novel assessment tools allow for close monitoring at the outpatient, community level, which may improve the rate of detection and therefore allow for early preventative measures for stroke (106–108). Screening measures with clinicians using automated AI with mEKGs have yielded sensitivities as high as 98.5% and specificities up to 91.4% (108). The use of AI with this mEKG modality has also provided a means of easing clinician workload and overcoming restrictions during the height of the COVID-19 pandemic (106, 109). Furthermore, mEKGs may also be vital in the diagnosis of paroxysmal, asymptomatic AF through providing a means of extended cardiac monitoring.

Raghunath et al. have also utilized KardiaMobile data using over 260,000 mEKG recordings to test their own AI and DL algorithm utilizing a combination of CNN-based ResNet layers, gated recurrent unit (GRU), and standardized dense neural network layers that built upon Attia et al.'s 2019 model using classic 12-lead EKGs (93, 104). They assessed for paroxysmal AF events, noting a high positive predictive value when the algorithm was trained within 2 days of an event (104). This ability to accurately predict future AF events could drastically change medical management in asymptomatic patients.

For an ischemic stroke population, in-hospital use of this technology may capture an additional AF event and provide more accurate diagnosis during admission. When comparing this data to 12-lead EKG AI models or the CHA₂DS₂-VASc risk score, these technologies have tended to outperform risk measure scales but have demonstrated reduced accuracy than 12-lead EKGs even with similar algorithm priorities (103, 104). Regardless, this technology provides an accessible and reliable alternative for monitoring patients at high-risk for AF and subsequent stroke.

2.1.1.2 Electrocardiography patch

Continuous EKG monitoring may also be conducted through a patch, such as the FDA approved iRhythm Zio and BioTel MCOT Patch (106, 110). The clinical use of these AI algorithms with immediate monitoring has demonstrated high accuracy in diagnosis of AF and has led to earlier initiation anticoagulation to mitigate the risk of thrombus formation and subsequent embolization to the brain (110, 111). Various studies have also demonstrated that the patch yielded slightly improved rates of detection compared to classic Holter monitors which have limited long-term ambulatory functional use (112–116). Therefore, there is a growing role for AI not just in the emergency setting, but also in providing an invaluable means of cardiac monitoring at home or outpatient for paroxysmal AF (117).

2.1.2 Diagnostic photoplethysmography

Photoplethysmography (PPGs) are light-based sensors for blood flow measurement utilized both in the inpatient and outpatient settings in wearable devices such as smartwatches. The WATCH AF trial was among the first studies demonstrating the feasibility of AF diagnosis and observation in PPG-enabled devices, citing an accuracy of 96.1% (118). A recent systematic literature review found 24 cohort studies mostly assessing AF detected by smartwatches showing its significant growth and popularity in recent years, with several studies pointing to the easy implantation of these tools (119–122). PPG technology may also be used as a mobile phone application, such as with FibriCheck and SMARTBEATS, applications which have yielded high diagnostic accuracy, with sensitivity and specificity rates of >95% when compared to the diagnostic ability of single-lead EKGs (123–125).

2.2 Valvular disease

Valvular heart disease (VHD), a major cause of morbidity and mortality worldwide, has been recognized as an underlying risk factor for ischemic stroke. Both mitral and aortic valve stenosis have been associated with cardioembolic events, and the prevalence of VHD has been steadily increasing with an aging population (126). AI platforms may potentially enhance diagnostic capabilities, ease workflow, and potentially improve the outcomes of the patient with VHD and ischemic stroke. The role of AI in diagnosing valvular heart disease has been explored through assessing EKGs, phonocardiograms, and echocardiograms.

2.2.1 Diagnostic electrocardiography

AI-enabled electrocardiogram models have been developed, utilizing CNNs to assist in the early detection of significant aortic stenosis (AS) (127). Using a sample of over 258,000 of EKGs to train, validate and test the model, researchers at Mayo Clinic, Rochester developed an AI-EKG system capable of predicting moderate to severe AS with impressive sensitivity, specificity and accuracy (127).

2.2.2 Diagnostic transthoracic echocardiography

Since echocardiography is the primary modality for diagnosis and evaluation of VHD, the primary focus of AI research in valvular heart disease remains on the review and interpretation of echocardiograms. AI can assist in the segmentation of valves and cardiac structures for automated analysis. Using image recognition algorithms, aortic and mitral valve disease states have been directly detected from the images themselves. Several AI-enabled algorithms have been developed to diagnosis mitral valvular disease via quantitative analysis of 3-dimensional (3-D) echocardiography. These include Mitral Valve Quantification (Philips Medical Imaging, Andover, MA), eSie Valve (Siemens Healthcare, Mountain View, CA, USA), Mitral Valve Navigator (Philips Medical Systems), Auto Valve Analysis (Siemens; California, USA), and eSie PISA Volume Analysis (Siemens Medical Solutions USA, Inc., Mountain View, CA) (128). Measurements obtained during echocardiographic valvular assessment have been integrated with other clinical data to identify novel aortic valve disease subgroups and describe new predictors of aortic valve disease progression (129).

Similarly, another FDA-approved AI-apparatus is iCardio.ai, which has been cleared for use in the detection of AS This apparatus was developed through training and testing CNNs to use two-dimensional (2D) TTE to diagnose AS, with an AUC of 0.96 (130). Since severe aortic stenosis is a known risk factor for ischemic stroke, screening of at-risk populations with timely and efficient AI-enabled tools can be valuable.

2.2.3 Cardiac magnetic resonance imaging

AI applications can provide a more rapid analysis of cardiac MRI data, automated and quantitative evaluations of the valvular structures, and a proper appraisal of patient prognosis in the setting of disease (131, 132). This information is essential in gauging disease severity and stroke risk.

2.2.3.1 MRI segmentation

A study by Alabed et al. demonstrated that DL algorithms for cardiac MRI segmentation and measurement have similar or better efficiency as compared to manual measurements (133). In their multicenter dataset, intraclass correlation coefficients (ICCs) ranged from 0.94 to 0.99 for left ventricular (LV) and right ventricular (RV) volumes respectively, with similarly high ICCs for ejection fractions (LV: 0.93, RV: 0.94), and ventricular mass (LV: 0.95, RV: 0.92). Comparing dice analysis of their internal and external test cohorts showed significant concordance between manual and AI measurements (133).

These findings are further supported by Bai et al. with their fully convolutional network (FCN) based cardiovascular resonance (CMR) image analysis (134). The team found that the performance of the FCN-based automated analysis was on par with human inter-observer variability for metrics such as LV and RV end-diastolic volume (EDV) with a mean absolute difference of 6.1 ± 5.3 ml and 8.5 ± 7.1 ml, respectively. MRI has also been successfully quantified using AI algorithms based on the proximal isovelocity surface area (PISA) method, with phenotyping studies demonstrating promising results in the detection and quantification of AS and mitral regurgitation (MR) (135–137).

These results support the notion that automated methods based on AI-modeling and proper dataset training can improve performance and predictability of multiple modalities.

2.2.3.2 MRI flow imaging

AI models have also been integrated into difficult workflows such as four-dimensional (4D) flow magnetic resonance imaging for capturing temporal changes of blood flow patterns. Aortic regurgitation onset and severity can be measured with 4D flow MRI, however, the metrics obtained are extremely sensitive to spatial resolution. Long et al. used deep-learning upscaling the increase resolution by a factor of four. Building upon the existing 4DFlowNet model, they devised three architectures 4DFlowNet-Res, 4DFlowNet-Dense, and 4DFlowNet-CSP, all of which outperformed the baseline model in root mean square error (RMSE), structural similarity index (SSIM), and relative speed error (RE) showing how AI-integration can improve existing assessment workflows (138).

2.2.4 Diagnostic phonocardiography

DL algorithms have also been utilized in digital stethoscope platforms capable of automated cardiac auscultation and murmur detection. AI-assisted cardiac auscultation in practice refers to the auto-interpretation of phonocardiograms, within the domain of signal processing. Various algorithms can diagnose severe AS with sensitivity and specificity of over 90% (139). Chorba et al. developed and tested a deep CNN model that classifies phonocardiograms in 3 categories: heart murmur, no murmur, or inadequate signal. To determine the accuracy of the signal quality and murmur detection performance, the algorithm output was compared with annotations from three cardiologists. This algorithm yielded a sensitivity and specificity for detecting murmurs of 76.3% and 91.4%, respectively. The study also used the gold standard echocardiogram to detect clinically significant (deemed as moderate or greater) AS and MR, with moderate success. Detection of AS was 93.2% sensitive and 86.0% specific, and detection of MR was 66.2% sensitive and 94.6% specific (139).

AI-platforms can be useful in screening for valvular heart disease through auscultation. One such AI-apparatus recently approved by the FDA is the Eko Murmur Analysis Software (EMAS), a “smart” stethoscope which can detect and characterize even asymptomatic murmurs in both pediatric and adult patients (140). This valuable tool which can be used on a daily basis during physical exams, can assist with early diagnosis of valvular heart disease such as aortic and mitral valve stenosis which are among known risk factors for ischemic stroke.

2.2.5 Stroke prediction

Artificial intelligence and machine learning have emerged as powerful tools to aid clinicians in predicting stroke and related outcomes. These models have demonstrated equal or superior performance to traditional statistical methods, prompting further investigation into the potential for AI/ML integration into risk assessment and prognostic prediction for stroke across various cardiovascular conditions.

Zhou et al. utilized machine learning algorithms to predict stroke and mortality in patients with mitral regurgitation (141). They found that a gradient boosting machine (GBM) method significantly outperformed many traditional statistical methods in predicting adverse outcomes of TIA/stroke and all-cause mortality. For prediction of TIA/stroke, the GBM model achieved an AUC of 0.8084 in comparison to 0.4128 for logistic regression (LR), 0.5528 for decision tree (DT), 0.7202 for random forest (RF), 0.7429 for support vector machine (SVM), and 0.7533 for artificial neural network (ANN). For prediction of all-cause mortality, the GBM model achieved an area under the receiver operating characteristic curve (AUC) of 0.7962 in comparison to 0.4063 for LR, 0.5490 for DT, 0.7132 for RF, 0.7354 for SVM, and 0.7702 for ANN (141).

Extending this research, Rauf et al. applied a similar GBM model to patients with mitral stenosis with atrial flutter (142). Their results further confirm the GBM model's efficacy, with an AUC of 0.8037 for TIA/stroke risk prediction and 0.8388 for all-cause mortality risk prediction, significantly outperforming traditional statistical methods with AUC ranging from 0.4392 to 0.6976 for TIA/stroke and 0.4719 to 0.6174 for all-cause mortality (142).

In context of AS, Shimoni et al. trained a random survival forest (RSF) model using data from an AS registry to assess prognostic characteristics with an AUC of 0.83 (0.80–0.86) for 1-year outcome and 0.83 (0.81–0.84) for 5-year outcome (143).

2.3 Congenital heart disease

Congenital heart disease (CHD) encompasses structural cardiac abnormalities manifesting from birth, with significant impacts on lifetime health such as increased stroke risk at a younger age (144, 145). The presence of a patent foramen ovale (PFO) is among the most common congenital abnormalities seen in 25% of the population. This is characterized by a persistent aperture between the right and left atria of the heart. Atrial septal defect (ASD) is another cause of intra-cardiac shunting and accounts for 10%–15% of all CHD. Both PFO and ASD create a conduit for paradoxical thromboembolisms to the brain, placing CHD among the most common cardiac etiologies of AIS (146–149).

2.3.1 Stroke prediction

Several predictive scales have been developed to assess the risk associated with congenital abnormalities, particularly PFO, and their subsequent risk for AIS. The Risk of Paradoxical Embolism (RoPE) score and the PFO-associated Stroke Causal Likelihood (PASCAL) risk stratification system are the most widely utilized risk scales (148, 150). The RoPE score consists of age, hypertension, diabetes mellitus, smoking history, previous stroke, or transient ischemic attack (TIA), and neuroimaging findings to estimate the likelihood of a stroke occurring due to a PFO. Higher RoPE scores indicate a greater probability of a stroke occurring due to a pathologic PFO, but conversely, are associated with a lower risk of recurrent stroke (148, 149, 151). The PASCAL risk stratification system categorizes patients into subgroups based on the presence of high-risk PFO features, such as a large shunt or atrial septal aneurysm, in conjunction with the RoPE score (148, 149).

There have been several studies utilizing ML algorithms for stroke risk in patients with documented CHD. Bai et al. constructed a RF ML algorithm in which they established the relationship between cryptogenic stroke and predictor variables, including morphologic and functional characteristics of PFO, as detected by transthoracic and transesophageal echocardiogram (TTE/TEE) (146). Traditional algorithmic approaches such as SVM and ANN have been considered. However, the high dependence on database accuracy and time efficiency rendered these approaches suboptimal.

2.3.2 Recurrent stroke prediction

Luo et al. constructed their random forest survival (RFS) model under supervised machine learning and used random forest variable importance (VIMP) to select variables such as fasting blood glucose, thickness of interventricular septum, ratio of mitral peak early (E) to late (A) diastolic filling velocity, left ventricular end-systolic dimension, body mass index, systolic blood pressure, and thickness of the posterior wall from a population of patients with post-closure PFO diagnosed by TTE/TEE (148). Compared to the concordance index (C-index) of 0.54 in the traditional Cox proportional hazard regression model, the RFS model had a C-index of 0.87. RFS analysis supported traditional risk factors and identified the ratio of mitral peak early to late diastolic filling velocity and the thickness of the interventricular or posterior wall in post-closure PFO patients as predictive values to prevent stroke recurrence.

In another study in adult patients with CHD by Chiriac et al., two ML models (RegCOX and XGBoost) were constructed as prediction models for stroke and systemic embolism (SSE) (144). Both models were compared against and significantly outperformed the traditional CHA₂DS₂-VASC score among the ACHD population with AUC at 5 years of 0.80 for RegCOX, 0.79 for extreme gradient boosting (XGBoost), and 0.74 for CHA₂DS₂-VASC. Both ML models included the CHA₂DS₂-VASC score as part of their regression in addition to history of cerebrovascular disease, ASD, and the Charlson comorbidity index as the other high-risk variables.

PFO size has been implicated with increased mortality rates in AIS patients and clinical studies have shown varying efficacy for PFO closure vs. medical therapy for secondary stroke prevention with high-risk PFO. Factors such as age and size of PFO have been considered in past clinical trials to support the closure of high-risk PFO and increasing data has supported PFO closure to significantly reduce the risk of stroke or TIA. The analysis by RFS in Luo et al. supported continued targeting of high-risk groups even post-PFO closure (148). ASD, as identified by the RegCOX and XGBoost models of Chiriac et al. has been identified as a significant risk factor for late morbidity and mortality with normal survival reported following early ASD closure. The PASCAL risk stratification has shown in a recent meta-analysis that high-risk PFO features and RoPE score together yield strong predictive value of recurrent ischemic stroke in closure with a 90% relative risk reduction in the PROBABLE group, 62% in the POSSIBLE group, and no significant difference in the UNLIKELY group (149). While the closure of PFO holds promise as a therapeutic intervention for recurrent ischemic stroke, challenges and questions regarding optimal timing of PFO closure, prophylactic PFO closure in adults with CHD, long-term durability of closure devices, potential risks and patient safety factors are still yet to be studied (149).

2.4 Heart failure

Heart failure (HF) can manifest as a sequela of progression of any cardiovascular pathology. HF affects at least 26 million people globally with a high morbidity and mortality, and imposes a significant medical and financial burden on patients and hospitals (152). HF is among the leading causes of hospitalization in the U.S. alone, with at least 1 million admissions with HF as a primary diagnosis annually (152, 153). The prevalence of HF is anticipated to grow further due to increasing life expectancy coupled with increased incidence in cardiovascular risk factors such as obesity, diabetes, hyperlipidemia, and myocardial infarction (MI) (154). Specific to neurocardiology, HF confers a two to three-fold increase in the risk of ischemic stroke, largely due to the risks of cerebral hypoperfusion and thromboembolism (155).

The diagnosis and management of HF entails assessing myocardial pump function through various imaging modalities. Echocardiography remains the cornerstone in assessing cardiac function. Decreased cardiac pump function occurs due to a variety of underlying pathophysiologies and is diagnosed by two-dimensional (2D) echocardiography or myocardial strain analysis by Speckle-tracking echocardiography (STE). Decreased cardiac function leads to impairment of cardiac output (CO) and presents HF symptoms. This state of decreased CO in turn can cause cerebral hypoperfusion and is associated with increased risk of ischemic stroke. Moreover, stasis of blood in dysfunctional cardiac chambers increases the risk of thrombus formation which is a known risk factor for embolic strokes (156).

As a novel echocardiographic technique, myocardial strain analysis can detect even subclinical myocardial dysfunction. Strain parameters are measures of myocardial deformation throughout the cardiac cycle. Strain analysis can be applied to various cardiac chambers to assess their function, including left atrium (LA) and LV. Global longitudinal strain (GLS) of LV and LA longitudinal strain are among the most studies and validated strain parameters.

LA strain analysis has been the center of attention lately. Abnormal LA strain parameters have been studied as potential independent risk factors for AIS, regardless of the presence of AF (156). This relationship is multifactorial and includes fibrotic remodeling of the left atrial walls leading to reduced output, and increased risk of thrombus formation, particularly in the left atrial appendage (Figure 4). This risk is particularly increased among patients with chronic atrial fibrillation and atrial flutter. While LV function can be assessed by LV strain analysis, left atrial strain is also associated with, and may be a proxy for LV dysfunction. In patients with reduced cardiac pump function, known as heart failure with reduced ejection fraction, (HFrEF), the hypokinesis of the ventricular walls leads to the risk of blood stasis, a key tenet of Virchow's triad, and further increases the risk of thrombus formation within LV cavity (157). AI/ML applications have been promising in timely detection of cardiac dysfunction, and therefore, allow for optimization of medical management to pre-empt the sequelae of thromboembolic events and AIS.

Figure 4

Figure 4. Left atrial appendage thrombus on TTE and TEE. (A) TEE image of a small LAA thrombus * in patient with AF. (B,C) 2D and 3D TEE reconstruction of a large thrombus protruding from LAA into the left atrium in a patient with factor V Leiden and AF. (D) TTE image of an apical LV thrombus *, detaching from the LV apex in a patient with acute myocardial infarction. TEE, transesophageal echocardiography; TTE, transthoracic echocardiography; LAA, left atrial appendage; LV, left ventricle; AF, atrial fibrillation.

Therefore, access to AI-enabled tools for the early detection of cardiac dysfunction among high-risk patients and the timely diagnosis and management of HF may mitigate the risk of subsequent AIS. The recent advancement in AI applications has allowed for a growing role in the use of various algorithms for a myriad of cardiac conditions (158–160). Various AI/ML algorithms have been developed and implemented to utilize data from echocardiograms and EKGs for risk stratification, diagnosis, and prognostication for HF patients, particularly with respect to the heart-brain axis. As this technology continues to develop and be further incorporated into commercial use, it provides the opportunity to further revolutionize and increase the efficiency of detection and prognostication of HF. Moreover, its potential in detecting subtle cardiac abnormalities allows for the early screening and management of other cardiac conditions, which itself may prevent progression to HF and ultimately mitigate a risk factor of AIS.

2.4.1 Diagnostic electrocardiography

The cardiac remodeling seen in HFpEF often manifests as EKG changes, a modality critical to the assessment of HF (161, 162). However, these subtle changes are often difficult to detect, which is why EKGs had not previously been an optimal screening mechanism for HF. Various studies have generated AI networks based on waveforms from EKGs to detect cardiac pathology ranging from ejection fraction to valvular disease, each implicated either directly or indirectly to HF (160, 163). The rationale is such that deep learning algorithms and neural networks could be “trained” with enough data to detect the otherwise subtle EKG abnormalities associated with the pathological cardiac remodeling seen in HF.

Akbilgic et al. developed an EKG-AI model using a deep residual CNN based on standard 12-lead EKGs (164). The authors noted that this model could predict HF with moderately high accuracy, with the authors noting an AUC comparable to AUCs from notable HF risk calculators from the Framingham Heart Study (FHS) and Atherosclerosis Risk in Communities (ARIC) study (164).

Other CNNs have been developed to detect HFrEF (with an EF of 40% or lower) with 12-lead EKGs data, with the capacity to “retrain” to utilize single-lead EKG input alone during routine examination, one of which is AI-EKG (165). Utilizing an EKG-enabled stethoscope, this deep learning system was able to detect HFrEF with an AUC of 0.81, a sensitivity of 91.9% and specificity of 80.2% (165). Kwon and colleagues also developed a deep learning model to predict HFpEF, based on an ensemble network using 12-lead, 6-lead, and single-lead EKGs. The authors noted a high level of predictive value (AUC 0.866) in detecting HFpEF using both 6-lead and 12-lead EKGs and noted that this model outperformed already-implemented screening-tests for other medical conditions, such as mammography for breast cancer (161).

2.4.1.1 Vision transformer algorithms

Investigators have built on the above findings to generate vision-based transformer models such as HeartBEiT ® for EKG waveform analysis (166). Transformer based neural networks (TNNs) allow for the use of input (tokens) to develop relationships within and between data sizes (166). The development of Bidirectional Encoder representation from Image Transformers (BEiT) allows for the use of an input image to generate these tokens for input to be used to “train” the transformer, akin to words of a sentence for a language model. These tokens are used to generate downstream derivatives and output such as MI, left ventricular ejection fraction (LVEF), and hypertrophic cardiomyopathy. HeartBEiT ®, using these TNNs, has yielded a significantly higher performance in diagnosing the above conditions compared to standard CNNs, even with low sample sizes (166). The use of vision transformers presents a novel avenue of AI which warrants further investigation for its use in predicting and diagnosing HF.

2.4.2 Diagnostic transthoracic echocardiography

In the HF care field, wearable sensors coupled with ML analytics may potentially improve clinical outcomes and reduce hospitalizations. One HF-specific, AI-powered platform which has recently gained approval from the FDA is the EchoGo® Heart Failure platform by Ultromics, based in the United Kingdom (UK). This platform applies AI via CNN to detect HFpEF using just a single 4-chamber TTE image. This apparatus was able to successfully reclassify HF among 73.5% of previously non-diagnostic results, with an accuracy of 90%, and a sensitivity and specificity of 87.8% and 83.0%, respectively (167). Moreover, Us2.ai, a Singapore-based medical technology firm has received FDA clearance for their automated decision support tool for echocardiography (168). LVEF is among the twenty-three validated parameters which can be used to assess cardiac systolic function. Such platforms allow for the accurate acquisition of cardiac measurements even without human input and may better optimize the screening and diagnosis of heart failure. There has also been an investigation done in the prediction of LAT using TEE vs. TTE images. Piezko et al. have done the most substantive investigation of AI in predicting LAT using TTE and clinical data compared to TEE prior to cardioversion or ablation (169). Their AI model accurately predicted LAT (AUC 0.85), outperforming other risk factors (LVEF and CHA2DS2-VASc), and would have avoided TEE in 40% of patients (169). While reducing TEE burdens, this also provides a means of significantly mitigating the risk of ischemic stroke in the future from said thrombi, particularly in an ever-growing cohort of patients with AF and atrial flutter.

With regard to myocardial strain analysis, motion estimation is the critical task to obtain GLS, which is a measure of LV function. This has conventionally been done using speckle tracking algorithms. Using echocardiograms, Salte and colleagues generated a deep learning AI pipeline consisting of 4 ANNs trained for motion estimation and compared this to semi-automated speckle-tracking (170). This pipeline was “taught” to detect patterns in consecutive images to obtain an optical flow vector field to predict local velocities, perform timing of cardiac events, and to visualize cardiac motion (170). Without any human input, this pipeline was able to successfully classify cardiac views, estimate motion, and ultimately measure GLS within 15 s, with accuracy comparable to conventional speckle-tracking methods (170). Therefore, the role of AI applications to assess cardiac function by performing myocardial strain analysis without human input, provides another means of expedited, more efficient detection of HF, and warrants further investigation.

2.5 Cardiac tumors

While cardiac tumors are a comparatively less common form of cardiac pathology, they still confer significant morbidity and mortality if not detected. Within neurocardiology, this is especially relevant in the setting of cardiac myxomas and papillary fibroelastomas which can embolize from the left atrium or the valvular endocardium and cause large-vessel occlusions (LVOs) in the brain (171). Various imaging modalities are used to evaluate and diagnose cardiac tumors (171). These include TTE, TEE, cardiac MRI, cardiac CT, and positron-emission tomography (PET) scans (172). The imaging modality of choice depends greatly on tumor characteristics such as whether the tumors are primary vs. metastatic lesions and of tumor location (right heart vs. left heart) (172). To this point, the current literature surrounding the role of AI and ML for diagnosing cardiac tumors is relatively limited. To date, there are no studies which have demonstrated efficacy for the utilization of AI in cardiac tumor evaluation.

2.5.1 Diagnostic parallel computing

One avenue of potential inquiry in the context of detecting cardiac tumors using AI is that of parallel computing to identify cardiac tumors. Parallel computing entails the use of computers to perform multiple tasks simultaneously to break a multi-faceted problem into individual tasks to be solved (173, 174). In the context of cardiac tumors, this would involve segmenting the various radiographic features of the tumor across multiple imaging modalities and incorporating this data to generate a single diagnosis (173). Computing may be supplemented and enhanced by AI and ML algorithms to improve the sensitivity and specificity of current imaging modalities for diagnosing cardiac tumors (174, 175). In the realm of neurocardiology, this is particularly pertinent with respect to myxomas which may embolize and lead to LVOs and infarcts (176).

2.5.2 Stroke prediction

AI models have increasingly been used to predict the risk of stroke amongst patients with specific comorbidities (177, 178). Despite the elevated risk of stroke with cardiac tumors such as myxomas and papillary fibroelastomas, there are currently no studies evaluating the risk of stroke in patients with any form of cardiac tumors. This represents an important gap in the literature and should be an area of focus in future studies evaluating the role of AI in stroke prediction.

2.6 Infective endocarditis

Infective endocarditis (IE) is a sequela of systemic bacterial infection spreading to the endocardium, the inner lining of cardiac muscle and valves. IE can have severe systemic effects on a myriad of organ systems, with the nervous system being the second most affected (179). The neurological manifestations of IE from embolism of valvular vegetations include embolic stroke, cerebral hemorrhage often in the setting of mycotic aneurysms, and the spread of infection leading to meningitis, brain abscesses, and toxic encephalopathy (172, 180).

Among the most common causes of morbidity and mortality in the setting of IE is ischemic stroke. Strokes secondary to cerebral emboli represent up to 42% of neurologic complications in IE patients (181). Vegetations on cardiac valves have a propensity to embolize into large cerebral arteries and disrupt perfusion to various parts of the brain (182). Therefore, timely diagnosis and treatment of IE can reduce the risk of embolization to the brain and LVOs which would otherwise require mechanical thrombectomy. According to the literature, there is a threefold decrease in stroke risk within the first week of treating IE with antibiotics (182, 183). Therefore, early detection and treatment of IE even before overt systemic manifestations is essential, with at least 30% of IE patients developing subclinical neurological manifestations such as silent cerebral emboli (184).

2.6.1 Diagnostic 18f-fluorodeoxyglucose PET/CT

18F-Fluorodeoxyglucose (FDG) PET/CT involves injecting a radiolabeled glucose analog into the patient and evaluating its uptake throughout the endocardium, myocardium, and other cardiac structures. Radiotracer uptake is higher in metabolically active tissues, as in the case of IE where FDG PET/CT can visualize infected valvular structures with high uptake (185). This technique is most useful to rule out IE in prosthetic heart valves, where other imaging modalities including echocardiography may be extremely limited. However, the lack of standardized metrics of uptake and the difficult distinction between infection and inflammation has limited its use (185, 186). The integration of AI enabled better differentiation among various cardiac pathologies such as valvular abscesses, intracardiac fistulae, and pseudoaneurysms seen in IE, as opposed to reactive inflammatory changes seen either postoperatively or in the setting of chronic valvular disease.

In 2016, Godefroy et al. assessed AI and ML algorithms with FDG PET/CT in the setting of IE (187). Using a sample of 68 patients with a known prior history of IE, the authors developed an AI and ML algorithm model that could be applied to 40 patients with suspected IE in their study (187). The model was combined with the European Society of Cardiology's 2015 criteria for suspected IE. The AI model demonstrated higher rates of accuracy, sensitivity, and specificity when compared to expert clinicians alone (183). Unfortunately, few studies analyzing AI and ML for imaging in IE have been published since, which has stymied the advancement of AI and ML as diagnostic tools for IE patients.

2.6.2 Stroke prediction

Resende et al. developed a log-linear ML model which was able to predict higher rates of inpatient mortality amongst IE patients undergoing surgery compared to patients who received conservative management (188). Another study by Luo et al. had similar results with a ML model that predicted early mortality and risk of stroke after surgery better than pre-existing logistic regression models and the well-established European System for Cardiac Operative Risk Evaluation model (189).

However, while there have been very few investigations focusing specifically on AI/ML applications for neurological sequelae, the prospective use of AI/ML serves as “proof of principle” that prevention is better than cure. Neurological conditions are among the most common manifestations of systemic IE, and therefore, the focus of using AI/ML technology in the realm of neurocardiology for IE patients is best suited to detection of infective cardiac pathology before the neurological pathologies manifest.

3 AI/ML applications in strokes of undetermined etiology

3.1 Cryptogenic stroke

Cryptogenic stroke (CS)/ESUS remains a significant clinical challenge not only due to its complex and multifactorial etiology, but also due to its burden of comprising 20%–30% of all ischemic strokes in the TOAST classification. While technically termed due to its inability to locate a clear etiology, possible sources of cryptogenic stroke include pathologies such as paroxysmal atrial fibrillation, paradoxical emboli through PFO, non-stenotic carotid plaques and atrial cardiopathy (37, 38, 77, 190). Many studies report these diagnoses can be found with comprehensive or extended cardiac monitoring instead of standard evaluation protocols (21, 28–38) For example, AF may comprise up to 15% of all cryptogenic strokes and the prevalence of PFO is reportedly as high as 57% (26, 32, 79, 147).

Currently, cryptogenic stroke is largely a diagnosis of exclusion during comprehensive neurocardiology workup. These include neuroimaging studies such as MRI or CT, cardiac monitoring in the form of standard 12-lead EKG, Holter monitoring or extended cardiac monitoring such as implantable loop recorders to detect occult AF, TTE, TEE to assess for embolic sources such as intracardiac thrombi or PFOs, and blood tests to determine coagulability status and the presence and severity other pre-existing metabolic disorders (37, 38, 190, 191).

AI provides another avenue of investigation: reducing repeat stroke events and future morbidity for stroke patients. For example RESPECT and CLOSE trials have provided evidence supporting the closure of PFO in selected cryptogenic stroke patients and demonstrated significant reductions in recurrent stroke rates compared to medical therapy alone (192, 193). These trials underscore the importance of individualized treatment approaches based on specific etiologic factors identified during diagnostic evaluations.

3.1.1 Diagnostic electrocardiography

A four-year retrospective study conducted with patients diagnosed with cryptogenic stroke from 4 Korean tertiary hospitals found that an image-based AI model of EKG data had excellent diagnostic performance in AF prediction. The AI-AF risk score, derived from sinus rhythm EKGs, demonstrated high predictive accuracy for AF, with an AUC of 0.806. Incorporation of parameters such as left atrial volume index, age, sex, BMI, atrial ectopic burden, and PR interval further improved the model's performance (AUC 0.880, p = 0.002). There was also a significant temporal trend showing increased AI-AF score with increased AF duration and as recorded EKG time approached AF onset (37). This AI-based approach not only aids in early AF detection, but also offers potential timesaving and cost-effective advantages for timely interventions to prevent recurrent strokes.

These platforms can utilize EKG data to retrospectively detect undiagnosed AF in cryptogenic stroke patients. Even for patients who already have suffered from cryptogenic stroke, AI can detect AF as an etiology for cryptogenic stroke, thereby allowing for secondary prevention of future ischemic strokes. Choi et al. recently developed a transformer-based AI model trained to analyze EKGs from cryptogenic stroke patients both to detect and predict paroxysmal AF (37). This model demonstrated a robust performance, with an AUC of 0.880, and a greater accuracy in identifying longer duration AF episodes (37). Ho et al.'s meta-analysis found multiple new wearable technology, that includes those currently being used after cardioembolic stroke, to be feasible options for diagnosis of paroxysmal atrial fibrillation in cryptogenic stroke (194). However, they noted no current significant difference of these modalities compared to classic workup technology (such as Holter monitoring) and emphasized the need for further studies.

Comparing the efficacy of wearable technology for cardiac monitoring after stroke found there were promising technologies in EKG and PPG data as previously described for afib.

3.1.2 Diagnostic language processing

Investigators such as Garg et al. have demonstrated that ML models with natural language processing (NLP) may provide an avenue of automation for the classification of ischemic stroke subtypes based on data from patient electronic medical records (EMR), medical history, physical examinations, laboratory and imaging results (77). These authors tested various ML models such as K-nearest neighbors (KNN), random forests (RF), and XGBoost and conducted a stacking process, whereby model predictions are used to generate new models. They found an 80% agreement between a stroke neurologist and the ML model using stacking for logistic regression with kappa of 0.72 for TOAST classification, with excellent subtype discrimination in all ML models (c-statistic >0.8) aside from the KNN approach. This study suggests that ML models can not only enhance scalability of large-scale epidemiological studies and clinical trials, but also remove a point of error in manual adjudication of disease classification and investigator bias (77). For cryptogenic stroke, ML models may help in analyzing etiologic phenotypes leading to further subtyping for directed treatment.

Using AI tools such as the NLP machine learning model to automate subtype classification in ischemic stroke can significantly impact management strategy based on characteristics found in various clinical studies (77). Management of cryptogenic stroke currently focuses on secondary prevention to reduce the risk of recurrence. Risk stratification tools, including the AI-based models listed above, can guide physician decisions on anticoagulation vs. antiplatelet therapy for patients with or without identified sources of cardioembolism, such as AF or a PFO (190).

Additionally, the CHA₂DS₂-VASc score, traditionally used to predict stroke severity in patients with AF, is now being considered in patients with cryptogenic stroke and underlying congenital heart disease (CHD) (144).

3.1.3 Diagnostic imaging

Detection of congenital heart abnormalities in cryptogenic strokes include the use of modalities such as TTE, TEE, cardiac MRI, cardiac CT, and transcranial doppler ultrasound (TCD). TEE with agitated saline injection remains the gold standard for PFO diagnosis relative to intraoperative inspection, with a weighted sensitivity of 89% (149). The presence of PFO in cryptogenic stroke patients has been associated with various morphologic and functional characteristics, including the size of the PFO, mobility of the interatrial septum, and the presence of a right-to-left cardiac shunt.

The CHALLENGE ESUS/CS registry, a multicenter registry of cryptogenic stroke patients, utilized TEE to identify potential embolic sources (147). While there are advantages to cardiac MRI for detecting certain cardioembolic sources, a meta-analysis showed a 29.3% (95% CI, 23.6%–35.0%) detection yield for CMRI compared to TEE at 53.7% (95% CI, 47.4%–49.9%) (P < 0.001) (149).

For PFOs, Bai et al. found that, in cryptogenic stroke patients, PFO size was significantly greater in systole [2.0 (1.5, 2.9) mm vs. 1.6 (1.1, 2.0) mm, p < 0.001] and diastole [1.7 (1.4, 2.2) mm vs. 1.3 (1.1, 1.8) mm, p < 0.001] than in non-CS patients and that large PFO were also more common (p < 0.001) (146). ANN and SVM were performed as comparisons with goodness of fit testing and coefficient of certainty, with higher accuracy and reliability noted with the RF model. The final test set accuracy was 70%, with an AUC of 0.816 and a sensitivity and specificity of 73% and 65%, respectively. Additionally, the frequency of right-to-left shunt was significantly higher in CS patients (p < 0.001) (146). Supervised RF learning is insensitive to noise with good generalizability, making it suitable for the high-risk features of PFO.

3.2 Atrial cardiopathy

Atrial cardiopathy represents pathological structural changes of the atria due to stretching from progressive cardiac stress. This occurs in response to various stressors such as hypertension, heart failure, obesity, valvular heart disease, etc. Atrial remodeling then leads to degenerative changes such as atrial dilation, fibrosis, and myocyte damage (195). The pathophysiology of atrial cardiopathy both precedes and is related to AF and its medical sequela (195). Specific to neurocardiology, left atrial remodeling can induce thrombus formation and subsequent embolization and strokes, even in the absence of dysrhythmias such as AF (195). In fact, AF itself can manifest secondary to this remodeling and perpetuate the risk of cardioembolic strokes. Therefore, AF can be viewed as one element of a larger overarching pathological cardiac disease process of atrial cardiopathy (196). EKG analyses have shown up to50% of stroke patients demonstrate atrial abnormalities on EKG even without AF (197). Therefore, a more holistic evaluation of atrial pathology, ranging from EKG findings such as P terminal force in lead V1 (PTFV1), to echocardiographic parameters such as atrial size, and biomarkers such as NT-proBNP may allow for a more thorough assessment of embolic stroke risk than AF alone (196).

3.2.1 Diagnostic electrocardiography

AI may facilitate the use of ML to analyze diagnostic modalities for the early detection of atrial pathology, thereby mitigating the risk of AF and of subsequent cardioembolic and cryptogenic strokes. Additionally, it can allow for detection of undiagnosed AF to reduce the risk for future cardioembolic events even for patients who already suffered from strokes.

Studies into AI for atrial cardiomyopathy have recently been conducted with the rationale that early progression of the disease process can manifest as subtle EKG changes which can be detected via ML. Investigators at the Mayo Clinic developed an AI algorithm consisting of a CNN trained to screen for temporal and spatial features on 12-lead EKGs to identify and stratify atrial cardiomyopathy for patients with heart failure with preserved ejection fraction (HFpEF) (198). This algorithm was able to identify structural heart disease in patients with higher AI-probability for AF based on EKG findings, with these patients demonstrating LVH, increased atrial filling pressures, and reduced cardiac output (198).

Therefore, while AI is still in its relative infancy for use in atrial cardiopathy, these algorithms provide a means of primary, secondary, and tertiary prevention. The timely detection of subtle cardiac structural and hemodynamic changes can allow for clinicians to intervene before the manifestation of further cardiac pathologies such as AF and subsequent stroke.

4 The brain-heart-axis: AI/ML applications in cardiac disease secondary to stroke

4.1 Neurogenic stress cardiomyopathy (takotsubo syndrome)

Neurogenic Stress Cardiomyopathy (NSC) is the manifestation of catecholamine-mediated myocardial dysfunction in the setting of acute brain injury, ranging from subarachnoid hemorrhage (SAH) to stroke (199, 200). CNS pathology secondary to stroke is posited to induce perturbations to the hypothalamic-pituitary-adrenal (HPA) axis, leading to sympathetic activation and downstream local and systemic inflammatory cascades (199, 200). This leads to coronary microvascular spasm, oxidative stress, myocardial inflammation, and myocyte injury. This manifests diagnostically through EKG changes such as ST segment changes, and QT prolongation, distinct patterns of LV wall motion abnormalities and elevation in cardiac troponin and NT-pro brain natriuretic peptide (BNP) levels (199, 200).

NSC is proof of concept of the heart-brain axis (Figure 5), with authors referring to NSC as “Takotsubo syndrome secondary to neurological disorders” (201). Takotsubo cardiomyopathy (TTC) is recognized as a reversible LV dysfunction in the setting of stress, named for the apical ballooning of the heart on ventriculography which resembles a Japanese octopus trap pot (Figure 6) (202). A common cardiac complication for patients with neurological disorders in the intensive care unit (ICU), TTC closely mimics the clinical presentation of acute coronary syndrome (ACS), with ST-segment elevations on EKG with or without elevated troponins, making initial diagnosis difficult. It is ultimately differentiated from MI by excluding occlusive coronary artery disease (201, 202).

Figure 5

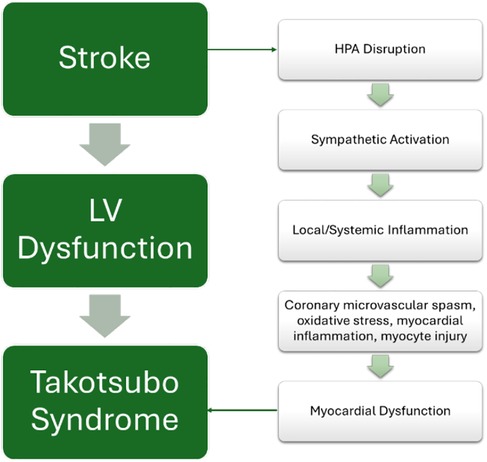

Figure 5. Utilizing neurocardiology to understand the pathophysiology of Takotsubo syndrome.

Figure 6

Figure 6. Takotsubo syndrome. (A,B) 2D TTE images with echo-contrast agent of “Takotsubo cardiomyopathy” demonstrating a distinct pattern of left ventricular wall motion abnormality known as “apical ballooning” in a patient with Subarachnoid hemorrhage (SAH).

The role and duration of conventional guideline-directed HF medical therapy is controversial in TTC. TTC often responds to supportive medical management, however, occasionally may lead to cardiogenic shock requiring hemodynamic support. Overall, with timely and efficient medical management, outcomes from TTC are generally favorable and the systolic dysfunction is often reversible (203). Rare complications of TTC including fatal LV rupture and LV thrombi have been reported, the latter cited in 5% of TTC patients (204). LV thrombi in turn, can result in further cardioembolic strokes. According to the literature, TTC complicated by LV thrombi, is associated with very high risk of stroke of up to 23% (205).

4.1.1 Diagnostic transthoracic echocardiogram

Echocardiography is the primary imaging modality, used to diagnose TTC. However, initial differentiation between ACS/MI and TTC remains challenging. Therefore, investigators have sought to develop algorithms to utilize echocardiograms to differentiate TTC from MI. Laumer and colleagues developed and trained a DL algorithm using TTEs from 228 patients to differentiate TTC from acute MI (206). They utilized a temporal CNN to predict the probabilities of TTC and MI for the respective patients and compared these findings to echocardiographic evaluation by 4 cardiologists (206). This algorithm demonstrated a superior performance to the committee of cardiologists in differentiating TTC from acute MI, with an AUC of 0.79 and an overall accuracy of 74.8% (compared to an AUC 0.71 and an accuracy of 64.4% for the cardiologists) (206).

4.1.2 Diagnostic cardiac MRI

While TTE has traditionally been a first-line imaging modality for TTC, cardiac MRI is emerging as a gold standard, non-invasive modality to differentiate TTC from acute MI. For instance, T2-weighted imaging can detect myocardial edema, which manifests in the acute phase of TTC and is indicative of reversible myocardial injury (207). Other MRI criteria for TTC include wall motion abnormalities and the relative lack of contrast enhancement (208). Additionally, atrial and ventricular strain parameters are of growing relevance to diagnosing TTC, and MRI provides an ideal modality to conduct strain analyses. Authors have also utilized ML with cardiac MRI protocols to diagnose and differentiate TTC from other cardiac pathologies. Cau et al. created a cardiac MRI-based ML ensemble model using the Extremely Randomized Trees algorithm trained with MRI strain measurements and demographics to different TTC from myocarditis. The authors noted a high degree of sensitivity (92%) and specificity (86%) with an AUC of 0.94 in diagnosing TTC (209). The authors also noted that strain rate and left atrial conduit strain were the parameters that yielded the greatest value for TTC identification (209).

4.1.3 Stroke prediction

Investigators have developed AI algorithms for stroke risk prediction in TTC. De Filippo and colleagues analyzed patients from the International Takotsubo (InterTAK) registry in a multi-center study and designed their own ML model to predict in-hospital mortality (210). This was a logistic regression-based algorithm evaluated in internal and external validation cohorts (210). This InterTAK model demonstrated a strong performance in predicting mortality for the internal validation cohort, with an AUC of 0.89, a sensitivity of 85% and a specificity of 76% in the internal validation cohort (210). The model also yielded satisfactory performance on the external validation cohort, with an AUC of 0.82, a sensitivity of 74%, and a specificity of 79% (210). The authors also showed the further applicability of ML: AI for subsequent regression analyses to ascertain patient characteristics also associated with mortality. They noted that LVEF, atrial fibrillation, physical stress, leukocytosis, and age were among the most relevant features associated with mortality. From these ML-based analyses, the authors were able to cluster patients into six risk groups based on short-term prognoses (210).

4.1.3.1 Cardiac MRI

In line with the growing use of cardiac MRI for diagnosis of TTC, researchers have proposed the applicability of MRI with AI to predict major adverse cardiac and cerebrovascular events (MACCEs) in TTC patients (211). This potential application is part of a larger field of radiomics, in which algorithms are generated to extract quantitative metrics from imaging. Within this field, texture analysis (TA) can be used to evaluate the texture of images to diagnose imaging abnormalities which otherwise could not be seen by the naked eye (211). ML provides a platform to scope through large volumes of data to detect imaging patterns for prognostication. Mannill and colleagues applied this concept using MRIs with cine sequences providing visualization of cardiac wall abnormalities for 58 InterTAK registry patients (278). From these images, they assessed 5-year outcomes for MACCEs using various machine-learning classifiers ranging from ANN Multilayer Percepton, to NaïveBayes (211). NaïveBayes demonstrated the most robust performance, with an AUC of 0.88, sensitivity of 82.9%, and a specificity of 83.7% (211).

While these studies face the inherent caveats of small sample sizes and being retrospective in nature, they do provide proof-of-concept of the applicability of AI for TTC, both as an effective diagnostic and prognostic tool, avenues which requires further investigation. Being able to obtain prompt diagnoses and risk stratification for TTC can minimize the risk of future ischemic stroke events and subsequent cardiac pathology secondary to the perturbation of the bidirectional heart-brain axis.

4.2 Post-stroke arrythmias

While AF is one of the most common causes of AIS, AF also reflects the reciprocal relationship of the heart-brain axis as AF may itself develop secondary to AIS. Since AF commonly presents following a prior stroke, the question is whether this trend reflected previously undiagnosed AF (cardiogenic AF) or manifested due to new-onset myocardial injury as a sequela of cerebrovascular insult (neurogenic AF) (7, 9, 75, 212). Newly diagnosed atrial fibrillation (NDAF) after AIS has been reported to be found in 7%–25% of poststroke patients and is thought to be secondary to both autonomic dysregulation and inflammation resulting in reentry circuits and atrial remodeling (213–217). This is an additional area in which improved methods of diagnosis and monitoring, particularly by using AI to more accurately predict high risk patients, will likely increase rates of detection and incidence (218, 219).

4.2.1 Diagnostic clinical analysis

There have been few validated scores developed to predict NDAF with a high degree of external validity, two of which include the CHASE-LESS and AS5F scores (220–224). However, various ML algorithms are currently being developed to provide a higher accuracy prognostic modality in this role (225–228). Sung et al. designed an ML algorithm to utilize stroke hospital admission data in the EMR to predict newly diagnosed AF early in patients’ hospital courses (227). This model utilized common EMR data fields and clinical free text information. It outperformed standard prediction methods (as shown by a higher C-index) (227). This type of automated risk predictor allows clinicians to treat cerebral ischemia while understanding the full clinical picture of the patient, encompassing the broader heart-brain axis.

AI models have also been generated using other markers, such as BNP, neuroimaging, and genetics. A 2022 study by Pang et al. developed and evaluated an integrated nomogram model for post-stroke AF based on variables such as prior TIA, BNP levels, CRP levels, and National Institute of Health Stroke (NIHSS) scores. This integrated model provided enhanced benefit predicting the incidence of post-stroke AF, identifying higher-risk patients who were candidates for extended monitoring (217).

4.3 Coronary artery disease

Coronary artery disease (CAD) is among the leading causes of death and disability worldwide, accounting for up to 31% of global mortality from non-communicable disease (229).

Given the inextricable link between cardiovascular and cerebrovascular disease in the heart-brain axis, ischemic stroke patients and patients with intracranial atherosclerotic disease (ICAD) are invariably at increased risk for concordant CAD and its potentially fatal manifestations such as MI (MI) (230). The Prevalence of Asymptomatic Coronary Artery Disease in Ischemic Stroke Patients (PRECORIS) study noted that almost a fifth of patients with ischemic stroke or TIA also had at least 50% obstructive coronary artery disease, even if asymptomatic (231). Therefore, the detection and prediction of silent CAD in stroke patients can facilitate timely medical management to prevent the progression to severe coronary artery disease and ACS.

Acute MI represents the most severe manifestation of CAD. The diagnostic protocol for suspected acute MI includes a standard 12-lead EKG, and while ST-elevation MI (STEMIs) can often be diagnosed quickly, non-ST elevation MIs (NSTEMIs) can demonstrate subtle changes on EKG in up to 30% of patients that may be missed even by the experts (232). Currently even the application of new generation high-sensitivity cardiac troponin assays, it might still take between 1 and 3 h to demonstrate a diagnostic rise or fall pattern on troponin levels which is necessary for diagnosis of acute MI (232). Therefore, there has been a growing enthusiasm in investigating the role of AI in EKG analyses as an adjunct to biomarkers for the timely diagnosis of AMI.

4.3.1 Diagnostic electrocardiogram

Cho et al. developed a DL algorithm to use 6-lead EKGs to diagnose MIs, with reasonable accuracy (sensitivity 84.4%, specificity 88.5%) and high negative predictive value (97.5%) (233). This has undergone iterative development to extend to 12-lead EKGs. One Taiwanese retrospective study investigated a DL model trained detect STEMI through analysis of 100,000 EKGs and compared its performance to cardiologists. The authors noted a superior performance of the DL algorithm, with a high AUC of 0.997, sensitivity of 98.4%, and specificity of 96.9% (234).

Moreover, the Rule-Out Acute Myocardial Infarction Using Artificial Intelligence Electrocardiogram Analysis (ROMAIE) trial is among the major prospective clinical trials currently underway to validate a DL-based 12-lead EKG algorithm (235). This study will allow for real-time substantiation and further application of AI in a clinical setting for AMI.

There are relatively few studies to date which have analyzed AI algorithms in the detection and prognostication of CAD specifically in stroke patients. One such study was conducted by Heo et al., who obtained multidetector coronary CTAs for patients who suffered acute ischemic strokes without a known history of CAD (236). The authors obtained demographics, laboratory results, NIHSS scores, blood pressure, and carotid stenosis to generate an ML model to predict CAD (236). They noted a satisfactory performance in predicting CAD, with an AUC of 0.763 in predicting CAD of any degree, and an AUC of 0.714 to predict obstructive CAD (236). Other investigators have developed models to incorporate both DL and ML algorithms using a combination of EKG, clinical, and laboratory data to predict obstructive CAD, with similar results (AUC of 0.767) (237).

However, the results of AI investigations for broader patient cohorts have demonstrated the potential of AI as a diagnostic and prognostic tool for CAD. Kang et al. developed an SVM-based learning algorithm to utilize coronary CTAs to diagnose coronary artery stenosis and compared this algorithm to three expert readers of CTA imaging (238). This model showed a superior performance to the human readers with a high degree of accuracy (AUC 0.94, sensitivity of 93%, sensitivity of 95%) (238). While this model did not specifically focus on stroke patients, it demonstrates the potential of such algorithms as tools for diagnosis and prognostication of CAD which can be applied specifically for ischemic stroke patients in future studies.

5 Limitations and future directions: AI/ML applications in neurocardiology

5.1 Practical limitations

AI/ML provides a highly beneficial tool for disease prediction, identification, and prognosis through utilization of multiple data modalities for augmentation and personalization of clinical decision making. In neurocardiology, these tools are essential for identification of pathology between the nervous and cardiovascular systems and may facilitate better optimization and more timely management of modifiable comorbidities. AI/ML can improve speed of care and personalized assessment while also reducing human error and physician burnout (75, 80, 82–84).

However, with these potential benefits, the AL/ML tools reviewed here have several inherent limitations in the creation of their respective algorithms. Firstly, physician input is always required to ensure accuracy and to check algorithm training. This is often a tedious process and is a rate-limiting step in the progression of this technology. Secondly, most of these programs are designed with one specific outcome variable, such as the presence of atrial fibrillation or the risk of stroke recurrence. There are very few options currently available that can analyze multiple modalities of diagnostic imaging and generate diagnoses and prognoses for a broader differential of neurological and cardiovascular conditions. Therefore, these tools are still in their relative infancy and are no substitute for sound human clinical judgment.

Furthermore, physicians also encounter patient populations with varying degrees of digital literacy and access to technology which can directly impact health equity (239, 240). Sieck et al. have recently deemed digital inclusion to be a social determinant of health (241). As reliance on technology increases, so does the potential for disparities in access to care using this technology. This provides practical limitations of AI/ML options that involve patient interaction and challenges providers to be able to engage in community programs or provide equivalent patient care through different modalities (241–243).

While AI can serve to bridge this gap through user friendly technology and personalized assistance with ML, these tools also possess the potential for patient bias that may disadvantage certain populations (244). This problem can often be caused by the limited generalizability of single center studies along with observed racial biases in algorithms due to different healthcare needs and trends for various patient populations (244, 245, 274).

Another significant limitation in the application of AI/ML in healthcare is physician willingness both to be educated in its use and to incorporate it into broader clinical practice. Many studies have looked at physician and technician perspectives on the integration of this technology. While most studies cite at least 70% approval from the physician community, there remains a sizable contingent who are more reticent to incorporate AI into their practice. This hesitancy is multifactorial, ranging from ethical concerns to insufficient understanding of how to use the technology (246–249). However, the greatest concern among physicians is the fear of overreliance on AI which may be to the detriment of clinical judgment, as well as medical error liability secondary to errors in automation (246–248, 250, 251).

Health care providers and students would therefore require proper training in using AI/ML. While the rigor of this training may vary depending on the AI application, there is significant support for formal training programs at all education levels (247, 252–255). Karaca et al. have suggested the use of a psychometric measurement tool called the Medical Artificial Intelligence Readiness Scale for Medical Students (MAIRS-MS) to guide assessment in education on AI (256). There has also been research regarding the creation of ethics and public health-based AI education for students and providers (257). The literature notes that while AI has many benefits, those are limited by the ability to standardize its implementation and train clinicians to effectively use it (82).

5.2 Ethical implications

The ethical implications of AI/ML use in healthcare raises several questions, such as the limitations of its use mentioned above, privacy/confidentiality of data, creation of federal standards and guidelines, and both physician and patient transparency in the process (258, 259). Preserving the confidentiality of data is an ongoing challenge since the use of electronic health records, with concerns such as hacking and data breaches. However, some risks unique to AI have been mitigated with local generative models and federated learning models (258, 260, 261).

The first set of international guidelines for clinical trials using AI was developed in 2021 with the SPIRIT-AI and CONSORT-AI guidelines to help standardize development and reporting methods of new algorithms for disease detection and diagnosis (258, 262). Most recently in 2024, the World Health Investigations (WHO) released their recommendations on suggested governance for AI models in medicine (263).

The “Black Box problem” with AI/ML describes the lack of understanding in the general population for the actual decision-making process that occurs in the algorithm (258, 264, 265). One solution to this is the creation of “explainable AI” that provides more user-friendly algorithms with explanations for the decision (265–270). While these may provide a better integration of human interaction within the algorithm, it also means it is more labor intensive and may not provide the same efficiency as AI nor the rapid growth and adaptability of ML (270).

Xu et al. note the underestimation of the possible malpractice and harm that could come to patients from AI in the forms of lack of proper informed consent and increased psychological and financial burden of these systems (265). The authors cite the need for physicians to understand where and how AI should be implemented, its limitations, and the continued development of quality control measures to ensure standardization (265).

While these ethical concerns are important to both health care workers and patients, it is also important to recognize the clinical value of AI/ML which has been iteratively integrated into clinical practice over the last several decades. The advancement of this technology has continued to drive the evolution of modern medicine. With proper regulatory oversight, patient-focused approaches, and training to understand the benefits and limitations of AI, this technology may potentially revolutionize how we assess and manage patients in both neurocardiology and medicine overall.

5.3 Future directions

5.3.1 Future clinical applications

There have already been substantive investigations conducted in assessing the use of AI/ML, DL, or CNN algorithms for the timely detection and prognostication of acute ischemic stroke, cardiovascular diseases, and neurological pathologies. These studies have demonstrated an iterative increase in accuracy, speed, and applicability of this technology within diverse settings. The recent algorithms discussed have also proven their strong statistical power in evaluating complex datasets and identifying trends that may otherwise elude traditional statistical analysis.

These advancements in clinical use originate from the ability to incorporate anatomic analysis, functional and hemodynamic parameters, clinical factors, and imaging modalities. Mobile devices and other widely sold technologies continue to provide greater ease of monitoring, more timely diagnosis, and therefore, more timely treatment. Simply having increased accessibility to continuous monitoring may also increase the predictive value of them. These uses thereby may improve patient outcomes and reduce the overall burden on the healthcare system.

As well as its application in standard clinical decision making, future directions using AI/ML include improving access to more equitable healthcare to underserved communities (82, 85, 86). This may be accomplished through increased digital access to diagnostic tools, improving efficient clinical decision making for disease escalation, and reducing physical or cultural barriers through access to high quality care with telemedicine (86, 244, 271). Some of these goals are already evident with common technology today, through systems such as broadened Medicare coverage for telestroke (272). Technology can also provide greater autonomy to patients with managing their own health needs, such as the tools above which allow for cardiac monitoring even at home or in clinic (273). Furthermore, substantive research has been conducted to address the limitations of bias evident in AI algorithms with suggestions of improvement including careful cohort selection, cultural awareness and expertise in developing algorithms, and joint multicenter data (271, 274–277).

There is a clear demand for expanded clinical use of these AI-enabled platforms and algorithms. Robust validation of these ML/AI models is required for future clinical use, as well as ensuring data privacy and security, addressing algorithm bias and interpretability, and future studies on multi-center populations. The widespread incorporation of these models may also offer an avenue to accelerate the development of better diagnostic and predictive technology.

5.3.2 Future research directions

There is an evident difference in the depth of AI/ML research conducted between certain neuroradiology pathologies. Of note, the investigation of this technology remains limited for cardiac tumors, the detection and prognostication of CAD in stroke patients, and in the neurological sequelae of infectious endocarditis, such as meningitis, abscesses, mycotic aneurysms, and intracerebral hemorrhage. Further studies are warranted to expand on the prospective benefits of AI/ML applications in these and other related cardiovascular and cerebrovascular conditions.

The future of AI/ML in neurocardiology is promising, particularly in the development of future investigations that may provide further diagnostic and prognostic value for stroke patients, better elucidate the sequelae of presenting and developing diseases, and improve patient care with its increased efficacy. As AI/ML becomes more commonly incorporated into clinical practice, the knowledge base, algorithmic training, and accuracy of models will continue to improve.

6 Conclusion

The heart-brain and brain-heart axes encompass the many clinical features and interconnected pathophysiology between cardiac and cerebrovascular diseases. Assessment and management of stroke patients should take place within the larger framework of neurocardiology, through initial stroke prevention for patients with cardiac disease, cardiac evaluation for stroke patients, and secondary stroke prevention for patients with newly diagnosed, post-stroke cardiac disease. However, diagnostic workup during admission does not always lead to effective diagnosis, often making these personalized treatment approaches challenging. Artificial intelligence is a robust area of research that is advancing diagnostic accuracy and aiding clinical decision making. With further iterations and implementation into clinical practice, this technology provides an efficient adjunct that can provide essential diagnostic and prognostic value in managing patients impacted by pathology of the heart-brain axis.

Author contributions

JB: Conceptualization, Methodology, Supervision, Writing – original draft, Writing – review & editing. RM: Investigation, Methodology, Writing – original draft, Writing – review & editing. SS: Writing – original draft. KG: Writing – original draft. ND-M: Conceptualization, Writing – original draft, Writing – review & editing. RD: Conceptualization, Methodology, Supervision, Writing – original draft, Writing – review & editing.

Funding

The author(s) declare that no financial support was received for the research and/or publication of this article.

Acknowledgments

We would like to acknowledge all members of the Dashti Lab; faculty, residents, and medical students, past and present, for their efforts in this line of research.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

The author(s) declared that they were an editorial board member of Frontiers, at the time of submission. This had no impact on the peer review process and the final decision.

Publisher's note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

References

1. Osteraas ND, Lee VH. Neurocardiology. Handb Clin Neurol. (2017) 140:49–65. doi: 10.1016/b978-0-444-63600-3.00004-0

PubMed Abstract | Crossref Full Text | Google Scholar

2. van der Wall EE, van Gilst WH. Neurocardiology: close interaction between heart and brain. Neth Heart J. (2013) 21(2):51–2. doi: 10.1007/s12471-012-0369-4

PubMed Abstract | Crossref Full Text | Google Scholar

3. Skinner JE. Neurocardiology. Brain mechanisms underlying fatal cardiac arrhythmias. Neurol Clin. (1993) 11(2):325–51. doi: 10.1016/S0733-8619(18)30156-7

PubMed Abstract | Crossref Full Text | Google Scholar

4. Sposato LA, Gurol ME. Advances in neurocardiology: focus on atrial fibrillation. Stroke. (2021) 52(11):3696–9. doi: 10.1161/STROKEAHA.121.033970

PubMed Abstract | Crossref Full Text | Google Scholar

5. Nistor IR, Gherasim L. From neurocardiology to stroke-heart syndrome. Rom J Intern Med. (2023) 61(4):177–85. doi: 10.2478/rjim-2023-0020

PubMed Abstract | Crossref Full Text | Google Scholar

6. Manea MM, Comsa M, Minca A, Dragos D, Popa C. Brain-heart axis–review article. J Med Life. (2015) 8(3):266–71.26351525

PubMed Abstract | Google Scholar

7. Chen Z, Venkat P, Seyfried D, Chopp M, Yan T, Chen J. Brain-Heart interaction: cardiac complications after stroke. Circ Res. (2017) 121(4):451–68. doi: 10.1161/circresaha.117.311170

PubMed Abstract | Crossref Full Text | Google Scholar

8. Samuels MA. The brain-heart connection. Circulation. (2007) 116(1):77–84. doi: 10.1161/circulationaha.106.678995

PubMed Abstract | Crossref Full Text | Google Scholar

9. Wang M, Peng Y. Advances in brain-heart syndrome: attention to cardiac complications after ischemic stroke. Front Mol Neurosci. (2022) 15:1053478. doi: 10.3389/fnmol.2022.1053478

PubMed Abstract | Crossref Full Text | Google Scholar

10. Kelley RE, Kelley BP. Heart-brain relationship in stroke. Biomedicines. (2021) 9(12):1–14. doi: 10.3390/biomedicines9121835

Crossref Full Text | Google Scholar

11. Egerer E, Siemonsen S, Erbguth F. Acute diseases of the brain and heart: a reciprocal culprit-victim relationship. Med Klin Intensivmed Notfmed. (2018) 113(6):456–63. doi: 10.1007/s00063-018-0465-3

PubMed Abstract | Crossref Full Text | Google Scholar

12. Scheitz JF, Nolte CH, Doehner W, Hachinski V, Endres M. Stroke-heart syndrome: clinical presentation and underlying mechanisms. Lancet Neurol. (2018) 17(12):1109–20. doi: 10.1016/S1474-4422(18)30336-3

PubMed Abstract | Crossref Full Text | Google Scholar

13. Scheitz JF, Sposato LA, Schulz-Menger J, Nolte CH, Backs J, Endres M. Stroke-heart syndrome: recent advances and challenges. J Am Heart Assoc. (2022) 11(17):e026528. doi: 10.1161/JAHA.122.026528

PubMed Abstract | Crossref Full Text | Google Scholar

14. Sposato LA, Hilz MJ, Aspberg S, Murthy SB, Bahit MC, Hsieh CY, et al. Post-stroke cardiovascular complications and neurogenic cardiac injury: JACC state-of-the-art review. J Am Coll Cardiol. (2020) 76(23):2768–85. doi: 10.1016/j.jacc.2020.10.009

PubMed Abstract | Crossref Full Text | Google Scholar

15. Feigin VL, Brainin M, Norrving B, Martins S, Sacco RL, Hacke W, et al. World stroke organization (WSO): global stroke fact sheet 2022. Int J Stroke. (2022) 17(1):18–29. doi: 10.1177/17474930211065917

PubMed Abstract | Crossref Full Text | Google Scholar

16. GBD 2019 Stroke Collaborators. Global, regional, and national burden of stroke and its risk factors, 1990–2019: a systematic analysis for the global burden of disease study 2019. Lancet Neurol. (2021) 20(10):795–820. doi: 10.1016/S1474-4422(21)00252-0

PubMed Abstract | Crossref Full Text | Google Scholar

17. GBD 2019 Diseases and Injuries Collaborators. Global burden of 369 diseases and injuries in 204 countries and territories, 1990–2019: a systematic analysis for the global burden of disease study 2019. Lancet. (2020) 396(10258):1204–22. doi: 10.1016/S0140-6736(20)30925-9

PubMed Abstract | Crossref Full Text | Google Scholar

18. CDC. Stroke Facts. Available at: https://www.cdc.gov/stroke/facts.htm (Accessed March 30, 2024).

Google Scholar

19. Tadi P, Lui F. In StatPearls. Treasure Island, FL: StatPearls Publishing (2025). Available at: https://www.ncbi.nlm.nih.gov/books/NBK535369/ (Accessed September 19, 2024).

Google Scholar

20. Kolmos M, Christoffersen L, Kruuse C. Recurrent ischemic stroke—a systematic review and meta-analysis. J Stroke Cerebrovasc Dis. (2021) 30(8):105935. doi: 10.1016/j.jstrokecerebrovasdis.2021.105935

PubMed Abstract | Crossref Full Text | Google Scholar

21. Flach C, Muruet W, Wolfe CDA, Bhalla A, Douiri A. Risk and secondary prevention of stroke recurrence: a population-base cohort study. Stroke. (2020) 51(8):2435–44. doi: 10.1161/STROKEAHA.120.028992

PubMed Abstract | Crossref Full Text | Google Scholar

22. Berghout BP, Bos D, Koudstaal PJ, Ikram MA, Ikram MK. Risk of recurrent stroke in rotterdam between 1990 and 2020: a population-based cohort study. Lancet Reg Health Eur. (2023) 30:100651. doi: 10.1016/j.lanepe.2023.100651

PubMed Abstract | Crossref Full Text | Google Scholar

23. Drescher C, Buchwald F, Ullberg T, Pihlsgård M, Norrving B, Petersson J. Epidemiology of first and recurrent ischemic stroke in Sweden 2010–2019: a riksstroke study. Neuroepidemiology. (2022) 56(6):433–42. doi: 10.1159/000527373

PubMed Abstract | Crossref Full Text | Google Scholar

24. Arboix A, Alió J. Acute cardioembolic stroke: an update. Expert Rev Cardiovasc Ther. (2011) 9(3):367–79. doi: 10.1586/erc.10.192

PubMed Abstract | Crossref Full Text | Google Scholar

25. Kuriakose D, Xiao Z. Pathophysiology and treatment of stroke: present status and future perspectives. Int J Mol Sci. (2020) 21(20):1–24. doi: 10.3390/ijms21207609

Crossref Full Text | Google Scholar

26. Kleindorfer DO, Towfighi A, Chaturvedi S, Cockroft KM, Gutierrez J, Lombardi-Hill D, et al. 2021 guideline for the prevention of stroke in patients with stroke and transient ischemic attack: a guideline from the American Heart Association/American stroke association. Stroke. (2021) 52(7):e364–467. doi: 10.1161/STR.0000000000000375

PubMed Abstract | Crossref Full Text | Google Scholar

27. Adams HP J, Bendixen BH, Kappelle LJ, Biller J, Love BB, Gordon DL, et al. Classification of subtype of acute ischemic stroke. Definitions for use in a multicenter clinical trial. TOAST. Trial of org 10,172 in acute stroke treatment. Stroke. (1993) 24(1):35–41. doi: 10.1161/01.STR.24.1.35

PubMed Abstract | Crossref Full Text | Google Scholar

28. Ihle-Hansen H, Thommessen B, Wyller TB, Engedal K, Fure B. Risk factors for and incidence of subtypes of ischemic stroke. Funct Neurol. (2012) 27(1):35–40.22687165

PubMed Abstract | Google Scholar

29. Kolominsky-Rabas PL, Weber M, Gefeller O, Neundoerfer B, Heuschmann PU. Epidemiology of ischemic stroke subtypes according to TOAST criteria: incidence, recurrence, and long-term survival in ischemic stroke subtypes: a population-based study. Stroke. (2001) 32(12):2735–40. doi: 10.1161/hs1201.100209

PubMed Abstract | Crossref Full Text | Google Scholar

30. Haeusler KG, Tütüncü S, Schnabel RB. Detection of atrial fibrillation in cryptogenic stroke. Curr Neurol Neurosci Rep. (2018) 18(10):66. doi: 10.1007/s11910-018-0871-1

PubMed Abstract | Crossref Full Text | Google Scholar

31. Lee HJ, Schwamm LH, Sansing L, Kamel H, de Havenon A, Turner AC, et al. Strokeclassifier: ischemic stroke etiology classification by ensemble consensus modeling using electronic health records. Res Sq. (2023) 7(1):130–52. doi: 10.21203/rs.3.rs-3367169/v1

Crossref Full Text | Google Scholar

32. Gladstone DJ, Spring M, Dorian P, Panzov V, Thorpe KE, Hall J, et al. Atrial fibrillation in patients with cryptogenic stroke. N Engl J Med. (2014) 370(26):2467–77. doi: 10.1056/NEJMoa1311376

PubMed Abstract | Crossref Full Text | Google Scholar

33. Sanna T, Diener HC, Passman RS, Di Lazzaro V, Bernstein RA, Morillo CA, et al. Cryptogenic stroke and underlying atrial fibrillation. N Engl J Med. (2014) 370(26):2478–86. doi: 10.1056/NEJMoa1313600

PubMed Abstract | Crossref Full Text | Google Scholar

34. Wachter R, Gröschel K, Gelbrich G, Hamann GF, Kermer P, Liman J, et al. Holter-electrocardiogram-monitoring in patients with acute ischaemic stroke [find-AF(RANDOMISED)]: an open-label randomised controlled trial. Lancet Neurol. (2017) 16(4):282–90. doi: 10.1016/S1474-4422(17)30002-9

PubMed Abstract | Crossref Full Text | Google Scholar

35. Camen S, Haeusler KG, Schnabel RB. Cardiac imaging after ischemic stroke or transient ischemic attack. Curr Neurol Neurosci Rep. (2020) 20(8):36. doi: 10.1007/s11910-020-01053-3

PubMed Abstract | Crossref Full Text | Google Scholar

36. Nouh A, Hussain M, Mehta T, Yaghi S. Embolic strokes of unknown source and cryptogenic stroke: implications in clinical practice. Front Neurol. (2016) 7:37. doi: 10.3389/fneur.2016.00037

PubMed Abstract | Crossref Full Text | Google Scholar

37. Choi J, Kim JY, Cho MS, Kim M, Kim J, Oh IY, et al. Artificial intelligence predicts undiagnosed atrial fibrillation in patients with embolic stroke of undetermined source using sinus rhythm electrocardiograms. Heart Rhythm. (2024) 21(9):1647–55. doi: 10.1016/j.hrthm.2024.03.029

PubMed Abstract | Crossref Full Text | Google Scholar

38. Kashou AH, Rabinstein AA, Attia IZ, Asirvatham SJ, Gersh BJ, Friedman PA, et al. Recurrent cryptogenic stroke: a potential role for an artificial intelligence-enabled electrocardiogram? HeartRhythm Case Rep. (2020) 6(4):202–5. doi: 10.1016/j.hrcr.2019.12.013

PubMed Abstract | Crossref Full Text | Google Scholar

39. Valenzuela I, Hunter MD, Sundheim K, Klein B, Dunn L, Sorabella R, et al. Clinical risk factors for acute ischaemic and haemorrhagic stroke in patients with infective endocarditis. Intern Med J. (2018) 48(9):1072–80. doi: 10.1111/imj.13958

PubMed Abstract | Crossref Full Text | Google Scholar

40. Alkhachroum AM, Miller B, Chami T, Tatsuoka C, Sila C. A troponin study on patients with ischemic stroke, intracerebral hemorrhage and subarachnoid hemorrhage: type II myocardial infarction is significantly associated with stroke severity, discharge disposition and mortality. J Clin Neurosci. (2019) 64:83–8. doi: 10.1016/j.jocn.2019.04.005

PubMed Abstract | Crossref Full Text | Google Scholar

41. Boudihi A, El-Azrak M, Tahani I, Ismaili N, Ouafi NE. Hemorrhagic stroke during the acute phase of myocardial infarction: a rare and difficult situation to manage. Radiol Case Rep. (2023) 18(3):1133–9. doi: 10.1016/j.radcr.2022.10.078

PubMed Abstract | Crossref Full Text | Google Scholar

42. Binsell-Gerdin E, Graipe A, Ögren J, Jernberg T, Mooe T. Hemorrhagic stroke the first 30days after an acute myocardial infarction: incidence, time trends and predictors of risk. Int J Cardiol. (2014) 176(1):133–8. doi: 10.1016/j.ijcard.2014.07.032

PubMed Abstract | Crossref Full Text | Google Scholar

43. Buckley BJR, Harrison SL, Hill A, Underhill P, Lane DA, Lip GYH. Stroke-heart syndrome: incidence and clinical outcomes of cardiac complications following stroke. Stroke. (2022) 53(5):1759–63. doi: 10.1161/STROKEAHA.121.037316

PubMed Abstract | Crossref Full Text | Google Scholar

44. Oppenheimer SM, Lima J. Neurology and the heart. J Neurol Neurosurg Psychiatry. (1998) 64(3):289–97. doi: 10.1136/jnnp.64.3.289

PubMed Abstract | Crossref Full Text | Google Scholar

45. Ning Y, Tse G, Luo G, Li G. Atrial cardiomyopathy: an emerging cause of the embolic stroke of undetermined source. Front Cardiovasc Med. (2021) 8:674612. doi: 10.3389/fcvm.2021.674612

PubMed Abstract | Crossref Full Text | Google Scholar

46. Sposato LA, Cipriano LE, Saposnik G, Ruíz Vargas E, Riccio PM, Hachinski V. Diagnosis of atrial fibrillation after stroke and transient ischaemic attack: a systematic review and meta-analysis. Lancet Neurol. (2015) 14(4):377–87. doi: 10.1016/S1474-4422(15)70027-X

PubMed Abstract | Crossref Full Text | Google Scholar

47. Olma MC, Tütüncü S, Fiessler C, Kunze C, Krämer M, Steindorf-Sabath L, et al. In-hospital ECG findings, changes in medical management, and cardiovascular outcomes in patients with acute stroke or transient ischemic attack. J Am Heart Assoc. (2023) 12(2):e027149. doi: 10.1161/jaha.122.027149

PubMed Abstract | Crossref Full Text | Google Scholar

48. Prosser J, MacGregor L, Lees KR, Diener HC, Hacke W, Davis S. Predictors of early cardiac morbidity and mortality after ischemic stroke. Stroke. (2007) 38(8):2295–302. doi: 10.1161/STROKEAHA.106.471813

PubMed Abstract | Crossref Full Text | Google Scholar

49. Barkhudaryan A, Doehner W, Scherbakov N. Ischemic stroke and heart failure: facts and numbers. An update. J Clin Med. (2021) 10(5):1–15. doi: 10.3390/jcm10051146

Crossref Full Text | Google Scholar

50. Thayer JF, Ahs F, Fredrikson M, Sollers JJ 3rd, Wager TD. A meta-analysis of heart rate variability and neuroimaging studies: implications for heart rate variability as a marker of stress and health. Neurosci Biobehav Rev. (2012) 36(2):747–56. doi: 10.1016/j.neubiorev.2011.11.009

PubMed Abstract | Crossref Full Text | Google Scholar

51. Yperzeele L, van Hooff RJ, Nagels G, De Smedt A, De Keyser J, Brouns R. Heart rate variability and baroreceptor sensitivity in acute stroke: a systematic review. Int J Stroke. (2015) 10(6):796–800. doi: 10.1111/ijs.12573

PubMed Abstract | Crossref Full Text | Google Scholar

52. Korpelainen JT, Sotaniemi KA, Huikuri HV, Myllyä VV. Abnormal heart rate variability as a manifestation of autonomic dysfunction in hemispheric brain infarction. Stroke. (1996) 27(11):2059–63. doi: 10.1161/01.STR.27.11.2059

PubMed Abstract | Crossref Full Text | Google Scholar

53. Tang S, Xiong L, Fan Y, Mok VCT, Wong KS, Leung TW. Stroke outcome prediction by blood pressure variability, heart rate variability, and baroreflex sensitivity. Stroke. (2020) 51(4):1317–20. doi: 10.1161/STROKEAHA.119.027981

PubMed Abstract | Crossref Full Text | Google Scholar

54. Tian G, Xiong L, Leung H, Soo Y, Leung T, Wong LK. Beat-to-beat blood pressure variability and heart rate variability in relation to autonomic dysregulation in patients with acute mild-moderate ischemic stroke. J Clin Neurosci. (2019) 64:187–93. doi: 10.1016/j.jocn.2019.03.003

PubMed Abstract | Crossref Full Text | Google Scholar

55. Nolte CH, Erdur H, Grittner U, Schneider A, Piper SK, Scheitz JF, et al. Impact of heart rate on admission on mortality and morbidity in acute ischaemic stroke patients—results from VISTA. Eur J Neurol. (2016) 23(12):1750–6. doi: 10.1111/ene.13115

PubMed Abstract | Crossref Full Text | Google Scholar

56. Abiri A, Chou E-F, Shen W, Fisher MJ, Khine M. Changes in beat-to-beat blood pressure and pulse rate variability following stroke. Sci Rep. (2023) 13(1):19245. doi: 10.1038/s41598-023-45479-4

PubMed Abstract | Crossref Full Text | Google Scholar

57. Chouchou F, Mauguière F, Vallayer O, Catenoix H, Isnard J, Montavont A, et al. How the insula speaks to the heart: cardiac responses to insular stimulation in humans. Hum Brain Mapp. (2019) 40(9):2611–22. doi: 10.1002/hbm.24548

PubMed Abstract | Crossref Full Text | Google Scholar

58. Hassanpour MS, Simmons WK, Feinstein JS, Luo Q, Lapidus RC, Bodurka J, et al. The insular cortex dynamically maps changes in cardiorespiratory interoception. Neuropsychopharmacology. (2018) 43(2):426–34. doi: 10.1038/npp.2017.154

PubMed Abstract | Crossref Full Text | Google Scholar

59. Tomeo RA, Gomes-de-Souza L, Benini R, Reis-Silva LL, Crestani CC. Site-specific regulation of stress responses along the rostrocaudal axis of the insular Cortex in rats. Front Neurosci. (2022) 16:460–82. doi: 10.3389/fnins.2022.878927

Crossref Full Text | Google Scholar

60. Bravo PE, Cappola TP. Mental stress-induced myocardial ischemia: when the mind controls the fate of the heart. JAMA. (2021) 326(18):1803–4. doi: 10.1001/jama.2021.18766

PubMed Abstract | Crossref Full Text | Google Scholar

61. Osei J, Vaccarino V, Wang M, Shah AS, Lampert R, Li LY, et al. Stress-induced autonomic dysfunction is associated with mental stress–induced myocardial ischemia in patients with coronary artery disease. Circ Cardiovasc Imaging. (2024) 17(6):e016596. doi: 10.1161/CIRCIMAGING.124.016596

PubMed Abstract | Crossref Full Text | Google Scholar

62. Jacob WA, Van Bogaert A, De Groodt-Lasseel MH. Myocardial ultrastructure and haemodynamic reactions during experimental subarachnoid haemorrhage. J Mol Cell Cardiol. (1972) 4(4):287–98. doi: 10.1016/0022-2828(72)90076-4

PubMed Abstract | Crossref Full Text | Google Scholar

63. Santoro F, Núñez Gil IJ, Arcari L, Vitale E, Martino T, El-Battrawy I, et al. Neurological disorders in Takotsubo syndrome: clinical phenotypes and outcomes. J Am Heart Assoc. (2024) 13(4):e032128. doi: 10.1161/JAHA.123.032128

PubMed Abstract | Crossref Full Text | Google Scholar

64. Santoro F, Carapelle E, Cieza Ortiz SI, Musaico F, Ferraretti A, d'Orsi G, et al. Potential links between neurological disease and Tako-tsubo cardiomyopathy: a literature review. Int J Cardiol. (2013) 168(2):688–91. doi: 10.1016/j.ijcard.2013.03.093

PubMed Abstract | Crossref Full Text | Google Scholar

65. Cammann VL, Scheitz JF, von Rennenberg R, Jäncke L, Nolte CH, Szawan KA, et al. Clinical correlates and prognostic impact of neurologic disorders in Takotsubo syndrome. Sci Rep. (2021) 11(1):23555. doi: 10.1038/s41598-021-01496-9

PubMed Abstract | Crossref Full Text | Google Scholar

66. Silva AR, Magalhães R, Arantes C, Moreira PS, Rodrigues M, Marques P, et al. Brain functional connectivity is altered in patients with Takotsubo syndrome. Sci Rep. (2019) 9(1):4187. doi: 10.1038/s41598-019-40695-3

PubMed Abstract | Crossref Full Text | Google Scholar

67. Templin C, Hänggi J, Klein C, Topka MS, Hiestand T, Levinson RA, et al. Altered limbic and autonomic processing supports brain-heart axis in Takotsubo syndrome. Eur Heart J. (2019) 40(15):1183–7. doi: 10.1093/eurheartj/ehz068

PubMed Abstract | Crossref Full Text | Google Scholar

68. Borodzicz S, Czarzasta K, Opolski G, Cudnoch-Jędrzejewska A. Autonomic nervous system in Takotsubo syndrome. Heart Fail Rev. (2019) 24(1):101–8. doi: 10.1007/s10741-018-9729-5

PubMed Abstract | Crossref Full Text | Google Scholar

69. Borchert T, Hübscher D, Guessoum CI, Lam TD, Ghadri JR, Schellinger IN, et al. Catecholamine-dependent β-adrenergic signaling in a pluripotent stem cell model of Takotsubo cardiomyopathy. J Am Coll Cardiol. (2017) 70(8):975–91. doi: 10.1016/j.jacc.2017.06.061

PubMed Abstract | Crossref Full Text | Google Scholar

70. Gilotra K, Swarna S, Mani R, Basem J, Dashti R. Role of artificial intelligence and machine learning in the diagnosis of cerebrovascular disease. Front Hum Neurosci. (2023) 17:1254417. doi: 10.3389/fnhum.2023.1254417

PubMed Abstract | Crossref Full Text | Google Scholar

71. Abedi V, Razavi SM, Khan A, Avula V, Tompe A, Poursoroush A, et al. Artificial intelligence: a shifting paradigm in cardio-cerebrovascular medicine. J Clin Med. (2021) 10(23):1–23. doi: 10.3390/jcm10235710

Crossref Full Text | Google Scholar

72. Ding L, Liu C, Li Z, Wang Y. Incorporating artificial intelligence into stroke care and research. Stroke. (2020) 51(12):e351–4. doi: 10.1161/STROKEAHA.120.031295

PubMed Abstract | Crossref Full Text | Google Scholar

73. Jovel J, Greiner R. An Introduction to machine learning approaches for biomedical research. Front Med (Lausanne). (2021) 8:771607. doi: 10.3389/fmed.2021.771607

PubMed Abstract | Crossref Full Text | Google Scholar

74. Shen J, Zhang CJP, Jiang B, Chen J, Song J, Liu Z, et al. Artificial intelligence versus clinicians in disease diagnosis: systematic review. JMIR Med Inform. (2019) 7(3):e10010. doi: 10.2196/10010

PubMed Abstract | Crossref Full Text | Google Scholar

75. Soun JE, Chow DS, Nagamine M, Takhtawala RS, Filippi CG, Yu W, et al. Artificial intelligence and acute stroke imaging. AJNR Am J Neuroradiol. (2021) 42(1):2–11. doi: 10.3174/ajnr.A6883

PubMed Abstract | Crossref Full Text | Google Scholar

76. Chandrabhatla AS, Kuo EA, Sokolowski JD, Kellogg RT, Park M, Mastorakos P. Artificial intelligence and machine learning in the diagnosis and management of stroke: a narrative review of United States food and drug administration-approved technologies. J Clin Med. (2023) 12(11):1–27. doi: 10.3390/jcm12113755

Crossref Full Text | Google Scholar

77. Garg R, Oh E, Naidech A, Kording K, Prabhakaran S. Automating ischemic stroke subtype classification using machine learning and natural language processing. J Stroke Cerebrovasc Dis. (2019) 28(7):2045–51. doi: 10.1016/j.jstrokecerebrovasdis.2019.02.004

PubMed Abstract | Crossref Full Text | Google Scholar

78. Zhang S, Wang J, Pei L, Liu K, Gao Y, Fang H, et al. Interpretable CNN for ischemic stroke subtype classification with active model adaptation. BMC Med Inform Decis Mak. (2022) 22(1):3. doi: 10.1186/s12911-021-01721-5

PubMed Abstract | Crossref Full Text | Google Scholar

79. Wang J, Gong X, Chen H, Zhong W, Chen Y, Zhou Y, et al. Causative classification of ischemic stroke by the machine learning algorithm random forests. Front Aging Neurosci. (2022) 14:788637. doi: 10.3389/fnagi.2022.788637

PubMed Abstract | Crossref Full Text | Google Scholar

80. Miyamoto N, Ueno Y, Yamashiro K, Hira K, Kijima C, Kitora N, et al. Stroke classification and treatment support system artificial intelligence for usefulness of stroke diagnosis. Front Neurol. (2023) 14:1–12. doi: 10.3389/fneur.2023.1295642

Crossref Full Text | Google Scholar

81. Guan W, Ko D, Khurshid S, Trisini Lipsanopoulos AT, Ashburner JM, Harrington LX, et al. Automated electronic phenotyping of cardioembolic stroke. Stroke. (2021) 52(1):181–9. doi: 10.1161/STROKEAHA.120.030663

PubMed Abstract | Crossref Full Text | Google Scholar

82. Hendrix N, Veenstra DL, Cheng M, Anderson NC, Verguet S. Assessing the economic value of clinical artificial intelligence: challenges and opportunities. Value Health. (2022) 25(3):331–9. doi: 10.1016/j.jval.2021.08.015

PubMed Abstract | Crossref Full Text | Google Scholar

83. Lin SY, Mahoney MR, Sinsky CA. Ten ways artificial intelligence will transform primary care. J Gen Intern Med. (2019) 34(8):1626–30. doi: 10.1007/s11606-019-05035-1

PubMed Abstract | Crossref Full Text | Google Scholar

84. Gandhi TK, Classen D, Sinsky CA, Rhew DC, Vande Garde N, Roberts A, et al. How can artificial intelligence decrease cognitive and work burden for front line practitioners? JAMIA Open. (2023) 6(3):ooad079. doi: 10.1093/jamiaopen/ooad079

PubMed Abstract | Crossref Full Text | Google Scholar

85. Towfighi A, Boden-Albala B, Cruz-Flores S, Husseini NE, Odonkor CA, Ovbiagele B, et al. Strategies to reduce racial and ethnic inequities in stroke preparedness, care, recovery, and risk factor control: a scientific statement from the American Heart Association. Stroke. (2023) 54(7):e371–88. doi: 10.1161/STR.0000000000000437

PubMed Abstract | Crossref Full Text | Google Scholar

86. Verma A, Towfighi A, Brown A, Abhat A, Casillas A. Moving towards equity with digital health innovations for stroke care. Stroke. (2022) 53(3):689–97. doi: 10.1161/STROKEAHA.121.035307

PubMed Abstract | Crossref Full Text | Google Scholar

87. Boriani G, Laroche C, Diemberger I, Fantecchi E, Popescu MI, Rasmussen LH, et al. Asymptomatic atrial fibrillation: clinical correlates, management, and outcomes in the EORP-AF pilot general registry. Am J Med. (2015) 128(5):509–18.e2. doi: 10.1016/j.amjmed.2014.11.026

PubMed Abstract | Crossref Full Text | Google Scholar

88. Alonso A, Krijthe BP, Aspelund T, Stepas KA, Pencina MJ, Moser CB, et al. Simple risk model predicts incidence of atrial fibrillation in a racially and geographically diverse population: the CHARGE-AF consortium. J Am Heart Assoc. (2013) 2(2):e000102. doi: 10.1161/JAHA.112.000102

PubMed Abstract | Crossref Full Text | Google Scholar

89. Harmon DM, Sehrawat O, Maanja M, Wight J, Noseworthy PA. Artificial intelligence for the detection and treatment of atrial fibrillation. Arrhythm Electrophysiol Rev. (2023) 12:e12. doi: 10.15420/aer.2022.31

PubMed Abstract | Crossref Full Text | Google Scholar

90. Kawamura Y, Vafaei Sadr A, Abedi V, Zand R. Many models, little adoption-what accounts for low uptake of machine learning models for atrial fibrillation prediction and detection? J Clin Med. (2024) 13(5):1–13. doi: 10.3390/jcm13051313

Crossref Full Text | Google Scholar

91. Han L, Askari M, Altman RB, Schmitt SK, Fan J, Bentley JP, et al. Atrial fibrillation burden signature and near-term prediction of stroke: a machine learning analysis. Circ Cardiovasc Qual Outcomes. (2019) 12(10):e005595. doi: 10.1161/circoutcomes.118.005595

PubMed Abstract | Crossref Full Text | Google Scholar

92. Papadopoulou A, Harding D, Slabaugh G, Marouli E, Deloukas P. Prediction of atrial fibrillation and stroke using machine learning models in UK biobank. Heliyon. (2024) 10(7):e28034. doi: 10.1016/j.heliyon.2024.e28034

PubMed Abstract | Crossref Full Text | Google Scholar

93. Attia ZI, Noseworthy PA, Lopez-Jimenez F, Asirvatham SJ, Deshmukh AJ, Gersh BJ, et al. An artificial intelligence-enabled ECG algorithm for the identification of patients with atrial fibrillation during sinus rhythm: a retrospective analysis of outcome prediction. Lancet. (2019) 394(10201):861–7. doi: 10.1016/S0140-6736(19)31721-0

PubMed Abstract | Crossref Full Text | Google Scholar

94. Christopoulos G, Graff-Radford J, Lopez CL, Yao X, Attia ZI, Rabinstein AA, et al. Artificial intelligence-electrocardiography to predict incident atrial fibrillation: a population-based study. Circ Arrhythm Electrophysiol. (2020) 13(12):e009355. doi: 10.1161/CIRCEP.120.009355

PubMed Abstract | Crossref Full Text | Google Scholar

95. Rabinstein AA, Yost MD, Faust L, Kashou AH, Latif OS, Graff-Radford J, et al. Artificial intelligence-enabled ECG to identify silent atrial fibrillation in embolic stroke of unknown source. J Stroke Cerebrovasc Dis. (2021) 30(9):105998. doi: 10.1016/j.jstrokecerebrovasdis.2021.105998

PubMed Abstract | Crossref Full Text | Google Scholar

96. Weil EL, Noseworthy PA, Lopez CL, Rabinstein AA, Friedman PA, Attia ZI, et al. Artificial intelligence-enabled electrocardiogram for atrial fibrillation identifies cognitive decline risk and cerebral infarcts. Mayo Clin Proc. (2022) 97(5):871–80. doi: 10.1016/j.mayocp.2022.01.026

PubMed Abstract | Crossref Full Text | Google Scholar

97. Raghunath S, Pfeifer JM, Ulloa-Cerna AE, Nemani A, Carbonati T, Jing L, et al. Deep neural networks can predict new-onset atrial fibrillation from the 12-lead ECG and help identify those at risk of atrial fibrillation-related stroke. Circulation. (2021) 143(13):1287–98. doi: 10.1161/CIRCULATIONAHA.120.047829

PubMed Abstract | Crossref Full Text | Google Scholar

98. Kim Y, Joo G, Jeon BK, Kim DH, Shin TY, Im H, et al. Clinical applicability of an artificial intelligence prediction algorithm for early prediction of non-persistent atrial fibrillation. Front Cardiovasc Med. (2023) 10:1168054. doi: 10.3389/fcvm.2023.1168054

PubMed Abstract | Crossref Full Text | Google Scholar

99. Baek YS, Kwon S, You SC, Lee KN, Yu HT, Lee SR, et al. Artificial intelligence-enhanced 12-lead electrocardiography for identifying atrial fibrillation during sinus rhythm (AIAFib) trial: protocol for a multicenter retrospective study. Front Cardiovasc Med. (2023) 10:1258167. doi: 10.3389/fcvm.2023.1258167

PubMed Abstract | Crossref Full Text | Google Scholar

100. Noseworthy PA, Attia ZI, Behnken EM, Giblon RE, Bews KA, Liu S, et al. Artificial intelligence-guided screening for atrial fibrillation using electrocardiogram during sinus rhythm: a prospective non-randomised interventional trial. Lancet. (2022) 400(10359):1206–12. doi: 10.1016/S0140-6736(22)01637-3

PubMed Abstract | Crossref Full Text | Google Scholar

101. Hoek LJ, Brouwer JLP, Voors AA, Maass AH. Smart devices to measure and monitor QT intervals. Front Cardiovasc Med. (2023) 10:1172666. doi: 10.3389/fcvm.2023.1172666

PubMed Abstract | Crossref Full Text | Google Scholar

102. Wong KC, Klimis H, Lowres N, von Huben A, Marschner S, Chow CK. Diagnostic accuracy of handheld electrocardiogram devices in detecting atrial fibrillation in adults in community versus hospital settings: a systematic review and meta-analysis. Heart. (2020) 106(16):1211–7. doi: 10.1136/heartjnl-2020-316611

PubMed Abstract | Crossref Full Text | Google Scholar

103. Klier K, Koch L, Graf L, Schinköthe T, Schmidt A. Diagnostic accuracy of single-lead electrocardiograms using the kardia Mobile app and the apple watch 4: validation study. JMIR Cardio. (2023) 7:e50701. doi: 10.2196/50701

PubMed Abstract | Crossref Full Text | Google Scholar

104. Raghunath A, Nguyen DD, Schram M, Albert D, Gollakota S, Shapiro L, et al. Artificial intelligence-enabled mobile electrocardiograms for event prediction in paroxysmal atrial fibrillation. Cardiovasc Digit Health J. (2023) 4(1):21–8. doi: 10.1016/j.cvdhj.2023.01.002

PubMed Abstract | Crossref Full Text | Google Scholar

105. Lau JK, Lowres N, Neubeck L, Brieger DB, Sy RW, Galloway CD, et al. Iphone ECG application for community screening to detect silent atrial fibrillation: a novel technology to prevent stroke. Int J Cardiol. (2013) 165(1):193–4. doi: 10.1016/j.ijcard.2013.01.220

PubMed Abstract | Crossref Full Text | Google Scholar

106. Perez MV, Mahaffey KW, Hedlin H, Rumsfeld JS, Garcia A, Ferris T, et al. Large-scale assessment of a smartwatch to identify atrial fibrillation. N Engl J Med. (2019) 381(20):1909–17. doi: 10.1056/NEJMoa1901183

PubMed Abstract | Crossref Full Text | Google Scholar

107. Daniëls F, Ramdjan T, Mánfai B, Adiyaman A, Smit JJJ, Delnoy P, et al. Detection of atrial fibrillation in persons aged 65 years and above using a mobile electrocardiogram device. Neth Heart J. (2023) 32:160–6. doi: 10.1007/s12471-023-01828-6

Crossref Full Text | Google Scholar

108. Lowres N, Neubeck L, Salkeld G, Krass I, McLachlan AJ, Redfern J, et al. Feasibility and cost-effectiveness of stroke prevention through community screening for atrial fibrillation using iPhone ECG in pharmacies. The SEARCH-AF study. Thromb Haemost. (2014) 111(6):1167–76. doi: 10.1160/TH14-03-0231

PubMed Abstract | Crossref Full Text | Google Scholar

109. Babic MD, Veljkovic S, Lakcevic J, Babic R, Ostojic M, Petrovic M, et al. Telemedicine in the era of a pandemic: usefulness of a novel three-lead ECG. Diagnostics (Basel). (2023) 13(15):1–17. doi: 10.3390/diagnostics13152525

Crossref Full Text | Google Scholar

110. Steinhubl SR, Waalen J, Edwards AM, Ariniello LM, Mehta RR, Ebner GS, et al. Effect of a home-based wearable continuous ECG monitoring patch on detection of undiagnosed atrial fibrillation: the mSToPS randomized clinical trial. JAMA. (2018) 320(2):146–55. doi: 10.1001/jama.2018.8102

PubMed Abstract | Crossref Full Text | Google Scholar

111. Cai XJ, Tay JCK, Jiang Y, Yeo KK, Wong PEH, Ho KL, et al. Non-invasive mid-term electrocardiogram patch monitoring is effective in detecting atrial fibrillation. J Electrocardiol. (2023) 81:230–6. doi: 10.1016/j.jelectrocard.2023.09.014

PubMed Abstract | Crossref Full Text | Google Scholar

112. Kim JY, Oh IY, Lee H, Lee JH, Cho Y, Gil Y, et al. The efficacy of detecting arrhythmia is higher with 7-day continuous electrocardiographic patch monitoring than with 24-h Holter monitoring. J Arrhythm. (2023) 39(3):422–9. doi: 10.1002/joa3.12865

PubMed Abstract | Crossref Full Text | Google Scholar

113. Kwon S, Lee SR, Choi EK, Ahn HJ, Song HS, Lee YS, et al. Comparison between the 24-hour Holter test and 72-hour single-lead electrocardiogram monitoring with an adhesive patch-type device for atrial fibrillation detection: prospective cohort study. J Med Internet Res. (2022) 24(5):e37970. doi: 10.2196/37970

PubMed Abstract | Crossref Full Text | Google Scholar

114. Yenikomshian M, Jarvis J, Patton C, Yee C, Mortimer R, Birnbaum H, et al. Cardiac arrhythmia detection outcomes among patients monitored with the Zio patch system: a systematic literature review. Curr Med Res Opin. (2019) 35(10):1659–70. doi: 10.1080/03007995.2019.1610370

PubMed Abstract | Crossref Full Text | Google Scholar

115. Barrett PM, Komatireddy R, Haaser S, Topol S, Sheard J, Encinas J, et al. Comparison of 24-hour Holter monitoring with 14-day novel adhesive patch electrocardiographic monitoring. Am J Med. (2014) 127(1):95.e11–7. doi: 10.1016/j.amjmed.2013.10.003

PubMed Abstract | Crossref Full Text | Google Scholar

116. Chua SK, Chen LC, Lien LM, Lo HM, Liao ZY, Chao SP, et al. Comparison of arrhythmia detection by 24-hour Holter and 14-day continuous electrocardiography patch monitoring. Acta Cardiol Sin. (2020) 36(3):251–9. doi: 10.6515/acs.202005_36(3).20190903a

PubMed Abstract | Crossref Full Text | Google Scholar

117. Reynolds MR, Stein AB, Sun X, Hytopoulos E, Steinhubl SR, Cohen DJ. Cost-Effectiveness of AF screening with 2-week patch monitors: the mSToPS study. Circ Cardiovasc Qual Outcomes. (2023) 16(11):e009751. doi: 10.1161/CIRCOUTCOMES.122.009751

PubMed Abstract | Crossref Full Text | Google Scholar

118. Dörr M, Nohturfft V, Brasier N, Bosshard E, Djurdjevic A, Gross S, et al. The WATCH AF trial: smartWATCHes for detection of atrial fibrillation. JACC Clin Electrophysiol. (2019) 5(2):199–208. doi: 10.1016/j.jacep.2018.10.006

Crossref Full Text | Google Scholar

119. Bogár B, Pető D, Sipos D, Füredi G, Keszthelyi A, Betlehem J, et al. Detection of arrhythmias using smartwatches-A systematic literature review. Healthcare (Basel). (2024) 12(9):1–14. doi: 10.3390/healthcare12090892

Crossref Full Text | Google Scholar

120. Liao MT, Yu CC, Lin LY, Pan KH, Tsai TH, Wu YC, et al. Impact of recording length and other arrhythmias on atrial fibrillation detection from wrist photoplethysmogram using smartwatches. Sci Rep. (2022) 12(1):5364. doi: 10.1038/s41598-022-09181-1

PubMed Abstract | Crossref Full Text | Google Scholar

121. Saarinen HJ, Joutsen A, Korpi K, Halkola T, Nurmi M, Hernesniemi J, et al. Wrist-worn device combining PPG and ECG can be reliably used for atrial fibrillation detection in an outpatient setting. Front Cardiovasc Med. (2023) 10:1100127. doi: 10.3389/fcvm.2023.1100127

PubMed Abstract | Crossref Full Text | Google Scholar

122. Shan SM, Tang SC, Huang PW, Lin YM, Huang WH, Lai DM, et al. Reliable PPG-based algorithm in atrial fibrillation detection. 2016 IEEE Biomedical Circuits and Systems Conference (BioCAS); 2016 17–19 Oct (2016).

Google Scholar

123. Proesmans T, Mortelmans C, Van Haelst R, Verbrugge F, Vandervoort P, Vaes B. Mobile phone-based use of the photoplethysmography technique to detect atrial fibrillation in primary care: diagnostic accuracy study of the FibriCheck app. JMIR Mhealth Uhealth. (2019) 7(3):e12284. doi: 10.2196/12284

PubMed Abstract | Crossref Full Text | Google Scholar

124. Fernstad J, Svennberg E, Åberg P, Kemp Gudmundsdottir K, Jansson A, Engdahl J. Validation of a novel smartphone-based photoplethysmographic method for ambulatory heart rhythm diagnostics: the SMARTBEATS study. Europace. (2024) 26(4):euae079. doi: 10.1093/europace/euae079

PubMed Abstract | Crossref Full Text | Google Scholar

125. Gruwez H, Ezzat D, Van Puyvelde T, Dhont S, Meekers E, Bruckers L, et al. Real-world validation of smartphone-based photoplethysmography for rate and rhythm monitoring in atrial fibrillation. Europace. (2024) 26(4):euae065. doi: 10.1093/europace/euae065

PubMed Abstract | Crossref Full Text | Google Scholar

126. Nkomo VT, Gardin JM, Skelton TN, Gottdiener JS, Scott CG, Enriquez-Sarano M. Burden of valvular heart diseases: a population-based study. Lancet. (2006) 368(9540):1005–11. doi: 10.1016/S0140-6736(06)69208-8

PubMed Abstract | Crossref Full Text | Google Scholar

127. Cohen-Shelly M, Attia ZI, Friedman PA, Ito S, Essayagh BA, Ko WY, et al. Electrocardiogram screening for aortic valve stenosis using artificial intelligence. Eur Heart J. (2021) 42(30):2885–96. doi: 10.1093/eurheartj/ehab153

PubMed Abstract | Crossref Full Text | Google Scholar

128. Long Q, Ye X, Zhao Q. Artificial intelligence and automation in valvular heart diseases. Cardiol J. (2020) 27(4):404–20. doi: 10.5603/CJ.a2020.0087

PubMed Abstract | Crossref Full Text | Google Scholar

129. Nedadur R, Wang B, Tsang W. Artificial intelligence for the echocardiographic assessment of valvular heart disease. Heart. (2022) 108(20):1592–9. doi: 10.1136/heartjnl-2021-319725

PubMed Abstract | Crossref Full Text | Google Scholar

130. Wessler BS, Huang Z, Long GM Jr., Pacifici S, Prashar N, Karmiy S, et al. Automated detection of aortic stenosis using machine learning. J Am Soc Echocardiogr. (2023) 36(4):411–20. doi: 10.1016/j.echo.2023.01.006

PubMed Abstract | Crossref Full Text | Google Scholar

131. Rajiah PS, François CJ, Leiner T. Cardiac MRI: state of the art. Radiology. (2023) 307(3):e223008. doi: 10.1148/radiol.223008

PubMed Abstract | Crossref Full Text | Google Scholar

132. Ribeiro JM, Astudillo P, de Backer O, Budde R, Nuis RJ, Goudzwaard J, et al. Artificial intelligence and transcatheter interventions for structural heart disease: a glance at the (near) future. Trends Cardiovasc Med. (2022) 32(3):153–9. doi: 10.1016/j.tcm.2021.02.002

PubMed Abstract | Crossref Full Text | Google Scholar

133. Alabed S, Alandejani F, Dwivedi K, Karunasaagarar K, Sharkey M, Garg P, et al. Validation of artificial intelligence cardiac MRI measurements: relationship to heart catheterization and mortality prediction. Radiology. (2022) 305(1):68–79. doi: 10.1148/radiol.212929

PubMed Abstract | Crossref Full Text | Google Scholar

134. Bai W, Sinclair M, Tarroni G, Oktay O, Rajchl M, Vaillant G, et al. Automated cardiovascular magnetic resonance image analysis with fully convolutional networks. J Cardiovasc Magn Reson. (2018) 20(1):65. doi: 10.1186/s12968-018-0471-x

PubMed Abstract | Crossref Full Text | Google Scholar

135. Moraldo M, Bergamini C, Malaweera AS, Dhutia NM, Pabari PA, Willson K, et al. A novel fully automated method for mitral regurgitant orifice area quantification. Int J Cardiol. (2013) 166(3):688–95. doi: 10.1016/j.ijcard.2011.11.104

PubMed Abstract | Crossref Full Text | Google Scholar

136. Lambert AS. Proximal isovelocity surface area should be routinely measured in evaluating mitral regurgitation: a core review. Anesth Analg. (2007) 105(4):940–3. doi: 10.1213/01.ane.0000278084.35122.4e

PubMed Abstract | Crossref Full Text | Google Scholar

137. Moraldo M, Cecaro F, Shun-Shin M, Pabari PA, Davies JE, Xu XY, et al. Evidence-based recommendations for PISA measurements in mitral regurgitation: systematic review, clinical and in vitro study. Int J Cardiol. (2013) 168(2):1220–8. doi: 10.1016/j.ijcard.2012.11.059

PubMed Abstract | Crossref Full Text | Google Scholar

138. Long D, McMurdo C, Ferdian E, Mauger CA, Marlevi D, Nash MP, et al. Super-resolution 4D flow MRI to quantify aortic regurgitation using computational fluid dynamics and deep learning. Int J Cardiovasc Imaging. (2023) 39(6):1189–202. doi: 10.1007/s10554-023-02815-z

PubMed Abstract | Crossref Full Text | Google Scholar

139. Chorba JS, Shapiro AM, Le L, Maidens J, Prince J, Pham S, et al. Deep learning algorithm for automated cardiac murmur detection via a digital stethoscope platform. J Am Heart Assoc. (2021) 10(9):e019905. doi: 10.1161/JAHA.120.019905

PubMed Abstract | Crossref Full Text | Google Scholar

140. BioSpace: FDA Clears Eko’s Heart Disease Detection AI for Adults & Ped2022 March 19, 2024. Available at: https://www.ekohealth.com/blogs/newsroom/eko-biospace-07122022 (Accessed May 6, 2024).

Google Scholar

141. Zhou J, Lee S, Liu Y, Chan JSK, Li G, Wong WT, et al. Predicting stroke and mortality in mitral regurgitation: a machine learning approach. Curr Probl Cardiol. (2023) 48(2):101464. doi: 10.1016/j.cpcardiol.2022.101464

PubMed Abstract | Crossref Full Text | Google Scholar

142. Rauf A, Ullah A, Rathi U, Ashfaq Z, Ullah H, Ashraf A, et al. Predicting stroke and mortality in mitral stenosis with atrial flutter: a machine learning approach. Ann Noninvasive Electrocardiol. (2023) 28(5):e13078. doi: 10.1111/anec.13078

PubMed Abstract | Crossref Full Text | Google Scholar

143. Shimoni S, Sergienko R, Martinez-Legazpi P, Meledin V, Goland S, Tshori S, et al. Machine learning prediction for prognosis of patients with aortic stenosis. JACC Adv. (2024) 3(9, Part 2):101135. doi: 10.1016/j.jacadv.2024.101135

PubMed Abstract | Crossref Full Text | Google Scholar

144. Chiriac A, Ngufor C, van Houten HK, Mwangi R, Madhavan M, Noseworthy PA, et al. Beyond atrial fibrillation: machine learning algorithm predicts stroke in adult patients with congenital heart disease. Mayo Clin Proc Digit Health. (2024) 2(1):92–103. doi: 10.1016/j.mcpdig.2023.12.002

Crossref Full Text | Google Scholar

145. Saha P, Potiny P, Rigdon J, Morello M, Tcheandjieu C, Romfh A, et al. Substantial cardiovascular morbidity in adults with lower-complexity congenital heart disease. Circulation. (2019) 139(16):1889–99. doi: 10.1161/CIRCULATIONAHA.118.037064

PubMed Abstract | Crossref Full Text | Google Scholar

146. Bai J, Yang J, Song W, Liu Y, Xu H, Liu Y. Intelligent prediction of cryptogenic stroke using patent foramen ovale from TEE imaging data and machine learning methods. Int J Comput Intell Syst. (2022) 15(1):13. doi: 10.1007/s44196-022-00067-8

Crossref Full Text | Google Scholar

147. Kanemaru K, Ueno Y, Kikuno M, Tateishi Y, Shimizu T, Kuriki A, et al. High-risk patent foramen ovale and elderly in cryptogenic stroke. J Stroke Cerebrovasc Dis. (2023) 32(11):107344. doi: 10.1016/j.jstrokecerebrovasdis.2023.107344

PubMed Abstract | Crossref Full Text | Google Scholar

148. Luo D, Yang Z, Zhang G, Shen Q, Zhang H, Lai J, et al. Machine learning in a real-world PFO study: analysis of data from multi-centers in China. BMC Med Inform Decis Mak. (2022) 22(1):305. doi: 10.1186/s12911-022-02048-5

PubMed Abstract | Crossref Full Text | Google Scholar

149. Sposato LA, Albin CSW, Elkind MSV, Kamel H, Saver JL. Patent foramen ovale management for secondary stroke prevention: state-of-the-art appraisal of current evidence. Stroke. (2024) 55(1):236–47. doi: 10.1161/STROKEAHA.123.040546

PubMed Abstract | Crossref Full Text | Google Scholar

150. Miceli G, Basso MG, Rizzo G, Pintus C, Cocciola E, Pennacchio AR, et al. Artificial intelligence in acute ischemic stroke subtypes according to toast classification: a comprehensive narrative review. Biomedicines. (2023) 11(4):1138. doi: 10.3390/biomedicines11041138

PubMed Abstract | Crossref Full Text | Google Scholar

151. Ioannidis SG, Mitsias PD. Patent foramen ovale in cryptogenic ischemic stroke: direct cause, risk factor, or incidental finding? Front Neurol. (2020) 11:567. doi: 10.3389/fneur.2020.00567

PubMed Abstract | Crossref Full Text | Google Scholar

152. Roger VL, Go AS, Lloyd-Jones DM, Benjamin EJ, Berry JD, Borden WB, et al. Heart disease and stroke statistics–2012 update: a report from the American Heart Association. Circulation. (2012) 125(1):e2–220. doi: 10.1161/CIR.0b013e318245fac5

PubMed Abstract | Crossref Full Text | Google Scholar

153. Blecker S, Paul M, Taksler G, Ogedegbe G, Katz S. Heart failure–associated hospitalizations in the United States. J Am Coll Cardiol. (2013) 61(12):1259–67. doi: 10.1016/j.jacc.2012.12.038

PubMed Abstract | Crossref Full Text | Google Scholar

154. Khera R, Kondamudi N, Zhong L, Vaduganathan M, Parker J, Das SR, et al. Temporal trends in heart failure incidence among medicare beneficiaries across risk factor Strata, 2011–2016. JAMA Netw Open. (2020) 3(10):e2022190. doi: 10.1001/jamanetworkopen.2020.22190

PubMed Abstract | Crossref Full Text | Google Scholar

155. Kim W, Kim EJ. Heart failure as a risk factor for stroke. J Stroke. (2018) 20(1):33–45. doi: 10.5853/jos.2017.02810

PubMed Abstract | Crossref Full Text | Google Scholar

156. Mannina C, Ito K, Jin Z, Yoshida Y, Matsumoto K, Shames S, et al. Association of left atrial strain with ischemic stroke risk in older adults. JAMA Cardiol. (2023) 8(4):317–25. doi: 10.1001/jamacardio.2022.5449

PubMed Abstract | Crossref Full Text | Google Scholar

157. Fuster V, Halperin JL. Left ventricular thrombi and cerebral embolism. N Engl J Med. (1989) 320(6):392–4. doi: 10.1056/NEJM198902093200610

PubMed Abstract | Crossref Full Text | Google Scholar

158. Banerjee A, Chen S, Fatemifar G, Zeina M, Lumbers RT, Mielke J, et al. Machine learning for subtype definition and risk prediction in heart failure, acute coronary syndromes and atrial fibrillation: systematic review of validity and clinical utility. BMC Med. (2021) 19(1):85. doi: 10.1186/s12916-021-01940-7

PubMed Abstract | Crossref Full Text | Google Scholar

159. Segar MW, Hall JL, Jhund PS, Powell-Wiley TM, Morris AA, Kao D, et al. Machine learning-based models incorporating social determinants of health vs traditional models for predicting in-hospital mortality in patients with heart failure. JAMA Cardiol. (2022) 7(8):844–54. doi: 10.1001/jamacardio.2022.1900

PubMed Abstract | Crossref Full Text | Google Scholar

160. Unterhuber M, Rommel KP, Kresoja KP, Lurz J, Kornej J, Hindricks G, et al. Deep learning detects heart failure with preserved ejection fraction using a baseline electrocardiogram. Eur Heart J Digit Health. (2021) 2(4):699–703. doi: 10.1093/ehjdh/ztab081

PubMed Abstract | Crossref Full Text | Google Scholar

161. Kwon J-M, Kim K-H, Eisen HJ, Cho Y, Jeon K-H, Lee SY, et al. Artificial intelligence assessment for early detection of heart failure with preserved ejection fraction based on electrocardiographic features. Eur Heart J Digit Health. (2020) 2(1):106–16. doi: 10.1093/ehjdh/ztaa015

PubMed Abstract | Crossref Full Text | Google Scholar

162. Ponikowski P, Voors AA, Anker SD, Bueno H, Cleland JGF, Coats AJS, et al. 2016 ESC guidelines for the diagnosis and treatment of acute and chronic heart failure: the task force for the diagnosis and treatment of acute and chronic heart failure of the European Society of Cardiology (ESC)Developed with the special contribution of the heart failure association (HFA) of the ESC. Eur Heart J. (2016) 37(27):2129–200. doi: 10.1093/eurheartj/ehw128

PubMed Abstract | Crossref Full Text | Google Scholar

163. Attia ZI, Kapa S, Lopez-Jimenez F, McKie PM, Ladewig DJ, Satam G, et al. Screening for cardiac contractile dysfunction using an artificial intelligence-enabled electrocardiogram. Nat Med. (2019) 25(1):70–4. doi: 10.1038/s41591-018-0240-2

PubMed Abstract | Crossref Full Text | Google Scholar

164. Akbilgic O, Butler L, Karabayir I, Chang PP, Kitzman DW, Alonso A, et al. ECG-AI: electrocardiographic artificial intelligence model for prediction of heart failure. Eur Heart J Digit Health. (2021) 2(4):626–34. doi: 10.1093/ehjdh/ztab080

PubMed Abstract | Crossref Full Text | Google Scholar

165. Bachtiger P, Petri CF, Scott FE, Ri Park S, Kelshiker MA, Sahemey HK, et al. Point-of-care screening for heart failure with reduced ejection fraction using artificial intelligence during ECG-enabled stethoscope examination in London, UK: a prospective, observational, multicentre study. Lancet Digit Health. (2022) 4(2):e117–25. doi: 10.1016/S2589-7500(21)00256-9

PubMed Abstract | Crossref Full Text | Google Scholar

166. Vaid A, Jiang J, Sawant A, Lerakis S, Argulian E, Ahuja Y, et al. A foundational vision transformer improves diagnostic performance for electrocardiograms. NPJ Digit Med. (2023) 6(1):108. doi: 10.1038/s41746-023-00840-9

PubMed Abstract | Crossref Full Text | Google Scholar

167. Akerman AP, Porumb M, Scott CG, Beqiri A, Chartsias A, Ryu AJ, et al. Automated echocardiographic detection of heart failure with preserved ejection fraction using artificial intelligence. JACC Adv. (2023) 2(6):100452. doi: 10.1016/j.jacadv.2023.100452

PubMed Abstract | Crossref Full Text | Google Scholar

168. Us2.ai receives FDA clearance for Us2.v2, transforming cardiovascular ultrasound analysis. (2024). Available at: https://us2.ai/us2-ai-receives-fda-clearance-for-us2-v2-transforming-cardiovascular-ultrasound-analysis/ (Accessed October 21, 2024).

Google Scholar

169. Pieszko K, Hiczkiewicz J, Łojewska K, Uziębło-Życzkowska B, Krzesiński P, Gawałko M, et al. Artificial intelligence in detecting left atrial appendage thrombus by transthoracic echocardiography and clinical features: the left atrial thrombus on transoesophageal echocardiography (LATTEE) registry. Eur Heart J. (2024) 45(1):32–41. doi: 10.1093/eurheartj/ehad431

PubMed Abstract | Crossref Full Text | Google Scholar

170. Salte IM, Østvik A, Smistad E, Melichova D, Nguyen TM, Karlsen S, et al. Artificial intelligence for automatic measurement of left ventricular strain in echocardiography. JACC Cardiovasc Imaging. (2021) 14(10):1918–28. doi: 10.1016/j.jcmg.2021.04.018

PubMed Abstract | Crossref Full Text | Google Scholar

171. Lin Y, Wu W, Gao L, Ji M, Xie M, Li Y. Multimodality imaging of benign primary cardiac tumor. Diagnostics (Basel). (2022) 12(10):2543. doi: 10.3390/diagnostics12102543

PubMed Abstract | Crossref Full Text | Google Scholar

172. Floria M, Burlacu A, Morariu PC, Oancea AF, Iov DE, Baroi GL, et al. Multimodality imaging in right heart tumors: proposed algorithm towards an appropriate diagnosis. J Clin Med. (2024) 13(4):1000. doi: 10.3390/jcm13041000

PubMed Abstract | Crossref Full Text | Google Scholar

173. Kadah YM, Abd-Elmoniem KZ, Farag AA. Parallel computation in medical imaging applications. Int J Biomed Imaging. (2011) 2011:840181. doi: 10.1155/2011/840181

PubMed Abstract | Crossref Full Text | Google Scholar

174. Martino RL, Johnson CA, Suh EB, Trus BL, Yap TK. Parallel computing in biomedical research. Science. (1994) 265(5174):902–8. doi: 10.1126/science.8052847

PubMed Abstract | Crossref Full Text | Google Scholar

175. Kirimtat A, Krejcar O. GPU-based parallel processing techniques for enhanced brain magnetic resonance imaging analysis: a review of recent advances. Sensors (Basel). (2024) 24(5):1712. doi: 10.3390/s24051591

PubMed Abstract | Crossref Full Text | Google Scholar

176. Kesav P, John S, Joshi P, Gaba WH, Hussain SI. Cardiac myxoma embolization causing ischemic stroke and multiple partially thrombosed cerebral aneurysms. Stroke. (2021) 52(1):e10–4. doi: 10.1161/STROKEAHA.120.031679

PubMed Abstract | Crossref Full Text | Google Scholar

177. Islam MS, Hussain I, Rahman MM, Park SJ, Hossain MA. Explainable artificial intelligence model for stroke prediction using EEG signal. Sensors (Basel). (2022) 22(24):9859. doi: 10.3390/s22249859

PubMed Abstract | Crossref Full Text | Google Scholar

178. Hassan A, Gulzar Ahmad S, Ullah Munir E, Ali Khan I, Ramzan N. Predictive modelling and identification of key risk factors for stroke using machine learning. Sci Rep. (2024) 14(1):11498. doi: 10.1038/s41598-024-61665-4

PubMed Abstract | Crossref Full Text | Google Scholar

179. Sotero FD, Rosário M, Fonseca AC, Ferro JM. Neurological complications of infective endocarditis. Curr Neurol Neurosci Rep. (2019) 19(5):23. doi: 10.1007/s11910-019-0935-x

PubMed Abstract | Crossref Full Text | Google Scholar

180. Morris NA, Matiello M, Lyons JL, Samuels MA. Neurologic complications in infective endocarditis: identification, management, and impact on cardiac surgery. Neurohospitalist. (2014) 4(4):213–22. doi: 10.1177/1941874414537077

PubMed Abstract | Crossref Full Text | Google Scholar

181. Heiro M, Nikoskelainen J, Engblom E, Kotilainen E, Marttila R, Kotilainen P. Neurologic manifestations of infective endocarditis: a 17-year experience in a teaching hospital in Finland. Arch Intern Med. (2000) 160(18):2781–7. doi: 10.1001/archinte.160.18.2781

PubMed Abstract | Crossref Full Text | Google Scholar

182. McDonald EG, Aggrey G, Tarik Aslan A, Casias M, Cortes-Penfield N, Dong MQD, et al. Guidelines for diagnosis and management of infective endocarditis in adults: a WikiGuidelines group consensus statement. JAMA Netw Open. (2023) 6(7):e2326366. doi: 10.1001/jamanetworkopen.2023.26366

PubMed Abstract | Crossref Full Text | Google Scholar

183. Dickerman SA, Abrutyn E, Barsic B, Bouza E, Cecchi E, Moreno A, et al. The relationship between the initiation of antimicrobial therapy and the incidence of stroke in infective endocarditis: an analysis from the ICE prospective cohort study (ICE-PCS). Am Heart J. (2007) 154(6):1086–94. doi: 10.1016/j.ahj.2007.07.023

PubMed Abstract | Crossref Full Text | Google Scholar

184. Snygg-Martin U, Gustafsson L, Rosengren L, Alsiö A, Ackerholm P, Andersson R, et al. Cerebrovascular complications in patients with left-sided infective endocarditis are common: a prospective study using magnetic resonance imaging and neurochemical brain damage markers. Clin Infect Dis. (2008) 47(1):23–30. doi: 10.1086/588663

PubMed Abstract | Crossref Full Text | Google Scholar

185. Resende P Jr., Fortes CQ, do Nascimento EM, Sousa C, Querido Fortes NR, Thomaz DC, et al. In-hospital outcomes of infective endocarditis from 1978 to 2015: analysis through machine-learning techniques. CJC Open. (2022) 4(2):164–72. doi: 10.1016/j.cjco.2021.08.017

PubMed Abstract | Crossref Full Text | Google Scholar

186. Bezak B, Artemiou P, Hulman M. Valve-related factors and incidence of prosthetic valve endocarditis. Kardiochir Torakochirurgia Pol. (2020) 17(4):178–82. doi: 10.5114/kitp.2020.102341

PubMed Abstract | Crossref Full Text | Google Scholar

187. Godefroy T, Frécon G, Asquier-Khati A, Mateus D, Lecomte R, Rizkallah M, et al. (18)F-FDG-based radiomics and machine learning: useful help for aortic prosthetic valve infective endocarditis diagnosis? JACC Cardiovasc Imaging. (2023) 16(7):951–61. doi: 10.1016/j.jcmg.2023.01.020

PubMed Abstract | Crossref Full Text | Google Scholar

188. Swart LE, Gomes A, Scholtens AM, Sinha B, Tanis W, Lam M, et al. Improving the diagnostic performance of (18)F-fluorodeoxyglucose positron-emission tomography/computed tomography in prosthetic heart valve endocarditis. Circulation. (2018) 138(14):1412–27. doi: 10.1161/CIRCULATIONAHA.118.035032

PubMed Abstract | Crossref Full Text | Google Scholar

189. Scholtens AM, Swart LE, Kolste HJT, Budde RPJ, Lam M, Verberne HJ. Standardized uptake values in FDG PET/CT for prosthetic heart valve endocarditis: a call for standardization. J Nucl Cardiol. (2018) 25(6):2084–91. doi: 10.1007/s12350-017-0932-x

PubMed Abstract | Crossref Full Text | Google Scholar

190. Bhat A, Mahajan V, Chen HHL, Gan GCH, Pontes-Neto OM, Tan TC. Embolic stroke of undetermined source: approaches in risk stratification for cardioembolism. Stroke. (2021) 52(12):e820–36. doi: 10.1161/STROKEAHA.121.034498

PubMed Abstract | Crossref Full Text | Google Scholar

191. Danese A, Mugnai G, Prevedello F, Morra M, Bilato C. The role of echocardiography in the embolic stroke of undetermined source. J Cardiovasc Med (Hagerstown). (2020) 21(8):547–55. doi: 10.2459/JCM.0000000000001023

PubMed Abstract | Crossref Full Text | Google Scholar

192. Saver JL, Carroll JD, Thaler DE, Smalling RW, MacDonald LA, Marks DS, et al. Long-term outcomes of patent foramen ovale closure or medical therapy after stroke. N Engl J Med. (2017) 377(11):1022–32. doi: 10.1056/NEJMoa1610057

PubMed Abstract | Crossref Full Text | Google Scholar

193. Mas JL, Derumeaux G, Guillon B, Massardier E, Hosseini H, Mechtouff L, et al. Patent foramen ovale closure or anticoagulation vs. antiplatelets after stroke. N Engl J Med. (2017) 377(11):1011–21. doi: 10.1056/NEJMoa1705915

PubMed Abstract | Crossref Full Text | Google Scholar

194. Ho JS, Ho ES, Yeo LL, Kong WK, Li TY, Tan BY, et al. Use of wearable technology in cardiac monitoring after cryptogenic stroke or embolic stroke of undetermined source: a systematic review. Singapore Med J. (2024) 65(7):370–9. doi: 10.4103/singaporemedj.SMJ-2022-143

PubMed Abstract | Crossref Full Text | Google Scholar

195. De Jong AM, Maass AH, Oberdorf-Maass SU, Van Veldhuisen DJ, Van Gilst WH, Van Gelder IC. Mechanisms of atrial structural changes caused by stretch occurring before and during early atrial fibrillation. Cardiovasc Res. (2011) 89(4):754–65. doi: 10.1093/cvr/cvq357

PubMed Abstract | Crossref Full Text | Google Scholar

196. Kamel H, Okin PM, Longstreth WT Jr., Elkind MS, Soliman EZ. Atrial cardiopathy: a broadened concept of left atrial thromboembolism beyond atrial fibrillation. Future Cardiol. (2015) 11(3):323–31. doi: 10.2217/fca.15.22

PubMed Abstract | Crossref Full Text | Google Scholar

197. Cotter PE, Martin PJ, Ring L, Warburton EA, Belham M, Pugh PJ. Incidence of atrial fibrillation detected by implantable loop recorders in unexplained stroke. Neurology. (2013) 80(17):1546–50. doi: 10.1212/WNL.0b013e31828f1828

PubMed Abstract | Crossref Full Text | Google Scholar

198. Verbrugge FH, Reddy YNV, Attia ZI, Friedman PA, Noseworthy PA, Lopez-Jimenez F, et al. Detection of left atrial myopathy using artificial intelligence–enabled electrocardiography. Circ Heart Fail. (2022) 15(1):e008176. doi: 10.1161/CIRCHEARTFAILURE.120.008176

PubMed Abstract | Crossref Full Text | Google Scholar

199. Lee VH, Oh JK, Mulvagh SL, Wijdicks EF. Mechanisms in neurogenic stress cardiomyopathy after aneurysmal subarachnoid hemorrhage. Neurocrit Care. (2006) 5(3):243–9. doi: 10.1385/NCC:5:3:243

PubMed Abstract | Crossref Full Text | Google Scholar

200. Gopinath R, Ayya SS. Neurogenic stress cardiomyopathy: what do we need to know. Ann Card Anaesth. (2018) 21(3):228–34. doi: 10.4103/aca.ACA_176_17

PubMed Abstract | Crossref Full Text | Google Scholar

201. Ziaka M, Exadaktylos A. The heart is at risk: understanding stroke-heart-brain interactions with focus on neurogenic stress cardiomyopathy-A review. J Stroke. (2023) 25(1):39–54. doi: 10.5853/jos.2022.02173

PubMed Abstract | Crossref Full Text | Google Scholar

202. Wang X, Pei J, Hu X. The brain-heart connection in Takotsubo syndrome: the central nervous system, sympathetic nervous system, and catecholamine overload. Cardiol Res Pract. (2020) 2020:4150291. doi: 10.1155/2020/4150291

PubMed Abstract | Crossref Full Text | Google Scholar

203. Kato K, Lyon AR, Ghadri JR, Templin C. Takotsubo syndrome: aetiology, presentation and treatment. Heart. (2017) 103(18):1461–9. doi: 10.1136/heartjnl-2016-309783

PubMed Abstract | Crossref Full Text | Google Scholar

204. de Gregorio C. Cardioembolic outcomes in stress-related cardiomyopathy complicated by ventricular thrombus: a systematic review of 26 clinical studies. Int J Cardiol. (2010) 141(1):11–7. doi: 10.1016/j.ijcard.2009.09.468

PubMed Abstract | Crossref Full Text | Google Scholar

205. Ding KJ, Cammann VL, Szawan KA, Stähli BE, Wischnewsky M, Di Vece D, et al. Intraventricular thrombus formation and embolism in Takotsubo syndrome: insights from the international Takotsubo registry. Arterioscler Thromb Vasc Biol. (2020) 40(1):279–87. doi: 10.1161/ATVBAHA.119.313491

PubMed Abstract | Crossref Full Text | Google Scholar

206. Laumer F, Di Vece D, Cammann VL, Würdinger M, Petkova V, Schönberger M, et al. Assessment of artificial intelligence in echocardiography diagnostics in differentiating Takotsubo syndrome from myocardial infarction. JAMA Cardiol. (2022) 7(5):494–503. doi: 10.1001/jamacardio.2022.0183

PubMed Abstract | Crossref Full Text | Google Scholar

207. Eitel I, von Knobelsdorff-Brenkenhoff F, Bernhardt P, Carbone I, Muellerleile K, Aldrovandi A, et al. Clinical characteristics and cardiovascular magnetic resonance findings in stress (Takotsubo) cardiomyopathy. JAMA. (2011) 306(3):277–86. doi: 10.1001/jama.2011.992

PubMed Abstract | Crossref Full Text | Google Scholar

208. Baeßler B, Mannil M, Maintz D, Alkadhi H, Manka R. Texture analysis and machine learning of non-contrast T1-weighted MR images in patients with hypertrophic cardiomyopathy-preliminary results. Eur J Radiol. (2018) 102:61–7. doi: 10.1016/j.ejrad.2018.03.013

PubMed Abstract | Crossref Full Text | Google Scholar

209. Cau R, Pisu F, Porcu M, Cademartiri F, Montisci R, Bassareo P, et al. Machine learning approach in diagnosing Takotsubo cardiomyopathy: the role of the combined evaluation of atrial and ventricular strain, and parametric mapping. Int J Cardiol. (2023) 373:124–33. doi: 10.1016/j.ijcard.2022.11.021

PubMed Abstract | Crossref Full Text | Google Scholar

210. De Filippo O, Cammann VL, Pancotti C, Di Vece D, Silverio A, Schweiger V, et al. Machine learning-based prediction of in-hospital death for patients with Takotsubo syndrome: the InterTAK-ML model. Eur J Heart Fail. (2023) 25(12):2299–311. doi: 10.1002/ejhf.2983

PubMed Abstract | Crossref Full Text | Google Scholar

211. Mannil M, von Spiczak J, Manka R, Alkadhi H. Texture analysis and machine learning for detecting myocardial infarction in noncontrast low-dose computed tomography: unveiling the invisible. Invest Radiol. (2018) 53(6):338–43. doi: 10.1097/RLI.0000000000000448

PubMed Abstract | Crossref Full Text | Google Scholar

212. Sposato LA, Field TS, Schnabel RB, Wachter R, Andrade JG, Hill MD. Towards a new classification of atrial fibrillation detected after a stroke or a transient ischaemic attack. Lancet Neurol. (2024) 23(1):110–22. doi: 10.1016/S1474-4422(23)00326-5

PubMed Abstract | Crossref Full Text | Google Scholar

213. Sposato LA, Klein FR, Jáuregui A, Ferrúa M, Klin P, Zamora R, et al. Newly diagnosed atrial fibrillation after acute ischemic stroke and transient ischemic attack: importance of immediate and prolonged continuous cardiac monitoring. J Stroke Cerebrovasc Dis. (2012) 21(3):210–6. doi: 10.1016/j.jstrokecerebrovasdis.2010.06.010

PubMed Abstract | Crossref Full Text | Google Scholar

214. Cerasuolo JO, Cipriano LE, Sposato LA. The complexity of atrial fibrillation newly diagnosed after ischemic stroke and transient ischemic attack: advances and uncertainties. Curr Opin Neurol. (2017) 30(1):28–37. doi: 10.1097/WCO.0000000000000410

PubMed Abstract | Crossref Full Text | Google Scholar

215. Tenberg A, Tahara N, Grewal A, Herrera A, Klein LM, Lebo R, et al. Dysautonomia and activity in the early stroke recovery period. Neurol Sci. (2024) 45(6):2505–21. doi: 10.1007/s10072-023-07289-4

PubMed Abstract | Crossref Full Text | Google Scholar

216. Jimenez-Ruiz A, Racosta JM, Kimpinski K, Hilz MJ, Sposato LA. Cardiovascular autonomic dysfunction after stroke. Neurol Sci. (2021) 42(5):1751–8. doi: 10.1007/s10072-021-05128-y

PubMed Abstract | Crossref Full Text | Google Scholar

217. Pang M, Li Z, Sun L, Zhao N, Hao L. A nomogram for predicting atrial fibrillation detected after acute ischemic stroke. Front Neurol. (2022) 13:1005885. doi: 10.3389/fneur.2022.1005885

PubMed Abstract | Crossref Full Text | Google Scholar

218. Rubiera M, Aires A, Antonenko K, Lémeret S, Nolte CH, Putaala J, et al. European Stroke Organisation (ESO) guideline on screening for subclinical atrial fibrillation after stroke or transient ischaemic attack of undetermined origin. Eur Stroke J. (2022) 7(3):Vi.36082257

PubMed Abstract | Google Scholar

219. Braillon A, Bernard A, Leclercq T, Duloquin G, Pommier T, Benali K, et al. Incremental value of the combined brain-cardiac CT protocol on prediction of atrial fibrillation after stroke. Eur Stroke J. (2023) 8(1):175–82.37021162

PubMed Abstract | Google Scholar

220. Uphaus T, Weber-Krüger M, Grond M, Toenges G, Jahn-Eimermacher A, Jauss M, et al. Development and validation of a score to detect paroxysmal atrial fibrillation after stroke. Neurology. (2019) 92(2):e115–24. doi: 10.1212/WNL.0000000000006727

PubMed Abstract | Crossref Full Text | Google Scholar

221. Hsieh CY, Lee CH, Sung SF. Development of a novel score to predict newly diagnosed atrial fibrillation after ischemic stroke: the CHASE-LESS score. Atherosclerosis. (2020) 295:1–7. doi: 10.1016/j.atherosclerosis.2020.01.003

PubMed Abstract | Crossref Full Text | Google Scholar

222. Lee JD, Kuo YW, Lee CP, Huang YC, Lee M, Lee TH. Development and validation of a novel score for predicting paroxysmal atrial fibrillation in acute ischemic stroke. Int J Environ Res Public Health. (2022) 19(12):7277. doi: 10.3390/ijerph19127277

PubMed Abstract | Crossref Full Text | Google Scholar

223. Kazemian S, Zarei D, Bozorgi A, Nazarian S, Issaiy M, Tavolinejad H, et al. Risk scores for prediction of paroxysmal atrial fibrillation after acute ischemic stroke or transient ischemic attack: a systematic review and meta-analysis. Int J Cardiol Cardiovasc Risk Prev. (2024) 21:200249. doi: 10.1016/j.ijcrp.2024.200249

PubMed Abstract | Crossref Full Text | Google Scholar

224. Saengmanee T, Thiankhaw K, Tanprawate S, Soontornpun A, Wantaneeyawong C, Teekaput C, et al. A simplified risk score to predict in-hospital newly-diagnosed atrial fibrillation in acute ischemic stroke patients. Int J Gen Med. (2023) 16:1363–73. doi: 10.2147/IJGM.S406546

PubMed Abstract | Crossref Full Text | Google Scholar

225. Bisson A, Lemrini Y, El-Bouri W, Bodin A, Angoulvant D, Lip GYH, et al. Prediction of incident atrial fibrillation in post-stroke patients using machine learning: a French nationwide study. Clin Res Cardiol. (2023) 112(6):815–23. doi: 10.1007/s00392-022-02140-w

PubMed Abstract | Crossref Full Text | Google Scholar

226. Zheng X, Wang F, Zhang J, Cui X, Jiang F, Chen N, et al. Using machine learning to predict atrial fibrillation diagnosed after ischemic stroke. Int J Cardiol. (2022) 347:21–7. doi: 10.1016/j.ijcard.2021.11.005

PubMed Abstract | Crossref Full Text | Google Scholar

227. Sung SF, Sung KL, Pan RC, Lee PJ, Hu YH. Automated risk assessment of newly detected atrial fibrillation poststroke from electronic health record data using machine learning and natural language processing. Front Cardiovasc Med. (2022) 9:941237. doi: 10.3389/fcvm.2022.941237

PubMed Abstract | Crossref Full Text | Google Scholar

228. Guo S, Li X, Liu H, Zhang P, Du X, Xie G, et al. Integrating temporal pattern mining in ischemic stroke prediction and treatment pathway discovery for atrial fibrillation. AMIA Jt Summits Transl Sci Proc. (2017) 2017:122–30.28815120

PubMed Abstract | Google Scholar

229. McAloon CJ, Boylan LM, Hamborg T, Stallard N, Osman F, Lim PB, et al. The changing face of cardiovascular disease 2000–2012: an analysis of the world health organisation global health estimates data. Int J Cardiol. (2016) 224:256–64. doi: 10.1016/j.ijcard.2016.09.026

PubMed Abstract | Crossref Full Text | Google Scholar

230. Touzé E, Varenne O, Chatellier G, Peyrard S, Rothwell PM, Mas JL. Risk of myocardial infarction and vascular death after transient ischemic attack and ischemic stroke: a systematic review and meta-analysis. Stroke. (2005) 36(12):2748–55. doi: 10.1161/01.STR.0000190118.02275.33

PubMed Abstract | Crossref Full Text | Google Scholar

231. Calvet D, Touzé E, Varenne O, Sablayrolles JL, Weber S, Mas JL. Prevalence of asymptomatic coronary artery disease in ischemic stroke patients: the PRECORIS study. Circulation. (2010) 121(14):1623–9. doi: 10.1161/CIRCULATIONAHA.109.906958

PubMed Abstract | Crossref Full Text | Google Scholar

232. Collet JP, Thiele H, Barbato E, Barthélémy O, Bauersachs J, Bhatt DL, et al. 2020 ESC guidelines for the management of acute coronary syndromes in patients presenting without persistent ST-segment elevation. Eur Heart J. (2021) 42(14):1289–367. doi: 10.1093/eurheartj/ehaa575

PubMed Abstract | Crossref Full Text | Google Scholar

233. Cho Y, Kwon JM, Kim KH, Medina-Inojosa JR, Jeon KH, Cho S, et al. Artificial intelligence algorithm for detecting myocardial infarction using six-lead electrocardiography. Sci Rep. (2020) 10(1):20495. doi: 10.1038/s41598-020-77599-6

PubMed Abstract | Crossref Full Text | Google Scholar

234. Liu WC, Lin CS, Tsai CS, Tsao TP, Cheng CC, Liou JT, et al. A deep learning algorithm for detecting acute myocardial infarction. EuroIntervention. (2021) 17(9):765–73. doi: 10.4244/EIJ-D-20-01155

PubMed Abstract | Crossref Full Text | Google Scholar

235. Shin TG, Lee Y, Kim K, Lee MS, Kwon JM. ROMIAE (Rule-Out acute myocardial infarction using artificial intelligence electrocardiogram analysis) trial study protocol: a prospective multicenter observational study for validation of a deep learning-based 12-lead electrocardiogram analysis model for detecting acute myocardial infarction in patients visiting the emergency department. Clin Exp Emerg Med. (2023) 10(4):438–45. doi: 10.15441/ceem.22.360

PubMed Abstract | Crossref Full Text | Google Scholar

236. Heo J, Yoo J, Lee H, Lee IH, Kim JS, Park E, et al. Prediction of hidden coronary artery disease using machine learning in patients with acute ischemic stroke. Neurology. (2022) 99(1):e55–65. doi: 10.1212/wnl.0000000000200576

PubMed Abstract | Crossref Full Text | Google Scholar

237. Lee H-G, Park S-D, Bae J-W, Moon S, Jung CY, Kim M-S, et al. Machine learning approaches that use clinical, laboratory, and electrocardiogram data enhance the prediction of obstructive coronary artery disease. Sci Rep. (2023) 13(1):12635. doi: 10.1038/s41598-023-39911-y

PubMed Abstract | Crossref Full Text | Google Scholar

238. Kang D, Dey D, Slomka PJ, Arsanjani R, Nakazato R, Ko H, et al. Structured learning algorithm for detection of nonobstructive and obstructive coronary plaque lesions from computed tomography angiography. J Med Imaging (Bellingham). (2015) 2(1):014003. doi: 10.1117/1.JMI.2.1.014003

PubMed Abstract | Crossref Full Text | Google Scholar

239. Campanozzi LL, Gibelli F, Bailo P, Nittari G, Sirignano A, Ricci G. The role of digital literacy in achieving health equity in the third millennium society: a literature review. Front Public Health. (2023) 11:1109323. doi: 10.3389/fpubh.2023.1109323

PubMed Abstract | Crossref Full Text | Google Scholar

240. Nutbeam D. Artificial intelligence and health literacy—proceed with caution. Health Lit Commun Open. (2023) 1(1):2263355. doi: 10.1080/28355245.2023.2263355

Crossref Full Text | Google Scholar

241. Sieck CJ, Sheon A, Ancker JS, Castek J, Callahan B, Siefer A. Digital inclusion as a social determinant of health. NPJ Digit Med. (2021) 4(1):52. doi: 10.1038/s41746-021-00413-8

PubMed Abstract | Crossref Full Text | Google Scholar

242. Winkle BV, Carpenter N, Moscucci M. Why aren't our digital solutions working for everyone? AMA J Ethics. (2017) 19(11):1116–24. doi: 10.1001/journalofethics.2017.19.11.stas2-1711

PubMed Abstract | Crossref Full Text | Google Scholar

243. Zhang X, Hailu B, Tabor DC, Gold R, Sayre MH, Sim I, et al. Role of health information technology in addressing health disparities: patient, clinician, and system perspectives. Med Care. (2019) 57 Suppl 6 Suppl 2(Suppl 6 2):S115–20. doi: 10.1097/MLR.0000000000001092

PubMed Abstract | Crossref Full Text | Google Scholar

244. Fitzpatrick PJ. Improving health literacy using the power of digital communications to achieve better health outcomes for patients and practitioners. Front Digit Health. (2023) 5:1264780. doi: 10.3389/fdgth.2023.1264780

PubMed Abstract | Crossref Full Text | Google Scholar

245. Obermeyer Z, Powers B, Vogeli C, Mullainathan S. Dissecting racial bias in an algorithm used to manage the health of populations. Science. (2019) 366(6464):447–53.31649194

PubMed Abstract | Google Scholar

246. Sarwar S, Dent A, Faust K, Richer M, Djuric U, Van Ommeren R, et al. Physician perspectives on integration of artificial intelligence into diagnostic pathology. NPJ Digit Med. (2019) 2:28. doi: 10.1038/s41746-019-0106-0

PubMed Abstract | Crossref Full Text | Google Scholar

247. AlZaabi A, AlMaskari S, AalAbdulsalam A. Are physicians and medical students ready for artificial intelligence applications in healthcare? Digit Health. (2023) 9:20552076231152167. doi: 10.1177/20552076231152167

PubMed Abstract | Crossref Full Text | Google Scholar

248. Al-Medfa MK, Al-Ansari AMS, Darwish AH, Qreeballa TA, Jahrami H. Physicians’ attitudes and knowledge toward artificial intelligence in medicine: benefits and drawbacks. Heliyon. (2023) 9(4):e14744. doi: 10.1016/j.heliyon.2023.e14744

PubMed Abstract | Crossref Full Text | Google Scholar

249. Castagno S, Khalifa M. Perceptions of artificial intelligence among healthcare staff: a qualitative survey study. Front Artif Intell. (2020) 3:578983. doi: 10.3389/frai.2020.578983

PubMed Abstract | Crossref Full Text | Google Scholar

250. Amann J, Vayena E, Ormond KE, Frey D, Madai VI, Blasimme A. Expectations and attitudes towards medical artificial intelligence: a qualitative study in the field of stroke. PLoS One. (2023) 18(1):e0279088. doi: 10.1371/journal.pone.0279088

PubMed Abstract | Crossref Full Text | Google Scholar

251. Krittanawong C. The rise of artificial intelligence and the uncertain future for physicians. Eur J Intern Med. (2018) 48:e13–4. doi: 10.1016/j.ejim.2017.06.017

PubMed Abstract | Crossref Full Text | Google Scholar

252. Ng FYC, Thirunavukarasu AJ, Cheng H, Tan TF, Gutierrez L, Lan Y, et al. Artificial intelligence education: an evidence-based medicine approach for consumers, translators, and developers. Cell Rep Med. (2023) 4(10):101230. doi: 10.1016/j.xcrm.2023.101230

PubMed Abstract | Crossref Full Text | Google Scholar

253. Mir MM, Mir GM, Raina NT, Mir SM, Mir SM, Miskeen E, et al. Application of artificial intelligence in medical education: current scenario and future perspectives. J Adv Med Educ Prof. (2023) 11(3):133–40. doi: 10.30476/jamp.2023.98655.1803

PubMed Abstract | Crossref Full Text | Google Scholar

254. Civaner MM, Uncu Y, Bulut F, Chalil EG, Tatli A. Artificial intelligence in medical education: a cross-sectional needs assessment. BMC Med Educ. (2022) 22(1):772. doi: 10.1186/s12909-022-03852-3

PubMed Abstract | Crossref Full Text | Google Scholar

255. Pupic N, Ghaffari-Zadeh A, Hu R, Singla R, Darras K, Karwowska A, et al. An evidence-based approach to artificial intelligence education for medical students: a systematic review. PLoS Digit Health. (2023) 2(11):e0000255. doi: 10.1371/journal.pdig.0000255

PubMed Abstract | Crossref Full Text | Google Scholar

256. Karaca O, Çalışkan SA, Demir K. Medical artificial intelligence readiness scale for medical students (MAIRS-MS)—development, validity and reliability study. BMC Med Educ. (2021) 21(1):112. doi: 10.1186/s12909-021-02546-6

PubMed Abstract | Crossref Full Text | Google Scholar

257. Weidener L, Fischer M. Proposing a principle-based approach for teaching AI ethics in medical education. JMIR Med Educ. (2024) 10:e55368. doi: 10.2196/55368

PubMed Abstract | Crossref Full Text | Google Scholar

258. Lakkimsetti M, Devella SG, Patel KB, Dhandibhotla S, Kaur J, Mathew M, et al. Optimizing the clinical direction of artificial intelligence with health policy: a narrative review of the literature. Cureus. (2024) 16(4):e58400. doi: 10.7759/cureus.58400

PubMed Abstract | Crossref Full Text | Google Scholar

259. Khan B, Fatima H, Qureshi A, Kumar S, Hanan A, Hussain J, et al. Drawbacks of artificial intelligence and their potential solutions in the healthcare sector. Biomed Mater Devices. (2023) 1:1–8. doi: 10.1007/s44174-023-00063-2

Crossref Full Text | Google Scholar

260. Rieke N, Hancox J, Li W, Milletarì F, Roth HR, Albarqouni S, et al. The future of digital health with federated learning. NPJ Digit Med. (2020) 3:119. doi: 10.1038/s41746-020-00323-1

PubMed Abstract | Crossref Full Text | Google Scholar

261. Li Y, Xu G, Meng X, Du W, Ren X. LF3PFL: a practical privacy-preserving federated learning algorithm based on local federalization scheme. Entropy (Basel). (2024) 26(5):353. doi: 10.3390/e26050353

PubMed Abstract | Crossref Full Text | Google Scholar

262. Ibrahim H, Liu X, Rivera SC, Moher D, Chan AW, Sydes MR, et al. Reporting guidelines for clinical trials of artificial intelligence interventions: the SPIRIT-AI and CONSORT-AI guidelines. Trials. (2021) 22(1):11. doi: 10.1186/s13063-020-04951-6

PubMed Abstract | Crossref Full Text | Google Scholar

263. World Health Organization. Ethics and Governance of Artificial Intelligence for Health. Guidance on Large Multi-Modal Models. Geneva: World Health Organization (2024).

Google Scholar

264. Zednik C. Solving the black box problem: a normative framework for explainable artificial intelligence. Philos Technol. (2021) 34(2):265–88. doi: 10.1007/s13347-019-00382-7

Crossref Full Text | Google Scholar

265. Xu H, Shuttleworth KMJ. Medical artificial intelligence and the black box problem: a view based on the ethical principle of “do no harm”. Intell Med. (2024) 4(1):52–7. doi: 10.1016/j.imed.2023.08.001

Crossref Full Text | Google Scholar

266. Ali S, Hussain A, Bhattacharjee S, Athar A, Abdullah , Kim HC. Detection of COVID-19 in x-ray images using densely connected squeeze convolutional neural network (DCSCNN): focusing on interpretability and explainability of the black box model. Sensors (Basel). (2022) 22(24):9983. doi: 10.3390/s22249983

PubMed Abstract | Crossref Full Text | Google Scholar

267. Zhang Y, Weng Y, Lund J. Applications of explainable artificial intelligence in diagnosis and surgery. Diagnostics (Basel). (2022) 12(2):237. doi: 10.3390/diagnostics12020237

PubMed Abstract | Crossref Full Text | Google Scholar

268. Lolak S, Attia J, McKay GJ, Thakkinstian A. Comparing explainable machine learning approaches with traditional statistical methods for evaluating stroke risk models: retrospective cohort study. JMIR Cardio. (2023) 7:e47736. doi: 10.2196/47736

PubMed Abstract | Crossref Full Text | Google Scholar

269. Jung J, Lee H, Jung H, Kim H. Essential properties and explanation effectiveness of explainable artificial intelligence in healthcare: a systematic review. Heliyon. (2023) 9(5):e16110. doi: 10.1016/j.heliyon.2023.e16110

PubMed Abstract | Crossref Full Text | Google Scholar

270. Sheu RK, Pardeshi MS. A survey on medical explainable AI (XAI): recent progress, explainability approach, human interaction and scoring system. Sensors (Basel). (2022) 22(20):8068. doi: 10.3390/s22208068

PubMed Abstract | Crossref Full Text | Google Scholar

271. Abràmoff MD, Tarver ME, Loyo-Berrios N, Trujillo S, Char D, Obermeyer Z, et al. Considerations for addressing bias in artificial intelligence for health equity. NPJ Digit Med. (2023) 6(1):170. doi: 10.1038/s41746-023-00913-9

PubMed Abstract | Crossref Full Text | Google Scholar

272. Wilcock AD, Schwamm LH, Zubizarreta JR, Zachrison KS, Uscher-Pines L, Majersik JJ, et al. Legislation increased medicare telestroke billing, but underbilling and erroneous billing remain common. Health Aff (Millwood. (2022) 41(3):350–9. doi: 10.1377/hlthaff.2021.00791

PubMed Abstract | Crossref Full Text | Google Scholar

273. Ventura S, Ottoboni G, Lullini G, Chattat R, Simoncini L, Magni E, et al. Co-designing an interactive artificial intelligent system with post-stroke patients and caregivers to augment the lost abilities and improve their quality of life: a human-centric approach. Front Public Health. (2023) 11:1227748.37808976

PubMed Abstract | Google Scholar

274. Kidwai-Khan F, Wang R, Skanderson M, Brandt CA, Fodeh S, Womack JA. A roadmap to artificial intelligence (AI): methods for designing and building AI ready data to promote fairness. J Biomed Inform. (2024) 154:104654. doi: 10.1016/j.jbi.2024.104654

PubMed Abstract | Crossref Full Text | Google Scholar

275. Byrne MD. Reducing bias in healthcare artificial intelligence. J Perianesth Nurs. (2021) 36(3):313–6. doi: 10.1016/j.jopan.2021.03.009

PubMed Abstract | Crossref Full Text | Google Scholar

276. Gudis DA, McCoul ED, Marino MJ, Patel ZM. Avoiding bias in artificial intelligence. Int Forum Allergy Rhinol. (2023) 13(3):193–5. doi: 10.1002/alr.23129

PubMed Abstract | Crossref Full Text | Google Scholar

277. Flores L, Kim S, Young SD. Addressing bias in artificial intelligence for public health surveillance. J Med Ethics. (2024) 50(3):190–4. doi: 10.1136/jme-2022-108875

PubMed Abstract | Crossref Full Text | Google Scholar

278. Mannil M, Kato K, Manka R, von Spiczak J, Peters B, Cammann VL, et al. Prognostic value of texture analysis from cardiac magnetic resonance imaging in patients with Takotsubo syndrome: a machine learning based proof-of-principle approach. Sci Rep. (2020) 10:20537. doi: 10.1038/s41598-020-76432-4

PubMed Abstract | Crossref Full Text | Google Scholar

Glossary

ACS      acute coronary syndrome

AF      atrial fibrillation

AHA      American Heart Association

AI      artificial intelligence

AIS      acute ischemic stroke

ANN      artificial neural network

ARIC      atherosclerosis risk in communities

AS      aortic stenosis

ASD      atrial septal defect

ASPECTS      Alberta stroke program computed tomography score

AUC      area under the curve

BNP      brain natriuretic peptide

CAD      coronary artery disease

CHD      congenital heart disease

CMR      cardiovascular resonance

CNS      central nervous system

CO      cardiac output

CS      cryptogenic stroke

CT      computed tomography

CTA      computed tomography angiography

CTP      computed tomography perfusion

CVA      cerebrovascular accident

DL      deep learning

DT      decision tree

EDV      end diastolic volume

EKG      electrocardiogram

EMR      electronic medical records

ESUS      embolic strokes of undetermined source

FCN      fully convolutional network

FDA      food and drug administration

FDG PET/CT      18f-fluorodeoxyglucose PET/CT

FHS      Framingham heart study

GBM      gradient boosting machine

GLS      global longitudinal strain

HF      heart failure

HFrEF      heart failure with reduced ejection fraction

HPA      hypothalamic-pituitary-adrenal axis

ICAD      intracranial atherosclerotic disease

ICC      interclass correlation coefficients

IE      infective endocarditis

LA      left atrium

LR      logistic regression

LV      left ventricular

LVEF      left ventricular ejection fraction

LVO      large vessel occlusion

MACCEs      major adverse cardiac and cerebrovascular events

MCA      middle cerebral artery

MI      myocardial infarctions

ML      machine learning

MR      mitral regurgitation

MRI      magnetic resonance imaging

MRI-VPD      magnetic resonance plaque analysis system

NDAF      newly diagnosed atrial fibrillation

NLP      natural language processing

NSC      neurogenic stress cardiomyopathy

NSTEMI      non-ST elevation mi

PASCAL      PFO-associated stroke causal likelihood

PET      positron-emission tomography

PFO      patent foramen ovale

PISA      proximal isovelocity surface area

PPG      photoplethysmography

RE      relative speed error

RF      random forest

RMSE      root mean square error

RoPE      risk of paradoxical embolism

RSF      random survival forst

RV      right ventricular

SSIM      structural similarity index

STE      speckle-tracking echocardiography

STEMI      ST elevation mi

SVM      support vector machine

TCD      transcranial doppler ultrasound

TEE      transesophageal echocardiogram

TNN      transformer based neural networks

TOAST      trial of ORG 10172 in acute stroke treatment

TTC      takotsubo cardiomyopathy

TTE      transthoracic echocardiogram

VHD      valvular heart disease
