Elias Akiki
Ali Ahmad
Edward A. El-Am
Ana I. Casanegra1
Kyle W. Klarich
Reto Kurmann- 1Department of Cardiovascular Medicine, Mayo Clinic, Rochester, MN, United States
- 2Department of Internal Medicine, Saint Louis University School of Medicine, Saint Louis, MO, United States
An elderly female with metastatic adenocarcinoma of the lung and atrial fibrillation presented with multiple embolic strokes while on anticoagulation with Apixaban. After further investigation, a TEE showed lesions of non-bacterial thrombotic endocarditis on the mitral valve. A decision to switch the patient to LMWH for anticoagulation was then made and a follow-up TEE showed resolution of the NBTE. In this abstract, we show that heparin should remain as the anticoagulation agent of choice in the setting of NBTE associated with malignancy.
Introduction
Non-bacterial thrombotic endocarditis (NBTE) is a condition characterized by the formation of sterile vegetations on previously undamaged heart valves (1). Common risk factors for NBTE include autoimmune conditions and malignancies. One study on patients with underlying malignancy showed an NBTE prevalence of 19% (2). The hallmark feature of NBTE is recurrent systemic embolization most commonly presenting as a sudden neurologic deficit (1–3).
Case report
History of presentation
A 70-year-old female with metastatic lung adenocarcinoma presented to the Emergency Department with new-onset headaches and retrosternal chest pain radiating to the right arm.
Past medical history
The patient had stage IV lung adenocarcinoma with metastases to the pleura, pericardium, and mediastinal lymph nodes. She was on maintenance therapy with pembrolizumab and pemetrexed. She also had a history of atrial fibrillation on apixaban and had undergone pericardiocentesis earlier that same year after presenting with cardiac tamponade with a malignant pericardial effusion.
Investigations
A CT scan of the head done in the ED disclosed new brain hypodensities concerning for brain metastasis. A subsequent MRI showed changes consistent with new multifocal embolic infarcts throughout the cerebral and cerebellar hemispheres, largest in the left cerebellar hemisphere and right temporal lobe.
Due to the presence of new multiple embolic infarcts, a transthoracic echocardiography (TTE) was then obtained and showed the presence of a small 7–8 mm soft mobile echodensity attached to the atrial surface of the mitral leaflet tips (Supplementary Video S1). Because of the underlying malignancy, NBTE was suspected but a diagnosis of subacute bacterial endocarditis could not be ruled out in the setting of immunosuppression. Blood cultures came back negative, and a workup for antiphospholipid syndrome was negative as well. A transesophageal echocardiogram (TEE) was done at our institution redemonstrating the soft mobile echodensity at the tip of both leaflets in a “kissing-lesion” appearance and measuring up to 1.1 cm in width. Moderate mitral valve regurgitation was noted (Supplementary Video S2).
Laboratory tests revealed an elevated high-sensitivity troponin level of 364 (up from a baseline of 44 previously) alongside new lateral ST depression at V4–V6 and new T-wave inversions on ECG. To further investigate the presentation of atypical chest pain with elevated troponins, a cardiac MRI demonstrated signs of myopericarditis.
Differential diagnosis
Brain Metastasis, NBTE, Subacute bacterial endocarditis, Myxoma, Papillary fibroelastoma, NSTEMI, Myocarditis.
Management
The diagnosis of NBTE in the setting of a multifocal stroke with peri-infarct edema complicated the management plan of the patient due to the risk of hemorrhagic transformation of the ischemic stroke. The NBTE and subsequent strokes occurred despite adequate dosing and adherence to anticoagulation with apixaban. This was considered an apixaban failure.
After careful review and consideration by the multidisciplinary team and shared-decision making with the patient, a decision was made to transition the patient to parenteral anticoagulation immediately due to the high risk of recurrent embolization in the setting of apixaban failure. The patient was started on a lower dose of enoxaparin initially (40 mg BID subcutaneous) due to the concern of hemorrhagic transformation. The dose was titrated up to 1 mg/Kg twice daily (70 mg). Anti-Xa levels were checked 4 h after the 4th dose and demonstrated therapeutic levels of 1.01. A repeat CT of the head was performed after 2 therapeutic doses (70 mg) of enoxaparin to assess for hemorrhagic conversion of infarcts. She was discharged on therapeutic low molecular weight heparin (LMWH) therapy, and a TEE repeated after 4 weeks of therapy showed complete resolution of the NBTE (Figure 1, Supplementary Video S3).

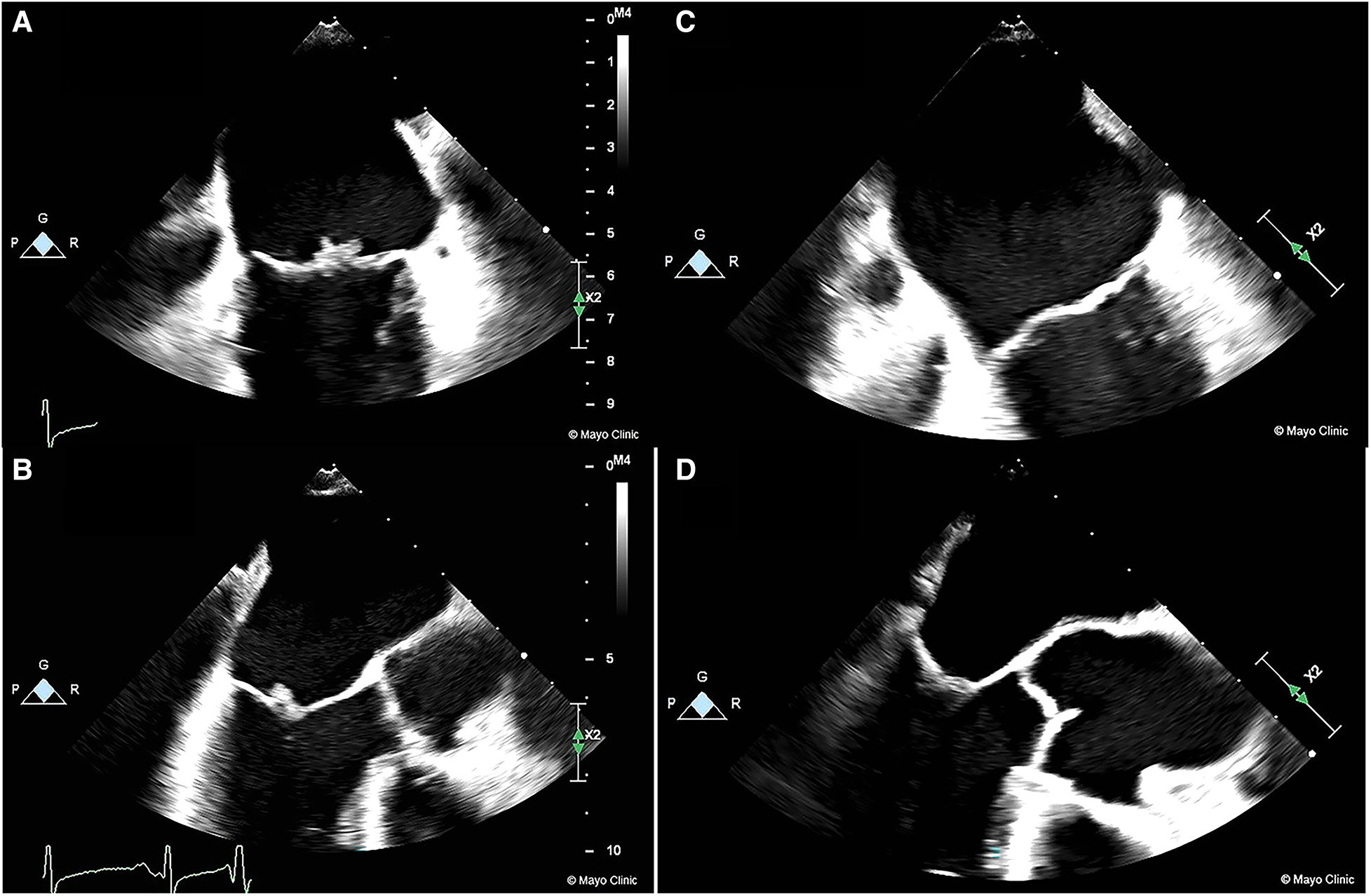

Figure 1. Images of NBTE seen on TEE at presentation prior to LMWH treatment (1A/1B) compared to TEE done 4 weeks after treatment showing complete resolution (1C/1D).
Discussion
NBTE is an under-recognized complication in patients with known underlying malignancy. More specifically, patients with adenocarcinomas are at a higher risk of NBTE than patients with other types of malignancies (2.7% vs. 0.47% p < 0.05) (4). NBTE is usually asymptomatic until embolization occurs either to the brain or to other vascular beds.
This report presents the case of a patient with stage IV lung adenocarcinoma who presented with new embolic strokes despite therapeutic anticoagulation, which raises the suspicion of NBTE. Furthermore, our patient presented with atypical chest pain and elevated troponins. This should also raise the suspicion of NBTE microemboli to the coronary circulation. A CT cardiac angiogram ruled out large coronary emboli, but smaller emboli could be difficult to be visualized. Subsequently, a cardiac MRI demonstrated myopericarditis possibly caused by pemetrexed, which would explain the chest pain, elevated troponins and headaches (5). Patients with suspected NBTE should be evaluated for valvular vegetations with a TTE initially. If no definite diagnosis could be revealed with a TTE, the next step in suitable candidates would be to proceed with a TEE, which has been shown to be more sensitive for the detection of small vegetations (6). It is important to rule out infective endocarditis to confirm the diagnosis of NBTE. This process varies between institutions, but usually includes 2 to 3-sets of negative blood cultures. Once NBTE is suspected, antiphospholipid syndrome must be ruled out as an underlying cause. In our patient the negative blood cultures and antiphospholipid antibodies make the underlying malignancy the most likely etiology for NBTE.
Treatment guidelines for NBTE largely consist of treating the underlying condition and anticoagulation. In patients with advanced metastatic disease such as in our case, treating the underlying condition is not feasible. Like in a large subset of patients the mainstay of NBTE treatment revolves around anticoagulation (7). Current guidelines from the American College of Chest Physicians (ACP) recommend LMWH or unfractionated heparin for the treatment of NBTE and the prevention of thromboembolism (8). The patient discussed in this report was properly adhering to the appropriate Apixaban dose (5 mg bid) for prevention of embolization in the setting of atrial fibrillation. Apixaban was also proven to be efficient and safe in patients with atrial fibrillation and a history of cancer (9). No contemporary studies in the literature have evaluated the benefit of anticoagulation with warfarin in comparison to LMWH and unfractionated heparin. The ACP cites older studies that suggest that heparin might be superior to warfarin for the prevention of thromboembolism in NBTE patients. The first study from 1987 (10) did not directly compare heparin with warfarin and only studied 10 autopsy-proven cerebral embolization from NBTE who received anticoagulation. The second study from 1986 (11) extrapolated their therapy choice for NBTE from the treatment of Trousseau's syndrome as the authors believed that the two conditions formed a “continuum”. These studies exhibit methodological flaws and lack robust evidence to support the claim in question. The literature fails to address a very important topic when it comes to anticoagulating the NBTE patient and that is the efficacy of the direct oral anticoagulants (DOACs) vs. LMWH and unfractionated heparin. Recent studies have shown that DOACs are not inferior to LMWH in preventing recurrent venous thromboembolism (VTE) in cancer patients (12). Data regarding the efficacy of DOACs in NBTE is extremely limited but some recent case reports (13–15) have shown similar instances where DOACs have failed to prevent embolization in NBTE patients. This would be interesting to follow-up on in order to study potential NBTE development and ramifications in the setting of a cancer patient on DOAC.
Conclusion
In summary, this case describes a case of NBTE presenting with embolic strokes despite anticoagulation with a direct factor Xa inhibitor. The NBTE vegetation resolved after switching to LMWH therapy. The treatment recommendations for NBTE in current guidelines rely on a restricted body of evidence and we hope this case could help improve our understanding of NBTE therapy in future studies.
Data availability statement
The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding author.
Ethics statement
Written informed consent was obtained from the patient for the publication of any potentially identifiable images or data included in this case report.
Author contributions
All authors contributed to the article and approved the submitted version.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher's note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fcvm.2023.1208190/full#supplementary-material
SUPPLEMENTARY VIDEO 1
Transthoracic echocardiography (TTE) showing initial mobile echodensity attached to the atrial surface of the mitral leaflet tips.
SUPPLEMENTARY VIDEO 2
Transesophageal echocardiography (TEE) showing the soft mobile echodensity at the tip of both leaflets in a “kissing-lesion” appearance.
SUPPLEMENTARY VIDEO 3
Transesophageal echocardiography (TEE) done 4 weeks after treatment with LMWH showing complete resolution of the NBTE vegetation.
References
1. el-Shami K, Griffiths E, Streiff M. Nonbacterial thrombotic endocarditis in cancer patients: pathogenesis, diagnosis, and treatment. Oncologist. (2007) 12(5):518–23. doi: 10.1634/theoncologist.12-5-518
2. Edoute Y, Haim N, Rinkevich D, Brenner B, Reisner SA. Cardiac valvular vegetations in cancer patients: a prospective echocardiographic study of 200 patients. Am J Med. (1997) 102(3):252–8. doi: 10.1016/S0002-9343(96)00457-3
3. Liu JMD, Frishman WHMD. Nonbacterial thrombotic endocarditis: pathogenesis, diagnosis, and management. Cardiol Rev. (2016) 24(5):244–7. doi: 10.1097/CRD.0000000000000106
4. Quintela A G, Candela MJ, Vidal C, Román J, Aramburo P. Non-bacterial thrombotic endocarditis in cancer patients. Acta Cardiol. (1991) 46(1):1–9. PMID: 18515901851590
5. Mayo Clinic. Pemetrexed (intravenous route). (2022). Available at: https://www.mayoclinic.org/drugs-supplements/pemetrexed-intravenous-route/side-effects/drg-20065343?p=1
6. de Bruijn SF, Agema WR, Lammers GJ, van der Wall EE, Wolterbeek R, Holman ER, et al. Transesophageal echocardiography is superior to transthoracic echocardiography in management of patients of any age with transient ischemic attack or stroke. Stroke. (2006) 37(10):2531–4. doi: 10.1161/01.STR.0000241064.46659.69
7. Chalaby SA, Makhija RR, Sharma AN, Majid M, Aman E, Venugopal S, et al. Nonbacterial thrombotic endocarditis: presentation, pathophysiology, diagnosis and management. RCM. (2022) 23(4):4–5. doi: 10.31083/j.rcm2304137
8. Whitlock RP, Sun JC, Fremes SE, Rubens FD, Teoh KH. Antithrombotic and thrombolytic therapy for valvular disease: antithrombotic therapy and prevention of thrombosis, 9th ed: american college of chest physicians evidence-based clinical practice guidelines. Chest. (2012) 141(2 Suppl):e576S–600S. doi: 10.1378/chest.11-2305
9. Melloni C, Dunning A, Granger CB, Thomas L, Khouri MG, Garcia DA, et al. Efficacy and safety of apixaban versus warfarin in patients with atrial fibrillation and a history of cancer: insights from the ARISTOTLE trial. Am J Med. (2017) 130(12):1440–8.e1. doi: 10.1016/j.amjmed.2017.06.026
10. Rogers LR, Cho ES, Kempin S, Posner JB. Cerebral infarction from non-bacterial thrombotic endocarditis. Clinical and pathological study including the effects of anticoagulation. Am J Med. (1987) 83(4):746–56. doi: 10.1016/0002-9343(87)90908-9
11. Lopez JA, Ross RS, Fishbein MC, Siegel RJ. Nonbacterial thrombotic endocarditis: a review. Am Heart J. (1987) 113(3):773–84. doi: 10.1016/0002-8703(87)90719-8
12. Li A, Garcia DA, Lyman GH, Carrier M. Direct oral anticoagulant (DOAC) versus low-molecular-weight heparin (LMWH) for treatment of cancer associated thrombosis (CAT): a systematic review and meta-analysis. Thromb Res. (2019) 173:158–63. doi: 10.1016/j.thromres.2018.02.144
13. Shoji MK, Kim J-H, Bakshi S, Govea N, Marukian N, Wang SJ. Nonbacterial thrombotic endocarditis due to primary gallbladder malignancy with recurrent stroke despite anticoagulation: case report and literature review. J Gen Intern Med. (2019) 34(9):1934–40. doi: 10.1007/s11606-019-05166-5
14. Mantovani F, Navazio A, Barbieri A, Boriani G. A first described case of cancer-associated non-bacterial thrombotic endocarditis in the era of direct oral anticoagulants. Thromb Res. (2017) 149:45–7. doi: 10.1016/j.thromres.2016.11.016
