Kelvin-Helmholtz Vortices as an Interplay of Magnetosphere-Ionosphere Coupling

The solar wind-magnetosphere interaction drives diverse physical processes on the flanks of Earth’s magnetopause, and in turn these processes couple to the ionosphere. We investigate simultaneous multipoint in-situ spacecraft and ground-based measurements to determine the role of Kelvin-Helmholtz waves at the Earth’s magnetopause and the low-latitude boundary layer in the magnetosphere-ionosphere coupling process. Nonlinear Kelvin-Helmholtz waves develop into flow vortices that twist and/or shear flux tube magnetic fields, thereby generating localized field-aligned currents. Kelvin-Helmholtz vortices on the dusk (dawn) flanks of the magnetosphere generate clockwise (counter-clockwise) rotations and upward (downward) field-aligned currents inside the flux tubes, consistent with the region-1 field-aligned current. We present in-situ MMS and Cluster spacecraft observations of Kelvin-Helmholtz vortices at the magnetopause that map to the poleward edge of the auroral regions. The FAST spacecraft and the ground-based magnetometers from which spherical elementary currents (acting as a proxy for vertical currents) can be calculated observe corresponding field-aligned current signatures. This study demonstrates the role played by the Kelvin-Helmholtz waves in linking magnetopause boundary fluctuations to ionospheric phenomena.

1 Introduction

In contrast to the Dungey (1961) model that refers to the transport of the solar wind into the Earth’s magnetosphere via dayside-then-nightside magnetic reconnection, (Axford and Hines, 1961) proposed that there was a quasi-viscous interaction between the solar wind and the magnetosphere, powered by flow velocity shear. The Kelvin-Helmholtz instability (KHI) grows in such a velocity shear layer. Along the Earth’s magnetopause, across which there is a significant velocity shear between the fast anti-sunward magnetosheath and the relatively stagnant magnetosphere, Kelvin-Helmholtz waves (KHWs) are generated. KHWs develop nonlinearly into large-scale rolled-up Kelvin-Helmholtz vortices (KHVs) when the shear flow energy is greater than the magnetic energy along the shear flow direction (Chandrasekhar, 1961; Hasegawa, 1975). This KHI-unstable condition is often satisfied when the interplanetary magnetic field (IMF) is oriented nearly perpendicular to the shear flow direction, i.e., either due northward or southward. However, the magnetopause KHWs/KHVs have been less frequently observed during periods of the southward IMF (Kavosi and Raeder, 2015). Hwang et al. (2011) and Nakamura et al. (2020) explained this: there exist decay mechanisms such as magnetic reconnection and flux transfer events that lead to a quick decay of the vortex structures under southward IMF.

KHWs/KHVs affect the Earth’s magnetosphere via various direct and indirect paths. Numerous studies have shown that nonlinear KHWs lead to mass, momentum, and energy transport across the magnetopause (Kivelson and Chen, 1995; Fairfield et al., 2000; Hasegawa et al., 2004; Faganello et al., 2008; Nakamura et al., 2013, 2017; Turkakin et al., 2013). In particular, large-scale KHVs promote solar wind entry into the magnetosphere via 1) magnetic reconnection between stretched magnetic field lines caused by the vortex motion (Otto and Fairfield, 2000; Nykyri and Otto, 2004; Cowee et al., 2010; Nakamura et al., 2011; Eriksson et al., 2016; Hwang et al., 2021) or mid-latitude reconnection between KHI-stable lobe fields and vortex-induced engulfed magnetosheath fields (Takagi et al., 2006; Faganello et al., 2012; Vernisse et al., 2016; Hwang et al., 2020; Eriksson et al., 2021), 2) diffusive transport through the turbulent decay of KHVs or coalescence of neighboring vortices (Matsumoto and Hoshino, 2004; Nakamura et al., 2004; Nakamura and Fujimoto, 2008; Cowee et al., 2009; Matsumoto and Seki, 2010), or 3) kinetic Alfvén waves or ion gyro-radius scale waves through a mode conversion from KH waves (Chaston et al., 2007; Yao et al., 2011). These processes result in plasma heating and the formation of a broad mixing layer along the flanks of the magnetosphere. Magnetohydrodynamic (MHD) simulations predict that flux tubes populated by plasmas of magnetosheath origin that enter the magnetosphere via KHVs can rapidly propagate toward the inner magnetosphere via an interchange instability (Wiltberger et al., 2000; Pembroke et al., 2012).

KHWs/KHVs can trigger ULF (ultra-low-frequency) pulsations in the Pc4-5 range with a frequency of ∼2–22 mHz via the excitation of a global cavity/waveguide mode that can occur at locations where the geomagnetic field-line eigenfrequency equals the frequency of KHWs (Mathie and Mann, 2000; Agapitov et al., 2009). KHW-driven ULF waves facilitate radial diffusion and/or acceleration of radiation belt electrons through drift resonance (Claudepierre et al., 2008). Nonlinear fast-mode waves can also develop at the edges of KHWs, propagate into the magnetosphere, and interact with radiation belt and ring current plasmas (Lai and Lyu, 2010).

The main focus of this paper is to study the influence of KHWs/KHVs on magnetosphere-ionosphere coupling (MIC). Previously, ionospheric traveling convection vortices have been interpreted as an ionospheric manifestation of solar wind dynamic pressure enhancements or KHI-driven ULF perturbations (Glassmeier and Heppner, 1992; Samson and Pao, 1996; Mann et al., 2002). Observations of ULF field-line-resonance pulsations initiated by magnetopause KHWs and conjugate ground-based magnetometer/radar measurements have shown the enhancements of electron precipitation or net downward Poynting flux and associated energy deposition into the ionosphere at latitudes coupled to the resonance region (Mann et al., 2002; Rae et al., 2007).

Those studies indicated that KHWs/KHVs have a global influence on the dynamics of the coupled magnetosphere-ionosphere system. In this paper, we incorporate the data obtained from Cluster, MMS, FAST, and ground magnetometers and show that KHWs/KHVs generate field-aligned currents (FACs) via the vortical motion that twists magnetic field lines within flux tubes. The sense of flux-tube rotation and associated FACs and conjugate ionospheric currents mapped to the dawn vs. dusk magnetopause KHWs/KHVs are very consistent with the region-1 FAC. This study demonstrates that KHWs/KHVs are at least partially responsible for the region1 FAC.

We organize this paper by introducing a theoretical prediction in Section 2, briefly describing the in-situ spacecraft and ground-based data used for this study in Section 3, presenting case studies of the dusk/dawn magnetopause KHW/KHV events observed by Cluster and MMS in Section 4 and Section 5, respectively. Discussion of Cluster/MMS case studies and conjugate ionospheric signatures and the implied roles and impact of KHWs/KHVs on MIC follow in Section 6.

2 Theoretical Expectation

Nonlinear KHWs drive flow vortices that cause a twist or shear of magnetic field lines within the vortical flux tube. This process generates FACs within the flux tube (see Figure 19 of Birn et al., 2004) as predicted by Maxwell’s equations:

$\frac{\partial \mathbf{B}}{\partial t}=-\nabla \times \mathbf{E} ,{\mu }_0\mathbf{J}=\nabla \times \mathbf{B}(1)$

B and E are the magnetic and electric field, respectively. J is the electric current density, and ${\mu }_0$ is the magnetic permeability of free space. Combining the two equations in Eq. 1 gives

$\frac{\partial \mathbf{J}}{\partial t}=-\frac{1}{{\mu }_0}\mathbf{\nabla }\times \left[\mathbf{B}\mathbf{\nabla }\cdot \mathbf{V}+\mathbf{V}\cdot \mathbf{\nabla }\mathbf{B}-\mathbf{B}\cdot \mathbf{\nabla }\mathbf{V}\right](2)$

V represents the plasma velocity. In case of small perturbations, the first-order terms of Eq. 2 for the component parallel to B yield (Paschmann et al., 2002)

$\frac{\partial {\mathbf{J}}_{\left|\right|}}{\partial t}=\frac{1}{{\mu }_0}\mathbf{B}\cdot \nabla {(\nabla \times \mathbf{V})}_{\left|\right|}(3)$

The parenthesis in the right-hand side term is defined as flow vorticity, $\Omega =\nabla \times V$. Eq. 3 is also valid for large-scale structures such as KHVs without the small-perturbation approximation.

Eq. 3 tells us that the gradient of vorticity gives rise to the generation of FACs. The magnitude of $\Omega .$ becomes largest in the equatorial plane of the magnetosphere where a vortex flow develops driven by the KHI. The flow vortex decreases toward the northern/southern ionosphere along positive/negative B. The sense of rotation, which determines the sign of $\Omega .$, is clockwise at the dawn flank of the magnetosphere and counter-clockwise at dusk. Therefore, the right-hand side term is positive at dawn and negative at dusk. Corresponding FACs, $J_{\left|\right|}$ in the left-hand side term of Eq. 3 that build up within the flux tube with time are downward into the northern ionosphere at dawn and upward from the northern ionosphere at dusk. This corresponds to the presence of FACs of region-1 sense.

3 Method

To test the theoretical prediction extracted from Eq. 3 observationally and to quantify how effectively and importantly KHV-driven FACs contribute to the region-1 current system, we use data from: the four Cluster spacecraft with the separation among the spacecraft greater than or equal to the ion gyroradius (${\rho }_{\mathit{i}}$) or inertial length (${\lambda }_{\mathit{i}}$), the four MMS spacecraft with interspacecraft separation down to the order of the electron scale, the FAST spacecraft, and THEMIS ground-based fluxgate magnetometers, which we call “gMAG” in this paper.

Both Cluster and MMS regularly fly through the dawn/dusk magnetopause and detect KHWs/KHVs. Their tetrahedral configuration facilitates the calculation of J using the curlometer technique (Dunlop et al., 2002). MMS further enables the direct estimation of $\Omega$ using high time-resolution plasma data (150-ms for ions and 30-ms for electrons in burst mode; 4.5 s in fast survey mode). We focus on the ion flow vorticity (the electron vorticity (Hwang et al., 2019) that is associated with microphysical processes is out of the scope of this study). The larger spacecraft separation of Cluster compared to MMS allows a test using plasma density to determine if the observed fluctuations are KHVs or not (Section 4).

FAST traversed the northern and southern ionosphere with an altitude ranging from hundreds km to ≲4,000 km. Its operation during ∼12 years until 4 May 2009 enables conjunctions to be studied with KHWs/KHVs detected by Cluster. KHV events observed both by Cluster and most-recently-launched MMS can be coupled to ionospheric signatures recorded in ground magnetometers. Data obtained from 11 different magnetometer arrays (gMAG) allow us to calculate the (horizontal) equivalent ionospheric current (EIC) and the (vertical) spherical elementary current (SEC), which is a proxy for the field-aligned current, using the SEC technique outlined in Amm and Viljanen (1999) and Weygand et al. (2011).

From our coordinated case studies of in-situ magnetopause KHVs observed by Cluster and MMS and corresponding ionospheric responses identified by FAST or gMAG, we qualitatively test Eq. 3 in the dusk sector (Section 4) vs. the dawn sector (Section 5).

4 Duskward KHVs and Ionospheric FACs

4.1 Cluster Observations of Duskward KHVs

From 1,200 to 1300 UT on 20 November 2001 (Figures 1A–C) Cluster was located in the duskward magnetopause boundary layer. The four Cluster spacecraft (C1-4) were in a tetrahedral configuration and were separated by ∼1968 km on average (Figure 1D) with its barycenter at ∼[−5.3, 17.9, 3.2] Earth radii (R_E) in Geocentric Solar Ecliptic (GSE) coordinates. [GSE coordinates correspond to the boundary normal coordinates (LMN) obtained from Shue et al. (1997) model in this event.] The IMF was mostly northward during this period. Figure 1 shows (A) the magnetic field (B) averaged over the four spacecraft and (B, C) the electric current density (J) obtained using the curlometer technique (x, y, and z components in blue, green, and red in GSE) and decomposed into parallel (red) and perpendicular (blue) components with respect to B. Both B and J show quasi-periodic fluctuations with a period of ∼8–15 min that are most likely to be attributed to magnetopause KHWs.

FIGURE 1

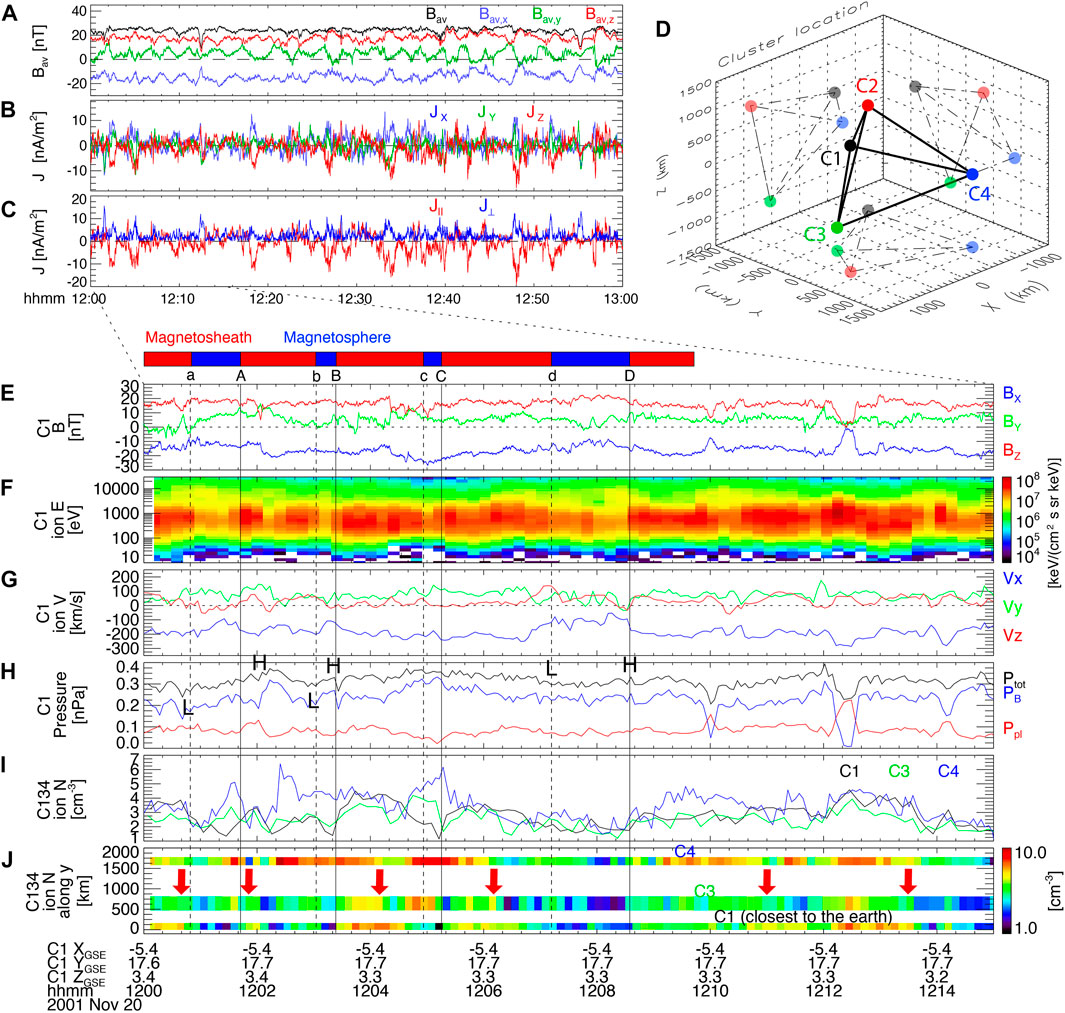

FIGURE 1. Cluster observation of duskward KHVs: (A) the magnetic field and (B,C) the electric current density during 1,200–1300 UT on 20 November 2001; (D) the tetrahedral configuration of the four Cluster spacecraft around its barycenter at ∼(−5.3, 17.9, 3.2) R_E in GSE. C1 observation from 1200 UT to 1215 UT on 20 November 2001: (E) the magnetic field; (F) the ion energy spectrogram; (G) the ion velocity; (H) the plasma (red) and magnetic (blue) pressures, and the sum (black) of these pressures; (I) the ion density measured by C1 (black), C3 (green), and C4 (blue); (J) the ion density (color) at C1, C3, and C4 arranged in terms of their distance away from the magnetopause (along y; e.g., C1 located closest to the earth).

To test if these fluctuations resulted from nonlinear KHWs, we expanded the C1 data from 1200 UT to 1215 UT in Figures 1E–J. On the top of Figure 1E, we denoted a more-magnetospheric region in a blue bar as characterized by a relatively larger B_z (Figure 1E), more flux of high-energy (≳1 keV) ions (Figure 1F showing the ion energy spectrogram), reduced anti-sunward flow velocity (V_x shown in blue; Figure 1G) and ion density (black in Figure 1I). The region of a smaller B_z accompanied by more flux of low-energy ions (<1 keV), increases in anti-sunward velocity and ion density represents a more-magnetosheath side (red bar). [Note that the energy spectrogram indicates that the boundary layer was rather in a mixed/turbulent state.] We marked the magnetosphere-to-magnetosheath transitions by ‘A’, ‘B’, ‘C’, and ‘D’ at the top of Figure 1E and vertical solid black lines. The magnetosheath-to-magnetosphere transitions are marked by ‘a’, ‘b’, ‘c’, and ‘d’ and vertical dashed black lines.

In a steady state of KHVs, the centrifugal force is balanced by the pressure force. Since the centrifugal force is radially outward in a rolled-up vortex, the pressure force should point inward to the vortex center. The high total pressure, then, builds up at the boundary from the more-magnetospheric side into the more-magnetosheath side crossing by Cluster (see Figure 19 of Hasegawa, 2012). And the total pressure is minimized close to the boundary from the more-magnetosheath side to the more-magnetospheric side crossing. Figure 1H shows this trend. The total pressure (black), i.e., the sum of plasma (red) and magnetic (blue) pressures, often peaks at boundaries toward the more-magnetosheath side (‘H’ letters in Figure 1H) and decreases at boundaries toward the more-magnetospheric side (‘L’).

Another characteristic of KHVs is the so-called density reversal (Hasegawa et al., 2004). For the rolled-up vortices, the density profile away from the nominal magnetopause (i.e., ∼along + y_GSE for duskward KHV events) shows a layer of a higher density (of magnetosheath origin) sandwiched between layers of a lower density (of magnetosphere origin). As a result, the spacecraft can detect a lower-density magnetosphere-origin layer located outward of a higher-density magnetosheath-origin layer. Figure 1I shows the ion density measured by C1 (black), C3 (green), and C4 (blue). Figure 1J presents these observations by color with C1, C3, and C4 data arranged in terms of their distance away from the magnetopause, i.e., along + y_GSE. Red arrows in Figure 1J indicate the times when the density observed by C1 (closest to the earth) is higher than that observed by C3 or C4 (further away from the earth).

Both features of total pressure (Figure 1H) and density reversal (Figure 1J) support the identification of KHVs. For the duskward KHV event such as Figure 1, we expect the development of the antiparallel current or, equivalently, upward FAC in the northern ionosphere. Figure 1C, indeed, shows that J is donimantly antiparallel throughout the event.

4.2 FAST Observations of Ionospheric FACs

The geomagnetic field models (Tsyganenko, 1989; Tsyganenko, 1995) predict that the magnetic field lines encountered by Cluster during the Figure 1 event are mapped to the ionosphere at ∼73° LAT and ∼339° LON in geographic coordinates (GEO). FAST spacecraft fortuitously passed the northern ionosphere at/near the footprint of Cluster’s location around the time of the event. Figure 2 shows the energy spectrograms of down-going (with pitch angles of 0° $\pm$ 45°; A, C) and up-going (with pitch angles of 180° $\pm$ 45°; B, D) electrons (A, B) and ions (C, D). Precipitating fluxes are larger than up-going fluxes for both electrons and ions. The difference between the ion and electron flux gives rise to the current density along B (Figure 2E) that is mostly upward from the ground, i.e., antiparallel to B. The perturbed magnetic field (dB; Figure 2G) also gives rise to a negative J (Figure 2F) from Ampere’s law, demonstrating that FAST traversed the upward FAC region. J calculated from both particles and dB ranges from hundreds to ∼2000 nA/m².

FIGURE 2

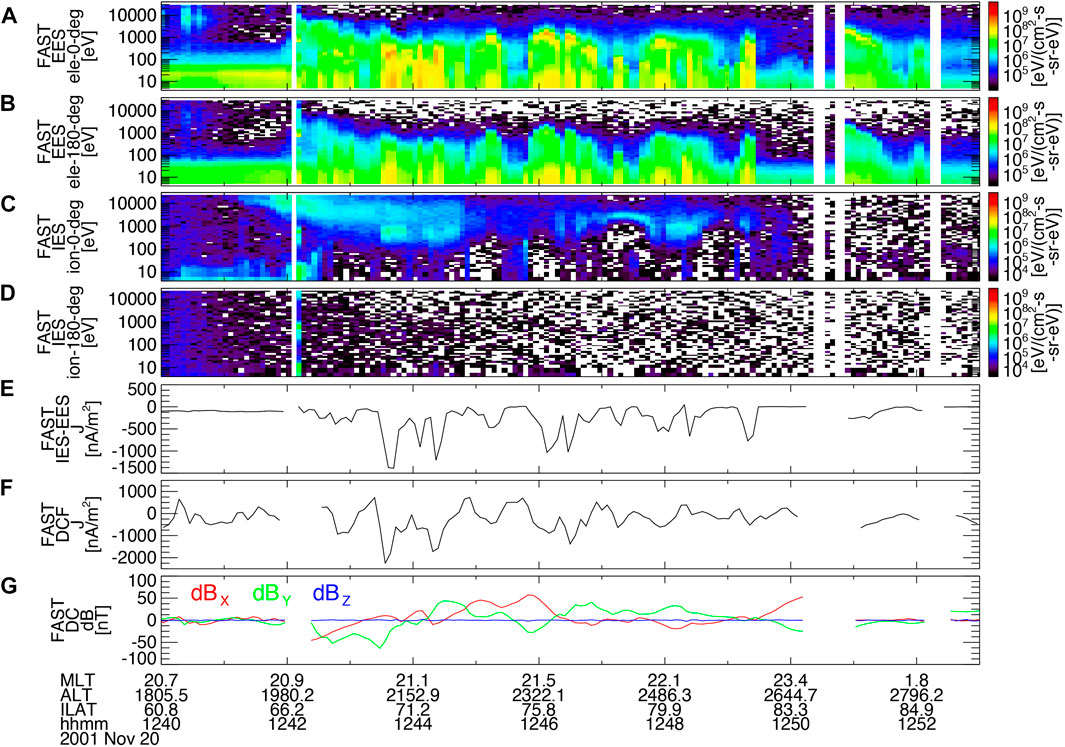

FIGURE 2. FAST observation of the northern ionosphere conjugate to the Cluster observation of duskward KHVs (Figure 1): the energy spectrograms of down-going [with pitch angles of 0° $\pm$ 45°; (A,C)] and up-going [with pitch angles of 180° $\pm$ 45°; (B,D)] electrons (A,B) and ions (C,D); the electric current density calculated (E) from the particle data and (F) from the perturbed magnetic field (G).

4.3 MMS Observations of Duskward KHVs

During ∼1759–1809 UT on 1 October 2015, the MMS quartet with its barycenter at ∼[3.9, 9.2, −4.1] R_E in Geocentric Solar Magnetospheric (GSM) coordinates encountered magnetopause fluctuations shown in Figure 3. The IMF was mostly southward during the period. A more-magnetosheath region is then identified by a mostly negative B_z (Figure 3A), more flux of <2 keV-energy ions (Figure 3B), larger anti-sunward flow (Figure 3C), enhanced ion density (Figure 3D), and reduced ion temperature (Figure 3E). We denoted such repeated regions by red bars on the top of Figure 3A (although the region between ‘E’ and ‘e’ at the top of Figure 1 is a mixed region exhibiting a magnetospheric field and a magnetosheath plasma). Opposite trends represent a more-magnetospheric region as indicated by a blue bar.

FIGURE 3

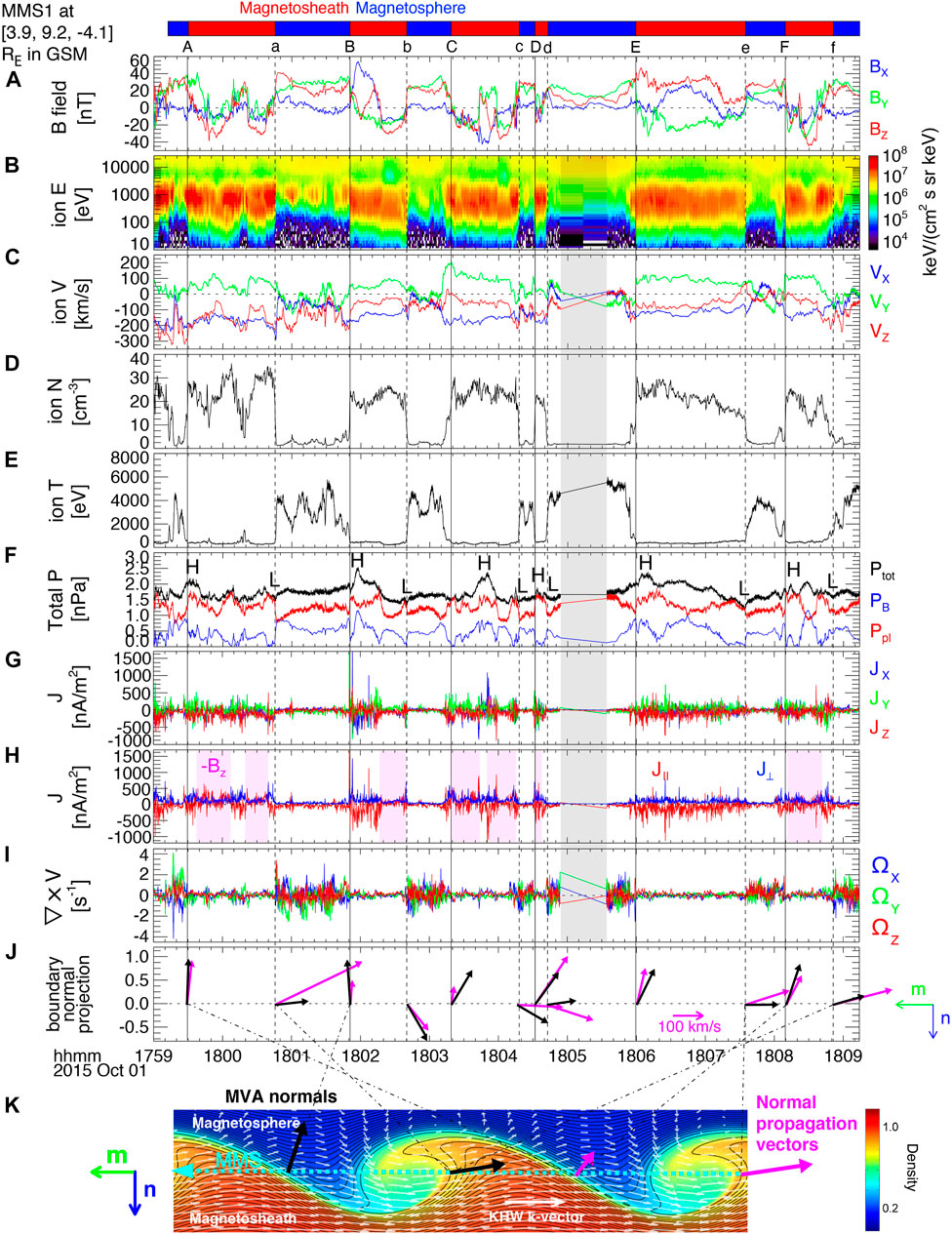

FIGURE 3. MMS1 observation of duskward KHVs during 1759–1809 UT on 1 October 2015: (A) the magnetic field; (B) the ion energy spectrogram; (C) the ion velocity; (D) the ion density; (E) the ion temperature; (F) the plasma (red) and magnetic (blue) pressures, and the sum (black) of these pressures; (G) the current density, J; (H) J decomposed into parallel (red) and perpendicular (blue) components; (I) the ion vorticity; (J) the mn-plane projections of boundary normals (black arrows) and normal propagation velocities (magenta arrows) to be compared with (K) typical waveforms of duskward KHVs, when viewed from north, with color representing density. The gray shade in (B–I) indicates a gap in the burst-mode particle data.

We, again, marked magnetosphere-to-magnetosheath transitions by ‘A’, ‘B’, …, ‘F’ at the top of Figure 3A with vertical solid black lines and magnetosheath-to-magnetosphere transitions by ‘a’, ‘b’, …, ‘f’ with vertical dashed black lines. Figure 3F shows that the total pressure generally rises at/near magnetosphere-to-magnetosheath boundaries (‘H’ in Figure 3F) and lowers at/near magnetosheath-to-magnetosphere boundaries (‘L’). This supports that the observed fluctuations are attributed to KHVs.

The average spacecraft separation of ∼31 km during this event prevents us from testing the density reversal. Instead, we performed boundary normal analyses. As shown in Figure 3K (Hwang et al., 2011, 2020), boundaries of typical KHVs tilt from the initially-undisturbed magnetopause with its normal along n, showing a more-gentle waveform at the trailing edges (see black arrows at ‘A’, ‘B’, …, ‘F’ in Figure 3K) and a steeper waveform at the leading edges (black arrows at ‘a’, ‘b’, …. ‘f’). Also, since KHVs propagate tailward along the magnetopause (along $-$ m or k-vector seen by a white arrow), normal propagation velocities (magenta arrows) are more aligned to the $\pm$ n direction with smaller speed at the trailing edges, and more perpendicular to n (or more parallel to k-vector) with larger speed at the leading edges. To test this, we determined the nominal boundary normal coordinates (LMN) derived from minimum variance analysis (MVA) (Sonnerup and Scheible, 1998; Siscoe and Suey 1972) for the magnetopause-crossing period from 1710 UT to 1730 UT prior to the occurrence of KHVs: l = [0.31, 0.34, 0.89], m = [0.59, −0.80, 0.10], and n = [0.75, 0.50, −0.44] in GSM. Table 1 lists the normal propagation velocities derived from a four-spacecraft timing analysis (Paschmann and Daly, 1998) and the MVA (using B)-derived boundary normals in LMN together with the medium-to-minimum eigenvalue ratio.

TABLE 1

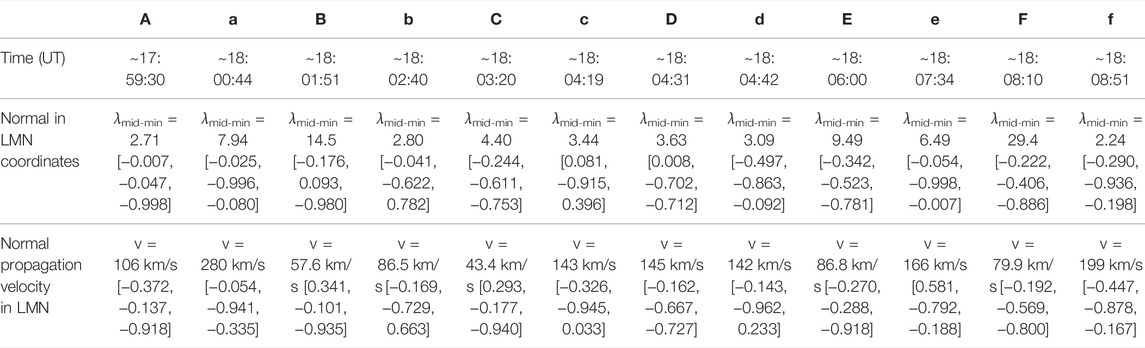

TABLE 1. Boundary normals and normal propagation vectors at the trailing (marked by vertical solid lines, A, B, …, F in Figure 3) and leading (vertical dashed lines, a, b, …, f) edges in LMN (λ_mid-min is the medium-to-minimum eigenvalue ratio in the minimum variance calculation.).

Figure 3J displays the mn-plane projections of boundary normals shown as black arrows and normal propagation velocities as magenta arrows. Both the normals and normal propagation vectors generally show a repetitive pattern between leading and trailing edges, consistent with Figure 3K. This confirms the identification of KHVs for the Figure 3 event.

Figure 3G shows J caculated from particle data (it is consistent with the curlometer-derived J) and Figure 3H shows parallel and perperdicular components of J. Both J_z and J_||, although fluctuating around zero, are mostly negative with magenta shades in Figure 3H representing B_z < 0 periods. Therefore, J mainly pointed opposite to the geomagnetic B, consistent with the upward FAC in the northern ionosphere for the duskward KHV event.

Figure 3I shows the ion vorticity, $\Omega .$ As expected in Section 2 (Eq. 3), the z component of $\Omega .$ is relatively positive, indicating the counter-clockwise rotation of the duskward KHV. A quantitative test of Eq. 3 requires another spacecraft quartet simultaneously crossing the KHV flux tube above/below the near-equatorial plane where MMS traversed. Figures 3G–I, however, demonstrate the sign/sense of J and $\Omega .$ We note that the larger inertia on the faster magnetosheath side than the magnetospheric side generally leads to a larger |J| and smaller |$\Omega .$|

4.4 Ground Magnetometer Observations of Ionospheric FACs

The geomagnetic field model (Tsyganenko, 1989) predicts that the magnetic field lines encountered by MMS during the Figure 3 event are mapped to the ionosphere at ∼67° LAT and ∼302° LON. We use the gMAG data to derive the equivalent ionospheric current (EIC) and spherical elementary current (SEC). The result is shown in Figure 4, where the MMS footprint is denoted by a green dot. A counter-clockwise rotation of EIC around the green dot (upper panel) indicates upward FACs. SEC (lower), a proxy of the vertical current for an altitude of 100 km, shows the upward FAC of ∼18,400 A at the green dot. We note a bead-like structure in SEC indicative of upward FACs elongated in the east-west direction, possibly implying their generation via the duskward KHVs (Figure 3).

FIGURE 4

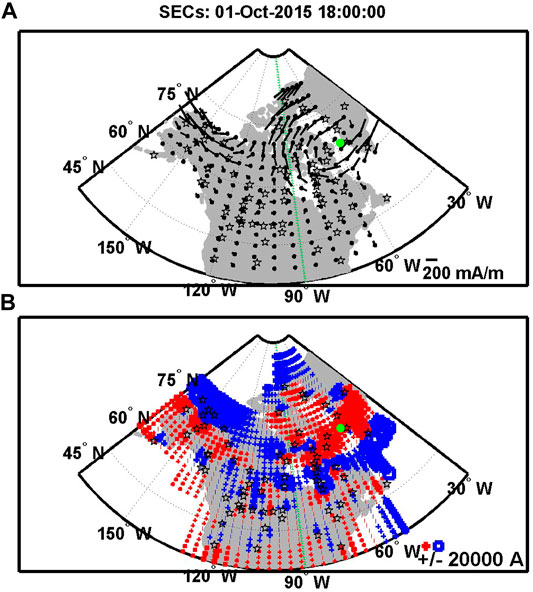

FIGURE 4. Ground magentometer observation of the ionospheric currents calculated from the SEC technique (Amm and Viljanen, 1999; Weygand et al., 2011) at 1800 UT on 1 October 2015: The (horizonal) equivalent ionospheric current [EIC; (A)] and the vertical spherical elementary current [SEC; (B)], which is a proxy of the FAC. The MMS footprint corresponding to the duskward KHV event (Figure 3) is denoted by a green dot.

5 Dawnward KHVs and Ionospheric FACs

5.1 Cluster Observations of Dawnward KHVs

From ∼0250 UT to ∼0430 UT on 28 July 2006 Cluster located at ∼[−13, −13, −3.0] R_E in GSE observed KHV-induced magnetopause fluctuations (Figure 5) as reported by Hwang et al. (2011). [GSE coordinates that were close to GSM in this event correspond to the boundary normal coordinates (LMN) obtained from Shue et al. (1997) model.] The IMF was fluctuating with B_z $\le$ 0. On the top of Figure 5A, blue (red) bars represent a more-magnetospheric (more-magnetosheath) region with a larger (smaller or negative) B_z (Figure 5A), more (less) flux of high-energy ions (Figure 5B), reduced (enhanced) anti-sunward flow (Figure 5C). We, again, denoted the magnetosphere-to-magnetosheath transitions by ‘A’, ‘B’, …, ‘I’ with vertical solid black lines and the magnetosheath-to-magnetosphere transitions by ‘a’, ‘b’, …, ‘j’ with vertical dashed black lines.

FIGURE 5

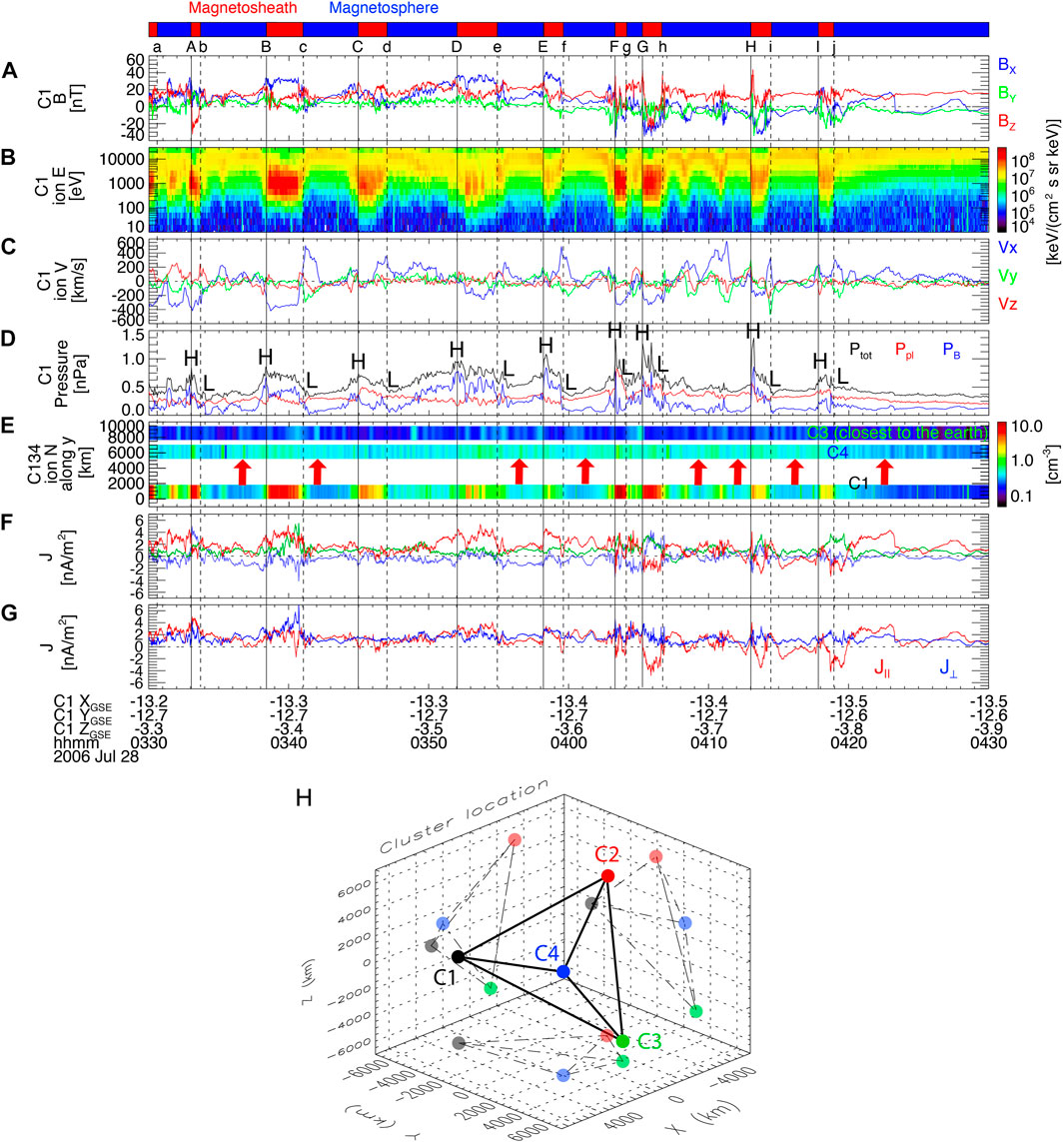

FIGURE 5. Cluster observation of dawnward KHVs during 0330–0430 UT on 28 July 2006: (A) the magnetic field and (B) the ion energy spectrogram; (C) the ion velocity; (D) the plasma (red), magnetic (blue), and total (black) pressures; (E) the ion density (color) measured by C1, C3, and C4 arranged in terms of their distance away from the magnetopause (along$-$—y; e.g., C3 located closest to the earth); (F) the current density, J; (G) J decomposed into parallel (red) and perpendicular (blue) components; (H) the tetrahedral configuration of Cluster around its barycenter at ∼[−13, −13, −3.0] R_E.

The total pressure (black in Figure 5D) is maximized at/near the boundaries toward the more-magnetosheath region (‘H’) and minimized at boundaries toward the more-magnetospheric region (‘L’). The four Cluster spacecraft in a tetrahedron were separated by > 1 R_E on average (Figure 5H), which enables us to test the density reversal. Figure 5E shows the ion density in color measured by C1/3/4 arranged in terms of their distance away from the magnetopause. Red arrows in Figure 5H mark the density-reversal times when the density observed by C4 or C3 (closer to the earth) is larger than that observed by C1 (further away from the earth). These observations confirm the dawnward-magnetopause KHVs for the Figure 5 event.

For the dawnward KHV event, we expect the development of the parallel current or, equivalently, downward FAC in the northern ionosphere (Section 2). J_z is, indeed, mostly positive (Figure 5F) and J_|| is mainly parallel (Figure 5G) although the anti-paralell component becomes significant during later (near-) magnetosheath-side crossings (‘G’-‘h’, ‘H’-‘i’, around ‘j’). The overall trend is consistent with the prediction.

5.2 FAST Observations of Ionospheric FACs

The geomagnetic field models (Tsyganenko, 1989; Tsyganenko, 1995) predict that the footprint of the magnetic field lines encountered by Cluster at ∼0425 UT on 28 July 2006 falls at −69° LAT and ∼72° LON in GEO. FAST spacecraft fortuitously passed the conjugate southern ionosphere. Figure 6 shows the energy spectrograms of up-going (A, C) and down-going (B, D) electrons (A, B) and ions (C, D). During 0424:30-0426 UT precipitating fluxes of electrons are larger than up-going fluxes, and vice versa for ions. The difference between the ion and electron flux gives rise to the up-flowing FAC (Figure 6E) reaching −12,500 nA/m² (dB data is not available). The up-flowing FAC in the southern ionosphere corresponds to the down-flowing FAC in the northern ionosphere, as expected for the dawnward KHVs of Figure 5.

FIGURE 6

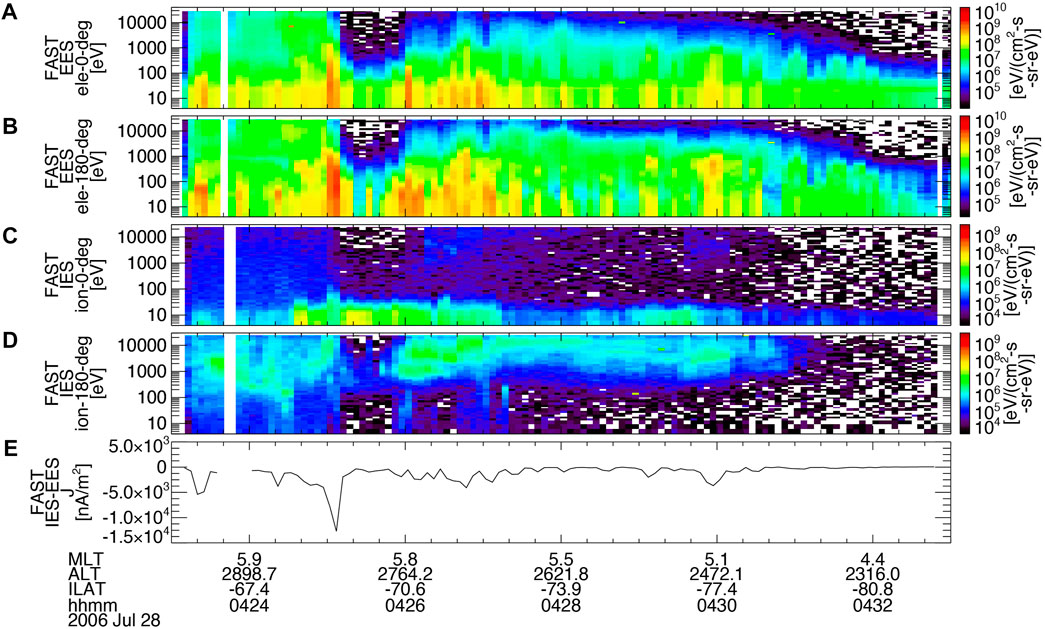

FIGURE 6. FAST observation of the southern ionosphere conjugate to the Cluster observation of dawnward KHVs (Figure 5): the energy spectrograms of down-going (with pitch angles of 0° $\pm$ 45°; A, C) and up-going (with pitch angles of 180° $\pm$ 45°; B, D) electrons (A,B) and ions (C,D); (E) the electric current density calculated from the difference between the ion and electron flux.

5.3 MMS Observations of Dawnward KHVs

During ∼1833–2015 UT on 6 February 2016, MMS observed the dawnward magnetopause/low-latitude boundary layer to be fluctuating. We focus on 7-min (1947–1954 UT) data when MMS with its average spacecraft separation of ∼17 km was located in the boundary layer at ∼[3.6, −9.3, −5.4]R_E in GSM (Figure 7). The IMF was mostly duskward for the period. On the top of Figure 7A, blue (red) bars represent a more-magnetospheric (more-magnetosheath) region with more (less) flux of high-energy ions and electrons (Figures 7B,C), reduced (enhanced) anti-sunward flow and ion density (Figures 7D,E), and enhanced (reduced) ion temperature (Figure 7F). The magnetosphere-to-magnetosheath transitions are denoted by ‘A’, ‘B’, ‘C’, and ‘D’ with vertical solid black lines and the magnetosheath-to-magnetosphere transitions by ‘a’, ‘b’, ‘c’, and ‘d’ with vertical dashed black lines.

FIGURE 7

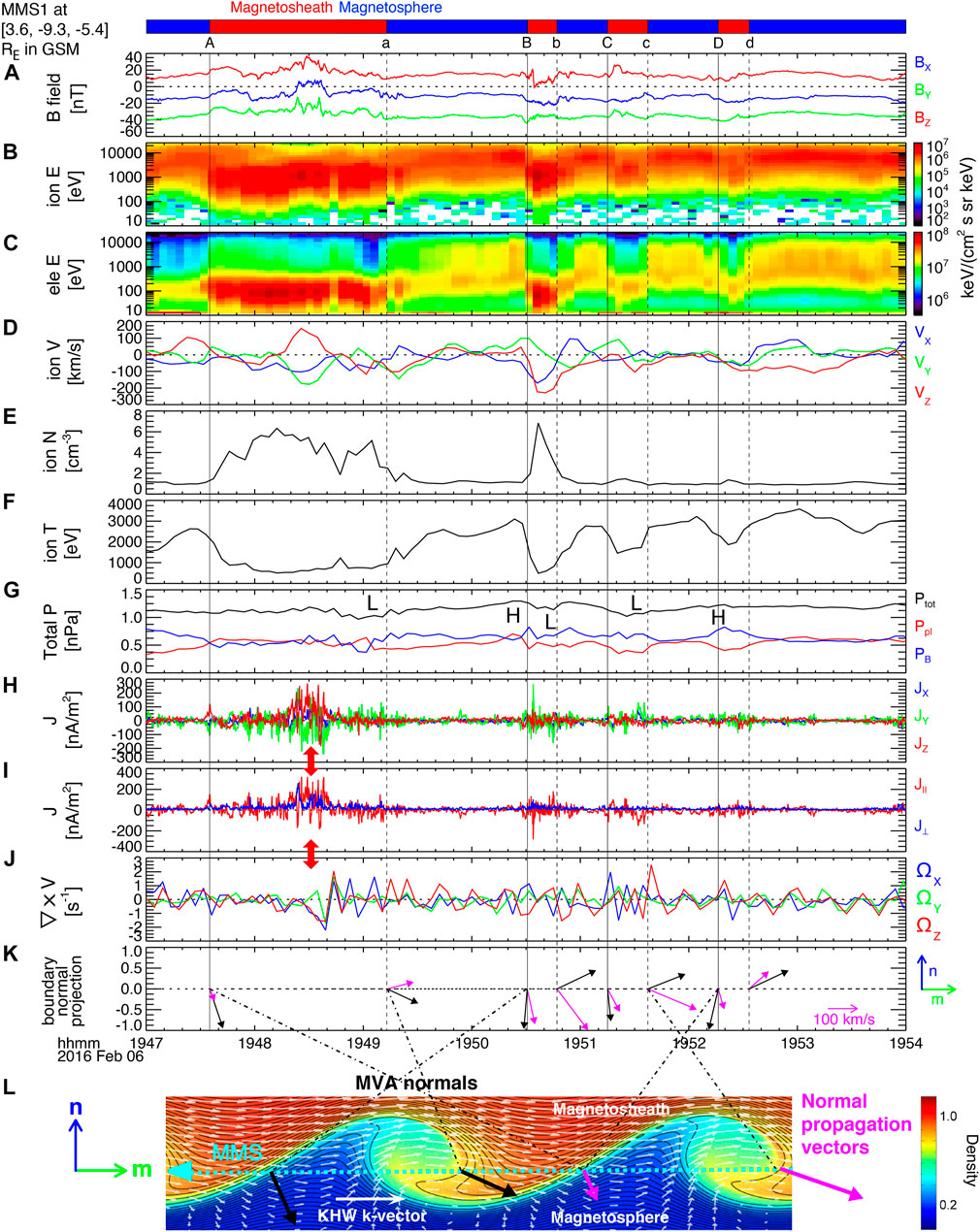

FIGURE 7. MMS1 observation of dawnward KHVs during 1947–1954 UT on 6 February 2016: (A) the magnetic field; (B) the ion energy spectrogram; (C) the electron energy spectrogram; (D) the ion velocity; (E) the ion density; (F) the ion temperature; (G) the plasma (red), magnetic (blue), and total (black) pressures; (H) the current density, J; (I) J decomposed into parallel (red) and perpendicular (blue) components; (J) the ion vorticity; (K) the mn-plane projections of boundary normals (black arrows) and normal propagation velocities (magenta arrows) to be compared with (L) typical waveforms of dawnward KHVs, when viewed from north, with color representing density.

The total pressure (black in Figure 7G) generally shows the typical ‘H’/‘L’ trend at magnetosphere-to-magnetosheath/magnetosheath-to-magnetosphere boundaries. To test the unique signature of leading vs. trailing edges of KHVs, we determined the nominal boundary normal coordinates (LMN) using Shue et al. (1997) model: l = [0.27, −0.26, 0.93], m = [−0.70, −0.72, 0.00], and n = [0.66, −0.65, −0.38] in GSM. Table 2 lists the normal propagation velocities derived using the four-spacecraft timing analysis and the MVA-derived boundary normals in LMN together with the medium-to-minimum eigenvalue ratio.

TABLE 2

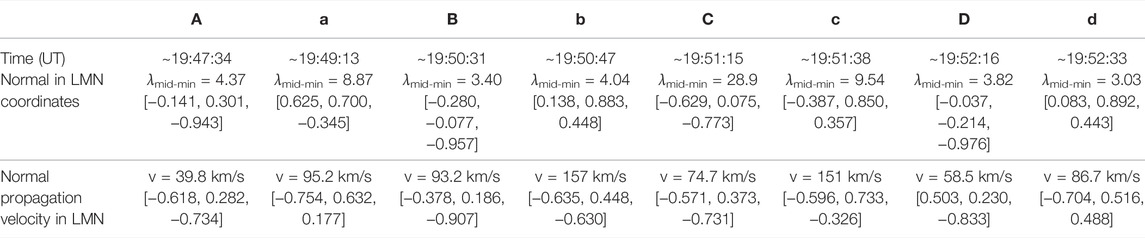

TABLE 2. Boundary normals and normal propagation vectors at the trailing (marked by vertical solid lines, A, B, C, and D in Figure 7) and leading (vertical dashed lines, a, b, c, and d) edges in LMN (λ_mid-min is the medium-to-minimum eigenvalue ratio in the minimum variance calculation.).

Figure 7K shows the mn-plane projection of boundary normals (black arrows) and normal propagation velocities (magenta arrows). Both the normals and normal propagation vectors are more aligned to$-$—n with smaller normal-propagation speed at the trailing edges, and more aligned to k-vector (white arrow in Figure 7L) with larger speed at the leading edges. Agreement with Figure 7L confirms the identification of KHVs.

Figures 7H,I shows J caculated from the curlometer technique (decomposed into parallel and perperdicular components). Both J_z and J_|| are mostly positive, in particular, during ‘A’-‘a’ (red arrows between Figures 7H,I). J mainly points due the geomagnetic B, consistent with the downward FAC in the northern ionosphere for the dawnward KHV event.

The ion vorticity, $\Omega .$ (Figure 7J; note that there is no burst-mode ion data for this vent), although fluctuating around zero, shows—$\Omega .$_z during ‘A’-‘a’ (red arrows between Figures 7I,J). This corresponds to the clockwise rotation of the dawnward KHV. Although a quantitative test of Eq. 3 is not available, Figures 7H–J indicates a linkage (red arrows) between the FAC and the vorticity.

5.4 Ground Magnetometer Observations of Ionospheric FACs

Figure 8 shows the EIC (upper) and SEC (lower) at 1951 UT (corresponding to the Figure 7 event) using the data from gMAG. The footprint of the magnetic field lines encountered by MMS at 1804 UT, i.e., prior to the Figure 7 event is predicted to sit on the ionosphere at ∼70° LAT and ∼230° LON in GEO from the Tsyganenko (1989) model (mapping failed after 1804 UT on 6 February 2016). A green dot in Figure 8 denotes the MMS footprint at 1804 UT. A generally clockwise rotation of EIC around the green dot indicates downward FACs. SEC shows an azimuthally-extended band of downward FACs at/around the green dot. Considering ∼1.8 h interval between 1804 UT and 1951 UT, it is likely that the footprint of MMS at 1951 UT falls within the downward FAC band (a green arrow), where the magnitude of downward FACs ranges from—$-$7800 A to$-$—1080 A. Again, a bead-like structure in SEC/FACs elongated in the east-west direction possibly implies the generation of the downward FACs via the dawnward KHVs (Figure 7).

FIGURE 8

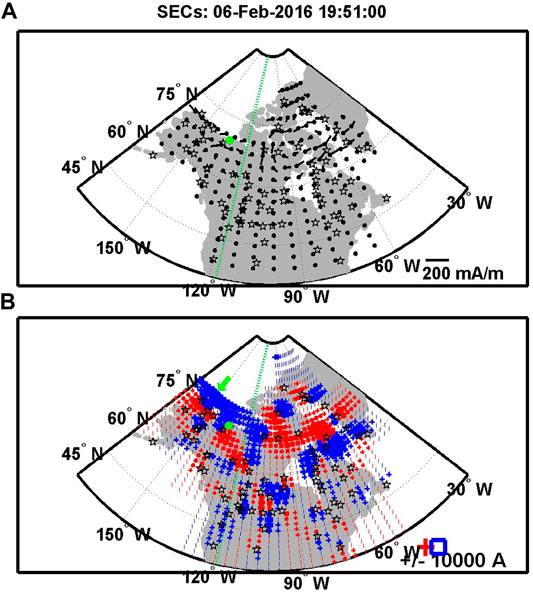

FIGURE 8. Ground magentometer observation of the ionospheric currents calculated from the SEC technique (Amm and Viljanen, 1999; Weygand et al., 2011) at 1951 UT on 6 February 2016: The (horizonal) equivalent ionospheric current [EIC; (A)] and the vertical spherical elementary current [SEC; (B)], which is a proxy of the FAC. The MMS footprint prior to (at 1804 UT) and during the dawnward KHV event (Figure 7) is denoted by a green dot and a green arrow (presumed), respectively.

6 Discussion

In this paper, we report coordinated Cluster/MMS observations of magnetopause KHVs and FAST/gMAG observations of ionospheric responses to those KHVs categorized into duskward vs. dawnward events. Cluster and MMS events presented in Section 4 and Section 5 demonstrate that nonlinear KHWs on the dusk (dawn) flank of the magnetosphere develop into flow vortices, which twist or shear flux tube magnetic fields in counter-clockwise (clockwise) rotation, generating upward (downward) FACs in the northern ionosphere. The sense of rotations is consistent with the region-1 Birkeland current system.

Table 3 lists our statistics of duskward (left columns) and dawnward (right) events including Figures 1–8 events. KHV-associated J_|| or J_z ranges are obtained after low-pass filtering highly-fluctuating J data. ‘gMAG’-derived FAC ranges are obtained from the SEC data around the ionospheric footprint of MMS. For all MMS-gMAG conjunction events listed in Table 3, we identify the bead-like structure in SEC/FAC patterns elongated in the east-west direction (e.g., Figures 4, 8). This might support the generation of FACs via corresponding KHVs. We speculate that the characteristic time scale of the build-up of FACs into the ionosphere induced by low-latitude magnetopause KHVs is on the order of the Alfvén transit time (Johnson et al., 2021; Ebihara and Tanaka, 2022). This is hardly measurable in our study due to a limited knowledge on the developmental phase of KHVs that are locally observed by the spacecraft.

TABLE 3

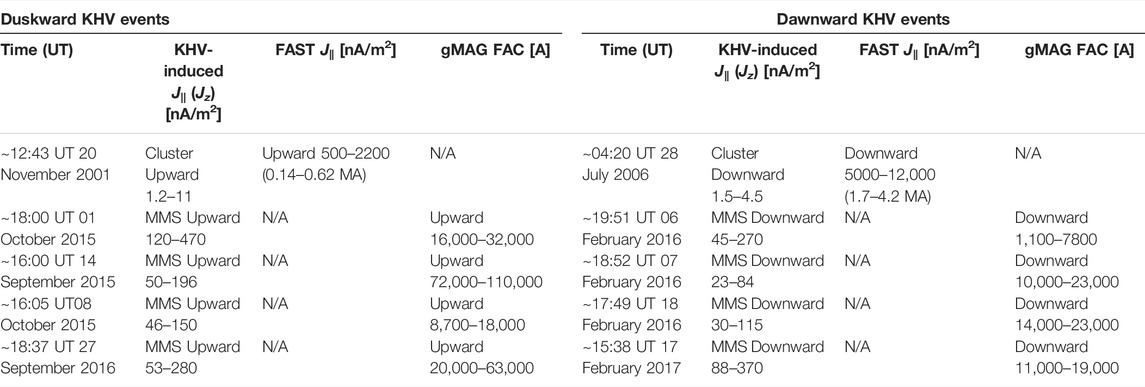

TABLE 3. List of coordinated Cluster/MMS observations of magnetopause KHVs and FAST/gMAG observations of ionospheric responses to those KHVs categorized into duskward (left columnes) vs. dawnward (right) events.

We note that the current density obtained from Cluster is less than that obtained from MMS by up to 2 orders of magnitude. This might be due to larger spacecraft separation of Cluster than MMS by ∼2 orders of magnitude. Since the size of a KHV (with a wavelength of ∼1.5–15 R_E for the KHV events listed in Table 3; ∼3°–11° latitudinal or longitudinal width on ground) corresponds to the Cluster separation, we assume that the average current density induced by KHVs ranges from ∼1 to ∼10 nA/m². The ratio between the current density associated with KHVs in the near-equatorial magnetopause (at Cluster) and in the ionosphere (at FAST) from Table 3 ranges from ∼200 to ∼4,000. This is relatively consistent with the ratio of magnetic flux-tube cross-section area between in-situ KHV locations and their conjugate ionosphere (∼1,000–6,000) based on the flux-tube current/magnetic-flux conservation.

Our statistics shown in Table 3 indicate that KHV-induced FACs categorized by duskward vs. dawnward KHVs correspond to FACs of region-1 sense. Considering the size of a KHV mapped to the ionosphere for the two Cluster events, the magnitude of FAC ranges 0.14–4.2 MA. This is comparable to the FAC magnitude obtained from gMAG for the MMS KHV events listed in Table 3. The order of region-1 current magnitudes often ranges 10⁻¹ to 1 MA. Table 3, thus, indicates that KHVs might significantly contribute to region-1 current.

Previous studies attributed the generation of the region-1 current to magnetospheric pressure gradients (Yang et al., 1994; Iijima, 1997; Mishin et al., 2011) or speculated the region-1 current driver to be anti-sunward flows in the magnetosphere (Tanaka, 1998). Wing et al. (2011) investigated the variations of region-1 and 2 FACs as a function of solar wind and IMF. They showed that the response of FACs to solar wind velocity is higher for southward than for northward IMF, which is attributed to the higher velocity shear across the magnetopause boundary layer. A theory connecting the low-latitude shear flow or vortex and FACs in the ionosphere has been proposed (Johnson and Wing, 2015; Johnson et al., 2021). A theory-observation comparison was conducted by Johnson et al. (2021) and Petrinec et al. (2022). The theory is restricted to regions of upward region-1 FACs where a Knight current-voltage relation is generally valid.

So far as we know, our study presents the first observational evidence for the role played by KHVs in MIC, i.e., the generation of the global FAC system developed in both duskward and dawnward sectors: the magnetoapuse KHVs, at least partially and possibly significantly, contribute to the region-1 current system.

Data Availability Statement

The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found in the article/Supplementary Material. The data from MMS, Cluster, FAST, and EIC/SEC data used for the present study are accessible through the public links http://lasp.colorado.edu/mms/sdc/public/, https://cdaweb.gsfc.nasa.gov/, and http://vmo.igpp.ucla.edu/data1/SECS/.

Author Contributions

K-JH found the research topic, analyzed the relevant data, and wrote the paper including tables and figures. JW provided/analyzed the EIC/SEC data. DS, JB, MG, EC, and KD assisted the data analysis and interpretation. CE, BG, CP, DG, CR, RS, and RT provided/assisted with the availability of the MMS data.

Funding

This study was supported, in part, by NASA’s MMS project at SwRI, NASA 80NSSC18K1534, 80NSSC18K0570, 80NSSC18K0693, and 80NSSC18K1337, and ISSI program: MMS and Cluster observations of magnetic reconnection.

Conflict of Interest

Author, Dr. C. J. P is employed by Denali Scientific, LLC, Fairbanks, AK.

The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

The reviewer PY declared a shared affiliation with the author(s) MG to the handling editor at the time of review.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
