Identifying Determinants of Dyslexia: An Ultimate Attempt Using Machine Learning

Walda, Sietske; Hasselman, Fred; Bosman, Anna

doi:10.3389/fpsyg.2022.869352

ORIGINAL RESEARCH article

Front. Psychol., 07 April 2022

Sec. Educational Psychology

Volume 13 - 2022 | https://doi.org/10.3389/fpsyg.2022.869352

This article is part of the Research Topic Insights in Educational Psychology 2021 View all 37 articles

Identifying Determinants of Dyslexia: An Ultimate Attempt Using Machine Learning

$\r\nSietske Walda$ Sietske Walda^*

Fred Hasselman $Anna Bosman\r\n$ Anna Bosman

Behavioural Science Institute, Radboud University, Nijmegen, Netherlands

Research based on traditional linear techniques has yet not been able to clearly identify the role of cognitive skills in reading problems, presumably because the process of reading and the factors that are associated with reading reside within a system of multiple interacting and moderating factors that cannot be captured within traditional statistical models. If cognitive skills are indeed indicative of reading problems, the relatively new nonlinear techniques of machine learning should make better predictions. The aim of the present study was to investigate whether cognitive factors play any role in reading skill, questioning (1) the extent to what cognitive skills are indicative of present reading level, and (2) the extent to what cognitive skills are indicative of future reading progress. In three studies with varying groups of participants (average school-aged and poor readers), the results of four supervised machine learning techniques were compared to the traditional General Linear Models technique. Results of all models appeared to be comparable, producing poor to acceptable results, which are however inadequate for making a thorough prediction of reading development. Assumably, cognitive skills are not predictive of reading problems, although they do correlate with one another. This insight has consequences for scientific theories of reading development, as well as for the prevention and remediation of reading difficulties.

Introduction

Dyslexia is characterized by severe problems with learning basic subskills of reading and spelling, often resulting in delays in broader literacy skills and unequal opportunities in education and society. In the Netherlands, approximately 10–15% of children in primary and secondary education are diagnosed with dyslexia (Inspectie van het Onderwijs, 2019). Research indicates that dyslexia is sometimes associated with impairments in various cognitive skills, such as phonological awareness, orthographical awareness, syntactic awareness, working memory, as well as general cognitive deficits such as impairments of attention, rapid naming, and self-control (Vellutino et al., 2004; Catts, 2017).

The role of cognitive skills in dyslexia has been subject to varying interpretations. Some authors advocate the existence of different types of reading problems, explaining them by a dysfunction of different cognitive functions. Others interpret these cognitive dysfunctions as a consequence of a more general deficit that causes both cognitive dysfunctions and reading problems (Parrila et al., 2019). Most theories, however, suggest that dyslexia is caused by some sort of brain dysfunction, resulting in an “all or nothing” diagnosis of dyslexia: Children with the brain dysfunction do and children without the brain dysfunction do not have dyslexia. Still other theories suggest that symptoms of dyslexia result from a multi-factorial interplay of (genes), cognitive skills and environment, resulting in a continuum of more to less severe reading and spelling problems (Vellutino et al., 2004; Catts, 2017).

The relevance of the role of cognitive skills in reading problems differs between varying perspectives. From a theoretical perspective, knowledge about cognitive skills involved in learning to read can lead to insights in the nature of reading and processes that accompany the development of automated reading skill (e.g., see Hammill, 2004). From a prevention perspective, knowledge about cognitive skills predictive of reading difficulties can help identify children at risk for developing reading difficulties. If children at risk are identified early, instruction and exercises can be adjusted to lower the chance of developing reading problems (e.g., see Hammill, 2004; Al Otaiba and Fuchs, 2006; Stuebing et al., 2015). From a remediation perspective, it is argued that knowledge about cognitive skills affecting the development of automated reading skill will provide more effective interventions for children lagging behind. When strengths and weaknesses on these particular cognitive skills are known, they could be part of the remediation process. This knowledge is of great importance, because a substantial part of children with dyslexia receiving early literacy intervention respond below expectations and are labeled treatment resisters (e.g., see Al Otaiba and Fuchs, 2006; Stuebing et al., 2015).

The aim of the present study was to find cognitive factors of varying origin that play a role in the development of reading skill in children with dyslexia and children with typical reading development. In this introduction, we will first discuss results of previous research (see Table 1). Previous research demonstrates two concerns: (1) empirical identification of causal factors, and (2) the application of research models adequate for identifying factors involved in reading level and in reading progress. Next, ideas on potential models of reading development are considered, resulting in a discussion of potential utility of machine learning techniques in an ultimate attempt to identify cognitive skills that are involved in learning to read. Finally, we will present the aims and research questions of the present study.

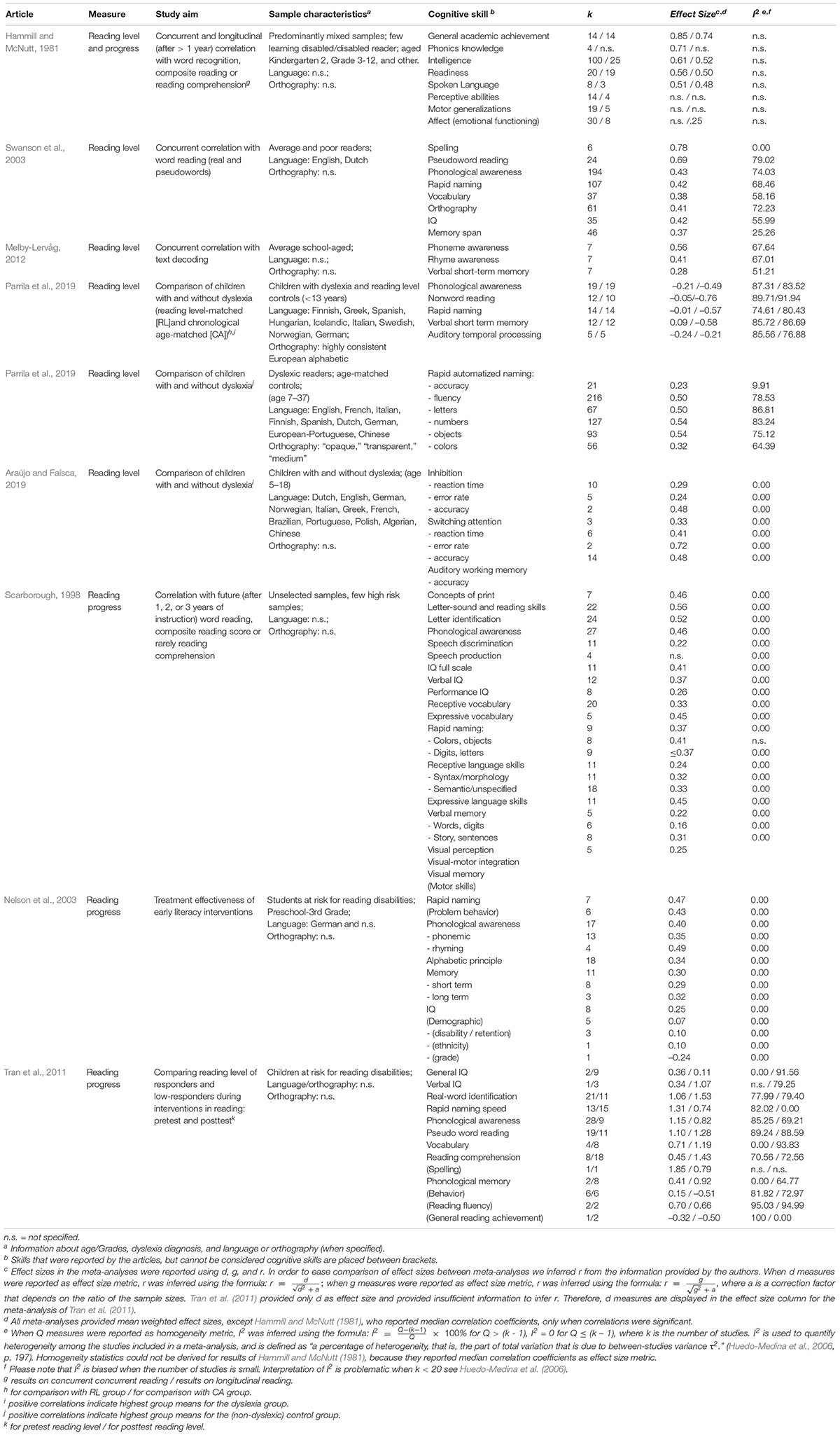

TABLE 1

Table 1. Results of meta-analyses on the relation between reading level and cognitive skills, and reading progress and cognitive skills.

The relationship between reading level and various cognitive skills has been well established by previous research. The statistical technique most frequently used for identifying factors that are important in the process of learning to read is correlation analysis. Even though correlations are bivariate and cannot determine any directional or causal influences, researchers assume that a correlational analysis provides information concerning factors that might be involved in learning to read. In search for causal factors, significant correlations are insufficient to establish causal relationships with learning to read. However, researchers assume that in the search for causal factors, significant correlations should at least be present (corresponding to the fifth axiom of Spinoza, 1678/1928, p. 15). Therefore, factors that prove to correlate with reading level are of interest for researchers who seek to find causal relationships between cognitive factors and reading skill (Hammill, 2004; Stuebing et al., 2015).

In the first three rows of Table 1 meta-analyses on cognitive skills and reading level are presented. Several cognitive skills tend to correlate significantly (not necessarily substantially) with reading level. Age or reading skill often have moderating effects on these correlations (see Hammill and McNutt, 1981; Swanson et al., 2003; Melby-Lervåg, 2012). However, there are three issues that impede the interpretation of correlation between cognitive skills and reading level: (1) For some variables, the amount of overlap with reading skill is unclear. For example, variables such as academic achievement, spelling, pseudoword reading and letter identification could be considered reading skills or at least literacy skills. These skills rather mirror subskills of reading and literacy than function as independent potential cognitive determinants of reading skill. (2) Correlation analyses have not yet led to desirable correlations between cognitive determinants and reading level in such a way that they imply an exhaustive explanatory model of reading skill. Skills close to the reading process (e.g., spelling, pseudoword reading, letter identification) correlate more strongly with reading level than with other cognitive skills (e.g., IQ, memory, attention). Still, correlation coefficients between cognitive skills and reading level rarely exceed r = 0.50 (see Table 1), which corresponds to a proportion of explained variance of 0.25; thus 75% of variance remains unexplained. (3) Indices of heterogeneity between studies, when specified and not biased by small samples of studies, indicate a medium to high degree of heterogeneity between studies included in these meta-analyses (see Swanson et al., 2003; Melby-Lervåg, 2012; based on Huedo-Medina et al., 2006). High heterogeneity among the selected studies indicates that fixed effects models, applied when interpreting unique effect sizes, are unsuitable for a comparison of results, because effect sizes tend to differ between studies and as such, results of the studies included in these meta-analyses are not unequivocal.

Several authors studied discrepancies in cognitive skills of children with dyslexia and typically developing children. The meta-analyses displayed in rows 5–7 of Table 1 indicate that children with dyslexia have an increased chance of lower abilities on several cognitive skills compared to typically developing children. Effect sizes (converted to correlation measures in Table 1) suggest that cognitive skills of children with dyslexia tend to differ from cognitive skills in typically developing children, although indices of heterogeneity (when specified and not substantially biased) again indicate that results were not unequivocal (Araújo and Faísca, 2019; Lonergan et al., 2019; Parrila et al., 2019). Meta-analyses that distinguished age-matched controls from reading-matched controls, however, reveal that cognitive skills of children with dyslexia do not significantly differ from those of reading-matched controls (e.g., Araújo and Faísca, 2019; Parrila et al., 2019). This indicates that at least some of these lower abilities might have resulted from lower reading level by origin, that is, implying circular causality. On that note, it is suggested that children with dyslexia are identified by decoding skills (i.e., translating printed words in speech) in itself rather than by cognitive skills.

Thus, several cognitive skills tend to correlate with reading level and children with dyslexia tend to differ from age-matched controls in their cognitive skills. Considering the relationship between cognitive skills and reading level, it can be concluded that the relationships are evident, although the magnitudes of these relationships are limited.

Investigating the relationship between reading progress and cognitive skills is less straightforward than the relation with reading level. As discussed in the previous paragraph, correlations between reading level and cognitive skills indicate possible determinants or causal factors of reading progress: In order to be predictive of future reading progress, a factor should at least correlate to some extent with present reading level (e.g., Nelson et al., 2003; Tran et al., 2011). However, even when factors correlate with reading level, one cannot exclude the possibility of the effects of a third variable, influencing both cognitive skills and reading level, and thereby generating a correlation between them. Also, correlations never express directions of relationships between variables: The relationships could be opposite to what was expected (instead of cognitive skills causing variations in reading level, reading level might be causing variations in cognitive skills), or being bidirectional (cognitive skills and reading level might mutually influence each other over time). Bidirectional relationships between variables form a considerable possibility in research on reading skill, as is evidenced by the relationship between word reading and phonological awareness (see Castles and Coltheart, 2004). According to Catts (2017), such bidirectional relationships could inflate the correlations that were found over time. Catts probably meant to point out that a correlation measure is not suitable to indicate the strength of a causal relationship: One obvious reason is that factors with reciprocal relationships will produce strong correlations over time when they keep mutually influencing each other all the time. Thus, correlations between reading level and cognitive skills do not necessarily indicate that (lacking) cognitive skills cause lower reading level. To predict reading development, a factor should at least be associated with gains in reading skill over time. In other words, in order to prove that a factor affects reading development, its causal role should be observed in an experiment. In the field of reading development, possibilities are limited, because participants with dyslexia and typical reading development cannot be randomly assigned to groups. Therefore, only quasi-experimental designs can meet this demand. Several authors discuss possibilities for quasi-experimental designs, resulting in roughly three suggestions, listed by ascending validity in proving causal relationships:

(1) Models that explain variance in growth in reading/spelling over time by cognitive skills at baseline (unconditional models, see Stuebing et al., 2015);

(2) Models that explain outcome of reading/spelling skills by baseline reading/spelling skills as well as baseline cognitive skills (conditional models, see Stuebing et al., 2015);

(3) Models that explain progress in reading/spelling skills from progress in cognitive skills (see Vellutino et al., 2004).

Unconditional models fit theoretical research questions about correlations between baseline cognitive skills and reading/spelling development, but do not aim at explaining any causal relationships. If these correlations prove to be compelling, one could ask whether baseline cognitive skills could add to baseline reading/spelling skills during an intervention, which would fit the conditional model. Vellutino et al. (2004), however, argue that possible causal relationships can only be inferred from a model that explains progress in reading skill from progress in cognitive skills. This would be the only opportunity to approximate the demand of observing the causal trajectory in an (quasi-)experiment.

Research results on the relationship between reading progress and cognitive skills are less common and less clear than research results on the relationship with reading level. Overall, studies using unconditional models tend to identify more baseline cognitive skills related to outcome reading level measures and stronger relationships than studies using conditional models (e.g., Stuebing et al., 2015). Although some studies indicate that a number of baseline cognitive skills are related to outcome reading-level measures, it is questionable to what extent these cognitive skills are truly separable from reading skill itself. Meta-analyses on the relation between baseline cognitive skills and progress in reading are presented in the first row and the last three rows of Table 1. The results of the meta-analyses presented in Table 1 originated from the results on unconditional models, albeit Tran et al. (2011) also presented results on conditional models. These meta-analyses reveal little evidence for a relationship between baseline cognitive skills and progress in reading skill. Factors that were most strongly related to results of early literacy training overlapped with reading skill (e.g., general achievement, word reading, pseudoword reading, and reading comprehension), whereas other cognitive skills (e.g., IQ, memory, rapid naming speed, and phonological awareness) produced less strong results (see Hammill and McNutt, 1981; Scarborough, 1998; Nelson et al., 2003; Tran et al., 2011).

Again, when specified, indices of heterogeneity between studies included in the meta-analyses indicated that results were not unequivocal. Findings from empirical research provide suggestions for causes for the varying results on the relationship between reading (level and progress) and cognitive skills. Studies tend to differ in sample characteristics, measurement instruments, methodological approach, and study design (e.g., see Vellutino et al., 2004; Stuebing et al., 2015). As such, comparing studies on the role of cognitive skills in reading development seems like comparing apples to oranges. Thus, research on the relationship between reading progress and cognitive skills is limited in quantity and methodological strength. Moreover, little evidence is found for a relationship between cognitive skills and progress in reading skill and results tend to vary between studies.

Analyses based on traditional linear techniques such as correlations and variances, as presented in the previous paragraphs, may not be applicable to a multifactorial and multidirectional system such as reading development. As Parrila et al. (2019) state, no single factor alone can be accountable for development of a skill as complex as reading, especially not regarding development over time. Even traditional multi-factorial approaches do not have the capacity to encompass all possible factors and relationships (e.g., Connor and Morrison, 2017). Catts (2017) proposed that dyslexia could be the outcome of multiple interacting factors, moderated by several positive and negative influences. Dyslexia, then, is understood as a condition that follows the risk-resilience framework, in which specific factors serve as moderators of risk, determining different outcomes in individuals with similar precursors (Catts, 2017).

Research based on traditional linear techniques has not been able to clearly identify the role of cognitive skills in reading problems, presumably because the process of reading and the factors that are associated with reading reside within a system of multiple interacting and moderating factors that cannot be captured within traditional statistical models. In contrast, the view of a broad set of interacting variables fits the model of complex adaptive systems: “(…) systems that have a large number of components, (…), that interact and adapt or learn” (Holland, 2006, p. 1). The most important characteristics of complex adaptive systems are:

(1) Components act simultaneously;

(2) Components only act upon rules (specific conditions e.g., actions of other components, environmental circumstances);

(3) Within a component, several rules can combine into specific sequences of rules to, for example deal with novel situations;

(4) Components can adapt over time, that is, they change their actions in order to abide to the rules and the sequences of rules. Usually these changes are not random, but designed to improve the outcome based on prior experiences (Holland, 2006).

If lags in cognitive skills play a critical role in the emergence and persistence of reading problems, analyses based on complex adaptive systems should be able to at least identify which cognitive skills are involved, and possibly also how and to what extent they are involved. A relative novel way of investigating complex systems is the use of machine learning, in which a set of data together with a set of algorithms seek to find the best solution given the data. Machine learning roughly falls apart in two types of learning: unsupervised and supervised. Unsupervised learning is used to find patterns in the input data without using any output data, particularly to find clusters or dimensions. In supervised learning, the model is confronted with input and output data in order to find the best function between them. Supervised learning is mostly used for predicting future events (Russell and Norvig, 2010).

Research applying the technique of machine learning to the field of reading skill is scarce. To our knowledge only two studies have been published, both applying the unsupervised learning technique of Self Organizing Maps (SOM; Loizou and Laouris, 2010; Astle et al., 2018). Loizou and Laouris (2010) used the SOM technique to make different clusters of participants based on measures of cognitive skills and word reading skill. Subsequently, they identified which (sub)tests made the strongest contribution to the assignment of participants to clusters. Their results showed that information of only four tests (auditory memory, navigation, word identification and word attack, and rapid naming of pictures) were sufficient to classify 94.64% of the participants in the identified clusters. Also, the fifth strongest factor contributing to the classification was age. Astle et al. (2018) adopted a slightly different approach. They used the SOM technique to distinguish between different clusters of participants based only on measures of cognitive skills (“cognitive profiles,” based on seven measures: nonverbal reasoning, vocabulary, phonological processing, and four measures of short-term memory) and afterwards compared these clusters to initial referral routes and diagnoses. Their results showed that participants allocated to the cluster “lag in a broad spectrum of cognitive skills,” showed the most severe problems in reading, spelling, and math skills. More importantly, learning-problems characteristics and how participants were diagnosed were not related to the cognitive profiles determined by the SOM technique. Thus, some efforts were made studying the role of cognitive skills in reading skill, revealing some preliminary results: Only a small number of cognitive and reading skills were needed to make up some clusters, albeit when clusters were based on cognitive skills only, they were not related to learning skills.

Although both studies on the role of cognitive skill in reading development did consider the multifactorial nature of reading skill, neither was capable of identifying cognitive factors predictive of reading skill. These studies used the unsupervised learning SOM technique, which aims at classification, and both input (cognitive) variables and output (reading level) variables are from the same moment of measurement. As such, participants are labeled according to their reading level, and not according to their reading progress. To come back to the relevance of the role of cognitive skills in reading problems, this mainly serves the theoretical perspective about the nature of reading and processes that accompany the development of automated reading skill. Questions such as which cognitive skills are predictive of reading difficulties (prevention perspective) and which cognitive factors can affect the development of automated reading skill (remediation perspective) are left unanswered.

To answer these questions, supervised machine learning techniques should be applied, because these techniques are capable of making predictions about future events (Russell and Norvig, 2010; Lantz, 2019). More specifically, machine learning based on neural networks seems the most likely technique to identify cognitive factors predictive of reading skill. According to Lantz (2019), neural networks belong to so-called black-box methods and these are, more than any other technique, capable of modeling complex patterns. Moreover, neural networks pose few assumptions on the input data.

The aim of the present study was to find cognitive factors of varying origin that play a role in the development of reading skill in children with dyslexia and children with typical reading development. The present study will address the following research questions:

1. To what extent are cognitive skills indicative of present decoding level?

2. To what extent are cognitive skills predictive of future decoding progress?

The present study is unique in applying supervised machine learning techniques to the field of reading development. Moreover, the present study includes analyses on a relatively homogeneous group of reading disabled children as well as a heterogenous group representing a sample of the population of school age children to correct for the effects of restriction of range.

General Methods

Overview

Three datasets will be subjected to machine-learning modeling and reported on in three studies. Study 1 was performed on the dataset of Verhoeven and Keuning (2018) on cognitive precursors of reading and reading level of 2007 Dutch primary-school children. For Study 2, data of a previous study (Walda et al., 2014) were used and supplemented with new cases (i.e., more participants with dyslexia) and new cognitive skills variables, that is, in the Walda et al. study a number of specific executive functions were investigated, whereas the current study 2 considers cognitive skills in a more general way (noem hier wat voorbeelden van specifiek en algemeen). The dataset of the present study contained data on cognitive skills, reading and spelling in 383 Dutch children with dyslexia. The data consist of results on cognitive precursors of reading and reading level prior to reading and spelling remediation as well as reading level after three months of reading and spelling remediation in a Dutch clinic for the assessment and remediation of learning disorders. Study 3 was conducted on the dataset of Braams and Bosman (2000) pertaining to kindergarten predictors of reading and spelling level of two cohorts (117 and 82, respectively) Dutch primary-school children in Grade 1. Study 1 was aimed at answering research question 1. Studies 2 and 3 also aimed at answering research question 1 (Study 2a and Study 3a) as well as research question 2 (Study 2b and Study 3b). For a schematic overview of the particular characteristics of the studies, see Figure 1.

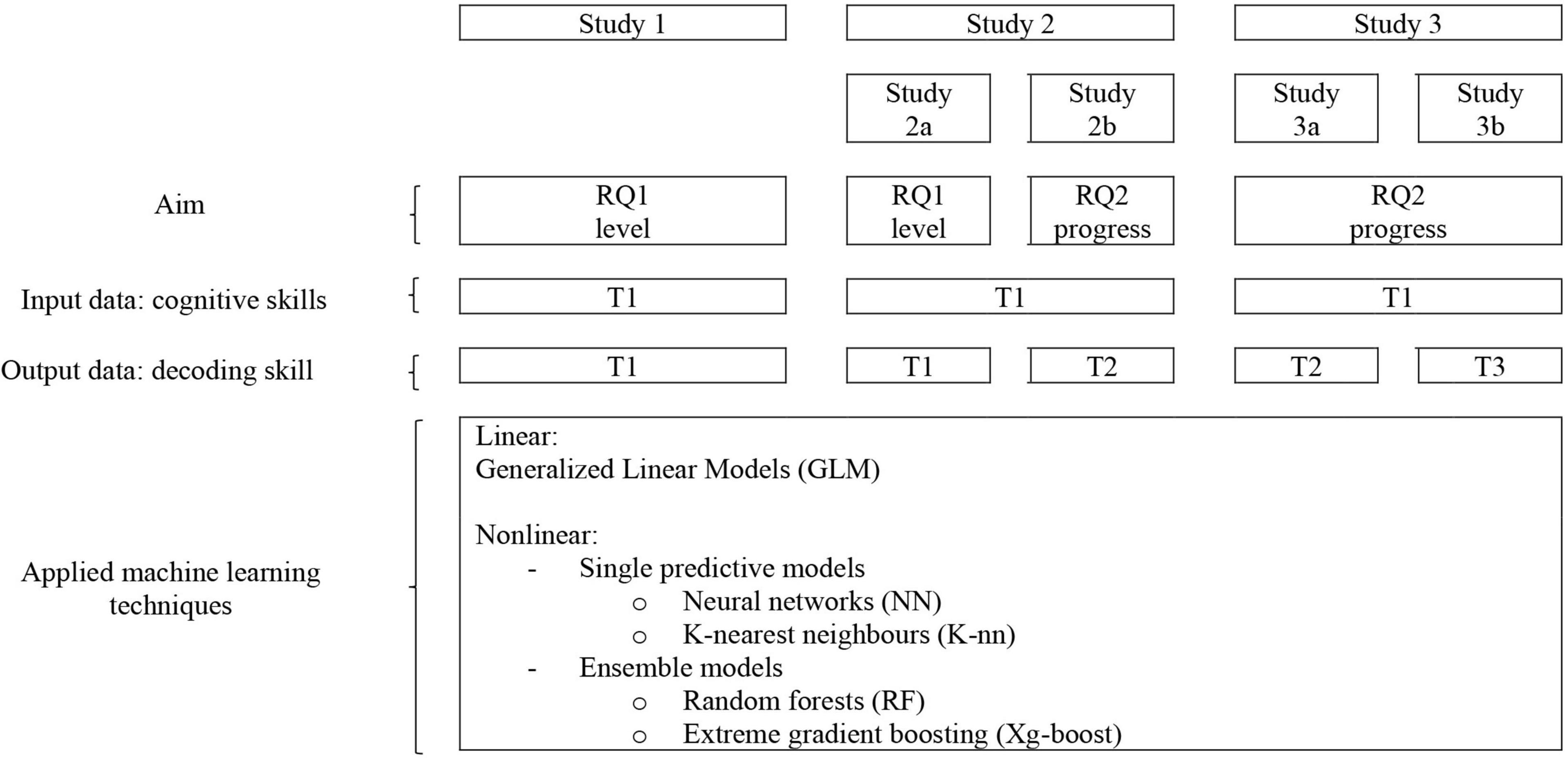

FIGURE 1

Figure 1. Schematic overview of conducted studies and aims, research questions, and model building techniques that were involved. RQ, research question.

Although the original datasets contained more cases, only results on complete cases are presented in the present study: Cases with a missing record on one or more variables (word decoding or one of the cognitive skills variables described in Supplementary Material B) were excluded from the analyses because they do not contribute to the building of a model. Concerning research question 1 (word decoding level) in Studies 1, 2a, and 3a, input data of cognitive skills on T1 were modeled on output data of word decoding skill at T1. Concerning research question 2 (word decoding progress) in Studies 2b and 3b, input data of cognitive skills on T1 were modeled on output data of word decoding level at T2, corresponding to what was considered an unconditional model in the “Introduction” section.

Data Analysis

The models were trained in R (CRAN version). The data of Studies 1 and 2 were normalized to a zero to one range. Those of Study 3 had to be normalized using Z-scores to be able to compare between participants. To maximize the opportunity of selecting a model with a good fit, each dataset was subjected to four different techniques of supervised machine learning. Two techniques building single predictive models were used, namely, neural networks and k-nearest neighbors and two ensemble techniques, namely, random forests and extreme gradient boosting (Xg-boost). In addition, a model using General Linear Model (GLM) technique was used to compare the results of all four nonlinear techniques to a linear one. For a description of the Xg-boost technique, see Lesmeister (2019); for a description of the other four techniques see Lantz (2019).

Model Building

Each model was built to result in a topology with several input factors measuring cognitive skills, which predicted one outcome measure, that is, word-decoding level. To compare the fit of most models to the data, outcome measures were treated binomially, distinguishing between participants with the 20% lowest word-decoding raw scores and participants with the 80% best word-decoding raw scores in Studies 1 and 3. In Study 2, standardized scores (i.e., c-scores) were used for the outcome measure, resulting in binomial scores distinguishing between c-scores 0 and 1 and c-scores 2–9, which corresponds to approximately 10% lowest word-decoding efficiency and 90% highest scoring in the regular population.

Parameters of the four models were tuned until they approximated the model that best fit the data in the dataset (for more information about building these models see Lantz, 2019; Lesmeister, 2019). Which parameters can be tuned depends on the specific machine learning technique, and is specified in Supplementary Material A. In Studies 1 and 2, 90% of the datasets were used for tuning and training and 10% for testing the model. Because of the relatively small sample of data in Study 3, 75% of the dataset was used for tuning and training and 25% for testing the model. To overcome the problem of differential findings as a result of the seed set, a number of models were built for each technique and results were run on 100 different seeds. Results are reported with a 95% confidence interval. For more details about building, tuning, training, and testing of the models see Supplementary Material A.

Model Evaluation

Subsequently, model performance was evaluated computing summary statistics for the predictive ability of the model and visualizing performance tradeoff for all five (one linear and four nonlinear, see Figure 1) models. We used R’s set.seed function (R Core Team, 2018) to generate random initializations of R’s internal Random Number Generator, which was set to the “Mersenne Twister” algorithm (cf. Matsumoto and Nishimura, 1998). To make the analyses based on random sampling exactly reproducible, we stored the random seeds as variables (for details, see the analysis scripts in the Supplementary Material).

The predictions vectors were set to contain probabilities. Summary metrics were computed based on average performance using 10-fold cross validation.

Performance tradeoff was evaluated using metrics based on the confusion matrix of model predictions and actual class membership according to the decoding test. Table 2 presents the confusion matrix and metrics that were considered. Both metrics indicating usefulness of the model for assessment of low decoding skill (i.e., positive predictive value [PP] and negative predictive value [NP]), and accurate identification of children with low decoding skill by the model (i.e., accuracy, sensitivity [SE], specificity [SP]) were considered. Usefulness of the model for assessment of low decoding skill concerns the likelihood that the constructed model can successfully identify whether children indeed have the lowest decoding skill or not, as illustrated by the last column of Table 2. Accurate identification of children with low decoding skill by the model concerns the similarity of the allocation of children to the lowest decoding group by the model to actual lowest decoding skill according to the word decoding test, as illustrated by the last row of Table 2 (Trevethan, 2017).

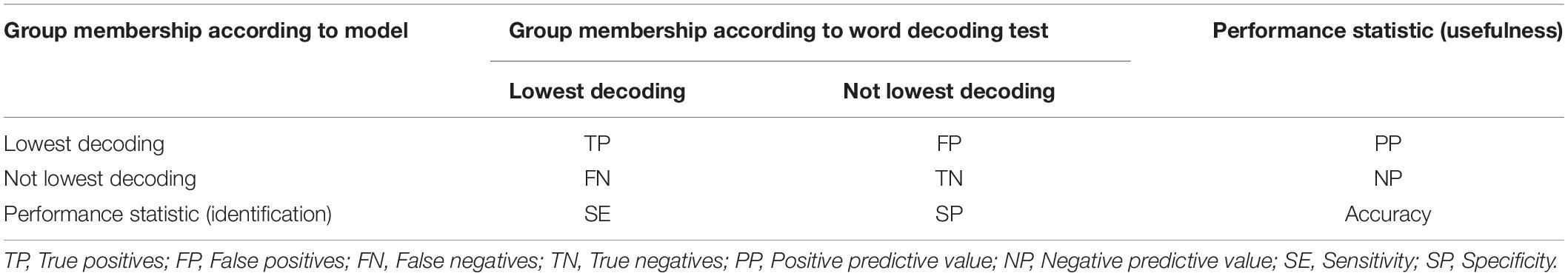

TABLE 2

Table 2. Confusion matrix for positive class and negative class allocation by the models.

Positive Predictive Value

The proportion of positive cases that were accurately allocated to the target category (lowest decoding level group) by the model, that is, when the model allocates members to the low decoding level group, how many belong to this group according to the word decoding test? PP = $\frac{true positives}{true positives + false positives}$

Negative Predictive Value

The proportion of negative cases that were accurately allocated to the non-target category (not lowest decoding level group), that is, when the model allocates members to the not-lowest decoding level group, how many belong to this group according to the word decoding test? NP = $\frac{true negatives}{true negatives + false negatives}$

Sensitivity

The proportion of cases that were accurately allocated to the target category (lowest decoding level group) by the model, that is, of the children who belong to the lowest decoding level group according to the test, how many were allocated to the lowest decoding group by the model? SE = $\frac{true positives}{true positives + false negatives}$

Specificity

The proportion of cases that were accurately allocated to the non-target category (not lowest decoding level group), that is, of the children who do not belong to the lowest decoding level group according to the test, how many were not allocated to the lowest decoding group by the model? SP = $\frac{true negatives}{true negatives + false positives}$

Accuracy

The proportion of cases that were accurately allocated to the non-target and to the target group. Accuracy = $\frac{true positivestrue negatives}{true positives + true negatives + false positives + false negatives}$

Cohen’s Kappa (κ)

Statistic with values between 0 and 1, indicating the agreement between predictions of the model (decoding level within lowest decoding category or not) and the true membership of decoding level category (according to the word decoding test). The results of Cohen’s Kappa were evaluated to account for the possibility of accurate prediction by chance alone, which is an evident risk because of class imbalance in the present study. In the present study, Cohen’s κ will interpreted as suggested by Lantz (2019, p. 324):

• Poor agreement = less than 0.20

• Fair agreement = 0.20 to 0.40

• Moderate agreement = 0.40 to 0.60

• Good agreement = 0.60 to 0.80

• Very good agreement = 0.80 to 1.00

Receiver Operating Characteristic Curve

Visualization of the tradeoff between the sensitivity and the proportion of cases that were falsely allocated to the target category by the model.

Area Under the Curve

Statistics with values varying between 0.5 and 1, with higher values indicating better predictive models. AUC is based on the tradeoff between sensitivity and the proportion of cases that were falsely allocated to the target category by the model. Although some guidelines for classifying AUC are available, AUC is best evaluated in a comparative way. In the present study, AUC will be classified using the convention suggested by Lantz (2019, p. 333):

• No Discrimination = 0.5 to 0.6

• Poor = 0.6 to 0.7

• Acceptable / Fair = 0.7 to 0.8

• Excellent/Good = 0.8 to 0.9

• Outstanding = 0.9 to 1.0

Due to the fact that the binary classes were not evenly distributed (80% / 20%), some distortion of the metrics were expected. Specifically, the uneven distribution in favor of the non-target category leads to a higher chance of correct allocation to the non-target category. Therefore, results were interpreted primarily using Cohen’s Kappa, ROC curve, and AUC.

Study 1

In this study, we built a model from an existing dataset on phonological abilities and word-decoding accuracy in Dutch children. The present database originates from research conducted by Verhoeven (Expertisecentrum Nederlands) and Keuning (Cito) on precursors of dyslexia in Dutch children (see Verhoeven and Keuning, 2018). Study 1 aimed at answering the question: To what extent are cognitive skills indicative of present decoding level? Baseline cognitive skills in Study 1 consisted of phonological awareness skills, rapid naming skills, and working memory skills (for a detailed description see Supplementary Material B).

Materials and Methods

Participants

Participants were Dutch children attending 68 elementary schools: 782 in Grade 3, 707 in Grade 4, 263 in Grade 5, and 255 in Grade 6 after deletion of cases with missing variables.

Materials

Measures of one output variable and six input variables were collected using assessments. The output variable consisted of a test score for word-decoding efficiency and the input variables of test scores for nonword repetition, naming speed, phoneme segmentation, and phoneme deletion. A detailed description of the tests that were used can be found in the Supplementary Material B.

Procedure

Assessment of input and output variables took place in an individual setting by trained graduate students. The sequence of the tests within a session was randomized. All students were assessed halfway the school year. For more details about the methods, see Verhoeven and Keuning (2018).

Results

Means and standard deviations for all input variables and the output variable of the models are presented in Table 3. The output variable (word-decoding efficiency) was transformed into binary classes, with 438 cases in the 20% lowest decoding level class and 1571 cases in the alternative class.

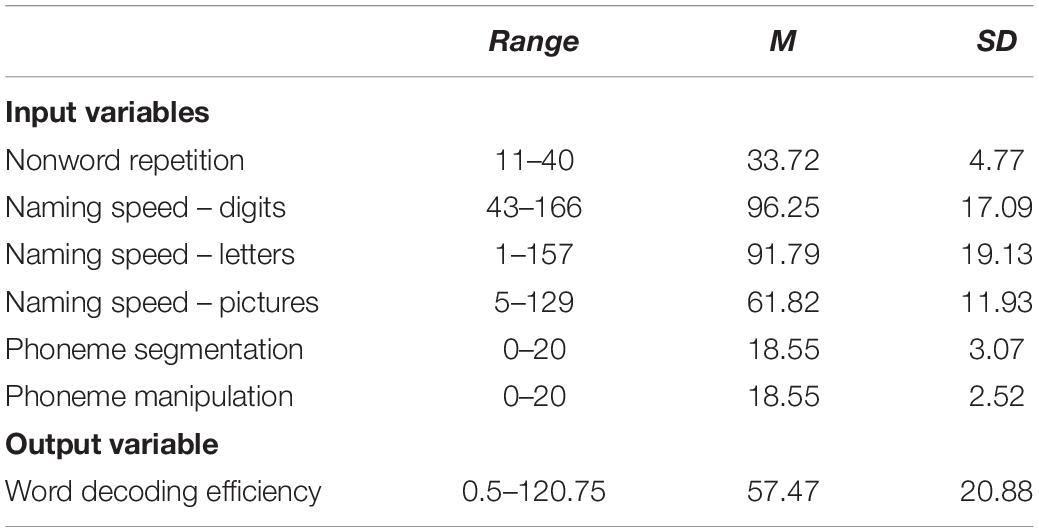

TABLE 3

Table 3. Descriptive statistics for input variables and output variable of the models (n = 2009).

Evaluation results of the models built with five machine learning techniques are presented in Table 4. Concerning identification of low decoding skill by the models, Positive Predictive (PP) and Negative Predictive (NP) values were evaluated. The results on the 95% confidence-intervals of PP appear between 0.25 and 0.37. Thus, between 25 and 37% of children allocated to the low decoding-category by the model, truly performed within the low decoding category when assessed with a decoding test; 63 to 75% of children allocated to the low decoding-category did not. The results on the 95% confidence-intervals of NP revealed that 92 to 96% of children not allocated to the low decoding-category by the model, truly did not perform within the low decoding category when assessed with a decoding test; 4 to 8% of children not allocated to the low decoding-category did.

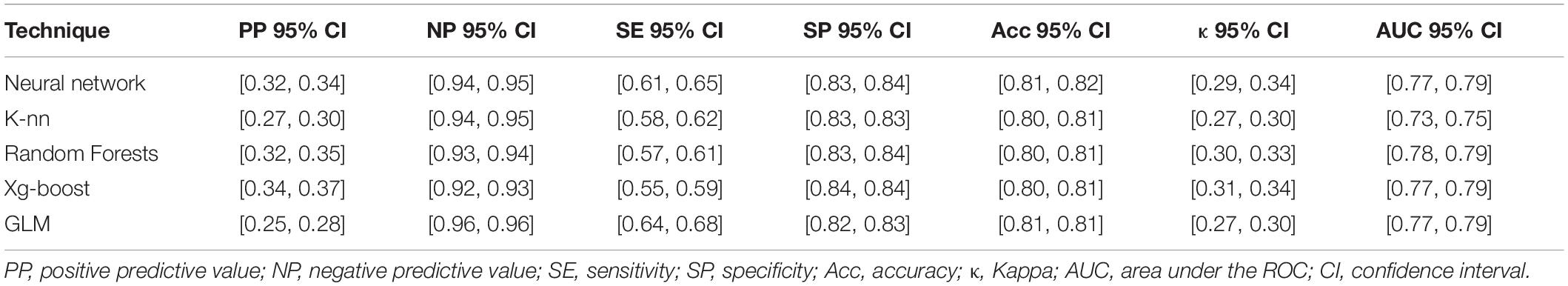

TABLE 4

Table 4. Confidence intervals of summary statistics for the predictive ability of the models built with five machine learning techniques.

Concerning the usefulness of the models of detecting low decoding skill, accuracy, sensitivity, and specificity were evaluated. The results of the 95% confidence-intervals of accuracy revealed that between 80 and 82% of the children were correctly allocated to the right decoding skill category by the models. The results on the 95% confidence-intervals of sensitivity showed that between 55 and 68% of children who truly performed within the low decoding category when assessed with a decoding test, were indeed allocated to the low decoding group by the model; 45% to 32% of children with actual low decoding skills were not. The results on the 95% confidence-intervals of specificity revealed that between 82 and 84% of children who truly performed not within the low decoding-category when assessed with a decoding test, were indeed allocated to the not low decoding group by the model; 16 to 18% of children without actual low decoding skill were falsely allocated to the low decoding group by the model. The results of Cohen’s κ were evaluated to account for the possibility of accurate prediction by chance alone. The results on the 95% confidence-intervals of the Cohen’s κ appear between 0.27 and 0.34, and indicate fair agreement between the models’ predictions and the true values. See “Materials and Methods” section for suggested interpretation of Cohen’s κ.

The charts in the first column of Figure 2 visualize results of identification of first-quintile word-decoding efficiency for all models. The curves indicate positive predictive abilities of all models. The results on the 95% confidence-intervals of the AUC-statistics appear between 0.73 and 0.79, and indicate acceptable identification of first quintile word decoding for all models. See “Materials and Methods” section for suggested interpretation of AUC statistics. Visual inspection of the curves confirms the similarity between the five models pertaining to results of the AUC statistic.

FIGURE 2

Figure 2. ROC-curves for the predictive ability of the models in all three studies built with five machine learning techniques.

Conclusion

Study 1 aimed at building a model of five cognitive skills input variables to predict which participants achieved within the 20th percentile of decoding skill of children attending regular Dutch schools. The results indicated that model building by nonlinear machine learning techniques yields results comparable to model building by more traditional linear techniques. The predictive ability of both the linear model and the four nonlinear models appeared to be acceptable, as indicated by the ROC curves and AUC statistics. Balancing the tradeoff between sensitivity and specificity reveals best results in terms of specificity, at the expense of sensitivity, that is, the models tend to identify about 80% of children without decoding problems correctly (specificity), but only about 60% of children who indeed have low decoding skill (sensitivity), which results in accuracy of about 80%. The results of Cohen’s κ, however, indicate only fair agreement between the expected decoding category and the true decoding category. Recall that accuracy can be overestimated due to class imbalance, which is the case in the present study (see “General Methods” section). The weak agreement according to Cohen’s κ demonstrates that accuracy scores were affected by the imbalanced categories.

Study 2

In this study, we built a model from a dataset on performance on cognitive tests and word-decoding accuracy in Dutch children with dyslexia. Two types of model design were evaluated: Study 2a models fourteen cognitive predictors and uses decoding accuracy as an outcome variable at the same moment of measurement, pertaining to the question: To what extent are cognitive skills indicative of present decoding level? Study 2b models fifteen cognitive predictors at T1 and uses decoding accuracy after three months of reading and spelling remediation (T2) as an outcome variable, pertaining to the question: To what extent are cognitive skills predictive of future decoding progress? Baseline cognitive skills in Study 2 consisted of phonological awareness skills, rapid naming skills, working memory skills, nonverbal reasoning skills, and vocabulary skills (for a detailed description, see Supplementary Material B).
