Skip to main content

ORIGINAL RESEARCH article

Front. Nutr., 09 November 2022
Sec. Nutrition and Food Science Technology
This article is part of the Research Topic Nanomaterials in Food Packaging View all 5 articles

Palladium encapsulated nanofibres for scavenging ethylene from sapota fruits

\r\nGajanan Gundewadi&#x;Gajanan Gundewadi1†Shalini Gaur Rudra*&#x;Shalini Gaur Rudra1*†Radha PrasannaRadha Prasanna2Tirthankar BanerjeeTirthankar Banerjee3Sanjay Kumar SinghSanjay Kumar Singh4Sanjay R. DhakateSanjay R. Dhakate5Ashish GuptaAshish Gupta5Anjali AnandAnjali Anand6
  • 1Division of Food Science and Postharvest Technology, ICAR-Indian Agricultural Research Institute, New Delhi, India
  • 2Division of Microbiology, ICAR-Indian Agricultural Research Institute, New Delhi, India
  • 3Division of Agricultural Chemicals, ICAR-Indian Agricultural Research Institute, New Delhi, India
  • 4Division of Fruits and Horticultural Technology, ICAR-Indian Agricultural Research Institute, New Delhi, India
  • 5Advanced Materials Device and Metrology, CSIR-National Physical Laboratory, New Delhi, India
  • 6Division of Plant Physiology, ICAR-Indian Agricultural Research Institute, New Delhi, India

Scavenging ethylene is a useful intervention during the transportation and storage of tropical climacteric fruits like sapota. Sapota (Manilkara achras Mill.) is a delicious tropical fruit with a very high respiration rate and poor shelf life. To prolong its post-harvest shelf life, the use of palladium chloride in electrospun nanomats was evaluated at a concentration varying from 1 to 4% levels. Encapsulation of 1–2% PdCl2 in nanomats increased the ethylene scavenging capacity (ESC) by 47–68%. Although, upon encapsulation, both PdCl2 and potassium permanganate showed significantly the same ethylene scavenging activity, the efficacy of PdCl2 was found better in presence of sapota fruits. The PdCl2 nanomats were brighter (L* > 73) in colour compared to the potassium permanganate mat. The placement of nanomats (2 cm2 × 9 cm2) in corrugated fibre board boxes in which the sapota was packed showed higher quality indices (firmness, TSS, ascorbic acid, and phenolics) along with lower PLW and respiration rate during the 8 days of storage period. Compared to control (8.35%), physiological loss in weight of 4.47% was recorded in fruits stored with ethylene scavenging nanomats. PdCl2 encapsulated PVA nanomats can emerge as a promising option for the retention of quality in fruits during storage and transit.

Introduction

During storage and distribution, ethylene has a negative impact on the shelf life and quality of most fruits and vegetables. Even at very low concentrations (1), ethylene absorber compounds are used to delay the ethylene-induced ripening, softening, and deterioration of fruits and vegetables (2). Sapota’s high respiration range has been reported widely [25–35 mL CO2 kg–1 h–1 at 20°C (3); 16 mg CO2 kg–1 h–1 at 24–28°C (4)]. Its ethylene production rate varies from 10 to 100 μL C2H4 kg–1 h–1 (5, 6). This makes sapota a highly perishable fruit owing to quick ripening and senescence, and thus susceptible to post-harvest diseases. With a shelf life of only 3–5 days at 25–27°C, there is an estimated 25–30% post-harvest loss of sapota (7). These attributes make sapota an ideal candidate to test the efficacy of ethylene scavenging treatments.

Sapota (Manilkara achras Mill) is a tropical fruit of Sapotaceae family, commonly known as sapota or chiku in various parts of the world. This delicious, nutritious fruit with pleasant aroma is valued for its sweet and granular pulp with mellow taste (7). India, being the largest producer of sapota in the world, contributes to 10% share of global production with an annual production of 1.176 million MT (8) and exports worth 1.09 million USD (9).

Several methods have been employed to remove ethylene gas from the package or storage atmosphere commercially by using ethylene adsorption or oxidation process. The approaches to ethylene regulation can be divided into three main categories: ethylene reduction (modified atmospheric packaging through swapping the headspace gases); perforated packaging material (microperforated packaging materials); and ethylene removal by using ethylene scavenger (10, 11). Few compounds such as potassium permanganate, zeolite (activated clay), activated carbon, and palladium have been commercially exploited as ethylene scavengers for extending the shelf life of fruits and vegetables. These absorbers are generally embedded into paper bags or corrugated fibreboard boxes, sachets containing granules or nanoparticles during storage and transport of produce. Direct use of scavengers in packages or pouches poses difficulty because of toxicity and safety issues. One of the strategies to incorporate ethylene scavengers in films and mats incorporated with active ingredients for active packaging includes the use of electrospinning which draws the nanofibre either in the form of solution or molten liquid by the application of high voltage [30–50 KV (12, 13)]. The use of high voltage is necessary to eject liquid jets from the spinneret needle. These flexible electrospun nanofibre mats are highly porous and permeable which provide a high surface-to-volume ratio for interaction with compounds of interest (14).

The commercially available ethylene absorbers in the market include Neupalon (activated carbon) in Japan, Peakfresh (activated zeolite) in Australia, Evert-Fresh (activated zeolite) in USA, and Solid Ball Ethylene Absorber (activated zeolite) in India (1). Siripatrawan and Kaewklin (15) used titanium dioxide nanoparticles in the chitosan film matrix for the photocatalytic degradation of ethylene. Recently, Hernandez et al. (16) reported the use of potassium permanganate loaded sepiolite in sachets with thymol for enhancing the shelf life of tomatoes. PdCl2 has also generated interest amongst researchers for its property of scavenging ethylene (1719). To override toxicity issues, PdCl2 is being used by impregnation on zeolites, activated carbon, etc. Activated carbon-embedded palladium (1%) could remove the ethylene from the storage atmosphere of tomato fruits, extending their shelf life (20). Zeolite-impregnated palladium showed a significant effect in terms of ethylene adsorption and could control the ripening and senescence of climacteric fruits, such as avocado and banana (19, 21). In another study by Cao et al. (22), the senescence and yellowing of broccoli florets were significantly reduced by the use of acidified activated carbon impregnated with palladium chloride and copper sulfate.

However, ethylene scavenging potential and fruit quality enhancing property of PdCl2 were less investigated, particularly, through impregnation in nanofibre mats and use in packaging material. The present investigation focused on developing a suitable technology using palladium chloride encapsulated nanomats for improving the post-harvest quality of sapota, a popular fruit in tropical countries.

Materials and methods

Experimental material and chemicals

Poly vinyl alcohol (PVA, M.W. 85,000 to 1,24,000) base polymer was purchased from CDH, New Delhi, India for use as a base material for forming the nanofibres. Palladium (II) chloride (PdCl2, M.W. 177.33; palladium content 59–60%) was purchased from Merck and potassium permanganate (KMnO4, M.W. 158.03 and purity 99.5%) was purchased from SRL Chemicals, Mumbai, India. All solutions were prepared using Ultra-pure Grade-II water obtained from a Milli-Q filtration system.

Development and characterisation of electrospun nanofibre

Electrospinning machine (ESPIN-NANO, Physics Instruments CO (PICO), Chennai, India equipped with a variable electrical voltage 10–23 kV power supply was used to prepare nanofibre mats. The composition of the PVA nanofibre mat was optimised for electrospinning conditions: voltage 15 kV, distance 20 cm and flow rate 0.2 mL/h, PVA solution of 10% and essential oils (thyme, betel leaf), β-cyclodextrin (1%) for the formation of smooth and uniform nanofibres (200–300 nm) free of beads (8). Further, ethylene scavenging capacity was induced in composite nanofibres 1–4 by the incorporation of palladium (II) chloride (1, 2, 3, and 4%, respectively) to form molecular inclusion complexes with volatile essential oils. The composition of different composite nanofibres is shown in Table 1. A single dose KMnO4 (4%)-based nanofibre (CNF5) was also developed as a check (keeping other parameters the same as PdCl2–based nanofibres) for comparing the efficacy of PdCl2.

TABLE 1
www.frontiersin.org

Table 1. Composition of electrospun composite nanofibers.

Characterisation of nanofibres

Scanning electron microscope (VEGA-3-SBH, TESCAN, Czech) was used to study the surface morphology of the developed PVA/PdCl2/essential oil/β-cyclodextrin nanofibres (8).

X-ray diffraction

The palladium (II) chloride-loaded nanofibres were characterised using X-ray diffraction (XRD, D8 Advance, Bruker, Japan) with a diffraction angle between 5° and 50° for identifying the structural properties of loaded compounds. The metal components were identified with the help of their retention time and use of standard library: Joint Committee on Powder Diffraction Standards.

Ethylene scavenging capacity

Gas chromatograph (Bruker 450, Bruker Inc., Billerica, MA, USA) was used to determine the ethylene absorption capacity of developed nanofibres. The experiment was conducted in test tubes capped with a rubber gasket. Nanofibres (5 cm2) prepared with the same percentage of PdCl2 were compared with equivalent quantities in the aqueous solution (1 mL). Prepared nanofibres (control, CNF1, CNF2, CNF3, CNF4, and CNF5) were attached to the inside wall of test tubes (30 mL) exactly in centre and capped hermetically with a rubber gasket. Similarly, the tubes with the PdCl2 in varied aqueous solutions of 0–4% (1 mL) were prepared. Ethylene gas (50.8 ppm) was injected into test tubes using a gas injection syringe and the cap was sealed with paraffin film. After 4 h, gas was sampled from tubes with help of a micro syringe and injected into GC-MS to determine the remaining ethylene in each test tube.

Colour

The colour of developed nanofibre mats was determined by Hunter Lab spectrophotometer (MiniScan EZ, Reston, USA) using the Hunter colour parameters L*, a*, b*, Chroma (C), and hue angle (h). The L* indicates lightness co-efficient and ranges from 0 to 100 (black to white), and a* and b* indicate the colour ranges from green to red and blue to yellow from negative to positive on the horizontal and vertical axes, respectively. From these L*, a*, and b* values, the total colour change (ΔE), Hue, and chroma were calculated using the following formula. At least five measurements were performed at different points of the fibre mat (23).

Totalcolourchange(ΔE)=(L-Lo)2+(a-ao)2+(b-bo)2(1)

where, Lo, ao, and bo are initial values and L, a, and b are final values.

Chroma=a2+b2
Hue(h)=tan-1ba

Effect of in-pack composite nanofibre on sapota fruits

The effect of in-pack placement of developed CNF on post-harvest quality (physical, physiological and biochemical properties) of Sapota cv. Kalipatti was evaluated during storage at 26 ± 2°C for 8 days. Composite nanofibre (CNF1 to CNF5) mats of 18 cm2 area in each treatment were cut into two pieces (9 cm2 each) and attached to a corrugated fibreboard box (CFB: 25 cm3 × 25 cm3 × 15 cm3, fruit weight ∼560 g/box). The CNF patches were pasted under both flaps of the lid of the box. Aeration holes (0.5 cm2) were made on all four sides of the box. Fruits were evaluated for their quality and shelf life on alternative days. All parameters were analysed in triplicates. One fruit was randomly sampled from each of the three boxes.

Fruit firmness

The firmness of sapota fruits was measured at three different points along their circumference, as well as the force required to puncture the fruits, using a texture analyser (TA-XT plus, Stable Microsystems, UK) and a 5 kg load cell. About 2 mm diameter probe was used with a test speed of 0.5 mm s–1 and penetration depth of 5 mm (24). The firmness was defined in terms of maximum force (N) during the compression. The first peak in the force deformation curve was taken as the firmness of the fruit. Internal flesh toughness (N.s) was determined by computing the area between the first and last peaks of the force–time curve.

Physiological loss in weight

Individual fruits were numbered in each treatment to record PLW. The weight was recorded using an electronic balance (AND, FX-2000, Japan) on alternative days during storage. The results reported are based on observations of 10 fruits and cumulative PLW was calculated in percentage using the following formula (25).

PLW(%)=(Initialweight-Weightonnthday)Initialweight×100(2)

Respiration rate

The respiration rate of sapota fruits was estimated using respiratory gas analyser (PBI Dansensor, Denmark) under ambient conditions. Fruits from different treatments were kept in a hermetically sealed 1,000 mL container for 2 h at 26°C. The headspace gas was sampled by piercing the syringe attached to rubber septa fixed on the lid of the container for recording the O2 and CO2 values. The respiration rate was determined using the formula (26):

RespirationRate(mgofCO2/kg/h)=%CO2×HeadSpaceFruitweight(g)×Enclosuretime(h)×100(3)

Ethylene evolution rate

Calibration of the gas chromatograph

A Hewlett Packard (H.P.) gas chromatograph (5890 Series II) equipped with a flame ionisation detector (FID), Porapak-N 80/100 mesh packed stainless steel column and a HP integrator was used for the determination of ethylene. The temperature of injector, column and detector was adjusted to 110, 60, and 275°C and the flow rate of nitrogen, hydrogen, and air was maintained as 30, 30, and 300 mL/min, respectively. Some amount of ethylene was collected into a fraction collector from standard calibration gas of ethylene (EDT research, London, UK). One milliliter of standard ethylene was drawn from a fraction collector using a Hamilton gas-tight micro syringe and injected into the G.C. The integrator was calibrated by recording the retention time and peak area of the standard ethylene gas.

Sample preparation

Three fruits from each replication were marked for the determination of ethylene evolution. Once the chromatograph was standardised and calibrated, 1 mL gas sample was drawn through the sub-seal septum with the help of a gas-tight micro syringe after a specified time of trapping the fruit (3 h). The sample was injected into the GC and the concentration of evolved ethylene (ppm) within the time interval was recorded from the integrator. The rate of ethylene evolution was expressed as μL kg–1 h–1 (27).

Ethyleneevolutionrate(μLC2H4/kg/h)=C2H4(μL/L)×Volume(mL)weight(kg)×time(h)(4)

Physico-chemical parameters

Sapota fruits were peeled, pulped, and homogenised for the determination of total soluble solids by using a hand refractometer (Atago, Japan). The values were corrected for 20°C and expressed as °Brix. Titratable acidity (TA) and ascorbic acid content of sapota fruit were estimated using the titration method (28). Total phenols and total flavonoids were determined for 80% ethanolic extracts using spectrophotometric assay (29).

Acceptability score

The acceptability score of fruits was evaluated by a semi-trained panel of 10 judges (four men and six women, aged between 25 and 37 years). All the panellists were trained and had sound expertise in the sensory evaluation of foods. The samples were evaluated on a hedonic scale of 1–9. Fruits were placed on a small white coloured plate with a three-digit code on the side and served to judges. The judges evaluated the intensity of each descriptor by assigning a categorical nine-point hedonic scale. The sample order for each panellist was randomised (30).

Decay index

The decay incidence (in percentage) was determined based on the number of fruits which showed signs of decay over the initial number of fruits. The cumulative number of decayed fruits during storage and ripening was recorded and expressed as a percentage.

DecayIndex(%)=NumberofinfectedfruitsTotalnumberoffruits×100(5)

Statistical analysis

The experiment was carried out in a completely randomised design with three replications. The results were analysed using ANOVA and the treatment means were compared using DMRT (Duncan’s multiple range test) values at a significance level p < 0.05. All the statistical analyses were conducted using SPSS Statistics 17.1 (IBM, New York, USA).

Results and discussion

During our previous work on formulating essential oil encapsulated PVA nanomats to counter the incidence of anthracnose in sapota, the need to arm the nanomat with ethylene scavenger was realised. Although potassium permanganate is commonly used for ethylene scavenging, palladium chloride, a relatively less exploited salt was used to compare the efficacy in vivo form for a high respiring crop like sapota. Since the study targets the packaging requirements of sapota, the experiments were conducted at an average room temperature of the growing areas (26 ± 2°C) to simulate the transit conditions prevalent in the cultivation areas of Gujarat and Karnataka in India.

Scanning electron microscopy

The typical SEM images and fibre diameter histograms of selected encapsulated PVA nanomats are shown in Figure 1. The mean diameter of the CNF1, CNF2, CNF3, CNF4, and CNF5 nanofibres showed an average diameter of the fibre as 243, 256, 233, 302, and 180 nm, respectively. These are in the range of the fibres prepared with essential oils in our previous study (8). With an increase in PdCl2 concentration from 3 to 4%, the fibre diameter also increased from 233 to 302 nm. The KMnO4-based fibre (CNF5) showed the least diameter which may be attributed to its perfect dispersion and distribution in nanofibre mats. Our results agree well with the already reported results by Wen et al. (31, 32) who reported an average size of PVA/CEO/β-CD between 300 and 410 nm and polyvinylpyrrolidone fibres between 230–428 nm in electrospun fibre, respectively.

FIGURE 1
www.frontiersin.org

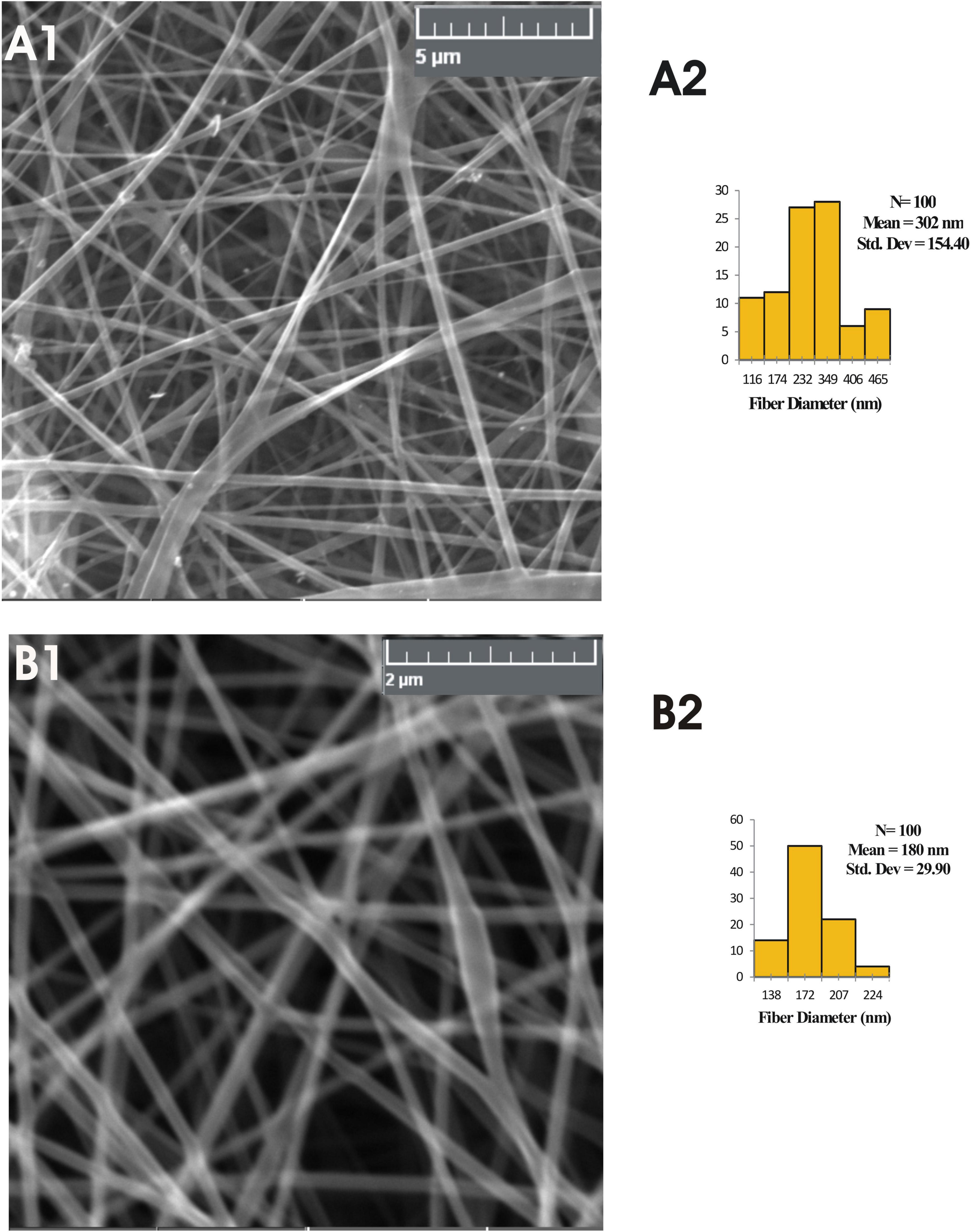

Figure 1. Scanning electron microscopic images (A1,B1) and diameter distribution histograms (A2,B2) of the composite nanofiber mats 4 and 5.

X-ray diffraction

The X-ray diffraction patterns of developed composite nanofibre. XRD is widely used to determine the presence of incorporated compounds by identifying crystallinity peaks. PVA is a semi-crystalline polymer and the XRD of PVA showed broad diffraction at around 2θ∼19.6° and 2θ∼22.5° (33). PdCl2 being a metallic element, its presence in mats was confirmed through broad diffraction at around 2θ∼12° and 2θ∼42.5°. The aluminium diffraction was noticed at around 2θ∼38.5° and 2θ∼45° as it was used as a collector blasé plate during the electrospinning process (33).

The ethylene scavenging capacity of palladium (II) chloride

The observations on ethylene scavenging capacity (ESC) of free PdCl2 and encapsulated PdCl2 are shown in Table 2. The scavenging potential increased with the concentration of free PdCl2. ESC showed a linear increase from 1 to 3%; however, at the 4% level, the ESC increased drastically. ESC (800–814 ppm) for free salts of PdCl2 and KMnO4 at 4% concentration was found equivalent.

TABLE 2
www.frontiersin.org

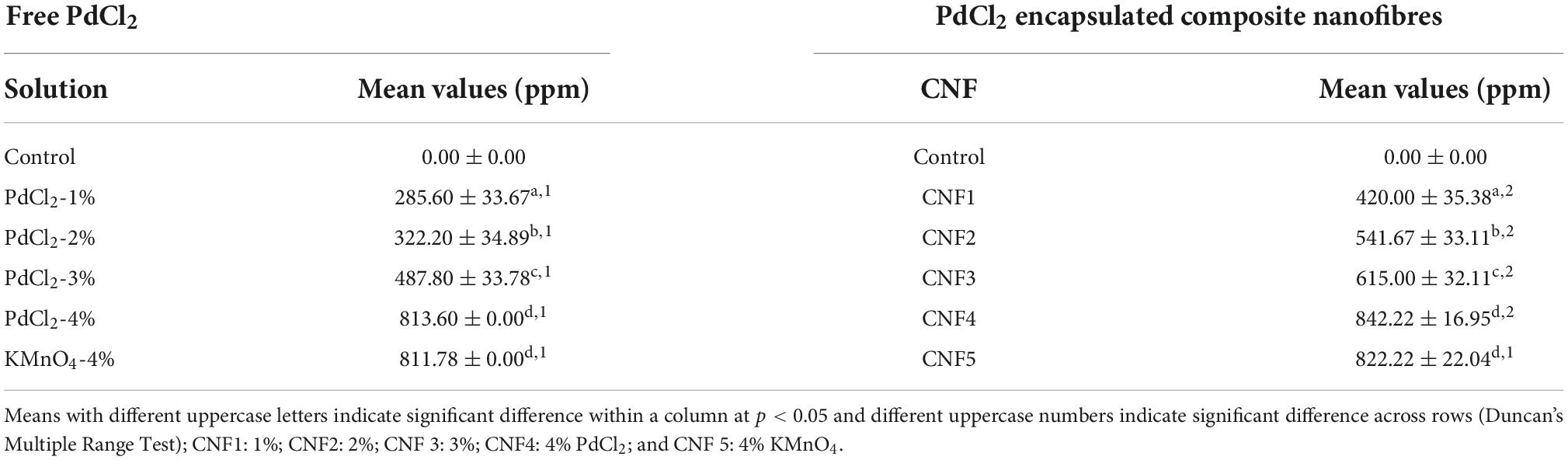

Table 2. Ethylene scavenging capacity of free and palladium (II) chloride encapsulated composite nanofibres.

Similarly, in case of nanofibre, the scavenging potential was the highest for 4% PdCl2 containing CNF (842.22 ppm: Table 2). Higher ESC was recorded when PdCl2 was present in nano-encapsulated form at all concentrations studied. Encapsulated PdCl2 showed 47.16, 68.11, 26.08, and 3.52% higher ESC over soluble salts at 1, 2, 3, and 4% concentrations, respectively. Encapsulated KMnO4 also recorded 1.29% higher ESC compared to its soluble counterpart. This is in accordance with the reported benefits for use of electrospinning as it generates a highly porous interactive surface for active encapsulates to react with the package environment (34). Also, there was no significant difference between the PdCl2 encapsulated (CNF4) nanofibres and KMnO4 nanofibre (CNF5), as both the treatments showed ESC of 842.22 and 822.22 ppm, respectively.

Colour of nanofibre

The colour of the nanomat might have implications in terms of the acceptability of the technique and perception of purity and efficacy. The increased dose of palladium chloride in composite nanofibres led to an increase in Chroma, hue, and total colour. PVA nanofibre was the brightest (L* = 96.5) nanofibre among all. As the dose of PdCl2 increased, the L* value decreased, with the least value recorded for CNF5 (L* = 68.20). CNF5 was the darkest among all the nanofibres (a* = 2.20) followed by CNF4 (a* = 1.92) and the least colouration was observed in only PVA nanofibre (a* = 1.92). The chroma value for PVA was 0.291 which increased from 5.06 for CNF1 to 11.92 for CNF5. Hue value also increased from 1.36 in CNF1 to 1.38 in case of CNF5. The total colour change was least noticed in case of CNF1 (116.11) as compared to highest in CNF5 (949.16). Akinalan Balik et al. (35) in their study on electrospun pectin-based films also reported that for two pectin interlayers’ generated multilayer films, an observer could notice different colours (ΔE*ab ≥ 5) due to the difference in values of b*. Similarly, Fayemi (36) has mentioned a change in colour of polystyrene-based electrospun fibres loaded with palladium chloride (PdCl42–).

Effect of composite nanofibre on sapota quality during storage

Physiological loss in weight

The presence of CNF in the package of sapota fruits led to a substantial decrease in the physiological loss in weight (%) during storage at 26 ± 2°C (Table 3). This could be attributed to higher integrity of fruit tissues, owing to delay in changes leading to senescence by restricting respiration rate. Similar findings of a decrease in senescence-associated changes have been reported by Cao et al. (19) who used activated carbon–PdCl2 and copper sulphate matrix as ethylene scavengers for broccoli. Similarly, Kumar and Thakur (37) have reported lower PLW for pear stored in LDPE film bags containing 15% KMnO4 and 10% iron powder sachets. A progressive loss in the weight of fruit was observed in all treatments during the storage period of up to 8 days. The weight loss of control treatment on day 2 was 3.85% which continued to increase to 17.72% on day 8 recording mean weight loss of 8.35%. This shows a close similarity with the report by Khanvilkar (38) for 13.44% PLW on day 6 for sapota cv. Kalipatti. In contrast, with the CNF4 treatment, 1.15% weight loss was registered on day 2, which continued to increase to 11.08% on day 8, registering mean weight loss of 4.47% for the entire storage period. PLW decreased as a concentration of scavengers increased in nanomats. No significant difference was observed in case of control and CNF1 treatments as lower dose of PdCl2 proved to be non-significant in terms of controlling the weight loss as compared to higher dose treatments. On day 6 of storage, 1.78- and 1.56-fold higher PLW was recorded for control and CNF1 fruits compared to CNF 5. Weight loss on day 8 of storage in case of CNF1, CNF2, and CNF3 was found to be 16.17, 12.94, and 12.05%, respectively. Results concluded that among all the treatments CNF4 and CNF5 performed significantly better in terms of enhancing the shelf life of sapota fruit by delaying the weight loss in fruit. Generally, for subtropical climate, PLW exceeding 10% marks the end of storage life as the fruits become unmarketable due to visible signs of shrivelling. Our research clearly shows that with CNF4 treatment, fruits can be marketed for up to 6–7 days under ambient conditions, compared to 4 days in the control group. As can be seen in the heat map (Figure 2), the performance of CNF4 was better than all other treatments during storage with highest green shaded portion. Our treatment was as effective as that of the other researchers (39). Also, it was observed that CNF4 fruits recorded lower PLW over CNF5 fruits, indicating the better performance of PdCl2 over KMnO4 in a real situation. This could be attributed to higher reactivity for PdCl2 fibres in a moderate humid environment as that of the package, compared to KMnO4. As Hoechst–Wacker reaction is responsible for ethylene scavenging, the role of in-package moisture due to respiration is also a consideration. Recently, Shenoy et al. (40) investigated the efficacy of TiO2 modified with Pd at three relative humidity levels (RH: 0, 50, and 100%) and found that palladium, when deposited on TiO2, acted better at 0 RH and as an ethylene adsorber at higher RH, demonstrating ethylene desorption after 3 weeks. Smith et al. (18) have also reported higher efficacy of ethylene scavenging by Pd over KMnO4 when used in lower quantities at higher humidities. The fact that the ESC experiments in test tubes were carried out at ∼67% RH while in-pack humidity was close to 95% may also explain better performance of PdCl2 over KMnO4. Terry et al. (41) have also reported 6-fold higher scavenging activity of palladium chloride over potassium permanganate (∼ 4,162 μL g–1) under approximately 100% RH. They observed that rather than blocking the perception of ethylene, the Pd-promoted material effectively removes ethylene rapidly from an environment, and thus there is less risk that unwanted side effects occur. Further, Tzeng et al. (42) used zeolites to encapsulate palladium to achieve a highly active catalyst with stability for improving the shelf life of bananas. However, encapsulation in PVA nanofibres seems to have reactive action, though further studies are needed to validate this a reacting action rather than scavenging action.

TABLE 3
www.frontiersin.org

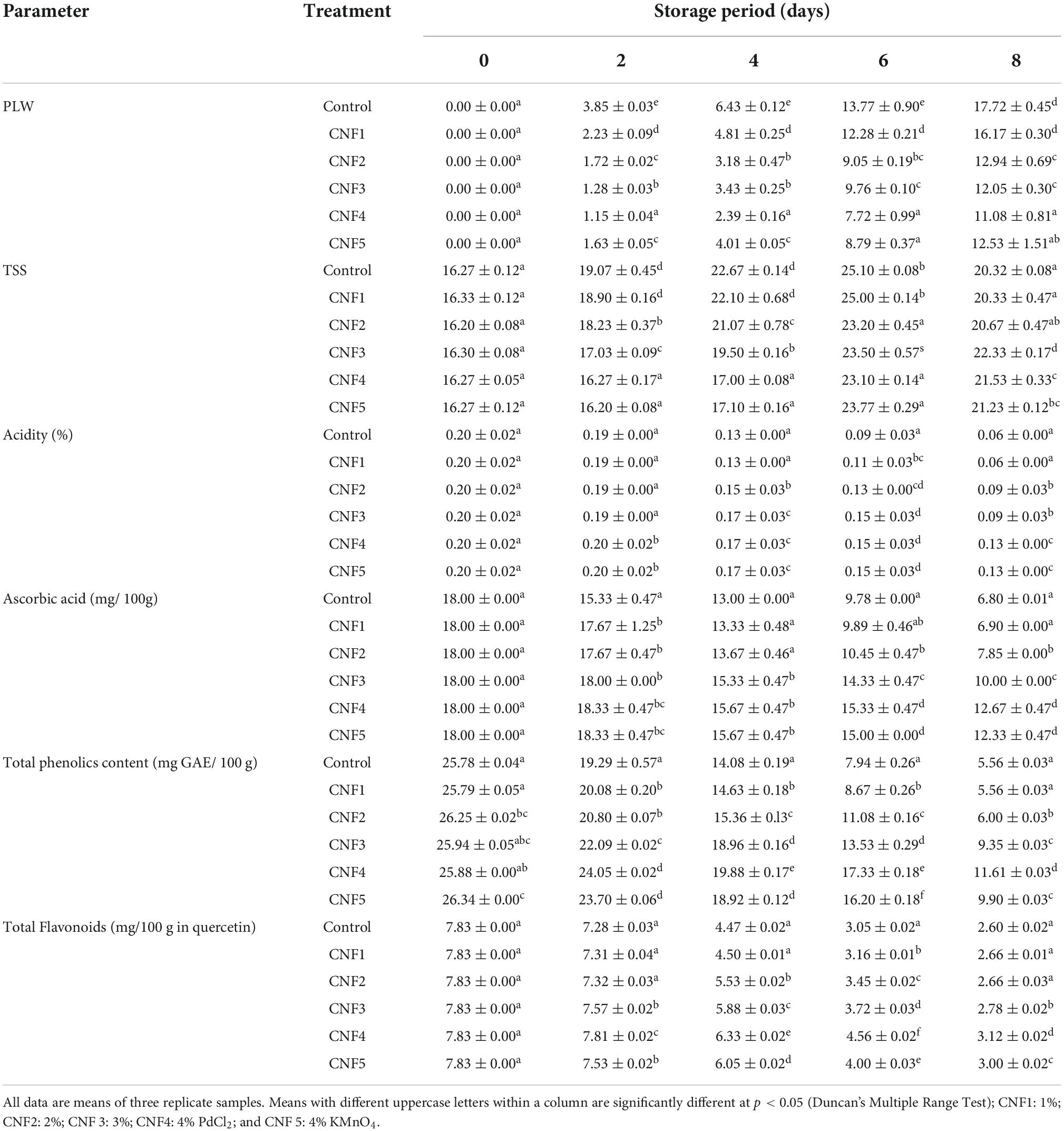

Table 3. Effect of in-pack composite nanofibre placement on physicochemical quality of sapota fruits during storage at 26 ± 2°C.

FIGURE 2
www.frontiersin.org

Figure 2. Heatmap for physicochemical quality parameters of sapota during storage.

Respiration rate

The respiration rate of sapota fruit subjected to different treatments is shown in Figure 3. The respiration rate of fresh sapota fruits in case of control day was recorded as 41.56 mL CO2 kg–1 h–1 which increased to 70.39 mL CO2 kg–1h–1 on day 4 of storage. Highest respiration rate values on day 4 of storage for the fruits arranged in descending order, are as follows: control (70.39 mL CO2 kg–1 h–1) > CNF1 (67.02 mL CO2 kg–1 h–1) > CNF2 (63.05 mL CO2 kg–1 h–1) > CNF3 (58.80 mL CO2 kg–1 h–1) > CNF4 (54.34 mL CO2 kg–1 h–1) > CNF5 (55.57 mL CO2 kg–1 h–1). Bhutia et al. (43) also reported that the respiration rate of Sapota cv. Kalipatti along with KMnO4 ethylene absorbent (59 mL CO2 kg–1 h–1) was significantly less as compared to control (72 mL CO2 kg–1 h–1) on day 3 of storage.

FIGURE 3
www.frontiersin.org

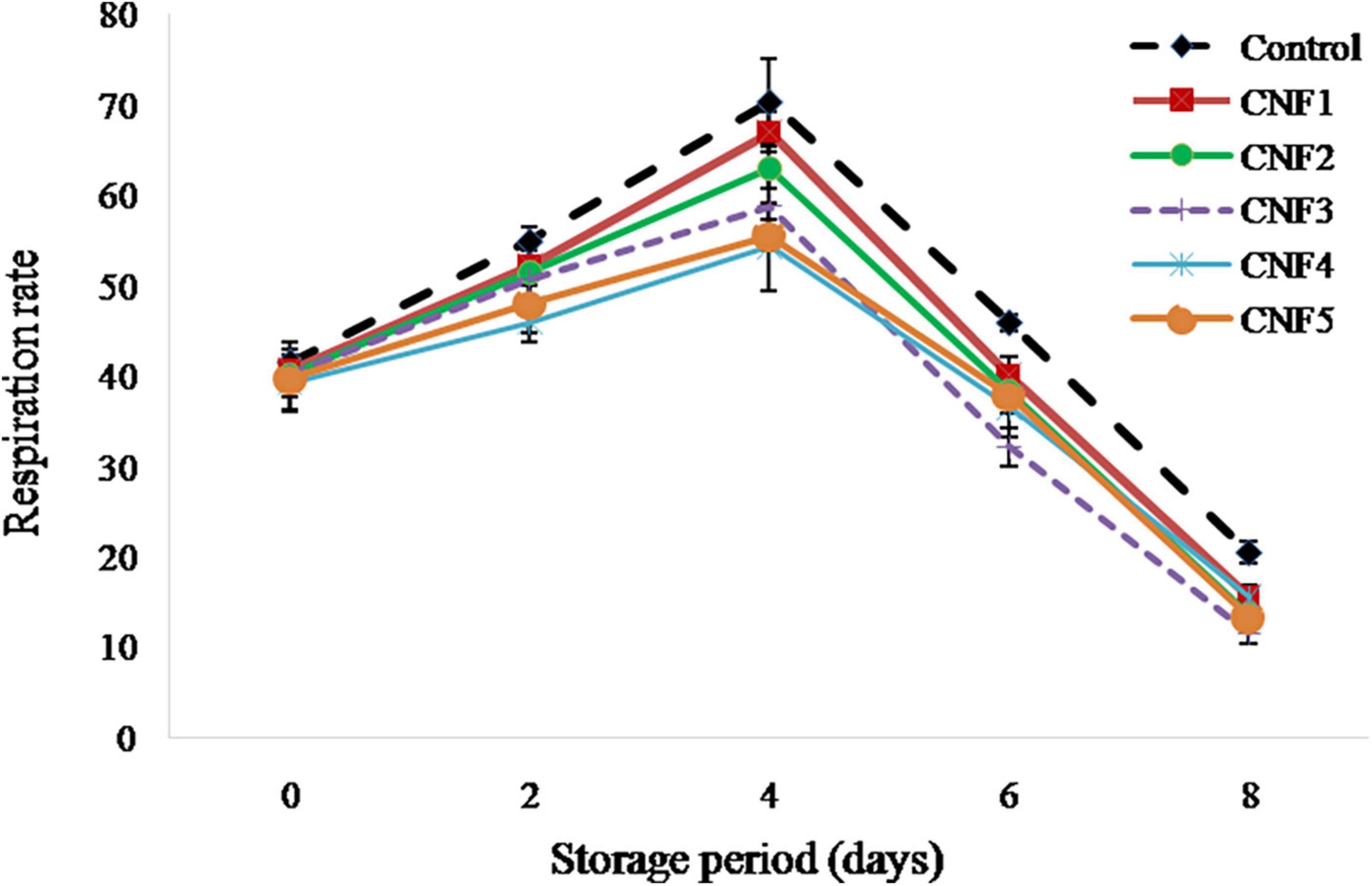

Figure 3. Respiration rate of sapota fruits stored in corrugated fibre board boxes with CNF during storage at 26 ± 2°C.

As sapota is a climacteric fruit, its physiological maturity results showed a significant increase in the respiration rate until day 4 of storage followed by a decrease in the respiration rate till the end of the storage period. The higher respiration rate in case of control sapota fruits is mainly due to higher ethylene production, which is known to stimulate enhanced respiration rate. Considering the cumulative ethylene produced (498.39 ppm) by sapota during storage, theoretically, CNF3 with a scavenging capacity of 615.00 ppm seemed adequate in terms of its performance. In practice, however, the respiration rate was found significantly less in case of CNF4 treatment of sapota as compared to CNFs 1–3 (Figure 2). Our findings are in range with those of Moo-Huchin et al. (44) for sapodilla fruits treated with 1-MCP at 1 μL/L concentration.

Fruit firmness and puncture force

Firmness is an important physical characteristic of fruit used to judge the freshness and market life of sapota fruit by consumers. Besides, high puncture force also indicates suitability for long-distance transport contributing valuably to high shelf life. The effect of different ethylene scavenging and antimicrobial nanofibres on puncture force (N) and flesh firmness of sapota fruit during storage at 26 ± 2°C for 8 days is shown in Figures 4A,B. While the puncture force in control fruits decreased by 82.9% after 8 days of storage, CNF fruits retained significantly more firmness. For CNF4 treatment, a 43.2% decrease was recorded. Further, the puncture force of fruits stored with CNF4 was 24–25% higher than those stored with CNF5, confirming the better performance of PdCl2 as compared to KMnO4 (Figure 2). The flesh firmness of sapota also displayed a linear decrease during storage. While fresh sapota showed firmness of 53.5 N.s, the 8 days stored sapota retained firmness of 19.6 N.s. While the presence of CNF in the package retained higher firmness during storage, the differences became less evident at the end of storage. On day 6, firmness greater than 25 N.s was recorded for both CNF4 and CNF5 treatments, with CNF4 recording higher firmness by 5 N.s. CNF4 treatment displayed 18.9% higher firmness compared to CNF5 on storage day 6. Higher firmness was recorded for tomatoes stored in the presence of KMnO4-loaded sepiolites by Hernandez et al. (16).

FIGURE 4
www.frontiersin.org

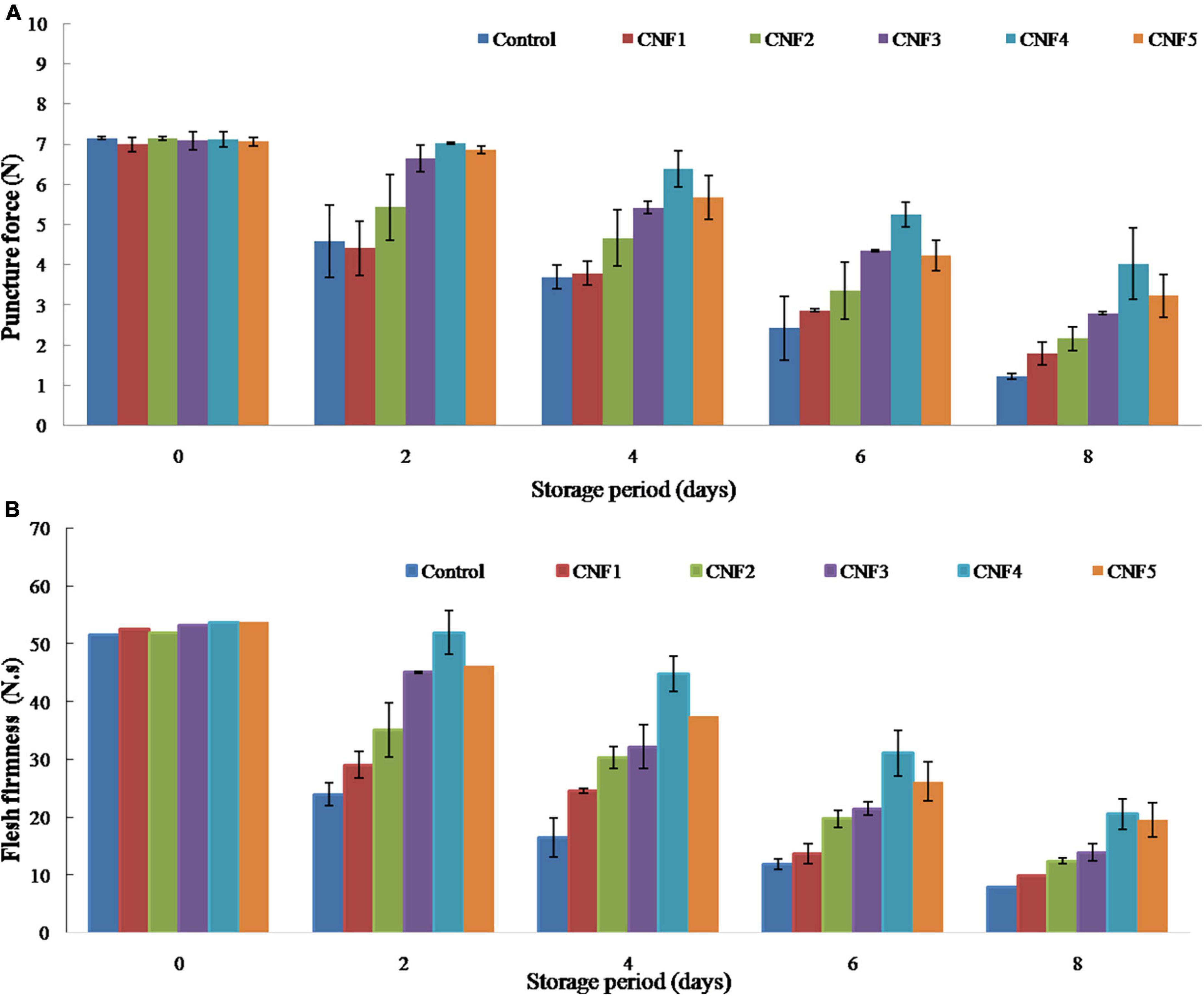

Figure 4. Puncture force (A) and flesh firmness (B) of sapota fruits stored in corrugated fibre board boxes containing CNF during storage at 26 ± 2°C.

Total soluble solids (°B)

Total soluble solids content (TSS) of sapota fruit gradually increased after harvest with the progress of the storage period. Soluble solids level of 20% was found to be optimum in terms of palatability, as determined from the sensory score. A high increase in TSS is also undesirable during storage since it is linked to the moisture content of fruit tissue and the increase can be due to desiccation or ripening. On day 6 of storage, TSS values ranged in descending order are as follows: control (25.10°B) > CNF1 (25.00°B) > CNF2 (23.20°B) > CNF3 (23.50°B) > CNF4 (23.10°B) > CNF5 (23.77°B). The rate of increase in TSS of sapota fruit was delayed in the presence of CNF and among all the treatments, CNF4 showed a significantly lower increase of TSS (Table 3 and Figure 2). Even though the highest TSS of CNF3–CNF5 treatments was >23°B, it, remained lower by 2° over highest (25.1°B) in control. However, it maintained higher acceptability due to higher tissue firmness leading to the perception of freshness (Figure 5).

FIGURE 5
www.frontiersin.org

Figure 5. Sensory score of sapota fruits subjected to various nanomats treatment.

The rate of change in TSS for control, CNF1, CNF2, CNF3, CNF4, and CNF5 treatments during the 8 days storage period was 3.68, 3.66, 3.54, 3.6, 3.43, and 3.44%, respectively. Our findings are in agreement with the reports by Bhutia et al. (43) and Vijayalakshmi et al. (45) in case of CO 1, CO 2, and Kalipatti varieties of sapota subjected to ethylene absorbent treatment.

Ascorbic acid

The ascorbic acid content of physiologically mature sapota fruits was 18 mg/100 g which progressively decreased to 6.8 mg/100 g at the end of storage on day 8 (Table 3). Our findings are in consonance with Tsomu et al. (46) who reported 12.40 mg/100 g ascorbic acid at the ripe stage in Sapota cv. Kalipatti. Ascorbic acid values for sapota fruit on day 6 of storage in descending order are as follows: CNF4 (15.33 mg/100 g) > CNF5 (15.00 mg/100 g) > CNF3 (14.33 mg/100 g) > CNF2 (10.45 mg/100 g) > CNF1 (9.89 mg/100 g) > control (9.78 mg/100 g). Progressive loss in ascorbic acid was observed across all the treatments and storage days but the rate of decrease varied according to the treatments (Figure 2). The decrease in ascorbic acid was rapid for control samples as compared to CNF4 samples. The rate of change in ascorbic acid for control, CNF1, CNF2, CNF3, CNF4, and CNF5 treatments during the 8 days storage period was 1.63, 1.69, 1.79, 2.19, 2.44, and 2.4%, respectively.

Total phenolics and flavonoids

The sharp decline in the total phenolic content in control, CNF1 and CNF2 sample may be attributed to their faster desiccation and high respiration rate, which leads to the metabolic breakdown of stored phenols (47). Limited reports are available for phenolics content of sapota and explaining of sapota fruit during storage. In one study, Recuenco et al. (48) reported that the total phenolics content of sapota fruit at semi-ripe to ripe stages is 68 ± 4 mg GAE/100 g fw. Phenolic content may, however, vary according to the stage of fruit ripening, kind of varieties, and agroclimatic conditions. In the present study, the highest value of phenolic content in sapota fruit was 26.34 mg GAE/100 g FW.

Highest retention of total phenol content was noticed in CNF4 subjected samples (11.61 mg GAE/100 g), followed by CNF5 (9.90 mg GAE/100 g) and CNF3 (9.35 mg GAE/100 g) at the end of day 8 of storage (Table 3). Throughout the storage period, sapota fruits subjected to CNF4 and CNF5 treatment showed significantly (p < 0.05) higher retention of total phenolics as compared to control. On day 6, 34–37% of phenolics were retained by CNF4 and CNF5 treatment compared to fresh fruit. Compared to CNF5, 5–7% higher phenolics were recorded for fruits up to 6 days of storage for CNF4 fruits. This gap increased further on day 8 (17.27%) as CNF4 treatment could help retain higher phenolics during storage.

Along similar lines, in control, CNF1 and CNF2 samples, the total flavonoid content showed a sharp decline after day 2 of storage, reaching values of 2.66 mg/100 g in all three treatments. The maximum retention of total flavonoids was noticed in CNF4 samples (2.87 mg/100 g), followed by the CNF5 sample (2.83 mg/100 g) at the end of day 8 of storage (Table 3). Compared to fresh sapota, 58% of flavonoids were retained on day 6 of storage with CNF 4. CNF4 also showed 3.7–40% higher retention of flavonoids over CNF5 treatment during storage (Figure 2).

Sensory properties

Sensory attributes of sapota fruits subjected to composite nanofibre treatment showed significant differences in taste, odour, colour, appearance, brightness, and overall acceptability as compared to control samples (p < 0.05) during storage at 26 ± 2°C for 8 days (Figure 5). During storage, the odour and taste (p < 0.05) of the fruit were significantly affected. The rate of deterioration was high in case of control samples as compared to nanofibre samples. Physiologically mature stage fruits showed an overall acceptability score of 9. The CNF4 and CNF5 nanofibre samples maintained higher sensory score at the end of day 8 of storage with overall acceptability scores in descending order as follows: control (4) < CNF1 (4) < CNF2 (4.7) < CNF3 (5.3) < CNF4 (6) ∼ CNF5 (6) on day 8 of storage (Figure 2). Off-odour in Control fruits was generally from anaerobic respiration and excessive ripening (49). The nanofibre samples maintained higher score with a mean sensory value of score = 5.2, as compared to control (Score = 4.0).

Conclusion

The incorporation of ethylene scavengers in electrospun nanomats provides higher efficacy of active substances while overriding the use of free salts in sachets. Encapsulated palladium chloride proved to have higher efficacy in maintaining post-harvest shelf life of sapota compared to potassium permanganate as clearly shown in the heat map (Figure 2). Since ethylene plays a secondary role in the growth of fungi, such ethylene scavenging packaging aids with antimicrobial activity have immense potential to control fungal spoilage of subtropical climacteric horticultural commodities. The efficacy of composite nanofibres in enhancing the shelf life of highly climacteric sapota fruits consolidates its better effectiveness for other fruits. Humidity-triggered release of ethylene scavengers and essential oils from nanofibres can be further explored to design fruit package structures for subtropical climate conditions. These nanomats can have broad applications in the field of packaging and transportation of fruits, vegetables, and even flowers.

Data availability statement

The original contributions presented in this study are included in the article/supplementary material, further inquiries can be directed to the corresponding author.

Author contributions

GG: investigation, validation, and formal analysis. SR: conceptualization, writing—original draft, review and editing, and supervision. RP and TB: methodology, resources, and formal analysis. SS: visualization and supervision. SD: methodology and resources. AG: formal analysis. AA: visualization. All authors contributed to the article and approved the submitted version.

Funding

This study was supported by ICAR-Indian Agricultural Research Institute, New Delhi, India.

Acknowledgments

The authors are thankful to the Post Graduate School, ICAR-Indian Agricultural Research Institute for supporting the research through the fellowship to GG. The support of KRC College of Horticulture, Arabhavi, Karnataka for providing sapota fruits and Green Leaf Pvt., Ltd., for providing essential oil is kindly acknowledged.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

References

1. Biji KB, Ravishankar CN, Mohan CO, Gopal TS. Smart packaging systems for food applications: a review. J Food Sci Technol. (2015) 52:6125–35. doi: 10.1007/s13197-015-1766-7

PubMed Abstract | CrossRef Full Text | Google Scholar

2. Prasad P, Kochhar A. Active packaging in food industry: a review. J Environ Sci Toxicol Food Technol. (2014) 8:1–7. doi: 10.9790/2402-08530107

CrossRef Full Text | Google Scholar

3. Arevalo Galarza L, Saucedo Veloz C, Colinas Leon MT, Mena Nevares G. Wax and CEPA applications on fruits of sapodilla (Manilkarasapota L.). Rev Chapingo Ser Hortic. (1999) 5:83–8. doi: 10.5154/r.rchsh.1998.07.043

CrossRef Full Text | Google Scholar

4. Yahia EM, Gutierrez-Orozco F. Sapodilla (Manilkaraachras (Mill) Fosb., syn Achras sapota L.). In: M Yahia editor. Postharvest Biology and Technology of Tropical and Subtropical Fruits. (Vol. 363), Sawston: WoodheadPublishing Limited (2011). p. 351–62. doi: 10.1533/9780857092618.351

CrossRef Full Text | Google Scholar

5. Alia-Tejacal I, Villanueva-Arce R, Pelayo-Zaldívar C, Colinas-León MT, López-Martínez V, Bautista-Baños S. Postharvest physiology and technology of sapotemamey fruit (Pouteria sapota (Jacq.) HE Moore & Stearn). Postharvest Biol Technol. (2007) 45:285–97. doi: 10.1016/j.postharvbio.2006.12.024

CrossRef Full Text | Google Scholar

6. Kader AA. Sapotes (Sapodilla and Mamey Sapote): Recommendations for Maintaining Postharvest Quality. Davis, CA: Department of Plant Sciences, University of California (2009).

Google Scholar

7. Siddiqui MW, Longkumer M, Ahmad MS, Barman K, Thakur PK, Kabir J. Postharvest biology and technology of sapota: a concise review. Acta Physiol Plant. (2014) 36:3115–22. doi: 10.1007/s11738-014-1696-4

CrossRef Full Text | Google Scholar

8. Gundewadi G, Rudra SG, Gogoi R, Banerjee T, Singh SK, Dhakate S, et al. Electrospun essential oil encapsulated nanofibres for the management of anthracnose disease in Sapota. Ind Crops Prod. (2021) 170:113727. doi: 10.1016/j.indcrop.2021.113727

CrossRef Full Text | Google Scholar

9. Saxena M, Kumar P, Gupta RP, Bhargav H, Thakur B. Horticultural Statistics at a Glance. New Delhi: Horticulture Statistics division, Department of Agriculture, cooperation & farmers welfare, Ministry of agriculture & farmers welfare, Government of India (2018).

Google Scholar

10. Gaikwad KK, Singh S, Negi YS. Ethylene scavengers for active packaging of fresh food produce. Environ Chem Lett. (2020) 18:269–84. doi: 10.1007/s10311-019-00938-1

CrossRef Full Text | Google Scholar

11. Singh S, Gaikwad KK, Lee YS. Phase change materials for advanced cooling packaging. Environ Chem Lett. (2018) 16:845–59. doi: 10.1007/s10311-018-0726-7

CrossRef Full Text | Google Scholar

12. Rafiq M, Hussain T, Abid S, Nazir A, Masood R. Development of sodium alginate/PVA antibacterial nanofibers by the incorporation of essential oils. Mater Res Express. (2018) 5:1–13. doi: 10.1088/2053-1591/aab0b4

CrossRef Full Text | Google Scholar

13. Xue J, Wu T, Dai Y, Xia Y. Electrospinning and electrospun nanofibers: methods, materials, and applications. Chem Rev. (2019) 119:5298–415. doi: 10.1021/acs.chemrev.8b00593

PubMed Abstract | CrossRef Full Text | Google Scholar

14. Çallıoğlu FC, Güler HK, Çetin ES. Emulsion electrospinning of bicomponent poly (vinyl pyrrolidone)/gelatin nanofibers with thyme essential oil. Mater Res Express. (2019) 6:125013. doi: 10.1088/2053-1591/ab5387

CrossRef Full Text | Google Scholar

15. Siripatrawan U, Kaewklin P. Fabrication and characterization of chitosan-titanium dioxide nanocomposite film as ethylene scavenging and antimicrobial active food packaging. Food Hydrocoll. (2018) 84:125–34. doi: 10.1016/j.foodhyd.2018.04.049

CrossRef Full Text | Google Scholar

16. Hernandez Á, Hazel M, Benito G, Hernández M, Avalos-Belmontes F, Daniel F, et al. Postharvest quality retention of apricots by using a novel sepiolite–loaded potassium permanganate ethylene scavenger. Postharvest Biol Technol. (2020) 160:111061. doi: 10.1016/j.postharvbio.2019.111061

CrossRef Full Text | Google Scholar

17. Martinez-Romero D, Guillén F, Castillo S, Zapata PJ, Serrano M, Valero D. Development of a carbon-heat hybrid ethylene scrubber for fresh horticultural produce storage purposes. Postharvest Biol Technol (2009) 51:200–5. doi: 10.1016/j.postharvbio.2008.07.013

CrossRef Full Text | Google Scholar

18. Smith AW, Poulston S, Rowsell L, Terry LA, Anderson JA. A new palladium-based ethylene scavenger to control ethylene-induced ripening of climacteric fruit. Plat Metals Rev. (2009) 53:112–22. doi: 10.1595/147106709X462742

CrossRef Full Text | Google Scholar

19. Cao J, Li X, Wu K, Jiang W, Qu G. Preparation of a novel PdCl2–CuSO4–based ethylene scavenger supported by acidified activated carbon powder and its effects on quality and ethylene metabolism of broccoli during shelf-life. Postharvest Biol Technol. (2015) 99:50–7. doi: 10.1016/j.postharvbio.2014.07.017

CrossRef Full Text | Google Scholar

20. Martínez-Romero D, Guillén F, Castillo S, Zapata PJ, Valero D, Serrano M. Effect of ethylene concentration on quality parameters of fresh tomatoes stored using a carbon-heat hybrid ethylene scrubber. Postharvest Biol. Technol. (2009) 51:206–11. doi: 10.1016/j.postharvbio.2008.07.011

CrossRef Full Text | Google Scholar

21. Meyer MD, Terry LA. Fatty acid and sugar composition of avocado, cv. Hass in response to treatment with an ethylene scavenger or 1-methylcyclopropene to extend storage life. Food Chem. (2010) 121:1203–10. doi: 10.1016/j.foodchem.2010.02.005

CrossRef Full Text | Google Scholar

22. Cao X, Mirjalili A, Wheeler J, Xie W, Jang BWL. Investigation of the preparation methodologies of Pd-Cu single atom alloy catalysts for selective hydrogenation of acetylene. Front Chem Sci Eng. (2015) 9:442–9. doi: 10.1007/s11705-015-1547-x

CrossRef Full Text | Google Scholar

23. Gundewadi G, Rudra SG, Sarkar DJ, Singh D. Nanoemulsion based alginate organic coating for shelf life extension of okra. Food Packag Shelf Life. (2018) 18:1–12. doi: 10.1016/j.fpsl.2018.08.002

CrossRef Full Text | Google Scholar

24. Raja V, Shanmugasundaram S. Development of capacitance based nondestructive ripening indices measurement system for sapota (Manilkara zapota). J Food Process Eng. (2020) 43:e13307. doi: 10.1111/jfpe.13307

CrossRef Full Text | Google Scholar

25. Madhav JV, Sethi S, Sharma RR, Nagaraja A, Arora A, Varghese E. Influence of bilayer coating of salicylic acid and edible wax on chilling injury and functional attributes of guava. J Food Process Preserv. (2021) 45:e15601. doi: 10.1111/jfpp.15601

CrossRef Full Text | Google Scholar

26. Ong MK, Forney CF, Alderson PG, Ali A. Postharvest profile of a Solo variety ‘Frangi’during ripening at ambient temperature. Sci Hortic. (2013) 160:12–9. doi: 10.1016/j.scienta.2013.05.026

CrossRef Full Text | Google Scholar

27. Sharma S, Sharma RR. Impact of staggered treatments of novel molecules and ethylene absorbents on postharvest fruit physiology and enzyme activity of ‘Santa Rosa’plums. Sci Hortic. (2016) 198:242–8. doi: 10.1016/j.scienta.2015.11.043

CrossRef Full Text | Google Scholar

28. Ranganna S. Handbook of Analysis and Quality Control for Fruit and Vegetable Products. New York, NY: Tata McGraw-Hill Education (1986).

Google Scholar

29. Rudra SG, Gundewadi G, Kaur C, Singh G. Exploring varietal differences in nutritional and antioxidant potential of mango kernel and its use for enrichment of pasta. Fruits Int J Trop Subtrop Hortic. (2019) 74:227–35. doi: 10.17660/th2019/74.5.3

PubMed Abstract | CrossRef Full Text | Google Scholar

30. Lee J, Chambers DH. A lexicon for flavor descriptive analysis of green tea. J Sens Stud. (2007) 22:256–72. doi: 10.1111/j.1745-459X.2007.00105.x

PubMed Abstract | CrossRef Full Text | Google Scholar

31. Wen P, Zhu DH, Feng K, Liu FJ, Lou WY, Li N, et al. Fabrication of electrospun polylactic acid nanofilm incorporating cinnamon essential oil/β-cyclodextrin inclusion complex for antimicrobial packaging. Food Chem. (2016a) 196:996–1004.

Google Scholar

32. Wen P, Zhu DH, Wu H, Zong MH, Jing YR, Han SY. Encapsulation of cinnamon essential oil in electrospun nanofibrous film for active food packaging. Food Control. (2016b) 59:366–76.

Google Scholar

33. Kumar S, Jain G, Singh BP, Dhakate SR. Tunable photoluminescence of polyvinyl alcohol electrospunnanofibres by doping of nayf4: eu+3 nanophosphor. J Nanomater. (2020) 2020:1–8. doi: 10.1155/2020/1023589

CrossRef Full Text | Google Scholar

34. Hezma AM, Rajeh A, Mannaa MA. An insight into the effect of zinc oxide nanoparticles on the structural, thermal, mechanical properties and antimicrobial activity of Cs/PVA composite. Colloids Surf A Physicochem Eng Asp. (2019) 581:123821. doi: 10.1016/j.colsurfa.2019.123821

CrossRef Full Text | Google Scholar

35. Akinalan Balik B, Argin S, Lagaron JM, Torres-Giner S. Preparation and characterization of electrospun pectin-based films and their application in sustainable aroma barrier multilayer packaging. Appl Sci. (2019) 9:5136. doi: 10.3390/app9235136

CrossRef Full Text | Google Scholar

36. Fayemi OE. The Development of Platinum and Palladium-selective Polymeric Materials. Doctoral dissertation, Rhodes University, Makhanda (2012).

Google Scholar

37. Kumar S, Thakur KS. Active packaging technology to retain storage quality of pear cv.“Bartlett” during shelf-life periods under ambient holding after periodic cold storage. Packag Technol Sci. (2020) 33:239–54. doi: 10.1002/pts.2501

CrossRef Full Text | Google Scholar

38. Khanvilkar MH. Post Harvest Handling and Processing of Sapota (Manilkara achrus (mill) forsberg) cv. Kalipatti. Doctoral dissertation, MPUAT, Udaipur (2017).

Google Scholar

39. Foo SY, Hanani ZN, Rozzamri A, Ibadullah WW, Ismail-Fitry MR. Effect of chitosan–beeswax edible coatings on the shelf-life of sapodilla (Achras zapota) fruit. J Packag Technol Res. (2018) 3:27–34. doi: 10.1007/s41783-018-0047-0

CrossRef Full Text | Google Scholar

40. Shenoy S, Pathak N, Molins A, Toncheva A, Schouw T, Hemberg A, et al. Impact of relative humidity on ethylene removal kinetics of different scavenging materials for fresh produce industry. Postharvest Biol Technol. (2022) 188:111881. doi: 10.1016/j.postharvbio.2022.111881

CrossRef Full Text | Google Scholar

41. Terry LA, Ilkenhans T, Poulston S, Rowsell L, Smith AWJ. Development of new palladium-promoted ethylene scavenger. Postharvest Biol Technol. (2007) 45:214–20. doi: 10.1016/j.postharvbio.2006.11.020

CrossRef Full Text | Google Scholar

42. Tzeng JH, Weng CH, Huang JW, Shiesh CC, Lin YH. Application of pd-modified zeolite for prolonging post-harvest shelf life of banana. J Sci Food Agric. (2019) 99:3467–74. doi: 10.1002/jsfa.9565

PubMed Abstract | CrossRef Full Text | Google Scholar

43. Bhutia W, Pal RK, Sen S, Jha SK. Response of different maturity stages of sapota (Manilkara achras Mill.) cv. Kallipatti to in-package ethylene absorbent. J Food Sci Technol. (2011) 48:763–8. doi: 10.1007/s13197-011-0360-x

PubMed Abstract | CrossRef Full Text | Google Scholar

44. Moo-Huchin VM, Estrada-Mota IAA, Estrada-Leon RJ, Ortiz-Vazquez E, Cuevas-Glory LF, Sauri-Duch E, et al. Responses of sapodilla fruit (Manilkarazapota [L.] P. Royen) to postharvest treatment with 1-methylcyclopropene. Afri J Agric Res. (2013) 8:1050–8.

Google Scholar

45. Vijayalakshmi D, Banganisamy U, Vijaykumar M. Postharvest treatments to extend the shelf life of sapota fruits cultivars CO-1 and CO-2. Crop Res. (2004) 27:219–26.

Google Scholar

46. Tsomu T, Patel HC, Thakkar RM, Ajang M, Vasara RP. Response of post-harvest treatments of chemical and plant growth regulators on biochemical characteristics of sapota fruit cv. Kalipatti. Bioscan. (2015) 10:33–6.

Google Scholar

47. Nair MS, Saxena A, Kaur C. Characterization and antifungal activity of pomegranate peel extract and its use in polysaccharide-based edible coatings to extend the shelf-life of capsicum (Capsicum annuum L.). Food Bioproc Technol. (2018) 11:1317–27. doi: 10.1007/s11947-018-2101-x

CrossRef Full Text | Google Scholar

48. Recuenco MC, Lacsamana MS, Hurtada WA, Sabularse VC. Total phenolic and total flavonoid contents of selected fruits in the Philippines. Philipp J Sci. (2016) 145:275–81.

Google Scholar

49. Klangmuang P, Sothornvit R. Active coating from hydroxypropyl methylcellulose-based nanocomposite incorporated with Thai essential oils on mango (cv. Namdokmai Sithong). Food Biosci. (2018) 23:9–15. doi: 10.1016/j.fbio.2018.02.012

CrossRef Full Text | Google Scholar

Keywords: ethylene scavenging, palladium chloride, electrospinning, nanofibre, sapota

Citation: Gundewadi G, Rudra SG, Prasanna R, Banerjee T, Singh SK, Dhakate SR, Gupta A and Anand A (2022) Palladium encapsulated nanofibres for scavenging ethylene from sapota fruits. Front. Nutr. 9:994813. doi: 10.3389/fnut.2022.994813

Received: 15 July 2022; Accepted: 20 September 2022;
Published: 09 November 2022.

Edited by:

Coralia Garcia, Keimyung University, South Korea

Reviewed by:

Felipe Avalos, Universidad Autónoma de Coahuila, Mexico
Yanqun Xu, Zhejiang University, China

Copyright © 2022 Gundewadi, Rudra, Prasanna, Banerjee, Singh, Dhakate, Gupta and Anand. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.

*Correspondence: Shalini Gaur Rudra, shalinigaur@iari.res.in; gaurshalini@gmail.com

These authors share first authorship

Disclaimer: All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
