Guifeng Zhang
Chuang Liu
Rentang Zhang- Key Laboratory of Food Processing Technology and Quality Control of Shandong Higher Education Institutes, College of Food Science and Engineering, Shandong Agricultural University, Tai'an, Shandong, China
Liver cancer is one of the most common cancers, with increasing trends in incidence and mortality. A novel acidic polysaccharide (BJP-2) obtained from blackened jujube was extracted by hot water followed by chromatographic purification employing DEAE-cellulose 52 and Sephadex G-100 column. And then BJP-2 was identified by SEC-MALLS-RI, GC-MS, methylation and NMR for the following characteristics: molecular weight of 6.42 × 104 Da, monosaccharide composition of glucuronic acid (GalA), arabinose (Ara), galactose (Gal), rhamnose (Rha), xylose (Xyl), glucuronic acid (GlcA), glucose (Glc), fucose (Fuc) and mannose (Man) with the percentage of 39.78, 31.93, 16.86, 6.43, 1.86, 1.28, 1.02, 0.61, and 0.23%, as well as the main chain of → 5)-α-L-Araf (1 → 4)-β-D-Gal(1 → , T-α-L-Araf (1 → 4)-β-D-Gal(1 → , and → 4)-α-L-6MeGalAp(1 → . The effect of BJP-2 on the apoptosis of HepG2 cells and its anti-tumor mechanism were further explored. The analysis by MTT and flow cytometry showed that BJP-2 suppressed cell proliferation by inducing apoptosis in a concentration-dependent manner. Cell scratching and Transwell revealed that BJP-2 was able to block the invasion and metastasis of tumor cells. Western blot results demonstrated that BJP-2 exhibited antitumor activity through a mitochondria-dependent pathway, as evidenced by overexpression of Bax, Cleaved Caspase-3/Caspase-3 and Cleaved Caspase-9/Caspase-9 and downregulation of Bcl-2. Therefore, BJP-2 has broad research prospects as a tumor preventive or therapeutic agent.
Introduction
At present, malignant tumors are one of the most serious diseases that threaten human health and life, and are classified into liver cancer, lung cancer, breast cancer, colorectal cancer and so on, according to their sites of development (1–3). Of these, liver cancer has a high incidence in China, accounting for more than 50% of new liver cancer patients worldwide each year, and its danger should not be underestimated (4). With the advancement of medical technology, surgery, radiotherapy and chemotherapy are three key and effective means of cancer treatment (5). However, many of the side effects can lead to a decrease in the immune function of the patient's organism, while the drug relieves symptoms and extends the patient's life (6). Therefore, the investigation and discovery of novel antitumor drugs with low cost, low toxicity and high efficiency are of vital importance.
Plant polysaccharides, a polymeric sugar polymer carbohydrate consisting of more than 10 monosaccharides extracted from plants, has various pharmacological effects such as antitumor, anti-inflammatory, antioxidant, immunomodulatory and hypoglycemic (7–9). Among them, the antitumor activity of plant polysaccharides has been widely studied and recognized, and the mechanisms include prevention of tumorigenesis, activation of immune response, direct inhibition and killing of tumor cells, enhancement of the body's anti-free radical effect and inhibition of angiogenesis in tumor tissues (10).
Jujube (Ziziphus jujuba Mill.) contains abundant active ingredients such as polysaccharides, flavonoids, polyphenols and saponins, and thus has versatile health and medicinal values (11, 12). The cell experiments showed that a polysaccharide fraction (HJP3) obtained from Zizyphus jujuba cv. Muzao significantly suppressed the proliferation of HepG2 cells, but was not cytotoxic to non-tumor cell lines, and the analysis might be that HJP3 exerted anti-tumor activity directly and induced apoptosis of tumor cells (13). Zizyphus jujuba cv.Ruoqiangzao seed polysaccharides, obtained by ultrasound-assisted-hot water extraction, exhibited concentration-dependent inhibition of proliferation of HeLa cells, probably through induction of apoptosis (14). A Zizyphus jujuba cv. Goutouzao polysaccharide with antioxidant activity that prevented LoVo cells growth, which was mediated by inducing apoptosis and enhancing intracellular reactive oxygen species secretion (15). Blackened jujube, a new kind of jujube processing product, is made by fermenting dried jujube in a high temperature and high humidity environment (16–18). Blackened jujube polysaccharides purified from Z. jujuba cv. Hamidazao have previously been reported to exert excellent antioxidant capacity in vitro compared to dried jujube, including free radical scavenging and total reducing capacity (19). Z. jujuba cv. Huizao polysaccharides have been shown to have immunomodulatory effects by improving serum hemolysin formation and increasing the phagocytic capacity of macrophages (20). Taking into account the close relationship between antitumor ability and immunomodulatory activity, we speculated that black jujube polysaccharide had good anti-tumor activity. To the best of our knowledge, the anti-tumor activity of polysaccharides from blackened jujube has never been investigated. This greatly limited their application in the field of pharmaceuticals and functional foods. Therefore, it is quite necessary to evaluate the structural characteristics and anti-tumor activity of polysaccharides from blackened jujube (made from Z. jujuba cv. Huizao).
The highest mass yield of BJP-2 (25.8%) was obtained by using the earlier described technique which employed hot water extraction followed by a DEAE-cellulose 52 and Sephadex G-100 column (21). In this study, the structure of BJP-2 was systematically presented by multi-angle laser light scattering combined with SEC and differential refractive index detector (SEC-MALLS-RI), gas chromatography-mass spectrometry (GC-MS), methylation, and nuclear magnetic resonance (NMR, 1D and 2D). Furthermore, human hepatocellular carcinoma cells (HepG2) were used as a model to investigate its anti-tumor ability and mechanism.
Materials and methods
Materials
Z. jujuba cv. Huizao fruits were provided by Guorentang Food Technology Co., Ltd. (Shandong, China). HepG2 cells were obtained from Shandong Analysis and Testing Center (Jinan, China). High glucose Dulbecco's modified eagle medium (DMEM), fetal bovine serum (FBS), penicillin and streptomycin were provided from Gibco Biotechnology Co., Ltd. (Grand Island, New York, USA). Monosaccharide standards (Fuc, Rha, Ara, Gal, Glc, Xyl, Man, Fru, Rib, GalA, GulA, GlcA and ManA), 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT), trifluoroacetic acid (TFA), Mitomycin C and NaBH4 were bought from Sigma-Aldrich (St. Louis, MO, USA).Bicinchoninic Acid (BCA) protein kit and protein extraction kit were purchased from Beyotime Biotechnology Co., Ltd. (Shanghai, China). The Annexin V-Fluorescein Isothiocyanate/Propidium Iodide (FITC/PI) Apoptotic Cell Detection Kit and antibodies (Bcl-2, Bax, Caspase-3, Cleaved Caspase-3, Caspase-9 and Cleaved Caspase-9) were obtained from Wanlei Biotechnology Co., Ltd. (Shenyang, China). All other chemicals and reagents were of analytical reagent grade.
Structural features of BJP-2
Chemical analysis
The chemical composition of BJP-2 was determined based on the previous method (22, 23). To determine total sugar content, the phenol-sulfuric acid method was used, with glucose as the standard. Using bovine serum albumin as the reference, the Bradford method was adopted to assay the protein content. For the determination of total phenol content, the Folin-Ciocalteu colorimetric method was applied. The total flavonoid content was estimated with sodium nitrite-aluminum nitrite method, using rutin as the standard.
Molecular weight distribution
As described by previous studies (24), briefly, the solution of BJP-2 (1 mg/ml) was configured with 1 M NaNO3 as a solvent and passed through a filter (0.45 μm). A DAWN HELEOS-II laser photometer (Wyatt Technology Co., Santa Barbara, CA, USA) equipped with three tandem columns (300 × 8 mm, Shodex OH-pak SB-805, 804 and 803; Showa Denko K.K., Tokyo, Japan) was used for the determination under the following conditions: column temperature of 45°C, flow rate of 0.4 ml/min, injection volume of 100 μl, and mobile phase A of 0.1 M NaNO3. Data were acquired and processed using ASTRA6.1 (Wyatt Technologies Inc., USA).
Monosaccharide composition
5.00 mg of BJP-2 powder was transferred to a chromatographic sample bottle and then hydrolyzed by TFA (2 M, 1 ml) for 2 h at 121°C, after which it was repeatedly washed three times with methanol and blow-dried with nitrogen. The residue was re-dissolved in deionized water and purified through a 0.22 μm microporous filter before determination on an HPAEC-PAD (Thermo Fisher ICS-5000+, USA) equipped with a Dionex™ CarboPac™ PA-20 chromatography column (Dionex, 3 × 150 mm). Conditions: flow rate, 0.5 ml/min; injection volume, 5 μl; solvent system, B: (0.1 M NaOH, 0.2 M NaAc); gradient program, 95:5 V/V at 0 min, 80:20 V/V at 30 min, 60:40 V/V at 30.1 min, 60:40 V/V at 45 min, 95:5 V/V at 45.1 min, 95:5 V/V at 60 min (25). The different monosaccharides were identified and quantified based on the retention time and peak area of the monosaccharide standards.
Methylation analysis
As previously reported data (19), the BJP-2 solution (10 mg/ml, 1 ml) was added to carbodiimide (100 mg/ml, 1 ml) for 2 h and then reacted with imidazole and NaBD4 (10 mg/ml, 1 ml) for 3 h, respectively. The mixture was terminated by acetic acid (10 μl), followed by dialysis and freeze-drying. Next, the sample was dissolved by DMSO (500 μl) and then treated by methylation with NaOH (50 μl) and methyl iodide solutions for 30 min and 1 h, respectively. The target, obtained by dichloromethane extraction followed by nitrogen flow drying, was hydrolyzed by TFA (2 M, 100 μl) at 121°C for 1.5 h and then treated by ammonia (2 M, 50 μl) and NaBD4 (1 M, 50 μl) at room temperature for 2.5 h. After termination by acetic acid (20 μl)and blowing dry under nitrogen, the resulting sample was acetylated for 2.5 h at 100°C using acetic anhydride (250 μl) and finally extracted with dichloromethane (500 μl). A gas chromatograph-mass spectrometer (GC-MS, Agilent 7890A-5977B, Agilent, Santa Clara, CA, USA) equipped with a BPX70 GC column (30 cm × 0.25 mm × 0.25 μm) was employed. GC parameters: injection volume of 1 μl, splitting ratio of 10:1, carrier gas of high-purity helium, initial temperature of 140°C held for 2.0 min, program of 3°C/min, 230°C held for 3 min. MS parameters: a mode of full scan and a mass scan range setting of 30–600 m/z.
NMR spectroscopy analysis
1D NMR spectra (1H and 13C) and 2D NMR spectra [correlation spectroscopy (COSY), heteronuclear single quantum coherence (HSQC), heteronuclear multiple bond coherence (HMBC) and nuclear overhauser effect spectroscopy (NOESY)] were performed by high-resolution AVANCE III 600 NMR spectrometer (Bruker, Germany). After dissolving 30 mg of BJP-2 in D2O, it was added to the NMR tube, and then the spectra were recorded at 25°C.
Antitumor activity of BJP-2 in vitro
Cell culture and viability
DMEM medium containing penicillin (100 U/ml) with 10% FBS, 1% penicillin and 1% streptomycin was used to incubate HepG2 cells at 37°C with 5% CO2. The effects of BJP-2 on the viability of HepG2 cells were assayed by MTT assay (26). HepG2 cells (5 × 103 cells/well) were stimulated for 48 h with different concentrations of BJP-2 (0, 50, 100, 200, 400, 800 μg/ml) after cells were cultured overnight in 96-well plates. Reaching time, the medium was removed and 20 μl MTT was added to each well, and then placed in an incubator at 37°C and 5% CO2 for 4 h. After that, the cell supernatant was aspirated and 150 μl of Formanzan was added, and the optical density (OD) of the reaction solution at 570 nm was recorded on an microplate reader (ELX-800, Biotek, USA). Cell viability was computed as follows:
Apoptosis detection by flow cytometry
Cells were cultured in 6-well plates at a quantity of 5 × 105, referring to Section Cell culture and viability. After centrifugation (150 g, 5 min) and aspiration of the supernatant, apoptosis was examined using Annexin V-FITC/PI Apoptosis Detection Kit based on the instructions. The flow cytometer (NovoCyte, ACEA, USA) was utilized for the following analysis.
Scratch assay
Cells were scratched using a sterile pipette (200 μl), and then the cell surface was washed once with serum-free medium and observed and photographed under a microscope (100 × , IX53, Olympus, Japan). Replaced with serum-free medium, cells were kept in an incubator for 24 h under 37°C and 5% CO2 and then photographed and recorded. Mitomycin C (1 mg/ml) was employed to exclude the interference caused by proliferation on migration (27). The cell migration rate was calculated according to the following equation:
Transwell assay
The Transwell chambers (LABSELECT, Anhui, China) were placed in 24-well plates and coated with Matrigel gel (Corning, New York, USA) after overnight thawing at 4°C, and then incubated for 2 h at 37°C (28). Cell cultures from each group were discarded, washing twice with PBS, after which cells were digested by adding trypsin. Resuspension of cells in serum-free medium and adjustment of cell numbers. The Transwell inserts containing Matrigel gel were placed in a 24-well plate, with 800 μl of culture medium containing 10% FBS in the lower chamber and 200 μl of cell suspension in the upper chamber, respectively, and adjusted the cell concentration to 6 × 104 cells/well and placed in the incubator at 37°C. Transwell inserts were washed twice with PBS and fixed in 4% paraformaldehyde (Aladdin, Shanghai, China) at room temperature for 20 min. After that, they were stained with 0.5% crystalline violet (Amresco, USA) staining solution for 5 min, rinsed with distilled water, and observed under an inverted microscope (200 ×).
Western blot
Western blot analysis based on the method of literature (29). Briefly, proteins were isolated and quantified using protein extraction and BCA protein assay kits, respectively. Various concentrations of polyacrylamide gels (5–14%) were prepared and subjected to protein electrophoresis, after which the proteins were transferred to polyvinylidene difluoride (PVDF) film. PVDF films were removed and immersed in Tris-buffered saline with Tween 20 (TBST) with shaking for 5 min, then the membrane were immersed in 5% (m/v) skim milk powder solution with shaking for 1 h. Conditions of the primary antibody incubation were Bcl-2 (1:500), Bax (1:1,000), Caspase-3/Cleaved Caspase-3 (1:500), Caspase-9/Cleaved Caspase-9 (1:1,000) and β-actin (1:400), overnight at 4°C. After that, the films were removed from the hybridization bag and soaked in TBST for four washes, and then the goat anti-rabbit IgG HRP secondary antibodies were incubated at a dilution ratio of 1:5,000 for 45 min at 37°C. After six times washing, the membranes were added ECL reagent, and were photographed by WD-9413B imaging system (Beijing LIUYI Biotechnology Co., Ltd., Beijing, China).
Statistical analysis
Results are denoted as mean ± standard deviation (SD). The significance of differences was evaluated using the one-way analysis of variance (ANOVA) followed by Tukey's test by SPSS software at p < 0.05.
Results and discussion
Basic chemical composition and molecular weight
The total sugar and total flavonoids of BJP-2 were 92 ± 0.05% and 0.81 ± 0.01%, respectively. Its total phenols and protein content were 1.68 ± 0.01% and 0.52 ± 0.01%. The average molecular weight of BJP-2 was 6.42 × 104 Da and the polydispersity index was 3.797. The BJP-2 was principally comprised of GalA (39.78%), Ara (31.93%), Gal (16.86%) and Rha (6.43%), and contained a small amount of Xyl (1.86%), GlcA (1.28%), Glc (1.02%), Fuc (0.61%) and Man (0.23%), showing that BJP-2 was a acidic polysaccharide (Figures 1A,B). Compared to the Z. jujuba cv. Huizao polysaccharide (HP-2), they both consisted mainly of GalA, Ara, and Gal, but possessed different percentages, and the molecular weight of BJP-2 (64.2 kDa) was smaller than that of HP-2 (111 kDa) (20). This phenomenon was explained as being caused by blackened jujube during processing, but the specific changes still depend on subsequent systematic research.
Figure 1. GC-MS analysis of the standard monosaccharides (A) and BJP-2 (B).
Methylation analysis of BJP-2
The linkage types and ratios of glycosidic bonds are usually determined by methylation analysis. As summarized in Table 1, the BJP-2 were identified as containing seventeen derivatives. Among them, (1 → 4)-linked-GalpA was the most dominant linkage pattern (46.11%), followed by Araf (1 → (12.94%), → 4) Galp (1 → (11.60%) and → 5) Araf (1 → (8.31%), together accounting for 78.96% of the total methylated sugars. Meanwhile, some of the discrepancies between the above results and the analysis of monosaccharide composition were explained by the fact that the dialysis step of acidic sugars when undergoing pre-treatment could have an effect on the results. However, the qualitative and quantitative analyses of the monosaccharide composition of BJP-2 were reliable, and the qualitative results of the methylation results on the type of glycosidic bonds and the mode of attachment were also correct (30). The structure of BJP-2 was further confirmed by NMR spectra.
Table 1. Results of methylation analysis of BJP-2.
NMR spectral analysis of BJP-2
As shown in Figure 2A, BJP-2 exhibited five major anomeric proton signals (δ 5.10, 5.16, 5.07, 4.97, and 4.65) in the 1H NMR spectrum, which were labeled as A, B, C, D, and E, respectively. Meanwhile, the chemical shifts of the protons from C-2 to C-6 of the residues were mainly distributed in the range of δ 4.75–3.40 ppm. Referring to the HSQC spectrum, there were five heterocephalic signals at δ 107.48, 107.05, 98.92, 100.39, and 104.33 ppm at the 13C NMR spectrum (Figure 2B). Based on the reported literature, these 1H and 13C signals were assigned to the 1H-1H COSY (Figure 2C) and HSQC (Figure 2D) spectra (31–34). Table 2 provided information on the signal assignments of the protons and carbons for the five major residues in BJP-2. The anomeric proton and carbon of residue A produced the chemical shifts at δC 107.48/δH 5.10 ppm (C-1), δC 80.88/δH 4.14 ppm (C-2), δC 76.53/δH 3.95 ppm (C-3), δC 83.82/δH 4.04 ppm (C-4) and δC 67.91/δH (3.75/4.02 ppm) (C-5), respectively. Summarizing these NMR data, it was inferred that it belongs to → 5)-α-L-Araf (1 → (31). Furthermore, B–E were designated as T-α-L-Araf (1 → , T-β-D-Galp(1 → , → 4)-α-L-GalAp(1 → , → 4)-β-D-Gal (1 → (32, 33). Additionally, signals of OMe were also observed as δH 3.81/δC 52.91. Taking the results of methylation analysis into consideration, it was supposed that the presence of terminal signal suggested as T-α-L-Araf (1 → and T-β-D-Galp(1 → in BJP-2 (19). In the HMBC spectrum, some inter-residual cross peaks were found: A H-1 to E C-4, B H-1 to E C-4; OMe to δC 170.81 (Figure 2E). In summary, the main chains of BJP-2 were → 5)-α-L-Araf (1 → 4)-β-D-Gal(1 → , T-α-L-Araf (1 → 4)-β-D-Gal(1 → , and → 4)-α-L-6MeGalAp(1 → , with two different terminal residues of T-α-L-Araf (1 → and T-β-D-Galp(1 → .

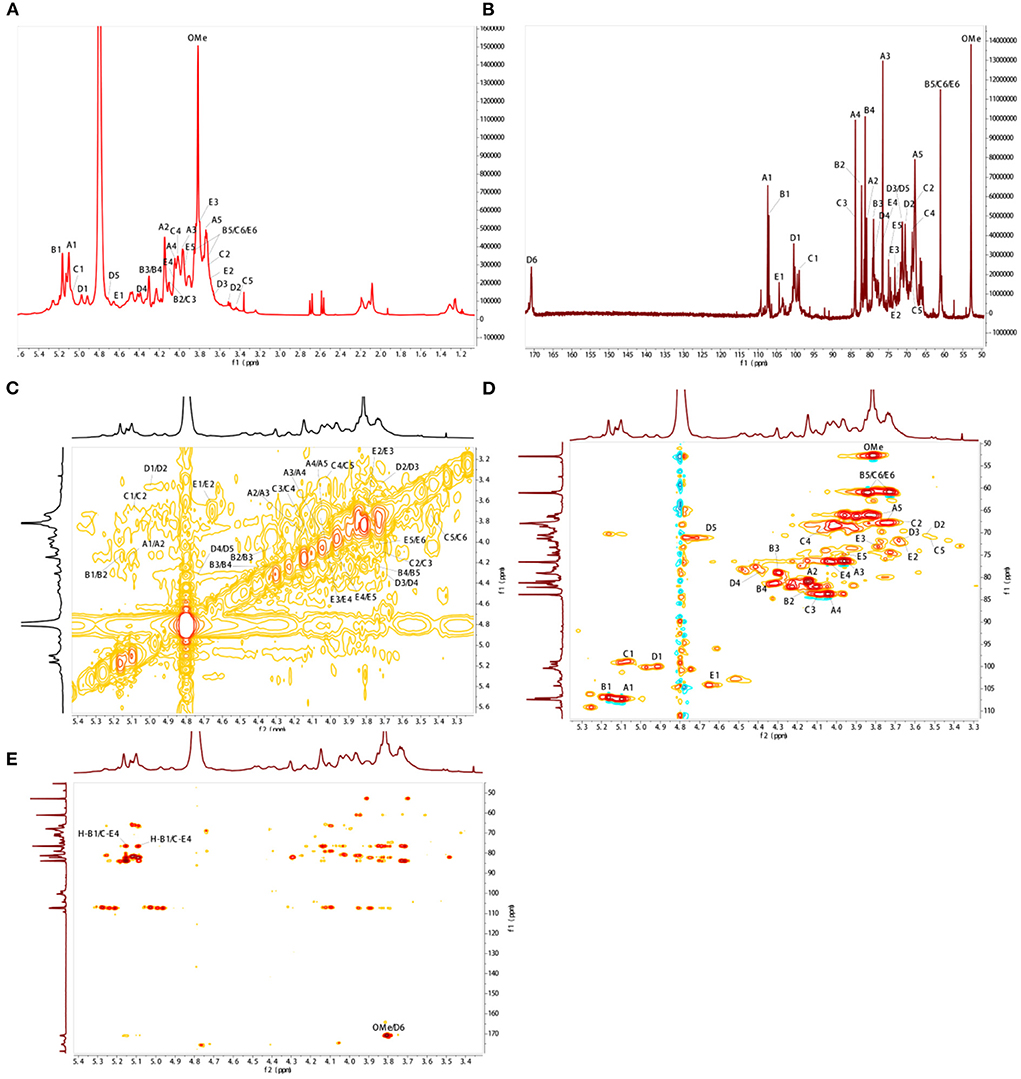

Figure 2. NMR spectral analysis of BJP-2. (A) 1H-NMR; (B) 13C-NMR; (C) 1H-1H COSY; (D) HSQC; (E) HMBC.
Table 2. Assignments of 1H and 13C NMR spectra for BJP-2.
Antitumor effects in vitro
Cell viability of BJP-2
Evaluation of the impact of BJP-2 on the cell viability of HepG2 cells stimulated for 48 h by MTT assay. As seen in Figure 3A, BJP-2 exhibited significant toxicity at concentrations of 400 and 800 μg/ml, with cell viability of 81.2 ± 2.1% and 55.0 ± 4.0%, respectively (p < 0.01). Results showed that BJP-2 inhibited the growth of HepG2 cells within a certain range, and the effect was gradually enhanced with increasing concentration. All together, three optimal concentrations of BJP-2 (200, 400, 800 μg/ml) were selected for subsequent experiments. BJP-2 inhibited tumor cell growth in a similar trend to other polysaccharides. For example, the Polygonum multiflorum polysaccharides at 400 μg/ml inhibited the growth of HepG-2 cells by 53.35%; and the mango pomace polysaccharide was active against HepG-2 cells in a quantitatively dependent manner (35, 36).

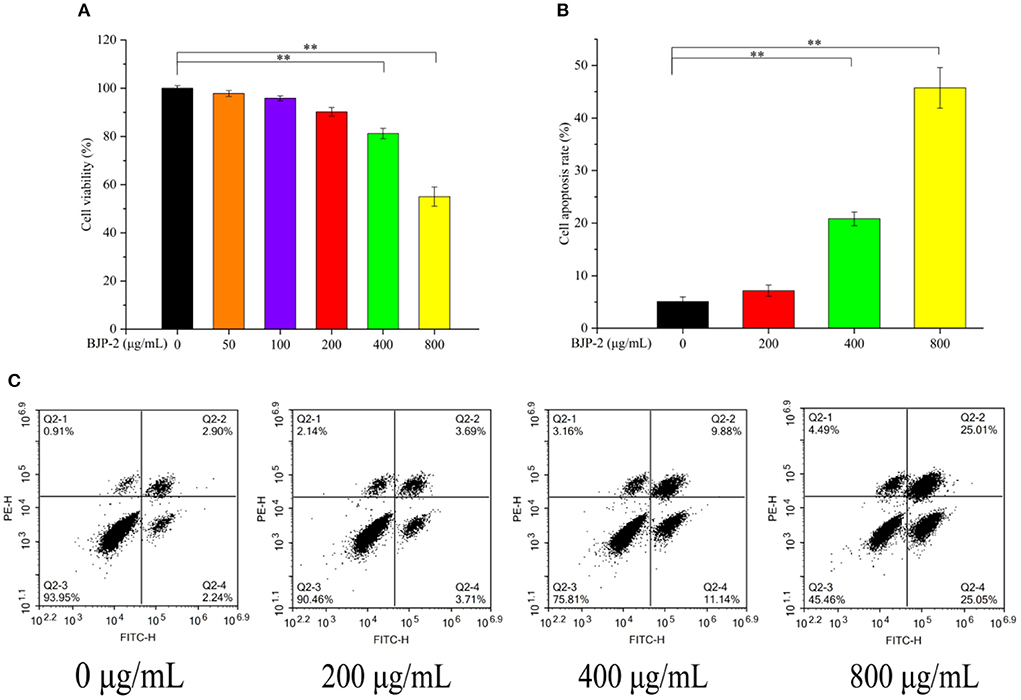

Figure 3. (A) Changes of HepG2 cell viability after 48 h incubation with different concentrations of BJP-2. (B) Column bar graph of apoptotic HepG2 cells. (C) The apoptosis of HepG2 cells treated with BJP-2 at different concentrations for 48 h and were detected by flow cytometry. Values are expressed as mean ± SD. *p < 0.05; **p < 0.01.
The effect of BJP-2 on apoptosis
Triggering tumor decline by enhancing apoptosis of cancer cells is one of the roles of antitumor drugs (37). Therefore, we detected the apoptosis of HepG-2 cells at different concentrations of BJP-2 using flow cytometry. As presented in Figure 3B, in comparison with the blank control group (5.11 ± 0.86%), the apoptosis rates increased to 20.81 ± 1.3% and 45.72 ± 3.8% by 400 and 800 μg/ml BJP-2 action on HepG-2 cells for 48 h (p < 0.01). No significant effect of low doses of BJP-2 (200 μg/ml) was observed, which is consistent with the results of cell viability. After stimulation of HepG2 cells with BJP-2 of 800 μg/ml, the early (Annexin V-FITC+/PI–) and late (Annexin V-FITC+/PI+) apoptosis rates were 25.05 and 25.01 %, respectively, which were significantly higher than that of the control group at 2.24 and 2.90% (Figure 3C). In summary, BJP-2 (800 μg/ml) could cause more than 40% of HepG-2 cells to enter an apoptotic state, suggesting that the induced apoptosis might be one of the mechanisms of action.
BJP-2 suppressed HepG-2 cell migration
One of the key issues in treating cancer is to prevent tumor cells from invading and metastasizing (38). The scratch assay and Transwell assay were applied to detect the effect of BJP-2 on the migration of HepG-2 cells. As shown in Figures 4A,B, supplementation of BJP-2 inhibited the ability of HepG2 cells to heal wounds and cross over to the lower chamber, in contrast to the blank control. Figure 4C showed that the cell migration rate in the control group was 56.20 ± 4.4%, which were significantly decreased to 38.45 ± 5.7% (p < 0.01) and 17.86 ± 2.1% (p < 0.01) due to the treatment with high doses of BJP-2 (400 and 800 μg/ml). The numbers of cell invasion were 300 ± 35 and 172 ± 14 for BJP-2 at 400 and 800 μg/ml concentrations, respectively, which was significantly lower than that of 387 ± 38 for the control group (p < 0.01) (Figure 4D). It was demonstrated that BJP-2 possessed the ability to block the migration and invasion of HepG-2 cells, which inferred that the mechanism might be related to the inhibition of epithelial-mesenchymal transition (EMT). EMT in cancers allows cells to detach from the original tumor tissue and may cause an invasion-metastasis cascade (39). Various polysaccharides have demonstrated anti-tumor mechanisms by inhibiting EMT, such as Ganoderma lucidum polysaccharides, Huaier polysaccharides and Se-lentinan (40–42).

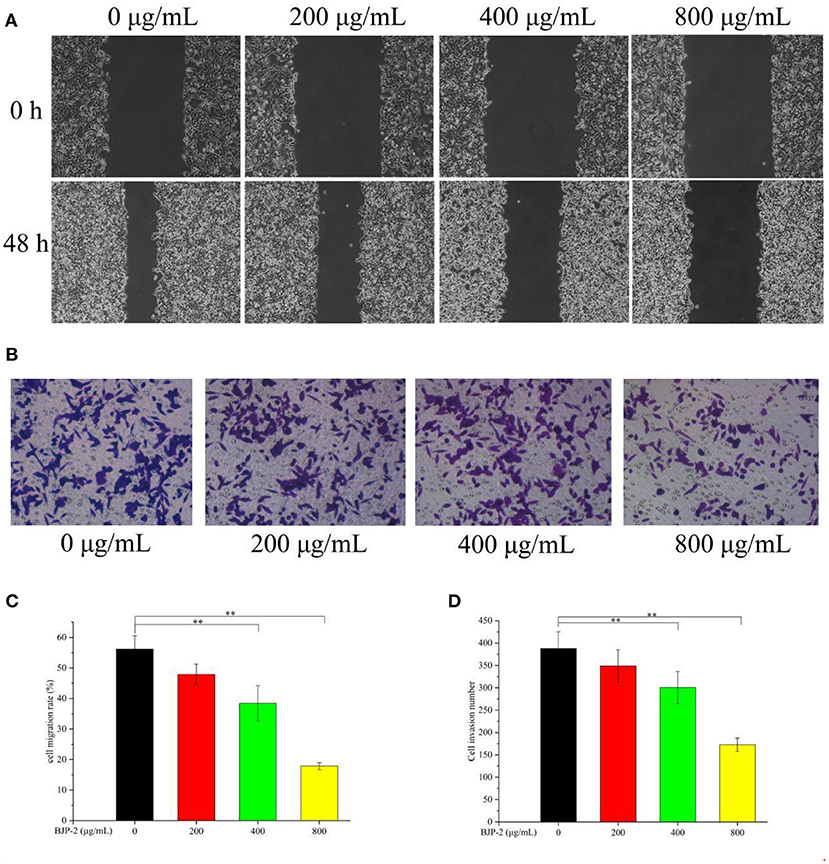

Figure 4. (A) The changes of BJP-2 on the migration of HepG2 cells were observed by a inverted phase contrast microscope (100 ×). (B) The effects of invasion on HepG2 cells after BJP-2 stimulation were observed by a inverted phase contrast microscope (200 ×). (C) Column bar graph of migration rate of HepG2 cells. (D) Bar graph summarizes the number of invasion.
BJP-2 modulated gene expression
Promoting apoptosis, a key mechanism by which plant polysaccharides exert their antitumor effects, its critical pathways includes the mitochondrial pathway (43). As known, the pro-apoptotic factor Bax and the anti-apoptotic factor Bcl-2 are antagonistic to each other, where Bax promotes tumor cell apoptosis by promoting the release of cytochrome C, while Bcl-2 does the opposite. Furthermore, the activated Caspase-9 convenes and activates Caspase-3, which is a major executor of apoptosis, thereby triggering a Caspase cascade response to induce apoptosis in tumor cells (44). By Western blot method, the changes of apoptosis-related protein expression in HepG-2 cells after stimulation with different concentrations of BJP-2 were investigated. From Figure 5, as compared with the control group, there were dose-dependent increases in Bax, Cleaved Caspase-3/Caspase-3, Cleaved Caspase-9/Caspase-9 levels on HepG-2 cells after BJP-2 treatment, especially in the high dose group (800 μg/ml) by 2.54-fold, 7.6-fold and 33.52-fold, respectively (p < 0.01). By contrast, the expression of Bcl-2 was significantly reduced (p < 0.01). Other polysaccharides with similar mode of antitumor effects were also found, such as those derived from Grifola frondosa, Boletus edulis and Ganoderma applanatum (45–47).

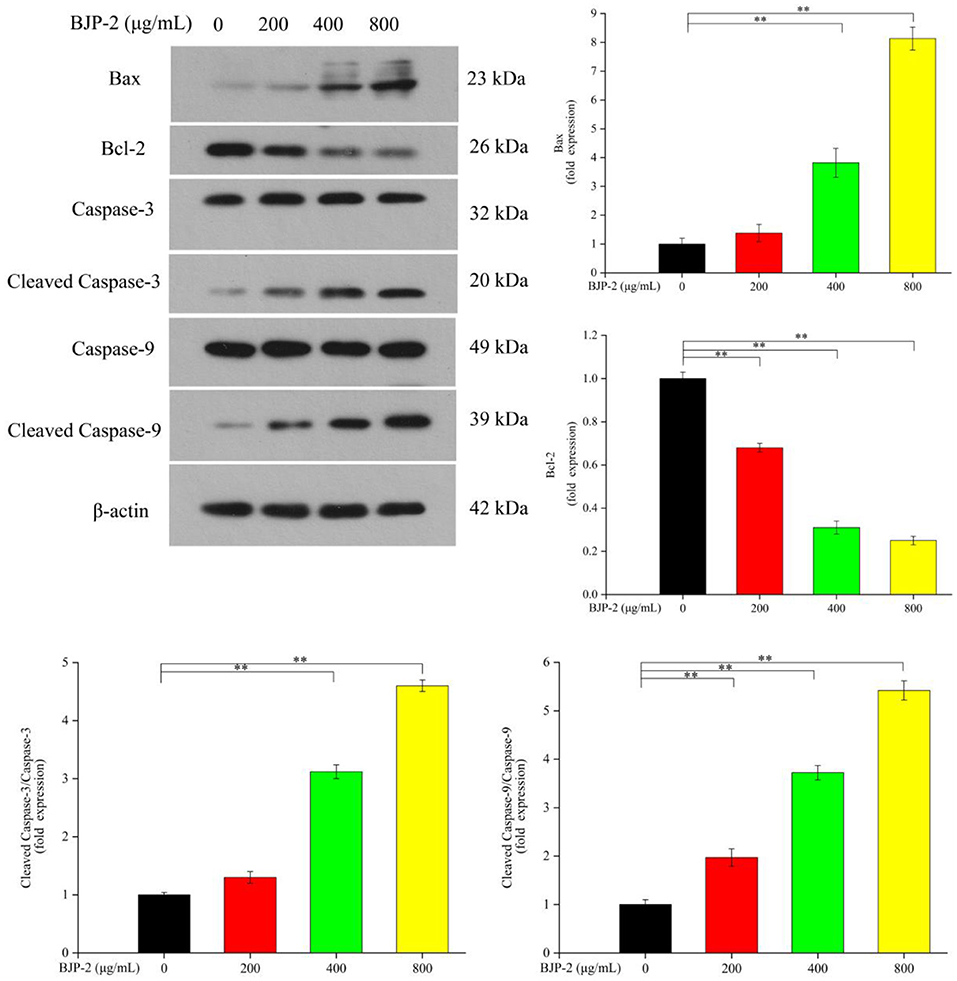

Figure 5. The protein levels of Bax, Bcl-2, Caspase-3, Cleaved Caspase-3, Caspase-9, Cleaved Caspase-9, β-actin by different concentrations of BJP-2 for 48 h. Values are expressed as mean ± SD. *p < 0.05; **p < 0.01.
Conclusion
In summary, BJP-2 is an acidic polysaccharide with a molecular weight of 6.42 × 104 Da, mainly composed of GalA, Ara, Gal and Rha, which was extracted and isolated from blackened jujube. And its main chain consisted of → 5)-α-L-Araf (1 → 4)-β-D-Gal(1 → , T-α-L-Araf (1 → 4)-β-D-Gal(1 → , and → 4)-α-L-6MeGalAp(1 → . Furthermore, the present study demonstrated for the first time that blackened jujube polysaccharides could inhibit the proliferation of tumor cells causing apoptosis through the mitochondrial pathway with a certain degree of dose-dependence. The western blotting analysis indicated that BJP-2 could regulate the expression of apoptosis-related proteins such as Bax, Cleaved Caspase-3, Caspase-3, Cleaved Caspase-9, Caspase-9 and Bcl-2. In addition, BJP-2 initially expressed the ability to suppress the migration and invasion of HepG-2 cells, of which further validation by subsequent experiments was required. It is well know that the biological activities of polysaccharides are closely related to their molecular weight, monosaccharide composition, glycosidic bond type and other chemical properties. On the one hand, high molecular weight plays an important role in enhancing the immune and antitumor activity of polysaccharides. On the other hand, the higher the Glc content, the stronger the anttumor activity. Besides, studies have shown that the activity of the α configuration was poor, while the activity of the β configuration polysaccharide was good. All of these results demonstrated the anti-tumor activity of BJP-2 and presented a theoretical support for further study on the structure-activity relationship. Therefore, there is potential value for BJP-2 to be developed as a new antitumor agent drug against hepatocellular carcinoma. Meanwhile, other anti-tumor mechanisms of blackened jujube polysaccharides are still to be studied and revealed in depth and systematically.
Data availability statement
The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.
Author contributions
GZ and CL: conceptualization, data curation, writing—original draft, software, resources, and investigation. RZ: writing—reviewing and editing and supervision. All authors contributed to the article and approved the submitted version.
Funding
This work was supported by the Central Guidance on Local Science and Technology Development Program (YDZX2021071), Shandong Province Key Research and Development Program (Rural revitalization of science and technology innovation boosting action) (2021TZXD011); Dezhou Health Food Industry Innovation and Entrepreneurship Community, and Shandong Land and Rural Revitalization Group Co., Ltd., Project Key Technology Integration and Industrialization Demonstration of the Whole Industry Chain for Efficient Green Production and High Value Utilization of Jujube.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher's note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
References
1. Sung H, Ferlay J, Siegel RL, Laversanne M, Soerjomataram I, Jemal A, et al. Global cancer statistics 2020: GLOBOCAN estimates of incidence and mortality worldwide for 36 cancers in 185 countries. CA Cancer J Clin. (2021) 71:209–49. doi: 10.3322/caac.21660
2. Jiang D, Zhang L, Liu W, Ding Y, Yin J, Ren R, et al. Trends in cancer mortality in China from 2004 to 2018: a nationwide longitudinal study. Cancer Commun. (2021) 41:1024–36. doi: 10.1002/cac2.12195
3. Siegel RL, Miller KD, Goding Sauer A, Fedewa SA, Butterly LF, Anderson JC, et al. Colorectal cancer statistics, 2020. CA Cancer J Clin. (2020) 70:145–64. doi: 10.3322/caac.21601
4. Wang YQ Li HZ, Gong WW, Chen YY, Zhu C, Wang L, et al. Cancer incidence and mortality in Zhejiang Province, Southeast China, 2016: a population-based study. Chin Med J. (2021) 134:1959–66. doi: 10.1097/CM9.0000000000001666
5. Trifanescu OG, Gales LN, Serbanescu GL, Zgura AF, Iliescu L, Mehedintu C, et al. Long-term oncological outcome in patients with cervical cancer after 3 trimodality treatment (radiotherapy, platinum-based chemotherapy, and robotic surgery). Medicine. (2021) 100:e25271. doi: 10.1097/MD.0000000000025271
6. Islam MR, Islam F, Nafady MH, Akter M, Mitra S, Das R, et al. Natural small molecules in breast cancer treatment: understandings from a therapeutic viewpoint. Molecules. (2022) 27:2165. doi: 10.3390/molecules27072165
7. Yarley OPN, Kojo AB, Zhou C, Yu X, Gideon A, Kwadwo HH, et al. Reviews on mechanisms of in vitro antioxidant, antibacterial and anticancer activities of water-soluble plant polysaccharides. Int J Biol Macromol. (2021) 183:2262–71. doi: 10.1016/j.ijbiomac.2021.05.181
8. Yang W, Zhao P, Li X, Guo L, Gao W. The potential roles of natural plant polysaccharides in inflammatory bowel disease: a review. Carbohydr Polym. (2022) 277:118821. doi: 10.1016/j.carbpol.2021.118821
9. Mirzadeh M, Lelekami AK, Khedmat L. Plant/algal polysaccharides extracted by microwave: a review on hypoglycemic, hypolipidemic, prebiotic, and immune-stimulatory effect. Carbohydr Polym. (2021) 266:118134. doi: 10.1016/j.carbpol.2021.118134
10. Xie L, Shen M, Hong Y, Ye H, Huang L, Xie J. Chemical modifications of polysaccharides and their anti-tumor activities. Carbohydr Polym. (2020) 229:115436. doi: 10.1016/j.carbpol.2019.115436
11. Li J, Huang G. Extraction, purification, separation, structure, derivatization and activities of polysaccharide from Chinese date. Process Biochem. (2021) 110:231–42. doi: 10.1016/j.procbio.2021.08.018
12. Lu Y, Bao T, Mo J, Ni J, Chen W. Research advances in bioactive components and health benefits of jujube (Ziziphus jujuba Mill) fruit. J Zhejiang Univ-SCI B. (2021) 22:431–49. doi: 10.1631/jzus.B2000594
13. Wang Y, Liu X, Zhang J, Liu G, Liu Y, Wang K, et al. Structural characterization and in vitro antitumor activity of polysaccharides from Zizyphus jujuba cv. Muzao. RSC Adv. (2015) 5:7860–7. doi: 10.1039/C4RA13350A
14. Wu Z, Li H, Wang Y, Yang D, Tan H, Zhan Y, et al. Optimization extraction, structural features and antitumor activity of polysaccharides from Z. jujuba cv Ruoqiangzao seeds. Int J Biol Macromol. (2019) 135:1151–61. doi: 10.1016/j.ijbiomac.2019.06.020
15. Liang Q, Wang X, Yang S, Yu L, Gao Q, Yang X, et al. Characterization of the antioxidative polysaccharides from Ziziphus jujube cv. Goutouzao and its tumor-inhibitory effects on human colorectal carcinoma LoVo cells via immunocyte activation. J Food Biochem. (2020) 44:e13462. doi: 10.1111/jfbc.13462
16. Sun X, Gu D, Fu Q, Gao L, Shi C, Zhang R, et al. Content variations in compositions and volatile component in jujube fruits during the blacking process. Food Sci Nutr. (2019) 7:1387–95. doi: 10.1002/fsn3.973
17. Wang F, Song Y, Vidyarthi SK, Zhang R. Physicochemical properties, and volatile compounds of blackened jujube vinegar as prepared by optimized fermentation process. Int J Food Prop. (2022) 25:288–304. doi: 10.1080/10942912.2022.2032735
18. Song Y, Chen C, Wang F, Zhang Y, Pan Z, Zhang R. Physicochemical properties and antioxidant activities of jujubes (Ziziphus jujuba Mill): effect of blackening process on different cultivars. Int J Food Prop. (2022) 25:1576–90. doi: 10.1080/10942912.2022.2093361
19. Yuan L, Qiu Z, Yang Y, Liu C, Zhang R. Preparation, structural characterization and antioxidant activity of water-soluble polysaccharides and purified fractions from blackened jujube by an activity-oriented approach. Food Chem. (2022) 385:132637. doi: 10.1016/j.foodchem.2022.132637
20. Zou M, Chen Y, Sun-Waterhouse D, Zhang Y, Li F. Immunomodulatory acidic polysaccharides from Zizyphus jujuba cv. Huizao: Insights into their chemical characteristics and modes of action. Food Chem. (2018) 258:35–42. doi: 10.1016/j.foodchem.2018.03.052
21. Yang Y, Qiu Z, Li L, Vidyarthi SK, Zheng Z, Zhang R. Structural characterization and antioxidant activities of one neutral polysaccharide and three acid polysaccharides from Ziziphus jujuba cv. Hamidazao: a comparison. Carbohydr Polym. (2021) 261:117879. doi: 10.1016/j.carbpol.2021.117879
22. Gu J, Zhang H, Zhang J, Wen C, Zhou J, Yao H, et al. Optimization, characterization, rheological study and immune activities of polysaccharide from Sagittaria sagittifolia L. Carbohydr Polym. (2020) 246:116595. doi: 10.1016/j.carbpol.2020.116595
23. Liu Y, Ye Y, Hu X, Wang J. Structural characterization and anti-inflammatory activity of a polysaccharide from the lignified okra. Carbohydr Polym. (2021) 265:118081. doi: 10.1016/j.carbpol.2021.118081
24. Zheng Z, Huang Q, Ling C. Water-soluble yeast β-glucan fractions with different molecular weights: extraction and separation by acidolysis assisted-size exclusion chromatography and their association with proliferative activity. Int J Biol Macromol. (2019) 123:269–79. doi: 10.1016/j.ijbiomac.2018.11.020
25. Wang L, Zhang B, Xiao J, Huang Q, Li C, Fu X. Physicochemical, functional, and biological properties of water-soluble polysaccharides from Rosa roxburghii Tratt fruit. Food Chem. (2018) 249:127–35. doi: 10.1016/j.foodchem.2018.01.011
26. Wei X, Yao J, Wang F, Wu D, Zhang R. Extraction, isolation, structural characterization and antioxidant activity of polysaccharides from elderberry fruit. Front Nut. (2022) 9:947706. doi: 10.3389/fnut.2022.947706
27. Xiang A, Ling C, Zhang W, Chen H. Effects of rhizopus nigricans exopolysaccharide on proliferation, apoptosis, and migration of breast cancer MCF-7 cells and AKT signaling pathway. Int J Polym Sci. (2021) 2021:5621984. doi: 10.1155/2021/5621984
28. Wu CL, Xu LL, Peng J, Zhang DH. Al-MPS obstructs EMT in breast cancer by inhibiting lipid metabolism via miR-215-5p/SREBP1. Endocrinology. (2022) 163:bqac040. doi: 10.1210/endocr/bqac040
29. Sun Y, Huo J, Zhong S, Zhu J, Li Y, Li X. Chemical structure and anti-inflammatory activity of a branched polysaccharide isolated from Phellinus baumii. Carbohydr Polym. (2021) 268:118214. doi: 10.1016/j.carbpol.2021.118214
30. Pettolino FA, Walsh C, Fincher GB, Bacic A. Determining the polysaccharide composition of plant cell walls. Nat Protoc. (2012) 7:1590–607. doi: 10.1038/nprot.2012.081
31. Ji X, Guo JH, Ding DQ, Gao J, Hao LR, Guo XD, et al. Structural characterization and antioxidant activity of a novel high-molecular-weight polysaccharide from Ziziphus Jujuba cv. Muzao. J Food Meas Charact. (2022) 16:2191–200. doi: 10.1007/s11694-022-01288-3
32. Ji X, Cheng YQ, Tian JY, Zhang SQ, Jing YS, Shi MM. Structural characterization of polysaccharide from jujube (Ziziphus jujuba Mill) fruit. Chem Biol Technol Agric. (2021) 8:54. doi: 10.1186/s40538-021-00255-2
33. Ji X, Guo JH, Pan FB, Kuang FJ, Chen HM, Guo XD, et al. Structural elucidation and antioxidant activities of a neutral polysaccharide from Arecanut (Areca catechu L). Front Nut. (2022) 9:853115. doi: 10.3389/fnut.2022.853115
34. Liu XX, Liu HM, Yan YY, Fan LY, Yang JN, Wang XD, et al. Structural characterization and antioxidant activity of polysaccharides extracted from jujube using subcritical water. LWT. (2020) 117:108645. doi: 10.1016/j.lwt.2019.108645
35. Zhu W, Xue X, Zhang Z. Ultrasonic-assisted extraction, structure and antitumor activity of polysaccharide from Polygonum multiflorum. Int J Biol Macromol. (2016) 91:132–42. doi: 10.1016/j.ijbiomac.2016.05.061
36. Hu H, Zhao Q, Pang Z, Xie J, Lin L, Yao Q. Optimization extraction, characterization and anticancer activities of polysaccharides from mango pomace. Int J Biol Macromol. (2018) 117:1314–25. doi: 10.1016/j.ijbiomac.2018.05.225
37. Barati N, Momtazi-Borojeni AA, Majeed M, Sahebkar A. Potential therapeutic effects of curcumin in gastric cancer. J Cell Physiol. (2019) 234:2317–28. doi: 10.1002/jcp.27229
38. Aust G, Zheng L, Quaas M. To detach, migrate, adhere, and metastasize: CD97/ADGRE5 in cancer. Cells. (2022) 11:1538. doi: 10.3390/cells11091538
39. Pan G, Liu Y, Shang L, Zhou F, Yang S. EMT-associated microRNAs and their roles in cancer stemness and drug resistance. Cancer Commun. (2021) 41:199–217. doi: 10.1002/cac2.12138
40. de Camargo MR, Frazon TF, Inacio KK, Smiderle FR, Amôr NG, Dionísio TJ, et al. Ganoderma lucidum polysaccharides inhibit in vitro tumorigenesis, cancer stem cell properties and epithelial-mesenchymal transition in oral squamous cell carcinoma. J Ethnopharmacol. (2022) 286:114891. doi: 10.1016/j.jep.2021.114891
41. Tian Y, Wu J, Zeng L, Zhou L, Hu Y, Pan Q, et al. Huaier polysaccharides suppress triple-negative breast cancer metastasis and epithelial-mesenchymal transition by inducing autophagic degradation of Snail. Cell Biosci. (2021) 11:1–15. doi: 10.1186/s13578-021-00682-6
42. Liu YR, Sun B, Zhu GH, Li WW, Tian YX, Wang LM, et al. Selenium–lentinan inhibits tumor progression by regulating epithelial–mesenchymal transition. Toxicol Appl Pharmacol. (2018) 360:1–8. doi: 10.1016/j.taap.2018.09.019
43. Niu J, Wang S, Wang B, Chen L, Zhao G, Liu S, et al. Structure and anti-tumor activity of a polysaccharide from Bletilla ochracea Schltr. Int J Biol Macromol. (2020) 154:1548–55. doi: 10.1016/j.ijbiomac.2019.11.039
44. Yin F, Zhou H, Fang Y, Li C, He Y, Yu L, et al. Astragaloside IV alleviates ischemia reperfusion-induced apoptosis by inhibiting the activation of key factors in death receptor pathway and mitochondrial pathway. J Ethnopharmacol. (2020) 248:112319. doi: 10.1016/j.jep.2019.112319
45. Chen P, Liu HP, Ji HH, Sun NX, Feng YY. A cold-water soluble polysaccharide isolated from Grifola frondosa induces the apoptosis of HepG2 cells through mitochondrial passway. Int J Biol Macromol. (2019) 125:1232–41. doi: 10.1016/j.ijbiomac.2018.09.098
46. Meng T, Yu SS, Ji HY, Xu XM, Liu AJ. A novel acid polysaccharide from Boletus edulis: extraction, characteristics and antitumor activities in vitro. Glycoconj J. (2021) 38:13–24. doi: 10.1007/s10719-021-09972-0
Keywords: blackened jujube, polysaccharides, structural features, antitumor activity, mechanism
Citation: Zhang G, Liu C and Zhang R (2022) A novel acidic polysaccharide from blackened jujube: Structural features and antitumor activity in vitro. Front. Nutr. 9:1001334. doi: 10.3389/fnut.2022.1001334
Received: 23 July 2022; Accepted: 26 August 2022;
Published: 15 September 2022.
Edited by:
Qiu Li, Qingdao Agricultural University, ChinaCopyright © 2022 Zhang, Liu and Zhang. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Rentang Zhang, rentangzhang@163.com
†These authors have contributed equally to this work and share first authorship
