Discovery of pyrazolopyrrolidinones as potent, broad-spectrum inhibitors of Leishmania infection

Introduction: Leishmaniasis is a parasitic disease that affects more than 1 million people worldwide annually, predominantly in resource-limited settings. The challenge in compound development is to exhibit potent activity against the intracellular stage of the parasite (the stage present in the mammalian host) without harming the infected host cells. We have identified a compound series (pyrazolopyrrolidinones) active against the intracellular parasites of Leishmania donovani and L. major; the causative agents of visceral and cutaneous leishmaniasis in the Old World, respectively.

Methods: In this study, we performed medicinal chemistry on a newly-discovered antileishmanial chemotype, with over 100 analogs tested. Studies included assessments of antileishmanial potency, toxicity towards host cells, and in vitro ADME screening of key drug properties.

Results and discussion: Members of the series showed high potency against the deadliest form, visceral leishmaniasis (approximate EC₅₀ ≥ 0.01 µM without harming the host macrophage up to 10.0 µM). In comparison, the most efficient monotherapy treatment for visceral leishmaniasis is amphotericin B, which presents similar activity in the same assay (EC₅₀ = 0.2 µM) while being cytotoxic to the host cell at 5.0 µM. Continued development of this compound series with the Discovery Partnership with Academia (DPAc) program at the GlaxoSmithKline Diseases of the Developing World (GSK DDW) laboratories found that the compounds passed all of GSK’s criteria to be defined as a potential lead drug series for leishmaniasis.

Conclusion: Here, we describe preliminary structure-activity relationships for antileishmanial pyrazolopyrrolidinones, and our progress towards the identification of candidates for future in vivo assays in models of visceral and cutaneous leishmaniasis.

1. Introduction

Leishmaniasis is a disease caused by the Leishmania genus of parasites (1) that affects approximately 2 million people worldwide, with 700,000 – 1 million new cases and as many as 50 thousand deaths annually (2). It is the second deadliest parasitic disease after malaria. Leishmaniasis has different clinical manifestations depending on the leishmanial species and patient immune system. Visceral leishmaniasis (VL) is a febrile condition affecting internal organs that can lead to death if left untreated. Historically, first line treatment for VL, predominantly caused by the species L. donovani and L. infantum/L. chagasi, is based on antimonials, a drug formulation using the toxic metal antimony. Second line treatments include IV-administered liposomal amphotericin B (AmBisome, emerging as a first-line treatment in some regions), and miltefosine as an orally administered pill (3). AmBisome is the most effective but prohibitively expensive for the disease population most affected by leishmanial infections. Availability and supply are often a challenge, with the additional requirement that it must be administered in a clinical setting. Miltefosine is teratogenic, toxic to the kidneys and causes gastrointestinal discomfort at the doses necessary to treat the disease, leading to poor compliance in completing a full treatment regimen. Resistance has already become an issue with miltefosine (4, 5), and there are supply challenges due to the public-private partnership model (6).

Cutaneous leishmaniasis (CL) is a generally non-fatal skin condition that produces lesions ultimately leading to permanent scarring and disfigurement. Leishmania major causes most CL infections in North Africa, the Middle East, and Central Asia, while L. braziliensis and L. amazonensis are the leading causative agents of CL in South America. In total, CL infects 1.5 million people worldwide, and the current first line treatment is a pentavalent antimony compound (7) that is delivered by painful intralesional needle injection. Additional challenges in supply, administration, toxicity (8, 9) and resistance (10–12) also make this treatment less than ideal. Advances have been made using topically-administered miltefosine (13), however, there have already been documented failures in this approach due to the rate of parasite mutation (4, 5).

All current approved small-molecule treatments for leishmaniasis are “repurposed” drugs that were developed for other diseases, especially cancer. The current pipeline is underdeveloped (14–18). Drugs for Neglected Diseases (DNDi: www.dndi.org) lists five new compound classes in their clinical antileishmanial portfolio; none have yet progressed beyond Phase I (19). GlaxoSmithKline’s lead CRK12 inhibitor GSK3186899 (VL only) (20, 21) completed a Phase I single ascending dose study in 2019, but further clinical evaluation of this compound has been paused following the emergence of non-clinical data for a non-GSK asset with a similar mode-of-action. Oxaborole DNDI-6148 (CL/VL) (14, 15, 22) and nitroimidazole DNDI-0690 (CL/VL) (14, 15, 23–25), have both completed Phase I single ascending dose studies with multiple ascending dose trials underway. Oligo-deoxynucleotide CpG-D35 (CL only) (26–29) and GSK’s recently-reported proteasome inhibitor GSK3494245 (30) are also both slated for Phase I study. There remains an unmet clinical need to develop new treatments against leishmaniasis that are ideally inexpensive, readily produced, and orally available as a short course of chemotherapy. Herein, we describe the discovery of a novel antileishmanial compound class, with potent activity against the intracellular stage of the parasite (the most relevant for human disease) in multiple Leishmania species.

2. Materials and methods

2.1. Chemistry

All pyrazolopyrrolidinones were synthesized via a two-step sequence in which pyrrolidinones 4 were first synthesized via Mannich condensation/cyclization of α/γ diketo esters 5 with either pre-isolated or in situ-generated imines 6, followed by Knorr pyrazole condensation with a requisite hydrazine 3 (Figure 1) to produce the desired pyrazolopyrrolidinones. All compounds tested had a purity of >90% as measured by UPLC-MS-ELSD. Full details for compound synthesis and characterization for select pyrazolopyrrolidinones are provided in the Supplementary Information.

FIGURE 1

Figure 1 Retrosynthetic route to produce pyrazolopyrrolidinones of structural type 3.

2.2. High-throughput screens for antileishmanial compounds at UCSF/UCSD

Compounds were obtained as 0.2 µmoles of dried film for primary single point screening. Each compound was diluted in DMSO to 10 µM final testing concentration. These compounds were tested in 2 biological replicates. The compounds were pre-spotted onto 384-well assay plates in single concentration.

2.2.1. Promastigote assay (UCSF)

Leishmania promastigotes (L. major: strain LV39; L. donovani, strain 1S/Cl2D) were maintained as previously described in (31, 32) at 28°C in M199 media supplemented with glutamine, adenosine, folic acid, hemin, HEPES, 10% Fetal Bovine Serum (Sigma-Aldrich, cat. no. F2442) and 1% Penicillin-Streptomycin (Gibco, cat. no. 15140122). For the promastigote assay, we followed the method previously described in (33). Briefly, promastigotes were incubated with the compounds for 72 h at 27°C, then lysed by adding 50 µL of CellTiter-Glo (Promega) and placed on an orbital shaker for 5 min at room temperature. After lysis, the resulting ATP-bioluminescence was measured using the Analyst HT plate reader (Molecular Devices).

2.2.2. Intracellular amastigote assay (UCSF)

THP-1 cells (human acute monocytic leukemia cell line – ATCC TIB202) were grown in RPMI supplemented with 10% Fetal Bovine Serum (FBS) and 50 µM 2-mercaptoethanol at 37°C in 5% CO₂. THP-1 were seeded in microwell plates at 5×10⁵ cells/mL density and treated with 0.1 µM phorbol myristate acetate (PMA, Sigma) at 37°C for 48 h for differentiation into adherent, non-dividing macrophages. After activation by PMA, cells were washed and incubated with complete RPMI medium containing stationary phase Leishmania promastigotes (L. major: strain LV39; L. donovani, strain 1S/Cl2D) at a 1:15 parasite-cell ratio. Compounds were added and incubated at 37°C for 72 h. Cells were then washed with phosphate-buffered saline (PBS), fixed for 30 minutes with 4% formaldehyde, rinsed again with PBS, stained for 2 h with 4′,6′-diamidino-2-phenylindole (DAPI 300 nM) and finally washed with PBS (33).

2.2.3. Intracellular amastigote assay (UCSD)

B10R cells (CVCL_0155) were seeded at 300 cells/well, and L. donovani WT promastigotes in stationary phase (7th day after passage) were added at 6,000 parasites/well (ratio of 20 parasites/cell). Both cells and parasites were seeded in DMEM High-Glucose medium (Gibco, cat. no. 11995065) containing 5% Fetal Bovine Serum (Sigma-Aldrich, cat. no. F2442) and 1% Penicillin-Streptomycin (Gibco, cat. no. 15140122). Cells and parasites were incubated in the presence of the compounds for 72 h at 37°C and 5% CO₂. Plates were then fixed with 4% formaldehyde solution for at least 1 h, then washed with 1X PBS and stained with 5 µg/mL DAPI. Plates were read using an ImageXpress microscope (Molecular Devices) and analyzed by MetaXpress software (Molecular Devices) using a custom module optimized for this assay. Compounds that showed relevant antiparasitic activity in the primary screening were retested in serial dilution to obtain a dose-response curve (DRC). Compounds were tested in a 10-point 2-fold serial dilution in 3 technical replicates, and 2 biological replicates. After 72 h, plates were fixed and stained with DAPI as described above. Images were acquired on an ImageXpress microscope, and analyzed using the MetaXpress custom module. The DRCs were plotted, half-effective concentration (EC₅₀) and half-cytotoxic concentration (CC₅₀) were calculated using GraphPad Prism Software, version 6.05 (GraphPad Software, San Diego, CA).

2.3. In vitro L. donovani assay at GlaxoSmithKline

The intramacrophage Leishmania donovani activity assay (LD AMMAC) at GlaxoSmithKline was performed as described in (34).

2.4. Solubility assays

Solubility of compounds using ChemiLuminescent Nitrogen Detection (CLND) was measured as described in (20). Solubility of compounds using Charged Aerosol Detection (CAD) was measured as described in (30). Solubility of solid compounds in Fasted Simulated Intestinal Fluid (FaSSIF) was measured as described in (20, 30).

2.5. Artificial membrane permeability assays

Passive permeability of compounds via rate of permeation through an artificial phospholipid membrane at pH 7.4 was measured in a high-throughput format, in duplicate. A solution of 1.8% phosphatidylcholine in 1% decane was added to a 96-well Millicell filter plate along with 250 µL of 50 mM phosphate buffer, pH 7.4 on the donor side, and 100 µL of the same buffer solution on the receiver side. The assay plate was shaken for 45 minutes before adding test compounds. Test compounds were then added to the filter plate and then incubated at room temperature with shaking for three hours. The donor and receiver solutions were next transferred to a 384-well plate for analysis by LC/MS.

2.6. Microsomal stability assays

Mouse microsomal stability assays were performed as described in (20, 30). Test compounds (0.5 μM) were incubated with female CD1 mouse (Xenotech) liver microsomes and their action started with addition of excess NADPH (8 mg/mL 50 mM potassium phosphate buffer, pH 7.4). Aliquots (50 μL) of the incubation mixture were removed immediately (at time 0) and at 3, 6, 9, 15, and 30 min and mixed with acetonitrile (100 μL) to stop the reaction. Internal standard was added to all samples, the samples were centrifuged to sediment precipitated protein, and the plates were then sealed prior to UPLC-MS/MS analysis using a Quattro Premier XE (Waters Corporation, USA). XLfit (IDBS, UK) was used to calculate the exponential decay and consequently the rate constant (k) from the ratio of the peak area of test compound to internal standard at each time point. The rate of intrinsic clearance (Cl_i) of each test compound was then calculated using the equation Cl_i (mL/min/g liver) = k × V × microsomal protein yield, where V (mL/mg protein) is the incubation volume/mg protein added and microsomal protein yield is taken as 52.5 mg protein/g liver. Verapamil (0.5 μM) was used as a positive control to confirm acceptable assay performance.

2.7. Human serum albumin assay

The percentage of compound bound to human serum albumin was measured using a chromatographic method as described in (35, 36). Briefly, each compound was assayed on an immobilized HSA column and gradient retention times measured, with chromatographic peak detection by UV. Each retention time was then converted to a % HSA bound value using a calibration set of compounds with a known % HSA binding.

2.8. Plasma protein binding assay

The unbound fraction of compound 1 in plasma was measured using a commercial RED (Rapid Equilibrium Dialysis) plate with inserts (Thermo) with a molecular weight membrane cut off of 8K. The relevant volume of spiked sample matrix was added into the corresponding sample chambers of the RED insert. Three volume equivalents of dialysis buffer were added to the buffer chamber. The dialysis plate was sealed and incubated at 37°C on a plate shaker for approximately 4 h at 100 rpm. An equivalent volume was removed from each of the three buffer sample chambers and placed into its own well in a clean plate. A specific volume of control matrix was added to each buffer sample for matrix matching. Next, >3X volume of precipitation solvent (acetonitrile + internal standard) was added and the plate was centrifuged. A measured volume of the resulting supernatants was transferred into a clean plate and a specific volume of analytical grade water was added to all samples. Samples were analyzed using a compound-specific LC-MS/MS method to generate analyte peak area ratios which are representative of bound and free drug.

2.9. ChromLogD assay

The chromatographic hydrophobicity index (CHI) values were measured using reversed phase HPLC column (50 mm × 2 mm, 3 μm Gemini NX C18, Phenomenex, U.K.) with fast acetonitrile gradient at starting mobile phase at pH 2, 7.4, and 10.5. CHI values were derived directly from the gradient retention times by using a calibration line obtained for standard compounds. The CHI value approximates to the volume % organic concentration when the compound elutes. CHI was linearly transformed into ChromLogD by least-squares fitting of experimental CHI values to calculated log P (CLogP) values for over 20K research compounds using the following formula: ChromLogD = 0.0857 * CHI_7.4 − 2.00. The average error of the assay is ± 3 CHI units or ± 0.25 ChromLogD.

2.10. Chiral chromatographic resolution of compound 1

The enantiomers of compound 1 were resolved using semi-preparative chiral HPLC on a Chiralpak IC column (0.46 x 25 cm) using an isocratic mobile phase of 70:30 heptane:ethanol with a 1 mL/min flowrate for 30 minutes. The first- and second-eluding enantiomers of 1 had retention times of 13.9 minutes, and 22.6 minutes, respectively. Independent biological testing of each enantiomer in the LD AMMAC assay indicated that the first-eluting enantiomer (1a, T_R=13.9 min) had an EC₅₀ of 0.8 µM, and the second-eluting enantiomer (1b, T_R = 22.6 min) had an EC₅₀ of ~10 µM. The separated enantiomers were next subjected to VCD analysis for absolute stereochemistry assignment as described below.

2.11. VCD analysis of compound 1 enantiomers

A VCD spectrum for each of the separated enantiomers of 1 was obtained in deuterated acetonitrile (~9.8 mg/175 µL concentration) on a BioTools ChiralIR-2X FT-VCD spectrometer operated at 4 cm^-1. VCD frequency range was measured from 2400-800 cm^-1 with PEM calibrated at 1400 cm^-1 and PEM retardation applied. The first-eluting enantiomer (1a) was analyzed using a single two-hour block scan (6240 total scans) and the second-eluting enantiomer (1b) was analyzed using the average of six two-hour block scans (37,440 total scans). These experimentally-obtained VCD spectra were utilized in the computational enantiomer assignment as described below.

2.12. Computational methods and enantiomer determination

Predicted VCD and IR spectra for the (R) enantiomer of compound 1 were generated according to the following computational workflow: first, a conformational search was performed using MOE LowMode algorithm and Amber12:EHT force field with a generalized Born implicit solvent model (dielectric constant = 1). Each unique conformer was then subjected to DFT optimization (B3LYP/DGDZVP2) with VCD vibrational frequency calculation using a polarizable continuum solvent model for acetonitrile. A VCD spectrum was then predicted with fractional populations of each conformer estimated using Boltzmann statistics with a Lorentzian band width of 8 cm^-1 and a frequency scale factor of 9.9825. This computationally-predicted spectrum was compared to the experimentally obtained spectra using CompareVOA software (BioTools, Inc.) (37) (Supplementary Figure S1). Inspection of the VCD data in the analysis range indicated that the (R) model spectrum was largely coincident with that measured on the second-eluting enantiomer 1b, and was the mirror image of that obtained for the first-eluting enantiomer 1a. Based on these findings, the bioactive enantiomer 1a was assigned with (S) absolute configuration ((S)-1), and enantiomer 1b was assigned with (R) absolute configuration ((R)-1). The confidence limit for these assignments was determined from the absolute values of two parameters in the CompareVOA software: total neighborhood similarity (TNS (VCD)) and the enantiomeric similarity index (ESI) (38). The thresholds for “high” reliability (CL of >99%) are TNS (VCD) ≥ 70 and ESI ≥ 60. In this study, the TNS (VCD) and ESI values were 81.0, and 77.5, respectively, providing an estimated confidence limit of >>99% (very high reliability).

3. Results and discussion

3.1. High-content screening in Leishmania intracellular amastigotes reveals a new antileishmanial pyrazolopyrrolidinone chemotype

In a collaborative effort to identify new antileishmanial chemotypes with minimal host cell cytotoxicity, compounds from the Boston University Center for Molecular Discovery (BU-CMD) screening collection were assessed in a phenotypic, high content primary screen (33) at the University of California’s Center for Discovery and Innovation in Parasitic Diseases (CDIPD) for the ability to inhibit growth of L. donovani intracellular amastigotes infecting THP-1 cells. From this screen, we identified two pyrazolopyrrolidinones (1 and 2, Table 1) which exhibited >99% inhibition of parasite growth with minimal cytotoxicity to the host THP-1 cells (<13% GI). Dose-response testing in L. donovani (both intracellular amastigotes and promastigotes) confirmed concentration-dependent growth inhibition of both morphologies of the parasite at low micromolar EC₅₀ values for both compounds (Table 1), with host THP-1 cell CC₅₀ values >20 µM. Similar activity was subsequently confirmed against both morphologies the cutaneous leishmaniasis-causative species L. major, suggestive of broad spectrum antileishmanial activity. Notably, these initial hits had potencies comparable to all existing non-antimonial treatments for the disease (Table 1), as well as to GlaxoSmithKline’s current Phase I VL candidates GSK3186899 (intramacrophage EC₅₀ = 1.4 µM) and GSK3494245 (intramacrophage EC₅₀ = 1.6 µM), which both were chosen for advancement over more potent analogues due to favorable drug properties (e.g. safety, solubility) (21, 30).

TABLE 1

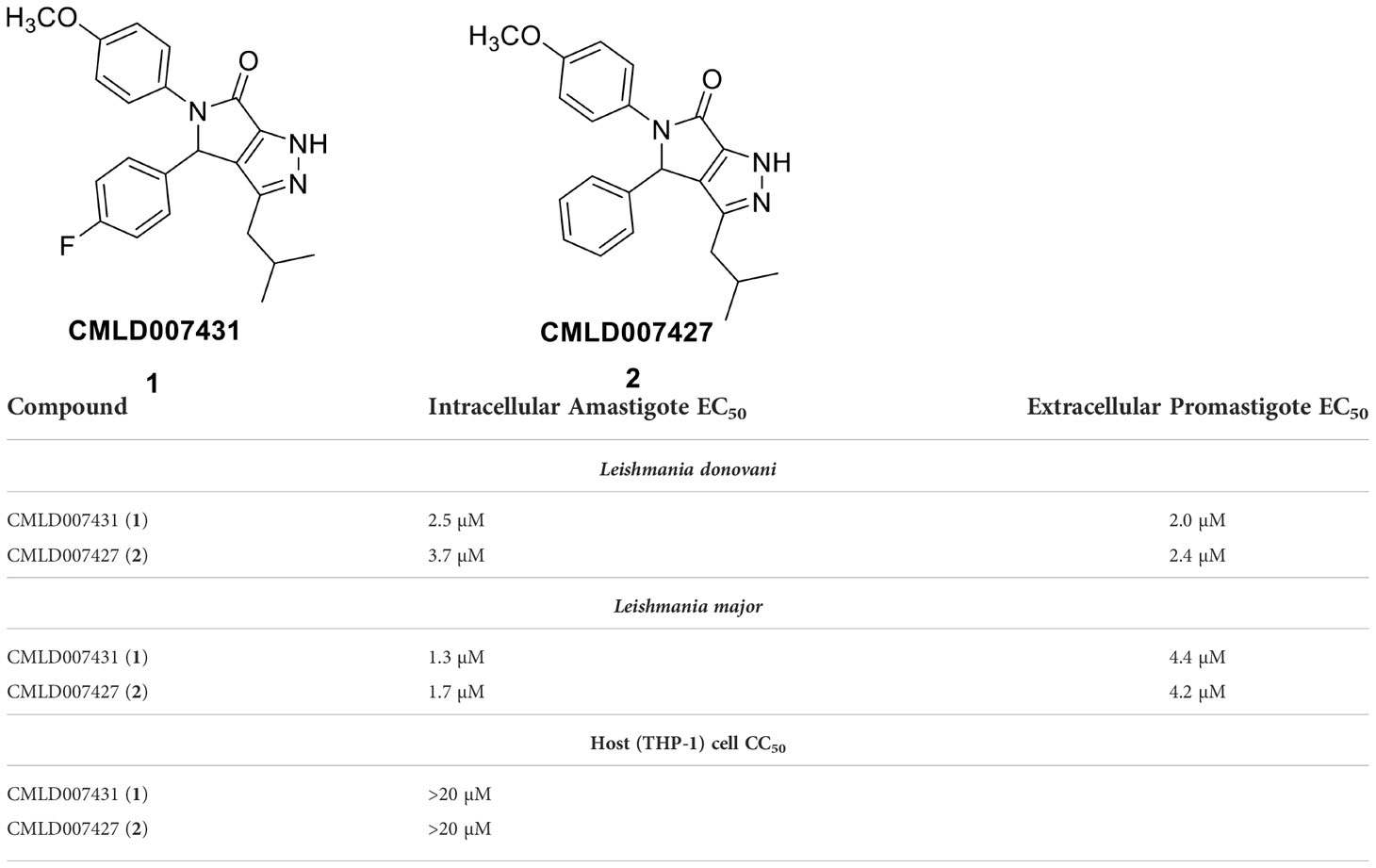

Table 1 Structures and antiparasitic activity profiles of antileishmanial pyrazolopyrrolidinones 1 and 2, first identified in a CDIPD (UCSF) high content screen for compounds inhibiting growth of L. donovani intracellular amastigotes infecting THP-1 cells.

Compounds 1 and 2 were generated as part of a larger combinatorial library of pyrazolopyrrolidinones (Figures 1, 2), obtained via Knorr pyrazole condensation of 4-acylated 3-hydroxydihydropyrrol-2-ones 4 with hydrazine hydrate. Precursors 4 are easily produced from a Mannich reaction/intramolecular cyclization between α/γ-diketo esters 5 and pre-formed or in situ-generated imines 6. Notably, the three-step reaction sequence is highly robust, and proceeds in high yields on large scales without the need for sophisticated reaction apparatus to exclude air or water (“bucket chemistry”). This feature, combined with the typically inexpensive bulk aldehyde, amine, diketo ester, and hydrazine starting materials, indicate that a future clinical candidate from this compound class could be produced on an industrial scale at low cost. The lack of activity for several near-neighbor analogues in the primary screen provided some nascent SAR (Supplementary Figure 2), hinting at the importance of the para-methoxyphenyl moiety at R¹ (vs. phenyl), and the isobutyl group at R³ (vs. methyl, isopropyl and phenyl).

FIGURE 2

Figure 2 Active (S) enantiomer of compound 1 as determined by VCD analysis.

Based on this preliminary activity profile, we established a collaborative medicinal chemistry project to further evaluate the therapeutic potential of this chemotype at GSK’s Tres Cantos Open Lab Foundation (TCOLF) site under the auspices of GSK’s Discovery Partnership in Academia (DPAc) Program. At the outset of the DPAc collaborative project, compound 1 was evaluated against GSK’s established criteria for antileishmanial compound advancement (Table 2). Some of these assessments were performed on racemic 1, while we also pursued chiral separation of the 1 racemate to determine the active enantiomer. Preparative chiral-SFC was used to separate enantioenriched 1 on a multigram scale, and vibrational circular dichroism (VCD) analysis confirmed the absolute (S)-stereochemistry of the active enantiomer (Figure 2 and Supplementary Figure 1), which had an improved EC₅₀ of 0.8 µM. As shown in Table 2, compound 1 performed well against most of GSK’s lead selection criteria, and met minimum standards toward advancement as a lead compound, with a few criteria accepted despite not falling within ideal ranges: human serum albumin binding and property forecast index (PFI), a hydrophobicity metric developed at GSK which considers lipophilicity and aromatic ring count and is predictive of downstream developability (39, 40). Based on this promising profile, we progressed into medicinal chemistry optimization to better understand structure-activity relationships (SAR) toward improved potency, as well as structure-property relationships (SPR) with an eye toward reducing PFI and plasma protein binding.

TABLE 2

Table 2 GlaxoSmithKline lead selection criteria for leishmaniasis.

3.2. Medicinal chemistry of pyrazolopyrrolidinones establishing preliminary structure-activity and structure-property relationships toward improved leads

The pyrazolopyrrolidinone chemotype is well-described in the research and patent literature, with a rich array of reported biological activities, the most prominent of which are p53/MDM2 interaction inhibition (41–49), phosphodiesterase inhibition (50, 51), and GPR55 modulation (52–56). In addition, there are examples of pyrazolopyrrolidinones exhibiting P2X3 antagonism (57), GPR68 agonism (58), 5-HT1A receptor binding (59), BET inhibition (60, 61), 14-3-3-PMA2 interaction stabilization (62), P-glycoprotein inhibition (63), antitumor activity (64), and antimicrobial activity against various parasitic, viral and bacterial species including T. cruzi (65), HIV (66, 67), flaviviruses (68), M. tuberculosis (69, 70), P. falciparum (71, 72), and V. cholerae (73). Interestingly, most of the aforementioned activities are relegated to pyrazolopyrrolidinones wherein R³ is an aryl substituent. This phenomenon may, however, be attributable to the ease of synthesis of such compounds and their precursors. An important exception to the R³ arylation trend is observed among select inhibitors of the p53/MDM2 interaction. In all of these inhibitors, the R¹/R² diarylated motif has been shown crystallographically to be a critical binding element at the Leu26 and Trp23 subpockets of MDM2, a similar pharmacophore and binding mode to that exhibited by other diarylated p53/MDM2 inhibitors such as nutlin. Among these inhibitors, non-aryl R³ substitutions such as methyl, isopropyl, and tert-butyl have all been shown to confer some degree of inhibition (47). Other scattered exceptions include a class of purinoreceptor antagonists with similarly broad tolerance for R³ substitution (74), and two examples of R³-methyl substituted inhibitor chemotypes: EPX-107979, annotated as a folding corrector of F508del-CFTR (75) and 11β-hydroxysteroid dehydrogenase inhibitors ZINC01292412 and ZINC01260941 (76). Importantly, however, there are no reported examples to-date of pyrazolopyrrolidinones bearing the R³ = ⁱBu substitution, which from our primary screen SAR (Supplementary Figure 2) appeared to be critical for antileishmanial activity in the absence of host toxicity. While the target of antileishmanial pyrazolopyrrolidinones has yet to be defined, and we cannot conclusively rule out any of the aforementioned targets as being implicated in this activity, the consistent lack of antileishmanial activity among the many R³ phenyl-, isopropyl- and methyl-substituted pyrazolopyrrolidinones tested in the primary screen is suggestive of a target for the R³ isobutylated compounds which is orthogonal to those already appearing in the vast pyrazolopyrrolidinone literature.

Concurrent with the evaluation of screening hit 1 against GSK TCOLF’s lead advancement criteria (Table 2), we executed a preliminary medicinal chemistry campaign to improve our understanding of structure-activity relationships (SAR) for this series, to target compounds with improved potencies and physicochemical properties to potentially supersede compound 1 as an advanced lead.

Given the literature precedents described above and the apparent narrow tolerance for R³ substitutions observed in the primary screen compounds, we first undertook a thorough and methodical assessment of tolerated groups at the three points of diversity (R¹/R²/R³) for the core. At this stage of the project, all analogues were assessed using a battery of assays performed in-house at GlaxoSmithKline. For antileishmanial activity, we utilized GSK’s inMac assay (77). This assay provides two readouts of compound potency: average number of intracellular amastigotes per infected cell (AMMAC) EC₅₀, percentage of infected cells per well (INFCELL) EC₅₀, as well as a toxicity output derived from the number of host cells (MAC EC₅₀). In addition, compounds were assessed for toxicity against HepG2 cells (HEPG2 EC₅₀). Here, we focus on AMMAC EC₅₀ values for relative potency assessments. Using this data, we calculated a selectivity index (SI) for each compound, described here as a macrophage SI (SI MAC), using the equation SI MAC = (MAC EC₅₀)/(AMMAC EC₅₀). It should be noted that for all compounds assessed in this project, the measured toxicity against THP-1 macrophages either equaled or exceeded that of HepG2 hepatocytes, therefore the SI MAC is used here as the more conservative estimate of therapeutic index.

Revisiting the initial profile of compound 1 against GSK’s lead selection criteria, we identified a number of properties requiring improvement, including PFI, plasma protein binding, and a larger SI relative to THP-1 and HepG2 cells. While the CLND solubility fell below the ideal range, good FaSSIF solubility suggested viability as an orally available drug. We used the potency and physiochemical data for 1 as a benchmark for guidance as we began investigating the SAR to identify an improved lead compound for series progression and advancement to animal studies. In these studies, human serum albumin (HSA) binding was employed as a surrogate for plasma protein binding.

Starting first at R³, we explored a variety of aliphatic substitutions, determining that some branched aliphatics of similar size to the parent isobutyl (e.g. isopentyl/neopentyl, Table 3, compounds 9-10) exhibited comparable potencies and low host cell toxicities, whereas the linear n-butyl (compound 11) showed a significant increase in potency (~300 nM) that was accompanied by a toxicity increase to the low micromolar range (2.5 µM). Similar effects were observed with n-but-1-ene and 2-methyl-n-but-1-ene substitutions (compounds 12-13). Finally, surveys of additional branched aliphatic (13) and aromatic (compounds 14-17) substituents at R³ failed to produce more potent compounds than 1, and often showed significant decreases in selectivity index. While the isopentyl/neopentyl analogues 9 and 10 showed marginal improvements over 1 with respect to their macrophage toxicity, these improvements were offset by equivalently small increases in HepG2 toxicity and significant reductions in solubility/permeability; as such we opted to retain the R³ isobutyl substituent in all future analogues.

TABLE 3

Table 3 Surveying the effects of variations at R³.

We next examined the effects of modifying the R¹ para-methoxyphenyl substituent (Table 4). Direct conversion of the methyl ether to phenol (compound 18) suppressed both antileishmanial activity and toxicity. The ethyl ether analogue 19 exhibited modest improvements in both activity and toxicity as compared to the parent methyl, while the trifluoromethoxy ether (20) ablated antileishmanial activity to levels below that of the inherent THP1-cell toxicity. The dimethylamino analogue 21 showed significantly improved potency and selectivity index, while the ethyl-, fluoro-, bromo-, tert-butyl- and methyl ester-substituted analogues (compounds 22-25) had comparable activities and therapeutic indices to 1. In contrast to methyl ester 26, hydrolyzed carboxylic acid 27 was inactive. Lastly, replacement of the para-methoxy with an N-linked imidazole (compound 28) afforded an equipotent compound with reduced cytotoxicity, leading to an improved SI. However, all improvements in potency (24, 26) or host cell toxicity (26, 28) leading to improved selectivity index were accompanied by significant reductions CLND solubility.

TABLE 4

Table 4 Surveying effects of various p-substituted aromatics at R¹.

Next, we examined alternate substitution patterns on the R¹ aryl ring (Table 5). Movement of the methoxy group from para- to the ortho- (29) or meta-positions (30) ablated activity, as did nitrogenation of the ring in the presence (31) or absence (32–33) of the para-methoxy group. Additional unsuccessful modifications explored included homologation of the para-methoxyphenyl moiety to a para-methoxybenzyl (34), and additional furyl (35) and non-aromatic substituents (36–41); although several of these modifications led to significant improvements in key properties such as reduced host cell toxicity, and improved solubility, permeability, HSA binding, and PFI, none were able to achieve inhibition of parasite replication below 10 µM EC₅₀ values.

TABLE 5

Table 5 Probing expanded diversity at R¹.

In contrast, we found more success in replacing the para-methoxyphenyl group with disubstituted benzene and bicyclic heteroaromatic substituents (Table 6). For example, meta-fluorination of 1 (42) led to modest increases in both potency and selectivity, albeit with the reduction in solubility as would be expected due to the increased lipophilicity. In contrast, addition of an ortho-methoxy substituent to 1 (43) improved solubility, again at the expense of activity. The replacement of the methoxy moiety with various 3,4-fused heterocycles (methylenedioxy 44, ethylenedioxy 45, and triazolopyridine 46) all led to modest improvements in selectivity via reduced host cell toxicity. However, none of these analogues showed improved solubility relative to 1 despite the presence of additional heteroatoms, which was apparently offset by the increased planarity imparted by the bicyclic systems.

TABLE 6

Table 6 Surveying effects of di- and tri- substitutions at R¹.

With an improved understanding of R¹ and R³ SAR, we next advanced to modifications of R² (Table 7), where our initial screening SAR indicated that deletion of the para-fluoro substituent (compound 2) afforded a similarly potent compound to 1, whereas replacement of the fluorine with a methyl group resulted in 0% inhibition at 10 µM (CMLD007430, Supplementary Figure 3). Consistent with this, our efforts to replace the fluorine with other halogens (47–48), trifluoromethyl (49), carboxylate (50) and methyl carboxylate (51) substituents all reduced potency, as did replacement of the phenyl ring with cyclohexyl and cyclopentyl moieties (compounds 52-53). Interestingly, improved potencies and selectivity indexes were achieved with several types of ortho-substituents, including halogens (54–56) and a methyl ether (57), whereas none such improvements were observed with the equivalent meta-substituents (58–62). Consistent with this trend, addition of ortho-substituents to the para-fluorinated 1 (63–64) led to improved potency, whereas addition of a meta-fluoro to the same scaffold did not (65). Lastly, 2,6-dichloro substitution of the R² phenyl ring (compound 66) led to improved potency but with a considerable increase in host cell toxicity.

TABLE 7

Table 7 Surveying effects of simple aliphatic and aromatic R².

In an effort to improve solubility via R² modifications, we also surveyed a diverse array of substituted and unsubstituted heteroaromatic groups at this position (Supplementary Table S1). While several of these compounds exhibited the expected improvements in CLND solubility and reduction in HSA binding, potency was also significantly compromised for this set.

With the scope and limitations of R¹/R² substitutions mapped with respect to potency and property improvements, we next attempted to pair promising groups at each site to arrive at optimized new inhibitors. Based on the trends observed in the initial series, it was clear that improvements in solubility and reduced human serum albumin binding would require reduced lipophilicity (CLogP), a modification which generally also correlated with reduced potency in our initial analogues. To offset this, we focused on reducing global LogP via modifications to R¹ (where increased polarity appeared to be more tolerable), in combination with the apparent potency-enhancing ortho-substituents at R². Table 8 depicts the most successful of these pairings with respect to potency, selectivity, HSA binding, and solubility. Of note, at this later stage in the project solubility was measured using charged aerosol detection (CAD), due to a change in standard in vitro ADME methods employed at GSK. In addition, infection EC₅₀ and host cell CC₅₀ measurements were obtained in a comparable L. donovani infection model performed at the University of California, San Diego (see Methods). In order to benchmark compound performance across the two assays, a random sampling of compounds was selected for re-assessment in the UCSD infection assay (Supplementary Table S2). Most compounds showed slightly improved potency in the UCSD assay than was observed in the LD AMMAC assay run at GSK; as a representative example, the UCSD potency for racemic 1 was found to be 0.82 µM (Table 8, entry 1), compared to 2.5 µM in the GSK LD AMMAC assay. Despite the change in absolute potency values, the two assays were well-correlated with respect to relative potencies, with a Pearson’s correlation coefficient of 0.74. (Supplementary Table S2 and Supplementary Figure 3).

TABLE 8

Table 8 Pairing of promising R¹/R² moieties toward improved inhibitors.

From this compound series, the ortho-substituted R² groups (B1-B4) significantly improved potency and selectivity, even when paired with groups at R¹ which had conferred reduced potency when paired with the R² para-fluorophenyl moiety (e.g. A4/A5, Compounds 78-87). Several inhibitors in this series, 69, 86 and 87, exhibited the desired improvements across all key physicochemical properties, in addition to improved potency and selectivity. However, for a large proportion of these compounds the most significant gains in potency were offset by an increase in toxicity, PFI and HSA binding, and a reduction in solubility owing to increased lipophilicity. Efforts to optimize from 69, 86 and 87 toward further improved analogues are ongoing in our laboratory. Importantly, like compound 1, pyrazolopyrrolidinone compounds 69, 86 and 87, are inexpensive to produce on scale and show limited host cell cytotoxicity relative to their antiparasitic activity. These features underscore the potential for pyrazolopyrrolidinones to significantly improve the current state-of-the-art for controlling leishmaniasis, where the limited arsenal of existing first-line treatments are expensive (e.g. amphotericin) or toxic (e.g. miltefosine).

4. Conclusion

In this study, we discovered a novel antileishmanial pyrazolopyrrolidinone chemotype that is effective against the intracellular amastigote parasite morphology in multiple Leishmania species with minimal host cytotoxicity. Compared to all of the advanced leads in the current antileishmanial pipeline, pyrazolopyrrolidinones are extremely facile to produce, without the need for sophisticated reaction apparatus in two synthetic steps from low-cost commodity starting materials – an ideal attribute for a therapeutic targeting a neglected tropical disease. Subsequent medicinal chemistry optimization has produced multiple advanced leads with significantly improved potency and ADME parameters relative to the initial hit, and support further preclinical optimization of the series. Work to advance these and similar candidates into in vivo pharmacokinetic and efficacy assessments is ongoing.

Data availability statement

The original contributions presented in the study are included in the article/Supplementary Material. Further inquiries can be directed to the corresponding author.

Author contributions

JK: design of experiments, data collection, data analysis and interpretation, writing, editing, revising. L-IM: design of experiments, data collection, data analysis and interpretation, editing. MG: design of experiments, data collection, data analysis and interpretation; GM: design of experiments, data collection, data analysis and interpretation, DT: data collection, data analysis and interpretation. AG-P: design of experiments, data collection, data analysis and interpretation, writing, editing. JC: design of experiments, data collection, data analysis and interpretation, writing, editing. IC: design of experiments, data collection, data analysis. JF: data analysis and interpretation. JM: design of experiments, data analysis and interpretation. CO: data analysis and interpretation, writing, editing; JS-N: design of experiments, data analysis and interpretation, writing, editing, revising. SG: design of experiments, data analysis and interpretation, writing, editing, revising. LB: design of experiments, data collection, data analysis and interpretation, writing, editing, revising. SS: design of experiments, data analysis and interpretation, writing, editing, revising. All authors contributed to the article and approved the submitted version.

Funding

This work was supported by a Discovery Partnerships in Academia (DPAc) Award from GlaxoSmithKline (to JK, LB, SS) and a grant from the National Institutes of Health (Grant R01AI151639 to CO, JS-N, LB, and SS).

Acknowledgments

In vitro experiments at UC San Diego were conducted in the UCSD Screening Core. We are grateful to the National Science Foundation for the purchase of the Waters high resolution mass spectrometer (CHE 0443618) used in this work. B10R cells were provided by Martin Olivier, McGill University.

Conflict of interest

JK, JM, GM, CO, JS-N, LB and SS are named as inventors on a patent application pertaining to findings reported here. AG-P, JC, IC, and SG are employed by GlaxoSmithKline. JF was formerly employed by GlaxoSmithKline. This study received funding from GlaxoSmithKline. GlaxoSmithKline had the following involvement in the study: design of experiments, data collection, data analysis and interpretation, writing, editing and revising.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fitd.2022.1011124/full#supplementary-material
