Robert R. Hoffman
Shane T. Mueller
Gary Klein
Jordan Litman- 1Institute for Human and Machine Cognition, Pensacola, FL, United States
- 2Department of Psychology, Michigan Technological University, Houghton, MI, United States
- 3MacroCognition, LLC, Dayton, OH, United States
- 4Department of Psychology, University of Maine at Machias, Machias, ME, United States
If a user is presented an AI system that portends to explain how it works, how do we know whether the explanation works and the user has achieved a pragmatic understanding of the AI? This question entails some key concepts of measurement such as explanation goodness and trust. We present methods for enabling developers and researchers to: (1) Assess the a priori goodness of explanations, (2) Assess users' satisfaction with explanations, (3) Reveal user's mental model of an AI system, (4) Assess user's curiosity or need for explanations, (5) Assess whether the user's trust and reliance on the AI are appropriate, and finally, (6) Assess how the human-XAI work system performs. The methods we present derive from our integration of extensive research literatures and our own psychometric evaluations. We point to the previous research that led to the measurement scales which we aggregated and tailored specifically for the XAI context. Scales are presented in sufficient detail to enable their use by XAI researchers. For Mental Model assessment and Work System Performance, XAI researchers have choices. We point to a number of methods, expressed in terms of methods' strengths and weaknesses, and pertinent measurement issues.
1. Introduction
Explainability is an issue for decision makers who rely upon Artificial Intelligence, Machine Learning, Data Analytics, and related areas. If a computational system relies on a simple statistical model, decision makers can perhaps understand it and convince executives who have to sign off on a system that it is reasonable and that seems fair. They can justify the analytical results to shareholders, regulators, etc. But for Machine Learning and Deep Net systems, they can no longer do this. There is a need for ways to explain the computational system to the decision maker so that they know that the AI's process is going to be reasonable.
... current efforts face unprecedented difficulties: contemporary models are more complex and less interpretable than ever; [AI is] used for a wider array of tasks, and are more pervasive in everyday life than in the past; and [AI is] increasingly allowed to make (and take) more autonomous decisions (and actions). Justifying these decisions will only become more crucial, and there is little doubt that this field will continue to rise in prominence and produce exciting and much needed work in the future (Biran and Cotton, 2017; p. 4).
This brings into relief the importance of Explainable AI (XAI). A proposed regulation before the European Union (Goodman and Flaxman, 2016) prohibits “automatic processing” unless user's rights are safeguarded. Users have a “right to an explanation” concerning algorithm-created decisions that are based on personal information. Future laws may restrict AI, which represents a challenge to industry (see European Intellectual Property Office, 2022). The importance to the field of AI is made salient by the recent reviews of XAI systems, highlighting the goals of explanations for “responsible AI,” spanning such issues as trustworthiness, informativeness, confidence, and fairness (e.g., Arrieta et al., 2020).
AI systems are receiving considerable attention in the recent popular press (Harford, 2014; Bornstein, 2016; Alang, 2017; Champlin et al., 2017; Hawkins, 2017; Kuang, 2017; Pavlus, 2017; Pinker, 2017; Schwiep, 2017; Voosen, 2017; Weinberger, 2017). Reporting and opinion pieces have discussed social justice, equity, and fairness issues that are implicated by AI (e.g., Felten, 2017).
The goals of explanation involve answering questions such as, How does it work? and What mistakes can it make? and Why did it just do that? Why did it do x rather than y? The issue addressed in this article is: If we present to a user an AI system that explains how it works, how do we go about measuring whether or not the explanation works, whether it works well, and whether the user has achieved a pragmatic understanding of the AI? Our focus is on the key concepts of measurement, and measurement methods for the evaluation of XAI systems and human-AI work system performance.
1.1. Key measurement concepts
The concept or process of explanation has been explored in one way or another by scholars and scientists of all schools and specializations, spanning literally all of human civilization. To say that the pertinent literature is enormous is an understatement. In modern times, the concept has been a focus in Philosophy of Science, Psychology (Cognitive, Developmental, Social, and Organizational), Education and Training, Team Science, and Human Factors. “While explainable AI is only now gaining widespread visibility, [there is a] continuous history of work on explanation and can provide a pool of ideas for researchers currently tackling the task of explanation (Biran and Cotton, 2017, p. 4).”
Expert Systems researchers implemented methods of explanation (Clancey, 1984, 1986; McKeown and Swartout, 1987; Moore and Swartout, 1990). Additionally, explanation is what Intelligent Tutoring Systems were (and are) all about (Sleeman and Brown, 1982; Polson and Richardson, 1988; Psotka et al., 1988; Ritter and Feurzeig, 1988; Anderson et al., 1990; Lesgold et al., 1992; Forbus and Feltovich, 2001).
Key concepts include causal reasoning, abductive (or hypothetic) inference, comprehension of complex systems, counterfactual reasoning (Why didn't z happen instead of x?), and contrastive reasoning (What would have happened if q had been different?). For reviews of the literature, see Byrne (2017), Miller (2017), Hoffman et al. (2018), and Mueller et al. (2019).
An early conceptual model of explaining is presented in Figure 1. This diagram was intended to call out the places in the XAI evaluation process where key factors would have to be measured. According to this model, initial instruction in how to use an AI system would enable the user to form an initial mental model of the task and the AI system. Subsequent experience, which would include machine-generated explanations, would enable to participant to refine their mental model, which in turn should lead to better performance and appropriate trust and reliance.

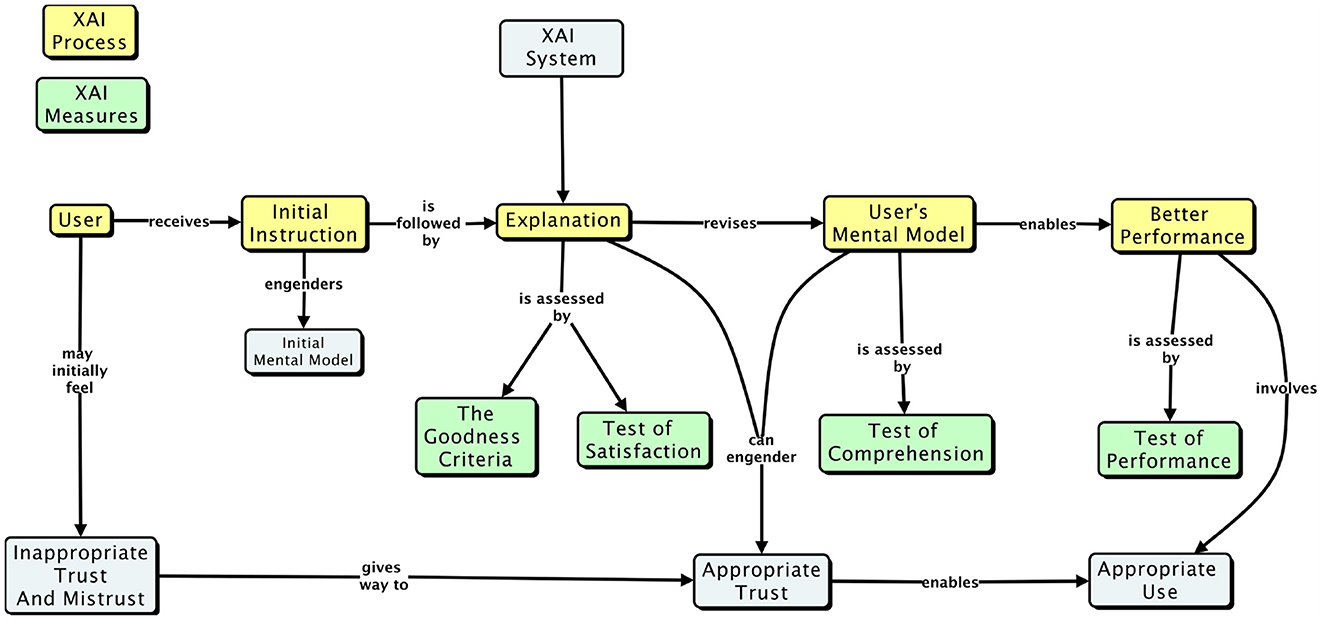

Figure 1. A conceptual model of the process of explaining, in the context of evaluating XAI systems.
As a psychological or cognitive model this is deficient for a variety of reasons. But by this model, a number of types of evaluation measures are required (Miller, 2017). In this article we detail each of the four classes of measures and offer specific methodological guidance.
2. Explanation goodness and satisfaction
The property of “being an explanation” is not a property of statements, it is an interaction. What counts as an explanation depends on what the learner/user needs, what knowledge the user (learner) already has, and especially the user's goals. This leads to a consideration of the function and context of the AI system (software, algorithm, and tool), that is, why does a given user need an explanation? In the various pertinent literatures, this is expressed in terms of the different kinds of questions that a user might have. These “triggers” for explanation are listed in Table 1.
Table 1. Triggers of the need for explanation, and corresponding learner's and goals.
Thus, the seeking of an explanation can tacitly be an expression of a need for a certain kind of explanation, to satisfy certain user purposes of user goals.
A number of XAI developers have recognized the importance of measuring the qualities of explanations of AI systems (e.g., Ehsan et al., 2019). Holzinger et al. (2020) proposed a 10-item scale called the System Causability Scale. Some items referred to the measurement context, such as the timeliness of the explanations. Some items referenced such features as detail, completeness, understandability and learnability of the explanation. This scale can be understood as tapping into two separable things: (1) the intrinsic goodness of explanations and (2) the user's satisfaction with the explanations.
2.1. Explanation goodness (system designer's perspective)
Looking across the scholastic and research literatures on explanation, assertions are made about what makes for a good explanation, from the standpoint of explanations as statements. There is a general consensus on this; factors such as clarity and precision. Thus, one can look at a given explanation and make an a priori (or decontextualized) judgment as to whether or not it is good. Table 2 presents a Goodness Checklist of the features that make explanations good, according to the research literature. The reference is to the properties of explanations. The participant simply checks off “yes” or “no” in response to each question.
Table 2. The explanation goodness checklist.
This Checklist can be used by researchers to build goodness into the explanations that their XAI system generates, or to evaluate the a priori goodness of the explanations that an XAI system generates. In a properly controlled experiment, the researchers who complete the checklist, with reference to some particular XAI-generated explanation, would not be the ones who created the XAI system under study.
2.2. Explanation satisfaction (user's perspective)
Are the researchers correct in claiming that their explanations are adequate, or good? While an explanation might be deemed good in the a priori manner described above, it may not be adequate or satisfying to users-in-context. Many AI researchers have recognized the importance of empirically evaluating explanations from the user's perspective. Ehsan et al. (2019) focused on the “human-likeness” of explanations, that is, the degree to which a machine-generated explanation seems like the sort of thing a human might say. The researchers had players in the game Frogger express their rationales for their game play actions. These rationales were then evaluated by expert game players. Another group of participants evaluated rationales that had been selected at random and rationales that had been deemed best by a game expert. The rationales were rated for human-likeness, and understandability. The results showed that participants wanted rationales that were understandable, reliable, and of sufficient detail. They preferred rationales that had implications for immediate and longer-term actions.
Explanation Satisfaction is defined here as the degree to which users feel that they sufficiently understand the AI system or process being explained to them. Compared to Goodness, as defined above, satisfaction is a contextualized, a posteriori judgment of explanations [And it must be noted that a person may say that they feel satisfied with an explanation when in fact their understanding is piecemeal or flawed; see diSessa (1993)].
Based on our review of the psychological literature, including theoretical and empirical work by Muir (1987, 1994) and by Cahour and Forzy (2009), we identified several key attributes of explanation satisfaction: understandability, feeling of satisfaction, sufficiency of detail, completeness, usefulness, accuracy, and trustworthiness (Muir and Moray, 1996). These were aggregated and formed as a Likert scale. The sale items are listed in Table 3. For each item, the participant would provide a rating using a 1–5 scale (I agree strongly, I agree somewhat, I'm neutral about it, I disagree somewhat, I disagree strongly).
Table 3. The explanation satisfaction scale.
Like the Explanation Goodness Checklist, the Explanation Satisfaction Scale was based on the literatures in cognitive psychology, philosophy of science, and other pertinent disciplines regarding the features that make explanations good. Thus, the Explanation Satisfaction Scale is very similar to the Explanation Goodness Checklist. However, the application context for the two scales is quite different.
• The Explanation Goodness Checklist is intended for use by researchers who have created explanations. The Explanation Goodness Checklist is intended for use as an independent evaluation of explanations, by other researchers. The reference is to the properties of explanations.
• Explanation Satisfaction is an evaluation of explanations by users. The Explanation Satisfaction Scale is for collecting judgments by research participants after they have worked with the XAI system that is being explained, and have been the beneficiaries of one or more explanations.
3. Measuring mental models
In cognitive psychology, mental models are defined as representations or expressions of how a person understands some sort of event, process, or system (Klein and Hoffman, 2008). There is a large body of psychological research on mental models (Johnson-Laird, 1980, 1989; Gentner and Gentner, 1983; Greeno, 1983; Carroll, 1984; Kintsch et al., 1984). Praetorious and Duncan (1988) present an elegant treatment of methodology of eliciting mental models. Staggers and Norcio (1993) provide a good summary of the conceptual and theoretical issues.
There is a consensus that mental models can be inferred from empirical evidence (Johnson-Laird, 1983; Zhang and Wickens, 1987; Glenberg and Langston, 1992; Qin and Simon, 1992; Bogacz and Trafton, 2004; Clement, 2004; Heiser and Tversky, 2006; Klein and Hoffman, 2008). There is sufficient evidence to conclude that different methods for eliciting mental models can converge (Evans et al., 2001; van der Veer and Melguzio, 2003). People may not be able to tell you everything about their understanding, and they may not be able to tell it well. But with adequate scaffolding by some method of guided task reflection, people can tell you how they understand an event or system, they can express their knowledge of it, and the concepts and principles that are involved.
To be sure, people's mental models are rarely complete and coherent (diSessa, 1993), or even consistently correct. “Knowledge shields” are arguments that learners make that enable them to preserve their simplifying and misleading understandings (Feltovich et al., 2001). A focus for instructional design has been to develop methods to get people to recognize when they are employing a knowledge shield that prevents them from developing richer mental models (Hilton, 1996; Hilton and Erb, 1996; Prietula et al., 2000; Tullio et al., 2007; Schaffernicht and Groesser, 2011).
People sometimes overestimate how well they understand complex causal systems. This can be corrected by asking the learner to explicitly express their understanding or reasoning (Chi et al., 1989; Van Lehn et al., 1990; Chi and Van Lehn, 1991; O'Reilly et al., 1998; Rosenblit and Kein, 2002; Mills and Keil, 2004; Rittle-Johnson, 2006; Fernbach et al., 2012; Bjork et al., 2013).
These considerations pertain directly to how people understand machines, spanning process control systems, complex computational systems, decision aids, and intelligent systems (Bainbridge, 1979, 1988; de Kleer and Brown, 1983; Williams et al., 1983; Young, 1983; Harris and Helander, 1984; Rasmussen, 1986; Moray, 1987; Goodstein et al., 1988; Carberry, 1990; May et al., 1993; Staggers and Norcio, 1993; Rasmussen et al., 1994; Samurcay and Hoc, 1996; Doyle et al., 2002; Mueller and Klein, 2011).
In the XAI context, a mental model is a user's understanding of the AI system and its context. This involves more than their understanding of just the AI; it involves their task, goals, current situation, etc. (see Miller, 2017; Mueller et al., 2019). XAI system development requires a method for eliciting, representing, and analyzing users' mental models.
3.1. Overview of mental model elicitation methods
Table 4 lists some methods that have been used to elicit mental models, and exemplary studies. The methods' strengths and weaknesses presented in Table 5 should be useful to system developers who have to make choices about how to investigate user sensemaking about an AI system.
Table 4. Some methods that can be used to elicit mental models.
Table 5. Methods strengths and weaknesses.
3.2. Application to the XAI context
Explanations can entail what will happen in the future (Mitchell et al., 1989; Koehler, 1991; Lombrozo and Carey, 2006). Thus, a prediction task has the user anticipate what the AI will do, such as the classification of an image by a Deep Net. A prediction task might be about What do you think will happen next? but it can also be about a counterfactual: Why wouldn't something else happen? A prediction task can serve as a method for peering into users' mental models, especially if its application is be accompanied by a confidence rating and a free response elaboration in which the users explain or justify their predictions, or respond to a probe about counterfactuals.
Diagramming can enable a user to convey the understanding to the researcher, and it can also support a process in which diagrams are analyzed in terms of their proposition content (Johnson-Laird, 1983 Ch. 2; Cañas et al., 2003). A diagramming task, along with analysis of concepts and relations (including causal connections or state transitions) has been noted in the field of education as a method for comparing the mental models of students to those of experts or their instructor (see Novak and Gowin, 1984). It has been noted in social studies as a method for comparing individuals' mental models of social groups [i.e., individuals and their inter-relations; Carley and Palmquist (1992)]. It has been noted in operations research as a method for comparing mental models of dynamical systems (see Schaffernicht and Groesser, 2011).
Another method that can accomplish these things this is Cued Retrospection. Probe questions are presented to participants about their reasoning just after the reasoning task has been performed (see Ward et al., 2019). For instance, they might be asked, Can you describe the major components or steps in the [software system, algorithm]? The probes can also reference metacognitive processes, for example by asking, Based on the explanation of the [software, algorithm], can you imagine circumstances or situations in which the [software, algorithm] might lead to error conditions, wrong answers, or bad decisions?
Explicit Self-explanation has been shown to improve learning and understanding. This holds for both deliberate self-motivated self-explanation and also self-explanation that is prompted or encouraged by the instructor. Self-explanation can have a significant and positive impact on understanding. Self-generated deductions and generalizations help learners refine their knowledge (Chi et al., 1989, 1994; Chi and Van Lehn, 1991; Rittle-Johnson, 2006; Molinaro and Garcia-Madruga, 2011; Lombrozo, 2016). Having learners explain the answers of experts also enhances the learner's understanding (Calin-Jageman and Ratner, 2005).
Understanding also accrues from a task that allows a learner to compare their reasoning to that of an expert. The ShadowBox Lite method [presented here by permission from Klein and Borders (2016)] is a self-explanation task that is applicable to the XAI context, and provides a quick window into user mental models: It avoids the necessity of eliciting and analyzing an extensive recounting of the user's reasoning. In the method, the user is presented a question such as How does a car's cruise control work? Accompanying the question is a proposed explanation. The task for the user is to identify one or more ways in which the explanation is good, and ways in which it is bad. After doing this, the participant is shown a Good-Bad list that was created by a domain expert (see Table 6, below). The participant's comparison of the lists can lead to insights.
Table 6. An example of propositional coding using the ShadowBox Lite Task.
Compelling evidence of the value of task reflection comes from a set of studies that used methods of knowledge elicitation for the evaluation of explainable AI systems (Anderson et al., 2020; Dodge et al., 2021; Khanna et al., 2021; Tabatabai et al., 2021). The researchers created a strategy game in which two software agents competed, and learned to adjust their strategies. Research participants were shown a game replay. After every few decision points, the game was paused and participants predicted what action an agent would take, then after the game resumed and was again paused, the participants were asked to described the action the agent did take, and finally, they explained why they thought the agent would take a particular action. In one of the experiments, participants were also asked to describe what they felt to be an agent's reasoning errors. The task retrospections included the asking of counterfactual and contrastive explanations, to ask why a software agent did not decide in a particular way, or ask why decided one way when it should have decided another (see also Goyal et al., 2019). In other words, participants were expressing their reasoning about the AI.
This corpus of work using various methods of task reflection and self-explanation has established the value of revealing user's mental models. It illustrates the need for structure or “scaffolding” that supports the user in explaining their thoughts and reasoning. It shows that task retrospection enhances the understanding of learners, and thus has value as a learning or training tool for new users. The researchers cited here have provided detailed descriptions of their methods, including ways of making the process efficient for AI developers (to determine, for example, how an AI might be improved). This is in recognition of the fact that XAI developers need a method that can elicit mental models quickly, and can result in data that can be easily scored, categorized, or analyzed.
3.3. Design considerations
Referencing these kinds of knowledge elicitation tasks, and the other tasks listed in Tables 4, 5, it is recommended that the evaluation of user mental models within the XAI context should employ more than one method for eliciting mental models. Performance on any one type of task might not align with performance at some other task. For instance, in one study it was found that the adequacy of a user-generated diagram did not match to better performance at a prediction task (see St-Cyr and Burns, 2002). Performance on a simulated industrial process control task can be good and yet the operator's understanding can be limited and even incorrect (see Berry and Broadbent, 1988).
Not all of the participants in a study have to be presented with a mental model elicitation task. Indeed, a reasonably sized and representative set of 10 to 12 participants can be presented one or more mental model elicitation tasks. If the analysis of the goodness of the mental models aligns with measures of performance, then subsequent studies might use performance measures as a surrogate for mental model analysis.
3.4. Analysis of user mental models
An empirically-derived expression of the content or the ebbs and flows that compose a user's mental model must contribute to the evaluation of mental model goodness (i.e., correctness, comprehensiveness, coherence, and usefulness). Evaluation is usually based on proposition analysis, Results from most elicitation tasks will be sentence-like utterances that can be recast as propositions, broken out by the concepts and their relations (see Crandall et al., 2006). Carley and Palmquist (1992) provide illustrative examples of propositional coding for transcripts of interviews of students by their teachers. The user model developed by Friedman et al. (2017) is based on propositional encoding of interview transcripts. We illustrate propositional analysis using the framework of the ShadowBox Lite Task. Table 6 presents an expert explanation, although this might just as easily be thought of as an explanation generated by an XAI system. The bottom two cells present the propositions expressed by the participant.
The products from a diagramming task can also be recast as propositions. The explanation can be decomposed into the component concepts, relations and propositions. In the case of the cruise control example, the expert's explanation has ten concepts (drive shaft rotation, car speed, etc.) seven relations (mounted on, disengage, etc.), and six propositions (e.g., Magnet is mounted on the drive shaft, Control unit calculates car speed).
Concepts, relations and propositions can be counted and the counts aggregated and analyzed in a number of ways. For instance, one can calculate the percentage of concepts, relations, and propositions that are in the user's explanation that are also in the expert's explanation. This can suggest the completeness of the user's mental model.
4. Measuring curiosity
There are theoretical and empirical reasons why curiosity might be considered an important factor in Explainable AI. Fundamentally, the seeking of an explanation can be driven by curiosity. As referenced in Table 1 of the “triggers” for explanation, learners sometimes wonder about such things as What would the AI have done if x were different? and Why didn't the AI do z? Therefore, it is important that XAI systems harness the power of curiosity. Explanations may promote curiosity and set the stage for the achievement of insights and the development of better mental models.
On the other hand, explanations can actually suppress curiosity and reinforce flawed mental models. This can happen in a number of ways:
• An explanation might overwhelm people with details,
• The XAI system might not allow questions or might make it difficult for the user to pose questions,
• Explanations might make people feel reticent because of their lack of knowledge,
• Explanations may include too many open variables and loose ends, and curiosity decreases when confusion and complexity increase.
For these reasons, the assessment of users' feelings of curiosity might be informative in the evaluation of XAI systems.
Epistemic curiosity is the general desire for knowledge, a motive to learn new ideas, resolve knowledge gaps, and solve problems, even though this may entail effortful cognitive activity (Berlyne, 1960, 1978; Loewenstein, 1994; Litman and Lunsford, 2010). Stimulus novelty, surprisingness, or incongruity, can trigger curiosity. All of these features refer to circumstances when information is noted as being missing or incomplete.
Curiosity is also triggered in circumstances where one experiences a violated expectation (Maheswaran and Chaiken, 1991). Violated expectations essentially reflect the discovery that events that were anticipated to be comprehensible are instead confusing—more information and some sort of change to one's understanding is needed to make sense of the event and thus resolve the disparity between expectation and outcome. Such situations lead people to engage in effortful processing, and motivates them to seek out additional knowledge in order to gain an insight and resolve the incongruency (Loewenstein, 1994).
This is directly pertinent to XAI. Curiosity is stimulated when learner recognizes that there is a gap in their knowledge or understanding. Recognizing a knowledge gap, closing that gap, and achieving satisfaction from insight make the likelihood of success from explanations or self-explanations seem feasible. This leads to the question of how to assess or measure curiosity in the XAI context, and what to do with the measurements.
Figure 2 presents a simple conceptual model of self-explanation, that focuses on the role and place of curiosity, noting that some learners may not be curious.
Figure 2. A model of the explanation process in the XAI context from the perspective of the learner, showing the role of curiosity.
Unlike in Figure 1, the conceptual model presented in Figure 2 does not describe the explanation process as a series of fixed stages. Sensemaking based on explanations is rarely a “one-and-done.” Research has shown that there are many possible paths to reasoning about complex systems, in which people engage in deliberative self-explanation (Klein et al., 2023). Some users need to know how the AI works, but may not be entirely clear about what it is that they want or need to know. Explanatory information provided by the XAI system might help in this sense making process, or it might not.
Some users might be curious, but only occasionally. Realizing that there is a gap in their understanding, they may tell themselves a story about how the AI system works and evaluate that story for its plausibility.
4.1. Measuring curiosity in the XAI context
A number of psychometric instruments have titles that make them seem pertinent to XAI, such as the Cognitive Reflection Test (Frederick, 2005). But this taps numerical fluency and competence. Available scales of curiosity, such as the Curiosity Exploration Inventory (Kashdan et al., 2004), Cacioppo's Need for Cognition scale (Cacioppo et al., 1984), and the I-Type/D-Type Curiosity Scales (Litman and Jimerson, 2004) consider curiosity to be a pervasive style or personality trait. As such, the instruments ask questions such as: I actively seek as much information as I can in a new situation; I feel stressed or worried about something I do not know; I like to discover new places to go. Such items are barely applicable in the XAI context, in which curiosity is situation or task specific, and refers to the workings of computational devices, rather than daily life or experiences.
The discussion of the knowledge gap model of curiosity (see, above) implies that the evaluation of XAI systems might benefit from asking users to identify the triggers that motivated them to ask for an explanation. As for the other measurement classes we have discussed (Figure 1, above), it is valuable for the curiosity measurement method to present a “quick window.” Table 7 presents a simple questionnaire that can be administered to research participants whenever they ask for an explanation.
Table 7. A curiosity checklist.
Responses will be informative with regard to these things:
• Responses may serve as parameters or constraints that the XAI system uses to generate explanations.
• Responses may provide a window into aspects of the AI system's operations that need explaining.
• Responses may reveal ways in which the AI's explanation method might suppress or inhibit curiosity, and
• Responses may make it possible to use depth of curiosity (i.e., more triggers are checked) as an independent variable.
5. Measuring trust in the XAI context
Trust in automation is of concern in computer science and cognitive systems engineering, as well as in the popular media (e.g., Hoffman, 1989; Shadbolt, 2002; Lee and See, 2004; Huynh et al., 2006; Woods and Hollnagel, 2006; Merritt and Ilgen, 2008; Hoffman et al., 2009, 2013; Naone, 2009; Montague, 2010; Fitzhugh et al., 2011; Kucala, 2013; Merritt et al., 2013, 2015; Chancey et al., 2015; Hoff and Bashir, 2015; Pop et al., 2015; Wickens et al., 2015). Trust is implicated in many ways in AI system development. For example, stakeholders sometimes express a need to be able to trust vendors; they express a need to get explanations from trusted systems engineers. Users need to understand whether they can trust the data that were used to train an AI system (see Hoffman et al., 2022). The measurement scale presented in this article is focused specifically on the end-user's trust in machine-generated explanations.
Trust in computers is typically understood in terms of the metaphor of “calibration” (Lee and See, 2004). The metaphor assumes that trust is a state, a single state, and that it develops toward some single stable and ideal value. This does not fit the facts of the matter concerning the dynamics and complexities of trust (Hoffman, 2017). Some users may take the computer's assertions (data, claims) as valid and true because they come from a computer. But other users may require some sort of justification—empirical reasons to believe that the computer's presentations or assertions are valid and true. Just as there are varieties of trusting, there are varieties of negative trusting (such as mistrust and distrust). Trust in automation can rapidly break down under conditions of time pressure, or when there are conspicuous system faults or errors, or when there is a high false alarm rate (Dzindolet et al., 2003; Madhavan and Wiegmann, 2007). The trusting of machines can be hard to reestablish once lost.
However trust is measured, in the XAI context, the measurement method must be sensitive to the emergence of negative trusting states (such as mistrust and distrust). XAI systems should enable the user to know whether, when, and why to trust and rely upon the XAI system and know whether, when, or why to mistrust the XAI and either not rely upon it, or rely on it with caution. People always have some mixture of justified and unjustified trust, and justified and unjustified mistrust in computer systems. A user might feel positive trust toward an AI system with respect to certain tasks and goals, and simultaneously feel mistrusting or distrusting when other tasks, goals or situations are involved. Indeed, in complex human-machine work systems, this is undoubtedly the norm (Sarter et al., 1997; Hoffman et al., 2013). Only if this trusting relation is achieved can the user's reliance on the computer be confident (Riley, 1996).
Appropriate trust and reliance emerge from the user's experience, especially as the user encounters tough cases or cases that fall at the boundary of the work system's competence envelope. Appropriateness refers to the fact that mistrust, as well as trust, can be justified. Presumably, appropriate reliance (knowing when and when not to rely on the system's outputs) hinges on appropriate trust.
5.1. Trust measurement scales
The scientific literature on trust presents a number of scales for measuring trust. The majority of trust scales have been developed for the context of interpersonal trust. Scales have been proposed that specifically for measuring trust in robots 9 (e.g., Schaefer, 2013). We focus here son scales designed for use in the assessment of trust in automation. Minimally, a trust scale asks two basic questions: Do you trust the machine's outputs? (trust) and Would you follow the machine's advice? (reliance). Indeed, these two items comprise the scale developed by Adams et al. (2003).
The creation of an XAI-appropriate scale requires the deconstruction of existing scales, and then cherry-picking of the appropriate scale items. The scale developed by Johnson (2007) asks only about reliance and the rareness of errors. Some scales for assessing trust in robots are not applicable to the XAI context, or to any generic trust-in-automation context.
The scale by Dzindolet et al. (2003) was created for the study of trust in a software system for evaluating terrain in aerial photographs, showing images in which there might be camouflaged soldiers. Thus, the hypothetical technology was referred to as a contrast detector. The experiment was one in which the error rate of the hypothetical detector was a primary independent variable. As a consequence, the scale items refer to trials e.g., How well do you think you will perform during the 200 trials? and How many errors do you think you will make during the 200 trials? Some of the scale items can be adapted to make them appropriate to the XAI context, but the result of this modification is just a few items, which are ones that are in the Cahour-Fourzy Scale (Cahour and Forzy, 2009) (e.g., Can you trust the decisions the [system] will make?).
Of those scales that have been subject to psychometric analysis, results suggest that trust in automation scales can be reliable. Of those scales that have been subject to validity analysis, high Cronbach alpha results have been obtained. The report by Jian et al. (2000) illustrates those psychometric analyses. From validated scales, we have distilled a set of items that are appropriate for use in XAI research. This XAI Trust Scale asks users directly whether they are confident in the XAI system, whether the XAI system is predictable, reliable, efficient, and believable. Most of the items are adapted from the Cahour-Fourzy scale, which has been shown to be reliable. The XAI Trust Scale incorporates items from other scales, indicated in Table 7. Items in the Trust Scale bear overall semantic similarity to items in the Madsen-Gregor-Scale, and that scale too was also shown to have high reliability. The XAI Trust Scale items are listed in Table 8. The items are presented to participants in a Likert format, using a 5–1 scale (I agree strongly, I agree somewhat, I'm neutral about it, I disagree somewhat, I disagree strongly).
Table 8. The trust scale for the XAI context.
6. Measuring performance
The goal of performance measurement is to determine the degree of success of the human-machine system at effectively conducting the tasks for which the technology (and the work system as a whole) is designed. Based on the model in Figure 1, hypotheses are:
• User performance (including measures of joint user-system performance) will improve as a result of being given satisfying explanations.
• User performance will be a function of the qualities of their mental model (e.g., correctness, completeness, etc.).
• User performance may be affected epistemic trust.
• User performance (that is, reliance) will be appropriate if the user has been able to explore the competence envelop of the AI system, that is, experience how, when and why the AI fails.
The evaluation of the performance of an XAI system cannot be entirely divorced from the evaluation of the performance of the user, or from the performance of the human-machine work system as a whole. Thus, there are considerations that go beyond those called out in Figure 1. User performance would be positively impacted if there is an opportunity for the user and the AI to engage in meaningful dialog, for instance.
6.1. Performance with regard to the primary task goals
The human-AI work system will have some primary task goal or goals. This might be to correctly categorize images, correctly identify certain kinds of actions in videos, or conduct an emergency rescue operation. Performance can be measured in terms of the number of trials on which the work system met with success, within some pre-specified time period. In a search-and-rescue use case, work system performance might be measured in terms of the number of trials that a user has to work in order to reach some pre-determined criterion. Basic measures of efficiency can be applied, expressing the ratio of the number of tasks or sub-tasks completed per some period of time.
6.2. Performance with regard to the user
Another aspect of performance measurement is the quality of the performance of the user, such as the correctness of the user's predictions of what the AI will do. For such aspects of performance, just like performance with regard to primary task goals, one can measure response speed and correctness of the user's predictions of the machine outputs (hits, errors, misses, and false alarms). Examination can be made for both typical and atypical cases/situations. Additionally, using a knowledge elicitation task in concert with a success measure, one can assess the completeness of the user's explanation of the machine's output for cases that are rare, unusual, or anomalous.
6.3. Performance with regard to the work system
With regard to performance at the work system level, many considerations other than raw efficiency come into play (Koopman and Hoffman, 2003; Hoffman and Hancock, 2017). For example, an XAI system that drives the work efficiency (say, to deal with data overload issues) may not make for a very contented workplace (Merritt, 2011). The complexity of performance at the work system level requires analysis based on this and other trade-offs (Woods and Hollnagel, 2006).
The analysis of work system level performance may employ some measure of controllability, that is, the extent to which the human can induce an intended outcome based on given inputs or conditions. Analysis may employ some measure of correctability. This is a measure of the extent or ease with which the user can correct the machine's activities so as to make the machine outputs better aligned with either objective states of affairs or the user's judgments of what the machine should be determining.
The analysis of work system level performance can involve comparing the work productivity of the work system to productivity in current practice (baseline). A related method is to examine learning curves. This involves establishing a metric on a productivity scale, a metric that identifies when performance is satisfactory. How many trials or test cases must a user work successfully in order to reach that learning criterion? Is the learning rapid? Why do some people take a long time to reach criterion? The advantage of a trials-to-criterion approach to measurement is that it could put different XAI systems on a “level playing field” by making the primary measure a derivation of task completion time. A variation on this method is to compare performance in this way with performance when the Explanation capability of the XAI is somehow hobbled.
Perhaps the most powerful and direct way of evaluating the performance of a work system that includes an XAI is to evaluate how easy or difficult it is to get prospective users (stakeholders) to adopt and use the XAI system. In discussing early medical diagnosis systems, van Lent et al. (2004) stated, “Early on the developers of these systems realized that doctors weren't willing to accept the expert system's diagnosis on faith” (p. 904), which led to development of the first explanation-based AI systems. Many users may be satisfied with shallow explanations in that they will be willing to adopt the system that has an XAI capability, or may prefer it over another non-XAI system when making adoption decisions. Measures of such choice behavior were advocated by Adams et al. (2003) as a way of measuring human trust in automation.
7. Limitations and prospects
Our discussion of measurement key concepts, measurement scales, and methods has not broached the subject of measurement methodology, that is, how scales are actually applied in context. For example, a response of “yes” to I was surprised by the AI (in an application of the Curiosity Checklist) would be an open invitation for the researcher to ask additional questions—using a mental model elicitation task. In other words, the actual administration of a psychometric scale or a performance evaluation method is not merely the collection of some numbers.
We look forward to research that utilizes the measurement scales and methods presented in this article. Our own research went only so far as to develop, and then empirically evaluate the measures in small-scale, targeted studies. Some of the measures presented in this article were adopted by Performer Teams in the out-years of the DARPA XAI Program. Some of the measures have been adopted by researchers outside of that Program (Schraagen et al., 2020). The findings include the validation of XAI metrics and also the interesting suggestion that it takes fewer than ten trials or cases for learners to develop reasonable mental models and begin to trust an AI system.
Based on the model in Figure 1, an assumption made in some XAI work has been that a measure of performance can be used simultaneously as a measure of the goodness of a user's mental model. This assumption should be empirically investigated. It may be especially revealing to compare results from participants who perform the best and participants who perform the worst. Comparison of their mental models, and theirs with those of an expert, would explore the assumption that a measure of performance can indeed be used simultaneously be a measure of the goodness of the user's mental model.
All measures get interpreted. An assumption that has been made in some XAI work that a measure of AI predictability can be used simultaneously as a measure of the goodness of the user's mental model. That is, if the user can predict what the AI will do, then the user must have a good mental model of the AI. While this may be true according to the XAI measurement scheme presented in Figure 1, it begs the question of whether the AI is needed at all. More to the point, it is important that all measures undergo appropriate psychometric evaluation to confirm their proper interpretation.
None of the existing trust scales, including the one presented here, really treat trust as a process; they treat it as a static quality or target state, which has typically been measured once, after the research participants have completed their experimental tasks. In contrast, XAI trust measurement might be a repeat measure. Selected scale items can be applied after individual trials or blocks of trials (e.g., after individual XAI categorizations or recommendations; after individual explanations are provided, etc.). The full scale could be completed part way through a series of experimental trials, and again at the conclusion of the final experimental trial. Multiple measures taken over time could be integrated for overall evaluations of human–machine performance, but episodic measures would be valuable in tracking such things as How do users maintain trust? and What is the trend for desirable movement toward appropriate trust?
A crucial consideration is methodological in nature. How often should users/trainees be asked to complete a scale? Should a curiosity scale be administered before or after experience with an AI/XAI system? Should measurement be longitudinal? While multiple measurements on multiple measures is desirable there is trade-off in that burdening the research participants is not desirable.
Measurement is the foundation of empirical inquiry. One of the purposes of making measurements is to improve the measures. Standard practice in psychometrics involves assuring that a scale is valid. Psychometric research pursuing this for XAI scales would be valuable.
We advocate for a multi-measure approach. Such an approach seems mandated by the fact that the human-XAI work system is a complex cognitive system. We do not regard the scales and methods that presented in this article as being final. The distinction between explanation goodness as an a priori evaluation by researchers vs. explanation satisfaction as an a posteriori evaluation by learners emerged from our own empirical inquiry. We look forward to refinements and extensions of all the ideas presented in this article.
An important measurement topic that we have not addressed is that of “metrics.” In modern discourse, the word metric is used to mean both measure and metric. A metric is a threshold on a measurement scale that is used to make evaluations or decisions (e.g., performance is “acceptable,” “poor,” etc.). In this article we have discussed measures, not metrics. In the evaluation of, say, a machine learning system for recognizing objects that are depicted in photographs, at what level of performance does performance cross over from being unacceptable to being promising? Ideally, machine learning systems would be infallible, always manifesting a hit rate of 100 percent. Achieving that that seems unlikely. So, where lies the point of diminishing returns? A hit rate of 90 percent? Ninety-five percent? As another concrete example, a surgeon specializing in carpal tunnel syndrome who has a success rate less than 90 percent might well be in trouble. On the other hand, a specialist in spinal surgery with a 90% success rate would be considered a miracle worker. The metric that is laid on a measurement scale depends on the application context [For a fuller discussion, see Hoffman (2010)].
Metrics bring the notion of practical significance into focus. For example, suppose an XAI work system achieves a 95 percent level of performance. As the work system capability reaches that point does it actually become likely that those rare cases where errors are made are ones that are potentially more impactful?
Certainly AI measurement science needs metrics to accompany its measures. When is performance superior, acceptable, or poor? When is an explanation sufficient or not? When is a mental model rich or impoverished? But metrics for these sorts of decisions do not emerge directly (or easily) from the theoretical concepts that are being measured, or from the operationalized measures that are being used. The operational definition of a measure tells you how to make measurements, not how to interpret them. Metrics come from policy (see Hoffman, 2010). Resolution of the metrics challenge can only emerge as more XAI projects are carried through all the way to rigorous performance evaluation.
Author contributions
RH integrated material composed by each of the co-authors on the topics of mental models and curiosity, contributed the material on trust, performance, and methodology. SM conducted most of the statistical tests. All authors contributed to the article and approved the submitted version.
Funding
This research was developed with funding from the Defense Advanced Research Projects Agency (DARPA) under agreement number FA8650-17-2-7711. The U.S. Government is authorized to reproduce and distribute reprints for Governmental purposes notwithstanding any copyright notation thereon.
Acknowledgments
The authors would like to acknowledge William J. Clancey of the Florida Institute for Human and Machine Cognition for his contributions to the conceptual foundations of XAI. The authors thank Timothy Cullen (Col., US Army, Ret.) for his consultation on this project. The authors thank the two reviewers, who provided comments that were insightful, challenging, and uniformly helpful. This material is approved for public release. Distribution is unlimited.
Conflict of interest
GK was employed by MacroCognition, LLC.
The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher's note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Author disclaimer
The views and conclusions contained herein are those of the authors and should not be interpreted as necessarily representing the official policies or endorsements, either expressed or implied, of AFRL or the U.S. Government.
