In this research, a series of coumarin-based scaffolds linked to pyridine derivatives via a flexible aliphatic linkage were synthesized and assessed as multifunctional anti-AD agents. All the compounds showed acceptable acetylcholinesterase (AChE) inhibition activity in the nanomolar range (IC50 = 2–144 nM) and remarkable butyrylcholinesterase (BuChE) inhibition property (IC50 = 9–123 nM) compared to donepezil as the standard drug (IC50 = 14 and 275 nM, respectively). Compound 3f as the best AChE inhibitor (IC50 = 2 nM) showed acceptable BuChE inhibition activity (IC50 = 24 nM), 100 times more active than the standard drug. Compound 3f could also significantly protect PC12 and SH-SY5Y cells against H2O2-induced cell death and amyloid toxicity, respectively, superior to the standard drugs. It could interestingly reduce β-amyloid self and AChE-induced aggregation, more potent than the standard drug. All the results suggest that compound 3f could be considered as a promising multi-target-directed ligand (MTDL) against AD.
Highlights
• Twenty novel coumarin–pyridine hybrids were synthesized as anti-Alzheimer agents
• All the synthesized compounds were assessed for their anti-cholinesterase activity, and all of them indicated acceptable inhibitory activity
• Compound 3f was the most influential compound against AChE
• Compound 3f was more active than standard drugs in the protection of PC12 and SH-SY5Y cells against H2O2-induced cell death and amyloid toxicity, respectively
• Compound 3f was superior to the standard drug in the reduction of ß-amyloid self and AChE-induced aggregation
1 Introduction
Alzheimer’s disease (AD) is a destructive neurodegenerative irregularity affecting memory, way of thinking, speaking, and other behavioral activities (Wang et al., 2014). Today, millions of people are afflicted with this disease, and the number is projected to increase in the next few years (Sang et al., 2018). Different factors such as inflammation, reduced acetylcholine (ACh) concentration, β-amyloid (Aβ) plaque formation, τ-protein aggregation, and oxidative stress cause AD, while the main reason is not perfectly understood (Patel et al., 2020). One of the most significant factors is the declined cholinergic activity resulting from ACh degradation by acetylcholinesterase (AChE), which affects memory loss. Conventionally approved drugs are mostly AChE inhibitors, increasing the amount of ACh in the synapses and decelerating the advancement of AD (Reddy et al., 2017; Li et al., 2018; Patel et al., 2020). Moreover, studies on the structure of AChE have indicated that it has two main sites for binding, including a peripheral anionic site (PAS) and a catalytic anionic site (CAS). AChE inhibitors binding to these two sites are more influential than the inhibitors occupying just one site of the enzyme. Butyrylcholinesterase (BuChE) has also had a great effect on the advancement of AD. BuChE inhibitors could retrieve cholinergic activity via restoring the proportions of AChE/BuChE activity like in a normal brain (Liu et al., 2020). As a consequence, dual AChE/BuChE inhibitors have drawn great interest in the management of AD (Davidsson et al., 2001).
On the other hand, AD is a continuing dementia equated by selective neuronal cell demise, which is undoubtedly triggered by Aβ fibrils or oligomers (Selkoe and Hardy, 2016; Murakami et al., 2020; Trambauer et al., 2020). Furthermore, several biomedical studies have shown that AChE promotes formation of amyloid fibril and creates extremely poisonous AChE-Aβ complex throughout the peripheral anionic site (PAS) (Inestrosa et al., 2005; Pradhan et al., 2018). Controlling Aβ protein formation or aggregation has a significant role in the enhancement of AD (Zou et al., 2015; Vyas et al., 2018). In primary steps of the degenerative nerve process, Aβ could go into the mitochondrion and escalate the creation of reactive oxygen species (ROS) by interrupting the electron transport chain, provoking oxidative stress (Chen et al., 2016; Yang et al., 2020). Hence, inhibition of Aβ accumulation, and therefore the formation of free radicals or preserving the cells against oxidative stress by neuroprotective agents, will be a propitious approach for the management of AD.
Advancement of multi-target-directed ligands (MTDLs) is one of the most encouraging drug discovery methods for ailments with a complex nature like AD. Mono-targeted medicines could not forever amend the complex ailing system sufficiently, even if these compounds regulate their targets with extreme selectivity and affinity (Zhang et al., 2016; Alcaro et al., 2019; González et al., 2019; Li et al., 2020). MTDLs have a superior capability to exert influence on the complicated balance of entire cellular network than single-targeted drug due to their synchronous consequences on various curative targets. Another positive aspect of these beneficial drugs is that they have a greater efficiency/security ration than a one-targeted drug (Bolognesi et al., 2011; Xuan et al., 2021). Consequently, there is a necessity to design suchlike compounds that can be effective on diverse relevant targets of AD, concurrently. These kinds of properties can be presumably attained by the linkage of diverse active moieties impacting on several targets. The linking hybrids with impression on distinctive targets might be advantageous to treat a complicated disorder like AD (Cavalli et al., 2008; Du et al., 2019; Sharma et al., 2019). Hitherto, the only three available ChE inhibitors prescribed for AD management (donepezil, rivastigmine, and galantamine) are single-target compounds inhibiting only ChEs. But they have no appropriate efficacy and may not be clinically significant (Marucci et al., 2021). In addition, so-called “drug-cocktails” like Memantine plus cholinesterase inhibitors are used in patients with advanced disease to pharmacologically treat these pathologies, with concerns related to drug-drug interactions as well as patient compliance (Chen et al., 2017). Hence, according to the paradigm of “network pharmacology,” further research is needed to find novel bioactive compounds with multi-target properties (Hopkins, 2008; Chen et al., 2017). Irrevocably, treating AD and other neurodegenerative disease has been one of the major focal points of multi-target drug discovery procedures in the past 20 years.
A wide range of coumarin derivatives has been associated with an antioxidant trait (Bilgin et al., 2011; Anand et al., 2012; Pérez-Cruz et al., 2018; Koyiparambath et al., 2021). Some of which are identified to be active as AChE inhibitors and, as a consequence, could be noticed as a candidate with potential for the management of AD (Canning et al., 2013; Nasr et al., 2014; Bagheri et al., 2015). Additionally, a coumarin-based molecule, ensaculin, which contains benzopyran with the substitution of a piperazine, was introduced with the ability to enhance cognition and memory functions (Witaicenis et al., 2014; Abu-Aisheh et al., 2019).
On the other hand, investigations have been focused on the pyridine moiety because of its biological properties such as antioxidant and anti-inflammatory activities (Altaf et al., 2015). Furthermore, pyridinium salt has a well-known role in pharmacological interaction such as potent binding attraction in the direction of catalytic active site (CAS) of AChE by usage of charge interactions, π-stacking and therefore diverse MTDLs creating suchlike moiety have been reported so far (Kapková et al., 2006; Vafadarnejad et al., 2018; Mollazadeh et al., 2019).
In this work and in progression of our interest in the development of potent multi-target derivatives against AD (Choubdar et al., 2019; Abdpour et al., 2021), novel coumarin derivatives cross-linked with pyridinum salts were designed and synthesized by a simple procedure, resulting in a high yield. We focused on improving ChE inhibition of the coumarin-pyridinium backbone via a range of derivatives with donor/acceptor properties of the substituents, along with a flexible carbon chain as a linker to dedicate the structure of the target molecules with proper binding attraction and flexibility towards ChE enzymes as well as anti-Aβ aggregation and neuroprotective activities (Figure 1). We hope we can pave the way for rational and potent multi-target small molecule discovery in AD management, free from concerns about the cost, safety, and tolerability profile of the peptides and antibodies (Jeremic et al., 2021).
2 Results and Discussion
2.1 Chemistry
All products were synthesized using commercially available 4-Hydroxyphenylacetic acid. Compound 1 was initially synthesized via the reaction of 4-hydroxyphenylacetic acid with different salicylaldehyde derivatives in the presence of sodium acetate (NaOAc) in acetic anhydride (Ac2O) under reflux conditions. The intermediate 1 was then reacted with an excess amount of various alkyl dibromides, potassium carbonate (K2CO3) in dry acetone under reflux condition, followed by reaction with different substituted pyridine in neat condition at 80°C to obtain the desired target compounds 3a-q (Scheme 1). Also, products 3r-t were directly synthesized from the reaction of compound 2 with 4-dimethylaminopyridine in dry acetonitrile under reflux conditions. All the reactions were monitored by TLC, and the products were purified simply by adding ether to the reaction solution. IR, 1H and 13C NMR spectroscopy were utilized for the product characterization.

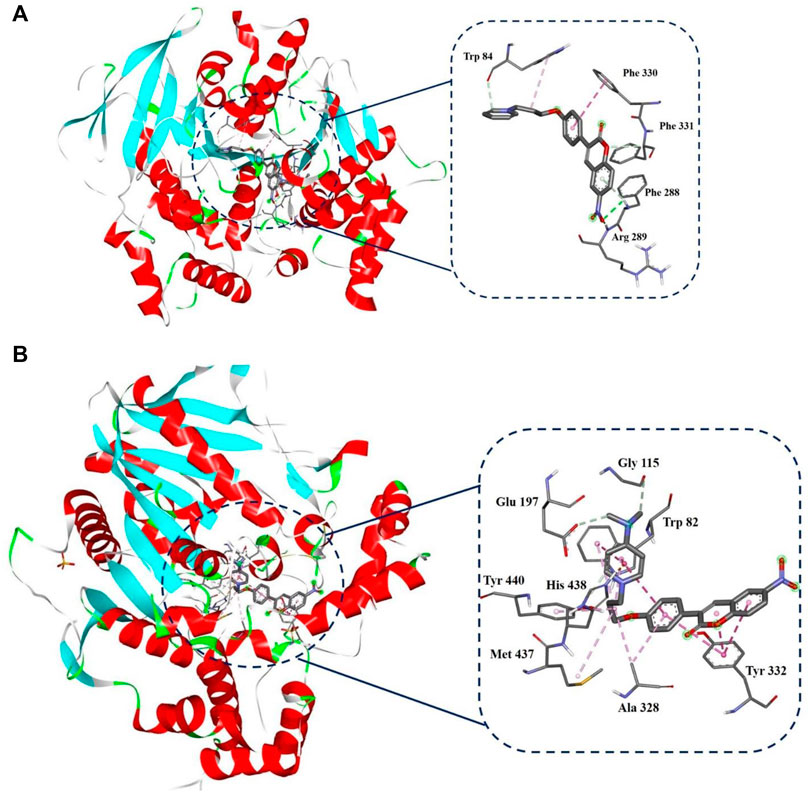

SCHEME 1. Molecular docking of AChE (A) and BuChE (B) binding with compounds 3f and 3t, respectively.
2.2 Biological Assays
2.2.1 Anti-Cholinesterase Activity

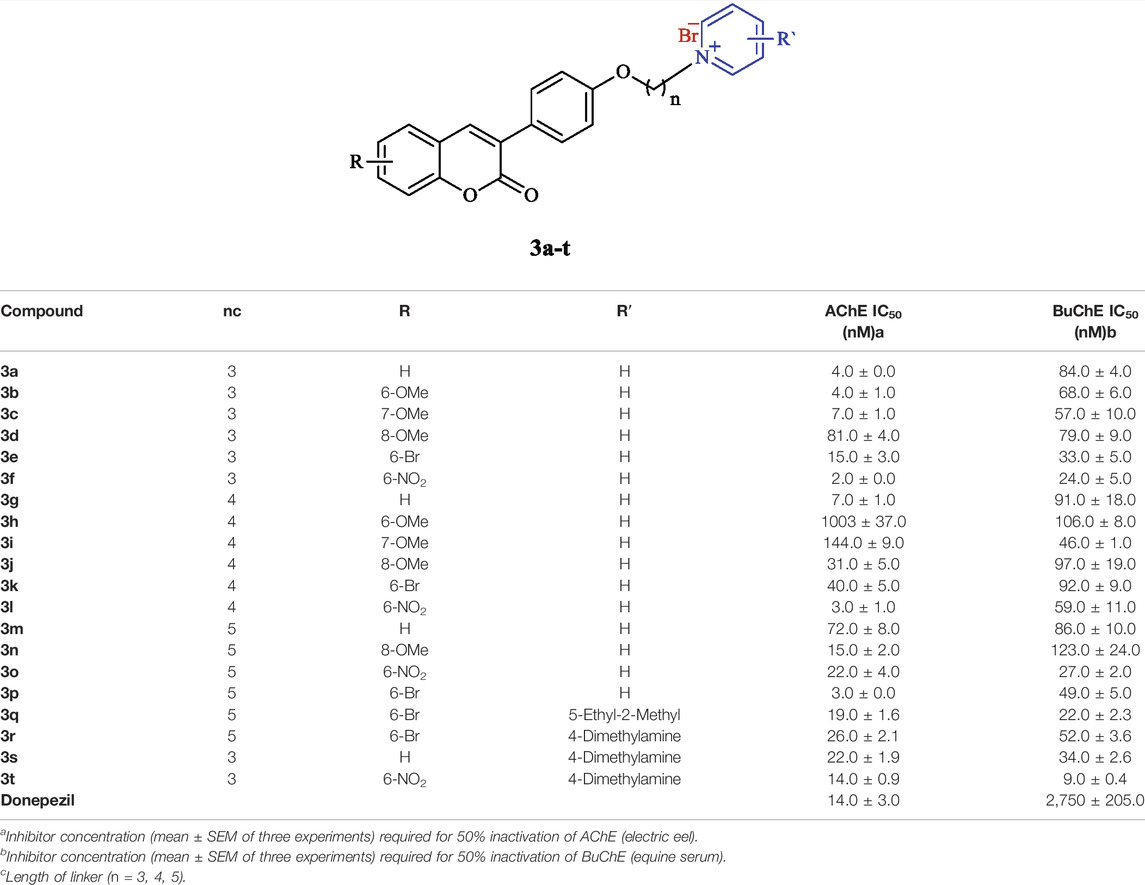

To evaluate the anti-AD activity of the target compounds, their abilities to inhibit AChE and BChE were evaluated. All derivatives were screened for their in vitro AChE and BChE inhibitory properties (Table 1). The results showed that all the tested compounds were much more effective than Donepezil as the standard drug, with excellent AChE inhibitory activity in the nano-molar range. In particular, compounds 3p, 3l, 3a, 3b, 3c, and 3g showed inhibitory activities with IC50 values of 3, 3, 4, 4, 7, and 7 nM respectively. Compound 3f, as the best AChE inhibitor with an IC50 value of 2 nM, was 7 times more active than the standard drug, Donepezil. The results revealed that 3-carbon chain length (n = 3) could be considered as the optimum length of the linker for AChE inhibition and that elongation of the linker led to a decrease in the activity. Also, the presence of different substituents at the phenyl ring of the coumarin moiety (R) had no effective role in improvement of the inhibitory effect, except for the nitro group on the 6-position of the coumarin ring in compounds 3f and 3l, which were the most potent compounds. However, increasing the length of the linker (n = 5, compound 3o) and the presence of a 4-dimethylamine group at the para position of the pyridinium ring (compound 3t), reduced the AChE inhibitory effect of the compounds having a 6-NO2 group. We also investigated the BuChE inhibitory activity of the isolated compounds (Table 1). Most of the compounds had high BuChE inhibition activity in the range of 22–123 nano-molar. But compound 3t exhibited remarkable BuChE inhibitory activity with an IC50 = 9 nM, 305 times more active than the standard drug, Donepezil (BuChE IC50 = 2,750 nM). Compounds 3a-b, 3f-g, 3l, and 3t as the best AChE and BuChE inhibitors were selected for further analysis.
2.2.2 Ligand–Protein Docking Simulation
To have a deep understanding of the interactions of potent compounds (3f and 3t) with AChE and BuChE targets, respectively, docking simulation was carried out (Figure 2). In the case of AChE, compound 3f showed interactions with Trp84 at the anionic site, hydrophobic Pi-Pi stacking interactions with Phe330 and two hydrogen bonds with Phe288 and Arg289 with the nitro group (Figure 2A). Therefore, compound 3f inhibited AChE through hydrophobic interactions, and it was stabilized in the active site through hydrogen bonds.

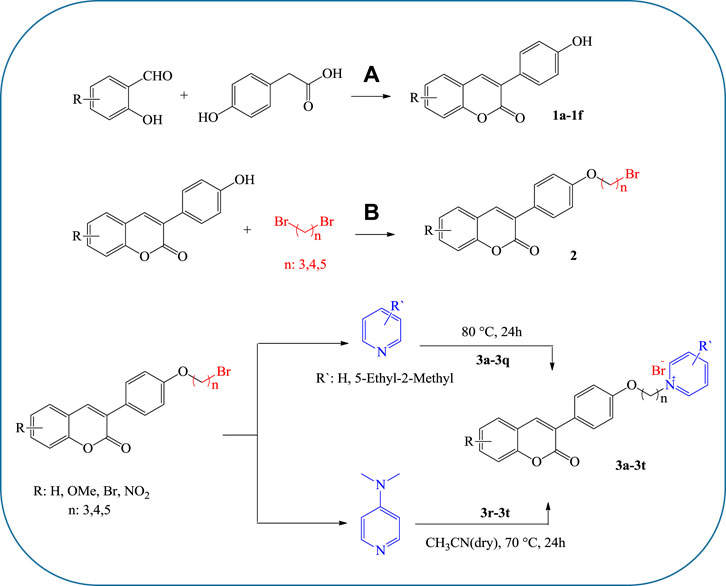

FIGURE 2. Synthesis of target compounds 3a–t. (A) Ac2O/NaOAc/Reflux 4–6 h, (B) K2CO3/acetone (dry)/Reflux 4 h
Regarding the most active BuChE inhibitor, compound 3t showed Pi-Pi stacking interactions with Tyr332 and Trp82 residues, Pi-cation interactions with His438 in the vicinity of the pyridinium region with positive charge, and Van der Waals interactions with Phe329, Pro285, Ser79, Gly78, Trp430, Gly439, Tyr128, Gly116, and Asp70 residues (Figure 2B). Therefore, it seems that hydrophobic interactions are responsible for the interactions of BuChE with compound 3t.
2.2.3 Neuroprotection Assay Against H2O2-Induced Cell Death in PC12 Cells
The neuroprotective effects of compounds 3a-b, 3f-g, 3l, and 3t at the concentrations of 0.1, 1, 5, 10, 20, and 50 μM against neurotoxicity caused by H2O2 were evaluated on neuroblastic PC12 cells. All the tested concentrations increased PC12 cell viability in a concentration-dependent manner (Table 2). Compounds 3a, 3f, 3l, and 3t showed a greater effect on cell viability, especially at low concentrations. Notably, the neuroprotective effects of compounds 3f and 3l at all concentrations were higher than those of the reference drug, Quercetin.

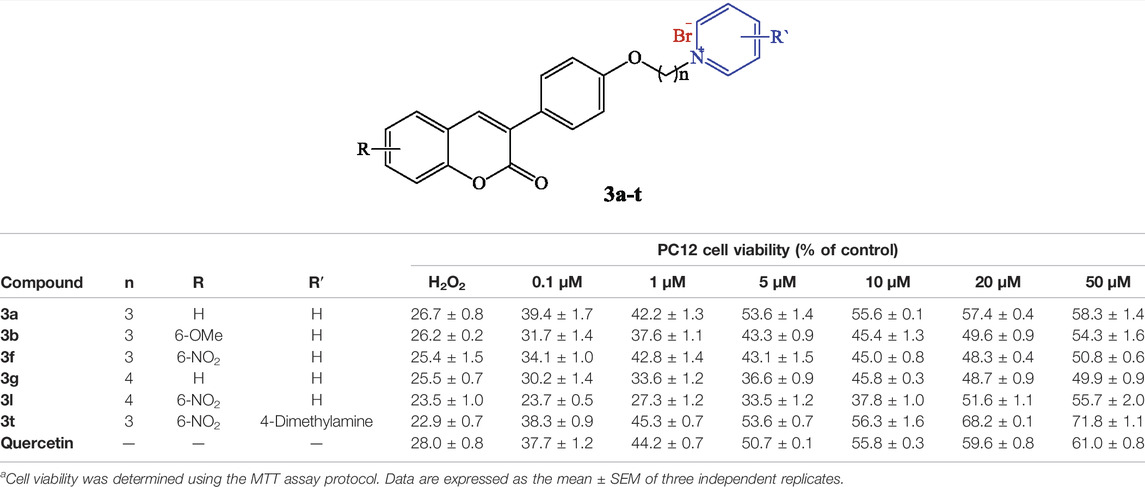

TABLE 2. The protective effect of compounds 3a, 3b, 3f, 3g, 3l, and 3t against H2O2 (150 μM)-induced injury in the PC12 cell line at different concentrations in comparison to Quercetina.
2.2.4 Cytotoxicity and Neuroprotection Against Aβ1–42-Induced Cytotoxicity in SH-SY5Y Cells

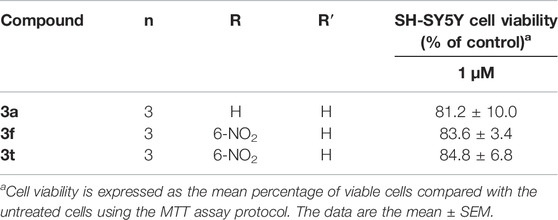

The cytotoxic effects of the best neuroprotective compounds 3a, 3f, and 3t at a concentration of 1 μM were also evaluated on SH-SY5Y cells (Table 3). The results showed that all three compounds showed no cytotoxic effect on SH-SY5Y cells. Additionally, the potential neuroprotective effect of compounds 3a, 3f, and 3t against Aβ1-42-induced cytotoxicity in SH-SY5Y cells was evaluated at a concentration of 1 μM. Compounds 3a and 3f could increase cell viability in the presence of Aβ and protect neuronal cells against Aβ toxic effects (Table 4). However, compound 3t could not protect neuronal cells at a concentration of 1 μM. According to the results, compounds 3a and 3f showed protective capability with acceptable cell viability of 79% and 89%, respectively, at concentrations of 1 μM, higher than donepezil as the reference drug (77%).

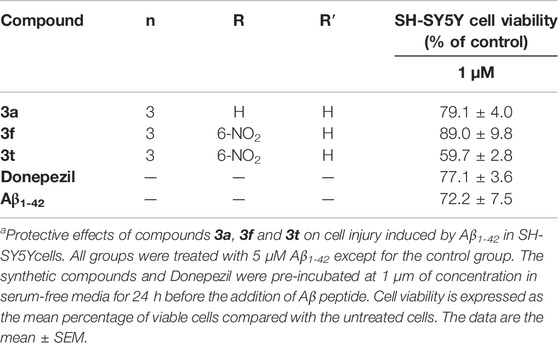

TABLE 4. The protective effect of compounds 3a, 3f, and 3t against amyloid-induced injury in the SH-SY5Y cell line in comparison to Donepezila.
2.2.5 Inhibitory Potency of the Compounds Against Self-Induced and AChE-Induced Aβ1-42 Aggregation
The potential of compounds 3a, 3f, and 3t, as the most active compounds based on the performed analyses, to inhibit Aβ-aggregation was evaluated using the thioflavin T (ThT) assay. The results indicated that the tested compounds displayed inhibitory activity about 2-fold more effective than the reference drug donepezil against Aβ aggregation (30.8% inhibition for donepezil vs. 73.3%, 84.7%, and 66.4% inhibition for compounds 3a, 3f, and 3t, respectively, Table 5). The potential of compounds 3a, 3f, and 3t to inhibit Aβ aggregation induced by AChE was also evaluated (Table 5). Compounds 3a, 3f, showed good inhibition activity toward AChE-induced Aβ aggregation (76.0% and 87.2% inhibition, respectively) more than donepezil as the standard drug (71.9% inhibition), except for compound 3t, which was less active (52.5% inhibition) than donepezil. Compound 3f, as the most active BuChE inhibitor, exhibited the most inhibition activity against both self and AChE-indued Aβ aggregation (84.7% and 87.2% inhibition, respectively).
3 Conclusion
In this work, coumarin derivatives were cross-linked to pyridinium salts via flexible aliphatic carbon chains, and the target compounds were evaluated as MTDLs against AD. All the compounds showed high AChE and BuChE inhibition activity in the nano-molar range. Compound 3f exhibited 7 times more AChE inhibition activity and compound 3t had a 305 times greater inhibitory effect against BuChE compared to the standard drug. Especially, compound 3f as the best AChE inhibitor (IC50 = 2 nM) with acceptable BuChE inhibition activity (IC50 = 24 nM, more than 100 times more active than the standard drug), represented an additional advantage through reducing β-amyloid self and AChE-induced aggregation more active than the standard drug and also revealed higher neuroprotective activity against H2O2-induced cell death in PC12 cells and against amyloid toxic effects in SH-SY5Y cells than the reference drugs. All the results suggest that the new designed hybrids of coumarin and pyridinium parts could be considered as promising multifunctional agents for further developments in the field of anti-Alzheimer drugs.
4 Experimental
4.1 Chemistry
All commercially available chemicals were purchased from Merck, Sigma, and across without further purification. FT-IR spectra were run on a Bruker Equinox 55 spectrometer. 1H NMR and 13C NMR were recorded on Brucker 400 MHz instrument with frequencies of 400 and 100 MHz, respectively. DMSO was used as a solvent for NMR analyses and tetramethylsilane was employed as an internal standard. The chemical shifts (δ) and coupling constants (J) were expressed in parts per million and Hertz, respectively. Melting points were measured by the Buchi melting point B-540 B.V.CHI device. Analytical thin-layer chromatography (TLC) was performed on aluminum plates precoated with silica gel 60F-254 as the adsorbent. Mass spectra were obtained by HP Agilent Technologies 5973 at ionization potential of 70 eV. Elemental analyses were performed with CHNS-varioEL.
4.1.1 General Procedure for the Synthesis of Compound 1
The coumarin derivatives (1a–f) were synthesized via the Perkin–Oglialoro reaction according to the previously reported procedure (Abdshahzadeh et al., 2019). A solution containing anhydrous NaOAc (2 mmol), 4-Hydroxyphenylacetic acid (1 mmol), and salicylaldehyde (1 mmol) in Ac2O (1 ml) was refluxed for 2 h. After completion of the reaction, the mixture was cooled, neutralized with an aqueous NaHCO3 solution, filtered, and washed with distilled water. The compounds were used in the next step without further purification.
4.1.2 General Procedure for the Synthesis of Intermediate 2
Preparation of intermediate 2 was carried out according to the previously reported method (Hirbod et al., 2017). In brief, to a solution of 3-arylcoumarin (1 mmol) and anhydrous K2CO3 (2 mmol) in acetone (3 ml), corresponding dibromoalkane (10 mmol) was added and the solution was refluxed for 4 h until the starting material disappeared (monitored by TLC). The solvent was removed under vacuum, hexane was added to the residue, and the product was filtered off and used in the next step without further purification.
4.1.3 General Procedure for the Synthesis of Compounds 3a–q
To a solution containing compound 2 (0.25 mmol), the pyridine derivative (3.1 ml) was added. The mixture was stirred at 80°C for 24 h. The completion of the reaction was monitored by TLC. The mixture was cooled to room temperature, diethyl ether (10 ml) was added, and the mixture was cooled in the refrigerator for 2 h. The obtained solid was finally filtered and dried to obtain 3a–q.
4.1.3.1 1-(3-(4-(2-Oxo-2H-chromen-3-yl)phenoxy)propyl)pyridinium Bromide 3a
Yield 91%; White solid; m.p. 280–282°C; FT-IR (ATR, cm−1) υmax: 3417, 2943, 1718, 1606, 1511, 1250, 1182, 1099, and 772; 1H NMR (400 MHz, DMSO-d6)/δ ppm: 9.18 (d, J = 4.0 Hz, 2H), 8.64 (t, J = 5.2 Hz, 1H), 8.18–8.19 (m, 3H), 7.77 (d, J = 5.6 Hz, 1H), 7.67 (d, J = 6.0 Hz, 2H), 7.59 (t, J = 5.6 Hz, 1H), 7.42 (d, J = 6.4 Hz, 1H), 7.38 (t, J = 5.2 Hz, 1H), 6.87 (d, J = 6.0 Hz, 2H), 4.84 (t, J = 4.0 Hz, 2H), 4.15 (t, J = 4.0 Hz, 2H), 2.35 (m, 2H); 13C NMR (100 MHz, DMSO-d6)/δ ppm: 159.8, 158.2, 152.7, 145.6, 145.1, 139.2, 131.4, 128.4, 127.9, 127.2, 126.3, 124.6, 119.6, 115.8, 114.0, 65.0, 58.9, 29.9; MS m/z: 438.3 (M+), 278.1 (C18H15O3•), 238.1 (C15H9O3•), 79.1 (C5H5N•+); Anal. Calcd. for C23H20BrNO3 (438.31): C, 63.02; H, 4.60; N, 3.20. Found: C, 62.96; H, 4.71; N, 3.00.
4.1.3.2 1-(3-(4-(6-Methoxy-2-oxo-2H-chromen-3-yl)phenoxy)propyl)pyridinium Bromide 3b
Yield 94%; White solid; m.p. 196–198°C; FT-IR (ATR cm−1) υmax: 3417, 3025, 1706, 1605, 1576, 1248, 1112, 1050, 771; 1H NMR (400 MHz, DMSO-d6)/δ ppm: 9.18 (d, J = 4.8 Hz, 2H), 8.64 (t, J = 5.2 Hz, 1H), 8.14–8.21 (m, 3H), 7.65 (d, J = 6.8 Hz, 2H), 7.36 (d, J = 7.2 Hz, 1H), 7.32 (s, 1H), 7.18 (d, J = 5.2 Hz, 1H), 6.87 (d, J = 6.8 Hz, 2H), 4.84 (t, J = 5.2 Hz, 2H), 4.15 (t, J = 4.0 Hz, 2H), 3.81 (s, OCH3, 3H), 2.20 (m, 2H); 13C NMR (100 MHz, DMSO-d6)/δ ppm: 159.9, 158.2, 155.6, 147.1, 145.1, 139.1, 129.8, 128.2, 127.9, 127.2, 126.5, 120.0, 118.8, 116.9, 114.2, 114.0, 110.6, 65.0, 58.9, 55.7, 29.9; MS m/z: 468.3 (M+), 388.1 (C24H22NO42•+), 268.1 (C16H11O4•), 139.1 (C8H11NO•+), 79.1 (C5H5N•+); Anal. Calcd. for C24H22BrNO4 (468.34): C, 61.55; H, 4.73; N, 2.99. Found: C, 61.34; H, 4.81; N, 2.97.
4.1.3.3 1-(3-(4-(7-Methoxy-2-oxo-2H-chromen-3-yl)phenoxy)propyl)pyridinium Bromide 3c
Yield 88%; Cream solid; m.p. 256–258°C; FT-IR (ATR cm−1) υmax: 3466, 3017, 1714, 1604, 1510, 1250, 1118, 1049, 771; 1H NMR (400 MHz, DMSO-d6)/δ ppm: 9.17 (d, J = 4.4 Hz, 2H), 8.63 (t, J = 6.4 Hz, 1H), 8.13–8.17 (m, 3H), 7.64 (m, 3H), 6.97–7.02 (m, 2H), 6.84 (m, 2H), 4.84 (t, J = 4.0 Hz, 2H), 4.14 (t, J = 4.0 Hz, 2H), 3.86 (s, OCH3, 3H), 2.34 (m, 2H); 13C NMR (100 MHz, DMSO-d6)/δ ppm: 162.4, 160.1, 157.9, 154.5, 145.6, 145.3, 144.9, 129.7, 129.4, 128.0, 127.9, 127.4, 113.9, 113.1, 100.1, 95.1, 65.3, 58.9, 56.4, 26.7.
4.1.3.4 1-(3-(4-(8-Methoxy-2-oxo-2H-chromen-3-yl)phenoxy)propyl)pyridinium Bromide 3d
Yield 89%; Cream solid; m.p. 209–211°C; FT-IR (ATR cm−1) υmax: 3419, 3013, 1719, 1606, 1510, 1249, 1177, 1095, 772; 1H NMR (400 MHz, DMSO-d6)/δ ppm: 9.18 (d, J = 4.8 Hz, 2H), 8.63 (t, J = 4.0 Hz, 1H), 8.17–8.21 (m, 3H), 7.67 (d, J = 6.8 Hz, 2H), 7.28–7.31 (m, 3H), 6.86 (d, J = 6.8 Hz, 2H), 4.46 (t, J = 4.0 Hz, 2H), 4.10 (t, J = 4.0 Hz, 2H), 3.92 (s, OCH3, 3H), 2.25 (m, 2H); 13C NMR (100 MHz, DMSO-d6)/δ ppm: 159.5, 158.2, 146.2, 145.1, 145.0, 142.0, 139.4, 129.8, 127.9, 127.1, 126.3, 124.5, 120.1, 119.7, 114.0, 113.6, 65.0, 58.9, 56.1, 29.9.
4.1.3.5 1-(3-(4-(6-Bromo-2-oxo-2H-chromen-3-yl)phenoxy)propyl)pyridinium Bromide 3e
Yield 94%; White solid; m.p. 232–234°C; FT-IR (ATR cm−1) υmax: 3445, 3018, 1719, 1606, 1511, 1251, 1098, 770; 1H NMR (400 MHz, DMSO-d6)/δ ppm: 9.20 (d, J = 5.6 Hz, 2H), 8.66 (t, J = 7.6 Hz, 1H), 8.17–8.22 (m, 3H), 8.03 (s, 1H), 7.77 (d, J = 7.6 Hz, 1H), 7.68 (d, J = 8.4 Hz, 2H), 7.43 (d, J = 8.8 Hz, 1H), 6.91 (d, J = 8.4 Hz, 2H), 4.86 (t, J = 6.4 Hz, 2H), 4.18 (t, J = 6.4 Hz, 2H), 2.52 (m, 2H); 13C NMR (100 MHz, DMSO-d6)/δ ppm: 159.8, 158.9, 152.2, 146.1, 145.5, 138.3, 134.1, 130.8, 130.3, 128.4, 127.8, 127.3, 122.0, 118.6, 116.5, 114.6, 65.5, 59.4, 30.3.
4.1.3.6 1-(3-(4-(6-Nitro-2-oxo-2H-chromen-3-yl)phenoxy)propyl)pyridinium Bromide 3f
Yield 93%; Cream solid; m.p. 240–243°C; FT-IR (ATR cm−1) υmax: 3444, 3011, 1742, 1607, 1510, 1231, 769; 1H NMR (400 MHz, DMSO-d6)/δ ppm: 9.18 (d, J = 4.4 Hz, 2H), 8.74 (s, 1H), 8.63 (t, J = 6.0 Hz, 1H), 8.36–8.41 (m, 2H), 8.18 (t, J = 5.2 Hz, 2H), 7.64–7.68 (m, 3H), 6.89 (d, J = 6.8 Hz, 2H), 4.83 (t, J = 5.2 Hz, 2H), 4.16 (t, J = 4.0 Hz, 2H), 2.22 (m, 2H); 13C NMR (100 MHz, DMSO-d6)/δ ppm: 159.5, 158.9, 158.6, 156.3, 145.6, 145.1, 143.6, 129.9, 128.0, 128.0, 126.4, 125.8, 120.0, 117.3, 114.1, 65.0, 58.9, 29.9; MS m/z: 483.3 (M+), 323.2 (C18H14NO5•), 282.1 (C15H8NO5•), 79.2 (C5H5N•+); Anal. Calcd. for C23H19BrN2O5 (483.31): C, 57.16; H, 3.96; N, 5.80. Found: C, 57.01; H, 3.98; N, 5.71.
4.1.3.7 1-(4-(4-(2-Oxo-2H-chromen-3-yl)phenoxy)butyl)pyridinium Bromide 3g
Yield 93%; Pale yellow solid; m.p. 180–185°C; FT-IR (ATR cm−1) υmax: 3413, 3013, 1708, 1607, 1510, 1250, 1176, 1098, 773; 1H NMR (400 MHz, DMSO-d6)/δ ppm: 9.17 (d, J = 4.4 Hz, 2H), 8.63 (t, J = 6.0 Hz, 1H), 8.18–8.20 (m, 3H), 7.77 (d, J = 6.0 Hz, 1H), 7.69 (d, J = 6.8 Hz, 2H), 7.59 (t, J = 6.0 Hz, 1H), 7.42 (d, J = 6.4 Hz, 1H), 7.37 (t, J = 5.6 Hz, 1H), 7.01 (d, J = 6.8 Hz, 2H), 4.72 (t, J = 6.0 Hz, 2H), 4.07 (t, J = 4.4 Hz, 2H), 2.09–2.12 (m, 2H), 1.75–1.77 (m, 2H). 13C NMR (100 MHz, DMSO-d6)/δ ppm: 159.9, 158.7, 152.7, 145.5, 144.8, 139.1, 131.3, 129.8, 128.4, 128.1, 126.9, 126.3, 124.6, 119.6, 115.8, 114.2, 66.8, 60.4, 27.7, 25.2; MS m/z: 452.3 (M+), 238.1 (C15H9O3•), 135.1 (C9H13N•+), 79.1 (C5H5N•+), 55.1 (C4H82•); Anal. Calcd. for C24H22BrNO3 (452.34): C, 63.73; H, 4.90; N, 3.10. Found: C, 63.59; H, 4.98; N, 2.95.
4.1.3.8 1-(4-(4-(6-Methoxy-2-oxo-2H-chromen-3-yl)phenoxy)butyl)pyridinium Bromide 3h
Yield 92%; Cream solid; m.p. 189–192°C; FT-IR (ATR cm−1) υmax: 3444, 2946, 1710, 1606, 1578, 1254, 1104, 1023, 770; 1H NMR (400 MHz, DMSO-d6)/δ ppm: 9.14 (d, J = 4.0 Hz, 2H), 8.61 (t, J = 5.6 Hz, 1H), 8.14–8.18 (m, 3H), 7.67 (d, J = 6.4 Hz, 2H), 7.37 (d, J = 6.8 Hz, 1H), 7.31 (s, 1H), 7.19 (d, J = 6.4 Hz, 1H), 7.01 (d, J = 6.4 Hz, 2H), 4.70 (t, J = 5.6 Hz, 2H), 4.07 (t, J = 4.0 Hz, 2H), 3.81 (s, OCH3, 3H), 2.1 (m, 2H), 1.77 (m, 2H); 13C NMR (100 MHz, DMSO-d6)/δ ppm: 159.8, 158.6, 155.6, 148.1, 144.9, 144.4, 142.1, 139.2, 129.8, 128.1, 126.5, 119.9, 118.2, 116.9, 114.2, 110.4, 66.8, 60.7, 55.6, 27.5, 25.0.
4.1.3.9 1-(4-(4-(7-Methoxy-2-oxo-2H-chromen-3-yl)phenoxy)butyl)pyridinium Bromide 3i
Yield 90%; Brown solid; m.p. 186–188°C; FT-IR (ATR cm−1) υmax: 3479, 3013, 1719, 1606, 1510, 1250, 1117, 1096, and 773; 1H NMR (400 MHz, DMSO-d6)/δ ppm: 9.16 (d, J = 4.0 Hz, 2H), 8.62 (t, J = 8.0 Hz, 1H), 8.14–8.18 (m, 3H), 7.67 (m, 3H), 6.98–7.01 (m, 4H), 4.71 (t, J = 4.0 Hz, 2H), 4.06 (t, J = 4.0 Hz, 2H), 3.86 (s, OCH3, 3H), 2.11 (m, 2H), and 1.76 (m, 2H); 13C NMR (100 MHz, DMSO-d6)/δ ppm: 166.05, 162.61, 152.72, 145.59, 144.73, 139.92, 131.39, 129.62, 128.38, 128.08, 126.59, 126.35, 123.07, 119.97, 114.22, 112.41, 66.84, 60.81, 55.67, 55.35, 27.48, 25.44.
4.1.3.10 1-(4-(4-(8-Methoxy-2-oxo-2H-chromen-3-yl)phenoxy)butyl)pyridinium Bromide 3j
Yield 90%; Pale yellow solid; m.p. 105–107°C; FT-IR (ATR cm−1) υmax: 3416, 3012, 2940, 1719, 1606, 1574, 1276, 1177, 1095, and 773; 1H NMR (400 MHz, DMSO-d6)/δ ppm: 9.17 (d, J = 4.0 Hz, 2H), 8.62 (t, J = 6.0 Hz, 1H), 8.17 (m, 3H), 7.68–7.70 (m, 2H), 7.28–7.30 (m, 3H), 7.00 (d, J = 6.4 Hz, 2H), 4.70 (t, J = 5.2 Hz, 2H), 4.06 (t, J = 4.0 Hz, 2H), 3.91 (s, OCH3, 3H), 2.11 (m, 2H), and 1.76 (m, 2H); 13C NMR (100 MHz, DMSO-d6)/δ ppm: 159.6, 158.7, 146.2, 146.2, 145.5, 144.6, 141.9, 139.2, 129.9, 129.6, 128.2, 126.8, 120.4, 124.5, 120.1, 114.2, 66.8, 60.4, 55.9, 27.7, 25.2.
4.1.3.11 1-(4-(4-(6-Bromo-2-oxo-2H-chromen-3-yl)phenoxy)butyl)pyridinium Bromide 3k
Yield 94%; Cream solid; m.p. 256–258°C; FT-IR (ATR cm−1) υmax: 3412, 2943, 1727, 1606, 1511, 1251, 1182, 1098, and 774; 1H NMR (400 MHz, DMSO-d6)/δ ppm: 9.21 (d, J = 5.2 Hz, 2H), 8.65 (t, J = 7.6 Hz, 1H), 8.18–8.23 (m, 3H), 8.03 (s, 1H), 7.75 (d, J = 8.8 Hz, 1H), 7.69 (d, J = 8.4 Hz, 2H), 7.41 (d, J = 8.8 Hz, 1H), 7.04 (d, J = 8.4 Hz, 2H), 4.75 (t, J = 7.2 Hz, 2H), 4.10 (t, J = 6.0 Hz, 2H), 2.10–2.15 (m, 2H), and 1.77–1.81 (m, 2H); 13C NMR (100 MHz, DMSO-d6)/δ ppm: 159.8, 158.4, 152.2, 146.0, 145.3, 138.1, 134.0, 130.8, 130.3, 128.6, 127.8, 127.0, 122.0, 118.5, 116.5, 114.7, 67.4, 60.9, 28.2, 25.6.
4.1.3.12 1-(4-(4-(6-Nitro-2-oxo-2H-chromen-3-yl)phenoxy)butyl)pyridinium Bromide 3l
Yield 93%; Yellow solid; m.p. 223–226°C; FT-IR (ATR cm−1) υmax: 3407, 2943, 1724, 1607, 1513, 1252, 1182, 1095, and 773; 1H NMR (400 MHz, DMSO-d6)/δ ppm: 9.17 (d, J = 4.4 Hz, 2H), 8.74 (s, 1H), 8.62 (t, J = 6.0 Hz, 1H), 8.37–8.39 (m, 2H), 8.19 (t, J = 5.6 Hz, 2H), 7.69 (d, J = 6.8 Hz, 2H), 7.64 (d, J = 7.2 Hz, 1H), 7.04 (d, J = 6.8 Hz, 2H), 4.72 (t, J = 5.6 Hz, 2H), 4.08 (t, J = 4.8 Hz, 2H), 2.10–2.13 (m, 2H), and 1.75–1.78 (m, 2H); 13C NMR (100 MHz, DMSO-d6)/δ ppm: 159.1, 158.9, 156.3, 145.5, 144.8, 143.5, 137.8, 129.9, 128.1, 128.0, 126.4, 126.1, 125.8, 124.1, 120.0, 117.3, 114.3, 66.9, 60.4, and 27.7, 25.2; MS m/z: 497.3 (M+), 283.1 (C15H8NO5•), 135.1 (C9H13N•+), 55.2 (C4H82•); Anal. Calcd. for C24H21BrN2O5 (497.34): C, 57.96; H, 4.26; N, 5.63. Found: C, 57.73; H, 4.35; N, 5.58.
4.1.3.13 1-(5-(4-(2-Oxo-2H-chromen-3-yl)phenoxy)pentyl)pyridinium Bromide 3m
Yield 94%; White solid; m.p. 100–103°C; FT-IR (ATR cm−1) υmax: 3443, 2943, 1695, 1606, 1512, 1280, 1124, 1050, and 766; 1H NMR (400 MHz, DMSO-d6)/δ ppm: 9.12 (d, J = 4.4 Hz, 2H), 8.62 (t, J = 6.0 Hz, 1H), 8.16–8.19 (m, 3H), 7.77 (d, J = 6.0 Hz, 1H), 7.69 (d, J = 6.8 Hz, 2H), 7.60 (t, J = 6.0 Hz, 1H), 7.42 (d, J = 6.4 Hz, 1H), 7.37 (t, J = 6.0 Hz, 1H), 7.00 (d, J = 6.8 Hz, 2H), 4.64 (t, J = 6.0 Hz, 2H), 4.03 (t, J = 4.8 Hz, 2H), 2.00–2.02 (m, 2H), 1.77–1.80 (m, 2H), 1.43–1.46 (m, 2H); 13C NMR (100 MHz, DMSO-d6)/δ ppm: 158.9, 158.7, 152.7, 145.5, 144.8, 138.8, 131.3, 129.8, 128.4, 128.1, 126.9, 126.3, 124.6, 119.6, 115.8, 114.2, 66.8, 60.6, 30.4, 28.6, 22.0.
4.1.3.14 1-(5-(4-(8-Methoxy-2-oxo-2H-chromen-3-yl)phenoxy)pentyl)pyridinium Bromide 3n
Yield 92%; Cream solid; m.p. 234–235°C; FT-IR (ATR cm−1) υmax: 3357, 2941, 1697, 1606, 1278, 1098, 1050, 775; 1H NMR (400 MHz, DMSO-d6)/δ ppm: 9.14 (d, J = 4.4 Hz, 2H), 8.62 (t, J = 6.0 Hz, 1H), 8.16–8.19 (m, 3H), 7.70 (d, J = 6.8 Hz, 2H), 7.28–7.31 (m, 3H), 6.98 (d, J = 6.8 Hz, 2H), 4.66 (t, J = 5.6 Hz, 2H), 4.03 (t, J = 4.8 Hz, 2H), 3.92 (s, OCH3, 3H), 1.99–2.02 (m, 2H), 1.77–1.80 (m, 2H), and 1.45–1.46 (m, 2H); 13C NMR (100 MHz, DMSO-d6)/δ ppm: 159.6, 158.9, 146.2, 145.5, 144.8, 141.9, 139.2, 129.8, 128.1, 126.7, 126.4, 124.5, 120.1, 119.6, 114.1, 113.5, 67.1, 60.6, 56.0, 30.4, 27.9, 22.0.
4.1.3.15 1-(5-(4-(6-Nitro-2-oxo-2H-chromen-3-yl)phenoxy)pentyl)pyridinium Bromide 3o
Yield 91%; Pale yellow solid; m.p. 286–288°C; FT-IR (ATR cm−1) υmax: 3419, 2944, 1730, 1607, 1512, 1250, 1096, 769; 1H NMR (400 MHz, DMSO-d6)/δ ppm: 9.13 (d, J = 4.4 Hz, 2H), 8.74 (s, 1H), 8.62 (t, J = 6.0 Hz, 1H), 8.38–8.40 (m, 2H), 8.18 (t, J = 5.6 Hz, 2H), 7.69 (d, J = 6.8 Hz, 2H), 7.64 (d, J = 7.2 Hz, 1H), 7.03 (d, J = 6.8 Hz, 2H), 4.66 (t, J = 6.0 Hz, 2H), 4.04 (t, J = 5.2 Hz, 2H), 2.00–2.04 (m, 2H), 1.76–1.81 (m, 2H), 1.42–1.48 (m, 2H); 13C NMR (100 MHz, DMSO-d6)/δ ppm: 159.3, 158.9, 156.13, 145.5, 144.8, 143.5, 137.7, 129.9, 128.1, 126.0, 125.7, 124.1, 120.0, 117.3, 114.3, 67.2, 60.5, 30.4, 27.9, 22.0.
4.1.3.16 1-(5-(4-(6-Bromo-2-oxo-2H-chromen-3-yl)phenoxy)pentyl)pyridinium Bromide 3p
Yield 95%; Cream solid; m.p. 240–242°C; FT-IR (ATR cm−1) υmax: 3449, 2944, 1711, 1605, 1508, 1283, 1113, and 771; 1H NMR (400 MHz, DMSO-d6)/δ ppm: 9.21 (d, J = 5.6 Hz, 2H), 8.65 (t, J = 7.6 Hz, 1H), 8.19–8.22 (m, 3H), 8.02 (s, 1H), 7.75 (d, J = 8.4 Hz, 1H), 7.69 (d, J = 8.0 Hz, 2H), 7.41 (d, J = 8.8 Hz, 1H), 7.04 (d, J = 8.0 Hz, 2H), 4.71 (t, J = 6.8 Hz, 2H), 4.03 (t, J = 6.0 Hz, 2H), 2.01–2.09 (m, 2H), 1.78–1.81 (m, 2H), 1.45–1.48 (m, 2H); 13C NMR (100 MHz, DMSO-d6)/δ ppm: 159.8, 158.4, 152.2, 146.0, 145.3, 138.1, 134.0, 130.8, 130.3, 128.6, 127.8, 127.0, 122.0, 118.5, 116.5, 114.7, 67.4, 60.9, 30.9, 28.2, 25.6.
4.1.3.17 1-(5-(4-(6-Bromo-2-oxo-2H-chromen-3-yl)phenoxy)pentyl)-5-ethyl-2-methylpyridin-1-ium Bromide 3q
Yield 54%; Yellow oil; FT-IR (KBr cm−1) υmax: 3394, 2921, 1720, 1613, 1530, 1467, 1252, 1112, 828; 1H NMR (400 MHz, DMSO-d6)/δ ppm: 8.98 (s, 1H), 8.40 (d, J = 8.8 Hz, 1H), 8.18 (s, 1H), 8.04 (d, J = 2.4 Hz, 1H), 7.99 (d, J = 8.4 Hz, 1H), 7.76 (d, J = 6.8 Hz,1H), 7.70 (d, J = 8.8 Hz, 2H), 7.42 (d, J = 8.8 Hz, 1H), 7.04 (d, J = 8.8 Hz, 2H), 4.57 (t, J = 7.6 Hz, 2H), 4.08 (t, J = 6.4 Hz, 2H), 2.82 (s, 3H), 2.78–2.80 (m, 2H), 1.85–1.96 (m, 2H), and 1.25–1.28 (m, 4H); 1.04–1.06 (m, 3H); 13C NMR (100 MHz, DMSO-d6)/δ ppm: 159.8, 158.4, 152.2, 146.0, 145.3, 138.1, 134.0, 130.8, 130.3, 128.6, 127.8, 127.0, 122.0, 118.5, 116.5, 114.7, 67.4, 60.9, 30.9, 28.2, and 25.6; 13C NMR (100 MHz, DMSO-d6)/δ ppm: 159.9, 159.6, 152.8, 152.2, 145.1, 144.6, 142.0, 138.1, 134.0, 130.8, 130.3, 129.9, 127.9, 126.9, 122.0, 118.6, 116.5, 114.7, 67.7, 57.5, 29.6, 28.5, 25.1, 22.9, 19.5, 14.8.
4.1.4 General Procedure for the Synthesis of Compound 3r–t
A mixture of compound 2 (1 mmol) and 4-dimethylaminopyridine (1.5 mmol) in dry acetonitrile (5 ml) was stirred at 70°C for 24 h. After completion of the reaction (monitored by TLC), the mixture was cooled to room temperature and acetone (20 ml) was then added. The mixture was cooled in the refrigerator (5°C) overnight. The solid was filtered and crystalized using acetone.
4.1.4.1 4-(Dimethylamino)-1-(3-(4-(6-bromo-2-oxo-2H-chromen-3-yl)phenoxy)pentyl)pyridin-1-ium Bromide 3r
Yield 65%; Yellow solid; m.p. 146–148°C; FT-IR (ATR, cm−1) υmax: 3375, 3067, 2942, 1716, 1649, 1606, 1565, 1472, 1255, 1179, 1066, and 825; 1H NMR (400 MHz, DMSO-d6)/δ ppm: 8.41 (d, J = 7.2 Hz, 2H), 8.19 (s, 1H), 8.02 (s, 1H), 7.73 (d, J = 1.6 Hz, 1H), 7.69 (d, J = 8.4 Hz, 2H), 7.38 (d, J = 8.8 Hz,1H), 7.06 (d, J = 7.2 Hz, 2H), 7.00 (d, J = 8.4 Hz, 2H), 4.26 (t, J = 6.8 Hz, 2H), 4.02 (t, J = 6.0 Hz, 2H), 3.83 (s, 6H), 1.84–1.87 (m, 2H), 1.76–1.81 (m, 2H), and 1.41–1.42 (m, 2H); 13C NMR (100 MHz, DMSO-d6)/δ ppm: 159.8, 159.5, 158.4, 156.2, 152.1, 142.5, 138.1, 134.0, 130.8, 130.3, 127.7, 126.8, 122.0, 118.5, 116.5, 114.6, 108.1, 67.7, 56.9, 30.5, 28.4, 22.5.
4.1.4.2 4-(Dimethylamino)-1-(3-(4-(2-oxo-2H-chromen-3-yl)phenoxy)propyl)pyridin-1-ium Bromide 3s
Yield 60%; White solid; m.p. 233–235°C; FT-IR (ATR cm−1) υmax: 3370, 3057, 2883, 1715, 1645, 1607, 1568, 1509, 1255, 1177, 1115, 768; 1H NMR (400 MHz, DMSO-d6)/δ ppm: 8.43 (d, J = 7.6 Hz, 2H), 8.23 (s, 1H), 7.80 (d, J = 7.6 Hz, 1H), 7.70 (d, J = 8.8 Hz, 2H), 7.61 (t, J = 7.6 Hz,1H), 7.42 (d, J = 8.4 Hz, 1H), 7.37 (d, J = 7.6 Hz, 1H), 7.06 (d, J = 7.2 Hz, 2H), 6.98 (d, J = 8.8 Hz, 2H), 4.43 (t, J = 6.4 Hz, 2H), 4.08 (t, J = 5.6 Hz, 2H), 3.20 (s, 6H), 2.29–2.32 (m, 2H); 13C NMR (100 MHz, DMSO-d6)/δ ppm: 160.3, 158.9, 156.3, 153.1, 142.7, 139.7, 131.8, 130.3, 128.9, 127.5, 126.7, 125.0, 120.0, 116.2, 114.6, 108.1, 65.1, 54.7, 40.2, 30.1. MS m/z: 481.3 (M+), 388.1 (C24H22N2O3•+), 238.1 (C15H9O3•), 121.2 (C7H10N2•+); Anal. Calcd. for C25H25BrN2O3 (481.38): C, 62.38; H, 5.23; N, 5.82; O, 9.97. Found: C, 62.25; H, 5.42; N, 5.77.
4.1.4.3 4-(Dimethylamino)-1-(3-(4-(6-nitro-2-oxo-2H-chromen-3-yl)phenoxy)propyl)pyridin-1-ium Bromide 3t
Yield 72%; Yellow solid; m.p. 173–174°C; FT-IR (ATR cm−1) υmax: 3365, 1722, 1649, 1611, 1564, 1517, 1343, 1255, 1176, 1095, 942, 825; 1H NMR (400 MHz, DMSO-d6)/δ ppm: 8.76 (d, J = 2.8 Hz, 1H), 8.43 (d, J = 2.4 Hz, 1H), 8.40 (s, 1H), 8.37 (d, J = 7.2 Hz, 2H), 7.72 (d, J = 8.8 Hz,2H), 7.68 (d, J = 8.8 Hz, 1H), 7.11 (d, J = 7.6 Hz, 2H), 7.02 (d, J = 8.8 Hz, 2H), 4.41 (t, J = 6.8 Hz, 2H), 4.10 (t, J = 5.6 Hz, 2H), 3.21 (s, 6H), 2.30–2.33 (m, 2H); 13C NMR (100 MHz, DMSO-d6)/δ ppm: 159.4, 159.3, 156.8, 156.3, 144.1, 142.7, 138.3, 130.4, 128.5, 126.9, 126.3, 124.6, 120.5, 117.8, 114.7, 108.1, 65.1, 54.8, 40.2, 30.0.
4.2 Biological Assays
4.2.1 Inhibitory Activity of the Target Compounds Against AChE and BChE
To evaluate the AChE and BuChE inhibitory activities, the Ellman’s method was employed (Ellman et al., 1961). AChE, BuChE, 5,5'-dithiobis (2-nitrobenzoic acid) (DTNB), acetyl- and butyrylthiocholine iodides were purchased from Sigma-Aldrich. Five different concentrations of the corresponding compounds in ethanol-DMSO (9:1) were prepared. For assay, the corresponding enzyme (5 IU/ml, in phosphate buffer, pH 8.0 containing 25% v/v of glycerol) was added to a 24-well plate containing PBS, the tested compound in different concentrations, and DTNB (0.01 M). After 3 min of incubation, the substrate solution (acetylthiocholine iodide or butyrylthiocholine iodide, 0.05 M) was added and then incubated for at least 1 min at 25°C. The absorbance was measured at 412 μM using a microplate reader (BioTek Synergy HT). The inhibition curve was obtained by plotting the percentage of enzyme activity (100% for the reference) versus the logarithm of the tested compound concentration. Results are reported as the mean ± SD for at least three different experiments.
4.2.2 Neuroprotection Assay Against H2O2-Induced Cell Death in PC12 Cells
The cell viability was measured using MTT [3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyl tetrazolium bromide] assay (Datki et al., 2003). PC12 cells (from the Iranian Biological Resource Center, IBRC) received different treatments, including no treatment (control), 150 μM H2O2 alone, or 150 μM H2O2 in combination with 0.1–50 μM of the tested compound. The cells were seeded at 1 × 104 cells/well and incubated at 37ºC under a 5% CO2 atmosphere for 24 h, then treated with the tested compound and incubated for 3 h. Next, the cells were exposed to H2O2 for 2 h again. The MTT solution (20 μl, 5 mg/ml) was next replaced with the medium and incubated for 4 h. 100 μl of DMSO was added to dissolve the formazan precipitate. Absorbance was then measured at 570 nm using a multi-mode plate reader (Biotek, Winooski, VT). Cell viability is expressed as a percentage relative to the untreated control.
4.2.3 Inhibition of Self- and AChE-Induced Aβ1-42 Aggregation
Inhibitory properties of the compounds on self-induced and AChE-induced aggregation of amyloid-β protein 1–42 was determined using a thioflavin T (ThT)-based fluorescence assay with slight modifications (Levine, 1993). The ThT excitation/emission was measured at 448 nm/490 nm at 48 h using a SpectraMax® Microplate Reader. Amyloid-β protein 1–42 (Sigma A9810) was dissolved in Phosphate Buffer Saline pH 7.4 (PBS, HyClone Thermo Scientific) containing ammonium hydroxide (1%). Aβ1-42 (50 μM) was incubated for 24 h at 37°C for prefibrillation.
To determine AChE-induced Aβ1-42 aggregation, Aβ1-42 (20 μl) ± human recombinant AChE (0.01 u/ml, Sigma C1682) were added to 450 ml of PBS buffer pH 7.4 including 0.15 M NaCl and 20 μM thioflavin T (ThT). The mixture was incubated at 37°C in the absence and presence of the compounds (100 μM) and the fluorescence intensities were determined. Due to the presence of the tested compounds, inhibition of self- or AChE-induced aggregation percent was determined by the following calculation: [100-((IFi/IFo) × 100)] where IFi and IFo are the fluorescence intensities obtained for Aβ ± AChE in the presence and in the absence of inhibitors.
4.2.4 Cytotoxicity and Neuroprotection Assay Against Aβ1-42-Induced Cytotoxicity in SH-SY5Y Cells
Cell culture chemicals were purchased from Lonza, HyClone, or Thermo Scientific. Human neuroblastoma SH-SY5Y cells were maintained in Dulbecco’s modified Eagle’s medium (DMEM) supplemented with 10% FBS, 1% L-glutamine, and 1% antibiotic mix at 37°C in a humidified atmosphere containing 5% CO2. Cell viability was determined using a thiazolyl blue tetrazolium bromide [3-(4,5-dimethyl-2-thiazolyl)-2,5-diphenyl-2H-tetrazolium bromide] (MTT) assay (Datki et al., 2003). SH-SY5Y cells were seeded into 384-well plates at 3,000 cells per well and treated with novel compounds at a concentration of 1 μM, 3 h prior to the addition of Aβ1–42 (5 μM). After 24 h of incubation, 5 μl of the MTT reagent (5 mg/ml) was added to each well. 40 μl of DMSO was used to dissolve formazan crystals. Absorbance values were measured at 690 and 570 nm using a BMG Omega Fluorostar microplate reader.
4.2.5 Docking Simulations
Molecular docking simulation was conducted using AutoDock 4.2 (Goodsell et al., 1996). The crystal structures of the studied targets, PDBID: 1EVE (Kryger et al., 1999) and 4BDS (Nachon et al., 2013) for AChE and BuChE, were retrieved from the RCSB protein data bank website. The reason for the selection of these codes was their high resolution, 2.50 and 2.10 Å for 1EVE and 4BDS, respectively. The 3D structures of the potent compounds (3f and 3t) were prepared by Chem3D software. The analysis of docking results was performed by the Discovery Studio software. To validate our docking protocol, re-dock simulations were performed. The results showed that the RMSD values were 0.96 and 0.66 for AChE and BuChE targets, respectively, which confirmed the accuracy of the docking protocol.
Data Availability Statement
The original contributions presented in the study are included in the article/Supplementary Material; further inquiries can be directed to the corresponding authors.
Author Contributions
This work was part of the Ph.D. thesis of EB, who synthesized and characterized all the compounds and wrote the first draft of the manuscript. LJ-B participated in compound characterization, data analysis, and writing the manuscript. HN performed ChEs inhibition activity. TK and EÖ performed all the analyses regarding the anti-amyloid activity of the compounds. HF and MA assessed the neuroprotective activities of the compounds. EH and LF handled docking simulations. TA participated in the cell toxicity and neuroprotection assays. AF and MS provided lab facilities and participated in data analysis and revision of the manuscript. BM participated in the synthesis of the target compounds and data analysis and gave conceptual advice and edited the manuscript. MK designed and organized the work and handled all processes of the work.
Funding
This work was supported by a grant from the Research Council of Tehran University of Medical Sciences and financially by a grant from the National Institute for Medical Research Development (NIMAD), Iran (grant number 977114).
Conflict of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
The handling editor MS declared a shared affiliation with the authors EH, SM, MS, MK at the time of review.
Publisher’s Note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors, and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary Material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fchem.2022.895483/full#supplementary-material
