Herbert P. Jennissen- Institute of Physiological Chemistry, Faculty of Medicine, University of Duisburg-Essen, Essen, Germany
The constant release of human bone morphogenetic protein 2 (rhBMP-2) in the picomolar range (Pico-Stat) from PDLLA-biohybrids led to the detection of intrinsic novel pro- and anti-angiogenic functions of this cytokine. As integrant part in this perspective of previous work, first evidence for the binding of rhBMP-2, as an inverse agonist, to allosteric angiogenic receptors in cocultures of human endothelial cells is reported.
1 Introduction
BMP-2 initiates osteogenesis requiring angiogenesis, with the ingrowth of mesenchymal stem cells and osteoblasts. The global market size (MRI, 2023) of the recombinant form (rhBMP-2) [INFUSE® Bone Graft (Food and Drug Administration, 2004)] reached USD 498.1 million in 2021 (MRI, 2023). This protein, rhBMP-2CHO, is produced by a genetically engineered Chinese hamster ovary cell line, as a disulfide-linked heterodimeric protein mixture of two different polypeptide chains of 114 and 131 amino acids. Each chain is glycosylated at one site with high-mannose-type glycans (Food and Drug Administration, 2004; Committee for Medicinal Products for Human use, 2014; Kenley et al., 1993). As applied, BMP-2CHO comprises a microheterogenous mixture of three different BMP-2 isoforms and up to 15 additional different glycoforms (Kenley et al., 1993).
In contrast, the non-glycosylated rhBMP-2COL second species (Schlüter et al., 2009) from E. coli (Figure 1) is homodimeric and displays no microheterogeneity (Jennissen et al., 1999; Laub et al., 2007). The molecular masses of the commercial glycosylated (rhBMP-2CHO) and the non-glycosylated rhBMP-2 species (rhBMP-2COL) correspond to 33–36 kDa for the former and 26 kDa for the latter, respectively (Laub et al., 2007). In humans, 12 mg of rhBMP-2CHO must be applied for osteoinduction in a concentration of 1.5 mg/mL (∼ 44 µM) in an absorbable collagen sponge (ACS). After intravenous injection, rhBMP-2 is eliminated with a half-life of t1/2 = 6.7 min in nonhuman primates (Food and Drug Administration, 2004). Physiological serum levels of BMP-2 in healthy human controls are reported to be 17.1 ± 0.6 pg/mL (= 4.8 × 10−13 M) (Kercheva et al., 2020).

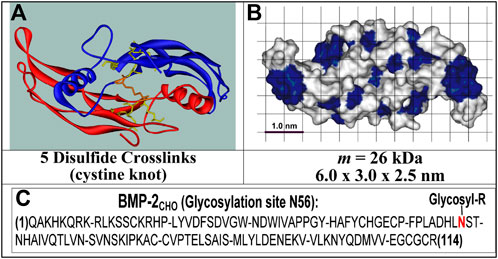

FIGURE 1. Structures of rhBMP-2COL. (A) Ribbon structure of 2 identical polypeptides; (B) solvent-accessible surface structure with blue hydrophobic and white hydrophilic patches; (C) Primary structure with N56 glycosylation site [see (Laub et al., 2001; Chatzinikolaidou et al., 2002)].
In receptor-binding studies, the binding function (θ) and the state function (r) are distinguished (Laub et al., 2007). The binding function (θ) of rhBMP-2 is a direct measure of receptor occupation by the ligand with KθD in the range of ∼0.45 nM (Mayer et al., 1996). The state function (r) (Wiemann et al., 2001; Laub et al., 2007) of rhBMP-2 correlates with the receptor activity state by monitoring downstream products (e.g., alkaline phosphatase) in activity tests in MC3T3-E1 cell cultures, with both species of rhBMP-2CHO and rhBMP-2COL having indistinguishable biological activities of nanomolar affinities (Kr′D ∼ 2–10 nM (Laub et al., 2007)). BMP-2 also specifically binds to its prodomain for ECM targeting, presumably with a similar affinity constant (K′D ∼ 4–8 nM) as BMP-7 (Spanou et al., 2023). RhBMP-2 is known to indirectly initiate angiogenesis in the nanomolar range (0.38–3.8 nM) (Deckers et al., 2002) by activating paracrine VEGF-mediated osteoblast-endothelial cell cross-talk (Kulikauskas and Bautch, 2022). The combination of biomolecular materials, such as rhBMP-2, with the other biomaterial classes such as metals, polymers, or ceramics, forms a biohybrid material [see (Jennissen, 2019)]. In protein immobilization, we distinguish adsorbates (adsorption), covalates (covalent binding), and inclusates (encapsulated biohybrids) (Jennissen, 2019). A biohybrid is classed as bioactive if it has been “designed to induce a specific biological activity” (Williams et al., 1987). A paracrine biohybrid is, e.g., a growth factor releasing biomaterial. Recently, we reported the first evidence of a direct influence of rhBMP-2COL on angiogenesis in co-cultures at picomolar concentrations (Dohle et al., 2021). Applications of rhBMP-2 in solute and PDLLA solid-phase forms are described.
2 Methods
RhBMP-2COL from E. coli (Morphoplant GmbH Bochum, D) and rhBMP-2CHO from CHO-cells (InductOs®, Medtronic BioPharma B.V., Heerlen, NL) were employed (Laub et al., 2007). The dose–response derived biological equivalent activity equals K'D ∼ 5–15 nM for both species of rhBMP-2 (Laub et al., 2007). The for many weeks stable PDLLA nanofiber fleece preparation is described in (Sowislok and Jennissen, 2022). Labeled 125I-rhBMP-2 (Dohle et al., 2021) was for the analytical preparation of adsorbate PDLLA biohybrids. Non-isotope biohybrids were made in parallel for the other experiments. In a 24-well cell culture plate, the single well volume corresponds to 0.5–1.0 mL. Human outgrowth endothelial cells (OECs) and human primary osteoblasts (pOBs) were prepared as described (Dohle et al., 2021). Cocultures consisted of endothelial cells (130.000/well) and primary osteoblasts (20.000/well). Relative gene expressions (RQ) of mRNA for various proteins are described in (Dohle et al., 2021). In dose-response experiments, rhBMP-2COL was added in defined concentrations to the OEC/pOB co-culture system and harvested after 7 days of incubation for fluorescence microcopy and quantitative Nikon NIS image processing as described (Dohle et al., 2021). The pixel values were converted to length according to 1 pixel = 0.46 µm. Cell viability was tested by the LDH cytotoxicity assay CyQUANT™ as described (Dohle et al., 2021). In desorption experiments, 1 cm2 (1 mg) fleeces with an rhBMP-2COL loads of ∼ 6.98 mg/g PDLLA were placed in 1.5 mL flow-through chambers (Sänger et al., 2014). They were perfused with sterile phosphate-buffered saline (PBS) pH 7.4 at a flow rate of 10 mL/h in a 16-channel Watson-Marlow peristaltic pump for 22 days at ca. 22°C-26°C. Statistical calculations were done with the PC program GraphPad Prism 4/5 (La Jolla, CA). Prism software fails in exponential decays with r2-values of <0.2 when decays parallel the abscissa at t1/2 > 100–200 days (slope ∼ zero). Kinetic and thermodynamic constants under non-standard conditions are termed “apparent” (K′, k′). Equilibrium dissociation constants (KD, K0.5) represent affinity constants (Landry et al., 2015).
3 Results
3.1 Pico-paracrine biohybrids
In preparing solid-state paracrine adsorbate biohybrids, rhBMP-2COL was adsorbed to the surface of a non-woven fleece composed of PDLLA nanofibers (∅ = ∼ 100 nm), prepared by electrospinning (Dohle et al., 2021; Sowislok and Jennissen, 2022) (see Table 1).

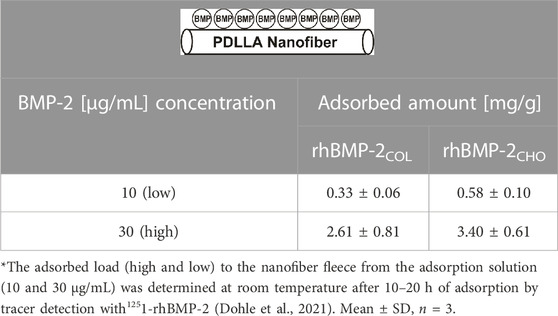

TABLE 1. Preparation of rhBMP-2-PDLLA-adsorbate biohybrids*.
Decisive is the 22-day rhBMP-2COL adsorbate release kinetics from biohybrids loaded with ∼8.9 mg/g Table 2. The two-phase exponential decay function displays a half-life of 3–4 h for the burst phase (K′D = 8.2 nM) and a half-life of 208 days for sustained high-affinity release (K′D = k−2/k+1 = 0.59 × 10−12 M; = pico paracrine biohybrid). Such rhBMP-2COL adsorbate PDLLA biohybrids (Table 1) were incubated in OEC/pOB co-cultures for 14 days and led to large numbers of capillary–like microvessels with no VEGF-A gene activation (Dohle et al., 2021) (Figure 2A; 0.33 mg/g). Fewer microvessels, but more than in controls, form at an 8-fold higher rhBMP-2COL adsorbate load (Figure 2B).

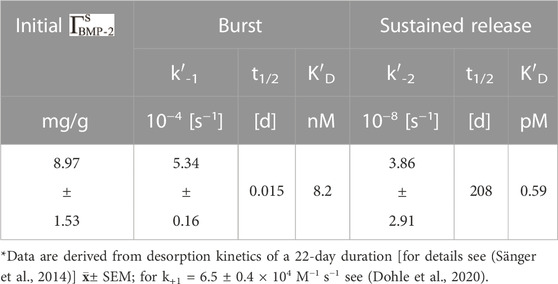

TABLE 2. 125I-rhBMP-2COL release kinetics from biohybrids (Table 1).
FIGURE 2. Angioinduction by paracrine rhBMP-2 PDLLA-nanofiber adsorbate biohybrids. (A) at low and (B) at high adsorbate load after 14 days in OEC/pOB co-culture system (magn. x10). Endothelial cells were immunofluorescently stained for load and CD31. For load (1.0 mg/g = 1.8 μg/cm2), and intrinsic activity of fleeces, see Tables 1, 3, scale: 300 μm; [from (Dohle et al., 2021)].
In contrast to the pro-angiogenic activities of rhBMP-2COL, the glycosylated species rhBMP-2CHO was anti-angiogenic, fully inhibiting control angiogenesis (Dohle et al., 2021) and forming instead a cobblestone layer of endothelial cells [not shown, see (Dohle et al., 2021)].
These results were confirmed in Table 3. At a low rhBMP-2COL, adsorbate loads of 0.33 mg/g and a total length of microvessels of 23.9 ± 5.1 mm formed without an increased expression of VEGF-A (Dohle et al., 2021). At high adsorbate loads of 2.6 mg/g, the total length decreased 5-fold to 4.7 ± 0.44 mm, and in controls lacking adsorbate down 10-fold to intrinsic 2.4 ± 0.046 mm. The knots in the microvessel mesh paralleled the length changes. At low concentrations of rhBMP-2COL, they totaled a high of 51.9 ± 11.5 knots, decreasing 4.3-fold to 12.2 ± 0.6 at higher concentrations and 12-fold less in controls of 4.3 ± 1.1 knots. These changes were statistically significant (Table 3).

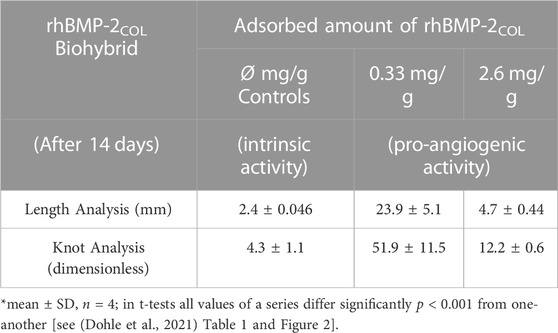

TABLE 3. Length and knot data of capillary-like structures induced by rhBMP-2COL adsorbate biohybrids after 14 days in co-culture*.
3.2 Solution studies
In the following, concentration-response experiments in solution are shown. Instead of correlating with rising concentrations, the pro-angiogenic microvessel response increased as a function of factor-10 graded dilutions of rhBMP-2COL (Table 4). Microvessel formation thus followed an inverse concentration gradient, exposing a hitherto unseen angiogenic activity by rhBMP-2COL in the picomolar range, confirming results in Figure 2 and Table 3. Anti-angiogenic concentrations of rhBMP-2COL >10 pM fully abolished pro-angiogenic responses.

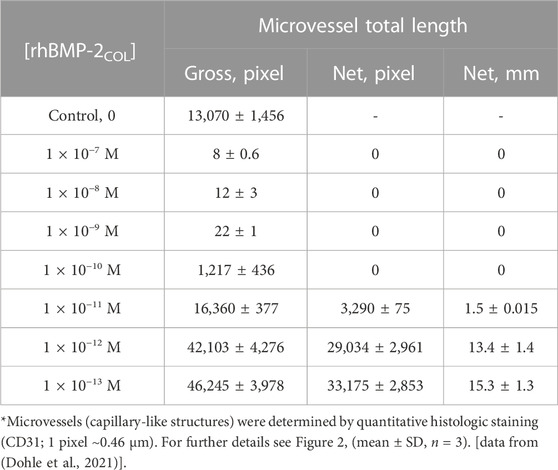

TABLE 4. Dose-response angioinduction in OEC/pOB co-cultures after 7 days by decreasing concentrations of rhBMP-2COL in solution*.
The data of Table 4 are plotted in Figure 3 down to concentrations of 10−16 M for a classical receptor type. Inhibition increases with the concentration of rhBMP-2COL. The apparent half-saturation constant is not a classical affinity constant but an “autoinhibition” constant (K′I0.5) with a value of 3.2 pM. The hypothetical (see dotted line) dissociation constant (K′D) for the presumed association of rhBMP-2COL to endothelial cell receptors lies in the subpicomolar range ∼10−14 M. The anti-angiogenic regulation by rhBMP-2COL prevents too many blood vessels from being formed as a “high concentration cut-off regulation”, in which an apparent agonist turns into an antagonist at high concentrations.

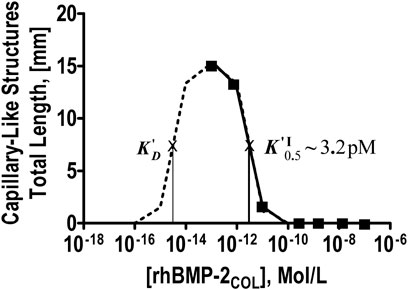

FIGURE 3. Dose-response-curve of angioinduction by rhBMP-2COL after 7 days in OEC/pOB co-cultures. Inverse concentration dependence, half-maximal autoinhibition constant KI0.5, and a hypothetical K′D on a hypothetical dotted association line are shown (see Table 4).
Figure 4 shows a compound extended dose-response plot comprising the data of Table 4 on inverse related angioinduction (Dohle et al., 2021) together with data on direct related osteoinduction [derived from activity measurements with MC3T3-E1 cells in culture (Laub et al., 2007)] and their respective affinity constants. The inverse angiogenic branch saturates at ca. 15 mm and the direct osteogenic branch at 1.2 OD units. The apparent half-saturation autoinhibition constant (KI0.5) can now be termed as an inverse-related affinity constant (K′DI-R) for angiogenesis with a value of 3.2 pM which contrasts with the direct-related affinity constant (K′D) for osteoinduction at 7.3 nM. Since the constants of the two activities are separated by three and more orders of magnitude, identical receptors, shared, cross-reactive receptors and homologous desensitization (Popovic and Wilson, 2010) of receptors are improbable, strongly indicating an angiogenic receptor with constitutive activity (Berg and Clarke, 2018) (see saturation in Figure 4) and rhBMP-2COL as a full inverse agonist in a typical dose response curve in Figure 4.

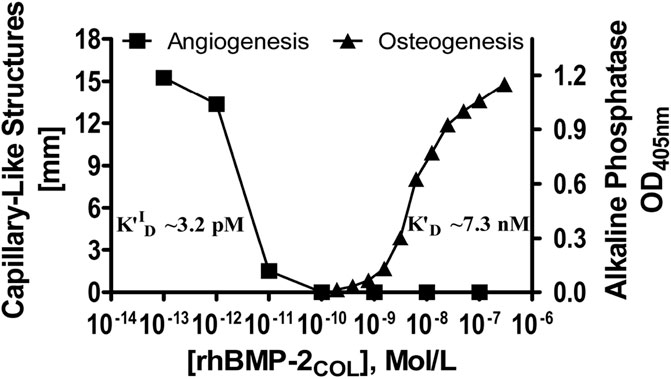

FIGURE 4. Dose-response curves of rhBMP-2COL for the induction of angiogenic (inverse agonist) and osteogenic activities. Cocultures of OEC/pOB cells (Dohle et al., 2021) and mono-cultures of MC3T3-E1 cells (Laub et al., 2007) were employed respectively with corresponding affinity constants K′ID (see also legends to Table 4 and Figure 3).
Control of local picomolar concentrations of rhBMP-2COL in solute form (Table 4) are short-term and difficult, but via solid-state technology, e.g., as rhBMP-2COL-PDLLA biohybrids (Figure 2; Table 3), are simple and long-term by sustained release (Table 2), comparable to a pH-Stat. In this study, not the pH but the growth factor concentration in the pico- or subpicomolar range is maintained as constant and guaranteed by high-affinity dissociation constants K′D (= Pico-Stat) (Jennissen, 2023).
3.3 rhBMP-2 an angiogenesis inhibitor
As shown, the microvessel control values in the absence of rhBMP-2 (experiments of Tables 3, 4) are not zero but exhibit a significant spontaneous, endogenous pro-angiogenic control activity in the OEC/pOB cultures by VEGF-A (Dohle et al., 2021). This endogenous activity is inhibited by both species of rhBMP-2 (Dohle et al., 2021), for rhBMP-2COL by concentrations above 10–20 pM (see Figures 3, 4). Thus it could be argued that the observed proangiogenic activity of rhBMP-2COL (Figures 2, 3) is not of a stimulatory but only of a deinhibitory nature on dilution. However such a “deinhibition” neither accounts for a 9-fold net higher angiogenic biohybrid activity in vitro (Table 3) nor for a severalfold net higher vessel density in vivo (21 days, rats) in low versus high load comparison (Al-Maawi et al., 2023) (see Tables 1, 3). The above paradox angiogenic activity agrees with the evidence of rhBMP-2COL being a full inverse agonist of a novel allosteric receptor complex together with an as yet unknown orthosteric agonist (see: Berg and Clarke, 2018; de Vries et al., 2021).
4 Conclusion
Adsorbate load-dependent pro- and anti-angiogenic functions of the considered inverse agonist rh-BMP-2COL on endothelial cells, has been determined by the novel method of solid-state biohybrids as nano- or pico-stats.
Data availability statement
The original contributions presented in the study are included in the article/supplementary material, further inquiries can be directed to the corresponding author.
Author contributions
The author confirms being the sole contributor of this work and has approved it for publication.
Funding
This study was funding by Deutsche Forschungsgemeinschaft Grant JE 84/15-3.
Conflict of interest
The author declares that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
