Certification Cycles and Real Driving Emissions

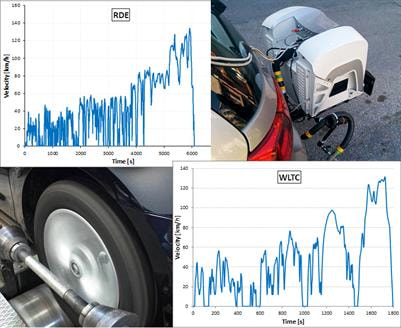

The objective of this study is the assessment of the real-world environmental performance, and its comparison with laboratory measurements, of two Euro 6 passenger cars. The first is equipped with a common-rail diesel engine, Lean NO_x Trap (LNT), and Diesel Particulate Filter (DPF), and the second is a bi-fuel gasoline/CNG (Compressed Natural Gas) vehicle equipped with a Three-Way Catalyst (TWC). The experimental campaign consisted of on-road and chassis dynamometer measurements. In the former test set, two driving routes were followed, one complying with Real Driving Emissions (RDE) regulation and another characterized by more dynamic driving. The aim of the latter route was to go beyond the regulatory limits and cover a wider range of real-world conditions and engine operating areas. In the laboratory, the WLTC (Worldwide harmonized Light vehicles Test Cycle) was used, applying the real-world road load of the vehicles. Both cars underwent the same tests, and these were repeated for the primary (CNG) and the secondary (gasoline) fuel of the bi-fuel vehicle. In all of the tests, CO₂ and NO_x emissions were measured with a Portable Emissions Measurement System (PEMS). The results were analyzed on two levels, the aggregated and the instantaneous, in order to highlight the different emissions attributes under varying driving conditions. The application of realistic road load in the WLTC limited its difference from the RDE-compliant route in terms of CO₂ emissions. However, the aggressive driver behavior and the uphill roads of the Dynamic driving schedule resulted in approximately double the CO₂ emissions for both cars. The potential of natural gas to reduce CO₂ emissions was also highlighted. Concerning the NO_x emissions of the diesel car, the real-world results were significantly higher than the respective WLTC levels. On the other hand, the bi-fuel car exhibited very low NO_x emissions with both fuels. Natural gas resulted in increased NO_x emissions compared to gasoline, always remaining below the Euro 6 limit, with the only exception being the Dynamic driving schedule. Finally, it was found that the overall cycle dynamics are not sufficient for the complete assessment of transient emissions, and the instantaneous engine, and aftertreatment behavior can reveal additional details.

Today restrictions on pollutant emissions require the use of catalyst-based after-treatment systems as a standard both in SI and in Diesel engines. The application of monolith cores with a honeycomb structure is an established practice: however, to overcome drawbacks such as weak mass transfer from the bulk flow to the catalytic walls as well as poor flow homogenization, the use of ceramic foams has been recently investigated as an alternative showing better conversion efficiencies (even accepting higher flow through losses). The scope of this paper is to analyse the effects of foam substrates characteristics on engine performance. To this purpose a 0D “crank-angle” real-time mathematical model of an I.C. Engine developed by the authors has been enhanced improving the heat exchange model of the exhaust manifold to take account of thermal transients and adding an original 0D model of the catalytic converter to describe mass flows and thermal processes. The model has been used to simulate a 1.6l turbocharged Diesel engine during a driving cycle (EUDC). Effects of honeycomb and foam substrates on fuel consumption and on variations of catalyst temperatures and pressures are compared in the paper.

Real world emissions and energy consumption behavior from vehicles is a key element for meeting air iquality and greenhouse gas (GHG) targets for any country. While CO₂ fleet targets for vehicles are defined on basis of standardized test procedures, real driving conditions manifold parameters show large variabilities. Main differences are The main differences are: driving cycle, vehicle loading and driving resistances, ambient temperature levels, start conditions and trip length, gear shift behavior of the drivers, power demand from auxiliaries, and fuel quality. For the upcoming update of the Handbook Emission Factors for Road Transport (HBEFA 4.1) we have performed analysis, measurements and simulations to simulate real world energy consumption values for 2-wheelers, passenger cars (PC), light commercial vehicles (LCVs), and heavy duty vehicles (HDVs), creating so called emission factors (EF). EFs show fuel consumption or emission level in [g/km] and [#/km] for fuel, gaseous exhaust gas components and also for the particle number (PN). EFs are provided for a lot of different traffic situations covering stop & go up to highway for different road gradient categories. EFs are different for each vehicle category and for each powertrain technology and emission standard (from EURO 0 gasoline PC to EURO VI HDV with CNG engine). To produce the EFs, vehicle tests from chassis dyno and from on-board measurements were collected in 18 independent European labs to set up models for all vehicle segments in the passenger cars and heavy duty emission model (PHEM). The models for PC and LCVs were based on weight and road load data available from the type approval test, the worldwide harmonized light vehicles test procedure (WLTP), and then calibrated in a stepwise approach to consider all influences in real world driving. Finally, the results for new vehicle fleet fuel consumption values were compared with data from the fuel consumption monitoring data base. For HDVs, the models are based on data from the development of the HDV CO₂ determination method (Regulation (EU) 2017/2400, “VECTO”).

The main findings of the updates for HBEFA 4.1 are:

Exhaust pollutant emission levels from passenger cars with EURO 6d-temp type approval are below the limit values also in real driving conditions.

HDVs new vehicles real world emissions are low already since introduction of EURO VI in 2013.

Deterioration effects, ambient temperature effects on NOx from diesel cars and cold start emissions are relevant influences for the fleet average emissions.

Real world CO₂ emissions are clearly higher than type approval emissions for cars and LCVs. Higher average loading, shares of vehicle mileages with roof boxes or trailers, wet road, winter tires etc. as well as real world usage of auxiliaries, such as HVAC systems are main reasons for these differences.
