Sources and Propagation of Ultra-Low Frequency Waves in Planetary Magnetospheres

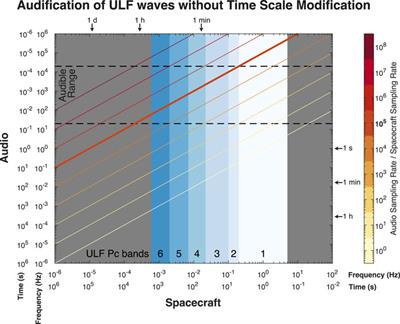

Observations across the heliosphere typically rely on in situ spacecraft observations producing time-series data. While often this data is analysed visually, it lends itself more naturally to our sense of sound. The simplest method of converting oscillatory data into audible sound is audification—a one-to-one mapping of data samples to audio samples—which has the benefit that no information is lost, thus is a true representation of the original data. However, audification can make some magnetospheric ULF waves observations pass by too quickly for someone to realistically be able to listen to effectively. For this reason, we detail various existing audio time scale modification techniques developed for music, applying these to ULF wave observations by spacecraft and exploring how they affect the properties of the resulting audio. Through a public dialogue we arrive at recommendations for ULF wave researchers on rendering these waves audible and discuss the scientific and educational possibilities of these new methods.

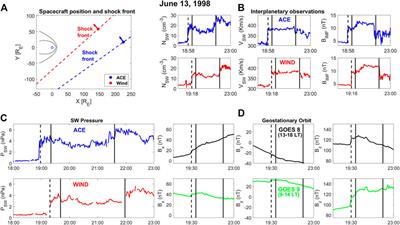

Several critical aspects may influence the analysis of the relationship between the solar wind (SW) and magnetospheric fluctuations, for example, the characteristics and frequency of SW fluctuations that are expected to impinge the magnetosphere may not be the same when they are observed by spacecraft located at different places in front of the magnetosphere; similarly, the choice of analytical methods adopted for the spectral analysis might influence the frequency estimate (as well as the wave identification itself) both in the SW and magnetosphere. Focusing our attention on these aspects, we present an analysis of SW compressional fluctuations (f ≈ 1–5 mHz), following two interplanetary shocks observed by two interplanetary spacecraft, regarded as two different situations in terms of spacecraft separation and distance from the magnetosphere. Our results show that some differences in the characteristics of SW fluctuations emerge when the same stream is observed at different places and confirm the critical role of analytical methods in determining fluctuation characteristics. We compared aspects of SW fluctuations with those of magnetospheric fluctuations following the sudden impulses due to the impact of interplanetary shocks. For this scope, we examined observations by two satellites at geostationary orbit and at several ground-based stations. We found that the magnetospheric fluctuations were related to compressional SW fluctuations approximately at the same frequencies, with no evidence for wave activity of internal origin or directly driven by the shock impact.
