Subgroup K avian leukosis virus (ALV-K) is a new subgroup of avian leukosis virus (ALV) that was first defined in 2012 and has been become prevalent in Chinese native chickens in recent years. An in-depth analysis of the genetic diversity of ALV-K was performed in the study. By Blast analysis, the env gene and the sequences of the 25 ALV-K isolates we isolated were found to be closely related to the isolates from Guangdong, Hebei, Jiangsu, and Hubei provinces, China. Further eighty-nine sequences of the gp85 gene of ALV-K strains available were used in the phylogenetic and genetic distance analyses for the classification. ALV-K was divided into two second-order clades (Clades 1.1 and 1.2) and three third-order clades (Clades 1.2.1, 1.2.2, and 1.2.3), indicating that not only 1.1 and 1.2.3, the two old clades which are prevalent in Japan, but also two new clades (1.2.1, 1.2.2), are co-prevalent in China. The representative strains of each clade were defined for the first time. Notably, Clade 1.2.2 was found to have a deletion of an amino acid residue in the gp85 gene, which was obviously different from Clades 1.1, 1.2.1, and 1.2.3. The proposed classification method will facilitate future studies of ALV-K epidemiology and the comparison of sequences obtained across the world. The first global comprehensive molecular epidemiological analysis was accomplished on the emerging ALV-K.
1. Introduction
Avian leukosis (AL) is a disease caused by the avian leukosis virus (ALV), which causes huge economic losses to the poultry industry worldwide. ALV belongs to the genus Alpharetrovirus of the family Retroviridae (1). So far, ALV has been divided into 11 subgroups according to the differences in envelope protein (ENV) (2). Subgroup J ALV (ALV-J) is currently the most common and dominant exotic subgroup in China, while subgroups A and B are less common and subgroups C and D are rare (3, 4). It is worth noting that despite the fact that ALV-K has been prevalent in China for over a decade, there are still no systematic epidemiological studies on it.
Initially, in 2012, a novel subgroup of ALV named ALV-K was isolated from a local chicken breed (Luhua) in Jiangsu Province, China (5). In previous studies, an exogenous ALV strain TW-3593 from Chinese Taiwan in 2008 (6) and several fowl glioma viruses (FGV) isolated from Japan (7–10) were reported to be from indigenous chickens, which showed high amino acid (aa) sequence similarity in the gp85 gene (more than 90%) with the Chinese ALV-K isolates but showed low similarity with other ALVs (11). Subsequently, ALV-K isolates were discovered in Yellow-chicken in Guangdong and Shandong in China (12). Recently, our group found that ALV-K is widespread and prevalent in Yellow-chicken in Guangxi province in southern China.
In general, early isolates of ALV-K exhibited no or low pathogenicity. Chen et al. (13) reported that key aa sites 199–205, 269, 319, 321, and 324 of ALV-K env contributed to the weaker replication capacity of ALV-K than that of ALV-A. This is the first time that molecular factors for the weak replicative ability of ALV-K have been revealed. Zhao et al. (14) reported that strain GD14LZ (ALV-K) replicates more slowly in DF-1 cells than strains GD13, GD08 (ALV-A), and CHN06 (ALV-J). However, Liang et al. (15) reported that the ALV-K strain HB2015032 isolated from Layer in 2015 has exhibited tumorigenicity. These newly discovered ALV-K strains could be adapting in the Chinese local chickens, increasing their prevalence and pathogenicity in flocks. In addition, for routine eradication and diagnostic assays, the presence of ALV-K is not easily detected due to its slow replication compared to other subgroups and the fact that it is only cultured on cells for one passage, thus making it easy to miss detection (12–14). This virus may have existed in Chinese local chickens for a long time and probably as a persistent infection without notice, due to its weak replication ability (12, 14).
This will make the prevention, control, and eradication of ALV-K increasingly difficult and become a new potential threat to the Chinese poultry industry. In addition, for genetic evolution studies, the gp85 gene is commonly used for molecular epidemiological analysis, and it is also the most detailed sequence available for ALV-K in GenBank.
In the study, a total of 25 (n = 25) ALV-K isolates were newly identified recently in 2022–2023. Molecular characteristics and phylogenetic analysis of the ALV-K strains including these new isolates and all the strains available in the GenBank were performed, and a total of 89 sequences of the gp85 gene with known sampling information (i.e., time, geographic source, and host) were retrieved. The aim of our study was to gain systematic insights into the current epidemiology of ALV-K strains.
2. Materials and methods
2.1. Samples
A total of 14 clinical tissue samples and 1,500 plasma samples from nine commercial Yellow-chicken farms in Nanning, Guilin, Yulin, Guigang, Beihai, and Hechi of Guangxi Province, China, were collected during the years 2022–2023. Among them, anticoagulation blood samples were collected aseptically, and then were further separated by centrifugation at 3000 r/min for 5 min to obtain the plasma homogenates, which were stored at −80°C. The AL suspected tumors (vascular organs with enlargement or/and tumor-like nodular etc. changes) tissue samples from the clinical diseased chickens were collected by the farms and sent to the laboratory, and were ground at a ratio of 1:3 with sterile PBS, and stored at −80°C.
2.2. Virus isolation, identification, and sequencing of env gene
A continuous line of chicken embryo fibroblast cells (DF-1) without endogenous ALV was used to isolate ALV. DF-1 cells were grown in Dulbecco’s modified Eagle’s medium (DMEM) (Invitrogen, Shanghai, China) supplemented with 8% fetal bovine serum (FBS) from Uruguay1 at 37°C under 5% CO2.The virus isolation was performed according to the method of Wang et al. (16).

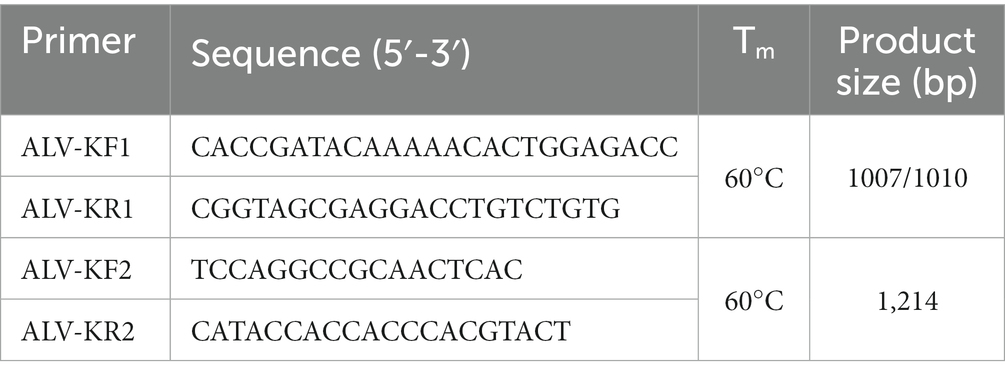

For identification, ALV P27 antigen was detected with the ALV antigen kit (BioChek, Netherlands), and the proviral genomic DNA samples were extracted with the Tissue Genomic DNA Purification Kit (TianGen, Beijing, China) according to the manufacturer’s instructions from the ALV P27 antigen-positive cell cultures. The subgroup-specific PCR was used to identify each subgroup of ALV based on the method reported by Li et al. (17) (Supplementary Table S1). Further amplification of the env genes were performed on the ALV-K positive samples. Two pairs of sequencing primers were used to amplify the env gene according to the sequence published in GenBank and referenced in the literature (18) (Table 1). PCR was conducted in a 25 μL volume according to the manufacturer’s instructions for PrimeSTAR Max DNA Polymerase (Takara, Dalian, China). The conditions for PCR were as follows: 95°C 3 min; 95°C 15 s, 60°C 15 s, 72°C, 30 s/kb (32 cycles); and 72°C 5 min. The PCR product was displayed by electrophoresis using 1.2% agarose in a Tris-EDTA (TBE) buffer gel, purified using the Universal DNA Purification Kit (TianGen, Beijing, China), and then cloned into the pMD18-T vector (Takara, Dalian, China) for sequencing, as the previous description (16). The recombinant plasmids were transformed into competent cells of the Escherichia coli DH5α strain (TransGen, Beijing, China), and the positive clones were sent to sequence by the Shenzhen Huada Genomics Technology Service Co., Ltd. The sequences of the obtained env gene isolates were collated using DNA Star Lasergene 7.1 and then analyzed by BLAST.2
2.3. Phylogenetic tree construction
Nucleotide sequences of the gp85 gene of 89 ALV-K strains, including 25 isolated from the study (GenBank accession numbers: OQ990388-OQ990412) and 64 from the National Center for Biotechnology,3 were used in the analysis (Supplementary Table S2). The reference strains of the ALV-K were isolated from Shandong (3), Guangdong (5), Hubei (1), Jiangsu (34), Hebei (5), Taiwan (1) in China, and Japan (15), respectively. Data processing and phylogenetic analysis were carried out with reference to the classification and nomenclature of Deng et al. (19, 20). Isolates with 100% sequence similarity were identified and removed. MAFFT v7.511 was used to align the dataset of ALV-K gp85 gene sequences. and the gp85 gene sequences were compared with the reference strain TW-3593 (6) and adjusted manually in BioEdit v7.2.5 (21, 22). The final alignment length was 1,008 nt. Four phylogenetic trees from four datasets (n = 38, 89, 69, and 12) using the gp85 gene were, respectively, constructed by using IQ-Tree v1.6.12 (23), following the steps of Deng’s method (19). The estimates of the average evolutionary distances were inferred using MEGA 11 (24).
2.4. Analyses of the amino acid (aa) sequences
Using the MUSCLE (Codons) multiple alignment method in MEGA 11, important aa residues encoded by the gp85 gene were compared between these isolates and the reference strains.
3. Results
3.1. Results of the BLAST analysis and the phylogenetic analysis
A total of 25 ALV-Ks were isolated during the years 2022–2023. The results of the analysis showed that the overall similarity of the env gene of these 25 viruses was 94–100%. Further the BLAST analysis, compared with the reference sequences in GenBank, showed that the Guangxi isolates were closely related to isolates from Guangdong, Hebei, Jiangsu, and Hubei (Supplementary Table S3).

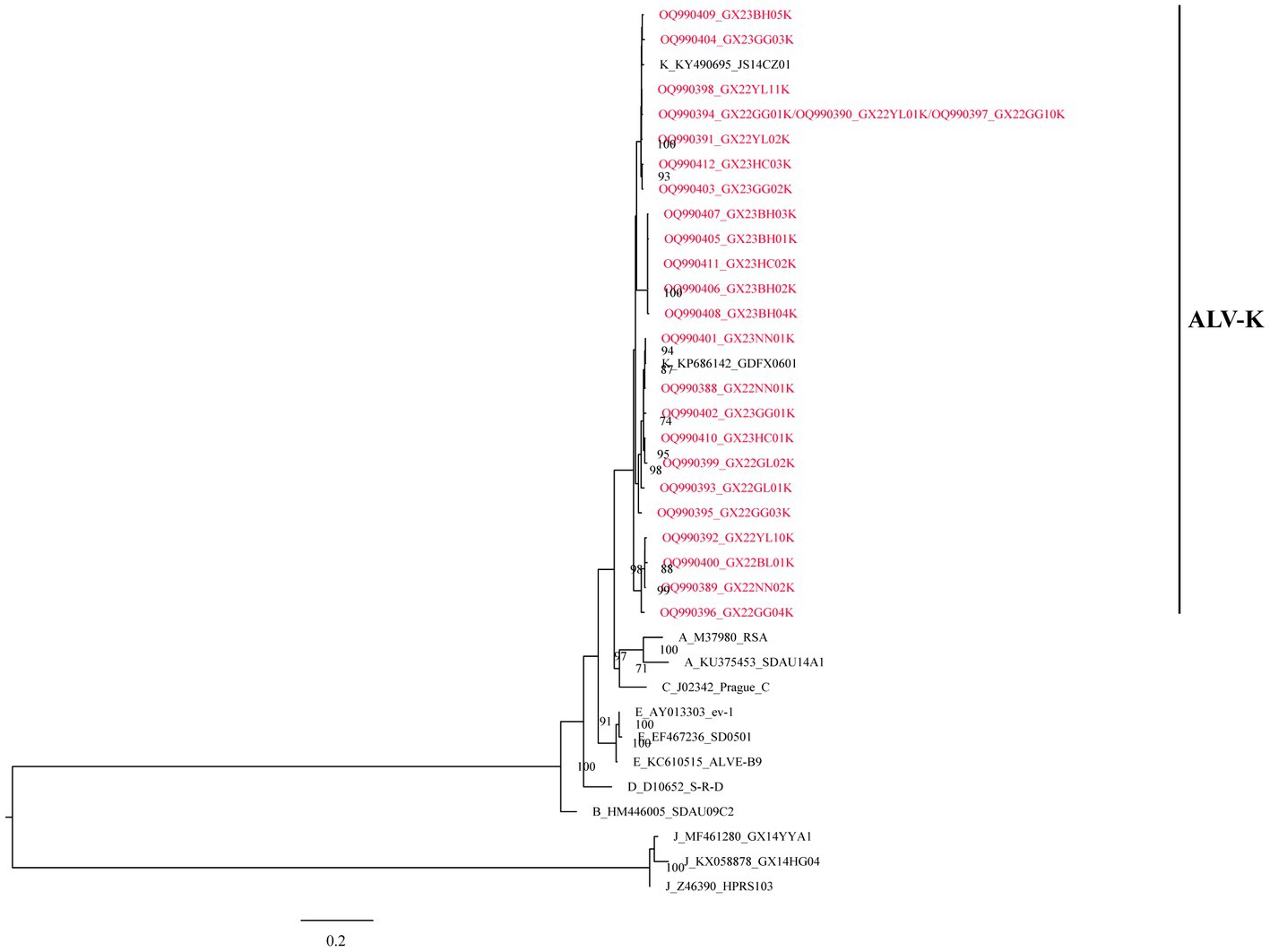

All the above 25 isolates clustered in one evolutionary branch with ALV-K reference strains GDFX0601 and JS14CZ01, according to the analysis of ALV subgroups based on gp85 gene sequences, but not in any cluster with the reference strains from subgroups A-E, and were the most distantly related to the J subgroup reference strains, indicating that these 25 isolates belonged to ALV-K (Figure 1).
Further, based on the available gp85 gene sequences, the phylogenetic analysis and genetic distance assessment of all the ALV-K strains revealed that ALV-K isolates were separated into two second-order clades (Clades 1.1 and 1.2; Figure 2A; Supplementary Table S4). Subdivision of one of the dominant branches, Clade 1.2, showed that these ALV-K isolates were divided into three third-order clades (Clades 1.2.1, 1.2.2, and 1.2.3; Figure 2B; Supplementary Table S4). The result showed that the Japanese isolates were distributed in Clades 1.1 and 1.2.3, while the Chinese isolates were distributed in Clades 1.1 and 1.2.1, 1.2.2, and 1.2.3 (Supplementary Figure S1).
Figure 2. The phylogenetic trees constructed using the gp85 gene. (A) The analysis involved 87 nucleotide sequences from ALV-K. (B) The analysis involved 67 nucleotide sequences from dominant Clade 1.2 ALV-K.
3.2. “Pilot” tree and the representative isolates
In the study, we needed to find a rapid, preliminary method for clade identification of the new isolates, using fewer sequences to construct evolutionary trees that are consistent with the topology of evolutionary trees constructed from the larger sequence datasets and significantly reduce the time to construct the evolutionary trees. To identify the second-order clades and the third-order clades of Clade 2, ML phylogenetic reconstruction was carried out using the 12 representative viral sequences. The new isolates can be quickly preliminary classified by using this pilot dataset (Figure 3; Supplementary Table S5).
Figure 3. Classification “pilot” tree. Phylogenetic analysis is based on the gp85 genes of the selected isolates representing the second-order and third-order clades.
3.3. Analysis of amino acid sequences
It was interestingly noted that the aa residues in one of the several branches are obviously distinct. Aa residues 70AD71 make up the majority of Clade 1.1, 70AS71 are the majority of Clades 1.2.1 and 1.2.3, and 70G-71 are the majority of Clade 1.2.2 (Supplementary Figure S2). Notably, Clade 1 2.2 was discovered to have a deletion of an aa-residue in the gp85 gene, which was noticeably different from Clades 1.1, 1.2.1, and 1.2.3.
4. Discussion
So far, most strains of ALV-K are considered to be no or low pathogenic, as chickens infected with ALV-K do not exhibit clinical or subclinical symptoms. At the same time, there is a lack of attention and long-term targeted detection of the isolates in the field. However, previous studies in 2015 found enhanced replication capacity or increased pathogenicity of ALV-K isolates obtained from the clinical samples (15, 25). In recent years, researchers have focused on the genetic evolution and pathogenicity changes of ALV-K. Currently, it is not only prevalent in the Chinese Yellow-chicken breeds but also distributed in other countries chicken breeds in Asia (11, 26, 27). The lack of attention on ALV-K has led to it being easily ignored in routine testing, especially with the emergence of co-infection with different subgroups of ALV and/or MDV (28), to the detriment of the ALV eradication programs. ALV-K has increasingly been isolated from Chinese Yellow-chicken recently, but there are few studies focused on the phylogenetic analysis of ALV-K isolates, and this study is a new attempt.
The study established a detailed classification approach for the purpose of more effectively tracking the source of ALV-K. Referring to the classification and nomenclature of Deng et al. (19, 20), we are able to trace the virus’s origin in the study because of the improvements in the accuracy of our ALV-K classification results. For example, sequence alignment was performed using MAFFT software, the gp85 gene sequence was compared with the reference strain TW-3593, and the identical repeated sequence was removed using BioEdit software, which will facilitate the construction of a topologically stable evolutionary tree.
The study found that the currently identified ALV-K strains could be divided into two second-order clades (Clades 1.1 and 1.2) and three third-order clades (Clades 1.2.1, 1.2.2, and 1.2.3) (Figure 2), based on phylogenetic analysis and genetic distance analysis. Clade 1.1 includes not only Chinese isolates from various sources but also Japanese strains. Clade 1.2 is a branch of strains that all originated in China. The phylogenetic trees of Clade 1.2 showed the ALV-K strains fell into 3 sub-subclades (Clades 1.2.1, 1.2.2, and 1.2.3). During the years 2022–2023, our group was successful in isolating 25 ALV-K isolates by detecting the P27 antigen of ALV on DF-1 cell cultures that had been inoculated with the tissue samples of the clinical diseased chickens and the plasma samples from birds in the routine eradication testing. The fact that the majority of the clinical bird isolates (11/14) and the routine eradication testing isolates (10/11) belonged to Clade 1.2 demonstrated that incomplete eradication of ALV is one of the primary reasons for getting these ALV-K. ALV-K is a vertically transmitted virus that is extremely difficult to eradicate once infected. For routine eradication and diagnostic assays, the presence of ALV-K is not easily detected due to its slow replication compared to other subgroups (12, 14) and the fact that it is only cultured on cells for one passage, thus making it easy to miss detection. These also suggest that we should pay attention to ALV-K monitoring when conducting “eradication” tests. In the analysis of aa residues on the gp85 sequence, the differences between Clades 1.1, 1.2.1, 1.2.2, and 1.2.3 were explained. Notably, Clade 1.2.2 was found to have a deletion of an aa-residue (70G-71) in the gp85 gene, and that was significantly different from Clades 1.1, 1.2.1, and 1.2.3. It is therefore assumed that Clade 1.1 virus was endemic in chickens in Taiwan, China, and Japan for years, leading to certain site changes and evolved into Clade 1.2, which was better adapted and led to endemicity in the flocks. In addition, we found a widespread co-infection of ALV-K and ALV-J in chickens during the ALV eradication process (Source unpublished data from our group).
In conclusion, we first proposed the definition of the current ALV-K strains based on the gp85 gene that were divided into two second-order clades (Clades 1.1 and 1.2) and three third-order clades (Clades 1.2.1, 1.2.2, and 1.2.3), and found that only two clades (Clades 1.1 and 1.2.3) are co-prevalent in Japan, while two new clades (1.2.1, 1.2.2) are co-prevalent in China. This system includes comprehensive criteria for the classification of new ALV-K isolates. We defined representative strains of each clade for the first time. Notably, Clade 1.2.2 was found to have a deletion of an amino acid residue in the gp85 gene, which was significantly different from Clades 1.1, 1.2.1, and 1.2.3. Our classification can play an irreplaceable role in tracking the evolution of ALV-K and provides a theoretical basis for enhanced epidemiological surveillance and eradication measures for ALV-K in the future.
Data availability statement
The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found in the article/Supplementary material.
Ethics statement
The study focused on ALV-K using a modern molecular approach. The study was approved by the Animal Welfare and the Animal Experimental Ethical Committee of Guangxi University.
Author contributions
JG and QD completed the data analysis and contributed to the experiment. WZ, FF, LL, and TW assisted in this experiment. PW provided the funding of research, reviewed, and approved the final manuscript. All authors contributed to the article and approved the submitted version.
Funding
This work was supported by the Guangxi Program for Modern Agricultural Industry Technical System Construction-Chicken Industry [nycytxgxcxtd-19-03].
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary material
The Supplementary material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fvets.2023.1228109/full#supplementary-material
Footnotes
References
1. ICTV. (2020).Virus taxonomy: 2019 release. International committee on taxonomy of viruses Available at: https://talkictvonlineorg/taxonomy/
2. Payne, LN, and Nair, V. The long view: 40 years of avian Leukosis research. Avian Pathol. (2012) 41:11–9. doi: 10.1080/03079457.2011.646237
3. Gao, YL, Qin, LT, Pan, W, Wang, YQ, Le Qi, X, Gao, HL, et al. Avian Leukosis virus subgroup J in layer chickens, China. Emerg Infect Dis. (2010) 16:1637–8. doi: 10.3201/eid1610.100780
4. Morgan, HR. Avian Leukosis-sarcoma virus antibodies in wildfowl, domestic chickens and man in Kenya. Proc Soc Exp Biol Med. (1973) 144:1–4. doi: 10.3181/00379727-144-37513
5. Wang, X, Zhao, P, and Cui, ZZ. Identification of a new subgroup of avian Leukosis virus isolated from Chinese indigenous chicken breeds. Chin J Virol. (2012) 28:609–14.
6. Chang, SW, Hsu, MF, and Wang, CH. Gene detection, virus isolation, and sequence analysis of avian Leukosis viruses in Taiwan country chickens. Avian Dis. (2013) 57:172–7. doi: 10.1637/10387-092612-Reg.1
7. Hatai, H, Ochiai, K, Murakami, M, Imanishi, S, Tomioka, Y, Toyoda, T, et al. Prevalence of fowl glioma-inducing virus in chickens of zoological gardens in Japan and nucleotide variation in the ENV gene. J Vet Med Sci. (2008) 70:469–74. doi: 10.1292/jvms.70.469
8. Nakamura, S, Ochiai, K, Hatai, H, Ochi, A, Sunden, Y, and Umemura, T. Pathogenicity of avian Leukosis viruses related to fowl glioma-inducing virus. Avian Pathol. (2011) 40:499–505. doi: 10.1080/03079457.2011.605783
9. Ochi, A, Ochiai, K, Kobara, A, Nakamura, S, Hatai, H, Handharyani, E, et al. Epidemiological study of fowl glioma-inducing virus in chickens in Asia and Germany. Avian Pathol. (2012) 41:299–309. doi: 10.1080/03079457.2012.684373
10. Tomioka, Y, Ochiai, K, Ohashi, K, Kimura, T, and Umemura, T. In Ovo infection with an avian Leukosis virus causing fowl glioma: viral distribution and pathogenesis. Avian Pathol. (2003) 32:617–24. doi: 10.1080/03079450310001610640
11. Cui, N, Su, S, Chen, Z, Zhao, X, and Cui, Z. Genomic sequence analysis and biological characteristics of a rescued clone of avian Leukosis virus strain JS11C1, isolated from indigenous chickens. J Gen Virol. (2014) 95:2512–22. doi: 10.1099/vir.0.067264-0
12. Li, X, Lin, W, Chang, S, Zhao, P, Zhang, X, Liu, Y, et al. Isolation, identification and evolution analysis of a novel subgroup of avian Leukosis virus isolated from a local Chinese yellow broiler in South China. Arch Virol. (2016) 161:2717–25. doi: 10.1007/s00705-016-2965-x
13. Chen, J, Li, J, Dong, X, Liao, M, and Cao, W. The key amino acid sites 199-205, 269, 319, 321 and 324 of ALV-K Env contribute to the weaker replication capacity of ALV-K than ALV-A. Retrovirology. (2022) 19:19. doi: 10.1186/s12977-022-00598-0
14. Zhao, Z, Rao, M, Liao, M, and Cao, W. Phylogenetic analysis and pathogenicity assessment of the emerging recombinant subgroup K of avian Leukosis virus in South China. Viruses. (2018) 10:194. doi: 10.3390/v10040194
15. Liang, X, Gu, Y, Chen, X, Li, T, Gao, Y, Wang, X, et al. Identification and characterization of a novel natural recombinant avian leucosis virus from Chinese indigenous chicken flock. Virus Genes. (2019) 55:726–33. doi: 10.1007/s11262-019-01695-7
16. Wang, P, Li, M, Li, H, Lin, L, Shi, M, Gu, Z, et al. Full-length Cdna sequence analysis of 85 avian Leukosis virus subgroup J strains isolated from chickens in China during the years 1988-2018: coexistence of 2 extremely different clusters that are highly dependent upon either the host genetic background or the geographic location. Poult Sci. (2020) 99:3469–80. doi: 10.1016/j.psj.2020.04.023
17. Li, H, Wang, P, Lin, L, Shi, M, Gu, Z, Huang, T, et al. The emergence of the infection of subgroup J avian leucosis virus escalated the tumour incidence in commercial yellow chickens in southern China in recent years. Transbound Emerg Dis. (2019) 66:312–6. doi: 10.1111/tbed.13023
18. Chen, Y. Pathogenetic investigation and genetic polymorphism analysis of receptor genes in avian Leukemia of Huiyang bearded chicken [M.S.]. South China Agricultural University, Guangzhou, China (2018) (in Chinese).
19. Deng, Q, Li, M, He, C, Lu, Q, Gao, Y, Li, Q, et al. Genetic diversity of avian Leukosis virus subgroup J (ALV-J): toward a unified phylogenetic classification and nomenclature system. Virus Evol. (2021) 7:veab037. doi: 10.1093/ve/veab037
20. Deng, Q, Li, Q, Li, M, Zhang, S, Wang, P, Fu, F, et al. The emergence, diversification, and transmission of subgroup J avian Leukosis virus reveals that the live chicken trade plays a critical role in the adaption and Endemicity of viruses to the yellow-chickens. J Virol. (2022) 96:e0071722. doi: 10.1128/jvi.00717-22
21. Hall, T. Bioedit: a user-friendly biological sequence alignment editor and analysis program for Windows 95/98/Nt. Nucleic Acids Symp Ser. (1999) 41:95–8.
22. Katoh, K, and Standley, DM. Mafft multiple sequence alignment software version 7: improvements in performance and usability. Mol Biol Evol. (2013) 30:772–80. doi: 10.1093/molbev/mst010
23. Nguyen, LT, Schmidt, HA, von Haeseler, A, and Minh, BQ. IQ-TREE: a fast and effective stochastic algorithm for estimating maximum-likelihood phylogenies. Mol Biol Evol. (2015) 32:268–74. doi: 10.1093/molbev/msu300
24. Tamura, K, Stecher, G, and Kumar, S. MEGA11: molecular evolutionary genetics analysis version 11. Mol Biol Evol. (2021) 38:3022–7. doi: 10.1093/molbev/msab120
25. Su, Q, Li, Y, Cui, Z, Chang, S, and Zhao, P. The emerging novel avian Leukosis virus with mutations in the pol gene shows competitive replication advantages both in vivo and in vitro. Emerg Microbes Infect. (2018) 7:117. doi: 10.1038/s41426-018-0111-4
26. Dong, X, Zhao, P, Xu, B, Fan, J, Meng, F, Sun, P, et al. Avian Leukosis virus in indigenous chicken breeds, China. Emerg Microbes Infect. (2015) 4:e76. doi: 10.1038/emi.2015.76
27. Shao, H, Wang, L, Sang, J, Li, T, Liu, Y, Wan, Z, et al. Novel avian Leukosis viruses from domestic chicken breeds in mainland China. Arch Virol. (2017) 162:2073–6. doi: 10.1007/s00705-017-3344-y
Keywords: subgroup K avian leukosis virus, molecular epidemiology, phylogenetic analysis, classification, genetic distance, clades
