Gene editing tools have become an indispensable part of research into the fundamental aspects of cell biology. With a vast body of literature having been generated based on next generation sequencing technologies, keeping track of this ever-growing body of information remains challenging. This necessitates the translation of genomic data into tangible applications. In order to address this objective, the generated Next Generation Sequencing (NGS) data forms the basis for targeted genome editing strategies, employing known enzymes of various cellular machinery, in generating organisms with specifically selected phenotypes. This review focuses primarily on CRISPR/Cas9 technology in the context of its advantages over Zinc finger proteins (ZNF) and Transcription activator-like effector nucleases (TALEN) and meganucleases mutagenesis strategies, for use in agricultural and veterinary applications. This review will describe the application of CRISPR/Cas9 in creating modified organisms with custom-made properties, without the undesired non-targeted effects associated with virus vector vaccines and bioactive molecules produced in bacterial systems. Examples of the successful and unsuccessful applications of this technology to plants, animals and microorganisms are provided, as well as an in-depth look into possible future trends and applications in vaccine development, disease resistance and enhanced phenotypic traits will be discussed.
1. Introduction
Targeted genome engineering enables the modification of specific genomic loci at predetermined sites to generate novel plants, animals, and microorganisms by bypassing the procedure of using random mutagenesis and long-term selection (1, 2). Understanding the functional significance of individual coding and regulatory genes creates unprecedented opportunities. These technologies make it possible to revolutionize agriculture and industry to solve research and practical problems in the areas of food and biological safety. The development of these technologies will enable us to further understand the function of individual genes, which can be exploited to improve nutrition and the taste of food, and increase the resistance of agricultural animals and plants to infection and parasites (3–5).
Among the main approaches to directly modify the genome, two technologies can be distinguished: ectopic gene insertion (cis- and trans-genesis) and editing the nucleotide sequence (6, 7). Each of these strategies is radically different from the previous approaches of induced mutagenesis and crossing that were once widely used. Their use required a clear understanding of the function of individual genes as well as their interactions and regulation. Thus, the use of direct genomic modification technologies is practically devoid of the element of randomness, and the resulting organisms, with a high degree of probability, acquire and transmit the desired properties and characteristics to their offspring. Each of these approaches has certain features, advantages and limitations, successes and failures, of which the most relevant will be discussed in this review.
2. Genome editing before the advent of CRISPR/Cas9
Genetic engineering was first introduced into scientific practice in the 1970s, even before the advent of widespread modern nuclease-based gene editing platforms; however, a number of technical shortcomings limited its widespread use. The limiting factors of the methods initially used were relatively low efficiencies and specificity (depending on the specific object of research) as well as significant material and time costs.
At the early stages of genetic engineering, genome modification was based upon the natural mechanism of homologous recombination (very low efficiency–up to 0.001%), when a vector (usually a recombinant plasmid) containing a DNA construct corresponding to the sequence of the target gene with the necessary modifications exchanged nucleotide sequences with the intact target gene (8). The revolutionary work of Rouet et al. demonstrated the possibility of introducing double-strand breaks into the chromosomes of mouse cells of the transplanted COS1 cell line using an expression system of the rare-cut nuclease I-Sce I with amazing efficiency, up to 82% (9, 10).
The discovery of site-specific recombinases (SSR) of bacteriophage P1 and baker’s yeast Saccharomyces cerevisiae introduced the method of complete gene deletion into the practice of genome editing (11, 12). The two most common types of SSR are the Cre-loxP and Flp-FRT systems. Cre recombinase is an enzyme first discovered in bacteriophage P1 that excises a DNA fragment by homologous recombination between highly specific flanking sequences, known as Lox-P sites (13, 14). The Flp-FRT system operates in a similar manner; however, the Flp recombinase discovered in baker’s yeast recognizes FRT sequences (15, 16). During hybridization of cells expressing SSR and cells containing the gene of interest flanked by loxP or FRT sites, the target gene may be cleaved and inactivated (Figure 1) (17, 18). The main disadvantage of this method is the need for preliminary integration of loxP and FRT sites within the genome region to be deleted. Therefore, its main application was the creation of genomic modifications for basic animal research (19). The targets in this case, as a rule, were marker genes encoding green fluorescent protein (GFP), β-galactosidase, antibiotic resistance enzymes, and others (20).

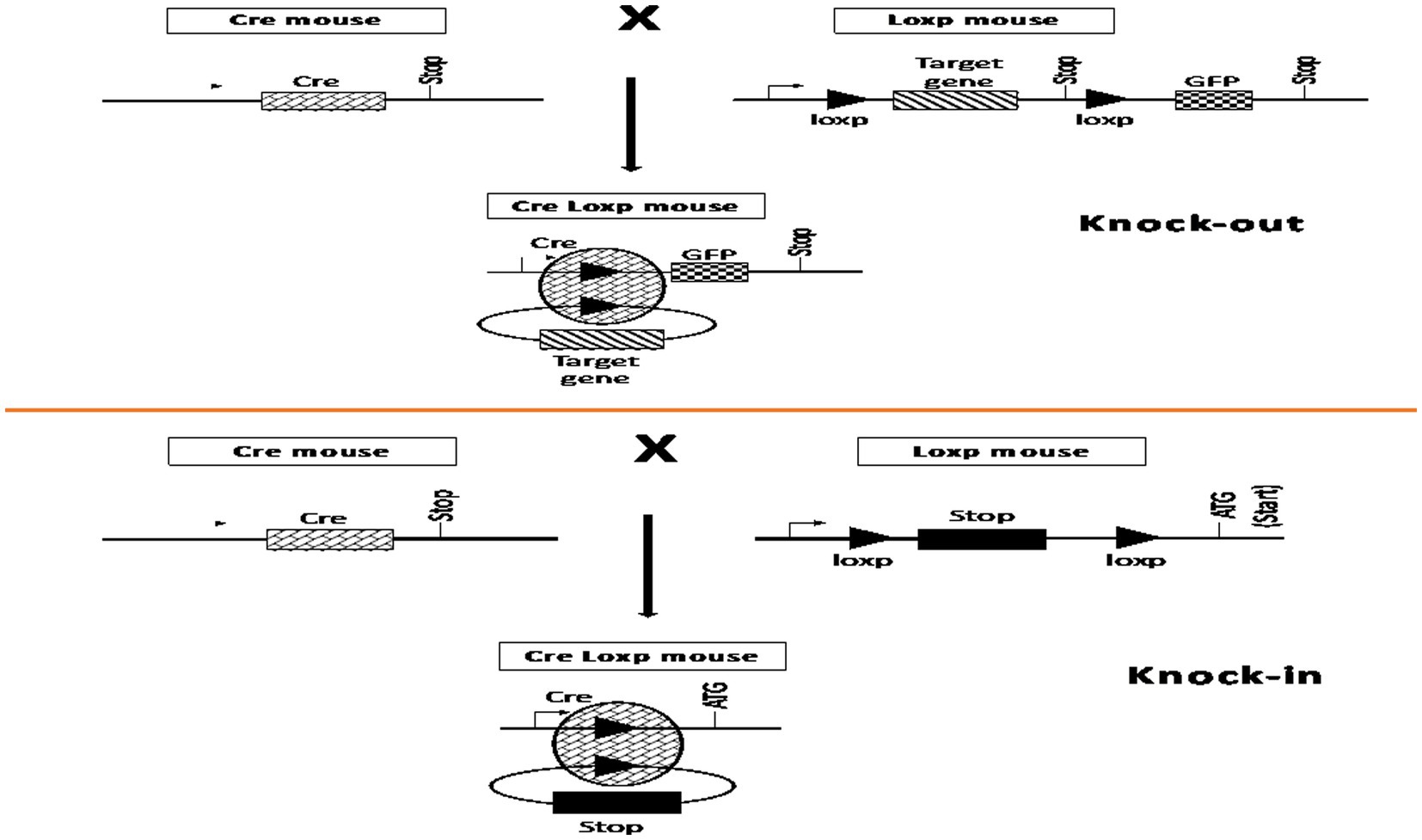

Figure 1. Mechanism of action of site-specific recombinases in mouse cells. This figure is based on previously published work (18).
Because it was found that the introduction of a double-stranded DNA break markedly increases the efficiency of genome editing, the search for endonucleases capable of generating such breaks within a desired region of the genome began. As a result, meganucleases were used for these purposes and a number of artificial nucleases were developed including zinc-finger nucleases (ZFNs) and transcription activator-like effector nucleases (TALENs). A feature of these nucleases is the recognition of the target DNA sequence due to amino acid residues, which required time-consuming optimization of the accuracy and efficiency of these systems. In 2012, the CRISPR/Cas9 bacterial “immunity” system was proposed for genome editing, which targets a region of the genome based on Watson-Crick interactions between the target region of the DNA and crRNA/gRNA, which is part of the CRISPR/Cas9 effector complex. The introduction of a double-stranded DNA break triggers the repair process, which includes non-homologous end connection (NHEJ) and homologous directed repair (HDR). NHEJ directly connects the ends of the cleaved DNA, whereas HDR uses a homologous sequence as a matrix to restore missing DNA sequences at the break point (21). A brief demonstration of the mechanism of action of these four nuclease systems is presented in Figure 2.

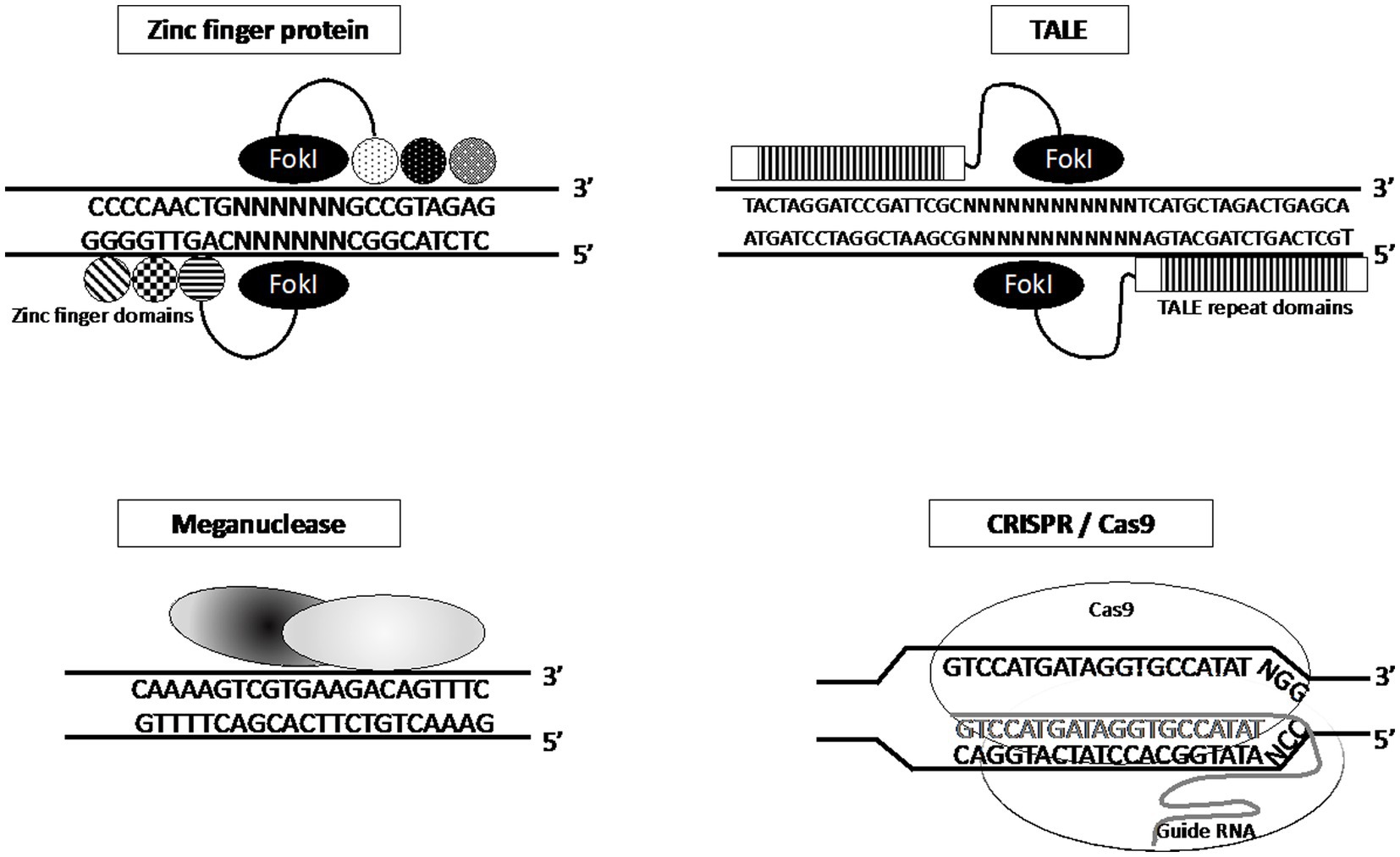

Figure 2. Mechanism of action of different genetically engineered nucleases for DNA restriction (22).
The first kind of nucleases that were used were Meganucleases, which are a highly specific enzymes characterized by an ability to recognize and cut longer DNA sequences from 14 to 40 base pairs (Figure 2) (22). There are five meganuclease families based on their structures: LAGLIDADG, His-Cys box, HNH, PD-(D/E)XK and GIY-YIG (23). The LAGLIDADG family of proteins exhibits conserved features, of which I-CreI, I-CeuI, I-AniI, I-SceI, I-PfuI, and I-DmoI, are the most widely used (24, 25). Because of their high specificity for the DNA target site, the number of candidate target genes for genome editing is relatively low, which requires the identification of new meganucleases for genetic modification of other genes. Currently, tens of thousands of such enzymes are available; however, identifying specific meganucleases for each purpose (modification) is a significant obstacle when conducting research (26).
The second type are Zinc-finger nucleases (ZFNs), a synthetic endonucleases constructed by fusing the DNA-binding domains of transcription factors with the nuclease domain of FokI restriction enzyme (27). Each DNA-binding domain can recognize 3 nucleotides and when combined into tandem structures of 3–6, the DNA-binding domains of individual ZFNs are able to recognize 9–18 pairs of nucleotides in the target DNA. ZFNs involve the use of a pair of editors designed in such a way that each pair recognizes DNA sites in the forward (5′-3′) and reverse (3′-5′) strands of the target gene flanking the area selected for editing. With this design, the nuclease domains of FokI dimerize and introduce a double-strand break in DNA (Figure 2) (28, 29). Despite a number of advantages, the use of ZFN is limited because of the high cost and complexity of designing and testing the editors, the limited choice of the target site, and the possibility of non-specific DNA cleavage.
Transcription activator-like effector nucleases (TALEN) are the third type of artificial programmable endonucleases, created by fusing transcription activator-like effector (TALE) DNA-binding domains to the DNA cleavage domain of FokI endonuclease (Figure 2). TALEs can be engineered to bind to practically any desired DNA sequence, so when combined with a nuclease, DNA can be cut at specific locations. The TALE DNA-binding domain contains a repeated highly conserved 33–34 amino acid sequence with divergence at the 12th and 13th amino acids (30). These two positions, referred to as the Repeat Variable Di-residue (RVD), are highly variable and show a strong correlation with specific nucleotide recognition (31).
The main advantage of the TALEN design over ZFN is the greater number (>18 bp) of binding nucleotides. To date, there are approximately 20 constructed RVDs, 7 of which are used in 90% of the cases (32). Among other advantages of TALENs is the ability to edit a wider range of DNA sites compared with ZFNs, which are determined by the sequence of the DNA-binding domain. Nevertheless, TALENs have disadvantages manifested both in off-targeted binding effects and the difficulty in delivering enzymes to target cells because of their high molecular weight (33, 34).
The fourth type of nucleases are CRISPR/Cas, which revolutionized the science of genetic modification in the past decade, and will be subsequently discussed in more detail.
3. CRISPR/Cas9-mediated genome editing
A recent and revolutionary genome editing tool is the CRISPR/Cas9 bacterial “immunity” system, which is based on the guiding ability of short RNAs and nuclease activity of the CRISPR-associated Cas9 enzyme. When combined, the complex (Cas9/gRNA) can cleave DNA at almost any desired site (Figure 2) (35, 36). In nature, CRISPR (clustered regularly interspaced short palindromic repeats) is an adaptive immunity mechanism for members of the Archaea and bacteria kingdoms. It consists of two key components; CRISPR array and CRISPR-associated nuclease. The CRISPR array stores genetic information pertaining to previous phage or plasmid infections, thus acting as a genetic “memory.” It consists of tandem nucleotide repeats (25–36 bp in length) separated by unique sequences of approximately the same length, also known as spacers. The spacers are acquired from the genome of parasitic elements during prokaryote infection and become the basis of prokaryote adaptive immunity, as they guide the CRISPR-associated nuclease (the second component of CRISPR/Cas9 system) to destroy the parasite genome during re-infection. A short RNA guiding CRISPR/Cas9 system that targets DNA is known as crRNA (CRISPR RNA). The genes encoding Cas proteins are often located in close proximity to the CRISPR template (Figure 3) (21, 37).

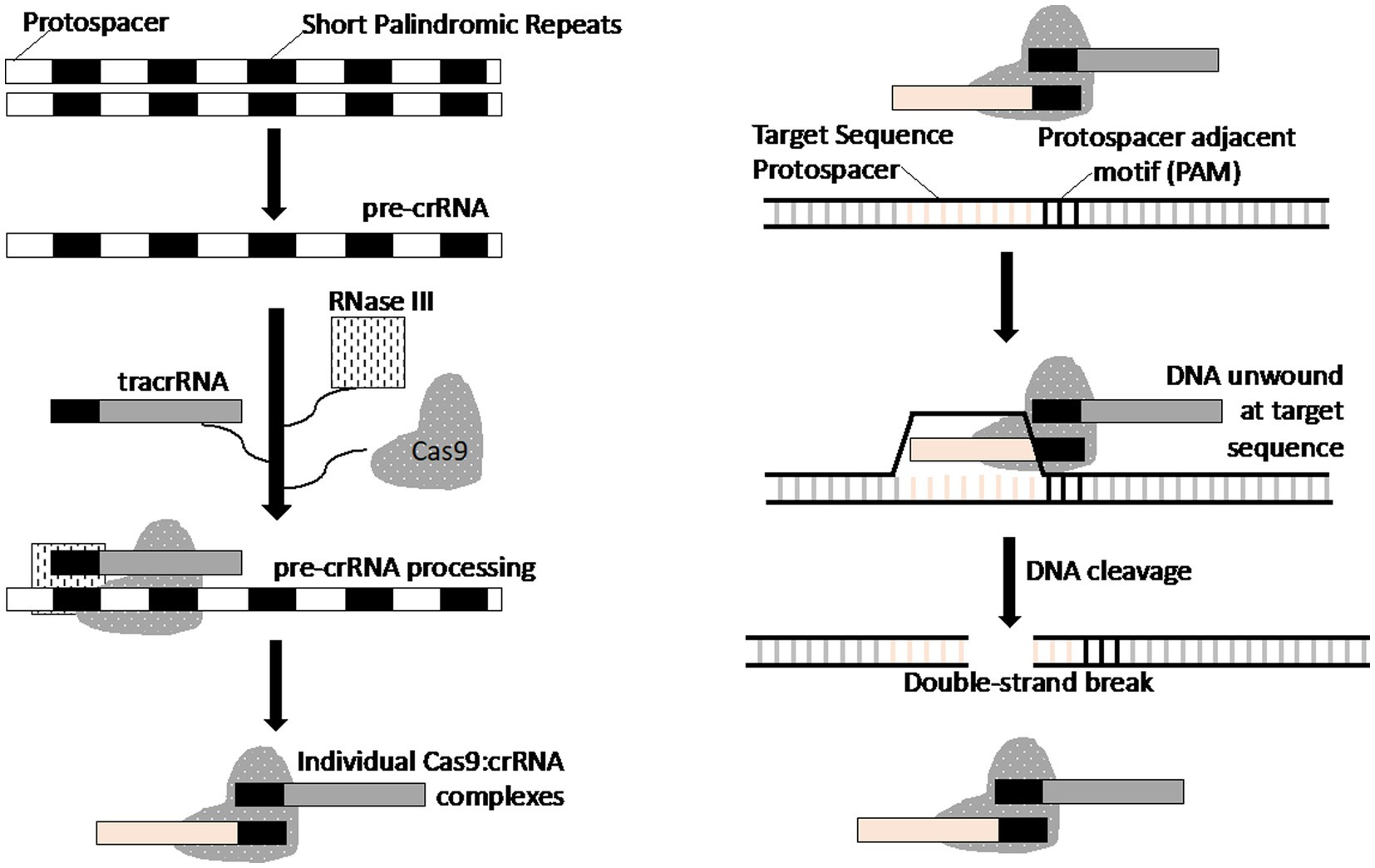

Figure 3. Schematic representation of the mechanism of the CRISPR-Cas system for double-stranded DNA cleavage. This figure is based on previously published work (21).
Three types (I–III) of CRISPR systems have been identified across a wide range of bacterial and archaeal hosts. Each system comprises a cluster of CRISPR-associated (Cas) genes, noncoding RNAs, and a distinctive array of repetitive elements (direct repeats). The Type II CRISPR system is well-characterized, consisting of the nuclease Cas9, the crRNA array that encodes the guide RNAs, and a required auxiliary trans-activating crRNA (tracrRNA) that facilitates the processing of the crRNA array into discrete crRNAs and mediates the crRNA interaction with the Cas9 apoenzyme. The synthetic crRNA analog obtained by fusion of crRNA and trans-crRNA is known as a single guide RNA (sgRNA or gRNA). Because of its convenience and easy customization, CRISPR/Cas9 technology has been used for genome editing of target cells. Since 2010, multiple modifications and improvements to this system have been implemented to make it easier to use and available to any researcher (38). This system enables one to control gene expression, make precise genome modifications, and even trigger chromosomal recombination.
As mentioned previously, CRISPR-Cas technology relies on the interaction between the crRNA/gRNA and target DNA (RNA–DNA interaction), which determines the exact position where Cas nucleases can perform double-strand DNA cleavage. Changing the sequence of the sgRNA changes the specificity of the CRISPR/Cas9 system. Because the synthesis of a new crRNA/gRNA is easy, CRISPR/Cas9 has a number of advantages compared with ZFNs and TALENs, such as the simplicity of design, versatility with respect to any target, and the ability to modify several genomic sites simultaneously (multiplex editing). The only significant disadvantage of CRISPR/Cas9 is the high molecular weight of the Cas9 nuclease, which can impede delivery of the genome editing components into cells. However, various easy-to-use delivery methods (e.g., lentiviral expression system, liposomes, electroporation, transfection by recombinant plasmids) have been developed to overcome this limitation (39, 40). A comparison of the advantages and disadvantages of the four methods for nuclease genome editing is presented in Table 1 (41). Based on the majority of the parameters evaluated in Table 1, CRISPR/Cas9 technology is the superior or most preferred technology.

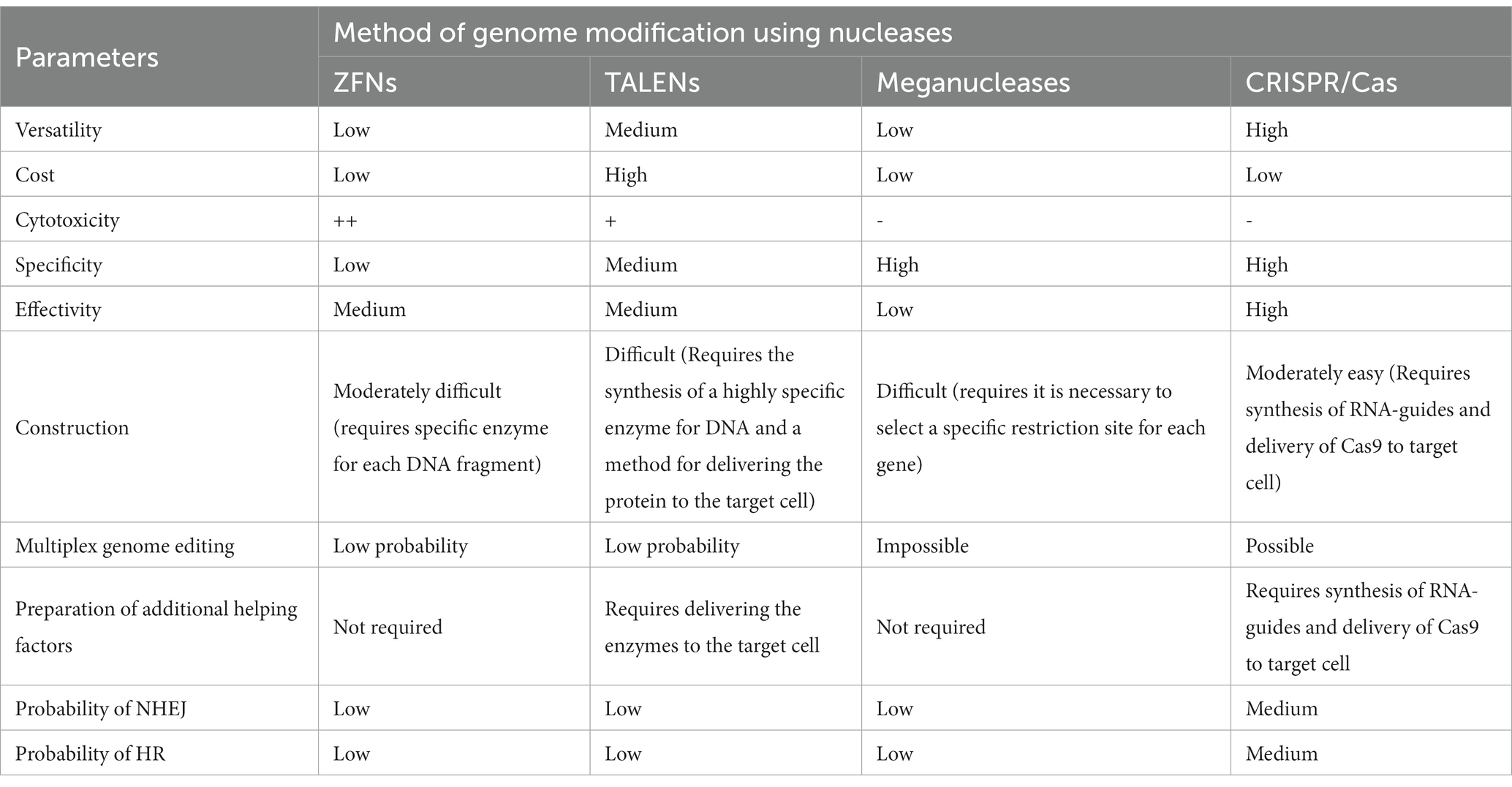

Table 1. Comparison of parameters for various methods of genetic editing using nucleases (41).
4. CRISPR-Cas9 applications
CRISPR -Cas9 technology facilitates knockin–knockout strategies to study and determine the influence of a particular gene on the virulence of a virus or its replication as well as the phenotypic traits of animals or prokaryotes. The results of such modifications are usually associated with one of two possible outcomes: knockout - deletion of any gene from the genome, or knockin–introduction of a new gene into the genome of a virus or animal. As a result, the implementation of a DIVA strategy (differentiation of infected from vaccinated animals), in which the gene is inactivated by integrating a marker gene (e.g., encoding a green or red fluorescent protein), facilitates the selection of the recombinant organism.
The major advantages of CRISPR/Cas 9 is the ease and versatility of design and cloning to generate guide RNA (gRNA) libraries for large-scale genetic screening. Genomic screenings enables the discovery of the function of new genes and to determine their role and mechanism of action within living cells. Before CRISPR/Cas9, genomic screenings were performed using two main approaches: “turning on” gene expression using a cDNA library and “turning off” genes by RNA interference (42). The efficacy of these approaches was rather restricted, whereas contemporary gRNA libraries enable one to edit not only the whole genome, but a subset of genes involved in a specific signal or metabolic pathway as well as ncRNAs. Moreover, no Cas9-related cytotoxicity has been reported and its activity depends solely on the complex of NHEJ proteins responsible for DNA repair following double-strand breaks. Currently, CRISPR/Cas 9-based screenings are used to analyze pathological processes, such as carcinogenesis, metastasis, and inflammation (21).
Various scientific groups around the world are conducting research on the development of prevention strategies for various animal diseases (e.g., African swine fever, classical swine fever, Marek’s disease, capripoxvirus infections, Aujeszky’s disease) in an effort to create a safe and effective biological product or vaccine that provides long-term protection against infection.
4.1. Application of CRISPR/Cas9 during the production of healthy animals with useful economic traits
The increasing global population depends on the effective and enhanced productivity of livestock and poultry for food. One of the best strategies to increase the efficiency of food production is to select farm animals with the most desirable traits, either through extensive selective breeding campaign or by modifying the genetics of these animals (43). Microinjection of the structures required for CRISPR/Cas9 function, directly into zygotes results in a high probability of obtaining offspring with the desired recombinant traits. The CRISPR/Cas9 construct is capable of inactivating genes and creating site-specific mutations by cytoplasmic injection, pronuclear injection, or electroporation (44).
Because CRISPR/Cas9 has become an important tool for genetic engineering, it has been used to produce changes and correct undesirable defects in specific genes to improve the quality of livestock (e.g., cattle, pigs, horses). A large number of animals with edited genomes have been created. These include a pig with an altered myostatin gene, resulting in larger muscle mass, or a pig with resistance to the reproductive and respiratory syndrome virus, and transgenic cattle resistant to tuberculosis (45–47). Recently, scientists from China has created three different pig lines that are resistant to the classical swine fever virus (48–51). When studying the productivity of genetically modified livestock, significant improvements have been achieved with respect to meat yield, disease resistance, and other desirable qualities (52).
4.2. The use of CRISPR/Cas9 in the modification of viral genomes
Virus replication depends on numerous factors in the target host cells. Due to the obligate host-dependent replication of viruses, it is more difficult to apply genome editing tools to the virus genome than compared with the editing of the eukaryote host genome. Success in generating novel viral mutants has been achieved with CRISPR/Cas9 in the absence of viral replication in the cell and, as a consequence, decontamination of cell cultures and sensitive organisms. Recently, various studies have successfully used CRISPR/Cas9 technology to obtain attenuated viral variants (viruses with both DNA- and RNA-containing genomes) as vaccine prototypes (53, 54).
4.2.1. Editing DNA viruses using CRISPR/Cas9
The CRISPR/Cas9 system has been successfully applied to DNA-containing viruses, such as the smallpox vaccine virus (VACV) (55, 56), human polyomavirus 2 (JCPyV) (57), African swine fever virus (ASFV) (58–60), avian adenovirus 4 (FAdV-4) (61), Aujeszky’s disease virus (62, 63), and Marek disease virus (64) (Table 2). CRISPR/Cas9 technology guided by gRNA provides significantly greater efficiency for creating mutant VACVs without obvious side effects in recipient organisms compared to using a site-specific recombinase system. Additionally, it provides a marker-free system that can be used to efficiently construct VACV vectors carrying therapeutic genes in the TK or N1L regions (55, 56). A system was established to make changes to the non-coding region and the open reading frame (ORS) of the “late” gene in the genome of human polyomavirus 2, which subsequently inhibited viral replication and protein expression (57). The genomes of ASFVs were altered between positions 71 and 78 in the phosphoprotein p30 gene, encoded by the CP204L gene. This resulted in the mutated ASFVs not displaying the classical cytopathic effects when cultured in the infected wild boar lung cell line WSL (58). Additionally, the complete deletion of the gene encoding the immunogenic protein A238L (5EL) of the ASF virus genotype IX was the basis for implementing a differentiation between infected and vaccinated animal (DIVA) strategy for ASF (59). The CRISPR/Cas9 system was successfully applied to generate a unique nucleotide deletion (1966DEL) within the avirulent strain KR5 of the avian adenovirus 4, between ORS 42 and ORS 43 confirmed the absence of virulent function (61).

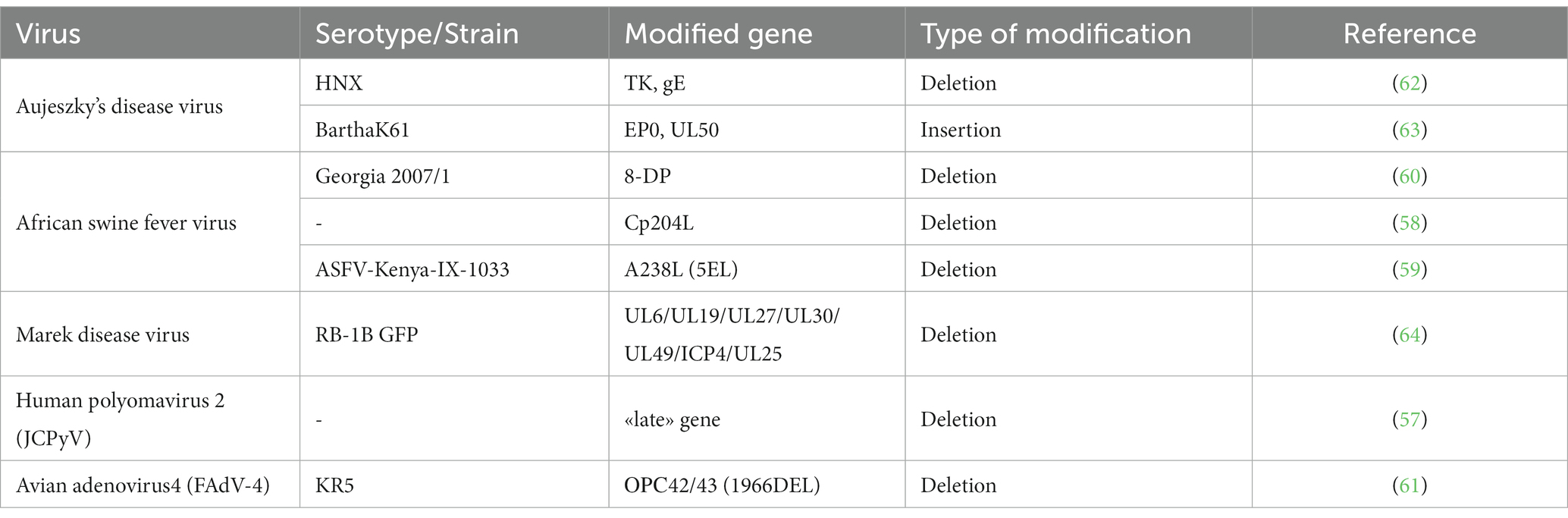

Table 2. Genetically modified DNA viruses using CRISPR/Cas9.
4.2.2. Editing of RNA-containing viruses using CRISPR/Cas9
Currently, the CRISPR/Cas9 system is primarily used for editing genes of DNA-containing viruses, but technical obstacles related to its use for the mutagenesis of RNA-containing viruses remain. The recently discovered Cas9 nuclease from the Gram-negative bacterium Francisella novicida (FnCas9) is capable of targeting endogenous bacterial RNA. This FnCas9 can be directed by an engineered RNA-targeting guide RNA to target and inhibit a human +ssRNA virus, hepatitis C virus, within eukaryotic cells. This work revealed a versatile and portable RNA-targeting system that can effectively function in eukaryotic cells and be programmed as an antiviral defense (65). The recently developed CRISPR/Cas13a system effectively modified the NS3 region of the Dengue virus and the replication of the recombinant virus in mammalian cells (66). The loss of infectious activity of the Porcine reproductive and respiratory syndrome virus (PRRSV) resulted from the inactivation of the viral genes, ORC5 and ORC7, using the CRISPR/Cas13b system; thus, the cleavage of viral RNA was observed in virus-sensitive cells (67). These data demonstrate a new and effective technology for future gene editing of RNA-containing viruses.
4.3. The use of CRISPR/Cas9 in the creation of vector vaccines
Orthopoxviruses (OPXV) are suitable viral vectors for gene expression and therapy because they have a large transgenic capacity up to 25,000 base pairs (kbp) (68), a wide range of hosts (including humans) (69, 70), and they are capable of stimulating both long-term cellular and humoral immune responses against the viral vector (−s) antigen (s), despite the existing vector immunity (68, 71). They are also thermostable, easy to store, transport, and use, which ultimately ensures their high profitability in commercial production systems. The first OPXV successfully used as a vector was the smallpox vaccine virus (VACV), which was used as a vaccine to fight smallpox in humans. Because of the successful use of recombinant VACV-encoding hepatitis B antigens to stimulate the immune system against hepatitis B (72), replication-deficient orthopoxvirus-modified vaccinia virus Ankara (MVA) and NYVAC was adopted for constructing recombinant vectors and vaccines against various human and animal diseases (73, 74).
Recombinant OPXV can encode antigens for one or more infectious agents, including antigens and genes encoding specific immune-stimulating factors, such as cytokines or chemokines (75). Recombinant OPXV can be constructed by homologous recombination between transfected heterologous DNA and replicating viral DNA (76), in vitro ligation (77), or recombination of artificial bacterial chromosomes (78). Commonly used insertion sites include the thymidine kinase (TK) gene, the hemagglutinin (HA) gene, the intergenic region between the F12L and F13L genes, and sites of natural deletions in the OPXV genome (especially with respect to MVA) (76).
As a rule, these systems require multistage operations with low efficiency. The creation of candidate recombinant vaccines by homologous recombination is limited due to low recombination efficiency (<3%), the complexity of processes (for example, the creation of a plasmid with a transgene and selection of a recombinant virus), the instability of the transgene, the need for 200–500 bp flanking DNA sequence (which promotes recombination to non-target sites), and the absence of simultaneous multiple editing of several genes (76, 77, 79–82). Using CRISPR/Cas9, scientists have been able to circumvent all of these limitations to accelerate the process of obtaining recombinant viruses as vectors during the transfer of foreign genes in the prevention of various animal diseases.
To date, several recombinant vaccines and vectors based on OPXV have reached different stages of clinical trials. Various vaccines and vectors are based on VACV, MVA, NYVAC, raccoon poxvirus, lumpy skin disease virus (LSDV) and modified strains of OPXV Tian Tian smallpox vaccine (MVTT). They target malignant neoplasms (e.g., prostate, skin, colorectal cancer, breast and ovarian cancer) (83–88) and infectious diseases (e.g., AIDS, malaria, Ebola, tuberculosis, hepatitis, flu). In many parts of Europe, Canada, and the USA, the recombinant vaccine VACV–Raboral V-RG is widely used for the eradication of rabies virus in wild fox populations (76, 89). Several vector vaccines based on OPXV have been used to prevent various animal diseases (Table 3) (88).

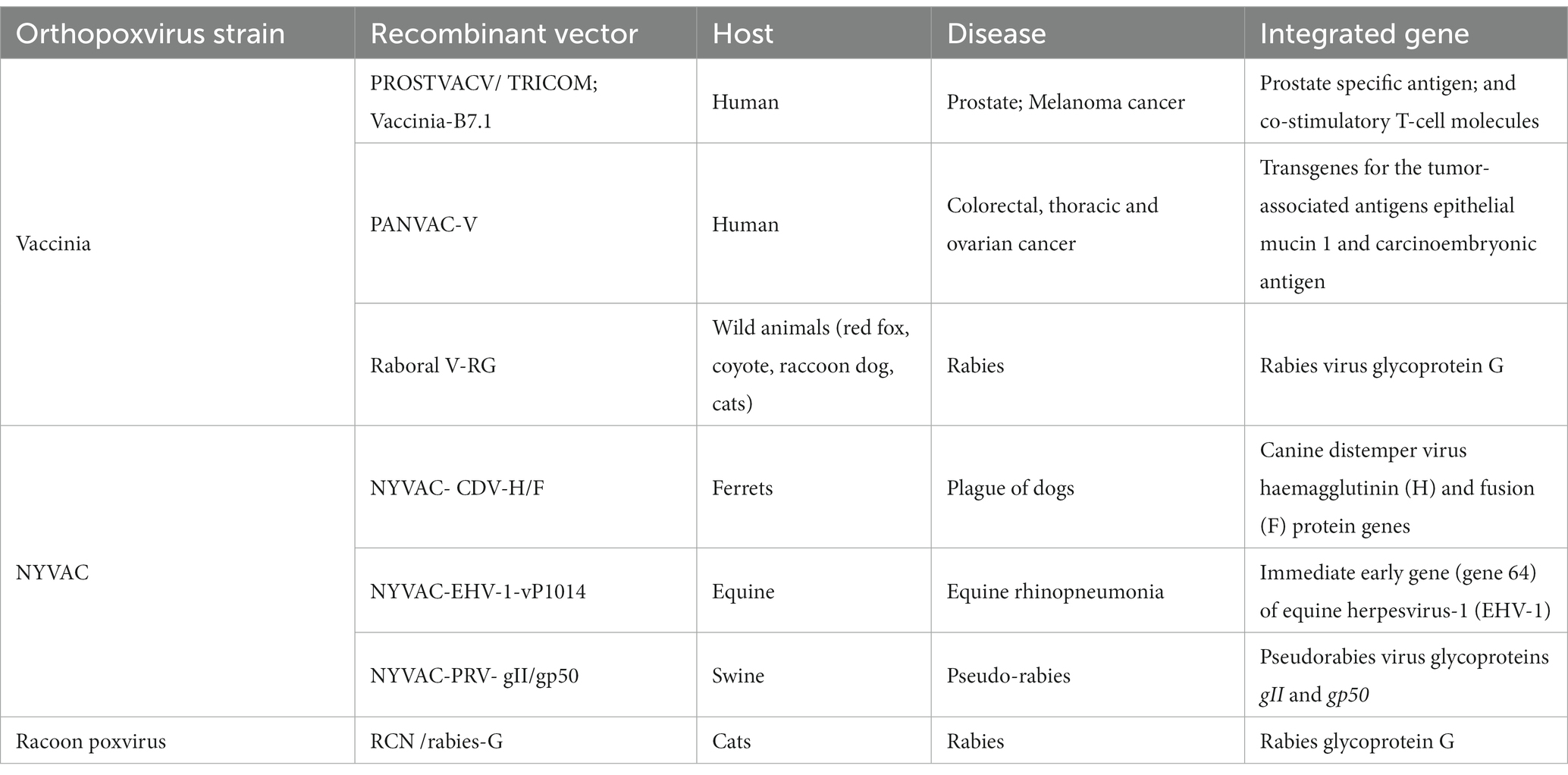

Table 3. Current vaccines based on orthopoxviruses (88).
4.4. The use of CRISPR/Cas9 for the study of the interaction viruses with host cells
Recently, a genome-wide screen using CRISPR/Cas9 was conducted to identify host factors that may potentially participate in the replication of certain viruses, such as SARS-CoV-2 (90), HIV (91), arthritic alphaviruses (92), Coxsackie virus (93), Venezuelan equine encephalitis virus (VEEV) (94) and influenza virus (95). For the influenza virus, it was demonstrated that inactivation of specific host genes, such as DOCK5, Annexin-A1, IFIT2, IRF7 and ZDHHC22, can induce protection against cell death during infection (96–100). Because of the high throughput and precise editing features of the CRISPR/Cas9 screening system, one can quickly and accurately identify specific genes and proteins involved in the pathogenesis of viruses. The relative ease of use and reproducibility of the CRISPR/Cas9 system makes it a powerful tool for studying virus-host interactions and identifying new antiviral targets.
4.5. The use of CRISPR/Cas9 to create bacterial producers of recombinant proteins
CRISPR-Cas9/Cas12a are well-studied nucleases optimized for the production of recombinant bacteria, which benefits the production of food, vitamins, and medicines. Bacteria may be used as biological “factories,” which can readily manufacture products using cheap raw materials.
A list of genetically modified bacteria using CRISPR/Cas technology are listed in Supplementary Table S1.
5. Comparison of prospects for the development and application of genetic targeting technologies in the future
As described earlier, cis- and trans-genesis technologies enable the introduction of new genes into the genome to impart fundamentally new qualities on the host cell; for example, pest resistance, cold, or drought tolerance (101–103). Such foreign genes can also be introduced into the recipient genome using genome editing technologies (104). Genomic editing, for the most part, has a less radical effect on the physiology of the modified organism, because the changes are usually precise and minimal.
The genome and transcriptome of each organism may be considered a balanced system over the course of evolution where a significant change in the nucleotide sequence (more pronounced than spontaneous mutagenesis) could change the phenotype, or introduce foreign genes that may cause an imbalance to this system. Interference between existing and newly acquired molecules, signaling, and metabolic cascades can be unpredictable, which can reduce the value of productive Genetically Modified Organisms (GMOs) or render them potentially dangerous to the environment or for food consumption (105, 106).
A striking example of the unpredictable consequences of the genomic modification of a productive organism was the creation of GMO soybeans resistant to the herbicide glyphosate (Monsanto) (107). The resulting GMOs remained viable under the conditions of glyphosate treatment; however, it accumulated in their tissues, resulting in an unsafe food product, since glyphosate has genotoxic, immunotoxic, and potentially, carcinogenic effects (108, 109). Another example of an unpredictable outcome was a genetic modification for the development of a strain-producer of the amino acid L-tryptophan (“Showa Denko K.K.,” Japan), which is used as a dietary supplement (110, 111). An increase in the productivity of the strain unexpectedly led to the contamination of the final product with highly toxic dimerization products of tryptophan precursors, which the proposed purification methods did not remove. A study of the safety of genetically modified soy with reduced linoleic acid content (to improve the properties of soy oil and bring it closer to the quality of olive oil) in mice revealed that its long-term use reduced the likelihood of obesity and the development of insulin resistance; however, it stimulated the development of fatty hepatosis (112).
By themselves, the technologies for the genetic modification of productive animals are not dangerous, especially if we take into account the fact that there are natural mechanisms of horizontal transfer of genetic information even between evolutionarily distant organisms (113–115), which could potentially lead to the emergence of a natural “genetically modified organism.” However, because of the reasons listed above, GMOs or GMO products require thorough comprehensive study as neglect of this rule can, at times, have tragic consequences.
When assessing the safety of food obtained from GMOs, it is possible to use protocols similar to those used in the preclinical study of drugs by assessing acute, chronic, and reproductive toxicity as well as the mutagenic and carcinogenic potential (116). The safety of GMOs for the environment should be considered if there is a risk of “release” of GMOs into the environment. The possibility of transmission and distribution of genes in the wild population should be assessed as well as the “invasive potential” of GMOs to replace natural populations. In some cases, GMOs are designed to replace or modify existing species in nature. This approach is based on gene-drive technology and was proposed to combat the persistence of a parasite (e.g., pathogens of malaria, Dengue fever, Zika) in disease-carrying insects (117, 118).
It has become increasingly clear that genetic technologies and GMOs are the key to solving many problems associated with hunger, epizootics, depletion of natural resources, and environmental pollution (119–121). However, this requires the development of clear legal norms and the creation of an effective independent institute to monitor the use of genomic technologies and the study of the GMOs created.
6. Conclusion
Selective breeding for desirable phenotypic traits has been performed in agriculture since the first description of heredity by Gregor Mendel in 1865. This is a time-consuming practice and the desirable phenotype is not guaranteed, due to polygenic traits, complex gene regulation and epigenetics. The vast expansion of the human population following the industrial revolution necessitated large scale changes to agricultural practices in order to sustain and secure the increasing demand for food, medicine and vaccines. It was expected that science would not only contribute, but be at the forefront to develop and implement these changes.
Genome editing technologies have brought significant breakthroughs to routine laboratory work and have revolutionized research by facilitating the study of cells and organisms, on a molecular level. The function of an individual gene, protein or complex could be investigated, by deleting or inserting it into a new host. This in-depth study into the fundamental biology of organisms enabled the application of subsequent changes to the genetic composition of the organism, in order to obtain a highly desirable trait. These traits included the expression of novel proteins in order to transfer novel characteristics to an organism, resulting in a disease resistant or drought tolerant phenotype compared to the parental organism. None of the selective targeting and alteration of specific genes would be possible, if it is not based on a clear and fundamental understanding of the importance and function of the specific gene or protein complex.
The most widely used genome editing technologies include the CRISPR/Cas9 system, chimeric zinc-finger nucleases (ZFN) to create double-strand breaks, and transcription activator-like effector nucleases (TALEN). In recent years, CRISPR/Cas9 has become the preferred, most efficient and cost-effective method for use in editing the genomes of viruses, prokaryotes and eukaryotes. Relying on a single target molecule to guide RNA for DNA sequence recognition, the Cas9 enzyme may be steered toward a specific site with a low risk of off-target effects. This also enables multiplexing in contrast to the other existing gene-targeting technologies.
The applications of CRISPR/Cas9 have far exceeded the potential of only editing genomes, but have additionally been used in diagnostics and third generation sequencing technologies. The ability to timeously and efficiently identify and differentiate between pathogens causing disease, could result in the protection of the livestock by implementing control, prevention or mitigating strategies. The versatility of the implementations of CRISPR-based technologies add value throughout the livestock production chain, including animal production, diagnosis, protection and treatment. The future applications of these technologies would only be limited by the creativity of dedicated scientist.
