A low-protein maternal diet during gestation affects the expression of key pancreatic β-cell genes and the methylation status of the regulatory region of the MafA gene in the offspring of Wistar rats

Maternal nutrition during gestation has important effects on gene expression-mediated metabolic programming in offspring. To evaluate the effect of a protein-restricted maternal diet during gestation, pancreatic islets from male progeny of Wistar rats were studied at postnatal days (PND) 36 (juveniles) and 90 (young adults). The expression of key genes involved in β-cell function and the DNA methylation pattern of the regulatory regions of two such genes, Pdx1 (pancreatic and duodenal homeobox 1) and MafA (musculoaponeurotic fibrosarcoma oncogene family, protein A), were investigated. Gene expression analysis in the pancreatic islets of restricted offspring showed significant differences compared with the control group at PND 36 (P < 0.05). The insulin 1 and 2 (Ins1 and Ins2), Glut2 (glucose transporter 2), Pdx1, MafA, and Atf2 (activating transcription factor 2), genes were upregulated, while glucokinase (Gck) and NeuroD1 (neuronal differentiation 1) were downregulated. Additionally, we studied whether the gene expression differences in Pdx1 and MafA between control and restricted offspring were associated with differential DNA methylation status in their regulatory regions. A decrease in the DNA methylation levels was found in the 5' flanking region between nucleotides −8118 to −7750 of the MafA regulatory region in restricted offspring compared with control pancreatic islets. In conclusion, low protein availability during gestation causes the upregulation of MafA gene expression in pancreatic β-cells in the male juvenile offspring at least in part through DNA hypomethylation. This process may contribute to developmental dysregulation of β-cell function and influence the long-term health of the offspring.

1. Introduction

The developmental origins of health and disease (DOHaD) concept states that challenges during critical developmental time windows (conception through pregnancy and lactation) alter fetal development with persistent, life-long effects on offspring phenotypes and metabolism (1). Indeed, the environment faced during development can permanently change not only the body's structure and function but also its responses to environmental influences encountered in later life (2, 3).

The period from conception to birth is a time of cellular replication and differentiation, the functional maturation of organs and body systems, and rapid growth. These processes are very sensitive to alterations in nutrient availability, including maternal undernutrition (4, 5).

Studies in humans and animal models have demonstrated that low maternal dietary protein intake during gestation can cause offspring to be susceptible to different disorders in adulthood including diabetes mellitus, cardiovascular diseases and obesity (6). One of the main organs affected by reduced protein availability in utero is the endocrine pancreas, which undergoes several structural and functional adaptations to maintain glucose homeostasis (7), increasing offspring susceptibility to the development of type 2 diabetes (T2D) (6, 8).

Using rodents as animal models, our research group and other groups have previously reported the effects of a maternal low-protein diet (LP) on altered carbohydrate metabolism in offspring (9) and some adverse changes, such as impairments in pancreatic β-cell development and in the responses of peripheral tissues to insulin (10), low glucose-stimulated insulin secretion (11) at different ages (juvenile, adult, old) (12), impaired glucose tolerance (13) and alterations in the proportion of pancreatic islets and islet size distribution relative to those of offspring from mothers fed a control diet (14).

Based on the evidence that malnutrition alters the expression of the fetal genome (15, 16), we chose to study some key genes related to metabolism and β-cell function in pancreatic islets from offspring exposed to low protein availability in utero. Our approach was to select specific genes including Ins1/2 (insulin 1 and 2), Glut2 (Glucose transporter 2, which encodes the primary glucose transporter and sensor involved in sensing glucose in rodent β-cells) and Gck (which encodes glucokinase, a protein that initiates the metabolism of glucose after entering β-cells and constitutes the rate limiting step of this process) (17). Additionally, the expression of genes encoding specific transcription factors, such as Pdx1 (pancreatic and duodenal homeobox 1), MafA (musculoaponeurotic fibrosarcoma oncogene family, protein A), Atf2 (activating transcription factor 2) and NeuroD1 (neuronal differentiation 1), that are important elements in the expression and regulation of crucial genes for the function and preservation of β-cells, was also studied (18–20).

Considering that epigenetic changes may provide a link that translates environmental exposures into pathological mechanisms, we also studied the methylation status of the regulatory regions of the genes encoding two major pancreatic β-cell transcription factors, Pdx1 and MafA.

2. Materials and methods

2.1. Animal care and management

All animal procedures were approved (BRE-783) by the Animal Experimental Ethics Committee of Instituto Nacional de Ciencias Médicas y Nutrición “Salvador Zubirán” in accordance with the Official Mexican Guidelines for the Care and Use of Laboratory Animals (NOM-062-ZOO-1999). Virgin female albino Wistar rats (15–17 weeks old, weighing 220–260 g) were housed under controlled temperature (22–23°C) and humidity (30–50%) conditions with 12-h light/dark cycles and ad libitum access to water and food (Purina Laboratory 5001 rodent chow, Purina Mexico). Females were mated overnight with proven male breeders on postnatal day (PND) 120. A microscopic examination of the vaginal smear was performed to confirm pregnancy after matting. Pregnant rats were transferred to individual cages and allocated randomly to 1 of 2 groups (n = 15 each): the control group (C) was fed a chow diet (with 20% casein), and the second group of rats was fed an isocaloric low-protein (LP) diet (10% casein). The composition of the diets is shown in Table 1. Births occurred 21 days after conception, which was designated PND 0. To ensure homogeneity of the evaluated offspring, all litters were adjusted to 10 pups per dam at PND 2. After delivery, mothers were fed a control diet, and the offspring at weaning were also fed a control diet until the end of the study. The weight of the offspring was recorded at birth, at weaning and at PND 36 and 90. Juvenile (PND 36) and young adult male (PND 90) offspring were studied. We only used male rats for the study in order to avoid the effect of variation in the concentrations of sex steroid hormones produced during the female estrous cycle, which in our experience modify not only glucose metabolism but also insulin gene expression.

TABLE 1

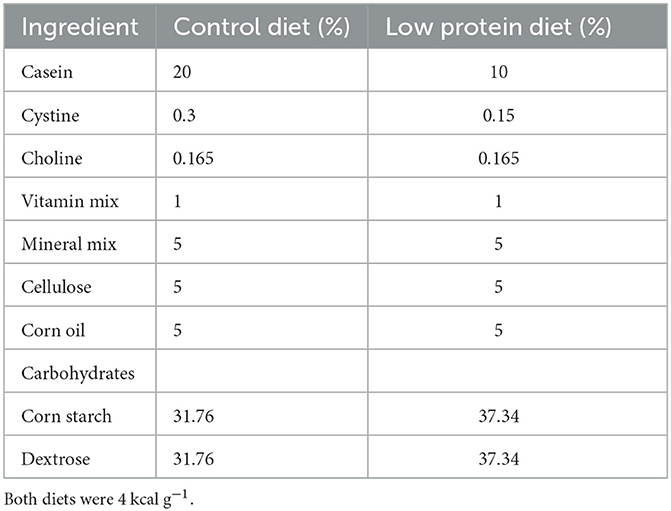

Table 1. Composition of the diets.

2.2. Glucose tolerance test at 36 and 90 days postnatal life

Eight to 10 rats (different litters) per group (C and LP at 36 and 90 days of postnatal life) were fasted for 6 h before an intraperitoneal (IP) glucose tolerance test in which 1 g/kg body weight of D-glucose (G7021, Sigma Aldrich, Mexico) was administered i.p. at 09:00 h. Blood was taken by the retro-orbital bleeding technique (21) at 0, 30, 60, 90, and 120 min. Blood was collected into polyethylene tubes and allowed to clot at 4°C. The blood samples were centrifuged at 1,500 g for 15 min at 4°C. Serum samples were kept at −20°C until assayed.

2.3. Biochemical analysis

Fasting serum concentrations of glucose, cholesterol and triglycerides were determined enzymatically with the automated SYNCHRON CX 5 Delta system (Beckman Coulter Co., Fullerton, CA, USA), comprising a MULTI™ SYNCHRON CX calibrator and GLUH LUH 2x300 (B24985), CHOL 2x300 (467825) and TG 2x300 (445850) kits (Synchron Systems, Beckman Coulter Co.). Insulin concentrations were measured by solid-phase radioimmunoassay (RIA) (RI-13K, Millipore, MA, USA). The inter- and intra-assay coefficients of variation (CVs) were 4 and 6%, respectively. Number of rats per group, 8–10.

2.4. Pancreatic islet isolation

Pancreatic islets were obtained using the collagenase digestion procedure of Lacy and Kostianovsky (22) with some modifications. Briefly, each rat was euthanized by decapitation (23); then, the abdomen was opened, and the pancreatic duct was cannulated. The pancreas was then distended with cold Hanks' balanced salt solution (HBSS) plus 10 mg/pancreas of collagenase V (C9263, Merck, Mexico). The excised pancreas was then cut into approximately 1 mm pieces and incubated at 37 ± 1.0°C at 120 rpm for 15 min, and digestion was terminated by adding cold HBSS (24020117, Gibco BRL, Gaithersburg, MD, USA). Pancreatic islets were hand-picked individually under a stereoscopic microscope. Two hundred to 300 islets were collected in tubes, and 1 ml of QIAzol Lysis Reagent (79306, Qiagen, CA, USA) was added. Then, all tubes were stored at −70°C until processing.

2.5. Gene expression and quantitative PCR

RNA was extracted from pancreatic islets using the RNeasy lipid tissue kit (74804, Qiagen, CA, USA). The quality and integrity of RNA were analyzed by spectrophotometry on a BioDrop instrument (BioDrop Inc., Cambs, UK) and agarose gel electrophoresis, respectively. Only samples with OD 260/280 ratios between 1.8 and 2.1 were used for reverse transcription. Complementary DNA (cDNA) was synthesized using the Transcriptor First-Strand cDNA Synthesis Kit (04379012001, Roche Life Science, CA, USA) according to the manufacturer's specifications. To analyze the differential expression of the genes of interest, cDNA samples were subjected to qPCR using TaqMan probes and a Roche Light Cycler 2.0. The qPCR cycling conditions were 95°C for 10 s, 60°C for 30 s, and 72°C for 40 s (40 cycles). The oligonucleotides were designed at www.oligo.net, and their sequences are shown in Table 2. The gene expression level was normalized to β-actin (Actb) as a constitutive control gene, and the relative gene expression was determined using the 2^−(ΔΔCT) method (24). Three independent experiments were conducted in duplicate, ~1 μg of RNA was obtained from 100 islets (see Supplementary Table S1 for a detailed description of the number of rats used).

TABLE 2

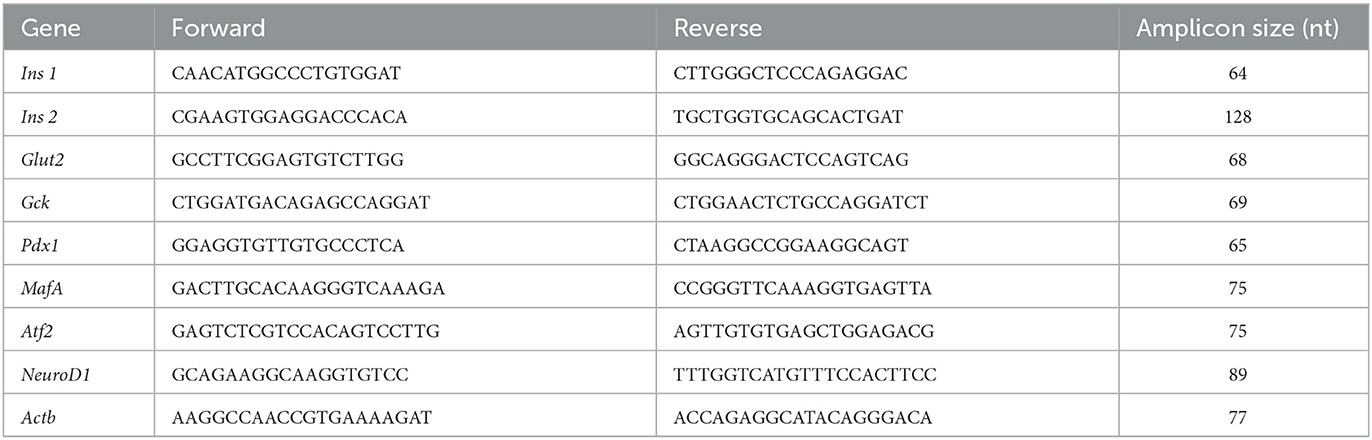

Table 2. Oligonucleotide sequences of studied genes.

2.6. Evaluation of global genomic DNA methylation

Genomic DNA was isolated from pancreatic islets with the QIAamp DNA isolation kit (51104, Qiagen, CA, USA). The quality and integrity of the DNA were assessed by spectrophotometry on a BioDrop spectrophotometer (BioDrop Inc, Cambs, UK) and agarose gel electrophoresis. Only samples with OD 260/280 ratios between 1.8 and 2.1 were used. Global DNA methylation analysis was performed on 100 ng of genomic DNA using a commercially available Global DNA Modification Kit (Imprint Methylated DNA Quantification Kit; MDQ1, Sigma, MO, USA) to detect the relative levels of methylated DNA based on the ELISA principle following the manufacturer's instructions (see Supplementary Table S1 for a detailed description of the number of rats used).

2.7. Sodium bisulfite DNA conversion and sequencing

Since it was observed that the expression of two transcription factors essential for islet β-cell function, Pdx1 and MafA, was modified as a result of a protein-restricted maternal diet, we sought to study the DNA methylation status of their promoters. For this purpose, 2 μg of genomic DNA from pancreatic islets was analyzed with an EZ DNA Methylation-Gold Kit (D5005, ZYMO Research, CA, USA) and capillary sequencing (GENEWIZ, NJ, USA). The proximal 5′ flanking region of the Pdx1 gene, which encompasses nucleotides −275 to +1 relative to the transcription start site, was considered (25). Regarding MafA, the 5′ flanking region between nucleotides −8118 and −7750 relative to the transcription start site (26) was studied. The primers were designed using the MethPrimer program (27). The sequences were as follows: Pdx1 gene proximal promoter, forward 5′-AGGATAGGAGAGATTAGTTTGTTGA-3′, reverse 5′-CTACAAACCAAACCTTAAAACACT-3′; MafA gene promoter, forward 5′-TGGGGTTTGGTAAATGTTTTTATT-3′; reverse 5′-CCCTCCAACAAACACTTCAATATACT-3′. DNA fragments of interest were PCR-amplified, and the corresponding DNA fragments were cloned into pGEM-T Easy (Promega, WI, USA). At least 10 independent clones were selected and sequenced using T7 sequence primers (see Supplementary Table S1 for a detailed description of the number of rats used).

2.8. Statistical analysis

Data are presented as the mean ± standard error of the mean (SEM). All statistical analyses were performed using SigmaStat 3.5 software (Systat, CA, USA) for Windows. Data with a normal distribution were compared by Student's t-test, while the Mann–Whitney test was employed for non-normally distributed data. Significance was assigned at P < 0.05.

3. Results

3.1. Caloric intake and weight gain in mothers

Caloric intake was significantly higher (p < 0.05) in the mothers fed the protein-restricted diet during gestation compared to control mothers (n = 15 each); however, the net weight gain during pregnancy was similar regardless of the diet consumed (Figure 1).

FIGURE 1

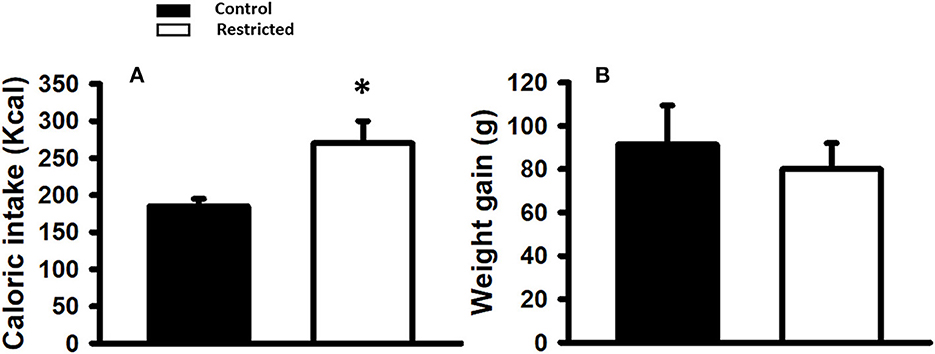

Figure 1. (A) Caloric intake (Kcal) and (B) Weight gain (g) in mothers fed control (C) and restricted (R) diet during pregnancy. Data are expressed as the mean ± SEM from 15 rats/group. *P < 0.05 compared with control.

3.2. Somatometric indicators

Birth weight was slightly but significantly lower (p < 0.05) in the pups of mothers fed a protein-restricted diet during gestation than in those from mothers fed a control diet. At weaning, the same tendency was observed; that is, the weight of the restricted animals was significantly lower than that of the control. At PND 36 and 90, there was no difference in the weight of the offspring of mothers fed different diets (Figure 2).

FIGURE 2

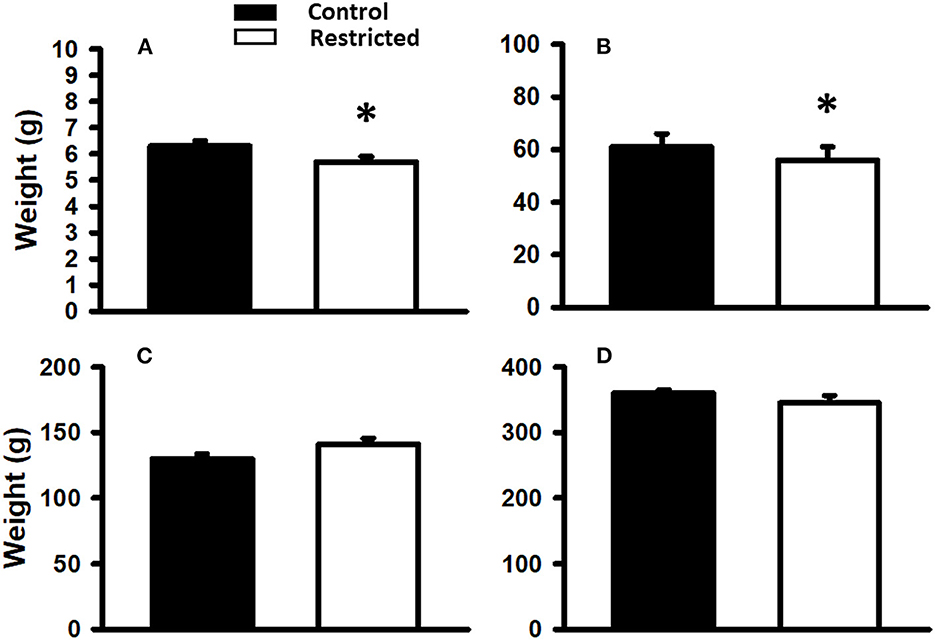

Figure 2. Body weight of offspring from mothers fed a control diet and protein-restricted diet at birth (A), weaning, PND21 (B), PND36 (C), and PND 110 (D). Data are expressed as the mean ± SEM from 8 to 10 rats/group. *P < 0.05 compared with control.

3.3. Glucose tolerance

Different maternal diets during gestation produced differential glucose tolerance in the offspring at PND 36 and 90. In pups from mothers fed a protein-restricted diet during gestation, the glucose tolerance was lower than that in control pups, at both investigated ages. The area under the curve showed the same trend (Figure 3).

FIGURE 3

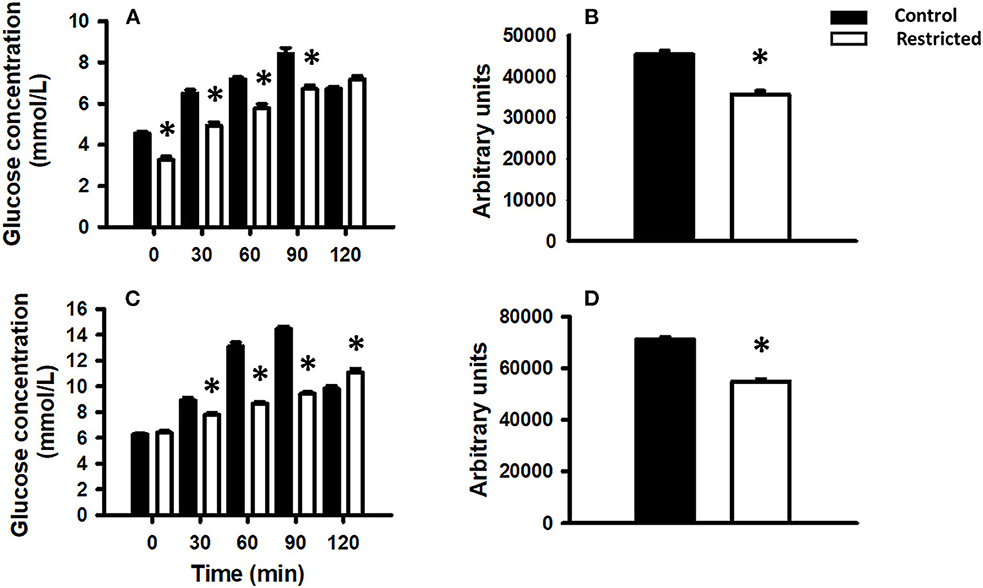

Figure 3. Glucose tolerance in the offspring of mothers fed a control diet (filled bars) or a protein-restricted diet (empty bars). (A) Glucose tolerance in offspring at PND 36. (B) Corresponding area under the curve. (C) Glucose tolerance in offspring at PND 90. (D) Corresponding area under the curve. Data are expressed as the mean ± SEM from 8 to 10 rats/group. *P < 0.05 compared restricted (R) vs. control (C).

3.4. Biochemical parameters

The fasting glucose concentration in the offspring of mothers fed a protein-restricted diet was not modified by the effect of the maternal diet at PND 36 or 90, and the values were similar between the control and protein-restricted diets at both ages (Table 3).

TABLE 3

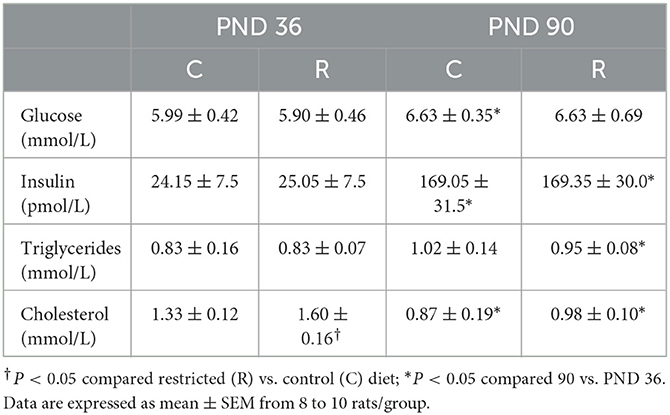

Table 3. Biochemical analyses.

The glucose concentration in the offspring at PND 90 was significantly higher than the value at PND 36 but within normoglycemic values. The insulin concentration was similar between the control and restricted groups at both time points but was higher at PND 90 than at PND 36. The triglyceride concentration was not different between the control and restricted groups at either of the two ages; however, the concentration was higher in restricted male offspring at PND 90 than at PND 36. At PND 36, cholesterol was higher in restricted offspring than in the control but remained in the normal range. At PND 90, the cholesterol concentrations were similar regardless of the diet of the mother but were lower than those at PND 36.

3.5. Gene expression

To investigate the effect of a protein-restricted maternal diet on the expression of key pancreatic genes, we studied a series of targets related to insulin production and regulation in pancreatic islets from male offspring. The genes encoding insulin (Ins1 and Ins2), two glucose sensors (Glut2 and Gck) and a battery of transcription factors that regulate insulin gene transcription and constitute vital elements in the preservation and function of mature β-cells (Pdx1, MafA, Atf2, and NeuroD1) were studied. We observed that the expression of the studied genes was only different in protein-restricted compared with control offspring at PND 36. Figure 4 shows the expression normalized to the constitutive gene β-actin. The gene expression of Ins1 and Ins2, the glucose sensor Glut2, and the transcription factors Pdx1, MafA, and Atf2 in juvenile offspring was increased by a restricted maternal diet, whereas decreased expression was observed for Gck and NeuroD1. At PND 90, there were no statistically significant differences between the control and restricted groups (data not shown).

FIGURE 4

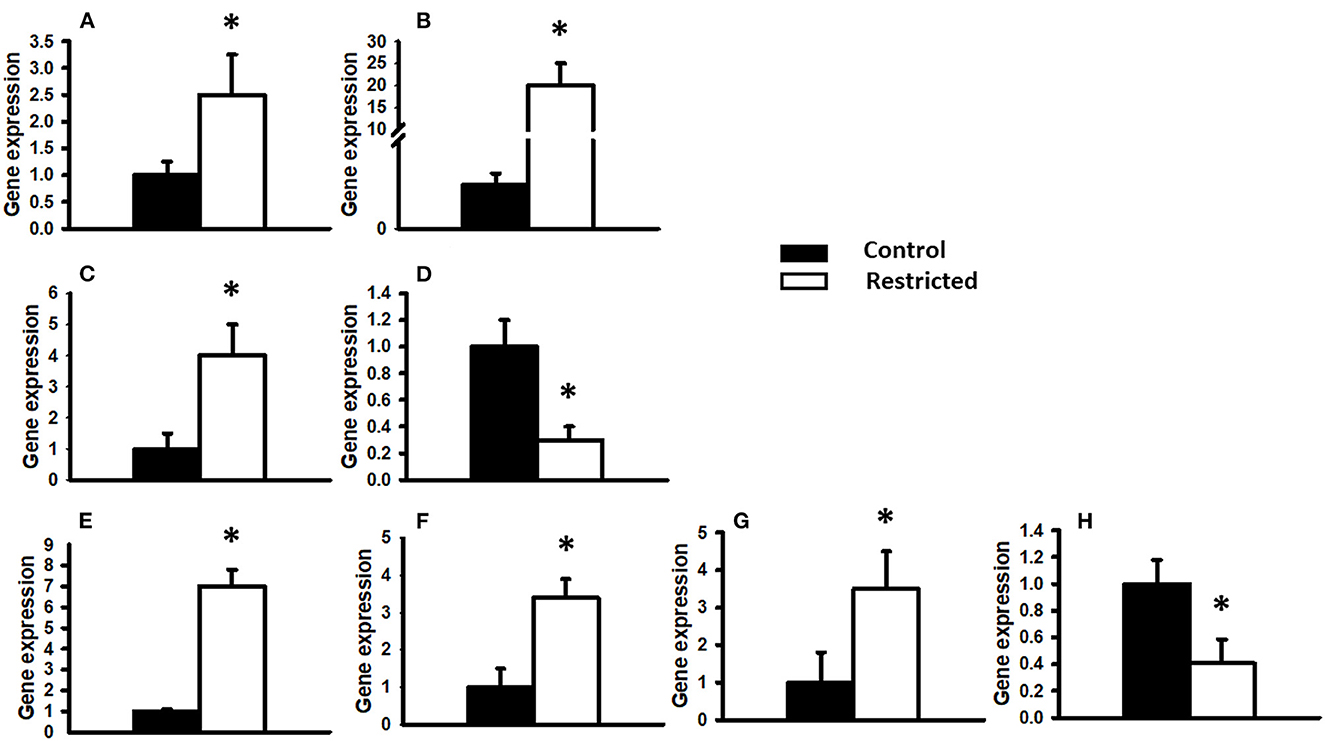

Figure 4. Gene expression relative to the constitutive gene β-actin. The expression of different genes in PND 36 male offspring from control and restricted mothers is shown. (A) Insulin 1, (B) Insulin 2, (C) Glucose transporter 2 (Glut2), (D) Glucokinase (Gck), (E) Pancreatic and duodenal homeobox 1 (Pdx1), (F) Musculoaponeurotic fibrosarcoma oncogene family A (MafA), (G) Activating transcription factor 2 (Atf2), (H) NeuroD1. Data are expressed as the mean ± SEM of three independent experiments conducted in duplicate. *P < 0.05 compared with control.

3.6. Gene interaction analysis

The Ingenuity Pathway Analysis (IPA) engine (version 70750971) was used for a central analysis and construction of the signaling pathway networks of insulin secretion and type 2 diabetes mellitus. These two pathways were chosen as indicators of the major long-term metabolic disturbances in the offspring due to low protein availability in utero. The examined genes (Pdx1, MafA, Ins1, Ins2, Glut2, Gck, NeuroD1, and Atf2) were selected as multifunctional signals that appear to orchestrate pancreatic β-cell deterioration in this condition (Figure 5).

FIGURE 5

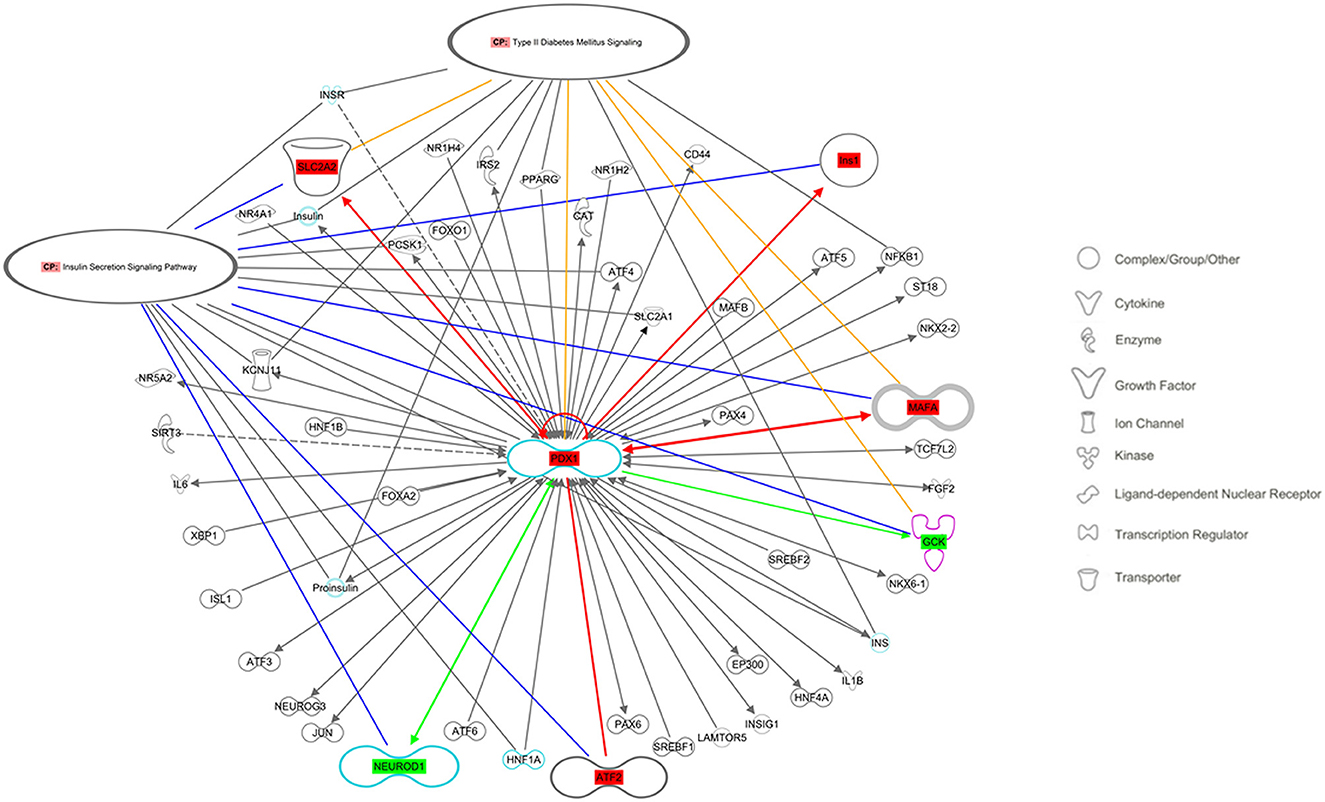

Figure 5. Regulatory networks related to the insulin secretion signaling pathway and type 2 diabetes mellitus signaling, as predicted by QIAGEN's Ingenuity Pathway Analysis considering the studied genes: Ins, Insulin; Slc2a2, Solute carrier family 2 member 2 (also known as Glut2); Gck, Glucokinase; Pdx1, Pancreatic and duodenal homeobox 1; MafA, Musculoaponeurotic fibrosarcoma oncogene family A; Atf2, Activating transcription factor 2; NeuroD1, Neuronal differentiation 1. Molecules in the pathway showed in red had increased gene expression, whereas those in green had decreased gene expression. Solid lines indicate direct interactions between factors. Yellow lines indicate the participants in the canonical route of type 2 diabetes mellitus signaling, and blue lines indicate the insulin secretion signaling pathway.

3.7. Global DNA methylation

Considering that intrauterine nutrition affects the epigenome of the offspring, we evaluated global DNA methylation in pancreatic islets from male rats at PND 36 and 90 from mothers fed a control or protein-restricted diet during gestation. We found a significant reduction in global DNA methylation in the restricted group compared with the control at PND 36 (Figure 6). In adults (PND 90), there were no differences in global methylation between control and restricted offspring.

FIGURE 6

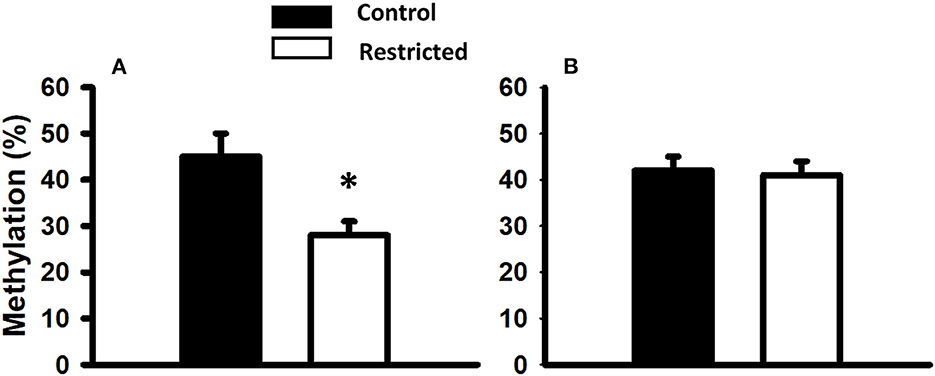

Figure 6. Global DNA methylation of pancreatic islets from male rats at PND 36 (A) and PND 90 (B) born to mothers fed a control or protein-restricted diet during gestation. Data are expressed as the mean ± SEM from five rats/group. *P < 0.05 compared with control.

3.8. DNA methylation of the MafA and Pdx1 gene regulatory region

Since we observed an increase in the gene expression of most of the transcription factors studied in juvenile offspring, we chose two of the most important ones for pancreatic β-cell function to determine whether this overexpression was due to differential DNA methylation in their regulatory regions. In addition to the fact that global DNA methylation was decreased in the juvenile offspring of mothers fed a low-protein diet compared to a control diet, we analyzed the DNA methylation status of the 5' regulatory region (between nucleotides −8118 and −7750 relative to the transcription start site) of MafA and the proximal promoter of Pdx1. We found that a protein-restricted maternal diet induces a decrease in the content of DNA methylation of several CpGs within the 5' regulatory region in the MafA gene in pancreatic islets compared to the control (Figure 6); the differences in methylation compared to that of controls were statistically significant. No cytosine methylation was found in the proximal promoter region of Pdx1 (Figure 7).

FIGURE 7

Figure 7. Schematic representation of the DNA methylation pattern of the MafA and Pdx1 genes in islets from control and restricted offspring. (A) Maps of the regulatory region and proximal promoter of MafA and Pdx1, respectively. Thick bars crossing the main line represent CpG dinucleotides. (B) DNA methylation status in the studied regions of MafA and Pdx1. Filled circles correspond to methylated CpG sites, empty circles correspond to unmethylated sites, columns represent each CpG site, and rows show all individual clones analyzed. For the scheme, two independent biological samples were analyzed.

4. Discussion

In the current study, we observed the effect of a protein-restricted maternal diet during gestation on male offspring in rats. Our results show that low protein availability in utero is associated with changes in the gene expression of some key factors in the functioning of pancreatic β-cells of the offspring without a significant variation in blood glucose and insulin levels, as previously reported (12).

It is well known that stressful conditions in utero impair the functions of vital organs, including the pancreatic islets, leading to decreased function later in life (2), while phenotypic modifications caused by environmental stress conditions in offspring occur to adapt to adverse circumstances encountered in utero (28). In this regard, it is important to emphasize that pancreatic β-cells possess remarkable adaptive plasticity in order to produce insulin according to metabolic requirements (17). However, to maintain homeostasis and compensate for the need for insulin to maintain glucose levels, β-cells may become depleted of their insulin pool reserves, leading to diabetes (29).

Our previous studies with the same animal model used in the present study showed that despite minimal differences in circulating glucose and insulin, a maternal low-protein diet during pregnancy impairs the insulin secretory response to glucose in the offspring (12). In this model, pancreatic islets from juvenile offspring (PND 36) stimulated with low (5 mM) and high (11 mM) glucose showed insulin hypersecretion compared to controls; however, they did not show a difference in glucose-stimulated insulin secretion between low-and high-glucose conditions, as is exhibited by a normal glucose sensing mechanism (29). Long-term hypersecretion of insulin could deplete β-cell reserves and consequent insulin-deficient states, which in turn lead to major metabolic disturbances such as diabetes (17, 29). Our finding of insulin gene (Ins1 and Ins2) upregulation and Gck gene downregulation may be at least partially related to those findings and to our previous finding of an impaired insulin secretory response to glucose in the pancreatic islets of the offspring of mothers fed a protein-restricted diet during gestation (12).

With all of the above as background, we studied the effect of low protein availability in utero on the expression of several key transcription factors that participate in the regulation of glucose metabolism. To our knowledge, we have demonstrated here for the first time that feeding pregnant rats a protein-restricted diet during pregnancy produces increased expression of Ins1, Ins2, Glut2, Pdx1, MafA, and Atf2 and decreased gene expression of NeuroD1 and Gck in their male juvenile offspring. Previous results by Chamson-Reig et al. (30) reported no change in Pdx1 gene expression by effect of maternal low protein (LP) diet in male offspring. The apparent discordance of our data with these is likely related to the LP model (8% protein content), the temporal window of protein restriction (week 1 and 2 of gestation) and the study of the entire pancreas, whereas we used 10% protein content throughout gestation and pancreatic islets of young male offspring were studied.

To enable a meaningful interpretation of the gene expression data obtained here, we used Ingenuity Pathway Analysis (IPA) software, which analyzes gene expression patterns in the context of a database based on the scientific literature (31) that shows mechanistic networks for biological functions and diseases (Figure 4). The analysis showed shared molecular pathways of genes; for example, the coexpression and interaction (18) of Atf2, MafA, Pdx1, NeuroD1 (18, 32), and Gck (33) have been reported in the β-pancreatic cell. Additionally, an interdependence between these genes has been found for Pdx1, which regulates not only insulin genes but also the MafA and Glut2 genes and Pdx1 itself (13, 18, 34). Additionally, the interaction of genes that are expressed to regulate β-cell function, insulin gene transcription (35), insulin secretion (MafA, SLC2A2, and NeuroD1) (36), pancreas development, perinatal α- and β-cell proliferation (37) and β-cell survival (35) was observed. The studied genes are involved in regulatory networks related to the insulin secretion signaling pathway (36) and T2D signaling, two of the main pathways in the offspring that are affected by low protein availability during gestation (12, 38). Our results are in agreement with those obtained by Aguayo-Mazzucato et al. (33), who reported that overexpression of Pdx1 increases MafA mRNA levels. Moreover, Arantes et al. found increased expression of Pdx1 mRNA in PND 28 offspring of mothers fed a low protein diet during pregnancy compared with controls (39), and Rodriguez-Trejo et al. found a similar result in offspring at PND 7 (40).

It has been proposed that the link between in utero nutritional challenges and altered gene expression is acquired epigenetic alterations that increase disease susceptibility later in life (5, 15, 41, 42). Epigenetic modifications are related to mechanisms that modulate chromatin structure and accessibility to transcription factors, including DNA methylation, histone modifications, and non-coding RNAs. The most extensively studied mechanism is the control of gene expression by the methylation of cytosine nucleotides in the promoter regions of genes. Hypomethylation of the cytosine bases in CpG islands located in a DNA promoter sequence allows increased gene expression (5). Additionally, changes in methylation patterns (hypo- and hypermethylation) are observed during periods of inadequate nutrition (6, 43).

In the present investigation, we found that the expression of the studied genes was increased by the effect of a protein-restricted maternal diet and that global DNA methylation of pancreatic islets was decreased. Given this fact, we used a candidate gene approach and studied the methylation pattern of MafA and Pdx1, two of the most important genes in the preservation and regulation of pancreatic β-cell function (44). We observed a pattern of decreased methylation of the CpGs in the 5′ flanking region of the MafA gene (between −8118 and −7750), and the percentage of methylation was lower in the pancreatic islets of juvenile offspring of mothers fed a protein-restricted diet during gestation compared with controls. These data suggest that a protein-restricted maternal diet produces an upregulation of MafA gene expression at least in part through DNA hypomethylation. It is well established that this region is critical for MafA gene transcription in the pancreas through coordinated actions with other conserved promoter regions (45). Furthermore, mutation (46) or loss of MafA has been shown to contribute to T2D progression (47).

Our results confirm and support the findings reported by other authors who demonstrate that prenatal nutrition induces differential changes in the promoter methylation of specific genes, such as the PPARα (48), glucocorticoid receptor (GR) and PPARγ genes (49), in the liver of juvenile offspring of mothers fed a protein-restricted diet during pregnancy. In both cases, it was shown that these epigenetic changes result in increased expression of these genes.

The second candidate gene that we selected to study its methylation status was Pdx1, but we were unable to find any change in the methylation pattern in its proximal promoter region. In contrast, in a model of intrauterine growth retardation (IUGR), Park et al. reported not only DNA methylation but also histone acetylation and histone methylation as a cascade of epigenetic events leading to silencing of Pdx1 and consequently decreased Pdx1 expression, impaired insulin secretion and the onset of diabetes in adult rats (25). The contrast observed between both studies could be explained by the difference in the stress models of the offspring in utero, on the one hand, ours is a model of protein restriction in the maternal diet and on the other hand, the study of Park et al., is a model of ligation of the uterine arteries to cause IUGR in which not only protein but all nutrient supply is restricted due to altered placental blood flow, which most likely affects epigenetic regulatory factors more drastically.

Additionally, changes in DNA methylation have been reported in pathological states of the human pancreas, such as diabetes mellitus. Volkmar et al. analyzed the methylome of freshly isolated islets in patients with type 2 diabetes and healthy subjects and found differential hypomethylation at 96% of sites (266 of 276 CpGs) in type 2 diabetes (T2D) (16). Moreover, Dayeh et al. identified 1,649 individual CpG sites and 853 genes that exhibit differential DNA methylation in pancreatic islets from T2D patients compared with non-diabetic donors, and 97% of the CpG sites showed decreased DNA methylation and increased gene expression (50). In both reports, the genes studied were linked to β-cell functionality, cell death and adaptation to metabolic stress.

In general, the link between differential DNA methylation and gene activity may be quite complex; therefore, it is still difficult to conclude unequivocally whether altered DNA methylation in vivo has direct effects on gene expression. However, our results add to the evidence of epigenetic changes under adverse conditions in utero, such as low protein availability, on the physiology of offspring, which could translate into disease in adulthood. It remains to be determined whether the epigenetic changes found here will translate into functional effects that impact pancreatic β-cell function. Our findings open new opportunities to identify molecules and mechanisms participating in the developmental programming of pancreatic β-cells, which will help in developing strategies and/or interventions to prevent T2D risk.

5. Conclusions

The present study showed that low protein availability during gestation programs the expression of some master genes of beta-cell function in male juvenile offspring, up-regulating them and as a global effect, decreasing the percentage of total DNA methylation. The down-regulation of MafA gene expression, was carried out at least in part, by decreased methylation of CpGs in the 5' flanking region (between −8118 and −7750). This process may contribute to developmental-dysregulation of β-cell function and influence the long-term health of the offspring.

Data availability statement

The data presented in the study are deposited in the FigShare repository, accession number: https://doi.org/10.6084/m9.figshare.22137659.v1.

Ethics statement

The animal study was reviewed and approved by Animal Experimental Ethics Committee of Instituto Nacional de Ciencias Médicas y Nutrición “Salvador Zubirán”.

Author contributions

SM designed and conducted the study, analyzed and interpreted data, wrote, reviewed, and edited the manuscript. TCS-L designed the functional experiments and performed lab work, analyzed and interpreted data, wrote, reviewed, and edited the manuscript. ALO-M designed the functional experiments and performed lab work, analyzed and interpreted data, reviewed, and edited the manuscript. AD-L, ERV-M, and JRR-A performed lab work, reviewed, and edited the manuscript. SM, TCS-L, and ALO-M are guarantors of this work and as such had full access to all of the data in the study and take responsibility for the integrity of the data. All authors read and approved the final version of the manuscript.

Funding

This work was supported by CONACYT México, Grant Number: CB177624. ALO-M and TCS-L had a scholarship from CONACYT (378743 and 390427 respectively).

Acknowledgments

We acknowledge the technical support of Nancy M. V. Sánchez-Lira, Fernando Martinez Tejeda, David Yoab Elizalde Jaimes, and Rodrigo González Diaz. We would also like to thank Dr. Marco A. Cerbón, Dr. Mauricio Rodríguez-Dorantes, and Dr. Elena Zambrano and the use of the laboratory facilities of Dr. Victoria Chagoya de Sánchez.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher's note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fvets.2023.1138564/full#supplementary-material
