Update and prognosis of Dermacentor distribution in Germany: Nationwide occurrence of Dermacentor reticulatus

A considerable range expansion of Dermacentor reticulatus has been observed in several European countries, which is concerning in the light of its vector function for several pathogens, including Babesia canis and tick-borne encephalitis virus (TBEV). The present study provides an update on the distribution of Dermacentor ticks in Germany, using a citizen science approach. Ticks were collected by citizens from March 2020 to May 2021, and submitted along with information on the date and location of collection, potential hosts and details about the circumstances of discovery. In total, 3,292 Dermacentor specimens were received, of which 76.4% (2,515/3,292) were identified as D. reticulatus and 23.0% (758/3,292) as D. marginatus, while 0.6% (19/3,292) were too damaged for species-level identification. Dermacentor reticulatus was received from all federal states of Germany. Maxent species distribution models predicted suitable environmental conditions for D. reticulatus throughout Germany. Findings on the vegetation or on pastured animals without travel history confirmed the occurrence of this tick species as far north as the most northern German federal state Schleswig-Holstein. In contrast, the distribution of D. marginatus still appears to be limited to southwestern Germany, although the northward shift of the distribution limit observed in the preceding citizen science study, as compared with previous published distributions, was confirmed. This shift was also predicted by Maxent species distribution models, reflecting the broader distribution of the tick occurrence data contributed by citizens. Most D. reticulatus ticks were found on dogs (1,311/1,960, 66.9%), while D. marginatus was mainly discovered on hoofed animals (197/621, 31.7%) and humans (182/621, 29.3%). Human tick bites were reported in 0.7% (14/1,960) of host-assigned D. reticulatus and 3.4% (21/621) of host-assigned D. marginatus. Further studies to investigate an increasing endemisation of Babesia canis in Germany as well as the relevance of D. reticulatus for TBEV spread throughout the country, e.g., by traveling dogs, are urgently needed. In view of the activity of D. reticulatus during winter or the colder months, which complements that of Ixodes ricinus, a year-round tick protection of at least dogs is strongly recommended.

Introduction

Ticks play a pivotal role in public and veterinary health, both as nuisance pests and as vectors of pathogens. Environmental and climatic changes may lead to changes in tick activity, tick occurrence and, consequently, the incidence of tick-borne diseases (1). Therefore, surveillance of tick-borne diseases should include the geographic distribution of ticks (2).

During the last two decades, an increasing number of studies has reported marked habitat expansion of the ornate dog tick, Dermacentor reticulatus, in several European countries, including Poland (3, 4), Slovakia (5), the Czech Republic (6), the United Kingdom (7), the Netherlands (8), and Germany (9, 10). This tick species plays an important role in veterinary medicine due to its vector function for Babesia canis, the piroplasmid parasite responsible for potentially fatal babesiosis in dogs (11). An increase in canine babesiosis cases has indeed been observed, e.g., in Poland, the United Kingdom and Germany, and linked to the expanded distribution of D. reticulatus (3, 12–14). Furthermore, local D. reticulatus populations in the Netherlands have recently been incriminated in autochthonous transmission of Babesia caballi and Theileria equi, the causative agents of equine piroplasmosis (8). Moreover, D. reticulatus can transmit zoonotic pathogens such as tick-borne encephalitis virus (TBEV) (15) and spotted-fever group rickettsiae (16).

The underlying causes of the habitat expansion of D. reticulatus are probably multi-factorial, involving changes in agricultural practices and land use, such as renaturation of landscapes, increased density and movement of wildlife and domestic animals as well as increased temperatures, which facilitate the completion of the tick's life cycle within 1–2 years (17–20). In contrast to D. reticulatus, the range of the only congeneric species in Europe, Dermacentor marginatus, seems to be rather stable, although a possible northward expansion along the Rhine has recently been reported (10).

In 2019, a citizen science study was initiated in Germany to collect data on the geographic distribution of Dermacentor ticks (10). The study has been continued since and allows an update of the reported distribution, with several new locations with Dermacentor infestation risk. In addition, machine learning models reveal the predicted potential distributions of Dermacentor spp. throughout Germany based on the citizen data collected and current environmental conditions. The resulting maps can be used to inform public and veterinary health risk assessments (21), which might be especially useful in unsampled, or less well-sampled areas.

Materials and methods

Citizen science call

Press releases asking citizens to submit Dermacentor ticks, along with information on the date and location of collection (GPS [Global Positioning System] data or postal code), potential hosts and details about the circumstances of discovery, were issued by the University of Veterinary Medicine Hannover, Hanover, northern Germany, as well as the Department of Parasitology at the University of Hohenheim, Stuttgart, southern Germany, during the year 2020. Press releases were circulated in various regional and national media. Additionally, both institutions continuously advocated the citizen science call on their websites, providing pictures to help citizens to distinguish between different tick genera. Apart from this, no additional training was provided.

Tick identification

Ticks were morphologically identified to species level following Arthur (22), Siuda (23), and Estrada-Peña et al. (24).

Two D. marginatus specimens of unusual origin were additionally subjected to PCR and sequencing of the 16S ribosomal RNA gene using primers 16S+1 and 16S−1 (25) to confirm the morphological identification. For this purpose, partial ticks were homogenized in DirectPCR^® Lysis Reagent Cell (PEQLAB Biotechnology GmbH, Erlangen, Germany) and incubated with addition of proteinase K at 56°C overnight, followed by 85°C for 45 min. The 25 μl PCR reaction included 1 μl DreamTaq polymerase (Thermo Fisher Scientific, Epsom, UK), 2.5 μl 10x buffer, 1 μl of each primer (10 μM each) and 0.5 μl dNTPs (10 mM each, Roti^®-Mix PCR 3, Carl Roth, Karlsruhe, Germany). As template, 0.5 μl tick lysate was used. The thermoprofile consisted of initial denaturation at 95°C for 3 min, followed by 38 cycles of 95°C for 30 s, annealing for 30 s and extension at 72°C for 45 s, and final extension at 72°C for 7 min. The annealing temperature was raised (47–48.8°C) during the first seven cycles as described by Mangold et al. (25), and the remaining cycles were performed with an annealing temperature of 50°C. After visualization on 1.5% agarose gels stained with GelRed^® (Biotium Inc., Fremont, CA, USA), PCR products were sent for custom Sanger sequencing (Microsynth Seqlab, Göttingen, Germany).

Classification of reported locations

The accuracy of the reported locations was classified as reported by Drehmann et al. (10). Briefly, (i) a high accuracy was assumed for ticks collected from pastured animals or from the vegetation, (ii) a medium accuracy for unengorged ticks found on dogs or humans during or immediately after a walk, as well as for ticks from cats or wild terrestrial animals and (iii) a low accuracy in cases of engorged ticks found on dogs, ticks found on birds or ticks found in an unsuitable habitat (e.g., inside a house). If no information was provided, or the specimen was detected on dogs or humans traveling large distances, the accuracy was classified as (iv) unknown.

In addition, the status of each tick species on district level was classified based on the number of ticks received per location. All tick findings, irrespective of the accuracy classification, from 2019 to 2021 were considered, including data from Drehmann et al. (10). GPS coordinates were rounded to two decimal digits, i.e., findings with a maximum distance of approximately 1 km were regarded as being from the same location. If only a single tick was received from a location, this was classified as “occurrence.” A number of 2–5 ticks per location was termed “multiple occurrence,” while > 5 ticks, including both male and female specimens, was regarded as “population establishment.” If ticks were received from multiple years and totaled > 5 specimens, including both sexes, this was deemed “endemisation.”

Spatial data were visualized in R v. 4.1.0 (26) with administrative boundaries retrieved via the rworldmap package (27) and from the Global Administrative Areas Database (28). Maps include data of the present study, from Drehmann et al. (10) and locations where ticks were collected from the vegetation with the flagging method by the involved research institutions. From the citizen science study, only locations with a high or medium accuracy were pictured as dots.

A second set of maps was generated to visualize confirmed occurrence, i.e., high accuracy findings on the vegetation, on stationary pastured animals or on terrestrial wildlife.

Modeling potential Dermacentor spp. distributions—Data preparation

The potential spatial distributions of D. reticulatus and D. marginatus were estimated using Maxent v. 3.4.4 (a machine learning method) (29, 30) in R v. 4.1.0 (26). Maxent takes, as input, (1) georeferenced species occurrence records, (2) gridded environmental variables for the region of interest.

Occurrence records, representing locations where D. reticulatus (n = 682) and D. marginatus (n = 638) have been recorded in Germany, were obtained from the high accuracy records collected in the present study and the high accuracy records collected by Drehmann et al. (10). To reduce autocorrelation and spatial bias introduced by heterogeneous sampling effort (e.g., potentially more intensive sampling in more populated locations), the occurrence data for each species were further thinned to a distance of 6 km (minimum 6 km between records; corresponding to the resolution of the environmental layers i.e., size of each pixel) using spThin::thin (31), resulting in 121 high accuracy occurrence records for D. reticulatus and 108 records for D. marginatus.

By default, Maxent software selects 10,000 background points at random from the study region. However, since most occurrence datasets suffer from some degree of sample selection bias, it is recommended to select background points with the same bias as the occurrence records (32). For this, the entire high reliability occurrence dataset was thinned to a distance of 6 km, and a continuous “bias” layer generated by normalizing a kernel density estimate [raster::density (33)] to values between 0 and 1. This bias layer was then used to weight the selection of 10,000 random points throughout Germany, ensuring that no more than one point was selected per pixel, and that spatial bias in the background point dataset reflected the bias in the occurrence dataset.

Elevation and current bioclimatic (Bioclim) variables were extracted at a 2.5 min resolution from the Worldclim database (34) using the raster::getData function (33).

The CORINE Land Cover 2018 dataset v2020_20u1 (CLC2018) was obtained at a 100 m resolution (35). CLC2018 was resampled (nearest neighbor method) and reprojected to match the resolution and projection of the Bioclim datasets using the raster::projectRaster function (33). All environmental datasets were then cropped and masked (33) to the boundary of Germany (36). From the Bioclim dataset, a subset of variables were chosen based on their ecological relevance to Dermacentor spp. (37, 38). usdm::vifstep (39) was used to exclude variables with a variance inflation factor (VIF) exceeding 10, which indicates collinearity (40). Finally, values for the environmental variables corresponding to the locations of the occurrence points (presences) and background points were extracted using raster::extract (33) to generate a comma separated values (.csv) file containing the coordinates for each occurrence and background point, a binary variable representing an occurrence (1) or background point (0), and the environmental values associated with each record. Two of the D. reticulatus, and one of the D. marginatus records could not be matched with environmental data and were removed from further analyses.

Modeling potential Dermacentor spp. distributions—Model development

Maxent models were run and evaluated using dismo in R (41). The default Maxent parameters were implemented as they produce robust, well-performing models (42).

Ten replicates were run for each species to evaluate model performance. For each replicate, a random subsample of 70% of the occurrence and background data was used for model training and the remaining 30% used for model testing [biomod2::SampleMat2 (43)]. The resultant spatial predictions show the relative environmental suitability for each species expressed as a probability (0–1) for each pixel in the area of interest.

Two measures of model accuracy were used to assess each replicate's model output: the area under the receiver operating characteristic curve (AUC) and the true skill statistic (TSS) calculated using the test data. The AUC is a threshold independent measure of model performance, which quantifies the model's ability to predict higher values of suitability in known presence localities compared to background points. This value ranges from 0 to 1, with 0.5 signifying a model's predictive power is no better than random, and values exceeding 0.7 indicating good model performance (44). The TSS balances the sensitivity (true positive rate) and specificity (true negative rate) of a binary model output and was estimated as the maximum sensitivity + specificity – 1. A TSS value exceeding 0 represents a model preforming better than random and a value of 1 indicates perfect model performance (45).

The threshold probability of environmental suitability that maximized model sensitivity and specificity, based on the test data, was also estimated for both species. This threshold can be used to transform the probabilistic output into binary predictions whereby locations with values above this threshold can be interpreted as environmentally suitable for the species, and locations with values below this threshold can be interpreted as largely unsuitable. However, this transformation was not done in this study as it is the authors' opinions that such data reduction obscures subtleties, which may be epidemiologically important for Dermacentor spp., such as the potential for species to exist in areas of marginal suitability, and the potential for the public to misinterpret regions below the threshold as “zero risk.”

Environmental variables' contributions to model predictive performance were estimated using the permutation importance, which represents the percentage reduction in model performance (AUC) when each covariate is randomly permuted. Higher permutation importance values indicate a greater contribution of that covariate to model performance. Response plots produced with the Maxent output were inspected for the variables with the highest permutation importance, to describe the change in environmental suitability across the range of the variable(s). For CLC2018, a categorical variable, land cover classifications yielding high probabilities (>0.65) were identified for each replicate to highlight land cover types most often associated with high environmental suitability.

Results

Received Dermacentor ticks

From March 2020 until the end of May 2021, 3,292 Dermacentor ticks collected in Germany were received. Of these, 76.4% (2,515/3,292) were identified as D. reticulatus and 23.0% (758/3,292) as D. marginatus, while 0.6% (19/3,292) were too damaged for species-level identification. As expected based on the nidicolous lifestyle of larval and nymphal Dermacentor ticks, all received ticks were adult specimens and the sex ratio of D. reticulatus was 53.6% male (1,349/2,515) vs. 46.3% female (1,165/2,515), while the sex of one D. reticulatus specimen (0.04%) was not identifiable due to a deteriorated condition. Regarding D. marginatus, 45.8% (347/758) of specimens were male, 54.1% (410/758) female and one specimen (0.1%) was gynandromorph.

Geographic distribution of received ticks

For 98.2% (3,234/3,292) of the ticks, specifically for 97.7% (2,457/2,515) of D. reticulatus and 100.0% of D. marginatus (758/758), the federal state of origin was unambiguous, whereas the origin was unclear due to missing information or travel activity of the senders for 58 ticks. Dermacentor reticulatus was collected in all federal states of Germany, while D. marginatus was mainly found in the southwestern part of the country, in the states of Baden-Wuerttemberg, Bavaria, Hesse, North Rhine-Westphalia, Rhineland-Palatinate and Saarland (Table 1, Figures 1, 2). Interestingly, more D. marginatus than D. reticulatus were sent in from those states, except for Hesse and Saarland (Table 1). Particularly remarkable locations for both tick species are listed in Table 2. A single D. marginatus specimen was found on a cat in Mecklenburg-Western Pomerania in northern Germany (Figure 2). This specimen was confirmed as D. marginatus by 16S rDNA PCR and sequencing. The obtained sequence showed 99.7% identity to a previously published D. marginatus sequence (GenBank acc. no. MH645513, 100% query cover [QC]), while identity to D. reticulatus amounted to only 90.1% (acc. no. MT478096, 100% QC). The owners reported that the cat had no travel history. Furthermore, one D. marginatus specimen from North Rhine-Westphalia collected in the town of Herne at 7.24° E/51.53° N, i.e., 0.5° north of the currently accepted distribution limit (10, 46), was also confirmed by DNA analysis. The obtained 16S rDNA sequence showed 99.5% identity to publicly available D. marginatus sequences (e.g., acc. no. MN907447, 100% QC) and 90.3% identity to D. reticulatus (e.g., acc. no. MT478096, 100% QC).

TABLE 1

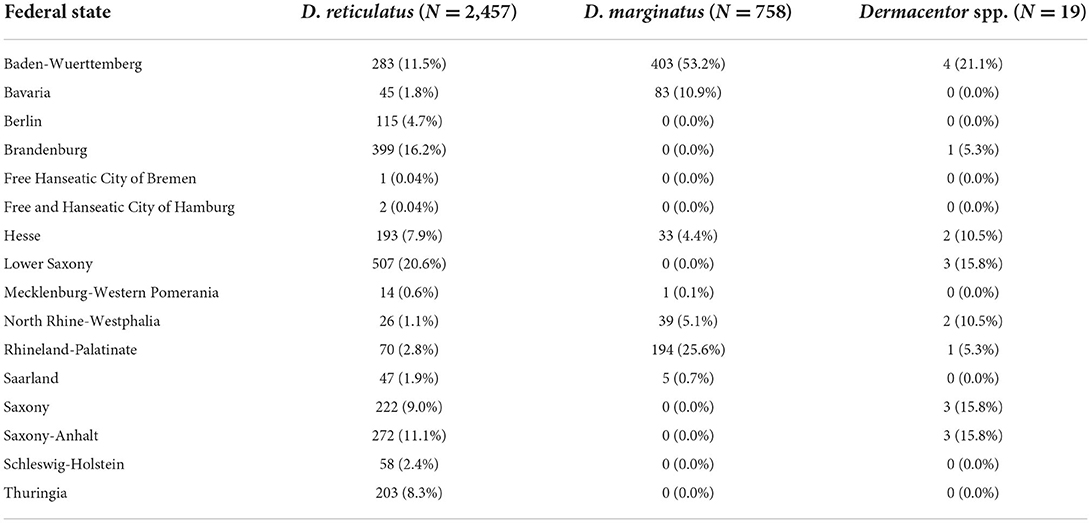

Table 1. Distribution of Dermacentor ticks with unambiguous origin among the federal states of Germany, received from March 2020 to May 2021.

FIGURE 1

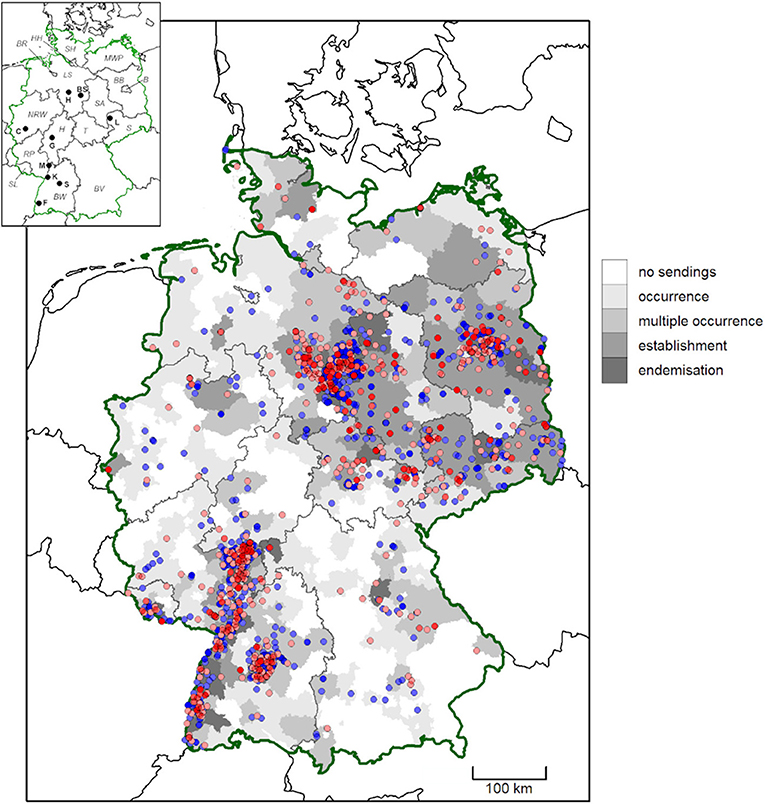

Figure 1. Geographic origin of D. reticulatus submissions from German citizens between February 2019 and May 2021. Districts are shaded according to evidence for tick occurrence (single tick/location), multiple occurrence (2–5 ticks/location), establishment (>5 ticks/location) and endemisation (>5 ticks/location, from multiple years). High and medium accuracy records are depicted as dots. Locations previously published by Drehmann et al. (10) are shown in blue, while new records are shown in red. More intense colors indicate multiple findings in close proximity. In the map insert, federal states are abbreviated with italic letters (B, Berlin; BR, Bremen; BW, Baden-Wuerttemberg; BV, Bavaria; BB, Brandenburg; HH, Free and Hanseatic city of Hamburg; H, Hesse; LS, Lower Saxony; MWP, Mecklenburg-Western Pomerania; NRW, North Rhine-Westphalia; RP, Rhineland-Palatinate; S, Saxony; SA, Saxony-Anhalt; SH, Schleswig-Holstein; SL, Saarland; T, Thuringia) and cities with bold letters (BS, Brunswick; C, Cologne; F, Freiburg; G, Gießen; H, Hanover; K, Karlsruhe; L, Leipzig; M, Mannheim; S, Stuttgart).

FIGURE 2

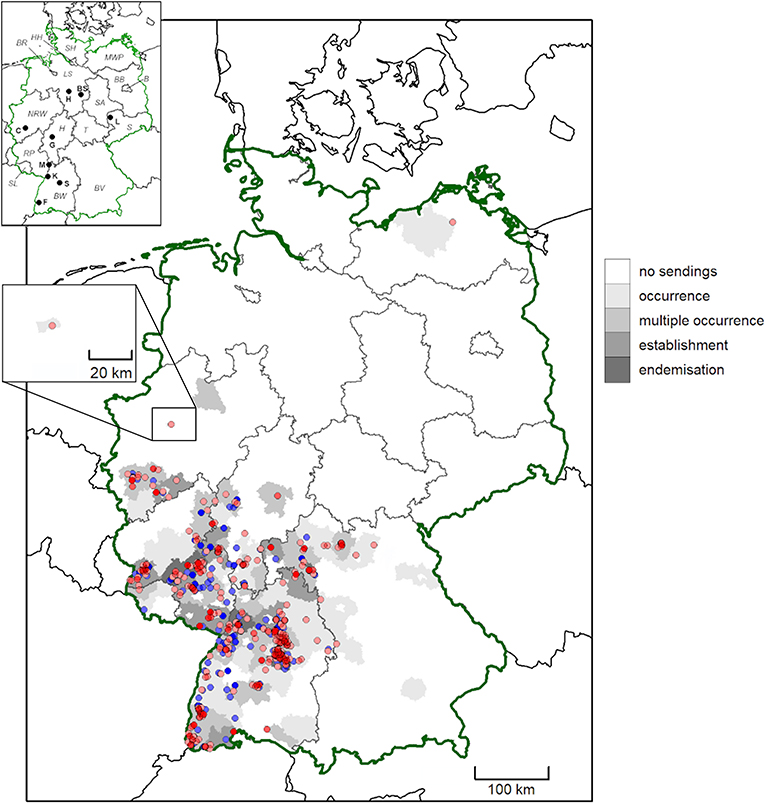

Figure 2. Geographic origin of D. marginatus submissions from German citizens between February 2019 and May 2021. Districts are shaded according to evidence for tick occurrence (single tick/location), multiple occurrence (2–5 ticks/location), establishment (>5 ticks/location) and endemisation (>5 ticks/location, from multiple years). High and medium accuracy records are depicted as dots. Locations previously published by Drehmann et al. (10) are shown in blue, while new records are shown in red. More intense colors indicate multiple findings in close proximity. In the map insert, federal states are abbreviated with italic letters (B, Berlin; BR, Bremen; BW, Baden-Wuerttemberg; BV, Bavaria; BB, Brandenburg; HH, Free and Hanseatic city of Hamburg; H, Hesse; LS, Lower Saxony; MWP, Mecklenburg-Western Pomerania; NRW, North Rhine-Westphalia; RP, Rhineland-Palatinate; S, Saxony; SA, Saxony-Anhalt; SH, Schleswig-Holstein; SL, Saarland; T, Thuringia) and cities with bold letters (BS, Brunswick; C, Cologne; F, Freiburg; G, Gießen; H, Hanover; K, Karlsruhe; L, Leipzig; M, Mannheim; S, Stuttgart).

TABLE 2

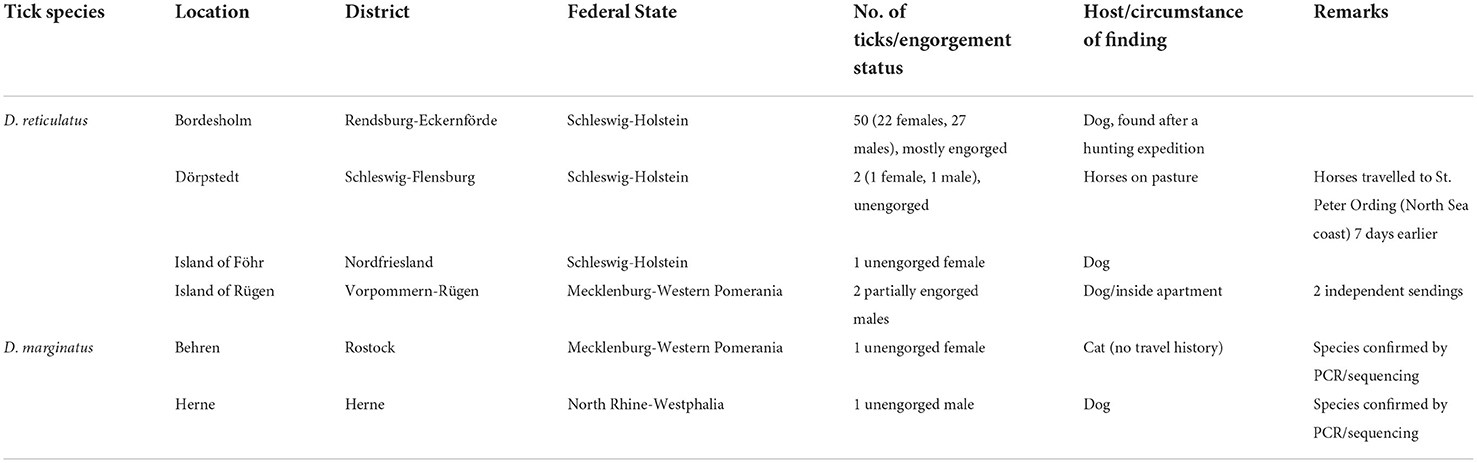

Table 2. Outstanding locations of D. reticulatus and D. marginatus findings in Germany.

Taken together, data from Drehmann et al. (10) and the present study period yielded 1,862 individual locations for D. reticulatus and 666 for D. marginatus. From 1,253 (67.3%) and 511 (76.7%) of these locations, respectively, only single ticks were received, whereas “multiple occurrence” was noted at 467 (25.1%) and 129 (19.4%) locations. From 116 (9.2%) and 20 (3.0%) locations, more than five ticks, including males and females, were received (“establishment”). There was evidence of endemisation, i.e., sendings from multiple years, for 26 (1.4%) locations regarding D. reticulatus and 6 (0.9%) locations regarding D. marginatus.

In the present study, the accuracy of the reported location of finding was characterized as high for 244 D. reticulatus and 289 D. marginatus specimens and as medium in 1,206 and 209 cases, respectively. These locations are pictured in Figures 1, 2, together with the locations reported by Drehmann et al. (10) and the evidence for “occurrence,” “multiple occurrence,” “establishment,” and “endemisation” on district level.

Confirmed occurrence

Distribution maps of confirmed occurrence for both species based on findings on the vegetation, on stationary pastured animals (on-site infestations) and on terrestrial wildlife (infestations on-site or in the closer vicinity), are shown in Figure 3. As compared to previous findings (47), several additional administrative districts with confirmed Dermacentor occurrence, i.e., an infestation/infestation risk within the respective area, were noted (shaded in yellow in Figure 3). However, for most records from horses, a previous travel history cannot be entirely excluded.

FIGURE 3

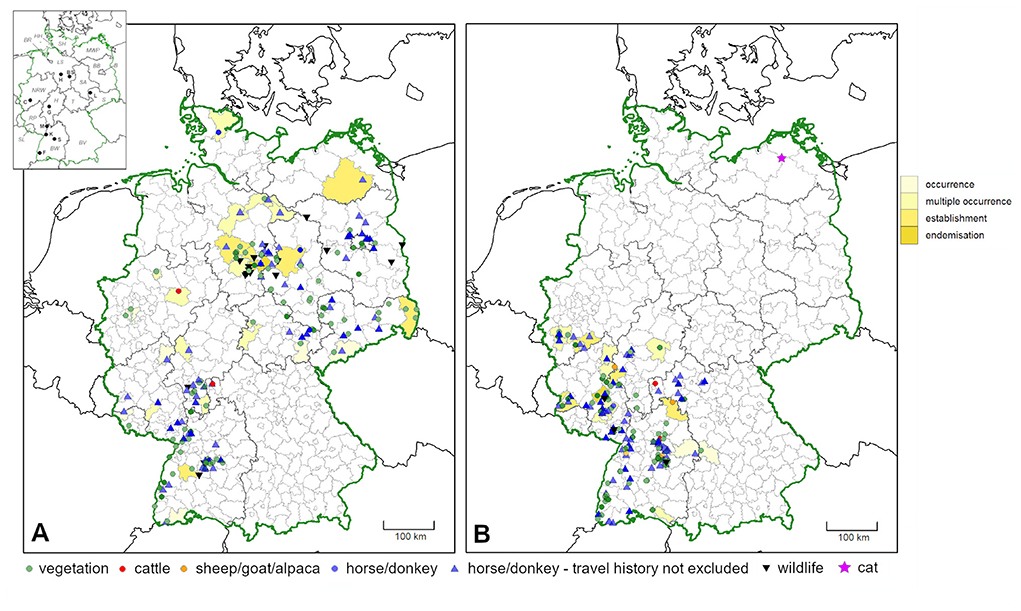

Figure 3. Confirmed occurrence of (A) D. reticulatus and (B) D. marginatus in Germany, based on ticks found on the vegetation and infestations on-site or in the closer vicinity, i.e., ticks found on pastured animals and terrestrial wildlife. Additionally, horses/donkeys for which a travel history cannot be entirely excluded were pictured. Maps include data of the present study, from Drehmann et al. (10) and locations where ticks were flagged from the vegetation by the involved research institutions. More intense colors indicate multiple findings in close proximity. Administrative districts with previously unreported confirmed Dermacentor occurrence as compared to Rubel et al. (47) are shaded in yellow. In addition, the finding of D. marginatus in Mecklenburg-Western Pomerania on a cat without travel history is pictured by a star. In the map insert, federal states are abbreviated with italic letters (B, Berlin; BR, Bremen; BW, Baden-Wuerttemberg; BV, Bavaria; BB, Brandenburg; HH, Free and Hanseatic city of Hamburg; H, Hesse; LS, Lower Saxony; MWP, Mecklenburg-Western Pomerania; NRW, North Rhine-Westphalia; RP, Rhineland-Palatinate; S, Saxony; SA, Saxony-Anhalt; SH, Schleswig-Holstein; SL, Saarland; T, Thuringia) and cities with bold letters (BS, Brunswick; C, Cologne; F, Freiburg; G, Gießen; H, Hanover; K, Karlsruhe; L, Leipzig; M, Mannheim; S, Stuttgart).

Of the 155 individual “high-accuracy” locations for D. reticulatus, 77 (49.7%) were based on multiple tick findings. At 15 (9.7%) of these locations, more than five ticks were found, including both male and female specimens, and thus suggesting population establishment. At 10 (6.5%) locations (six in the federal state of Lower Saxony, as well as three in Baden-Wuerttemberg and one location in Thuringia), D. reticulatus endemisation was indicated by tick findings in multiple years.

Regarding D. marginatus, 152 individual “high-accuracy” locations were recorded, of which 70 (46.1%) were based on multiple tick findings. Population establishment as defined above was suggestive at 16 locations (10.5%), while endemisation was proven by sendings from multiple years in four cases (2.6%).

Temporal course of citizen's Dermacentor collections

For 2,119/2,515 D. reticulatus and 756/758 D. marginatus specimens, information on the month of collection was provided. Findings of D. reticulatus peaked from September to November 2020, while a smaller peak was noted in March and April of both 2020 and 2021. In contrast, most D. marginatus were found in the months of March, April, and May compared to the autumn months (Figure 4).

FIGURE 4

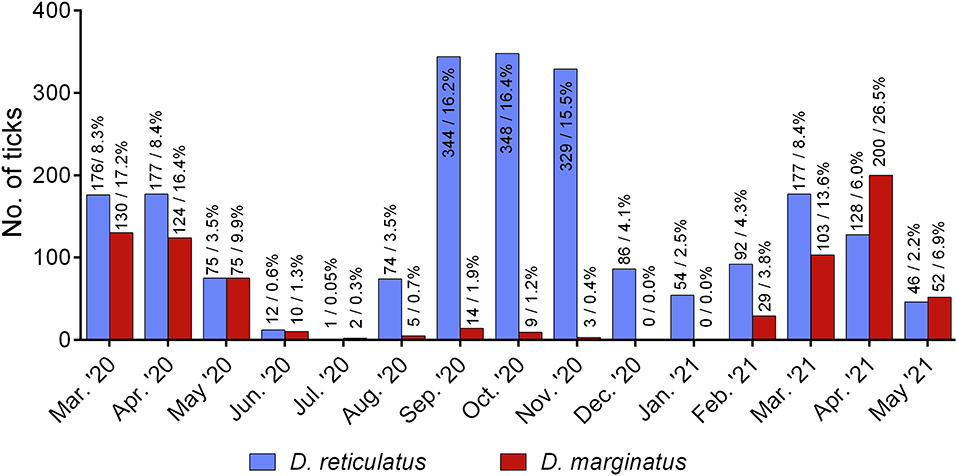

Figure 4. D. reticulatus (N = 2,119) and D. marginatus (N = 756) specimens by month of collection, sent in by German citizens from March 2020 to May 2021.

Reported host association and human tick bites

Information on host association was available for 1,960/2,515 D. reticulatus and 621/758 D. marginatus specimens. Detailed information on the host association is presented in Table 3. Dermacentor reticulatus was mainly found on domestic animals (1,467/1,960, 74.8%), predominantly dogs (1,311/1,960, 66.9%), while 9.3% (183/1,960) were discovered on the human body and only 22 specimens (1.1%) were associated with wild animals. The remaining 14.7% (288/1,960) were discovered off-host (e.g., on vegetation). Dermacentor marginatus was also mainly associated with domestic animals (240/621, 38.6%), especially horses (95/621, 15.3%) and goats (72/621, 11.6%), whereas only a low proportion was found on dogs (41/621, 6.6%). Humans were the putative host in 29.3% of cases (182/621), and 4 specimens (0.6%) were discovered on wildlife. The remaining 31.4% (195/621) were found off-host.

TABLE 3

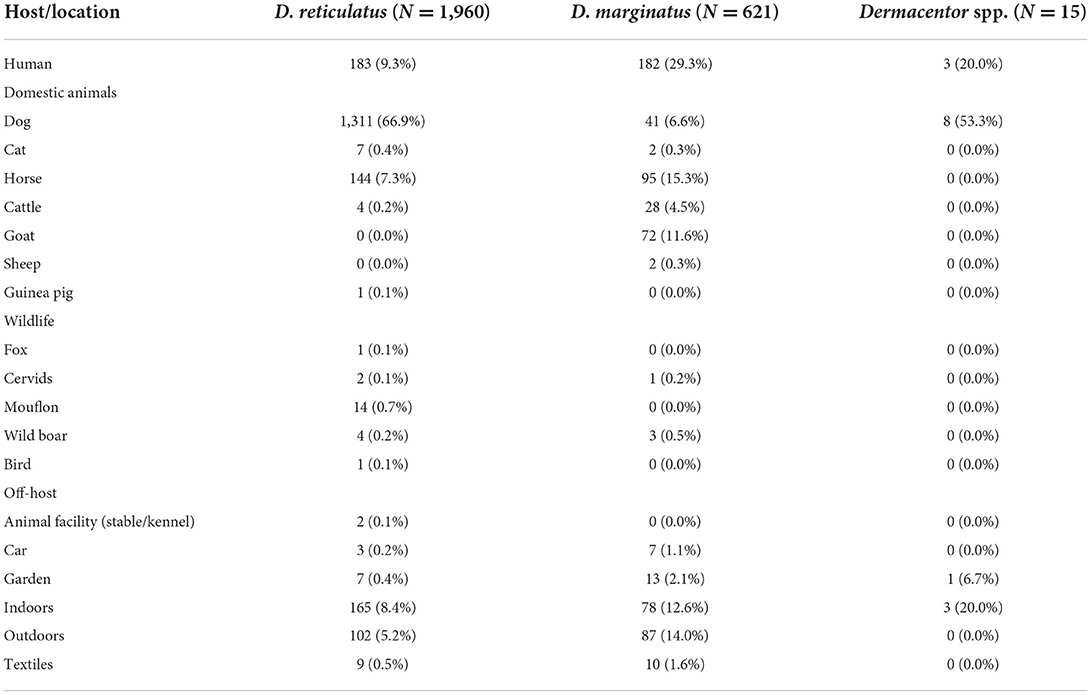

Table 3. Host association or location of collection, respectively, for the subset of Dermacentor ticks for which this information was available.

Human tick bites were reported in 0.7% (14/1,960) of host-assigned D. reticulatus (7.7% of all D. reticulatus specimens discovered on humans), and 3.4% (21/621) of host-assigned D. marginatus (11.5% of specimens discovered on humans).

Potential Dermacentor spp. distributions

R code and Maxent replicate outputs have been deposited to the Open Science Framework for reuse (48). In total, 119 D. reticulatus and 107 D. marginatus occurrence points were included in model development. After excluding all environmental variables with VIF > 10, 9 environmental variables remained (Figure 5A). Correlation coefficients for the final selection of environmental variables ranged between −0.76 and 0.04, and VIF ranged between 1.07 and 4.46.

FIGURE 5

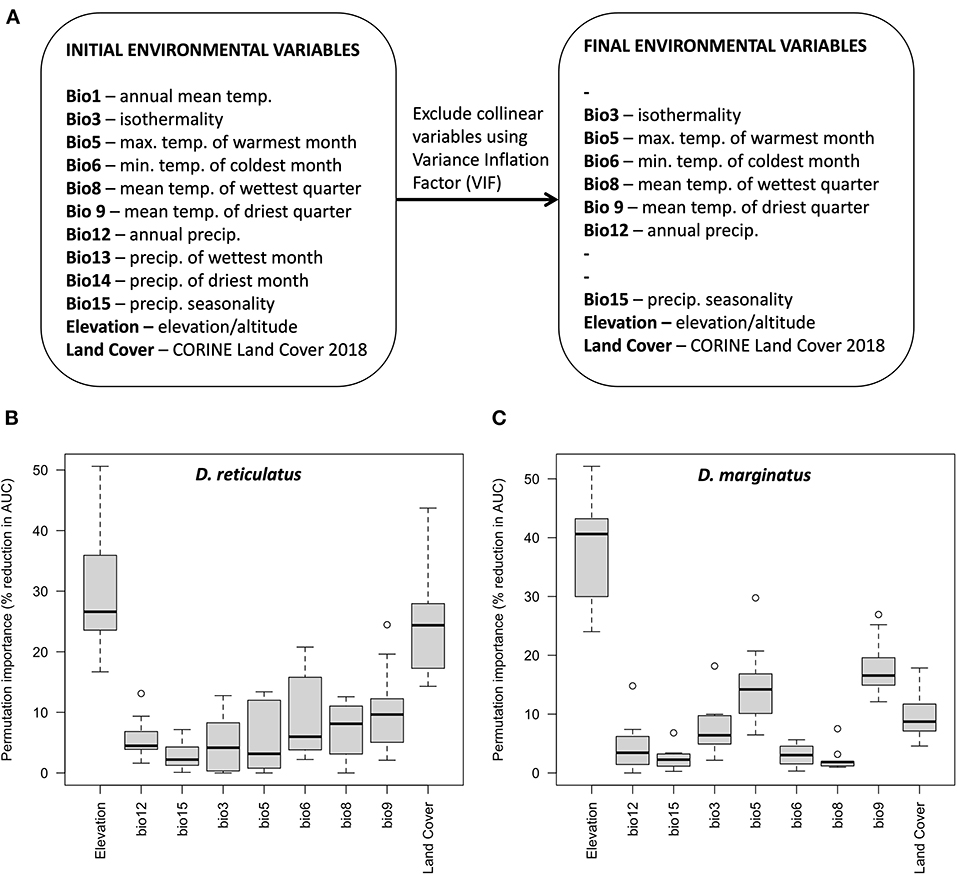

Figure 5. Environmental variable selection for both species initially based on ecological relevance and after stepwise selection to remove collinearity based on the Variance Inflation Factor, VIF (A); and variable permutation importance for D. reticulatus (B) and D. marginatus (C). The permutation importance indicates the percentage reduction in model performance (AUC) when each variable is randomly permuted.

The area predicted by the Maxent models as being environmentally suitable for D. reticulatus and D. marginatus (Figure 6) encompasses the known geographical distribution of the species (cf. Figure 3). The maps highlight certain suitability hotspots, including the Rhine-Plain in the South-West for both species, and the North-East for D. reticulatus. The standard deviation for both species' outputs was low across the majority of the study area, indicating consistency between model replicates, with higher deviation in regions with fewer occurrence data points, for example, in the North-West for D. reticulatus and South-East for D. marginatus. The models for both species performed well statistically (D. reticulatus AUC = 0.67 [0.03 S.D.], TSS = 0.31 [0.04]; D. marginatus AUC = 0.80 [0.02 S.D.], TSS = 0.56 [0.07]), indicating good predictive capability. The lower AUC values for D. reticulatus may be a consequence of the now widespread distribution of this species within Germany, which makes it difficult for the model to discriminate between suitable and unsuitable habitats (49). This is to be expected as it is a known artifact of the AUC. The probability threshold which maximized sensitivity and specificity was 0.46 (0.11 S.D.) for D. reticulatus and 0.24 (0.06) for D. marginatus.

FIGURE 6

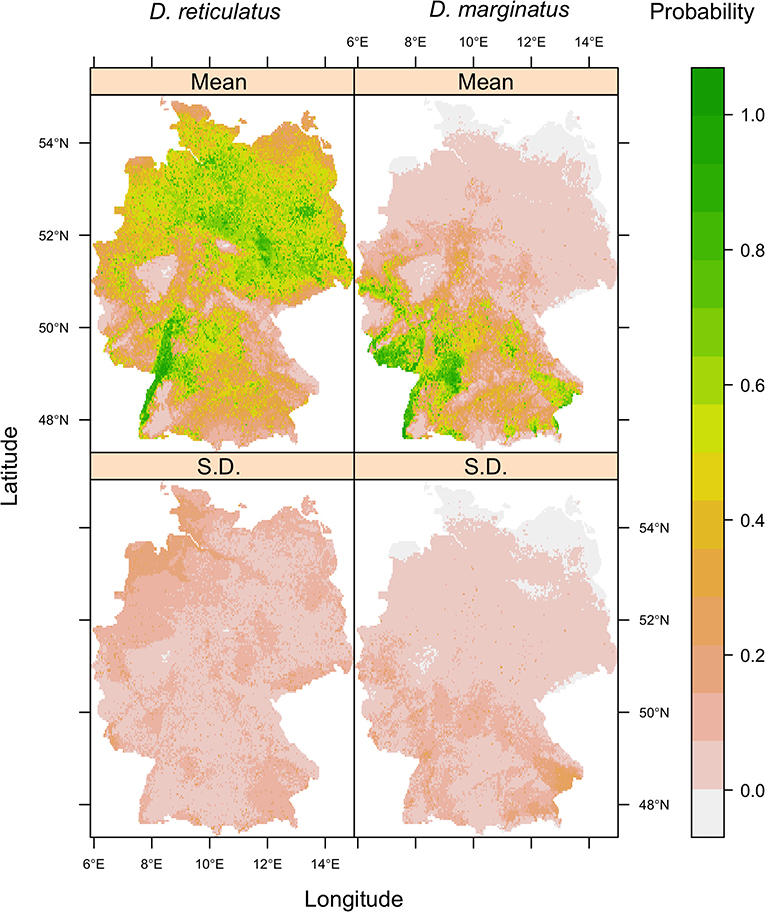

Figure 6. Mean (top row) and standard deviation (bottom row) of 10 Maxent model replicates for D. reticulatus (left column) and D. marginatus (right column). Model predictions represent the predicted environmental suitability for each species, whereby 0 indicates low potential environmental suitability and 1 indicates a high potential environmental suitability. The threshold probability which maximized sensitivity and specificity was 0.46 (0.11 S.D.) for D. reticulatus and 0.24 (0.06) for D. marginatus. Each replicate was run using a random 70% subset of the occurrence and pseudoabsence data.

Among the nine environmental variables, elevation was the most influential and caused the greatest percentage reduction in model performance when permuted for both D. marginatus and D. reticulatus (Figures 5B,C). When all other variables were held constant, environmental suitability increased with increasing elevation for D. marginatus, and decreased with increasing elevation for D. reticulatus. Models run using only elevation indicated a unimodal relationship with increasing environmental suitability for D. marginatus up to ~250 m above sea level, and for D. reticulatus up to ~100 m above sea level, decreasing thereafter [see Maxent replicate outputs [response plots and “maxent.html” files]; (48)]. The permutation importance of land cover was also high for D. reticulatus (Figure 5B) and a broad range of land classifications were associated with high probabilities of environmental suitability [see Maxent replicate outputs [response plots and “maxent.html” files]; (48)]. This included urban and disturbed land types (“discontinuous urban fabric,” “industrial or commercial units,” “mineral extraction sites,” and “dump sites”), amenity areas (“green urban areas” and “sport and leisure facilities”), fragmented habitats (“discontinuous urban fabric” and “complex cultivation patterns”), “natural grasslands,” and grid cells including “water courses” and “fruit/berry plantations.” Although the permutation importance of land cover for D. marginatus was lower, there were interesting differences in the land cover types associated with high probabilities of environmental suitability, which included forest/shrub/natural/fragmented areas (“broad-leaved forest,” “mixed forest,” “traditional woodland-shrub,” “vineyards,” “fruit/berry plantations,” “complex cultivation patterns,” and “land principally occupied by agriculture with significant areas of natural vegetation”) as well as disturbed land (grid cells including “airports” and “mineral extraction sites”). Similarly, for D. reticulatus cf. D. marginatus, there was greater variation in importance between the Bioclim variables (Figure 5).

Discussion

The geographical range expansion of ticks, as observed especially for D. reticulatus in Europe (3–10), is concerning in the light of their vector potential. Citizen science studies are useful tools to compile large tick collections with geographic information in a relatively short amount of time, thus helping to assess species distributions across large areas (10, 50, 51). Nevertheless, the data have to be interpreted cautiously, as information provided by citizens can be inaccurate with regard to the origin of the tick, e.g., if a previous travel history is not indicated (51). The present study provides an update of Dermacentor distribution in Germany based on a citizen science project initiated in 2019, which classified the accuracy of the obtained records based on the provided information (e.g., travel history), tick engorgement status and mobility of the involved tick host. Consequently, individual locations were only shown in distribution maps when representing “high” and “medium” accuracy records (10), and potential distributions were modeled based on “high” accuracy records only. Nevertheless, finding of a tick at a certain location, even if it did not originate there, indicates transportation of ticks and thus the potential of further range expansion. Therefore, district-level classification of tick occurrence, establishment and endemisation included all obtained records. In addition, “high” accuracy locations, referring to ticks collected from pastured animals, wildlife or directly from the vegetation, were mapped separately to visualize confirmed occurrence of each species in terms of an infestation risk on-site or in the close vicinity.

Dermacentor spp. distributions observed and predicted in this study were more widespread than previously reported. As compared to previous findings (47), several additional administrative districts with Dermacentor presence were noted. This resulted in a broader range of potential environmental suitability predicted by species distribution modeling, particularly for D. marginatus, than previous modeling studies suggest (52), highlighting the importance of ongoing surveillance for accurate risk assessments. Among the nine environmental variables included in the models, elevation was the most influential for both D. marginatus and D. reticulatus. While environmental suitability increased with increasing elevation for D. marginatus, it decreased for D. reticulatus. This is consistent with the known distribution of D. marginatus at high elevation locations throughout Europe [reviewed by (37)]. Further important variables were land cover for D. reticulatus and mean temperature of the driest quarter for D. marginatus. For D. reticulatus, a greater variation in importance between the Bioclim variables as compared to D. marginatus was found, possibly associated with the more generalist life history of D. reticulatus. Overall, our bioclimatic model predicted a widespread distribution of environments suitable for D. reticulatus in Germany. Predicted probability of environmental suitability was particularly high in established “hotspot” areas (10), but was also elevated throughout much of northern Germany. This reflects the input data, but is also consistent with the finding of range expansion in Germany reported by Drehmann et al. (10).

At approximately half of the locations with confirmed occurrence for each species, multiple ticks were found. Presence of more than five ticks suggested population establishment at ~10% of cases, and findings in multiple years indicated endemisation at 6.5% of high accuracy location for D. reticulatus and 2.6% for D. marginatus. Additionally, multiple independent “medium” accuracy records in close proximity can also be interpreted as strong evidence of Dermacentor endemisation. Based on these data, occurrence of D. reticulatus in all federal states of Germany is confirmed, including the northernmost state of Schleswig-Holstein. In this federal state, two D. reticulatus specimens, one male and one female, were found on two horses from the same stable. The horse owners confirmed that the horses had no travel history to any other federal state, although they had visited the North Sea coast seven days earlier. However, as both ticks were unengorged it is very unlikely that they were acquired 7 days before they were discovered. Furthermore, several additional D. reticulatus specimens were found on dogs in this federal state, e.g., fifty ticks on a single dog after a hunting expedition, and sporadic findings on the tourist destination islands of Sylt and Föhr. This is not surprising, as this tick species has already been detected by flagging the vegetation in climatically similar coastal areas of The Netherlands (53) and at the Baltic coast in the federal state of Mecklenburg-Western Pomerania (54), as well as on a migrating golden jackal in Denmark (55). With regard to the observed clusters of D. reticulatus near the cities Hannover and Stuttgart, these are probably due to increased media coverage and citizen participation in proximity to the involved research institutions, as already proposed by Drehmann et al. (10). Nevertheless, D. reticulatus endemisation has been proven at several locations near Hanover by flagging ticks from the vegetation in several consecutive years.

In contrast to D. reticulatus, a comparable spread of D. marginatus is not evident. D. marginatus generally has a more southern distribution than D. reticulatus, probably due to temperature requirements (52), which is underlined by the fact that D. marginatus occurs primarily in traditional vine cultivation regions of Germany. Hence, the land cover type “vineyards” was among the variables associated with high probability of D. marginatus occurrence in the species distribution model. However, multiple “high” accuracy findings near Cologne in North-Rhine Westphalia confirm the previously reported expansion to the northwest of the formerly recognized range (10). Occurrence of D. marginatus in that area has also been acknowledged in other studies (46). A bioclimatic model, developed using data dating back to the 1970s, suggested a potential D. marginatus distribution extending well into northern Germany, with some southern areas of Lower Saxony and Saxony-Anhalt identified as potentially suitable habitat (52). Therefore, the risk of establishment of viable D. marginatus populations in that area is given. Our bioclimatic species distribution model, developed using a machine learning method and contemporary records of Dermacentor spp. occurrences from this study and Drehmann et al. (10), replicated this, but also predicted a wider distribution of environments suitable for D. marginatus, extending into Bavaria and North Rhine-Westphalia. This wider predicted geographic range of environmental suitability included the town of Herne (7.24° E/51.53° N), where a “medium” accuracy record was noted, although 51° N is currently considered the northern distribution limit in Western and Central Europe (10, 46). As only one tick was found on a dog at that location, occurrence of D. marginatus in that area needs to be confirmed by further studies. Furthermore, a single D. marginatus specimen was found in Mecklenburg-Western Pomerania in the northeast of Germany, at a distance of several hundred kilometers northwards from all other findings. The model did not predict suitable environmental conditions at the location of the record from Mecklenburg-Western Pomerania. However, it is plausible that this tick may have been imported into the area and that this is not representative of an established population. Although the senders reported that the tick was found on a cat without any travel history, the tick may have been transported on another animal or even within a vehicle. For example, another tick sender indicated that he first observed Dermacentor ticks within a shipment of hay obtained from a different federal state, before the ticks were repeatedly noticed in the area a year later. This illustrates the danger and routes of tick introduction into previously non-endemic areas.

It should be noted that the bioclimatic species distribution models reported here predict the potential range of both Dermacentor spp. given the relationships between the environment and the occurrence records used as model input. The realized range of a species depends on a number of additional factors, including translocation and host availability, for example. In addition, the predicted distributions may be subject to change when additional data become available—this is evident when comparing the results presented here with the model developed by Walter et al. (52). This is especially the case when modeling species invasions, such as D. reticulatus, whereby species distribution models may underpredict the potential range of the species [reviewed by (21)]. However, the species distribution models developed here are valuable tools for targeting future scientific studies, veterinary surveillance, and educating the public in areas of potentially elevated risk. It is recommended that these models are updated periodically to capture potential future changes to these species distributions (56), and as more contemporary data become available.

The temporal course of the citizens' tick collections confirm the bimodal activity pattern of both tick species (38, 57, 58). In contrast to the year 2019, when most of the received D. reticulatus specimens were collected in September (10), collection of this species was more evenly spread between the months of September, October and November 2020, which may be due to year-to-year variation of climatic conditions. In 2020, the month of November was particularly warm with an average temperature of 6.0°C, compared to 5.2°C in 2019 (59). However, it should be kept in mind that the temporal course of the collections may have also been influenced by media attention or human behavior. For example, warm temperatures in November 2020 may have resulted in more outdoor activity than in the previous year, and thus increased chances of encountering ticks. In contrast to D. marginatus, D. reticulatus was collected throughout the winter months (December to February), confirming winter activity of this tick species. The seasonal pattern of D. reticulatus activity in Germany is paralleled by the occurrence of autochthonous canine babesiosis cases, which have become particularly frequent as of 2019 (12, 13), emphasizing the need of year-round tick-protection.

The recorded host association of both species confirms the previously reported pattern, with D. reticulatus mainly occurring on dogs and D. marginatus mainly on hoofed animals (10). The fact that only few specimens were found on wildlife can be attributed to the citizen science study design, with a relatively low participation of hunters. Interestingly, a larger percentage of both species was found on the human body than in the previous collection period (D. reticulatus: 9.34 vs. 4.4%; D. marginatus: 29.3 vs. 12.6%) (10). Nevertheless, the proportion of actual tick bites among the specimens encountered on humans remained comparable with the previous report (D. reticulatus: 8.2 vs. 7.7%; D. marginatus: 13.6 vs. 11.2%) (10). The reason for the increased reports of human Dermacentor exposure remain unclear, but it is possible that mostly pet or livestock owners participated in the first year of the study, while continuing media coverage including a highly publicized press release on the range expansion of Dermacentor ticks following the publication of Drehmann et al. (10) may have raised attention for the subject of ticks, tick-borne diseases and the citizen science project also among non-animal owners and subsequently increased their participation.

Human exposure to D. reticulatus is primarily concerning in light of its vector potential for TBEV. The northern and eastern spread of TBEV in Germany, with more and more districts being declared risk areas (60) as well as further transmission foci detected outside of known risk areas, may thus be linked to the spread of D. reticulatus (61, 62). Particularly the recently declared TBEV risk areas in the federal states of Brandenburg and Saxony in eastern Germany (60), near the Polish and Czech borders, were characterized by many D. reticulatus records. Expansion of D. reticulatus in both of these neighboring countries has been reported (4, 6) and both of them are endemic for TBE. In fact, the Czech Republic has one of the highest incidences in Europe (63). Thus, cross-border transport of ticks, e.g., by migrating wildlife, might drive TBE emergence in eastern Germany.

Conclusions

In summary, the present data verify the country-wide occurrence of D. reticulatus in Germany, including the Free and Hanseatic City of Hamburg, from which no Dermacentor ticks had been received previously (10). Furthermore, the northward shift of the distribution limit of D. marginatus was confirmed by citizen contributions of tick occurrences, and predictive models of environmental suitability. In addition, predictive modeling suggests a wider distribution of suitable environments than are currently occupied by Dermacentor ticks, i.e., a continuing risk of range expansion. Future work should include sampling vegetation to investigate tick endemisation at several locations, especially regarding D. reticulatus in the northernmost state of Schleswig-Holstein and regarding the D. marginatus findings in the northern part of North-Rhine Westphalia and in Mecklenburg Western-Pomerania. Further studies on increasing endemisation of Babesia canis, e.g., by pathogen screening in Dermacentor ticks, are highly desirable, as are studies to unravel the role of D. reticulatus as a driver of TBEV spread in Germany. Given the currently reported increasing numbers of autochthonous canine babesiosis cases (12, 13) in conjunction with the nationwide D. reticulatus occurrence and its activity during winter or the colder months, which complements that of Ixodes ricinus, a year-round tick protection of especially dogs all over Germany is strongly recommended. Furthermore, dogs entering Germany should be screened for B. canis infection to prevent establishment of further transmission foci due to importation of the pathogen.

Data availability statement

Maxent model output and R scripts to replicate the models have been deposited to the Open Science Framework for reuse and reanalysis (48). However, due to the nature of this research, participants of this study did not agree for their data to be shared publicly, so supporting tick occurrence data is not available and some metadata associated with the Maxent runs which contain potentially sensitive data (occurrence locations) have been withheld from the repository. Further inquiries can be directed to the corresponding author/s.

Author contributions

AS: investigation, data curation, formal analysis, visualization, and writing—original draft. AL: investigation and data curation. JP, MD, KF, and DT: investigation. HR: formal analysis, visualization, and writing—review and editing. MN: formal analysis and writing—review and editing. GD: conceptualization and writing—review and editing. UM: conceptualization, project administration, supervision, and writing—review and editing. CS: conceptualization, funding acquisition, project administration, supervision, and writing—review and editing. All authors contributed to the article and approved the submitted version.

Funding

AS and CS were supported by NorthTick (reference number J-No.: 38-2-7-19), a project co-funded by the European Union through the European Regional Development Fund and the Interreg North Sea Region Programme 2014-2020. This Open Access publication was funded by the Deutsche Forschungsgemeinschaft (DFG, German Research Foundation) - 491094227 Open Access Publication Funding and the University of Veterinary Medicine Hannover, Foundation.

Acknowledgments

The authors would like to thank all citizens participating in this study for their valuable support.

Conflict of interest

Author CS declares that she repeatedly has lectured for and acted as consultant for (veterinary) pharmaceutical companies and has previous and ongoing research collaborations with various (veterinary) pharmaceutical companies. Authors HR and MN have received funding from, and have an ongoing collaboration with, MSD Animal Health UK (veterinary pharmaceutical company) as part of a separate project to model the impact of climate change on ticks in the UK and Eurasian continent.

The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher's note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
