Ureteral stents are hollow tubes that are inserted into the ureter to maintain the flow of urine from the kidney to the bladder. However, the use of these indwelling stents is associated with potential complications. Biofilm, an organized consortium of bacterial species embedded within a self-producing extracellular matrix, can attach to the outer and inner surfaces of ureteral stents. Furthermore, encrustation - defined as the buildup of mineral deposits on the stent surface - can occur independently or in parallel with biofilm formation. Both phenomena can cause stent obstruction, which can lead to obstructive pyelonephritis and make stent removal difficult. Understanding the influence of flow on the development of biofilm and encrustation and the impact of small mechanical environmental changes (e.g., wall shear stress distribution) is key to improve the long-term performance of stents. Identifying the optimal stent properties to prevent early bacterial attachment and/or crystal deposition and their growth, would represent a breakthrough in reducing biofilm-/encrustation-associated complications. This review identifies the most prevalent bacterial strains and crystal types associated with ureteral stents, and the process of their association with the stent surface, which often depends on patient comorbidities, stent material, and indwelling time. Furthermore, we focus on the often-overlooked role of fluid dynamics on biofilm and encrustation development in ureteral stents, across a range of physical scales (i.e., from micro- to macro-scale) with the aim of providing a knowledge base to inform the development of safer and more effective ureteral stents.
1 Introduction
Ureteral stents are indwelling medical devices commonly used to maintain the patency of the obstructed ureter to preserve/restore urine flow from the kidney to the bladder (1). A typical ureteral stent is a thin-walled polymeric tube with a length of 20-30 cm and an outer diameter ranging from 1.60 mm to 2.67 mm (2). A stent is equipped with small circular openings, known as side holes, that are often positioned throughout its length, allowing exchange of flow. Despite their widespread use, more than 80% of patients experience stent-associated complications, negatively impacting their quality of life and the healthcare resources (3, 4). The most common complications associated with ureteral stenting are: (i) encrustation and biofilm formation, potentially leading to occlusion and urinary tract infections (UTIs) (5, 6); (ii) vesicoureteral reflux (VUR), which involves the retrograde flow of urine from the bladder into the ureter (7); and (iii) loss of ureteral peristalsis, irritation of the urothelial wall, and haematuria (8). This review centers on biofilm and encrustation as the primary causes of failure in long-term ureteral stenting (i.e., >six weeks). In short-term stenting the failure rate is low, and frequent urination, urinary urgency, and flank pain are the most common complications. Moreover, even if encrustation and biofilm can form within days, in some cases, forgotten stents with long placement time (e.g., 15 years) remain unobstructed (9). Biofilm is defined as a complex and organized consortium of surface-associated bacteria that are embedded within a self-produced matrix of extracellular polymeric substances (EPS) and grow in this protective matrix (10). We refer to encrustation as the build-up of mineral deposits/crystals, or other inorganic solid material, on the surface of ureteral stents or within the matrix of a biofilm.
Over the years, practice-driven stent design, material, and coating, as well as physics-driven design, have evolved to reduce the risk of complications (11). A double-J (DJ) stent design characterized by the presence of ‘pigtail’ coils at both extremities was introduced to prevent stent migration upon insertion (12). Recent clinical studies refer to pigtails as the most prone regions to developing encrustation in stented patients with urolithiasis (5, 13). In addition, other in vitro studies point to the side holes as the primary location of early-stage biofilm formation and crystal deposition due to the presence of laminar vortices and low wall shear stress (WSS) levels (14, 15).
Regarding the ureteral stent material, silicone appears to have superior long-term performance against encrustation and biofilms when compared to other alternative polymers (16). However, the lower tensile strength and higher surface friction associated with silicone can pose challenges during stent placement and removal, contributing to a preference for polyurethane stents (17). Coating the stent surface to decrease encrustation has also been explored; specifically, heparin (18), amorphous diamond-like carbon (19) and hydrogel coatings have shown promising performance (16). Antimicrobial agents, like triclosan and silver, have also shown positive outcomes against biofilm formation but have raised concerns over the potential development of antimicrobial resistance (11, 20).
In parallel to stent coatings and materials, fluid dynamics-driven design is an active research area that is being pursued with the aim of reducing encrustation and biofilm formation in stents. Some studies focused on fluid mechanical changes due to different stent sizes (2, 21–23), and the diameter (2, 14) and spatial distribution (24, 25) of side holes using mathematical modeling (26–28), computational fluid dynamics (CFD) (21–25, 29–31), and in vitro flow systems (2, 14, 22). However, only a limited number of studies have analyzed the interplay between flow metrics (such as WSS), crystal deposition (14, 32, 33) and bacterial attachment (34) within a stented ureter. Furthermore, translating computational and experimental findings into actual stent improvements is a challenging endeavor that is often ignored or underestimated.
This comprehensive review aims to introduce and discuss the methods used to identify, quantify, localize, and manage biofilm and encrustation in ureteral stents. It first describes the bacterial species involved in biofilm formation, the process of crystal formation, and the interplay between biofilm and encrustation. It subsequently discusses ways to prevent or minimize the growth of biofilms on ureteral stents that are specifically optimized based on fluid dynamics. These include methods based on computer simulations and experimental tests to spatially resolve relevant flow metrics, particularly WSS at different dimensional scales. Finally, it identifies a range of WSS values acting on the stent surface and elucidates the impact of WSS on biofilm formation and crystal deposition.
2 The dual threats: microbial colonization and encrustation
2.1 Biofilm formation
Like many other medical devices, ureteral stents can be a site for the adhesion and proliferation of bacteria and the deposition and nucleation of inorganic crystals. Upon insertion, ureteral stents make contact with urine, blood (in some cases) and uroepithelia, which creates a reversible accumulation of proteins, polysaccharides, and macromolecules on the stent surface. This process has been reported to take place within minutes after stent placement (35, 36). Initially, the Tamm-Horsfall glycoprotein, [one of the most abundant proteins in urine], polysaccharides, and other molecules, are absorbed by the surface of ureteral stents, forming a layer known as the conditioning film (37). Among the many proteins found in the conditioning film, Elwood and colleagues (38) reported that genitourinary cytokeratins (i.e., a group of proteins expressed in the cells of the genitourinary system) play a significant role in film formation. Haemoglobin and inflammatory proteins have also been identified on the surface of ureteral stents removed from patients (38).
In the second phase, irreversible deposition of proteins, extracellular polymeric substances, and bacteria takes place. Although one clinical study (38) suggested that the existence of a conditioning film does not lead to elevated levels of bacterial adhesion and colonization, others have shown that bacteria have a greater affinity for attaching to the different components of the conditioning film than to the stent material itself, suggesting that this film plays it plays a critical role in facilitating bacterial adhesion (39, 40). This finding underlies the necessity to explore new techniques to prevent the conditioning film from forming in the first place, in addition to preventing bacterial attachment to the stent material.
When attaching to abiotic surfaces, bacteria tend to adhere through non-specific interactions, such as covalent bonds, electrostatic forces, van der Walls forces and acid-base interactions (41). When bacteria attach to surfaces through electrostatic interactions, the binding is weak, and cells can detach when subjected to shear forces. To withstand shear forces and possible electrostatic repulsion in proximity to surfaces, bacteria have developed thin, hair-like, non-flagellar appendages made of fimbria adhesins that help them attach (42). For Escherichia coli, fimbriae allow an irreversible attachment of bacteria through the binding of fimbrial adhesin FimH to the mannose absorbed on the surface (43). These strong catch-bond interactions between bacteria and polysaccharides on the surface influence the initial stages of bacterial colonization and increase in number with exposure to urine flow (44). When subject to higher shear stress levels (0.1 – 13Pa), biofilms tend to grow in a dense, flat monolayer structure, while they develop a thicker multilayer structure for lower shear stresses (<0.01) (45, 46).
Furthermore, most micro-organisms can produce EPS consisting of polysaccharides, proteins, nucleic acids, lipids and other organic and inorganic substances (47), forming a protective ‘capsule’ surrounding the bacteria. The EPS plays a crucial role in maintaining the integrity of the biofilm, by retaining water, and exhibiting sorption properties, facilitating nutrient uptake (47). This matrix can also capture and dissolve substances from the surrounding environment, thereby providing nutrients to the biofilm cells. It also contributes toward biofilm adhesion to surfaces and facilitates cell-cell interactions, leading to colonization, growth and maturation (48). After reaching biofilm maturation, the EPS matrix functions as a barrier against environmental stimuli and antimicrobial compounds, posing significant challenges to biofilm eradication or removal (49). Jin and colleagues (50) used computational methods to demonstrate that biofilm formation is influenced by two main forces: the drag force that pushes the cells away from the surface by deforming the EPS matrix, and a tensile force that keeps the cells attached to the surface due to the fimbriae catch-bond interaction. However, environmental factors (temperature, pH, salinity and shear stress), surface properties (charge density, wettability, roughness, topography and stiffness), physicochemical properties of the cells (hydrophobicity, components and functional groups on the cell wall, proteins, nucleic acids, and extracellular polymeric substances), and microbial characteristics (bacterial strain, membrane charge, motility, and adhesion properties) contribute to and influence the process of biofilm formation and growth (36, 49).
While numerous factors contribute to biofilm development, bacteria remain the primary cause of its formation (a summary on biofilm formation in ureteral stents is provided in Box 1). Biofilms often comprise a combination of bacterial species, which compete and/or cooperate to form multi-species biofilms (51). To effectively combat biofilm formation in ureteral stents, it is crucial to identify and understand the specific bacterial species that thrive in this environment.
Box 1. Summary of biofilm formation in ureteral stents.
• Ureteral stents are susceptible to biofilm development.
• Conditioning film forms from proteins and polysaccharides on stent surfaces.
• Bacteria adhere to stents and the conditioning film.
• Bacteria use flagella for strong catch bonds to resist shear forces.
• EPS matrix provides protection and nutrients to bacteria.
• Biofilms are usually flat under high-shear stress and thick under low-shear stress.
2.2 The interplay between bacteria and crystals
In a clinical study, Waters et al. (26) reported that the presence of encrustation in ureteral stents does not directly correlate with the presence of bacteria. Indeed, encrustation can be found in the absence of bacterial species, as well as in the presence of either non-urease-producing species or urease-producing species, suggesting that focusing solely on antimicrobials as a preventative strategy against encrustation may not be sufficient (26). However, the type of crystals that adhere to the stent material may vary according to the presence or absence of bacteria (a summary on bacterial influence on crystals is provided in Box 2).
Box 2. Influence of bacterial presence on crystal types in ureteral stents.
• Crystal type on ureteral stents can vary based on the bacterial presence.
• In absence of bacteria, calcium oxalate monohydrate crystals are the main crystals in ureteral stents.
• In presence of bacteria, struvite and hydroxyapatite crystals predominate.
• Certain bacteria accelerate stent encrustation.
In the absence of bacteria, the main crystal constituent that appears on ureteral stents is calcium oxalate monohydrate (52, 53). High uric acid levels due to extreme ingestion of animal proteins can increase the formation of uric acid stones, decreasing the urine pH below 5, which contributes to the formation of calcium oxalate and carbonate crystals (54). Conversely, pregnancy increases the risk of calcium phosphate stones due to increased calcium excretion and elevated urine pH (55). In the presence of urease-producing bacteria, urea is catabolized, forming ammonia and significantly increasing the urine pH to alkaline conditions (52), inducing crystal formation due to reduced solubility of certain solutes. Once these crystals form, they can grow until they can no longer remain suspended in the urine. At this point, they precipitate on the ureteral stent surface (53) in the form of magnesium, ammonium, and phosphate, producing struvite (magnesium ammonium phosphate) and hydroxyapatite (calcium phosphate) crystals. Infections with Proteus mirabilis are particularly complicated, as this bacterium can catabolize urea six to ten times faster than other bacteria (56). However, even if it is often considered a problematic bacterium, a clinical study showed that its mere presence on ureteral stents does not translate to increased stent encrustation (26). Overall, these studies highlight the significance of the interplay between bacteria and crystal deposition in the development of encrustation. Bacteria-induced encrustation forms more rapidly and is often thicker. Since bacteria survive within the encrusting material, effective removal of encrusting fragments is key to preventing recurrence.
Furthermore, while some antimicrobial coatings can reduce biofilm formation on polymeric stents, thus enhancing their durability, the effectiveness of these coatings can be compromised by the conditioning film and subsequent crystal deposition (57). Since crystals have a higher affinity to various components of the conditioning film than to the stent material itself (39), it is crucial to address the problem of crystal deposition in parallel with biofilm reduction.
2.3 Analytical methods to identify bacteria and crystals
To detect the presence of bacterial biofilms and encrustation in stents and evaluate their composition and physical characteristics, adequate analytical methods are necessary (a summary of the main methods is provided in Box 3). Multiple methods exist for analyzing bacterial populations embedded within biofilms, including optical and fluorescence microscopy, scanning electron microscopy (SEM), 16S rRNA sequencing, quantitative polymerase chain reaction (qPCR), biochemical tests or other quantitative methods that identify the cells after biofilm disruption using sonication, vortexing, scraping, or other techniques. Despite comprehensive reviews of these techniques, the choice of method largely depends on the objectives of the research. At present, no agreed-upon standard method exists for accurately isolating and quantifying the bacterial populations within the biofilm (58).
Box 3. Detection and analysis of bacterial colonization and encrustation in ureteral stents.
• Sterile urine cultures may underestimate the bacterial colonization on stents.
• Stent culture after vortexing and sonication is more effective than standard urine culture.
• Techniques like 16S rRNA sequencing, qPCR, and SEM improve understanding of stent microbiomes.
• SEM with EDX is commonly used to identify crystal types in stents.
• SEM, weight measurement, OCT, and µCT are used to quantify stent encrustation.
In the presence of specific symptoms, urine cultures are the most commonly applied tool for diagnosing urinary tract infections (UTIs) and to guide patient management. However, several clinical studies have shown that a sterile urine culture does not rule out bacterial colonization of stents, defined as the process where microbial organisms adhere and accumulate on the surface of the stent (59–69). Lojanapiwat and colleagues (59) investigated the presence of bacteria on i) removed stents and ii) in urine samples from patients, respectively. They determined that the conventional urine culture (CUC) method only estimated bacterial growth on the surface of the stent in 69% of cases compared to the results obtained from the conventional stent culture (CSC) method. Ozgur et al. (61) found an even larger discrepancy, showing that CUC was only 10% accurate compared to CSC. This indicates that CUCs are less effective at detecting bacterial colonization on stents than CSCs. The stent microbiome possibly originates from the adhesion of microbes present in the urinary tract; however, over time, it develops into a distinct population (70). This indicates that the stent microbiota cannot be solely attributed to urinary bacteria, implying that urine composition cannot be used as the sole indicator of biofilm formation in stents (70). However, conflicting hypotheses exist in this regard. Even though the presence of bacteria on the stent does not always cause symptomatic urinary tract infections, there is a noticeable correlation between bacteria strains found in urine cultures and the ones that colonize the stent (71).
Mandakhalikar et al. (58) developed an effective way to remove biofilms from surfaces for subsequent analysis. Their method involved first the detachment of the biofilm by vortexing, then the exposure to low-frequency ultrasound waves (sonication), followed by an additional step of vortexing. Bonkat et al. (60) found that the identification of bacteria after the sonication process with a roll plate resulted in better accuracy than CUC alone, when used in patient-removed stents (64). A recent approach involving 16S rRNA sequencing, qPCR, scanning electron microscopy (SEM), and bacteria cultivation, has enhanced our understanding of microbiome diversity in ureteral stents (72); however, Corcoll et al. (73) showed that varying the DNA extraction method employed can vary the 16S rRNA sequencing results. Moreover, this last method does not distinguish between alive and dead bacteria since it is based on DNA isolation, while biofilms consist of both live and dead bacteria. It is essential to note that detecting microorganisms on indwelling ureteral stents heavily relies on the stage of the biofilm lifecycle and the analysis method used (74).
Existing methods for analyzing encrustation mainly focus on identifying crystal types present and their amount. SEM, followed by energy-dispersive X-ray spectroscopy (EDX), is one of the most commonly used methods to identify the type of crystals in ureteral stents. By combining these two techniques, researchers can determine the morphology of the crystal plaque while acquiring information about their chemical composition (75, 76). Other methods are used to determine the composition of encrustation, such as fluorescence microscopy, infrared spectroscopy combined with X-ray diffraction spectroscopy (77, 78), SEM followed by inductively coupled plasma mass spectrometry (ICP-MS) (79), and others. X-ray crystallography (80) can also reveal the molecular structure of crystals.
Besides identifying the crystal type, some studies also used SEM as a qualitative method to estimate the extent of encrustation on different sections of ureteral stents. An in vitro study performed by Cauda et al. (76) used this technique to compare different stent materials, qualitatively identifying those developing less encrustation.
Various methods to quantify encrustation on ureteral stents have also been reported. SEM (81) was used to manually segment the encrusted regions and calculate their surface area and volume. However, this method is time-consuming and has drawbacks since it requires cutting the stent to visualize its lumen, leading to potential bias and loss of crystal deposits. Another technique involves measuring the weight of the stent before and after dissolving organic and inorganic material with oxidative acid, which provides accurate quantification but lacks information about the spatial distribution of crystals in the stent (82). Optical Coherence Tomography (OCT) can detect encrustation on internal and external stent surfaces while quantifying the level of stent lumen occlusion (83). Recently, two studies used micro-computed tomography (μCT) with morphologic and semantic segmentation to quantify encrustation in stents retrieved from patients and obtain information about its spatial localization (5, 13). The application of μCT and deep learning in these studies simplified the visualization of the stent lumen, thanks to the time-efficient and automatic nature of the quantification process. However, all the described methods require the stents to be removed from patients, which introduces bias in the quantification of encrustation, particularly on the outer surface due to potential dislodging. To address this issue, discarding the encrustation on the outer surface from the analysis eliminated this bias but represents a limitation of this technique (5). In this context, combining a quantification method with a physiologically relevant in vitro flow model could serve as a testing platform to help identify regions of the stent prone to encrustation and enable testing of new stent materials and designs, as shown by Zheng et al. (84). A recent review covers the topic of experimental flow models in greater depth (85).
2.4 Key bacteria in biofilms: the significance of optimal removal time and encrustation
By employing the different techniques described in section 2.3, researchers could successfully identify and quantify specific bacterial species that are present in indwelling ureteral stents (a summary of the main bacterial species found in ureteral stents is provided in Box 4). Table 1 explores these studies, selected from a systematic search on the Scopus database with specific keywords ((“Ureteral Stent” OR “Ureteric Stent” OR “Double-J”) AND (“Colonization” OR “Bacterial Biofilm”)). Studies that only used CUC were not reviewed, since CUC alone is deemed insufficient to resolve the stent microbiota. Table 1 provides information on various aspects relating to the bacterial isolation and identification methods, stent indwelling time, the most prevalent bacteria identified, stent material, antibiotic therapy (if applicable), patient conditions, and the percentage of the analyzed ureteral stents associated with the presence of bacteria (colonization rate).
Box 4. Common bacterial species, indwelling time effects, and research challenges in ureteral stent studies.
• Escherichia coli and Enterococcus faecalis, are commonly found on ureteral stents.
• In the Staphylococcus group, S. epidermis is most prevalent, followed by S. aureus.
• Streptococcus, Klebsiella pneumoniae, Proteus mirabilis, and Pseudomonas aeruginosa are also frequently found on ureteral stents.
• Longer indwelling time increases microbial colonization of stents.
• Bacterial load and encrustation are normally low under six weeks.
• The high variability of the research methods used in the field, complicates the Interpretation of the results and the drawing of clear conclusions.

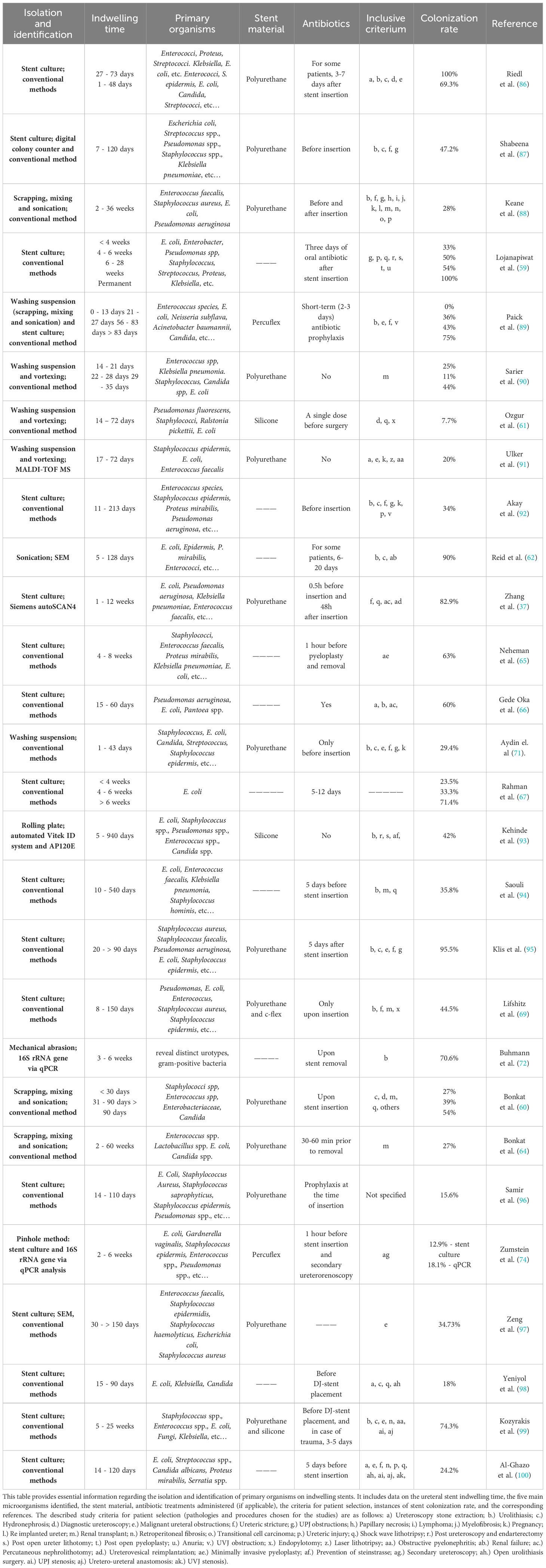

Table 1 Characteristics of ureteral stents and associated bacterial colonization.
By analyzing these previous studies, it emerges that Escherichia coli is consistently identified as the predominant bacterial species found in ureteral stents retrieved from patients. Enterococcus species, particularly Enterococcus faecalis, are also identified in most of these studies. Among the Staphylococcus group, Staphylococcus epidermis is the most prevalent one, followed by Staphylococcus aureus. Other bacteria, such as Streptococcus, Klebsiella pneumoniae, Proteus mirabilis, and Pseudomonas aeruginosa, are also identified in multiple studies.
In addition to the predominant bacteria mentioned above, a few other species have been identified (although less frequently), such as Enterobacter, Neisseria subflava, Acinetobacter baumannii, Ralstonia pickettii, Pantoea, Pseudomonas fluorescence, Staphylococcus hominis, Serratia species and Lactobacillus. Candida were also found to be prevalent microorganisms colonizing ureteral stents. For simplicity, this review and Table 1 only provide the five bacteria with the highest prevalence for each study. However, more than five bacterial species were found in most studies.
The positive correlation between indwelling time and microbial stent colonization has been extensively reported (60, 91). In a clinical study analyzing 93 stents from 71 patients, Riedl et al. (86) reported that all ureteral stents were colonized at 27 to 73 days from insertion, while 69% of stents were colonized at 1 to 48 days from insertion. Lojanapiwat et al. (59) reported a 33% colonization rate at <4 weeks and 100% at >28 weeks. Paick et al. (89) found no bacteriuria at <13 days and a colonization rate of 75% at >83 days. Other clinical studies have also shown consistent trends (60, 67, 90).
Despite the proven correlation between indwelling time and bacterial colonization, determining the optimal indwelling time for ureteral stent removal remains a subject of ongoing debate. Some clinical studies reported no bacteriuria within 2 weeks from stent insertion (59, 61, 87, 89) despite an in vitro study showing that bacteria can attach within 24 hours (62). By using the 16S rRNA method, it has been shown that the bacterial load is low (<104 CFUs/ml) for short-term stenting of 3 to 6 weeks (72). While a low colonization rate at <6 weeks has been reported (61), in contrast, other studies have indicated significant colonization in the first 3 weeks (71). Thus, the identification of a ‘safe indwelling time’ is challenging, due to the independent nature of most studies, employing different detection methods, indwelling times, stent types, and variations in patients’ conditions and comorbidities.
Comorbidities such as diabetes mellitus and renal insufficiency have been identified as risk factors for bacterial colonization (66, 92). Pregnancy, female sex, diabetic nephropathy, and cancer have been reported as additional risk factors for stent failure (101), although there is conflicting evidence concerning sex (96). The use of antibiotics was reported to be ineffective on bacterial colonization rate in the long term, although it can reduce initial attachment (102). The microorganisms found on stents are multidrug-resistant to the most common antibiotics (63), with bacteria isolated from stents being more resistant than similar species before placement (93). This illustrates the issue with prophylactic antibiotic use with implanted stents and antibiotic administration at the time of stent placement. Stent type, material and coatings can also influence colonization rates, as described in several reviews (11, 103, 104). Due to the large parametric space involved, there is a lack of standardization across studies, which makes it difficult to draw definite and robust conclusions in this area of research (Box 4).
Consistently with bacterial colonization, longer indwelling time also increases the rates and frequency of encrustation (105). To the best of our knowledge, there is no consensus on the optimal length of placement for ureteral stents to minimize complications such as blockages due to encrustation. However, some clinal studies have suggested that the risk of morbidity related to encrustation is minimal when the stent is removed within 6 weeks (105, 106), despite encrustation occurring as early as 7 days, forming a crystal layer on both the inner and outer stent surfaces of the stent (75). Moreover, it was reported that luminal encrustation in stone patients occurred in 47.5% of cases with indwelling periods ranging from 6 to 12 weeks, while at >12 weeks, the incidence rate was 75%, significantly raising the risk of obstructions (106). Despite a high percentage of occlusions (due to encrustation) take place in the stent lumen up to 3 months (30%), only a small proportion of patients (4%) experienced clinically significant obstructions, i.e., blockage or impaired function of the stent that leads to clinical symptoms (106). This demonstrates that urine flow primarily occurs around the stent rather than through the lumen (2, 106). Nonetheless, even if the encrustations can occur just within a few weeks from stenting, retained and forgotten ureteral stents still bear the most extreme cases of encrustation (107).
Determining the ideal time for stent removal based on the existing literature has proven challenging due to inter-patient differences and comorbidities. Depending on the patient’s condition, a forgotten stent can become heavily encrusted, creating severe complications. However, a promising technique has emerged for real-time monitoring of encrustation using the quartz crystal microbalance technique, enabling the evaluation of encrustation’s surface area on the stent (108). Moreover, a recent stent prototype featuring a micro pressure sensor showed promising results in terms of its ability to detect obstructions in indwelling stents (109). In this direction, the integration of obstruction monitoring methods with quantification techniques holds the potential to determine the appropriate time for stent removal and potentially identify regions of the stent that are most problematic.
2.5 Distribution patterns of biofilm and encrustation in ureteral stents
Ureteral stents can exhibit different encrustation and biofilm patterns depending on the specific segment of the stent (a summary of the distribution patterns is provided in Box 5). A stent can be divided into its two pigtails (located in the renal pelvis and the bladder, respectively) and a straight central segment. This straight part can be subdivided into three regions: i) proximal section (near the ureteropelvic junction or UPJ), ii) middle section (within the middle ureter), and iii) distal section (near the ureterovesical junction or UVJ).
Box 5. Location matters in ureteral stent bacterial colonization and encrustation.
• Microbial colonization is more pronounced in the distal and proximal sections of ureteral stents.
• Encrustations are typically more visible in the proximal section, pigtails, and side holes.
• Colonization and encrustation patterns can vary based on the patient type.
• Future consideration should be given to developing patient-specific stents.
While one study (91) reported that bacterial colonization was present in all regions of patient-retrieved stents in 71% of cases, other reports have shown different results. For instance, Aydin et al. (71) showed that the colonization rate was the same for each part of the stent in 30% of the cases. Akay et al. (92) found bacterial colonization of the distal section in 34% of cases and of the proximal section in 29% of cases. Another clinical study (37) reported a colonization rate of 85% in the distal, 43% in the middle, and 67% in the proximal section. These findings demonstrate an increased prevalence of bacterial colonization in the distal section of the stent compared to the proximal one, which is also consistent with a study by Zhang et al. (37). Much like encrustation, bacterial counts are greater at the distal and proximal ends since these are areas in permanent contact with urine, unlike the middle parts where urine flow affects colonization (26). The observed difference in colonization rate between proximal and distal regions of the stent can thus possibly be attributed to the fact that the primary bacteria responsible for colonization originate from the bowel and perineum (26). Although the colonization rate tends to differ depending on stent location, microbial diversity does not differ statistically between proximal and distal sections (110).
Regarding encrustation, several quantification techniques have been used to identify the regions of the stent that are more subject to it. By measuring the weight of encrustation, in a clinical study, Sighinolfi et al. (82) showed that the kidney pigtail exhibited the highest level of encrustation, followed by the bladder pigtail. A qualitative analysis of stents retrieved from patients showed a higher number of encrusted stents (80), with a greater visual amount of encrustation (105), on the renal pigtail, followed closely by the bladder pigtail. Conversely, some reports suggested that both pigtails are comparably affected by encrustation (5, 75), while Rane et al. (111) found the bladder pigtail to be more encrusted than the renal pigtail. Yoshida et al. (13) instead reported that the straight part of the stent was the more encrusted region, which is in disagreement with most other studies in this area.
Bader et al. (83) discovered a significantly greater level of luminal occlusion in the proximal section of the straight part of stents removed from patients. Zheng et al. (5) showed that, in stone patients, the proximal section was significantly more encrusted than the distal section, while for kidney transplant patients no significant difference was found. Arkusz et al. (75) reported that the proximal and distal sections of the stent were the most susceptible to deposition of urea. These differing conclusions can be attributed to the absence of standard methods for quantifying encrustation on ureteral stents. Furthermore, even when the same techniques are used, patients with a different clinical history will likely lead to different encrustation patterns (5). The presence and type of comorbidities, in particular, are known to affect encrustation; for example, encrustation of the kidney pigtail is positively correlated with urolithiasis, whereas encrustation of the bladder pigtail has been correlated with urinary tract infections (82). Moreover, it has been reported that VUR could alter the pattern of encrustation (84), and that side holes are one of the regions most prone to deposition of encrusting material (5, 15). In this regard, the possibility of developing patient-specific stents should be considered in the future. To this end, future scientific efforts should focus on combining information on stent sections that are more prone to develop encrustation (also based on patient-specific conditions) with the analysis of local fluid dynamics in these regions.
3 Role of fluid mechanics in the formation of biofilms and encrustation at the micro- and macro-scale
3.1 Values of wall shear stress within the stented ureter
Fluid dynamics is known to significantly impact various biological processes such as bacterial initial attachment (112), biofilm formation (113, 114) and encrustation (32). WSS appears to play an important role in modulating these processes within ureteral stents (33, 34). However, despite several studies focused on simulating urine flow in the stented ureter, only a limited number (summarized in Table 2) have computed and reported the WSS values at different locations of a ureteral stent. These studies were identified using the Scopus database with specific keywords ((“Ureteral Stent” OR “Ureteric Stent” OR “Double-J”) AND “Shear Stress”). Table 2 provides an overview of key parameters from these studies, including study design, stent dimensions, flow rate, and WSS ranges observed on both the internal and external walls of the stent and side holes.

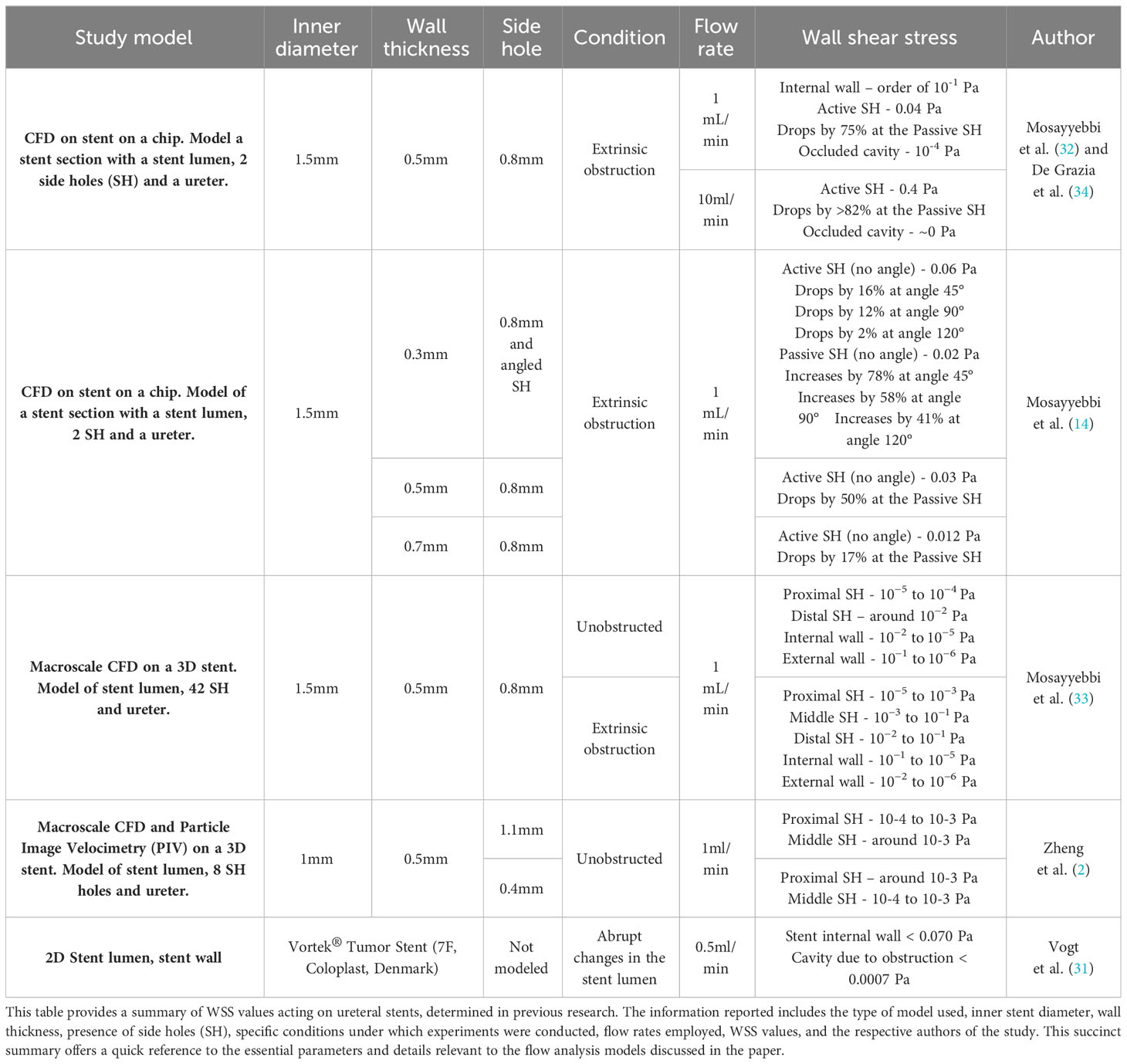

Table 2 Summary of study parameters and wall shear stress value ranges in ureteral stents.
Firstly, microfluidic Stent-on-Chip (SOC) models (32) were employed to quantify the WSS distribution in a ureteral stent, and the effect of side hole shape and stent wall thickness on the WSS field. However, these values should be interpreted cautiously as the intrinsic simplifications of microfluidic models prevent them from reproducing the full complexity of the stented ureter (e.g., the stent and ureteral geometry, number of side holes, and reflux).
In an attempt to provide more physiological WSS values, Mosayyebi et al. (33) used CFD to compute WSS in a tapered stented ureter that mimicked the ureter of a pig, and identified variations in WSS levels depending on the longitudinal position along the ureter. They also evaluated WSS acting over the inner wall of side holes, as shown in Table 2. In this tapered model, the ureteropelvic junction (UPJ) had a larger diameter than the ureterovesical junction (UVJ). This configuration resulted in elevated WSS levels within the mid and distal sections.
A comprehensive CFD and particle image velocimetry study by Zheng et al. (2) employed a full-scale model to assess WSS distribution over the inner walls of side holes. In this study, the ureter was modeled as an unobstructed tube with a constant diameter. The mean WSS was higher in the first and last side holes of the straight part of the stent, while the side holes in the middle section exhibited lower WSS. These differences may be attributed to the passive nature of side holes in the middle section, since there is no significant flow exchange through these holes (‘passive’ side holes), whereas the first and last side holes promote such flow exchange (‘active’ side holes). Their findings also indicated that smaller side holes experienced significantly greater WSS levels, providing a potential means to mitigate encrustation and biofilm formation in these regions of the stent, due to the correlation between these phenomena and WSS.
Vogt et al. (31) conducted a small-scale CFD simulations on DJ ureteral stents, emphasizing the importance of utilizing smooth stent designs, since grooves and imperfections on the stent surface lead to stagnation zones (with low WSS levels) which can act as traps for crystals and promote encrustation.
By summarizing all the studies that reported WSS values at different locations of the ureteral stent in Table 2, our intention is to provide valuable insights into the fluid dynamics of the stent. The findings reveal that the proximal side holes exhibit WSS values below 0.001 Pa (2, 33), indicating relatively low to moderate fluid shear forces in this region. The WSS increases toward the middle side holes, with values ranging from the order of 0.0001 Pa up to 0.1 Pa (2, 33), suggesting a notable enhancement in fluid shear stress. The distal side holes also demonstrate higher WSS values, ranging from the order of 0.01 Pa up to 0.1 Pa (33). Concerning the stent internal wall, the WSS was reported to range between 10-6 Pa to 0.19 Pa (31), corresponding to a wide range of fluid shear forces.
The stent external wall experienced WSS values up to 0.11 Pa (33), which are lower than those acting on the inner stent surface. Cavities created by ureteric obstructions or stent defects can lead to stagnant regions where the WSS ranges from 0 Pa up to 0.00016 Pa (31, 32, 34). Moreover, the total range of WSS values for the entire stent is found to be from 0 Pa to 0.19 Pa, encompassing the whole spectrum of fluid forces experienced by the stent (a summary of the wall shear stress values in different locations of ureteral stents is provided in Box 6).
Box 6. Wall shear stress values across various ureteral stent locations.
• Stent design affects shear stress and encrustation patterns.
• Computational studies showed:
o Proximal side holes show very low wall shear stress (WSS) below 0.001 Pa.
o WSS increases toward the middle, ranging from 0.0001 to 0.1 Pa.
o Distal side holes have higher WSS, between 0.01 and 0.1 Pa.
o WSS varies from 10-6 Pa to 0.19 Pa on the stent’s internal wall.
In summary, accurate WSS measurements in stented ureters depend on various factors and the study design. Notably, none of the studies reviewed have considered the impact of reflux, peristalsis, and patient-specific comorbidities, which substantially influence WSS values and add complexities to a model. To better understand the true impact of WSS on ureteral stents, future research must diligently consider and incorporate these factors into their models (whether in vitro and/or in silico).
3.2 Impact of wall shear stress on ureteral stents’ blockage
At the micro-scale, the relationship between WSS and bacterial interactions with surfaces has been extensively explored in various domains (115) (see Section 4). However, this critical association remains largely unexplored in the context of ureteral stents. De Grazia et al. (34) conducted experimental investigations using a microfluidic SOC approach. Their results demonstrated that cavities, or stagnant regions with low WSS (i.e., below 0.04 Pa), were the primary sites of bacterial attachment, followed by side holes and the intra-luminal surface. This study marked the first attempt to examine bacterial attachment on ureteral stent architectures, quantitatively. The study revealed a correlation between bacteria coverage area, WSS, and the number of stagnant regions. However, Pseudomonas fluorescens was used as a bacterial model, which is not a highly prevalent bacterium in the urinary tract and may limit the clinical relevance of the study and its generalization.
Mosayyebi et al. (32) conducted a similar SOC study to investigate the impact of WSS on the deposition of encrusting particles. Their research revealed that the side hole close to the obstruction (active side hole) had a greater average WSS (0.04 Pa) and a greater exchange of flow, while the more distal one (passive side hole) had a lower WSS (0.01 Pa) with nearly stagnant flow. Notably, particle deposition was inversely correlated with WSS, i.e., areas with lower WSS were more prone to particle accumulation. Moreover, the same group (14) demonstrated that thinner stent walls and angled (i.e., streamlined) side holes could reduce particle deposits in stents as a result of increased WSS levels, particularly in the passive side holes.
Besides the SOC study, Mosayyebi et al. (33) also investigated the relationship between WSS and crystal deposition at the macroscale level, i.e. in a full-scale model of a stented ureter, using CFD and experimental tests. Their study stands out as the only macroscale model investigating this relationship, experimentally. It was observed that the accumulation of particles was more pronounced in the side holes situated in the proximal region of the stent compared to those in the distal region, as expected by the higher shear stress levels in the former.
To investigate encrustation in ureteral stents and its correlation with VUR, Zheng et al. (84) developed a macroscale in vitro model of the urinary tract with a programmable bladder to mimic the detrusor pressure waveforms during the bladder voiding stage. This was the first physical model of the urinary tract able to mimic reflux from the bladder to the kidney. Notably, this experimental configuration produced encrustation distribution patterns resembling those observed in stents retrieved from stone patients (5), supporting the hypothesis that the distal stent region is ‘cleaner’ because of a wash out effect caused by VUR. Although this study does not establish a direct correlation between VUR and WSS, this hypothesis about the role of reflux can be inferred from the work of Kim et al. (116): despite using non-physiological flow rates for urine flow, their full-scale CFD study showed that during the voiding stage, the average WSS at side holes located in the distal section is larger than in the middle and proximal sections.
Moreover, using computational and experimental modeling, Clavica and colleagues (15, 117) studied the flow field in the region located between an obstruction of the ureter lumen and the first side hole post-obstruction, using an artificial model of the obstructed and stented ureter. They observed the presence of low-velocity laminar vortices in the extra-luminal region between the obstruction and the side hole. They suggested that these vortices could lead to particle trapping and act as ‘seeding’ sites for encrustation. In this context, vortical flow has been shown to play a critical role not only in particle deposition but also in bacterial agglomeration, inducing biofilm formation and biofilm streamers, defined as filamentous structures that can extend into the surrounding environment (118).
To date, researchers have conducted microfluidic-based studies that correlate WSS with bacterial attachment or crystal deposition, treating each phenomenon independently. Macroscale analyzes that linked WSS only to crystal deposition have also been carried out. However, to the best of the authors’ knowledge, a comprehensive investigation relating flow dynamic analysis with biofilm and encrustation is still lacking in the literature – at either the microfluidic or macroscale level (a summary of the influence of wall shear stress in bacterial colonization and encrustation is provided in Box 7). Figure 1 illustrates the multi-stage development of biofilms and encrustation on ureteral stents, highlighting the dynamic interaction between bacteria and encrustation influenced by WSS. To shed light on this, in vitro models, which have already been developed and established in the literature (85), could be perfused with both artificial urine and urinary bacteria.
Box 7. Significance of wall shear stress in bacterial attachment and encrustation in ureteral stents.
• Experimental studies showed that areas with low WSS (below 0.04 Pa) are primary sites for bacterial attachment, especially around passive side holes.
• Experimental studies showed that particle deposition is more common in areas with lower WSS.
• Stent design (e.g., thinner walls and streamlined side holes) influences shear stress and encrustation patterns, as shown experimentally.
• Particle accumulation is higher in proximal side holes (WSS < 0.001 Pa) compared to distal ones (WSS > 0.01 Pa), as shown experimentally.
• Experimental studies showed that vesicoureteral reflux (VUR) reduces encrustation.
• There is a lack of comprehensive studies integrating flow dynamics with biofilm formation and encrustation.
Figure 1 Sequential process of encrustation and biofilm formation in ureteral stents. Multi-stage development of biofilms and encrustation on ureteral stents are shown, highlighting the dynamic interaction with WSS. Panel (A) - A scale of WSS is included to show its impact on these phenomena: low WSS favours thicker encrustation, while higher WSS reduces it. Low shear conditions limit nutrient availability resulting in lower biofilm size, whereas medium shear provides optimal conditions for biofilm growth. Further increases in WSS lead to biofilm detachment. Panel (B) - Schematic of a colonized ureteral stent: the two insets represent the different stages of biofilm formation (left) and encrustation (right), respectively. Biofilm and encrustation can occur on both surfaces (stent lumen and stent outer surface). The stages for biofilm formation are: 1) reversible attachment through weak interactions, 2) irreversible attachment involving fimbriae, catch bonds, and EPS followed by 3) biofilm maturation, and 4) dispersion. The encrustation process is depicted starting from 1) protein and polysaccharide accumulation aiding conditioning film formation, 2) progressing crystal layer deposition, leading to 3) encrustation and 4) culminating in thick encrustation. In the middle of panel A, bacterial activity in the presence of urea is depicted, emphasizing its role in catabolizing urea into ammonia, which raises pH and crystal formation, enhancing encrustation. Illustrations ere created with BioRender.com.
4 What can we learn from other research areas?
Formation of biofilm and encrustation represent significant challenges for ureteral stents, affecting patient’s health and therapeutic outcomes. Although studies directly correlating bacterial attachment and WSS in the urinary tract are only a few and very recent (34), valuable information can be gained from studies already conducted in other research areas, i.e., not directly linked to endourology. This section explores how findings in other fields could also be translated and extrapolated in the context of the distribution and location of bacteria on ureteral stents (a summary of the main findings is provided in Box 8).
Box 8. Valuable insights into bacterial attachment and wall shear stress from related research.
• Despite limited experimental studies directly linking bacterial attachment and WSS in the urinary tract, valuable insights are derived from other research areas.
• Microfluidics is used to explore how shear stress affects biofilm formation.
• Experimental studies showed that bacterial colonization decreases with WSS > 0.02 Pa, increasing detachment at higher shear.
• Different bacteria can exhibit different attachment rates depending on the level of WSS, as shown experimentally.
• Based on the information above, the development of fluid-mechanical-based stent designs, maximizing WSS to reduce bacterial attachment, should be encouraged.
In this section, we focus on the bacterial strains commonly associated with ureteral stents, namely E. coli, Staphylococcus aureus and epidermis, Enterococcus faecalis, Pseudomonas aeruginosa, Klebsiella pneumoniae, Proteus mirabilis and Streptococcus. These bacterial strains were selected based on the findings reported in Table 1. We report findings related to bacterial behavior within specific WSS ranges (0 Pa to 0.19 Pa), consistently with values reported in Table 2.

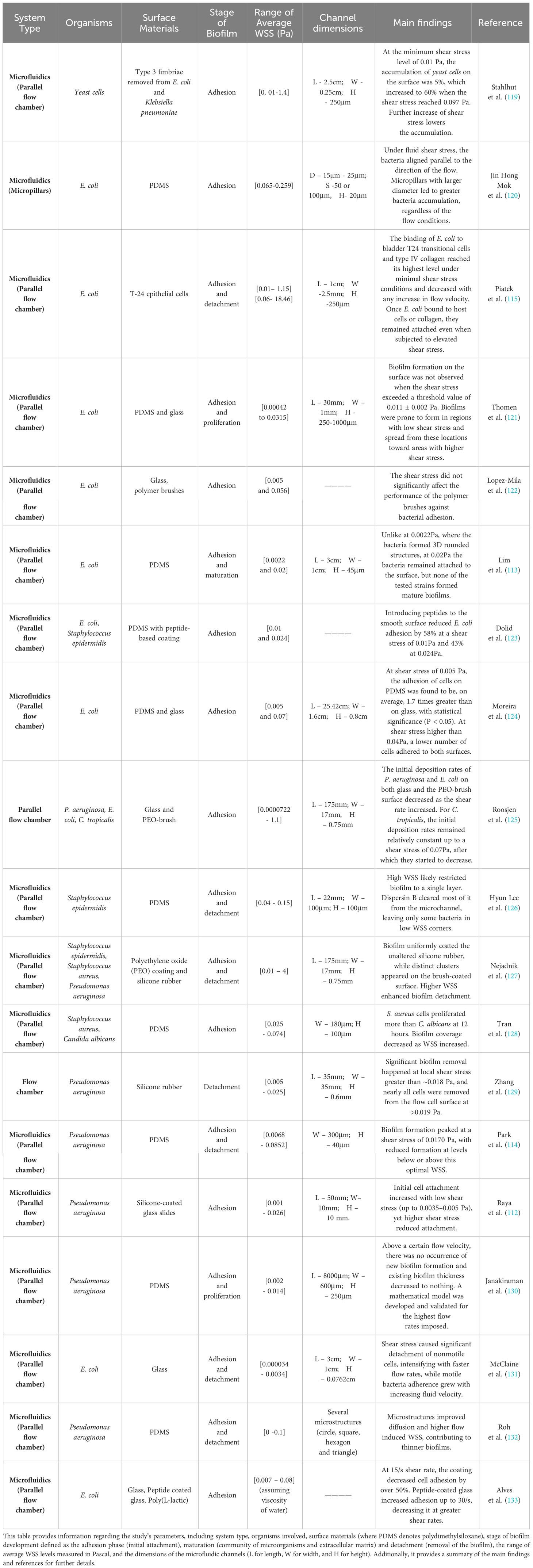

Table 3 provides an overview of microfluidic studies that have established a correlation between WSS levels (within the range of values observed in ureteral stents) and the behavior of bacteria that are prevalent in the urinary tract. The studies were identified and selected using the Scopus database with specific keywords (“*” AND (“shear stress” OR “biofilm formation” OR “biofilm growth”) AND (“microfluidics” OR “microfluidic” OR “micro-fluidic” OR “flow chamber”), where * represent all the bacteria selected above).
Table 3 The impact of wall shear stress on biofilm formation in microfluidic experiments.
These studies highlight the potential of microfluidics as a technology platform and modeling tool to investigate the complex interplay between shear stress and biofilm formation. Moreira et al. (134) found that bacterial attachment remained consistent between macro and microfluidic experiments, even with an 80-fold scale difference, while maintaining the WSS constant. This implies that microfluidic findings can be applied to a macroscale scenario under equivalent wall shear stress levels. Other flow conditions like Reynolds number or flow velocity could also be potentially investigated for their role in biofilm formation and growth. A review of different platforms to study biofilm formation under different flow conditions and WSS ranges, beyond the scope of the current paper, is provided elsewhere (135).
Stahlhut et al. (119) showed that fimbriae type 3, or MrkD, are specialized protein structures found on the surfaces of bacteria such as E. coli and Klebsiella pneumoniae. These structures play a pivotal role in yeast cell adhesion, with the most robust adhesion observed with the prevalent MrkD protein sequence C3091, showing enhanced binding within a WSS range of 0.01 to 0.097 Pa. Notably, other fimbriae variants exhibit varying attachment strengths; however, they follow a consistent trend of enhanced binding within a similar shear stress range, followed by diminishing adhesion beyond this threshold. Similarly, Raya et al. (112) explored the attachment of Pseudomonas aeruginosa to silicone-coated glass, revealing an increasing-decreasing trend of bacterial attachment with the increase of WSS, albeit with detachment starting at 0.005 Pa. Piatek et al. (115) reported that the binding of E. coli to bladder T24 transitional cells and type IV collagen reaches its highest level under minimal shear stress (0.01 Pa) conditions, and decreases with any increase in WSS. Notably, even when subjected to higher shear stress (0.59 Pa), some E. coli cells remain attached after binding to host cells or collagen, though detachment rates escalate with the magnitude of shear stress.
Park et al. (114) reported that Pseudomonas aeruginosa biofilm formation on PDMS was retarded at both WSS>0.017 Pa (due to shear) and WSS<0.017 Pa (due to lack of nutrients and oxygen). A WSS value of 0.017 Pa was reported to be the optimal shear stress level promoting the formation of a structured EPS while also providing a shield to the bacteria. Moreover, Zhang et al. (129) reported substantial biofilm detachment for the same bacterial species on silicone rubber surfaces at shear stress exceeding 0.018 Pa. Confirming these findings with E. coli, Lim et al. (113) reported that at 0.0022 Pa, bacteria form three-dimensional rounded biofilm structures. In contrast, at 0.02 Pa, the bacteria adhere to the surface but fail to develop mature biofilms. Furthermore, Janakiraman et al. (130) showed that biofilm thickness is significantly reduced with an increased flow rate.
The studies summarized in Table 3 do not use materials that are commonly employed to manufacture ureteral stents. Different surface properties can result in varying degrees of bacterial adhesion, even upon exposure to the same WSS levels, as demonstrated by Moreira et al. (124). Their findings reveal that at a WSS of 0.005 Pa, bacterial adhesion on PDMS surpassed that on glass by 1.7 times. Conversely, at 0.04 Pa, most bacteria detached from both surfaces. Further research highlights the significant role that coatings and WSS play in the process of bacterial adherence, demonstrating that variations in surface properties lead to varied bacterial adhesion outcomes (123, 126, 127, 133, 134).
Validating these findings using materials that are typically used for ureteral stents (e.g. polyurethane, silicone, or specific surface coatings) could yield a more accurate determination of a WSS threshold that would prevent bacterial adhesion on indwelling urological devices. In this regard, some studies used polyurethane or associated coatings to verify the interplay between bacterial adhesion and WSS. However, only limited work has been conducted using WSS levels that are relevant to ureteral stents (136–140). As outlined in the previous section, some recent studies have highlighted a tendency toward bacterial colonization that is enhanced in the distal and proximal sections of stents (37, 92, 141). However, reflux and narrow regions (e.g., UVJ) in the distal segment of the ureter increase the WSS acting on the stent in this region (24). This increase in shear stress possibly contributes to the reduction of encrustation levels in this region compared to the proximal ones, as shown previously (84). Notably, the reported WSS in the distal section of the ureteral stent spans from 10-2 to 10-1 Pa. In comparison, those in the proximal section range from 10-5 to 10-4 Pa. Considering several reports suggesting the complete suppression or substantial reduction of biofilm thickness beyond 0.02 Pa, this becomes a possible reason for the observed phenomenon.
Furthermore, under identical flow conditions, different bacterial species exhibit distinct attachment rates influenced by WSS (125) or different biofilm coverage (128). Even within the same bacterial species, different strains can display discrepancies in attachment rates, particularly in the presence or absence of cellular motility (131). Additionally, when multiple bacterial species are involved, the impact of WSS can diverge (128). Current research also focuses on integrating novel features onto material surfaces, exploring their correlation with WSS and biofilm formation, such as brushes (122, 125, 127) and microstructures (120, 123). While certain approaches have demonstrated some benefits (123, 125), others have failed to show any significant improvement (120, 122). As of now, a flawless stent design has not yet been achieved, and none of the existing stents can completely prevent the formation of biofilms or encrustation on their surface.
5 Concluding remarks and outlook
Advanced materials and coatings: Continued exploration of novel materials and coatings could provide solutions to reduce encrustation and biofilm formation. Researchers might focus on materials that minimize friction during placement and removal while maximizing long-term performance.
Biofilm and encrustation control: Exploring innovative strategies, such as targeted antimicrobial/encrustation therapies or biofilm/encrustation-disrupting techniques, could offer new avenues to prevent stent-related complications.
Patient-specific and practice-driven design: For short-term stenting (less than two weeks), clinicians may prefer ureteral stents with better cost-effectiveness due to the small likelihood of encrustation and biofilm formation. For long-term stenting, a special focus on the current stent designs is crucial since small changes already proved beneficial in reducing attachment. Special care should be taken in the pigtail sections.
Fluid dynamics and in vitro testing: Further advancements in mechanical modeling and in vitro flow analysis could provide deeper insights into urine flow patterns within the stented ureter. By simulating real-world conditions, researchers can better understand the impact of shear stress and flow patterns on stent performance. Research efforts could focus on developing methods to translate computational findings into real-world stent designs effectively. To this end, Figure 2 illustrates an obstructed stented ureter and displays the main bacteria and crystals associated with ureteral stents. Micro- and macro-scale research areas are also presented, followed by a description of the WSS ranges within ureteral stents.

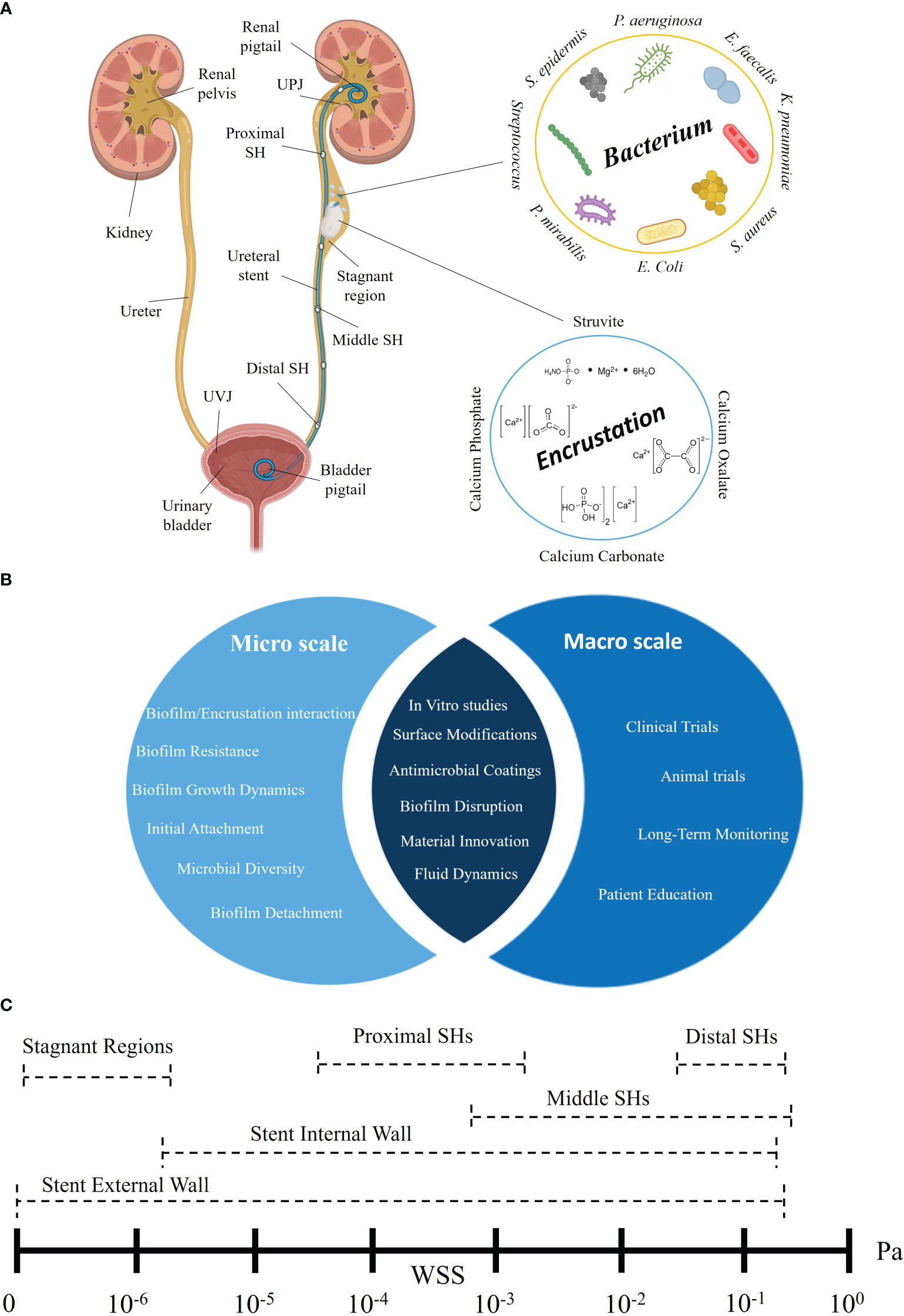

Figure 2 Multiscale analysis of biofilm formation and encrustation on ureteral stents: main bacteria, crystal, and wall shear stress distribution. (A) Schematic of the urinary tract with an obstructed stented ureter. Several sections of the ureteral stent, including the proximal side holes (near the UPJ), middle side holes (central part) and distal side holes (close to the UVJ), are represented. The figure highlights the main bacteria and crystals associated with indwelling ureteral stents. (B) Micro- and macro-scale investigations: research areas to tackle encrustation and biofilm formation across scales are represented. (C) WSS distribution: ranges of WSS at different ureteral stent locations, i.e., external and internal wall, stagnant regions, and proximal, middle, and distal side holes. Illustrations in panel (A) were created with BioRender.com.
Innovative stents: New strategies and technologies are emerging, such as smart stents that incorporate sensors enabling real-time monitoring of urinary tract conditions. This could allow for early detection of complications and timely interventions.
Multidisciplinary approach: Encouraging collaboration between diverse disciplines, including engineering, microbiology, and urology, will be essential to tackle the challenges associated with stent complications.
Regulatory Guidelines: Collaboration between researchers and regulatory bodies could lead to the development of standardized guidelines for stent testing, evaluation, and reporting, promoting consistency in research.
Author contributions
PA: Conceptualization, Writing – original draft, Methodology, Writing – review & editing. SZ: Conceptualization, Writing – review & editing, Methodology. DL: Writing – review & editing, Conceptualization. DC: Writing – review & editing, Conceptualization. SW: Writing – review & editing, Conceptualization. DO: Writing – review & editing, Conceptualization. FB: Writing – review & editing, Conceptualization. FC: Conceptualization, Funding acquisition, Writing – review & editing, Methodology, Supervision.
Funding
The author(s) declare financial support was received for the research, authorship, and/or publication of this article. The work is supported by the Swiss National Science Foundation (SNSF, grant number 205320_204965).
Conflict of interest
DC is co-inventor on patent application PCT/GB2018/052522 “Stent with streamlined side holes”.
The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
The author(s) declared that they were an editorial board member of Frontiers, at the time of submission. This had no impact on the peer review process and the final decision.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
References
1. Zimskind PD, Fetter TR, Wilkerson JL. Clinical use of long-term indwelling silicone rubber ureteral splints inserted cystoscopically. J Urol (1967) 97(5):840–4. doi: 10.1016/S0022-5347(17)63130-6
2. Zheng S, Obrist D, Burkhard F, Clavica F. Fluid mechanical performance of ureteral stents: The role of side hole and lumen size. Bioeng Transl Med (2023) 8(2):e10407. doi: 10.1002/btm2.10407
3. Davenport K, Kumar V, Collins J, Melotti R, Timoney AG, Keeley FX Jr. New ureteral stent design does not improve patient quality of life: a randomized, controlled trial. J Urol (2011) 185(1):175–8. doi: 10.1016/j.juro.2010.08.089
4. De Grazia A, Somani BK, Soria F, Carugo D, Mosayyebi A. Latest advancements in ureteral stent technology. Transl Androl Urol (2019) 8(Suppl 4):S436–s441. doi: 10.21037/tau.2019.08.16
5. Zheng S, Amado P, Kiss B, Stangl F, Haeberlin A, Sidler D, et al. Quantitative evaluation of encrustations in double-j ureteral stents with micro-computed tomography and semantic segmentation. Front Urol (2022) 2:836563. doi: 10.3389/fruro.2022.836563
6. Loh-Doyle JC, Low RK, Monga M, Nguyen MM. Patient experiences and preferences with ureteral stent removal. J Endourol (2015) 29(1):35–40. doi: 10.1089/end.2014.0402
7. Choi U, Kim E, Lyu DH, Kim KS, Park BH, Chung H, et al. The change of antibiotic susceptibility in febrile urinary tract infection in childhood and adolescence during the last decade. Investig Clin Urol (2022) 63(1):99–106. doi: 10.4111/icu.20210350
8. Leibovici D, Cooper A, Lindner A, Ostrowsky R, Kleinmann J, Velikanov S, et al. Ureteral stents: morbidity and impact on quality of life. Isr Med Assoc J (2005) 7(8):491–4.
9. Restaino S, Fanfani F, Vittori M, D'Addessi A, Scambia G, Costantini B. Bilateral ureteral stent removal after 15 years: A case report. J Minim Invasive Gynecol (2018) 25(5):920–2. doi: 10.1016/j.jmig.2018.01.005
11. Mosayyebi A, Manes C, Carugo D, Somani BK. Advances in ureteral stent design and materials. Curr Urol Rep (2018) 19(5):35. doi: 10.1007/s11934-018-0779-y
12. Finney RP. Experience with new double j ureteral catheter stent. J Urol (2002) 167(2, Part 2):1135–8. doi: 10.1016/S0022-5347(02)80361-5
13. Yoshida T, Takemoto K, Sakata Y, Matsuzaki T, Koito Y, Yamashita S, et al. A randomized clinical trial evaluating the short-term results of ureteral stent encrustation in urolithiasis patients undergoing ureteroscopy: micro-computed tomography evaluation. Sci Rep (2021) 11(1):10337. doi: 10.1038/s41598-021-89808-x
14. Mosayyebi A, Lange D, Yann Yue Q, Somani BK, Zhang X, Manes C, et al. Reducing deposition of encrustation in ureteric stents by changing the stent architecture: A microfluidic-based investigation. Biomicrofluidics (2019) 13(1):014101. doi: 10.1063/1.5059370
15. Clavica F, Zhao X, ElMahdy M, Drake MJ, Zhang X, Carugo D. Investigating the flow dynamics in the obstructed and stented ureter by means of a biomimetic artificial model. PloS One (2014) 9(2):e87433. doi: 10.1371/journal.pone.0087433
16. Tunney MM, Keane PF, Jones DS, Gorman SP. Comparative assessment of ureteral stent biomaterial encrustation. Biomaterials (1996) 17(15):1541–6. doi: 10.1016/0142-9612(96)89780-8
17. Gadzhiev N, Gorelov D, Malkhasyan V, Akopyan G, Harchelava R, Mazurenko D, et al. Comparison of silicone versus polyurethane ureteral stents: a prospective controlled study. BMC Urol (2020) 20(1):10. doi: 10.1186/s12894-020-0577-y
18. Cauda F, Cauda V, Fiori C, Onida B, Garrone E. Heparin coating on ureteral double j stents prevents encrustations: an in vivo case study. J Endourol (2008) 22(3):465–72. doi: 10.1089/end.2007.0218
19. Laube N, Kleinen L, Bradenahl J, Meissner A. Diamond-like carbon coatings on ureteral stents–a new strategy for decreasing the formation of crystalline bacterial biofilms? J Urol (2007) 177(5):1923–7. doi: 10.1016/j.juro.2007.01.016
20. Cadieux PA, Chew BH, Nott L, Seney S, Elwood CN, Wignall GR, et al. Use of triclosan-eluting ureteral stents in patients with long-term stents. J Endourol (2009) 23(7):1187–94. doi: 10.1089/end.2008.0437
21. Kim HH, Choi YH, Lee SB, Baba Y, Kim KW, Suh SH. Numerical analysis of the urine flow in a stented ureter with no peristalsis. BioMed Mater Eng (2015) 26(Suppl 1):S215–23. doi: 10.3233/bme-151308
22. Amitay-Rosen T, Shilo Y, Dror I, Berkowitz B. Influence of single stent size and tandem stents subject to extrinsic ureteral obstruction and stent occlusion on stent failure. J Endourol (2022) 36(2):236–42. doi: 10.1089/end.2021.0426
23. Kim KW, Choi YH, Lee SB, Baba Y, Kim HH, Suh SH. Analysis of urine flow in three different ureter models. Comput Math Methods Med (2017) 2017:5172641. doi: 10.1155/2017/5172641
24. Tong JC, Sparrow EM, Abraham JP. Numerical simulation of the urine flow in a stented ureter. J Biomech Eng (2007) 129(2):187–92. doi: 10.1115/1.2472381
25. Kim K-W, Kim H-H, Choi YH, Lee SB, Baba Y, Suh S-H. Arrangement of side holes in a double j stent for high urine flow in a stented ureter. J Mechanical Sci Technol (2020) 34(2):949–54. doi: 10.1007/s12206-020-0144-1
26. Waters SL, Heaton K, Siggers JH, Bayston R, Bishop M, Cummings LJ, et al. Ureteric stents: investigating flow and encrustation. Proc Inst Mech Eng H (2008) 222(4):551–61. doi: 10.1243/09544119jeim317
27. Siggers JH, Waters S, Wattis J, Cummings L. Flow dynamics in a stented ureter. Math Med Biol (2009) 26(1):1–24. doi: 10.1093/imammb/dqn020
28. Cummings LJ, Waters SL, Wattis JA, Graham SJ. The effect of ureteric stents on urine flow: reflux. J Math Biol (2004) 49(1):56–82. doi: 10.1007/s00285-003-0252-4
29. Gómez-Blanco JC, Martínez-Reina FJ, Cruz D, Pagador JB, Sánchez- Margallo FM, Soria F. Fluid structural analysis of urine flow in a stented ureter. Comput Math Methods Med (2016) 2016:5710798. doi: 10.1155/2016/5710798
30. Amitay-Rosen T, Nissan A, Shilo Y, Dror I, Berkowitz B. Failure of ureteral stents subject to extrinsic ureteral obstruction and stent occlusions. Int Urol Nephrol (2021) 53(8):1535–41. doi: 10.1007/s11255-021-02810-0
31. Vogt B. Investigating the encrustation of reinforced ureteral stents by computational flow dynamic simulations. World J Urol (2023) 41(5):1451–7. doi: 10.1007/s00345-023-04356-5
32. Mosayyebi A, Yue QY, Somani BK, Zhang X, Manes C, Carugo D. Particle accumulation in ureteral stents is governed by fluid dynamics: In vitro study using a "Stent-on-Chip" model. J Endourol (2018) 32(7):639–46. doi: 10.1089/end.2017.0946
33. Mosayyebi A, Vijayakumar A, Mosayebi M, Lange D, Somani BK, Manes C, et al. The accumulation of particles in ureteric stents is mediated by flow dynamics: Full-scale computational and experimental modeling of the occluded and unoccluded ureter. APL Bioeng (2022) 6(2):026102. doi: 10.1063/5.0083260
34. De Grazia A, LuTheryn G, Meghdadi A, Mosayyebi A, Espinosa-Ortiz EJ, Gerlach R, et al. A microfluidic-based investigation of bacterial attachment in ureteral stents. Micromachines (2020) 11(4):408. doi: 10.3390/MI11040408
35. Reid GT, Foerch C, Busscher R, Khoury HJ, A. E, van der Mei HC. The binding of urinary components and uropathogens to a silicone latex urethral catheter. Cells Materials (1992) 2(3):253-–60.
36. Bhagwat G, O’Connor W, Grainge I, Palanisami T. Understanding the fundamental basis for biofilm formation on plastic surfaces: Role of conditioning films. Front Microbiol (2021) 12:687118. doi: 10.3389/fmicb.2021.687118
37. Zhang JM, Liu J, Wang K, Zhang X, Zhao T, Luo HM. Observations of bacterial biofilm on ureteral stent and studies on the distribution of pathogenic bacteria and drug resistance. Urol Int (2018) 101(3):320–6. doi: 10.1159/000490621
38. Elwood CN, Lo J, Chou E, Crowe A, Arsovska O, Adomat H, et al. Understanding urinary conditioning film components on ureteral stents: profiling protein components and evaluating their role in bacterial colonization. Biofouling (2013) 29(9):1115–22. doi: 10.1080/08927014.2013.829049
39. Scotland KB, Kung SH, Chew BH, Lange D. Uropathogens preferrentially interact with conditioning film components on the surface of indwelling ureteral stents rather than stent material. Pathogens (2020) 9(9):764. doi: 10.3390/pathogens9090764
40. Canales BK, Higgins L, Markowski T, Anderson L, Li QA, Monga M. Presence of five conditioning film proteins are highly associated with early stent encrustation. J Endourol (2009) 23(9):1437–42. doi: 10.1089/end.2009.0389
41. Berne C, Ducret A, Hardy GG, Brun YV. Adhesins involved in attachment to abiotic surfaces by gram-negative bacteria. Microbiol Spectr (2015) 3(4):10.1128. doi: 10.1128/microbiolspec.MB-0018-2015
42. Donlan RM. Biofilms: microbial life on surfaces. Emerg Infect Dis (2002) 8(9):881–90. doi: 10.3201/eid0809.020063
43. Sauer MM, Jakob RP, Luber T, Canonica F, Navarra G, Ernst B, et al. Binding of the bacterial adhesin FimH to its natural, multivalent high-mannose type glycan targets. J Am Chem Soc (2019) 141(2):936–44. doi: 10.1021/jacs.8b10736
44. Sokurenko EV, Vogel V Fau - Thomas WE, Thomas WE. Catch-bond mechanism of force-enhanced adhesion: counterintuitive, elusive, but ... widespread? Cell Host Microbe (2008) 4(4):314–23. doi: 10.1016/j.chom.2008.09.005
45. Wheeler JD, Secchi E, Rusconi R, Stocker R. Not just going with the flow: The effects of fluid flow on bacteria and plankton. Annu Rev Cell Dev Biol (2019) 35:213–37. doi: 10.1146/annurev-cellbio-100818-125119
46. Paul E, Ochoa JC, Pechaud Y, Liu Y, Liné A. Effect of shear stress and growth conditions on detachment and physical properties of biofilms. Water Res (2012) 46(17):5499–508. doi: 10.1016/j.watres.2012.07.029
47. Flemming HC, Neu TR, Wozniak DJ. The EPS matrix: the "house of biofilm cells". J Bacteriol (2007) 189(22):7945–7. doi: 10.1128/jb.00858-07
48. Flemming H-C, Wingender J, Szewzyk U, Steinberg P, Rice SA, Kjelleberg S. Biofilms: an emergent form of bacterial life. Nat Rev Microbiol (2016) 14(9):563–75. doi: 10.1038/nrmicro.2016.94
49. Zheng S, Bawazir M, Dhall A, Kim H-E, He L, Heo J, et al. Implication of surface properties, bacterial motility, and hydrodynamic conditions on bacterial surface sensing and their initial adhesion. Front Bioengineering Biotechnol (2021) 9:643722. doi: 10.3389/fbioe.2021.643722
50. Jin X, Marshall JS. Mechanics of biofilms formed of bacteria with fimbriae appendages. PloS One (2020) 15(12):e0243280. doi: 10.1371/journal.pone.0243280
51. Yang L, Liu Y, Wu H, Hóiby N, Molin S, Song ZJ. Current understanding of multi-species biofilms. Int J Oral Sci (2011) 3(2):74–81. doi: 10.4248/ijos11027
52. Robert M, Boularan AM, El Sandid M, Grasset D. Double-j ureteric stent encrustations: clinical study on crystal formation on polyurethane stents. Urol Int (1997) 58(2):100–4. doi: 10.1159/000282959
53. Grases F, Söhnel O, Costa-Bauzá A, Ramis M, Wang Z. Study on concretions developed around urinary catheters and mechanisms of renal calculi development. Nephron (2001) 88(4):320–8. doi: 10.1159/000046015
54. Grases F, Sanchis P, Isern B, Perelló J, Costa-Bauzá A. Uric acid as inducer of calcium oxalate crystal development. Scand J Urol Nephrol (2007) 41(1):26–31. doi: 10.1080/00365590600831571
55. Thongprayoon C, Vaughan LE, Chewcharat A, Kattah AG, Enders FT, Kumar R, et al. Risk of symptomatic kidney stones during and after pregnancy. Am J Kidney Dis (2021) 78(3):409–17. doi: 10.1053/j.ajkd.2021.01.008
56. Tenke P, Köves B, Nagy K, Hultgren SJ, Mendling W, Wullt B, et al. Update on biofilm infections in the urinary tract. World J Urol (2012) 30(1):51–7. doi: 10.1007/s00345-011-0689-9
57. Stickler DJ, Feneley RC. The encrustation and blockage of long-term indwelling bladder catheters: a way forward in prevention and control. Spinal Cord (2010) 48(11):784–90. doi: 10.1038/sc.2010.32
58. Mandakhalikar KD, Rahmat JN, Chiong E, Neoh KG, Shen L, Tambyah PA. Extraction and quantification of biofilm bacteria: Method optimized for urinary catheters. Sci Rep (2018) 8(1):8069. doi: 10.1038/s41598-018-26342-3
59. Lojanapiwat B. Colonization of internal ureteral stent and bacteriuria. World J Urol (2006) 24(6):681–3. doi: 10.1007/s00345-006-0135-6
60. Bonkat G, Rieken M, Rentsch CA, Wyler S, Feike A, Schäfer J, et al. Improved detection of microbial ureteral stent colonisation by sonication. World J Urol (2011) 29(1):133–8. doi: 10.1007/s00345-010-0535-5
61. Ozgur BC, Ekıcı M, Yuceturk CN, Bayrak O. Bacterial colonization of double j stents and bacteriuria frequency. Kaohsiung J Med Sci (2013) 29(12):658–61. doi: 10.1016/j.kjms.2013.01.017
62. Reid G, Denstedt JD, Kang YS, Lam D, Nause C. Microbial adhesion and biofilm formation on ureteral stents in vitro and in vivo. J Urol (1992) 148(5):1592–4. doi: 10.1016/s0022-5347(17)36976-8
63. Pal DK, Mahapatra RS, Kumar A. Clinical significance of DJ stent culture in patients with indwelling ureteral stents prior to endourological intervention. Urologia (2022) 89(1):75–8. doi: 10.1177/0391560320962400
64. Bonkat G, Rieken M, Siegel FP, Frei R, Steiger J, Gröschl I, et al. Microbial ureteral stent colonization in renal transplant recipients: frequency and influence on the short-time functional outcome. Transpl Infect Dis (2012) 14(1):57–63. doi: 10.1111/j.1399-3062.2011.00671.x
65. Neheman A, Sabler IM, Beberashvili I, Goltsman G, Verchovsky G, Kord E, et al. Ureteral stent colonization and urinary tract infection in children undergoing minimally invasive pyeloplasty. Eur J Pediatr Surg (2023) 33(01):047–52. doi: 10.1055/a-1905-4460
66. Gede Oka A, Kusuma Duarsa G, Wulandari S, Bagus Mahadewa T, Santosa B, Yudiana W, et al. Characteristics of bacterial colonization after indwelling ureteral stents in urinary stone patients with diabetes mellitus and chronic kidney disease. Urological Sci (2019) 30(5):211–5. doi: 10.4103/uros.Uros_124_18
67. Rahman MA, Alam MM, Shamsuzzaman SM, Haque ME. Evaluation of bacterial colonization and bacteriuria secondary to internal ureteral stent. Mymensingh Med J (2010) 19(3):366–71.
68. Rahman MA, Alam MM, Shahjamal S, Islam MR, Haque ME. Predictive value of urine cultures in evaluation of bacterial colonization of ureteral stents. Mymensingh Med J (2012) 21(2):300–5.
69. Lifshitz DA, Winkler HZ, Gross M, Sulkes J, Baniel J, Livne PM. Predictive value of urinary cultures in assessment of microbial colonization of ureteral stents. J Endourol (1999) 13(10):735–8. doi: 10.1089/end.1999.13.735
70. Al KF, Denstedt JD, Daisley BA, Bjazevic J, Welk BK, Pautler SE, et al. Ureteral stent microbiota is associated with patient comorbidities but not antibiotic exposure. Cell Rep Med (2020) 1(6):100094. doi: 10.1016/j.xcrm.2020.100094
71. Aydin HR, Irkilata L, Aydin M, Gorgun S, Demirel HC, Adanur S, et al. Incidence of bacterial colonisation after indwelling of double-j ureteral stent. Arch Ital Urol Androl (2016) 87(4):291–4. doi: 10.4081/aiua.2015.4.291
72. Buhmann MT, Abt D, Nolte O, Neu TR, Strempel S, Albrich WC, et al. Encrustations on ureteral stents from patients without urinary tract infection reveal distinct urotypes and a low bacterial load. Microbiome (2019) 7(1):60. doi: 10.1186/s40168-019-0674-x
73. Corcoll N, Österlund T, Sinclair L, Eiler A, Kristiansson E, Backhaus T, et al. Comparison of four DNA extraction methods for comprehensive assessment of 16S rRNA bacterial diversity in marine biofilms using high-throughput sequencing. FEMS Microbiol Lett (2017) 364(14):fnx139. doi: 10.1093/femsle/fnx139
74. Zumstein V, Betschart P, Buhmann MT, Albrich WC, Nolte O, Güsewell S, et al. Detection of microbial colonization of the urinary tract of patients prior to secondary ureterorenoscopy is highly variable between different types of assessment: results of a prospective observational study. Biofouling (2019) 35(10):1083–92. doi: 10.1080/08927014.2019.1692000
75. Arkusz K, Pasik K, Halinski A, Halinski A. Surface analysis of ureteral stent before and after implantation in the bodies of child patients. Urolithiasis (2021) 49(1):83–92. doi: 10.1007/s00240-020-01211-9
76. Cauda V, Chiodoni A, Laurenti M, Canavese G, Tommasi T. Ureteral double-j stents performances toward encrustation after long-term indwelling in a dynamic in vitro model. J BioMed Mater Res B Appl Biomater (2017) 105(8):2244–2253. doi: 10.1002/jbm.b.33756
77. Tunney MM, Bonner MC, Keane PF, Gorman SP. Development of a model for assessment of biomaterial encrustation in the upper urinary tract. Biomaterials (1996) 17(10):1025–9. doi: 10.1016/0142-9612(96)84679-5
78. Bithelis G, Bouropoulos N, Liatsikos EN, Perimenis P, Koutsoukos PG, Barbalias GA. Assessment of encrustations on polyurethane ureteral stents. J Endourol (2004) 18(6):550–6. doi: 10.1089/end.2004.18.550
79. Cottone CM, Lu S, Wu YX, Guan K, Yoon R, Limfueco L, et al. Surface- treated pellethanes: Comparative quantification of encrustation in artificial urine solution. J Endourol (2020) 34(8):868–73. doi: 10.1089/end.2020.0097
80. Singh I, Gupta NP, Hemal AK, Aron M, Seth A, Dogra PN. Severely encrusted polyurethane ureteral stents: management and analysis of potential risk factors. Urology (2001) 58(4):526–31. doi: 10.1016/s0090-4295(01)01317-6
81. Shaheen T, Edirisinghe T, Gabriel M, Bourdoumis A, Buchholz N, Knight M. In vitro encrustation of a semi-permanent polymer-covered nitinol ureter stent: an artificial urine model. Urolithiasis (2014) 42(3):203–7. doi: 10.1007/s00240-014-0652-5
82. Sighinolfi MC, Sighinolfi GP, Galli E, Micali S, Ferrari N, Mofferdin A, et al. Chemical and mineralogical analysis of ureteral stent encrustation and associated risk factors. Urology (2015) 86(4):703–6. doi: 10.1016/j.urology.2015.05.015
83. Bader MJ, Zilinberg K, Weidlich P, Waidelich R, Püls M, Gratzke C, et al. Encrustation of urologic double pigtail catheters-an ex vivo optical coherence tomography (OCT) study. Lasers Med Sci (2013) 28(3):919–24. doi: 10.1007/s10103-012-1177-1
84. Zheng S, Amado P, Obrist D, Burkhard F, Clavica F. An in vitro bladder model with physiological dynamics: Vesicoureteral reflux alters stent encrustation pattern. Front Bioengineering Biotechnol (2022) 10:1028325. doi: 10.3389/fbioe.2022.1028325
85. Zheng S, Carugo D, Mosayyebi A, Turney B, Burkhard F, Lange D, et al. Fluid mechanical modeling of the upper urinary tract. WIREs Mech Dis (2021) 13(6):e1523. doi: 10.1002/wsbm.1523
86. Riedl CR, Plas E, Hübner WA, Zimmerl H, Ulrich W, Pflüger H. Bacterial colonization of ureteral stents. Eur Urol (1999) 36(1):53–9. doi: 10.1159/000019927
87. Shabeena KS, Bhargava R, Manzoor MAP, Mujeeburahiman M. Characteristics of bacterial colonization after indwelling double-j ureteral stents for different time duration. Urol Ann (2018) 10(1):71–5. doi: 10.4103/ua.Ua_158_17
88. Keane PF, Bonner MC, Johnston SR, Zafar A, Gorman SP. Characterization of biofilm and encrustation on ureteric stents in vivo. Br J Urol (1994) 73(6):687–91. doi: 10.1111/j.1464-410x.1994.tb07557.x
89. Paick SH, Park HK, Oh SJ, Kim HH. Characteristics of bacterial colonization and urinary tract infection after indwelling of double-j ureteral stent. Urology (2003) 62(2):214–7. doi: 10.1016/s0090-4295(03)00325-x
90. Sarier M, Demir M, Duman I, Yuksel Y, Demirbas A. Evaluation of ureteral stent colonization in live-donor renal transplant recipients. Transplant Proc (2017) 49(3):415–9. doi: 10.1016/j.transproceed.2017.01.004
91. Ülker V YN, Ağuş N, Can E, Çakmak Ö, Yücel C, Çelik O, et al. Bacterial colonization of ureteral double-j stents in patients with negative urine culture. J Urol Surg (2019) 6:125–9.
92. Akay AF, Aflay U, Gedik A, Sahin H, Bircan MK. Risk factors for lower urinary tract infection and bacterial stent colonization in patients with a double j ureteral stent. Int Urol Nephrol (2007) 39(1):95–8. doi: 10.1007/s11255-006-9150-1
93. Kehinde EO, Rotimi VO, Al-Hunayan A, Abdul-Halim H, Boland F, Al-Awadi KA. Bacteriology of urinary tract infection associated with indwelling j ureteral stents. J Endourol (2004) 18(9):891–6. doi: 10.1089/end.2004.18.891
94. Saouli A, Karmouni T, El Khader K, Koutani A, Andaloussi AIA. Study of risk factors for urinary colonization in patients with the double j catheter. Afr J Urol (2021) 27(1):40. doi: 10.1186/s12301-021-00144-y
95. Klis R, Korczak-Kozakiewicz E, Denys A, Sosnowski M, Rozanski W. Relationship between urinary tract infection and self-retaining double-j catheter colonization. J Endourol (2009) 23(6):1015–9. doi: 10.1089/end.2008.0518
96. Samir M, Mahmoud MA, Tawfick A. Does bacterial colonization influence ureteral stent-associated morbidity? a prospective study. Arab J Urol (2023) 21(3):156–61. doi: 10.1080/2090598X.2022.2164124
97. Zeng K, Zhang JM, Li XB, Peng SX, Zhang SC, Xie WX, et al. Analysis of bacterial biofilm formation in patients with malignancy undergoing double j stent indwelling and its influencing factors. Infection Drug Resistance (2021) 14:5209–17. doi: 10.2147/IDR.S333421
98. Yeniyol CÖ, Tuna A, Yener H, Zeyrek N, Tilki A, Coskuner A. Bacterial colonization of double j stents and bacteriuria frequency. Int Urol Nephrol (2002) 34(2):199–202. doi: 10.1023/A:1023285422278
99. Kozyrakis D, Perikleous S, Chatzistamou SE, Kateris D, Soukias G, Karatzas A, et al. Is there a role for double j stent culture in contemporary urology? Urologia Internationalis (2018) 100(2):203–8. doi: 10.1159/000486798
100. Al-Ghazo MA, Ghalayini IF, Matani YS, El-Radaideh KM, Haddad HI. The risk of bacteriuria and ureteric stent colonization in immune-compromised patients with double j stent insertion. Int Urol Nephrol (2010) 42(2):343–7. doi: 10.1007/s11255-009-9607-0
101. Vallée M, Bey E, Bouiller K, le Goux C, Pimpie R, Tourret-Arnaud J, et al. Epidemiology and risk factors for ureteral stent-associated urinary tract infections in non-transplanted renal patients: a systematic review of the literature. World J Urol (2021) 39(10):3845–60. doi: 10.1007/s00345-021-03693-7
102. Tieszer C, Reid G, Denstedt J. Conditioning film deposition on ureteral stents after implantation. J Urol (1998) 160(3 Pt 1):876–81. doi: 10.1016/s0022-5347(01)62825-8
103. Venkatesan N, Shroff S, Jayachandran K, Doble M. Polymers as ureteral stents. J Endourol (2010) 24(2):191–8. doi: 10.1089/end.2009.0516
104. Zumstein V, Betschart P, Albrich WC, Buhmann MT, Ren Q, Schmid H-P, et al. Biofilm formation on ureteral stents – incidence, clinical impact and prevention. Swiss Med Weekly (2017) 147(0506):w14408. doi: 10.4414/smw.2017.14408
105. Kawahara T, Ito H, Terao H, Yoshida M, Matsuzaki J. Ureteral stent encrustation, incrustation, and coloring: morbidity related to indwelling times. J Endourol (2012) 26(2):178–82. doi: 10.1089/end.2011.0385
106. el-Faqih SR, Shamsuddin AB, Chakrabarti A, Atassi R, Kardar AH, Osman MK, et al. Polyurethane internal ureteral stents in treatment of stone patients: morbidity related to indwelling times. J Urol (1991) 146(6):1487–91. doi: 10.1016/s0022-5347(17)38146-6
107. Haleblian G, Kijvikai K, de la Rosette J, Preminger G. Ureteral stenting and urinary stone management: a systematic review. J Urol (2008) 179(2):424–30. doi: 10.1016/j.juro.2007.09.026
108. Abadian PN, Buch PJ, Goluch ED, Li J, Zhang Z. Real-time monitoring of urinary encrustation using a quartz crystal microbalance. Analytical Chem (2018) 90(3):1531–5. doi: 10.1021/acs.analchem.7b04047
109. Yousefi Darestani MR, Lange D, Chew BH, Takahata K. Electromechanically functionalized ureteral stents for wireless obstruction monitoring. ACS Biomater Sci Eng (2023) 9(7):4392–403. doi: 10.1021/acsbiomaterials.3c00114
110. Werneburg GT, Hettel D, Lundy SD, Adler A, De S, Mukherjee SD, et al. Ureteral stents harbor complex biofilms with rich microbiome-metabolite interactions. J Urol (2023) 209(5):950–62. doi: 10.1097/JU.0000000000003200
111. Rana AM, Sabooh A. Management strategies and results for severely encrusted retained ureteral stents. J Endourol (2007) 21(6):628–32. doi: 10.1089/end.2006.0250
112. Raya A, Sodagari M, Pinzon NM, He X, Newby BMZ, Ju LK. Effects of rhamnolipids and shear on initial attachment of pseudomonas aeruginosa PAO1 in glass flow chambers. Environ Sci pollut Res (2010) 17(9):1529–38. doi: 10.1007/s11356-010-0339-6
113. Lim J, Lee KM, Park CY, Kim HV, Kim Y, Park S. Quorum sensing is crucial to escherichia coli O157:H7 biofilm formation under static or very slow laminar flow conditions. Biochip J (2016) 10(3):241–9. doi: 10.1007/s13206-016-0310-9
114. Park A, Jeong HH, Lee J, Kim KP, Lee CS. Effect of shear stress on the formation of bacterial biofilm in a microfluidic channel. Biochip J (2011) 5(3):236–41. doi: 10.1007/s13206-011-5307-9
115. Zalewska-Piątek B, Olszewski M, Lipniacki T, Błoński S, Wieczór M, Bruździak P, et al. A shear stress micromodel of urinary tract infection by the escherichia coli producing dr adhesin. PloS Pathog (2020) 16(1):e1008247. doi: 10.1371/journal.ppat.1008247
116. Kim K-W, Park S-H, Im G, Lee SB, Baba Y, Lee C, et al. CFD study on vesicoureteral reflux in the urinary tract with double j stent. Comput Biol Med (2022) 145:105456. doi: 10.1016/j.compbiomed.2022.105456
117. Carugo D ZX, Drake JM, Clavica F, eds. (2014). Formation and characteristics of laminar vortices in microscale environments within an obstructed and stented ureter: a computational study, in: Proceedings of the 18th International Conference on Miniaturized Systems for Chemistry and Life Sciences, MicroTAS, San Antonio, USA.
118. Yazdi S, Ardekani AM. Bacterial aggregation and biofilm formation in a vortical flow. Biomicrofluidics (2012) 6(4):44114. doi: 10.1063/1.4771407
119. Stahlhut SG, Chattopadhyay S, Kisiela DI, Hvidtfeldt K, Clegg S, Struve C, et al. Structural and population characterization of MrkD, the adhesive subunit of type 3 fimbriae. J Bacteriol (2013) 195(24):5602–13. doi: 10.1128/jb.00753-13
120. Mok JH, Niu Y, Yousef A, Zhao Y, Sastry SK. A microfluidic approach for studying microcolonization of escherichia coli O157:H7 on leaf trichome-mimicking surfaces under fluid shear stress. Biotechnol Bioengineering (2022) 119(6):1556–66. doi: 10.1002/bit.28057
121. Thomen P, Robert J, Monmeyran A, Bitbol A-F, Douarche C, Henry N. Bacterial biofilm under flow: First a physical struggle to stay, then a matter of breathing. PloS One (2017) 12(4):e0175197. doi: 10.1371/journal.pone.0175197
122. Lopez-Mila B, Alves P, Riedel T, Dittrich B, Mergulhão F, Rodriguez- Emmenegger C. Effect of shear stress on the reduction of bacterial adhesion to antifouling polymers. Bioinspiration Biomimetics (2018) 13(6):065001. doi: 10.1088/1748-3190/aadcc2
123. Dolid A, Gomes LC, Mergulhão FJ, Reches M. Combining chemistry and topography to fight biofilm formation: Fabrication of micropatterned surfaces with a peptide-based coating. Colloids Surfaces B: Biointerfaces (2020) 196:111365. doi: 10.1016/j.colsurfb.2020.111365
124. Moreira JM, Araújo JD, Miranda JM, Simões M, Melo LF, Mergulhão FJ. The effects of surface properties on escherichia coli adhesion are modulated by shear stress. Colloids Surf B Biointerfaces (2014) 123:1–7. doi: 10.1016/j.colsurfb.2014.08.016
125. Roosjen A, Boks NP, van der Mei HC, Busscher HJ, Norde W. Influence of shear on microbial adhesion to PEO-brushes and glass by convective-diffusion and sedimentation in a parallel plate flow chamber. Colloids Surfaces B: Biointerfaces (2005) 46(1):1–6. doi: 10.1016/j.colsurfb.2005.08.009
126. Lee JH, Kaplan JB, Lee WY. Microfluidic devices for studying growth and detachment of staphylococcus epidermidis biofilms. Biomed Microdevices (2008) 10(4):489–98. doi: 10.1007/s10544-007-9157-0
127. Nejadnik MR, van der Mei HC, Norde W, Busscher HJ. Bacterial adhesion and growth on a polymer brush-coating. Biomaterials (2008) 29(30):4117–21. doi: 10.1016/j.biomaterials.2008.07.014
128. Tran VN, Khan F, Han W, Luluil M, Truong VG, Yun HG, et al. Real-time monitoring of mono- and dual-species biofilm formation and eradication using microfluidic platform. Sci Rep (2022) 12(1):9678. doi: 10.1038/s41598-022-13699-9
129. Zhang W, Sileika TS, Chen C, Liu Y, Lee J, Packman AI. A novel planar flow cell for studies of biofilm heterogeneity and flow-biofilm interactions. Biotechnol Bioeng (2011) 108(11):2571–82. doi: 10.1002/bit.23234
130. Janakiraman V, Englert D, Jayaraman A, Baskaran H. Modeling growth and quorum sensing in biofilms grown in microfluidic chambers. Ann BioMed Eng (2009) 37(6):1206–16. doi: 10.1007/s10439-009-9671-8
131. McClaine JW, Ford RM. Characterizing the adhesion of motile and nonmotile escherichia coli to a glass surface using a parallel-plate flow chamber. Biotechnol Bioengineering (2002) 78(2):179–89. doi: 10.1002/bit.10192
132. Roh C, Nguyen TT, Shim JJ, Kang C. Physico-chemical characterization of caesium and strontium using fluorescent intensity of bacteria in a microfluidic platform. R Soc Open Sci (2019) 6(5):182069. doi: 10.1098/rsos.182069
133. Alves P, Nir S, Reches M, Mergulhão F. The effects of fluid composition and shear conditions on bacterial adhesion to an antifouling peptide-coated surface. MRS Commun (2018) 8(3):938–46. doi: 10.1557/mrc.2018.160
134. Moreira JMR, Ponmozhi J, Campos JBLM, Miranda JM, Mergulhão FJ. Micro- and macro-flow systems to study escherichia coli adhesion to biomedical materials. Chem Eng Sci (2015) 126:440–5. doi: 10.1016/j.ces.2014.12.054
135. Gomes LC, Mergulhão FJM. A selection of platforms to evaluate surface adhesion and biofilm formation in controlled hydrodynamic conditions. Microorganisms (2021) 9(9):1993. doi: 10.3390/microorganisms9091993
136. Hogan S, Kasotakis E, Maher S, Cavanagh B, O'Gara JP, Pandit A, et al. A novel medical device coating prevents staphylococcus aureus biofilm formation on medical device surfaces. FEMS Microbiol Lett (2019) 366(9):fnz107. doi: 10.1093/femsle/fnz107
137. Xu L-C, Siedlecki CA. Submicron-textured biomaterial surface reduces staphylococcal bacterial adhesion and biofilm formation. Acta Biomaterialia (2012) 8(1):72–81. doi: 10.1016/j.actbio.2011.08.009
138. Shive MS, Hasan SM, Anderson JM. Shear stress effects on bacterial adhesion, leukocyte adhesion, and leukocyte oxidative capacity on a polyetherurethane. J Biomed Materials Res (1999) 46(4):511–519. doi: 10.1002/(SICI)1097-4636(19990915)46:4<511::AID-JBM9>3.0.CO;2-M
139. Dickinson RB, Nagel JA, Proctor RA, Cooper SL. Quantitative comparison of shear-dependent staphylococcus aureus adhesion to three polyurethane ionomer analogs with distinct surface properties. J Biomed Materials Res (1997) 36(2):152–62. doi: 10.1002/(SICI)1097-4636(199708)36:2<152::AID-JBM3>3.0.CO;2-J
140. Nagel JA, Dickinson RB, Cooper SL. Bacterial adhesion to polyurethane surfaces in the presence of pre-adsorbed high molecular weight kininogen. J Biomaterials Science Polymer Edition (1996) 7(9):769–80. doi: 10.1163/156856296X00110
Keywords: urology, ureteral stents, biofilm, bacteria, encrustation, microfluidics, wall shear stress, fluid mechanics
Citation: Amado P, Zheng S, Lange D, Carugo D, Waters SL, Obrist D, Burkhard F and Clavica F (2024) The interplay between bacterial biofilms, encrustation, and wall shear stress in ureteral stents: a review across scales. Front. Urol. 3:1335414. doi: 10.3389/fruro.2023.1335414
Received: 09 November 2023; Accepted: 19 December 2023;
Published: 16 January 2024.
Edited by:
Derek Hennessey, Mercy University Hospital, IrelandReviewed by:
Matteo Vittori, Hospital San Carlo di Nancy, ItalyNaside Mangir, Hacettepe University, Türkiye
Copyright © 2024 Amado, Zheng, Lange, Carugo, Waters, Obrist, Burkhard and Clavica. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Pedro Amado, pedro.pereira@unibe.ch
