ORIGINAL RESEARCH article

Front. Trop. Dis, 14 September 2022
Sec. Neglected Tropical Diseases
This article is part of the Research Topic Diagnostics for Neglected Tropical Diseases View all 5 articles

Evaluating the yaws diagnostic gap: A survey to determine the capacity of and barriers to improving diagnostics in all yaws-endemic countries

Becca L. Handley*Becca L. Handley1*Serges TchatchouangSerges Tchatchouang2Lise GroutLise Grout3Roch Christian Johnson,Roch Christian Johnson4,5Earnest Njih Tabah,Earnest Njih Tabah6,7Bernard BouaBernard Boua8Alphonse Um BoockAlphonse Um Boock9Aboa Paul KoffiAboa Paul Koffi10Delphin Mavinga PhanzuDelphin Mavinga Phanzu11Nana Konama KoteyNana Konama Kotey12Emerson RogersEmerson Rogers13Belen DofitasBelen Dofitas14Younghee JungYounghee Jung15Tchalim MawekeTchalim Maweke16Camila G. BeirasCamila G. Beiras17Issaka MamanIssaka Maman18Laud Anthony BasingLaud Anthony Basing19Solange Kakou NgazoaSolange Kakou Ngazoa20Jean Gabin HouezoJean Gabin Houezo21Kwamy Togbey,Kwamy Togbey22,23Elizabeth Freda TelanElizabeth Freda Telan24Nevio SarmentoNevio Sarmento25Estelle MarionEstelle Marion26Kwasi Kennedy AddoKwasi Kennedy Addo19Oriol MitjOriol Mitjà17Kingsley AsieduKingsley Asiedu3Emma Harding-EschEmma Harding-Esch1Michael Marks,,Michael Marks1,27,28
  • 1Faculty of Infectious Diseases, London School of Hygiene &Tropical Medicine, London, United Kingdom
  • 2Scientific Direction, Centre Pasteur du Cameroun, Yaoundé, Cameroon
  • 3Department of Control of Neglected Tropical Diseases, World Health Organisation, Geneva, Switzerland
  • 4Fondation Raoul Follereau, Health Department, Paris, France
  • 5Centre Inter Facultaire de Formation et de Recherche en Environnement pour le Développement Durable, Université d’Abomey Calavi, Abomey Calavi, Benin
  • 6National Committee for Yaws, Leishmaniasis, Leprosy and Buruli ulcer Control, Ministry of Public Health, Yaounde, Cameroon
  • 7Faculty of Medicine and Pharmaceutical Sciences, University of Dschang, Dschang, Cameroon
  • 8Ministry of Health, National Human African Trypanosomiasis (HAT) Program, Bangui, Central African Republic
  • 9Program Unit, FAIRMED, Bern, Switzerland
  • 10Programme National de Lutte contre l’Ulcère de Buruli, Abidjan, Côte d'Ivoire
  • 11Department of Scientific Research and Health Development, Institut Médical Evangélique of Kimpese, Kinshasa, Democratic Republic of Congo
  • 12National Yaws Control Program, Ghana Health Service, Accra, Ghana
  • 13Liberia Ministry of Health and Social Welfare, Ministry of Health, Monrovia, Liberia
  • 14Department of Dermatology, University of the Philippines Manila College of Medicine, Manila, Philippines
  • 15Neglected Tropical Diseases, World Health Organization (WHO) Country Office, Dili, Timor-Leste
  • 16Programme National d’Elimination de la Filariose Lymphatique, Ministère de la Santé et de l’Hygiène Publique, Lomé, Togo
  • 17Sexually transmitted infections (STI) and Skin Neglected Tropical Diseases (NTDs) Unit, Department of Infectious Diseases and Fight AIDS and Infectious Diseases Foundation, Hospital Universitari Germans Trias i Pujol, Badalona, Spain
  • 18Ministère de la Santé, Institut National d’Hygiène, Lomé, Togo
  • 19Department of Bacteriology, Noguchi Memorial Institute for Medical Research, University of Ghana, Accra, Ghana
  • 20Département Technique & Technologie, Institut Pasteur de Côte d’Ivoire, Abidjan, Côte d'Ivoire
  • 21Centre de Dépistage et de Traitement de l’Ulcère de Buruli d’Allada, Ministry of Health, Allada, Benin
  • 22Programme National des Maladies Tropicales Négligées (PNMTN), Ministère de la Santé et de l'Hygiène Publique, Lomé, Togo
  • 23Ministère de la Santé, de l’Hygiène Publique et de l’Accès Universel aux Soins (MSHPAUS), Lomé, Togo
  • 24STD Acquired Immunodeficiency Syndrome (AIDS) Cooperative Central Laboratory, San Lazaro Hospital, Manila, Philippines
  • 25Departamento Laboratorio e Banco de Sangue, National Health Laboratory, Dili, Timor-Leste
  • 26Univ Angers, Nantes Université, INSERM, CNRS, INCIT, UMR 1302, Angers, France
  • 27Hospital for Tropical Diseases, University College London Hospital, London, United Kingdom
  • 28Division of Infection and Immunity, University College London, London, United Kingdom

Background: Yaws, caused by Treponema pallidum subsp. pertenue, is a skin neglected tropical disease. It is targeted for eradication by 2030, primarily using mass drug administration (MDA) with azithromycin. Traditionally, diagnosis of yaws has relied on clinical examination and serological testing. However, these approaches have poor diagnostic performance. To achieve eradication, more accurate diagnostics are required to determine whether MDA should be initiated or continued as well as for post-elimination surveillance. Molecular tools will be crucial for detecting antimicrobial resistant cases, which have the potential to derail eradication efforts. In order to determine the feasibility of introducing novel, more accurate, diagnostics for yaws surveillance purposes, it is necessary to understand current in-country diagnostic capacity. This study therefore aimed to understand the current capacity of, and challenges to, improving diagnostics for yaws in all yaws-endemic countries worldwide.

Methodology/principal findings: An online survey was sent to all 15 yaws-endemic countries in July 2021. The survey asked about past prevalence estimates, the availability of different diagnostic tools, and perceived barriers to enhancing capacity. Fourteen countries responded to the survey, four of which did not have a current National Policy for yaws eradication in place. Over 95% of reported that yaws cases from the past five years had not been confirmed with serological or molecular tools, largely due to the limited supply of rapid serological tests. Only four countries reported having operational laboratories for molecular yaws diagnosis, with only one of these having a validated assay to detect azithromycin resistance.

Conclusions and significance: This study highlights the diagnostic capacity constraints across all respondent countries. Countries are in need of access to a sustainable supply of serological tests, and development of molecular testing facilities. Sufficient sustainable funding should be made available to ensure that appropriate diagnostic tools are available and utilised.

Introduction

Yaws is a neglected tropical disease (NTD) targeted for eradication by 2030 (1). The disease, caused by the spirochete bacteria Treponema pallidum subspecies pertenue (TPE), primarily infects children aged between 5-15, living in endemic areas of the tropics (24). It is spread through skin-to-skin contact and characterised by distinct clinical stages initially involving lesions of the skin and soft tissue which are interspersed with periods of latency, where the person is asymptomatic. In most highly endemic settings there may be 5 to 10 asymptomatic infections for every active case detected. If left untreated, a person may develop the non-infectious but destructive tertiary stage of the disease, often 5-10 years after the initial infection (4, 5).

Yaws was once a global disease, affecting 160 million people in 88 countries and was considered a major public health problem due to the development of deformative and destructive infections occurring on a massive scale (6). However, a World Health Organization (WHO)/United Nations Children’s Fund (UNICEF)-run eradication campaign, which took place during the 1950’s and 60’s, reduced worldwide prevalence by up to 95% (7). This was primarily achieved through the use of mass treatment of injectable benzathine penicillin to yaws patients and their close contacts (8). Despite the success of the campaign, small clusters of cases remained and have rebounded in recent years (9); as of 2021, yaws was confirmed to still be endemic in at least 15 countries (10). In 2012, after the demonstration that oral azithromycin was as effective as penicillin at treating yaws (11), a new eradication effort was launched by WHO, known as the Morges strategy (1). Initially yaws was targeted for eradication by 2020, but this has been extended to 2030 in the new NTD roadmap (12). The Morges strategy involves the identification and mass drug administration (MDA) of yaws-endemic communities, known as total community treatment (TCT), followed by targeted treatment of any cases that remain and their close contacts, known as total targeted treatment (TTT) (1). In order for a country to be certified by WHO as having achieved elimination, three criteria must be met: 1) the absence of new serologically confirmed indigenous cases for three consecutive years; 2) the absence of any PCR confirmed cases; 3) the absence of evidence of transmission for three continuous years, which should be measured with sero-surveys among children aged 1–5 years (13).

Yaws is often diagnosed based on clinical presentation alone. However, this approach has poor diagnostic performance as many clinically-suspected yaws cases are caused by other pathogens and would therefore be negative by serological testing (2). WHO recommends using sequential testing of two serological tests, the first to detect long-lived treponemal antibodies, followed by a DPP® Syphilis Screen & Confirm Assay (hereafter DPP) (Chembio, Medford, New York, United Kingdom) to confirm current yaws infection (14). This is done as the latter test is more expensive, and so is only used when exposure (past or current) to a treponeme is confirmed. However, even when a patient presents with reactive serology (dual positive on a DPP test), only around one-third of people will be positive for TPE DNA by PCR, confirming the current lesion is due to yaws (1517). Many patients with clinically-suspected yaws (up to 50% in some settings) are found to harbour Haemophilus ducreyi and are negative for TPE bacteria, and around a third of yaws-like lesions are negative for both bacteria and have an unknown aetiology (15, 16, 18, 19). Because of the diagnostic accuracy challenges of serology, molecular tools are the preferred diagnostic method used by researchers and yield the most specific diagnostic results. Molecular tools are also the only available diagnostic tool for detecting azithromycin resistant TPE (20, 21). This is important, as although only recently detected in TPE, drug resistance has the potential to derail eradication efforts (22, 23). The latest WHO manual on yaws eradication for programme managers (24), highlights the importance of molecular tools both for declaring interruption of yaws transmission and for surveillance after eradication certification. However, molecular tools are expensive, require trained technicians to carry out the tests and are often only available at larger, national laboratories that are far from the patient.

Despite the eradication target being less than a decade away, the majority of yaws cases reported to WHO are suspected cases, that is, people diagnosed based on clinical examination only. According to data from the Global Health Observatory, only 153 of the 82,564 reported suspected yaws cases were serologically confirmed using a DPP test in 2020 (10). Although it is unclear how many suspected cases were tested with any form of serological tests, the low number of serologically confirmed cases indicates there is a major shortfall in the use of appropriate diagnostic techniques. The 2021-2030 NTD roadmap document lays out the desired goals for all NTDs and proposes concrete plans to aid with reaching these targets (12), including a gap assessment covering diagnostics for each disease. Overall, yaws diagnostics are classed as “green”, indicating diagnostics in their current form are unlikely to impede meeting the eradication target. However, the specific assessment of diagnostic gaps and priorities is classed as “yellow”, with the need to develop both a sensitive molecular point of care (POC) test that can distinguish between TPE and H. ducreyi and tools to detect azithromycin resistance.

Thus, if the eradication programme is to be successful, programmatic access to sensitive and specific diagnostic tools will be vital. It is essential that the prevalence of yaws is well mapped initially to determine where eradication efforts should be targeted. It is also key that sensitive diagnostic methods, such as PCR, are routinely available post-TCT to make decisions about continuing eradication efforts or to enable certification of eradication. There is also a clear need for tools that can diagnose azithromycin-resistant TPE. Based on WHO reporting data, we suspect that most endemic countries do not have access to adequate diagnostic tools that will be required for eradication. To determine the current status and availability of yaws diagnostics, we worked with national programmes of yaws-endemic countries to compile data on current diagnostic capacity for yaws and to indicate where diagnostic gaps remain.

Materials and methods

A two-part survey (Supplementary Material A) was created and provided to the yaws or NTD programme managers in all 15 known yaws-endemic countries: Benin, Cameroon, Central African Republic, Côte d’Ivoire, Congo, Democratic Republic of Congo, Ghana, Indonesia, Liberia, Papua New Guinea, Philippines, Solomon Islands, Timor-Leste, Togo and Vanuatu. The survey was available in French and English and was available both as an online survey and a paper-based questionnaire. Reponses were collected between July 2021 – January 2022. If the respondent preferred, an online meeting was arranged and the questionnaire completed by BH, (ST for francophone countries) and the respondents. This exercise was considered an evaluation of routine programmatic capacity not requiring ethics approval.

The first part of the form was designed to be completed by the yaws/NTD programme manager in each country. It included questions about yaws case reporting and availability of POC serological tests as well as about perceived barriers to improving yaws diagnostics. The second part of the form was designed to be completed by a representative of the national yaws molecular testing facility, if applicable. This part of the survey was designed to determine what molecular tests, if any, were in use for routine yaws diagnostics, current capacity to diagnose azithromycin resistance, and barriers in place to enhancing capacity. The questionnaire additionally asked programmes to identify perceived barriers to wider access to yaws diagnostics.

Results

The programme manager survey was completed by a representative from 14 yaws-endemic countries. Of these, 12 also completed the laboratory survey. Democratic Republic of Congo and Central African Republic did not complete this laboratory component of the survey as they reported having no access to laboratory facilities for yaws diagnosis.

Yaws policy

Nine countries currently have a national policy for yaws eradication in place, with Papua New Guinea currently developing one. There is no national policy in place in Benin, Cote d’Ivoire, Central African Republic, or Philippines. Yaws is a notifiable disease in 10 (67%) countries: in Central African Republic, Democratic Republic of Congo, Congo and Philippines there are no legal requirements to report yaws infections to health ministries.

Yaws case estimates and epidemiology

The percentage of districts with serologically-confirmed cases of yaws ranged from 0-38% (Table 1), with 11/14 countries having at least one district with suspected cases thus requiring confirmation of endemicity status. Solomon Islands had the largest proportion of districts reporting clinically suspected cases; all of its ten health districts base endemicity status on suspected cases only and do not confirm with any other tool, although serologically-confirmed cases have been found in non-programmatic research studies in three districts (2527) and serological screening in all provinces has since been initiated. Cameroon had the largest number of suspected-endemic districts, with 152 of its 190 districts having an unconfirmed suspected endemicity status.

TABLE 1
www.frontiersin.org

Table 1 A breakdown of suspected, treponemal rapid diagnostic test (RDT)-confirmed, and serologically confirmed (DPP positive) health districts for each respondent country up to 2021.

Respondents were asked for a breakdown of their national yaws reporting data from the last two years that data were reported to WHO since 2016, including the number of suspected cases, tests performed and number of positive results. No data were reported to WHO from Central African Republic over the past five years. Data from the last two years of reporting, 2019 and 2020, are displayed in Figure 1. In 2020, nine countries shared data with WHO, with the number of suspected cases ranging from 121 in Timor-Leste, to 81,369 cases in Papua New Guinea. Ghana and Timor-Leste reported that they tested all suspected cases with a treponemal antibody test, whereas Papua New Guinea and Solomon Islands reported based solely on clinical diagnosis. Despite recording over 10,000 suspected cases in Cote d’Ivoire of which 30% were tested using treponemal RDTs and 74% of positive RDTs were tested with DPP tests, only 26 cases of serologically confirmed yaws cases were detected in 2020.

FIGURE 1
www.frontiersin.org

Figure 1 The number of suspected, treponemal rapid diagnostic test positive (RDT), dual path platform syphilis screen (DPP) positive cases reported by each country in 2020 and 2019, Plotted on logarithmic scale. Shaded areas of the bars represent the number of people tested using sequential testing (treponemal-RDT, DPP, PCR). Categories are not exclusive as a person can fall under multiple categories.

Diagnostic capacity of health care workers

In four countries (Benin, Côte d’Ivoire, Philippines, Papua New Guinea) there was no standardised training taking place for health care workers to detect yaws, and with no training planned in two of these countries (Benin and Côte d’Ivoire). In countries where training has taken place, this was occasionally combined with training on the recognition of other skin NTDs, such as in Solomon Islands and Vanuatu who implemented integrated skin NTD training in 2020. All but one respondent country (Papua New Guinea) said their healthcare workers had access to the WHO yaws recognition booklet for communities20; however, these were not available in all health districts that required them. In 11 countries, health care workers trained to conduct treponemal-RDTs and DPP tests were not available in all suspected- or known-endemic districts.

Serological tools

Figure 2 shows which countries routinely use which serological tests (treponemal-RDTs or DPPs). Six of the 14 countries advise to routinely test all suspected yaws cases with treponemal RDTs, but four of these say the tests are not always available for patients presenting at clinics (Côte d’Ivoire, Ghana, Liberia or Togo) and Liberia reported tests are also not always available during routine surveillance activities. In Vanuatu, the guidelines state that all suspected cases should be tested with a DPP only, whereas Central African Republic, Côte d’Ivoire, Ghana, Liberia, Timor-Leste, and Togo use DPPs according to the suggested WHO sequential testing strategy (only on patients with a positive treponemal RDT test). Again, DPPs are not routinely available to test all patients with suspected yaws presenting at health care centres (Côte d’Ivoire, Ghana, Liberia, Timor-Leste or Vanuatu) or during routine case finding (Liberia, Timor-Leste or Vanuatu).

FIGURE 2
www.frontiersin.org

Figure 2 Serological testing strategy of yaws of all yaws endemic countries.

Molecular tools

Only four countries (Cameroon, Côte d’Ivoire, Ghana, and Togo) reported currently running PCR testing for yaws (Figure 3). No standardised PCR assays were being used across these four countries, however all reported to test for the Pol A pan-treponemal target. There have been PCR confirmed cases in Liberia (28), Papua New Guinea (11, 29, 30), Solomon Islands (15, 26), Vanuatu (19, 31) through research studies, but the samples were tested abroad. All four countries with laboratory capacity reported having the correct equipment to run the tests and adequate trained staff available. Other countries responded that they had laboratory facilities and equipment in place, but did not have standard operating procedures, trained staff or the necessary reagents and consumables to run the tests.

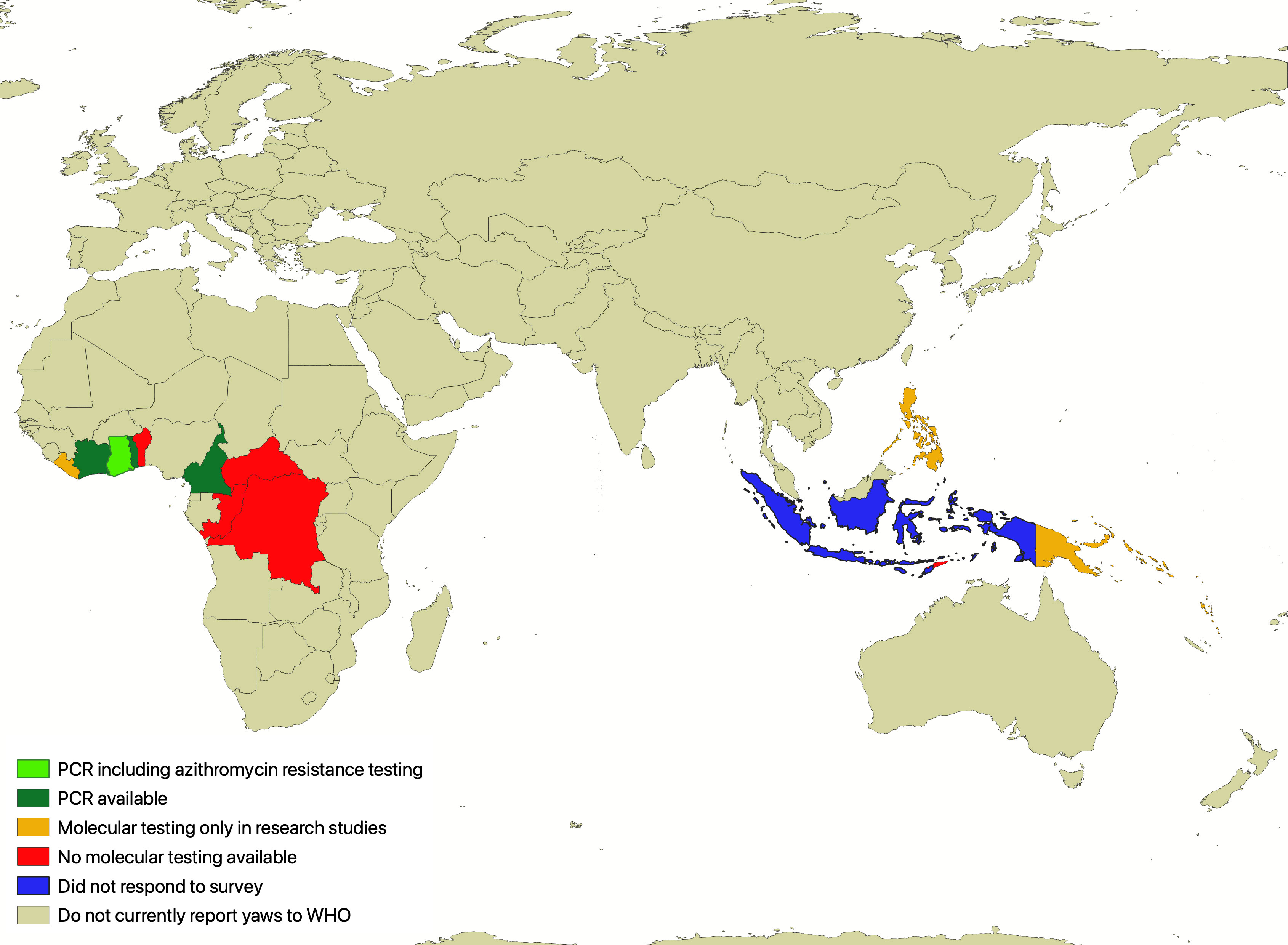

FIGURE 3
www.frontiersin.org

Figure 3 Molecular testing capacity for yaws of all yaws endemic countries.

Patient follow up and azithromycin resistance detection

In general, countries included routine follow up of azithromycin treated cases to check for treatment failure, in their national guidelines. In Papua New Guinea, Solomon Islands and Vanuatu this was not the case, however none of these countries had started MDA with azithromycin outside of study settings. Of the ten countries that reported routine follow up of patients, six (Benin, Côte d’Ivoire, Democratic Republic of Congo, Ghana, Timor-Leste, and Togo) stated that 100% of those treated are followed up. In Central African Republic and Congo, it was unknown how many patients were re-visited, and Cameroon estimated that around 50% of those treated were successfully re-visited within the suggested 2-4 week time frame.

Despite the high follow up rate reported in many countries, swabs were not routinely collected from patients with treatment failure, with only Cameroon and Liberia reporting the routine collection of swabs. In Liberia, these data were limited to a single academic study (28). The respondents from Benin, Central African Republic and Togo were unsure if swabs were collected during follow up visits. Only Ghana currently has capacity in-country to perform a quantitative (q)PCR for the detection of azithromycin resistance. Cameroon stated they have established a qPCR assay, however it has not yet been clinically validated. Overall, the ability to promptly detect azithromycin resistance is lacking in 13 (93%) of the respondent yaws-endemic countries.

Barriers to enhancing diagnostic capacity

In terms of identifying suspected yaws cases, the respondent from the Philippines noted that as there is no established yaws programme, there is no funding available for any yaws-related activities and yaws-endemic local government units have limited funds to support case detection and treatment activities. The lack of trained staff was mentioned by five countries as one of the main barriers to identifying all suspected cases. Lack of funding, including funding to train staff, was specifically mentioned by eight respondents. Other barriers included a lack of community awareness, and difficult-to-access communities and populations. Congo said that they had received project-specific funding to map four known-endemic districts, but this funding did not stretch to the additional ten suspected-endemic districts not involved in the research partnership.

With regards to testing all suspected cases with a treponemal RDT, and confirming all treponemal RDT positive cases with a DPP test, the main barriers were stock outs, lack of sustainable supply and complete absence of the serological tests in-country. Eight countries specifically mentioned there was a lack of funding to purchase the necessary tests. There is a reliance on WHO, programme partners, non-governmental organisations or academic studies to provide tests, with some countries saying they had surplus tests from previous projects, but once these were used there were none available and it was unclear how to acquire more. Most respondents were unsure about the availability of RDTs and DPPs for syphilis, so it remains unclear if there are similar supply issues for detecting the sexually transmitted T. pallidum infection. Other identified barriers included a lack of public awareness or difficulties in accessing health care centres.

In relation to improving molecular testing capacity, in Cameroon and Togo, where molecular facilities are available, both reported transport of samples from patient to the reference lab was a barrier to enhancing molecular capacity. Côte d’Ivoire cited a lack of facilities close to the patient as a major obstacle. Ghana reported funding and logistics were the biggest barrier to enhancing molecular testing capacity, including insufficient funding to set up labs in yaws-endemic health districts. In the countries without molecular diagnosis for yaws, funding was again overwhelmingly cited as the main barrier to enhancing capacity. Although many countries have a lab facility that could be utilised for yaws diagnostics, a lack of specific funding means it is not possible to pay for staff, reagents or consumables. Some countries’ respondents suggested there was a lack of awareness of the need for molecular testing, or said there was not a need for these facilities as swabs can be sent to other countries in which molecular testing facilities are already in place.

Discussion

Whilst the new NTD roadmap outlines that diagnostic testing is intended to play a pivotal role in yaws eradication, the results from this survey demonstrate there is inadequate diagnostic capacity for yaws across nearly all yaws-endemic countries. Improvement in access to current diagnostics, as well as the development of novel molecular diagnostics that can be performed close to the patient and that are able to detect azithromycin resistance, will be key to achieving the 2030 eradication target. Overall, this survey highlighted that funding, including operational and staff funding as well as funding for reagents, and equipment costs were considered the major barrier to improving all forms of diagnostics across most yaws-endemic countries.

One of the most striking findings of this survey was that, despite the eradication target being less than a decade away, five (35%) of 14 respondent countries do not currently have a yaws eradication policy in place, a figure that is essentially unchanged since the 2017 global WHO survey for yaws (32). In Central African Republic, Congo, Democratic Republic of Congo, and Philippines, yaws is not a notifiable disease, meaning that reported case data are likely to be an underestimate. Successful disease control and eradication programs, such as the eradication of dracunculiasis have relied on having an robust surveillance and reporting system within their national programmes meaning cases are detected and responded to promptly (33). Where possible disease surveillance should be integrated amongst NTDs and beyond, to allow for time- and cost-effective disease monitoring (34).

Our survey demonstrates that the endemicity status of most districts is based on clinical diagnosis rather than serological confirmation and that in 11 countries health care workers were not trained to recognise and diagnose yaws in all suspected districts. An absence of trained healthcare workers creates a major barrier to delivering yaws interventions and surveillance. An unpublished survey of government physicians and dermatologists in the Philippines which aimed to determine if the respondents had ever encountered any yaws cases found only three of the 131 respondents reported seeing yaws cases in the past. Of the remaining respondents the majority were not knowledgeable about yaws (32). Work is needed to ensure health care workers in all yaws-endemic countries receive standardised training to recognise yaws and perform appropriate serological testing.

At least two-thirds of countries have are not running any molecular diagnostics for yaws. This contrasts with the NTD roadmap assessment of NTD diagnostics, which classes yaws diagnostics as green and thus not likely to hinder roadmap goals. As countries move towards eradication, molecular testing capacity will become more important as it is the only form of testing that is both sensitive enough to detect single cases of yaws and with an adequate specificity to avoid false positive results and the deployment of unnecessary interventions. Most countries indicated there is infrastructure and staff available to perform this testing if required. Therefore, an achievable priority should be to set up molecular testing capacity in these countries. In order for molecular testing to be carried out sustainably throughout the eradication programme, all countries must also be able to easily purchase all reagents and consumables required to run the tests at a reasonable cost.

Despite being recommended by WHO swabs are not being routinely collected from patients with treatment failure during routine follow up and only Ghana has a validated azithromycin PCR currently in use. They have not yet detected any azithromycin resistance strains, meaning the first line treatment with azithromycin can continue to be used in all endemic areas. In all other yaws endemic countries, there is real potential not only for the emergence of azithromycin resistance, but its uncontrolled spread if not detected promptly. High quality surveillance of antimicrobial resistance is often lacking in low and middle-income countries but enhancing laboratory capacity for detection and surveillance of antimicrobial resistance will be crucial not only for yaws eradication but also to protect against the threat of resistance to other common and life-threatening diseases (3537). Overall, many of the above recommendations will only be achievable with sufficient funding made available to national programmes. The new NTD roadmap (12) rightly outlines a paradigm shift towards country ownership and away from traditional donor-led approaches, thus countries must ensure they have sustainable funding routes in place to acquire and maintain the diagnostic capacity needed for NTDs, including yaws.

There are some limitations to this report. Firstly, this survey was designed for, and only sent to, countries that are currently known to be endemic. Therefore, we do not know what capacity, if any, the 72 previously-endemic countries have to diagnose yaws; these countries may be yaws-free or may simply lack adequate surveillance to detect and report cases. It would be valuable to send a condensed version of this diagnostic gap survey to formerly-endemic current with uncertain status to determine what capacity they may have for the diagnosis of resurgent cases. It is vital that, if there are other endemic countries, health care workers know the clinical signs consistent with yaws and ministries of health are aware of how to act in the event of the detection of a suspected case.

Another limitation of this study is that the majority of countries provided national programme data for this survey, and did not include data from research studies, which can mean health ministries are providing an incomplete picture. For example, in Solomon Islands and Papua New Guinea, the two countries with the highest burden of yaws, there have been no serologically or molecularly confirmed cases of yaws reported to ministries of health; however, due to the inclusion of these two countries in many academic studies (15, 16, 26, 27, 29, 38), it has been demonstrated that a number of districts harbour both serologically and molecularly confirmed cases. Contrastingly, all the data provided here for Liberia is from a single academic study conducted in 2018 (28) and no additional programmatic data were provided.

Conclusions

Yaws diagnostic capacity across all endemic countries is currently lacking. The majority of people with suspected yaws are not being tested with any serological tools, molecular testing is extremely limited and testing for drug resistance almost non-existent. As a result, yaws prevalence is hard to estimate, limiting our ability to prioritise and target eradication efforts. There is a general over-reliance on donors and academic partners for access to diagnostic testing, with many countries struggling with funding for, or access to, serological and molecular tests. Addressing these gaps is critical to achieving the 2030 yaws eradication target.

Data availability statement

The original contributions presented in the study are included in the article/Supplementary Material. Further inquiries can be directed to the corresponding author.

Ethics statement

Ethical review and approval was not required for the study on human participants in accordance with the local legislation and institutional requirements. Written informed consent for participation was not required for this study in accordance with the national legislation and the institutional requirements.

Author contributions

EH-E, MM, and BH conceived the idea for the study. BH drafted the survey with input from LG, KA, EH-E, MM, and ST. BH and ST conducted interviews. ST translated relevant material. BH analysed the data and drafted the manuscript. ST, RJ, ET, BB, AUB, AK, DP, NK, ER, BD, YJ, TM, CB, IM, LB, SN, JH, KT, EFT, NS, EM, and KKA collated and provided country data. All co-authors read and approved the final draft of this manuscript

Funding

This project is part of the EDCTP2 programme supported by the European Union (grant number RIA2018D-2495-LAMP4Yaws).

Acknowledgments

We are grateful to all the respondents of the survey for taking the time to gather and provide us with the data needed for this manuscript. We are also grateful to Esther Amon for her administrative support during this project.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fitd.2022.969219/full#supplementary-material

References

1. World Health Organization. Eradication of yaws- the morges strategy. Wkly Epidemiol Rec (2012) 87:189–200. doi: 10.1016/S0140-6736(11)61624-3

PubMed Abstract | CrossRef Full Text | Google Scholar

2. Marks M, Mitjà O, Vestergaard LS, Pillay A, Knauf S, Chen C-Y, et al. Challenges and key research questions for yaws eradication. Lancet Infect Dis (2015) 15:1220. doi: 10.1016/S1473-3099(15)00136-X

PubMed Abstract | CrossRef Full Text | Google Scholar

3. Mitjà O, Asiedu K, Mabey D. Yaws. Lancet (2013) 381:763–73. doi: 10.1016/S0140-6736(12)62130-8

PubMed Abstract | CrossRef Full Text | Google Scholar

4. Marks M, Solomon AW, Mabey DC. Endemic treponemal diseases. Trans R Soc Trop Med Hyg (2014) 108:601–7. doi: 10.1093/trstmh/tru128

PubMed Abstract | CrossRef Full Text | Google Scholar

5. Giacani L, Lukehart SA. The endemic treponematoses. Clin Microbiol Rev (2014) 27:89–115. doi: 10.1128/CMR.00070-13

PubMed Abstract | CrossRef Full Text | Google Scholar

6. Burke JP, Hopkins DR, Hume JC, Perine PL, St John R. International symposium on yaws and other endemic treponematoses. Rev Infect Dis (1985) 7:S217–351.

PubMed Abstract | Google Scholar

7. Antal GM, Causse G. The control of endemic treponematoses. Rev Infect Dis (1985) 7:S220–0. doi: 10.1093/CLINIDS/7-SUPPLEMENT_2.S220

PubMed Abstract | CrossRef Full Text | Google Scholar

8. Asiedu K, Fitzpatrick C, Jannin J. Eradication of yaws: Historical efforts and achieving WHO’s 2020 target. PLoS Negl Trop Dis (2014) 8. doi: 10.1371/journal.pntd.0003016

CrossRef Full Text | Google Scholar

9. WHO. WHO | yaws: A forgotten disease. Available at: https://www.who.int/neglected_diseases/diseases/yaws/en/ (Accessed January 24, 2020).

Google Scholar

10. WHO. GHO | by category | status of endemicity for yaws - data by country. Available at: https://apps.who.int/gho/data/node.main.NTDYAWSEND (Accessed April 22, 2020).

Google Scholar

11. Mitjà O, Hays R, Ipai A, Penias M, Paru R, Fagaho D, et al. Single-dose azithromycin versus benzathine benzylpenicillin for treatment of yaws in children in Papua new Guinea: An open-label, non-inferiority, randomised trial. Lancet (2012) 379:342–7. doi: 10.1016/S0140-6736(11)61624-3

PubMed Abstract | CrossRef Full Text | Google Scholar

12. WHO. Ending the neglect to attain the sustainable development goals. a road map for neglected tropical diseases 2021-2030 (2020). Available at: http://apps.who.int/bookorders (Accessed April 17, 2020).

Google Scholar

13. WHO. Eradication of yaws procedures for verification and certification of interruption of transmission. (2018).

Google Scholar

14. Fitzpatrick C, Asiedu K, Sands A, Gonzalez Pena T, Marks M, Mitja O, et al.The cost and cost-effectiveness of rapid testing strategies for yaws diagnosis and surveillance. PLoS Negl Trop Dis (2017) 11(10):e0005985. doi: 10.1371/journal.pntd.0005985.

CrossRef Full Text | Google Scholar

15. Marks M, Chi KH, Vahi V, Pillay A, Sokana O, Pavluck A, et al. Haemophilus ducreyi associated with skin ulcers among children, Solomon islands. Emerg Infect Dis (2014) 20:1705–7. doi: 10.3201/eid2010.140573

PubMed Abstract | CrossRef Full Text | Google Scholar

16. Mitjà O, Lukehart SA, Pokowas G, Moses P, Kapa A, Godornes C, et al. Haemophilus ducreyi as a cause of skin ulcers in children from a yaws-endemic area of Papua new Guinea: A prospective cohort study. Lancet Glob Heal (2014) 2:e235–41. doi: 10.1016/S2214-109X(14)70019-1

CrossRef Full Text | Google Scholar

17. Marks M, Mitjà O, Bottomley C, Kwakye C, Houinei W, Bauri M, et al. Comparative efficacy of low-dose versus standard-dose azithromycin for patients with yaws: a randomised non-inferiority trial in Ghana and Papua new Guinea. Lancet Glob Heal (2018) 6:e401–10. doi: 10.1016/S2214-109X(18)30023-8

CrossRef Full Text | Google Scholar

18. Chi K-H, Danavall D, Taleo F, Pillay A, Ye T, Nachamkin E, et al. Molecular differentiation of treponema pallidum subspecies in skin ulceration clinically suspected as yaws in Vanuatu using real-time multiplex PCR and serological methods. Am J Trop Med Hyg (2015) 92:134–8. doi: 10.4269/ajtmh.14-0459

PubMed Abstract | CrossRef Full Text | Google Scholar

19. Fegan D, Glennon MJ, Kool J, Taleo F. Tropical leg ulcers in children: more than yaws. Trop Doct (2016) 46:90–3. doi: 10.1177/0049475515599326

PubMed Abstract | CrossRef Full Text | Google Scholar

20. Lukehart SA, Godornes C, Molini BJ, Sonnett P, Hopkins S, Mulcahy F, et al. Macrolide resistance in treponema pallidum in the united states and Ireland. N Engl J Med (2004) 351(2):154–8. doi: 10.1056/NEJMoa040216

PubMed Abstract | CrossRef Full Text | Google Scholar

21. Chen C-Y, Chi K-H, Pillay A, Nachamkin E, Su JR, Ballard RC. Detection of the A2058G and A2059G 23S rRNA gene point mutations associated with azithromycin resistance in treponema pallidum by use of a TaqMan real-time multiplex PCR assay. J Clin Microbiol (2013). doi: 10.1128/JCM.02770-12.

CrossRef Full Text | Google Scholar

22. Beale MA, Noguera-Julian M, Godornes C, Casadellà M, González-Beiras C, Parera M, et al. Yaws re-emergence and bacterial drug resistance selection after mass administration of azithromycin: A genomic epidemiology investigation. Lancet Microbe (2020) 1:e263–71. doi: 10.1016/s2666-5247(20)30113-0

PubMed Abstract | CrossRef Full Text | Google Scholar

23. Mitjà O, Godornes C, Houinei W, Kapa A, Paru R, Abel H, et al. Re-emergence of yaws after single mass azithromycin treatment followed by targeted treatment: a longitudinal study. Lancet (2018) 391:1599–607. doi: 10.1016/S0140-6736(18)30204-6

PubMed Abstract | CrossRef Full Text | Google Scholar

24. WHO. Surveillance, monitoring, and evaluation. In: A manual for yaws eradication programme managers. (Geneva, Switzerland:World Health Organization) (2021). doi: 10.1007/978-3-030-24334-0_14

CrossRef Full Text | Google Scholar

25. Marks M, Esau T, Asugeni R, Harrington R, Diau J, Toloka H, et al. Point-of-care tests for syphilis and yaws in a low-income setting – a qualitative study of healthcare worker and patient experiences. PLoS Negl Trop Dis (2018) 12. doi: 10.1371/journal.pntd.0006360

CrossRef Full Text | Google Scholar

26. Marks M, Sokana O, Nachamkin E, Puiahi E, Kilua G, Pillay A, et al. Prevalence of active and latent yaws in the Solomon islands 18 months after azithromycin mass drug administration for trachoma. PLoS Negl Trop Dis (2016) 10:e0004927. doi: 10.1371/journal.pntd.0004927

PubMed Abstract | CrossRef Full Text | Google Scholar

27. Marks M, Vahi V, Sokana O, Chi K-H, Puiahi E, Kilua G, et al. Impact of community mass treatment with azithromycin for trachoma elimination on the prevalence of yaws. PLoS Negl Trop Dis (2015) 9:e0003988. doi: 10.1371/journal.pntd.0003988

PubMed Abstract | CrossRef Full Text | Google Scholar

28. Timothy JWS, Beale MA, Rogers E, Zaizay Z, Halliday KE, Mulbah T, et al. Epidemiologic and genomic reidentification of yaws, Liberia - volume 27, number 4–April 2021 - emerging infectious diseases journal - CDC. Emerg Infect Dis (2021) 27:1123–32. doi: 10.3201/EID2704.204442

PubMed Abstract | CrossRef Full Text | Google Scholar

29. González-Beiras C, Kapa A, Vall-Mayans M, Paru R, Gavilán S, Houinei W, et al. Single-dose azithromycin for the treatment of haemophilus ducreyi skin ulcers in Papua new Guinea. Clin Infect Dis (2017) 65:2085–90. doi: 10.1093/cid/cix723

PubMed Abstract | CrossRef Full Text | Google Scholar

30. Houinei W, Godornes C, Kapa A, Knauf S, Mooring EQ, González-Beiras C, et al. Haemophilus ducreyi DNA is detectable on the skin of asymptomatic children, flies and fomites in villages of Papua new Guinea. PLoS Negl Trop Dis (2017) 11. doi: 10.1371/journal.pntd.0004958

PubMed Abstract | CrossRef Full Text | Google Scholar

31. Taleo F, Macleod CK, Marks M, Sokana O, Last A, Willis R, et al. Integrated mapping of yaws and trachoma in the five northern-most provinces of Vanuatu. PLoS Negl Trop Dis (2017) 11:e0005267. doi: 10.1371/JOURNAL.PNTD.0005267

PubMed Abstract | CrossRef Full Text | Google Scholar

32. World Health Organization. Results of the 2017 global WHO survey on yaws. Wkly Epidemiol Rec (2017) 93:417–22.

Google Scholar

33. Richards F, Hopkinst D. Surveillance: The foundation for control and elimination of dracunculiasis in Africa(1989) (Accessed March 9, 2022).

Google Scholar

34. Hatherell HA, Simpson H, Baggaley RF, Hollingsworth TD, Pullan RL. Sustainable surveillance of neglected tropical diseases for the post-elimination era. Clin Infect Dis (2021) 72:S210–6. doi: 10.1093/CID/CIAB211

PubMed Abstract | CrossRef Full Text | Google Scholar

35. Hay SI, Rao PC, Dolecek C, Day NPJ, Stergachis A, Lopez AD, et al. Measuring and mapping the global burden of antimicrobial resistance. BMC Med (2018) 16:1–3. doi: 10.1186/S12916-018-1073-Z/TABLES/1

CrossRef Full Text | Google Scholar

36. Seale AC, Hutchison C, Fernandes S, Stoesser N, Kelly H, Lowe B, et al. Supporting surveillance capacity for antimicrobial resistance: Laboratory capacity strengthening for drug resistant infections in low and middle income countries. Wellcome Open Res (2017) 2. doi: 10.12688/WELLCOMEOPENRES.12523.1

CrossRef Full Text | Google Scholar

37. Antimicrobial Resistance Division, Global Antimicrobial Resistance Surveillance System, Global Antimicrobial Resistance Surveillance System (GLASS), SurveillancePrevention&Control, Agnew E, Dolecek C, Hasan R, Lahra M, Merk H, et al. Global antimicrobial resistance and use surveillance system (GLASS) report 2021. (2021) 180.

Google Scholar

38. Mitjà O, González-Beiras C, Godornes C, Kolmau R, Houinei W, Abel H, et al. Effectiveness of single-dose azithromycin to treat latent yaws: a longitudinal comparative cohort study. Lancet Glob Heal (2017) 5:e1268–74. doi: 10.1016/S2214-109X(17)30388-1

CrossRef Full Text | Google Scholar

Keywords: yaws, diagnostics, eradication, neglected tropical diseases, treponema pallidum subspecies pertenue

Citation: Handley BL, Tchatchouang S, Grout L, Johnson RC, Tabah EN, Boua B, Boock AU, Koffi AP, Phanzu DM, Kotey NK, Rogers E, Dofitas B, Jung Y, Maweke T, Beiras CG, Maman I, Basing LA, Ngazoa SK, Houezo JG, Togbey K, Telan EF, Sarmento N, Marion E, Addo KK, Mitjà O, Asiedu K, Harding-Esch E and Marks M (2022) Evaluating the yaws diagnostic gap: A survey to determine the capacity of and barriers to improving diagnostics in all yaws-endemic countries. Front. Trop. Dis 3:969219. doi: 10.3389/fitd.2022.969219

Received: 14 June 2022; Accepted: 08 August 2022;
Published: 14 September 2022.

Edited by:

Russ Russell Stothard, Liverpool School of Tropical Medicine, United Kingdom

Reviewed by:

Luciane Amorim Santos, Bahiana School of Medicine and Public Health, Brazil
Etienne Eddie Muller, National Institute of Communicable Diseases (NICD), South Africa

Copyright © 2022 Handley, Tchatchouang, Grout, Johnson, Tabah, Boua, Boock, Koffi, Phanzu, Kotey, Rogers, Dofitas, Jung, Maweke, Beiras, Maman, Basing, Ngazoa, Houezo, Togbey, Telan, Sarmento, Marion, Addo, Mitjà, Asiedu, Harding-Esch and Marks. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.

*Correspondence: Becca L. Handley, Rebecca.handley1@lshtm.ac.uk

Disclaimer: All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
