Variations on the theme: focus on cerebellum and emotional processing

The cerebellum operates exploiting a complex modular organization and a unified computational algorithm adapted to different behavioral contexts. Recent observations suggest that the cerebellum is involved not just in motor but also in emotional and cognitive processing. It is therefore critical to identify the specific regional connectivity and microcircuit properties of the emotional cerebellum. Recent studies are highlighting the differential regional localization of genes, molecules, and synaptic mechanisms and microcircuit wiring. However, the impact of these regional differences is not fully understood and will require experimental investigation and computational modeling. This review focuses on the cellular and circuit underpinnings of the cerebellar role in emotion. And since emotion involves an integration of cognitive, somatomotor, and autonomic activity, we elaborate on the tradeoff between segregation and distribution of these three main functions in the cerebellum.

Emotion and the cerebellum

The term emotion is used to designate a collection of neurophysiological responses triggered from parts of the brain to the body and to other parts of the brain, elicited by stimuli from the external world. A collection of such responses results in an emotional state, defined by changes within the body. The term feeling is used to describe the complex mental state that results from the emotional state and reflects the ability to subjectively experience the mental states resulting from the experience of emotions (Damasio, 1998). Several studies are striving to understand the neurophysiological underpinnings of emotional processing, intended as the ensemble of mechanisms that allow emotion to be generated, learned, and managed.

There is consensus that emotion in mammals involves complex brain networks centered on structures classically referred to as the limbic system (Papez, 1937; Maclean, 1990; Nakano, 1998). These include a core composed by the cingulate cortex, amygdala, hypothalamus, and hippocampus and have been defined quite circularly by their involvement in emotion (Damasio, 1998). It has recently been noted that a discrete system of components may not be sufficient to describe emotion (Roxo et al., 2011; Barrett and Satpute, 2019; Steffen et al., 2022) and indeed the classical networks of the limbic system have been extended to include the periaqueductal gray (PAG), striatum, prefrontal cortex and parietal cortex, and cerebellum (Apps and Strata, 2015; Adamaszek et al., 2017; Rolls, 2019). The cerebellum is typically recognized for its role in movement coordination and motor learning, but increasing evidence suggests it may also be involved in higher-order functions, including emotional and cognitive processing (Schmahmann, 2004). Over the past three decades, insights into the role of the cerebellum in emotion have increased to include perception, recognition, forwarding, encoding, and learning of emotional information. These processes are thought to substantially contribute to the generation of experiences and the regulation of emotional states in relation to motor, cognitive, and social behaviors, with implications for pain, speech, and mood disorders.

In humans, neuroimaging indicates cerebellar activation in fear learning paradigms (Lange et al., 2015; Ernst et al., 2019). Structural and functional abnormalities also appear to be correlated with impaired mood regulation and anxiety disorders, generating what is known as the cerebellar cognitive-affective syndrome (here, “affective” corresponds to “emotional”) (Hoche et al., 2018). While investigations in humans are providing a privileged point of view on emotion, investigations in experimental animals are revealing most of what we know about the underlying neuronal and circuit mechanisms. Therefore, we will consider the two aspects in turn.

This review takes a physiological perspective evaluating the cellular and circuit underpinnings of the cerebellar role in emotion. And since emotion involves an integration of cognitive, somatomotor, and autonomic activity (Itô, 1984; Ito, 1993, 2005, 2008; Schmahmann, 2004; Schmahmann and Caplan, 2006; D‘Angelo and Casali, 2013; Apps et al., 2018), we will elaborate on the possible distinction, convergence, and overlap of these three main functions in the cerebellum.

How could the cerebellum support emotional processing?

This chapter provides a succinct summary of cerebellar structure, function, and dynamics, to understand how they contribute to processing different aspects of behavior, and in particular emotion.

Structure

The cerebellum contains a well-defined set of cells and fibers and is organized in parasagittal modules and transverse zones, that are further subdivided based on biochemical mapping (Figure 1). The intersection of these sagittal and transverse maps generates smaller units called cortical microzones which, once connected to the deep cerebellar nuclei (DCN) and inferior olive (IO) neurons (see abbreviation list), form the olivo-cortico-nuclear microcomplexes (Apps and Hawkes, 2009; Apps et al., 2018).

FIGURE 1

Figure 1. The rodent cerebellum includes the midline vermis and the lateral hemispheres. The left side shows the anatomical subdivisions and the striped pattern deriving from Aldoc (zebrin II) expression levels in PC (increasing expression levels from light to dark brown). In the vermis, subdivisions in the anterior-posterior orientation are delimited by circumvolutions and fissures and are further segmented into 10 lobules: the anterior cerebellum (lobules I – V), the central cerebellum (lobules VI – VII), the posterior cerebellum (VIII-IXb), nodular cerebellum (lobule IXc-X), flocculus (FI) and paraflocculus (PFI). Lobules VI-VIII expand into large hemispheric lobules including crus I and crus II. The right side shows the cerebellar olivo-cortico-nuclear modules defined by IO-CF-PC-CN closed-loop connectivity, identifying seven parallel longitudinal zones (A, B, C1, C2, C3, D1, D2). C, caudal; Cop, copula pyramidis; Cr I, crus I of ansiform lobule; Cr II, crus II of ansiform lobule; PFl, paraflocculus; Fl, flocculus; L, lateral; Lt, left; Par, paramedian lobule; R, rostral; Rt, right; Sim, simple lobule. Modified from Zhou et al. (2014) and Voogd (2014).

The concept of microcomplex is rooted in the specific organization of the climbing fibers (CFs) emitted by the IO and in their projections to Purkinje cells (PCs) and DCN cells (Apps and Hawkes, 2009; Figure 2). Indeed, CFs first contact DCN cells and then branch on the sagittal plane contacting several PCs (about 7 in rodents). These PCs in turn project back to the same DCN cells receiving a common IO input and then these DCN cells, through inhibitory interneurons, project to the same IO neurons that generated the CF, forming a closed loop circuit. Mossy fiber (MFs) are the other major inputs to these circuits. Opposite to CFs, MFs spread on the transverse plane (some branches can cross the midline reaching the contralateral cerebellum) and do not respect the borders of microcomplexes. And parallel fibers (PFs), the axon of granule cells (GrCs), bifurcate in the molecular layer traveling transversally and connecting regions several millimeters away. In addition, intrinsic biochemical properties of PCs generate maps, often referred to as stripes (Apps and Hawkes, 2009), oriented along the longitudinal axis, increasing the possibility for MFs to intercept regions with different PC properties. Recently, Zebrin II (Aldolase C) positive and negative stripes have been identified (Figure 1). The zebrin stripes largely overlap with longitudinal cerebellar modules to generate microzones (Apps and Hawkes, 2009) and PCs within a microzone show synchronous firing when activated by the IO loops through the CFs (Witter and De Zeeuw, 2015). Functionally, zebrin stripes show upbound and downbound properties depending on CF connectivity, PC discharge regulation and PF-PC long-term depression (see below).

FIGURE 2

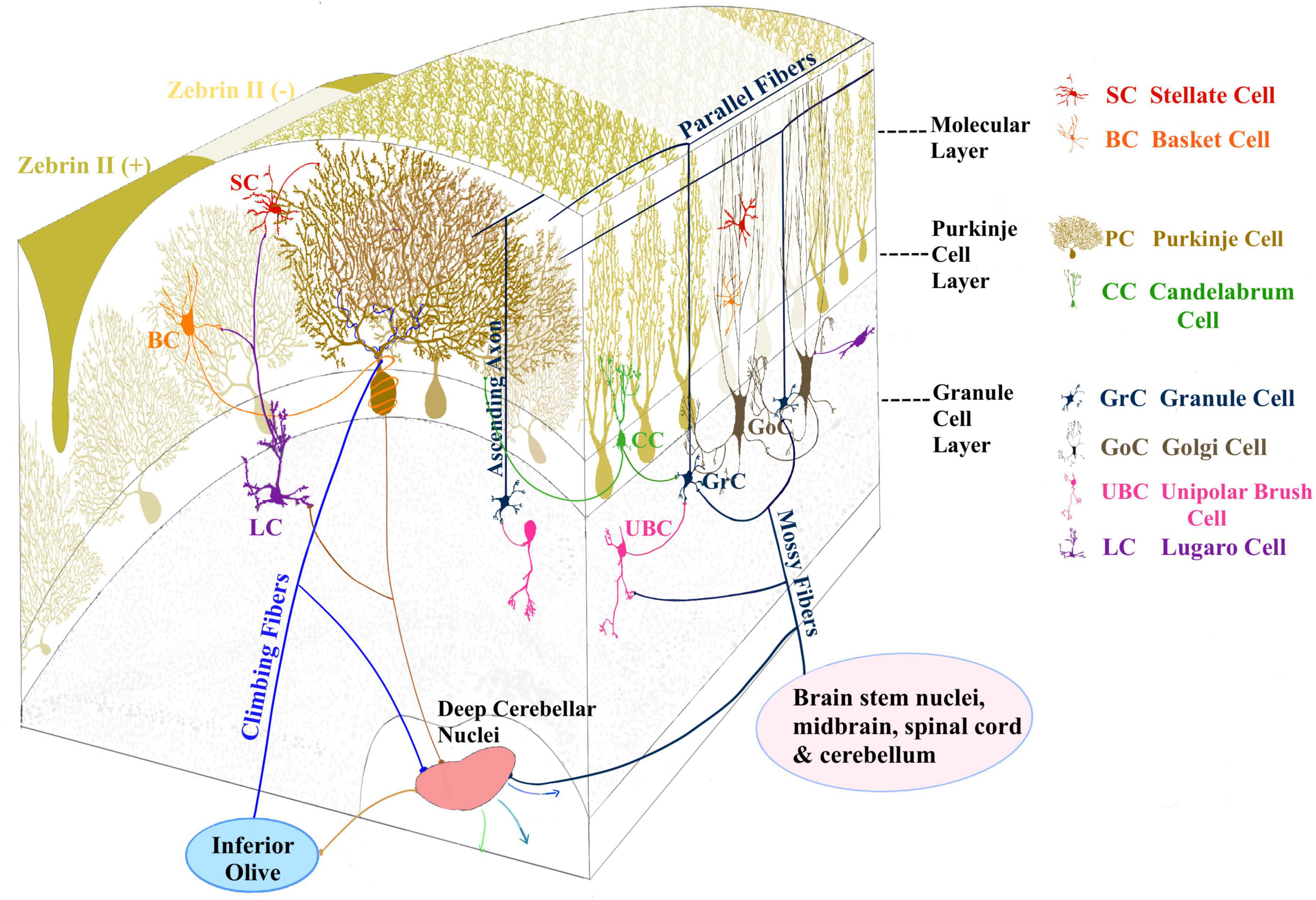

Figure 2. Three layers compose the cerebellar cortex: the molecular layer, Purkinje cell layer, and the granular layer. The principal inputs to the cerebellar cortex are conveyed by mossy fibers (MF) originating from different brain stem and spinal cord nuclei and climbing fibers (CF) originating from the inferior olive. MFs contact GrCs and GoCs in the granular layer. GrC axon ascends to the molecular layer and bifurcates originating the parallel fibers (PF). GrC axons contact Purkinje cells (PCs) and molecular layer interneurons (MLI). PCs provide the sole output of the cerebellar cortex and feature a wide, flat, highly branching dendritic tree and a single long axon projecting to the deep cerebellar nuclei (DCN), from where cerebellar efferent projections are sent to other brain areas. The MLI are Stellate and basket cells (SC, BC) located in the molecular layer. The candelabrum cells (CC) (Lainé and Axelrad, 1994; Osorno and Regehr, 2022) are present in the PC layer, while unipolar brush cells (UBC) and lugaro cells (LC) are reported in the granular layer.

Thus, we have an intricate mesoscopic organization that overlaps with a broad mapping of anatomical subdivisions to bodily and mental functions. This brings about two main consequences. First, specific behavioral functions impinge on complex anatomic-functional maps made of many microcomplexes and patches rather than on simply maps residing in uniform cerebellar regions and differentiated by their input-output connectivity. Secondly, mapping of bodily and mental functions involves multiple cerebellar regions, mostly due to the distribution of MF terminal branches and PFs. These considerations are challenging the historical view that the cerebellum is made of multiple parallel non-communicating processing units, leaving space to what we may call “multimodal fusion”. As a consequence, the focus moves from the definition of cerebellar functions on a pure anatomical basis to that of the cerebellar algorithm that operates with different inputs and outputs (D‘Angelo and Casali, 2013). This algorithm, in turn, might be tuned depending on the local properties of the microcomplexes that are involved.

Function

Independent from the nature of inputs, being them motor, sensory, cognitive, or emotional, the cerebellar algorithm learns to predict the precise timing of correlated events (D‘Angelo and Casali, 2013). This algorithm establishes a causal relationship between afferent signals in sequence and can apply to different contexts, e.g., correlating elementary components of movement in motor coordination, sensory stimuli in eye-blink classical conditioning or in fear conditioning, or abstract items in logical or emotional operations. In the realm of voluntary functions, the cerebellum operates in a similar way by comparing intention (conveyed through descending cortico-cerebellar pathways) with execution (conveyed by afferent sensory fibers) to predict possible errors. This de facto anticipates and corrects execution errors, generating the precise predictive motor control typical of vertebrates. These observations, combined with insightful theories, have been extended to explain fluid reasoning and mental coordination and are arguably important also for emotional control.

Dynamics and mechanisms

On the mechanistic side, the main issue is how the cerebellar units process input signals through their internal algorithm. In other words, how do cerebellar neurons and synapses implement such algorithm. This issue has been addressed by several physiological and computational works, revealing a complex set of neuronal and synaptic properties that can generate the input-output transformation and plastic changes required to process the input signals (for review see De Schepper et al., 2022). The circuit operates a complex spatio-temporal transformation of the MF input and uses the CF input to drive plasticity. On top of this, the circuit governs intrinsic oscillatory dynamics that allow the time correlation of the processes involved (D’Angelo, 2011; D’Angelo et al., 2011).

A unified framework for motor, cognitive, and emotional processing?

The intricate neuronal circuitry of the cerebellum is thought to encode internal models that reproduce the dynamic properties of body parts allowing the brain to precisely control the movement without the need for sensory feedback. It is thought that the cerebellum might also encode internal models that reproduce the essential properties of mental representations elaborated in the cerebral cortex. This hypothesis suggests a possible mechanism by which intuition and implicit thought might function and explains aspects of cognitive and emotional reasoning as well as symptoms exhibited by psychiatric patients (Ito, 2008).

Recently it was argued that a similar circuit structure in all cerebellar areas may carry out various operations using a common computational scheme (D‘Angelo and Casali, 2013). The authors attributed different roles of the cerebellum to the specific connectivity of the cerebellar modules with motor, cognitive, and emotional functions at least partially segregated into different cerebro-cerebellar loops. This led to formulate a meta-levels hypothesis: from cellular/molecular to network mechanisms leading to generation of computational primitives, thence to high-level cognitive/emotional processing, and finally to the sphere of mental function and dysfunction. It has been proposed that the intimate interplay between timing and learning (reminiscent of the “timing and learning machine” capabilities long attributed to the cerebellum) reverberates from cellular to circuit mechanisms. Subsequently, integration within large-scale brain loops could generate the disparate cognitive/emotional and mental functions in which the cerebellum is implicated. The cerebellum should therefore operate as a general-purpose co-processor, whose effects depend on the specific brain centers to which individual modules are connected. Abnormal functioning in these loops could eventually contribute to the pathogenesis of major brain pathologies including not just ataxia but also dyslexia, autism, schizophrenia, and depression. These functions and dysfunctions are deeply involving cognitive and emotional processing.

A system view

In engineering, the cerebellum has been assimilated to a double forward and inverse controller, capable of predicting system states based on contextual information and previous memory (Ito, 1993, 2008). The fact that our understanding of cellular phenomena is sufficient to explain the predictive capabilities of the system is demonstrated by the ability of neuro-robots, embedding a canonical cellular representation of the cerebellar circuit dynamics and mechanisms, to reproduce a wide set of sensory-motor control tasks (Casellato et al., 2015; Antonietti et al., 2016, 2018, 2022). This same system approach may be applied to cognitive and emotional processing, provided the controller, to which the cerebellar circuit is connected, is appropriately designed and implemented. Eventually, a precise representation of the neuroanatomical principles based on cerebellar connectivity and subdivisions, may help understanding the computational principles and mechanisms underlying the cerebellar involvement in emotion (D’Angelo et al., 2016; D’Angelo and Jirsa, 2022).

Cellular and circuit variants in the rodent cerebellum

Since the cerebellar computational algorithm is likely to be tuned depending on the local properties of microcomplexes, it is important to consider how circuit properties vary across cerebellar regions. This section is based on rodent studies, in which accurate investigations have addressed the molecular and cellular mechanisms and the potential sources of heterogeneity underlying functional specialization.

Anatomical and physiological studies have shown that the midline cerebellar vermis is particularly involved in emotional processing and that lesions and other interventions on this cerebellar compartment affect emotion-related behaviors (reviewed in Apps et al., 2018). The cerebellar vermis receives olivo-cerebellar (CF) input from the caudal medial accessory olive and emits a cortico-nuclear output to the medial (fastigial) cerebellar nucleus which, in turn, has widespread projections to the cingulate cortex, prefrontal cortex, parietal cortex, amygdala, hypothalamus, hippocampus, periaqueductal gray (PAG), and striatum (Voogd and Ruigrok, 2004; Blatt et al., 2013; Rolls, 2019) (see also next chapter).

Different cerebellar vermal lobules are associated with different aspects of emotion (see Figure 1). From rostral to caudal: lobules IV–VI with fear learning/memory and affective state; lobule VI–VII with orientation of gaze; lobule VIII with fear-induced freezing behavior; and lobule IX and X with cardiorespiratory control (Apps et al., 2018). Different parts of the vermis could therefore regulate and integrate the cognitive, motor, and autonomic aspects of fear-related behavior (Clausi et al., 2017).

Here, neuron and microcircuit variants are considered in turn and a summary of properties that may be more relevant to emotional processing is reported in the section on “Conclusion”.

The cerebellar microcircuit and its variants

The cerebellar circuit includes several cell types connected according to the general circuit scheme shown in Figures 2, 3A. A recent modeling work summarized the general knowledge on the cerebellar microcircuit generating a reference ground-truth that binds together structure, function, and dynamics (De Schepper et al., 2022). In the granular layer, each glomerulus hosts ∼50 excitatory and ∼50 inhibitory synapses on as many GrC dendrites, plus ∼2 excitatory synapse on basolateral dendrites of as many Golgi cells (GoCs). Each one of the 4 GrC dendrites receives an excitatory and (in most cases) an inhibitory input from as many different MFs and GoCs, respectively. Each GoC receives ∼320 ascending axon (AA) synapses on basolateral dendrites and ∼910 PF synapses on apical dendrites, and there are ∼7-8 electrical synapses plus 160 GABAergic (using the Gamma-aminobutyric acid neurotransmitter) synapses per GoC-GoC pair. In the molecular layer, ∼25% of AAs contact the distal dendrites of the overlaying PCs (each AA forming 2.4 synapses on average), while PFs form 1 synapse per PC dendritic intersection. In summary, each PC receives 12% of the whole GrC inputs from AAs. Among the molecular layer interneurons (MLI), we consider the Stellate cells (SCs) and basket cells (BCs) populations. There are ∼25 SC-PC and BC-PC synapses altogether. Moreover, there are $\sim 17\dot{6}00$ PF-MLI-PC synapses ($\sim 2\dot{6}00$ PF-SC-PC and $\sim 15\dot{0}00$ PF-BC-PC synapses).

FIGURE 3

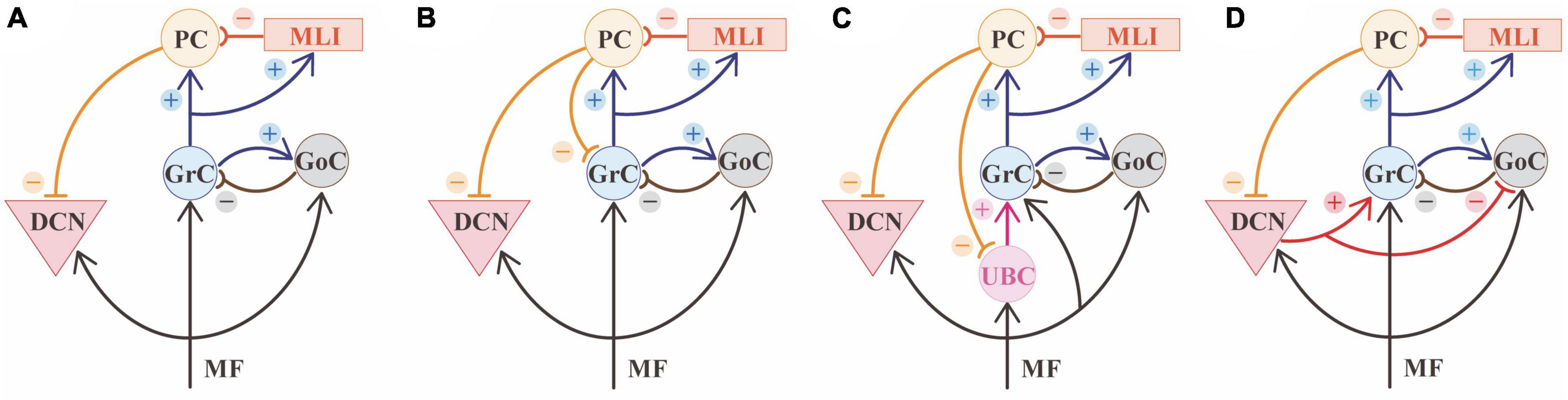

Figure 3. Cerebellar microcircuit variants. (A) Canonical circuit of the cerebellum. The primary input of mossy fibers (MF) project to deep cerebellar nuclei (DCN), granule cells (GrC), and Golgi cells (GoC). GoC inhibits GrC in a feedforward and feedback loop. Besides GoC, GrC axons activates Purkinje cell (PC) and molecular layer interneurons (MLI). PCs provide the sole output of the cerebellar cortex and inhibit the cerebellar nuclei. (B) A first variant of the canonical circuit is represented by PCs axon collaterals projecting to GrC in the granular layer. (C) A second variant is represented by unipolar brush cells (UBC), that are contacted by MF and excite GrC. UBC receive inhibition through PC axon collaterals. (D) A third variant shows the nucleo-cortical projections: DCN axon collaterals contact GrCs with excitatory connections and inhibit GoCs, in the granular layer.

Beyond the canonical description of the cerebellar network reported above (Figure 3A), there is growing evidence that the cerebellar cortex is not homogenous in structure, physiology, or gene expression (Nishiyama and Linden, 2004; Ito, 2006; Sillitoe et al., 2009; Fujita et al., 2012; Martinez et al., 2013; Nedelescu and Abdelhack, 2013; Chen et al., 2022) and these variations of regional features (Figure 3) may influence information processing. Several cell clusters have recently been reported based on transcriptomic profile: there are 9 PCs clusters overlapping with zebrin stripes, 3 GrC clusters showing antero-posterior segregation (anterior-central zone, central-posterior zone, nodular zone), 2 GoC clusters, and two clusters of MLI including both SCs and BCs (Kozareva et al., 2021).

Purkinje cells

Two large groups of PCs were identified based on the expression of Aldoc (aldolase C, the enzyme responsible for the zebrin II pattern) (Figure 3). The Aldoc positive and negative PCs define the “zebrin stripes”, consisting of longitudinal alternating bands of positive (Z +) and negative (Z-) PCs (see Figure 1). This distribution is typical of the anterior and posterior cerebellar zones (comprising lobules I - V, and VIII - dorsal IX, respectively), while the central and nodular zones (lobules VI - VII and ventral IX - X) are uniformly characterized by Z + PCs. From the functional point of view, Z- PCs are characterized by higher spontaneous firing compared to Z + PCs (Xiao et al., 2014; Zhou et al., 2014). More recently, Z- PCs were shown to undergo simple spike suppression (downbound) (Wu et al., 2019) and Z + PCs to undergo simple spike facilitation (upbound) (De Zeeuw, 2021).

In addition to heterogeneity between stripes, PCs also display functional variations along the transverse axis. PCs in the anterior lobes have more pronounced adaption of tonic firing compared to those in the nodular zone (Kim et al., 2013), where PCs show lower firing rates and reduced excitability (Witter and De Zeeuw, 2015). These differences likely make PCs in the nodular lobe more suitable to integrate vestibular inputs, which are slower compared to the faster and stronger inputs arriving in the anterior zone. An anteroposterior gradient has been also reported for the regularity of firing (increasing toward the nodular zones) (Witter and De Zeeuw, 2015). The difference in PCs firing along the transverse axis may simply match the different distribution pattern of zebrin, with more zebrin negative PCs in the anterior cerebellum, and more positive PCs in the posterior and nodular cerebellum.

PCs regional diversity also impacts the microcircuit connectivity. In addition to the general scheme, in which granule cells activate PCs and DCN cells in sequence, recent evidence showed that PCs axon collaterals in the granular layer form functionally active contacts onto GrCs (Guo et al., 2016) and Unipolar Brushed Cells (UBCs) (Guo et al., 2021) that are less represented in the anterior cerebellum (Figures 3B, C). Moreover, these collaterals show more complex morphology and more numerous contacts in the granular layer starting from lobule VI toward lobule X (Guo et al., 2016). This connection is characterized by a low probability of GABA release, suggesting that a robust activation of PCs is needed to activate this additional source of feedback inhibition to GrCs. These results show that, in lobules VI-X, PCs contribute to both phasic and tonic inhibition in the granular layer, therefore affecting the spatiotemporal dynamics of GrCs firing (D‘Angelo et al., 2013; Mapelli et al., 2014).

Unipolar brush cells

The canonical cerebellar microcircuit also differs based on the regional distribution of UBCs (Figure 3C). UBCs are excitatory neurons involved in the MF-GrC pathway. These neurons are located in the granular layer, with highest density in the medial cerebellum, particularly lobules I, IX, X, and the lowest density in the lobules IV-VI in mammals (Takács et al., 1999; Mugnaini et al., 2011). UBCs receive a robust synaptic input by a single MF and contact several GrCs, and are therefore called “intrinsic mossy fibers” (Nunzi and Mugnaini, 2000). Their response patterns amplify the vestibular inputs, significantly modifying the transmission pathway from MFs to PCs (Nunzi and Mugnaini, 2000; Locatelli et al., 2013; Balmer and Trussell, 2019).

Granule cells

GrCs functions and connectivity are heterogeneously distributed in different subregions of the cerebellum. First, GrCs receive excitatory inputs from UBCs, where these neurons are enriched (mainly in the nodular zone). Second, PCs axon collaterals contribute to GrC inhibition with a regional gradient increasing toward posterior and nodular zones. It has also been reported an antero-posterior gradient for GrCs efficiency in responding to burst vs. tonic inputs, based on the differential expression of the CaV3-Kv4 complex (Heath et al., 2014; Witter and De Zeeuw, 2015). This finding probably matches the differences in the inputs (with slower vestibular inputs arriving at the posterior and nodular zones). Moreover, GrCs receive excitation from nucleo-cortical projections in several lobules, with a sagittal arrangement (Houck and Person, 2014), which generates an internal amplification loop (Gao et al., 2016).

Golgi cells (and molecular layer interneurons)

Cerebellar inhibitory interneurons also show some specific spatial arrangement, in particular concerning GoCs. GoC dendrites are topographically organized within striped boundaries determined by the zebrin II expression patterns in PCs. There is no evidence in literature that different GoC subtypes are present in positive and negative stripes, though two clusters have been identified based on the transcriptomic profile (Kozareva et al., 2021). Moreover, a recent study highlighted the functional heterogeneity of GoCs depending on the expression of the human glycine neuronal transporter type 2 (GlyT2), affecting the inhibitory control over GrCs (Dumontier et al., 2023). Additionally, GoCs receive inhibition from nucleo-cortical projections in several lobules (Ankri et al., 2015), decreasing GoC inhibition over GrCs. MLIs are involved in complex inhibitory loops that shape PC responses (Brown et al., 2019; Prestori et al., 2019). To the best of our knowledge, a differential spatial distribution of MLIs subtypes in different zones or lobules has not been reported, yet.

Deep cerebellar nuclei cells

The cellular heterogeneity in the DCN is less studied, compared to the cerebellar cortex. Nevertheless, DCN can be subdivided based on the connectivity pattern in caudo-ventral and rostro-dorsal axes, based on innervation from zebrin II positive and negative PC, respectively [for a comprehensive review on this subject see Kebschull et al. (2023)]. Different functional nucleo-cortical projections have also been identified in several lobules, arranged in a sagittal organization mainly matching the territories of PCs sending inputs to those DCN regions (Houck and Person, 2014). Therefore, nucleo-cortical projections (Figure 3D) match the cortico-nuclear ones, originating closed loops, but the amount of reciprocal connections can differ in different regions (Houck and Person, 2014). Excitatory and inhibitory projections from DCN affect GrCs and GoCs activity, respectively (Ankri et al., 2015; Gao et al., 2016). Anatomical tracing studies in rats reported that certain regions of the cerebellar cortex seem to lack nucleo-cortical projections, such as the lateral vermis (longitudinal zone B, see Figure 1), the lateral paravermis (C3 zone), and some patches of the paravermis C1 zone and the hemisphere (D zone) (Buisseret-Delmas and Angaut, 1988, 1989). As a result, each lobule shows different patterns of connectivity. For example, in cats, Lobule V has been reported to lack nucleo-cortical projections in the C1 zone (medial paravermis) (Trott et al., 1998a) and be enriched in them in the C2 zone (lateral paravermis) (Trott et al., 1998b). Inside zones, the distribution can be uneven, too. For example, the C2 zone of the paraflocculus lacks nucleo-cortical projections (Trott et al., 1998b). Further anatomical and functional characterization of these projections is needed to clarify the specific impact on regional processing.

Structural variants

In addition to differences in local microcircuit connectivity, there are also differences in the density and distribution of the different cell types as well as in the thickness of cerebellar regions.

Cell types and density

Geographical differences in PC pertain to neuronal locations, packing density and diameter, as well as axon and dendritic arbor morphology. In rats, there are fewer PCs at the base of each cerebellar folium than at the apex (Braitenberg and Atwood, 1958; Eccles, 1967; Armstrong and Schild, 1970), and the packing density of PCs in the anterior lobe is greater than that of the posterior lobe (Armstrong and Schild, 1970). For example, Lobule X is known to have a greater PCs density than other lobules, such as lobules II and VI (Keller et al., 2018). There are also significant regional differences in PC size, with larger PC diameter and organelle volume in phylogenetically older cerebellar regions (such as the vermis) (Parma, 1969; Müller and Heinsen, 1984). Consistent changes in PC axons diameter between white matter compartments and dendritic arbor morphology at the base of a folium compared to the apex have been described (Voogd, 2011; Nedelescu and Abdelhack, 2013; Nedelescu et al., 2018). The biophysical parameters and energy consumption of individual PC in various cortical regions could be drastically altered by these variations. Similarly, GrCs exhibit regional variations in packing density, higher in the apex than in the base of a folium, and bigger cell size in the vermis than in the hemispheres (Friede, 1955; Cerminara et al., 2015). The packing density of GoCs in a variety of mammals, including humans, is lower in the hemispheres (except for the flocculus) than in the vermis, where the densities are highest in the flocculus and lobules IX (Lange, 1974; Palay and Chan-Palay, 1982). Moreover, GoCs in the hemisphere are smaller than those in the vermis (Geurts et al., 2001, 2003).

Cortical thickness

On average, the granular layer is 73% thicker than the molecular layer (Zheng et al., 2022), whereas the Purkinje cell layer is single cell thick. The difference in layer thickness constrains the area occupied by neurons on the parasagittal surface, e.g., size and width of PCs dendritic trees. Clearly, synapse development and maturation as well as plasticity impact the branching and elongation of dendrites (Takeo et al., 2021). Difference in layer thickness will also impact the number of neurons, as in the granular layer.

Granular layer thickness changes from the anterior to posterior cerebellum, being much larger at lobules VI-VIII than lobules I-V and smaller in lobules IX -X than in the flocculus (Zheng et al., 2022). In the depth of the sulci, all three layers are thicker than at the crowns of the gyri. Globally, the lateral-posterior-inferior area has a thicker granular layer than the medial-superior region.

Unique PCs dendritic tree shapes in the sulcus result in more arbor field overlap between nearby PCs than at the apex (Nedelescu and Abdelhack, 2013) and cause quantitative variations in dendritic branching patterns between lobules V and IX. Two physically different PC subtypes have been identified. Type 1 PCs adhered to the conventional concept of a PC morphology, with a single primary dendrite and a rather uniform branching density across the molecular layer’s thickness. On the other hand, Type 2 PCs have two major dendrites and little branching in the bottom portion. PCs in the anterior lobe (lobule V) of adult mice exhibited a preponderance of type 1 dendritic arbors, while the posterior lobe (lobule IX) contained a bigger proportion of type 2 isoforms. Overlapping in adjacent PC arbors varies across lobules, with more overlap in lobule V than in lobule IX, and arbors in lobule V using surrounding space more efficiently than those in lobule IX. Those distinctions in neurons may throw out the potential question concerning the afferents system differentiation. For example, lobules IV and V are the key area receiving significant MF projections from the lateral reticular nucleus, while lobules VI-VIII and IX get a less dense distribution of this input (Wu et al., 1999).

Atlas data for microcircuit and structural variations

The cerebellum holds remarkable variations in cell morphology, density, volume, and cellular properties. These variations are further enriched considering microcircuit connectivity of different cerebellar regions, that go by lobules, stripes, modules and eventually identify specific microzones and microcomplexes. Using atlases introduce a new method to combine evidence collected through the different studies. For example, the extensive datasets from the Allen Brain Institute (ISH Data., 2023: Allen Brain Atlas: Mouse Brain.) and Blue Brain Cell Atlas (Rodarie et al., 2022) provides exhaustive information on cell types and densities that might be used for detailed model reconstructions (Figure 4). This information must now be crossed with that on cerebellar regional connectivity and behavioral localization of functions addressing those regions and pathways that are critical for emotional processing.

FIGURE 4

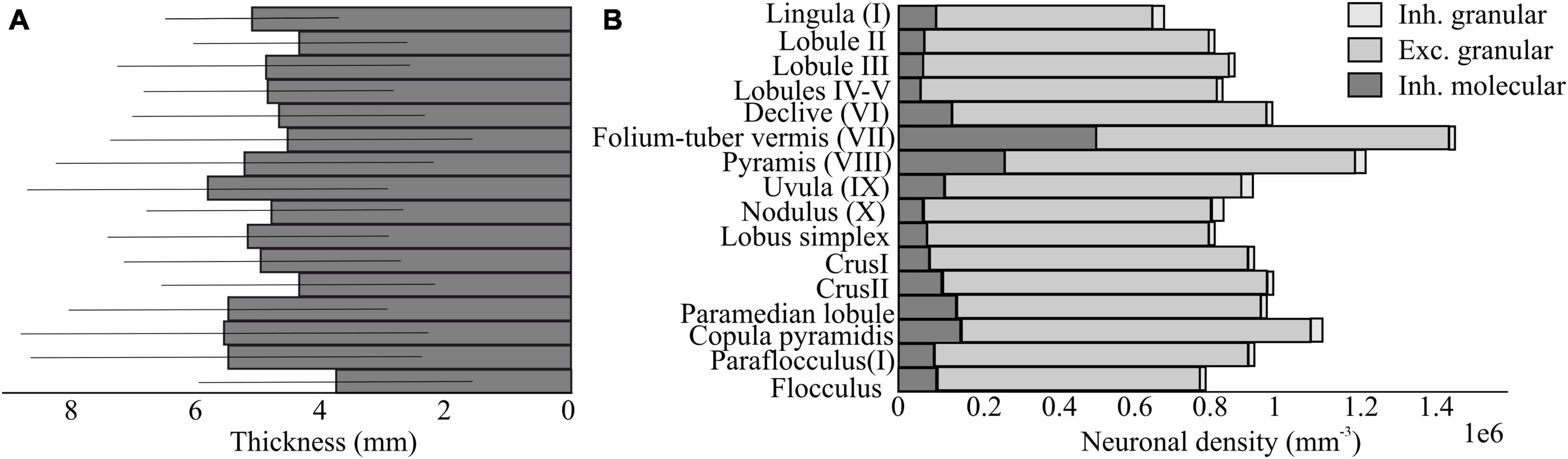

Figure 4. Neuron density and thickness in the mouse cerebellum based on the Blue Brain Cell Atlas. (A) Estimations of the thickness of the molecular layer in mm for each subregion of the cerebellar cortex, using the algorithm proposed by Rodarie et al. (2022). (B) Estimations of the density of excitatory and inhibitory neurons in the molecular and granular layer for each region of the cerebellar cortex. The data are based on the publicity available Blue Brain Cell Atlas (2018) website.

Cerebellar circuits in rodent emotional behavior

While the cerebellum has canonically been implicated in motor control and motor learning, which it exerts through a set of well-studied circuits and pathways (Figure 5A), neuroimaging and clinical data recently identified the cerebellum as a key region among the emotion and cognitive relevant structures (Strick et al., 2009; Apps and Strata, 2015; Strata, 2015; Adamaszek et al., 2017). Anatomical studies in rodents have highlighted indirect connections from the DCN, the sole output of the cerebellum, to various brain structures involved in emotional (Figure 5B) and cognitive processing (Figure 5C). For example, monosynaptic projections from the DCN to the ventral tegmental area (VTA), a structure included in the dopaminergic reward system, have been described (Carta et al., 2019). Cerebellar output to the VTA mainly originates from the dentate nucleus and, to a lesser extent, from the interpositus nucleus (Baek et al., 2022). The optogenetic activation of the cerebellum-VTA pathway is rewarding and can condition mice behavior during place preference and social interaction tests (Carta et al., 2019; Baek et al., 2022). Moreover, the cerebellum and hypothalamus are highly interconnected through direct and indirect routes. The reciprocal cerebellar-hypothalamic pathway has been suggested to provide circuits through which the cerebellum can influence the autonomic hypothalamic processes activated during emotional states (Dietrichs and Haines, 1989; Gritti, 2013). In fact, the cerebellum, via its connection with the hypothalamus, is involved in controlling vasomotor reflexes and blood pressure, carotid sinus reflexes, and the somatic and autonomic manifestations of shame rage, pupil nictitating membrane, respiration, gastrointestinal functions (Zhu et al., 2011). Although a strong functional connectivity between the cerebellum and a key affective center, the amygdala, have been observed (Supple et al., 1987; Tovote et al., 2015; LeDoux, 2000), the anatomical substrate for this connectivity is still unclear. In fact, no direct connections between the cerebellum and the amygdala exist. Nevertheless, a putative di-synaptic pathway between the DCN and the basolateral amygdala (BLA) through the thalamus (mainly medial dorsal nucleus, centro-median, and parafascicular) has been described (Gornati et al., 2018). Therefore, the cerebellar output might influence the BLA, known to process affect-relevant salience and valence information (Jung et al., 2022).

FIGURE 5

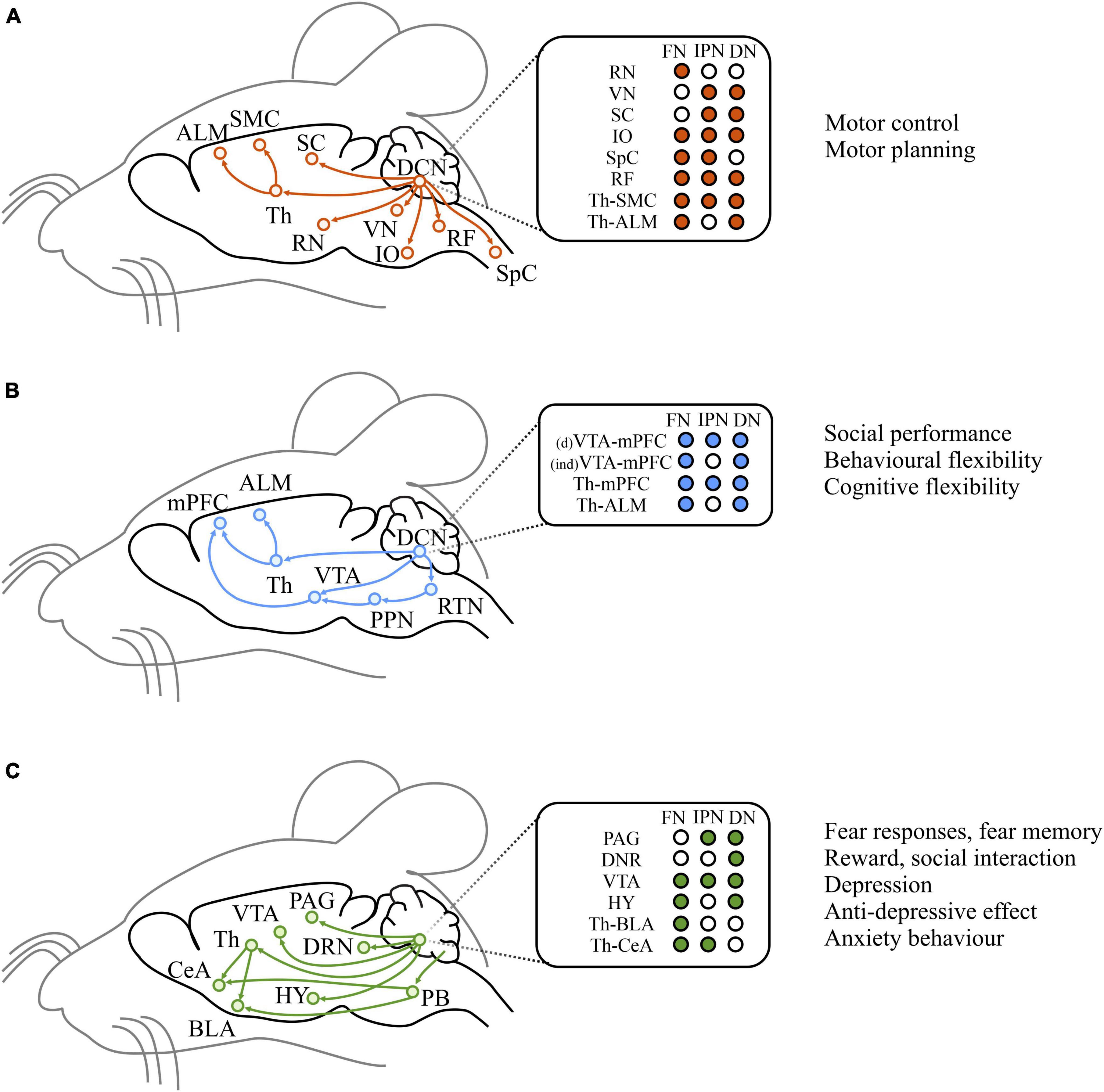

Figure 5. Efferent pathways from the cerebellum. Left: Schematic diagrams of historically studied efferent pathways related to motor functions (A), and of direct or indirect efferent pathways that are considered to be associated with cognitive (B) and emotional (C) functions. Middle: target brain regions from each DCN. Right: summary of broad functions of the pathways illustrated on the left. ALM, anterior lateral motor cortex; SMC, sensorimotor cortex; SC, superior colliculus; Th, thalamus; RN, red nucleus; VN, vestibula nucleus; IO, inferior olive; RF, reticular formation; SpC spinal cord; mPFC, medial prefrontal cortex; VTA, ventral tegmental area; PPN, peduncolopontine tegmental nucleus; RTN, reticulotegmental nuclei; DRN, dorsal Raphe nucleus; HY, hypothalamus; PB, parabrachial nucleus; CeA, central amygdala; BLA, basolateral amygdala; PAG, periacqueductal gray. Modified from Kang et al. (2021).

Studying cerebellar role in fear using animal models

Rodent behavioral studies have been extensively used to investigate neurobiological aspects of emotions (see Box “Emotional tasks in rodents”). However, finding valid and objective measures of animal emotions can be challenging. The most widely used emotional behavioral tests in rodents aim to trigger a fear response (Fi. In fact, fear tests elicit a clear behavioral readout and are highly reproducible. In fear conditioning, rodents show a robust conditional response during fear memory retrieval which is manifested in long periods of freezing behavior. Fear conditioning is an associative learning task. For conditioning to occur, pathways transmitting the conditioned stimulus (CS) and unconditioned stimulus (US) have to converge in the brain. It is widely believed that the amygdala is the site of CS-US convergence (LeDoux et al., 1988; Koutsikou et al., 2014). Auditory (LeDoux, 1990; LeDoux et al., 1990; Mascagni et al., 1993; Romanski and LeDoux, 1993) and other sensory inputs representing the information about the CS terminate mainly in the lateral nucleus of the amygdala (LA). LA, in turns, project to the central amygdala (CeA) which controls the expression of fear response through its projections to the brainstem. Fear conditioning to auditory CS is thought to be mediated by these pathways. In contextual fear conditioning, CS is represented by both the auditory and the context cue. Information on the contextual stimulus involves communication between the hippocampus and the basal and accessory basal nuclei of the amygdala (LeDoux, 1992, n.d.). These nuclei project to the CeA which controls the expression of the response. Somatosensory information concerning the US, including the nociceptive stimuli generated by the footshock (commonly used in fear conditioning tests), are transmitted from cortical and thalamic areas to the LA (Turner and Zimmer, 1984; McDonald, 1998), mirroring the CS pathway. Moreover, CeA receives nociceptive inputs from the parabrachial area (Bernard and Besson, 1990) and directly from the spinal cord (Burstein and Potrebic, 1993). CeA ultimately projects to different brain areas to drive the expression of fear response. Particularly, CeA modulates the activity of the bed nucleus of the stria terminalis on the release of the pituitary-adrenal stress hormone (LeDoux et al., 1988; Herman et al., 2005; Pruessner et al., 2010), and the lateral hypothalamus on the control of blood pressure. In addition, CeA activates the ventrolateral periaqueductal gray (PAG) and elicit freezing response. The PAG has long been implicated as the organizer of behavioral components of the response to threat. It exerts direct control of freezing via glutamatergic projections to premotor neurons targets in the magnocellular nucleus of the medulla. Freezing behavior can be elicited from the ventrolateral periaqueductal gray (vlPAG) in decerebrate animals, therefore descending projections are necessary and sufficient to elicit such behavioral response (Keay and Bandler, 2001). The cerebellum may also participate in the freezing response. Indeed, anatomical evidence of projections from the PAG to the cerebellar cortex have been reported (Dietrichs, 1983), as well as direct projections from the cerebellar nuclei to the vlPAG.

BOX 1

Emotional tasks in rodents

Fear conditioning (FC) is a type of associative learning, in which rodents learn to associate a neutral stimulus (conditioned stimulus, CS; more often a tone but sometimes a visual stimulus) with an aversive stimulus (unconditioned stimulus, US; usually a mild electrical foot shock), and show a consistent behavioral response (conditioned response) (Figure 6A). The conditioned response is the freezing behavior, defined as the complete absence of movements except those related to breathing for at least 2 seconds. The FC protocol consists first of an acquisition phase, often performed on day 1, where the animal is presented with a set of CS-US pairings and. learns to fear both the tone and the training context. FC is learned rapidly, and after one conditioning session a very stable long-lasting behavioral change is produced (consolidation). The next day, the amount of freezing during the presentation of CS alone (the tone) is used as a behavioral readout of memory retrieval. Depending on the goal of the study, the retrieval phase can be performed in the same training environment as the conditioning, with or without the auditory cues (context FC, for hippocampal-dependent learning), or in a different environment, to rule out the contribution of the context in fear memory retrieval (amygdala-dependent learning). Moreover, consolidation and stability of the fear memory can be assessed by performing the retrieval phase at some distance from the acquisition (delayed FC). Finally, fear memory can undergo extinction when CS is presented alone for enough times (extinction phase).

The looming test (Figure 6B) is a non-associative fear test that triggers rodents innate behavioral response to approaching aerial predators. The innate fear response does not require any previously acquired conditioning. A rodent is placed into an arena with a display monitor covering most of the ceiling, and an opaque/dark nest in a corner of the arena representing a hiding spot. The looming stimulus consists of a black disc appearing on the display monitor above the animal and expanding, mimicking the shadow of an approaching predator. This setting reliably and consistently triggers one of two defensive behaviors: escape toward the hiding spot or freezing for a prolonged period. The sensory modality involved in triggering the behavioral response is vision. In particular, a subpopulation of neurons in the superior colliculus seems to be necessary and sufficient to orchestrate these dimorphic defensive behaviors via two distinct pathways, eventually targeting a different nucleus in the amygdala (Wilensky et al., 2006; Tovote et al., 2015; Shang et al., 2018). Interestingly, pairing a neutral tone (CS) with a looming stimulus (US) fails to drive the associative learning of the defensive response, in contrast with the robust learned response of the classical FC (Heinemans and Moita, 2022). However, comparison between innate and learned fear studies suggest considerable overlap between circuit for innate and learned freezing and escape response, thus leaving the topic open for further investigation.

In the predator odor test, rodents are exposed to a predator odor, a natural threat, and show an increase in fear behavior, particularly freezing and avoidance. Olfaction is the most preserved sense throughout mammalian species and is the most prominent sensory modality in rodents. Moreover, early neuroanatomists and scientists recognized a strong link between olfactory processing and emotions, including the olfactory areas in the emotional circuit (Papez, 1937). Indeed, later studies confirmed the role of the connections between olfactory structures and specific nuclei in the amygdala in predator odor-induced fear behavior, including freezing. Nevertheless, the predator odor test has been progressively disregarded, possibly due to the issues in standardizing the odor stimulus, the high variability in the behavioral response, and the low reproducibility of the test.

Anxiety tests

Elevated plus maze, Open field test, Dark-light box test, Hole board test, Social novelty test, Novelty exploration, Marble burying test.

An array of behavioral tests has been developed to investigate anxiety-like behaviors in rodents, so called because they resemble anxiety behaviors in humans (although in rodents they might represent something else entirely). In humans, anxiety and fear produce similar behavioral responses, including but not limited to increasing vigilance, freezing and/or hypoactivity, elevated heart rate, and suppressed food consumption. As opposed to fear, anxiety is elicited by aversive stimuli or a sense of threat which are diffuse, unpredictable, and of long duration. In rodents, anxiety-like behavior is assessed by measuring the response to a novel and potentially threatening environment or object. Anxiety tests depend on locomotion and take advantage of the innate aversion rodents show for bright light and open areas. This is the case for approach-avoidant paradigms such as Elevated plus maze (Figure 6C), Open field test (Figure 6D), Dark-light box test (Figure 6E), and Hole board test (Figure 6F). These tests assess the natural exploratory behavior of the rodents, which is supposed to be reduced or suppressed when the animals feel a threat. Other widely used tests rely on the curiosity towards new objects (Figure 6G) or social novelty (Figure 6H), which is altered by stress and anxiety. More creative and less used tests, such as the Marble burying test (Figure 6I), exploit rodents’ tendency to dig the bedding of their cages and hide objects when stressed.

Often, these tests are inconclusive and non-reproducible because of the high inter-animal and inter-session variability of the results. These inconsistencies are attributed to the individual genetic variations (as genetic background and strains), testing environment (handling, testing rooms, equipment), protocols, and the rearing environment of the rodents (housing environment).

FIGURE 6

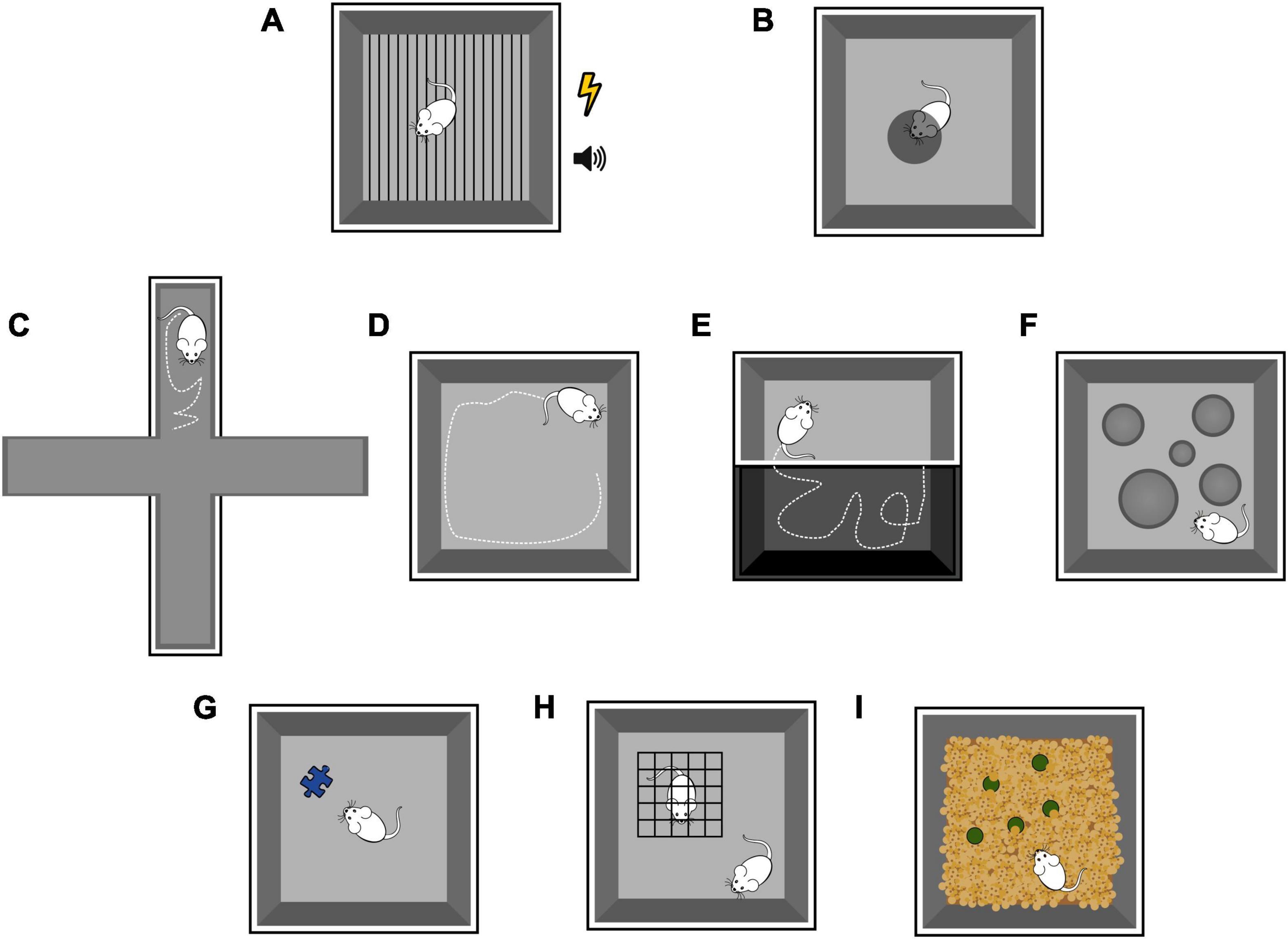

Figure 6. Schematic representation of emotional tasks in rodents, as detailed in the Box. Fear conditioning (A). Looming test (B). Elevated plus maze (C). Open field test (D). Dark-light box test (E). Hole board test (F). Novel object test (G). Social novelty test (H). Marble burying test (I).

Based on early clinical and anatomical evidence, initial works were conducted on the vermis. Using inactivation procedures, the interpositus nucleus appeared to be involved in memory formation of the freezing response to acoustic CS, whereas the vermis appeared to be involved in the memorization of the freezing response both to acoustic CS and in contextual tests (Sacchetti et al., 2002). Furthermore, fear conditioning elicited long-term potentiation at PF-PC synapses, in particular at cerebellar lobules V and VI but not in IX and X. Interestingly, fear conditioning did not modify CF synapses onto PC (Sacchetti et al., 2004).

Moreover, in vivo field potential mapping techniques in anesthetized rats revealed potent physiological connections between vlPAG and cerebellar vermal lobule VIII (Koutsikou et al., 2014). In fact, electrical stimulation of vlPAG on one side of the brain evoked field potentials on the cerebellar cortical surface. Responses were largest in vermis lobule VIII, predominantly localized laterally in the VIII, both sides. This response is thought to be mediated by CFs activation since barbituric anesthesia, used in the study, likely weakened MFs activity. When lobule VIII was inactivated right after the animal conditioning to CS-US pairings, fear memory retrieval showed a reduction in duration of freezing behavior to the CS tone only. It has been hypothesized that the inactivation of lobule VIII during the consolidation of the fear memory resulted in the inability to retrieve the associative memory. However, a reduction in freezing duration also occurred when CS-only memory retrieval test was replaced with an innate fear test (predator odor).

Cerebellum in autonomic response to fear

Response to fear also includes body reactions as heart rate and respiratory rate changes, vasomotor activity/blood flow modification, and consequently sweating, trembling muscles, increased body temperature (Nisimaru, 2004). The main pathway known to mediate these effects travels from the amygdala to the hypothalamus which in turns activates the pituitary gland to secrete hormones in the bloodstream and the autonomic nervous system.

In order to acknowledge the complex pattern of body reactions to fear, Signoret-Genest and colleagues recently introduced the concept of cardio-behavioral defensive state (Signoret-Genest et al., 2023). From this perspective, freezing is not considered an isolated, independent response to fear, rather the behavioral component of a complex response pattern to fear. Such complex response comprises rapid microstates associated with specific behavior and heart rate dynamics, both affected by long-lasting macrostates reflecting context-dependent threat levels. If the cerebellum has a role in freezing, which is part of such cardio-behavioral response, then it might have a role in the other bodily responses to fear. Indeed, the cerebellum has been proven able to influence autonomic functions. For example, the electrical stimulation of the vermis lobule IX causes changes in blood pressure and heart rate, together with inhibition of the baroreceptor reflex (Bradley et al., 1991).

On this matter, the direct and indirect projections from the cerebellum to the hypothalamus, spinal visceral nuclei, dorsal motor vagal nucleus, nucleus tracti solitari, parabrachial nucleus, raphe nucleus, ambiguous nucleus, are expected to take part (Zhu et al., 2011).

Furthermore, recent works have highlighted a strong functional connectivity between the cerebellum and a region of the ventro-lateral brainstem known as the pre-Botzinger complex (Lu et al., 2013). The pre-Botzinger complex is considered the central pattern generator of the respiratory rhythm (Smith et al., 1991) and possibly the site of integration and coordination of different orofacial behaviors in mice, such as whisking, licking and breathing (Lu et al., 2013; Romano et al., 2020). Moreover, pre-Botzinger complex inhibitory neurons modulate sympathetic vasomotor neuron activity, generating heart rate and blood pressure oscillations in phase with respiration (Menuet et al., 2020). Although there are no direct projections from the cerebellum to the pre-Botzinger complex (Teune et al., 2000), cerebellar nuclei project to the gigantocellular reticular formation and to the parabrachial complex, which are both downstream of the pre-Botzinger complex. In turns, these areas project to motor neurons in the spinal cord to drive orofacial movements (Dobbins and Feldman, 1994).

Anatomical and functional mapping in humans

Thanks to recent developments in neuroimaging techniques, direct studies on the brain of living humans, with or without pathology, have become possible using minimally invasive tools. These techniques can be used to study the structure of the brain, e.g., Magnetic Resonance Imaging (MRI) and Computed Axial Tomography, or its function, e.g., Functional Magnetic Resonance Imaging (fMRI), Single Photon Emission Computed Tomography, Positron Emission Tomography, Magnetoencephalography, Electroencephalography and Long Latency Evoked Potentials (Aine, 1995).

Functional neuroimaging studies provide a dynamic view of brain activity. These studies expose the subject to a given stimulus or context, like a cognitive task, to observe its behavior and record the underlying brain activity. Among all, fMRI (Ogawa et al., 1992) has become the most widely used functional neuroimaging technique. fMRI not only allowed to quantify task-dependent activations of brain regions by detecting changes in blood flow, but it also boosted the study of brain networks and connectome. In particular, resting-state fMRI allows the identification of functional connectivity networks between specific areas (Fox and Raichle, 2007; Van Dijk et al., 2010). fMRI is also applicable to non-human species (Gorges et al., 2017) and its use is rapidly extending to rodent research [see for example (Pan et al., 2015, 2018; Grandjean et al., 2020; Pradier et al., 2021)]. Nonetheless, fMRI has limitations and its results are sometimes misinterpreted (Maestú et al., 2003; Logothetis, 2008; Elliott et al., 2020).

Since emotion involves the integration of cognitive, somatomotor, and autonomic functions, we will exploit the privileged point of view offered by human investigations to address the concept of segregation and distribution of these same functions across regions of the cerebellum.

Neuroimaging studies in human cerebellum

A growing literature on functional neuroimaging (Stoodley and Schmahmann, 2009; Guell and Schmahmann, 2020) evaluates structure-function relationships in motor and non-motor areas of the human cerebellum, together with clinical findings. These studies highlight the involvement of different circuits depending on the task being performed. The imaging studies in humans were used to reconstruct a functional topographic map of the cerebellum. The results of these studies can be interpreted according to Larsell’s nomenclature (Schmahmann et al., 1999), that divides the cerebellum along the anterior-posterior axis in lobules denoted by roman numerals from I to X (optional labels, H and v, are used to denote the hemispheres and the vermal region). In addition, the two largest hemispheric lobules are separated in two parts, namely lobule VII (into VIIA comprising crus I and crus II, and VIIB), and lobule VIII (into VIIIA and VIIIB), according to the intrabiventer fissures (Figure 7A). It should be noted that, in human studies, the gross subdivisions of the cerebellum are anterior and posterior, this latter includes superior and inferior parts and the flocculo-nodular lobe.

FIGURE 7

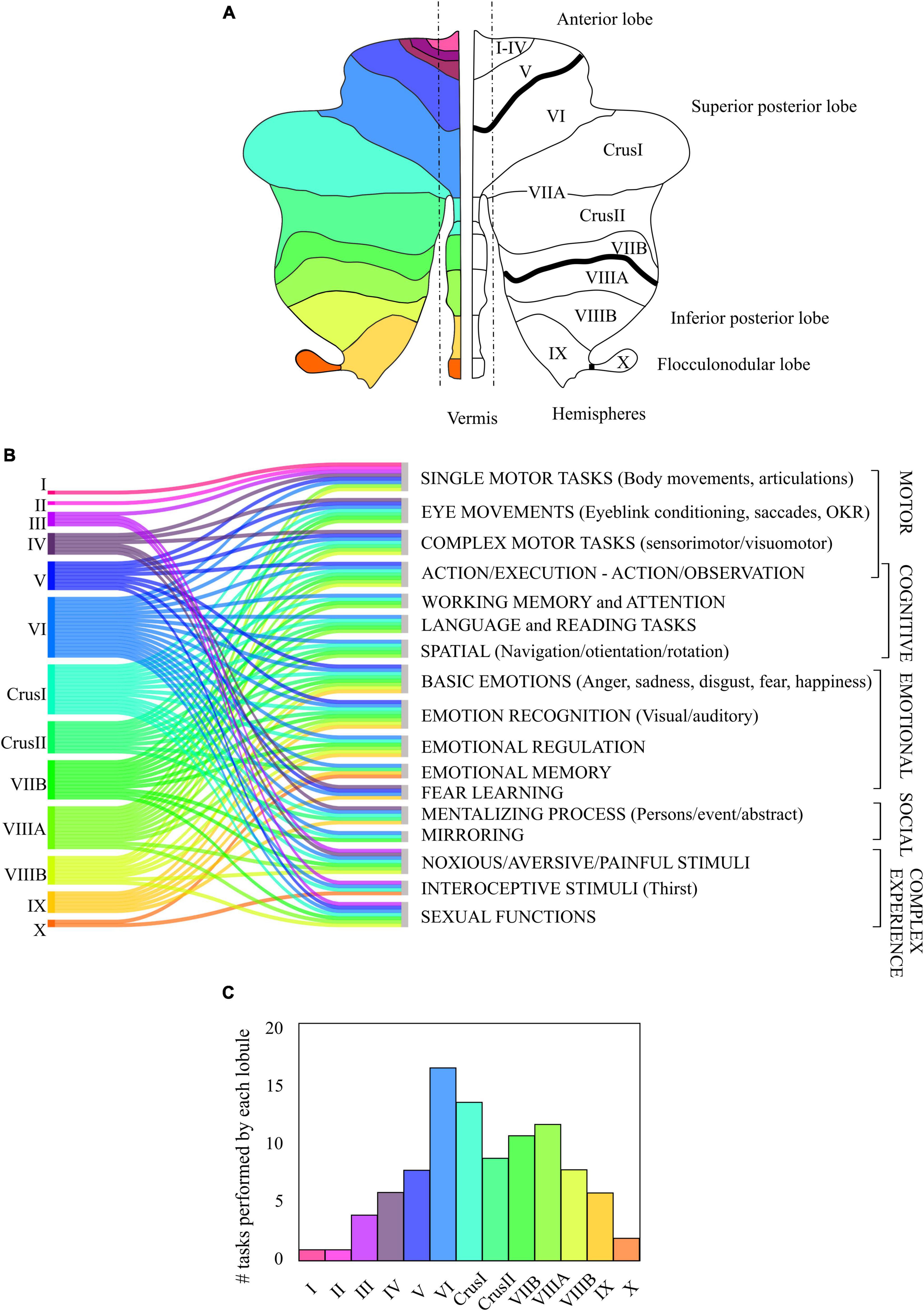

Figure 7. Contribution of the human cerebellum to motor, cognitive, emotional, social and complex task. (A) Classical nomenclature of the division of the human cerebellum, from anterior lobe (I to V) to posterior lobe (Superior posterior: lobules VI to VIIB and Inferior posterior: lobules VIIIA to IX) separated by intrabiventer fissures (dark black line), and flocculo-nodular lobe. (B) Association of the activation of the different cerebellar lobes (in colors) to different functional tasks, based on the consulted bibliography. The tasks were divided into motor, cognitive, emotional, and social. Complex experiences cannot be strictly classified into motor, cognitive, emotional, or social tasks. (C) Lobules involvement in functional tasks of panel (B). The height of each bar corresponds to the number of tasks (out of the 17 listed) related to the activation of each lobule.

In general, in functional studies, the cerebellum is usually divided into two representations, motor and non-motor (Stoodley and Schmahmann, 2009; Buckner et al., 2011; Stoodley et al., 2012; Guell et al., 2018b,2019; Guell and Schmahmann, 2020). Specifically, areas involved in motor representations are the anterior lobe and parts of lobule VI and VIII, while the areas involved in non-motor representations are lobules VI, crus I, crus II, VIIB and IX with extensions to lobule X. Some authors, such as King et al. (2019), promotes a functional parcellation to re-define lobar boundaries as it better matches the experimental data. Also, Boillat et al., 2020 highlighted that the activation patterns observed in functional studies do not strictly adhere to lobar boundaries, and suggested that the cerebellar cortex is a continuous sheet.

Although extensive fMRI studies have been performed, a composite unified picture of the cerebellar functional topography is still lacking. Figure 7B represents the activation of the different cerebellar lobules in motor, cognitive, emotional, and social tasks. The most significant observation coming from our data metanalysis is that, besides a preference for specific modalities, there is a considerable overlap of functions in several cerebellar areas.

Motor cerebellum

As commonly used in literature, we distinguish motor tasks into simple motor tasks, eye movements tasks, and complex motor tasks.

Studies on simple motor tasks (Riecker et al., 2005; Stoodley and Schmahmann, 2009; Guell et al., 2018a; Boillat et al., 2020) report activation of the anterior lobe and lobule VIII, confirming the electrophysiological studies of body maps (Snider and Eldred, 1951). More specifically:

1. Right/left leg and foot movements activate ipsilateral lobules II, III, and IV with extensions to lobule I,

2. Orofacial movements activate medial regions of lobule VI,

3. Right/left hand movements activate ipsilateral lobules V, VIII,

4. Tongue movement activates ipsilateral lobule VI,

5. Articulation activates medial hemispheric lobules IV to VI and VIII.

Studies on eye movements (Dieterich et al., 2000; Dimitrova et al., 2002; Alvarez et al., 2010; King et al., 2019; Boillat et al., 2020) report activation of the anterior lobe and lobule VIII, including vermal areas and lobule VII. For example: optokinetic reflex, smooth pursuit, vergence and saccades activate vermal lobules VI and VII and extend into vermis lobules IV-V and adjacent medial regions of crus I and crus II.

Studies on complex motor tasks (Debas et al., 2010; Ma et al., 2010; Schlerf et al., 2010; Stoodley et al., 2012; Hardwick et al., 2013; Ashida et al., 2019; King et al., 2019; Tzvi et al., 2020) report activation of the anterior lobe, lobule VIII as well as lobule VII. More specifically:

1. Motor learning activates bilateral anterior/medial cerebellum extending into lobule VI,

2. Motor planning activates lobules VI, crus I and crus II,

3. Motor sequencing activates anterior regions extending into lobule VI, VIIIA/B and crus II,

4. Motor adaptation activates anterior lobules IV-V, VIII bilaterally,

5. Visuomotor adaptation activates lobules IV-V, VI, VIII, crus II,

6. Finger tapping activates ipsilateral anterior lobe (lobules IV-V) and lobules VI, VIII,

7. Left and right button press activates ipsilateral anterior lobe and lobule VIII,

8. Skilled movement activates lobules VI, crus I,

9. Execution (reported in both motor and cognitive studies) activates lobes V, VI, VIII,

Clinical studies (Urban et al., 2003; Kumral et al., 2007; Schmahmann et al., 2009; Stoodley and Schmahmann, 2009; Maderwald et al., 2012; Bultmann et al., 2014; Stoodley et al., 2016) support the previously reported experimental findings on motor tasks. Affections of these lobules or regions have been additionally found to be related to neuromotor disorders. For example, patients with poor finger tapping have lesions in the ipsilateral anterior cerebellum, ataxia scores correlate with damage of the anterior lobe (lobules II to V extending into lobule VI), and lesions responsible for cerebellar dysarthria include lobules I, II, III.

Cognitive cerebellum

fMRI analyses in cognitive tasks (Fink et al., 2000; Stoodley and Schmahmann, 2009; Stoodley et al., 2012; Balsters et al., 2014; E et al., 2014; Guell et al., 2018a; Ashida et al., 2019; Casiraghi et al., 2019; King et al., 2019) report vermal activation of lobules VI and VII as well as hemispheric activation of these lobules with lobule VIIIA and extensions to lobule V. More specifically:

1. Action/execution tasks (reported in both motor and cognitive studies) activate lobules V, VI, VIII and regions of crus I

2. Action/observation tasks activate areas of lobule VI, crus I and crus II,

3. Working memory activates hemispheric lobules VI, crus I, and VIIB to VIIIA,

4. Visuospatial working memory and attention activate hemispheric lobules VI, crus I,

5. Linguistic and reading tasks activate right lobules VI, VII, and VIIIA,

6. Spatial (mental rotation) activate left-lateralized lobules VI, VII to VIIIA, crus I and midline VIIA,

7. Spatial (navigation/orientation/mutual rotation) activate right crus I, bilateral lobules VI, and VII.

Clinic evidence (Schmahmann and Sherman, 1998; Mariën et al., 2014; Stoodley et al., 2016; Hoche et al., 2018) proves that cognitive impairments correlate with posterior lobe lesions (lobules VI and VII, including crus I, crus II) in abstract reasoning, working memory, planning, executive functioning, spatial cognition, language, and cognitive regulation. Damage to the left hemisphere is more related to spatial difficulties, while the right cerebellar hemisphere to language problems.

Emotional cerebellum

Most studies (Kilts et al., 2003; Wildgruber et al., 2005; Stoodley and Schmahmann, 2009; Stoodley et al., 2010, 2012; Moulton et al., 2011; Baumann and Mattingley, 2012; Schraa-Tam et al., 2012; Adamaszek et al., 2014, 2017; Nummenmaa et al., 2014; Lange et al., 2015; An et al., 2018; Ernst et al., 2019; King et al., 2019; Thomasson et al., 2019) agree that the regions involved in emotional processing are in the posterior lobes, including the vermal area.

Vermal and paravermal regions are involved in fundamental or primary emotions, namely:

1. Anger: vermal lobule IX and paravermal lobules VI, crus I and crus II,

2. Sadness: vermal lobules, crus I, crus II and paravermal lobule VI,

3. Disgust; vermal lobules V, VIIIA to IX and paravermal lobule VI,

4. Fear: vermal lobule VIIB and paravermal lobes VI, crus I and crus II,

5. Happiness: paravermal lobe VIIIB.

In the domain of Emotional recognition:

1. Seeing emotional vs neutral images activates posterior lobes, including lobules VI, VII

2. Seeing pleasant images activates the right lobules VI and crus I

3. Seeing unpleasant images activates bilateral lobules VI to VIIIB, vermis of lobule IX, and left crus I

4. Processing angry facial expression activates the right lobule V

5. Identifying emotional intonations activates midline lobule VII and lateral lobules VI and crus I

6. Listening to other’s spoken emotional narratives induces activation in lobules VI and IX, right lobules VIIB, VIII, and IX

7. Processing of emotion-laden visual and auditory art activates crus I and crus II is reported.

Emotion regulation activates vermal and hemispheric lobules VI, crus I, VIIB, VIIIA/B and IX. Emotional memory activates crus II and lobules VI, IX, X.

Finally, Fear learning activates the culmen, right and left hemispheric lobule IV-V and left lobule VI, and right and left lobule hemispheric lobule IX.

Social cerebellum

The study of the role of cerebellum in social behaviors (Van Overwalle et al., 2014, 2020; Leggio and Olivito, 2018) has recently gained attention. More precisely, on mentalizing task which evaluate the ability to understand the mental state – of oneself or others – that underlies overt behavior:

1. social mentalizing activates crus I, crus II, and lobule IX,

2. person mentalizing activates crus I, lobules IV and VI,

3. event mentalizing activates crus I,

4. abstract mentalizing activates crus I, lobules VI and IX.

Mirroring is the behavior in which one person subconsciously imitates the gesture, speech pattern, or attitude of another). This task activates crus I, lobules VIIB and VI.

Clinical data (Levisohn et al., 2000; Schmahmann et al., 2007; Tavano et al., 2007; Adamaszek et al., 2014) report the relationship between damage to the posterior vermis with extensions in the medial cerebellar regions with social, behavioral, affective deficits and emotional disorders in patients with affect dulling, anxiety, depression, impulsivity, irritability, aggression and autism spectrum disorder.

Complex experiences involving multiple cerebellar areas

fMRI studies indicate that the cerebellum responds to other complex experiences such as aversive and painful stimuli (Becerra et al., 1999; Ploghaus et al., 1999; Dimitrova et al., 2003; Singer et al., 2004; Jackson et al., 2005; Moulton et al., 2011; Borsook et al., 2018), interoceptive stimuli (Parsons et al., 2000) as well as sexual experiences (Holstege and Huynh, 2011; Wise et al., 2017).

Aversive stimuli (noxious heat, electricity, unpleasant images) activate lobule VI, crus I, VIIB, while painful stimulation evokes bilateral activation of lobules III, IV and VIII as well as the vermal and hemispheric parts of lobule VI and crus I. Therefore, pain experiences activate multiple areas: the anterior regions in relation to the motor component as reflex, the posterior regions in relation to the anticipation of pain or unpleasant situation, and the posterior vermis for the painful experience itself including fear or startle reactions. Pain empathy activates bilaterally lobule VI and crus I.

Interoceptive stimuli such as thirst activates vermal lobe III, whereas during maximal thirst lobes X, VI and crus I are activated, and the left lobe VI is strongly activated after drinking to satiety.

Man ejaculation evokes activation in lobule VIII, right vermal lobule V, left vermal lobule VII, left lobule VI, and bilateral crus I, moreover women orgasm elicited activity left lobule V and right lobule III, while during the post-orgasm recovery activates vermal and hemispheric lobule VI and lobule VII.

It would be wrong to limit an area of the cerebellum strictly to either motor, cognitive, emotional or social tasks. However, lobules task-dependent predominance can be delineated (Figures 7, 8).

FIGURE 8

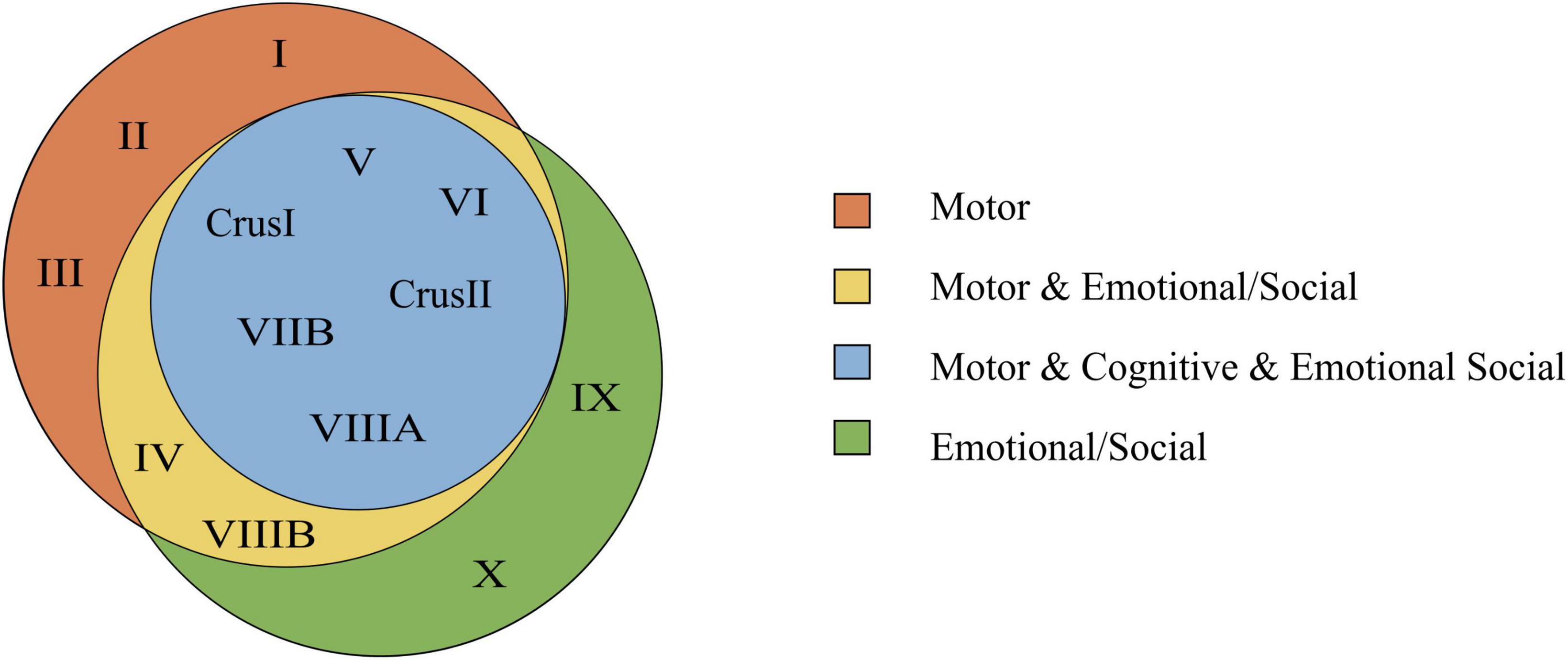

Figure 8. Venn’s diagram based on the consulted bibliography of three functional domains (motor, cognitive, emotional/social). In this diagram, the emotional and social tasks are joined within the same functional domain, and complex experiences are excluded. The Venn’s diagram shows the lobules involved in motor, cognitive, and emotional/social tasks. Overlapping parts contain the lobules that are common to two or all regions. Notice that lobules involved in the cognitive function are in common with both the motor and emotional/social function.

Lobule VI as an integrating region

Figure 7B shows how the lobule VI is involved in all the reported tasks of our collected literature studies. This lobule might represent an integrating or modulating node between motor, cognitive, emotional, and social areas. This may be due to the connection of this area with multiple cortical and brain stem areas. It would be interesting to see whether a multimodal input implies cells with larger dendrites to integrate more synaptic information.

Extra cerebellar connectivity

Studies on resting-state functional connectivity showed that most of the cerebellar regions partake in 5 intrinsically-connected circuits or networks (Habas et al., 2009; Brissenden et al., 2018):

1. the sensorimotor network (lobule V-VI and VIII),

2. the default-mode network (lobules VIIa and IX),

3. the right and left central executive network (lobule VIIa),

4. the dorsal attentional network (lobules VIIB and VIIIA)

5. the salience network (lobules VI and VII).

Furthermore, at least 2 functional macroscale circuits involving the cerebellum have been identified (Leggio and Olivito, 2018): a sensorimotor zone (anterior cerebellum) functionally correlated with premotor, motor, somatosensory, visual, and auditory cortical regions, and a supramodal zone (posterior cerebellum) functionally correlated with dorsolateral prefrontal and inferior posterior-parietal regions.

Resting-state fMRI studies report connections of the cerebellum with cerebral cortex (Krienen and Buckner, 2009; O’Reilly et al., 2010), striatum (Stoodley and Schmahmann, 2009), basal ganglia (Bostan et al., 2010, 2013), antero-medial and mediodorsal thalamus, and habenula (Milardi et al., 2016; Habas and Manto, 2018). Moreover, tracts have been identified between the medial part of posterior lobule of the cerebellum with insula (Cauda et al., 2011; Baur et al., 2013), frontal operculum, anterior cingulate cortex, medial prefrontal cortex, amygdala, and hippocampus, as well as between the lateral part of the cerebellum with the hypothalamus and anterior cingulate cortex (Sang et al., 2012; Bostan et al., 2013; Murty et al., 2014; Habas, 2018).

Limitations of in vivo neuroimaging studies of the cerebellum

Neuroimaging studies are affected by limited spatial and temporal resolution, although this has recently been increased by technological improvements such as fMRI, electroencephalography (Huster et al., 2012; Jorge et al., 2014; Croce et al., 2016) and advanced analysis methods (Spencer and Goodfellow, 2022). The fine folded pattern of the layers of the cerebellar cortex makes it even more complicated to define cerebellar connectivity in detail in humans. Indeed, the surface of the cerebellar cortex is much more tightly folded than that of the cerebral cortex. Thus, although the visible surface of the cerebellum is several times smaller than that of the neocortex, once unfolded it equals 78% of the total surface area of the neocortex (Sereno et al., 2020). This, together with the extended connectivity to associative cortical areas (Palesi et al., 2015), suggests a prominent role for the cerebellum in the evolution of distinctive human behaviors including cognition and emotion.

Conclusions and outstanding questions

Segregation, distribution, and specialization

The evidence reviewed here reveals, as a fundamental aspect of emotional processing in the cerebellum, the interplay of segregation and distribution of functions in multiple cerebellar regions. The corollary is the concept of specialization, that could adapt the general circuit mechanisms of the cerebellum to the specific needs of emotional control.

Segregation. Numerous studies (Stoodley et al., 2010, 2021; Solstrand Dahlberg et al., 2020) have shown that lobules of the central cerebellum, in particular lobules VI, VII, and VIII, show most of the fMRI-related activity during emotional tasks. Likewise, the data summarized in Figure 7B indicate that several cerebellar regions are engaged in multiple functions, as opposed to being specific for a single function. It is plausible to ask whether and to what extent the functional specialization of lobules VI, VII, and VIII entails molecular, cellular, or local network specializations as compared to other modules. The search for circuit specializations in the cerebellum may start from central lobules, especially lobule VI that presents the most extensive implications for emotional processing (Figure 7C).

Distribution. Since the emotional response entails sensorimotor, cognitive, and autonomic aspects, numerous cerebellar lobules that generically operate motor or autonomic control are indeed also contributing to emotion. As a corollary, some lobules should be convergence sites for emotional, cognitive and motor responses, as we have pointed out for lobule VI.

Specialization. The processing role of the cerebellum at system level notwithstanding, the cerebellar network repeats itself in the general motive but not in the details, suggesting that some properties may differentiate microcircuit computation. Focusing on central lobules, the following pattern emerges:

1. Lobules VI and VII are almost entirely Z + (or upbound), PCs have lower firing rate and show PF-PC long-term potentiation. Lobule VIII has alternating Z + /Z- stripes.

2. Lobules VI to X show an increasing amount of PC axonal collaterals contacting GrCs, UBCs, and GoCs.

3. Lobules VI to VIII have almost no UBCs.

4. Lobule VI to VIII have higher cortical thickness than other lobules, and lobule VI has a higher PC density than most of the other lobules.

5. There is an antero-posterior gradient in GrC and PC firing adaptation.

It is possible that these different properties subtend the higher need for multimodal integration of lobules VI-VIII bringing about larger input-output fiber sets, different management of recurrent loops and local processing of signals on specific frequency bands, differential processing of burst and tonic firing depending on the nature of the input, different needs for plasticity generation and memory storage. To what extent these properties impact on microcircuit function and spatiotemporal dynamics is currently unknown and its understanding will require accurate physiological recordings and model simulations.

Implications for behavioral processing

Since the cerebellum is involved in learning the association of time-correlated events and it is likely to do so in all its modules (D‘Angelo and Casali, 2013), a core hypothesis is that the cerebellum orchestrates the time domain for the suppression/initiation of fear responses as much as it does in other conditioning tasks, e.g., in eye-blink classical conditioning. In other words, the cerebellum should perform in emotional control the same operation it performs in motor control and coordinate the many components of the emotional response including motor and visceral reactions. Lobules VI to VIII are involved and studies in rodents support their functional connection to the amygdala, hypothalamus, and periaqueductal gray. Regions IX and X play a major role in orchestrating the autonomic response. In humans, the pattern of explorable emotions is larger than in rodents, but evidence still supports a specialization of lobules VI to VIII. In humans, the high resolution of fMRI techniques during tasks has reinforced the concept of a remarkable distribution and overlapping of areas involved in emotional control with those controlling motor, cognitive, and social behaviors. In addition to coordinate the components of the emotional response, the cerebellum may likewise be involved in comparing the cortical commands with their execution to predict possible errors and correct them. Again, the cerebellum may play the same coordinating role in emotion as it plays in sensorimotor control.

Author contributions

CCia, YL, and DO: writing – original draft preparation and visualization. ED’A, LM, CCas, and DR: writing – review and editing. ED’A, LM, and CCas: supervision. ED’A: conceptualization. All authors contributed to the article and approved the submitted version.

Funding

This work has received funding from the European Union’s Horizon 2020 Research and Innovation Program under the Marie Skłodowska-Curie grant agreement No. 956414. “Cerebellum and emotional networks” and under the Flagship program No. 945539 “Human Brain Project, SGA3”. This work was supported by #nextgenerationEU (NGEU) and funded by the Ministry of University and Research (MUR), National Recovery and Resilience Plan (NRRP), project MNESYS (PE0000006) – A Multiscale integrated approach to the study of the nervous system in health and disease (DN. 1553 11.10.2022). DR has received funding from the Centro Ricerche Enrico Fermi.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Abbreviations

AA, ascending axon; BC, basket cell; BLA, basolateral amygdala; CeA, central amygdala; CF, climbing fiber; CS, conditioned stimulus; DCN, deep cerebellar nuclei; FC, fear conditioning; fMRI, functional magnetic resonance imaging; GoC, Golgi cell; GrC, granule cell; IO, inferior olive; LA, lateral nucleus of the amygdala; MF, Mossy fiber; MLI, molecular layer interneuron; MRI, magnetic resonance imaging; PAG, periaqueductal Gray; PC, Purkinje cell; PF, parallel fiber; SC, Stellate cell; UBC, unipolar brush cell; US, unconditioned stimulus; vlPAG, ventrolateral periaqueductal Gray; VTA, ventral tegmental area; Z-, zebrin II negative; Z+, zebrin II positive.

References

Adamaszek, M., D’Agata, F., Ferrucci, R., Habas, C., Keulen, S., Kirkby, K. C., et al. (2017). Consensus paper: cerebellum and emotion. Cerebellum 16, 552–576. doi: 10.1007/s12311-016-0815-8

PubMed Abstract | CrossRef Full Text | Google Scholar

Adamaszek, M., D’Agata, F., Kirkby, K. C., Trenner, M. U., Sehm, B., Steele, C. J., et al. (2014). Impairment of emotional facial expression and prosody discrimination due to ischemic cerebellar lesions. Cerebellum 13, 338–345. doi: 10.1007/s12311-013-0537-0

PubMed Abstract | CrossRef Full Text | Google Scholar

Aine, C. J. (1995). A conceptual overview and critique of functional neuroimaging techniques in humans: I. MRI/FMRI and PET. Crit. Rev. Neurobiol. 9, 229–309.

PubMed Abstract | Google Scholar

Alvarez, T. L., Alkan, Y., Gohel, S., Douglas Ward, B., and Biswal, B. B. (2010). Functional anatomy of predictive vergence and saccade eye movements in humans: a functional MRI investigation. Vis. Res. 50, 2163–2175. doi: 10.1016/j.visres.2010.08.018

PubMed Abstract | CrossRef Full Text | Google Scholar

An, S., Han, X., Wu, B., Shi, Z., Marks, M., Wang, S., et al. (2018). Neural activation in response to the two sides of emotion. Neurosci. Lett. 684, 140–144. doi: 10.1016/j.neulet.2018.07.011

PubMed Abstract | CrossRef Full Text | Google Scholar

Ankri, L., Husson, Z., Pietrajtis, K., Proville, R., Léna, C., Yarom, Y., et al. (2015). A novel inhibitory nucleo-cortical circuit controls cerebellar Golgi cell activity. Elife 4:e06262. doi: 10.7554/eLife.06262

PubMed Abstract | CrossRef Full Text | Google Scholar

Antonietti, A., Casellato, C., D’Angelo, E., and Pedrocchi, A. (2016). “Model-driven analysis of eyeblink classical conditioning reveals the underlying structure of cerebellar plasticity and neuronal activity,” in Proceedings of the IEEE Transactions on Neural Networks and Learning Systems, (Piscataway, NJ), doi: 10.1109/TNNLS.2016.2598190

PubMed Abstract | CrossRef Full Text | Google Scholar

Antonietti, A., Geminiani, A., Negri, E., D’Angelo, E., Casellato, C., and Pedrocchi, A. (2022). Brain-inspired spiking neural network controller for a neurorobotic whisker system. Front. Neurorobot. 16:817948. doi: 10.3389/fnbot.2022.817948

PubMed Abstract | CrossRef Full Text | Google Scholar

Antonietti, A., Monaco, J., D’Angelo, E., Pedrocchi, A., and Casellato, C. (2018). Dynamic redistribution of plasticity in a cerebellar spiking neural network reproducing an associative learning task perturbed by TMS. Int. J. Neural Syst. 28:1850020. doi: 10.1142/S012906571850020X

PubMed Abstract | CrossRef Full Text | Google Scholar

Apps, R., and Hawkes, R. (2009). Cerebellar cortical organization: a one-map hypothesis. Nat. Rev. Neurosci. 10, 670–681. doi: 10.1038/nrn2698

PubMed Abstract | CrossRef Full Text | Google Scholar

Apps, R., Hawkes, R., Aoki, S., Bengtsson, F., Brown, A. M., Chen, G., et al. (2018). Cerebellar modules and their role as operational cerebellar processing units. Cerebellum 17, 654–682. doi: 10.1007/s12311-018-0952-3

PubMed Abstract | CrossRef Full Text | Google Scholar

Apps, R., and Strata, P. (2015). Neuronal circuits for fear and anxiety — the missing link. Nat. Rev. Neurosci. 16, 642–642. doi: 10.1038/nrn4028

PubMed Abstract | CrossRef Full Text | Google Scholar

Armstrong, D. M., and Schild, R. F. (1970). A quantitative study of the purkinje cells in the cerebellum of the albino rat. J. Comp. Neurol. 139, 449–456. doi: 10.1002/cne.901390405

PubMed Abstract | CrossRef Full Text | Google Scholar

Ashida, R., Cerminara, N. L., Edwards, R. J., Apps, R., and Brooks, J. C. W. (2019). Sensorimotor, language, and working memory representation within the human cerebellum. Hum. Brain Mapp. 40, 4732–4747. doi: 10.1002/hbm.24733

PubMed Abstract | CrossRef Full Text | Google Scholar

Baek, S. J., Park, J. S., Kim, J., Yamamoto, Y., and Tanaka-Yamamoto, K. (2022). VTA-projecting cerebellar neurons mediate stress-dependent depression-like behaviors. eLife 11:e72981. doi: 10.7554/eLife.72981

PubMed Abstract | CrossRef Full Text | Google Scholar

Balmer, T. S., and Trussell, L. O. (2019). Selective targeting of unipolar brush cell subtypes by cerebellar mossy fibers. eLife 8:e44964. doi: 10.7554/eLife.44964

PubMed Abstract | CrossRef Full Text | Google Scholar

Balsters, J. H., Laird, A. R., Fox, P. T., and Eickhoff, S. B. (2014). Bridging the gap between functional and anatomical features of cortico-cerebellar circuits using meta-analytic connectivity modeling. Hum. Brain Mapp. 35, 3152–3169. doi: 10.1002/hbm.22392

PubMed Abstract | CrossRef Full Text | Google Scholar

Barrett, L. F., and Satpute, A. B. (2019). Historical pitfalls and new directions in the neuroscience of emotion. Neurosci. Lett. 693, 9–18. doi: 10.1016/j.neulet.2017.07.045

PubMed Abstract | CrossRef Full Text | Google Scholar

Baumann, O., and Mattingley, J. B. (2012). Functional topography of primary emotion processing in the human cerebellum. NeuroImage 61, 805–811. doi: 10.1016/j.neuroimage.2012.03.044

PubMed Abstract | CrossRef Full Text | Google Scholar

Baur, V., Hänggi, J., Langer, N., and Jäncke, L. (2013). Resting-state functional and structural connectivity within an insula-amygdala route specifically index state and trait anxiety. Biol. Psychiatry 73, 85–92. doi: 10.1016/j.biopsych.2012.06.003

PubMed Abstract | CrossRef Full Text | Google Scholar

Becerra, L. R., Breiter, H. C., Stojanovic, M., Fishman, S., Edwards, A., Comite, A. R., et al. (1999). Human brain activation under controlled thermal stimulation and habituation to noxious heat: an fMRI study. Magn. Resonan. Med. 41, 1044–1057.

PubMed Abstract | Google Scholar

Bernard, J. F., and Besson, J. M. (1990). The spino(trigemino)pontoamygdaloid pathway: electrophysiological evidence for an involvement in pain processes. J. Neurophysiol. 63, 473–490. doi: 10.1152/jn.1990.63.3.473

PubMed Abstract | CrossRef Full Text | Google Scholar

Blatt, G. J., Oblak, A. L., and Schmahmann, J. D. (2013). “Cerebellar connections with limbic circuits: anatomy and functional implications,” in Handbook of the Cerebellum and Cerebellar Disorders, eds M. Manto, J. D. Schmahmann, F. Rossi, D. L. Gruol, and N. Koibuchi (Dordrecht: Springer Netherlands), doi: 10.1007/978-94-007-1333-8_22

CrossRef Full Text | Google Scholar

Blue Brain Cell Atlas (2018). Blue Brain Portal. Available online at: https://portal.bluebrain.epfl.ch/resources/models/cell-atlas/ (accessed March 9, 2023).

Google Scholar

Boillat, Y., Bazin, P. L., and van der Zwaag, W. (2020). Whole-body somatotopic maps in the cerebellum revealed with 7T fMRI. NeuroImage 211:116624. doi: 10.1016/j.neuroimage.2020.116624

PubMed Abstract | CrossRef Full Text | Google Scholar

Borsook, D., Youssef, A. M., Simons, L., Elman, I., and Eccleston, C. (2018). When pain gets stuck: the evolution of pain chronification and treatment resistance. Pain 159, 2421–2436. doi: 10.1097/j.pain.0000000000001401

PubMed Abstract | CrossRef Full Text | Google Scholar

Bostan, A., Dum, R., and Strick, P. (2010). The basal ganglia communicate with the cerebellum. Proc. Natl. Acad. Sci. U. S. A. 107, 8452–8456. doi: 10.1073/pnas.1000496107

PubMed Abstract | CrossRef Full Text | Google Scholar

Bostan, A. C., Dum, R. P., and Strick, P. L. (2013). Cerebellar networks with the cerebral cortex and basal ganglia. Trends Cognit. Sci. 17, 241–254. doi: 10.1016/j.tics.2013.03.003

PubMed Abstract | CrossRef Full Text | Google Scholar

Bradley, D. J., Ghelarducci, B., and Spyer, K. M. (1991). The role of the posterior cerebellar vermis in cardiovascular control. Neurosci. Res. 12, 45–56. doi: 10.1016/0168-0102(91)90099-K

PubMed Abstract | CrossRef Full Text | Google Scholar

Braitenberg, V., and Atwood, R. P. (1958). Morphological observations on the cerebellar cortex. J. Comp. Neurol. 109, 1–33. doi: 10.1002/cne.901090102

PubMed Abstract | CrossRef Full Text | Google Scholar

Brissenden, J. A., Tobyne, S. M., Osher, D. E., Levin, E. J., Halko, M. A., and Somers, D. C. (2018). Topographic cortico-cerebellar networks revealed by visual attention and working memory. Curr. Biol. 28, 3364–3372. doi: 10.1016/j.cub.2018.08.059

PubMed Abstract | CrossRef Full Text | Google Scholar

Brown, A. M., Arancillo, M., Lin, T., Catt, D. R., Zhou, J., Lackey, E. P., et al. (2019). Molecular layer interneurons shape the spike activity of cerebellar Purkinje cells. Sci. Rep. 9:1742. doi: 10.1038/s41598-018-38264-1

PubMed Abstract | CrossRef Full Text | Google Scholar

Buckner, R. L., Krienen, F. M., Castellanos, A., Diaz, J. C., and Thomas Yeo, B. T. (2011). The organization of the human cerebellum estimated by intrinsic functional connectivity. J. Neurophysiol. 106, 2322–2345. doi: 10.1152/jn.00339.2011

PubMed Abstract | CrossRef Full Text | Google Scholar

Buisseret-Delmas, C., and Angaut, P. (1988). The cerebellar nucleocortical projections in the rat. A retrograde labelling study using horseradish peroxidase combined to a lectin. Neurosci. Lett. 84, 255–260. doi: 10.1016/0304-3940(88)90516-2

PubMed Abstract | CrossRef Full Text | Google Scholar

Buisseret-Delmas, C., and Angaut, P. (1989). Anatomical mapping of the cerebellar nucleocortical projections in the rat: a retrograde labeling study. J. Comp. Neurol. 288, 297–310. doi: 10.1002/cne.902880208

PubMed Abstract | CrossRef Full Text | Google Scholar

Bultmann, U., Pierscianek, D., Gizewski, E. R., Schoch, B., Fritsche, N., Timmann, D., et al. (2014). Functional recovery and rehabilitation of postural impairment and gait ataxia in patients with acute cerebellar stroke. Gait Post. 39, 563–569. doi: 10.1016/j.gaitpost.2013.09.011

PubMed Abstract | CrossRef Full Text | Google Scholar

Burstein, R., and Potrebic, S. (1993). Retrograde labeling of neurons in the spinal cord that project directly to the amygdala or the orbital cortex in the rat. J. Comp. Neurol. 335, 469–485. doi: 10.1002/cne.903350402

PubMed Abstract | CrossRef Full Text | Google Scholar

Carta, I., Chen, C. H., Schott, A. L., Dorizan, S., and Khodakhah, K. (2019). Cerebellar modulation of the reward circuitry and social behavior. Science 363:eaav0581. doi: 10.1126/science.aav0581

PubMed Abstract | CrossRef Full Text | Google Scholar

Casellato, C., Antonietti, A., Garrido, J. A., Ferrigno, G., D’Angelo, E., and Pedrocchi, A. (2015). Distributed cerebellar plasticity implements generalized multiple-scale memory components in real-robot sensorimotor tasks. Front. Comput. Neurosci. 9:24. doi: 10.3389/fncom.2015.00024

PubMed Abstract | CrossRef Full Text | Google Scholar

Casiraghi, L., Alahmadi, A. A. S., Monteverdi, A., Palesi, F., Castellazzi, G., Savini, G., et al. (2019). I see your effort: force-Related BOLD effects in an extended action execution-observation network involving the cerebellum. Cereb. Cortex 29, 1351–1368. doi: 10.1093/cercor/bhy322

PubMed Abstract | CrossRef Full Text | Google Scholar

Cauda, F., D’Agata, F., Sacco, K., Duca, S., Geminiani, G., and Vercelli, A. (2011). Functional connectivity of the insula in the resting brain. NeuroImage 55, 8–23. doi: 10.1016/j.neuroimage.2010.11.049

PubMed Abstract | CrossRef Full Text | Google Scholar

Cerminara, N. L., Lang, E. J., Sillitoe, R. V., and Apps, R. (2015). Redefining the cerebellar cortex as an assembly of non-uniform Purkinje cell microcircuits. Nat. Rev. Neurosci. 16, 79–93. doi: 10.1038/nrn3886

PubMed Abstract | CrossRef Full Text | Google Scholar

Chen, X., Du, Y., Broussard, G. J., Kislin, M., Yuede, C. M., Zhang, S., et al. (2022). Transcriptomic mapping uncovers Purkinje neuron plasticity driving learning. Nature 605, 722–727. doi: 10.1038/s41586-022-04711-3

PubMed Abstract | CrossRef Full Text | Google Scholar

Clausi, S., Iacobacci, C., Lupo, M., Olivito, G., Molinari, M., and Leggio, M. (2017). The role of the cerebellum in unconscious and conscious processing of emotions: a review. Appl. Sci. 7:521. doi: 10.3390/app7050521

CrossRef Full Text | Google Scholar

Croce, P., Basti, A., Marzetti, L., Zappasodi, F., and Gratta, C. D. (2016). EEG-fMRI Bayesian framework for neural activity estimation: a simulation study. J. Neural Eng. 13:066017. doi: 10.1088/1741-2560/13/6/066017

PubMed Abstract | CrossRef Full Text | Google Scholar

Damasio, A. R. (1998). Emotion in the perspective of an integrated nervous system. Brain Res. Brain Res Rev. 26, 83–86.

Google Scholar

D’Angelo, E. (2011). Neural circuits of the cerebellum: hypothesis for function. J. Integr. Neurosci. 10, 317–352. doi: 10.1142/S0219635211002762

PubMed Abstract | CrossRef Full Text | Google Scholar

D’Angelo, E., Antonietti, A., Casali, S., Casellato, C., Garrido, J. A., Luque, N. R., et al. (2016). Modeling the cerebellar microcircuit: new strategies for a long-standing issue. Front. Cell. Neurosci. 10:176. doi: 10.3389/fncel.2016.00176

PubMed Abstract | CrossRef Full Text | Google Scholar

D’Angelo, E., and Jirsa, V. (2022). The quest for multiscale brain modeling. Trends Neurosci. 45, 777–790. doi: 10.1016/j.tins.2022.06.007

PubMed Abstract | CrossRef Full Text | Google Scholar

D’Angelo, E., Mazzarello, P., Prestori, F., Mapelli, J., Solinas, S., Lombardo, P., et al. (2011). The cerebellar network: from structure to function and dynamics. Brain Res. Rev. 66, 5–15. doi: 10.1016/j.brainresrev.2010.10.002

PubMed Abstract | CrossRef Full Text | Google Scholar

De Schepper, R., Geminiani, A., Masoli, S., Rizza, M. F., Antonietti, A., Casellato, C., et al. (2022). Model simulations unveil the structure-function-dynamics relationship of the cerebellar cortical microcircuit. Commun. Biol. 5, 1–19. doi: 10.1038/s42003-022-04213-y

PubMed Abstract | CrossRef Full Text | Google Scholar

De Zeeuw, C. I. (2021). Bidirectional learning in upbound and downbound microzones of the cerebellum. Nat. Rev. Neurosci. 22, 92–110. doi: 10.1038/s41583-020-00392-x

PubMed Abstract | CrossRef Full Text | Google Scholar

Debas, K., Carrier, J., Orban, P., Barakat, M., Lungu, O., Vandewalle, G., et al. (2010). Brain plasticity related to the consolidation of motor sequence learning and motor adaptation. Proc. Natl. Acad. Sci. U. S. A. 107, 17839–17844. doi: 10.1073/pnas.1013176107

PubMed Abstract | CrossRef Full Text | Google Scholar

Dieterich, M., Bucher, S. F., Seelos, K. C., and Brandt, T. (2000). Cerebellar activation during optokinetic stimulation and saccades. Neurology 54, 148–155. doi: 10.1212/wnl.54.1.148

PubMed Abstract | CrossRef Full Text | Google Scholar

Dietrichs, E. (1983). Cerebellar cortical afferents from the periaqueductal grey in the cat. Neurosci. Lett. 41, 21–26. doi: 10.1016/0304-3940(83)90217-3

PubMed Abstract | CrossRef Full Text | Google Scholar

Dietrichs, E., and Haines, D. E. (1989). Interconnections between hypothalamus and cerebellum. Anat. Embryol. 179, 207–220. doi: 10.1007/BF00326585

PubMed Abstract | CrossRef Full Text | Google Scholar

Dimitrova, A., Kolb, F. P., Elles, H. G., Maschke, M., Forsting, M., Diener, H. C., et al. (2003). Cerebellar responses evoked by nociceptive leg withdrawal reflex as revealed by event-related fMRI. J. Neurophysiol. 90, 1877–1886. doi: 10.1152/jn.00053.2003

PubMed Abstract | CrossRef Full Text | Google Scholar

Dimitrova, A., Weber, J., Maschke, M., Elles, H. G., Kolb, F. P., Forsting, M., et al. (2002). Eyeblink-related areas in human cerebellum as shown by fMRI. Hum. Brain Mapp. 17, 100–115. doi: 10.1002/hbm.10056

PubMed Abstract | CrossRef Full Text | Google Scholar

Dobbins, E. G., and Feldman, J. L. (1994). Brainstem network controlling descending drive to phrenic motoneurons in rat. J. Comp. Neurol. 347, 64–86. doi: 10.1002/cne.903470106

PubMed Abstract | CrossRef Full Text | Google Scholar

Dumontier, D., Mailhes-Hamon, C., Supplisson, S., and Dieudonné, S. (2023). Neurotransmitter content heterogeneity within an interneuron class shapes inhibitory transmission at a central synapse. Front. Cell Neurosci. 16:1060189. doi: 10.3389/fncel.2022.1060189

PubMed Abstract | CrossRef Full Text | Google Scholar

D‘Angelo, E., and Casali, S. (2013). Seeking a unified framework for cerebellar function and dysfunction: from circuit operations to cognition. Front. Neural Circuits 6:116. doi: 10.3389/fncir.2012.00116

PubMed Abstract | CrossRef Full Text | Google Scholar

D‘Angelo, E., Solinas, S., Mapelli, J., Gandolfi, D., Mapelli, L., and Prestori, F. (2013). The cerebellar Golgi cell and spatiotemporal organization of granular layer activity. Front. Neural Circ 7:93. doi: 10.3389/fncir.2013.00093

PubMed Abstract | CrossRef Full Text | Google Scholar

E, K. H., Chen, S. H. A., Ho, M. H. R., and Desmond, J. E. (2014). A meta-analysis of cerebellar contributions to higher cognition from PET and fMRI studies. Hum. Brain Mapp. 35, 593–615. doi: 10.1002/hbm.22194

PubMed Abstract | CrossRef Full Text | Google Scholar

Eccles, J. C. (1967). Circuits in the cerebellar control of movement. Proc. Natl. Acad. Sci. U. S. A. 58, 336–343. doi: 10.1073/pnas.58.1.336

PubMed Abstract | CrossRef Full Text | Google Scholar

Elliott, M. L., Knodt, A. R., Ireland, D., Morris, M. L., Poulton, R., Ramrakha, S., et al. (2020). What is the test-retest reliability of common task-functional MRI measures? New empirical evidence and a meta-analysis. Psychol. Sci. 31, 792–806. doi: 10.1177/0956797620916786

PubMed Abstract | CrossRef Full Text | Google Scholar

Ernst, T. M., Brol, A. E., Gratz, M., Ritter, C., Bingel, U., Schlamann, M., et al. (2019). The cerebellum is involved in processing of predictions and prediction errors in a fear conditioning paradigm. eLife 8:e46831. doi: 10.7554/eLife.46831

PubMed Abstract | CrossRef Full Text | Google Scholar

Fink, G. R., Marshall, J. C., Shah, N. J., Weiss, P. H., Halligan, P. W., Grosse-Ruyken, M., et al. (2000). Line bisection judgments implicate right parietal cortex and cerebellum as assessed by fMRI. Neurology 54, 1324–1331. doi: 10.1212/WNL.54.6.1324

PubMed Abstract | CrossRef Full Text | Google Scholar

Fox, M. D., and Raichle, M. E. (2007). Spontaneous fluctuations in brain activity observed with functional magnetic resonance imaging. Nat. Rev. Neurosci. 8, 700–711. doi: 10.1038/nrn2201

PubMed Abstract | CrossRef Full Text | Google Scholar

Friede, R. (1955). [Quantitative displacement of the layers within the convolutions of the cerebellar cortex and its biologic importance]. Acta Anat. 25, 65–72.

PubMed Abstract | Google Scholar

Fujita, H., Morita, N., Furuichi, T., and Sugihara, I. (2012). Clustered fine compartmentalization of the mouse embryonic cerebellar cortex and its rearrangement into the postnatal striped configuration. J. Neurosci. 32, 15688–15703. doi: 10.1523/JNEUROSCI.1710-12.2012

PubMed Abstract | CrossRef Full Text | Google Scholar

Gao, Z., Proietti-Onori, M., Lin, Z., ten Brinke, M. M., Boele, H.-J., Potters, J.-W., et al. (2016). Excitatory cerebellar nucleocortical circuit provides internal amplification during associative conditioning. Neuron 3, 645–657. doi: 10.1016/j.neuron.2016.01.008

PubMed Abstract | CrossRef Full Text | Google Scholar

Geurts, F. J., De Schutter, E., and Dieudonné, S. (2003). Unraveling the cerebellar cortex: cytology and cellular physiology of large-sized interneurons in the granular layer. Cerebellum 2, 290–299. doi: 10.1080/14734220310011948

PubMed Abstract | CrossRef Full Text | Google Scholar

Geurts, F. J., Timmermans, J., Shigemoto, R., and De Schutter, E. (2001). Morphological and neurochemical differentiation of large granular layer interneurons in the adult rat cerebellum. Neuroscience 104, 499–512. doi: 10.1016/s0306-4522(01)00058-6

PubMed Abstract | CrossRef Full Text | Google Scholar

Gorges, M., Roselli, F., Müller, H. P., Ludolph, A. C., Rasche, V., and Kassubek, J. (2017). Functional connectivity mapping in the animal model: principles and applications of resting-state fMRI. Front. Neurol. 8:200. doi: 10.3389/fneur.2017.00200

PubMed Abstract | CrossRef Full Text | Google Scholar

Gornati, S. V., Schäfer, C. B., Eelkman Rooda, O. H. J., Nigg, A. L., De Zeeuw, C. I., and Hoebeek, F. E. (2018). Differentiating cerebellar impact on thalamic nuclei. Cell Rep. 23, 2690–2704. doi: 10.1016/j.celrep.2018.04.098

PubMed Abstract | CrossRef Full Text | Google Scholar

Grandjean, J., Canella, C., Anckaerts, C., Ayrancı, G., Bougacha, S., Bienert, T., et al. (2020). Common functional networks in the mouse brain revealed by multi-centre resting-state fMRI analysis. NeuroImage 205:116278. doi: 10.1016/j.neuroimage.2019.116278

PubMed Abstract | CrossRef Full Text | Google Scholar

Gritti, I. (2013). The cerebellum, the hypothalamus and behavior. Nat. Sci. 5, 832–834. doi: 10.4236/ns.2013.57100

CrossRef Full Text | Google Scholar

Guell, X., Gabrieli, J. D. E., and Schmahmann, J. D. (2018a). Triple representation of language, working memory, social and emotion processing in the cerebellum: convergent evidence from task and seed-based resting-state fMRI analyses in a single large cohort. NeuroImage 172, 437–449. doi: 10.1016/j.neuroimage.2018.01.082

PubMed Abstract | CrossRef Full Text | Google Scholar

Guell, X., Schmahmann, J. D., Gabrieli, J. D. E., and Ghosh, S. S. (2018b). Functional gradients of the cerebellum. eLife 7:e36652. doi: 10.7554/eLife.36652

PubMed Abstract | CrossRef Full Text | Google Scholar

Guell, X., Goncalves, M., Kaczmarzyk, J. R., Gabrieli, J. D. E., Schmahmann, J. D., and Ghosh, S. S. (2019). Littlebrain: a gradient-based tool for the topographical interpretation of cerebellar neuroimaging findings. PLoS One 14:e0210028. doi: 10.1371/journal.pone.0210028

PubMed Abstract | CrossRef Full Text | Google Scholar

Guell, X., and Schmahmann, J. (2020). Cerebellar functional anatomy: a didactic summary based on human fMRI evidence. Cerebellum 19, 1–5. doi: 10.1007/s12311-019-01083-9

PubMed Abstract | CrossRef Full Text | Google Scholar

Guo, C., Rudolph, S., Neuwirth, M. E., and Regehr, W. G. (2021). Purkinje cell outputs selectively inhibit a subset of unipolar brush cells in the input layer of the cerebellar cortex. eLife 10:e68802. doi: 10.7554/eLife.68802

PubMed Abstract | CrossRef Full Text | Google Scholar

Guo, C., Witter, L., Rudolph, S., Elliott, H. L., Ennis, K. A., and Regehr, W. G. (2016). Purkinje cells directly inhibit granule cells in specialized regions of the cerebellar cortex. Neuron 91, 1330–1341. doi: 10.1016/j.neuron.2016.08.011

PubMed Abstract | CrossRef Full Text | Google Scholar

Habas, C. (2018). Research note: a resting-state, cerebello-amygdaloid intrinsically connected network. Cereb. Ataxias 5:4. doi: 10.1186/s40673-018-0083-0

PubMed Abstract | CrossRef Full Text | Google Scholar

Habas, C., Kamdar, N., Nguyen, D., Prater, K., Beckmann, C. F., Menon, V., et al. (2009). Distinct cerebellar contributions to intrinsic connectivity networks. J. Neurosci. 29, 8586–8594. doi: 10.1523/JNEUROSCI.1868-09.2009

PubMed Abstract | CrossRef Full Text | Google Scholar

Habas, C., and Manto, M. (2018). Probing the neuroanatomy of the cerebellum using tractography. Handb. Clin. Neurol 154, 235–249. doi: 10.1016/B978-0-444-63956-1.00014-X

PubMed Abstract | CrossRef Full Text | Google Scholar

Hardwick, R. M., Rottschy, C., Miall, R. C., and Eickhoff, S. B. (2013). A quantitative meta-analysis and review of motor learning in the human brain. NeuroImage 67, 283–297. doi: 10.1016/j.neuroimage.2012.11.020

PubMed Abstract | CrossRef Full Text | Google Scholar

Heath, N. C., Rizwan, A. P., Engbers, J. D. T., Anderson, D., Zamponi, G. W., and Turner, R. W. (2014). The expression pattern of a Cav3–Kv4 complex differentially regulates spike output in cerebellar granule cells. J. Neurosci. 34, 8800–8812. doi: 10.1523/JNEUROSCI.0981-14.2014

PubMed Abstract | CrossRef Full Text | Google Scholar

Heinemans, M., and Moita, M. A. (2022). Looming stimuli reliably drive innate, but not learned, defensive responses in rats. bioRxiv[Preprint]. doi: 10.1101/2022.02.07.479432

CrossRef Full Text | Google Scholar

Herman, J. P., Ostrander, M. M., Mueller, N. K., and Figueiredo, H. (2005). Limbic system mechanisms of stress regulation: hypothalamo-pituitary-adrenocortical axis. Prog. Neuro Psychopharmacol. Biol. Psychiatry 29, 1201–1213. doi: 10.1016/j.pnpbp.2005.08.006

PubMed Abstract | CrossRef Full Text | Google Scholar

Hoche, F., Guell, X., Vangel, M. G., Sherman, J. C., and Schmahmann, J. D. (2018). The cerebellar cognitive affective/Schmahmann syndrome scale. Brain 141, 248–270. doi: 10.1093/brain/awx317

PubMed Abstract | CrossRef Full Text | Google Scholar

Holstege, G., and Huynh, H. K. (2011). Brain circuits for mating behavior in cats and brain activations and de-activations during sexual stimulation and ejaculation and orgasm in humans. Hormones Behav. 59, 702–707. doi: 10.1016/j.yhbeh.2011.02.008

PubMed Abstract | CrossRef Full Text | Google Scholar

Houck, B. D., and Person, A. L. (2014). Cerebellar loops: a review of the nucleocortical pathway. Cerebellum 13, 378–385. doi: 10.1007/s12311-013-0543-2

PubMed Abstract | CrossRef Full Text | Google Scholar

Huster, R. J., Debener, S., Eichele, T., and Herrmann, C. S. (2012). Methods for simultaneous EEG-fMRI: an introductory review. J. Neurosci. 32, 6053–6060. doi: 10.1523/JNEUROSCI.0447-12.2012

PubMed Abstract | CrossRef Full Text | Google Scholar

ISH Data. (2023). Allen Brain Atlas: Mouse Brain. Washington, DC: Allen Institute for Brain Science

Google Scholar

Itô, M. (1984). The Cerebellum and Neural Control. Billings: Raven Press.

Google Scholar

Ito, M. (1993). Movement and thought: identical control mechanisms by the cerebellum. Trends Neurosci. 16, 448–450. doi: 10.1016/0166-2236(93)90073-U

PubMed Abstract | CrossRef Full Text | Google Scholar

Ito, M. (2005). Bases and implications of learning in the cerebellum–adaptive control and internal model mechanism. Prog. Brain Res. 148, 95–109. doi: 10.1016/S0079-6123(04)48009-1

PubMed Abstract | CrossRef Full Text | Google Scholar

Ito, M. (2006). Cerebellar circuitry as a neuronal machine. Prog. Neurobiol. 78, 272–303. doi: 10.1016/j.pneurobio.2006.02.006

PubMed Abstract | CrossRef Full Text | Google Scholar

Ito, M. (2008). Control of mental activities by internal models in the cerebellum. Nat. Rev. Neurosci. 9, 304–313. doi: 10.1038/nrn2332

PubMed Abstract | CrossRef Full Text | Google Scholar

Jackson, P. L., Meltzoff, A. N., and Decety, J. (2005). How do we perceive the pain of others? A window into the neural processes involved in empathy. NeuroImage 24, 771–779. doi: 10.1016/j.neuroimage.2004.09.006

PubMed Abstract | CrossRef Full Text | Google Scholar

Jorge, J., van der Zwaag, W., and Figueiredo, P. (2014). EEG–fMRI integration for the study of human brain function. NeuroImage 102, 24–34. doi: 10.1016/j.neuroimage.2013.05.114

PubMed Abstract | CrossRef Full Text | Google Scholar

Jung, S. J., Vlasov, K., D’Ambra, A. F., Parigi, A., Baya, M., Frez, E. P., et al. (2022). Novel cerebello-amygdala connections provide missing link between cerebellum and limbic system. Front. Syst. Neurosci. 16:879634. doi: 10.3389/fnsys.2022.879634

PubMed Abstract | CrossRef Full Text | Google Scholar

Kang, S., Jun, S., Baek, S. J., Park, H., Yamamoto, Y., Tanaka-Yamamoto K., et al. (2021). Recent advances in the understanding of specific efferent pathways emerging from the cerebellum. Front. Neuroanat. 5:759948. doi: 10.3389/fnana.2021.759948

PubMed Abstract | CrossRef Full Text | Google Scholar

Keay, K. A., and Bandler, R. (2001). Parallel circuits mediating distinct emotional coping reactions to different types of stress. Neurosci. Biobehav. Rev. 25, 669–678. doi: 10.1016/S0149-7634(01)00049-5

PubMed Abstract | CrossRef Full Text | Google Scholar

Kebschull, J. M., Casoni, F., Consalez, G. G., Goldowitz, D., Hawkes, R., Ruigrok, T. J. H., et al. (2023). Cerebellum lecture: the cerebellar nuclei—core of the cerebellum. Cerebellum [Online ahead of print]. doi: 10.1007/s12311-022-01506-0

PubMed Abstract | CrossRef Full Text | Google Scholar

Keller, D., Erö, C., and Markram, H. (2018). Cell densities in the mouse brain: a systematic review. Front. Neuroanat. 12:83. doi: 10.3389/fnana.2018.00083

PubMed Abstract | CrossRef Full Text | Google Scholar

Kilts, C. D., Egan, G., Gideon, D. A., Ely, T. D., and Hoffman, J. M. (2003). Dissociable neural pathways are involved in the recognition of emotion in static and dynamic facial expressions. NeuroImage 18, 156–168. doi: 10.1006/nimg.2002.1323

PubMed Abstract | CrossRef Full Text | Google Scholar

Kim, C.-H., Shin, J. J., Kim, J., and Kim, S. J. (2013). Reduced spike frequency adaptation in Purkinje cells of the vestibulocerebellum. Neurosci. Lett. 535, 45–50. doi: 10.1016/j.neulet.2012.12.045

PubMed Abstract | CrossRef Full Text | Google Scholar

King, M., Hernandez-Castillo, C. R., Poldrack, R. A., Ivry, R. B., and Diedrichsen, J. (2019). Functional boundaries in the human cerebellum revealed by a multi-domain task battery. Nat. Neurosci. 22, 1371–1378. doi: 10.1038/s41593-019-0436-x

PubMed Abstract | CrossRef Full Text | Google Scholar

Koutsikou, S., Crook, J. J., Earl, E. V., Leith, J. L., Watson, T. C., Lumb, B. M., et al. (2014). Neural substrates underlying fear-evoked freezing: the periaqueductal grey–cerebellar link. J. Physiol. 592, 2197–2213. doi: 10.1113/jphysiol.2013.268714

PubMed Abstract | CrossRef Full Text | Google Scholar

Kozareva, V., Martin, C., Osorno, T., Rudolph, S., Guo, C., Vanderburg, C., et al. (2021). A transcriptomic atlas of mouse cerebellar cortex comprehensively defines cell types. Nature 598, 214–219. doi: 10.1038/s41586-021-03220-z

PubMed Abstract | CrossRef Full Text | Google Scholar

Krienen, F. M., and Buckner, R. L. (2009). Segregated fronto-cerebellar circuits revealed by intrinsic functional connectivity. Cereb. Cortex 19, 2485–2497. doi: 10.1093/cercor/bhp135

PubMed Abstract | CrossRef Full Text | Google Scholar

Kumral, E., Çelebisoy, M., Çelebisoy, N., Canbaz, D. H., and Çalli, C. (2007). Dysarthria due to supratentorial and infratentorial ischemic stroke: a diffusion-weighted imaging study. Cerebrovasc. Dis. 23, 331–338. doi: 10.1159/000099131

PubMed Abstract | CrossRef Full Text | Google Scholar

Lainé, J., and Axelrad, H. (1994). The candelabrum cell: a new interneuron in the cerebellar cortex. J. Comp. Neurol. 339, 159–173. doi: 10.1002/cne.903390202

PubMed Abstract | CrossRef Full Text | Google Scholar

Lange, I., Kasanova, Z., Goossens, L., Leibold, N., De Zeeuw, C. I., van Amelsvoort, T., et al. (2015). The anatomy of fear learning in the cerebellum: a systematic meta-analysis. Neurosci. Biobehav. Rev. 59, 83–91. doi: 10.1016/j.neubiorev.2015.09.019

PubMed Abstract | CrossRef Full Text | Google Scholar

Lange, W. (1974). Regional differences in the distribution of golgi cells in the cerebellar cortex of man and some other mammals. Cell Tissue Res. 153, 219–226. doi: 10.1007/BF00226610

PubMed Abstract | CrossRef Full Text | Google Scholar

LeDoux, J., Cicchetti, P., Xagoraris, A., and Romanski, L. (1990). The lateral amygdaloid nucleus: sensory interface of the amygdala in fear conditioning. J. Neurosci. 10:1062. doi: 10.1523/JNEUROSCI.10-04-01062.1990

PubMed Abstract | CrossRef Full Text | Google Scholar

LeDoux, J., Iwata, J., Cicchetti, P., and Reis, D. (1988). Different projections of the central amygdaloid nucleus mediate autonomic and behavioral correlates of conditioned fear. J. Neurosci. 8:2517. doi: 10.1523/JNEUROSCI.08-07-02517.1988

PubMed Abstract | CrossRef Full Text | Google Scholar

LeDoux, J. E. (1990). “Fear pathways in the brain: implications for a theory of the emotional brain,” in Fear and Defence, eds P. F. Brain, S. Parmigiani, R. J. Blanchard, and D. Mainardi (Amsterdam: Harwood Academic Publishers), 163–177.

Google Scholar

LeDoux, J. E. (1992). Brain mechanisms of emotion and emotional learning. Curr. Opin. Neurobiol. 2, 191–197. doi: 10.1016/0959-4388(92)90011-9

PubMed Abstract | CrossRef Full Text | Google Scholar

LeDoux, J. E. (2000). Emotion circuits in the brain. Annu Rev Neurosci. 23, 155–184

Google Scholar

Leggio, M., and Olivito, G. (2018). Topography of the cerebellum in relation to social brain regions and emotions. Handb. Clin. Neurol. 154, 71–84. doi: 10.1016/B978-0-444-63956-1.00005-9

PubMed Abstract | CrossRef Full Text | Google Scholar

Levisohn, L., Cronin-Golomb, A., and Schmahmann, J. D. (2000). Neuropsychological consequences of cerebellar tumour resection in children. Cerebellar cognitive affective syndrome in a paediatric population. Brain 123, 1041–1050. doi: 10.1093/brain/123.5.1041

PubMed Abstract | CrossRef Full Text | Google Scholar

Locatelli, F., Bottà, L., Prestori, F., Masetto, S., and D’Angelo, E. (2013). Late-onset bursts evoked by mossy fibre bundle stimulation in unipolar brush cells: evidence for the involvement of H- and TRP-currents. J. Physiol. 4, 899–918. doi: 10.1113/jphysiol.2012.242180

PubMed Abstract | CrossRef Full Text | Google Scholar

Logothetis, N. K. (2008). What we can do and what we cannot do with fMRI. Nature 453, 869–878. doi: 10.1038/nature06976

PubMed Abstract | CrossRef Full Text | Google Scholar

Lu, L., Cao, Y., Tokita, K., Heck, D., and Boughter, J. (2013). Medial cerebellar nuclear projections and activity patterns link cerebellar output to orofacial and respiratory behavior. Front. Neural Circuits 7:56. doi: 10.3389/fncir.2013.00056

PubMed Abstract | CrossRef Full Text | Google Scholar

Ma, L., Wang, B., Narayana, S., Hazeltine, E., Chen, X., Robin, D. A., et al. (2010). Changes in regional activity are accompanied with changes in inter-regional connectivity during 4 weeks motor learning. Brain Res. 1318, 64–76. doi: 10.1016/j.brainres.2009.12.073

PubMed Abstract | CrossRef Full Text | Google Scholar

Maclean (1990). The Triune Brain in Evolution: Role in Paleocerebral Functions. Berlin: Springer Science+Business Media.

Google Scholar

Maderwald, S., Thürling, M., Küper, M., Theysohn, N., Müller, O., Beck, A., et al. (2012). Direct visualization of cerebellar nuclei in patients with focal cerebellar lesions and its application for lesion-symptom mapping. NeuroImage 63, 1421–1431. doi: 10.1016/j.neuroimage.2012.07.063

PubMed Abstract | CrossRef Full Text | Google Scholar

Maestú, F., Quesney-Molina, F., Ortiz-Alonso, T., Campo, P., Fernández-Lucas, A., and Amo, C. (2003). Cognition and neural networks, a new perspective based on functional neuroimaging. Rev. Neurol. 37, 962–966. doi: 10.33588/rn.3710.2003069

CrossRef Full Text | Google Scholar

Mapelli, L., Solinas, S., and D‘Angelo, E. (2014). Integration and regulation of glomerular inhibition in the cerebellar granular layer circuit. Front. Cell. Neurosci. 8:55. doi: 10.3389/fncel.2014.00055

PubMed Abstract | CrossRef Full Text | Google Scholar

Mariën, P., Ackermann, H., Adamaszek, M., Barwood, C. H. S., Beaton, A., Desmond, J., et al. (2014). Consensus paper: language and the cerebellum: an ongoing enigma. Cerebellum 13, 386–410. doi: 10.1007/s12311-013-0540-5

PubMed Abstract | CrossRef Full Text | Google Scholar

Martinez, S., Andreu, A., Mecklenburg, N., and Echevarria, D. (2013). Cellular and molecular basis of cerebellar development. Front. Neuroanat. 7:18. doi: 10.3389/fnana.2013.00018

PubMed Abstract | CrossRef Full Text | Google Scholar

Mascagni, F., McDonald, A. J., and Coleman, J. R. (1993). Corticoamygdaloid and corticocortical projections of the rat temporal cortex: a Phaseolus vulgaris leucoagglutinin study. Neuroscience 57, 697–715. doi: 10.1016/0306-4522(93)90016-9

PubMed Abstract | CrossRef Full Text | Google Scholar

McDonald, A. J. (1998). Cortical pathways to the mammalian amygdala. Progr. Neurobiol. 55, 257–332. doi: 10.1016/S0301-0082(98)00003-3

PubMed Abstract | CrossRef Full Text | Google Scholar

Menuet, C., Connelly, A. A., Bassi, J. K., Melo, M. R., Le, S., Kamar, J., et al. (2020). PreBötzinger complex neurons drive respiratory modulation of blood pressure and heart rate. Elife 9:e57288. doi: 10.7554/eLife.57288

PubMed Abstract | CrossRef Full Text | Google Scholar

Milardi, D., Arrigo, A., Anastasi, G., Cacciola, A., Marino, S., Mormina, E., et al. (2016). Extensive direct subcortical cerebellum-basal ganglia connections in human brain as revealed by constrained spherical deconvolution tractography. Front. Neuroanat. 10:29. doi: 10.3389/fnana.2016.00029

PubMed Abstract | CrossRef Full Text | Google Scholar

Moulton, E. A., Elman, I., Pendse, G., Schmahmann, J., Becerra, L., and Borsook, D. (2011). Aversion-related circuitry in the cerebellum: responses to noxious heat and unpleasant images. J. Neurosci. 31, 3795–3804. doi: 10.1523/JNEUROSCI.6709-10.2011

PubMed Abstract | CrossRef Full Text | Google Scholar

Mugnaini, E., Sekerkova, G., and Martina, M. (2011). The unipolar brush cell: a remarkable neuron finally receiving the deserved attention. Brain Res. Rev. 66:220. doi: 10.1016/j.brainresrev.2010.10.001

PubMed Abstract | CrossRef Full Text | Google Scholar

Müller, U., and Heinsen, H. (1984). Regional differences in the ultrastructure of purkinje cells of the rat. Cell Tissue Res. 235, 91–98. doi: 10.1007/BF00213728

PubMed Abstract | CrossRef Full Text | Google Scholar

Murty, V. P., Shermohammed, M., Smith, D. V., Carter, R. M. K., Huettel, S. A., and Adcock, R. A. (2014). Resting state networks distinguish human ventral tegmental area from substantia nigra. NeuroImage 100, 580–589. doi: 10.1016/j.neuroimage.2014.06.047

PubMed Abstract | CrossRef Full Text | Google Scholar

Nakano, I. (1998). The limbic system: an outline and brief history of its concept. Neuropathology 18, 211–214. doi: 10.1111/j.1440-1789.1998.tb00102.x

CrossRef Full Text | Google Scholar

Nedelescu, H., and Abdelhack, M. (2013). Comparative morphology of dendritic arbors in populations of Purkinje cells in mouse sulcus and apex. Neural Plast. 2013:948587. doi: 10.1155/2013/948587

PubMed Abstract | CrossRef Full Text | Google Scholar

Nedelescu, H., Abdelhack, M., and Pritchard, A. T. (2018). Regional differences in Purkinje cell morphology in the cerebellar vermis of male mice. J. Neurosci. Res. 96, 1476–1489. doi: 10.1002/jnr.24206

PubMed Abstract | CrossRef Full Text | Google Scholar

Nishiyama, H., and Linden, D. J. (2004). Differential maturation of climbing fiber innervation in cerebellar vermis. J. Neurosci. 24, 3926–3932. doi: 10.1523/JNEUROSCI.5610-03.2004

PubMed Abstract | CrossRef Full Text | Google Scholar

Nisimaru, N. (2004). Cardiovascular modules in the cerebellum. Jpn. J. Physiol. 54, 431–448. doi: 10.2170/jjphysiol.54.431

PubMed Abstract | CrossRef Full Text | Google Scholar

Nummenmaa, L., Glerean, E., Hari, R., and Hietanen, J. K. (2014). Bodily maps of emotions. Proc. Natl. Acad. Sci. U. S. A. 111, 646–651. doi: 10.1073/pnas.1321664111

PubMed Abstract | CrossRef Full Text | Google Scholar

Nunzi, M. G., and Mugnaini, E. (2000). Unipolar brush cell axons form a large system of intrinsic mossy fibers in the postnatal vestibulocerebellum. J. Comp. Neurol. 422, 55–65.

PubMed Abstract | Google Scholar

Ogawa, S., Tank, D. W., Menon, R., Ellermann, J. M., Kim, S. G., Merkle, H., et al. (1992). Intrinsic signal changes accompanying sensory stimulation: functional brain mapping with magnetic resonance imaging. Proc. Natl. Acad. Sci. U. S. A. 89, 5951–5955. doi: 10.1073/pnas.89.13.5951

PubMed Abstract | CrossRef Full Text | Google Scholar

O’Reilly, J. X., Beckmann, C. F., Tomassini, V., Ramnani, N., and Johansen-Berg, H. (2010). Distinct and overlapping functional zones in the cerebellum defined by resting state functional connectivity. Cereb. Cortex 20, 953–965. doi: 10.1093/cercor/bhp157

PubMed Abstract | CrossRef Full Text | Google Scholar

Osorno, T., and Regehr, W. G. (2022). Candelabrum cells are ubiquitous cerebellar cortex interneurons with specialized circuit properties. Nat. Neurosci. 25, 702–713. doi: 10.1038/s41593-022-01057-x

PubMed Abstract | CrossRef Full Text | Google Scholar

Palay, S. L., and Chan-Palay, V. (1982). The Cerebellum: New Vistas. Berlin: Springer-Verlag.

Google Scholar

Palesi, F., Tournier, J. D., Calamante, F., Muhlert, N., Castellazzi, G., Chard, D., et al. (2015). Contralateral cerebello-thalamo-cortical pathways with prominent involvement of associative areas in humans in vivo. Brain Struct. Funct. 220, 3369–3384. doi: 10.1007/s00429-014-0861-2

PubMed Abstract | CrossRef Full Text | Google Scholar

Pan, W. J., Billings, J., Nezafati, M., Abbas, A., and Keilholz, S. (2018). Resting state fMRI in rodents. Curr. Protocols Neurosci. 83:e45. doi: 10.1002/cpns.45

PubMed Abstract | CrossRef Full Text | Google Scholar

Pan, W. J., Billings, J. C. W., Grooms, J. K., Shakil, S., and Keilholz, S. D. (2015). Considerations for resting state functional MRI and functional connectivity studies in rodents. Front. Neurosci. 9:269. doi: 10.3389/fnins.2015.00269

PubMed Abstract | CrossRef Full Text | Google Scholar

Papez J. W. (1937). A proposed mechanism of emotion. J. Neuropsychiatry Clin. Neurosci. 7, 103–112

Google Scholar

Parma, A. (1969). [The size of cell corpuscles of Purkinje cells in the paleocerebellum and neocerebellum of some mammals as compared to man]. Acta Anat. Suppl. 56, 337–346.

Google Scholar

Parsons, L. M., Denton, D., Egan, G., McKinley, M., Shade, R., Lancaster, J., et al. (2000). Neuroimaging evidence implicating cerebellum in support of sensory/cognitive processes associated with thirst. Proc. Natl. Acad. Sci. U. S. A. 97, 2332–2336. doi: 10.1073/pnas.040555497

PubMed Abstract | CrossRef Full Text | Google Scholar

Ploghaus, A., Tracey, I., Gati, J. S., Clare, S., Menon, R. S., Matthews, P. M., et al. (1999). Dissociating pain from its anticipation in the human brain. Science 284, 1979–1981. doi: 10.1126/science.284.5422.1979

PubMed Abstract | CrossRef Full Text | Google Scholar

Pradier, B., Wachsmuth, L., Nagelmann, N., Segelcke, D., Kreitz, S., Hess, A., et al. (2021). Combined resting state-fMRI and calcium recordings show stable brain states for task-induced fMRI in mice under combined ISO/MED anesthesia. NeuroImage 245:118626. doi: 10.1016/j.neuroimage.2021.118626

PubMed Abstract | CrossRef Full Text | Google Scholar

Prestori, F., Mapelli, L., and D’Angelo, E. (2019). Diverse neuron properties and complex network dynamics in the cerebellar cortical inhibitory circuit. Front. Mol. Neurosci. 12:267. doi: 10.3389/fnmol.2019.00267

PubMed Abstract | CrossRef Full Text | Google Scholar

Pruessner, J. C., Dedovic, K., Pruessner, M., Lord, C., Buss, C., Collins, L., et al. (2010). Stress regulation in the central nervous system: evidence from structural and functional neuroimaging studies in human populations - 2008 Curt Richter Award Winner. Psychoneuroendocrinology 35, 179–191. doi: 10.1016/j.psyneuen.2009.02.016

PubMed Abstract | CrossRef Full Text | Google Scholar

Riecker, A., Mathiak, K., Wildgruber, D., Erb, M., Hertrich, I., Grodd, W., et al. (2005). fMRI reveals two distinct cerebral networks subserving speech motor control. Neurology 64:89. doi: 10.1212/01.WNL.0000152156.90779.89

PubMed Abstract | CrossRef Full Text | Google Scholar

Rodarie, D., Verasztó, C., Roussel, Y., Reimann, M., Keller, D., Ramaswamy, S., et al. (2022). A method to estimate the cellular composition of the mouse brain from heterogeneous datasets. PLoS Comput. Biol. 18:e1010739. doi: 10.1371/journal.pcbi.1010739

PubMed Abstract | CrossRef Full Text | Google Scholar

Rolls, E. T. (2019). The cingulate cortex and limbic systems for action, emotion, and memory. Handb. Clin. Neurol. 166, 23–37. doi: 10.1016/B978-0-444-64196-0.00002-9

PubMed Abstract | CrossRef Full Text | Google Scholar

Romano, V., Reddington, A. L., Cazzanelli, S., Mazza, R., Ma, Y., Strydis, C., et al. (2020). Functional convergence of autonomic and sensorimotor processing in the lateral cerebellum. Cell Rep. 32:107867. doi: 10.1016/j.celrep.2020.107867

PubMed Abstract | CrossRef Full Text | Google Scholar

Romanski, L. M., and LeDoux, J. E. (1993). Information cascade from primary auditory cortex to the amygdala: corticocortical and corticoamygdaloid projections of temporal cortex in the rat. Cereb. Cortex 3, 515–532. doi: 10.1093/cercor/3.6.515

PubMed Abstract | CrossRef Full Text | Google Scholar

Roxo, M. R., Franceschini, P. R., Zubaran, C., Kleber, F. D., and Sander, J. W. (2011). The limbic system conception and its historical evolution. Sci. World J. 11, 2427–2440. doi: 10.1100/2011/157150

PubMed Abstract | CrossRef Full Text | Google Scholar

Sacchetti, B., Baldi, E., Lorenzini, C. A., and Bucherelli, C. (2002). Cerebellar role in fear-conditioning consolidation. Proc. Natl. Acad. Sci. U. S. A. 99, 8406–8411. doi: 10.1073/pnas.112660399

PubMed Abstract | CrossRef Full Text | Google Scholar

Sacchetti, B., Scelfo, B., Tempia, F., and Strata, P. (2004). Long-term synaptic changes induced in the cerebellar cortex by fear conditioning. Neuron 42, 973–982. doi: 10.1016/j.neuron.2004.05.012

PubMed Abstract | CrossRef Full Text | Google Scholar

Sang, L., Qin, W., Liu, Y., Han, W., Zhang, Y., Jiang, T., et al. (2012). Resting-state functional connectivity of the vermal and hemispheric subregions of the cerebellum with both the cerebral cortical networks and subcortical structures. NeuroImage 61, 1213–1225. doi: 10.1016/j.neuroimage.2012.04.011

PubMed Abstract | CrossRef Full Text | Google Scholar

Schlerf, J. E., Verstynen, T. D., Ivry, R. B., and Spencer, R. M. C. (2010). Evidence of a novel somatopic map in the human neocerebellum during complex actions. J. Neurophysiol. 103, 3330–3336. doi: 10.1152/jn.01117.2009

PubMed Abstract | CrossRef Full Text | Google Scholar

Schmahmann, J. D. (2004). Disorders of the cerebellum: ataxia, dysmetria of thought, and the cerebellar cognitive affective syndrome. J. Neuropsychiatry Clin. Neurosci. 16, 367–378. doi: 10.1176/jnp.16.3.367

PubMed Abstract | CrossRef Full Text | Google Scholar

Schmahmann, J. D., and Caplan, D. (2006). Cognition, emotion and the cerebellum. Brain 129, 290–292. doi: 10.1093/brain/awh729

PubMed Abstract | CrossRef Full Text | Google Scholar

Schmahmann, J. D., Doyon, J., McDonald, D., Holmes, C., Lavoie, K., Hurwitz, A., et al. (1999). Three-dimensional MRI atlas of the human cerebellum in proportional stereotaxic space. NeuroImage 10, 233–260. doi: 10.1006/nimg.1999.0459

PubMed Abstract | CrossRef Full Text | Google Scholar

Schmahmann, J. D., Gardner, R., MacMore, J., and Vangel, M. G. (2009). Development of a brief ataxia rating scale (BARS) based on a modified form of the ICARS. Move. Disord. 24, 1820–1828. doi: 10.1002/mds.22681

PubMed Abstract | CrossRef Full Text | Google Scholar

Schmahmann, J. D., and Sherman, J. C. (1998). The cerebellar cognitive affective syndrome. Brain 121, 561–579. doi: 10.1093/brain/121.4.561

PubMed Abstract | CrossRef Full Text | Google Scholar

Schmahmann, J. D., Weilburg, J. B., and Sherman, J. C. (2007). The neuropsychiatry of the cerebellum - insights from the clinic. Cerebellum 6, 254–267. doi: 10.1080/14734220701490995

PubMed Abstract | CrossRef Full Text | Google Scholar

Schraa-Tam, C. K. L., Rietdijk, W. J. R., Verbeke, W. J. M. I., Dietvorst, R. C., Van Den Berg, W. E., Bagozzi, R. P., et al. (2012). fMRI activities in the emotional cerebellum: a preference for negative stimuli and goal-directed behavior. Cerebellum 11, 233–245. doi: 10.1007/s12311-011-0301-2

PubMed Abstract | CrossRef Full Text | Google Scholar

Sereno, M. I., Diedrichsen, J. R. N., Tachrount, M., Testa-Silva, G., D Arceuil, H., and De Zeeuw, C. (2020). The human cerebellum has almost 80% of the surface area of the neocortex. Proc. Natl. Acad. Sci. U. S. A. 117, 19538–19543. doi: 10.1073/pnas.2002896117

PubMed Abstract | CrossRef Full Text | Google Scholar

Shang, C., Chen, Z., Liu, A., Li, Y., Zhang, J., Qu, B., et al. (2018). Divergent midbrain circuits orchestrate escape and freezing responses to looming stimuli in mice. Nat. Commun. 9:1232. doi: 10.1038/s41467-018-03580-7

PubMed Abstract | CrossRef Full Text | Google Scholar

Signoret-Genest, J., Schukraft, N. L., Reis, S., Segebarth, D., Deisseroth, K., and Tovote, P. (2023). Integrated cardio-behavioral responses to threat define defensive states. Nat. Neurosci. 26, 447–457. doi: 10.1038/s41593-022-01252-w

PubMed Abstract | CrossRef Full Text | Google Scholar

Sillitoe, R. V., Gopal, N., and Joyner, A. L. (2009). Embryonic origins of ZebrinII parasagittal stripes and establishment of topographic Purkinje cell projections. Neuroscience 162, 574–588. doi: 10.1016/j.neuroscience.2008.12.025

PubMed Abstract | CrossRef Full Text | Google Scholar

Singer, T., Dolan, R. J., and Frith, C. D. (2004). Empathy for pain involves the affective but not sensory components of pain. Science 303, 1157–1162.

Google Scholar

Smith, J. C., Ellenberger, H. H., Ballanyi, K., Richter, D. W., and Feldman, J. L. (1991). Pre-Bötzinger complex: a brainstem region that may generate respiratory rhythm in mammals. Science 254, 726–729. doi: 10.1126/science.1683005

PubMed Abstract | CrossRef Full Text | Google Scholar

Snider, R., and Eldred, E. (1951). Electro-anatomical studies on cerebro-cerebellar connections in the cat. J. Comp. Neurol. 95, 1–16. doi: 10.1002/cne.900950102

PubMed Abstract | CrossRef Full Text | Google Scholar

Solstrand Dahlberg, L., Lungu, O., and Doyon, J. (2020). Cerebellar contribution to motor and non-motor functions in parkinson’s disease: a meta-analysis of fMRI findings. Front. Neurol. 11:127. doi: 10.3389/fneur.2020.00127

PubMed Abstract | CrossRef Full Text | Google Scholar

Spencer, A. P. C., and Goodfellow, M. (2022). Using deep clustering to improve fMRI dynamic functional connectivity analysis. NeuroImage 257:119288. doi: 10.1016/j.neuroimage.2022.119288

PubMed Abstract | CrossRef Full Text | Google Scholar

Steffen, P. R., Hedges, D., and Matheson, R. (2022). The brain is adaptive not triune: how the brain responds to threat, challenge, and change. Front. Psychiatry 13:802606. doi: 10.3389/fpsyt.2022.802606

PubMed Abstract | CrossRef Full Text | Google Scholar

Stoodley, C. J., Desmond, J. E., Guell, X., and Schmahmann, J. D. (2021). “Functional topography of the human cerebellum revealed by functional neuroimaging studies,” in Handbook of the Cerebellum and Cerebellar Disorders, eds M. Manto, D. Gruol, J. Schmahmann, N. Koibuchi, and R. Sillitoe (Berlin: Springer). doi: 10.1007/978-3-319-97911-3_30-2

PubMed Abstract | CrossRef Full Text | Google Scholar

Stoodley, C. J., MacMore, J. P., Makris, N., Sherman, J. C., and Schmahmann, J. D. (2016). Location of lesion determines motor vs. cognitive consequences in patients with cerebellar stroke. NeuroImage 12, 765–775. doi: 10.1016/j.nicl.2016.10.013

PubMed Abstract | CrossRef Full Text | Google Scholar

Stoodley, C. J., and Schmahmann, J. D. (2009). Functional topography in the human cerebellum: a meta-analysis of neuroimaging studies. NeuroImage 44, 489–501. doi: 10.1016/j.neuroimage.2008.08.039

PubMed Abstract | CrossRef Full Text | Google Scholar

Stoodley, C. J., Valera, E. M., and Schmahmann, J. D. (2010). An fMRI study of intra-individual functional topography in the human cerebellum. Behav. Neurol. 23, 65–79. doi: 10.1155/2010/840942

CrossRef Full Text | Google Scholar

Stoodley, C. J., Valera, E. M., and Schmahmann, J. D. (2012). Functional topography of the cerebellum for motor and cognitive tasks: an fMRI study. NeuroImage 59, 1560–1570. doi: 10.1016/j.neuroimage.2011.08.065

PubMed Abstract | CrossRef Full Text | Google Scholar

Strata, P. (2015). The emotional cerebellum. Cerebellum 14, 570–577. doi: 10.1007/s12311-015-0649-9

PubMed Abstract | CrossRef Full Text | Google Scholar

Strick, P. L., Dum, R. P., and Fiez, J. A. (2009). Cerebellum and nonmotor function. Annu. Rev. Neurosci. 32, 413–434. doi: 10.1146/annurev.neuro.31.060407.125606

PubMed Abstract | CrossRef Full Text | Google Scholar

Supple, W. F., Leaton, R. N., and Fanselow, M. S. (1987). Effects of cerebellar vermal lesions on species-specific fear responses, neophobia, and taste-aversion learning in rats. Physiol. Behav. 39, 579–586. doi: 10.1016/0031-9384(87)90156-9

PubMed Abstract | CrossRef Full Text | Google Scholar

Takács, J., Markova, L., Borostyánköi, Z., Görcs, T. J., and Hámori, J. (1999). Metabotrop glutamate receptor type 1a expressing unipolar brush cells in the cerebellar cortex of different species: a comparative quantitative study. J. Neurosci. Res. 55, 733–748.

PubMed Abstract | Google Scholar

Takeo, Y. H., Shuster, S. A., Jiang, L., Hu, M. C., Luginbuhl, D. J., Rülicke, T., et al. (2021). GluD2- and Cbln1-mediated competitive interactions shape the dendritic arbors of cerebellar Purkinje cells. Neuron 109, 629–644. doi: 10.1016/j.neuron.2020.11.028

PubMed Abstract | CrossRef Full Text | Google Scholar

Tavano, A., Grasso, R., Gagliardi, C., Triulzi, F., Bresolin, N., Fabbro, F., et al. (2007). Disorders of cognitive and affective development in cerebellar malformations. Brain 130, 2646–2660. doi: 10.1093/brain/awm201

PubMed Abstract | CrossRef Full Text | Google Scholar

Teune, T. M., van der Burg, J., van der Moer, J., Voogd, J., and Ruigrok, T. J. H. (2000). Topography of cerebellar nuclear projections to the brain stem in the rat. Prog. Brain Res. 124, 141–172. doi: 10.1016/S0079-6123(00)24014-4

PubMed Abstract | CrossRef Full Text | Google Scholar

Thomasson, M., Saj, A., Benis, D., Grandjean, D., Assal, F., and Péron, J. (2019). Cerebellar contribution to vocal emotion decoding: insights from stroke and neuroimaging. Neuropsychologia 132:107141. doi: 10.1016/j.neuropsychologia.2019.107141

PubMed Abstract | CrossRef Full Text | Google Scholar

Tovote, P., Fadok, J. P., and Lüthi, A. (2015). Neuronal circuits for fear and anxiety. Nat. Rev. Neurosci. 16, 317–331. doi: 10.1038/nrn3945

PubMed Abstract | CrossRef Full Text | Google Scholar

Trott, J. R., Apps, R., and Armstrong, D. M. (1998a). Zonal organization of cortico-nuclear and nucleo-cortical projections of the paramedian lobule of the cat cerebellum. 1. The C1 zone. Exp. Brain Res. 118, 298–315. doi: 10.1007/s002210050285

PubMed Abstract | CrossRef Full Text | Google Scholar

Trott, J. R., Apps, R., and Armstrong, D. M. (1998b). Zonal organization of cortico-nuclear and nucleo-cortical projections of the paramedian lobule of the cat cerebellum. 2. The C2 zone. Exp. Brain Res. 118, 316–330. doi: 10.1007/s002210050286

PubMed Abstract | CrossRef Full Text | Google Scholar

Turner, B. H., and Zimmer, J. (1984). The architecture and some of the interconnections of the rat’s amygdala and lateral periallocortex. J. Comp. Neurol. 227, 540–557. doi: 10.1002/cne.902270406

PubMed Abstract | CrossRef Full Text | Google Scholar

Tzvi, E., Koeth, F., Karabanov, A. N., Siebner, H. R., and Krämer, U. M. (2020). Cerebellar – Premotor cortex interactions underlying visuomotor adaptation. NeuroImage 220, 117142. doi: 10.1016/j.neuroimage.2020.117142

PubMed Abstract | CrossRef Full Text | Google Scholar

Urban, P. P., Marx, J., Hunsche, S., Gawehn, J., Vucurevic, G., Wicht, S., et al. (2003). Cerebellar speech representation: lesion topography in dysarthria as derived from cerebellar ischemia and functional magnetic resonance imaging. Arch. Neurol. 60, 965–972. doi: 10.1001/archneur.60.7.965

PubMed Abstract | CrossRef Full Text | Google Scholar

Van Dijk, K. R. A., Hedden, T., Venkataraman, A., Evans, K. C., Lazar, S. W., and Buckner, R. L. (2010). Intrinsic functional connectivity as a tool for human connectomics: theory, properties, and optimization. J. Neurophysiol. 103, 297–321. doi: 10.1152/jn.00783.2009

PubMed Abstract | CrossRef Full Text | Google Scholar

Van Overwalle, F., Baetens, K., Mariën, P., and Vandekerckhove, M. (2014). Social cognition and the cerebellum: a meta-analysis of over 350 fMRI studies. NeuroImage 86, 554–572. doi: 10.1016/j.neuroimage.2013.09.033

PubMed Abstract | CrossRef Full Text | Google Scholar

Van Overwalle, F., Manto, M., Cattaneo, Z., Clausi, S., Ferrari, C., Gabrieli, J. D. E., et al. (2020). Consensus paper: cerebellum and social cognition. Cerebellum 19, 833–868. doi: 10.1007/s12311-020-01155-1

PubMed Abstract | CrossRef Full Text | Google Scholar

Voogd, J. (2011). Cerebellar zones: a personal history. Cerebellum 10, 334–350. doi: 10.1007/s12311-010-0221-6

PubMed Abstract | CrossRef Full Text | Google Scholar

Voogd, J. (2014). What we do not know about cerebellar systems neuroscience. Front. Syst. Neurosci. 8:227. doi: 10.3389/fnsys.2014.00227

PubMed Abstract | CrossRef Full Text | Google Scholar

Voogd, J., and Ruigrok, T. J. H. (2004). The organization of the corticonuclear and olivocerebellar climbing fiber projections to the rat cerebellar vermis: the congruence of projection zones and the zebrin pattern. J. Neurocytol. 33, 5–21. doi: 10.1023/B:NEUR.0000029645.72074.2b

PubMed Abstract | CrossRef Full Text | Google Scholar

Wildgruber, D., Riecker, A., Hertrich, I., Erb, M., Grodd, W., Ethofer, T., et al. (2005). Identification of emotional intonation evaluated by fMRI. NeuroImage 24, 1233–1241. doi: 10.1016/j.neuroimage.2004.10.034

PubMed Abstract | CrossRef Full Text | Google Scholar

Wilensky, A. E., Schafe, G. E., Kristensen, M. P., and LeDoux, J. E. (2006). Rethinking the fear circuit: the central nucleus of the amygdala is required for the acquisition, consolidation, and expression of Pavlovian fear conditioning. J. Neurosci. 26, 12387–12396. doi: 10.1523/JNEUROSCI.4316-06.2006

PubMed Abstract | CrossRef Full Text | Google Scholar

Wise, N. J., Frangos, E., and Komisaruk, B. R. (2017). Brain activity unique to orgasm in women: an fMRI analysis. J. Sex. Med. 14, 1380–1391. doi: 10.1016/j.jsxm.2017.08.014

PubMed Abstract | CrossRef Full Text | Google Scholar

Witter, L., and De Zeeuw, C. I. (2015). Regional functionality of the cerebellum. Curr. Opin. Neurobiol. 33, 150–155. doi: 10.1016/j.conb.2015.03.017

PubMed Abstract | CrossRef Full Text | Google Scholar

Wu, B., Blot, F. G., Wong, A. B., Osório, C., Adolfs, Y., Pasterkamp, R. J., et al. (2019). TRPC3 is a major contributor to functional heterogeneity of cerebellar Purkinje cells. eLife 8:e45590. doi: 10.7554/eLife.45590

PubMed Abstract | CrossRef Full Text | Google Scholar

Wu, H. S., Sugihara, I., and Shinoda, Y. (1999). Projection patterns of single mossy fibers originating from the lateral reticular nucleus in the rat cerebellar cortex and nuclei. J. Comp. Neurol. 411, 97–118.

PubMed Abstract | Google Scholar

Xiao, J., Cerminara, N. L., Kotsurovskyy, Y., Aoki, H., Burroughs, A., Wise, A. K., et al. (2014). Systematic regional variations in Purkinje cell spiking patterns. PLoS One 9:e105633. doi: 10.1371/journal.pone.0105633

PubMed Abstract | CrossRef Full Text | Google Scholar

Zheng, J., Yang, Q., Makris, N., Huang, K., Liang, J., Ye, C., et al. (2022). Three-dimensional digital reconstruction of the cerebellar cortex: lobule thickness, surface area measurements, and layer architecture. Cerebellum 22, 249–260. doi: 10.1007/s12311-022-01390-8

PubMed Abstract | CrossRef Full Text | Google Scholar

Zhou, H., Lin, Z., Voges, K., Ju, C., Gao, Z., Bosman, L. W., et al. (2014). Cerebellar modules operate at different frequencies. eLife 3:e02536. doi: 10.7554/eLife.02536

PubMed Abstract | CrossRef Full Text | Google Scholar

Zhu, L., Sacco, T., Strata, P., and Sacchetti, B. (2011). Basolateral amygdala inactivation impairs learning-induced long-term potentiation in the cerebellar cortex. PLoS One 6:e16673. doi: 10.1371/journal.pone.0016673

PubMed Abstract | CrossRef Full Text | Google Scholar
