Application of Waste Plastic Films in Road Infrastructure and Construction

Recycling waste synthetic resins, including rigid and film plastics, is a pressing issue worldwide due to the issues associated with waste treatment. Using products originating only from plastic wastes could be a promising way to improve the waste recycling rate and address plastic consumption. This study presents the applications of waste plastic films (WPFs) in urban infrastructure and construction materials, especially bearing loads. WPF-recycled products (WPF-RPs) were evaluated for mechanical properties, including strength (compressive and tensile), thermal expansion coefficient, accelerated weathering, dynamic stability, and environmental aspects, such as the presence of hazardous substances. Subsequent tests confirmed moderate strength, good weathering stability against solar irradiation, and superior road pavement vehicle load through wheel-tracking tests compared with the standards for asphalt. Additionally, hazardous substances were mostly not detected or were under permissible limits in the composition and leachate contents of WPF-RPs. After using temporary pavement blocks (TPBs) from WPFs at a field site for one month, we conducted slip resistance tests which gave a result of ~33 British pendulum number, indicating the possible application of WPF-RPs in low-speed driving sections, according to the Korean standards of the Ministry of Land, Infrastructure and Transport. Moreover, it was confirmed that fastening structures installed between the TPBs can improve backfilling and compaction defects. This practical research highlights the possible applications of products produced from WPFs for infrastructure development, such as filling materials for burial pipes or tubes; however, these potential aspects should be tested further.

Introduction

Since the development of plastic (or synthetic resin) in the 1950s, its advantages, such as economic price, light weight, and resistance to heat and corrosion, have resulted in the exponential growth in the use of plastic products and generation of plastic wastes, especially by following the conventional “take-make-dispose” linear material flow economic model (Geyer et al., 2017; Horodytska et al., 2018). Approximately 370 million tons of plastic products were produced in 2019 globally (PlasticsEurope, 2020), and the annual plastic production is expected to increase consistently to 1,800 million tons by 2050 (Ryan, 2015). In Korea, the domestic demand for plastics was 4.0 million tons in 2019 (Ministry of Environment (MOE), 2020a). Global statistics show that waste plastics are generally discharged into the natural environment or end up in landfills (79%) or are subjected to incineration (12%) or recycling (9%) treatment methods (Geyer et al., 2017). Among the multiple applications of plastics, the packaging sector shows the highest use of plastics in the world (36%), Japan (41%), and Korea (47%), followed by the building and construction (12–16%), textile (14%), and transportation sectors (7–12%) (Geyer et al., 2017; Jang et al., 2020). Plastics used for packaging are typically thin and are called “plastic films.” They are suitable only for a single use. Thus, treating large quantities of waste plastic films (WPFs; plastic flexible films or waste vinyl) is a pressing issue worldwide. WPF utilization as a waste treatment method is also an important topic in United Nations Sustainable Development Goal 12 ensuring sustainable consumption and production to reduce the use of natural resources and manage the lifecycle of plastics (UN, 2016; De Souza, 2019).

Recycling methods of waste plastics, including WPFs, are largely classified into four types: closed-loop, downcycling (or open-loop, downgrading), molecular recycling (or chemical recycling), and energy recovery (Hopewell et al., 2009). Primary recycling is called material or mechanical recycling, which includes closed-loop and open-loop processes. These processes differ in the recyclate quality. The closed-loop recycling process produces a recyclate with a quality similar to that of virgin material from waste plastics, which are single or monolayer plastics, whereas the open-loop recycling process applies products of a lower grade or less demanding products with multilayer plastics along with contaminants, such as additives or inks. Chemical or molecular recycling converts plastics to valuable commodity chemicals through thermal and chemical processes, such as pyrolysis, depolymerization, and partial oxidation (Hamad et al., 2013; Horodytska et al., 2018). Although monomer separation technology has recently been developed, the debate on the environmental and economic benefits of chemical recycling is ongoing, mainly due to the technical developmental status and competitiveness of commercially available virgin chemicals (Shen et al., 2010; Geyer et al., 2017; Rahimi and García, 2017; Meys et al., 2020). The energy recovery method can produce electricity and supply heat from incineration. Despite its advantage of large volume reduction of plastic wastes, environmental issues still exist, such as the release of greenhouse gases and pollutants. Moreover, this method contrasts with the principles of circular economy, which emphasizes on reuse and recycling; additionally, compared with mechanical recycling, energy recovery has approximately 1.7 times less heating value for plastics (60,000 kJ kg⁻¹ vs. 36,000 kJ kg⁻¹) (Rahimi and García, 2017).

The above-mentioned recycling methods are associated strongly with the type and quality (or purity) of the WPFs, which are assessed during the collection of WPFs, and sorting and treatment of recyclate or final recycling products. The WPFs from households (or generated after end-use) are a mixture of different polymer types and multilayers that are contaminated with additives, coatings, or inks (Horodytska et al., 2018). They have been used to make solid refuse fuel in Korea for energy recovery since 2013 during the implementation of the new renewable energy supply obligation system or renewable portfolio standard. Moreover, the revision of the “Act on the Promotion of Saving and Recycling of Resources” provided an opportunity to actively use waste because it was classified as a general solid fuel product (Ministry of Environment (MOE), 1992). However, in 2020, the policy changed with the renewable energy certificate weights of non-renewable solid refuse fuel reduced to zero, implying that solid refuse fuel made from plastic wastes or WPFs can no longer classified as renewable energy sources (Ministry of Trade, Industry and Energy (MOTIE), 2019; Joo and Yeo, 2020). Thus, at present, the material recycling rate of WPFs is a better alternative than recycling through energy recovery from incineration in South Korea.

Previous studies on material recycling of WPFs or rigid plastics have shown that waste plastics can be used in construction materials by mixing them with conventional materials, such as coarse aggregates for asphalt and cement (Kim et al., 2013, 2020; Yeom et al., 2014; Korea Institute of Construction Technology (KICT), 2018). In addition, the physicochemical properties of WPF-derived products have not been systematically studied, and thus, details on the WPF applicability to construction materials are limited (Chung et al., 2013; Dahlbo et al., 2018). Another practical study attempted to produce street tree guards with WPF only (Ministry of Environment (MOE), 2020b), but testing for load-bearing construction structures has not been conducted. In this study, we aimed to assess the mechanical and environmental characteristics of WPF-recycled products (WPF-RPs) for construction applications, specifically temporary pavement blocks (TPBs), for outdoor environmental conditions. Prototype demonstration tests were also conducted for (i) slip resistance to determine which areas were acceptable for the WPF-RP TPB and (ii) the effect of fastening structures installed between the TPBs to determine whether backfilling and compaction defects could be enhanced. Moreover, we suggest other applications of WPF-RPs based on the results of mechanical and environmental characteristics and prototype demonstrations.

Materials and Methods

Manufacturing Procedure of Recycled Products for Road Infrastructure and Construction Application and Specimens for Physical Characteristics

The WPF-RPs required for TPBs were produced and provided by a manufacturing company in Korea, which has facilities for visual sorting, magnetic sorting, high-rate shredding, melting, and compression molding. The company produces products such as street tree guards and vegetation mats (Ministry of Environment (MOE), 2020b). The dominant type of WPF from household wastes was polyethylene. TPB prototypes, with dimensions 0.3 (W) × 0.3 (L) × 0.125 (D) m, were produced using a newly designed mold. A picture of the TPB unit is provided in Supplementary Figure S1.

Mechanical Characteristics of Waste Plastic Film-Recycled Products

Test specimens were prepared from the WPF-RPs, depending on the standard size. Mechanical properties of WPF-RPs as construction materials, were measured and evaluated, including compressive and tensile strengths, compressive and tensile elasticities, Poisson's ratio, density, and coefficient of thermal expansion. Seven specimens each were prepared for testing the compressive strength, compressive elastic modulus, tensile strength, tensile elastic modulus, and Poisson's ratio, while five specimens each were prepared for density and thermal expansion measurements. The tests were conducted according to the procedures given by the Korea Standard Methods (Korean Industrial Standards, KS M ISO 11359-2, 2017; Korean Industrial Standards, KS M ISO 527, 2017; Korean Industrial Standards, KS M ISO 604, 2018; Korean Industrial Standards, KS M ISO 1183-1, 2019) and are summarized in Supplementary Table S1; Supplementary Figure S2.

Accelerated Weathering Tests of Waste Plastic Film-Recycled Products

Accelerated weathering tests were performed to investigate the weathering effect of the WPF-RPs and the deterioration of physical characteristics of WPF-RP TPBs during long-term application in an external environment. Three specimens with dimensions of 7 (W) × 15 (L) × 1 (D) cm were prepared by cutting WPF-RPs and commercial high-density polyethylene (HDPE) samples purchased from Polypenco Korea to compare the weathering performance between new and recycled materials. Xenon lamps (Ci4000, ATLAS) were used with an S-borosilicate (S-boro) filter, black panel temperature of 63 ± 3°C, relative humidity of 50 ± 5%, and irradiance condition of 0.51 W/m² at 340 nm for the accelerated weathering test following the instructions given in Korean Industrial Standards, KS F 2274: 2018 (2018). The simulation cycle was irradiated for 102 min, with exposure to water for 18 min in a weathering chamber. Accelerated weathering tests were conducted for up to 1,500 h at an increment of 500 h. The conversion of irradiation time in the weathering chamber to accelerated weathering time was calculated using the 10-year average value of horizontal solar insolation in Seoul by assuming approximately 5% of ultraviolet irradiation and excluding humidity and temperature; that is, the weathering time in the accelerated weathering test chamber was calculated to be ~1,500 h (540 d). These calculations were conducted according to the methods given by Gewert et al. (2018), and further details are provided in Supplementary Table S2. Later, surface cracking and color variation (CE7000A, x-rite) were tested following Korean Industrial Standards, KS A 0063: 2015 (2015). Tensile strength, and elongation at break were measured following Korean Industrial Standards, KS M ISO 527-2 (2018) (RTF series Tensilon, A&D). Color difference was measured and calculated using the following equation from a previous study (Mokrzycki and Tatol, 2011):

$\Delta E_{ab}^{\ast }=\sqrt{{\left(L_1^{\ast }-L_2^{\ast }\right)}^2+{\left(a_1^{\ast }-a_2^{\ast }\right)}^2+{\left(b_1^{\ast }-b_2^{\ast }\right)}^2}$

Here, L^*, a^*, and b^* indicate the lightness (black/white), red and green between +127 and −128, and blue and yellow between +127 and −128, respectively, and the subscripts 1 and 2 represent the values of the starting point at time zero and at the irradiation times (500, 1,000, and 1,500 h) during the accelerated weathering test.

Dynamic Stability Assessment

Dynamic stability of construction materials from the WPF-RP samples was assessed by the wheel-tracking test (AI-1100-3, Iwata, Japan) following Korean Industrial Standards, KS F 2374: 2017 (2017). The wheel-tracking test is a representative method for evaluating the resistance of a specimen to plastic deformation, mostly in summer, by mimicking indoor sites and passing actual vehicle loads under high-temperature of pavement conditions. Specimens with a size of 300 × 300 × 50 mm were prepared and tested with 686 N (or 628 kPa, 70 kg) of wheel load at a rate of 42 cycles/min (i.e., 2,520 cycles/ 60 min) at 60°C. Deformations at 15, 30, 45, and 60 min for the six test specimens were measured, and dynamic stabilities were calculated using the following equation:

$\begin{array}{l}Dynamicstability=42\times \frac{t_2-t_1}{d_2-d_1}\times C\end{array}$

Here, 42 represents the number of repeated cycles per 1 min, d₁ and d₂ are the displacements of deformations (mm) at t₁ = 45 min and t₂ = 60 min, respectively, and C is the correction factor of the test machine type, where the value of C is 1.0 because the crank connecting link drives the test specimens.

Field Tests for Temporary Pavement Block

To apply the TPB prototype using WPF-RPs, field tests were performed at a site in Seoul, which experienced frequent traffic from heavy vehicles, thereby simulating a real road site. The size of the field was 1.2 m (W) × 6 m (L) and could accommodate 80 WPF-RP prototype units, as shown in Figure 1. Further, the total 6 m length of the test site was divided into 4.5 m and 1.5 m sections with and without installing fastening structures, which were designed to improve the load transferability and equalization between blocks (Supplementary Figures S1, S3) to evaluate the scalability of the TPBs in road pavement construction sites. Before and after one month of the operation of the WPF-RP TPBs, profiles, elevation, and slip (or skid) resistance were measured at the installed test site. The profiles of the four rows (1st−4th) were measured three times each along the longitudinal direction of the installed TPBs (Figure 1) using a Surf-Pro walking profiler (CS8850, Surface Systems & Instruments, Inc. USA). The profiles were not used to measure absolute displacement, but relative displacement based on the starting point of the TPBs, which was considered to be 0 mm. The elevations at certain locations in the middle of each TPB (Figure 1) were measured using a bar ruler and a 30 cm-stainless steel ruler. To mimic the sliding of a vehicle, a standard slip resistance test was conducted with a British pendulum number (BPN) tester (HM-602W, Gilson, USA) following the method of Korean Industrial Standards, KS F 2375 (2016), similar to ASTM E 303.

FIGURE 1

Figure 1. Location of profile and elevation measurements in the test field.

Environmental Assessment of Hazardous Substances

The contents and leachate characteristics of hazardous substances, including heavy metals, from the WPFs, prototype samples were analyzed following the IEC 62321 and Korean Official Wastes Test Method, respectively (Ministry of Environment (MOE), 2017). Among the contents of 10 hazardous substances regulated by the Act on Resource Circulation of Electrical and Electronic Equipment and Vehicles (Ministry of Environment (MOE), 2019), which was recently updated following the Restriction of Hazardous Substances II directive (Directive 2011/65/EU, 2011), Pb and Cd were measured using inductively coupled plasma-optical emission spectrometry (Optima 8300DV, PerkinElmer, UK), Hg was measured using a mercury analyzer (FIMS 400, PerkinElmer, UK), Cr⁶⁺ was measured using ultraviolet/ visible spectrophotometer (V530, Jasco, JP), polybrominated biphenyls and polybrominated diphenyl ethers were measured using gas chromatography-mass spectrometry (7975, Agilent, US), and bis (2-ethylhexyl) phthalate, benzyl butyl phthalate, dibutyl phthalate, and diisobutyl phthalate were measured using gas chromatography–mass spectrometry (5977B, Agilent, US). Samples for the leachate tests of 11 hazardous substances listed in the Korean Official Wastes Test Method were pretreated with an acid solution. Cr⁶⁺, Cu, Cd, Pb, and As were measured using inductively coupled plasma-optical emission spectrometry (Optima 5300DV, PerkinElmer, UK), Hg was measured by atomic absorption spectrometry (FIMS 100, PerkinElmer, UK), cyanide was measured using an ultraviolet/ visible spectrophotometer (V530, Jasco, JP), organophosphorus compounds were measured by gas chromatography-nitrogen phosphorous detector (6890N, Agilent, US), tetrachloroethylene and trichloroethylene were measured by gas chromatography with a microelectron capture detector (7890A, Agilent, US), and oil was measured by gravimetry after extraction with hexane.

Results

Mechanical Properties of the Waste Plastic Film-Recycled Products for Construction Application

The mechanical characteristics of the WPF-RPs are shown in Table 1. The standard deviations of all the measured parameters were small, indicating the homogeneity of the materials. The compressive strength of the WPF-RP samples was approximately 38 MPa, which is close to that of cement concrete (Han et al., 2003; Lam et al., 2018; Aghaeipour and Madhkhan, 2020), indicating that rigidity was comparatively excellent. As the compressive strength was ~2.3 times greater than the tensile strength, using the WPF-RPs as a compression member rather than a tensile member is advantageous in terms of the construction material performance. However, in the compression test, the elasticity was approximately 32–38 times smaller than that of concrete, which can cause significant deformation during load application, thus making it inappropriate for use as a supporting structure during major loads. In addition, the coefficient of thermal expansion was ~12 times more than that of concrete; therefore, replacing existing construction materials would be difficult in poor environments, such as those with a large annual temperature difference, depending on the weather conditions, exposure to the external environment, and load conditions.

TABLE 1

Table 1. Results of physical characteristics of WPF-RPs as construction materials.

Stability Under External Light Exposure Condition

The changes in appearance after the accelerated weathering test for the WPF-RPs and commercial HDPE samples are shown in Table 2. No significant change was observed in the appearance of the two plastic specimens until 1,500 h, which corresponded to 540 d; additionally, no cracks were observed. The original color of the HDPE was opaque white, and no visible color change was observed. However, for the WPF-RP specimens, the light-exposed areas became brighter with increasing exposure times. The color difference was measured quantitatively before and after the accelerated weathering test, with marginally increased values after 500 h in both samples. Although a standard for changes in elevation (ΔE) does not exist, a color difference was observed when its value exceeded 1, and the color difference increased with the increase in its value. The values for HDPE samples were close to 1, whereas those for WPF-RP samples were approximately five times higher (5.3).

TABLE 2

Table 2. Results of the accelerated weathering test on WPF-RP and HDPE samples.

After the accelerated weathering tests, we assessed the tensile properties of strength and elongation at breaks (Figure 2). A significant decrease in the values for the HDPE samples was observed over time compared with the samples that were not weathered. Conversely, the values for the WPF-RP samples were constant throughout the testing time up to 1,500 h. Although the tensile characteristics of the WPF-RPs are lower than those of pure plastic before weathering and photo-aging, the tensile strength and elongation of the WPF-RPs could be compared with those of HDPE samples after 500–1,000 h, possibly because of the complex structure of the composite polymers in the WPF-RPs (Shah et al., 2008; Iñiguez et al., 2018).

FIGURE 2

Figure 2. Variations in the tensile properties of the WPF-RP and HDPE samples during accelerated weathering test. Standard deviations for both tensile strength and elongation tests are presented (six tests each were performed for tensile strength and elongation).

Stability of Road Pavement Vehicle Load

In addition to the mechanical properties, WPF-RPs should ideally show good stability under vehicle loads in road pavement. Thus, wheel-tracking tests were performed to evaluate the stability of vehicle loads on road pavements. Figure 3 shows that the rut depth values for six samples varied due to material heterogeneity, and the dynamic stabilities ranged from 21,000 to 63,000 cycles/mm with an average of 33,250 ± 15,456 cycles/mm. This indicates that the dynamic stability of the WPF-RPs was much higher than that of the asphalt quality standards generally used for road pavement (>3,000 for flow resistance, 2,000–3,000 for stone mastic asphalt, >2,500 for drainage, and >750 for emergency repair at room temperature) (Ministry of Land, Infrastructure and Transport (MOLIT), 2017). These high stability values acquired through the wheel-tracking tests for the WPF-RPs, compared with those of general asphalt pavements, and verified the dynamic stability of the vehicle load while using WPF-RPs as road pavement materials. Therefore, this study provided a better alternative measure to effectively apply WPF-RPs in construction.

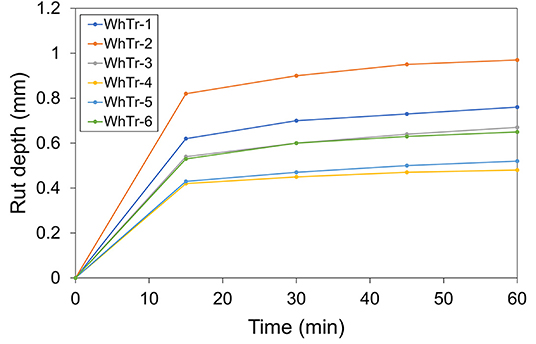

FIGURE 3

Figure 3. Results of rut depth vs. time in wheel-tracking tests for six WPF samples.

Environmental Assessment of the Waste Plastic Film-Recycled Products

The application of wastes, including WPFs, as recycling resources, require environmental assessment, because the wastes may contain various hazardous substances. Synthetic resin products, such as plastic films, comprise petroleum-based synthetic resins and additives, such as plasticizers, heat stabilizers, and antioxidants that are added in the manufacturing process (Rahimi and García, 2017; Dahlbo et al., 2018). Thus, while using WPF-RPs, these substances may be released to the environment, subsequently affecting environmental quality and human health. Environmental safety criteria differ depending on the usage of products from waste. The 10 restricted materials in the WPF-RPs given by the Restriction of Hazardous Substances II were analyzed. Among these, seven were not detected, and three were within the permissible limits, that is, 19.3 mg/kg of Pb (<1,000 mg/kg), 1.2 mg/kg of Cd (<100 mg/kg), and 732 mg/kg of bis (2-ethylhexyl) phthalate (<1,000 mg/kg). Additionally, only Cu (0.013 mg/L) was detected among the 11 hazardous substances by testing the leachates of WPF-RPs. The concentration of Cu was two times lower than the permissible limit (<3 mg/L), which is used to classify “Designated Waste” as defined in the Korean Official Wastes Test Method (Ministry of Environment (MOE), 2017).

Evaluation of the Field Performance of the Waste Plastic Film-Recycled Products

Figure 4 shows the process of using WPF-RP TPBs at the test site, which started with excavation for the designated size of the field test, with dimensions of 1.2 m (W) × 6 m (L) for 80 WPF-RP prototype units, to simulate real road construction.

FIGURE 4

Figure 4. Construction of the field test for TPB application: (A) excavation, (B) refilling, (C) compaction, (D) initiation of TPB construction, (E) TPB construction expansion, and (F) TPB construction completion.

We performed field tests of TPBs at the site, with frequent heavy vehicular traffic for one month, and inspected for any appearance of damage, such as breakage or cracking. Figure 5 shows the longitudinal profile measurement results of the WPF-RP TPB installation section. The profile change after one month of the test showed no significant difference in the section installed with the fastening structures; however, each column was displaced individually, and a change in the slope was observed in the four columns of the section lacking the fastening structures. However, the profile changes, regardless of the installation of the fastening structures, showed increments in slope of 30 cm, which is the TPB unit size. Therefore, the TPB flatness after compaction and before TPB installation would have probably had a dominant effect on the surface profile rather than the presence or absence of the fastening structures. Further, elevations were measured at the test site (Figure 1) to assess whether the fastening structures that tightly held the individual TPB blocks positively affected the minimization of settlement or subsidence. Figure 6 shows the difference in the elevation before and after one month of operation. The Δ elevation values for individual locations showed mostly settlement and some heaving, probably due to unexpected traffic movement. The extent of the difference was greater without the fastening structure, thus indicating the advantage of the fastening structure. In addition, the values of slip resistance measured as BPN were 34 (± 5) and 33 (± 2) for the WPF-RP TPB samples before and after one month of operation, respectively. These values satisfy the minimum slip resistance BPN values for road pavement materials under average conditions (S3) and for sections, where friction is not important (S4) at risk level 1. This level is defined as when there are few accidents due to road slipping or when accidents are not yet recorded (Ministry of Land, Infrastructure and Transport (MOLIT), 2016). The detailed definitions of minimum friction coefficient and risk are provided in Supplementary Tables S3, S4. This indicates that TPBs could be potentially applied to roads with low-speed driving, such as side roads, and those with minimal friction needs, such as on flat ground.

FIGURE 5

Figure 5. Profiles measured in longitudinal directions with and without the installation of fastening structures: (A) immediately after construction and (B) one month after construction. Measurements of four rows in longitudinal directions are indicated by 1st−4th in the graphs.

FIGURE 6

Figure 6. Elevation changes (or Δ elevation) monitored at the test sites. Positive values indicate ground settlement, while negative values indicate ground heave. Numbers in the legend are the position of longitudinal direction in the test site as shown in Figure 1. “No FS” and “FS” indicate conditions without and with fastening structures installed, respectively.

Discussion

Based on the mechanical characteristics of the WPF-RPs, the accelerated weathering test, road pavement vehicle stability, environmental assessment, and field tests for TPBs, we suggest two additional possible applications of WPF-RPs, as construction materials for pothole emergency repair and backfilling structures for underground buried pipes (Figure 7). Pothole emergency repair generally uses cold-mix asphalt repair materials. However, potholes formed during rainy season make it difficult to demonstrate the performance of emergency repair materials due to moisture on the road surface, and re-damage most likely occurs after repair (Byzyka et al., 2020). To ensure vehicle load resistance, rapid installation, and short-term use, WPF-RPs can be used for pothole emergency repair. An example of the application for emergency repair of 5 cm-deep potholes using anchors is provided in Figure 7B. In addition, during road excavation restoration work for the maintenance of underground buried pipes, voids can occur at the beginning of common use because of poor compaction at the bottom of buried pipes; consequently, adjacent soils move into the voids. This results in overall settlement in the backfill soil along with faulting and distresses in the pavement of the excavation recovery site (Bae et al., 2017). To improve the backfilling and fastening structure of underground buried pipes during excavation recovery construction and to improve the compaction defect, the application of WPF-RPs is proposed, which could better address the accelerated weathering issues associated with light exposure.

FIGURE 7

Figure 7. Application of WPF-RP as construction materials for (A) temporary pavement blocks (TPBs), (B) pothole emergency repair, and (C) backfilling structure for underground buried pipe.

In this study, WPF-RPs were used in recycled waste materials, such as TPBs, which were tested for basic mechanical properties, stability under external light exposure conditions and vehicle loads, and the presence of hazardous substances. The results indicated compressive strength of approximately 38 MPa, stable color, and tensile properties up to 1,500 h (or corresponding to 540 d) of light exposure in accelerated weathering tests, and dynamic stability of 21,000–63,000 cycles/mm through wheel-tracking tests. Additionally, hazardous substances were either not detected or under permissible limits in the composition and leachates of WPF-RPs during their application as construction materials, especially bearing loads. An assessment of the operation of WPF-RP TPBs in a field test for one month showed good stability for their temporary use in road construction. Further, the fastening structure could assist in load transferability and equalization between the installed TPBs installed. Moreover, other possible applications of WPF-RPs are suggested, such as in pothole emergency repair and backfilling structures for underground pipes. This study indicates that WPFs have potential applications as a recycling material and can be used as construction materials, and further field tests should be conducted to optimize their use.

Data Availability Statement

The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.

Author Contributions

DK and HO designed the research objective and developed the study with the support of SK and GM. DK collected, analyzed, interpreted the data, and wrote the first draft of the manuscript. HO, SK, and GM actively contributed to the final version. All authors approved the submitted version.

Funding

This study was supported by the Seoul Institute of Technology (SIT) research projects (2019-AA-011).

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher's Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/frsus.2021.756723/full#supplementary-material

Abbreviations

WPF, waste plastic film; TPB, temporary pavement block; BPN, British pendulum number; WPF-RP, waste plastic film-recycled product.
