ORIGINAL RESEARCH article

Front. Surg.
Sec. Orthopedic Surgery
Volume 11 - 2024 | doi: 10.3389/fsurg.2024.1487716
This article is part of the Research Topic The Dawn of Future Orthopaedic Surgery: Intraoperative Navigation and Robotic Assistance - Volume II View all articles

Accuracy Analysis of the New Artificial Anatomical Marker Positioning Method (Shoulder-to-Shoulder) in Preventing Leg Length Discrepancy in Total Hip Arthroplasty WANG Ze-feng, FANG Yang-zhen，ZHENG Yong-qiang, LIN Zhen-yu, LIN Liang, LIU Xiao-feng, ZHANG

Provisionally accepted
Zefeng Wang Zefeng Wang 1Yangzhen Fang Yangzhen Fang 1Zheng Yongqiang Zheng Yongqiang 1Zhenyu Lin Zhenyu Lin 1*Liang Lin Liang Lin 1*XiaoFeng Liu XiaoFeng Liu 1Jinyang Wu Jinyang Wu 1*Chi Zhang Chi Zhang 2*Jinshan Zhang Jinshan Zhang 1*
  • 1 Jinjiang Municipal Hospital, Quanzhou, China
  • 2 Hainan Medical University, Haikou, Hainan Province, China

The final, formatted version of the article will be published soon.

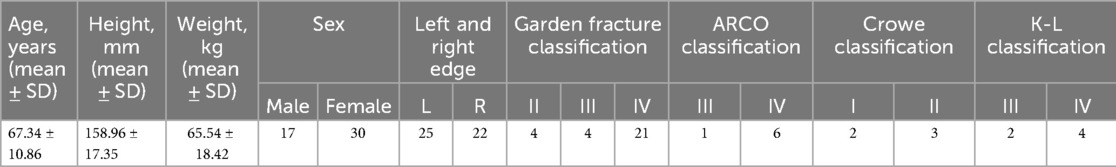

    Objective: By comparing the hip arthroplasty parameters planned with the AIHIP three-dimensional simulation surgery system, this study analyzes the accuracy of the new femoral-side 'shoulder-to-shoulder' artificial anatomical marker positioning method in femoral-side prosthesis implantation and the prevention of leg length discrepancy in hip arthroplasty. Methods: A retrospective collection of 47 patients who underwent initial total hip arthroplasty at our hospital from August 2020 to December 2022 and met the inclusion and exclusion criteria was used as the study subjects. The average age was 67.34±10.86 years (32-80 years), including 17 males and 30 females; 25 cases on the left side and 22 cases on the right side. According to the Garden classification for fractures: 4 cases of type II, 4 cases of type III, and 21 cases of type IV; according to the ARCO staging for femoral head necrosis: 1 case of stage III and 6 cases of stage IV; according to the Crowe classification: 2 cases of type I and 3 cases of type II; according to the K-L grading: 2 cases of stage III and 4 cases of stage IV. The postoperative pelvic anteroposterior X-ray measurement parameters and prosthesis model results guided by the new 'shoulder-to-shoulder' artificial anatomical marker positioning method ('shoulder-to-shoulder' group) were compared with the corresponding parameter results planned by the AIHIP three-dimensional simulation surgery system (AIHIP simulation surgery group). All postoperative pelvic anteroposterior X-ray measurement parameters were corrected according to the radiographic magnification, and the differences in bilateral lower limb length, tip-to-shoulder distance, and osteotomy distance between the two groups were compared. The paired t-test was used to compare the differences in bilateral lower limb length, tip-to-shoulder distance, and osteotomy distance; descriptive analysis was used to evaluate the consistency of prosthesis model matching.alpha=0.05(both sides)。 Results: The differences in bilateral lower limb length for the 'shoulder-to-shoulder' group and the

    Keywords: anatomical marker, hip arthroplasty, leg length discrepancy, Control, artificial intelligence

    Received: 28 Aug 2024; Accepted: 04 Nov 2024.

    Copyright: © 2024 Wang, Fang, Yongqiang, Lin, Lin, Liu, Wu, Zhang and Zhang. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) or licensor are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.

    * Correspondence:
    Zhenyu Lin, Jinjiang Municipal Hospital, Quanzhou, China
    Liang Lin, Jinjiang Municipal Hospital, Quanzhou, China
    Jinyang Wu, Jinjiang Municipal Hospital, Quanzhou, China
    Chi Zhang, Hainan Medical University, Haikou, 571199, Hainan Province, China
    Jinshan Zhang, Jinjiang Municipal Hospital, Quanzhou, China

    Disclaimer: All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
