ORIGINAL RESEARCH article

Front. Surg., 07 September 2022
Sec. Orthopedic Surgery
This article is part of the Research Topic Endoscopic Spine Surgery: New concepts and advancements View all 23 articles

Mapping knowledge structure and themes trends in unilateral biportal endoscopic spine surgery: A bibliometric analysis

\r\nMing-Tao Zhu,&#x;Ming-Tao Zhu1,†Kunrong Li,&#x;Kunrong Li1,†Bao-Shan Hu,&#x;Bao-Shan Hu2,†Chien-Min Chen,,Chien-Min Chen3,4,5Guang-Xun Lin,
\r\nGuang-Xun Lin2,6*
  • 1Department of Neurosurgery, The First Affiliated Hospital of Xiamen University, School of Medicine, Xiamen University, Xiamen, China
  • 2Department of Orthopedics, The First Affiliated Hospital of Xiamen University, School of Medicine, Xiamen University, Xiamen, China
  • 3Division of Neurosurgery, Department of Surgery, Changhua Christian Hospital, Changhua, Taiwan
  • 4Department of Leisure Industry Management, National Chin-Yi University of Technology, Taichung, Taiwan
  • 5School of Medicine, Kaohsiung Medical University, Kaohsiung, Taiwan
  • 6The Third Clinical Medical College, Fujian Medical University, Fuzhou, China

Background: The numerous benefits of unilateral biportal endoscopic (UBE) spine surgery have attracted the attention of many researchers, and a considerable number of relevant clinical studies have been published. However, global research trends in the field of UBE have received little attention. The purpose of this study was to apply bibliometric method to analyze the UBE-related publications to obtain an overview of the research trends in the field of UBE, as well as research hotspots and trends.

Methods: Web of Science database was searched for articles published until January 31, 2022. CiteSpace was used to analyze the data, which provided graphical knowledge maps. The following factors were applied to all literature: number of publications, distribution, h-index, institutions, journals, authors, and keywords.

Results: Seventy-three articles were identified. Since 2019, there has been a significant increase in the number of UBE-related publications. The country with the largest number of articles was South Korea (72.6%), followed by China (9.6%), Japan (4.1%), and Egypt (4.1%). South Korea had the highest h-index (16), followed by China (2), Japan (1), and Egypt (1). Leon Wiltse Memorial Hospital was the organization that produced the most papers (12 publications). Heo DH was the most productive author (16 papers) and was the most cited author (35 times). World Neurosurgery published the most papers on UBE (23.3%). The main research hotspots were spinal diseases, decompression, complications, learning curve, and interbody fusion. In addition, the recent concerns were “learning curve,” “interbody fusion,” “management,” and “dural tear.”

Conclusions: The quantity of publications on UBE research will increase, and South Korea being the major contributor and most prominent country in this field. The findings of our study will provide researchers with practical information on the field of UBE, and identification of mainstream research directions and recent hotspots.

Introduction

With the accelerating trend of aging in society and changes in people's lifestyle and work style, the incidence of lumbar spinal diseases is gradually increasing. For patients requiring surgical treatment, traditional open surgery is highly traumatic and has many complications, and microendoscopic techniques have certain complications that do not fully meet the requirements of patients (1). The unilateral biportal endoscopic (UBE) technique is an emerging clinical treatment tool with the advantages of a wide surgical field of view and large operating space, which can be implemented via the interlaminar or transforaminal approach and successfully applied in treating various spinal surgical diseases (24). As a minimally invasive surgery, it combines the advantages of open surgery and traditional minimally invasive surgery, preserving the paravertebral muscles while operating under high-definition vision, reducing damage to the paravertebral bones, joints, and ligaments, with the advantages of less postoperative pain and early return to normal activities, and is therefore widely used in treating various spinal disorders (57).

As a new technique, UBE has attracted the attention of many researchers and a large number of clinical studies have been published recently. A bibliometric analysis can provide clinical researchers with practical information, including the influential countries/regions, journals, institutions, and authors in the field (8). In addition, bibliometrics helps comprehend a topic's underlying knowledge, current research hotspots, and research trends (9).

Therefore, this bibliometric study aims to analyze the published UBE-related literature to obtain an overview of the current status and trends of UBE research and to provide recommendations and suggestions for the development of related research in the future.

Materials and methods

Search strategy

Because this was a retroactive assessment of public data, no institutional committee permission was necessary. Publications were gathered from the Web of Science (WoS) Core Collection (Thomson Reuters, New York, NY, USA), which is the world's biggest academic database and has been frequently used in bibliometric research.

The publications were evaluated until January 31, 2022. The following terms were searched: “biportal endoscopic spine surgery,” “unilateral biportal endoscopic surgery,” “UBE,” “BESS,” and “two portal endoscopic spine surgery.” Only original articles, reviews, and case reports were accepted; letters, editorial materials, and corrections, as well as unpublished and non-English studies, were excluded from this study. In addition, documents on unrelated topics were excluded. Two researchers independently reviewed and chose the publications. Any disagreements were resolved through third-party discussions until consensus was reached.

To conclude the bibliometric investigation, we deployed CiteSpace to construct data tables and visual knowledge graphs for interpretation. CiteSpace is essentially built on the concept of co-citation analysis and pathfinder network scaling to evaluate the literature in a certain field so that users may discover significant advances and knowledge turning points in the discipline's history (10).

Our quantitative studies were based on the number of publications each year, nations/regions, the h-index (a legitimate and trustworthy measure for academic assessment), institutions, journals, authors, citations, and keywords. In the present study, CiteSpace was used to conduct a cooperative analysis of regions, institutions, and authors; to perform the impact of scientific journals; to analyze the top 10 most cited documents; and to identify the top 10 keywords with the strongest citation bursts. The node connection represented a relationship of cooperation, co-occurrence, or co-citation in the network maps. The links in the visualization knowledge maps between nodes reflected the cooperative ties. The thickness of the linkages and the distance between the nodes showed the extent to which prominent nations/regions, institutions, and writers collaborated.

Data examination

All data were gathered and entered into Microsoft Excel 2021 (Microsoft). CiteSpace was used to quantify data, display cooperation networks in various layouts, and create a term timeline.

Results

Annual trend and current situation

Initially, the WoS database contained 89 articles on the subject of UBE. Seventy-three publications were chosen after manual screening. The number of publications in the field of UBE rapidly rose in the past 3 years (Figure 1). In 2020, 23 articles were published; this number was the most in a single year in the previous decade. The number of publications about UBE is steadily rising, indicating that more attempts and explorations in UBE are being made.

FIGURE 1
www.frontiersin.org

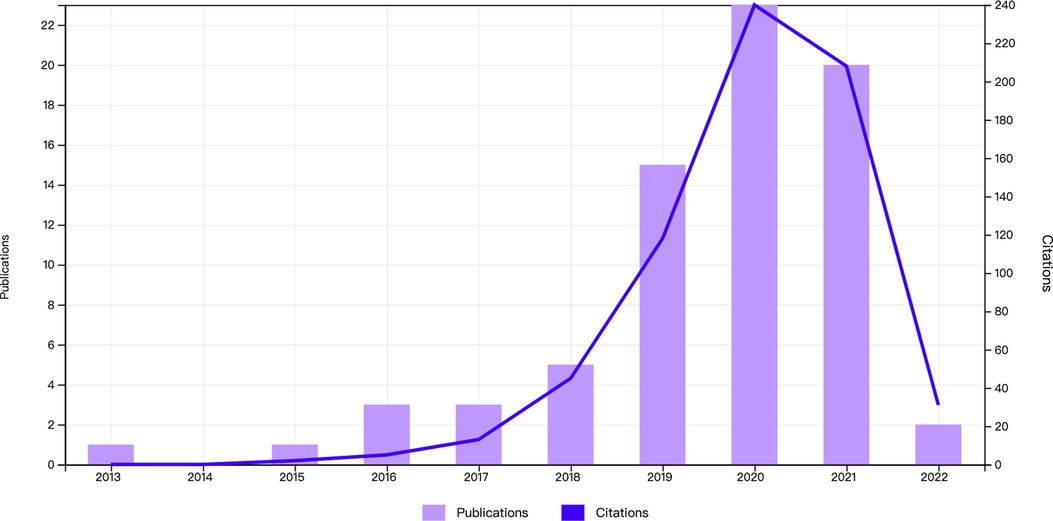

Figure 1. The annual trends of publications.

Analysis of countries/regions

In the field of UBE, 10 countries have conducted studies throughout the study period (Table 1). South Korea produced the most publications (53 of 73, 72.6%), followed by China (7 of 73, 9.6%), Japan (3 of 73, 4.1%), and Egypt (3 of 73, 4.1%). South Korea has the highest h-index at 16, followed by China (2), Japan (1), and Egypt (1). The map of the country's network had 40 nodes and 40 links (Figure 2).

FIGURE 2
www.frontiersin.org

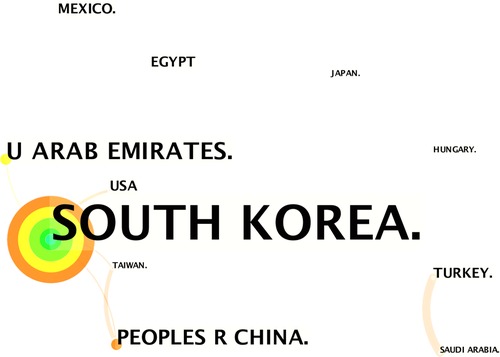

Figure 2. Co-operation network of the productive countries/regions.

TABLE 1
www.frontiersin.org

Table 1. The most productive countries/regions contributed to research publications in the field of unilateral biportal endoscopic spine surgery.

Analysis of institutions

Table 2 shows the most productive institutions in the field of UBE. Of the 73 publications, Leon Wiltse Memorial Hospital published 12 articles (16.4%), followed by Hallym University, which published 10 articles (13.7%); Himchan Hospital, which published seven articles (9.6%); and Himnaera Hospital, Seoul Bumin Hospital, and Yonsei University, which published seven articles (9.6%). The institution network map has 81 nodes and 139 connections (Figure 3).

FIGURE 3
www.frontiersin.org

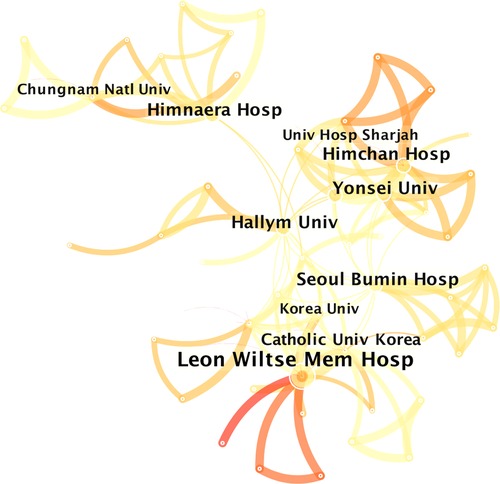

Figure 3. Co-operation network of the productive institutions.

TABLE 2
www.frontiersin.org

Table 2. The most productive institutions in the field of unilateral biportal endoscopic spine surgery.

Analysis of journals

UBE was featured in 25 scientific journals during the research period. World Neurosurgery published the most articles regarding UBE (17 articles, 23.3%) (Table 3), followed by Acta Neurochirurgica (9 articles, 12.3%), Journal of Orthopaedic Surgery and Research (5 articles, 6.8%), Neurospine (5 articles, 6.8%), and Spine Journal (5 articles, 6.8%). Articles published in these essential journals received more attention and therefore were referenced more frequently.

TABLE 3
www.frontiersin.org

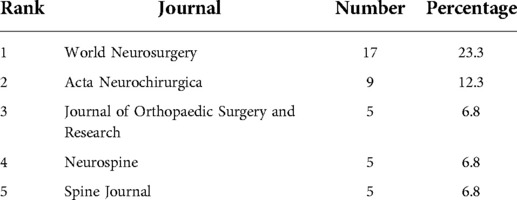

Table 3. Top 5 productive journals in the field of unilateral biportal endoscopic spine surgery.

Analysis of authors

Heo DH was the most productive author in the field of UBE (Table 4), publishing 16 articles (21.9%); Choi DJ published 11 articles (15.1%), Park CK published 10 articles (13.7%), Chung HJ published 9 articles (12.3%), and Park HJ wrote 9 articles (12.3%). The cited author network's map has 263 nodes and 1,080 linkages (Figure 4). The most frequently cited author (35 times) was Heo DH, followed by Eum JH (26 times), Kim JE (25 times), Choi DJ (22 times), and Choi KC (18 times).

FIGURE 4
www.frontiersin.org

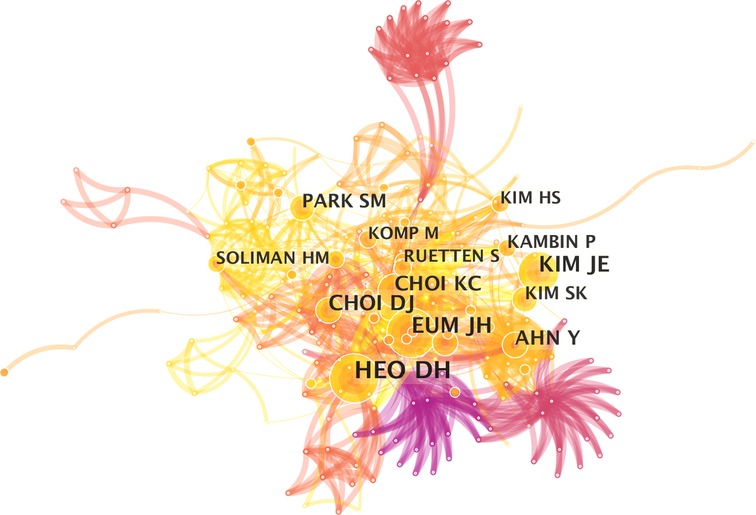

Figure 4. Co-operation network of the cited authors.

TABLE 4
www.frontiersin.org

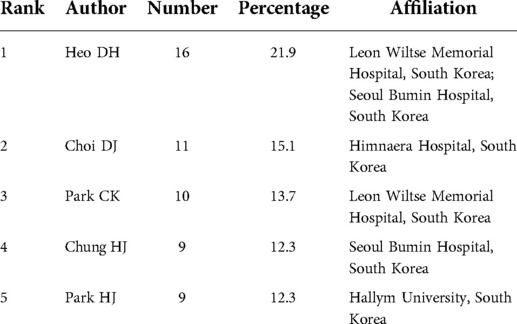

Table 4. Top 5 productive authors in the field of unilateral biportal endoscopic spine surgery.

Analysis of references and citations

The top ten most cited articles are presented in Table 5. An article's highest and lowest numbers of citations were 74 and 22, respectively. Nine of the top 10 most cited articles were from South Korea, whereas the remaining article was from Egypt. Heo DH has four articles on this list. Three articles were published in World Neurosurgery or Neurosurgical Focus, respectively. The network map of the references mentioned has 181 nodes and 744 linkages (Figure 5). The top 5 most frequently referenced article was Eum JH et al. (2016) (26 times), followed by Heo DH et al. (2017) (18 times), Choi DJ et al. (2016) (15 times), Kim SK et al. (2018) (13 times), and Choi CM et al. (2016) (12 times).

FIGURE 5
www.frontiersin.org

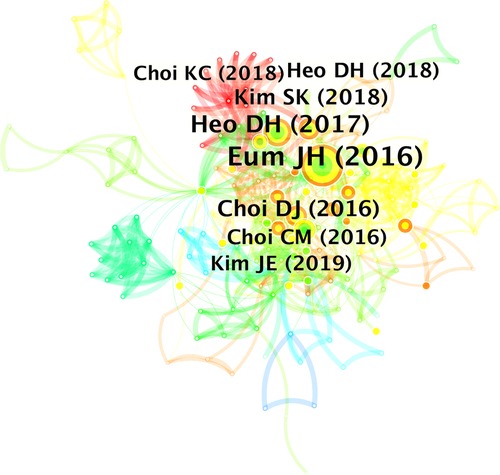

Figure 5. Co-operation network of the cited references.

TABLE 5
www.frontiersin.org

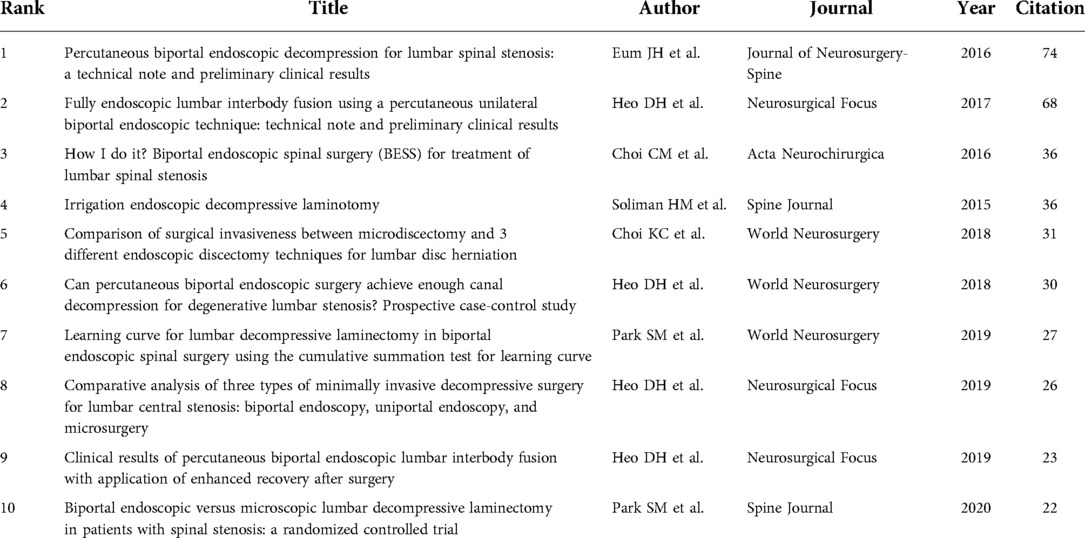

Table 5. Top 10 cited articles in the field of unilateral biportal endoscopic spine surgery.

Analysis of keywords and research hotspots

Keyword lists can effectively discover research hotspots and provide research assistance. Bigger nodes in the keyword co-occurrence map had larger keyword weights. Shorter distances between nodes suggested stronger connections between those nodes. Thicker lines indicated a higher frequency of two words being mentioned together. As shown in Figure 6, the main research hotspots were as follows: spinal diseases, decompression, complications, learning curve, and interbody fusion.

FIGURE 6
www.frontiersin.org

Figure 6. Co-operation network of the keywords.

“Keyword bursts” were an indication of research frontier themes throughout a certain period. Figure 7 shown the top 10 keywords with the strongest citation bursts in the UBE field. The red bar corresponded to the time of keyword appearance and duration of presence. The recent concerns were “learning curve,” “interbody fusion,” “management,” and “dural tear.”

FIGURE 7
www.frontiersin.org

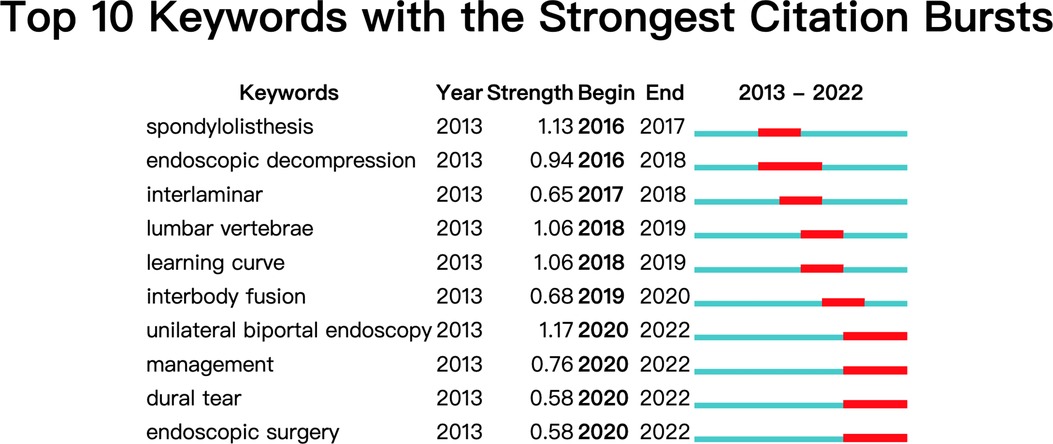

Figure 7. Top 10 keywords with the strongest citation bursts.

Discussion

UBE is a percutaneous endoscopic technique that uses two channels, one for endoscopy and one for instrumentation, which is the major difference from the traditional single-portal endoscopic technique (11, 12). The UBE procedure is mainly used for endoscopic treatment of spinal stenosis, cervical spondylosis, thoracic spine lesions, and degenerative lesions of the lumbar spine (1315). Since two channels are used, the operating instruments are not limited in size; thus, the UBE technique is an efficient technique among various minimally invasive spine techniques, and the treatment results are as thorough as those of open surgery, with certainty of efficacy, less trauma, and faster recovery (16, 17). Additionally, traditional single-portal endoscopic techniques can address a small percentage of spinal stenosis cases, a large percentage of which are not operable, and the UBE technique with unilateral dual access can better address cases of spinal stenosis. The UBE technique is complementary to the single-portal endoscopic technique and can be used for partial vertebral instability and minor slippage, as well as for endoscopic spinal fusion, which has a broader range of indications (12).

The merits of the UBE technique have brought more attention to spine surgeons, as evidenced by the increase in clinical studies in recent years. To confirm the comprehensiveness of the publications, we conducted a bibliometric study of publications in the WOS database. Our results will provide researchers with practical information on the field of UBE, and identification of mainstream research directions and recent hotspots.

This study found a consistent increase in the quantity of UBE-related publications recently, particularly after 2019. This pattern demonstrates that UBE research is advancing quickly and has piqued the interest of the worldwide medical community. South Korea is the most productive country in the UBE field and has published the most articles and is home to almost all influential authors. Moreover, nine of the top 10 most cited articles were from South Korea. Early scholars, represented by Dr. Kambin, developed the percutaneous spinal endoscopy technique, followed by their predecessors, such as De Antoni DJ and Osman SG, who laid the theoretical and practical foundation for the “unilateral biportal spinal endoscopy” technique. Although the studies by De Antoni DJ and Osman SG have inspired some operators to trace their concepts and findings, this group of operators has embarked on a path to continue exploring dual-channel spinal endoscopy techniques. In the next decade, the unilateral biportal endoscopic technique will enter a period of rapid development driven by Korean spine surgeons, and many improvements were made, as follows: (1) changing the patient's position from lateral to prone; (2) starting to use radiofrequency, which improved the efficiency of handling soft tissue; (3) further expanding the indications for the procedure, adding spinal disk herniation, spinal stenosis, spondylolisthesis, and fusion (cervical-thoracic-lumbar spine can be applied); and (4) formalizing the procedure as UBE. The contribution of Korean doctors to the inheritance, pioneering, and development of the UBE technique has made them well known internationally. This has led several spine surgeons to go to South Korea for further training and study.

According to the network map, countries/regions, institutions, and authors were all somewhat connected; however, the map shows a weak relationship, indicating a lack of cooperation between countries/regions and institutions. International academic cooperation between countries/regions and institutions must be strengthened. This technique may benefit all countries/regions and institutions.

World Neurosurgery, Acta Neurochirurgica, Journal of Orthopaedic Surgery and Research, Neurospine, and Spine Journal were the top five journals that have published the most UBE-related articles, suggesting that these journals are more friendly to the publication of UBE-related articles. The 10 most cited articles were from the aforementioned journals, with World Neurosurgery and Neurosurgical Focus being the top two journals. These journals represented the core journals in the field of UBE and should be followed to track relevant research trends.

Keywords not only represent the research focus and hotspots in a field, but also allow the discovery of research trends through keywords. According to top 10 keywords with the strongest citation bursts, the focus of UBE research includes the use of UBE in treating various lumbar spine diseases, prevention and treatment of complications, interbody fusion, and learning curve. UBE has recently evolved as a prominent lumbar surgical method; however, it must be used with objectivity and prudence to maximize its advantages and avoid its risks.

The UBE technique has more obvious technical advantages than the one-portal endoscopic surgical method. First, the UBE technique provides a larger and more open field of view under the mirror because the UBE procedure has a dual channel: one side of the main mirror is under 0°, the mirror field of view is 360° visible. Second, the grasping forceps and biting forceps used are thicker and have larger openings, which can remove the protruding nucleus pulposus faster and easier (18). The third reason is that the UBE technique can be visualized and the learning curve is relatively simple, especially if the surgeon can operate a one-portal endoscopic surgery or has experience in microscopic surgery. In addition, if the fusion is done under the endoscopy, the UBE technology can be visualized throughout the operation, and interbody cage placed directly under visualization, which greatly reduces the issue of intraoperative localization and radiation. In contrast, the single-portal technique for placing interbody cage is not visualizable and has a higher number of intraoperative localizations (1921). A recent meta-analysis (6) has reported no significant differences in visual analog scale scores for the legs, Oswestry Disability Index scores, complications, or fusion rates between UBE interbody fusion and conventional lumbar interbody fusion surgery. Notably, the UBE interbody fusion surgical technique had considerably lower postoperative visual analog scale values for back pain than the traditional lumbar interbody fusion surgery. Furthermore, UBE interbody fusion took a longer operating time than traditional lumbar interbody fusion surgery but resulted in much less blood loss (6).

The most common complications of UBE were dural tears and hematomas, which were consistent with the findings of a previous systematic study (22, 23). A rupture in the dura is a serious issue. Endoscopic surgery may be converted to microsurgery in situations of large-scale dura ruptures. Small intraoperative durotomies can be sutured using sealant materials (TachoComb or TachoSil), and the patient should be restrained (3). The most important step in lowering the occurrence of this technical issue is to keep the operation field free by preventing epidural bleeding. A high magnification of the surgical field combined with continuous saline irrigation can be used to decrease epidural hematoma. When we started removing the flavum or conducting laminectomy, we needed to ensure that there was enough water flow and bleeding control, especially on the contralateral side (24). If all other measures fail to halt the bleeding, lowering the diastolic blood pressure to approximately 100 mmHg may be effective in certain cases (24). When raising the height of the saline bag or compressing it to raise the saline pressure, using a specialized pressure pump is advised. Moreover, high-pressure irrigation is not recommended because it may increase intracranial pressure and may delay surgical recovery. Water pressure should be maintained between 4.41 cm H2O (2.41 mmHg) and 31.00 cm H2O (22.83 mmHg) during UBE to avoid iatrogenic damage (25). Furthermore, preoperative anticoagulant use, female sex, elderly age, intraoperative water infusion pump use, and surgery involving higher bone manipulation were risk factors for epidural hematoma following UBE (26, 27).

Limitations

To guarantee fairness and thoroughness and provide powerful data, we did a comprehensive literature search in the WoS datable. Despite its impressive characteristics, this study has a few flaws. First, this bibliometric analysis only included published articles from the WoS Core Collection database, which inevitably led to some useful literature not included in this study. Second, different search time points may have caused differences in the search results, especially in the number of citations. Third, for some recently published articles, the short time of publication leads to low citation counts, which may affect the total number of citations and h-index of the literature.

Conclusions

According to our results, there was a dramatic increase in the number of UBE-related publications since 2019. Most of the UBE-related research institutions and researchers are from South Korea. Heo DH is the most contributing author, and Leon Wiltse Memorial Hospital has the largest contribution in this field. World Neurosurgery and Neurosurgery Focus represented the core journals in the field of UBE and should be followed to track relevant research trends. The main research hotspots in the field of UBE were the use of UBE in treating various lumbar spine diseases, prevention and treatment of complications, interbody fusion, and learning curve.

Data availability statement

The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding author/s.

Author contributions

MTZ conceptualized or designed of the work; KL performed software; BSH supervision; CMC interpreted of data; GXL has written the original article. All authors read and approved the final manuscript.

Funding

This research was funded by the Natural Science Foundation of Fujian Province, grant number 2021J05282; funded by the “Xiamen Health System Discipline Leaders and their Backup Candidates, Senior Management Talent Training Candidates Training Program”

Acknowledgments

The author (GXL) wishes to acknowledge the financial support of the “Xiamen Health High-Level Talent Training Program”.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher's note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

References

1. Park SM, Park J, Jang HS, Heo YW, Han H, Kim HJ, et al. Biportal endoscopic versus microscopic lumbar decompressive laminectomy in patients with spinal stenosis: a randomized controlled trial. Spine J. (2020) 20(2):156–65. doi: 10.1016/j.spinee.2019.09.015

PubMed Abstract | CrossRef Full Text | Google Scholar

2. Lin GX, Huang P, Kotheeranurak V, Park CW, Heo DH, Park CK, et al. A systematic review of unilateral biportal endoscopic spinal surgery: preliminary clinical results and complications. World Neurosurg. (2019) 125:425–32. doi: 10.1016/j.wneu.2019.02.038

PubMed Abstract | CrossRef Full Text | Google Scholar

3. Heo DH, Lee N, Park CW, Kim HS, Chung HJ. Endoscopic unilateral laminotomy with bilateral discectomy using biportal endoscopic approach: technical report and preliminary clinical results. World Neurosurg. (2020) 137:31–7. doi: 10.1016/j.wneu.2020.01.190

PubMed Abstract | CrossRef Full Text | Google Scholar

4. Heo DH, Park CK. Clinical results of percutaneous biportal endoscopic lumbar interbody fusion with application of enhanced recovery after surgery. Neurosurg Focus. (2019) 46(4):E18. doi: 10.3171/2019.1.FOCUS18695

PubMed Abstract | CrossRef Full Text | Google Scholar

5. Quillo-Olvera J, Quillo-Resendiz J, Quillo-Olvera D, Barrera-Arreola M, Kim JS. Ten-step biportal endoscopic transforaminal lumbar interbody fusion under computed tomography-based intraoperative navigation: technical report and preliminary outcomes in Mexico. Oper Neurosurg (Hagerstown). (2020) 19(5):608–18. doi: 10.1093/ons/opaa226

PubMed Abstract | CrossRef Full Text | Google Scholar

6. Lin GX, Yao ZK, Zhang X, Chen CM, Rui G, Hu BS. Evaluation of the outcomes of biportal endoscopic lumbar interbody fusion compared with conventional fusion operations: a systematic review and meta-analysis. World Neurosurg. (2022) 160:55–66. doi: 10.1016/j.wneu.2022.01.071

PubMed Abstract | CrossRef Full Text | Google Scholar

7. Kim HS, Choi SH, Shim DM, Lee IS, Oh YK, Woo YH. Advantages of new endoscopic unilateral laminectomy for bilateral decompression (ULBD) over conventional microscopic ULBD. Clin Orthop Surg. (2020) 12(3):330–6. doi: 10.4055/cios19136

PubMed Abstract | CrossRef Full Text | Google Scholar

8. Lin GX, Nan JN, Chen KT, Sun LW, Tai CT, Jhang SW, et al. Bibliometric analysis and visualization of research trends on oblique lumbar interbody fusion surgery. Int Orthop. (2022) 46(7):1597–1608. doi: 10.1007/s00264-022-05316-1

PubMed Abstract | CrossRef Full Text | Google Scholar

9. Lin GX, Kotheeranurak V, Mahatthanatrakul A, Ruetten S, Yeung A, Lee SH, et al. Worldwide research productivity in the field of full-endoscopic spine surgery: a bibliometric study. Eur Spine J. (2020) 29(1):153–60. doi: 10.1007/s00586-019-06171-2

PubMed Abstract | CrossRef Full Text | Google Scholar

10. Liang YD, Li Y, Zhao J, Wang XY, Zhu HZ, Chen XH. Study of acupuncture for low back pain in recent 20 years: a bibliometric analysis via CiteSpace. J Pain Res. (2017) 10:951–64. doi: 10.2147/JPR.S132808

PubMed Abstract | CrossRef Full Text | Google Scholar

11. Kim SK, Kang SS, Hong YH, Park SW, Lee SC. Clinical comparison of unilateral biportal endoscopic technique versus open microdiscectomy for single-level lumbar discectomy: a multicenter, retrospective analysis. J Orthop Surg Res. (2018) 13(1):22. doi: 10.1186/s13018-018-0725-1

PubMed Abstract | CrossRef Full Text | Google Scholar

12. Jiang HW, Chen CD, Zhan BS, Wang YL, Tang P, Jiang XS. Unilateral biportal endoscopic discectomy versus percutaneous endoscopic lumbar discectomy in the treatment of lumbar disc herniation: a retrospective study. J Orthop Surg Res. (2022) 17(1):30. doi: 10.1186/s13018-022-02929-5

PubMed Abstract | CrossRef Full Text | Google Scholar

13. Heo DH, Quillo-Olvera J, Park CK. Can percutaneous biportal endoscopic surgery achieve enough canal decompression for degenerative lumbar stenosis? Prospective case-control study. World Neurosurg. (2018) 120:e684–9. doi: 10.1016/j.wneu.2018.08.144

PubMed Abstract | CrossRef Full Text | Google Scholar

14. Kim J, Heo DH, Lee DC, Chung HT. Biportal endoscopic unilateral laminotomy with bilateral decompression for the treatment of cervical spondylotic myelopathy. Acta Neurochir (Wien). (2021) 163(9):2537–43. doi: 10.1007/s00701-021-04921-0

PubMed Abstract | CrossRef Full Text | Google Scholar

15. Kang MS, Chung HJ, You KH, Park HJ. How i do it: biportal endoscopic thoracic decompression for ossification of the ligamentum flavum. Acta Neurochir (Wien). (2022) 164(1):43–7. doi: 10.1007/s00701-021-05031-7

PubMed Abstract | CrossRef Full Text | Google Scholar

16. Kim JE, Choi DJ, Park EJJ, Lee HJ, Hwang JH, Kim MC, et al. Biportal endoscopic spinal surgery for lumbar spinal stenosis. Asian Spine J. (2019) 13(2):334–42. doi: 10.31616/asj.2018.0210

PubMed Abstract | CrossRef Full Text | Google Scholar

17. Kang MS, Heo DH, Kim HB, Chung HT. Biportal endoscopic technique for transforaminal lumbar interbody fusion: review of current research. Int J Spine Surg. (2021) 15(Suppl 3):S84–92. doi: 10.14444/8167

PubMed Abstract | CrossRef Full Text | Google Scholar

18. Kim KR, Park JY. The technical feasibility of unilateral biportal endoscopic decompression for the unpredicted complication following minimally invasive transforaminal lumbar interbody fusion: case report. Neurospine. (2020) 17(Suppl 1):S154–S9. doi: 10.14245/ns.2040174.087

PubMed Abstract | CrossRef Full Text | Google Scholar

19. Choi CM. Biportal endoscopic spine surgery (BESS): considering merits and pitfalls. J Spine Surg. (2020) 6(2):457–65. doi: 10.21037/jss.2019.09.29

PubMed Abstract | CrossRef Full Text | Google Scholar

20. Kim JE, Yoo HS, Choi DJ, Park EJ, Jee SM. Comparison of minimal invasive versus biportal endoscopic transforaminal lumbar interbody fusion for single-level lumbar disease. Clin Spine Surg. (2021) 34(2):E64–71. doi: 10.1097/BSD.0000000000001024

PubMed Abstract | CrossRef Full Text | Google Scholar

21. Heo DH, Hong YH, Lee DC, Chung HJ, Park CK. Technique of biportal endoscopic transforaminal lumbar interbody fusion. Neurospine. (2020) 17(Suppl 1):S129–37. doi: 10.14245/ns.2040178.089

PubMed Abstract | CrossRef Full Text | Google Scholar

22. Pranata R, Lim MA, Vania R, July J. Biportal endoscopic spinal surgery versus microscopic decompression for lumbar spinal stenosis: a systematic review and meta-analysis. World Neurosurg. (2020) 138:e450–8. doi: 10.1016/j.wneu.2020.02.151

PubMed Abstract | CrossRef Full Text | Google Scholar

23. Chen T, Zhou G, Chen Z, Yao X, Liu D. Biportal endoscopic decompression vs. microscopic decompression for lumbar canal stenosis: a systematic review and meta-analysis. Exp Ther Med. (2020) 20(3):2743–51. doi: 10.3892/etm.2020.9001

PubMed Abstract | CrossRef Full Text | Google Scholar

24. Choi DJ, Kim JE. Efficacy of biportal endoscopic spine surgery for lumbar spinal stenosis. Clin Orthop Surg. (2019) 11(1):82–8. doi: 10.4055/cios.2019.11.1.82

PubMed Abstract | CrossRef Full Text | Google Scholar

25. Hong YH, Kim SK, Hwang J, Eum JH, Heo DH, Suh DW, et al. Water dynamics in unilateral biportal endoscopic spine surgery and its related factors: an in vivo proportional regression and proficiency-matched study. World Neurosurg. (2021) 149:e836–43. doi: 10.1016/j.wneu.2021.01.086

PubMed Abstract | CrossRef Full Text | Google Scholar

26. Ahn DK, Lee JS, Shin WS, Kim S, Jung J. Postoperative spinal epidural hematoma in a biportal endoscopic spine surgery. Medicine (Baltimore). (2021) 100(6):e24685. doi: 10.1097/MD.0000000000024685

PubMed Abstract | CrossRef Full Text | Google Scholar

27. Kim JE, Choi DJ, Park EJ. Evaluation of postoperative spinal epidural hematoma after biportal endoscopic spine surgery for single-level lumbar spinal stenosis: clinical and magnetic resonance imaging study. World Neurosurg. (2019) 126:e786–92. doi: 10.1016/j.wneu.2019.02.150

PubMed Abstract | CrossRef Full Text | Google Scholar
