Precision Endonasal Endoscopic Surgery of the Frontal Recess Cells and Frontal Sinus Guided by the Natural Sinus Drainage Pathway

\nZhouying Peng,,,Zhouying Peng1,2,3,4Yumin Wang,,,Yumin Wang1,2,3,4Yan Fang,,,Yan Fang1,2,3,4Yaxuan Wang,,Yaxuan Wang1,2,4Xiang Chen,,Xiang Chen1,2,4Ruohao Fan,,,Ruohao Fan1,2,3,4Hua Zhang,,,Hua Zhang1,2,3,4Zhihai Xie,,,
Zhihai Xie1,2,3,4*Weihong Jiang,,,
Weihong Jiang1,2,3,4*
  • 1Department of Otolaryngology Head and Neck Surgery, Xiangya Hospital, Central South University, Changsha, China
  • 2Otolaryngology Major Disease Research Key Laboratory of Hunan, Changsha, China
  • 3National Clinical Research Center for Geriatric Disorders, Xiangya Hospital, Central South University, Changsha, China
  • 4Anatomy Laboratory of Division of Nose and Cranial Base, Clinical Anatomy Center of Xiangya Hospital, Central South University, Changsha, China

Background: The endoscopic endonasal approach to removing lesions in the nasal cavity and sinuses has become the modern first choice. However, if endoscopic surgery is performed without proper knowledge of sinus anatomy, there is a risk of residual lesions, recurrence, and even serious complications. Therefore, this article illustrates the importance of precise sinus opening guided by the natural sinus drainage pathway, using the anatomy of the frontal sinus (FS) and the frontal recess (FR) cells as an example.

Method: A total of 82 sides cadaveric heads were dissected and analyzed, and the natural drainage pathways of the FR cells and FS were observed at 0°and 70°nasal endoscopic views, and the findings were summarized. The data of 79 patients who accepted endonasal endoscopic surgery (EES) guided by natural sinus drainage pathways to remove mucoceles in our department from January 2015 to January 2021 were retrospectively analyzed.

Results: Two natural drainage pathways of the FR cells were discovered, identified, and named the medial pathway of the FR (MPFR) and the lateral pathway of the FR (LPFR). The 79 patients who accepted EES to remove mucoceles through the natural drainage pathways of FR cells and the FS showed significant improvement in clinical symptoms, and none of them had recurrence after surgery without serious complications.

Conclusion: The EES of the FR cells and FS through the natural drainage pathways to remove the mucoceles facilitates exposure of the cells without residual lesions and without serious complications.

Introduction

The frontal recess (FR) cells have an extremely intricate anatomical structure. Bent and Kuhn proposed the International Frontal Sinus Anatomy Classification (IFAC) system, which divides FR cells into agger nasi cells (ANC), supra agger cells, supra agger frontal cells, supra bulla cells, supraorbital ethmoid cells, frontal septal cells, and supra bulla frontal cells (1, 2). These cells are described with frontal sinus (FS) wall as a landmark. The FS is located high, and if there is a lack of proper anatomical understanding, it is easy to mistake the other FR cells as it during endonasal endoscopic surgery (EES). Improper surgery is even more likely to cause serious complications (3, 4).

Mucocele is one of the most common benign lesions occurring in the paranasal sinuses (5). The frequency of occurrence is the highest in the FS, followed by the frontoethmoidal, ethmoid, maxillary, and sphenoid sinuses. Mucoceles were first described in the early 1700s, and the understanding of their natural course and management has continued to evolve since then. A mucocele is an encapsulated, expansile collection of fluid within the paranasal sinus, which occurs due to the obstruction of the ostium of the sinus (6). Obstruction of sinus drainage is the primary pathophysiology of paranasal mucocele. Primary mucoceles can occur without any obvious etiology. Secondary mucoceles can occur as sequelae of surgery or trauma (7). Mucoceles accompanied by infection may cause more harm to the associated tissues.

Endonasal endoscopic surgery is the main treatment modality for mucoceles. Due to its specific causative factors, we believe that EES removes the lesion by precisely opening the cells through the natural sinus drainage pathways, which is undoubtedly the best option for the treatment of mucoceles. Therefore, we collected the data of patients who accepted EES to expose the FR cells and the FS guided by the natural drainage pathways and to remove mucoceles in the past 6 years at our institution. Their postoperative outcomes and complications were investigated in order to clarify the importance of exposure cells through the drainage pathways of the FR and FS.

Materials and Methods

Study Design and Participants

A total of 82 sides of 45 adult cadaveric heads, 41 left and 41 right (some not used due to damage), were included in this study and dissected using 0° and 70° wide-angle nasal endoscopes, and anatomical images were collected for analysis. Then, we collected the clinical data from patients who accepted precision EES exposure sinus excision of mucoceles guided by the natural drainage pathways of the FR cells and the FS in our department between January 2015 and January 2021 and were followed up.

Brief Technical Notes

The right nasal cavity was examined using a 0° endoscope, and then the middle and horizontal portions of the uncinate process (UP) were removed while leaving the upper portion of the UP completely intact. With the aid of a 70° endoscope, the upper portion of the UP was partially removed to fully expose the ANC, the lateral cells of the FR (LCFR), and the medial cells of the FR (MCFR). The medial suprainfundibular plate (MSIP) separates the LCFR from the MCFR, and the lateral suprainfundibular plate (LSIP) separates the ANC from the LCFR. Under 0° endoscopic view, the ethmoid bulla (EB) was exposed, and after following its drainage pathways, the supra bulla cells of the EB (SCEB) and the cells of the EB (CEB) were opened and revealed along the drainage pathway. By removing all the bone to the attachment end, the FR cells and FS can be completely opened, as shown in Figure 1.

FIGURE 1
www.frontiersin.org

Figure 1. Surgical procedures of the anterior ethmoid sinus in an adult cadaver head (right). (A) The UP, MT, and EB of the frontal recess were examined with the aid of a 70° endoscope. The blue star shows the natural drainage pathway of the frontal recess. (B) The ANC was examined with the aid of a 70° endoscope. (C) The front-end bone plate was resected to expose the cells draining into the LCFR, and MCFR was examined with the aid of a 70° endoscope. (D) Drainage pathway for ethmoid bulla. (E) The front-end bone plate was resected to expose the cells of the ethmoid bulla. (F–H) Remove all bone plates to the terminal attachment to completely expose the anterior ethmoid sinus cells. The red dot shows the anterior sieve artery. (I) Hand-drawn anatomical drawings show the anterior ethmoid sinus cells were completely exposed. UP, uncinate process; MT, middle turbinate; EB, ethmoid bulla; ANC, agger nasi cells; LCFR, lateral cells of the frontal recess; MCFR, medial cells of the frontal recess; CEB, cells of the ethmoid bulla; SCEB, supra bulla cells of the ethmoid bulla; FS, frontal sinus.

Statistical Analysis

Descriptive data are presented as percentages for categorical variables and means with standard deviations for parametric continuous data. Statistical analysis was performed using the GraphPad Prism Software (version. 8.4.2).

Ethics Approval and Consent to Participate

This study was approved by the Xiangya Hospital Research Ethics Committee of Central South University (202006080). All patients provided written consent before participating in the study, which was conducted according to the Declaration of Helsinki.

Results

Anatomical Data of FR and FS

Of the 82 sides adult cadaveric heads dissected, it was found that ANC and LCFR drained from the LPFR, but ANC was not necessarily present in 19.5% (16/82) of the specimens, as shown in Figure 2. MCFR was drained from the MPFR. The FS drainage pathway could be located in the MPFR or in the LPFR, of which 87.8% (72/82) were located in the LPFR, as shown in Figure 3.

FIGURE 2
www.frontiersin.org

Figure 2. (A) The arrow points to the ANC. (B) This sample had no ANC and only LCFR. UP, uncinate process; MT, middle turbinate; ANC, agger nasi cells; EB, ethmoid bulla; MCFR, medial cells of the frontal recess.

FIGURE 3
www.frontiersin.org

Figure 3. (A) The drainage pathway of FS is located at MPFR. (B) The drainage pathway of FS is located at LPFR. FS, frontal sinus; LCFR, lateral cells of the frontal recess; MT, middle turbinate; EB, ethmoid bulla; MCFR, medial cells of the frontal recess; MPFR, medial pathway of the FR; LPFR, lateral pathway of the FR.

Population and Clinical Manifestation

This study included 79 patients who met the inclusion criteria and accepted surgical treatment for mucoceles between January 2015 and January 2021. The mean age of the patients in the study population was 49.2 years (range 20–81). There was a higher proportion of men in the study group, with 57% men and 43% women. The demographic characteristics of the patients and the etiology of mucoceles were presented in Table 1. Each patient was prescribed routine antibiotics after surgery (usually 3 days postoperatively). They were advised to use a nasal irrigator to rinse the nasal cavity two times a day after discharge, along with standardized nasal spray hormones. The patients visited our hospital for nasal cleanup approximately 2 weeks after discharge. We determined the need for a second cleanup based on the specific circumstances. The relationship between the patient's major clinical manifestations and the location of the lesion is shown in Table 2.

TABLE 1
www.frontiersin.org

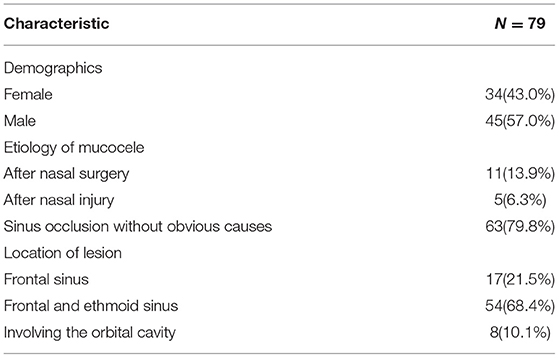

Table 1. Patients' demographic characteristics and etiology of mucocele.

TABLE 2
www.frontiersin.org

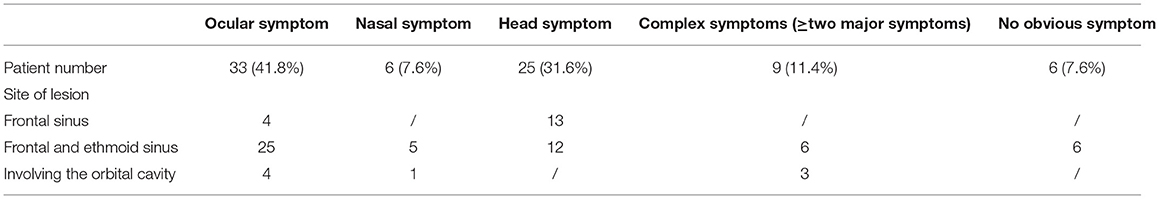

Table 2. Principal symptoms and site of lesion in the study participants (n = 79).
