Nanoparticles in thermotropic and lyotropic liquid crystals

Over the last few decades many applications of liquid crystals have been developed, including the widely employed technology of low-power, flat-panel liquid crystal displays (LCDs), but also sensors, photonic devices and other non-display applications employed in medicine and drug delivery. In recent years, the research trends have shifted in other directions. Nanotechnology and nanoscience have garnered significant attention in liquid crystal research since various nanomaterials or nanoparticles (NPs) can be added directly to the liquid crystalline mesogenic phases. The main idea is to modify the physical properties of liquid crystals or to increase their functionality through the addition of nanomaterials, but also to exploit the self-assembly and spontaneous ordering of LCs into structures or patterns that can be templated by dispersed particles. The neat liquid crystals and the doped nanoparticles/nanomaterials exhibit different behaviours when mixed together. The nanoparticles can influence the alignment and orientation of liquid crystals, and their interaction with the liquid crystals causes the changes in the optical, electrical, and mechanical characteristics of the composite. At the same time the liquid crystal can affect the ordering, structuring and properties of the nanomaterials, for example by transfer of helical order. In this review, we discuss the effects of nanoparticles dispersed in liquid crystals. Several categories of nanomaterials such as metallic, carbon allotropes, nanorod and nanowires will be introduced, together with particles of additional functionality, like ferroelectricity, semiconductors and quantum dots. The combination of liquid crystals and nanoparticles leads to a wide range of applications and novel technologies.

1 Introduction

Liquid crystals (LCs) are a stable thermodynamic state of matter between the solid and the liquid phase, also known as mesophases. This mesophase materials exhibit flow behaviour like a liquid as well as the anisotropic physical properties, as they are often observed in crystals (Collings and Hird, 2017; Engels and von Rybinski, 1998). In general, liquid crystals are considered to be viscous, elastic, anisotropic liquids, thermodynamically distinct from the solid and the isotropic liquid. These materials have a molecular arrangement, in the simplest case exhibiting orientational order of rod-like or disc-like molecules, on average along a common direction called the director n (Ohzono and Fukuda, 2012). This orientational director can easily be manipulated by applied external forces such as electric or magnetic fields, but also mechanical fields or even optical fields, in order to change the optical and electrical properties (Lee et al., 1998; Chuang et al., 1991).

Typically, there are two general categories of liquid crystal: thermotropic (Kumar and Brock, 2001; Oswald and Pieranski, 2005) and lyotropic (Neto and Salinas, 2005; Petrov, 1999) liquid crystals. Thermotropic LCs exhibit liquid crystalline behaviour when varying temperature. The molecules forming the LC phases have anisotropic shapes, such as rod-like or disk-like. Thermotropic liquid crystal molecules often exhibit a series of different phase transitions with increasing temperature (Olmsted and Goldbart, 1992). As the temperature is increased, a thermotropic liquid crystal usually transforms from a solid crystalline phase to smectic phases (SmC, SmA), with one- (or higher) dimensional positional order in addition to the orientational order along the director. Further heating then often results in the formation of the nematic phase, which solely exhibits orientational order, and finally the isotropic liquid.

On the other hand, lyotropic liquid crystals (LLC) are molecules or anisotropic nanoparticles dispersed in an appropriate isotropic solvent to form a liquid crystalline state when a specific concentration is reached. LLC are often composed by self-assembly of amphiphilic or chromonic molecules, or anisotropic particles, which can be inorganic, minerals, clays, nanorods, nanowires or sheets, but also of biological nature, such as tobacco mosaic viruses (TMV) or cellulose nanocrystals (CNC), dispersed in a solvent, often water. The formation of lyotropic LCs is more complicated than thermotropic LCs since the liquid crystalline state is sensitive to change not only of temperature but also of each component’s concentration (Lagerwall and Scalia, 2012). With increasing the concentration, lyotropic amphiphilic LCs usually exhibit various phases. First, the molecules may assemble into spherical or rod-like micelles, then further aggregate to a hexagonal phase (sometimes also cubic phases are observed) and finally a lamellar phase (Dierking and Martins Figueiredo, 2020) before the inverted phases are observed.

Since the 1960s, LCs have attracted intensive attention due to their unique optical properties, especially in the display industry. The application of Liquid Crystal Displays (LCDs) has significantly changed human’s lifestyle. Despite the fact that today these displays have matured technologically, liquid crystals still exhibit a tremendous potential in other research fields, for instance sensors, energy conversion, novel optics, telecommunication, composite materials, biomedicine and biotechnology (Lagerwall and Scalia, 2012; Stannarius, 2009; Jakli, 2010; Dellinger and Braun, 2004; Kim Y. H. et al., 2011; Sivakumar et al., 2009; Kularatne et al., 2017; Kumar, 2006; Woltman et al., 2007). In addition, much effort has been invested into nanotechnology and nanoscience on the basis of liquid crystals and their self-organisation. The field of nanotechnology continues to play a major role in both academia and industry due to its ability to create, explore and exploit materials with unique structural characteristics. These materials have a dimension constrained to the colloidal range from nanometres to several hundreds of nanometres. This nanoscale and the related high surface area leads to unique properties that are significantly different from atoms or molecules, as well as bulk materials. Combining the fields of liquid crystals with nanomaterials opens the doors to a wide range of applications and developments for example in switchable photonics, tuneable metamaterials and the like.

Liquid crystals consist of anisotropic molecules that align in a preferred direction. The orientational direction of the director can be controlled and manipulated by external forces, which can be electric, magnetic, or mechanical in nature. The inherent anisotropic orientation of liquid crystals provides an opportunity through synthesis in LC media, self-organisation, or both in combination, to construct well-defined nanoscale structures. When the nanoscale materials are dispersed into liquid crystals, a wealth of interactions between the host and the particles may be observed (Hegmann et al., 2007; Saliba et al., 2013) such as van der Waals interactions, polar interactions, hydrogen bonding or excluded volume interactions. The resulting composite or dispersion exhibits distinct properties that differ from those of the individual components.

In general, there are several prime groups of nanomaterials that have been used as dopants in LCs, (1) metal nanoparticles, (2) carbon allotropes, (3) inorganic nanorods and nanowires, which can also be semiconducting and ferroelectric, and (4) biomaterials. The choice of dispersion material depends on the desired structure-property relation to be modified and the desired functionalities of the nanomaterial-LC composite (Lapanik et al., 2012; Pal et al., 2015; Dierking, 2019; Singh et al., 2014). In this review, we divided the applications and effects of nanomaterial-liquid crystals composites roughly into these different categories for further discussion. Let us now delve into this exciting field of research and explore some of its findings.

2 Motivation

In general, there are three motivations for doping nanomaterials in liquid crystals: (1) use of the particles to enhance the relevant physical properties of the liquid crystalline phases, such as dielectric anisotropy, electric conductivity, birefringence, viscosity and their related electro-optic parameters, for example threshold voltage (V_th), required switching fields, or response times. (2) to improve the orientational order and display parameters of liquid crystalline materials. Here, substrate coatings by nanomaterials can be used to improve LC alignment, produce different device geometries or simply improve the LC order parameter and its physical parameters related to the latter. These aspects are also closely related to the use of liquid crystals in sensors. (3) to enhance the stability of individual phases, tailor the phase transition temperature in phase change processes, or influence the phase sequence. Novel, often frustrated phases can be induced through the dispersion of nanomaterials; already existing phases can be extended and stabilised, for example Blue Phases and other frustrated phases.

When nanomaterials are introduced into a liquid crystal system, the new materials are expected to show different behaviour from the individual components (pristine liquid crystals and nanomaterials) (Goodby, 2011; Poulin et al., 1997; Lehmann et al., 2001; Dierking, 2018; Yu et al., 2016; Garbovskiy and Glushchenko, 2010). The incorporation of nanomaterials into liquid crystals leads to changes in their properties. The nanomaterials influence the parameters that give rise to thermal, electro-optical, and dielectric properties (Garbovskiy and Glushchenko, 2010; Shiraishi et al., 2002; Miyama et al., 2004; Manohar et al., 2009; Li et al., 2013; Manepalli et al., 2018). The interaction in the LC-nanomaterial composite alters their alignment and phase behaviour. The presence of nanomaterials may enhance the phase stability and widen the temperature range of liquid crystalline phases, which has especially been demonstrated for the blue phases (Bukowczan et al., 2021) which are of interest for novel displays based on the Kerr effect and without the need for alignment layers. The stability of the composite LC phase depends on the factors such as their type, size and shape of the nanomaterial and their anisotropic effects. One example of a complex structure is the Blue phases (BPs), which represents a self-assemble cubic defect structure featuring a local double-twist structure. BPs exhibit unique optical properties such as macroscopic optical isotropy or 3D photonic band gaps and attracted interest in optical devices for example optical fibre sensors (Moreira et al., 2004; Cao et al., 2002). A critical parameter that limits the exploitation of Blue phases is the extremely narrow temperature range in which they occur (Coles and Pivnenko, 2005). By doping a Blue phase liquid crystal mixture with spherical gold nanoparticles, the temperature range could be increased from 0.5 to 5 K. The nanoparticles assemble within lattice disclinations, thereby stabilising the Blue phase structure by lowering the free energy of the system (Yoshida et al., 2009). Another example involves the introduction of surface-functionalised semiconducting nanoparticles into liquid crystals mixtures. Increasing the concentration of nanoparticles significantly widens the Blue phase temperature range, resulting in a robust and stabilised Blue phase structure. This phenomena is greatly enhanced when the nanoparticles are strongly attracted to disclination lines (Karatairi et al., 2010). Only at very high concentrations, when all the defects are filled with nanoparticles, is the system destabilised again and the phase regime of the Blue Phase decreases again.

The dispersion of 0-D nanoparticles, 1-D nanorods or nanotubes and 2-D nanoplates can enhance the self-assembly and order of liquid crystals and promote alignment of nanomaterials themselves. In this way, by the transfer of self-organised order, the liquid crystal can assemble and manipulate particles (Musevic et al., 2006). Moreover, liquid crystals can serve as templates during the synthesis of materials (Wang et al., 2020; Bisoyi and Kumar, 2011; Grzelczak et al., 2010). Self-assembly is the autonomous process in which nanoparticles and other components organise into characteristic structures through various interactions (Whitesides and Grzybowski, 2002; Goodby et al., 2008). By introducing patterns of nanoscale particles, the alignment and ordering of liquid crystals can be controlled. Furthermore, the dispersion of nanomaterials alters the self-organised structures of LCs (Hegmann et al., 2007). The characteristics of nanomaterials such as particle size, composition, shape, and morphology can influence the self-organisation of liquid crystals (Gonçalves et al., 2021; Tripathi A. K. et al., 2013). Nanomaterials can have a profound influence on the orientation of liquid crystals, due to their small elastic constants, so that (in contrast to solid state materials) nanoparticle induced deformations extend largely into the director field. Nanoparticles further exhibit a high surface area, which increases the surface interaction with the liquid crystal molecules. The incorporation of nanomaterials into a liquid crystal influences the alignment and ordering of this LC, leading to the potential of orientational control. The orientation of LCs can be aligned by either doping nanoparticles into the bulk LC or by depositing and growing nanostructure on the substrates (Priscilla et al., 2023). In Brochard and Gennes’s work (Brochard and De Gennes, 1970), a low concentration of magnetic nanoparticles was dispersed into a liquid crystal to create a magnetic suspension and control the liquid crystal director via external magnetic fields. The system is like a ferrofluid with an anisotropic liquid as carrier fluid. The application of an external magnetic field reoriented the dispersed ferromagnetic particles and the surrounding liquid crystal molecules underwent a change in orientation and alignment via elastic coupling. Such materials were first wrongly called ferromagnetic nematics, while they should rather be seen as ferrofluids with an anisotropic carrier fluid. True ferromagnetic nematics were only recently discovered by Mertelj (Mertelj et al., 2013; Mertelj et al., 2014).

LCs are anisotropic media and characterised by long-range orientational order, making them well-suited for the dispersion of elongated nanoparticles. For instance, when carbon nanotubes are dispersed in a nematic liquid crystal, the interaction between the carbon nanotubes and the LC results in an increased dielectric anisotropy and a slightly enhanced orientational order (Basu and Iannacchione, 2010). The dispersion of single-wall carbon nanotubes in nematic liquid crystal has also been reported to lead to a decrease of the elastic splay constant, and threshold voltage (Singh et al., 2018a). Nanoparticles with anisotropic properties, such as rod-like or colloidal nanoparticles, when dispersed in liquid crystals, induce an amplified nematic orientational coupling (Li et al., 2006a). Additionally, the changes in LC orientation result in texture changes and modified transition temperatures are observed (Pal et al., 2019). Conversely, liquid crystals can also rearrange the orientation of nanomaterials through elastic interactions while reorienting the director field (Yada et al., 2004; Schwartz et al., 2016).

3 Metal nanoparticles in LCs

3.1 Gold, Au nanoparticles

Metal nanoparticles are widely used to tailor the properties of liquid crystals, and in turn, liquid crystals can tune the properties of metal nanoparticles (Qi and Hegmann, 2006; Barmatov et al., 2004; Yoshikawa et al., 2002; Mitov et al., 2002; Müller et al., 2002). Over the past few decades, metal nanoparticles have been extensively employed due to their size-dependent properties, unlike bulk metals. These nanoparticles exhibit quantum confinement of free electrons. When the nanoparticles absorb light at a frequency matching the natural frequency of the collective electron oscillation, the free electrons on the surface oscillate coherently. This collective oscillation of free electrons is known as surface plasmon resonance (SPR). Due to the strong interaction of the incident electro-magnetic field with the free-electron cloud at the nanoparticles surface, this resonance leads to the absorption and scattering of light, resulting in unique optical properties (Myroshnychenko et al., 2008; Choudhary et al., 2014). In most studies concerning metal nanoparticles and LCs, nano gold is commonly used as a dopant. Gold nanoparticles exhibit SPR in the visible region, and gold is chemically inert and resistant to oxidation, which would change the properties of the nanoparticles.

The occurrence of SPR in gold nanoparticles enables numerous applications, because the SPR peak can be tuned by changing the size of particle or the dielectric constant of the surrounding medium (Su et al., 2003; Liu et al., 2010). Liquid crystals are particularly suitable as a medium for gold nanoparticle due to the fact that the dielectric constant of LCs can be easily changed through director reorientation by applied external electric fields, reorienting the shape-anisotropic molecules. Gold nanoparticles with SPR can be dispersed within a liquid crystal matrix, offering the potential to harness the unique optical properties of the gold nanoparticles and tune the characteristics of the liquid crystal. When gold nanorods are dispersed in LCs, they can be aligned along the host LC via self-organisation and without external fields applied, thereby allowing for a voltage-controlled tuning of the plasmonic response and the absorption spectra of gold nanorods in liquid crystals (Chu et al., 2006). By applying external magnetic fields or mechanical fields via shear forces, the alignment and reorientation of the liquid crystal may also be achieved, leading to a long-range orientational order of well-dispersed plasmonic nanorods. Consequently, this results in a switchable polarisation-sensitive plasmon resonance that exhibits distinct differences from the behaviour of the nanorods in isotropic fluids (Liu et al., 2010).

Figure 1 illustrates a schematic representation of gold nanorods dispersed in a nematic LC, where the nanorods align with the director field n(r) of the host matrix. Orientational order is caused by self-assembly, and the director field is controlled through the LC-surface interactions with the substrates, obtained by unidirectional rubbing. Müller et al., (2002) investigated the surface plasmon splitting of a gold nanoparticle coated with a nematic liquid crystal, finding that the surface plasmon resonance frequency in the scattering cross section depends on the angle between the director and the polarisation of incident light. Later, Park et al. (Park and Stroud, 2004) reported that surface plasmon splitting enables the production of a measurable surface plasmon frequency when the nanorod is oriented in the same direction within the host NLC. However, it was observed that the director field is influenced near the metal surface, and that the surface plasmon splitting is thus reduced (Stark, 2001). When a liquid crystal coated gold nanoparticle is considered, the surface deformation of the liquid crystal can enhance the surface plasmon splitting. Under an applied field, two boojum defects are induced on the surface of the nanoparticle, leading to an enhancement of the peak splitting in the scattering cross section through surface deformation (Park and Stroud, 2005). Liu et al., (2014a) engineered plasmonic guest−host LCs, capable of switching material properties and controlling light propagation across visible and infrared spectral ranges. This involved the controlled dispersion of anisotropic metal nanoparticles in nematic LC [5CB, (4-cyano-4′-pentylbiphenyl)] hosts, enabled by controlled weak anisotropic interactions between the surfaces of nanoparticles and the LC host (Zhang et al., 2015).

Figure 1

Figure 1. (A) Schematic illustration of a gold nanorods with surrounded by rod-like LC molecules depicted in cyan. The inset shows a vial with the gold nanoparticle-5CB dispersion. 5CB is one of the commercially available standard room temperature nematic liquid crystals. (B) Schematic of dispersed nanorods following director n (Liu et al., 2014a).

The gold nanoparticle-liquid crystal composites are typically prepared by dispersing capped nanoparticles (as shown in Figure 2) into an LC in the isotropic phase, followed by ultrasonication over an extended period of time. The capping procedure helps to control the miscibility, prevents agglomeration, and maintains the stability of the composite (Qi et al., 2009; Khatua et al., 2010). Different types of capping using organic/inorganic and biological/inorganic blocks, and the role of the capping in the LC mixture have been discussed (Daniel and Astruc, 2004; Qi and Hegmann, 2011). The solubility of gold nanoparticles is significantly enhanced when the capping material exhibits a chemical structure similar to that of the liquid crystal molecule. The doping of metallic nanoparticles, such as gold, increases the birefringence of the liquid crystal, and the enhancement of birefringence is influenced by the sizes and concentration of the nanoparticles (Li et al., 2013). Elkhalgi et al. (2018a) investigated the gold nanoparticle-doped nematic liquid crystal 6CHBT composite. They observed the dielectric and electric properties and found that the threshold voltage decreased, while the phase transition (nematic to isotropic) temperature (T_NI) and the dielectric permittivity of the composite slightly increased. These effects were attributed to the presence of gold nanoparticles, which increased the nematic order parameter. When gold nanoparticles were dispersed in the nematic LC 5CB, the nematic to isotropic phase transition temperature significantly increased, and the dielectric anisotropy and threshold voltage decreased. Here, the changes were attributed to the formation of anti-parallel dipoles and the availability of extra space for ionic movement in the composite (Pandey et al., 2011), where the anti-parallel dipoles are related to the stability of the nematic phase. Furthermore, when a small concentration of gold nanoparticles (0.02 g solution of 10^–10 M Au-NPs dispersion) was doped into a polymer-dispersed liquid crystal (E44), the threshold voltage decreased, resulting in a lower switching-on electric fields and the optical transmission was increased (Hinojosa and Sharma, 2010). Also in the case of gold nanoparticles dispersed in ferroelectric liquid crystals (Felix (17/100)), a lower threshold voltage and enhanced optical properties were observed (Kaur et al., 2007). Additionally, a significant enhancement in the photoluminescence intensity was reported by about an order of magnitude (Kumar et al., 2009). A non-volatile memory effect was observed when gold nanoparticles were doped into a deformed helix ferroelectric liquid crystal (DHFLC). This effect is caused by the electric field induce charge transfer from the LC to gold nanoparticles and the stabilisation of helix deformation of LC (Prakash et al., 2008). The charge is stored around the gold nanoparticles and changes the properties of the LC. When a bias field is applied, the cell undergoes a switching mechanism. However, when the bias field is removed, the charges cannot recombine, causing the memory effect.

Figure 2

Figure 2. Schematic illustration of mesogenic monolayer-capped gold nanoparticle (GNP) (Choudhary et al., 2014).

The electrical conductivity obviously increases by doping gold nanoparticles in the nematic liquid crystals (Prasad et al., 2014; Krishna Prasad et al., 2006), however, the influences on the nematic-isotropic transition temperature of the composite are not consistent. The formation of nanoparticle chains causes the increased conductivity (Holt et al., 2024), reminiscent of a percolation system. Similar phenomena have also been observed with the use of other nano-metals such as silver (Singh et al., 2013), copper (Yaduvanshi et al., 2015) and nickel (Raina, 2013).

The studies mentioned above suggest that nematic LCs are mainly employed to adjust the SPR of gold nanoparticles by tuning the external electric field and temperature conditions. Milette et al. (Milette et al., 2012) reported the formation of structures in high concentrations (5 wt%) of gold nanoparticles dispersed in nematic liquid crystals (5CB). The gold nanoparticles were coated with a mesogenic layer designed to be miscible with the LC (Figure 2). While the mixture was cooled from the isotropic liquid to the nematic liquid crystalline phase, the nanoparticles formed a reversible micron-scale network on cooling across the clearing point by enrichment of the NPs at the nematic-isotropic liquid interfaces (Figure 3). As the film thickness increased to approximately 70 µm, large nematic droplets formed, causing the gold nanoparticles to concentrate in the remaining isotropic liquid region, and resulting in the formation of thick strands. Within each branch, smaller droplets nucleated, as depicted in Figure 3 (d, inset), while the remaining liquid crystal exhibited the nematic Schlieren texture (Figure 3D).

Figure 3

Figure 3. POM images of 5 wt% gold nanoparticles dispersed in 5CB. (A, B) using untreated 20 µm thick glass cell, resulting in a network of branches and no nodes with Schlieren texture mixed with homeotropically aligned LC. (a, inset) the network starting with nucleating radial nematic droplets. (C, D) using untreated 70 µm thick cell, displaying nematic Schlieren texture. (d, inset) A cellular network is formed with stable radial director configuration. (A, C) with parallel polarisers, (B, D) with crossed polariser (Milette et al., 2012).

Lyotropic liquid crystals are self-assembled structures composed of amphiphilic molecules or anisotropic particles in combination with an isotropic solvent, often water. Cellulose, an abundant natural biopolymer found in the cell walls of plants, is widely available in nature, making it an inexhaustible material on earth (Brinchi et al., 2013). It is composed of thousands of long chains of sugar units, high molecular weight polysaccharide (Park et al., 2010). Due to the highly ordered structure of cellulose fibres, it can form nanocrystals which in turn assemble to lyotropic liquid crystals when dissolved in suitable solvents, often exhibiting selective reflection, known as Bragg reflection of a wavelength related to the helical pitch of the cholesteric phase (Rojas, 2016). This is particularly of interest when the pitch lies in the visible range.

Cellulose nanocrystals (CNCs) can form lyotropic liquid crystals, in particular helical cholesteric structures, and their incorporation alongside nano gold particles enables the development of functional thin films for applications. The liquid crystal self-organised order of CNCs into a helix acts as a template and provides a structural framework for the dispersed gold particles within the liquid crystal. Gold particles can be adsorbed or bound to the nanocrystals, influencing the morphology and ordering of the mixture. The plasmon properties of nano gold such as surface plasmon resonance (SPR), interact with light to produce enhanced optical responses (Islam et al., 2018). Gold nanorods-CNC composite plasmonic films exhibit strong plasmonic optical activity, which depends on the photonic properties of the CNC host and plasmonic properties of the gold nanorods (Querejeta-Fernández et al., 2014; Liu et al., 2014b). In particular, chiral plasmonic films can be formed. The combination of gold NPs and CNCs provides materials with various applications in optics and sensing. Further investigations involving gold nanoparticles and lyotropic LCs focus on improving optical and electro-optical properties of the dispersions (Shadpour et al., 2019; Liu X. et al., 2019).

3.2 Silver, Ag nanoparticles

Metal nanoparticles are widely and extensively studied because of their exploitable optical properties. Silver (Ag) nanoparticles are one of the popular and widely used variety of metal nanoparticles due to their high electric and thermal conductivity, their chemical stability, the calorimetric effect at nanoscale range and medical application potential (Gittins et al., 2000; Haynes et al., 2003; Crooks et al., 2001). Vimal et al. (Vimal et al., 2017) reported the influence of silver nanoparticles dispersed in ferroelectric liquid crystals (W343). The orientation of nanoparticles in the composite affects the ordering of the LC phase, as shown in Figure 4, the strong repulsive forces between the LC and nanoparticles form the self-assembled 2D-arrays, orientated perpendicular to the rubbing direction, resulting in a modified phase transition, molecular alignment and electro-optics properties.

Figure 4

Figure 4. Schematic illustration of a cross sectional view from the X-Z plane of the silver nanoparticles dispersed in a ferroelectric smectic liquid crystal system, revealing two-dimensional arrays of nanoparticles between the smectic layers. Disconnecting smectic layers with deformation of layers can be realised due to the 2D array of nanoparticles (Vimal et al., 2017).

When a small amount of Ag (0.02wt% and 0.05wt%) nanoparticles is doped into the nematic LC 6CHBT, some important physical parameters change (Singh et al., 2013). It was thus observed that the threshold volyage decreases, as does the elastic constant. This is most likely due to a decrease in local order in the vicinity of the nanoparticles, due to their boundary conditions, which locally disturbs the far-field orientational order of the nematic, this decreasing the elastic constant which in turn reduces the threshold voltage. The dielectric anisotropy is very slightly reducedby the addition of the nanoparticles, while the conductivity anisotropy is substantially increased (Singh et al., 2013). Tripathi et al. also found that the silver nanoparticles decrease the dielectric anisotropy, threshold voltage and elastic constant (Tripathi et al., 2018). Additionally, when CNCs are combined for example with silver nanowires, plasmonic optical activity and a tuneable chiral distribution of aligned silver nanowires with long-range order can be achieved (Chu et al., 2015). Table 1 provides a short summary of liquid crystals doped with metal nanoparticles.

Table 1

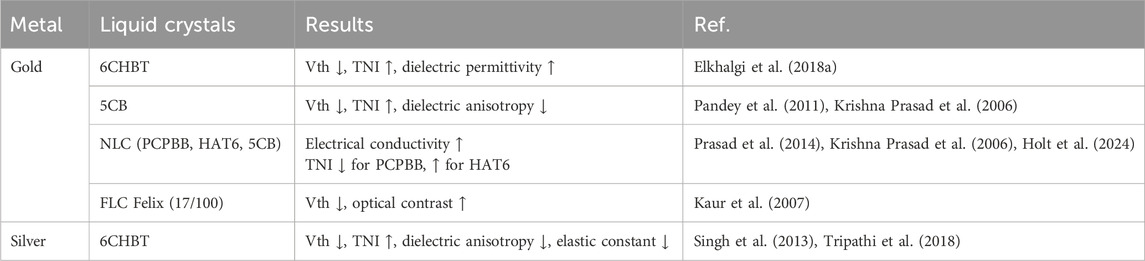

Table 1. Effect of metal nanoparticles on the electric properties of liquid crystal.

4 Carbon nanoparticles

Another class of nanomaterials that has gained popularity as a dopant in liquid crystals are carbon-based nanomaterials (Clancy et al., 2018; Lisetski et al., 2014; Dolgov et al., 2010; Kumar et al., 2021). Carbon nanomaterials can be categorised into three groups based on their dimensionalities, including fullerenes (0-D), nanotubes (1-D), and graphene derivatives (2-D).

4.1 Fullerenes

Fullerenes are hollow spherical and ellipsoidal molecules composed of 60–70 carbon atoms, arranged in pentagonal and hexagonal patterns. Owing to their unique aesthetic structure and extraordinary properties, fullerenes have generated significant interest (Kroto et al., 1985). The investigation into the dispersion of carbon nanomaterials in liquid crystals began in the early 1990s when Dolganov et al., (1993) first doped the rugby ball-shaped fullerene C70 into a thermotropic liquid crystal, and the polarised absorption spectrum of C70 indicated orientational ordering of the C70 fullerene molecules. Among various fullerenes, C60 has been more frequently and extensively studied. The C60 molecule is a strong electron acceptor, forming corresponding anions, and its molecular structure is spherically symmetric (Li et al., 2012). The studies of fullerenes doped into liquid crystals have primarily focused on enhancing the electrical and electro-optic properties of the composite. The presence of fullerene in liquid crystals changes the photoconductivity, refractive index and dielectric anisotropic properties (Okutan et al., 2005a; Okutan et al., 2005b).

Shukla et al., (2014) reported the dispersion of C60 in a ferroelectric smectic C* liquid crystal and investigated the electro-optical parameters and dielectric responses of the fullerene-FLC composites. As a result, the switching time of the liquid crystal was significantly reduced, showing approximately a 76% increase in speed with a 0.5 wt% of C60. Additionally, the presence of fullerene in liquid crystals can enhance the phase stability of the composite, which is particularly significant for Blue Phases, (BP). One approach to broaden its temperature regime was via polymer-stabilisation (Kikuchi et al., 2002). However, the effectiveness of polymer-stabilisation strongly depends on specific polymer-liquid crystal mixtures, and the consistent observation of BP phase stabilisation remain elusive. Draude et al., (2020) reported the dispersion of a low concentration (0.03 wt%) of C60 in the liquid crystal CE8, which resulted in an expansion of the temperature range of the blue phases from 0.5°C to ∼4°C. The width of the chiral nematic phase decreased to accommodate the stabilised blue phase. The small amount of C60 fullerene exhibited a positive impact on the stabilisation of the Blue phase. Since the BP is composed of mutually orthogonal double twist cylinders, which in three-dimensional space cannot be realised without the introduction of defects. These defects form a cubic body- or face-centred lattice at the expense of the free energy. Given their small size, the fullerenes can pack within the space of defects and disclination lines, thus reducing the total free energy of the system. Consequently, the stability of the blue phase is enhanced.

Vovk et al., (2012) reported that a higher concentration of the modified fullerenes (0.1–0.3 wt%) in nematic LC E25M increased electrical conductivity. This is most likely due to residual impurities in the fullerenes, such as metals used during the catalytic synthesis.

Instead of dispersing fullerenes within a liquid crystal phase, it was also demonstrated that fullerenes can be molecularly incorporated into mesogens. In that case the primary application of fullerenes is as a fundamental building block within a mesogenic molecule. In 1996, Chuard and Deschenaux (Chuard and Deschenaux, 1996) first synthesised a molecule containing fullerenes that exhibited thermotropic liquid crystal behaviour. The synthesis was constructed from two cholesterol derivatives bridged through a methano-fullerene structure. The bulky C60 groups hinder the crystallisation.

4.2 Carbon nanotubes

Carbon nanotubes (CNTs) are highly isodiametric, quasi-1D materials with a large aspect ratio (long and thin cylinders), and were discovered in 1991 by Iijima and Ichihashi (Iijima, 1991). CNTs are exist in two basic varieties, which are single-walled carbon nanotubes (SWCNTs) and multi-walled carbon nanotubes (MWCNTs) (Proctor et al., 2017). The former are composed of a single layer hollow cylinder carbon, much like a rolled-up sheet of graphene, while the latter are formed by several concentric cylinders. CNTs can have different electronic structures, depending on their configuration, armchair or zigzag and chiral; therefore, they can be semiconductors (MWCNT) or conductors (SWCNT). In the case of conductive nanotubes, the conductivity along the tube axis is much larger than in the radial direction (Reich et al., 2008; Collins and Avouris, 2000). CNTs are highly anisotropic materials and exhibiting a large elastic modulus in direction of the tube axis. The first application of adding carbon nanotubes to liquid crystals was the doping of a thermotropic liquid crystal with multi-walled nanotubes to create diffraction gratings (Lee and Chiu, 2001; Lee et al., 2001). The anisotropic liquid crystal molecules oriented the nanotubes, and then the LC was removed to acquire well-oriented nanotubes (Lynch and Patrick, 2002). In 2004, Dierking et al. (Dierking et al., 2004) reported the behaviour of SWCNTs and MWCNTs dispersed in the nematic liquid crystal E7. In the observation by scanning electron microscopy (SEM), the carbon nanotubes tended to aggregate into larger fibrils, as shown in Figure 5A. After dispersing the single- and multi-walled nanotubes within the liquid crystal, these fibrils further aggregated and aligned along the director of the liquid crystal, as shown in Figure 5B. The nanotubes are mainly oriented along the director, indicating that the orientational order of the LC can be employed to orient the nanotubes on a large scale; the LC director field thus acts like a template for nanotube ordering. Conductivity measurements illustrate a slight increase in the threshold voltage, which is attributed to the interaction between the oriented nanotubes and LC. Above the threshold voltage, the conductivity increased rapidly for the CNT-doped sample due to the spatial reorientation of CNTs following that of the director. These results imply that the LC can not only orient but also reorient carbon nanotubes (Dierking et al., 2005). Figure 6 summarises the reorientation process. Above the threshold voltage, when the applied electric field is active, the LC-CNT dispersion orients into a homeotropic director orientation. The nanotubes follow the liquid crystal director due to elastic interactions and form an oriented conducting percolation network between the two planar electrodes, as shown in Figure 6A. Once the electric field is removed, the LC molecules reorient back to planar orientation due to the cell boundary conditions, resulting in a disruption of the conduction contacts of the nanotube percolation network (Figure 6B). The second reorientation process is attributed to the elastic interaction between the LC and the nanotubes. This elastic interaction causes the nanotube bundles to acquire the orientational order of the LC director field, leading to the reorientation of the nanotubes bundles back to the planar, non-conductive orientation (Dierking et al., 2008). For liquid crystals with negative dielectric anisotropy the reorientation progresses in the opposite way. The CNT doped negatively dielectric nematic under homeotropic boundary conditions shows a strong conductivity, which is largely reduced under electric field application, switching the LC into a planar orientation and the nanotubes following due to elastic interactions. One can thus construct off-on as well as on-off nanotube switches using liquid crystals as a reorientation matrix.

Figure 5

Figure 5. (A) SEM images of the employed nanotube materials. MWCNTs aggregate into fibrils (left). These fibrils are not simple carbon fibres; at a larger magnification of 12.7 k (scale bar 2 µm), the individual MWNTs can be resolved (right). (B) Polarising microscope image of E7-MWCNT dispersion with MWCNT fibrils oriented along the nematic director (Dierking et al., 2004).

Figure 6

Figure 6. A schematic model of the liquid crystal–nanotube dispersion reorientation describing the two-step reorientation process as can be observed in conductivity measurements. (A) The initial conductive state where nanotube bundles form a conducting percolation network oriented along the liquid crystal director field. (B) Sudden reduction of the electric field below the Freedericksz threshold causes a liquid crystal director reorientation from the homeotropic to the planar state, which in turn disrupts the nanotube percolation network, causing a rapid decrease in conductivity (C) Elastic interactions between the nanotube bundles and the liquid crystal matrix cause an orientational reorientation of the nanotube bundles (Dierking et al., 2008).

Additionally, instead of using electric field control of the orientation of nanotubes, a magnetically-controlled LC-CNT device has been introduced to manipulate the orientation (Dierking and San, 2005). As the magnetic field reorients the LC from planar to homeotropic alignment, the elastic interaction between LC and CNTs reorients the nanotubes to homeotropic direction above the magnetic threshold field which is in the magnetic case cell gap dependent. In contrast to the electric field, the Freedericksz threshold voltage is independent of the cell gap. However, the threshold magnetic field is inversely proportional to the cell gap.

It has been reported that CNTs dispersed in liquid crystals enhance the electro-optic properties (Shukla et al., 2018; Lee et al., 2004; Baik et al., 2005). Singh et al., (2021) reported the dispersion of MWCNTs increased the permittivity, dielectric anisotropy and enhanced the orientational order of nematic liquid crystals. In the composite of SWCNTs and the nematic LC 3017, there was a decrease in the threshold voltage observed, an enhancement in the nematic ordering of the LC host, and an increase of the dielectric anisotropy. The authors suggested that the interaction between the nanotubes and liquid crystal decreased the splay elastic constant of the dispersed system, causing the decrease in the threshold voltage (Singh et al., 2018b). However, the threshold voltage of CNTs-LC varies with the concentration of nanotubes. With a larger amount of nanotubes (0.5%), the elastic constant of the composite increases since the large amount of CNTs cause a compact network aggregate (Ibragimov and Rzayev, 2020). For different LC host materials, the switching behaviour of CNT-LC differs, some results suggesting a decrease of threshold voltage for low nanotube concentrations while an increase could be observed at larger CNT concentrations (Scalia et al., 2007; Schymura and Scalia, 1988). The electro-optic and dielectric properties of carbon nanotubes dispersed in ferroelectric liquid crystals were discussed. Increasing nanotube concentration was found to lead to a decrease in tilt angle yet larger spontaneous polarisation (Yakemseva et al., 2014).

Nanotubes also exhibit a stabilising effect on the Blue Phases. A small amount of SWCNTs doped into CE8 increases the temperature range of the Blue Phase from 0.5 to 4 K (Draude et al., 2020). This increase in phase stability can be explained through a lowering of the free energy density due to nanotubes agglomerating within the Blue Phase defect lattice.

Onsager (1949) described a theory of anisotropic colloids ordering due to the effects of shape by purely repulsive, steric, excluded volume interaction of the dispersed colloids. When the solution concentration exceeds a critical concentration, this leads to a decrease in entropy, causing the anisotropic particles to align and form a liquid crystalline phase. Carbon nanotubes (CNTs) are isodiametric rod-like molecules with a large aspect ratio (long and thin cylinders). DNA modified CNTs (to increase solubility) were shown to exhibit a lyotropic nematic liquid crystal phase when dissolved in an isotropic solvent (Jiang et al., 2007; Song et al., 2003; Bravo-Sanchez et al., 2010; Lu and Chen, 2010; Song and Windle, 2005). Dispersing CNTs in an isotropic solvent is a challenging task, due to their low dispersibility in their natural state. Chemical modification with DNA or in fact covalent bonding of mesogens increases the dispersibility of nanotubes, such that lyotropic liquid crystalline nematic phases have been observed, sometimes also by increasing the CNT concentration via solvent evaporation (Schymura and Scalia, 1988; Jiang et al., 2007; Song et al., 2003).

Song et al. (2003) reported the formation of a lyotropic liquid crystalline phase of MWCNT in water dispersion. The nanotubes were functionalised with -COOH to enhance solubility. The dispersion of nanotubes showed a phase transition from isotropic to lyotropic nematic liquid crystals above the critical concentration. Figure 7A shows the Schlieren texture of nanotubes dispersion at 4.8 vol%. The Schlieren texture contains distinctive “brushes” emanating from topological singularities within the nematic director field. The solvent is dried by evaporating the water, resulting in a solid sample with a microstructure very similar to that of the original dispersion, as shown in Figure 7B. Figures 7C, D illustrate the s = +1/2 and s = −1/2 defects of the dried structure via scanning electron microscope (SEM) images, where the severe bend distortion close to the core is accommodated by twist distortion between successive layers lying at slightly different depths below the surface. One year later, the authors further studied the isotropic−nematic phase transition in an aqueous dispersion of MWCNTs (Song and Windle, 2005). The polydispersity of CNTs dimensions and straightness influence the coexistence of two phases, the longer and thicker nanotubes are preferentially located in the anisotropic phase. Song and Windle (Song and Windle, 2008) revealed the size dependence of multiwalled carbon nanotube liquid crystalline structures, where longer, straighter nanotubes accumulate in the nematic phase of the dispersion, while short tubes and impurities accumulate in the isotropic liquid.

Figure 7

Figure 7. (A) Optical image of multiwall carbon nanotubes dispersed in water, showing nematic Schlieren textures. The image is in reflected polarized light with the polars crossed. Singularities at the centre of two-armed brushes correspond to disclinations in the structure. (B) Optical image of dried sample (A). Singularities are again indicated by the two-armed brushes. (C, D) SEM image of (C) a +1/2 topological defect and (D) a −1/2 defect from the solid sample of (B) (Song et al., 2003).

4.3 Graphene based materials

Another allotrope of carbon, graphene, is one of the most recent carbon allotropes having been discovered. The pioneering research began with Geim and Novoselov (Novoselov et al., 2004), who isolated graphene from graphite. Graphene (GP) is an excellent material for potential technologies due to its properties, such as its large mechanical modulus (Lee et al., 2008) and high electric conductivity (Morozov et al., 2008). Graphene has found wide application potential in a variety of new technologies. Like 1D carbon nanotubes, practically a rolled-up version of graphene, graphene is a 2-dimensional material which exhibits an extremely high aspect ratio, the disk-like structure offers an option to alter the dielectric anisotropic properties of nematic liquid crystals, also changing their threshold voltage, elastic constant and viscosity, when dispersed in a thermotropic LC. Gökçen et al. (2012) reported that the dispersion of 0.05 wt% graphene in nematic liquid crystal E7 significantly increased the threshold voltage from 0.1 V to 1.2 V, and the addition of graphene led to a decrease in polarisation. Wu and Lee, (2013) investigated the phase behaviour and dielectric properties of graphene nanoplatelets dispersed in liquid crystal 8OCB. They found that the transition temperature of nematic to isotropic and smectic A to nematic increased when the graphene nanoplatelets exceeded 0.1wt%. These graphene nanoplatelets enhanced the orientational order of the LC mixture, resulting in an extension of the phase transition temperature. Additionally, the doping of graphene nanoplatelets generated a metastable poly-domain crystalline form, which served as nuclei during crystallisation. In general, liquid crystals doped with graphene show improvements in electro-optic properties such as dielectric anisotropy and faster switching, yet also exhibit an increase in conductivity (Basu et al., 2015; Basu, 2014). Figure 8A shows the increase in dielectric anisotropy when small amounts ($0.786\times {10}^{-4}$ to $3.64\times {10}^{-4}$ wt%) of graphene are doped into a LC. Figure 8B depicts the electric conductivity for both pure LC (black circles) and the LC-GP composite (green diamonds). Graphene significantly enhances the electric conductivity of the composite when an electric field is applied above the threshold voltage. This is not particularly advantageous for display applications but could be beneficial for other applications like electric liquid crystal switches. The authors (Basu et al., 2015; Basu, 2014) suggested that the increase of the electric conductivity is attributed to the flat surface of graphene being coupled to the director n of the LC, i.e. providing internal planar boundary conditions, and reorienting with n as the applied field increased, as shown in the scheme. The strong π–π electron stacking between the graphene and the LC results in the enhancement of orientation order. However, the solubility and dispersibility of graphene in any solvent or liquid crystal are very poor, limiting its applicational behaviour.

Figure 8

Figure 8. (A) Dielectric constant $\epsilon$ as a function of applied rms field in the nematic phase for the pure LC and LC-graphene (LC + GP). (B) Electrical conductance $\sigma$ as a function of applied rms field in the nematic phase for the pure LC and LC + GP $2.29\times {10}^{-4}$ wt%. The reorientation of the graphene flakes with the nematic director is shown in the inset schematics (Basu et al., 2015).

Behabtu et al. (2010) proposed protonated graphene in chloro-sulphonic acid exhibited the spontaneous formation of a liquid crystalline phase at high concentrations (20–30 mg/mL). Nevertheless, better materials or solvents need to be found to produce graphene based lyotropic liquid crystals which are easily produced and stable.

Graphene oxide (GO) is such a material, resulting from the decoration of graphene with hydroxy, epoxy and carboxyl groups (Hummers and Offeman, 1958). These functional groups modify the electric properties and raise the amphiphilicity and solubility in solvents. GO retains the mechanical strength and the large aspect ratio of graphene. It is available in large quantities through the chemical oxidation or exfoliation of natural graphite (Stankovich et al., 2006). Al-Zangana et al. (2016a) studied the dispersion of two different sizes of graphene oxide in the nematic liquid crystal 5CB across a wide range of concentrations. They observed that the smaller GO flakes (560 nm) dissolved more easily than larger ones (2.8 µm). Due to the strong surface anchoring of LC molecules on the GO flakes, the dispersions exhibited an increase in both threshold voltage and effective elastic constant. This effect is attributed to the coupling between the liquid crystal and the GO sheets, which strongly increases the effective planar boundary area and thus the threshold voltage. Increasing the GO concentration led to further increases in threshold voltage and elastic constant, reaching saturation at a concentration of about 1 wt%, as shown in Figure 9. The effect was more pronounced for the smaller GO flakes. In the same year, the authors also studied the dielectric behaviour (Al-Zangana et al., 2016b) of dispersed GO of different sizes and concentrations in nematic LC 5CB. The dielectric relaxation of the GO-5CB composite was examined. The GO-LC composite exhibited a dielectric relaxation, while the neat LC did not. This can be explained by the slowing down of the molecular relaxation resulting from the strong anchoring via the GO dispersion interaction.

Figure 9

Figure 9. (A) Threshold voltage and (B) elastic constant as a function of concentration of GO flake in 5CB, for small and large GO sheet sizes (Al-Zangana et al., 2016a).

Javadian et al. (2017) doped graphene oxide into nematic liquid crystal E5CN7. They reported that GO doping led to a significant increase in the nematic-isotropic transition temperature by approximately 12°C, when the concentration of GO reached 0.75 wt%. Özgan et al. (2018) studied the thermal and dielectric properties of GO-doped LC 6CB and found that the dielectric anisotropy of 6CB increased with increasing concentration of GO. Graphene oxide decreased the phase transition temperature approximately by 2 K at 2 wt% doping level. Thermal investigations in general imply that the clearing point of a GO-LC dispersion is strongly dependent on the liquid crystal material used, as well as most likely also on the source of graphene oxide. The threshold voltage generally increases for increasing GO concentration. Additionally, the dielectric anisotropy of 6CB increased with increasing concentration of GO. The change of phase transition temperatures and electro-optical properties resulting from doping GO into a liquid crystal are often not consistent. In 2018, Dalir et al. (2018) reported that GO doping led to an increase in the elastic constant and threshold voltage similar to the observations by Al-Zangana et al. (2016a). Mrukiewicz et al. (2019) again reported a decrease in threshold voltage of 5CB doped with graphene oxide at 0.05–0.3 wt%, with the decrease of threshold voltage being attributed to the disrupted planar alignment caused by the strong interaction between the 5CB’s benzene ring and graphene oxide structure. This would imply that the GO sheets do not align with the liquid crystal director. Similar results for GO dispersed in 5CB were reported by Yadav et al. (2020), where the threshold voltage was reported to decrease with the increase in GO concentration (0.04–0.3 wt%) and temperature (26–32°C). The decrease in threshold voltage may be caused by the decrease in orientational order due to the dispersed GO.

Similar to fullerene and carbon nanotubes, graphene oxide dispersed in the Blue Phase also exhibits a stabilisation effect of the latter phase. Doping 0.001 wt% of GO into CE8 increases the temperature range of Blue Phase by 4.3 K. It is presumed that the $\pi -\pi$ stacking between CE8 and graphene oxide stabilises grain boundaries of different Blue Phase lattice orientation, thus leading to a lower free energy and an increased phase stability with the GO accumulating at the grain boundaries (Draude et al., 2020).

Importantly, graphene oxides also exhibit lyotropic liquid crystalline behaviour in a variety of different isotropic solvents, including water. According to Onsager’s theory (Onsager, 1949), colloids with a high aspect ratio can self-assemble into a lyotropic liquid crystal phase when a certain concentration range is reached. In 2011, Kim J. E. et al. (2011) first reported that GO in water formed an isotropic-nematic biphasic region in a GO concentration region between 0.05 and 0.7 wt% and a nematic phase above a concentration of approximately 0.6–0.7 wt%, depending on GO source. The orientation of graphene oxide liquid crystals could be manipulated by the application of a magnetic field or through mechanical deformation, i.e. shear. Shen et al. (2014) reported that when the inter-flake interactions are weak, the alignment of GO liquid crystals can be controlled by electric fields, resulting in electro-optic switching due to the Kerr effect. Also in 2011, Xu and Gao (2011a) demonstrated that GO sheets can form a chiral liquid crystal when dispersed in water, in analogy to a twist-grain-boundary (TGB) phase-like model with long-range helical structure and lamellar ordering. At the same time as Kim J. E. et al. (2011), Xu and Gao (2011b) also discussed the aqueous dispersion of single-layered graphene oxide and established the nematic-isotropic phase diagram versus mass fraction. The GO formed a lyotropic LC which exhibiting birefringence between crossed polarisers above a critical concentration. Figure 10A shows the microscopic images of a GO-water dispersion. Above the mass fraction of $5\times {10}^{-3}$ a uniform birefringent sample was observed which displayed a nematic Schlieren texture. Also, the macroscopic images in test tubes show similar results. With increasing the GO concentration, the textures of the LC could be observed by the naked eye between crossed polarisers, and the birefringence became more colourful, illustrating the formation of the nematic phase, as shown in Figure 10B. Upon increasing the GO concentration further, GO sheets can lead to the formation of a lamellar phase. The aspect ratio of GO sheets influences the stability of liquid crystal formation. For an increasing aspect ratio, the degree of GO with a corrugated morphology in the solvent is enhanced (Li et al., 2014). The high aspect ratio of the GO sheets leads to a lower critical concentration to form a liquid crystal phase (Aboutalebi et al., 2011). The size of GO sheets also influences the lyotropic liquid crystalline phase diagram (Al-Zangana et al., 2017a). Below a certain limit of sheet size (0.27 µm), GO does not form a LC phase. Increasing GO sheet sizes favours lyotropic liquid crystal formation (Aboutalebi et al., 2011; Dan et al., 2011). The solvent also plays an important role in the formation of GO lyotropic LC phases. Solvents with higher dielectric constants or higher relative static permittivity can more easily form LC phase at lower GO concentrations or smaller GO sheet sizes (Al-Zangana et al., 2017a). Jalili et al. (2013) discussed the behaviour of GO dissolved in different organic solvents, and the ability to form LC phase is attributed to the polarity and dielectric constant of the solvents. More discussion on optimising graphene oxide liquid crystal (GOLC) phase formation and different characterisation methods for different types of GOLC phases can be found in the review by Sasikala et al. (2018). The effect of liquid crystals doped with carbon-based nanoparticles are summarised in Table 2.

Figure 10

Figure 10. (A) POM images between crossed polarizers of GO aqueous dispersions in planar cells with mass fraction of $5\times {10}^{-4}$, $1\times {10}^{-3}$, $3\times {10}^{-3}$, $5\times {10}^{-3}$, $8\times {10}^{-3}$, and $1\times {10}^{-2}$ (from 1 to 6). The scale bar represents 200 µm (B) Macroscopic photographs between crossed polarizers of GO aqueous dispersions with mass fraction of $1\times {10}^{-4}$, $2.5\times {10}^{-4}$, $5\times {10}^{-4}$, $1\times {10}^{-3}$, $5\times {10}^{-3}$, $1\times {10}^{-2}$, $2\times {10}^{-2}$. (from 1 to 7) (Xu and Gao, 2011b).

Table 2

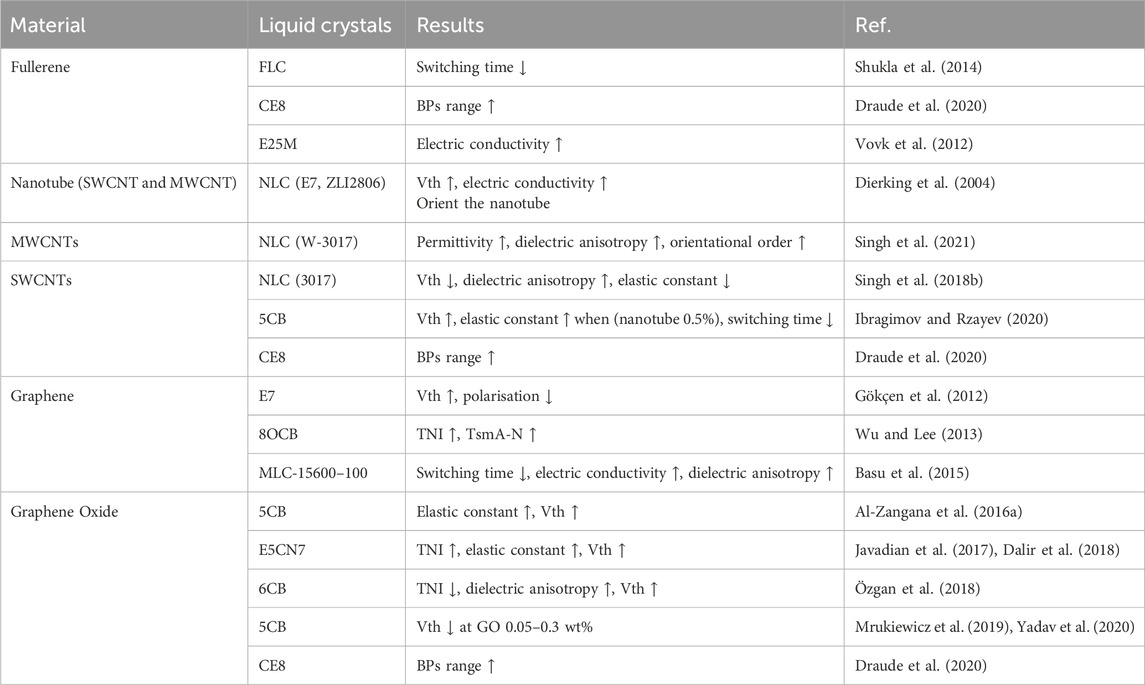

Table 2. Effect of carbon nanoparticles on the electric properties of liquid crystal.

5 Semiconducting, ferroelectric, and metal oxide particles

Inorganic materials are often dispersed in liquid crystals to tune properties, such as dielectric [TiO₂ (Chen et al., 2009)] or ferroelectric (BaTiO₃ (Singh et al., 2014)) particles, metal oxide [V₂O₅ (Diesselhorst and Freundlich, 1915)] and semiconducting particles [CdSe (Li et al., 2002)]. Doping semiconducting or metal oxide particles into liquid crystals can tune electric properties, such as threshold voltage, viscosity, dielectric anisotropy (Chen et al., 2009; Williams et al., 2005; Mukhina et al., 2012; Joshi et al., 2010) and can also stabilised the Blue phase structure (Karatairi et al., 2010). O Dolgov and V Yaroshchuk (2004) reported that the dispersion of silica particles showed electro-optic memory, and the preparation method of nanoparticles strongly effected the electro-optic properties. Tripathi P. K. et al. (2013) doped zinc oxide (ZnO) into nematic LC MBBA, resulting in an increase of the dielectric anisotropy, threshold voltage, elastic constant and viscosity, while the response time was reduced. Similar results were also shown for Fe₂O₃ (Ye et al., 2017) and Manganese titanium oxide (MnTiO₃) (Elkhalgi et al., 2018b).

The elasticity and topological defects of the LC host have been utilised to assemble microparticles in various geometries (Blanc et al., 2013; Smalyukh, 2018). When colloids or microparticles are dispersed in a nematic liquid crystal, the local orientation of the LC is determined by the surface interactions, resulting in different self-assembled structures (Musevic et al., 2006; Lapointe et al., 2009; Muševič and Škarabot, 2008). Musevic et al. (2006) demonstrated the dispersion of micrometre-sized silica spherical particles in thin films of nematic liquid crystals forming two dimensional lattice structures. Figure 11 shows a silica sphere in a nematic liquid crystal. When the thickness of the LC layer is above approximately 5 µm, with particles of size 2.3 µm (Figure 11A), the director field around the colloid is distorted into a dipolar shape (Figure 11B), and colloids assemble into chains oriented along the rubbing direction (Figure 11C). Conversely, when the thickness is below approximately 3.5 µm for the same particle size, the director field around the colloid exhibits two dark regions between crossed polarisers, representing the Saturn ring defect encircling the colloid. The director field is quadrupolar (Figure 11D), and the colloids are oriented perpendicular to the rubbing direction in a zig-zag fashion (Figure 11F). The structures observed for colloids in a thin nematic layer are spontaneously stable and exhibit long-range orientation.

Figure 11

Figure 11. Dipolar and quadrupolar colloids in a thin layer of a nematic liquid crystal. (A) Micrograph of a d = 2.32 µm silica sphere in 5CB layer with 5 µm thickness. (B) Schematic illustration of the nematic order around the colloid has the symmetry of an electric dipole. (C) Dipoles form dipolar chains along the rubbing direction. (D) Micrograph of a d = 2.32 µm silica sphere in 5CB layer with 2.5 µm thickness. (E) Schematic illustration of the nematic order has the symmetry of an electric quadrupole. (F) Quadrupoles form kinked chains aligned perpendicular to the rubbing direction (Musevic et al., 2006).

5.1 Metal oxide particles

One dimensional (1-D) nanostructures such as nanowires and nanorods, have drawn tremendous attention in both fundamental science and technology applications due to their electrical and optical properties (Hu et al., 1999; Lieber, 1998). Unlike nanotubes, which generally exhibit a pronounced polydispersity, nanorods are often closer to the ideal Onsager-like system (Onsager, 1949). Rod-like particles often have orientational order and no positional order, forming nematic liquid crystalline phases, although the formation of smectic phases is known as well. Zinc oxide (ZnO) is most often a white powder that is insoluble in water, often used as an additive in paint. ZnO nanowires are semiconductors with a high aspect ratio. Zhang et al. (2011) reported that ZnO nanowires exhibit liquid crystalline behaviour in aqueous and organic solvents. With an increase in ZnO concentration, the mixture transitions from an isotropic via a biphasic state to a nematic phase, as shown in Figure 12. The alignment of nanowires can be controlled by shear flow; after solvent evaporation, the dried nanowire assembly inherits the alignment of the nematic suspension, as shown in Figure 12F.

Figure 12

Figure 12. POM images of ZnO nanowire in solvent. (A) 0.5% ZnO showing the isotropic phase; (B) 2.3% ZnO showing biphasic phase (C) 6.3% ZnO showing Schlieren texture (D) dried nanowire under crossed polariser (E) dried nanowire without polarisers (F) SEM image of dried long-range oriented nanowire (Zhang et al., 2011).

Silica nanoparticles were probably some of the first materials to be doped into liquid crystal phases. Dispersion into nematic phases (Yadav et al., 2019) has shown that a very well aligned neat nematic phase experiences disturbances in the director field which slowly degrade the alignment with increasing silica nanoparticle concentration. Nevertheless, an increase in birefringence is observed for increasing concentration. At the same time the relative dielectric permittivity is slightly decreased and at low frequencies the ionic contribution to the dielectric spectra is decreased, which indicates that the ions are possibly adsorbed on the silica particles (Liao S.-W. et al., 2012). The bulk conductivity was found to be increased for increasing silica concentration. The authors further report an enhancement of photoluminescence with a slight redshift for increasing silica concentration, and also an increased UV absorbance.

In Blue Phases (Hsu et al., 2018) the dispersion of silica nanoparticles has been shown to widen the existence range of the BP phase and a decrease in the driving voltage of the electro-optic Kerr effect, combined with a decrease of rise and fall time for increasing concentration.

Dispersing silica into the ferroelectric SmC* phase (Chaudhary et al., 2012) allows a tuning of the electro-optic properties. The tilt angle and thus also the spontaneous polarisation were found to decrease for increasing particle concentration when compared to the pure ferroelectric phase. The rotational viscosity is decreased for increasing concentration, and thus the response time become faster. The dielectric permittivity was reported to be decreased for increasing silica nanoparticle levels. Other reports (Kumar and Raina, 2012) also indicate a decreasing tilt angle and spontaneous polarisation, but a slightly increasing rotational viscosity and thus an increase in response time with increasing silica nanoparticle concentration. They also found that the contrast ratio was enhanced.

But also more exotic systems have been doped with silica nanoparticles, for example nematic polymer dispersed liquid crystals (PDLC) (Jayoti et al., 2017). The authors reported slightly decreased transition temperatures for increasing silica concentrations, of the order of 2–3 K. The transmission was increased as a function of nanoparticle concentration, while at the same time the threshold voltage and the conductivity were reduced.

From the viewpoint of nanoparticle doping, a particularly unusual study was reported in (Landman et al., 2014). Here, the authors doped a lyotropic nematic clay (beidellite) suspension with silica particles of increasing concentration. They found that the two-phase region not only shifted to higher beidellite concentrations but was also widened. The viscosity of the silica nanoparticle doped clay suspension markedly increased with increasing concentration of silica at constant beidellite concentration.

5.2 Semiconducting nanoparticles

Cadmium selenide nanorods are semiconducting materials. Alivisatos et al. (Li et al., 2002) reported the liquid crystalline phase of CdSe semiconductor nanorods. When the CdSe nanorods are dissolved in cyclohexane at high concentration (>10 wt%), the nematic phase is observed to occur during solvent evaporation (Figure 13A), showing Schlieren textures in polarising optical microscopy, as shown in Figure 13B. The authors suggest that the liquid crystalline phase of CdSe nanorods exhibits a larger elastic constant than regular organic LC molecules due to the size and rigidity of the nanorods. Additionally, CdSe nanorods have shown photoluminescence which is linearly polarised along the long axis (Hu et al., 2001). The liquid crystal formed by CdSe nanorods can be aligned and the director controlled by external electric, magnetic or mechanical fields. One can thus change the polarisation direction of photoluminescence, for example in devices with in-plane electrodes.

Figure 13

Figure 13. POM image CdSe nanorods in cyclohexane during solvent evaporation. (A) Nematic droplets formed from the isotropic phase during the evaporation of the solvent. (B) Schlieren textures in a later stage, at high CdSe concentration (Li et al., 2002).

One year later, Li and Alivisatos (2003) reported the alignment, orientation, and surface deposition of CdSe nanorods from the lyotropic liquid crystalline phase. The CdSe nanorods are enabled to be synthesised with a well-controlled width (3.0–6.5 nm) and length (7.5–40 nm) (Li et al., 2001). The macroscopic alignment of CdSe nanorods was observed by transmission electron microscopy (TEM). As the solvent evaporated, the CdSe nanorods were deposited, aligned along the nematic director of the self-organised liquid crystal phase it formed during the increase of nanorod concentration in the solvent. By controlling the orientation of the liquid crystal through external fields, a high degree of orientational order of deposited nanorods can be achieved.

5.3 Ferroelectric nanoparticles

Before concluding this section, it is important to introduce ferroelectric particles. Ferroelectricity is a property observed in materials where permanent electric dipoles add to form a non-zero spontaneous polarisation that can be reoriented between two stable states by an externally applied electric field. Ferroelectric liquid crystals (FLC) are a type of liquid crystal that exhibit ferroelectric properties, characterised by the spontaneous polarisation of the sample. FLCs can switch their molecular orientation in response to an electric field and the coupling between electric field and polarisation leads to a fast response in the microsecond regime (Chigrinov, 1999; Chigrinov et al., 2013). The spontaneous polarisation of ferroelectric particles may induce an electrical polarisation within the surrounding LC, leading to an increase in the order parameter of the doped LC and an increase in its clearing temperature (Li et al., 2006a). By doping 0.2 wt% of ferroelectric particles into the LC, the nematic orientational order parameter increased by 10%, and the clearing temperature rose by 40°C. Lopatina and Selinger (2011); Lopatina and Selinger (2009) discussed the mechanics of ferroelectric particles in liquid crystals through a Landau theory, which predicts an increase in the nematic-isotropic temperature and sensitivity to the electric field. Reznikov et al. (2003) reported that a low concentration of nano-sized ferroelectric Sn₂P₂S₆ particles in the nematic LC ZLI-4801 enhances the dielectric response and order parameter without disturbing the alignment of LC molecules. Kurochkin et al. (2010) doped ferroelectric nanoparticle Sn₂P₂S₆ into 5CB, leading to a shift in the clearing temperature, and the corresponding changes in the order parameter were observed. The dielectric anisotropy and birefringence increased due to the increase of the order parameter. This was explained by Shelestiuk et al. (2011) who developed a theoretical model for the dielectric properties of a LC nanosuspension with ferroelectric particles. It was further predicted that the ferroelectric particles decrease the Freedericksz transition threshold voltage. The latter was demonstrated experimentally by Cîrtoaje et al. (2015) who measured the electric properties of the nematic LC 5CB with shape-anisotropic ferroelectric BaTiO₃. The threshold voltage was found to be lower when the ferroelectric particles were added, indicating that the particles are oriented parallel to the LC. When the nanoparticles are perpendicular to the LC molecules, the threshold voltage may increase.

Reznikov and co-workers made a dilute suspension of ferroelectric particles Sn₂P₂S₆ suspension in the nematic LC ZLI-4801. The nanoparticles did not disturb the director field of the LC. Simultaneously, due to their anchoring with the LC, the large dipole moment and high polarizability of the ferroelectric particles, the doping increased the dielectric anisotropy, the static dielectric permittivity (Ouskova et al., 2003; Buchnev et al., 2003; Buchnev et al., 2004), and decreased the threshold voltage (Reznikov et al., 2005). In addition, introducing ferroelectric nanoparticles into a cholesteric mixture used in a scattering device decreased the driving voltage from clear to scattering by 45%, which was caused by the increased dielectric anisotropy of the cholesteric mixture. Due to the permanent polarisation of ferroelectric particles, the birefringence increased in both the nematic and the cholesteric liquid crystals (Kurochkin et al., 2009). Another common ferroelectric is the above-mentioned barium titanate (BaTiO₃), which has a spontaneous polarisation, depending on the size and fabrication/treatment of the nanoparticles. Doping a low concentration of BaTiO₃ significantly increases the phase transition temperature, birefringence, dielectric anisotropy and elastic constant (Li et al., 2006b; Glushchenko et al., 2006). Liang et al. (2010) dispersed BaTiO₃ into the ferroelectric liquid crystal (FLC) CS1024, resulting in a spontaneous polarisation of twice that compared to the pure FLC. The response time was shortened, and the dielectric constant was increased, especially for the smectic C* phase. Also the size effect of BaTiO₃ has been investigated; Rudzki et al. (2013) dispersed various sizes of BaTiO₃ into different FLC mixtures. The smaller particles (9 nm) exhibited more pronounced effects on spontaneous polarisation and switching time than the larger ones (26 nm). This result is somewhat surprising, as it is generally believed that barium titanate at low nanometre dimensions <100 nm exhibits a cubic unit cell and is thus not ferroelectric. Only for larger sizes a tetragonal unit cell is generally observed, together with ferroelectricity for particles of size >100 nm. Nevertheless, it should be pointed out that the crystal structure of barium titanate strongly depends on the method of nanoparticle production, milling etc.

The electro-optic properties of various sizes BaTiO₃ in nematic liquid crystals were also measured by Herrington et al. (2010), with larger particles causing a more significant enhancement of dielectric and optical anisotropy. Al-Zangana et al. (2017b) investigated the effects of different sizes and concentrations of barium titanate in the nematic LC 5CB and the ferroelectric SmC* M4851/050. It was found that a low concentration of nanoparticles did not influence the electro-optic properties at all. At higher concentrations, the nanoparticles increased the threshold voltage and elastic constant of the mixture, as shown in Figure 14. However, the ferroelectric particles had no significant effects on the electro-optic properties of a ferroelectric SmC* liquid crystal. The physical properties of the ferroelectric particles dispersion can vary depending on the size, shape, LC host and the method of preparation (Gupta et al., 2010). Cook et al. (2010) and Blach et al. (2010) reported that the dispersion of BaTiO₃ decreases the threshold voltage, meanwhile, Glushchenko et al. (2006) and Klein et al. (2013) found that doping ferroelectric particles did not change the threshold voltage significantly. Paul et al. (2011) reported an increase in the threshold voltage due to the dispersion of BaTiO₃. Further investigations of electro-optical properties have been carried out (Singh et al., 2014; Podoliak et al., 2014; Coondoo et al., 2011).

Figure 14

Figure 14. The relationship between the concentration of BaTiO3 and (A) Threshold voltage and (B) elastic constant, where BTO1 (80 nm) and BTO2 (240 nm) are the size of nanoparticles (Al-Zangana et al., 2017b).

The dispersion of ferroelectric particles can modify the electro-optic and polarisation effects and shows the potential for display or electro-optic applications. Yet it appears that the modifications are strongly dependent on size, shape and production of the ferroelectric nanoparticles. The effect of liquid crystals doped with inorganic semiconducting, and ferroelectric nanoparticles are summarised in Table 3.

Table 3

Table 3. Effect of inorganic semiconducting/ferroelectric nanoparticles on the electric properties of liquid crystal.

6 Biomaterials in liquid crystal

Having discussed the formation of lyotropic liquid crystals from a range of inorganic materials, it should be pointed out that also other anisotropic materials exhibit very similar behaviour. Following Onsager’s description, also anisotropic biological nanostructures can exhibit lyotropic liquid crystalline behaviour, with cellulose nanocrystals (CNC) (Dong et al., 1996), Deoxyribonucleic acid (DNA) (Strzelecka et al., 1988) and the rod-like structure of the Tobacco mosaic virus (TMV) (Bawden et al., 1936) being the most prominent examples.

6.1 Tobacco mosaic virus

TMV is a RNA virus that affects a variety of plants and especially tobacco plants. The infected leaves exhibit a mosaic-like pattern, hence the name. The TMV virus has a rod-like structure with a relatively high aspect ratio, generally approximately 200–300 nm in length and about 20 nm wide. In 1936, the TMV was first reported to exhibit liquid crystalline behaviour through X-ray experiments at a certain concentration (13–23 wt%) (Bawden et al., 1936). Oldenbourg et al. (1988) investigated TMV’s orientational order, transitioning from the isotropic to the nematic phases via a biphasic region for increasing concentration. The liquid crystalline state of TMVs was experimentally investigated in detail by Fraden et al. (1993) and the phase diagram was established computationally by Graf and Löwen (1999) showing also a smectic phase and a colloidal crystal phase in addition to the nematic, as shown in Figure 15. Further, the cholesteric phase (Dogic and Fraden, 2000), the smectic phase (Dogic and Fraden, 1997) and the colloidal crystal phase (Graf and Löwen, 1999) have also been observed in other virus suspensions.

Figure 15

Figure 15. Phase diagram of the tobacco mosaic virus. The isotropic (I), nematic (N), and smectic-A phase (Sm) are observed, together with different colloidal crystal phases (Graf and Löwen, 1999).

6.2 DNA

DNA is the macromolecule that carries the genetic information of organisms within a double helical structure. As a macromolecule, DNA can be seen as a nanoparticle with extremely large aspect ratio, in a sense similar to carbon nanotubes, nanowires or imogolite, which can all form lyotropic liquid crystals, only that DNA is a biomaterial. This was demonstrated in 1988, when Strzelecka et al. (1988) revealed various liquid crystal phases of DNA at high concentration, including cholesteric and smectic-like phases. Leforstier and Livolant (1994) reported that at high concentration DNA exhibits also a Blue phase.

6.3 Cellulose nanocrystals (CNCs)

CNCs are nanoscale particles obtained from cellulose fibres. These cellulose nanocrystals can be dispersed in different solvents, largely following Onsager’s model. The rod-like CNCs particles with a relatively high aspect ratio (length 100 µm and width 10 µm) enable to form lyotropic LC in a suitable solvent (Rojas, 2016; George and Sabapathi, 2015). Due to the inherent chirality of the CNC particles dispersed in an aqueous solution exhibit a lyotropic cholesteric (chiral nematic) phase (Gray, 2016; Gray and Mu, 2015). In the lyotropic phase, aggregates of the CNCs form a helical superstructure and display a typical fingerprint texture, where the distance between the dark lines in the texture is equal to half of the helical pitch, as shown in Figure 16 (Dong et al., 1996) To observe the fingerprint pattern the helix axis is oriented in the plane of the substrate. On the contrary, if the helix axis is oriented perpendicular to the substrate plane, the phenomenon of selective reflection of circularly polarised light is observed, where a wavelength λ₀ = <n>P is reflected, with <n> the average refractive index and P the pitch of the helix. The reflected photonic bandgap Δλ = ΔnP is related to the birefringence Δn. In general, with an increasing concentration of CNCs, the pitch decreases, and the volume fraction of the anisotropic phase increases (Gray and Mu, 2015; Hirai et al., 2009). When the solvent in the CNCs suspension evaporates, the dried solid film can retain the chiral nematic order, and the pitch reduces to the visible range of the spectrum, indicating the rod-like nanoparticles self-assemble into a helical array (Revol et al., 1992).

Figure 16

Figure 16. POM image of cellulose suspension exhibit cholesteric LC phase, showing fingerprint texture (Dong et al., 1996).

The CNC nanoparticles dispersed in water exhibit the common phase behaviour as predicted by the Onsager description, starting from the isotropic phase at low CNC concentration, followed by a biphasic region, and finally transitioning into a lyotropic liquid crystalline cholesteric phase (Gray, 2016; Beck-Candanedo et al., 2005; Lagerwall et al., 2014). CNC nanoparticles are eco-friendly materials that show promising potential in thin film application, including variable narrow-range selective reflection (Fernandes et al., 2017; Saha and Davis, 2018), drug delivery (Schram et al., 2015; Siepmann and Peppas, 2012) and sensors (Islam et al., 2018; Liu H. et al., 2019).

Biomaterials in liquid crystal research provide interesting opportunities for future applications (Zhang Z. et al., 2023), such as biosensor (Tan et al., 2010; Yang et al., 2012; Liao S. et al., 2012) and alignment reorientation (Price and Schwartz, 2008; Nakata et al., 2008), wearable devices (Zhang et al., 2022). Figure 17 shows the mechanism of a LC-based sensor. The nematic LC is aligned homeotropically at the solid substrate and planar at the water-LC interface, which leads to birefringence and the sensor appearing bright between crossed polarisers (Figure 17B). After introducing external stimulation, for example by adding surfactant molecules (L-$\alpha$-dilauroyl phosphatidylcholine (L-DLPC)), the alignment of the LC molecules is changed, and a vesicle-like structure is formed at the water-LC interface containing the lipid molecules and water. The morphology difference extends into the LC layer and can easily be observed under POM with a decreased birefringence, because the formally planar oriented LC molecules now partially adopt a homeotropic orientation (Figure 17C). After 2 h of immersion, all LC molecules adopt a homeotropic orientation and the sensor appears black between crossed polarisers (Figure 17D).

Figure 17

Figure 17. (A) Schematic illustration of a LC sensor. (B–D) Optical images and cartoon representations depicting the anchoring of nematic LC 5CB and the state of the water-5CB interface after injection of dispersion of vesicles formed form 0.1 mM L-DLPC in tris-buffered saline (B) corresponds to the immediate state, (C, D) represent the conditions at 10–20 min and 2 h, respectively. The optical images transition from a bright domain in (B) to a dark domain in (C) and finally appear uniformly dark in (D) (Brake et al., 2003).

7 Future scope, outlook and summary

The combination of nanomaterials and liquid crystals provides several key effects, such as enhanced electro-optical properties, phase transition tuning, improved alignment arrangement, self-organisation, dielectric properties and increased conductivity. There are potential applications for this combination beyond displays. Nanocrystals are used in the pharmaceutical industry as soluble drugs (Deori and Deka, 2013). Lyotropic liquid crystals can act as surfactant source in nanoparticles synthesis (Smaisim et al., 2023). The inkjet printing nanoparticle reorient the LC molecules is used in toxic gas sensor devices (Prévôt et al., 2020).

Working through the recent literature on nanoparticles dispersed in liquid crystals, one can identify three major current areas of research, (i) the tuning of physical properties of the composite materials, often for electro-optic applications, including photonics and plasmonics; (ii) the use of nanoparticle dispersed polymer dispersed liquid crystals (PDLC), polymer stabilised liquid crystals (PSLC) and liquid crystal elastomers (LCE), often related to Smart Glass and Privacy Windows, and; (iii) sensor applications based on nanoparticle-dispersed liquid crystals.

In the first category a whole range of physical parameters are tuned, starting with enhanced birefringence through ferric oxide nanoparticles from Δn = 0.185 to 0.2, also due to an increase in order nematic parameter (Tripathi et al., 2023). The dielectric anisotropy as well as conductivity was tuned by concentration varied addition of iron oxide (Kovalchuk et al., 2022). But also CuO enhanced the dielectric anisotropy and the relaxation frequency of ionic contamination (Jaiswal et al., 2023). Of importance for electro-optic switching processes are obviously the elastic constants and viscosities (Brouckaert et al., 2022). Thermal stability, dielectric anisotropy and related electro-optic parameters can be enhanced for example by the addition of silver nanoparticles (Verma et al., 2024), while layered perovskite nanoparticles have been used to tune the dielectric properties, but also memory effects (Varshney et al., 2023a).

The dispersion of carbon and graphene quantum dots enhances the contrast ratio, birefringence, and order parameter, while the dielectric anisotropy slightly decreases with addition of the dots and the conductivity increases (Neha et al., 2023a). The influence of carbon dots on a large variety of different physical parameters, such as elasticity, threshold voltage, dielectric behaviour and response times has been reviewed in detail in (Neha et al., 2023b). An interesting approach to tune properties has been suggested by the use of multifunctional nanoparticles, combining chiral, magnetic and photosensitive properties (Poryvai et al., 2022).

The second category of composite liquid crystalline systems involves those with nanoparticles and polymers, thus LC-polymer-nanoparticle multicomponent composites as they are used in PDLCs, PSCTs and LCEs. Most work done in this direction was on polymer dispersed liquid crystals, as these represent excellent candidates for smart windows. Nanoparticles of varying composition all seem to lead to similar effects on the electro-optic parameters, when doped into PDLCs. These include a reduction of threshold voltage, increased contrast, decreased switching times and an overall lower voltage performance, thus lower power consumption. This is observed for metal oxides (Malik and Singh, 2023) and in particular MgO (Zhao et al., 2022), TiO₂ (Wang X. et al., 2022), Al₂O₃ (Jia et al., 2022) and CeO₂ (Jinqian et al., 2022) to name some examples. Co-doped systems with fluorescent molecules together with nanoparticles were reported in (Lu et al., 2024). The progress in the field of multicomponent composites has recently been reviewed in (Gridyakina et al., 2023), while the thermos-electro-optics and dielectric behaviour showed promise for PDLC-based switchable windows (Katariya-Jain et al., 2024).

While most of the work so far has been reported for PDLCs, thus systems with a relatively high polymer content (∼70%), a recent study of such a multicomponent composite at the low concentration range of polymer (∼3%) has focussed on the properties of PSCTs (Gruzdenko and Dierking, 2023). For weakly cross-linked polymers, i.e., liquid crystal elastomers (LCEs) an enhanced mechanosensitivity has recently been reported for nanoparticle-dispersed systems (Sun et al., 2022). The properties and applications of LCEs doped with metallic and magnetic nanoparticles as well as carbon allotropes, has been reviewed in (Wang Y. et al., 2022).

The field of sensor applications on the basis of liquid crystals in general currently experiences a great interest within the soft matter community. A number of such sensors are based on photonic band gap materials, such as the cholesteric phase, which has long been used for temperature measurements. The performance of these temperature sensors can be improved through composite materials such as LC-Fe2O3 nanoparticle materials (Miao et al., 2022). The use of magnetic nanoparticles in doped photonic fibre sensors (Zhang R. et al., 2023) allows the detection of voltages, temperatures and magnetic fields. Yet many other sensors have been realised, stress and strain sensors, chirality sensors, morphology sensors, or gas sensors, as reviewed in (Leal-Junior et al., 2023).

Nevertheless, the main impact can be seen in the area of biosensors and healthcare sensors for example for DNA, bacterial infections, or cancer cells (Leal-Junior et al., 2023). Specific sensors for glucose (Kim et al., 2013), cholesterol (Tyagi et al., 2014), heavy metals (Du et al., 2021), or enzymes (Ping et al., 2021) have been developed on the basis of liquid crystal phases. Recently, an ultra-sensitive DNAzyme-based (DNA enzyme, catalytic DNA) sensor was developed with Au nanoparticles for signal amplification (Wang Z. et al., 2022). Similarly, also based on Au nanoparticle signal amplification, a biosensor for the detection of human chorionic gonadotropin (HCG antigen) has been suggested, which is of importance for early pregnancy testing (Wang et al., 2024). A review of the principles, realisation and applications of liquid crystal based biosensors has recently been provided by Wang et al. (Wang H. et al., 2022).

Currently, the three discussed areas above seem to be the main fields of research in the investigations of liquid crystal – nanoparticle hybrid materials. This is not to say that there are not any further fields of interest, for example photonics where the alignment of liquid crystals may be controlled via indium tin oxide (ITO) nanoparticles (Varshney et al., 2023b; Varshney et al., 2023c). The whole area of flexible photonic films on the basis of lyotropic cholesteric cellulose nanocrystals is still being evaluated also with respect to sensors (Saraiva et al., 2024) and the possibility of inkjet printing CNC lyotropics into photonic patterns does of course has its appeal (Williams et al., 2024). Also plasmonic devices, especially with gold or silver nanoparticles in liquid crystals (Yakovkin and Reshetnyak, 2023) will continue to find their interest in the future. The applicability of the discussed systems in nanotechnology is surely not fully exhausted by the possibilities of nanoparticle synthesis in liquid crystals and subsequent self-assembly (Smaisim et al., 2023), as can be seen in the collective ordering of magnetic nanoparticles (Dierking et al., 2017; Mertelj and Lisjak, 2017; Lacková et al., 2024).

In this review, we provided an overview of nanomaterials in thermotropic and lyotropic liquid crystals. We summarised the dispersion of various kinds of nanomaterials including metal nanoparticles, carbon allotropies, inorganic nanoparticles, ferroelectric and semiconducting nanoparticles with liquid crystals. The interaction between these nanoparticles and liquid crystals leads to changes in optical and electrical properties, thermal stability and alignment control, among other properties. The specific properties induced by the nanoparticles have been discussed in term of size, concentration and shape. Additionally, we introduced various anisotropic nanoparticles that can self-assemble into lyotropic liquid crystalline phases, such as nanorods, nanowires, nanotubes and nanoplates. Last but not least, some biological nanomaterials like TMV, DNA and CNC were introduced which can also form lyotropic liquid crystals. The integration of nanomaterial and liquid crystals is a growing and progressing research area, leading to the development of novel applications in various fields.
