Morphology and rheology of composites of poly(styrene-co-2-vinyl pyridine) copolymers and phosphotungstic acid

Morphological and rheological properties are examined for poly(styrene-co-2-vinyl pyridine) (P(S-co-2VP)) copolymers upon introducing phosphotungstic acid, one kind of polyoxometalates (POMs). The phosphotungstic acid protonates the 2VP monomers, and the deprotonated phosphotungstic acid effectively crosslinks the protonated 2VP monomers, inducing phase segregation into the S-rich and 2VP-rich domains. Linear viscoelasticity (LVE) of the composite samples strongly relies on the continuity of the 2VP-rich domains and can be classified into the following three types. (1) For 2VP-rich sphere domains in the S-rich matrix, LVE is akin to the conventional elastomer characterized by a wide rubbery regime before the terminal relaxation. (2) For bicontinuous morphology, where both the 2VP-rich and S-rich domains are continuous, two glassy processes manifest in LVE, and the chain relaxation is controlled by the continuous ion dissociation in the less mobilized 2VP-rich domain. (3) When the 2VP-rich domain is the only continuous phase, only the glassy modulus of the 2VP-rich domain manifests in LVE, and the chain relaxation is activated by the continuous ionic dissociations in the matrix. Surprisingly, the relaxation time obtained for all three abovementioned morphologies can be reduced to a universal behavior once the average glass transition temperature of the 2VP-rich region and the number of effective stickers per chain have been properly normalized, indicating that these two parameters control the chain-dimensional dynamics.

1 Introduction

Ionic interactions stemming from the attraction between oppositely charged ions are widely used in designing various novel ion-containing materials, including self-healing, stimuli-response, and memory materials (Grosberg and Khokhlov, 2011; Israelachvili, 2011; Van Ruymbeke, 2017; Bhattacharya et al., 2019; Jeong and Choi, 2019). There are two major families of ion-containing polymeric materials based on the source of the ionic groups, i.e., the polymer materials with intrinsic or extrinsic ions. The ionomers and polyelectrolytes are typical ion-containing polymers with intrinsic ions that are covalently bonded (Eisenberg and Rinaudo, 1990; Chen et al., 2015a; Zhang Z. et al., 2017). The ionomers usually have less than 10% ionized monomers and are processable and applicable in bulk. In comparison, the polyelectrolytes contain a much higher fraction of ionized monomers (usually close to 100%) and, thus, are usually not processable in bulk but are instead dissolved in a polar solvent for application.

Another family of ion-containing polymers has extrinsic ions, i.e., ions from introduced salts (Beck et al., 2005; Burnworth et al., 2011; Kumpfer et al., 2012; Han et al., 2020; Neumann et al., 2020), clusters (Cui et al., 2008; Zhang L. et al., 2017; Cheng et al., 2017; Chai et al., 2019), nanoparticles (Gong et al., 2014; Chen et al., 2015b; Holt et al., 2016; Starr et al., 2016; Park et al., 2020; Cui et al., 2021; Yavitt et al., 2021), and so on. Usually, the dispersion of the extrinsic ions in the polymer matrix relies on localized attractive interactions between the ionic groups and the polymer matrix, and good dispersion can be achieved only when the interaction is sufficiently strong.

Polyoxometalates (POMs) are widely used as extrinsic macroions in polymer nanocomposites. POMs have well-defined molecular structures, uniform shapes, tunable charges, and no intra-molecular charge interaction, and appear to exhibit different composition effects compared with the regular small ions, salts, or large nanoparticles or colloidal suspensions in the composite materials (Day and Klemperer, 1985; Li et al., 2007; Long et al., 2010; Yin et al., 2012). The moderate size of the POM macroion endows the counterions with extra binding freedom to migrate on the surface of the macroion. As a result, POM macroions can serve as well-defined crosslinkers with a fixed number of functional groups and adjustable positions of counterions, enabling them to be widely used in fabricating reversible networks. For example, the commercially available tetrafunctional silicotungstic acid H₄[Si(W₃O₁₀)₄] and trifunctional phosphotungstic acid H₃[P(W₃O₁₀)₄] can protonate and physically crosslink polymers such as polyvinylimidazole (PVIm), poly (2-vinyl pyridine) (P2VP), and poly (4-vinyl pyridine) (P4VP). Since the number density of the attractive interactions between negatively charged acid groups, e.g., [P(W₃O₁₀)₄]^3-, and the positively charged monomers (obtained after the protonation) can be well-controlled via the content of POM, it is convenient to prepare the reversible materials with different degrees of gelation.

In our previous studies, we prepared ABA-type copolymers where the end A blocks have a much shorter size and a much higher bulk T_g than the central B block. In addition, the end A blocks can be protonated and crosslinked by POM. These materials show hybrid properties of conventional ABA-type elastomers and reversible networks, where the solid-to-liquid transition depends on both the energetic interaction of the A and B blocks and the ionic attraction between the protonated A monomers and the deprotonated POM (He et al., 2020; He et al., 2021). In this study, we examined the morphology and dynamics of POM-crosslinked A-co-B random copolymers by utilizing the composites of P(2VP-co-S) copolymers and phosphotungstic acid (Keggin type, H₃PW₁₂O₄₀) as the model system. A great advantage of choosing P(S-co-2VP) as the precursor is that PS and P2VP have almost the same T_g (T_g = 100°C for PS(Yu et al., 2021) and 101°C for P2VP(Wei and Torkelson, 2020)), and only the 2VP monomers can be protonated by POM (Zhang L. et al., 2017). As a result, the segmental mobility is similar for the copolymer samples having different S/2VP compositions, and the dynamic change owing to the ionic attraction (between the protonated 2VP monomers and deprotonated POM) can be unequivocally characterized.

We find that the copolymer precursors are in a disordered state, while the introduction of POM induces the segregation, leading to the formation of the 2VP-rich and S-rich domains, with POM preferentially located in the 2VP domain. On the one hand, the glassy modulus is governed by the continuous phase (s), where one glassy region is seen for the sphere-matrix morphology, and two glassy regions are seen for the bicontinuous morphology. On the other hand, the rubbery modulus is more governed by the ion dissociation in the 2VP-rich phase that is less mobilized than in the S-rich phase. Surprisingly, the relaxation time of all copolymer samples reduces to a universal behavior after proper normalization of the localized T_g in the 2VP-rich domain and the number of associations per chain, irrespective of the detailed phase segregation morphology.

2 Experimental section

2.1 Materials

Styrene (St, 99%, Aladdin) and 2-vinylpyridine (2VP, 97%, Aladdin) were purified via passing through a basic alumina column. Chain transfer agent (CTA), [1-(O-Ethylxanthy) ethyl]benzene, (Ladavière et al., 2001; Wan et al., 2005) was synthesized according to the procedure reported in the literature. 2,2′-Azobis (2-methylpropionitrile) (AIBN) was purchased from Aladdin and recrystallized in ethanol before use. Extra dry 1,4-dioxane was purchased from Energy Chemical Co. and used as received. H₃[P(W₃O₁₀)₄] (Keggin structure, purchased from Energy Chemical) was used directly without purification.

2.2 Synthesis

Poly(styrene-co-2-vinylpyridine) and polyvinylpyridine were synthesized via RAFT polymerization. A typical procedure for the synthesis of poly(styrene-co-2-vinylpyridine) copolymer is described in the following text. Styrene (10 mmol, 1.04 g), 2-vinylpyridine (10 mmol, 1.05 g), CTA (0.1 mmol, 22.6 mmg), AIBN (0.02 mmol, 3.29 mg), and dry 1,4-dioxane (8 ml) were added into an ampule with a magnetic stirrer. The mixture was degassed by three freeze–pump–thaw cycles and heated under nitrogen in a thermostated oil bath at 70°C. After a reaction period of 24 h with stirring, the polymerization was quenched by liquid nitrogen, and the mixture was precipitated into n-hexane. Molecular weight characteristics of the copolymer were obtained from size-exclusion chromatography (SEC) equipped with both light scattering and refractive index detectors. The important parameters of the P2VP and copolymer samples are summarized in Table 1.

TABLE 1

TABLE 1. Important parameters of the copolymer samples.

2.3 Preparation of nanocomposites

H₃[P(W₃O₁₀)₄] was dissolved in DMF and mixed with the matrix polymer in solution. The mixtures were sonicated for 5 min and stirred at room temperature for 1 day. Then the solvent was evaporated in a Teflon beaker at 70°C for 6 h and further dried in vacuum at 150°C for 1 week.

2.4 Measurements

2.4.1 Nuclear magnetic resonance

¹H NMR spectra of all samples were recorded at room temperature on a Varian Unity 400 MHz spectrometer with deuterated chloroform as solvent and tetramethylsilane as internal standard. The ratio of 2-vinylpyridine in the copolymer is determined by ¹H NMR.

2.4.2 Differential scanning calorimetry

The thermal measurements were carried out on a TA Instruments Q20 differential scanning calorimetry with nitrogen gas purging at a flow rate of 50 ml/min. All experiments were carried out using a heating/cooling rate of 10°C/min. Three heating/cooling runs were conducted, where the glass temperature T_g was determined from the second run, with the aid of commercially available Universal Analysis software. Reproducibility of the DSC traces was confirmed in the third run.

2.4.3 Linear viscoelasticity

All measurements were conducted with a strain-controlled rheometer (ARES-G2, TA, United States) under the protection of dry N₂. 4 and 8 mm parallel-plate fixtures were utilized to measure glassy and rubber parts of modulus, respectively. The frequency sweep measurements were conducted within an angular frequency range of 0.1–100 rad/s at a temperature range of 100–240°C. The strain amplitude was kept in the linear regime.

2.4.4 Transmission electron microscopy

The samples were microtomed with a Leica ultramicrotome EM UC7 using a glass knife at ambient conditions, with resulting specimens having thicknesses of ∼100 nm. The TEM measurements were performed on a JEM-1400 electron microscope operating at 120 kV.

2.4.5 X-ray diffraction

XRD measurements were carried out using a Rigaku SmartLab diffractometer with Cu Kα radiation (Kα₁ line, with wavelength λ = 0.154 nm). The X-ray source was operated at 40 kV and 40 mA. The XRD patterns of samples were obtained at a step-scan rate of 0.03° per 3s in a scattering angle (2θ) range of 0.5°–30° (where θ is half of the scattering angle) corresponding to a scattering vector q of 0.35–21.11 nm⁻¹.

2.4.6 Small angle X-ray scattering

SAXS experiments were carried out on 1W2A small-angle X-ray scattering station of the Beijing Synchrotron Radiation Facility (BSRF) and Bruker Nanostar-U instrument using Cu Kα radiation (wavelength, λ = 0.154 nm). The scattering vector q = 4πsinθ/λ ranges from 0.08 to 2.0 nm⁻¹, where the scattering angle is 2θ.

3 Results and discussion

3.1 Structure

We prepared a series of P(S-co-2VP) copolymer samples with a systemically changed molar fraction of 2VP, F_2VP, varying from 7.2 to 100%. More details of the synthesis are given in Supplementary Figures S1–S3. H₃[P(W₃O₁₀)₄] having a functionality f = 3 was introduced to protonate the 2VP monomers. The protonated 2VP monomers were effectively crosslinked by the deprotonated [P(W₃O₁₀)₄]^3- anions. The number ratio of the functional groups of H₃[P(W₃O₁₀)₄] and that of the 2VP monomers is r = f [POM]/[2VP], and the sample is coded as F_2VP-r. For example, 26%-0.1 indicates a sample having F_2VP = 26% and r = 0.1. For all samples focused in this study, the value of r is well below one so that the POM molecules were well dispersed (Bu et al., 2009; Lin et al., 2011; Zhang et al., 2016; Zhang L. et al., 2017). Nevertheless, further increasing the content of POM (and, accordingly, r) would finally lead to the crystallization of the POM molecules, as evidenced by the observation of the POM crystalline peaks in the X-ray scattering measurements (cf. Supplementary Figure S4).

Figure 1 compares the X-ray scattering profiles obtained for the representative samples over 1 nm⁻¹ $\le$ q $\le$ 21 nm⁻¹, where each panel corresponds to the samples based on one copolymer precursor with F_2VP (= 26, 66, and 88%) as indicated. The X-ray scattering profiles for samples based on copolymers with other F_2VP (= 7.2, 52, 79, and 100%) are compared in Supplementary Figure S5. In Figure 1, we find that the scattering profiles of the copolymer precursors (at the bottom of each panel) are characterized by two peaks. This feature is seen also for pure PS or P2VP in literature (Wu et al., 2019; Liu et al., 2020; Yu et al., 2021), where the high- and low-q peaks were attributable to the amorphous scattering of the 2VP and/or S moieties and the correlation of the main backbones, respectively. Introducing H₃[P(W₃O₁₀)₄] into the copolymer and pure P2VP leads to an additional peak appearing at the lower q. The backbone correlation peak merges with the new peak and manifests as a shoulder of the new peak. The new peak is attributable to the spacing between POM molecules. To test this idea, we made two rough estimations. The dotted arrow indicates q* calculated based on the Bragg equation assuming a uniform dispersion of the POM molecules in the sample,

$\begin{array}{c}\mathit{q}\ast =\frac{\mathbf{2}\mathit{\pi }}{\mathit{D}}=\mathbf{2}\mathit{\pi }{\mathit{\nu }}_{\mathbf{P}\mathbf{O}\mathbf{M}}^{\frac{\mathbf{1}}{\mathbf{3}}}=\mathbf{2}\mathit{\pi }{\left(\frac{\frac{{\mathit{w}}_{\mathbf{P}\mathbf{O}\mathbf{M}}}{{\mathit{M}}_{\mathbf{P}\mathbf{O}\mathbf{M}}}{\mathit{N}}_{\mathbf{A}\mathbf{V}}}{\frac{{\mathit{w}}_{\mathbf{P}\mathbf{O}\mathbf{M}}}{{\mathit{\rho }}_{\mathbf{P}\mathbf{O}\mathbf{M}}}+\frac{{\mathit{w}}_{\mathbf{P}\mathbf{S}}}{{\mathit{\rho }}_{\mathbf{P}\mathbf{S}}}+\frac{{\mathit{w}}_{\mathbf{P}\mathbf{2}\mathbf{V}\mathbf{P}}}{{\mathit{\rho }}_{\mathbf{P}\mathbf{2}\mathbf{V}\mathbf{P}}}}\right)}^{\frac{\mathbf{1}}{\mathbf{3}}}\end{array}(1)$

FIGURE 1

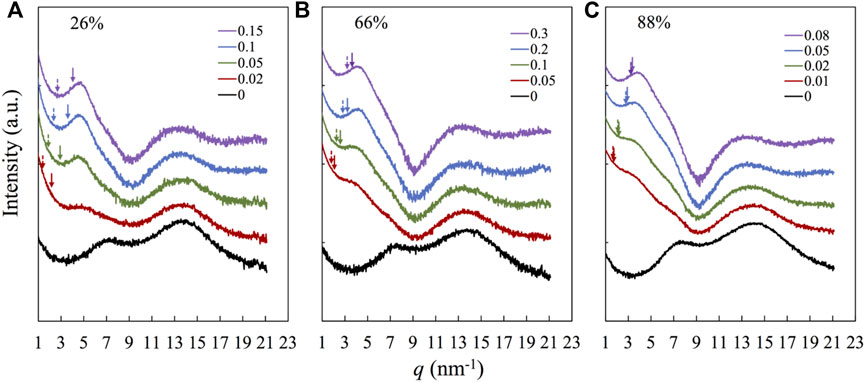

FIGURE 1. XRD patterns of nanocomposites and precursors. Each panel corresponds to samples based on the same precursor with the molar fraction of 2VP in the precursor, F_2VP of (A) 26%, (B) 66%, and (C) 88%, as indicated, and the number shown in the legend indicates the number ratio of the functional groups of H₃[P(W₃O₁₀)₄] and that of the 2VP monomers, r = f [POM]/[2VP]. The curves are arbitrarily shifted for clarity. The dotted and solid arrows are q* calculated from Eqs. 1, 2, respectively.

where D represents the spacing between the POM molecules, which is determined by D = ${\nu }_{\mathrm{P}\mathrm{O}\mathrm{M}}^{-\mathit{1}/\mathit{3}}$, with v_POM being the number density of POM, w_J is the weight fraction of the J component, M_POM = 2,880 g/mol is the molecular weight of POM, and N_AV is the Avogadro number (He et al., 2020). For comparison, we also made another estimation of q* on the assumption that the POM molecules are selectively in the P2VP domains that are segregated from the PS domains as

$\begin{array}{c}\mathit{q}\ast =\frac{\mathbf{2}\mathit{\pi }}{\mathit{D}}=\mathbf{2}\mathit{\pi }{\mathit{\nu }}_{\mathbf{P}\mathbf{O}\mathbf{M}}^{\frac{\mathbf{1}}{\mathbf{3}}}=\mathbf{2}\mathit{\pi }{\left(\frac{\frac{{\mathit{w}}_{\mathbf{P}\mathbf{O}\mathbf{M}}}{{\mathit{M}}_{\mathbf{P}\mathbf{O}\mathbf{M}}}{\mathit{N}}_{\mathbf{A}\mathbf{V}}}{\frac{{\mathit{w}}_{\mathbf{P}\mathbf{O}\mathbf{M}}}{{\mathit{\rho }}_{\mathbf{P}\mathbf{O}\mathbf{M}}}+\frac{{\mathit{w}}_{\mathbf{P}\mathbf{2}\mathbf{V}\mathbf{P}}}{{\mathit{\rho }}_{\mathbf{P}\mathbf{2}\mathbf{V}\mathbf{P}}}}\right)}^{\frac{\mathbf{1}}{\mathbf{3}}}\end{array}(2)$

The result is shown by the solid arrow. Both arrows are located at the low-q side of the peak, but the solid arrows are closer to the peak, suggesting that the latter assumption, i.e., POM selectively dissolved in the P2VP-rich domains, can better reflect the X-ray scattering profile. The separation between the solid arrow and the actual peak decreases with increasing the POM content and, accordingly, the amplitude of the POM-related peak, suggesting that the difference between q* in experiments and that evaluated from Eq. 2 is (partly) attributable to the merging of the lowest-q peak with the higher-q backbone correlation peak: the merged peak reflects more on a distance between POM molecules when their content is higher.

To characterize the morphology of the samples after the phase segregation, SAXS and TEM were employed for the high-r samples based on each copolymer in Figure 2 and Supplementary Figures S6 and S7. The left panel (Panel a) of Figure 2 compares the SAXS profiles, where segregation is noted for the samples with F_2VP $\le$ 66%, but not for the sample having F_2VP = 88%, whose X-ray profile is more similar to the composite sample based on the pure P2VP (F_2VP = 100%). The right panels (Panels b–g) show TEM images of the same samples, with the color of the frame being the same as that of the symbols in Panel a. For those samples with F_2VP $\le$ 66%, we indeed see the phase-segregated morphology, where the dark domains should be locally condensed in POM and 2VP, considering that tungsten in POM is a heavier element, and the light domains should be locally condensed in S (Bu et al., 2009; Lin et al., 2011; Zhang et al., 2016; Zhang L. et al., 2017). This argument is supported by the observation that the N-rich regions, visualized using the electron energy loss spectroscopy (EELS) technique, match the dark region in the TEM image (Supplementary Figure S8). Therefore, we assign the dark and light domains to the 2VP/POM-rich and S-rich domains, respectively. Considering that the copolymer precursors do not show segregation, while broad scattering peaks are seen for those samples with F_2VP $\le$ 66%, we may attribute the strong electrostatic attraction between deprotonated POM and protonated 2VP as the main driving force for segregation (He et al., 2020). The broad peak in the SAXS profiles (with F_2VP $\le$ 66%) should be owing to both the fluctuation of concentration and the distribution of the domain sizes. The peak shifts to lower q with increasing F_2VP from 7.2 to 66%, indicating the increased spacing of segregated domains. We analyzed the Lorentz-corrected SAXS (Iq² vs. q) in SI (Supplementary Figure S6) and determined the average distance of 16, 25, 29, and 42 nm for 7.2%-0.57, 26%-0.15, 52%-0.3, and 66%-0.2 samples, and indicated the spacing in the TEM images using the colorful bars. These bars well-represent the average size of domain spacings seen in the TEM images.

FIGURE 2

FIGURE 2. TEM images and X-ray scattering profiles for selected nanocomposites with high r: their corresponding SAXS profiles are compared in Panel (A) and TEM images in Panel (B) 7%-0.57, (C) 26%-0.15, (D) 52%-0.3, (E) 66%-0.2, (F) 88%-0.05, and (G) 100%-0.063, where the sample is coded as F_2VP-r.

3.2 DSC traces and dynamic heterogeneity

Figure 3 compares the DSC traces for the samples based on three representative copolymers having F_2VP = 26% (Panel a), 66% (Panel b), and 88% (Panel c), corresponding to the subcases where the continuous phase(s) is (are) S-rich phase, S- and 2VP-rich phases, and 2VP-rich phase, respectively, as revealed in the TEM images in Figure 2. In Figure 3, we find one glass transition process for the samples based on copolymers having F_2VP = 26% (Panel a) and 88% (Panel c), indicating that the DSC traces reflect mainly the continuous phase that is the majority. Nevertheless, the r dependences of T_g are quite different in the composite samples based on F_2VP = 26 and 88%; T_g is relatively insensitive to r for the samples having F_2VP = 26%, while it increases with r for the samples having F_2VP = 88%, indicating that the glass transition process of the S-rich is insensitive, while that of the 2VP-rich phases is strongly dependent on the POM content, in accordance with a naive expectation that the POM molecules locate preferentially in the 2VP-rich phase to restrict the segmental motion therein. In comparison, for the samples having F_2VP = 66% (Panel b), two glass transition processes manifest gradually with increasing r, and the low- and high-T processes are insensitive and strongly dependent on r, respectively, and the high-T process intensifies with increasing r. These features indicate that the low- and high-T processes reflect the glass transition of the S-rich and 2VP-rich domains, respectively. To resolve the glass transition temperature of the two phases, we follow the work of Colmenero (Arrese-Igor et al., 2010) to fit the derivatives of DSC traces with two Gaussian equations, as explained in Supplementary Figure S9 of SI. This analysis enables us to evaluate T_gs of the S- and 2VP -rich domains, which are shown in the solid and dashed arrows in Panel b, respectively.

FIGURE 3

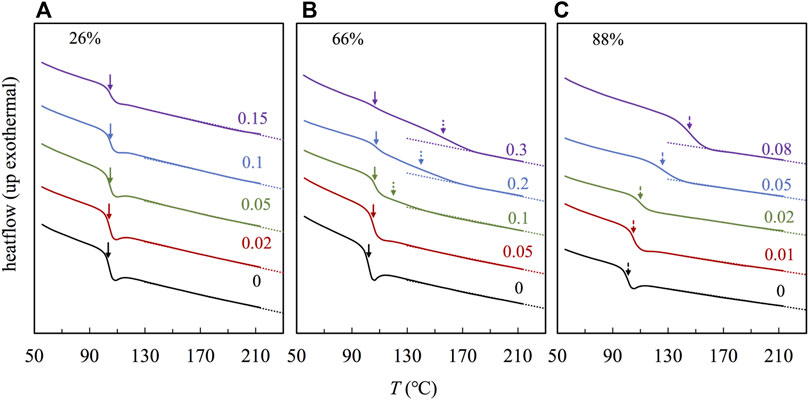

FIGURE 3. DSC traces for the P(S-co-2VP) copolymer and the nanocomposites with the different r as indicted, for F_2VP = (A) 26%, (B) 66%, and (C) 88%.

In Figure 4, we compared T_g resolved in Figure 3 against the weight fraction of POM, w_POM, where the filled and unfilled symbols represent T_gs of the S-rich and 2VP-rich phases, respectively. For those composites with F_2VP $\ge$ 66%, T_g of the 2VP-rich phase is determined directly from the DSC traces. In comparison, the glass transition process of the 2VP-rich domain is not well resolved in the DSC traces for those composites with the lower F_2VP $\le$ 52%, where T_g is determined by analyzing the LVE shift factors, as explained later in Figure 6. A comparison of the filled and unfilled symbols reveals that T_g of the S-rich phase is relatively insensitive to w_POM, but T_g of the 2VP-rich phases increases significantly with w_POM. The increase of T_g in the 2VP-rich domain with w_POM is stronger for the sample with lower F_2VP, which is probably because at the same w_POM, the lower F_2VP means higher POM content in the 2VP-rich domain after the POM-induced segregation.

FIGURE 4

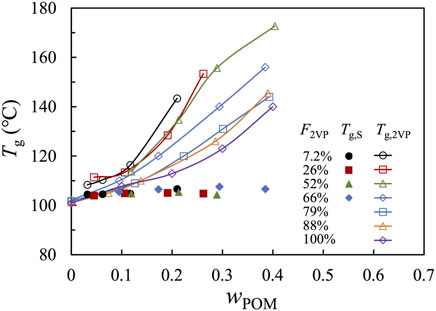

FIGURE 4. Plots of the T_g of the PS-rich (filled symbol) and P2VP-rich (open symbol) phases against the weight fraction of POM. T_g in the PS-rich phase is obtained from analyzing the DSC traces. T_g in the P2VP-rich phase for samples of F_2VP $\ge$ 66% and F_2VP $\le$ 52% are obtained, respectively, from analyzing the DSC traces and the LVE shift factors.

3.3 Analysis of LVE and shift factors

Figure 5 compares the (pseudo-) master curves of linear viscoelastic storage and loss moduli, G′ and G″, obtained for the samples based on three representative copolymers having F_2VP = 26% (Panel a), 66% (Panel b), and 88% (Panel c) reduced to the same reference T_r = 120°C. LVE (pseudo-) master curves of the samples having F_2VP = 7.2, 52, 79, and 100% are compared in Supplementary Figure S10. The main features of the F_2VP = 7.2, 52 and 79% are similar to those of the representative samples having F_2VP = 26, 66, and 88%, respectively. To construct the (pseudo-) master curves, the raw G′ and G″ data in the rubbery regime are corrected by an intensity factor b_T = T_r/T and shifted along the ω axis with a_T until the best superposition has been achieved. The time–temperature superposition principle holds approximately for all samples in this study.

FIGURE 5

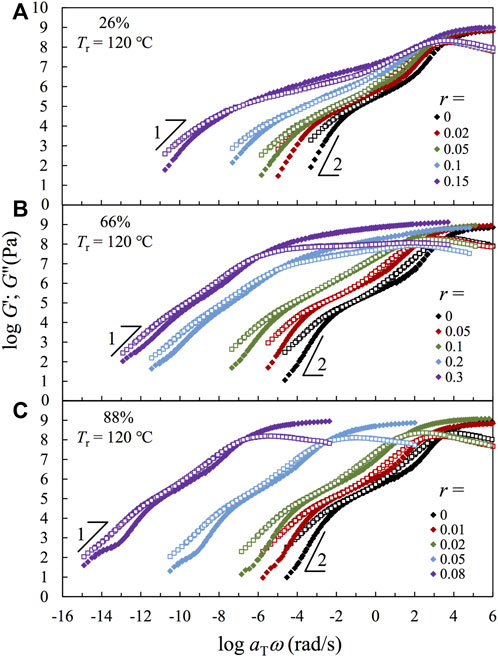

FIGURE 5. Storage modulus G′ (filled symbols) and loss modulus G″ (unfilled symbols) normalized by an intensity factor b_T and plotted against reduced frequency ωa_T for all samples based on different precursors with F_2VP = (A) 26%, (B) 66%, and (C) 88%, with reference temperature T_r = 120°C.

The continuity of the S- and/or 2VP-rich domains is well reflected in the glassy moduli. For the samples having F_2VP = 26% (Panel a), the glassy part of the modulus occurs at a similar ω range, and the glassy peak broadens with increasing r. These features reflect that the glassy part of the modulus is governed by the continuous S-rich domain therein, which is in accordance with their DSC traces shown earlier in Figure 3A. In comparison, the glassy peak of the samples having F_2VP = 88% (Panel c) shifts significantly toward the lower ω with increasing r, indicating the increased restriction on the segmental motion and, accordingly, the higher localized T_g (cf. Figure 3C) in the 2VP-rich domain. The glass region of the samples having F_2VP = 66% (Panel b) first broadens with increasing r for low r $\le$ 0.1 and then splits into two processes at r ≥ 0.2, where the high ω process broadens with increasing r, a feature akin to that of the S-rich phase seen in Figure 3A, while the low ω process shifts to the lower ω with increasing r, a feature akin to that of the 2VP-rich phase seen in Figure 3C. The evolution of the two processes suggests that bi-continuous morphology has formed for those samples having r ≥ 0.2. One may think the approximate validity of tTS is a surprising result for the glassy modulus of those samples of F_2VP = 66% and r ≥ 0.2, considering that the S- and 2VP-rich domains have different T_g, and, thus, their glassy modulus should have different T dependences. However, we should note that the glass transition region is extremely broad for the composite samples, and the temperature dependence of the glassy modulus is usually very strong. As a result, the glassy modulus of two glassy domains cannot be commonly detected at varied Ts (with a minimum difference of 10°C), thereby enabling the tTs to hold approximately.

Now, we turn our focus to the rubbery part of the modulus. Since the molecular weights of all copolymer samples in this study are smaller than twice the entanglement molecular weight 2M_e of either PS or P2VP, i.e., M_e = 18,000 g/mol for PS (Chen et al., 2011; Cao et al., 2019) and 27,000 g/mol P2VP (Beck Tan et al., 1996; Chen et al., 2015b), no entanglement effect is expected for the composite samples. In accordance with this expectation, no plateau region is seen for the composite samples having F_2VP = 66 and 88%. Probably, the 2VP monomers in the continuous phase have the same chance to be protonated by POM, leading to the overall quenching of the (continuous) 2VP-rich phase. In contrast, we observe a broad rubbery-like region where the storage modulus is higher than the loss modulus for the F_2VP = 26% samples having a high r (also for the F_2VP = 7.2% samples having high r $\ge$ 0.57 in Supplementary Figure S10). This feature is typically seen for the unentangled associative polymers above the gel point. Probably, the immobilized 2VP-rich domains are isolated by the more mobilized S-rich matrix. This feature is akin to ionomers having the ionic aggregates in a neutral matrix with much higher mobility. The qualitative difference between the F_2VP = 26% samples and the usual ionomer samples is that a flat plateau is usually seen for ionomers but not in Figure 5A: The gradual decay of modulus with lowering the frequency for r $\ge$ 0.1 should reflect a broad distribution of the association energy E_a. The distribution should stem from the different polar environments of the ionic stickers owing to the fluctuation of concentration seen earlier in the TEM images (Figure 2).

The introduction of the POM leads to both the ion association and the phase segregation, and both changes should influence the terminal relaxation behavior. In relation to the present study, Chen et al. examined the dynamics of ionomers obtained from condensation polymerization of sulfonated phthalates with mixtures of poly(ethylene glycol) (PEO) and poly(tetramethylene oxide) (PTMO) (Chen et al., 2014). They found that the samples exhibited phase segregation, and the ionic dissociation in the PEO-rich phase is much faster than that in the PTMO-rich phase, owing to the superior ion solvating ability of PEO. As a result, the terminal relaxation of these samples is governed by the slow ionic dissociation process in the PTMO-rich phase. For the present study, we may regard the 2VP-rich phase as the less mobilized phase. Then, the motion of the copolymer chains can be fully activated only if T is higher than T_g of the 2VP-rich phase. Having this point in mind, we attempt to analyze the LVE shift factors based on the localized T_g in the 2VP-rich phases.

Figures 6A–C plot the logarithmic shift factor log a_T, obtained from constricting the LVE master curves in Figure 5, against T − T_r, with T_r = 120°C. The temperature dependence increases with r, owing to an increase of T_g and, accordingly, a reduction of T_r – T_g, which leads to the stronger temperature dependence at T close to T_r. To test this point, we make a correction first for the F_2VP = 88% samples (in Panel c). We choose a new iso-frictional reference temperature, T_iso, that has the same distance from T_g, i.e., T_iso = T_g,2VP + 20°C, and reevaluate the shift factors according to T_iso. In Figure 6F, the log a_iso thus obtained is plotted against T – T_iso. All plots agree well with the prediction of the WLF equation of the bulk P2VP using the reference temperature T_r = T_g +20°C:

$\begin{array}{c}\mathbf{log}{\mathit{a}}_{\mathbf{T}}=\frac{-\mathbf{9.54}\left(\mathit{T}-{\mathit{T}}_{\mathbf{r}}\right)}{\mathbf{80}+\mathit{T}-{\mathit{T}}_{\mathbf{r}}}\end{array}(3)$

FIGURE 6

FIGURE 6. (A–C): a_T is plotted against T-T_r, with T_r = 120°C for the nanocomposites and precursor. (D–F): The reduced shift factor a_iso, defined for the iso-frictional temperature T_iso, is plotted against T-T_iso.

The agreement indicates that the temperature dependence of the samples having F_2VP = 88% is governed by that of the 2VP-rich phase. A similar agreement of the plots of log a_T against T – T_iso has also been achieved for the composite samples based on pure P2VP, as shown in Supplementary Figure S11 of SI.

A similar correction is given on the plots in Figure 6B (with F_2VP = 66%). The re-evaluated shift factors log a_iso is against T – T_iso, as shown in Figure 6E. The plots agree well with the prediction of the WLF equation only at high T $\ge$ T_iso (20°C higher than T_g of the 2VP-rich phase), where the shift factor reflects T dependence of the rubbery modulus but not at low T < T_iso, where the shift factor reflects T dependence of the glassy part of modulus, which is probably because the glass part of modulus are contributed by both the S- and 2VP-rich phases that are continuous in space, but the temperature dependence of the rubbery part of modulus is governed by that of the less mobilized 2VP-rich phase.

The agreement for the plots of log a_iso against T – T_iso at T $\ge$ T_iso for F_2VP = 88%, 66%, and for F_2VP = 79 and 100% in SI (Supplementary Figure S11) encourages us to conduct the WLF analysis on those samples having the lower F_2VP $\le$ 52%. Since we do not know the localized T_g beforehand (T_g of the 2VP-rich domain not well resolved in DSC), we take T_iso as an adjustable parameter and reevaluate the shift factor a_T by a factor Δ so that the plots of reevaluated shift factor a_iso (= a_TΔ) against T – T_iso go through the point (0, 0). This adjustment of T_iso is continued until the best agreement has been achieved between the plots of log a_iso against T – T_iso and the WLF curve of P2VP at high T > T_iso, see Figure 6D. From T_iso thus determined, we can, in turn, evaluate an average localized glass transition of the 2VP-rich domain as T_g = T_iso − 20°C. The localized T_gs of the P2VP-rich phase with F_2VP $\le$ 52%, as shown earlier in Figure 4, are thus evaluated.

3.4 Analysis of relaxation time

From LVE, the zero-shear viscosity can be determined from the G″ tail as η₀ = [G″/ω]_ω$\to$₀. Since the terminal characteristic relaxation modulus is G_c = ρRT/M_n, it is reasonable to use η₀ and G_c to estimate an average relaxation time as τ_c = η₀/G_c. This relaxation time is usually shorter than that obtained from the terminal tails of both G′ and G″, τ_w = [G′/ωG″]_ω$\to$₀, and the ratio τ_w/τ_c increases with the broadening of the relaxation mode distribution (Watanabe et al., 2012). We utilize the former τ_c instead of τ_w because the terminal tails G′ ∼ ω² are not well resolved, particularly for the samples having high r, owing to a weak and slow relaxation process that manifests for the copolymer samples at high r. This process may stem from the deformation of the interface upon shearing (This process is absent for the composite based on pure P2VP). Nevertheless, the G″ ∼ ω tail is reasonably well resolved. One may think the terminal tails of G′ and G″ should be detected in the same frequency range. Nevertheless, the G′ ∼ ω² tail usually appears at a frequency lower than the G″ ∼ ω tail in practice. This difference can be understood by taking a look at the general Maxwellian expressions, namely, G′ = ${\sum }_p{g}_p{\omega }^{\mathit{2}}{\tau }_p^{\mathit{2}}/\left(\mathit{1}+{\omega }^{\mathit{2}}{\tau }_p^{\mathit{2}}\right)$ and G″ = ${\sum }_p{g}_p\omega {\tau }_p/\left(\mathit{1}+{\omega }^{\mathit{2}}{\tau }_p^{\mathit{2}}\right)$, where the slow modes (of the weak and slow process) with long τ_p are weighed more in G′ (that scales with τ_p² in the numerator) than in G″ (that scales with τ_p in the numerator), and, thus, these modes are less sensitively reflected in G″.

Figure 7A compares the characteristic relaxation time τ_c plotted against T – T_iso in a T range where G″ ∼ ω tail is detectable. Since the difference of T_g has been properly normalized through plotting against T – T_iso, the scattering of plots, in a range of ∼ 2 decades in the vertical scale, should be mainly due to a difference in the number of ionic associations per chain. To test this idea, we used τ_c obtained for the bulk P2VP as the reference and shifted the viscosity of each sample by a factor of K to achieve the best superposition on that of the P2VP bulk sample, as shown in Figure 7B, where good agreement has been achieved.

FIGURE 7

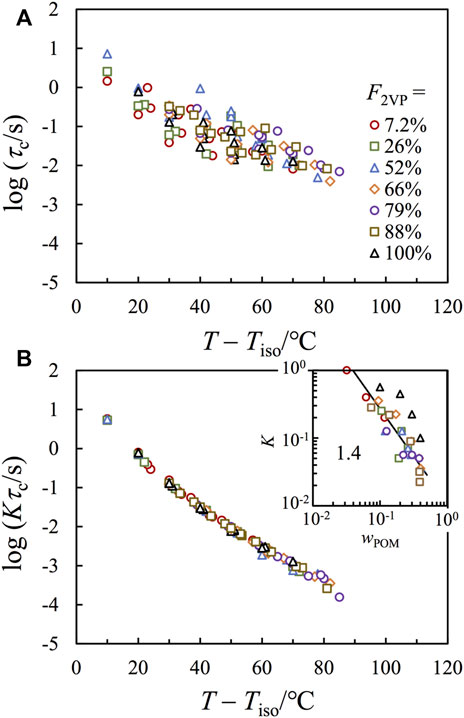

FIGURE 7. (A): Plots of the characteristic relaxation time τ_c against T – T_iso for all composite samples, with F_2VP as indicated. (B) τ_c in panel a has been multiplied by an intensity factor K and plotted against T – T_iso. Inset plots K against w_POM.

The inset of Figure 7B plots K obtained for each composite sample against w_POM (the weight fraction of POM), where the symbol shapes are the same as those in the main figure. The w_POM dependence of K falls into two groups: those nanocomposites based on P(2VP-co-S) (colorful symbols) exhibit much lower K than those obtained based on the pure P2VP (black symbols). Considering that the normalization is given on Kτ_c, and, thus, the lower K means the higher τ_c for the composite samples based on P(2VP-co-S). This difference should indicate extra confinement for the chain motion by the interface. It is interesting that although the composites having F_2VP = 88% do not show clear segregation in either the X-ray scattering or the TEM images, their relaxation behavior is more similar to the composite samples based on other P(S-co-2VP) precursors (having F_2VP < 88%) than those based on pure P2VP (having F_2VP = 100%), suggesting that there should be considerable segregation for the F_2VP = 88% composite samples in a dynamic sense.

For all composite samples based on P(2VP-co-S), K decreases with increasing w_POM, suggesting that τ_c increases with w_POM. This result is typical for associative polymers. Namely, the chain relaxation relies on the continuous dissociation of all stickers on the chain, and, thus, the terminal relaxation time increases with the number of stickers per chain. The classical sticky Rouse model considers the dissociation of different stickers as independent events and predicts relaxation time to be proportional to the square of the number of stickers per chain,

$\begin{array}{c}{\mathit{\tau }}_{\mathit{c}}={\mathit{\tau }}_{\mathit{s}}{\mathit{S}}^{\mathbf{2}}\end{array}(4)$

where τ_s is the lifetime per sticker, and S is the number of stickers per chain. If (1) all POM molecules form effective interchain crosslinkers, and (2) τ_s is insensitive to w_POM, we would have τ_c ∼ w_POM² or K ∼ w_POM⁻². Nevertheless, the apparent scaling seen for the composite samples is considerably weaker, i.e., a scaling of K ∼ w_POM^−1.4±0.2 has been observed (cf. Solid line in the inset), meaning that the two abovementioned assumptions may be questionable.

On the one hand, it is likely that not all POM molecules serve as effective crosslinkers. Considering that there is a fluctuation of concentration for the nanocomposite samples, the POM crosslinkers in the less rich P2VP region or near the interface between the PS- and P2VP-rich domains may not serve effectively as interchain crosslinkers: They may either be free (non-associated) or associated with 2VP monomers belonging to the same chain. The fraction of POM as effective crosslinkers is likely to decrease with increasing w_POM, leading to S ∼ w_POM^β with β smaller than one, and, accordingly, the scaling τ_c ∼ w_POM^1.4±0.2 being weaker than that expected by the sticky Rouse theory.

On the other hand, τ_s may decrease with increasing w_POM, considering that higher w_POM leads to smaller POM-POM distance thereby facilitating the hopping of 2VP monomers between the POM crosslinkers. This mechanism has been discussed by Stukalin et al. (2013). They argued that a broken sticker would reassociate several times with its original partner before it could find a new partner. Since the probability of the position of the new partner is the same in any direction, the orientation of the reassociated strand becomes randomized.

The lifetime per sticker, according to Stukalin et al. (2013), can be expressed as:

$\begin{array}{c}{{\mathit{\tau }}_{\mathit{s}}=\mathit{J}\mathit{\tau }}_{\mathit{b}}+{\mathit{\tau }}_{\mathit{a}},\end{array}(5)$

where τ_b is the characteristic time for sticker breakup, J is the number of reassociation back to the original partner before finding a new partner, and τ_a is the time required to migrate a POM-POM distance D. Since D is usually smaller than the end-to-end distance (this condition should be satisfied above the gel point), the diffusion is subdiffusive, leading to

$\begin{array}{c}\langle \mathbf{\Delta }{\mathit{r}}^{\mathbf{2}}\left(\mathit{t}\right)\rangle ={\mathit{b}}^{\mathbf{2}}{\left(\frac{\mathit{t}}{{\mathit{\tau }}_{\mathbf{0}}}\right)}^{\frac{\mathbf{1}}{\mathbf{2}}}\end{array}(6)$

where Δr(t) represents the diffusion distance between 0 and t, and b and τ₀ are the size and relaxation time per Kuhn segment. Allowing Δr(t) = D² gives

$\begin{array}{c}{{\mathit{\tau }}_{\mathit{a}}=\mathit{\tau }}_{\mathbf{0}}{\left(\frac{\mathit{D}}{\mathit{b}}\right)}^{\mathbf{4}}\end{array}(7)$

Here, τ_a specifies a time for a broken sticker to explore a volume of D³ containing (D/b)³ sites. Since the number of steps for this exploration is (D/b)⁴ according to Eq. 7, the possibility of reassociating to the original partner becomes

$\begin{array}{c}\mathit{J}=\frac{\mathit{D}}{\mathit{b}}\end{array}(8)$

A combination of Eqs 5–8 gives

$\begin{array}{c}{{\mathit{\tau }}_{\mathit{s}}=\frac{\mathit{D}}{\mathit{b}}\mathit{\tau }}_{\mathit{b}}+{\left(\frac{\mathit{D}}{\mathit{b}}\right)}^{\mathbf{4}}{\mathit{\tau }}_{\mathbf{0}}\end{array}(9)$

For a strong association having τ_b much longer than the Rouse time, we have the first term much larger than the second term, thereby giving τ_s ∼ D/bτ_b. For the present case, we might assume τ_b is insensitive to w_POM but D ∼ w_POM^−1/3, giving τ_s ∼ w_POM^−1/3, meaning that the time for a broken sticker to find a new partner decreases with decreasing the POM-POM distance. Inputting S ∼ w_POM and τ_s ∼ w_POM^−1/3 into Eq. 4 gives a scale of τ_c ∼ w_POM^5/3 (or K ∼ w_POM^−5/3). This scaling is closer to K ∼ w_POM^−1.4±0.2 seen in Figure 7.

One may think the scaling τ_c ∼ w_POM^1.4±0.2 weaker than that expected by the sticky Rouse theory is partly owing to the crystallization of the POM molecules that reduces the number density of the crosslinking POM molecules. This is unlikely to be the relevant mechanism because no crystalline peaks of POM have been detected in the X-ray scattering profiles.

4 Concluding remarks

In this study, we examine systematically how the morphological and rheological properties change with increasing either the density of crosslinkable sites of the precursor or the density of the extrinsic crosslinkers. The introduced POM crosslinkers effectively protonate the 2VP monomers, which induces the phase segregation into the S-rich and 2VP-rich domains owing to the strong ionic attraction (between the deprotonated POM molecules and the protonated 2VP monomers). The POM preferentially resides in the 2VP-rich domain to restrict the segmental motion, leading to a significant increase in the localized glassy transition temperature therein.

LVE of the composites strongly relies on the continuity of the 2VP-rich domains. When the 2VP-rich domains are isolated in space, the rheological property is akin to associative polymers characterized by a wide rubbery regime with G′ > G″ before the terminal relaxation. This means that the chain relaxation is activated through the chain “hopping” or “walking” between the isolated domains (Yokoyama and Kramer, 2000). In comparison, when the 2VP-rich domain becomes continuous, the chain motion has been largely quenched when T is lower than the localized T_g of the 2VP-rich domains. Above this T_g, the chain motion is activated by the continuous sticker dissociations occurring mainly in the 2VP-rich domains. It is surprising that although the LVE behavior is quite different for these two cases, the T dependence of the terminal relaxation time can be reduced to a universal behavior once the average glass transition temperature of the 2VP-rich region and the number of stickers per chain have been properly normalized. This surprising universal relationship serves as a clear starting point for further theoretical work.
