ORIGINAL RESEARCH article

Front. Signal Process., 26 August 2022
Sec. Image Processing
This article is part of the Research Topic Women in Signal Processing View all 12 articles

Blind visual quality assessment of light field images based on distortion maps

  • 1Department of Electrical Engineering, University of Brasília, Brasília, Brazil

Light Field (LF) cameras capture spatial and angular information of a scene, generating a high-dimensional data that brings several challenges to compression, transmission, and reconstruction algorithms. One research area that has been attracting a lot of attention is the design of Light Field images quality assessment (LF-IQA) methods. In this paper, we propose a No-Reference (NR) LF-IQA method that is based on reference-free distortion maps. With this goal, we first generate a synthetically distorted dataset of 2D images. Then, we compute SSIM distortion maps of these images and use these maps as ground error maps. We train a GAN architecture using these SSIM distortion maps as quality labels. This trained model is used to generate reference-free distortion maps of sub-aperture images of LF contents. Finally, the quality prediction is obtained performing the following steps: 1) perform a non-linear dimensionality reduction with a isometric mapping of the generated distortion maps to obtain the LFI feature vectors and 2) perform a regression using a Random Forest Regressor (RFR) algorithm to obtain the LF quality estimates. Results show that the proposed method is robust and accurate, outperforming several state-of-the-art LF-IQA methods.

1 Introduction

Unlike conventional cameras, Light Field (LF) camera captures spatial and angular information of scene, which is represented by a scalar function L(u, v, s, t), where (u, v) and (s, t) depict the angular and spatial domains, respectively. The 4D light field can be described as a 2D projection of sub-aperture images (SAIs). Figure 1 illustrates a grid of 10 × 10 sub-aperture images of LFI (ArtGallery3) from the MPI dataset (Adhikarla et al., 2017). SAIs are generated from micro-lens images, with an operation known as raw data decoding. LF images (LFI) carry rich information that is widely used for refocusing (Hahne et al., 2018) and 3-Dimensional (3D) reconstruction. However, the high-dimensionality of LFIs creates several challenges to the area of communications, requiring the development of specific compression (Hou et al., 2019), transmission, and reconstruction techniques. Unfortunately, these techniques inevitably distort the perceived quality of LFIs (Paudyal et al., 2017). In order to monitor the visual quality and quantify the amount of visual distortion in LF contents, we must develop efficient LFI Quality Assessment (LF-IQA) methods.

FIGURE 1
www.frontiersin.org

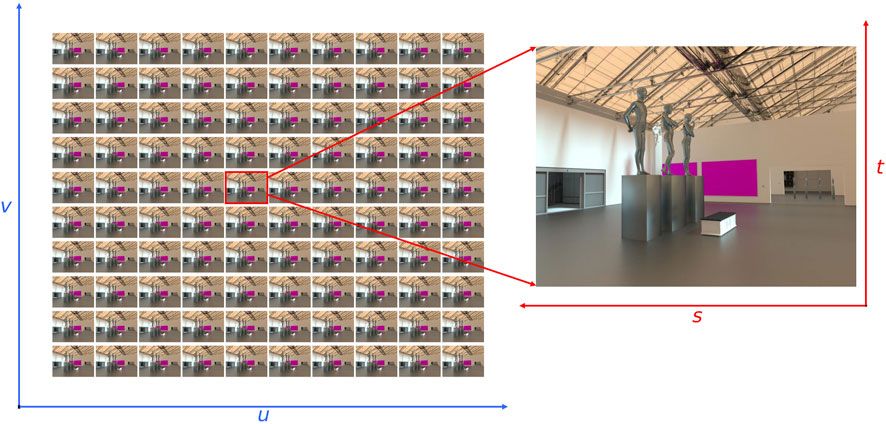

FIGURE 1. A grid of 10 × 10 sub-aperture images of a Light Field image (ArtGallery3) from MPI dataset (Adhikarla et al., 2017).

The visual quality of images can be assessed (IQA) subjectively or objectively. Subjective quality assessment methods are experimental methodologies in which human observers are asked to estimate one or more features of the stimuli (e.g., the overall quality of a video). The data collected in these experiments are statistically analyzed, often generating Mean Opinion Scores (MOS) for each of the test stimuli. Although subjective quality assessment methods are considered as the most reliable ways of estimating quality, these methods are time-consuming and cannot be implemented in real-time systems. Objective quality assessment methods (also known as quality metrics) are algorithms that automatically assess the quality of a content by measuring the physical signal. Based on the available reference information, objective quality assessment methods are divided into the full-reference (FR), reduced-reference (RR) and blind/no-reference (NR) methods. To estimate the performance of objective quality methods, we compare their output scores with MOS values obtained using subjective methods.

As mentioned before, LFIs contain not only spatial information, but also angular information. Therefore, classical 2D image quality assessment methods cannot be directly used for LFI quality assessment. In the past few years, efforts have been devoted to develop LF-IQA methods. For example, Tian et al. (Tian et al., 2018) proposed a FR LF-IQA metric that uses a multi-order derivative feature-based method (MDFM), which extracts detailed features with different degrees with a discrete derivative filter. Paudyal et al. (Paudyal et al., 2019) proposed a RR LF-IQA that uses two IQA methods - SSIM (Wang et al., 2004) and PSNR - to process the depth maps. Fang et al. (Fang et al., 2018) presented a FR LF-IQA method that uses local and global features to predict quality. The local features are extracted from reference and test LFIs using a gradient magnitude operator, while the global features are extracted from the epipolar-plane images (EPIs) of reference and test LFIs using the same operator. Tian et al. (Tian et al., 2020b) proposed a FR LF-IQA method that uses symmetry information, which are extracted using Gabor filters (Field, 1987), and depth features computed from EPIs of the reference and test LFIs. Meng et al. (Meng et al., 2020) presented a FR LF-IQA method that computes the spatial LFI quality using the structural similarity index metric (SSIM) of the Difference of Gaussian (DoG) features of central SAIs and computes the angular LFI quality using the SSIM of refocused images.

Tian et al. (Tian et al., 2020a) presented a FR LF-IQA method in which the salient features are extracted from reference and test EPIs and SAIs using single-scale and multi-scale log-Gabor operators. The NR LFQA method proposed by Shi et al. (Shi et al., 2019a) predicts quality using EPI information and natural statistics. The NR LF-IQA method proposed by Luo et al. (Luo et al., 2019) employs the spatial information from SAIs and the angular information from the micro-lens images. Jiang et al. (Jiang et al., 2018) proposed a FR LF-IQA method that uses the entropy information and the gradient magnitude features to extract spacial features from the SAIs. To extract the angular features from SAIs, dense distortion curves are generated and the best fitting features are chosen. Wei Zhou et al. (Shi et al., 2019b; Zhou et al., 2019) proposed NR LF-IQA methods (BELIF and Tensor-NLFQ, respectively) that are based on tensor theory, employing SAIs view stacks along horizontal, vertical, left diagonal, and right diagonal orientations. The local spatial quality features are extracted using local frequency distribution, while the global spatial quality features are extracted using the naturalness distribution of individual color channels. Ak et al. (Ak et al., 2020) proposed a NR LF-IQA method based on the structural representations of EPIs, by training a convolutional sparse coding codebook and a Bag Of World dictionary on EPIs. Shan et al. (Shan et al., 2019) designed a NR LF-IQA method that is based on 2D (from SAIs) and 3D (from EPIs) LFI features. Xiang et al. (Xiang et al., 2020) presented a NR LF-IQA method (VBLFI) based on the mean difference image and on curvelet-transform characteristics of LFIs.

Despite of the work mentioned above, there is a lot of room for improvement in terms of prediction accuracy, robustness, computational complexities, and generality of NR LF-IQA methods. In this paper, we propose a NR LF-IQA method that is based on reference-free distortion maps. Considering that pixel distortions are affected by neighboring pixels, we have focused on designing a blind deep learning quality model using pixel-by-pixel distortion maps. In summary, we present two main contributions: 1) generation of reference-free distortion maps, and 2) NR LF-IQA method that is derived from the generated distortion maps.

To generate LF reference-free distortion maps, we have used a deep-learning architecture called Generative Adversarial Network (GAN) network (Goodfellow et al., 2014) that can learn from synthetically generated distorted images and their corresponding ground truth distortion maps. Since ground truth distortion maps are not available in any of the existing IQA datasets (Sheikh et al., 2006), we use distortion maps generated by SSIM (Wang et al., 2004) as ground-truth distortion maps to train the GAN. Specifically, first we generate a synthetically distorted dataset of 2D images (because the sub-aperture images are 2D representation of LFIs) and, then, we compute SSIM distortion maps corresponding to the original and test images, as shown in Figure 2A. Then, we train the GAN network using the SSIM distortion maps as labels, as shown in Figure 2B. The trained model is used to generate reference-free distortion maps of sub-aperture images of test LFIs, as shown in Figure 2C. The generated distortion maps (GDMs) are used as measurement maps for describing the test LFIs. Results show that the proposed method outperforms other state-of-the-art LF-IQA methods.

FIGURE 2
www.frontiersin.org

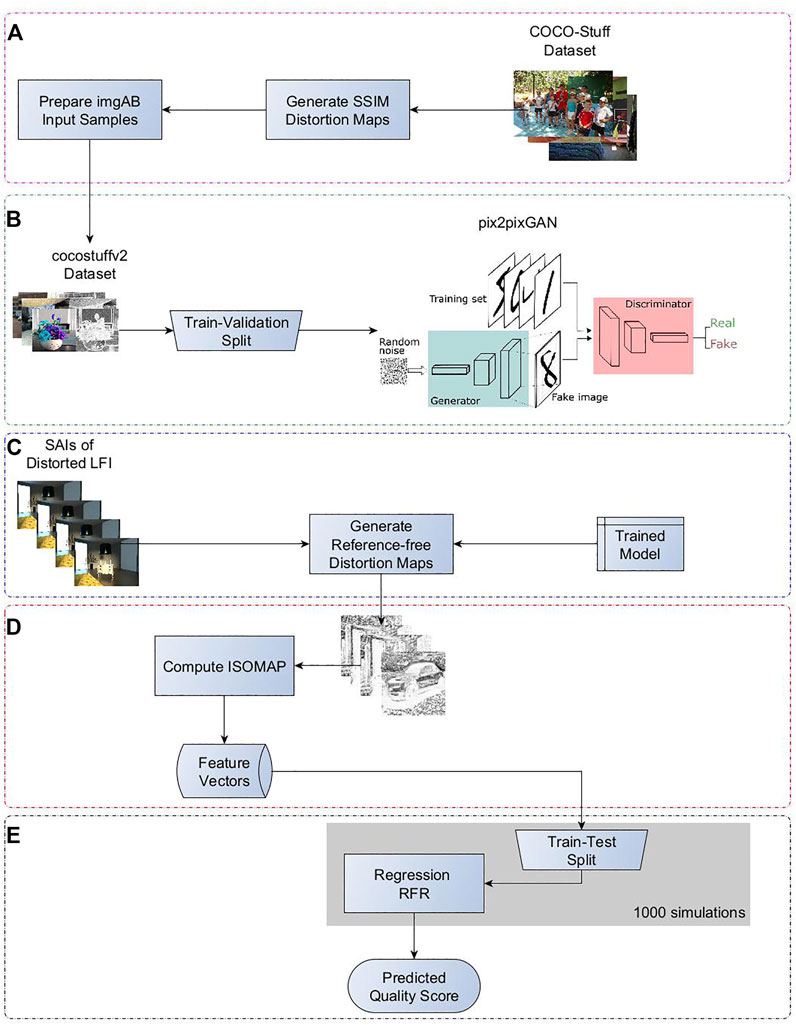

FIGURE 2. Block Diagram of the proposed no-reference light field image quality assessment method. (A) computation of SSIM distortion maps corresponding to the original and test images, (B) training the GAN network using the SSIM distortion maps as labels, (C) testing the trained GAN network to generate reference-free distortion maps of sub-aperture images of test LFIs, (D) computation of ISOMAP to generate feature vectors for distortion maps generated in (C), and (E) training Random Forest Regressor with 1000 simulations for quality predictions.

The rest of the paper is organized as follows. Section 2 describes the proposed LF-IQA method. Section 3 describes the experimental results. Finally, Section 5 presents our conclusion.

2 Proposed methodology

Generative Adversarial Networks (GAN) consists of a pair of competing network structures called generator (G) and discriminator (D) respectively, which can learn deep features with sufficient labeled training data. In this work, to learn the features of distorted images, we use the Pix2PixGAN architecture (Isola et al., 2017) for the GAN architecture because of its strong fitting capability. The Pix2PixGAN is composed of promising approach for many image-to-image translation tasks, especially those involving highly structured graphical outputs. Most importantly, the Pix2PixGAN is general-purpose, i.e., it learns a loss adapted to the task and data at hand, which makes it feasible in a wide variety of settings.

Since a GAN architecture requires a large number of training samples and LF-IQA datasets do not have a large number of samples, we use the COCO-Stuff dataset (Caesar et al., 2018) to generate a synthetically distorted dataset. The COCO-Stuff dataset is derived from the COCO dataset (Lin et al., 2014). This dataset has 1.2 million images captured from diverse scenes, with a total of 182 semantic classes. Sample images of COCO-Stuff dataset are shown in Figure 3.

FIGURE 3
www.frontiersin.org

FIGURE 3. Sample images taken from COCO-Stuff dataset (Caesar et al., 2018).

To generate synthetic distorted versions of 1.2 million images, we used the Albumentation library (Buslaev et al., 2020). In total, we used 29 augmentation functions with pre-set parameters, which are depicted in Table 1. In total, we generated a dataset with 3.57 million synthetically distorted images, which we named cocostuffv2. Then, we computed SSIM distortion maps between each reference and test images in the cocostuffv2 dataset. For training the Pix2PixGAN architecture, we prepared an input tuple imgAB of size 512 × 256, which consists of a concatenation of the test image A and the SSIM distortion map B. Figure 4 shows some examples of input tuples imgAB.

TABLE 1
www.frontiersin.org

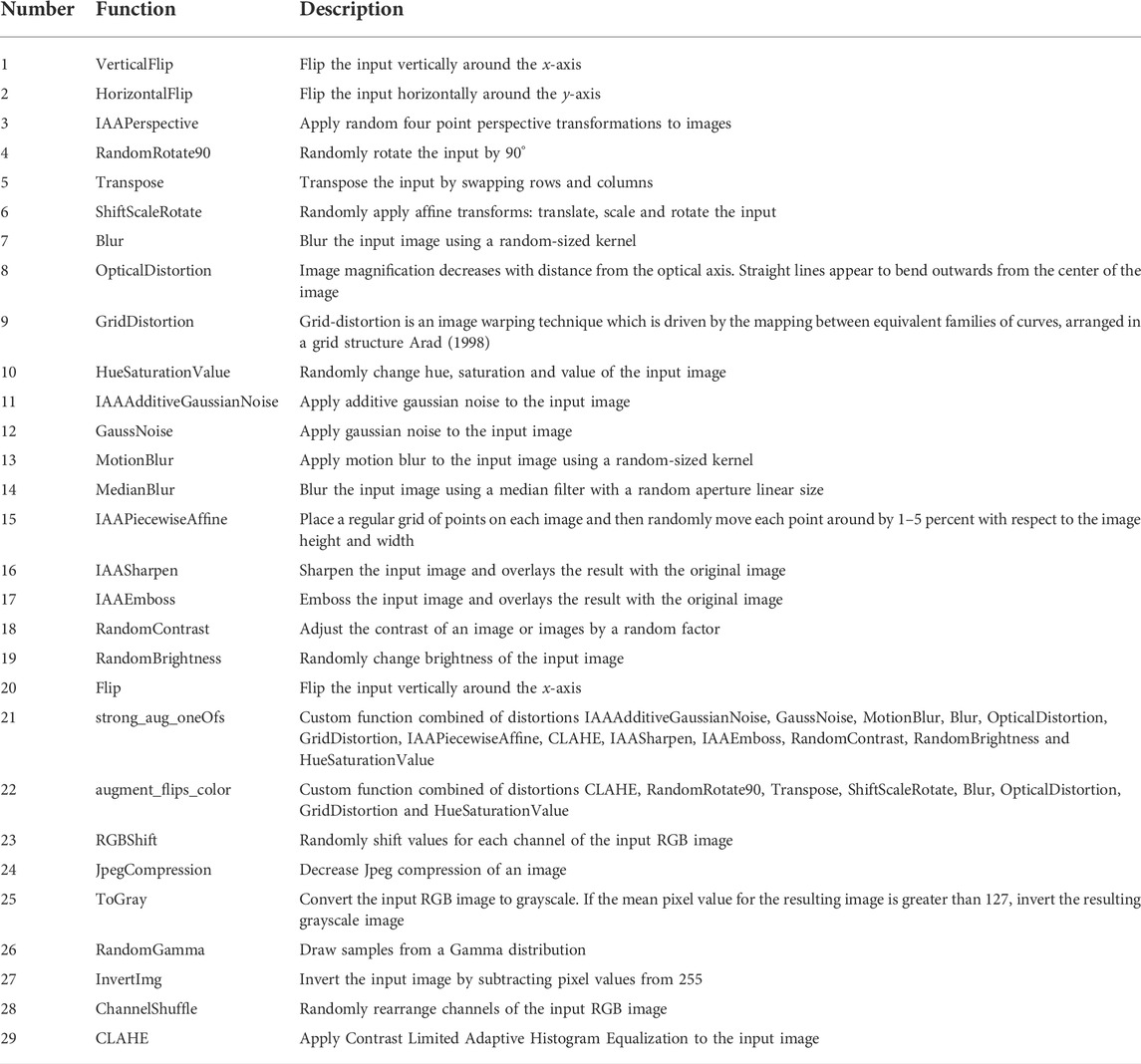

TABLE 1. Distortions used from Albumentation Library.

FIGURE 4
www.frontiersin.org

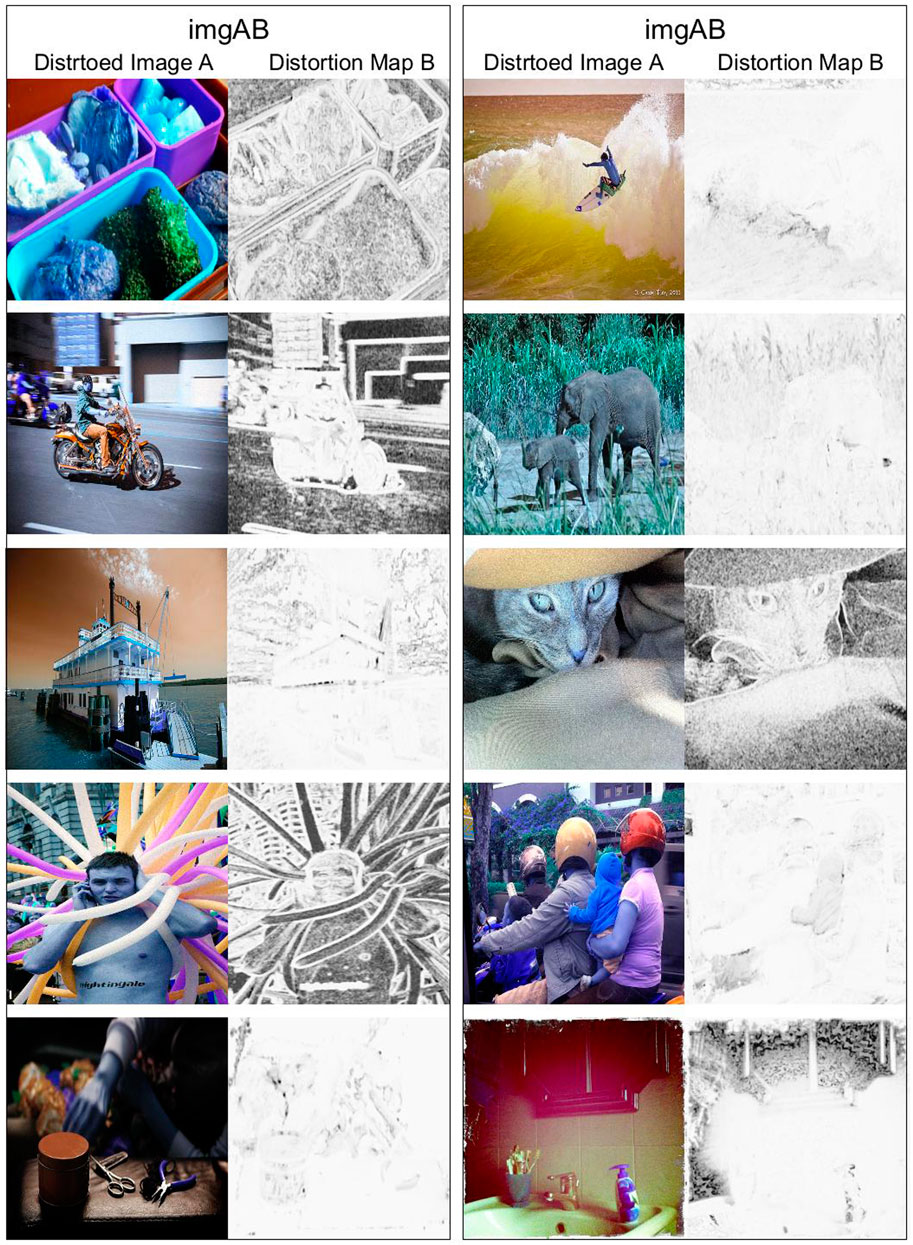

FIGURE 4. Random input samples from cocstuffv2 dataset. Distorted image A is obtained by Albumentation library of augmentations, where Distortion Map B is obtained by SSIM index method.

For training the Pix2PixGAN network, we divided the cocstuffv2 dataset into two content-independent training and validation subsets, i.e. distorted images generated from one reference in the test subset are not present in the training subset and vice-versa. We define a group of scenes as a group containing the reference LFI and its corresponding test versions. Then, 80% of the groups were randomly selected for training and the remaining 20% were used for validation. It is worth mentioning that we trained the Pix2PixGAN network from scratch (instead of using pre-trained model) with 50 epochs.

Next, the trained Pix2PixGAN network is used to generate reference-free distortion maps of the sub-aperture images of corresponding test LFIs. Figure 5 illustrates examples of generated distortion maps of central LF SAIs taken from the MPI dataset (Adhikarla et al., 2017). Even though we have not used any of LFIs in the training process, the Pix2PixGAN network is able to localize distortions in test SAIs. As illustrated in Figure 2D, to prepare the feature vectors for test LFIs, we perform a non-linear dimensionality reduction using an Isometric Mapping (Tenenbaum et al., 2000) (ISOMAP) on the generated distortion maps. The ISOMAP algorithm contains three stages. First, it computes k nearest neighbors. Then, it searches for and establishes the shortest path graph. Finally, the Eigen-vectors are computed over the largest Eigen values. The algorithm outputs feature vectors in a multi-dimensional Euclidean space that best represent the intrinsic geometry of the data. As illustrated in Figure 2E, the prepared features vectors of LFIs are fed to a Random Forest Regressor, which performs a regression to predict the LF quality. We chose the RFR because in previous studies it has shown a robust performance (Fern ández-Delgado et al., 2014; Freitas et al., 2018), when compared to other machinelearning algorithms (e.g. neural networks, support vector machines, generalized linear models, etc.).

FIGURE 5
www.frontiersin.org

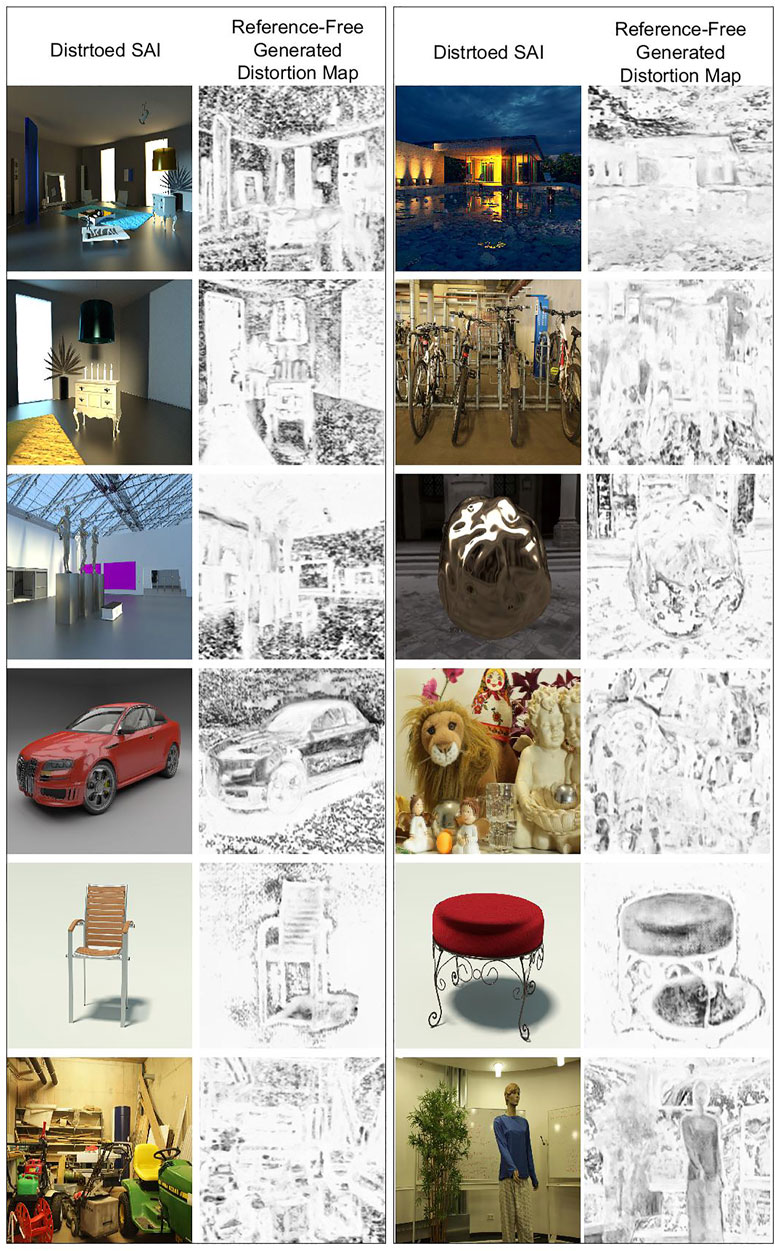

FIGURE 5. Examples of generated distortion maps of central SAIs of different test LFIs from MPI dataset (Adhikarla et al., 2017)

3 Experimental setup

To train and test the proposed method, we have used the following four LF image quality datasets. We have chosen these datasets because of their content diversity, the types of distortions, and the availability of the corresponding subjective quality scores.

• The MPI Light Field image quality dataset (Adhikarla et al., 2017) contains 13 different scenes with references, 336 test LFIs, and the corresponding subjective quality scores (Mean Observer Scores - MOS). This dataset has typical light field distortions that are specific to transmission, reconstruction, and display.

• The VALID Light Field image quality dataset (Viola and Ebrahimi, 2018) contains five contents, taken from EPFL (Rerabek and Ebrahimi, 2016) light field image dataset, and 140 test LFIs that are compressed using state-of-the-art compression algorithms.

The dataset contains both subjective (MOS) and objective quality scores (PSNR and SSIM).

• The SMART Light Field image quality dataset (Paudyal et al., 2016, 2017) has 16 original LFIs representing both indoor and outdoor scenes. The image content corresponds not only to the scenes with different levels of colorfulness, spatial information, and texture, but also LF specific characteristics such as reflection, transparency, and depth of field. The dataset also contains 256 distorted sequences obtained using four compression algorithms, with their corresponding MOS values.

• The Win5-LID Light Field image quality dataset (Shi et al., 2018) contains six real scenes (captured by a Lytro Illum) and four synthetic scenes, with a total of 220 test LFIs. The selected contents carry abundant semantic features, such as people, nature, and objects. The LFIs have an identical angular resolution of 9, ×, 9. The real scenes have spatial resolution equal to 434 × 625, while the synthetic scenes have a spatial resolution equal to 512 × 512. The distortions are obtained with compression and interpolation algorithms.

As performance evaluation methods, we used only the Spearman’s Rank-Order Correlation Coefficient (SROCC) and the Pearson’s Linear Correlation Coefficient (PLCC) for simplicity. We compared the proposed NR LF-IQA method with the following state-of-art LF-IQA methods: MDFM (Tian et al., 2018), LFIQM (Paudyal et al., 2019), Fang et al. (Fang et al., 2018), SDFM (Tian et al., 2020b), Meng et al. (Meng et al., 2020), LGF-LFC (Tian et al., 2020a), NR-LFQA (Shi et al., 2019a), LF-QMLI (Luo et al., 2019), Jiang et al. (Jiang et al., 2018), BELIF Shi et al. (2019b), Tensor-NLFQ (Zhou et al., 2019), Ak et al. (Ak et al., 2020), Shan et al. (Shan et al., 2019) and VBLIF (Xiang et al., 2020). We also compared the proposed method with the following 2D image/video quality metrics: PSNR-YUV (Sze et al., 2014), IW-PSNR (Wang and Li, 2011), FI-PSNR (Lin and Wu, 2014), MW-PSNR (Sandić-Stanković et al., 2016), SSIM (Wang et al., 2004), IW-SSIM (Wang and Li, 2011), UQI (Zhou and Bovik, 2002), VIF (Sheikh and Bovik, 2006), MJ3DFR (Chen et al., 2013), GMSD (Xue et al., 2014), NICE (Rouse and Hemami, 2009) and STMAD (Vu et al., 2011).

For training and testing the RFR method, we divided each dataset into two content-independent training and testing subsets, i.e,. distorted images generated from one reference in the testing subset are not present in the training subset and vice-versa. We define a group of scenes as a group containing the reference LFI and its corresponding distorted versions. Then, 80% of the groups were randomly selected for training and the remaining 20% were used for testing. The partition was repeated 1,000 times to eliminate the bias caused by data division. We reported the mean correlation values for the test set over 1,000 simulations.

4 Experimental results

Table 2 shows the correlation values obtained for the VALID, SMART, MPI, and Win-LID LFI quality datasets. The rows in this table show the results for each dataset and for each distortion, with the “All” row corresponding to the results obtained for the complete datasets. The proposed method performs very well for the MPI dataset obtaining SROCC of 0.97 and PLCC of 0.98, and for the VALID dataset obtaining SROCC of 0.96 and PLCC of 0.93. For the SMART dataset, the method obtains SROCC of 0.93 and PLCC of 0.95, while for the Win5-LID dataset, the method achieves SROCC of 0.94 and PLCC of 0.95. Across the different distortions, the proposed method also performed very well, with only a few distortions showing slightly lower values (e.g. SROCC values of JPEG and SSDC in SMART dataset, and EPICNN in Win5-LID dataset).

TABLE 2
www.frontiersin.org

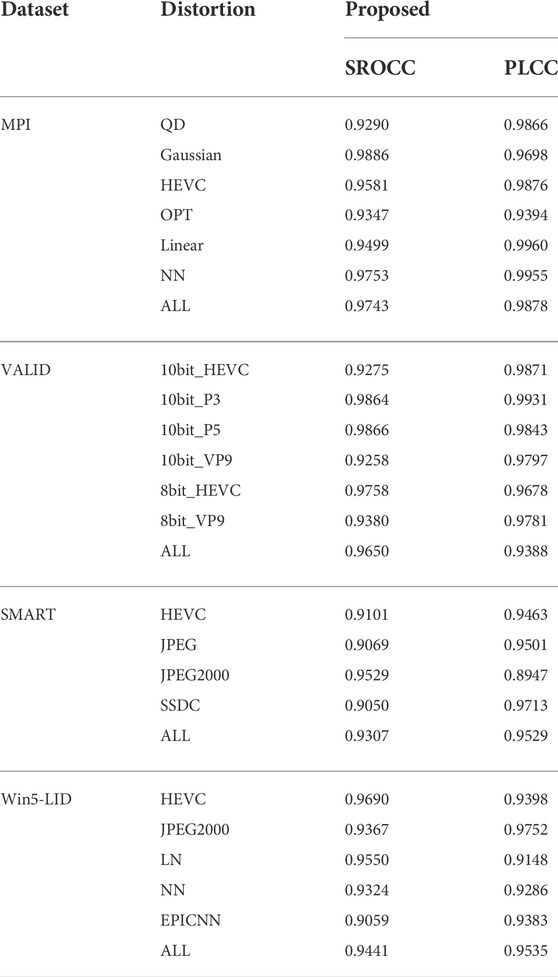

TABLE 2. Mean SROCC and PLCC values for VALID, SMART, MPI, and Win5-LID datasets obtained by 1,000 simulations of RFR.

Table 3 illustrates the comparison of the results with other state-of-the-art LFI-IQA methods. In this table, the NR and FR LF-IQA methods are classified into three categories, taking into consideration the models used to map the pooled features into quality estimates. The categories include methods that use 1) a pre-defined function, 2) a machine-learning (ML) algorithm, or 3) a deep-learning (DL) approach to obtain the predicted quality score. Notice that, for simplicity, only the overall performance (“ALL”) correlation values are reported for each dataset. Also, since the authors of these LF-IQA methods did not publish their results for all four datasets, our matrix is incomplete. For VALID dataset, NR-LFQA (Shi et al., 2019a) and Tensor-NLFQ (Zhou et al., 2019) methods have reported correlations separately for 8bit and 10bit compressed LF images. For comparison of results in Table 3, we have shown averaged SROCC and PLCC obtained by these methods for complete VALID dataset. Notice that the proposed method has achieved the highest correlation values among all LF-IQA methods for all of the four datasets. It is also worth pointing out that the pooling and mapping strategies in the proposed NR LF-IQA method has achieved significant improvement in quality predictions and shown higher SROCC and PLCC than the original SSIM method.

TABLE 3
www.frontiersin.org

TABLE 3. SROCC and PLCC values obtained for state-of-the-art LF-IQA methods tested on VALID, SMART, MPI, and Win5-LID datasets.

5 Conclusion

In this paper, we have proposed a blind LF-IQA method that is based on reference-free distortion maps. To generate reference-free distortion maps from test LFIs, we have used a GAN deep-learning architecture, the Pix2PixGAN, which learns from synthetically generated distorted images and their corresponding ground truth distortion maps. Since the ground truth distortion maps are not available in any of the existing LF or image quality datasets, we use distortion maps generated by SSIM as the ground truth distortion map. Next, we train the Pix2PixGAN using the synthetically generated dataset. The proposed LF-IQA method has following five stages: 1) Generation of a synthetically distorted dataset of 2D images, 2) Pix2PixGAN training to generate 2D distortion maps, using SSIM distortion maps as ground truth, 3) generation of distortion maps of sub-aperture images using the trained Pix2PixGAN, 4) non-linear reduction of dimensionality through Isometric Mapping on the generated distortion maps to obtain the LFI feature vectors, and 5) perform regression using RFR algorithm to predict LFI quality. The correlation values of the proposed method computed on four different datasets are higher than what is obtained by other state-of-the-art LF-IQA methods. As future work, we plan to explore using different state-of-the-art FR-IQA metrics to generate the ground truth distortion maps, and train the Pix2PixGAN architecture. It is worth pointing out that the proposed method can work as a framework to train for other types of no-reference LF-IQA methods.

Data availability statement

The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.

Author contributions

SA performed all the coding and tests. MF and PG worked on the idea, discussed the work. SA and MF wrote the paper.

Funding

This work was supported by the Fundação de Apoio a Pesquisa do Distrito Federal (FAP-DF), by the Coordenação de Aperfeiçoamento de Pessoal de Nível Superior (CAPES), the Conselho Nacional de Desenvolvimento Científico e Tecnologico (CNPq), and by the University of Brasília (UnB).

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
