Toward Engineered Nanoparticle-Doped Optical Fibers for Sensor Applications

Zhuorui Lu,Zhuorui Lu1,2Thibaut Robine&#x;,Thibaut Robine 1,2Carlo MolardiCarlo Molardi3Franck PigeonneauFranck Pigeonneau2Daniele Tosi,Daniele Tosi3,4Wilfried Blanc
Wilfried Blanc1*
  • 1Université Côte d’Azur, INPHYNI, CNRS UMR7010, Nice, France
  • 2MINES ParisTech, PSL Research University, CEMEF - Centre for Material Forming, UMR 7635, Sophia-Antipolis, France
  • 3Nazarbayev University, School of Engineering and Digital Sciences, Nur-Sultan, Kazakhstan
  • 4National Laboratory Astana, Laboratory of Biosensors and Bioinstruments, Nur-Sultan, Kazakhstan

Nanoparticle-doped optical fibers, investigated first as fiber lasers and fiber amplifiers, have gained tremendous interest over the past few years as fiber sensors. One of the main interests of such fibers relies on the ability to develop a distributed sensor, allowing real-time measurement with multiplexed architecture. To go beyond the actual proof of concept, we discuss in this perspective paper three main challenges to tackle: understanding light propagation in heterogeneous materials, controlling nanoparticle formation in glass, and engineering nanoparticle characteristics. Identified as the main directions to follow, they will contribute to promote nanoparticle-doped fiber sensors in the next few years.

1 Introduction

Nanoparticles in optical fibers were first reported in 1998 (Tick, 1998). At that time, such fibers were investigated to develop new fiber lasers and fiber amplifiers (Veber et al., 2019; Kasik et al., 2016). The motivation was to embed luminescent ions (e.g., rare earth or transition metal ions) within nanoparticles whose composition, different from the silica matrix, would allow obtaining new luminescent properties. Based on this approach, proof of concepts were reported but with limited interest were compared to conventional (i.e., without nanoparticles) fiber lasers and fiber amplifiers. Such limitation arises from the presence of nanoparticles inducing light scattering (optical loss increases). Then for years, light scattering was considered an issue to tackle. Consequently, the main doxa was to reduce the nanoparticle size.

Very recently, in 2018, an article reported for the first time the interest of the nanoparticle-induced light scattering to develop a fiber sensor (Sypabekova et al., 2018). In this pioneering work, a distributed fiber optic refractive index sensor was reported, based on the analysis of the backscattered light using the optical backscatter reflectometer (OBR) system. Then this concept was applied to temperature, strain, 3D shape, and dosimetry sensors (Tosi et al., 2020b; Olivero et al., 2021). One of the main interests of this concept is to extend OBR from one-dimensional to two- or three-dimensional measurements. Indeed, a major weakness of OBR is that this method is not suitable for multiplexing onto multiple conventional fibers. A switch can be used to connect multiple channels, but the measurement is relatively slow. The fiber can be bent, but special care must be taken to the bending radius to avoid detrimental optical loss. This impacts the distribution of the sensing points. A new method has been proposed to overcome this scenario, named “scattering-level multiplexing” (SLMux) (Beisenova et al., 2019b; Tosi et al., 2020a). This concept relies on the use of nanoparticle-doped fibers, the sensing fibers spliced to standard single-mode fibers (SMFs), used as extenders. Different lengths of fiber extenders allow displacing the position of each sensor. As the backscattering power of the nanoparticle-doped fiber is 30 or 40 dB larger than that of the SMF, it is possible to demodulate each sensing fiber. Another promising approach has been proposed for mechanical perturbation assessment based on the transmission reflection analysis (Silveira et al., 2020; Leal-Junior et al., 2020). Thanks to the use of the enhanced backscattering optical fiber, spatial resolution of this inexpensive technique is reduced to about few mm while it is about 1 m with the standard silica fiber. Finally, fiber Bragg gratings (FBGs) and intrinsic Fabry–Pérot interferometers have been inscribed on an enhanced backscattering optical fiber by using a femtosecond laser (Molardi et al., 2019; Paixão et al., 2020). The FBG has been reported to be stable at least up to 700°C.

The most common process used to prepare nanoparticle-doped optical fibers is based on the drawing of a preform prepared with the modified chemical vapor deposition (MCVD) (Blanc et al., 2011). This process is widely applied in the industry to prepare specialty optical fibers based on silica. It is based on the deposition of porous glassy layers inside a rotating silica tube. The composition of this porous layer is mainly SiO2, generally doped with germanium to increase the refractive index. Nanoparticles can be obtained by incorporating elements such as alkaline earth ions (Mg, Ca, and Sr) during the solution doping step. Average size and density of nanoparticles in the preform mainly depend on the concentration in the doping solution. Then the porous layer is sintered, and the tube is collapsed at high temperature (>2,000°C) to form a rod called preform. Due to the high temperature occurring during the process, alkaline earth ions trigger the formation of nanoparticles through the phase separation mechanism. An alternative approach is based on the incorporation of nanoparticles in the doping solution (Vermillac et al., 2017a). Usually, nanoparticles are located inside the core. To engineer optical loss, they can be localized in a ring outside of the core (Leal-Junior et al., 2020). The preform, whose diameter is typically 1 cm, is then drawn at a high temperature (2,000°C) into the optical fiber of 125 μm diameter. Thanks to this process, nanoparticles are obtained directly in the fiber without additional post heat treatment which could be detrimental for the mechanical properties. Compared to the fiber Bragg gratings (FBGs), commonly used for sensors, here, there is no need to remove the coating (and to recoat) to inscribe a grating. Nanoparticles act as a reflective element. Moreover, the nanoparticle-doped fiber operates in reflection. There is no need to add a mirror at the end tip. In short, the use of nanoparticle-doped fibers allows reducing the fabrication complexity of sensors.

Despite the success of already reported nanoparticle-doped fiber based sensors, there is still a need to improve our knowledge to push forward this technology. We have identified three main challenges to tackle related to the fabrication process. As this technology is based on backscattered light, it is important to understand the influence of the characteristics of nanoparticles (size, size distribution, density, and refractive index) on light scattering, more specifically on light backscattering. Then the next challenge is to prepare a fiber with optimized nanoparticles based on light scattering considerations. To reach this goal, we will discuss two routes: the first one deals with the nucleation/growth process and the second one is related to the drawing step.

2 Backscattering and Modal Properties of Nanoparticle-Doped Fibers

The main characteristic of an optical fiber with a nanoparticle-doped core is the enhanced backscattering. This property of scattering, combined with the standard size of the fiber, which permits comfortable splicing, makes the nanoparticle-doped fibers an excellent platform for distributed fiber sensors, in particular for the implementation of the parallel Scattering Level Multiplexing (SLMux) paradigm (Tosi et al., 2021). The presence of nanoparticles creates a strong scattering gain, more than 40 dB, with respect to the usual Rayleigh scattering of standard telecom fibers SMF-28. On the other hand, the high scattering contributes to enhance the scattering-dependent losses which can be significantly high, with peak values of 300 dB/m. To understand this behavior, it is necessary to identify the correct model to describe the system. Since the nanoparticles presents an average diameter that can go from 40 to 100 nm, less than 1/10 of the operating wavelength of 1.55 μm, the scattering of the nanoparticle-doped fiber can be modeled as Rayleigh scattering of spherical particles presenting a refractive index np surrounded by a medium with a refractive index ng. The scattering power Ps of a fiber section normalized to the incoming signal intensity I0, representing the scattering cross section Csca, can be written as follows (Cox et al., 2002):

PsI0=Csca=NV2π53d6λ4ng4np2ng2np2+2ng22,(1)

where N is the density of nanoparticles over the volume V of the selected fiber section, d is the average diameter of the nanoparticles, and λ is the working wavelength 1.55 μm. From Eq 1, it is possible to imply that the increase in the scattering power can be tailored by three factors: the increase in the particle density, the increase in the particle size, and the increase in the index contrast between particles and the surrounding medium. The most effective of these three factors is the size of the nanoparticles which impacts with an exponent of 6 over the scattering power. Simulated and experimental results agree with the model of Rayleigh scattering given by spherical particles (Beisenova et al., 2019a; Blanc et al., 2011).

The experimental backscattering traces, taken with Luna OBR 4600, depict a different behavior according to the nature and the distribution of the nanoparticles. Figures 1A,B show the backscattering trace of two different fibers presenting nanoparticles with different average size, precisely 80 nm for the fiber of Figure 1A and 55 nm for the fiber of Figure 1B. These fibers were prepared by using two MgCl2 concentrations in the doping solution: 0.1 (Figure 1B) and 1 mol/L (Figure 1A). In the first case, the losses along the fiber are 301 dB/m, ten times larger with respect to the ones along the second fiber. From Eq 1, changing the average diameter from 55 to 80 nm leads to an increase by one order of magnitude of the scattered power, in accordance with the measured value.

FIGURE 1
www.frontiersin.org

FIGURE 1. (A) Backscattering trace of the nanoparticle-doped fiber presenting nanoparticle with an average diameter of 80 nm; (B) backscattering trace of the nanoparticle-doped fiber presenting nanoparticle with an average diameter of 55 nm; (C) LP01-like mode of a nanoparticle-doped fiber with a nanoparticle pattern similar to the one analyzed in (A), the core overlap Γ is 0.827; (D) and (E) LP11-like modes of the same fiber, the core overlaps are, respectively, Γ = 0.447 and Γ = 0.273.

Another interesting property, derived from the presence of nanoparticles, is the mode localization effect (Abaie et al., 2017), which can be useful to tailor the modal properties of the guided modes. In Figures 1C–E, are shown, respectively, the LP01-like fundamental mode and the two LP11-like higher order modes. According to the simulation results, the LP01-like is well-confined, presenting a core overlap of 0.827. Since the fiber of the simulation presents an index contrast between core and cladding of 2 × 10–3, the fiber should be a strictly single mode at the operating wavelength of 1.55 μm. Nevertheless, the presence of nanoparticles fosters the onset of an LP11-like mode. In particular, the LP11-like of Figure 1D shows a mode overlap of 0.447, while the LP11-like of Figure 1E shows a mode overlap of 0.273. The evident difference between the overlaps implies that the LP11-like modes are no more degenerated, with one of them guided and the other one not guided.

3 Nanoparticle Formation

As the backscattered light strongly depends on the characteristics of the nanoparticles, there is a crucial need to understand their formation through the phase separation mechanism. These nanoparticles are formed during the optical fiber making process which can be divided into two main steps: preform formation and proper fiber making through a drawing process. During both of these steps, the material is heated at a high temperature (about 2,000–2,100°C). At these temperatures, the viscosity of the material is lowered, allowing diffusion to occur within it. Depending on the miscibility of the potential present phases, an unmixing of the material can happen forming distinct phases. This phase separation is the key phenomenon for the nanoparticle formation.

The moment when the first germs of the new phase separating from the glass matrix are formed is called nucleation. This phenomenon has been extensively studied since J. W. Gibbs’ work about phase equilibrium (Gibbs, 1878). The study of this phenomenon leads to a theory called the classical nucleation theory in which the current statement has been given by Becker and Döring (1935). This theory gives the work Wc needed to form a germ of a critical size rc sufficient enough to be stable and start growing as a new phase:

rc=2γΔGVandWc=16π3γ3ΔGV2,(2)

where γ and ΔGV represent the surface tension and the variation of the volumic Gibbs free enthalpy for the germ formation, respectively.

In the classical nucleation theory, the formed germ is considered to have the same properties as the macroscopic phase forming, including its composition. But this is not what is observed for small particles whose composition deviates from the one of the macroscopic phase, depending on the particle radius. This has been shown in metallic systems (Bonvalet et al., 2014), in silicate liquids (Sen and Mukerji, 1999) and more recently in oxide glasses optical fiber systems (Blanc et al., 2019). It has to be emphasized that such results require a very specific characterization tool, allowing measuring the composition at the nanometer scale as the atom probe tomography (Blanc et al., 2019).

Several theories have been developed to explain this composition variability with the particle size, such as the phase field approach, based on the work by J. W. Cahn and J. E. Hilliard (Cahn and Hilliard, 1958; Cahn, 1959; Cahn and Hilliard, 1959). A more recent one, known as the general Gibbs approach, has been developed by J. W. P. Schmelzer (Gutzow and Schmelzer, 1995). In this approach, constraints on the germ composition are released, allowing it to change as the germ grows. This results in a new form of the germ formation work as follows:

W=nαΔμ+Aγ,(3)
Δμ=j=1kxjαμjβp,T,xβμjαp,T,xα,(4)

with nα = ∑n the total number of particles in the germ and {xα} and {xβ} all the independent molar fractions of the constituents of the two phases. Then the critical conditions can be rewritten as follows:

rc=2γcαΔμetWc=16π3γ3cαΔμ2,(5)

where cα = ∑n/Vα is the total volume concentration of the constituents j in the new forming phase α and the ambient phase β. rc and Wc then depend on the phase composition. In the generalized Gibbs approach, the critical germ corresponds to the minimum of Wc for all the possible compositions of the phase α. Then this composition verifies the following equation:

Wcxjαxiα=const,ij;xβ=const=0.(6)

The logarithmic derivative of the critical nucleation work regarding the molar fraction of the constituent j in the phase α gives the following equation:

1WcWcxjα=3γγxjα2cαΔμcαΔμxjα.(7)

We can see that cα is independent from x and with rc described before:

Δμxjα=3cαrcγxjα,(8)

which for a given radius R gives the following equation:

WcxjαR=const=nαΔμxjα+AΔγxjα=0,(9)

which leads to the following equation:

μjβp,T,xβμkβp,T,xβμjαp,T,xαμkαp,T,xα=3cαRγxjα.(10)

The latter equation highlights which are the key parameters controlling the growing germ properties: chemical potentials of the different constituents in the different phases μ and the surface tension γ. On the one hand, chemical potentials can be investigated through the CALculation of PHAse Diagrams (CALPHAD methods). Based on thermodynamic databases, such methods perform predictive calculation about thermodynamic and kinetic properties of multicomponent systems. On the other hand, surface tension is a difficult-to-access parameter. Measurements of this parameter in silicate liquids have hardly been done and only for very simple systems (Lyon, 1944). As an alternative approach, an adaptive potential has been developed to study phase separation by molecular dynamics simulations (Bidault et al., 2015). The composition change versus the size of the particles is observed with these simulations, in accordance with measurements made by atom probe tomography (Blanc et al., 2019). However, if the trend is concerned, the size of the nanoparticles and the temperatures of the molecular dynamics simulations are definitively different from the experimental values. This highlights the need for research in these fields in order to get exploitable data allowing the modelization and then synthesis of size- and composition-controlled nanoparticles inside the optical fiber core.

4 Shaping Nanoparticles

The final characteristics of the nanoparticles not only depend on the thermal history. The fiber drawing process is an important step to control the morphology of the nanoparticles. For conventional fibers, the drawing step corresponds to a homothetic transformation of the preform to the fiber. The external diameter is divided by two orders of magnitude, but the ratio of core and cladding diameters is constant. In the case of the nanoparticle-doped fiber, nanoparticle size does not decrease homothetically. A 100-nm spherical nanoparticle in the preform does not lead to a 1-nm spherical nanoparticle in the fiber. Actually, nanoparticle morphology can change vastly during the fiber drawing process. In particular, nanoparticles can elongate (Vermillac et al., 2017b; Fuertes et al., 2021). This phenomenon provides us a way to regulate their size distribution by inducing breakups of the elongated particle threads. Figure 2 shows a neck-down region of the preform being drawn to the fiber at 1800°C. Nanoparticles were obtained by adding 0.7 mol/L of LaCl3 in the doping solution. As clearly shown on the left SEM image, before drawing, nanoparticles exhibit a round shape and are distributed uniformly inside the preform core, where the mean size is 235 nm. Passing through the heating zone, the preform starts to deform and elongate. This part is the neck-down region; after this region, the diameter of the preform is highly reduced down to 125 μm, the diameter of the final fiber. The core has a diameter of 10 μm, and nanoparticles inside the fiber are also elongated and even break up after the neck-down region, as shown on the right SEM image of Figure 2. This phenomenon is a competition between two competing forces: the viscous stress and the surface tension, where the former tends to break up the particle and the latter tends to maintain the spherical shape of the particle. By decreasing the temperature, the viscous stress is enhanced and ergo accelerates the particle elongation and breakup processes. Another approach which can be used to control the size of the nanoparticles is to increase the drawing temperature. It has been reported that by heating up to 100 or 200°C above the usual drawing temperature allows reducing the size of the nanoparticles (Fuertes et al., 2021). Here, the dissolution mechanism would occur. Then the drawing process is a promising way to engineer the size distribution and the morphology of the nanoparticles.

FIGURE 2
www.frontiersin.org

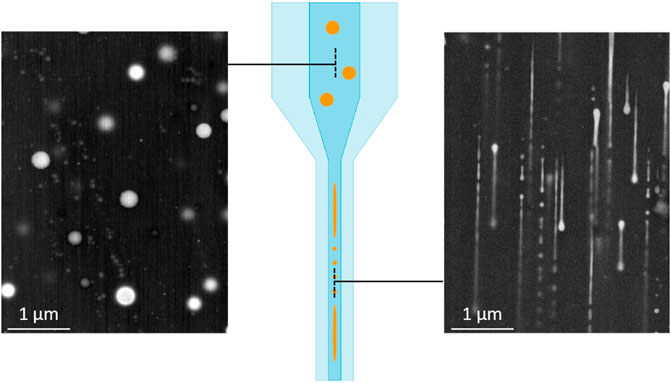

FIGURE 2. Neck-down region of the fiber drawing process and SEM images of longitudinal sections of the preform (left) and fiber (right). Nanoparticles in the fiber are elongated along the drawing axis.

5 Conclusion

First reported in 2018, the use of nanoparticle-doped optical fibers as sensors has rapidly grown in interest. However, this new generation of optical fiber sensors is still at its infancy. Until now, such fibers are based on silica glass. However, this concept can be extended to other glasses such as chalcogenide (Ballato et al., 2017) or polymer fiber. We have identified and discussed three main challenges to tackle to push forward this technology in this article. There is a clear need to improve our knowledge on the light–nanoparticle interaction to engineer backscattered light with the aim to guide the fabrication process to reach the right characteristics of the nanoparticles. However, the control of the characteristics of the nanoparticles is far from being simple. Advanced model and numerical simulations must be developed to understand the nucleation/growth of phase-separated particles. A very promising route to control such characteristics relies on the drawing step which can allow controlling the size and the shape. Solutions to those bottlenecks will strongly contribute to develop nanoparticle-doped fiber sensors and will extend the actual short-distance range applications to long-distance ones.

Data Availability Statement

The data analyzed in this study is subject to the following licenses/restrictions: data can only be processed with our consent. Requests to access these datasets should be directed to Wilfried Blanc, CNRS, d2lsZnJpZWQuYmxhbmNAaW5waHluaS5jbnJzLmZyLg==

Author Contributions

ZL, TR, CM, and WB wrote the draft of the article. All authors read and approved it for publication.

Funding

This study is partly supported by the project NanoSlim (ANR-17-CE08-0002) and project Distributed Measurement of Bite Force by Fiber-Optic Sensorized Dental Guard (Nazarbayev University, code: 021220FD1851).

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors, and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
