ORIGINAL RESEARCH article

Front. Robot. AI
Sec. Biomedical Robotics
Volume 12 - 2025 | doi: 10.3389/frobt.2025.1527686

Autonomous Robotic Ultrasound Scanning System: A Key to Enhancing Image Analysis Reproducibility and Observer Consistency in Ultrasound Imaging

Provisionally accepted
Ming-De Li Ming-De Li 1Xin-Xin Lin Xin-Xin Lin 1Si Min Ruan Si Min Ruan 1Wei-Ping Ke Wei-Ping Ke 1Hao-Ruo Zhang Hao-Ruo Zhang 2Hui Huang Hui Huang 1Shao-Hong Wu Shao-Hong Wu 1Mei-Qing Cheng Mei-Qing Cheng 1Wen-Juan Tong Wen-Juan Tong 1Hang-Tong Hu Hang-Tong Hu 1Dan-Ni He Dan-Ni He 3Rui-Fang Lu Rui-Fang Lu 1Ya-Dan Lin Ya-Dan Lin 4Ming Kuang Ming Kuang 1Ming-de Lu Ming-de Lu 1Li-da Chen Li-da Chen 1Qinghua Huang Qinghua Huang 2,5Wei Wang Wei Wang 1*
  • 1 The First Affiliated Hospital of Sun Yat-sen University, Guangzhou, China
  • 2 College of Electronic Information, Guangxi Minzu University, Nanning,, Guangx, China
  • 3 Department of Ultrasound Department, Seventh Affiliated Hospital, Sun Yat-sen University, Shenzhen, China
  • 4 Department of Ultrasound, First Affiliated Hospital, Guangxi Medical University, Nanning, Guangxi Zhuang Region, China
  • 5 Northwestern Polytechnical University, Xi'an, Shaanxi Province, China

The final, formatted version of the article will be published soon.

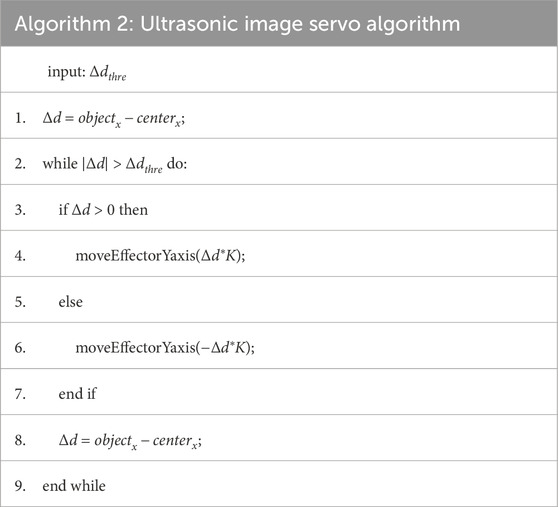

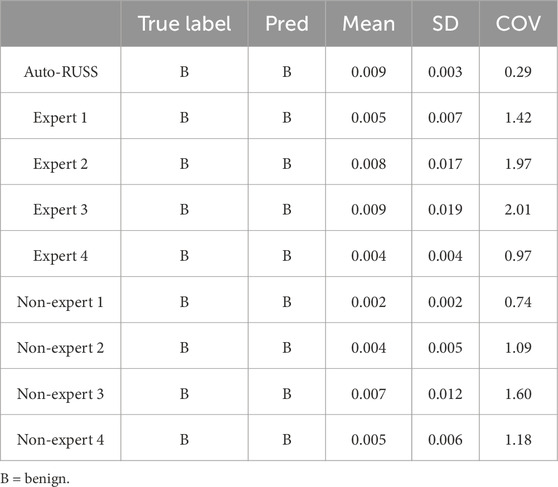

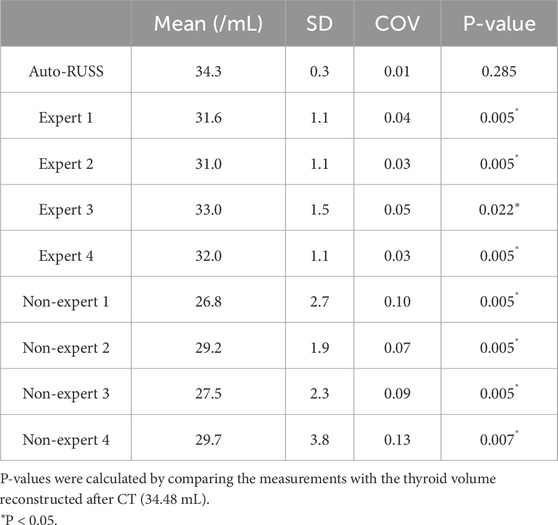

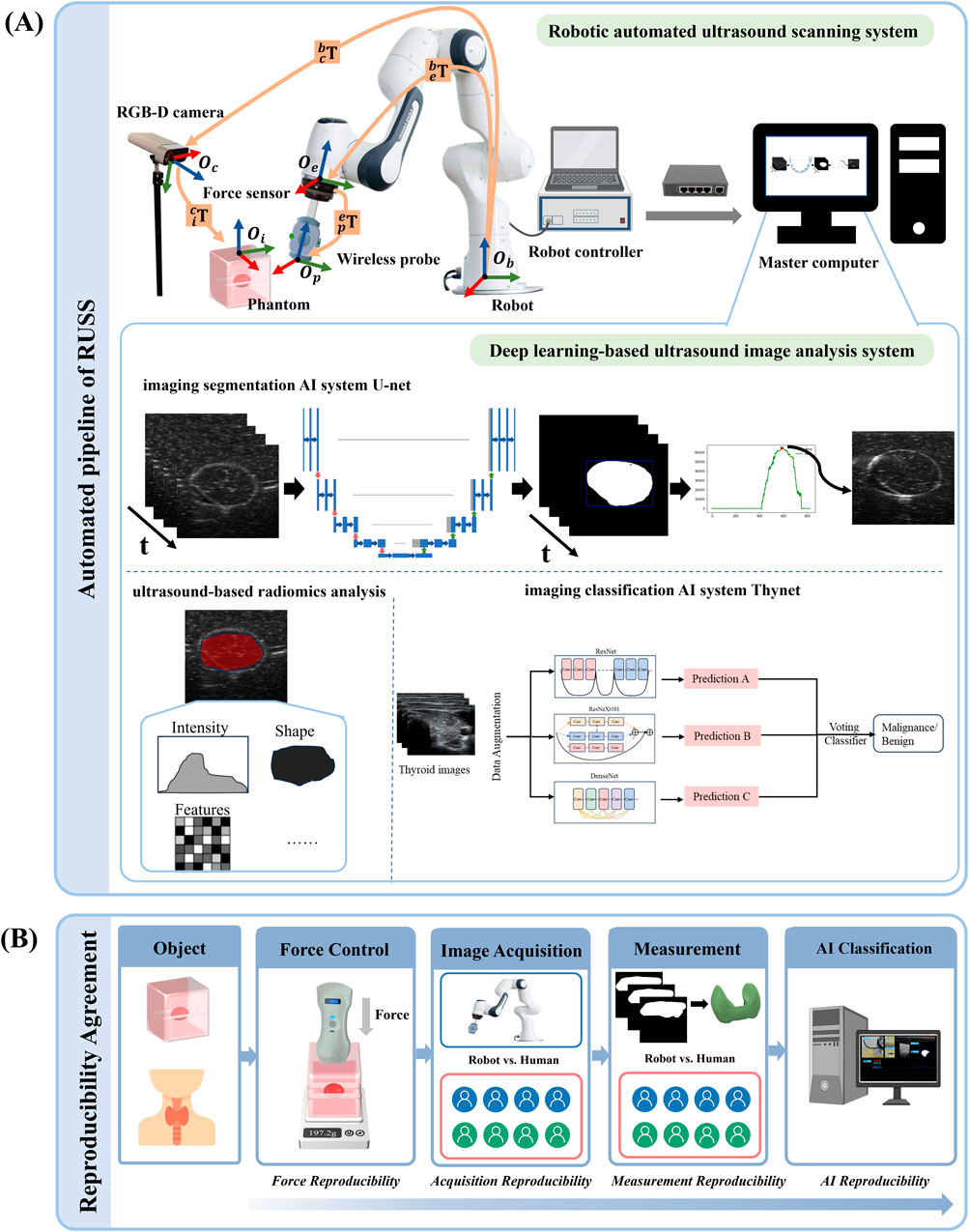

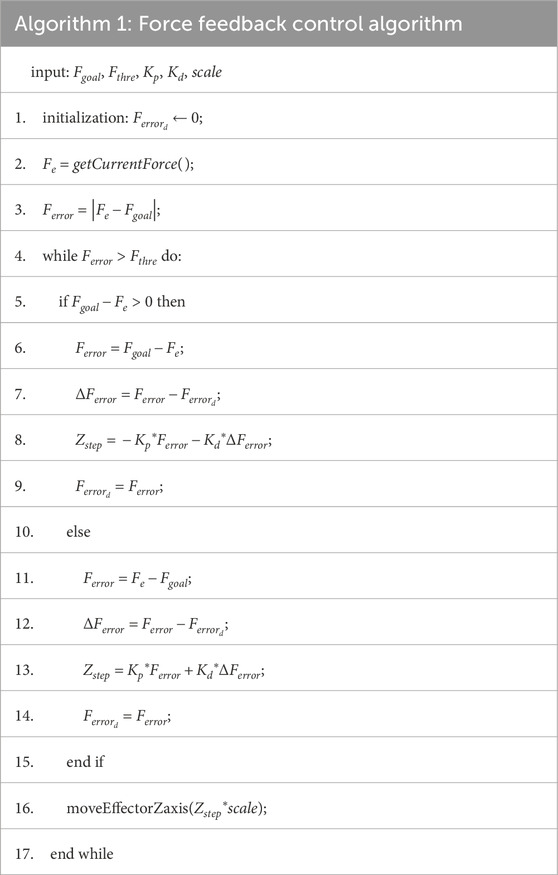

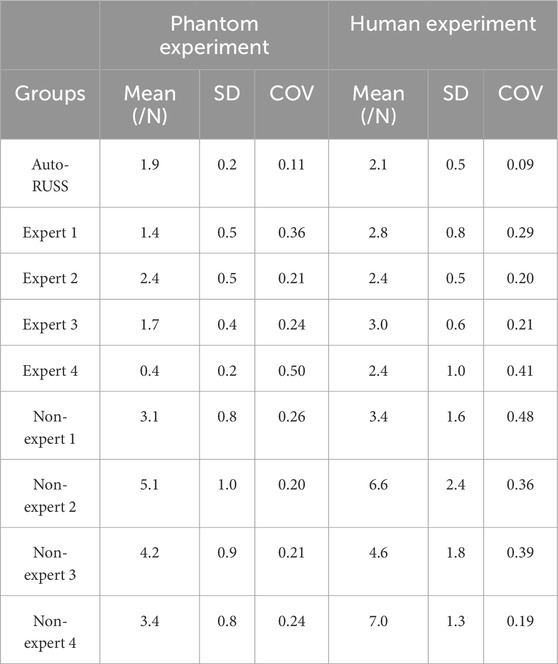

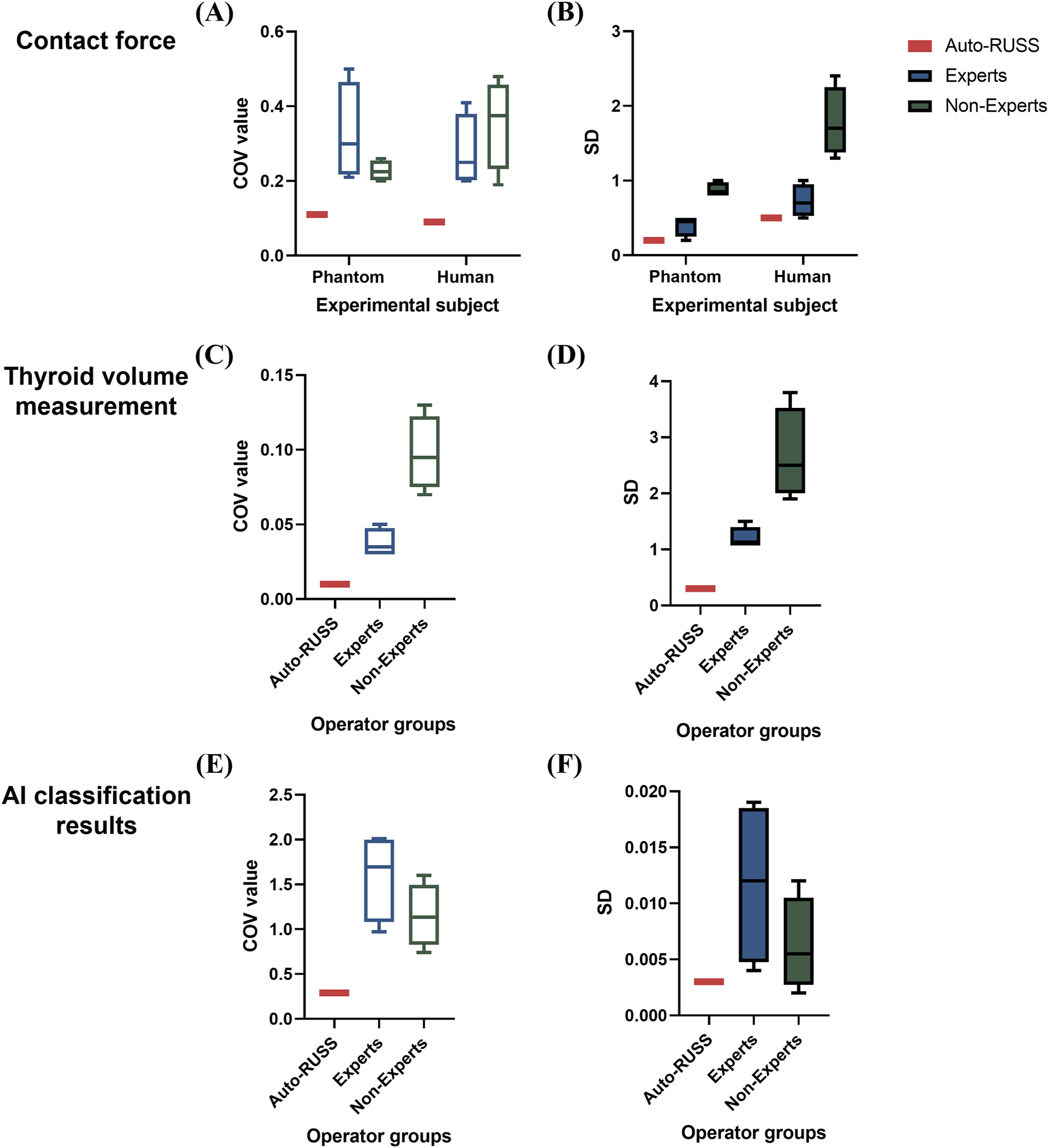

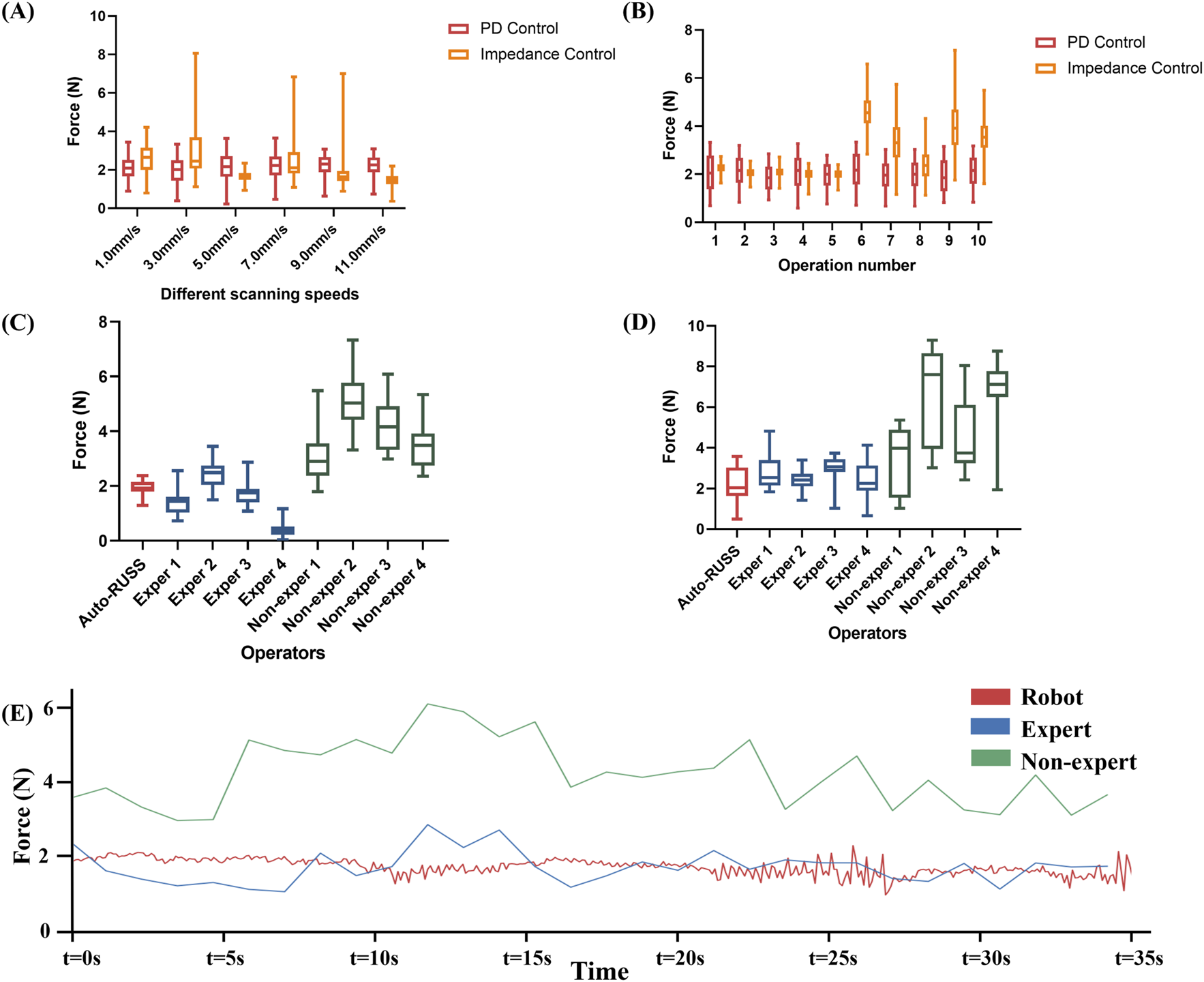

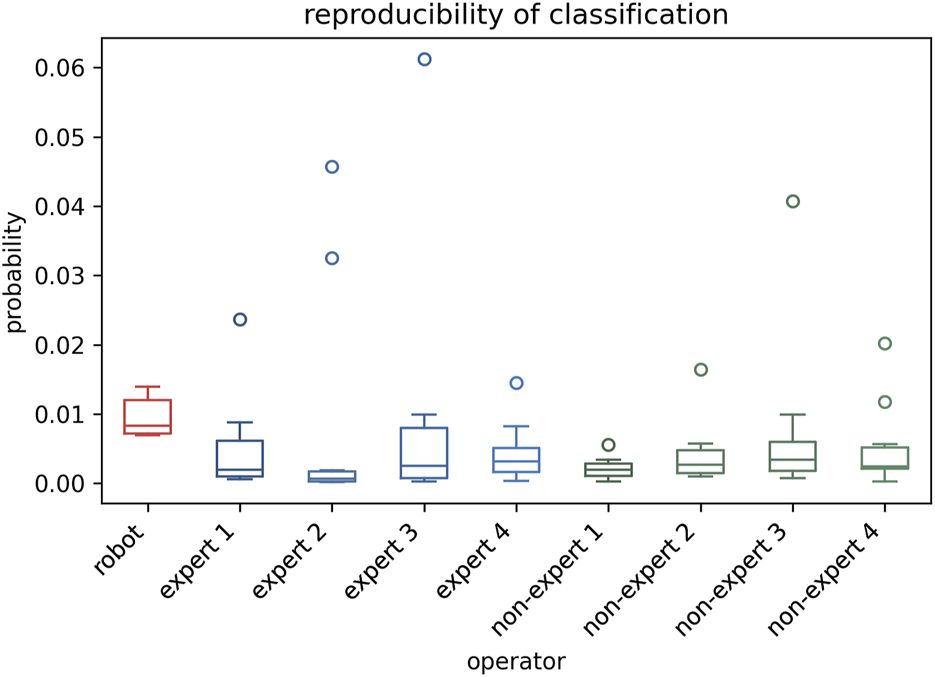

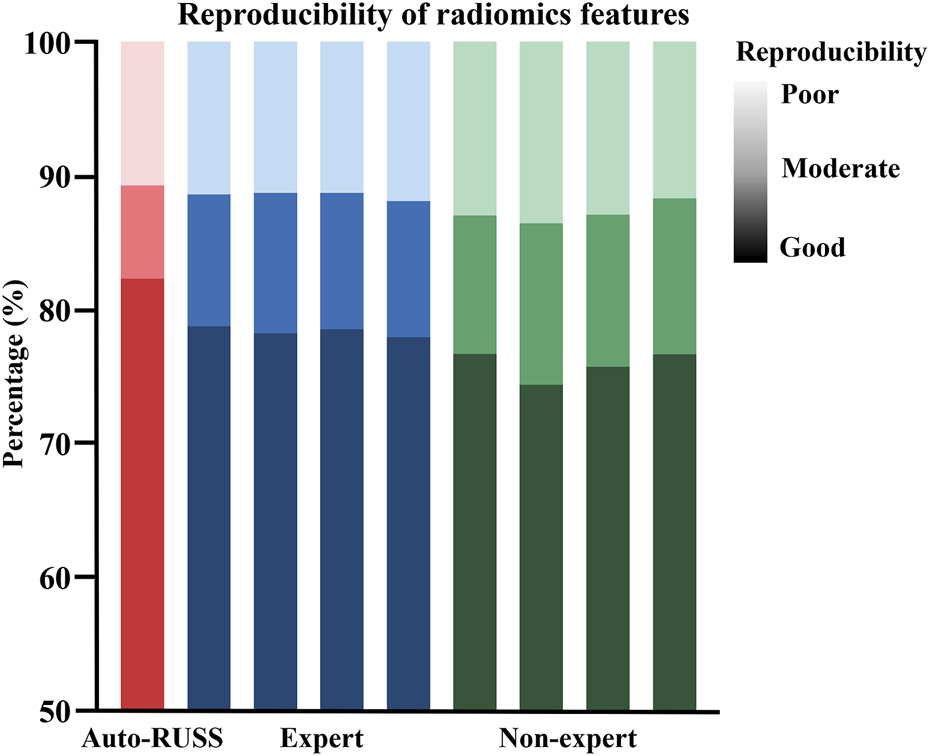

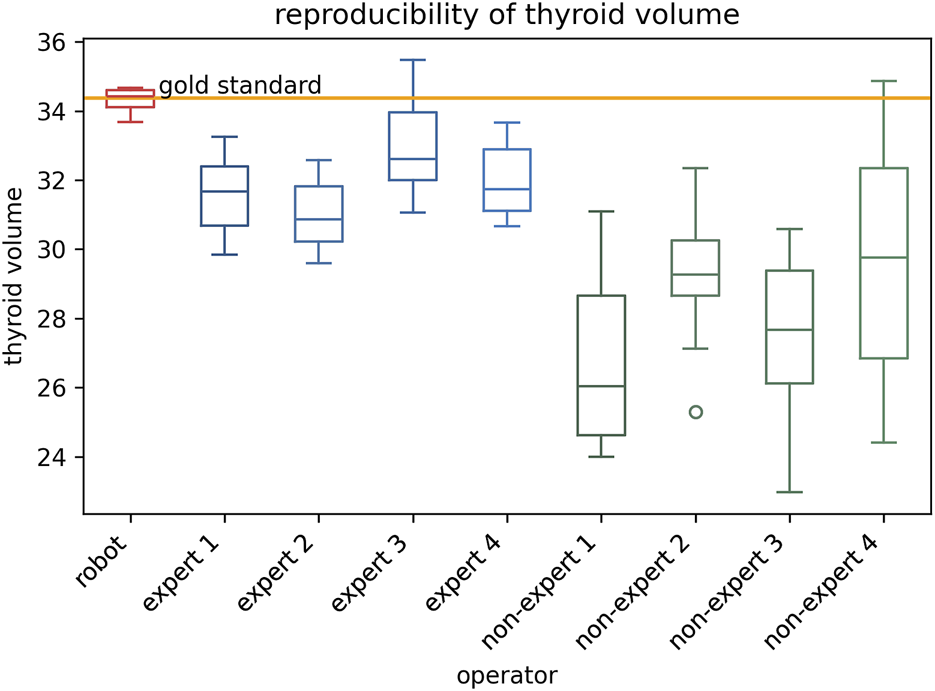

    Purpose: This study aims to develop an autonomous robotic ultrasound scanning system (auto-RUSS) pipeline, comparing its reproducibility and observer consistency in image analysis with physicians of varying levels of expertise.Design/methodology/approach: An auto-RUSS was engineered using a 7-degree-of-freedom robotic arm, with real-time regulation based on force control and ultrasound visual servoing. Two phantoms were employed for the human-machine comparative experiment, involving three groups: auto-RUSS, non-expert (4 junior physicians), and expert (4 senior physicians). This setup enabled comprehensive assessment of reproducibility in contact force, image acquisition, image measurement and AI-assisted classification. Radiological feature variability was measured using the coefficient of variation (COV), while performance and reproducibility assessments utilized mean and standard deviation (SD).Findings: The auto-RUSS had the potential to reduce operator-dependent variability in ultrasound examinations, offering enhanced repeatability and consistency across multiple dimensions including probe contact force, images acquisition, image measurement, and diagnostic model performance.Originality/value: In this paper, an autonomous robotic ultrasound scanning system (auto-RUSS) pipeline was proposed. Through comprehensive human-machine comparison experiments, the auto-RUSS was shown to effectively improve the reproducibility of ultrasound images and minimize human-induced variability.

    Keywords: Autonomous Robots, ultrasound, reproducibility, Consistency, AI

    Received: 13 Nov 2024; Accepted: 17 Jan 2025.
