1 Introduction

The term “world model” (WM) has been used to signify many different concepts. Over 30 years ago, the term was used to denote a software component that internally represents the state of the world (Triggs and Cameron, 1991). Already in the 1970s, Shakey the robot had such a component (Nilsson, 1984). More recently, the deep learning community has adopted the term to describe internal simulators that an agent uses to simulate the development of the world (Taniguchi et al., 2023).

Given the generality of the term “world model,” it has essentially become a homonym for quite distinct concepts. The aim of this review article is to consolidate and refine the terminology for WMs and their subcomponents and classify existing approaches. We believe this is essential to enable researchers to clarify what type of WM they are referring to and facilitate the motivation for the design and implementation of WMs.

The main focus of this article is on WMs for physical robots that execute actions to perform tasks. Within this scope, a concise definition is given by Bruyninckx (2021): “world model: the information the robot has about the world around it, and that needs to be shared between several activities.” Here, “about the world around it” implies that the world is constrained to the local physical world in which the robot executes its actions. “The information the robot has about the world” implies that the WM reflects the external physical world, and sensory data are, thus, important to gather this information. The “activities” are internal processes such as planning and decision making. This implies that the internal WM must be a representation rich and accurate enough to select goal-directed actions and perform tasks.

From a software engineering point of view, “shared between several activities” in the aforementioned definition is important. Classically, the robot’s activities are categorized into three types: sense, plan, and act (Gat et al., 1998). This implies that a WM is a software component that integrates information from multiple sensors, planners, and actor components and provides consolidated information about the state of the world to the same components. Information is exchanged with a WM at its interfaces, which are generically categorized into two types: tell and ask (Tenorth and Beetz, 2013). As described in Section 4, information is added or modified through the “tell” interfaces and queried through the “ask” interfaces, as shown in Figure 1.

FIGURE 1
www.frontiersin.org

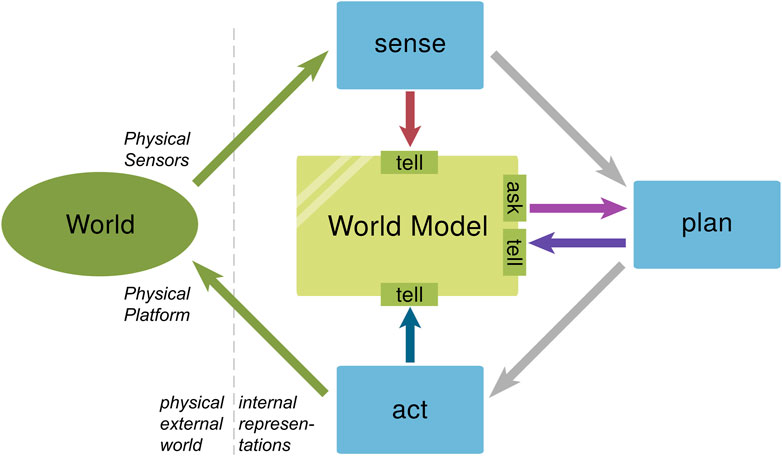

FIGURE 1. A WM is an internal representation that reflects relevant parts of the physical world in which the robot operates. It is shared by multiple sensors, planners, and actors.

We argue that storing and sharing information among components is the main motivation for implementing WMs. More concretely, we propose that the software engineering principles of “Design for use,” “Do not repeat yourself,” and “Low coupling, high cohesion” should guide which states and operations should be included in a WM, and even whether one is required in the first place. The aforementioned point also highlights the software engineering perspective on WMs taken in this paper. However, we also describe the more recent deep learning perspective on WMs and show how our design principles apply to and motivate WMs in a deep learning context also.

There are early (Angelopoulou et al., 1992) and more recent (Landsiedel et al., 2017) reviews on robotic WMs. The nomenclature and some of the common concepts of world modeling were presented by Belkin et al. (2012). We consider the main contributions and added value of this review to be 1) to propose a terminology for common subcomponents of a WM; 2) to identify typical properties and design dimensions of WMs, as well as their underlying rationale; 3) to provide an up-to-date overview of concrete WMs in robotics, as well as their classification along the design dimensions identified; and 4) to elucidate principles and guidelines for design decisions about the organization and implementation of these components.

An in-depth motivation and a model-based approach of WMs are provided in the insightful and ongoing “Building Blocks for the Design of Complicated Systems featuring Situational Awareness” (Bruyninckx, 2021). Our review provides a software-engineering perspective and aims to be more concise by focusing on WMs.

The rest of this review is structured as follows. We first bootstrap our terminology using the Kalman filter as a simple and well-known example in Section 2. To provide an intuition of robotic WMs used in real-world environments, and to demonstrate the applicability of our terminology to such complex WMs as well, we introduce two more use cases in Section 3. Based on that, we elaborate on the main components of a world model—its boundary, state representations, and operations—in Sections 46, respectively. Using the terminology introduced, we then conduct case studies and classify 15 works on WMs in Section 7. We then describe the underlying principles for the design and implementation of WMs in Section 8 and conclude with Section 9.

2 World model language bootstrapping

Before turning to complex robotic WMs, we bootstrap our terminology using a simple, well-known illustrative example: the Kalman filter (Welch and Bishop, 1995). Kalman filters iteratively estimate the mutable state xRn by incorporating information of the control inputs uRl and measurements zRm with the following model1:

xk+1=Axk+Buk+wTimeupdatemodel,(1)
zk=Hxk+vMeasurementupdatemodel.(2)

Figure 2 reinterprets these formulas in terms of the WM template in Figure 1.

FIGURE 2
www.frontiersin.org

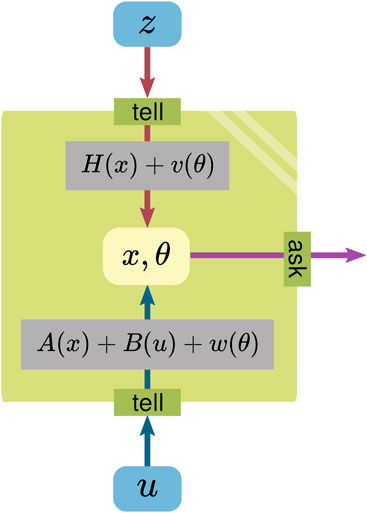

FIGURE 2. Model of the Kalman filter illustrated as a WM, consisting of a state (which holds a mutable x and a constant parameter θ), operations (using A, B, and H), and a boundary.

As a WM, the state, consisting of a mutable x and a constant parameter θ, is meant to reflect the real world. The multiplications with the matrices A, B, and H are operations applied to the state to integrate/extract information. The v and w could be seen to originate from θ, which is used for the operations.

The WM boundary is represented by the tell/ask interfaces; everything inside of it is considered to belong to the WM. Information can be provided to the WM via the tell interface, while the ask interface is used to extract information.

Based on the aforementioned analyses, we define the components of a WM as follows.

Definition 1. A WM is segregated by a boundary and internally consists of a state and operations.

3 Introductory examples of robotic world models

Having bootstrapped our terminology with the Kalman filter example, we now apply it to more complex robotic WMs. This demonstrates that the terminology is applicable to different robotic WMs. Two systems from different domains are analyzed to provide a first intuition of what a WM is in a real robotic system. Section 7 lists 15 case studies using our complete terminologies that are described in Sections 46.

3.1 NeBula system

The NeBula system (Agha et al., 2021) is a framework for autonomous robotic exploration of unknown extreme environments. The framework was deployed on a team of multiple different mobile robots, which participated in the DARPA Subterranean Challenge2 and completed a task of reaching, detecting, recognizing, and localizing artifacts in various subterranean environments. Figure 3 shows a partial depiction of the architecture; this figure is adapted from Figure 6 from the study by Agha et al. (2021) according to our WM concept shown in Figure 1.

FIGURE 3
www.frontiersin.org

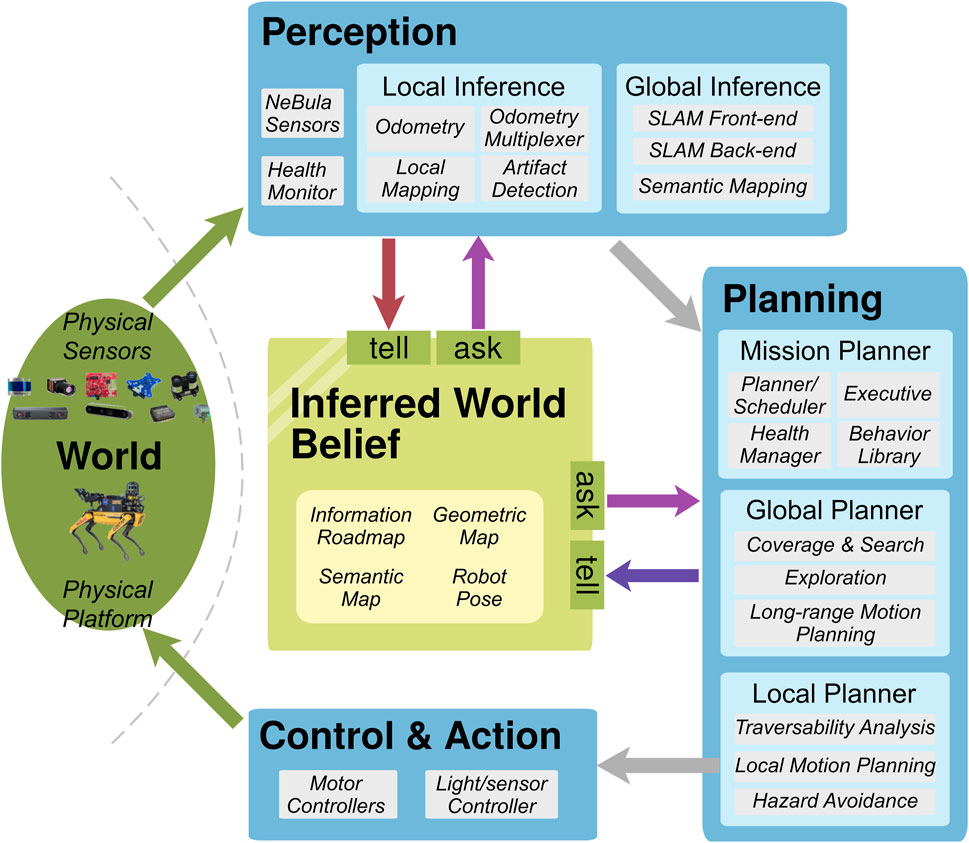

FIGURE 3. Architecture of the NeBula system [adaptation of Figure 6 from the study by Agha et al. (2021)].

The inferred world belief plays the role of the WM in this framework. It integrates the information acquired through the perception pipelines and provides relevant information for planning activities.

The state inside the WM consists of the maps of the environment as well as the robot pose. Different state representations are employed depending on the information to represent; the point clouds and occupancy grids are used for the geometry, while the graph-based representation (called the information roadmap) is used for coverage and traversability.

The simultaneous localization and mapping (SLAM) components convey a major part of the information to the WM. After preprocessing the raw sensor inputs and asking the most recent state from the WM3, the perception components first infer the local map as well as the robot pose and then propagate the results into the global scene. The planning components also convey the information to the WM; they estimate the traversability and the hazard of the surrounding area based on the most recent map queried from the WM.

3.2 KnowRob system

KnowRob (Tenorth and Beetz, 2013; Beetz et al., 2018) is a knowledge processing system for autonomous robots to perform manipulation tasks. KnowRob not only stores original, high-resolution, continuous data but also provides abstracted knowledge through semantic annotations. The framework has been deployed on different mobile manipulation robots and enabled them to perform pick-and-place tasks in indoor environments. Figure 4 shows a partial depiction of its architecture and has been adapted to our template from Figure 6.1 from the study by Cavallo et al. (2022).

FIGURE 4
www.frontiersin.org

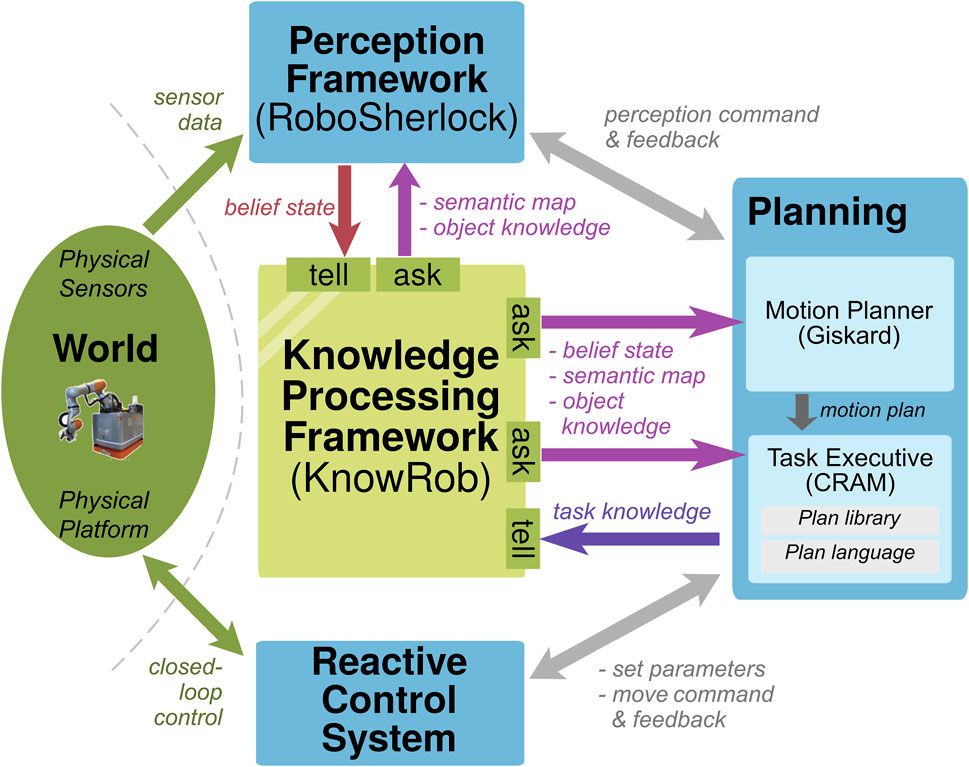

FIGURE 4. Architecture for the REFILLS project, where KnowRob (Tenorth and Beetz, 2013) is used as the WM [adaptation of Figure 6.1 from the study by Cavallo et al. (2022)].

As a central knowledge processing system, KnowRob maintains a belief state of the world; i.e., it serves as a WM. It employs the Resource Description Framework as a representation and stores data as subject–predicate–object triples. The ask interfaces are called computables, which are used to answer queries. Queries can ask not only to extract information from the state but also to compute new information not stored in the state using an ontology as prior knowledge.

Using sensor data, the perception framework RoboSherlock (Beetz et al., 2015) tells new states to the WM based on the most recent semantic map and the object knowledge. The interface is triggered by a high-level task description as a command.

The task executive CRAM (Winkler et al., 2012) and the motion planner Giskard (Fang et al., 2016) also ask the most recent belief state, the semantic map, and the object knowledge for planning. The executed task knowledge is conveyed to the WM, allowing the system to learn from episodic memories.

4 World model boundary

In Section 3, we demonstrated the applicability of Definition 1 to more complex robotic use cases. Sections 46 elaborate on the concepts of each constituting part of a WM: a boundary, a state, and operations.

The boundary of a knowledge base is generically defined by two types of interfaces: tell and ask (Tenorth and Beetz, 2013). The tell interface is used for providing new information, e.g., experiences and beliefs based on new sensor data, to a robot’s memory, while the ask interface is used for querying inferred knowledge, e.g., to enable informed decision making during task execution. In this section, we first elaborate on these tell/ask interfaces from the perspective of robotic WMs and argue (in Section 4.3) that the boundary is not inherent to the system but a design decision.

4.1 Tell interface

The tell interface is the only way to pass information to the WM. It defines where and which data can be passed to the WM. It does not necessarily provide direct access to the state.

Since components can provide information only through the tell interface, it offers a lot of very different inputs to the WM. Depending on the design, it may take low-level data such as raw images or very high-level data such as Planning Domain Definition Language (PDDL) symbols (Fox and Long, 2003). We identified the following types of information that are typically passed to the WM (examples are given in the parentheses):

• Sensor data (images)

• Interpreted sensor data (object poses)

• Planning and simulation data (PDDL symbols)

• Action data (expected outcomes by task execution)

• Data from other knowledge bases (experience representations)

• Data from outside (human operator knowledge, enterprise management system)

A WM does not necessarily provide all of the aforementioned information; depending on its requirements, only a subset of them is usually provided on the tell interface.

It should be noted that the state usually stores only relevant data abstracted through the tell interface. This implies that not all information provided on the tell interface can be retrieved again on the ask interface.

4.2 Ask interface

The ask interface is the only way to obtain information from the WM. It defines which data can be retrieved from the WM while not necessarily providing direct access to the state.

Since components can query information only through the ask interface, it also provides very different outputs from the WM. Information that can be retrieved from the WM includes the following types (examples are given in the parentheses):

• Geometric information (transformations between objects)

• Physical information (load data at an end effector)

• Qualitative information (which objects are on the table?)

• Semantic information (which is “my” cup?)

The ask interface often enables information to be retrieved that is not directly passed via the tell interface, because the WM itself can derive new information from what it is told and has stored in its state by applying operations (see Section 6). This is already the case for the minimal example of the Kalman filter, where x can be asked, but only z and u are told.

4.3 Design dimension of the world model boundary

When components tell/ask information to/from the WM, multiple different operations could be combined and applied on the information along the dataflow (“operations” are explained in Section 6). Therefore, given a robotic system, there are numerous ways to draw a line to segregate the operations within and outside of the WM, as shown in Figure 5. This means that the tell/ask interface can be defined at any locations, and where to set them is a design decision of the robot architecture. Design guidelines for this aspect are discussed in Section 8.2.

FIGURE 5
www.frontiersin.org

FIGURE 5. Two examples of different WM boundaries (dashed green lines) that could be defined for a WM.

5 State representation in world models

Within the WM, we make a distinction between the state of the world and the operations that update this state. This interpretation is best understood in the context of object-oriented programming (OOP), where an object has an internal state represented by its instance variables, which are typically private to avoid direct access. This internal state is what we refer to as the WM state in this article. The tell/ask interface defines the public member functions the WM should implement to provide access to its state. Within the WM, operations can modify the internal state (see the gray boxes in Figure 5) but cannot be called directly from outside the WM, which are, thus, represented by private member functions. Properties of the WM state are presented in this section, and those of the WM operations are presented in Section 6.

5.1 State representation: robot or environment, concrete or abstract

In mobile robotics, we consider a physical mobile robot operating in a physical environment4. Together, they constitute the physical world that the robot has to reflect in its WM.

In many WM representations covered in this review, there is a (partial) separation between the state representation of the robot itself and its environment. This is possible because the robot and the environment are physically separated. This increases reusability, as separating the environment and robot models means that the latter can be easily reused in different environments.

The state itself is always virtual in a sense that it is an internal representation of the real world. However, there is a separation between the concrete part that reflects the physical reality (e.g., a cup on a table) and the abstract part that does not (e.g., a grasp pose for this cup). The design goal of reusability again motivates this separation; concrete aspects will be valid for different tasks or scenarios, while some abstract aspects can only be used for specific cases.

Figure 6 illustrates examples of different parts of the states according to the robot/environment and concrete/abstract aspects. A robot with a manipulator whose task is to grasp a cup often needs to model the manipulator, its tool center point (TCP), the cup, and its grasp. The manipulator is a concrete property of the robot, whereas the TCP of the manipulator is set abstractly by designers to make task programming easier. The cup is a concrete object in the environment, whereas potential grasps for the cup are specific to the manipulator to perform the task.

FIGURE 6
www.frontiersin.org

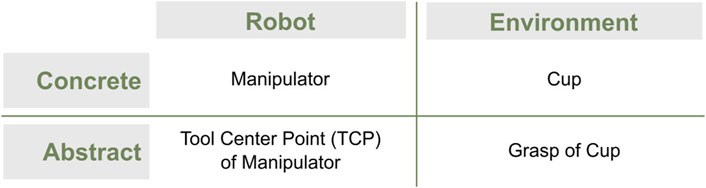

FIGURE 6. Examples of parts of the state according to the terminologies robot/environment and concrete/abstract.

Making these distinctions explicit, both conceptually and in the software, makes WMs more modular and reusable for different robots, environments, and tasks.

5.2 State representation: permanent or transient, given or estimated

For all practical purposes in robotics, gravity on Earth can be assumed to be permanent. Walls in houses generally stay where they are. Furthermore, for most robots, the length of their rigid body links will not change5. Assuming that such aspects of the world will not change, i.e., that they are permanent, has many advantages. It means that such aspects can be relied on even in different situations once they are given by designers or estimated by the robots. Once the gravity on Earth is provided or obtained, the robots on Earth can always measure the mass of the grasped object from the force measurement. Once the poses of the walls are obtained, the robots can always localize themselves even if humans change the layout of furniture drastically. On the other hand, transient parts of the state are assumed to potentially change and, thus, must be estimated and updated.

It is a natural design decision to represent the permanent and transient aspects as constant parameters and a mutable state within the WM, respectively. However, the mutable state could also represent variables that are assumed permanent. This is typically the case if those values are calculated during the runtime of the robot. If, for instance, a robot navigating a room creates a map of it at runtime, the poses of the walls should be part of the mutable state; even though they are assumed to be permanent in the real world, their estimated values can be updated with better estimates as the robot progresses. In such cases, the mutable state should have an internal structure to distinguish the permanent and transient aspects so that the robot can exploit the aforementioned advantages.

For almost all robotics applications, data are given as prior knowledge to the robot WM during its initialization or during the operation. For instance, a mobile robot might be given an initial map before it starts navigating. Such aspects that do not need to be estimated and, instead, are determined offline can be provided to the robot, e.g., in a static file. On the other hand, it is quite likely, especially for autonomous robots, that they need to estimate the (mutable) state of the world by themselves. This is crucial for the robots to operate in dynamic environments where objects move or in partially unknown environments where only a limited amount of information can be given a priori.

Figure 7 illustrates examples of different aspects of the representation categorized according to the concepts and terminologies introduced so far. A robot whose task is to play football in any football field—as in RoboCup (Kitano et al., 1997)—often needs to model the field and the pose of the ball. Since all football fields share a general rectangular layout with two goals on either side, such permanent knowledge is provided by the designers. If the actual dimensions of the field to be played on are known, they can be given and encoded as constant parameters. If the exact dimensions are not known beforehand, an initial value can be provided as part of the mutable state, which is then refined and updated through estimation. The pose of the ball must be part of the mutable state and continually estimated.

FIGURE 7
www.frontiersin.org

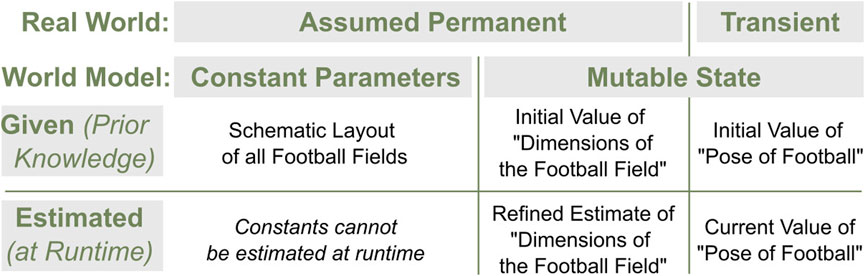

FIGURE 7. RoboCup (Kitano et al., 1997) examples for parts of the state according to the terminologies permanent/transient in the real world, constant parameters/mutable state in the WM, and given as prior knowledge or estimated at runtime.

5.3 State representation: time

As discussed in Section 5.2, the mutable state of the WM is expected to change over time. Therefore, in this section, we highlight time as an important dimension of the mutable state6. It is crucial to distinguish two separate types of time here: 1) the real-world time, which refers to real-world events or changes and 2) the belief time, at which the robot holds a certain belief as part of its WM state. A state can model these two time concepts independently. Modeling time is often useful for error analysis, recovery, and learning-based automatic improvements.

To describe how these two time concepts are different and can be modeled, let us consider a mobile manipulation task for a robot with navigation and manipulation capabilities (see the green rectangle on the top of Figures 811). The robot is first initialized next to an object placed on a table (at ti). Then, the robot grasps the object with the gripper (at tg) and navigates to a target location. However, during navigation, the object slips and is dropped on the floor (at tl). The robot does not observe this accident, and as a result, the placing task fails (at tp). The robot has two opportunities to provide information to the WM: when the robot grasps the object and when the robot tries to place the object. The former is provided by an action component that executes the grasping skill, and the latter is provided by a perception component that detects an object in the gripper.

FIGURE 8
www.frontiersin.org

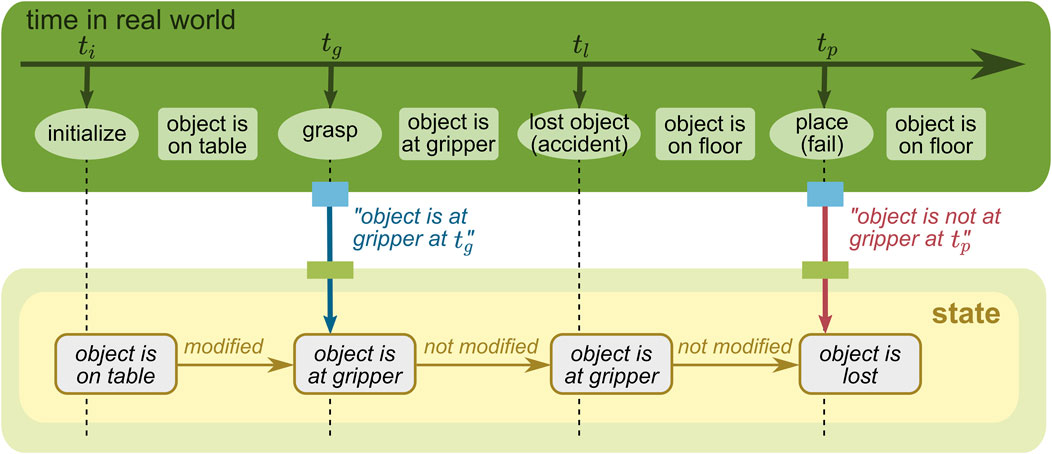

FIGURE 8. WM state without a time concept.

FIGURE 9
www.frontiersin.org

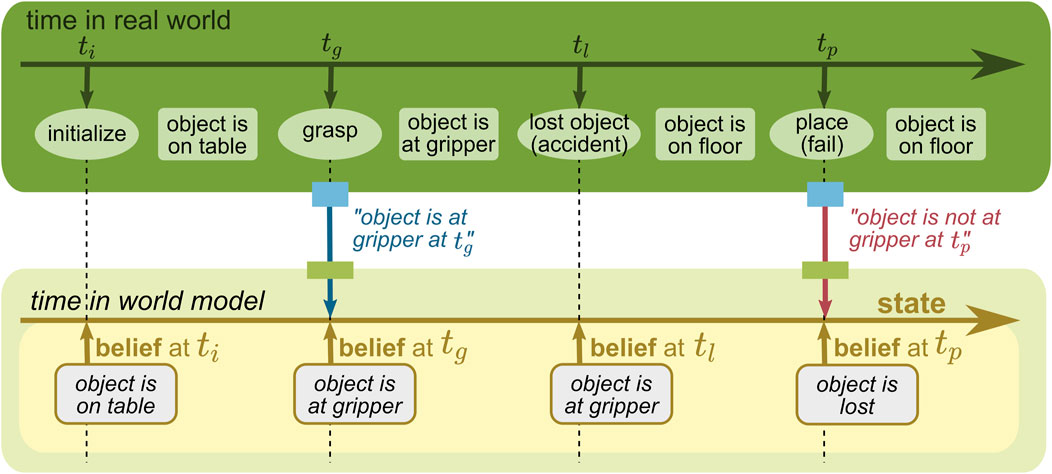

FIGURE 9. WM state with a time concept of its belief. The beliefs are stored in the state associated with time.

FIGURE 10
www.frontiersin.org

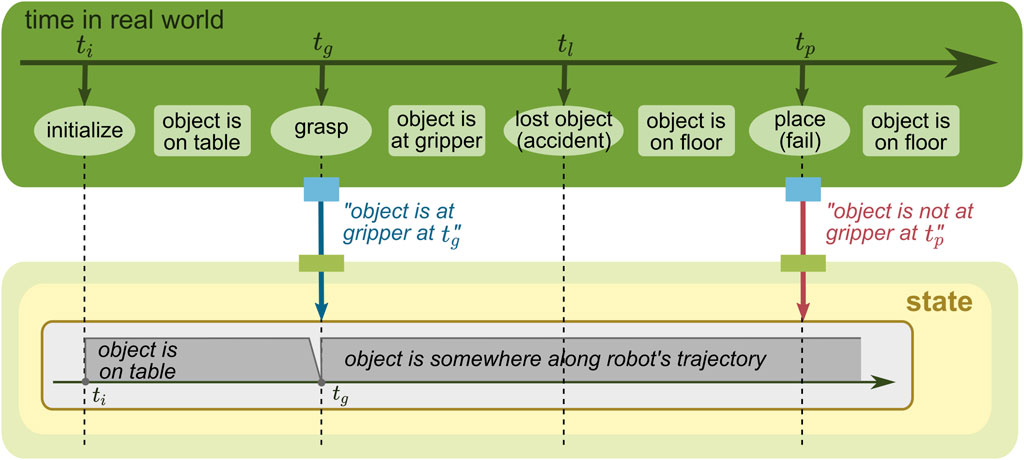

FIGURE 10. WM state with a time concept of the real world. The belief, modeling changes in the real world with time, changes over time, but only the most recent belief at tp is stored in the state and shown in the figure.

FIGURE 11
www.frontiersin.org

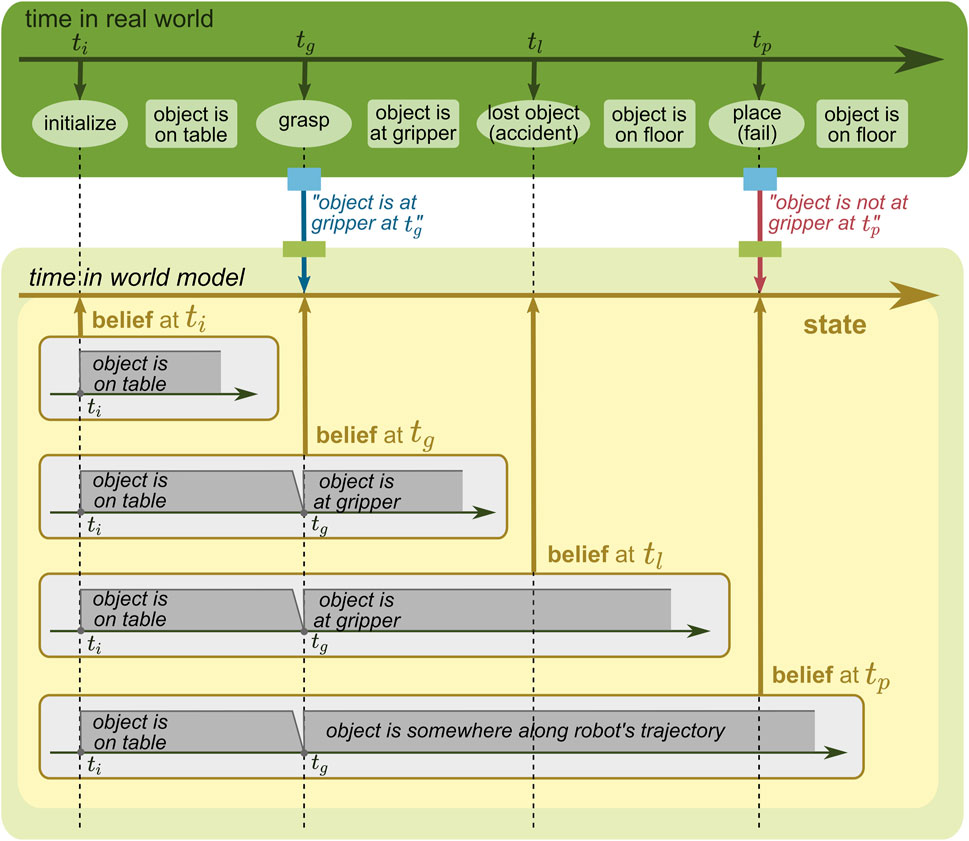

FIGURE 11. WM state with a time concept of its belief and the real world.

5.3.1 State without time

We first highlight that a WM does not always need to model time. For many use cases, it is sufficient to have a state that only holds the most recent estimate of its belief about each relevant fact of the real world. In the example given in Figure 8, the belief about the object location changes over time when new information is provided, but only the most recent belief is stored and maintained. Although it simplifies the model, it loses the past information, and thus, it could not guess the object location at tp anymore.

5.3.2 State with belief time

When the state changes, it is possible to model when the change in the belief happens. In the example given in Figure 9, the state changes similarly to Figure 8, but each belief stored is associated with time. This concept enables the state to model when the robot thought about the real world. Due to this advantage, the robot in this example could query its past belief, e.g., “when the robot held a belief at tl, where was the object then?” (the answer is “in the gripper”).

5.3.3 State with real-world time

Another time concept is about changes in the real world. In the example given in Figure 10, the state stores the information reflecting the concrete events; the object is estimated to be on the table in [ti, tg ] and at somewhere along the robot trajectory in tg. This concept enables the state to model when the real world changed. By taking this advantage, for example, poses of a constantly moving object can be estimated by inter/extrapolation.

5.3.4 State with both belief and real-world time

Since these two time concepts are independent of each other, they could be modeled together, as shown in Figure 11. In this case, the state keeps its belief at different moments, each of which models the time in the real world. To understand this easier, it should be noted that changes in the state over time are additionally modeled compared to Figure 10; for instance, the most recent belief given in Figure 11 matches the state given in Figure 10. The combination of these two time concepts enables the WM to answer complicated questions, e.g., “when the robot held a belief at tl, where was the object at tg, and is that belief still up-to-date?” (the answer is “the object was believed to be in the gripper but it was updated afterward at tp, and it is now actually believed to be somewhere along the robot trajectory”).

5.3.5 Literature analyses

Time is not represented in the studies by Nilsson (1984), Lomas et al. (2011), Leidner et al. (2014), Milliez et al. (2014), Dömel et al. (2017), and Lehner et al. (2018). Some WMs such as those studied by Triggs and Cameron (1991), Blumenthal et al. (2013), Foote (2013), Tenorth and Beetz (2013), Beetz et al. (2018), Schuster et al. (2018), Schuster (2019), and Agha et al. (2021) represent time in the state. However, the conceptual distinction of the belief time and the real-world time is not always considered explicitly. To the best of our knowledge, no WM in the literature employs both the belief and the real-world time together. The concepts introduced in this section would help WM designers be more conscious of and consistent with which time aspects they implement in the state.

6 World model operations

While the previous section described the design dimensions of the WM state, this section does so for the operations that manipulate the state. The input arguments of an operation are information from the tell interface and/or the state itself and/or the output of other operations; examples were previously given in Figure 5 in gray. The output of an operation is returned through the ask interface, included in the state, or passed as an input to another operation (see also Figure 5).

General classes of operations defined in this section are used in Section 7 to analyze different WM implementations and in Section 8.2.2 to discuss the rigorous design of WMs.

6.1 Basic operations

Based on the aforementioned generic definition, a set of basic operations can be defined. All operations can be categorized to either one of them or a combination of them.

6.1.1 Add

First, we introduce a set of operations that can write into the state7. The add operation adds input data to the state. Therefore, after executing this operation, the input is part of the new state, meaning that this operation implements a direct write-access to the state. It should be noted that this is the minimal requirement to the add operation. Depending on the design of the WM, the add operation might be more complex. For instance, sanity-check operations might be integrated to guarantee that the new state conforms to certain rules (e.g., there must be no redundancy in the state).

6.1.2 Remove

The remove operation removes input data from the state. After execution of this operation, the data are deleted from the state and not contained in there anymore. Thus, as the add operation does, the remove operation also has a direct write-access to the state. It should be noted that the remove operation might further modify other parts of the state than the input depending on the design. For example, if the state is represented as a tree and the remove operation is applied to a node, it might remove all children of the node as well.

6.1.3 Modify

The modify operation replaces previously stored information with new information. This is technically equivalent to the combination of the add and remove operations. Semantically, however, the modification of a world state is more than a combination of the add and remove operations. Since the state reflects the real world, a modification of the state implies that either the world has changed or the belief about the world has been incorrect.

Depending on the design, the modify operation might be the only operation which is allowed to write to the world state. For instance, a controller usually has a vector of a constant dimension as a state. All measurements (inputs) modify the state by replacing outdated measurements and do not allow the removal/addition of an element from/to the vector.

6.1.4 Get

From here, we introduce a set of operations that can read from the state8. The get operation returns a subset of the state as an output. Therefore, this operation implements a direct read-access to the state without modifying it.

6.1.5 Abstract

The abstract operation reduces information from an input and/or the state to an output by abstracting the information. Since information is lost through this operation, it is not possible to reconstruct the original information from the result.

For example, we consider the geometric relation between two objects; it is possible to abstract a qualitative relation, e.g., on, as an output, using their pose transformation as an input and a threshold of the distance as a parameter. However, even with the information that one object is on another, it is not possible to reconstruct the pose transformation between them.

6.1.6 Transform

The transform operation transforms an input and/or the state to an output. The difference to the abstract operation is that no information is lost, and thus, there exists an inverse operation. For example, we consider a situation where a robot localizes an object pose with a movable camera, and we want to obtain the object pose with respect to a robot base. To calculate it, a transform operation can be used based on the object pose relative to the camera as an input and the pose of the camera relative to the robot base from the state. The transform operation is not limited to geometric transformations; a unit conversion (e.g., to transform data from millimeter to meter) is another example.

6.2 Compound operations

If a WM chooses its boundary close to its state, the aforementioned basic operations are sufficient to implement the tell/ask interface. For many WMs, however, compound operations are necessary to integrate the information from the tell interface into the WM state. Likewise, compound operations enable the ask interface to retrieve information that requires interpretation based on the WM state.

These compound operations can be composed of basic operations. The basic operations can be chained to allow a more complex interpretation of the data (pipeline concept). With this concept, the output of a basic operation is used as an input of the next operation. Instead of piping the data through operations, basic operations can also be used to make decisions (decider concept). In this case, the output of the basic operation is used not to modify the incoming data but to determine how to integrate them or how to extract further information. In the following, we show two examples of such compound operations, one on the tell interface and the other on the ask interface.

Tell interface—object detection with a camera: The first example is to integrate new information of the object detection (see Figure 12A). When a perception component estimates a pose of an object with a camera, the pose is first estimated in the camera coordinate frame and given to the tell interface. This information could be interpreted either 1) as a detection of a new object instance or 2) as a refinement of the pose of a known object instance. This decision can be made, e.g., by calculating if the distance to the nearest known object exceeds a certain threshold. Therefore, the basic transform and abstract operations are piped through, and then, either the add or modify operations are decided to be triggered.

FIGURE 12
www.frontiersin.org

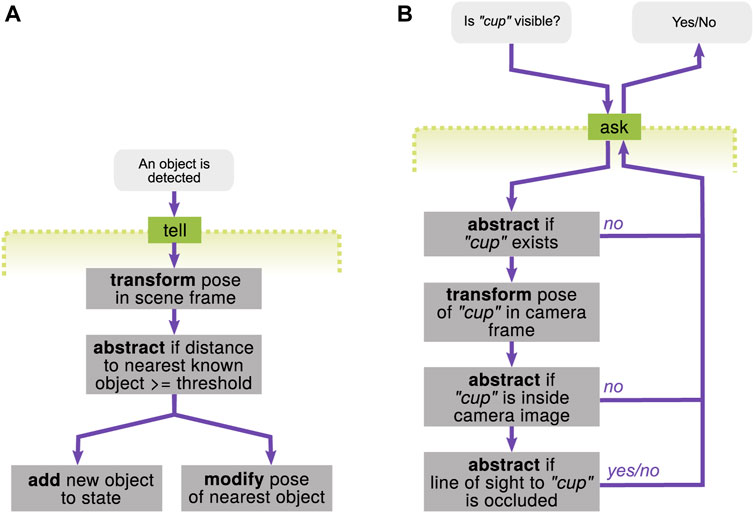

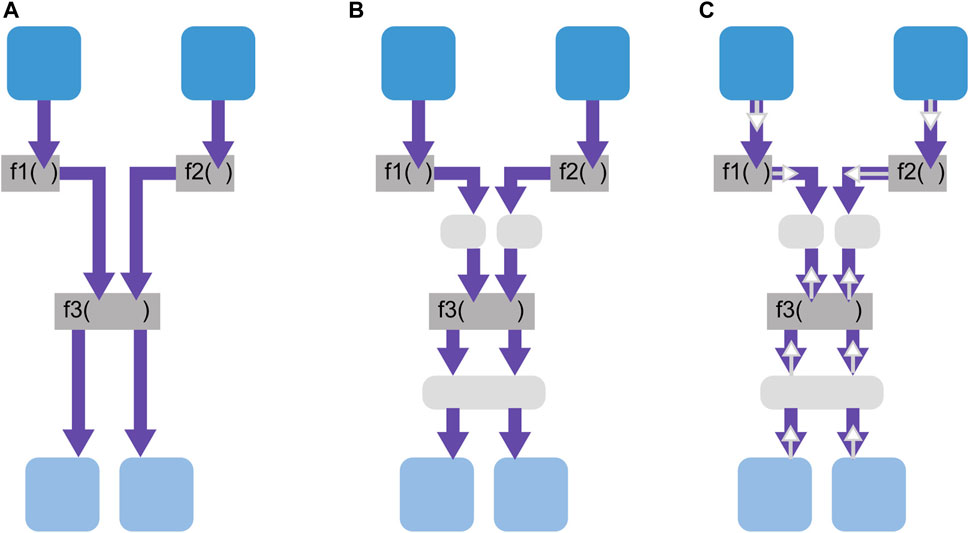

FIGURE 12. Examples of compound operations. (A) Integrating an object detection result into the state via the tell interface. (B) Querying if a unique, specific cup is visible to the robot through the ask interface.

Ask interface—checking if the cup is visible: Another example is to query if a unique, specific cup is visible to the robot or not (see Figure 12B). The computation to answer this query could be a sequence of steps with increasing computational effort. First of all, it checks if the cup already exists in the state. If yes, the pose of the cup needs to be checked if it is within the field of view of the camera (using the transform operation beforehand). If this is also yes, the last step is to check if the line of sight to the cup is occluded by other objects or not. If either one of the aforementioned checks (using the abstract operations) returns “no,” the following (computationally expensive) operations can be skipped and could answer “no” at the ask interface.

7 Case studies

The two use cases in Section 3 aimed at providing concrete examples to illustrate what a robotic WM is. This section now interprets 15 WM implementations—including the two aforementioned—by applying the terminology introduced so far. Our aims are to: 1) show that our concepts are general enough to be applicable to WMs from very different domains; 2) motivate the need for a common terminology as the terminologies used now are different in each work; 3) provide an overview of four decades of work on robotic world models; and 4) classify these works (see Table 1).

TABLE 1
www.frontiersin.org

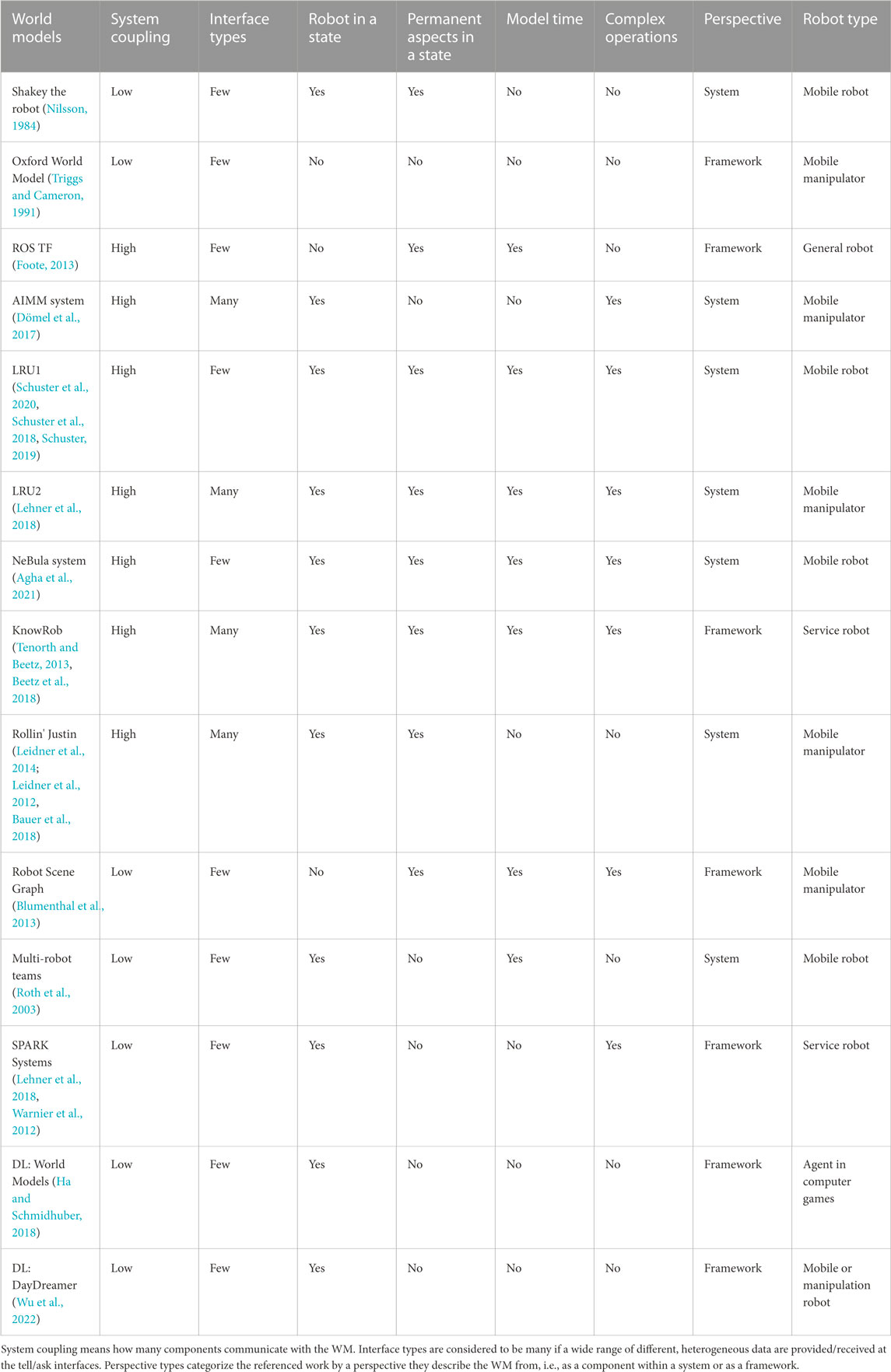

TABLE 1. Classification of representative robotic world models.

7.1 Shakey the robot

Already in the first mobile, autonomous robot, Shakey (Nilsson, 1984), the WM was a central component. Based on this WM, the robot could plan its actions independently and represent the state of itself and its environment.

7.1.1 WM boundary

The WM boundaries are defined by four functions. On the tell interface, there are three functions, ASSERT, DELETE, and REPLACE. The ask interface is implemented by the function FETCH. The interfaces of the Shakey WM have variable distance to the WM state. Some information can be added directly to the state, e.g., a robot position, but for others, compound operations are necessary, e.g., locations of movable objects.

7.1.2 State representation

In Shakey, the state is represented by formulas of first-order logic. The state, thus, consists of statements which link entities from five different entity classes (Faces, Doors, Rooms, Objects, and Robot) to other entities or values via various predicates. The applicable predicates depend on the entity class. The state models the environment as well as the robot information, and it models concrete as well as abstract information (e.g., problematic locations). The state consists of parameters and mutable states that are either given or estimated by the system. The state does not represent time.

7.1.3 Operations

The tell/ask interface is similar to the basic operations add, remove, modify, and get. For some information, these can also be used directly to implement the interface. However, in addition to the state, there are axioms that define the operations on the state. For example, adding a location for an object can either add a new statement to the state, or if a location is already stored, modify the existing one, since the rule exists that an object can only be at one location. For some parts of the state, the interface is, therefore, realized by compound operations.

7.2 Oxford World Model

The Oxford World Model (Triggs and Cameron, 1991) is proposed as a geometric database of an autonomous navigation robot for a factory environment.

7.2.1 WM boundary

One of the main motivations of the Oxford World Model is to encourage a clean and modular internal software architecture where different components communicate via the WM. Therefore, the WM boundary is set so that the WM provides a uniform inter-module interface.

7.2.2 State representation

The following types of information are stored in the state: a) a factory layout and route maps; b) object positions and their 3D models; c) sensor features; d) caches of local or temporary data; and e) tasks and scheduling information. It represents the environment aspect for both the concrete part (such as poses and 3D models) and the abstract part (such as sensor features). The factory layout and route maps are permanent but stored into the state together with other information. Each type of these data is attached with a common header containing a timestamp. Although this time is described to model a “time-of-last-modification” of objects, it is not explicit if this models belief time or real-world time.

7.2.3 Operations

Basic operations such as adding and removing objects are executed via indices. In addition, generalized compound operations are provided, i.e., to perform a specific modification on every object having the same object type, or to get objects satisfying a specific spatial condition.

7.3 ROS TF

The Robot Operating System Transform Library (ROS TF) (Foote, 2013) provides a standard way of maintaining coordinate frames and transforming data on the open-sourced middleware ROS (Quigley et al., 2009). The main motivation is to free the programmers from the necessity of calculating the transformation between frames.

7.3.1 WM boundary

Due to its general, low-level scope as a use case, the WM boundary is set around the state. Operations needed for transform computations are included within the WM boundary, and many components require such a calculation interface with the ROS TF. More complex operations (such as how to utilize obtained transforms) are expected to be implemented on external components telling/asking the WM.

7.3.2 State representation

The ROS TF uses a tree structure; nodes represent a frame (a coordinate system), and edges represent a 6-degrees of freedom (DOF) relative pose. Since the main purpose is to calculate the transformations between frames, they do not distinguish the robot/environment, concrete/abstract aspects explicitly.

For efficiency, it distinguishes the mutable state and constant parameters by using different representations, /tf and /tf_static, respectively. While the /tf maintains transformations with the real-world timestamps and represent changes in the real world, the /tf_static expects that any transform is static and considered to be valid at any time.

7.3.3 Operations

The basic get and add operations, as well as the transform operation, are implemented. For sending (adding) information, the sendTransform operation is used. For querying (getting) a transformation between two frames, the lookupTransform operation is used, in which the transform operations are chained. Using the spherical linear interpolation (SLERP) algorithm (Shoemake, 1985) (for orientations) and a linear inter/extrapolation (for positions), lookupTransform approximates the changes of frames given a timestamp.

7.4 AIMM system

DLR’s Autonomous Industrial Mobile Manipulator (AIMM) (Dömel et al., 2017) focuses on performing transportation tasks autonomously in partially unstructured factory environments with its mobile platform and manipulator.

7.4.1 WM boundary

The AIMM employs a navigation system, an object detector, a motion planner, and a flow-control system. They must share the world state, and thus, the WM boundary can be drawn between them. The object detector provides information about the pose, category, size, and detection quality of objects at the tell interface. The motion planner, on the other hand, queries information about rigid body kinematics such as free space and collision at the ask interface. The flow-control system exchanges information with the WM at both the tell and ask interfaces. The ask interface is typically used for making decisions depending on the current state. Once the flow-control system executes a skill, the tell interface is used to reflect the high-level effects expected by the execution.

7.4.2 State representation

The representation focuses on providing not a detailed geometric description but a topological-level description of the relation between different types of objects. For this purpose, the WM state employs a tree representation. Each node represents an object with labels specifying its types, and edges connecting nodes represent a 6-DOF transformation9. Nodes representing the robot have a type Robot, which are distinguished from the environment aspects. The object ownership information (such as which object is grasped by the manipulator), which is abstract, is modeled by edges constructing the parent–child relations. Other abstract aspects, e.g., grasps and approaches for manipulation, are modeled as child nodes of a concrete node with a type RigidBody. Since components require only the most recent state, time is not modeled.

7.4.3 Operations

There are basic operations having the write access to the state, such as to add a new node, remove an existing node (and its children), modify the property of a node or the 6-DOF pose of an edge, and to reassign a node to another node.

To have the read access to the state, there are not only basic operations to simply get a node (or its properties) but also compound operations. One of them is to query a pair of nodes satisfying certain conditions by utilizing the tree structure. By specifying types and/or properties of nodes as well as a maximum/minimum number of hops between them, only a relevant subset of the state is effectively extracted. For instance, the motion planner queries only Robot and RigidBody objects under the branch of the current scene node.

7.5 LRU1

The core WM on DLR’s Lightweight Rover Unit 1 (LRU1) robot (Schuster et al., 2020) is the multi-layer and multi-robot SLAM system (Schuster et al., 2018; Schuster, 2019).

7.5.1 WM boundary

The WM boundary can be drawn on the input side between typically stateless low-level perception components, such as stereo matching, and the modules of the SLAM system itself that contain the state related to local and global localization and mapping, such as the keyframes of visual odometry, the state vector of a local reference filter, the pose graph for global optimization, the local obstacle maps for navigation, and the global 3D maps for exploration planning and multi-agent coordination. Thereby, the SLAM WM receives preprocessed sensor data from proprioceptive sensors such as inertial measurement units (IMUs) and exteroceptive sensors such as stereo cameras via its tell interface. On the output side, the WM boundary can be drawn between the SLAM system providing pose and map information via its ask interface and the typically higher-level components consuming these, such as path planning, exploration planning, mission coordination, or visualization modules.

7.5.2 State representation

Sensor properties, such as noise models, sensor calibrations, and certain environment characteristics, such as the local gravity constant, are assumed to be permanent in the real world during the system runtime and, thus, provided as parameters to the WM. The state variables contain information about the concrete aspects of the world, such as robot poses and 3D geometry, as well as abstract annotations, such as submap poses, which are mainly used for SLAM-internal purposes. Real-world time is used in the local estimation both for sensor data acquisition timestamps as well as state prediction timestamps, which are important to relate measurements and estimates to events in the environment and to the measurements and estimates by other robots. As the SLAM is concerned with moving agents, non-static poses are always accompanied by real-world timestamps. For the resulting maps, timestamps are, however, not necessarily required as the consuming modules are only interested in the most up-to-date model of the environment available.

7.5.3 Operations

Most complex operations integrating measurements or estimates into the state variables are triggered by the tell interface. In contrast, most operations triggered by the ask interface are simple get operations to return parts of the state, accompanied by minor abstractions and transformations. However, expensive complex computations, such as global map compositions, could also be triggered on demand to abstract or/and transform state variables and modify caches for intermediate results. Perception data are typically pushed into the WM, and the WM itself not only pushes out new state estimates (e.g., poses and maps) to consumers but also provides pull-based interfaces, e.g., in inter-robot communication to provide missing data to other agents demanding them.

7.6 LRU2

DLR’s Lightweight Rover Unit 2 (LRU2) robot (Schuster et al., 2017; Schuster et al., 2020), being a mobile manipulator, uses two separate WMs, one for navigation, similar to the LRU1 (see Section 7.5), and an additional one to support mobile manipulation tasks, similar to the AIMM (see Section 7.4). The information required for manipulation tasks are substantially different from that used by navigation and exploration components. Therefore, following the “Low coupling, high cohesion” principle (see Section 8.1.3) as well as the guideline given in Section 8.2.1.2, a WM focusing on quasi-static scene representation is additionally employed. Regardless of the difference of the application domain (from the factory automation to the planetary exploration), the AIMM WM can be employed with ease due to its generally designed boundary.

There is a unique data exchange on the WM boundary between these two WMs. The navigation WM queries the real-world dynamics of manipulated objects at the ask interface of the AIMM WM. For example, when LRU2 manipulates a box with fiducial markers, the navigation WM requires to be informed of the changes accordingly since objects with the markers are used as landmarks for the SLAM system.

7.7 NeBula system

As described in Section 3, NeBula is an autonomy solution for navigation, mapping, and exploration of unknown extreme environments (Agha et al., 2021).

7.7.1 WM boundary

The purpose of the system is similar to the LRU1 (see Section 7.5), and thus, the WM also has many similarities, which can also be implied by the “Design for use” principle (see Section 8.1.1). Similar to the LRU1, the WM boundary can be drawn at the output of the low-level, stateless sensor-fusion component HeRO and at the input of high-level planning components.

7.7.2 State representation

The state models belief over the internal robot state such as its pose, as well as the external surrounding environment state such as maps and hazards. The state is an abstracted representation of not only spatial information but also temporal information. This allows for maintaining probability distributions over various state domains. As a unique representation of this system, the state includes the hierarchical belief representation called the Information Roadmap (IRM) for making decisions on where to explore, taking uncertainty into account. The IRM is a graph representation containing concrete information such as occupancy and abstract information such as coverage and traversal risks.

7.7.3 Operations

Similar to the LRU1, complex operations are mostly for integrating inputs from the odometry source and perception results (such as loop closures) at the tell interface. As one of the compound operations, factor graph optimization employs a method to identify and discard incorrect loop closures that can arise while working in environments with poor perceptual conditions. At the ask interface, the operations are mostly basic ones to get part of the information from the state.

7.8 KnowRob system

As described in Section 3, KnowRob is a knowledge processing system specifically designed for autonomous robots to perform manipulation tasks in various environments (Tenorth and Beetz, 2013; Beetz et al., 2018). Its primary function is to maintain a belief state of the world, serving as a WM that helps the robot understand and interact with its surroundings. It features a modular architecture that interfaces components such as the perception framework RoboSherlock (Beetz et al., 2015; Bálint-Benczédi et al., 2019), the task executive CRAM (Beetz et al., 2010), and the motion planner Giskard (Fang et al., 2016).

7.8.1 WM boundary

The WM boundary of KnowRob is not tightly confined around the belief state. Instead, it encompasses various kinds of state representations and operations that interact with the belief state. Information can be asserted through tell interfaces to the belief state from different components such as RoboSherlock (Beetz et al., 2015; Bálint-Benczédi et al., 2019) or CRAM (Beetz et al., 2010). The ask interfaces are also queried by RoboSherlock (Beetz et al., 2015; Bálint-Benczédi et al., 2019), CRAM (Beetz et al., 2010), and Giskard (Fang et al., 2016).

7.8.2 State representation

KnowRob predominantly employs a sophisticated symbolic and semantic representation of the belief state, which encompasses both the robot and its environment in a cohesive manner. The semantic concepts of ontology can be regarded as parameters, while the instantiated data within the belief state can be considered mutable. Moreover, time plays a significant role, particularly in the context of episodic memory knowledge. However, no explicit distinction is made between the real-world occurrence timestamps and the robot’s belief update timestamps. Additionally, the belief state does not discriminate between concrete and abstract information explicitly, but both representations are collectively represented in the knowledge graph. Nonetheless, the system features a component that primarily focuses on symbolic abstract data, as well as an inner WM that represents the concrete state through a physics simulation.

7.8.3 Operations

On both the tell and ask interfaces, operations are used to query the belief state and assert information to it. The operations that query the knowledge base range from basic operations to compound ones, depending on the reasoner (ProLog, SPARQL, … ) used. Additionally, further compound operations are implemented as computables that can query the belief state.

7.9 Rollin’ Justin

The WM of the humanoid robot Rollin’ Justin serves as a fundamental element in the hybrid planning and reasoning methodology, as detailed by Leidner et al. (2014).

7.9.1 WM boundary

The WM boundary for both the tell and ask interfaces can be tightly drawn close to the world state. For example, the localization component updating the robot’s position within the world state based on a pre-computed environmental map communicates through the tell interface. Another perception component leverages fiducial markers to adjust the geometric pose of detected objects via the tell interface during execution. The hybrid planner functions as both a planning and acting module, utilizing the tell interface to modify the symbolic state representation during execution while also querying via the ask interface the current symbolic world state for task planning purposes. The motion planner similarly queries via the ask interface the geometric world state, thus enabling the hybrid planning approach.

7.9.2 State representation

The state representation adopts an object-centric perspective of the environment, associating both geometric and symbolic information with each object. Within the hybrid planning approach implemented on Rollin’ Justin, PDDL predicates are necessary for high-level task planning, while the geometric state representation facilitates geometric planning. The object database (Leidner et al., 2012; Leidner, 2017) serves as a knowledge repository containing information on object affordances and appearances, embodying a combination of assumed permanent parameters in the form of an object taxonomy and transient, mutable state, such as object-specific abstract grasp frames. The world representation component (Leidner, 2017) comprises the mutable state variables and is instantiated from this knowledge.

7.9.3 Operations

State information access relies primarily on basic operations. The aforementioned components directly add, remove, or modify both geometric and symbolic state representations. Within the world representation component, geometric and symbolic representations are modeled independently. However, various external approaches exist to ensure consistency between these representations (Bauer et al., 2018; Bauer et al., 2020; Lay et al., 2022).

7.10 Robot Scene Graph world model

Blumenthal et al. (2013) proposed a Robot Scene Graph (RSG) WM as a central, complete geometrical 3D representation of autonomous robots.

7.10.1 WM boundary

The goal of this WM is to centralize knowledge from the planning, perception, control, and coordination components. The WM boundary is set quite away from the state. As described in the following sections, the WM takes raw sensor data at the tell interface and caches intermediate data. On the ask interface, for instance, components can query collision models of the entire scene.

7.10.2 State representation

The state uses a directed acyclic graph (DAG) to represent a full 3D scene. In addition to a unique ID and a list of attributes (which are abstract), each node holds a bounding collision geometry to represent the concrete, environment aspects. Any geometric data are assumed to be permanent and stored as parameters. Poses are represented not by the edges but by nodes called transform. Since these transforms tend to vary over time, each transform node stores its data with associated timestamps to represent the real-world time. The time concept is utilized for operations for tracking and prediction.

The state stores not only the final resulting data but also raw sensor data and intermediate data created by operations.

7.10.3 Operations

The unique IDs are used for providing basic operations such as setData to add information and getData to get information. As an example of compound operations, the RSG WM provides an operation to calculate spatial information. Given a starting node and a targeted node, the operation queries a path connecting these two nodes. Based on the transform nodes along the path, it connects transform operations in a pipeline manner. Since each node can have multiple parent nodes, it is possible that multiple paths are discovered. In this case, different policies could be employed, e.g., either to use the path containing the most recent timestamp or to use semantic tags to decide a most reliable path.

7.11 World model for multi-robot teams

Roth et al. (2003) proposed a robotic WM for a team of robots under high communication latency. Since the application domain is to let the team of robots play soccer in RoboCup (Kitano et al., 1997), the WM is quite specific to this domain. Nevertheless, it still addresses unique challenges common to any dynamic environments for a multi-robot setup.

7.11.1 WM boundary

The WM takes two sources of information at the tell interface: vision and communication. The vision component detects all relevant objects in the world by their colors and produces information about pose in the local coordinate frame of the robot. The communication is possible but with only limited bandwidth and high latency. Therefore, the robots neither synchronize data streams nor have a centralized external server, and instead, they communicate only relevant data on an as-needed basis. At the ask interface, planning components query information for decision-making activities.

7.11.2 State representation

Each robot maintains its individual world state and a global world state. The individual one contains the robot, concrete aspects such as the robot’s position and heading, as well as the environment, concrete aspects such as positions of teammates and opponents. As parameters, an a priori map of the field is given initially and utilized for localizing the robot. The global world state consists of the environment, concrete aspects such as the location of the teammates and the ball, as well as the environment, abstract aspects such as if a robot is the goal keeper and if a robot saw the ball.

7.11.3 Operations

As in the study by Stulp et al. (2010), the individual state is updated by three different policies: either from vision information, from communicated information, or combination of both. The updates to the location of the robot and the opponents come directly from the vision information. The location of the teammates is given by the communicated information. The ball position is estimated by using both sets of information via a Kalman filter.

7.12 SPARK system

SPAtial Reasoning and Knowledge (SPARK) (Milliez et al., 2014) is a WM that maintains a state of the world to enable a robot to plan and act, especially collaborating with human workers. The goal is to generate symbolic facts from the geometric state representation, allowing for the creation of collaborative plans and generation of efficient dialog.

7.12.1 WM boundary

The WM gathers geometric information from perception components at the tell interface and provides symbolic information about the robot’s belief about human beliefs at the ask interface. The symbolic information is utilized by the human-aware symbolic task planner and the execution controller (Warnier et al., 2012).

7.12.2 State representation

In the state, it maintains the robot pose, the quasi-static objects in the environment, and the positions of humans including their hands, head, and shoulders. The state is mostly concerned with the concrete aspects, and only minor abstract features are represented for checking the identity of humans and objects. No time is modeled, and the state assumes that the most recent belief holds true if no further information is available.

7.12.3 Operations

There are several complex operations employed in SPARK. The first example is to track and manage object locations in the environment. Using the decider concept, it combines basic operations and either modifies the pose of the object, removes the object from the state, or keeps the state without any change. An important compound operation is to estimate human beliefs, e.g., to compute the visibility and reachability of an object from a human perspective.

7.13 Deep learning: introducing world models

The term “world model” was first introduced to the deep learning community by Ha and Schmidhuber (2018), where the WM refers to a compressed spatial and temporal representation of the environment. The work focuses on learning latent spaces as abstractions of the input sensor space so that it can be used as an internal simulator, which builds on very early work on learning such models (Schmidhuber, 1990).

7.13.1 WM boundary

In the architecture proposed by Ha and Schmidhuber (2018), the world model boundary can be drawn around the vision (V) and the memory (M) networks. The V network serves as a gateway for sensory input, consuming RGB images, which can be considered the tell interface. The M network takes as input the embeddings from the V network as well as the actions from the control (C) network. Since the world model boundary in their paper is drawn around the V and M networks, this propagation of actions from the C network back to the M network can also be considered a tell interface. The embeddings from both the V and the M network serve as input to the C network, and one can interpret this as the ask interface.

7.13.2 State representation

The state consists of the network embeddings of both the V and M networks and is mutable.

7.13.3 Operations

Both the V and M networks can be viewed as operations. The V network can be interpreted as an operation that abstracts the input 3D image into a latent state representation. Another abstraction happens in the recurrent structure of the M network.

7.14 Deep learning: DayDreamer

Wu et al. (2022) introduced a WM that learns a forward model of the environment, predicting the environment dynamics. The neural network is trained based on a replay buffer of past sensory inputs to the architecture.

7.14.1 WM boundary

The boundary can be drawn tightly around the neural network where sensory information such as RGB, depth, proprioceptive joint readings, and force sensor information are passed as input to the WM. This sensory input is passed to an encoder network which can be viewed as a tell interface. The actor–critic algorithm learns a policy using the latent representation of the encoder network provided through a ask interface. There is another ask interface in the form of a decoder network that decodes the same latent representation to human-readable information.

7.14.2 State representation

The state representation is represented as the latent encoding of sensory information and predictions from previous states based on the learned forward model. Therefore, the state is mutable.

7.14.3 Operations

The different components in the neural network architecture can be interpreted as operations. The encoder network abstracts the sensory input and adds information to the latent state representation. The dynamic network acts as a complex operation that applies kind of a projection, i.e., the forward model to the latent state representation, and the reward network uses the latent state representation to predict future rewards. The encoder network operates as an abstraction, taking the sensory input and adding to the latent state representation. Acting as another operation, the dynamic network performs an additional abstraction in the form of a projection to future dynamics of the environment. Finally, the reward network adds an additional layer of abstraction to the latent state representation to forecast future rewards.

7.15 Deep learning: vision

Another recent interpretation of the “world model” was given by LeCun (Author anonymous, 2022; LeCun, 2022) in a “proposal for a modular, configurable architecture for autonomous intelligence.” It should be noted that this work presents a vision for modularization of deep learning modules for autonomous machine intelligence, which has not been implemented. We include it nevertheless, as it highlights a trend toward the formalization of WMs, as shown in Figure 1.

The WM is one of the six main modules of a configurable architecture for autonomous intelligence. The WM “is a kind of simulator of the part of the world relevant to the task at hand.” LeCun, thus, emphasized the use of WMs as internal simulators more than using them to reflect the actual state of the outside world. Indeed, the state itself is not stored in the world model module but in a module called “short-term memory.” In our terminology, the “short-term memory” would rather be included in the WM boundary.

8 Discussion: world model design

As highlighted by the case studies, the design space for WMs is huge. This raises many practical questions for their design and implementation. Which types of queries will the planning components need in order to generate their plans? Which aspects of the world are to be considered transient or permanent, and which of the latter do we know in advance? Should derived intermediate states be cached any time new information is provided or only when a query is made that requires the update? What should be the internal organization of the state? A list, a tree, a relational database, or an ontology?

These questions are difficult to answer generally. They vary based on the robot’s tasks, sensors, and other system components. In this section, we offer guidelines for these design considerations.

8.1 Principles from software engineering

First, as a basis for the design guidelines, we highlight the following software engineering design principles that we consider relevant to WM design.

8.1.1 Principle: design for use

Since a WM provides information to other software components, its state should be rich enough to produce the information relevant to these components. This does not mean, however, that the WM should store as much information as possible; there is no reason to store data in the state that will never be used during any tell/ask requests. In the extreme case, if there are no components to ask any information from a WM, there is no reason to have a WM at all, for instance, in the subsumption architecture (Brooks, 1986).

The design of the WM is determined, thus, not by what the designer assumes is relevant but what the system actually requires. This is the “Design for use” (DfU) principle, which is also used to guide the design of ontologies (Smith et al., 2004). This principle is applicable not only to the contents of the state but also to the operations and the boundary as well.

8.1.2 Principle: do not repeat yourself

As shown in Section 6, deriving the state of the world from multiple sources involves many operations, such as abstractions from low-level sensor data to higher-level representations, or transformations to convert the data into another form. If different software components implement these operations separately, repetition and redundancy are inevitable. This hinders the reuse of implemented functionality in another component, and furthermore, it makes debugging activity tedious due to the redundancy (Blumenthal et al., 2013). This is applicable not only to the operations but also to the state elements. For example, in the NeBula system (Agha et al., 2021), both the local and long-range motion planning components need the current robot pose, and it would be highly redundant if each consumer implemented its own SLAM algorithm to infer this current pose.

A dedicated WM component should bundle such state elements and operations in one place and enable other components to update and query it so that they must not re-implement duplicated data or redundant computations (Blumenthal et al., 2013). This is the “Do not repeat yourself” (DRY) principle in software engineering, which is formulated as “Every piece of knowledge must have a single, unambiguous, authoritative representation within a system” (Hunt and Thomas, 1999).

8.1.3 Principle: low coupling, high cohesion

The DRY principle helps decide whether a shared WM is required for a robot or not. The “low coupling, high cohesion” (LCHC) principle helps decide how many. This principle states that components in a component-based system should have few couplings between different components and high cohesion within a component (Yourdon and Constantine, 1979) as a tight coupling of components would cause invasive changes on them when modifications are needed (Heim et al., 2015).

As an example of applying the principle, our LRU2 robot (Lehner et al., 2018; Schuster et al., 2020) (see also Section 7.6) is a mobile manipulation platform that navigates based on SLAM and path planning components and manipulates objects using visual pose estimation and sampling-based motion planning. As manipulation is only performed when the robot is not moving, the tasks of navigation and manipulation and, thus, the decision-making components for executing these tasks, are entirely decoupled. It is thus reasonable to have two distinct WMs because the components for navigation and manipulation require disjunct queries on the WM and use different hardware (mobile base vs. articulated arm) and software (the path planner in the 2.5D geometric space for the robot base vs. the motion planner in the configuration space for the manipulator). As the WMs for navigation and manipulation are disjunct, merging them into one WM would lead to a component with low cohesions; therefore, a separation into two is preferable according to the LCHC principle.

If the task specification is changed to require the robot to be able to grasp objects whilst moving, this would require a reevaluation of having two WMs. Since the two WMs have to be synchronized quite frequently for such a use case, having two will lead to high coupling of the WMs and, thus, will be considered to be a non-optimal design decision. It is suggested that the two WMs should be merged into one.

8.2 Guidelines for world model implementations

The principles introduced in Section 8.1 are applicable to all aspects of the WM: the state representation, the operations, and the boundary. However, these principles sometimes contradict each other, and a trade-off between them must be found. Therefore, the aim of this section is to clarify where such conflicts exist and to concretize more specific guidelines for the implementation of WMs. We propose the following guidelines based on our experiences obtained during the development of the AIMM WM (Dömel et al., 2017), which is described in detail in Section 7.4. Although the guidelines are considered applicable to the WM approaches reviewed in Section 7, there might be robotic systems where the guidelines are not always applicable or not feasible to follow in practice. Nevertheless, the guidelines are our suggestions for supporting design decisions and not strict regulations a WM must always satisfy.

8.2.1 Implementation: state representation

8.2.1.1 Reducing redundancy

If information in a state can be generated by applying operations on other parts of the state, such information is redundant. Since redundancy is a violation of the DRY principle, it should not be cached into the state in principle. The redundancy often makes maintenance difficult; if a part of the state is modified, the corresponding, redundant part must be updated accordingly to avoid information mismatch. However, this guideline often contradicts the “minimize calling frequency and computational load” guideline (Section 8.2.2.2). Thus, the trade-off is between reducing redundancy and computational load.

In the AIMM WM (Dömel et al., 2017), intermediate information is not cached into the state to avoid redundancy since the operations are called mostly in an event-driven manner.

8.2.1.2 Keeping abstraction levels homogeneous

If a single WM must contain information at different levels of abstraction, multiple abstraction levels within the state must be simultaneously kept up-to-date. Having multiple representations within a state, however, makes it difficult to keep the state consistent if the different levels of abstraction represent the same aspect of the world. Ideally, abstraction operations are, thus, computationally inexpensive so that they can be called regularly on demand. This is a specific case of the “reduce redundancy” guideline (Section 8.2.1.1).

In the AIMM WM (Dömel et al., 2017), edges of its tree representation are used only for geometry and not for symbols. If necessary, symbols can be computed via operations without high computational load.

8.2.1.3 Choosing the abstraction level as high as possible, as low as necessary

The appropriate level of abstraction for the state representation is determined by the DfU principle. If the abstraction level is too low, high-level action information cannot be integrated at the tell interface. On the other hand, if the abstraction level is too high, e.g., using only symbolic predicates, a motion planner could not query metric information about the geometry of the world at the ask interface. Thus, an appropriate level of abstraction must be chosen and employed; concretely, it should be as high as possible but as low as necessary.

In the AIMM WM (Dömel et al., 2017), the abstraction level to describe a topological relation between different types of objects is employed so that the sensing components can tell information about detected objects, the planning components can ask collision-free spaces, and the acting components can tell expected effects of skill execution.

8.2.1.4 Decreasing dependency among state elements

Even if a state has a homogeneous level of abstraction without redundancy, a modification in one part of the state may require updates to other parts. For example, we assume a state has a list of object poses with respect to the world coordinate frame. If an object A is placed on another object B in the real world, and if the pose of the object B changes, the state has to update the pose of both objects A and B. Such dependencies among state elements should be avoided as much as possible since they increase the number of operation calls (see Section 8.2.2.2). In this example, employing a tree as a data structure of the state could be one of the solutions [as the AIMM WM does (Dömel et al., 2017)].

8.2.1.5 Using simple time representations

Finding appropriate representations for time in a WM is challenging. As described in Section 5.3, there are two kinds of time. Furthermore, the time in the real world is by nature continuous, while the state and its modification are usually associated with discrete time. Due to such complexity, careless introduction of the time representation could easily increase the model complexity without providing practical advantages. Following the DfU principle, the time representation should be employed only according to the actual necessity from the application. For many WMs, no explicit modeling of time is needed. Instead, they often assume that the current world state represents the current real world.

If modeling of time is required, special attention must be paid to which type of time is represented and how the discretization of time is handled in the model. It is also important to decide carefully which aspects of time to represent in the state and which to implement by operations. For example, the time interval during which an object is at a certain position can be modeled directly in the state. Alternatively, for example, we can store into the state only the moments at which the position of the object has changed and let an operation determine the position at certain points of time by intra/extrapolation. This guideline suggests using a simple representation, and which is simpler depends, thereby, strongly on the application.

In the AIMM WM (Dömel et al., 2017), no time needs to be modeled since having access to the most recent belief about the most recent world satisfies the requirements from components interfacing with the WM.

8.2.2 Implementation: operations

8.2.2.1 Modularizing and reusing

As discussed in Section 6, operations can be combined into compound operations. If some operational routines are common to multiple operations, they should be modularized and reused, following the DRY principle.

In the AIMM WM (Dömel et al., 2017), basic operations are provided as a Python library, allowing for implementing compound operations reusing the basic ones as a module.

8.2.2.2 Minimizing calling frequency and computational load

Calling operations causes computational load. Thus, keeping the call frequency low, especially for computationally expensive calls, is important to achieve better performance.

As shown in Figure 13, when operations are triggered, information flows can be decided by either the information source (producers) or their dependents (consumers) (Bainomugisha et al., 2013)10. Producers can push information any time it is available, or consumers can request (pull) the information when they need it (Bainomugisha et al., 2013). Which way is preferable depends on the use case, i.e., the design decision should be made by the DfU principle. In general, we see that the flow of task-specific information that is only relevant to one or a few consumers is best implemented via a pull and the flow of general information that is relevant to many consumers via a push.

FIGURE 13
www.frontiersin.org

FIGURE 13. Pushing or pulling information, adapted from Figure 2 from the study by Bainomugisha et al. (2013).

It should be noted that the push and pull are implementation models of how operations are triggered and how the tell/ask interfaces are called. Although it is counter-intuitive, for example, the ask interface can be implemented by the push approach, where the WM periodically publishes information to other components. Similarly, the tell interface can be implemented by the pull approach, where the WM triggers a perception component in a polling manner to update the state periodically.

As mentioned in Section 8.2.1.1, caching intermediate results in the state causes data duplication. However, it can contribute to minimizing the computation load by operations, as shown in Figure 14A. Without caching, the operations f1, f2, and f3 must be called every time information flows from the producer (at the top) to the consumer (at the bottom). If the results of these functions are cached in the state (gray boxes), they must only be called in case information is out-of-date.

FIGURE 14
www.frontiersin.org

FIGURE 14. (A) Information flow without caching intermediate data in the state. (B) State caching results of operations. (C) Caching allows for decoupling of push and pull.

Caching also enables push and pull information flows to be decoupled, as shown in Figure 14C. This means that operations can be implemented to either push or pull information, depending on their frequency and computational cost. We consider, for instance, that f1 and f2 are computationally cheap and not called very often. Then, any time new information is provided by the producer, it is opportune to immediately push by calling f1 and f2 and then to store the intermediate result in the state. If f3, on the other hand, is computationally expensive, the state would be pushed no further. Rather, f3 would only be applied to the cached, pushed results of f1 and f2 upon request by one of the consumers, and the “pulled” result of f3 would be cached as well.

In the AIMM WM (Dömel et al., 2017), as written in Section 8.2.1.1, no intermediate information is cached into the state. Since the WM represents semi-static environments, components basically push information at the tell interface and pull information at the ask interface.

8.2.3 Implementation: boundary

8.2.3.1 Keeping the boundary abstracted from components

If the WM boundary is set too close to the producer and consumer components, operations only specific to them will be included within the WM. Since such component-specific operations are not useful for other components, this is against the DfU principle. This is especially critical when the same WM is used for different robotic systems because of differences in software/hardware components.

The AIMM WM (Dömel et al., 2017) keeps the generality of operations exposed at the boundary, and thus, the same WM can also be used for our planetary exploration rover LRU2 (Lehner et al., 2018) (see also Section 7.6).

8.2.3.2 Setting the boundary where operations are reusable

The aforementioned guideline could lead to an extreme design to have the WM boundary right around the state. However, this leads to reuse of operations; i.e., it is against the DRY principle and Section 8.2.2.1. Thus, the WM boundary should be set so that the operations common and useful for multiple components are included within the WM.

9 Conclusion

In this review, we provided an overview of four decades of work on robotic WMs and classified concrete implementations in Sections 3, 7. The main contributions are to make design dimensions of WMs explicit (Section 5, 6) and to highlight the underlying principles that guide decisions on these WM design dimensions (Section 8.1) as well as the trade-offs that may be necessary when they are in conflict (Section 8.2).

We learned that the WM does not exist. Even when following the same guiding principles, good WM designs highly depend on the robotic system, the environment in which it operates, and the tasks it is expected to perform. The principles may well lead to a design where one robot has more than one WM, for instance, one for navigation and another for manipulation, as highlighted in Section 8.1.3.

A current trend is that the deep learning community is increasingly embracing the design of modular neural architectures and has also identified the WM as a necessary component within such designs. This trend—which we believe to be driven by the “low coupling, high cohesion” principle—is very much aligned with the stance in this review, even if the underlying implementation of states and operations as deep neural networks is quite different from the robotic WMs focused on in this review.

In Section 4, we saw that different WM boundaries lead to quite distinct interpretations of what a WM is and what it should encompass. However, all of these interpretations can well be referred to as a “world model,” and it is, thus, essentially a homonym for different concepts. By refining the terminology for WMs and their subcomponents and classifying existing approaches, our aim is to enable researchers to clarify what type of WM they are referring to and facilitate the motivation for their design and implementation.

One of the future research challenges we foresee is how to design a WM for future robotic systems to perform tasks in more realistic, less controlled scenarios. System complexity will increase by employing more novel and diverse hardware/software components, and new requirements will be posed to WMs. We expect the principles and guidelines discussed in Section 8 to promote the invention of novel, unforeseen WM designs.

Author contributions

RS, FL, AD, MS, and FS substantially contributed to the derivation of the definition of the world model (WM), as well as the identification of the important design dimensions of WMs. AA-S and FS contributed to the draft, format, and revision of the manuscript critically so that it has a consistent logical flow and provides a smooth introduction to the topic (e.g., by introducing Section 2 for language bootstrapping and splitting the case studies in Sections 3, 7). Every author contributed to the analyses and categorization of related work in the case studies in Section 7. All authors contributed to the article and approved the submitted version.

Funding

This work was supported by the project ARCHES (contract number ZT-0033), the project iFOODis (contract number KA2-HSC-06), and the project CoViPa (contract number KA1-Co-02), a grant from the Helmholtz Association’s Initiative and Networking Fund.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors, and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Footnotes

1We dropped the subscripts of A, H, w, and v for simplification since the main purpose is to bootstrap the terminology.

2https://subtchallenge.com/

3In practice, high-level components of the perception activity contain reasoning activities, which fall into the category of the “planning” in the classical concept, as shown in Figure 1. Therefore, in Figure 3, there is a dataflow from the WM to the perception components via the ask interface.

4The distinction between a robot and an environment becomes less clear in smart homes or when using Internet-of-things technology, as part of the robot’s sensing capabilities are delegated to the environment. Nevertheless, in mobile robotics, there typically is a robot that can be carried out of the environments. The thing being carried out is what we call the physical robot. The rest is the physical environment.

5Note that such properties are assumed to be permanent but hardly ever are intrinsically so. For instance, we do send robots to other planets and moons, renovations in houses do take place, and the kinematics of your robot may change after a hardware upgrade. It depends on the domain which assumptions one is willing to make about aspects that are permanent in the real world.

6Since the constant parameters never change during the robot operation, the design dimension time is by nature not applicable to the parameters.

7Note that operations can only write into the mutable state since the constant parameters cannot be changed as discussed in Section 5.2.

8Note that operations can read from both the mutable state and the constant parameters.

9Although this is similar to the ROS TF (see Section 7.3), the important difference to the ROS TF is that this WM aims to represent the world in a quasi-static, object-based manner with a higher level of abstraction.

10Note that the WM can be both a producer and a consumer. From the perspective of the tell interface, the WM is a consumer. From the perspective of the ask interface, the WM is a producer.

References

Agha, A., Otsu, K., Morrell, B., Fan, D. D., Thakker, R., Santamaria-Navarro, A., et al. (2021). “NeBula: quest for robotic autonomy in challenging environments; TEAM CoSTAR at the DARPA subterranean challenge,”. arXiv:2103.11470 [cs.RO]. [Online]. Available: https://arxiv.org/abs/2103.11470.

Google Scholar

Angelopoulou, E., Hong, T., and Wu, A. (1992). ““World model representations for mobile robots,”,” in Proceedings of the Intelligent Vehicles ‘92 Symposium, 293–297.

Google Scholar

Author anonymous (2022). “Yann lecun on a vision to make ai systems learn and reason like animals and humans.”. https://ai.facebook.com/blog/yann-lecun-advances-in-ai-research/.

Google Scholar

Bainomugisha, E., Carreton, A. L., Cutsem, T. v., Mostinckx, S., and Meuter, W. d. (2013). “A survey on reactive programming,”. ACM Comput. Surv. 45 (4), 1–34. doi:10.1145/2501654.2501666

CrossRef Full Text | Google Scholar

Bálint-Benczédi, F., Worch, J.-H., Nyga, D., Blodow, N., Mania, P., Márton, Z.-C., et al. (2019). “RoboSherlock: cognition-enabled robot perception for everyday manipulation tasks,”. arXiv:1911.10079 [cs.RO]. [Online]. Available: https://arxiv.org/abs/1911.10079.

Google Scholar

Bauer, A. S., Schmaus, P., Albu-Schäffer, A., and Leidner, D. (2018). ““Inferring semantic state transitions during telerobotic manipulation,”,” in 2018 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS) (IEEE), 1–9.

Google Scholar

Bauer, A. S., Schmaus, P., Stulp, F., and Leidner, D. (2020). ““Probabilistic effect prediction through semantic augmentation and physical simulation,”,” in 2020 IEEE International Conference on Robotics and Automation (ICRA), 9278–9284.

Google Scholar

Beetz, M., Beßler, D., Haidu, A., Pomarlan, M., Bozcuoğlu, A. K., and Bartels, G. (2018). ““Know Rob 2.0—a 2nd generation knowledge processing framework for cognition-enabled robotic agents,”,” in 2018 IEEE International Conference on Robotics and Automation (ICRA) (IEEE), 512–519.

Google Scholar

Beetz, M., Mösenlechner, L., and Tenorth, M. (2010). ““Cram — a cognitive robot abstract machine for everyday manipulation in human environments,”,” in 2010 IEEE/RSJ International Conference on Intelligent Robots and Systems, 1012–1017.

Google Scholar

Beetz, M., Bálint-Benczédi, F., Blodow, N., Nyga, D., Wiedemeyer, T., and Marton, Z.-C., “RoboSherlock: unstructured information processing for robot perception,”in 2015 IEEE International Conference on Robotics and Automation (ICRA). IEEE, 2015, pp. 1549–1556.

Google Scholar

Belkin, A., Kuwertz, A., Fischer, Y., and Beyerer, J. (2012). “World modeling for autonomous systems,”. Innov. Inf. Syst. Model. Tech. 1, 135–158. doi:10.5772/38190

CrossRef Full Text | Google Scholar

Blumenthal, S., Bruyninckx, H., Nowak, W., and Prassler, E. (2013). ““A scene graph based shared 3D world model for robotic applications,”,” in 2013 IEEE International Conference on Robotics and Automation (ICRA) (IEEE), 453–460.

Google Scholar

Brooks, R. A. (1986). “A robust layered control system for a mobile robot.”. IEEE J. Robot. Autom. 2 (1), 14–23. doi:10.1109/jra.1986.1087032

CrossRef Full Text | Google Scholar

Bruyninckx, H. (2021). “Building blocks for the design of complicated systems featuring situational awareness,”. https://robmosys.pages.gitlab.kuleuven.be/.

Google Scholar

Cavallo, A., Costanzo, M., De Maria, G., Natale, C., Pirozzi, S., Stelter, S., et al. (2022). “Robotic clerks: autonomous shelf refilling,”. Springer International Publishing, 137–170. ch. 6.

CrossRef Full Text | Google Scholar

Dömel, A., Kriegel, S., Kaßecker, M., Brucker, M., Bodenmüller, T., and Suppa, M. (2017). “Toward fully autonomous mobile manipulation for industrial environments,”. Int. J. Adv. Robotic Syst. 14 (4), 1729881417718588. doi:10.1177/1729881417718588

CrossRef Full Text | Google Scholar

Fang, Z., Bartels, G., and Beetz, M. (2016). ““Learning models for constraint-based motion parameterization from interactive physics-based simulation,”,” in 2016 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS) (IEEE), 4005–4012.

Google Scholar

Foote, T. (2013). ““tf: the transform library,”,” in Technologies for Practical Robot Applications (TePRA), 2013 IEEE International Conference on, ser. Open-Source Software workshop, 1–6.

Google Scholar

Fox, M., and Long, D. (2003). “PDDL2.1: an extension to PDDL for expressing temporal planning domains,”. J. Artif. Intell. Res. 20, 61–124. doi:10.1613/jair.1129

CrossRef Full Text | Google Scholar

Gat, E., Bonnasso, R. P., and Murphy, R. (1998). “On three-layer architectures,”. Artif. Intell. Mob. robots 195, 210.

Google Scholar

Ha, D., and Schmidhuber, J. (2018). “World models,”. CoRR abs/1803, 10122. [Online]. Available: http://arxiv.org/abs/1803.10122. doi:10.5281/zenodo.1207048

CrossRef Full Text | Google Scholar

Heim, R., Nazari, P. M. S., Ringert, J. O., Rumpe, B., and Wortmann, A. (2015). “Modeling robot and world interfaces for reusable tasks,” in 2015 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), 1793–1798.

Google Scholar

Hunt, A., and Thomas, D. (1999). “The pragmatic programmer. From journeyman to master,”. Addison-Wesley.

Google Scholar

Kitano, H., Asada, M., Kuniyoshi, Y., Noda, I., Osawa, E., and Matsubara, H., “Robocup: a challenge problem for AI and robotics,” in RoboCup-97: robot soccer world cup I, ser. Lecture notes in computer science, H. Kitano, Ed., vol. 1395. Springer, 1997, pp. 1–19. doi:10.1007/3-540-64473-3_46

CrossRef Full Text | Google Scholar

Landsiedel, C., Rieser, V., Walter, M., and Wollherr, D. (2017). “A review of spatial reasoning and interaction for real-world robotics,”. Adv. Robot. 31 (5), 222–242. doi:10.1080/01691864.2016.1277554

CrossRef Full Text | Google Scholar

Lay, F. S., Bauer, A. S., Albu-Schäffer, A., Stulp, F., and Leidner, D. (2022). “Unsupervised symbol emergence for supervised autonomy using multi-modal latent dirichlet allocations,”. Adv. Robot. 36 (1-2), 71–84. [Online]. Available:. doi:10.1080/01691864.2021.2007169

CrossRef Full Text | Google Scholar

LeCun, Y. (2022). “A path towards autonomous machine intelligence,”. https://openreview.net/pdf?id=BZ5a1r-kVsf.

Google Scholar

Lehner, P., Brunner, S., Dömel, A., Gmeiner, H., Riedel, S., Vodermayer, B., et al. (2018). ““Mobile manipulation for planetary exploration,”,” in IEEE Aerospace Conference, 1–11.

Google Scholar

Leidner, D., Borst, C., and Hirzinger, G. (2012). ““Things are made for what they are: solving manipulation tasks by using functional object classes,”,” in 2012 12th IEEE-RAS International Conference on Humanoid Robots (Humanoids 2012), 429–435.

Google Scholar

Leidner, D., Dietrich, A., Schmidt, F., Borst, C., and Albu-Schäffer, A. (2014). ““Object-centered hybrid reasoning for whole-body mobile manipulation,”,” in 2014 IEEE International conference on robotics and automation (ICRA) (IEEE), 1828–1835.

Google Scholar

Leidner, D. (2017). “Cognitive reasoning for compliant robot manipulation,”. Ph.D. Thesis. Bremen: Universität Bremen.

Google Scholar

Lomas, M., Cross, E., Darvill, J., Garrett, R., Kopack, M., and Whitebread, K. (2011). ““A robotic world model framework designed to facilitate human-robot communication,”,” in Proceedings of the SIGDIAL 2011 Conference, 301–306.

Google Scholar

Milliez, G., Warnier, M., Clodic, A., and Alami, R. (2014). ““A framework for endowing an interactive robot with reasoning capabilities about perspective-taking and belief management,”,” in The 23rd IEEE International Symposium on Robot and Human Interactive Communication, 1103–1109.

Google Scholar

Nilsson, N. J. (1984). ““Shakey the robot,”,” in AI center, SRI international (Menlo Park, CA, USA: Tech. Rep.).

Google Scholar

Quigley, M., Conley, K., Gerkey, B. P., Faust, J., Foote, T., Leibs, J., et al. “Ros: an open-source robot operating system,” in ICRA Workshop on Open Source Software, 2009.

Google Scholar

Roth, M., Vail, D., and Veloso, M. (2003). ““A real-time world model for multi-robot teams with high-latency communication,”,” in Proceedings 2003 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS 2003) (Cat. No.03CH37453), 3, 2494–2499.

Google Scholar

Schmidhuber, J. (1990). “Making the world differentiable: on using self supervised fully recurrent neural networks for dynamic reinforcement learning and planning in non-stationary environments,”. Ser. Forschungsberichte Künstliche Intell. Inst. für Inf. 126.

Google Scholar

Schuster, M. J., Brunner, S. G., Bussmann, K., Büttner, S., Dömel, A., Hellerer, M., et al. (2017). “Towards autonomous planetary exploration: the lightweight rover unit (LRU), its success in the SpaceBotCamp challenge, and beyond,”. J. Intelligent Robotic Syst. (JINT) 93, 461–494. doi:10.1007/s10846-017-0680-9

CrossRef Full Text | Google Scholar

Schuster, M. J., Müller, M. G., Brunner, S. G., Lehner, H., Lehner, P., Sakagami, R., et al. (2020). “The ARCHES space-analogue demonstration mission: towards heterogeneous teams of autonomous robots for collaborative scientific sampling in planetary exploration,”. IEEE Robotics Automation Lett. (RA-L) 5 (4), 5315–5322. doi:10.1109/lra.2020.3007468

CrossRef Full Text | Google Scholar

Schuster, M. J., Schmid, K., Brand, C., and Beetz, M. (2018). “Distributed stereo vision-based 6d localization and mapping for multi-robot teams,”. J. Field Robotics (JFR) 36, 305–332. [Online]. Available:. https://onlinelibrary.wiley.com/doi/abs/10.1002/rob.21812. doi:10.1002/rob.21812

CrossRef Full Text | Google Scholar

Schuster, M. J. (2019). “Collaborative localization and mapping for autonomous planetary exploration: distributed stereo vision-based 6D SLAM in GNSS-denied environments,”. Ph.D. dissertation, University of Bremen. [Online]. Available: http://nbn-resolving.de/urn:nbn:de:gbv:46-00107650-19.

Google Scholar

Shoemake, K. (1985). “Animating rotation with quaternion curves,”. SIGGRAPH Comput. Graph. 19 (3), 245–254. [Online]. Available:. doi:10.1145/325165.325242

CrossRef Full Text | Google Scholar

Smith, M. K., Welty, C., and McGuinness, D. L. (2004). “OWL web ontology language guide,”. https://www.w3.org/TR/2004/REC-owl-guide-20040210/DesignForUse.

Google Scholar

Stulp, F., Utz, H., Isik, M., and Mayer, G. (2010). ““Implicit coordination with shared belief: a heterogeneous robot soccer team case study,”,” in Advanced robotics, the international journal of the robotics society of Japan.

Google Scholar

Taniguchi, T., Murata, S., Suzuki, M., Ognibene, D., Lanillos, P., Ugur, E., et al. (2023). “World models and predictive coding for cognitive and developmental robotics: Frontiers and challenges,”.

Google Scholar

Tenorth, M., and Beetz, M. (2013). “KnowRob: a knowledge processing infrastructure for cognition-enabled robots,”. Int. J. Robotics Res. 32 (5), 566–590. doi:10.1177/0278364913481635

CrossRef Full Text | Google Scholar

Triggs, B., and Cameron, S. (1991). ““The Oxford robot world model,”,” in Expert systems and robotics (Springer Berlin Heidelberg), 275–284.

CrossRef Full Text | Google Scholar

Warnier, M., Guitton, J., Lemaignan, S., and Alami, R. (2012). ““When the robot puts itself in your shoes. managing and exploiting human and robot beliefs,”,” in 2012 IEEE RO-MAN: The 21st IEEE International Symposium on Robot and Human Interactive Communication, 948–954.

Google Scholar

Welch, G., and Bishop, G. (1995). “An introduction to the Kalman filter,”. University of North Carolina at Chapel Hill, 95–041. Tech. Rep.

Google Scholar

Winkler, J., Bartels, G., Mösenlechner, L., and Beetz, M. (2012). ““Knowledge enabled high-level task abstraction and execution,”,” in First Annual Conference on Advances in Cognitive Systems, 131–148. Citeseer.21

Google Scholar

Wu, P., Escontrela, A., Hafner, D., Abbeel, P., and Goldberg, K. (2022). ““Daydreamer: world models for physical robot learning,”,” in 6th Annual Conference on Robot Learning. [Online]. Available: https://openreview.net/forum?id=3RBY8fKjHeu.

Google Scholar

Yourdon, E., and Constantine, L. L. (1979). “Structured design: fundamentals of a discipline of computer program and systems design,”. Yourdon Press.

Google Scholar

Keywords: world model, state representation, software architecture for robotics and automation, environment modeling, autonomous robots

Citation: Sakagami R, Lay FS, Dömel A, Schuster MJ, Albu-Schäffer A and Stulp F (2023) Robotic world models—conceptualization, review, and engineering best practices. Front. Robot. AI 10:1253049. doi: 10.3389/frobt.2023.1253049

Received: 04 July 2023; Accepted: 10 October 2023;
Published: 02 November 2023.

Edited by:

Emre Sariyildiz, University of Wollongong, Australia

Reviewed by:

Séverin Lemaignan, Pal Robotics S.L., Spain
Aibek Niyetkaliyev, Nazarbayev University, Kazakhstan

Copyright © 2023 Sakagami, Lay, Dömel, Schuster, Albu-Schäffer and Stulp. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.

*Correspondence: Ryo Sakagami, ryo.sakagami@dlr.de

Disclaimer: All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
